DEVANSH GOSHAR

“ I am a highly motivated, creative and detail oriented person. A hands-on team player and a strategic thinker. I am passionate about design and a believer in rigorours performance standards. In a society of constant social change, climate change and material scarcity; I believe that architecture needs to be highy efficient in its spatial, material, structural and environmental performance. Such quality can be achieved through the use of sound logic, collabration at every level of the design process, technology and computational power we posses today. I am also interested in fashion and product design. I am willing to put in sincere effort to extend and expand my skills to be a valuable part of your team.”

Architect Association

AADRL: M.Arch in Architecture & Urbanism

Grade: To be Recieved

2021- 2023

Sadguru Prerna

2020-Ongoing

2019-2020

Rachna Sansad’s: Academy of Architecture

SGPI: 9.78, CGPI: 8.33, Certificate for Best Thesis

H.R College of Commerce & Economics

Grade: 93.4% Distinction

Campion School

Grade: 92.4% Distinction

Onsite Volunteer: 200 Acres Ubran development of SRMD Ashram in Dharampur, India.

Morphogensis Architects

Work- Experience

2016- 2021

2014- 2016

2003- 2014

+44 7555639231 1 / 03 /1998 DOB

London, UK devansh.goshar@aaschool.ac.uk

2021- 2023

Education

M.Arch in Architecture & Urbanism

Architecture Association, Design Research Lab (DRL)

Grade: To be Recieved

Technical Skills

Rhinoeros 3d (Certified)

Grasshopper 3d

Autodesk Maya

Autodesk Revit (Certified)

2016- 2021

Bachelor of Architecture

Academy of Architecture, Mumbai

SGPI: 9.78, CGPI: 8.33. Distinction

Sketch Up

Autodesk AutoCad

Unreal Engine

Twin Motion

2014- 2016

2003- 2014 2019

2018- Ongoing

2022- Ongoing

2020- Ongoing

H.R College of Commerce & Economics, Mumbai

Grade: 93.4% Distinction

Campion School, Mumbai

Grade: 92.4% Distinction

Work-Experience

Morphogensis Architects

Term: 6 months

Founder: Manit Rastogi

Leading Architecture Practise in India

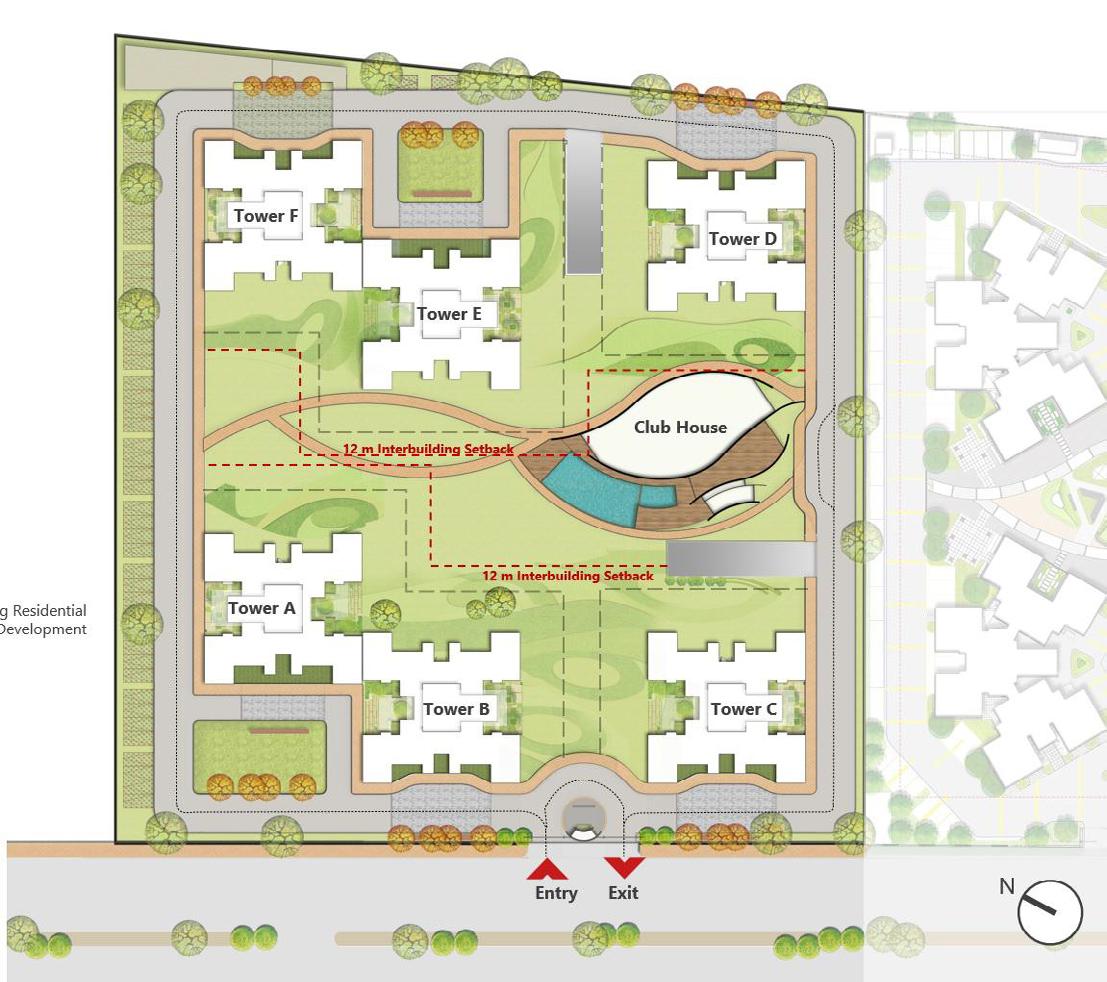

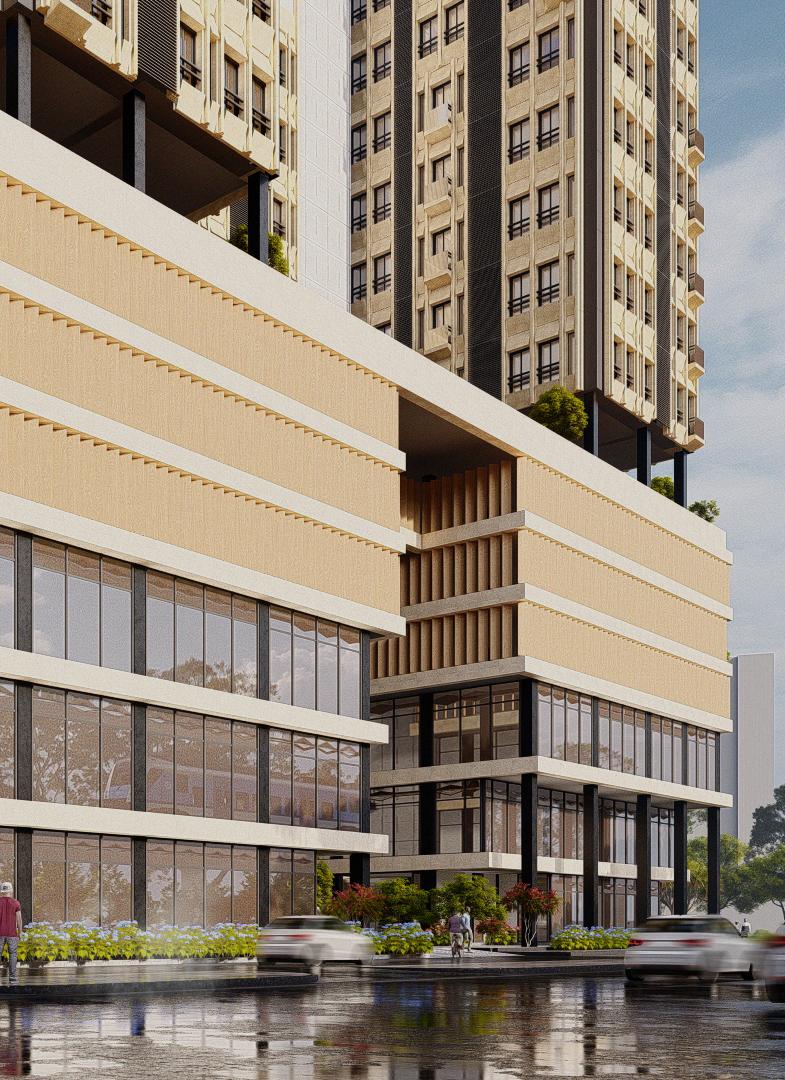

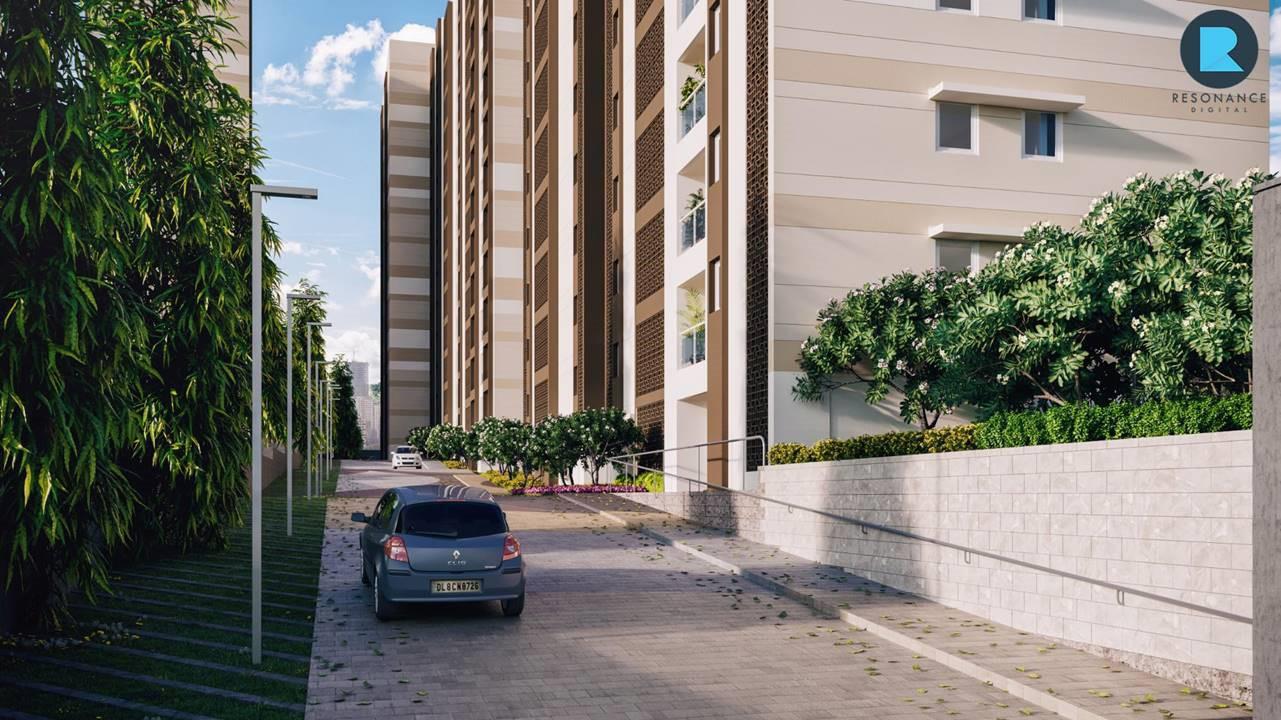

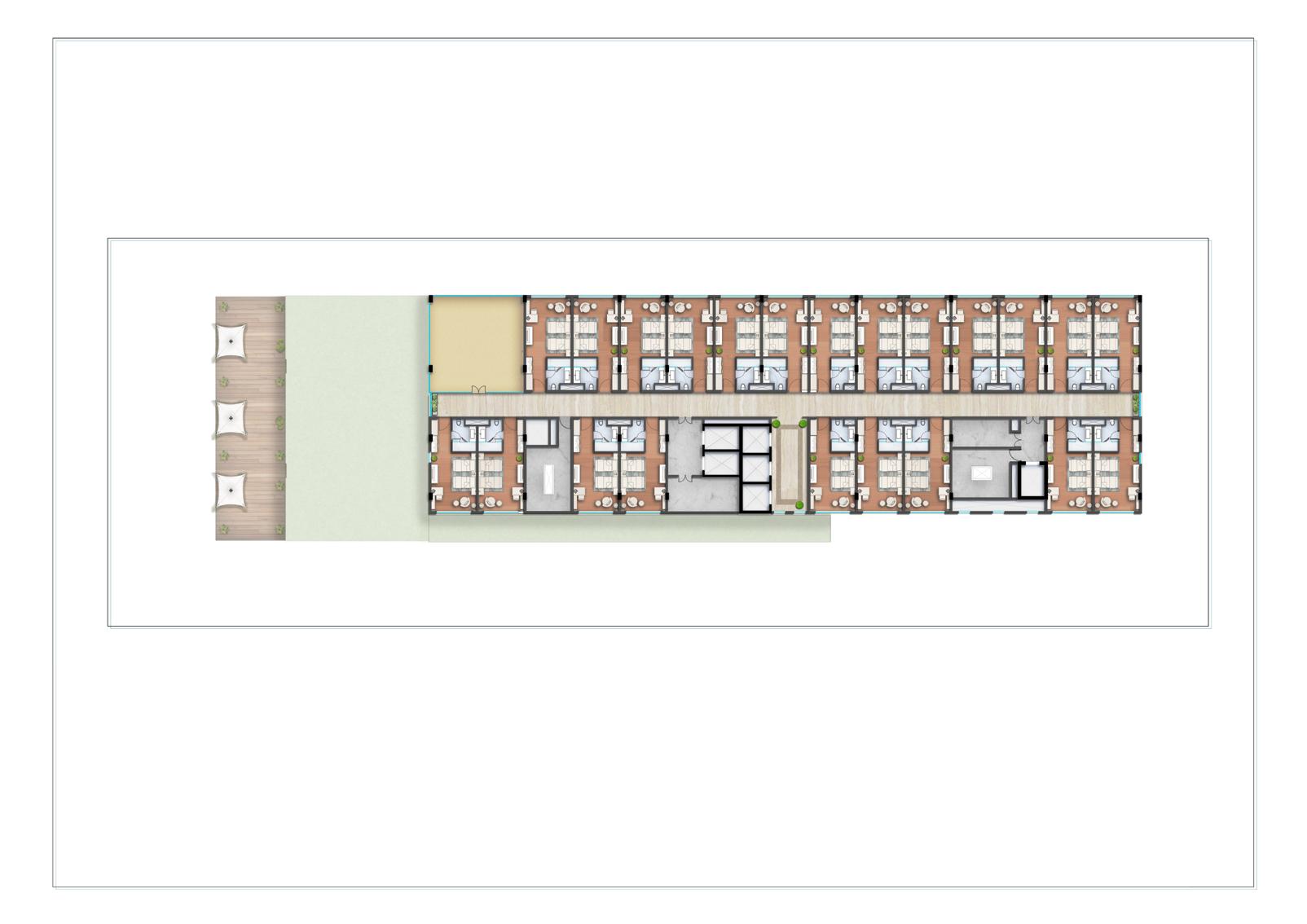

Projects: High Density Residential, Commercial Park, 5 Star Hotel

Worked on: Conept Design, Design Development & Working Drawings

GalaComp

Term: 1 year along with Undergraduate Course

Developer in Mumbai

Projects: Mixed Use Builidng

Worked on: Design Development , Facade Design, Onsite inspection

Aelios Solutions: Digital Marketing

Founder: Shamit Gandhi

Company: Fully Integrated Digtial Marketing Agency

Project: Graphics for Moveda

Role Designing unique static content for performance marketing for Moveda.

Adobe Photoshop

Adobe Indesign

Adobe Premier Pro

Adobe After Effects

Microsoft Power Point

Phython

C#

Advanced Advanced Advanced Intermediate Advanced Advanced Intermediate Advanced Advanced Intermediate Intermediate Intermediate Advanced Beginner Intermediate

Courses & Workshops

Site-Planning Online

By edX. MITx

Circular Economy

By edX. MITx

Rhino Architecture

By Blue-Stone LTD

Exploring Patterns

By College of Architecture, Nasik

Bamboo & Brick Masoanry

By Govardhan Eco Village, Maharastra

Building Restoration

By AOA, Mumbai

Timber Roof Systems

Palgar, Maharastra

Acoustic Ceilings

By Armstrong Ceiling Soltions

Higher Secondary ICSE Certified Un-Certified Certified Certified Certified Certified Certified Certified Certified

Biomemetic Footwear

By Design Morphine

Awards & Merits Service

Sadguru Prerna

Term: ongoing from 2020

Project: Expansion of SRMD Ashram over 200 acres

Role: Volunteer

Worked on: Onsite Inspection, Detail Drawings, Landscape, Solar Power Plant.

2020- 2021

1ST Position in Design Dessertation

Semester 10, Undergraduate Architecture

1ST Position in Semester 10

Academy of Architecture,Undergraduate Architecture.

1. Phoenix

Urban Development of a Retail and Cultural district through Reuse and Demolition, Mass Customization and the design of a participatory platform in form of a user centric game.

2. Fishy Mumbai

Rejuvanting Sasson Docks through the design of a New Fish Market.

3. 3D Drawing Machine

Designing and prototyping compression friendly structures through hanging experiments, simulations and robotic arm manufacturing

4. Pause from... Permanence

Award: Best Design Dissertation

Design of a mixed use tower through design for dissasmbley, flexibility, material life-cycles and environment sustainibility.

5. Coding

Using Python Coding to Generate building form.

6. Work- Experience

Morphogenesis Architects, GalaComp

Table of Contents

3d

Rendered on Unreal Engine 5, designed on Maya & Rhino

1. Phoenix

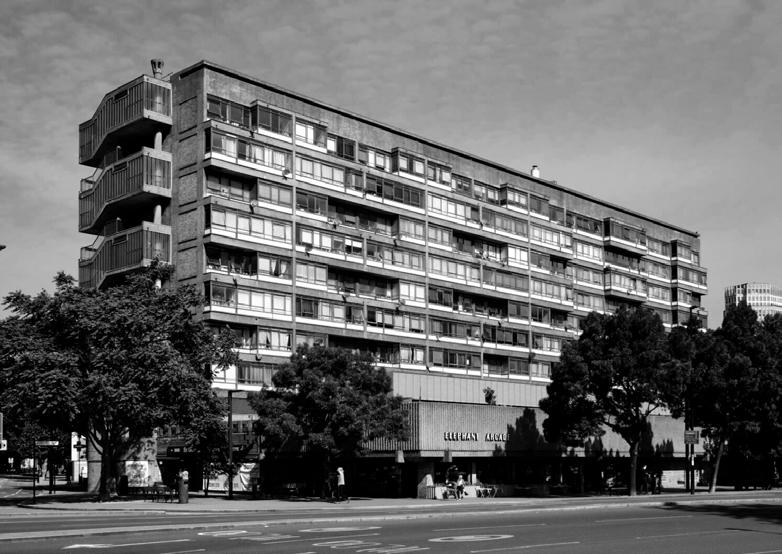

As London grows, RCC buildings are being demolished prematurely and replaced with new developments within city centres. This presents a significant opportunity for the reuse of materials, as it is estimated that this massive demolition waste can be reused in creating as much as 4 million sqm of spaces.

Project Phoenix employs structured deconstruction to mine concrete quads from these proposed buildings for reusing them in new construction. To investigate the potential of the reusing concrete quads to create new and exciting spaces, Curved Crease Folding (CCF) is used as the primary design method for generating form. 3D CCF forms can be rationalised using 2D planar quads allowing for the use of reused concrete quads to create component based spatial modules. Further, CCF forms can be assembled from 2D to 3D by actuating specific points in the geometry thus simplifying fabrication processes.

Further, the concept of Genotypes and Phenotypes is employed in the design of spatial assets to allow for mass customisation and mass production making the design more user centric.

Finally, a gamified platform that helps stakeholders reach consensus, implements architectural proposals, enables users to visualize and interact with their environment in a virtual space is coded.

Learnings: Material ID systems, Genotypical and Phenotypical Systems, creating new structural tectonics, participatory tools and platforms, gamfication and negotiation, architectural geometry.

Skills gained: Maya, Grasshopper, Unreal Engine & Fabrication

3d

Rendered on Unreal Engine 5, designed on Maya and Rhino

Identifying & Surveying

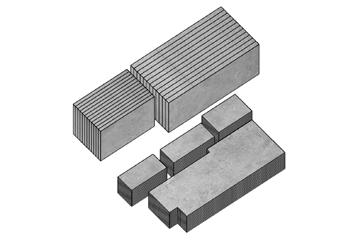

Structural Deconstruction

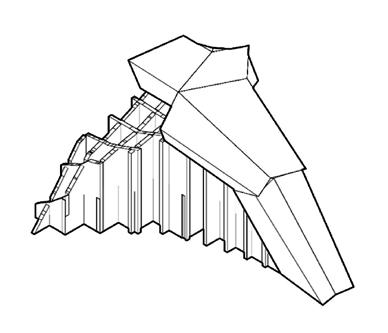

Qualification & Material ID

Material & Geometry Negotiation

Processing Assembly & Actuation Buildings in a 1 mile radius selected for Demolition

Lintel

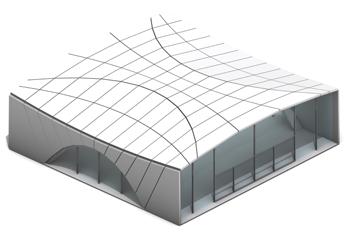

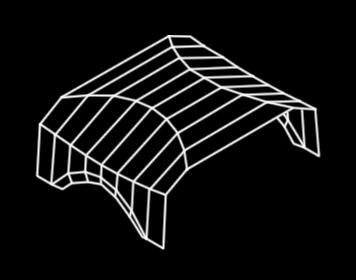

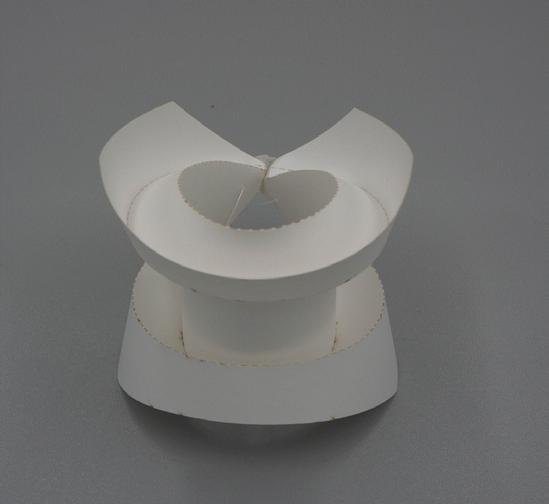

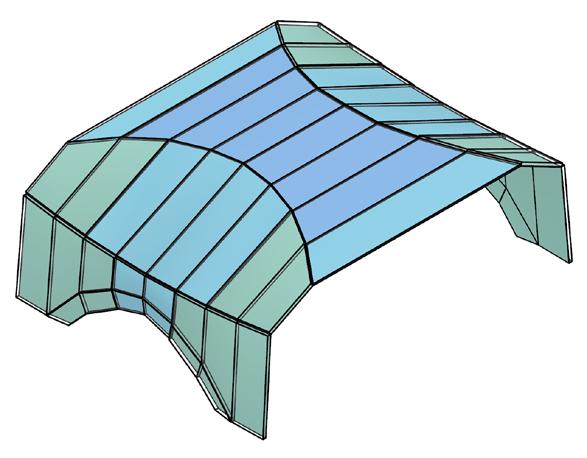

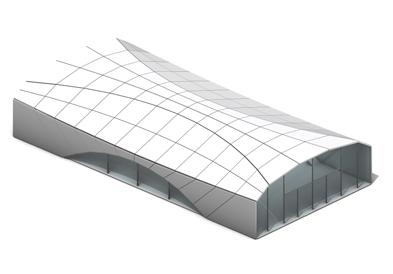

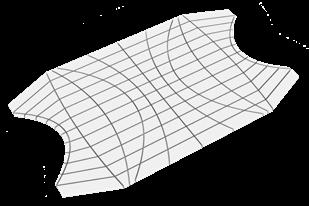

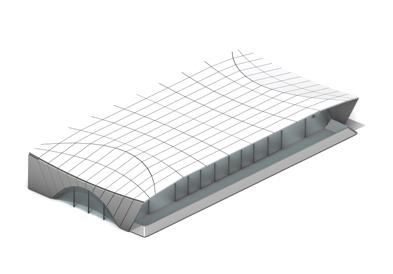

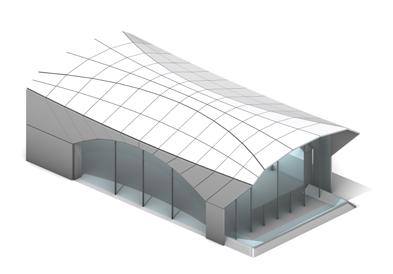

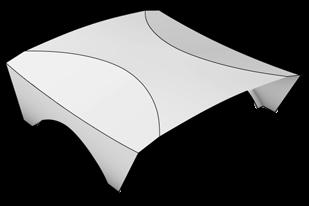

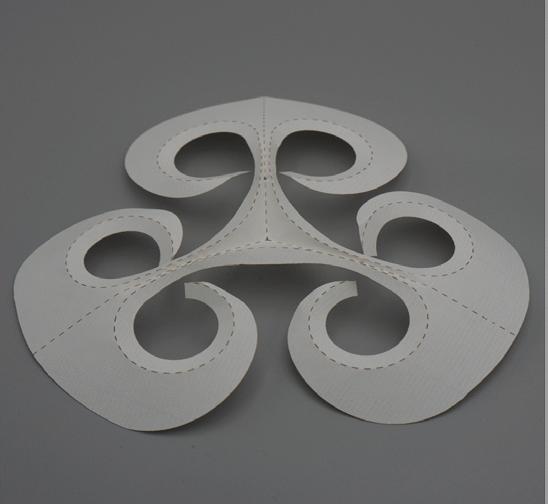

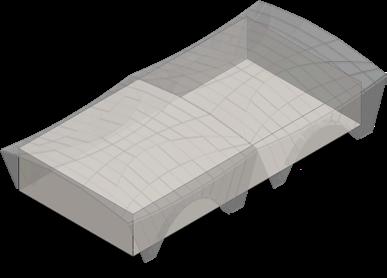

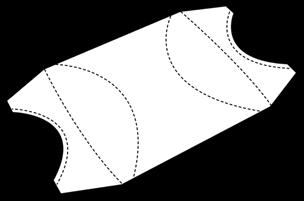

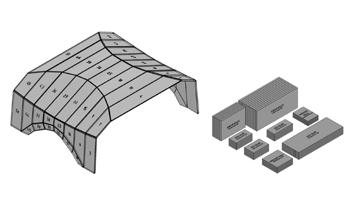

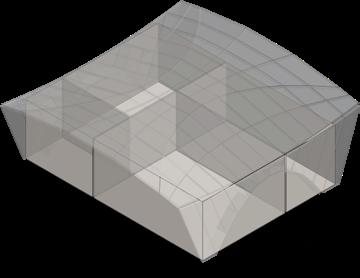

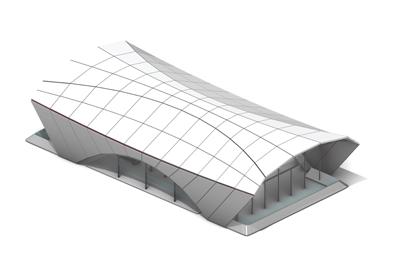

Form Finding with 2d Sheet Folded at Curves into 3d Form

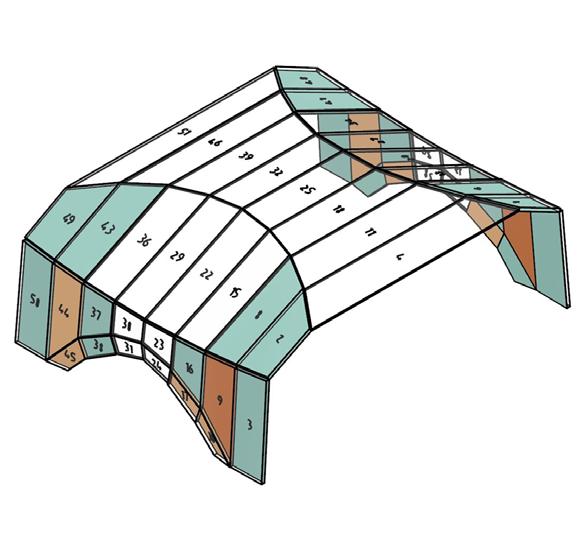

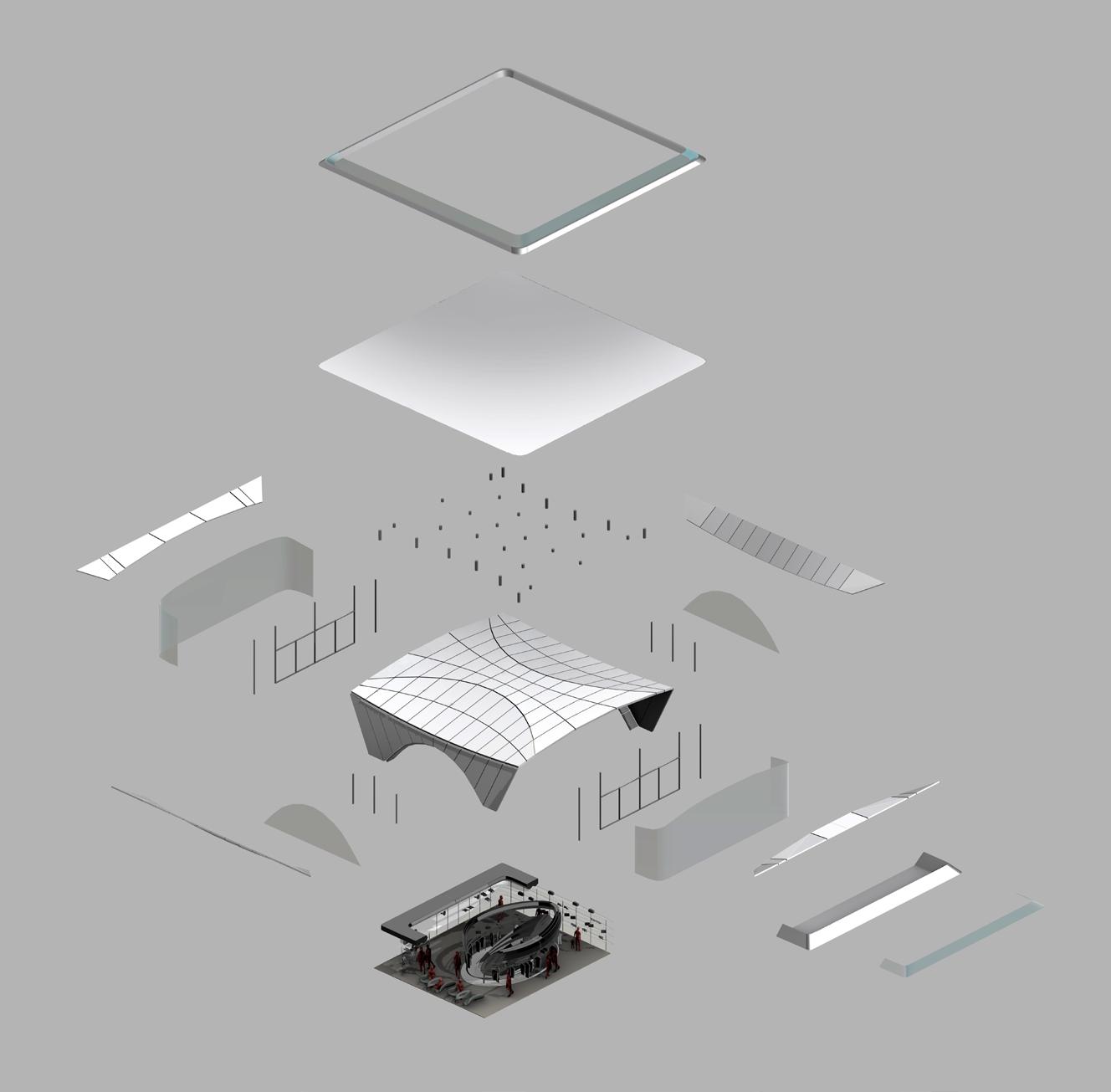

into Planar Quads Module of Reused Concrete Quads Enclosing Structural Module Addition of Floor Slab

Rationalised

Concrete Slabs

Shell From Reused

Metal

Crease Folding

Interiors made from

Curve

Concrete Slabs

From Reused

Access Floor Glass Handrail

Pedestals Raised

3d

Rendered on Unreal Engine 5, designed on Maya & Rhino

Facing River Facing Garden & River Facing Tate & River Facing Bridge In the Middle Facing Tate in the Middle Large Span Facing Bridge & River Facing River Double Hieght Top Module Facing Bridge & River on the Top Facing Garden & River & Bridge on the Top Facing Garden & River & Bridge on the Top Facing Garden & River on the Top Facing River on the Top Facing Bridge on the TopShape

+

Simulation on Unreal Engine 5, designed on Maya & Rhino 3d

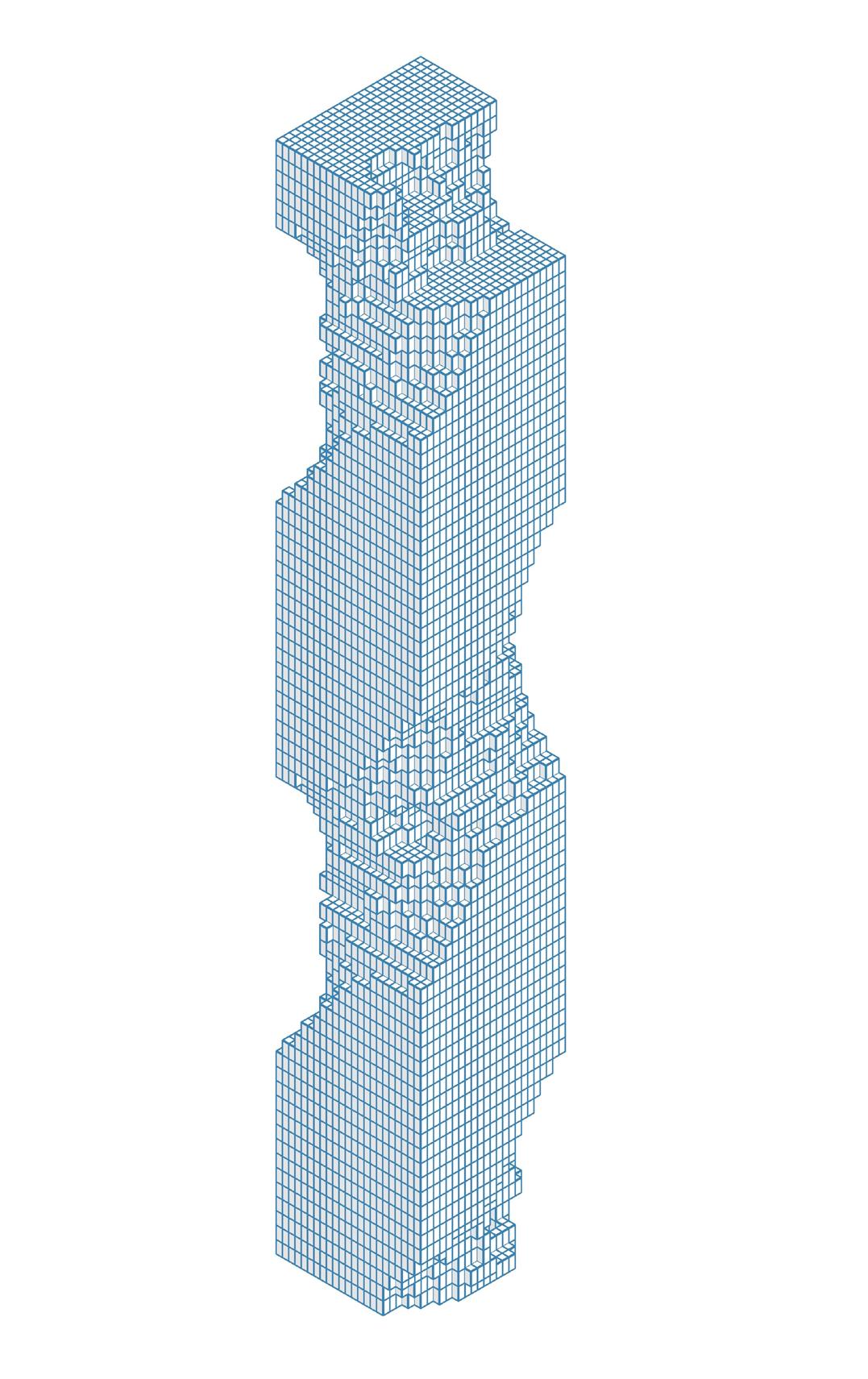

Voxel Aggregation Aggregation Simulation Aggregation Simulation Aggregation Simulation Aggregation Simulation Voxel Aggregation + River + Bridge

Garden Voxel Aggregation + River + Bridge + Garden +Tate Modern Voxel Aggregation + River

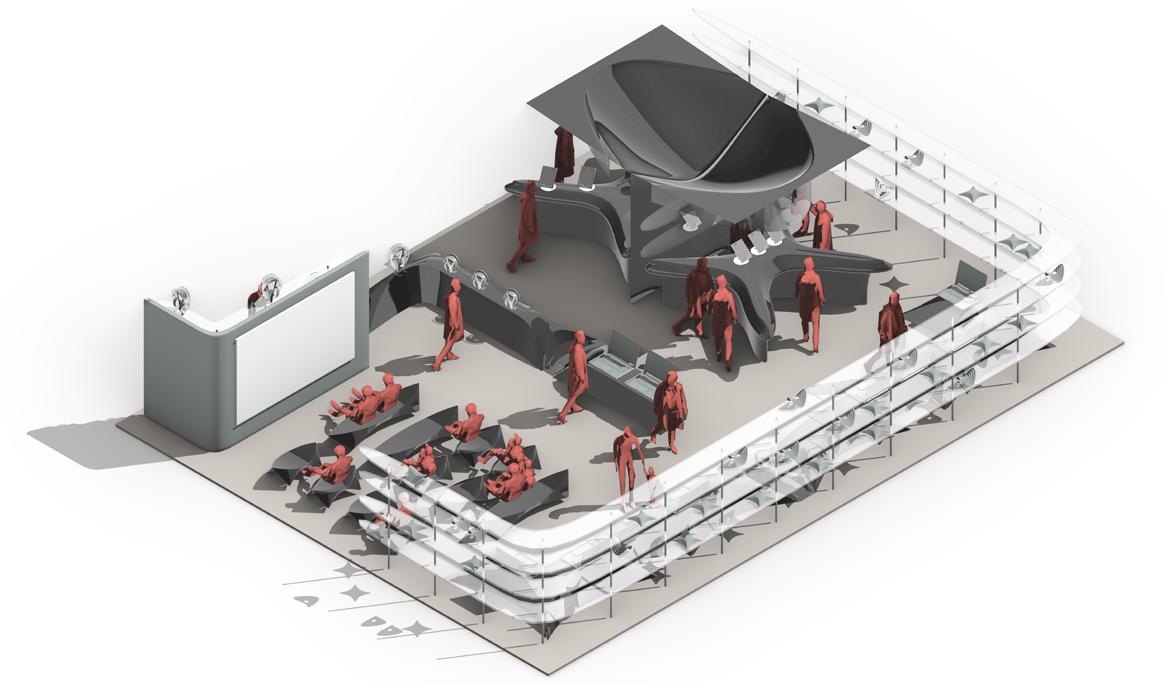

Type A Voxel Database Type A Voxel Database Picture Gallery Pavillion Display Screen Kitchen Cloth Display Shelf Sculpture Gallery Display Shelf Salad Bar Reception Book Shelf Stage Stairs Seating Reception Food Shelf Seating Display Seating Plant Gallery Passage Shelf Type B Voxel Database Type C Voxel Database

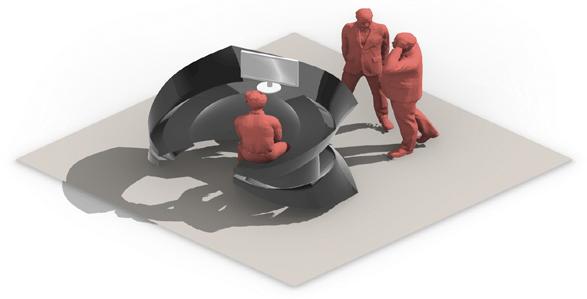

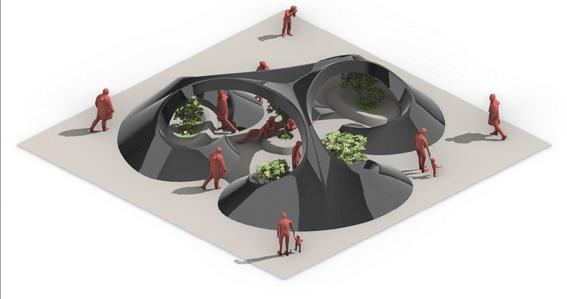

Type A Voxel: Plant Gallery Type A Voxel: Reception Type A Voxel: Seating

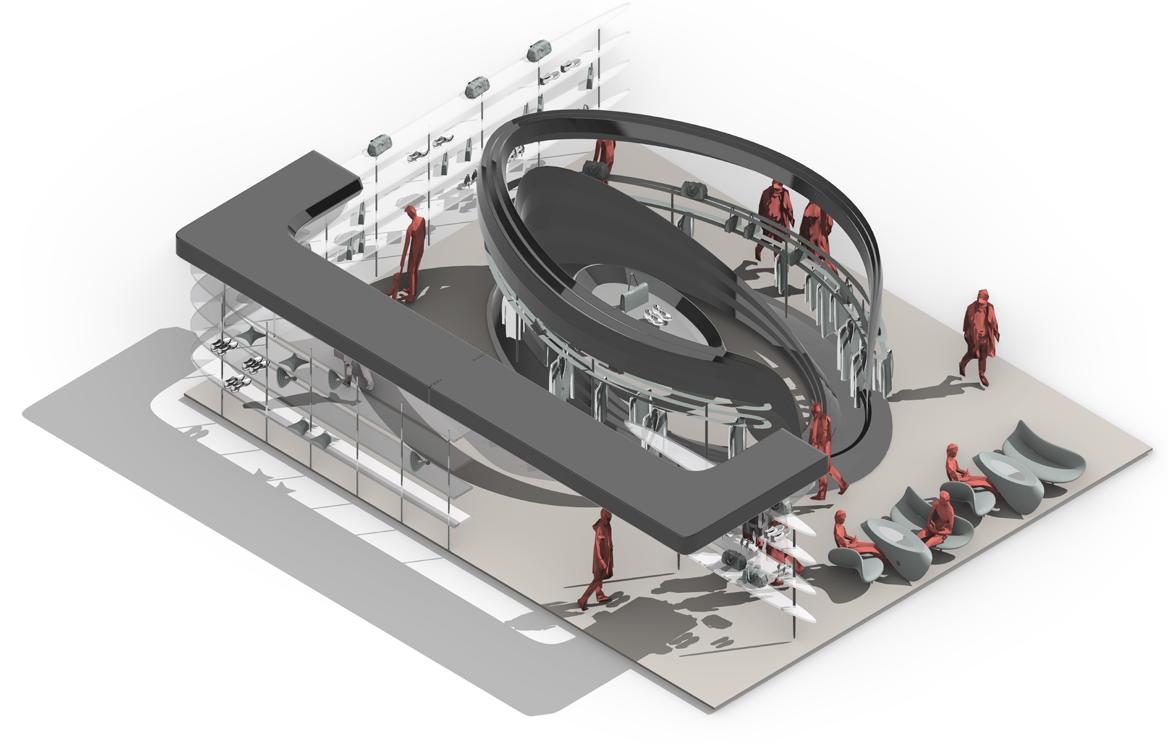

Type A Voxel Aggregation: Fashion Outlet, Voxel Count: 6 Type A Voxel Aggregation: Electric Product Shop, Voxel Count: 6

Type A Voxel Aggregation: Book Store, Voxel Count: 6 Type A Voxel Aggregation: Gallery, Voxel Count 8

3d

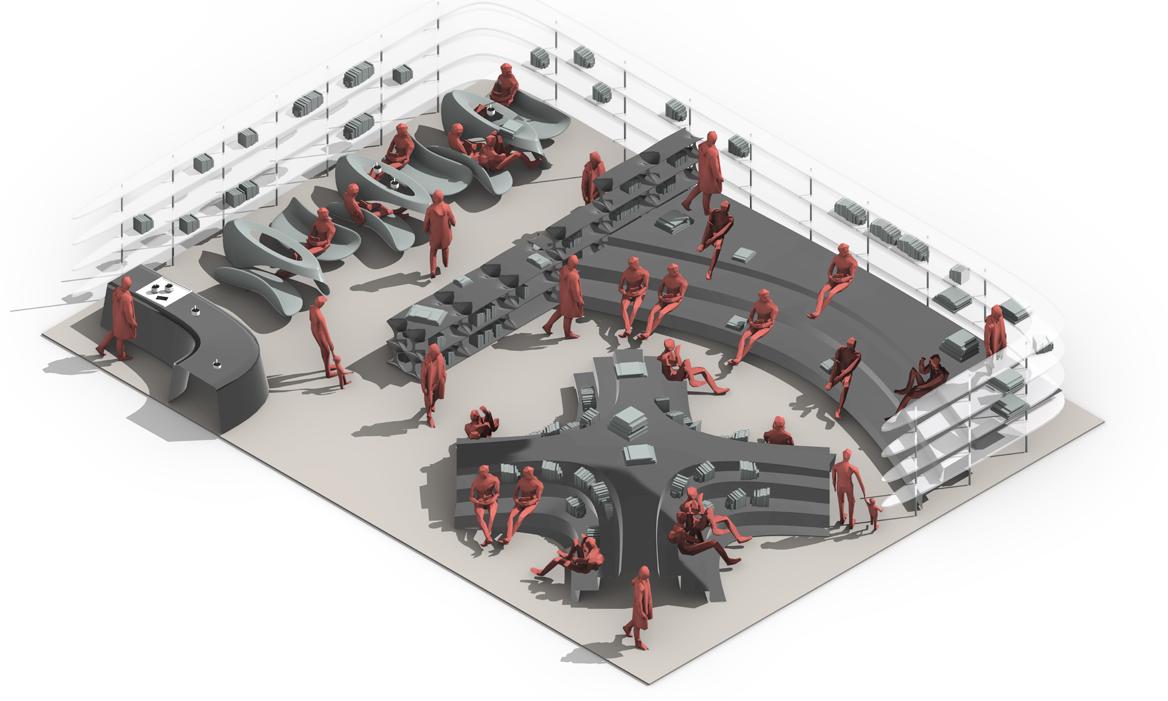

Voxel Type B: Dance Studio, Rendered on Unreal Engine 5, designed on Maya & Rhino

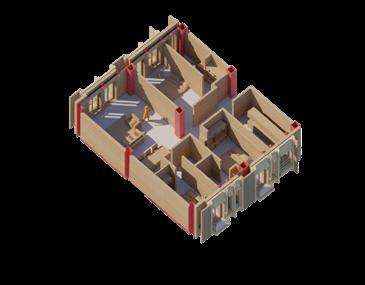

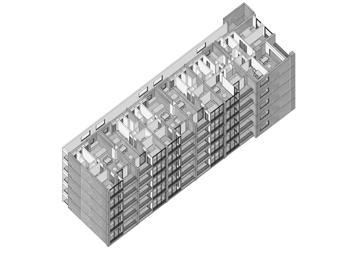

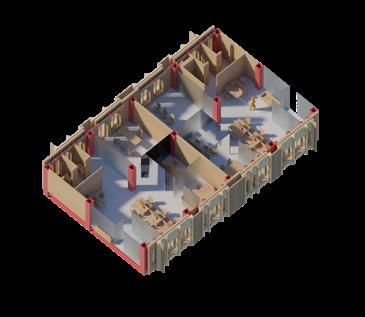

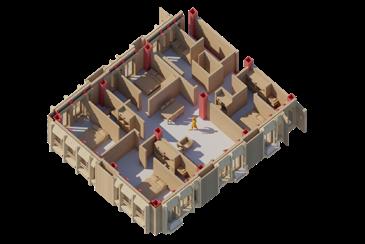

Residential Short Term Aggregation: Large: B2-B2-B2-L3-K2-T2

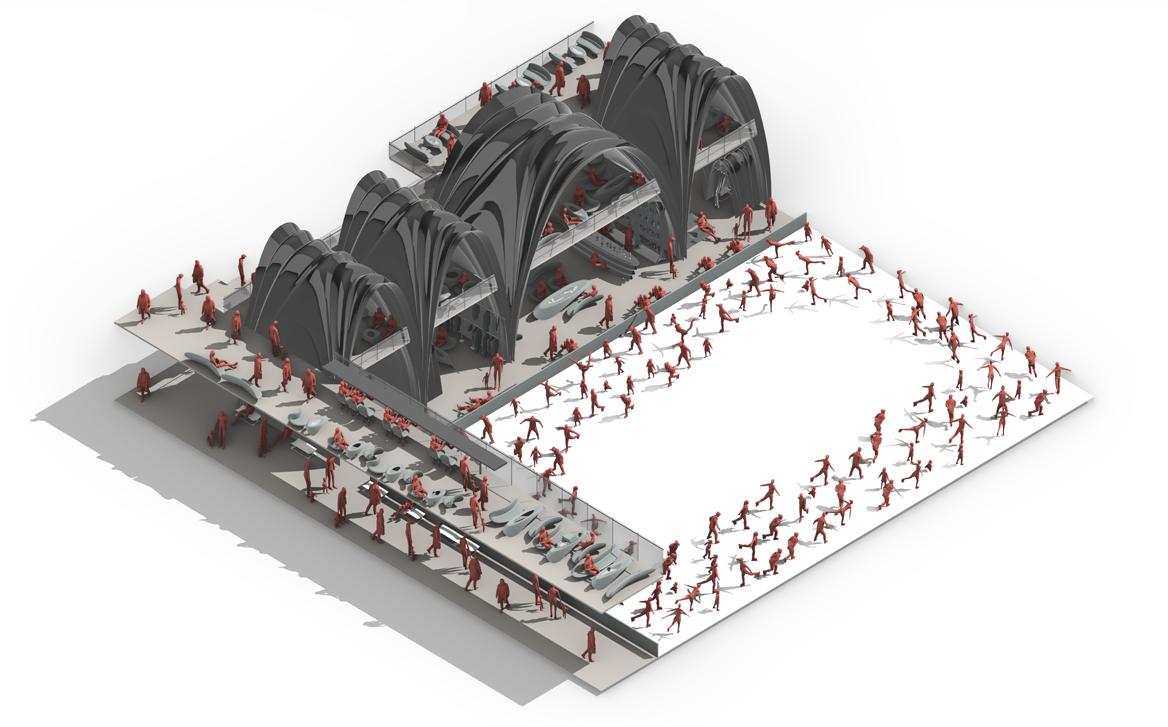

Voxel Type C: Ice- Skating

Short Term Residential Aggregations Short Term Residential Aggregations

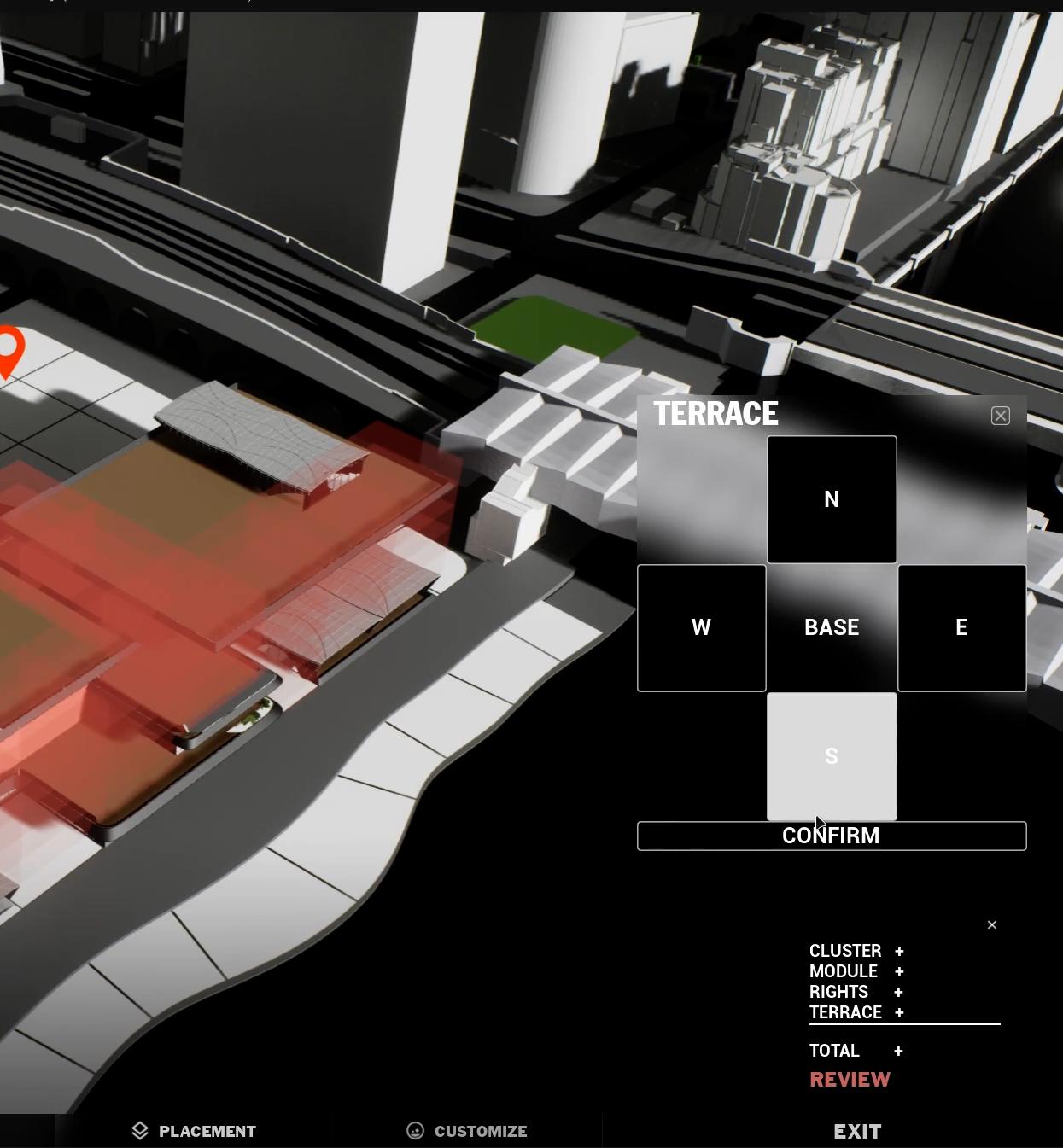

Game Simulations

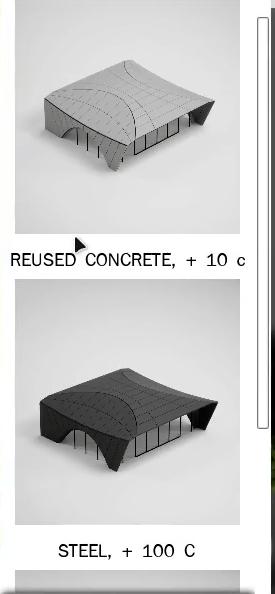

User centric game that allows users to negotiate different aspects of the design: here terrace negotiations take place to increase views to the Thames.

1/6

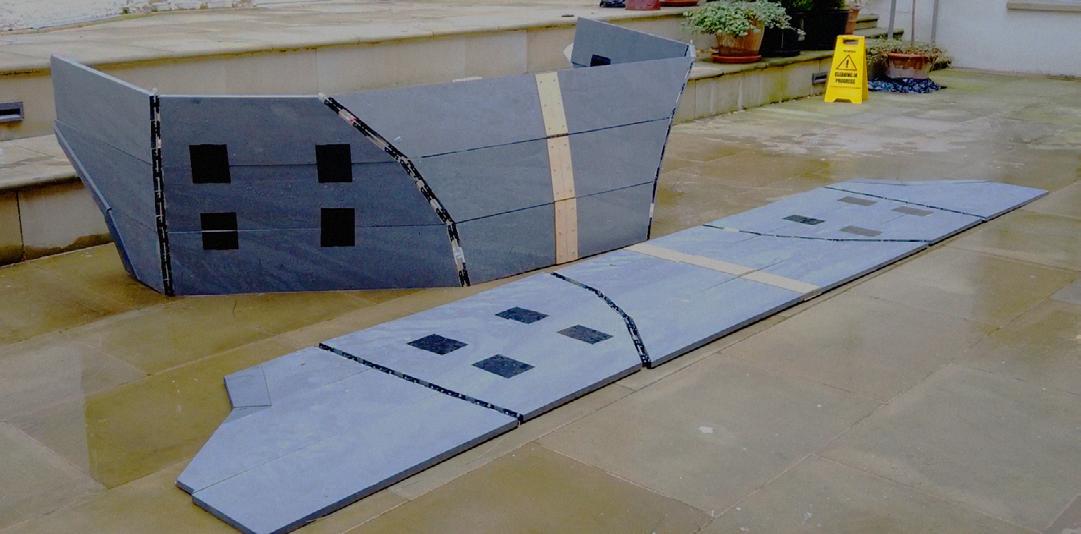

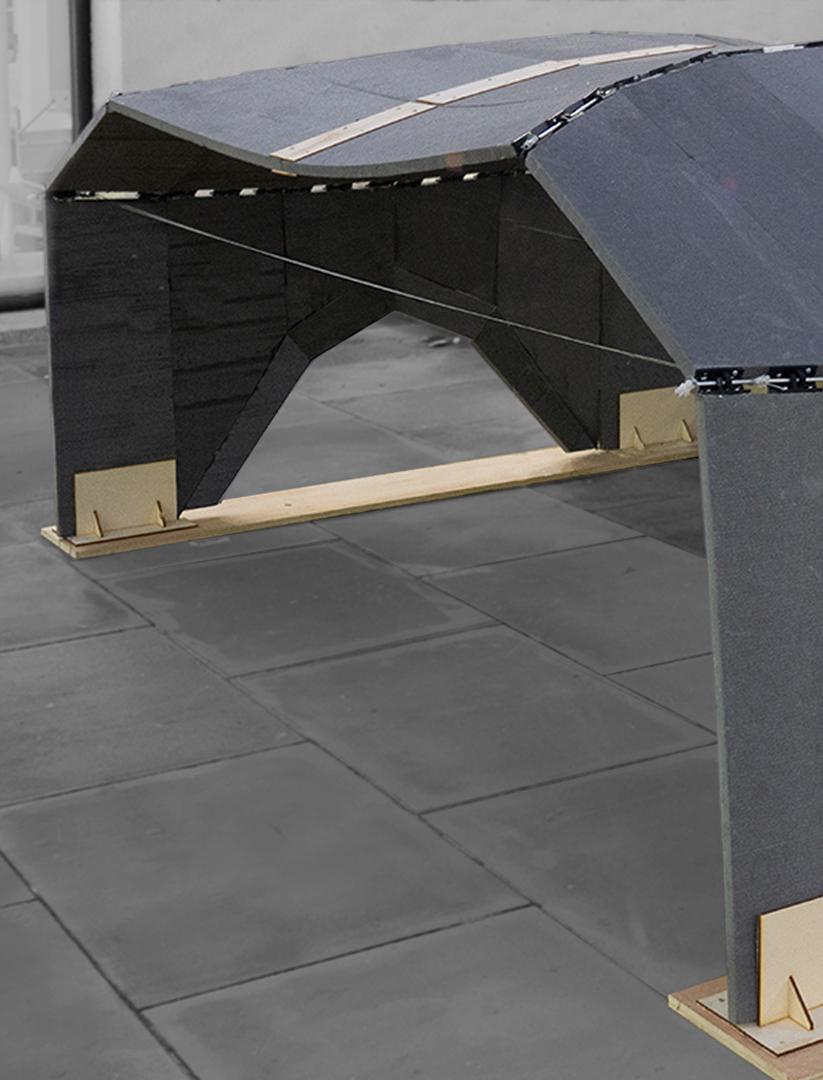

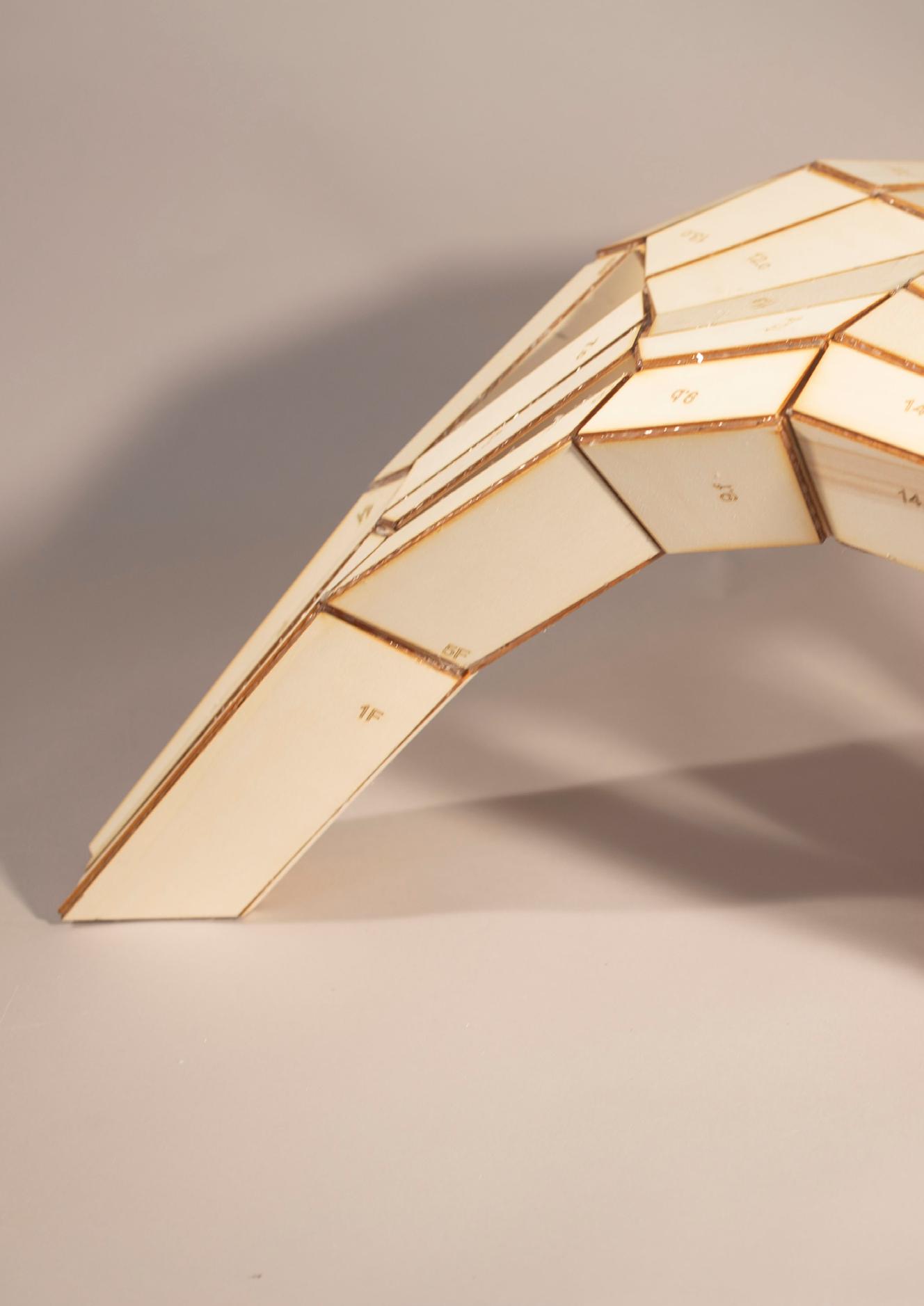

Scale Prototype of the Structural Module

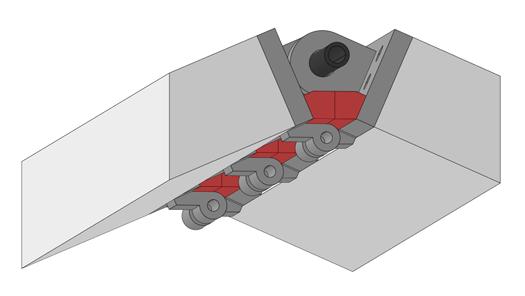

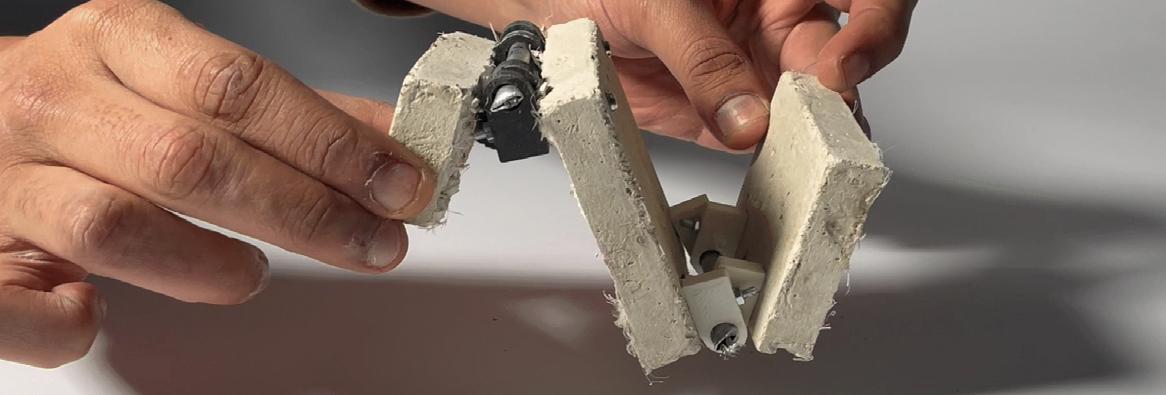

1/2 Scale Hinge Detail 1/2 Scale Hinge Detail: Actuation and Angle Lock Hinge allowd Rotation till a Specific Angle Fixed Frame Joint through Locking System

Actuation of the Form: 1st Points Set Actuation of the Form: 2nd Points Set Module is Actuated from 2D to 3d in 2 components due to Weight

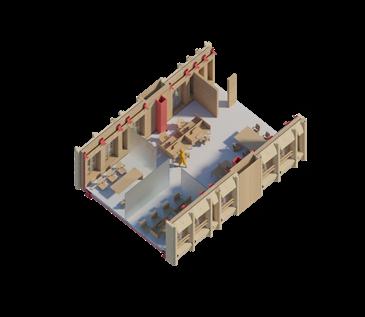

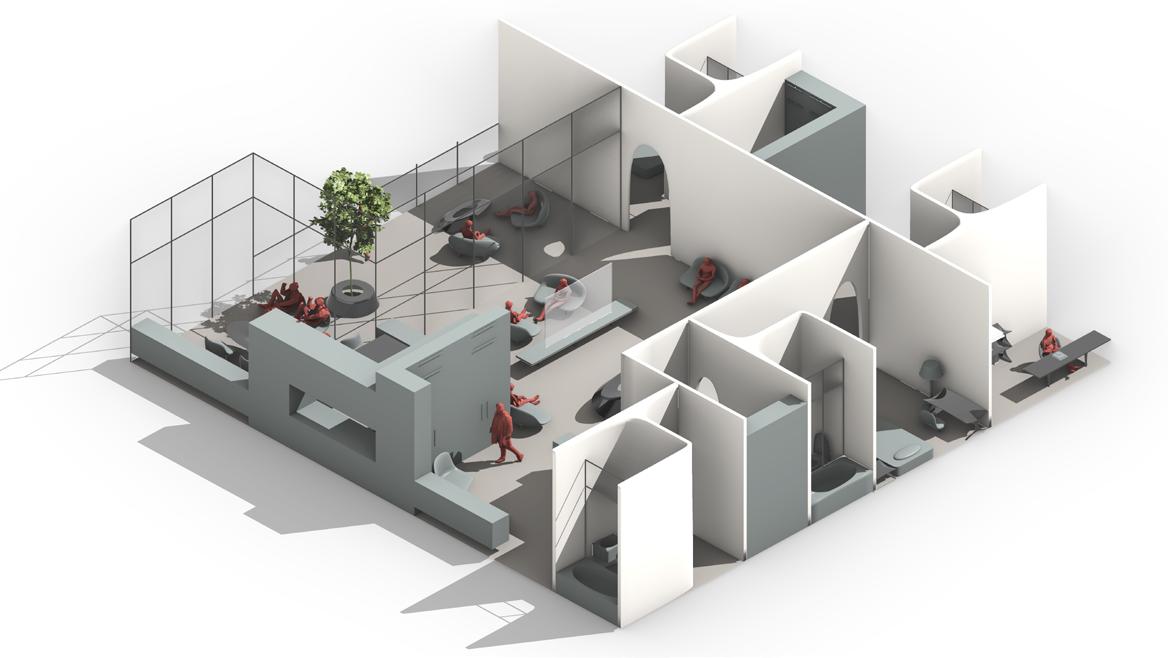

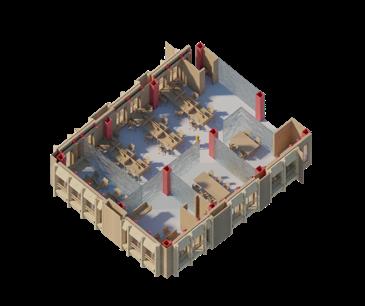

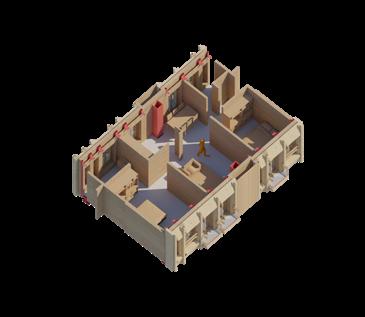

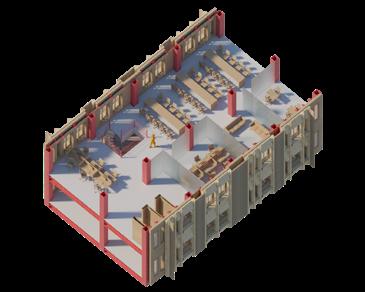

Interiors Model

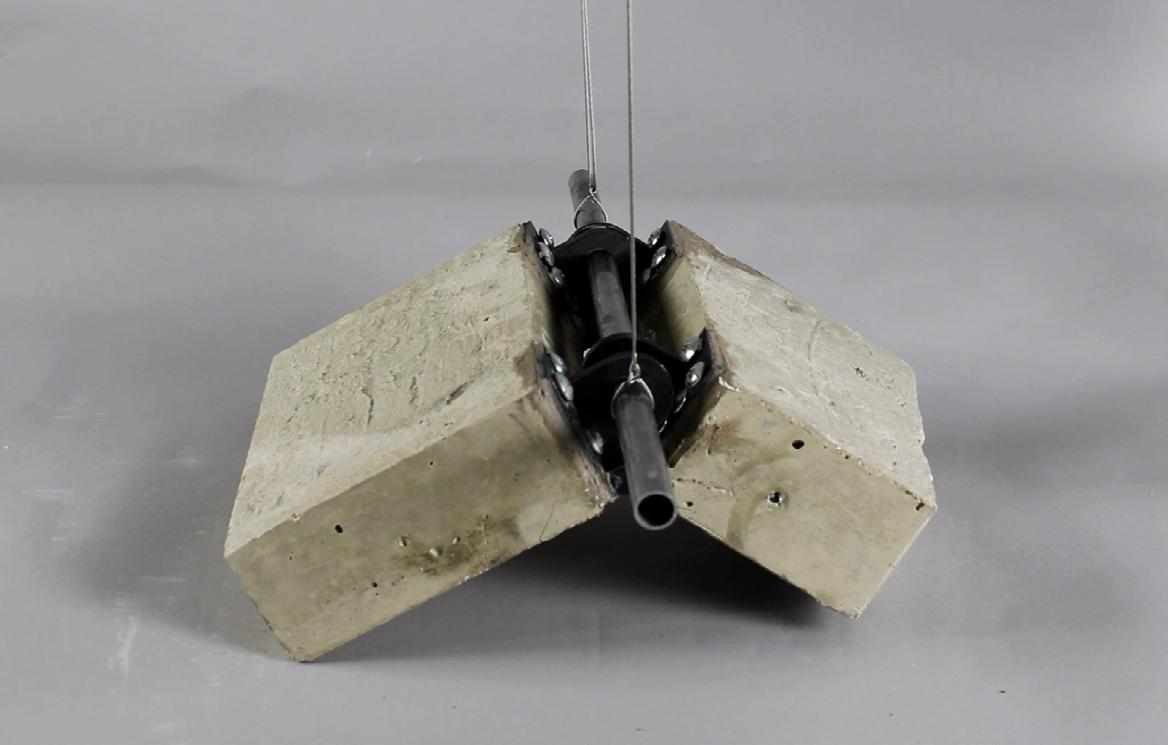

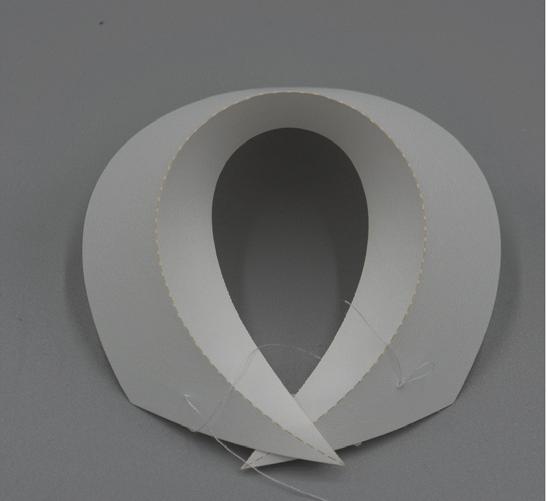

Intial Hinge Test: Flat

Intial Hinge Test: Folded

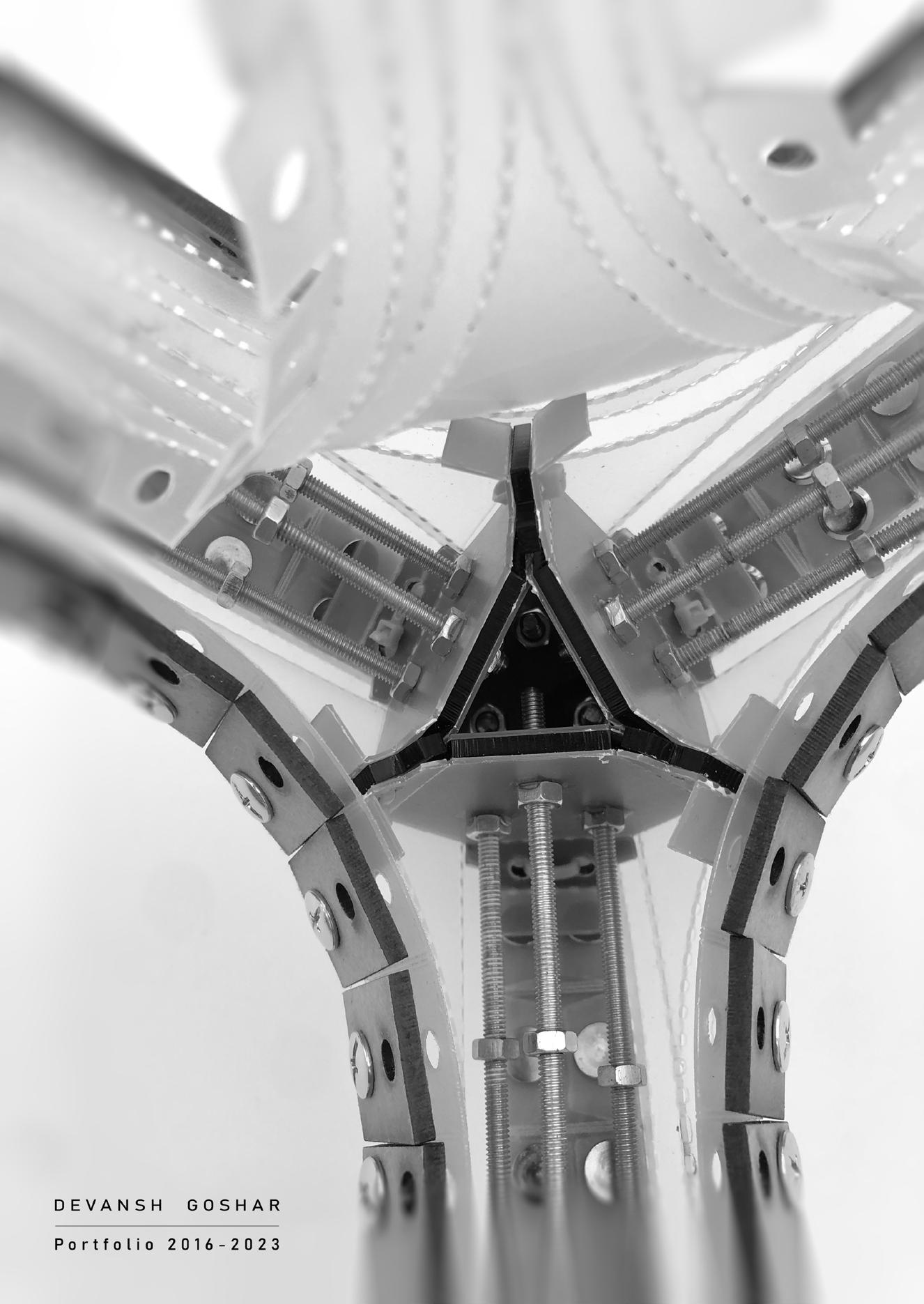

Internal CCF Node at 1/6 Scale

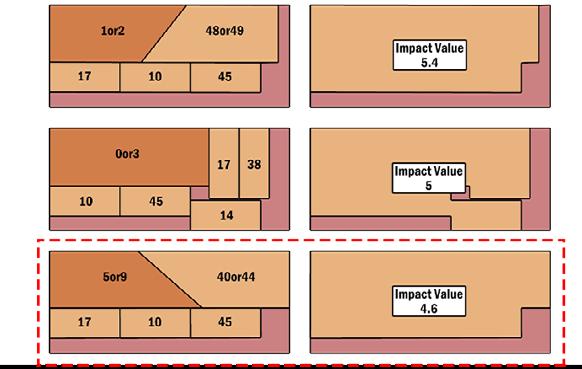

Negotiating Between Material Stock and Geometry through Mixed Integer Linear Programming

Evaulated Based on Objective Fucntion of Impact Value

Comparision Based on Impact Value Assesment

Mixed

Material

Material Reused Material Reused Material New Material Waste Material

Per Material

FEA Average into 3 Categories

Integer Linear Programme Reused

vs New

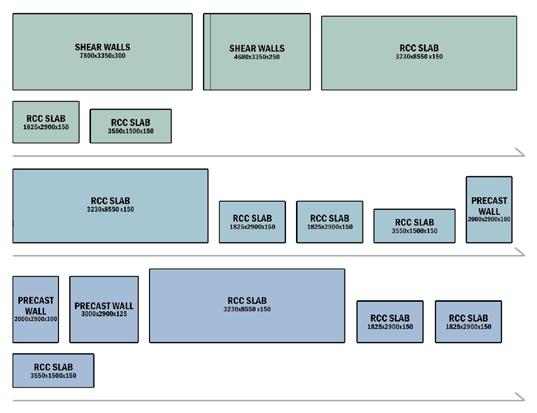

Material Bank Divided as

Constraints

Rendered on Unreal Engine 5, designed on Maya

Rendered on TwinMotion, Edited on Photoshop

2. Fishy Mumbai

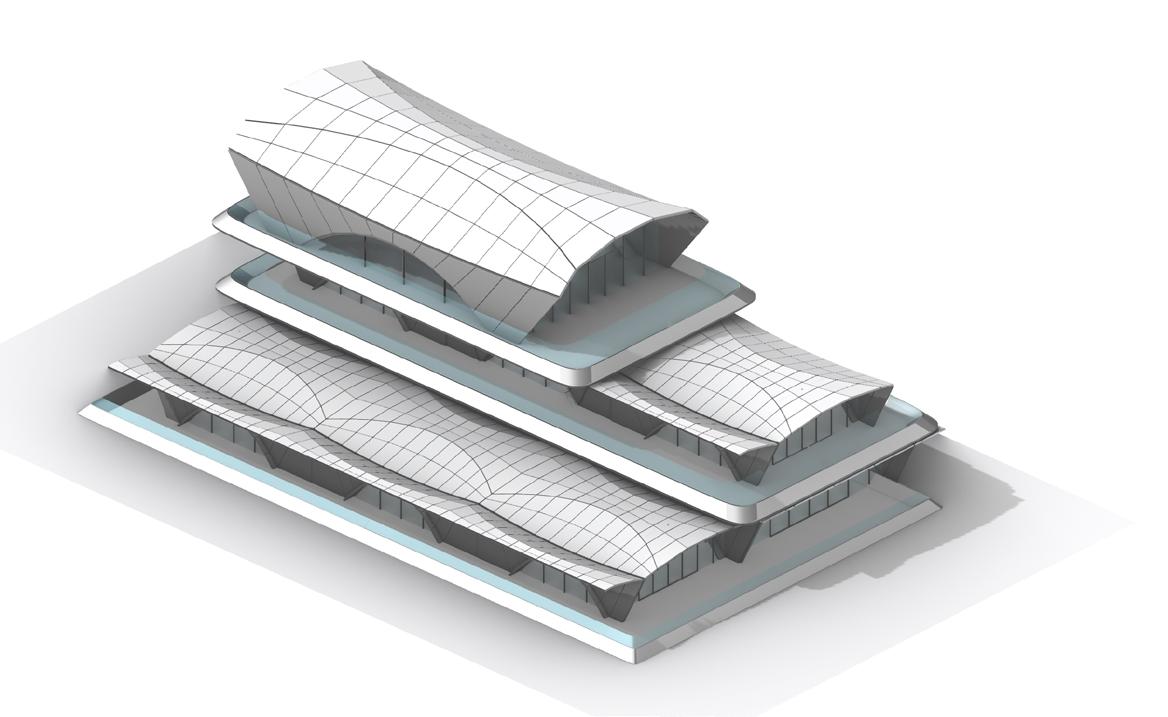

The proposed Fish Market at Sassoon Dock is desogned to replace the existing dilapidated Fish Market. The market is designed to meet the demands of fish processing and selling in a contemporary and elegant fashion. The builidng also acts as a cultural spot for several tourists who visit this area due to it’s cultural significance on the history of Mumbai. The builidng aims to seamlessly integrate tourist friendly activities and more funtional requirements of fish market within a fishing port at large.

Learnings: Inegration of Public Space within a builidng, Resolution of spaces within curved forms, inegrating exisitng systems with a contemporary resolution, facade design and rationalisation.

Skills Developed: Planning Curved Forms, Facade Detailing, Rendering on Twin-Motion.

View of Plaza, Rendered on TwinMotion, Edited on Photoshop

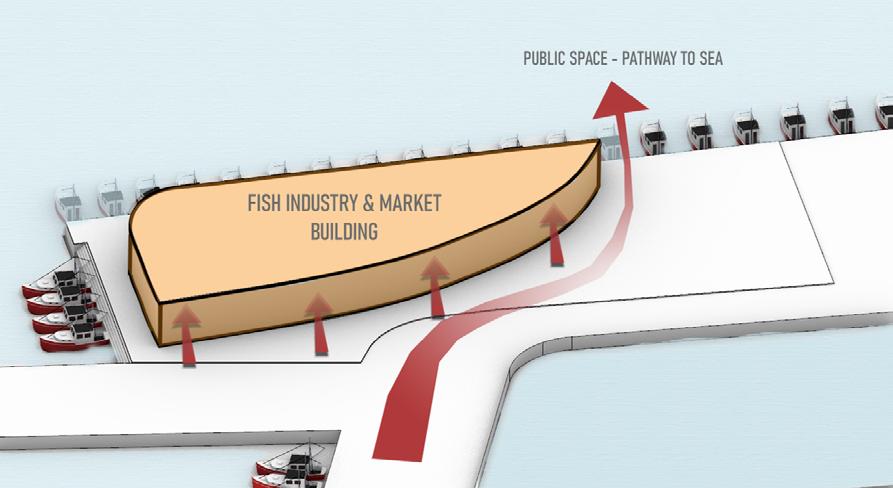

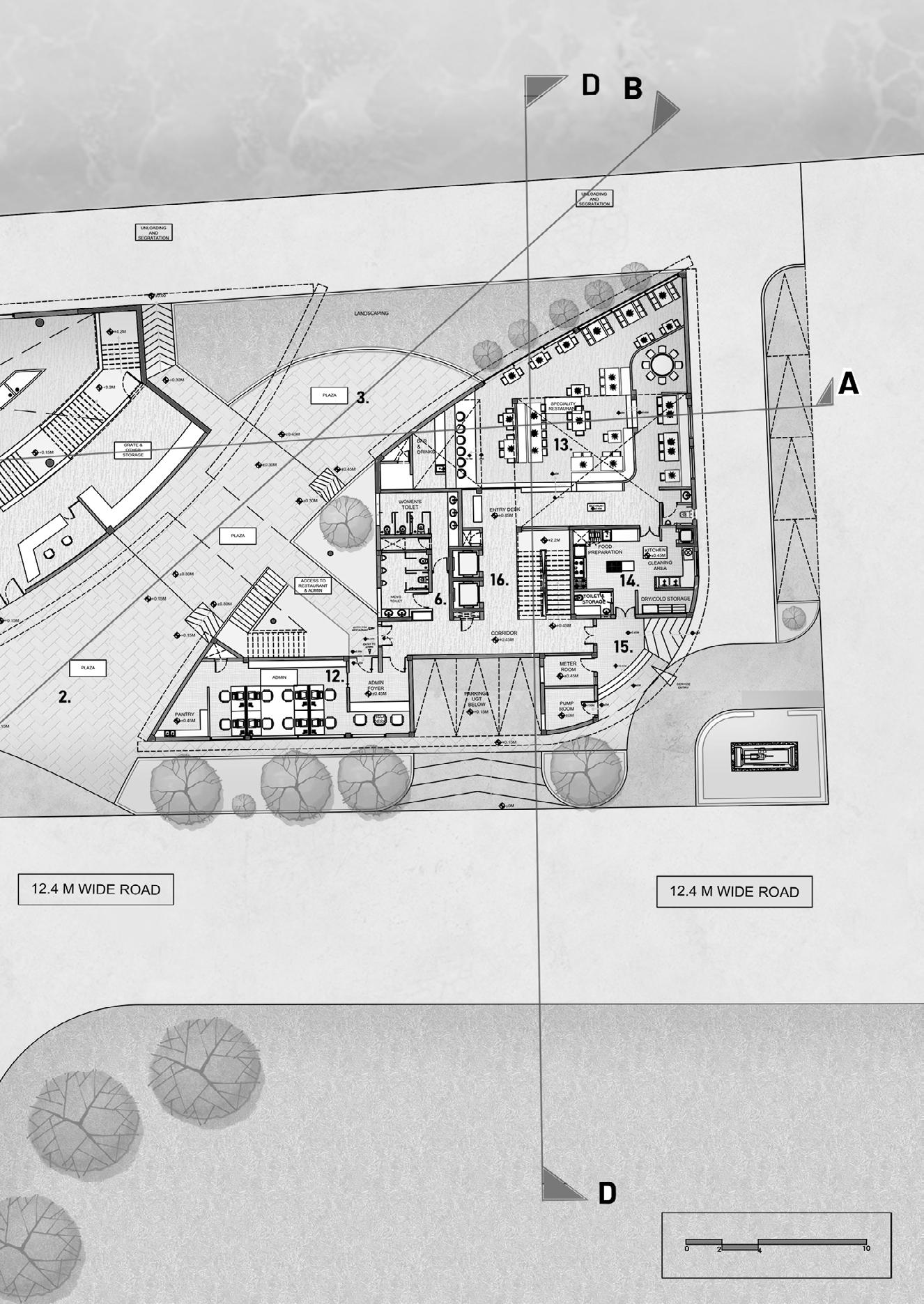

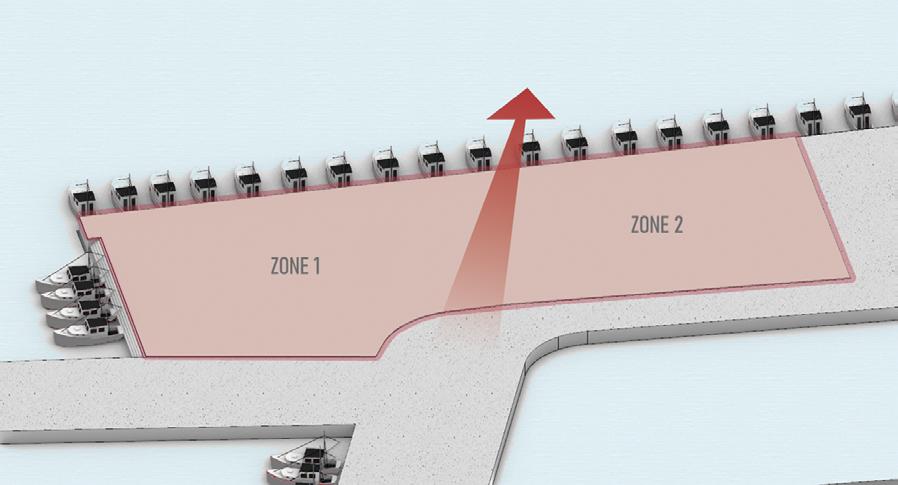

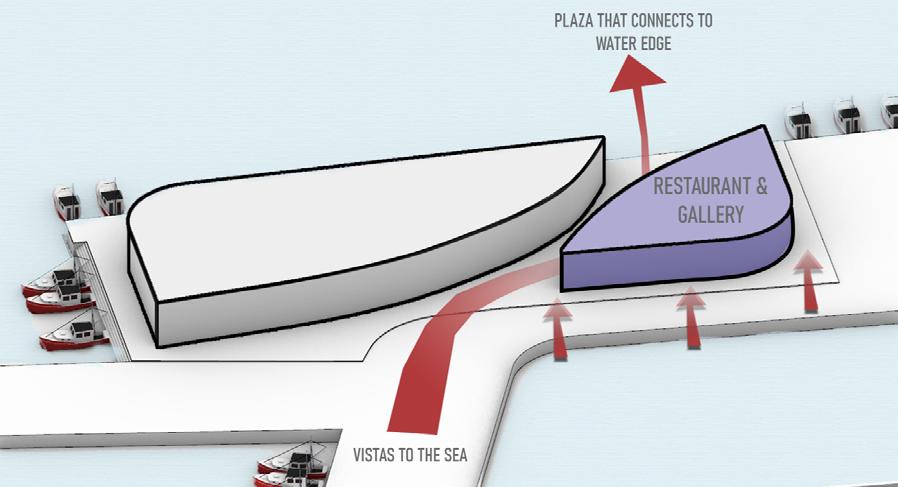

Dividing Site into 2 Zones

Zone 2: Restaurant & Gallery Zone 1: Fish Industry and Market Building

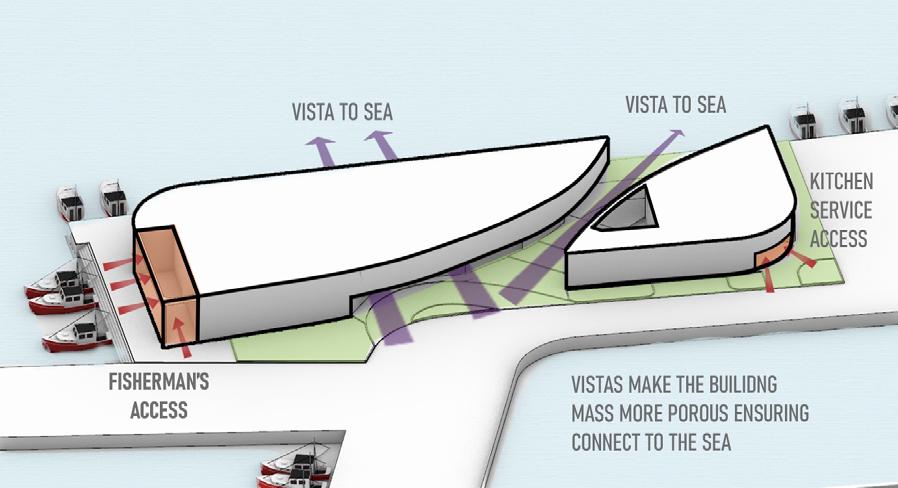

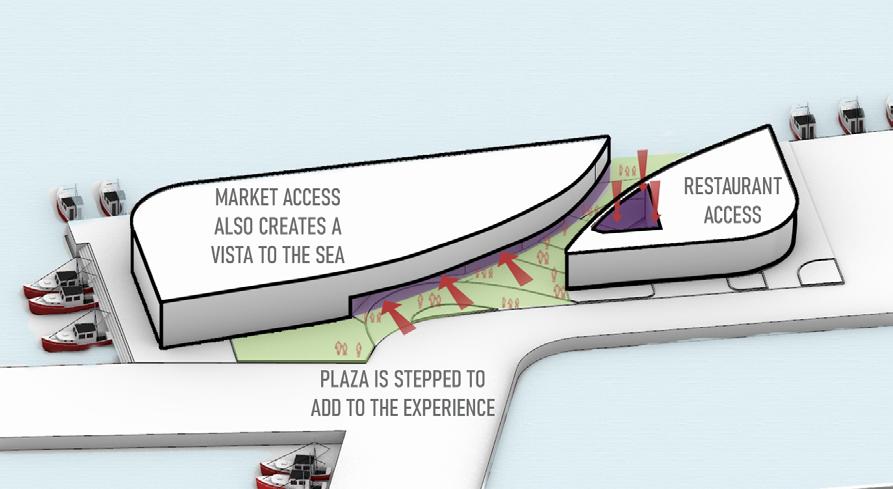

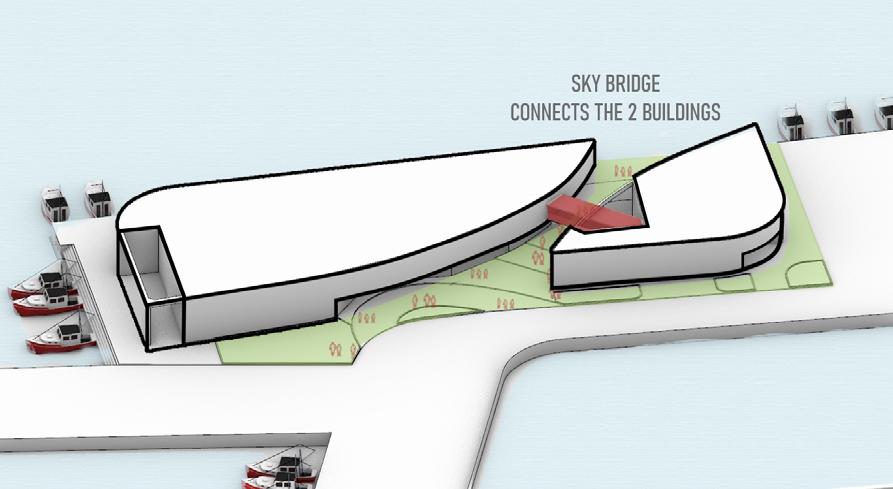

Service Access and Vistas to the Sea Access & Plaza Design Sky Bridge as Connector

1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. Public Access Plaza Viewing Point Entrance Lobby Fish Selling Bays Toilets Cutting Station Chiller Room Ventilation Plant Unloading Cleaning Admin Office Restaurant Kitchen Service Entry Lift Lobby

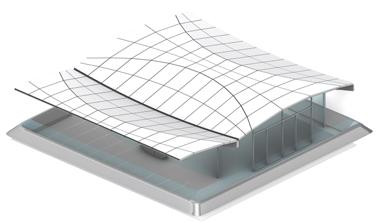

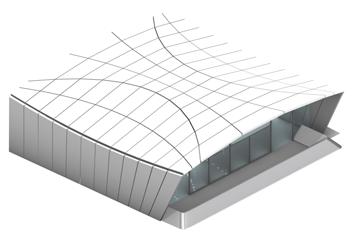

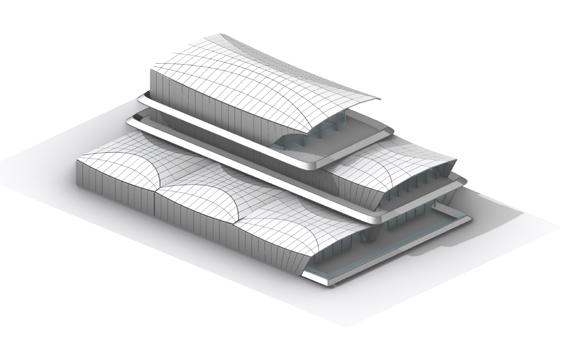

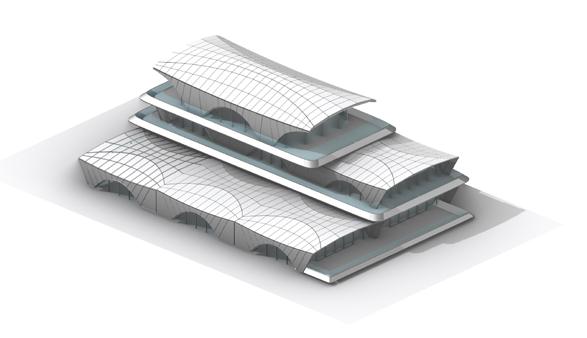

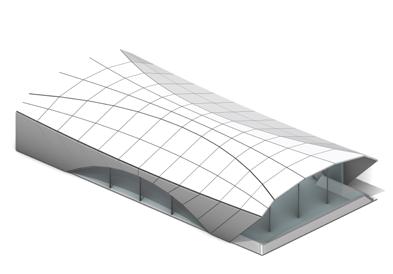

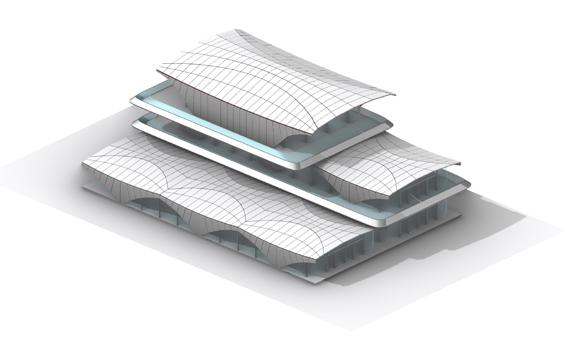

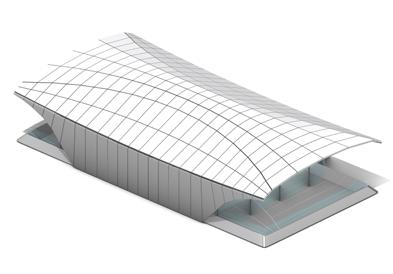

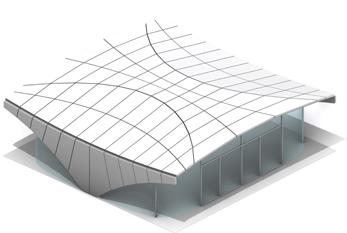

Bracket Columns and Grid Roof Designed to Highlight the curve of the Market Internally Sky Birdge Designed to connect spaces and create vistas to the Sea Design Of Facade Inspired from Fish Scales

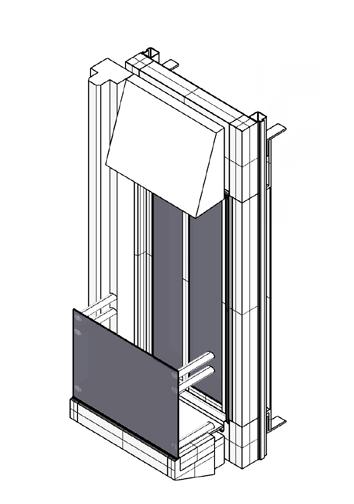

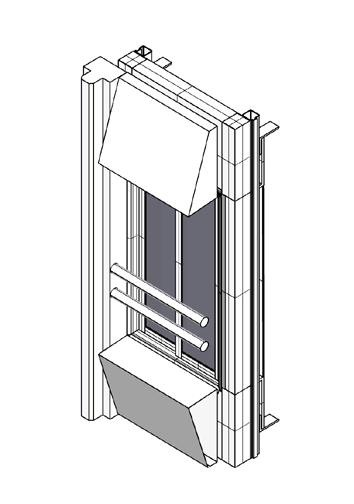

Facade Detail

Anti-Pigeon Wire

Stone Louvre

Beige

PCC Coping

RCC Pardi Extension

195mm Thk Brick Bat Coba

Water-proofing

4mm SS Built-up Plate

Al Window Frame

Double Glazing

100x100mm SS

Hollow Section

AL Header Piece

Stone Louvre Open Position

Rigid Insulation

Packed Insulation

12 mm Gypsum Board

Water-Proofing Membrane

18mm Plaster

Stainless Steel Channel 120x50x3 mm

Grill for Pest & Bird Protection

PVC Soffit Detail

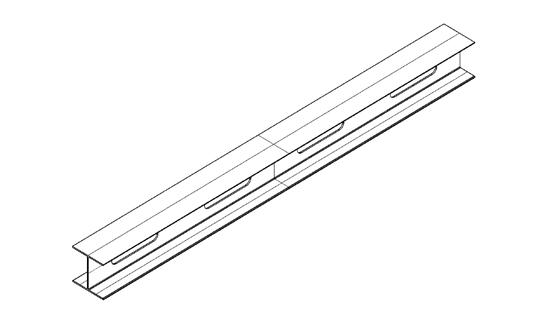

ISMB 350 Castellated

Decking Slab

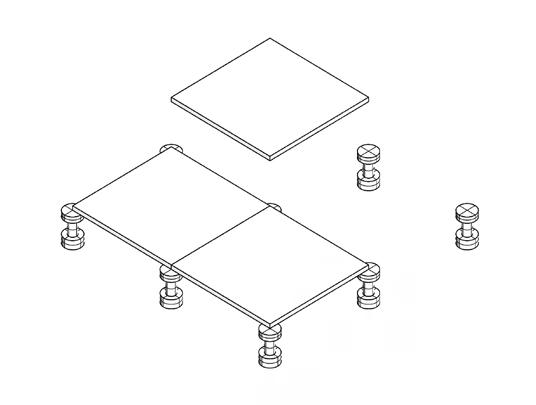

Raised Access Floor

12 mm Thk Tempered Glass

Tongue and Groove

Cobble Stone Loose Laid

Precast Channel Gutter

230mm Brick Masonary

1m Thk Raft Foundation

PCC Bedding

Viewing Point, Rendered on TwinMotion, Edited on Photoshop

3. 3D Drawing Machine

Taking inspiration from architects such as Antonio Gaudi and Frei Otto, this project too focuses on developing architectural form using 3d Drawing Machines. Initially elastic string and fabrics are pulled at certain points with specific weights, solidified and inverted to provide us with compression friendly shells. These shells can be extremely thin as their formal geometry is devired using forces of nature which follow specific load lines.

Further, this process is shifted into the digital realm to simulate these natural forms, rationalise fabrication and assembly processes using robotics.

Learnings: Using 3d drawing machines to produce form, understanding digital rationalization of shells, use of 6 axis robotic arm, assembly heirachy and procedure.

Skills Gained: Grasshopper Simulations, coding 6 axis robot, 3d Scanning using Lidar.

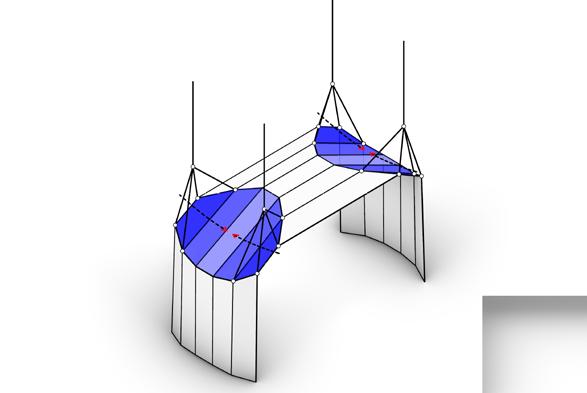

3 Leg Variation

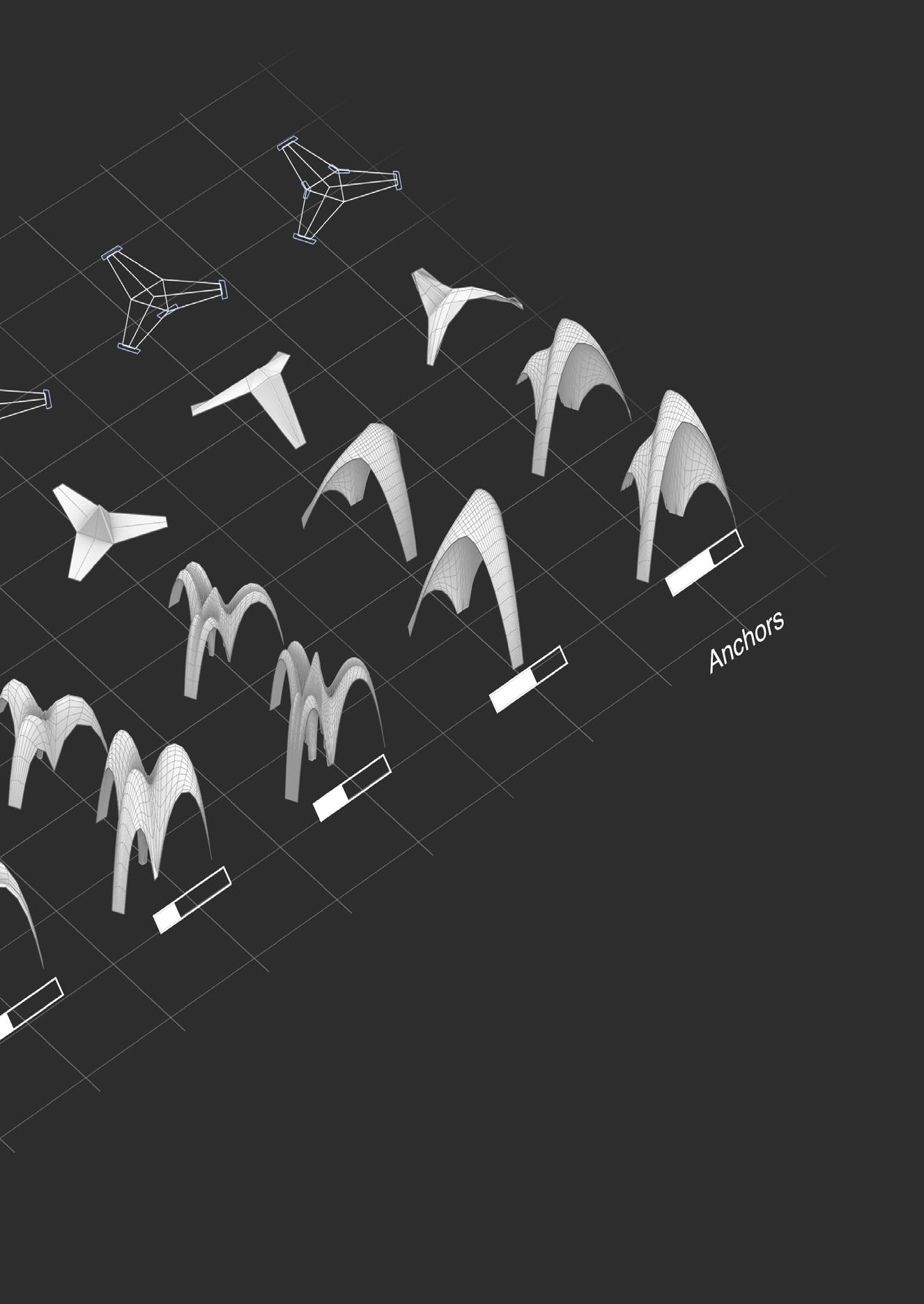

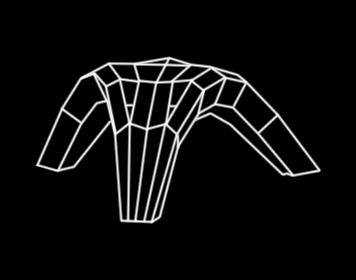

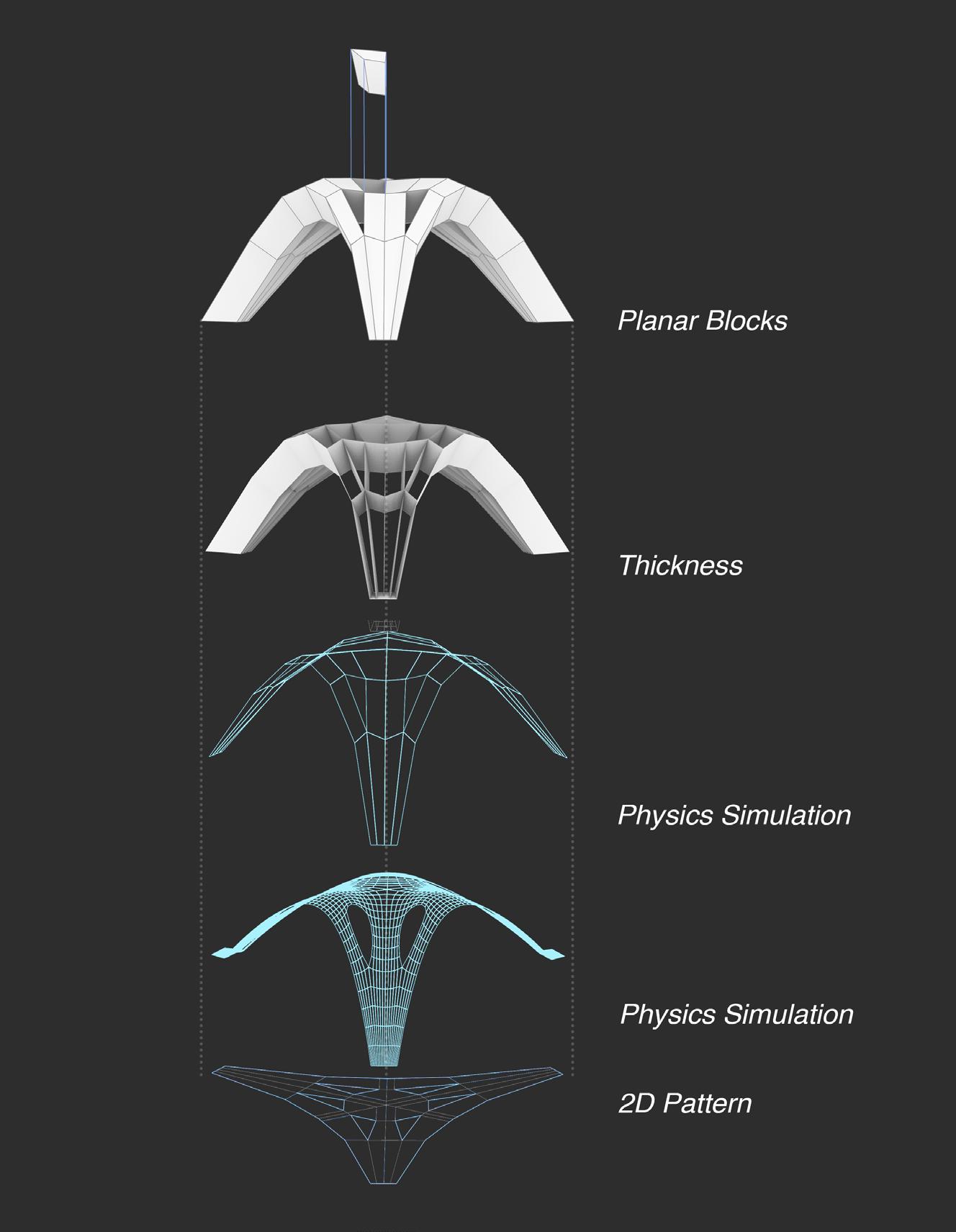

Physics Simulations produced in Grasshopper on Rhino 3d

Planar Blocks

Thickness

Planarization

Vertical Relaxation

Horizontal Relaxation

Physics

3d

Simulations produced in Grasshopper on Rhino

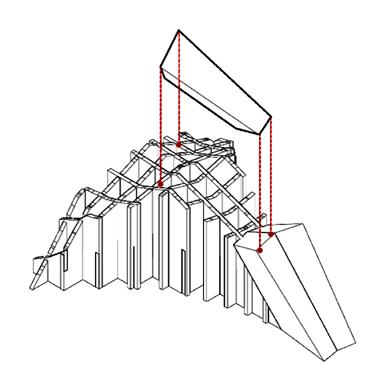

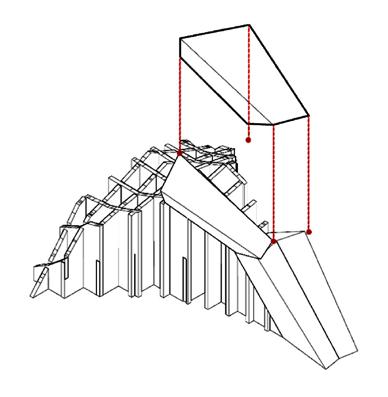

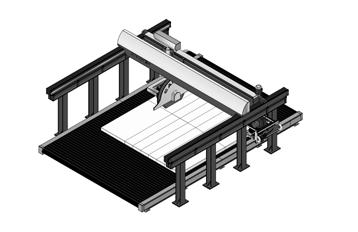

Inserting Block 1 Inserting Block 4 Foam Block Cut with Robotic Hot-Wire Cutting Model in Foam Blocks Inserting Block 2 Repeat Process X2 Inserting Block 3 Repeat Process X3

Creating

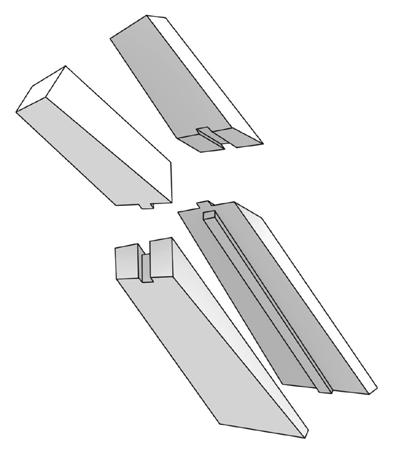

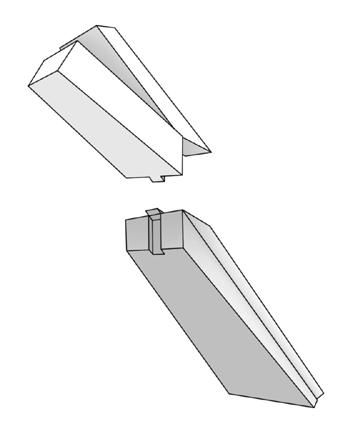

Lock Joints: Horizontally

Lock Joints: Vertically

Fully Connected Joint

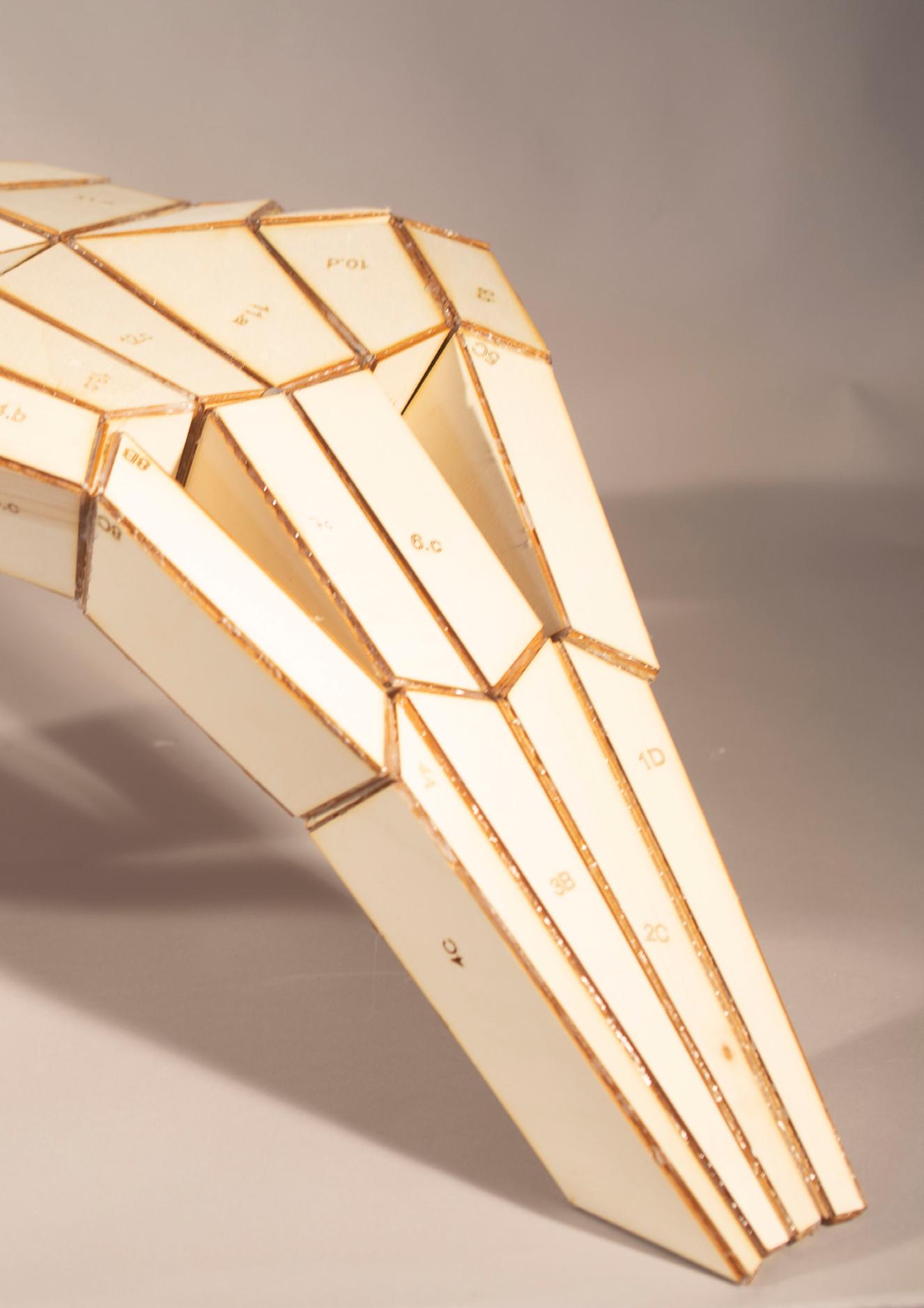

Interlocking Joints Without Footing: 1 Kg Model Takes 68 Kg’s With Footing: 1 Kg Model Takes 103 Kgs

Compound Variation

Physics Simulations produced in Grasshopper on Rhino 3d

Rendered on Lumion & edited on Photoshop

4.

Pause

From.... Permanence

Award : Best Design Dissertation

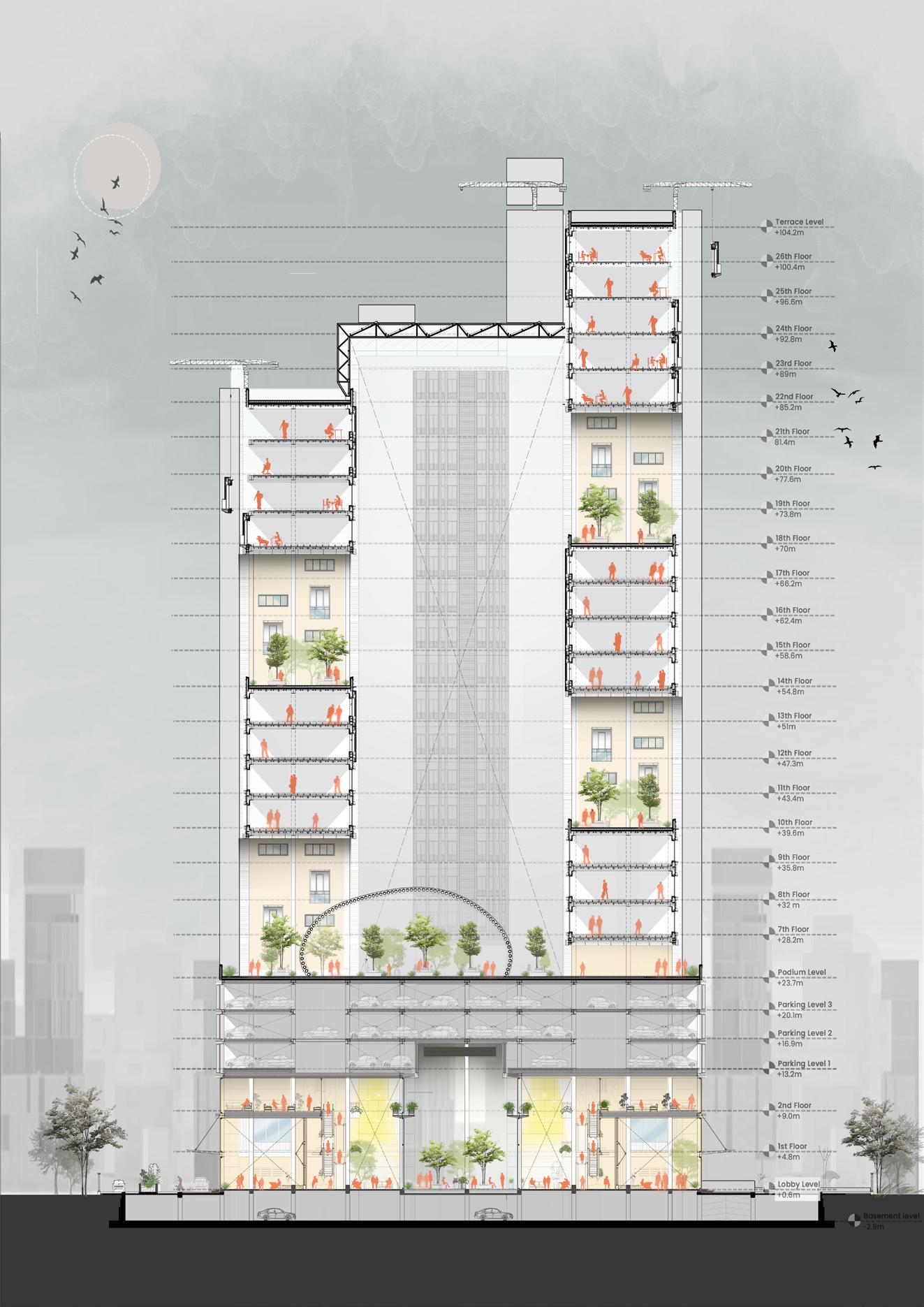

Study suggests that the average lifespan of the building has dropped from 100 years to mere 30-40 years after which the site is cleared through demoltion, paving the way for new development. Buildings designed today consider a linear approach and result in demolition waste, wastage of material with longer use life and loss of embodied energy when demolished.

Present challenges of climate change, rapid urbanization, increasing cost and scarcity of construction materials provides an incentive to designers to design builidngs that consider the entire lifecycle of the building and its end of life.

This project proposes a mixed use tower that considers the working life-of the builidng through scenario buffered planning, flexible design through adaptations and transformation of spaces and services of the building.

Further, the building considers for end of life disassembly through component based design, standarization of components, using materials with high material loop potential, design of mechanical connections and storing material data in form of material passports allowing for future reuse and recyling

Learings: Flexible Space Planning, Cordination of Structure and Spaces, Material Life Cycles and research, disassembly processes, scenario buffered planning, component based design, mixed use spatial negotiations.

Skills Gained: Rhino 3d and Grasshopper, Creating and Understadning reading Climatic Data on Climate Consultant, Designing Mechincal Connections, LCA tools, Lumion Rendering.

Rendered on Lumion, Edited on Photoshop

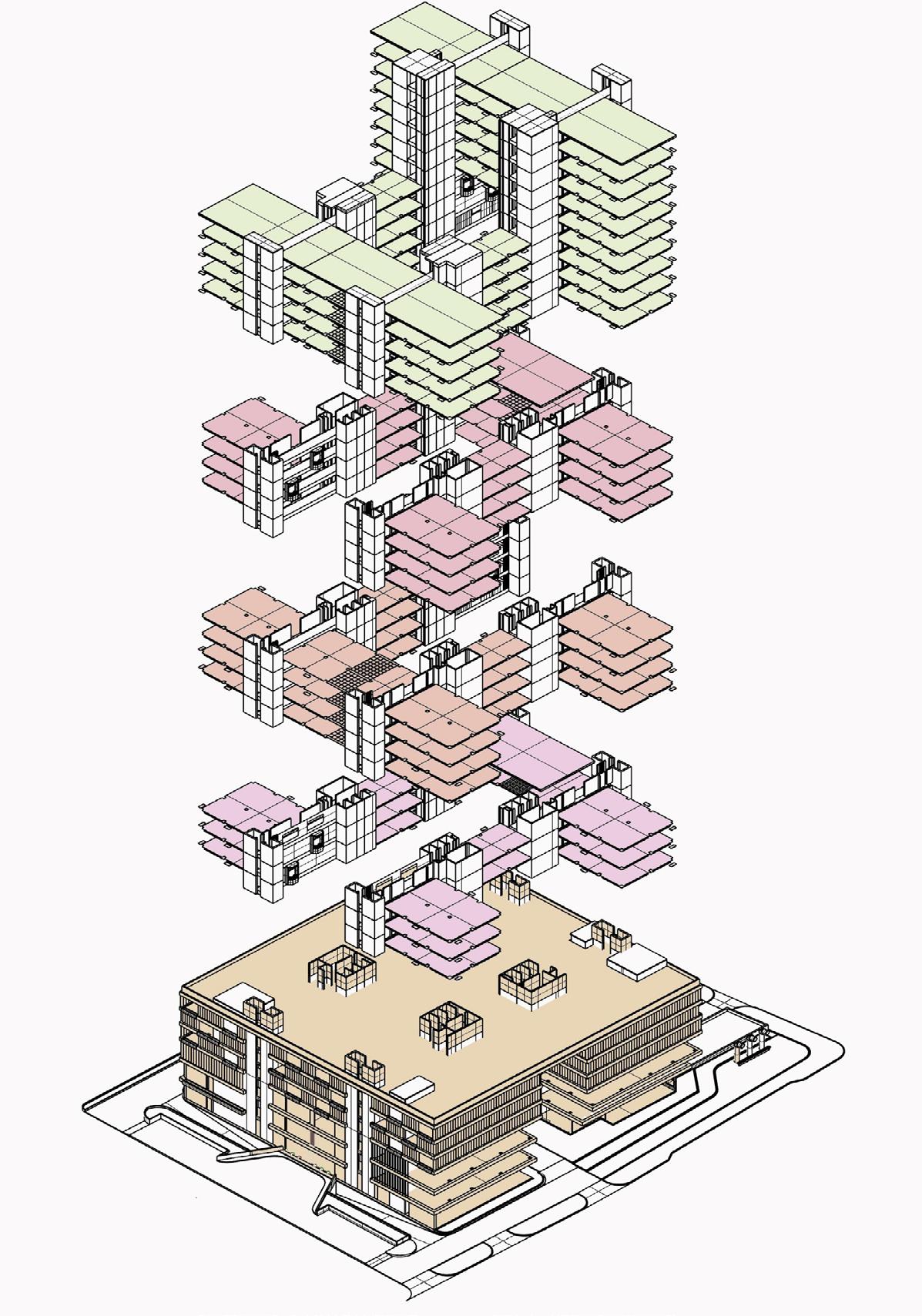

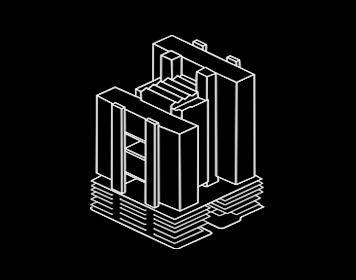

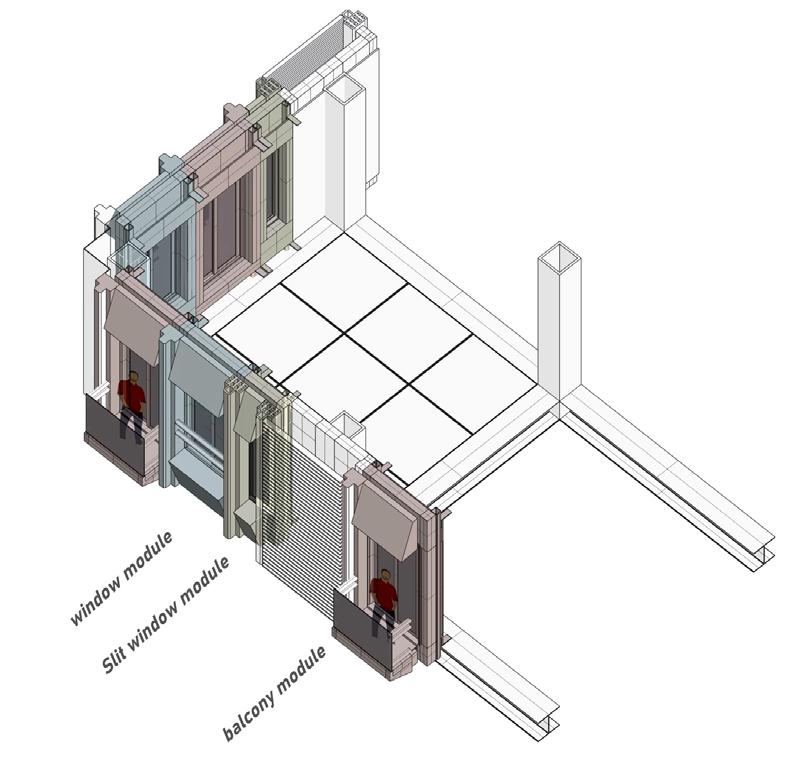

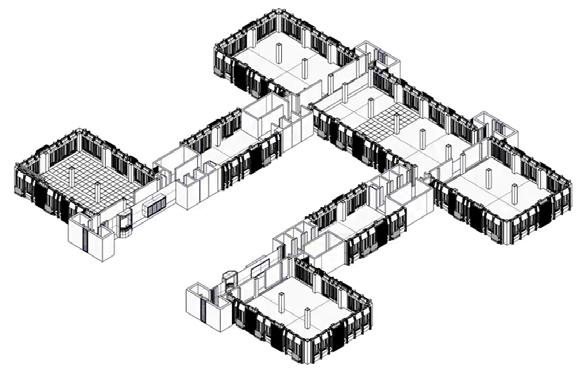

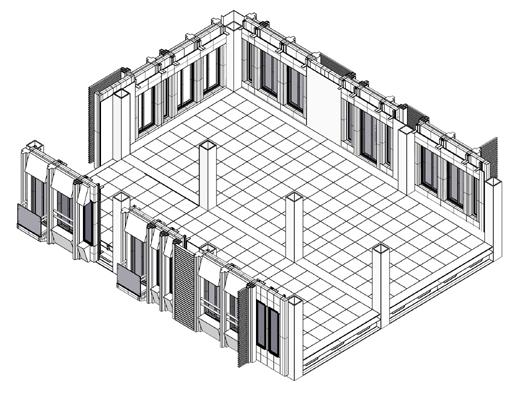

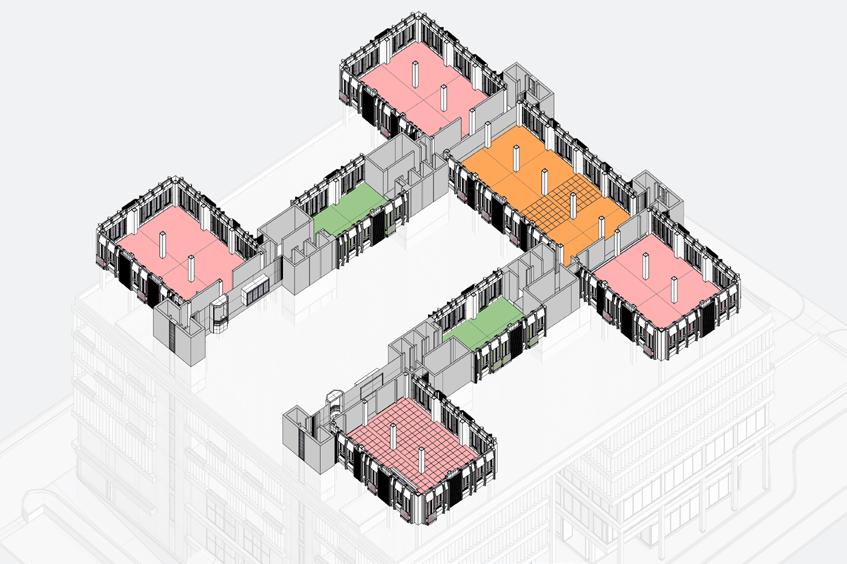

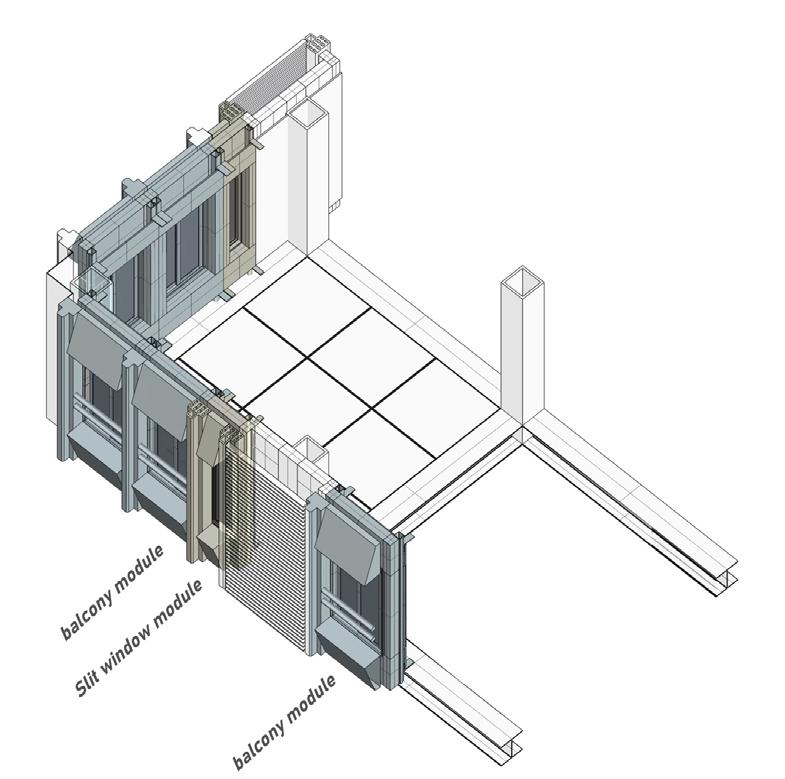

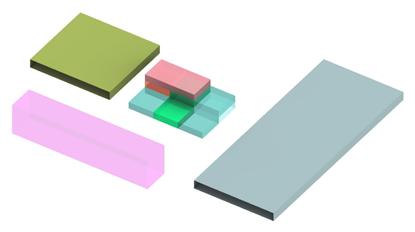

COMPONENT BASED DESIGN

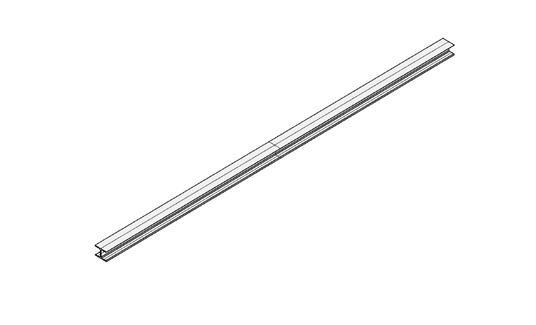

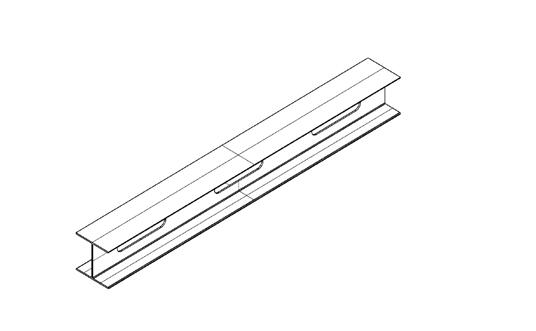

Window Module Slab Module Raised Access floor above Slab ISMB 500 - 6M PURLIN- 4.5M & 6M BUILT UP SQUARE COLUMN 3.85M ISMB 500- 4.5M Balcony Module

PRIMARY STRUCTURE SLAB & FLOORING FACADE MODULES

Slit Window Module

Components Make Unit 2 Units 6 Unit Module 4 Units 7 Modules + Lift Cores= 1 Floor

RESIDENTIAL

LARGE OFFICES

MEDIUM OFFICES & SHARED OFFICES

STANDARDISED

SMALL OFFICES & SHARED OFFICES

SEMISTANDARDISED

CULTURAL & RETAIL SAPCES

SIDE MODULE (x4)

CENTRE MODULE (x1)

CONNECTOR MODULE (x2)

SIDE MODULE (x4)

SIDE MODULE ( X4 )- 1900 SQ.FT

CENTRE MODULE (x1)

CENTRE MODULE ( X1 )- 1200 SQ.FT

Small

CONNECTOR MODULE ( X2 )- 800 SQ.FT

CONNECTOR MODULE (x2)

Large Commercial

4

1

1 Kitchen

Medium Office

Bedrooms-

Hall-

Office (x2)

3

1

1 Kitchen

2 Bedrooms- 1 Hall- 1 Kitchen

Double Floor Commerical

Bedrooms-

Hall-

Medium Office

COMMERCIAL RESIDENTIAL

Rendered on Photoshop, Made on AutoCad

User 1 Selections User 2 Selections User 1 Facade Selections x3 x2 x5 x2 x1 User 2 Facade Selections

Rendered on Lumion, Edited on Photoshop

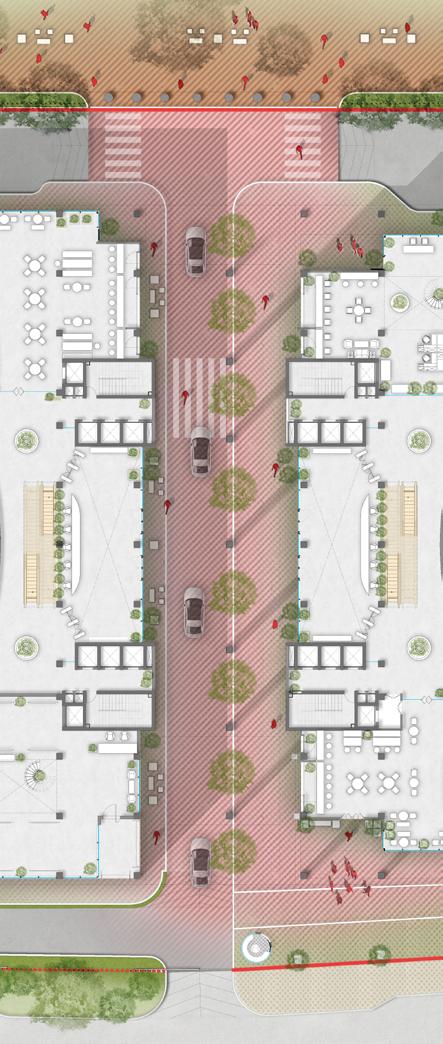

Urban short-cut through the Building: Activated through Cultural & Retail Activities

Public Street

Can be used by Cars in High Traffic Hours

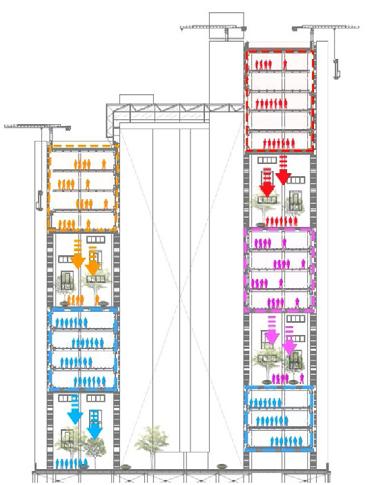

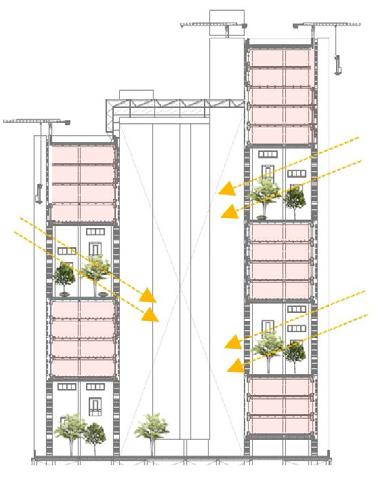

Green Spaces and Vertical Segregation

Gree Voids added along the vertical section of the building

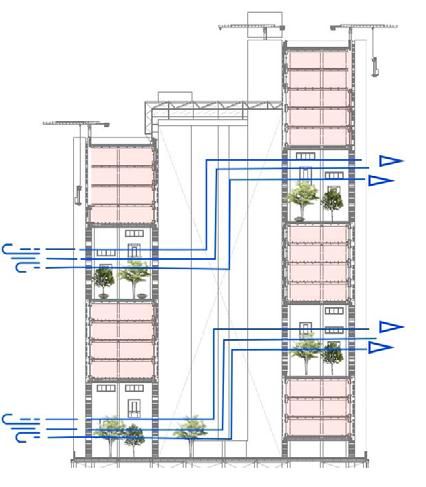

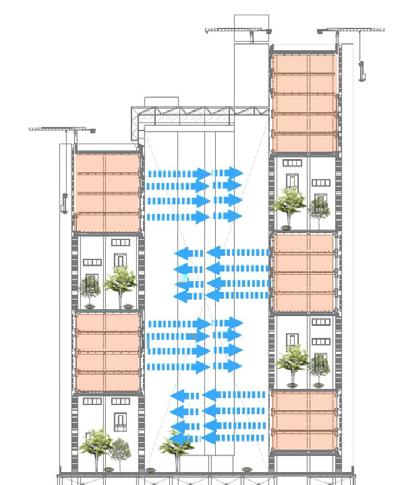

Cross-Ventilation

Sunlight in the Atrium

Views

View of the Ubran Short-cut from the street, Rendered on Lumion, Edited on Photoshop

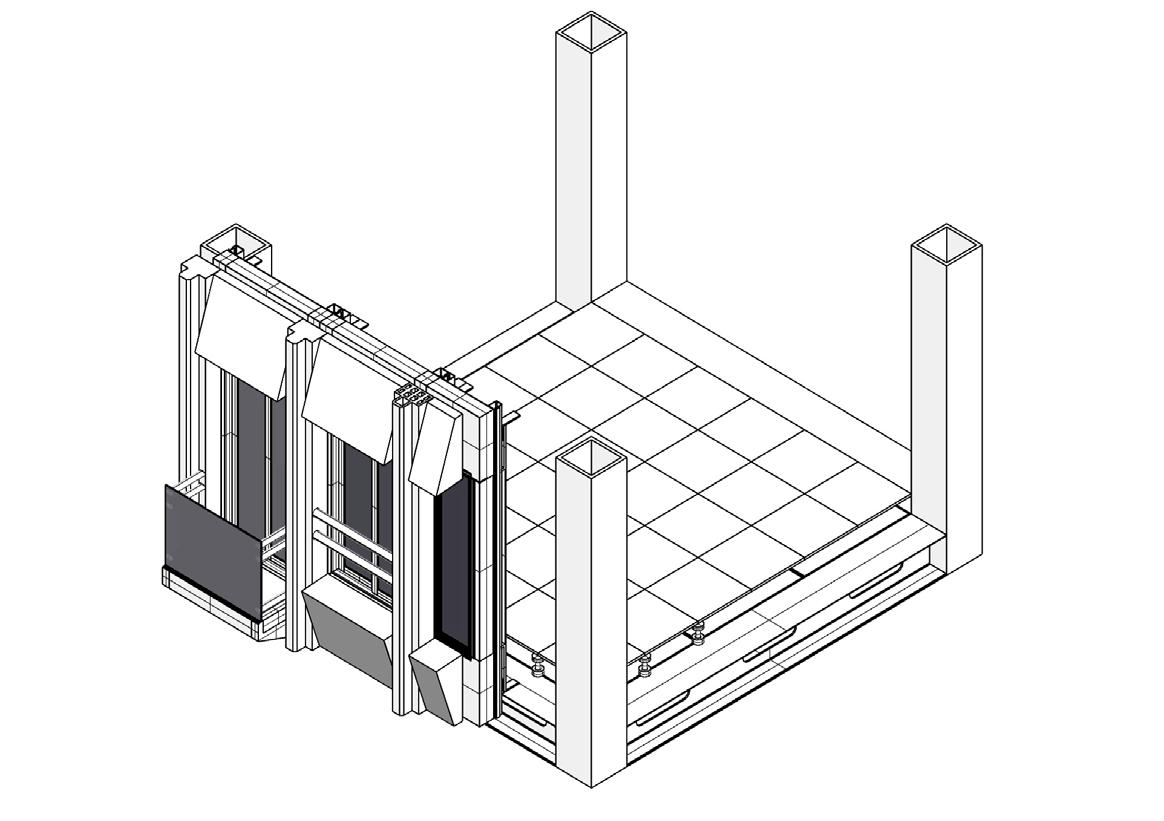

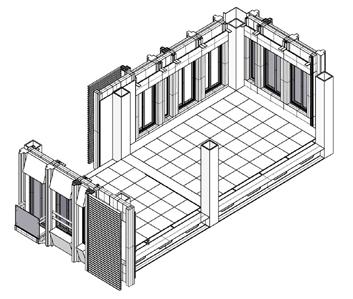

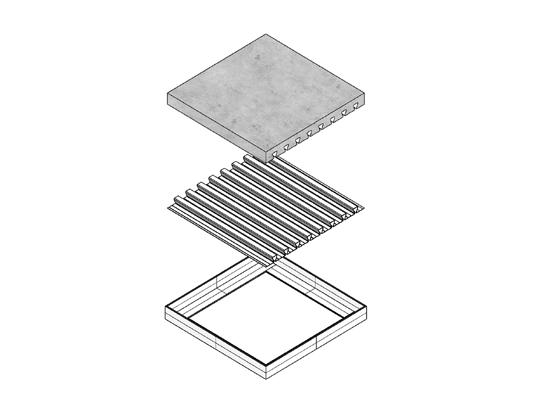

Detachable Modular

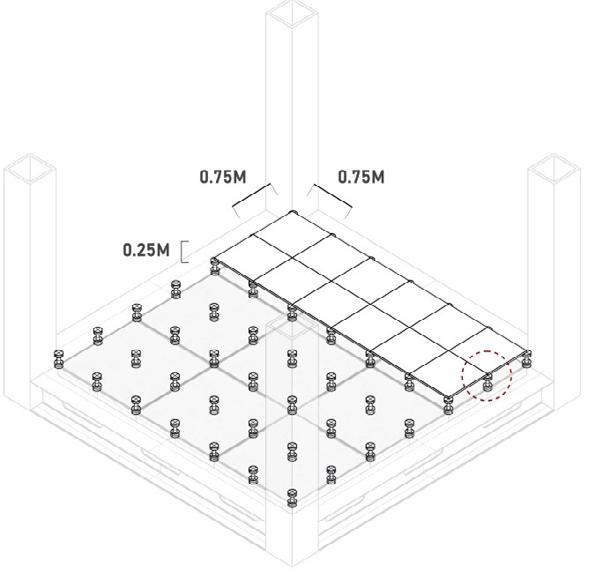

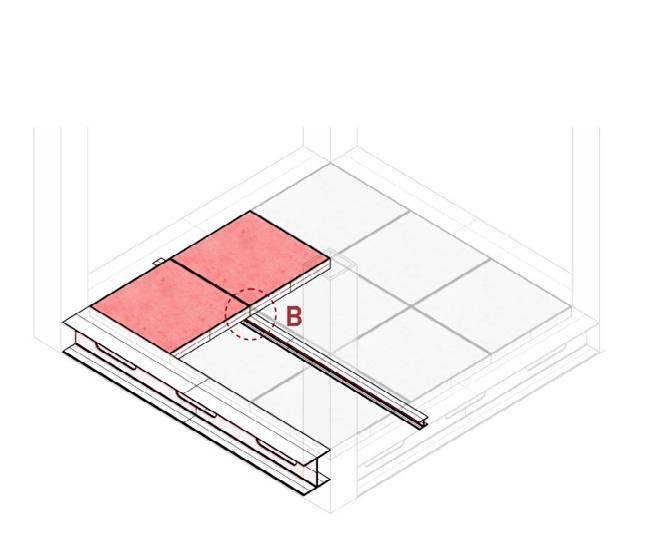

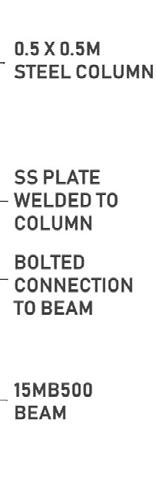

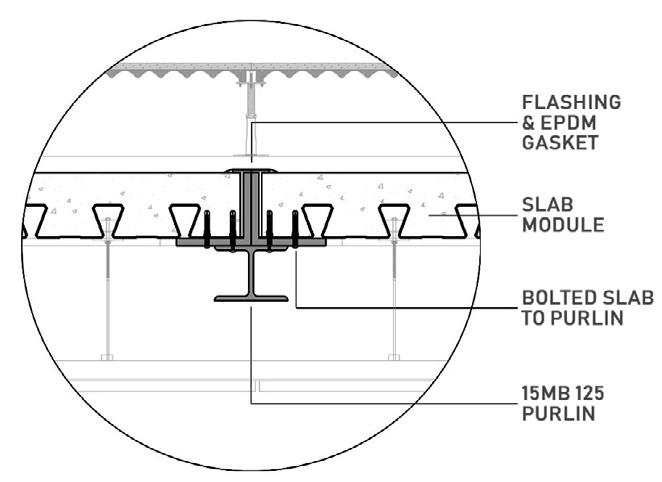

System Detachable Beam+Columns Raised Access Flooring Detail Detail Detail

Slab

PRE

PRE INSERT

HANGER HOOK ANCHOR

CEILING PANEL

BEAM ANCHOR

50X50 MM AL PROFILE 120X120MM SS MULLION

TERRACOTA PROFILE

SLIDING WINDOW

OSB BOARD BACKING AL FLASHING

TONGUE & GROOVE FLOOR AL SUB STRUCTURE 50X50MM AL SECTION

FLASHING DRAIN

TERRACOTA CLADDING

DRAIN

BUILT UP SECTION ANCHORED TO BEAM

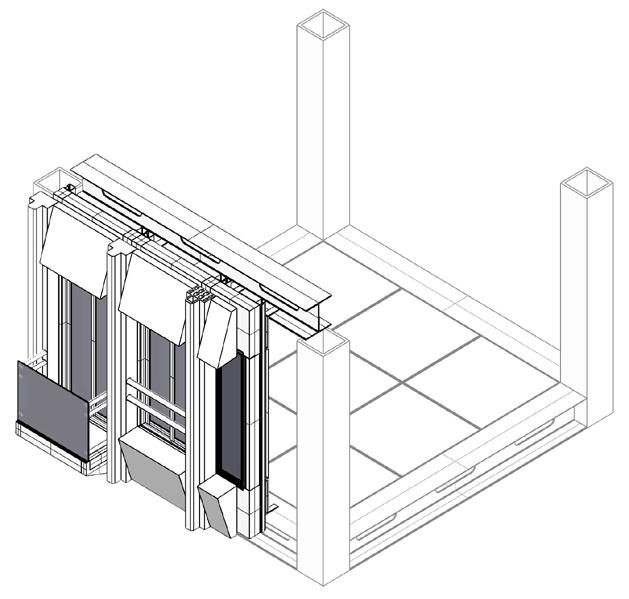

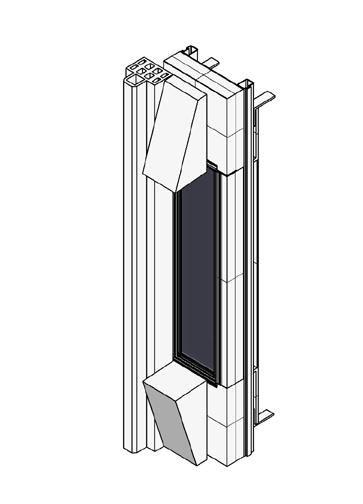

Detachable Al Composite Panel+ Terracota Cladded Facade Detail Detail

Suspended Ceiling with Pre-Insert Hanger

INSERT HANGER

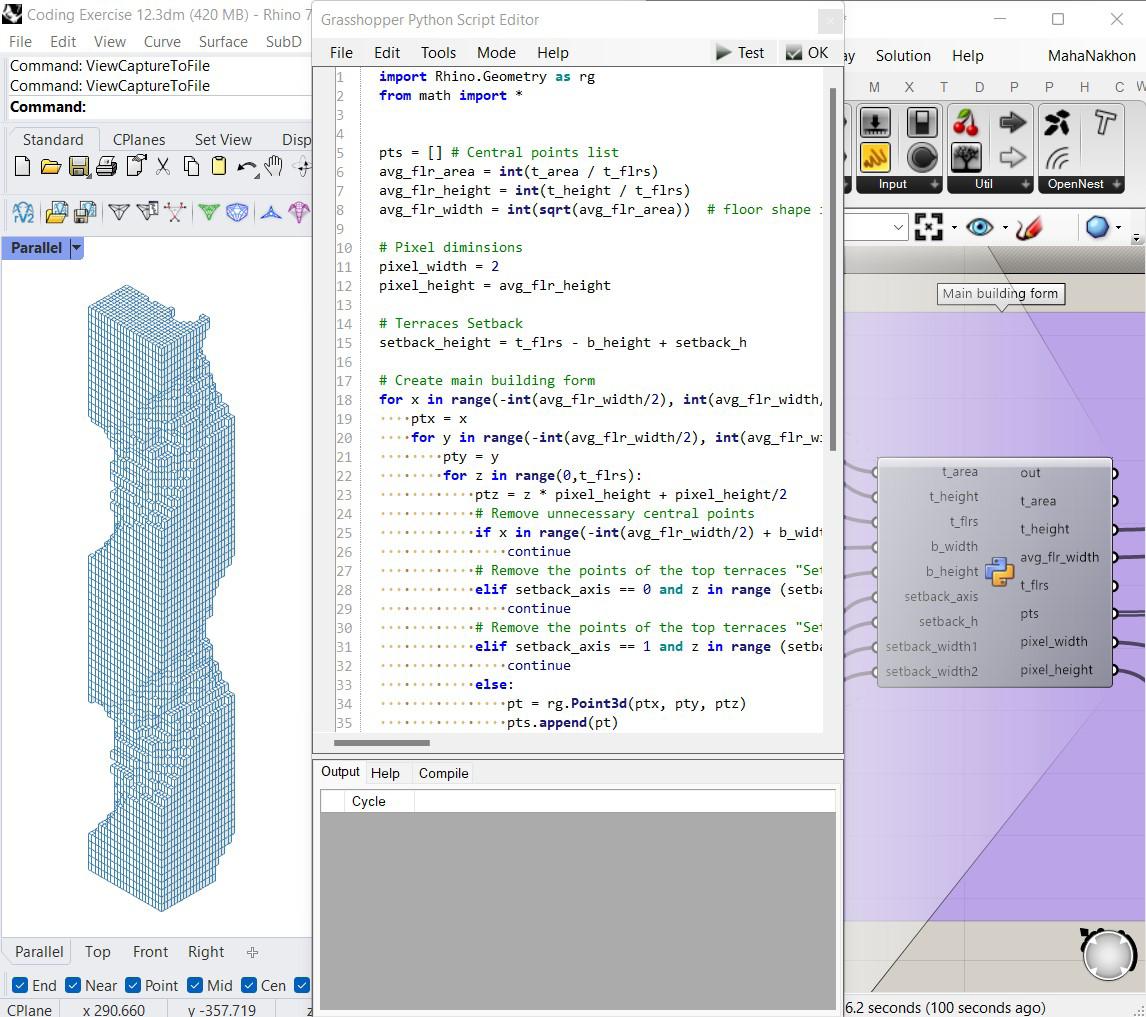

MahaNakhon Tower form re-created using Python in Grasshopper, ref: online tutorial

5. Coding

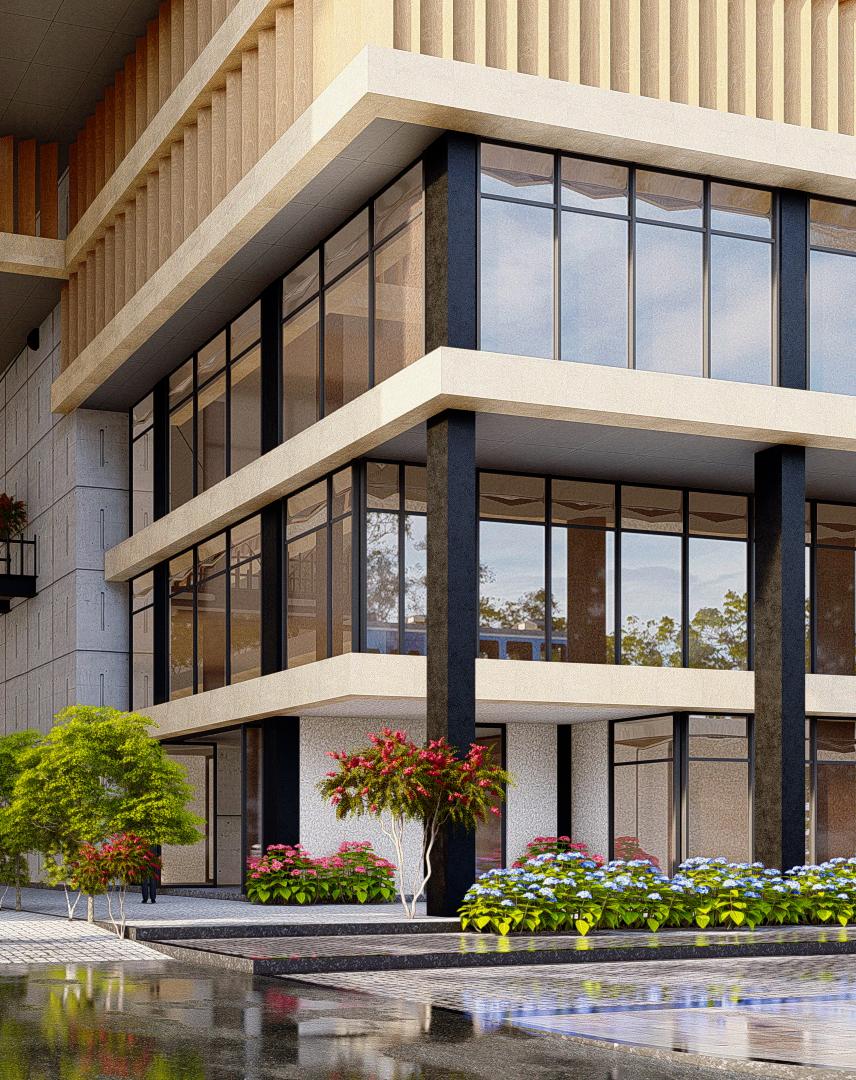

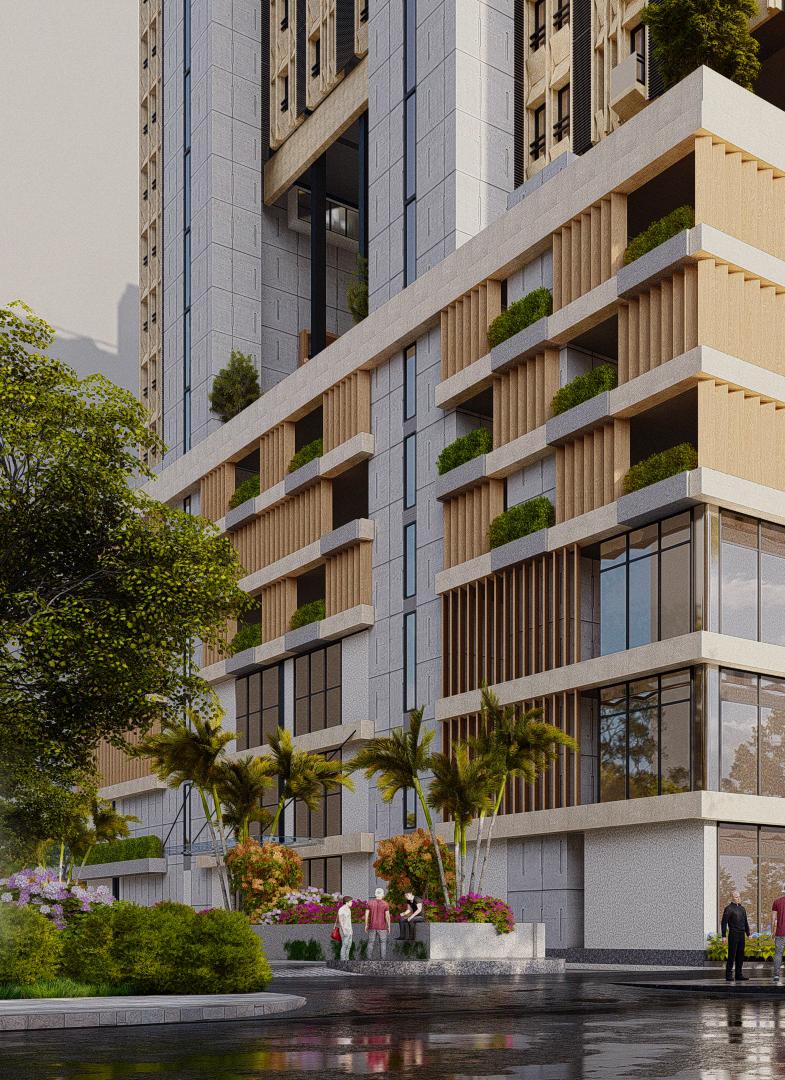

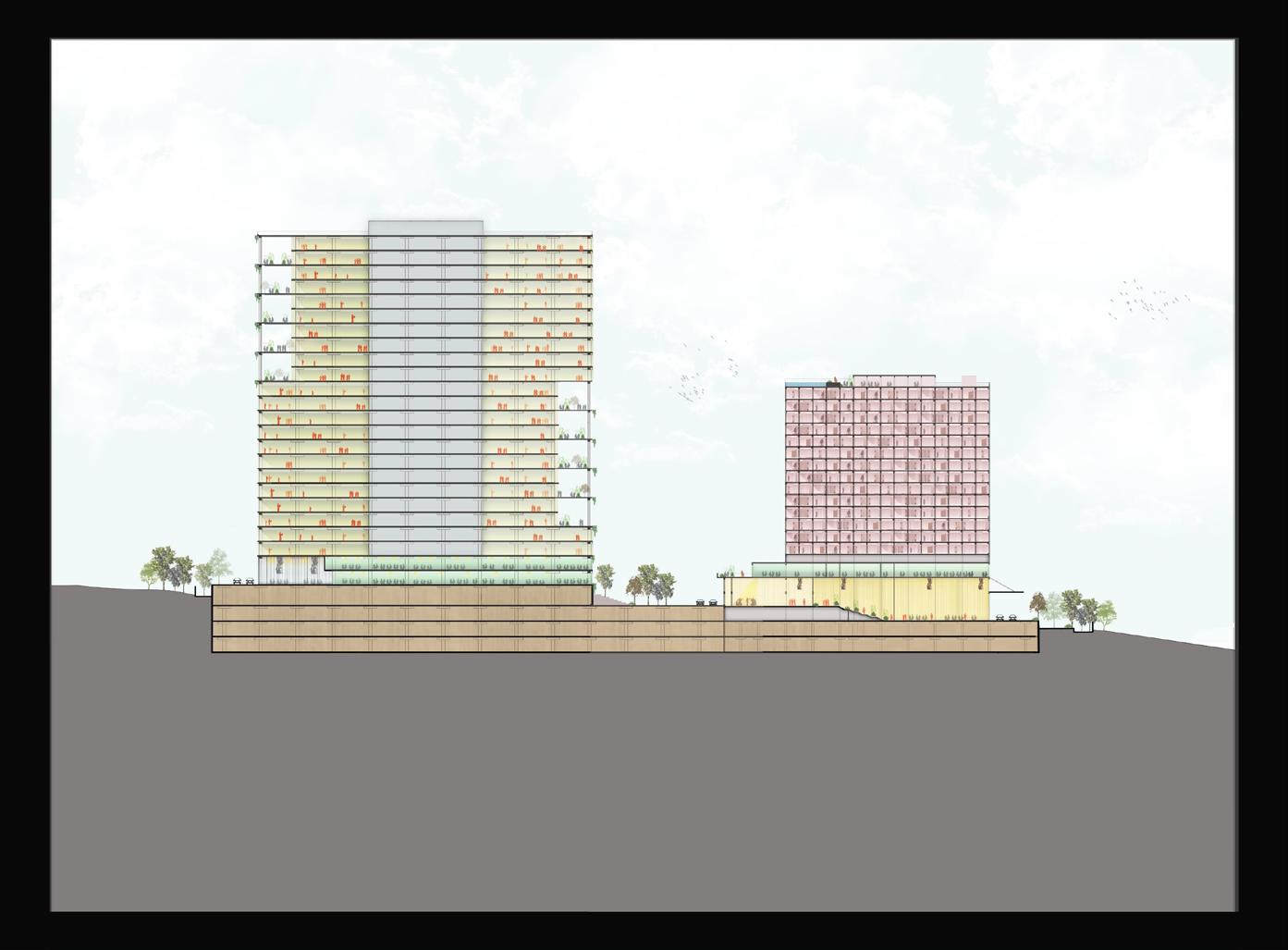

Company: GalaComp

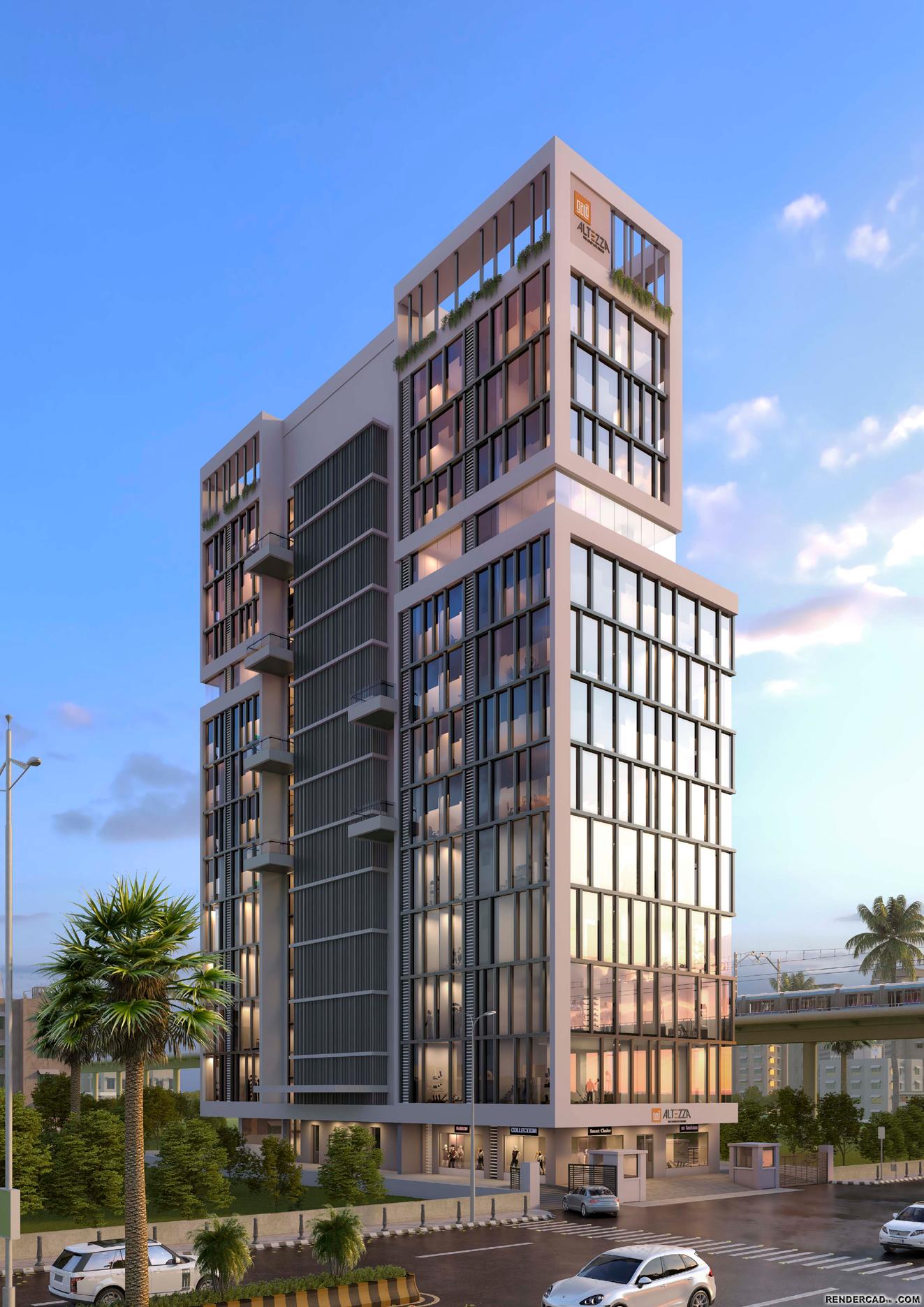

Building: Gala Altezza

Type: Retail+Commercial

Location: Mumbai, India

Stage: Facade Design

Worked on: Facade Design and Elevation

Office: Morphogensis

Building: Mahindra Vicino

Type: Residential

Location: Andheri, Mumbai

Stage: Constructed

Worked on: Working Drawing Set & Design Development

morphogenesis.

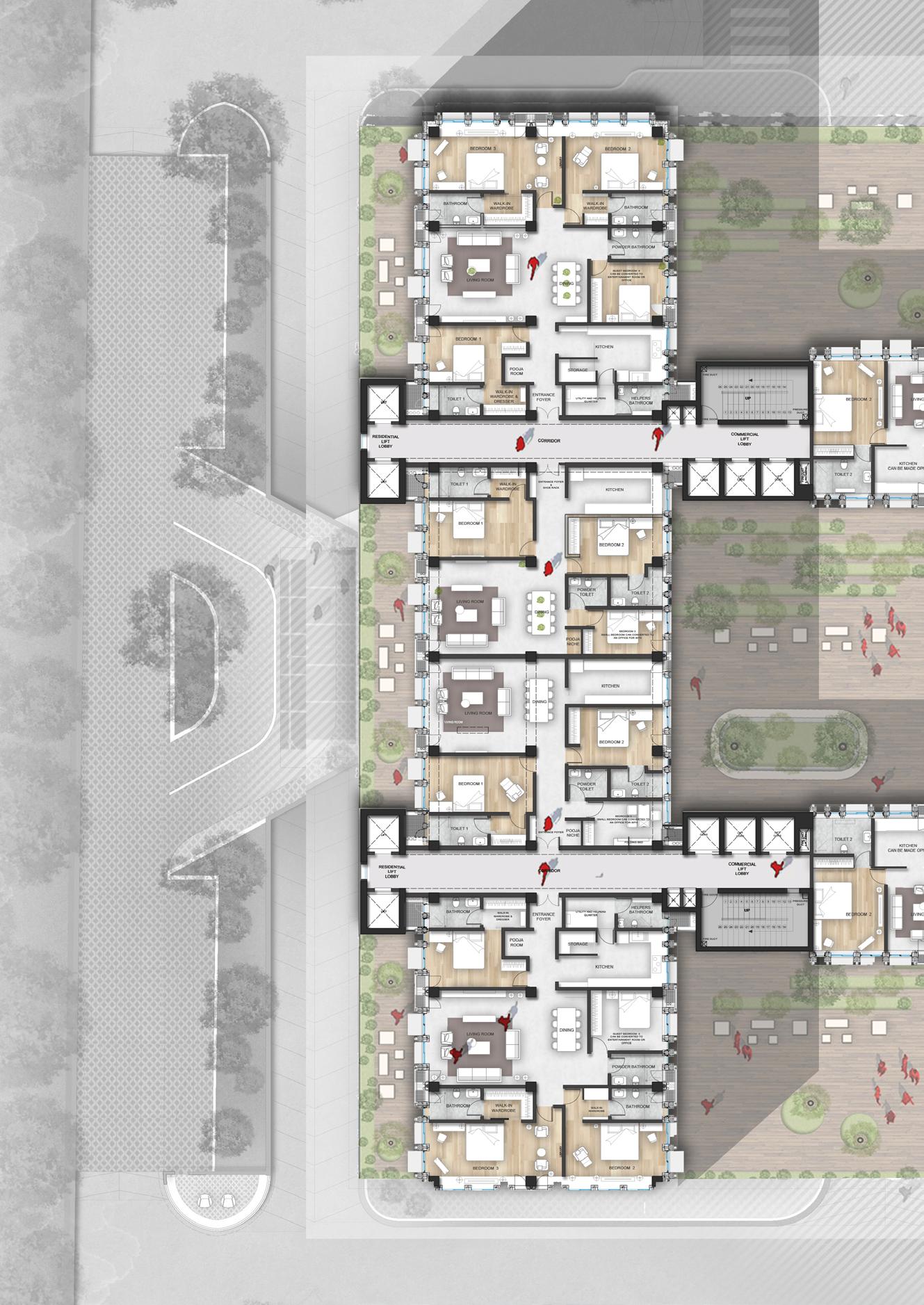

T-A1 01 T-A1 02 T-A1 03 T-A1 04 T-A1 05 T-A1 06 T-A1 07 T-A1 08 T-A1 09 T-A1 10 T-A1 11 T-A1 12 T-A1 13 T-A2 01 T-A2 02 T-A2 03 T-A2 04 T-A2 05 T-A2 06 T-A2 07 T-A2 08 T-A2 09 T-A2 10 T-A2 11 T-A2 12 T-A2 13 J H G E F D C B A morphogenesis. AS PER AAI NOC 1ST FLOOR LOBBY LVL 3RD FLOOR LOBBY LVL 5TH FLOOR LOBBY LVL 6TH FLOOR LOBBY LVL 7TH FLOOR LOBBY LVL 8TH FLOOR LOBBY LVL 9TH FLOOR LOBBY LVL 10TH FLOOR LOBBY LVL 13TH FLOOR LOBBY LVL 2300 2900 2900 2900 14TH FLOOR LOBBY LVL 3000 GROUND FLOOR LOBBY LVL 2ND FLOOR LOBBY LVL 4TH FLOOR LOBBY LVL 11TH FLOOR LOBBY LVL 12TH FLOOR LOBBY LVL INTERNAL ROAD LEVEL 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900 2850 2000 TERRACE FFL LVL 45930 TERRACE TOS LVL TOP OF PARAPET 200 70.74M PERMISSIBLE AMSL J H G E F D C B A 2 ELEVATION B 1 ELEVATION A morphogenesis. Construction Elevation Typical Plan GA

Office: Morphogensis

Building: KRC- 2

Type: Commercial Park+ 5 Star Hotel

Location: Hyderabad, India

Stage: Concept Design

Worked on: Concept Design of Commercial Park and Hotel

morphogenesis.

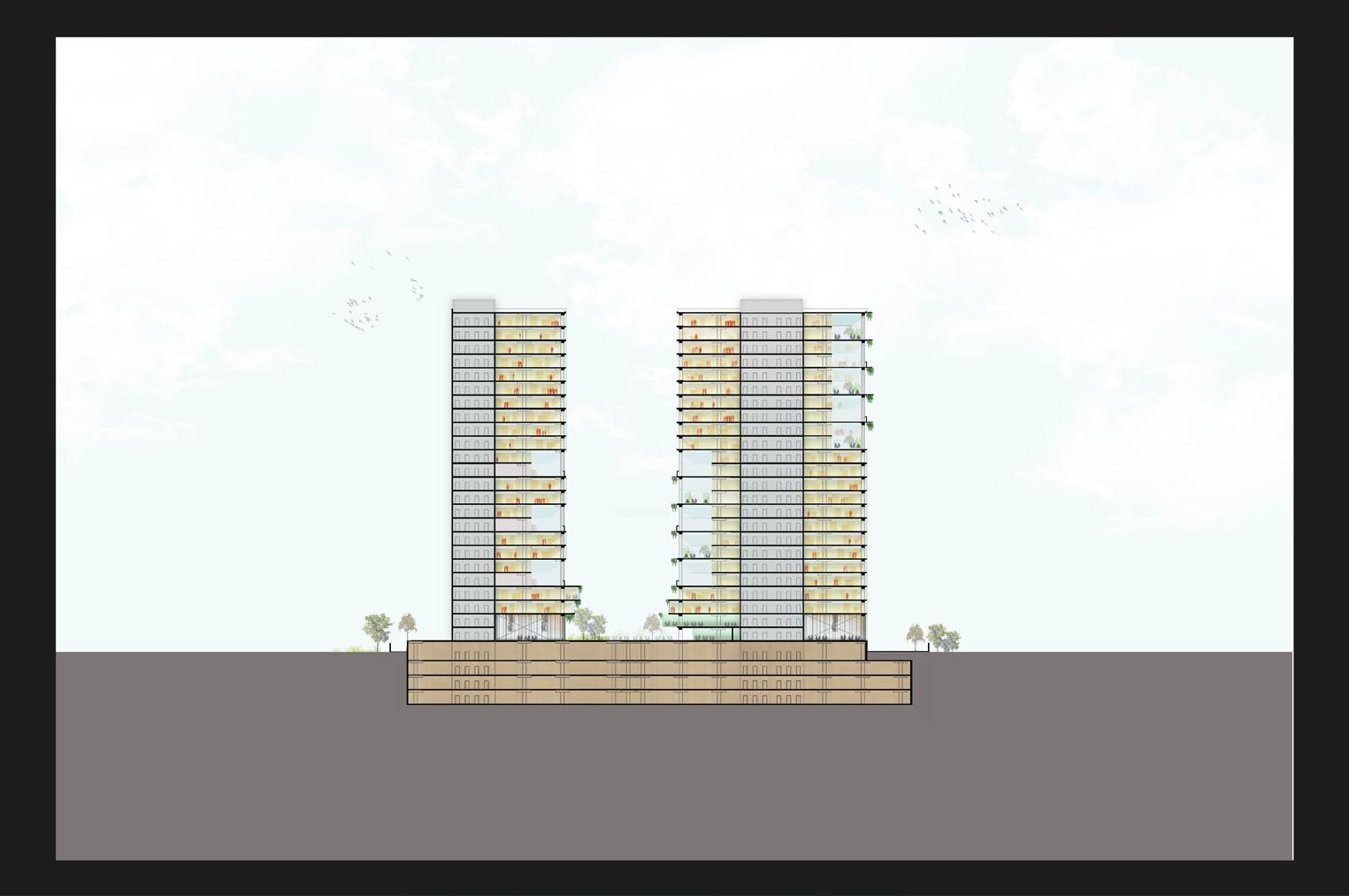

DESIGN SCHEME | SECTIONAL MORPHOLOGY HOTEL TOWER 8TH Floor 9TH Floor 10TH Floor 11TH Floor 12TH Floor 13TH Floor 14TH Floor 15TH Floor 16TH Floor 17TH Floor Terrace Floor Terrace Pool Terrace Terrace Roof level 6TH Floor 7TH Floor 8TH Floor 9TH Floor 10TH Floor 11TH Floor 12TH Floor 13TH Floor 14TH Floor 15TH Floor 16TH Floor 17TH Floor 18TH Floor 19TH Floor 20TH Floor 21TH Floor 23RD Floor 22ND Floor 14 Guest Room Floors 69.5 M 100.8 M TOWER morphogenesis. DESIGN SCHEME | SECTIONAL MORPHOLOGY 9TH Floor 10TH Floor 11TH Floor 12TH Floor Roof level 13TH Floor 14TH Floor 15 Floor 16TH Floor 17TH Floor 18TH Floor 19TH Floor 20TH Floor 21TH Floor 22ND Floor Terrace Terrace Terrace 23RD Floor Refuge Terrace 9TH Floor 10TH Floor 11TH Floor 12TH Floor Roof level 13TH Floor 14 Floor 15 Floor 16TH Floor 17 Floor 18 Floor 19TH Floor 20TH Floor 21TH Floor 22ND Floor 23RD Floor TOWER TOWER morphogenesis. morphogenesis.

Office: Morphogensis

Building: Adani Heights

Type: Residential

Location: Andheri, Mumbai

Stage: Design Development

Worked on: Master Plan & Club House Concept and Facade

morphogenesis.

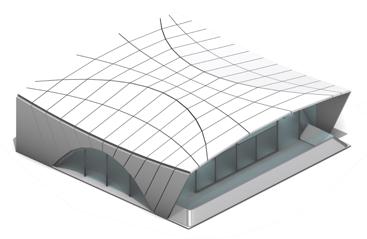

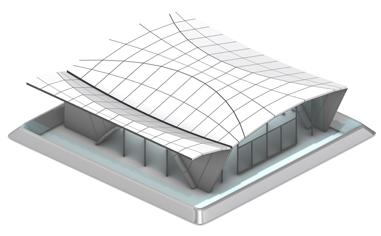

Master Plan & Landscape Concept Club House Concept & Facade

Turn static files into dynamic content formats.

Create a flipbook
