Chassis prefix: ZD4ME001, ZD4MEA01, ZD4MEC01, ZD4MEE01, ZD4MEE10, ZD4MEE11 Engine prefix:
RSV 2 1000 390Y - RSV 1000 2000
Group Code Description Service
Pos.

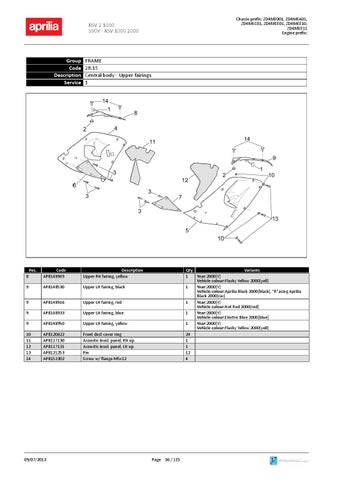

FRAME 28.15 Central body - Upper fairings 1
8
Code AP8148949
Description Upper RH fairing, yellow
9
AP8148530
Upper LH fairing, black
9
AP8148916
Upper LH fairing, red
9
AP8148933
Upper LH fairing, blue
9
AP8148950
Upper LH fairing, yellow
10 11 12 13 14
AP8120622 AP8117130 AP8117131 AP8121253 AP8152302
Front dust cover ring Acoustic insul. panel, RH up. Acoustic insul. panel, LH up. Pin Screw w/ flange M5x12
09/07/2013
Qty Variants 1 Year:2000[Y] Vehicle colour:Flashy Yellow 2000[yell] 1 Year:2000[Y] Vehicle colour:Aprilia Black 2000[black], "R"acing Aprilia Black 2000[rac] 1 Year:2000[Y] Vehicle colour:Hot Red 2000[red] 1 Year:2000[Y] Vehicle colour:Electric Blue 2000[blue] 1 Year:2000[Y] Vehicle colour:Flashy Yellow 2000[yell] 24 1 1 12 4
Page 36 / 115
