IESNYC Lumen Awards 2024

Award of Merit

I-74 Mississippi River Bridge

Bettendorf, IA, and Moline, IL

HLB LIGHTING DESIGN: Faith Baum, Elizabeth Johnson, Oktay Akanpinar, and Joe Spinnato

It is an honor to represent this community with a nighttime photo of their signature bridge on a US postage stamp, and we are delighted to celebrate the project’s completion in tandem with Faith Baum’s retirement.

— Elizabeth Johnson

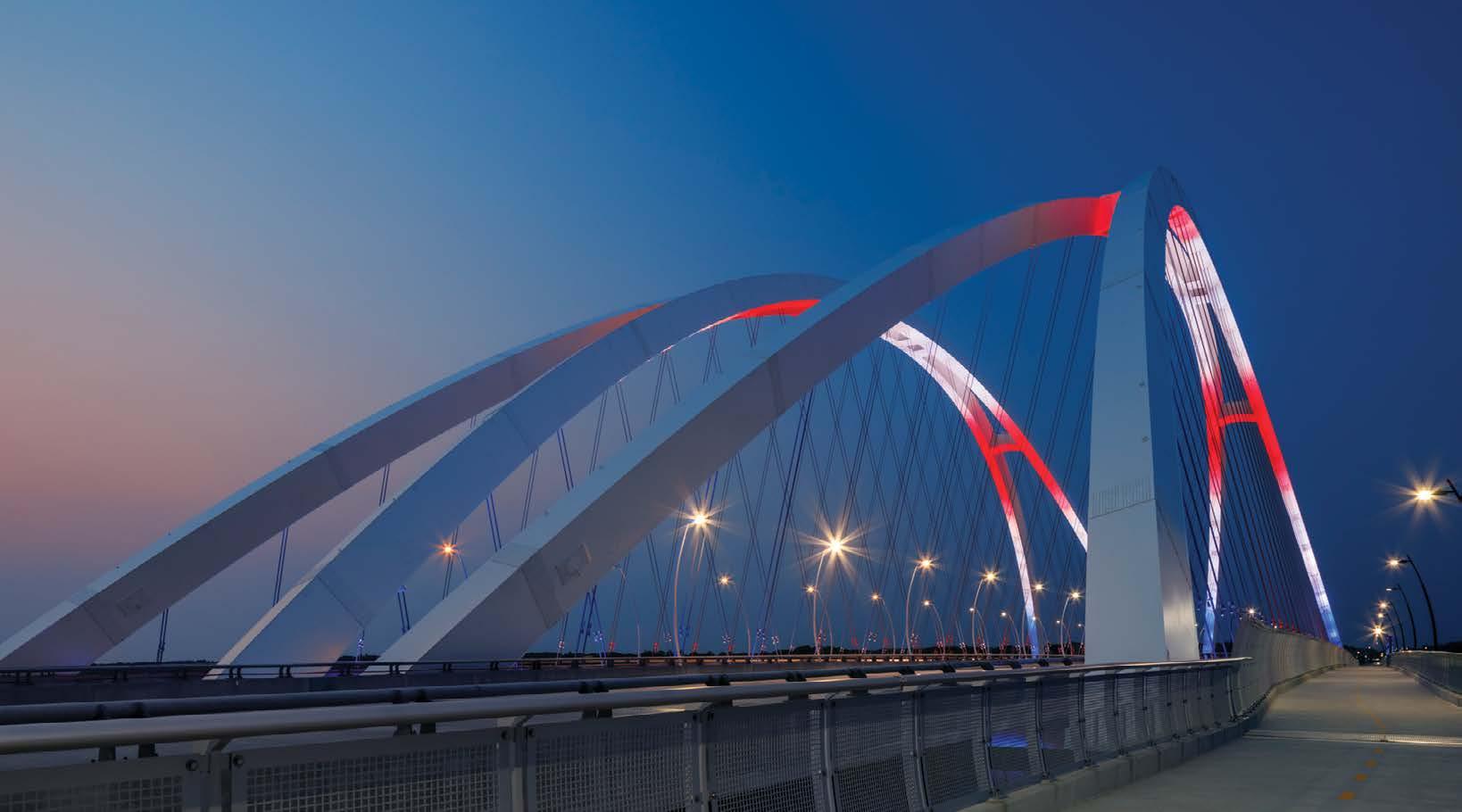

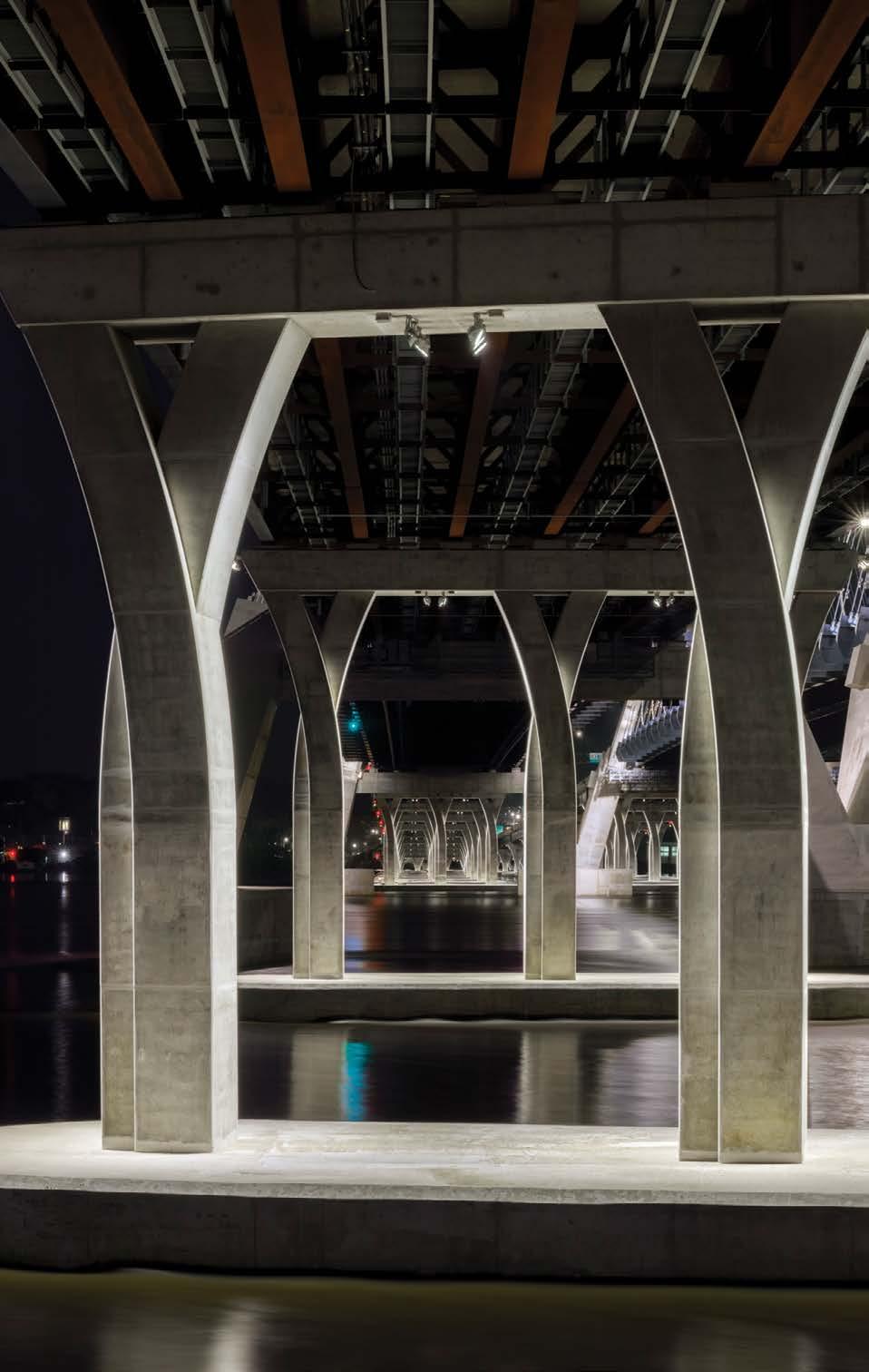

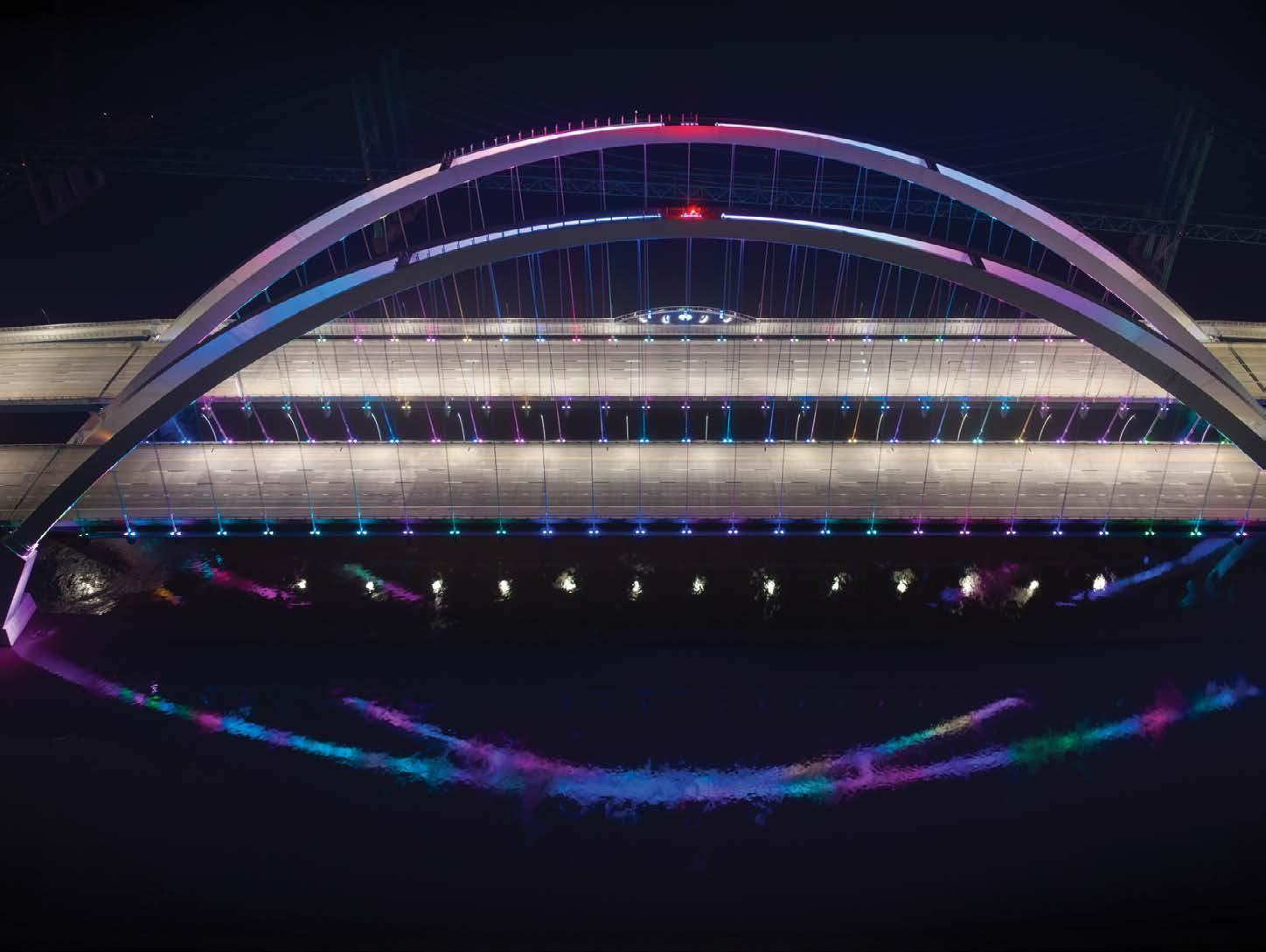

Dynamic uplighting brings the double–basket-handled arch structure to life at night. Color-changing luminaires focus on the bottom surfaces of the arches, creating an apex of color and light on this vital infrastructure project. Custom DMX controls were pre-programmed with dozens of celebratory scenes. They use slow movement and color shifts to provide visual interest without distracting drivers.

Extreme temperatures, harsh winters, a high floodplain, and the great distance from shore required robust luminaire and control-distribution specifications. Finishes mitigate corrosion, and fixtures were located to allow accessible maintenance and prevent vandalism. Narrow-optic floodlights focus on small sections of the arch for smooth dynamic effects. Focusing was a formidable challenge, performed over five nights from river barges.

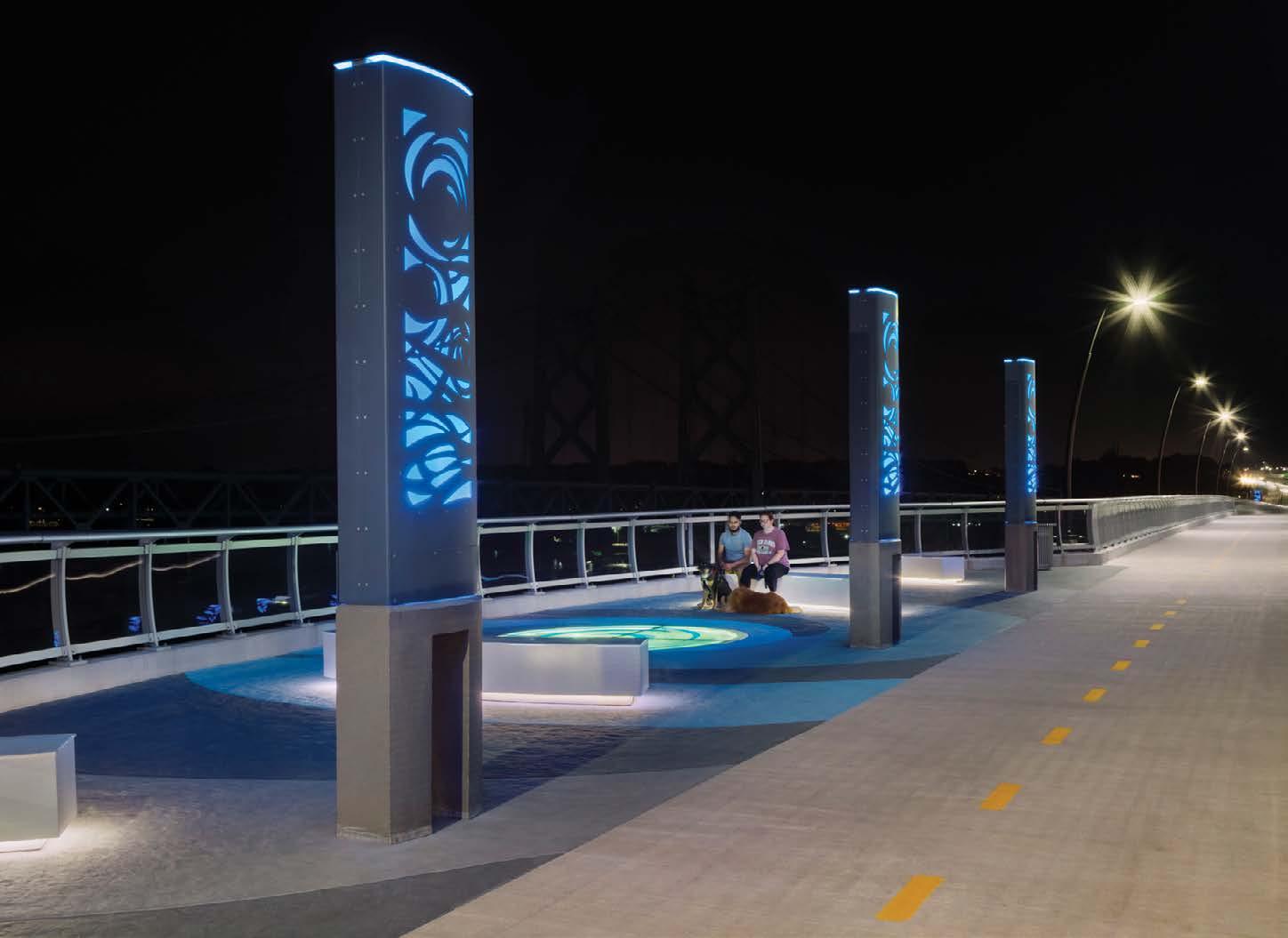

Full cutoff luminaires on the pedestrian path and soft lighting at the overlook have made walking across the bridge a popular nighttime activity. The illuminated glass oculus invites respite. And the identity-element columns cleverly incorporate reflective blue highway sign material, which evenly distributes the illumination from a single source at the bottom of each column.

After 13 years of planning, fundraising, and design, the new signature bridge uses strategic dynamic lighting and thoughtful general illumination to create a safe and welcoming landmark.

ARCHITECTS - Shive-Hattery: Jennifer Radloff, Craig Erickson, Holly Reid, Dave Tallman

OWNER - Iowa Department of Transportation

Photography - Lauren K. Davis, Brad Feinknopf

Award of Merit

% Arabica Union Station Toronto

Toronto, ON, Canada

LOOP LIGHTING: Alina Ainza, Pai Benchahiransak, and Yangyang Lu

Situated in Toronto’s historic Union Station, % Arabica’s flagship store in Canada celebrates the founder’s passion for global coffee.

A dramatic floor-to-ceiling, faceted wall was inspired by glaciation and the surrounding terrain. In total, only four luminaire types illuminate the backdrop and entire café, echoing the brand’s minimalist aesthetic. A continuous, recessed linear slot of light outlines the perimeter, casting a soft wash of light and shadow while also illuminating the bulk coffee bags display.

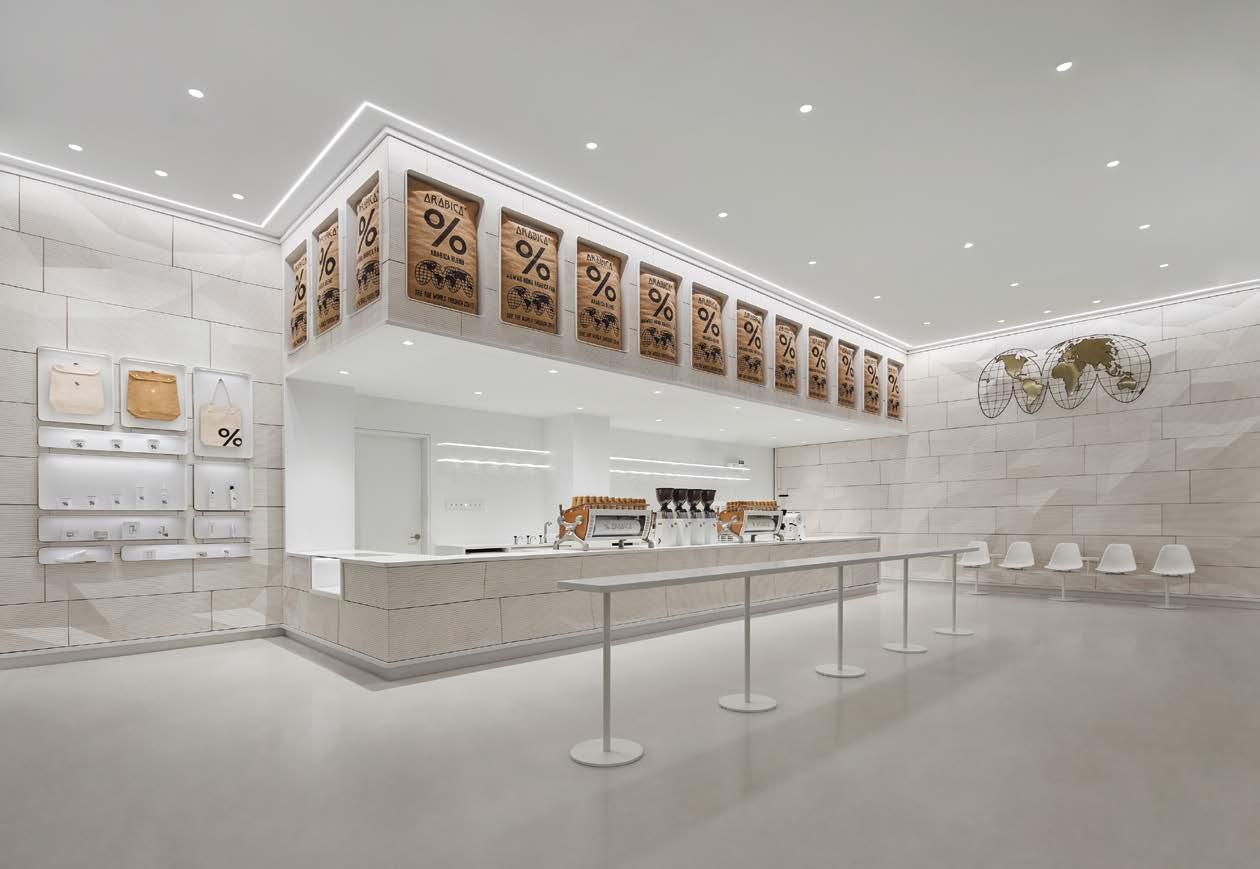

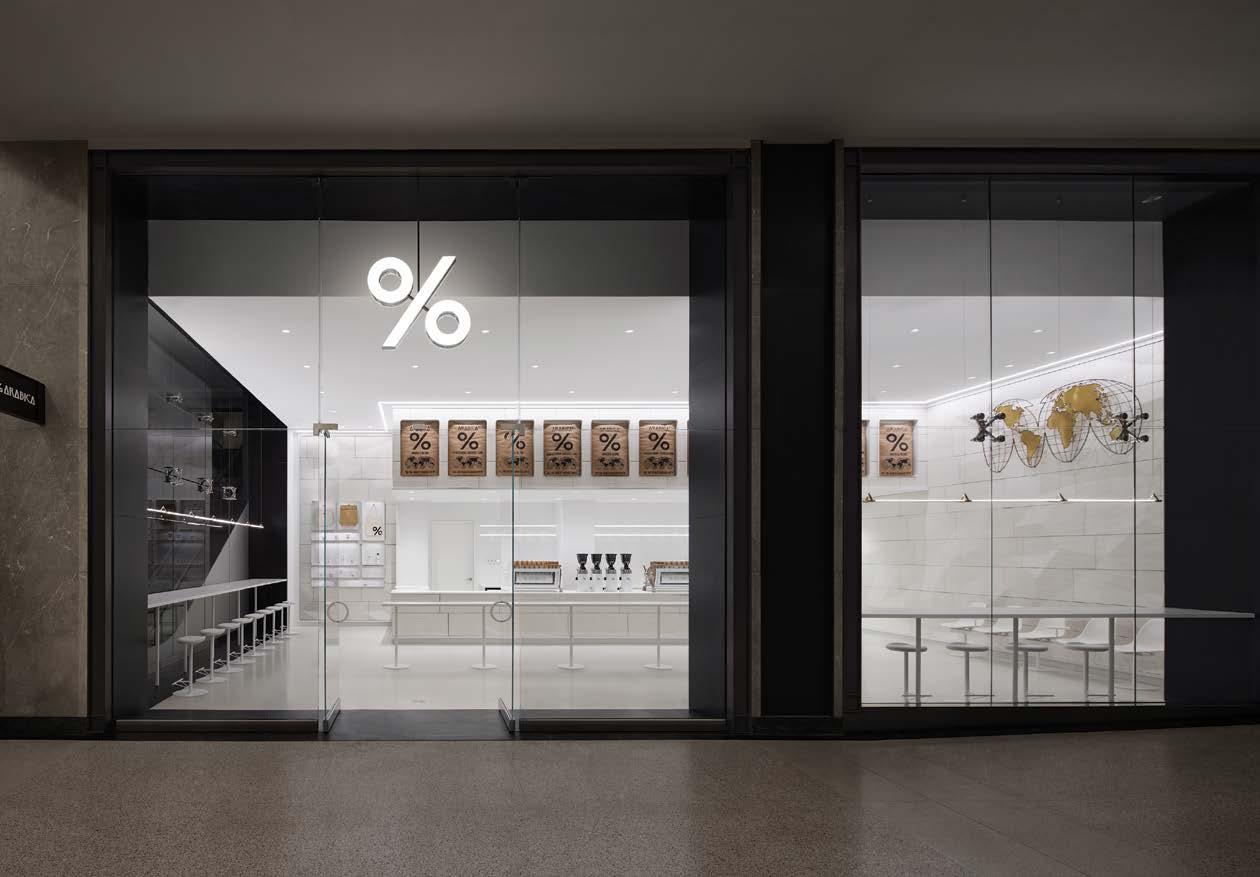

Approaching the cafe, the crisp white geometric surfaces have a monolithic, welcoming glow juxtaposed against the black architectural storefront. Reflected ambient light from recessed downlights and linear accents heightens the contrast. The baristas and coffee machinery are illuminated by a backdrop of edge-lit floating shelves and white Corian counters lit from above.

Despite a crowded ceiling cavity, luminaires were precisely located to transform the space into an expansive, glowing oasis within the bustling train station.

ARCHITECTS - Tacklebox Architecture, PLLC

OWNER - % Arabica Canada Accencis Group

Architectural Fabricator - digifabshop

Photography - Erik Petschek

Award of Merit

Christ Church United Methodist

New York, NY

TILLOTSON DESIGN ASSOCIATES: Suzan Tillotson and Amanda Arikol

The expertise demonstrated in custom-designing light fixtures to suit the precise requirements of this project is truly remarkable. The lighting design as a whole is completely transformative of the space, particularly with the captivating illumination of the ceiling. Achieving a great balance, the overall atmosphere embodies a remarkable fusion of theatrical and architectural elements.

— Kalynn Amadio, 2024 Lumen Judge

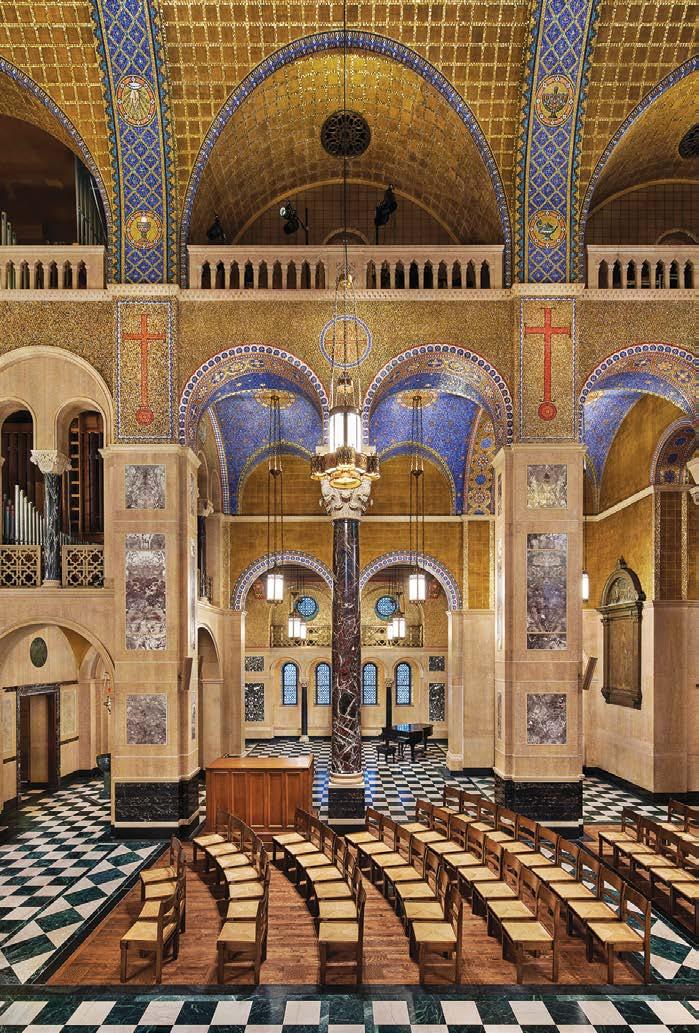

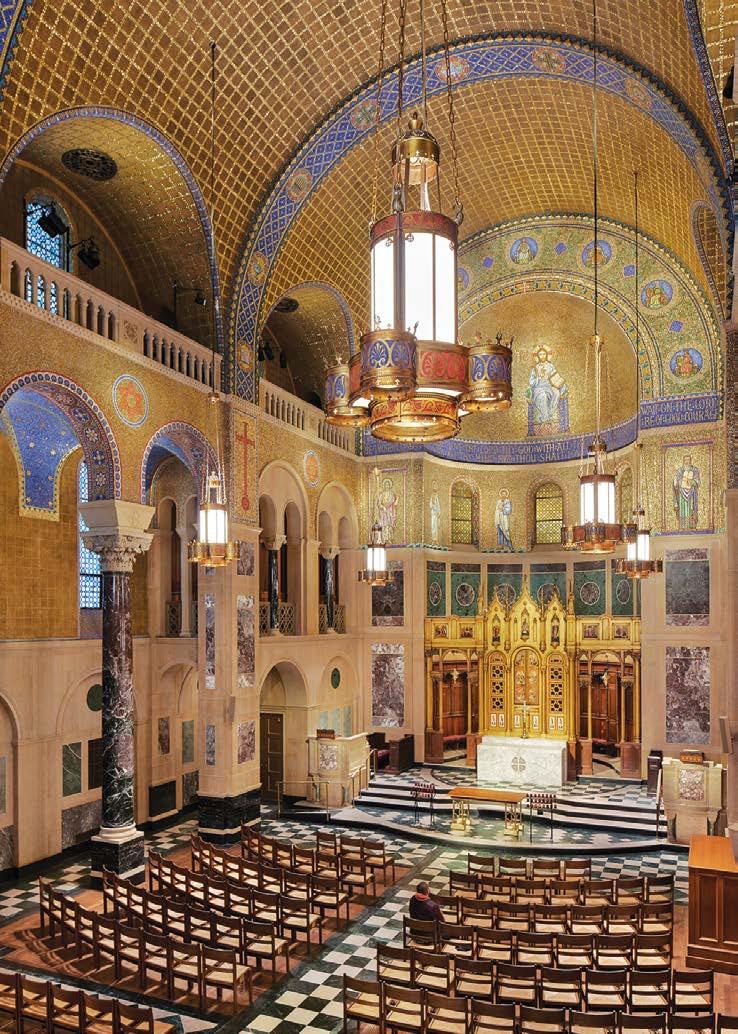

A custom family of decorative fixtures celebrates the soaring scale and glittering materiality of this historic sanctuary. The design of these 6 ft–tall bronze luminaires responds to original lanterns found in the smaller chapel.

The large-scale lanterns are the realization of a historic watercolor painting. The team honored that concept while integrating LED technology to provide four layers of individually addressable sources. Shielded lights within the top of the glowing fixture body provide soft uplight, revealing the the spectacular gold leaf ceiling. A central downlight and four satellite components, containing carefully aimed accent lights, provide even downlighting. Concentric-ring louvers reduce luminare brightness, redirecting focus to the architecture.

At the South Gallery columns, discreet accent lights uplight the night-sky mosaic ceiling. Custom pendants in the Transept bridge the Sanctuary and Chapel. These are replicas of original fixtures, designed with an added uplight to highlight the ceiling medallions.

Refurbished lanterns in the side chapel include accent lights to provide light for speakers and add layers of architectural lighting.

A theatrical system, discreetly mounted in the balconies, softly illuminates the altarpiece and mosaics of the Sanctuary. Individually dimmed, they create a hierarchy brightness among the intricately adorned architectural surfaces, further curating the experience.

ARCHITECT - Thomas A. Fenniman, Architect: Thomas A. Fenniman, Kate Groob

OWNER - Christ Church United Methodist

Photography - John Muggenborg

Award of Merit

712 Fifth Avenue Atrium & Lobby

New York, NY

TILLOTSON DESIGN ASSOCIATES: Suzan Tillotson, Shan Jiang, Chandni Azeez, and Mark Kubicki

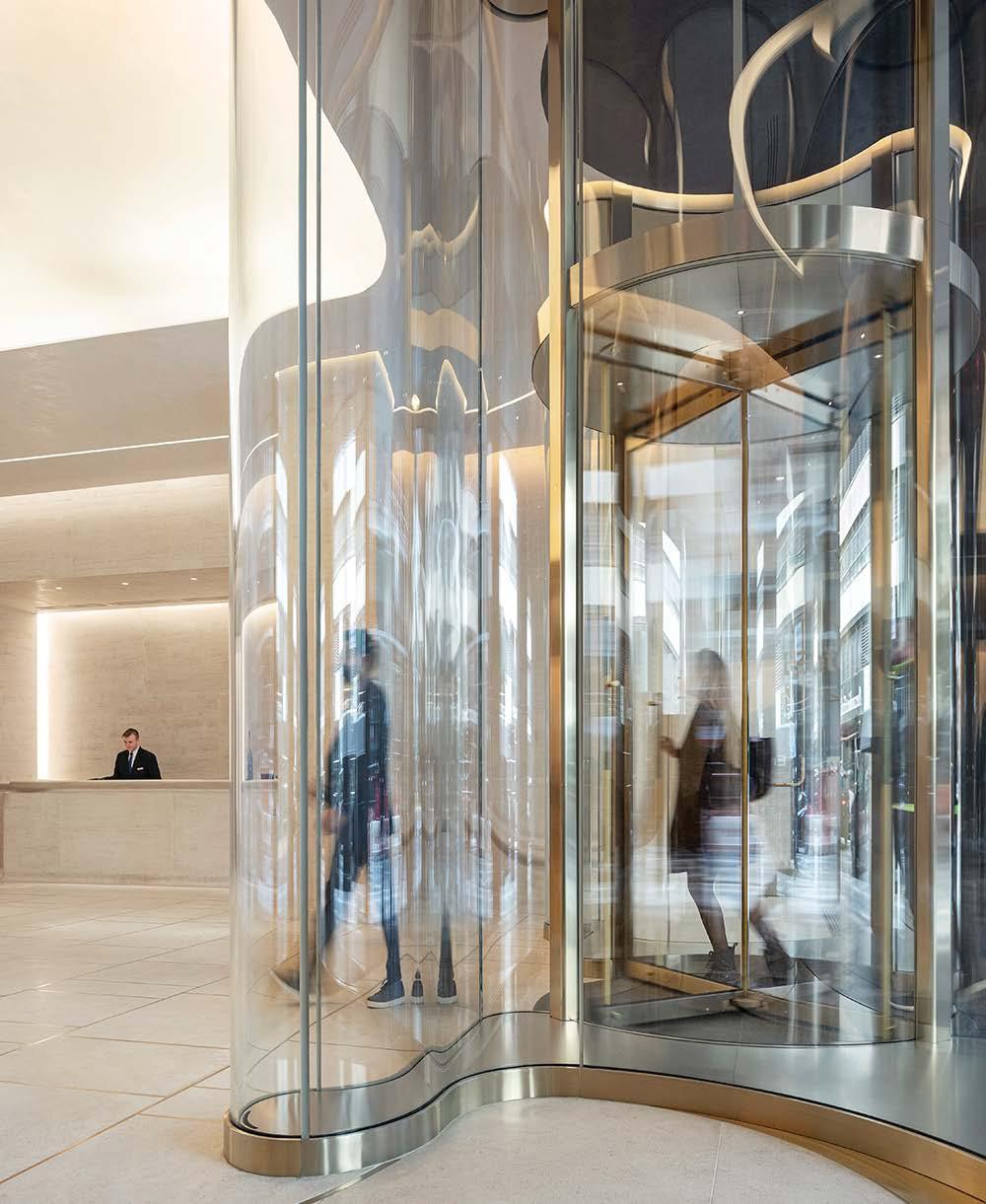

The integration of lighting with the sculptural quality of glass creates a stunning image, inviting users in from the street and encouraging them to linger. The large central cove has a knife edge, which required careful blending of light strips of varying optics and aiming.

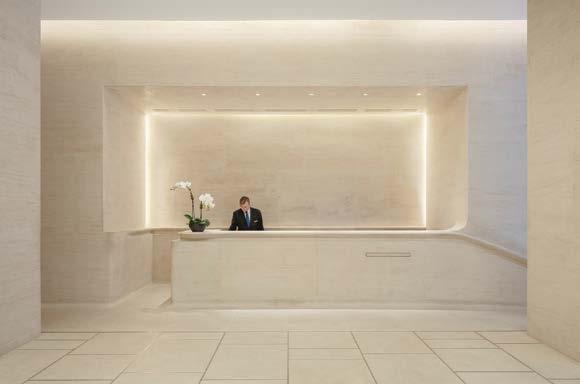

A three-sided cove behind the concierge pulls focus, while accent lights provide the necessary punch on the counter. A glowing light cove at the back wall, visible upon entry, draws visitors into the elevator lobby. Carefully integrated coves mark each elevator door threshold.

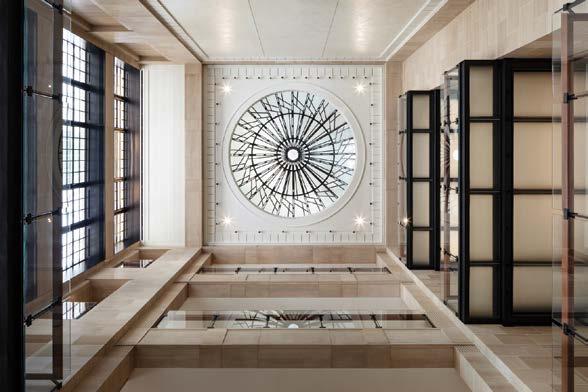

The adjacent light-filled atrium features a four-story, street-facing façade of original Lalique art glass. The glass has beautiful depth and texture, but it is clear, making illumination technically challenging. Linear uplights with narrow optics were carefully concealed in the façade. This approach subtlety emphasizes the texture and sparkle of the glass without reflections.

The steel support structure of the interior balcony contains integrated spotlights to illuminate each frosted-glass bridge surface. Illuminating these translucent bridges and the four-story stone wall – all while minimizing visible sources – proved key to the success of this striking, visually comfortable environment.

ARCHITECTS - Kohn Pedersen Fox Associates: Hugh Trumbul, Gregory Mell, Stephen Fan, Victoria Dushku

OWNER - Paramount Group Inc.: Matthew Bautista, Vice President

Photography - Michael Moran/OTTO

Award of Merit

David Zwirner Office Headquarters

New York, NY

MAP DESIGN STUDIO: Artemis Papadatou, Jung Eun Ra-Lee, Anne Roca, and Sam Powers

Gallerist David Zwirner commissioned a renovation of 36,000 sq ft of office space across two floors, creating a uniquely flexible workspace environment. Seamless architectural lighting meets the meticulously minimalist design language of the project.

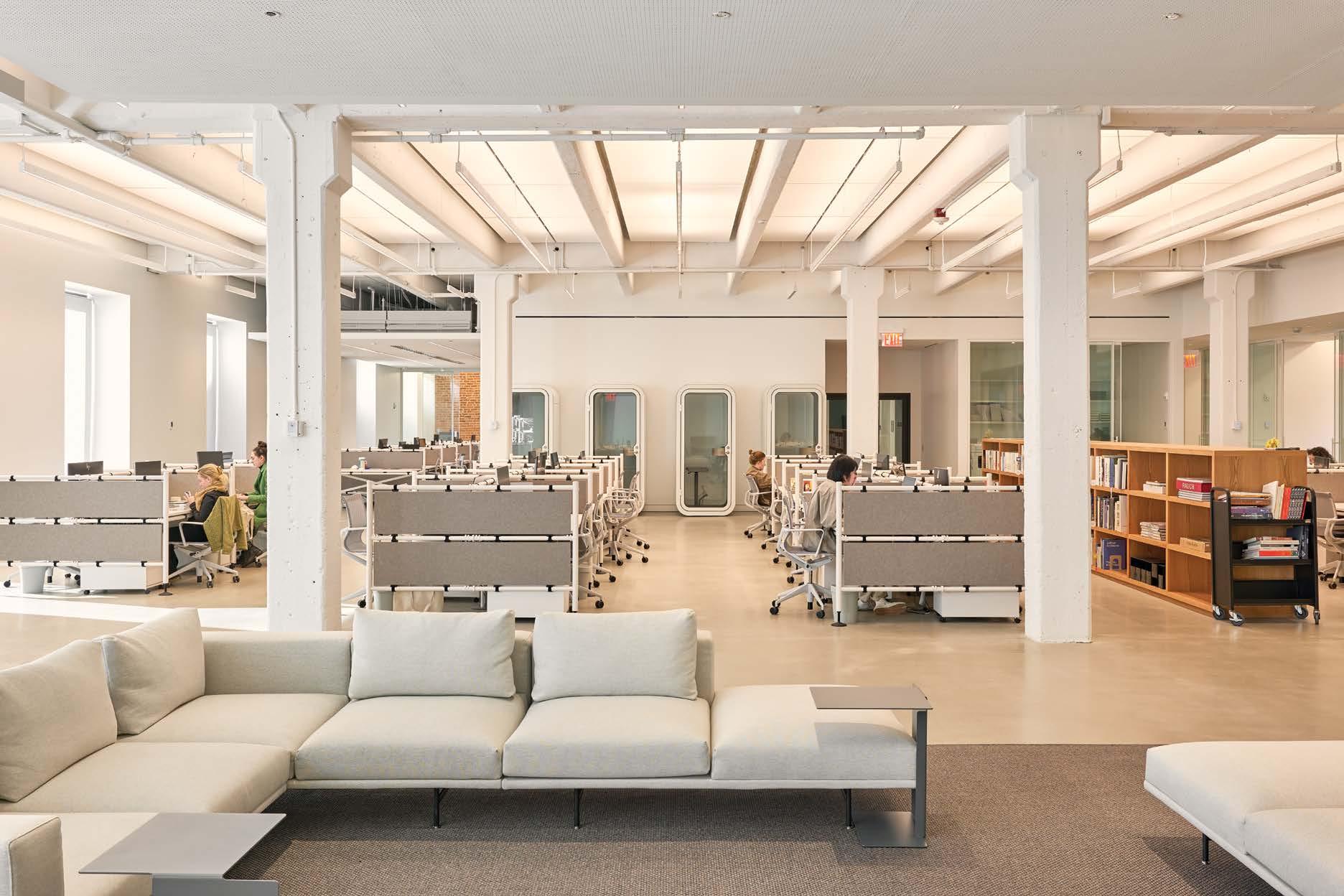

The lighting provides general, soft and uniform illumination throughout all space typologies, while meeting desired light levels. Lenses, louvers, and small-scale apertures achieve optimal glare control to provide a visually comfortable environment.

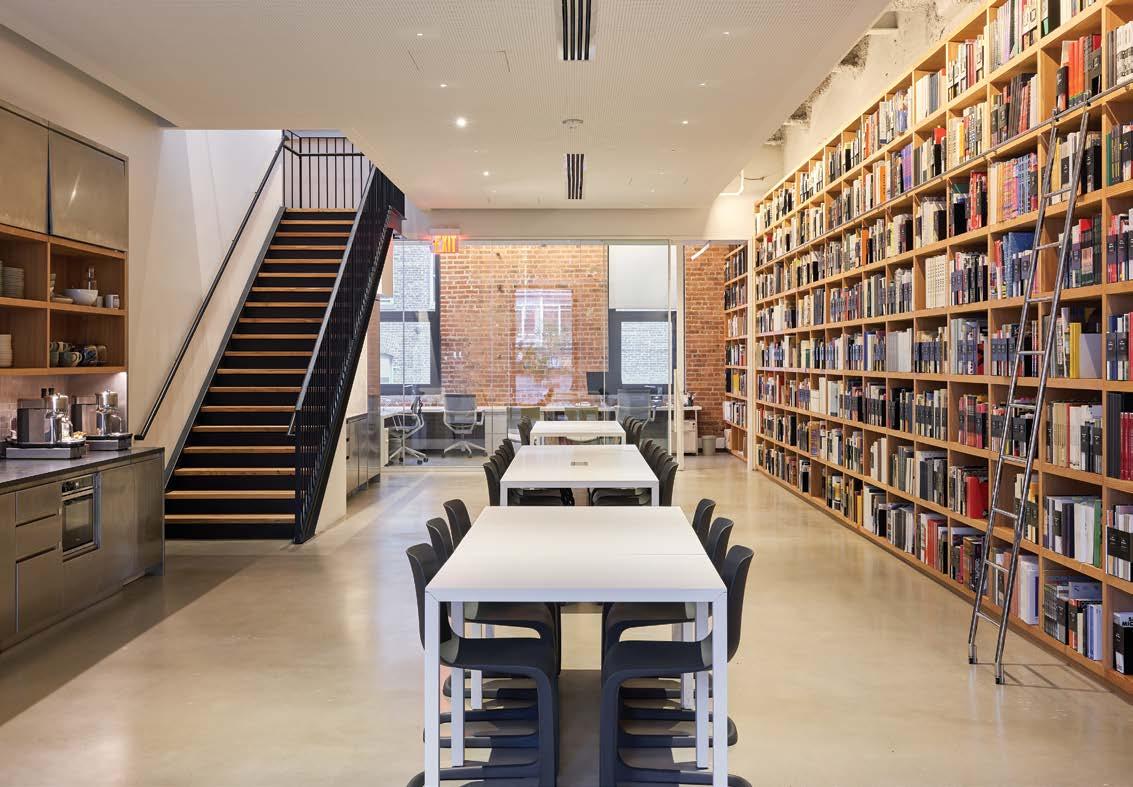

The focal point of the interior architecture is the end-to-end, floor-to-ceiling bookcases. Concealed, suspended linears wash this design element and amplify the depth of the large-scale open space. In the kitchen, the colorful bookshelves add energy.

The different ceiling types demanded various strategies. For the exposed tall ceilings, direct-indirect pendants provide task lighting. And in acoustical dropped ceilings, minimalist recessed downlights illuminate furniture and tables. Likewise, circulation spaces use small-aperture downlights for a quiet ceiling, while avoiding harsh direct lighting and shadows.

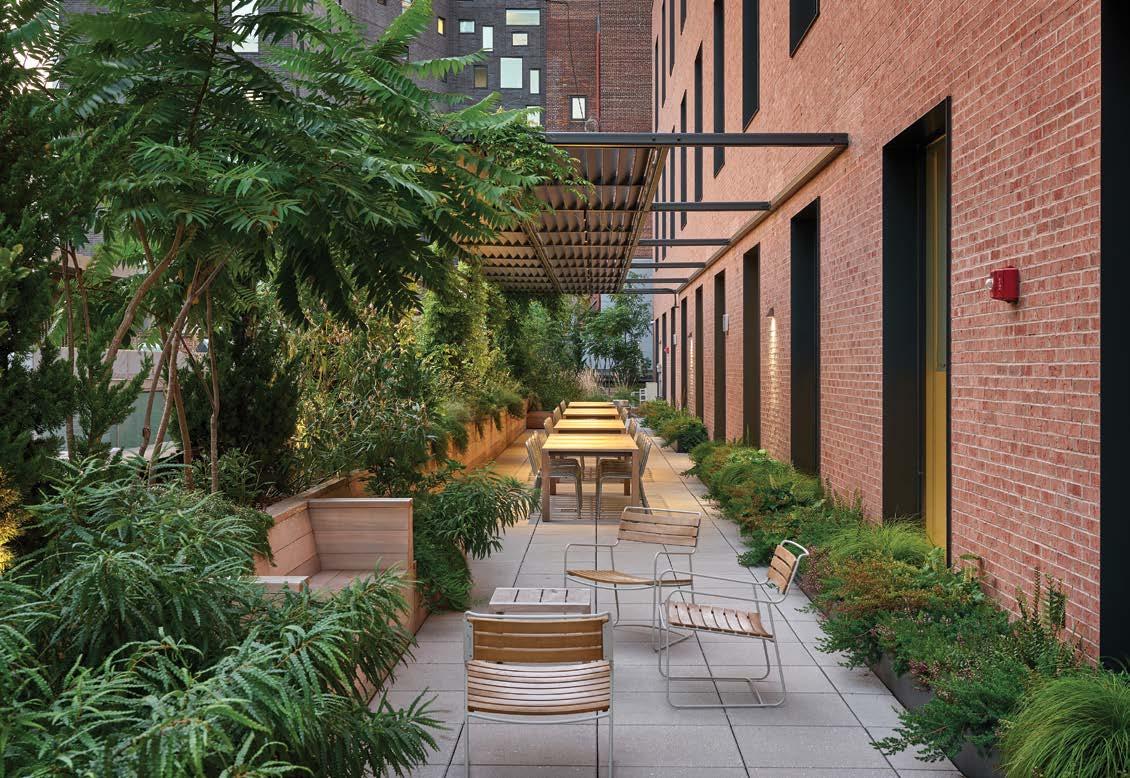

On the outdoor terrace, in view from the Highline, lush greenery is softly illuminated at night to create a cozy, visually enclosed environment. Catenary downlights evenly light the dining and working tables.

Minimal lighting layers throughout still create versatile workspaces and amenities, to accommodate expected growth in staff over time.

ARCHITECTS - Selldorf Architects: Annabelle Selldorf, Oliver Link, Wells Megalli, Thomas Soldiviero, Kristen Newman, Yongwoo Park, Kahlil Lashley, Lori Weatherly, Isabel van der Linden, Reymond Jimenez

OWNER - David Zwirner

Photography - Colby Edwards

Award of Merit

Hotel AKA NoMad

New York, NY

STUDIO ATOMIC: Gabriele Negro, Paola Pietrantoni, Julieta Hernandez Quijas, and Ruyao Wei

Positioned at a vibrant intersection within the dynamic NoMad district of New York City, Hotel AKA breathes new life into a historic, 1930s structure. The lighting design unfolds, seamlessly integrated into the minimalist architecture, with subtle influences from Japanese and Scandinavian traditions.

The interplay of light and shadow transitions from rich dark textures to carefully curated spotlighted moments. This chiaroscuro effect guides visitors from the entrance into the bar area, culminating in the reception lobby lounge.

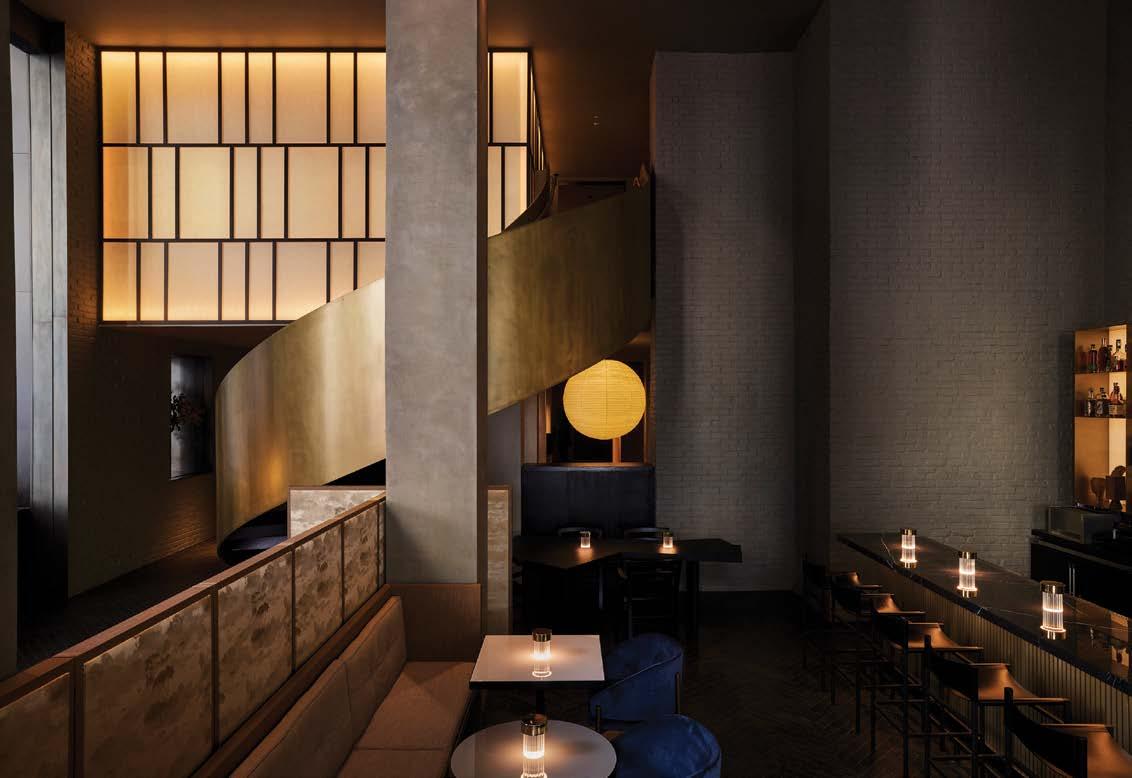

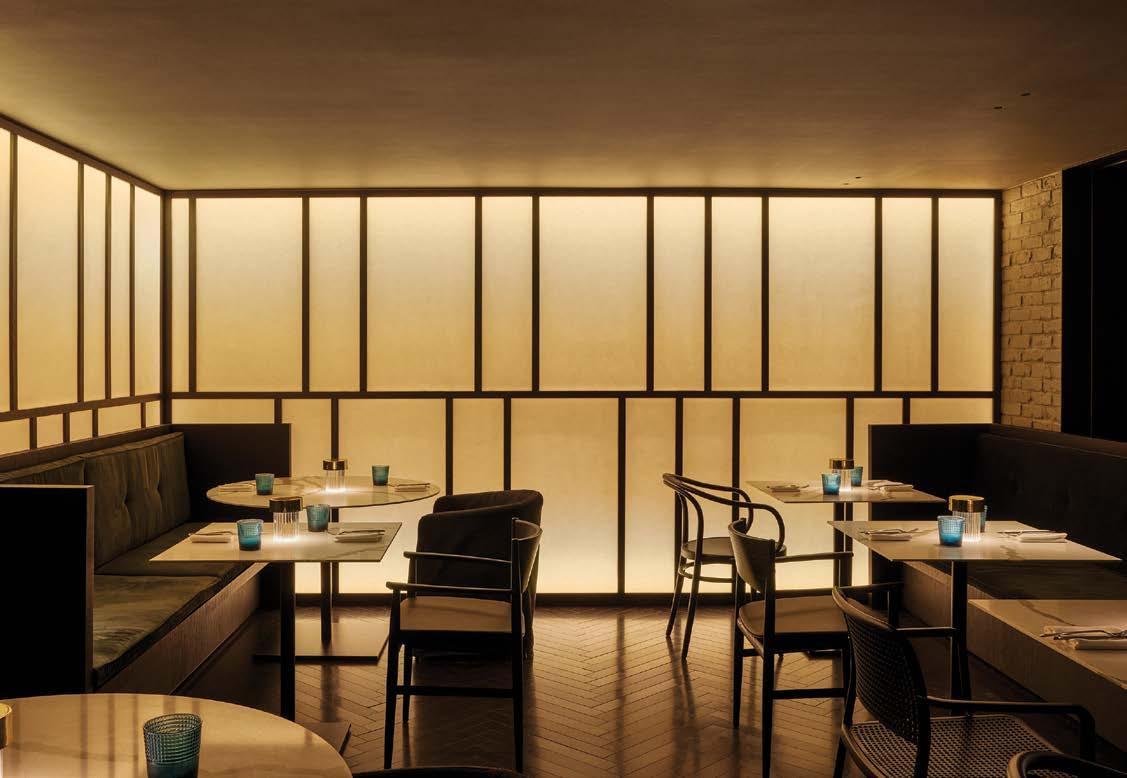

Visible from the exterior, an illuminated floating shoji wall spans the space, lending a gentle and welcoming radiance. This shoji wall flows through the mezzanine restaurant, creating an intimate ambiance.

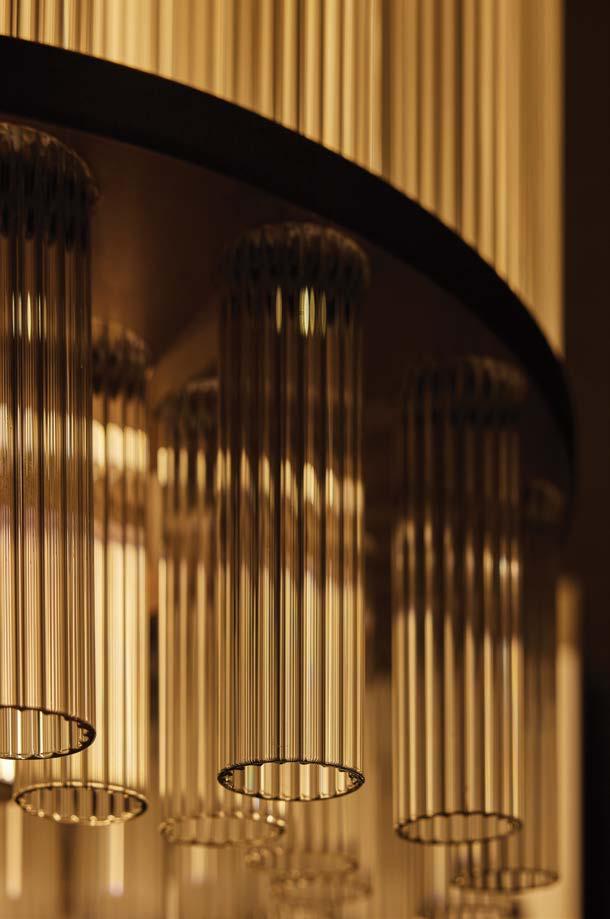

The backlit bar is marked by a towering chandelier, which accentuates the verticality of the double-height space. The chandelier’s layers of fluted and textured glass suffuse a warm glow throughout the room. To complement, oversized, Japanese-inspired pendants adorn the meeting tables.

Note the glint of light on the curving bronze stair. Several mock-ups ensured consistent lighting effects throughout, taking into account the varying ceiling heights within the same space.

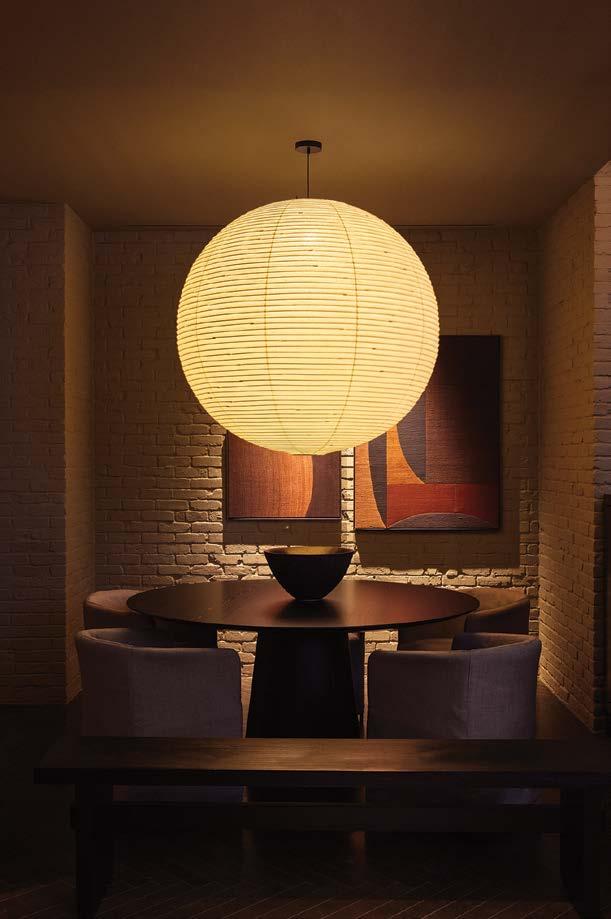

Diffused lighting and precise dimming soften the interior experience: a peaceful escape from the city’s energy.

ARCHITECTS - Lissoni Architecture New York: Stefano Giussani, Stephanie Rieger, Christine Napoli

and Sawicki Tarella Architecture + Design: Joseph Tarella, Edward Bowser

OWNER - Korman Communities: Larry Korman, Co-CEO

CLIENT’S REPRESENTATIVE - David Fields

CUSTOM CHANDELIER DESIGN - Axon Design Inc., Kacper Dolatowski

ELECTRICAL ENGINEER - Holstein White Inc.

Photography - Jonathan Hokklo (Interior), Jeffrey Totaro (Facade)

Award of Merit

Khaite

New York, NY

COOLEY MONATO STUDIO: Emily Monato, Aditi Govil, and Barbara da Costa

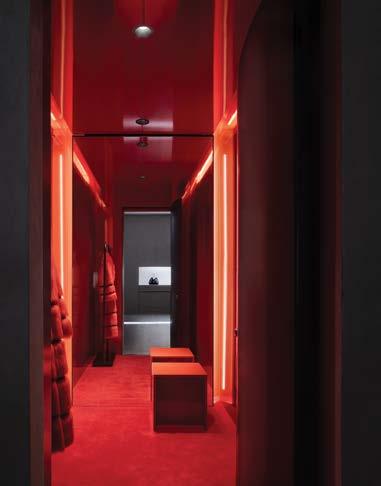

As the first standalone store for Khaite, this Downtown NYC location carried high expectations. The brand’s fresh and feminine online image starkly contrasts with the brutalist environment.

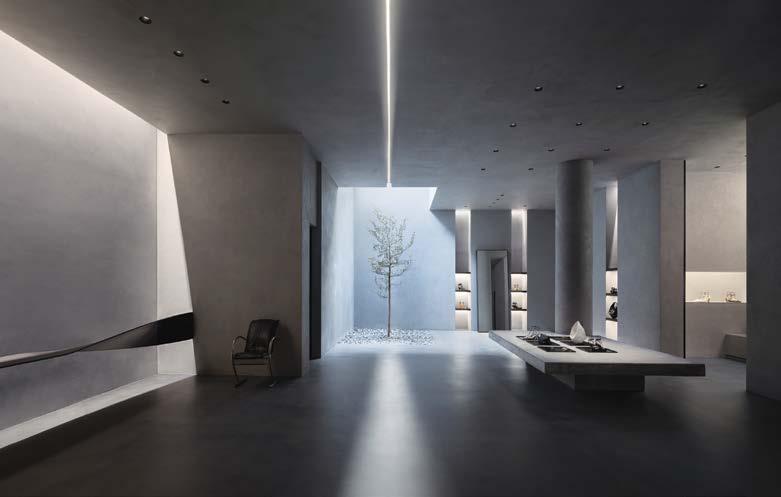

The design team was inspired by natural light, preserving scale and openness while creating intimate spaces using concealed electric sources. Lighting is applied sparingly: each interaction is curated to guide your eye through product and path. “Sunlight,” both natural and electric, filters through ceiling breaks. At the oculus, a fabric membrane admits daylight, while hiding mechanicals. LED strips above, boost illumination during overcast days.

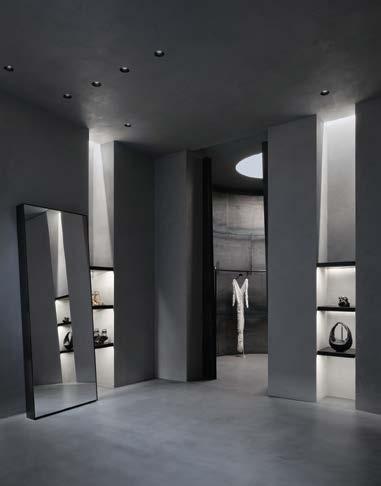

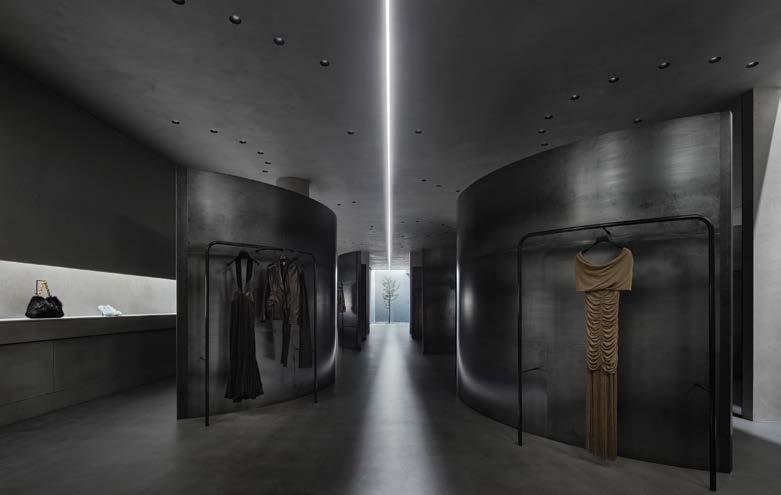

Linear grazers within perimeter niches mimic the harsh cutoff of sunlight. As light enters, the textural quality of varied materials is revealed. Meanwhile, adjustable ceiling accent lights highlight product with slightly warmer color temperatures. Saturated-red fitting rooms stand out vividly. Concealed LEDs flanking the full-height mirrors and dropped ceiling provide diffused light.

Full-scale paper mock-ups used lighting fixture samples to create the desired lighting points, lines, and planes. Tunable-white LED sources shift in color and intensity, mimicking the sun over the course of the day. Further, the control system alters light and sound, allowing the store to function as a sales floor, runway, or event space.

ARCHITECTS - Atmosphere Design & Architecture: Louis Loria, Alfredo Berrios, Hsiao-Ching Pan

OWNER - Khaite LLC

Owner’s Representative - Hyland Studio, Jessica Hyland

Concept Designer - Griffin Frazen and Louis Loria

Contractor - Michilli Inc.: Robert Soto, Jason Marion, Saray Rodriguez

AV Consultant - JDAV Design: Alex Noyola, Darwin Narvaez

Photography - Eric Petschek, Aditi Govil

Award of Merit

Korean War Veterans Memorial

Washington, D.C.

FLUX STUDIO LTD: Brian McIntyre and Laura Dillon

The statues evoke a sense of solemnity and gravity, enhanced by their stainless steel composition, contrast, and the intensified shadows. The beautiful execution of up-and downlighting results in a consistent glow on the ground during the night. It’s undoubtedly deserving of the Award of Merit.

— Andy Fastman, 2024 Lumen Judge

The lighting design for this memorial to “America’s Forgotten War” uses a deliberate composition of light and dark areas to reinforce the architect’s intent for a somber, contemplative atmosphere.

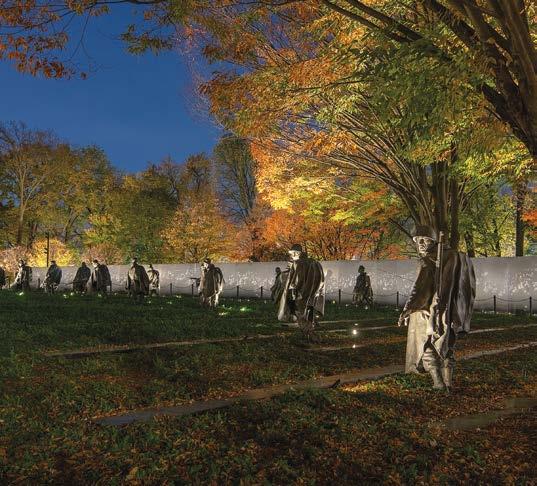

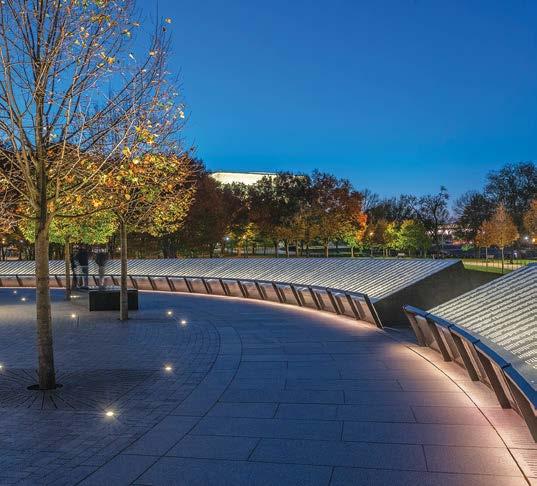

New in-grade LED uplights illuminate the trees lining the memorial plaza, providing ambient light that is reflected in the central circular pool. The new granite Wall of Remembrance required extensive mock-ups, which led to a system of rail-integrated LEDs that alternately uplight the casualties’ engraved names and downlight the adjacent path.

A central feature of the existing memorial is a field enclosing 19 stainless steel statues that depict soldiers who fought in the war. Remote drivers for ground-mounted accent lights are housed in existing fiberoptic illuminator vaults. Final fixture positioning was determined on-site to ensure that each statue’s face was lit, and that much of the illumination fell on the side of each statue facing the mural wall, enhancing their reflections in the polished granite surface.

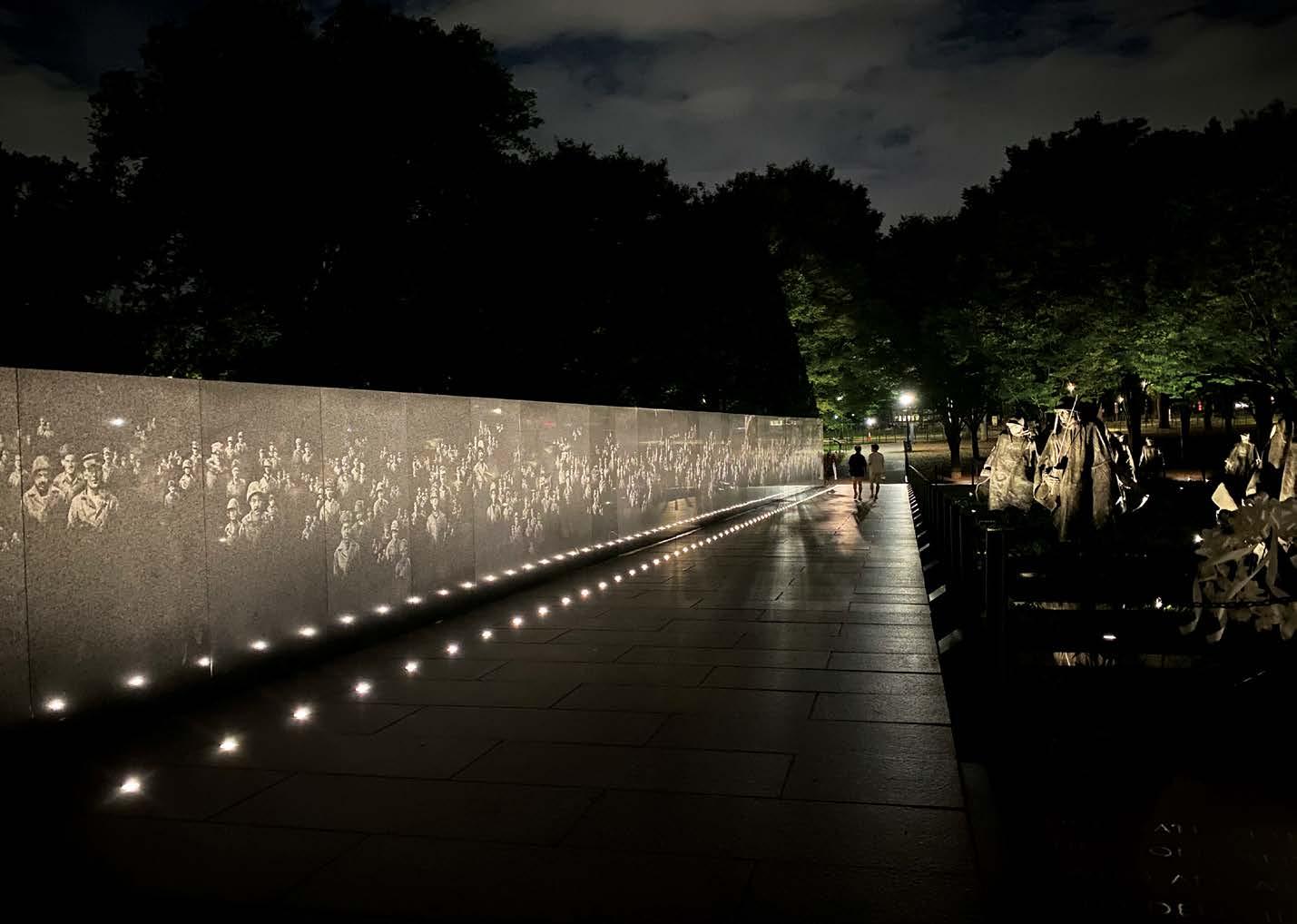

The in-grade wallwashers illuminating the mural wall are positioned to limit eye-level reflected glare. Custom security bollards light a path alongside the field of statues. Their asymmetric distribution illuminates the width of the path, while their spacing satisfies both lighting and security requirements.

ARCHITECTS - Hartman Cox Architects

OWNER - Korean War Veterans Memorial Foundation

Photography - Anice Hoachlander, Glenn Shrum

Award of Merit

Saint Nicholas Greek Orthodox Church and National Shrine

New York, NY

DLR GROUP: Tom Gallagher, Jesse Smith, Kane Hassebrock, Sara Aguirre, Wes Calkin, Yosuke Hiraiwa

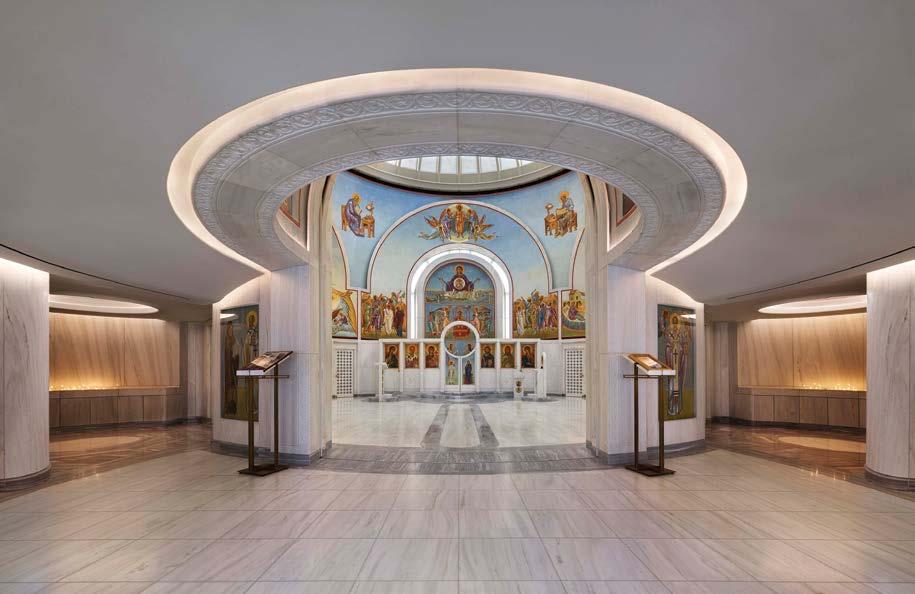

From the ashes of September 11, the new Greek Orthodox Church and National Shrine arose. Using light, the church appears as solid as stone by day, yet glows “from the light of 10,000 candles” by night.

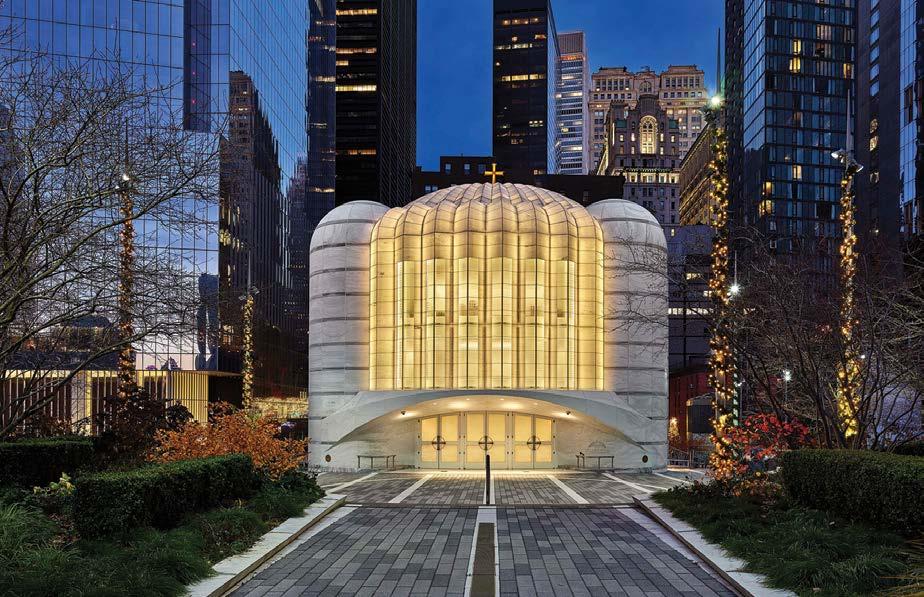

An envelope of light between the thermal enclosure and a translucent stone rainscreen houses 1,200 LED modules in 2700K. Directed inward from the rainscreen structure, they utilize the thermal enclosure as a reflective surface. Shadowing from the rainscreen is thus minimized, as the stone glows from within.

This same envelope of light provides the base lighting within the nave through glazed surfaces in the dome and sidewalls. A warm interior glow at night celebrates the difference with cool daylighting.

Discreet 3000K fixtures highlight architectural elements and iconography. The icons are precisely lit from the springline of the dome. Each fixture is individually controlled to create unique scenes that correspond to individual liturgical moments.

The scope of lighting design work includes exterior building-mounted lighting and all interior spaces. While the prominence of the project and numerous other issues presented challenges, this beacon of hope serves as a testament to the dedication and resilience of all those involved. The Church encourages visitors to “Let the light embrace you.”

ARCHITECTS - Santiago Calatrava LLC and Koutsomitis Architects PC

OWNER - The Greek Orthodox Archdiocese of America: The Rev. Protopresbyter of the Ecumenical Throne

Owners Rep - Pete Karamitsanis

General Contractor - Skanska USA Inc.

Photography - Alan Karchmer, Kevin Reeves

Citation for Urban Revitalization

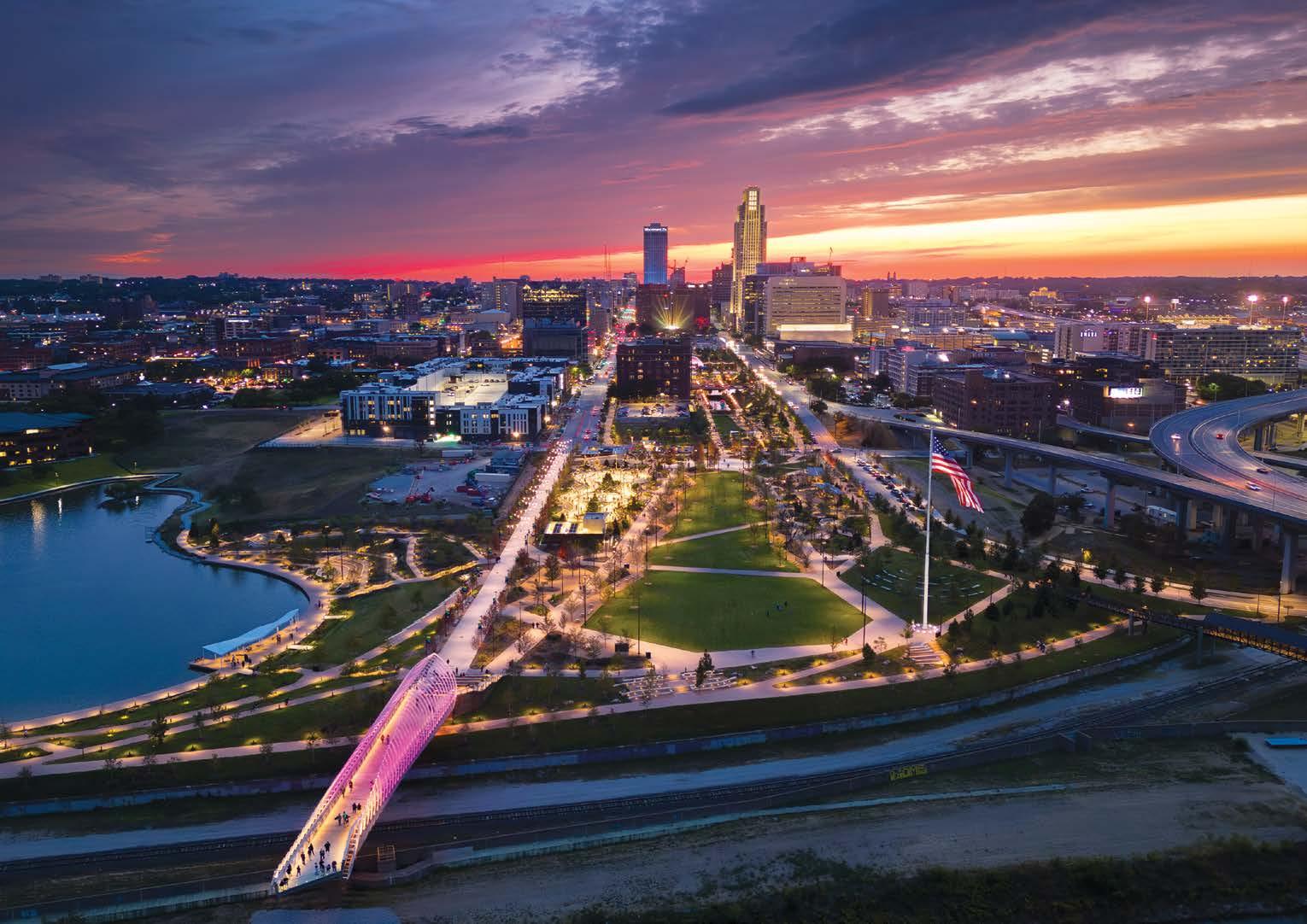

The Omaha RiverFront

Omaha, NE

ATELIER TEN: Joshua Spitzig, Chad Groshart, Chelsea Kreielsheimer, Lucas Wihlborg, Miranda Waldron, Gustavo Sanchez, Nick DeSordi, Shengzi Vivien Gu, and Gillian Wright

A series of three parks that were once underutilized and overshadowed by safety concerns has transformed into a model of urban revitalization. The lighting preserves the park’s daytime character after dark, with lighting treatments tailored to each area’s use and activity level.

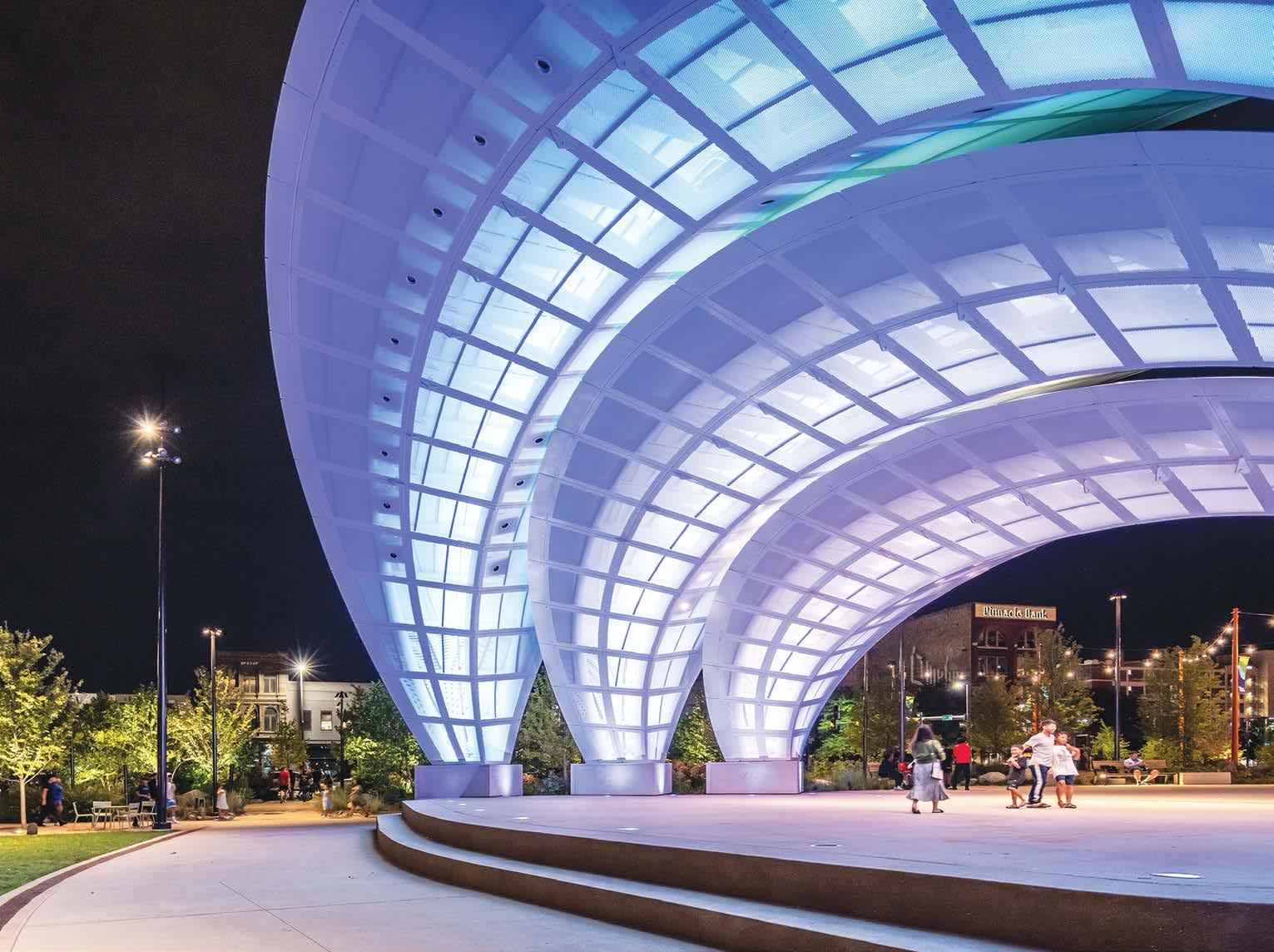

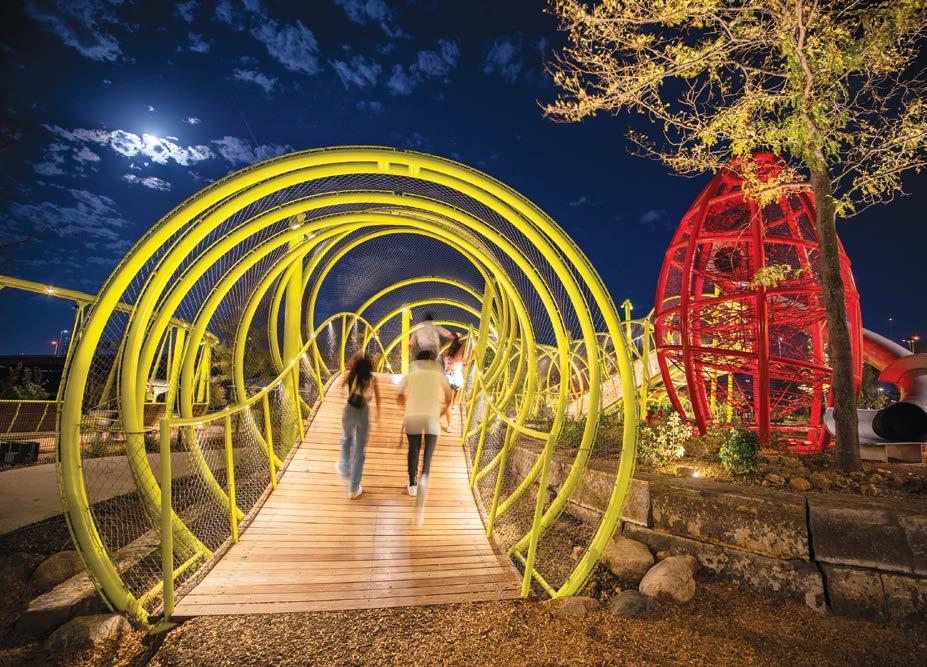

Visitors are led through the parks by a series of colorful illuminated features that act as visual anchors. Lit with RGBW fixtures, the programming of the Skate Ribbon, Performance Pavilion, and iconic Farnam Pier is inspired by the colors of specific flowers and plants used in the park’s landscape design.

The lighting design focuses on safety, community interaction, and simplified maintenance. So, numerous customized fixtures control glare and ensure visual comfort. Lighting was integrated into the parks’ expansive playgrounds and play structures to extend their accessibility after dark and encourage family engagement. The presence of a large flood plain presented a significant challenge, solved by fixtures with special warranties for flood resilience.

Light shapes the park into a safe, welcoming nighttime destination, fostering a lively community. It is now a beloved destination that welcomes diverse crowds both day and night.

LANDSCAPE ARCHITECT - OJB: Nathan Elliott, Kyle Fiddelke, Scott Blons, and Andrew Miller

ARCHITECT - Gensler: David Epstein, Michelle Nam, and Seth Waldman

PIER ARCHITECT - Safdie Rabines Architects: Ricardo Rabines and Eric Lindebak

PRIME CONSULTANT + ENGINEERING - HDR: Chris Koenig and Chris Cain

CLIENT/OPERATOR - Omaha Metropolitan Entertainment & Convention Authority: Katie Bassett, Vice President of Parks

Photography - Buck Christensen, Ryan Fischer, Joshua Spitzig

Citation for Creative Use of Shadows

Touro University Flagship Campus Lobby at Times Square

New York, NY

ANITA JORGENSEN LIGHTING DESIGN: Anita Jorgensen, Joe Ballweg, and Katherine Lindsay

The Touro University Flagship Campus at Times Square stands out for its imaginative lighting design, reminding us that shadows are just as powerful as the light. In a neighborhood where everyone is competing to be bigger and brighter, the design team here draws our eyes towards the letters created by the contrasting darkness. This innovative approach not only sets it apart but also earns it the well-deserved Award of Citation for creative use of shadows.

— David Seok, 2024 Lumen Awards Judge

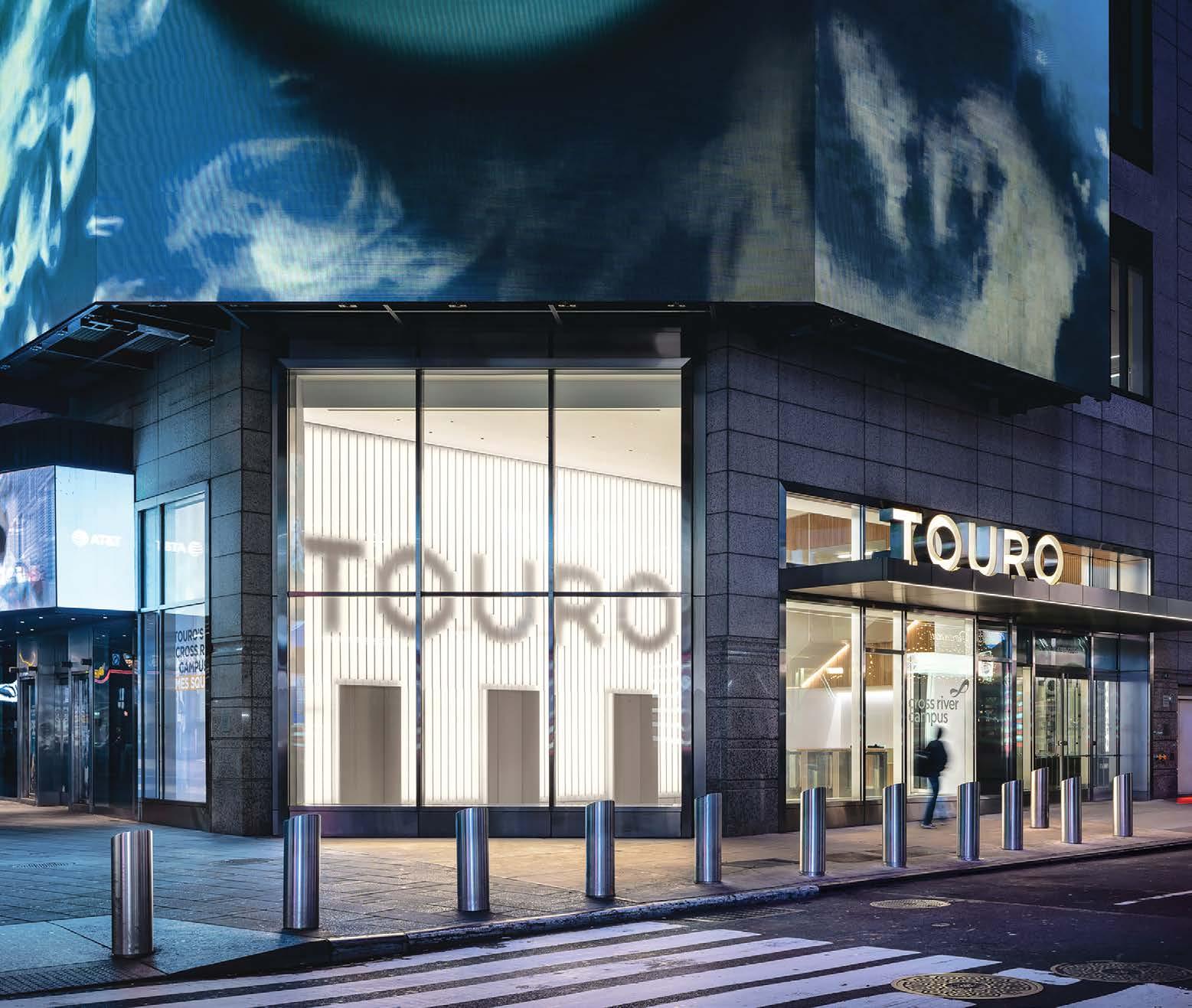

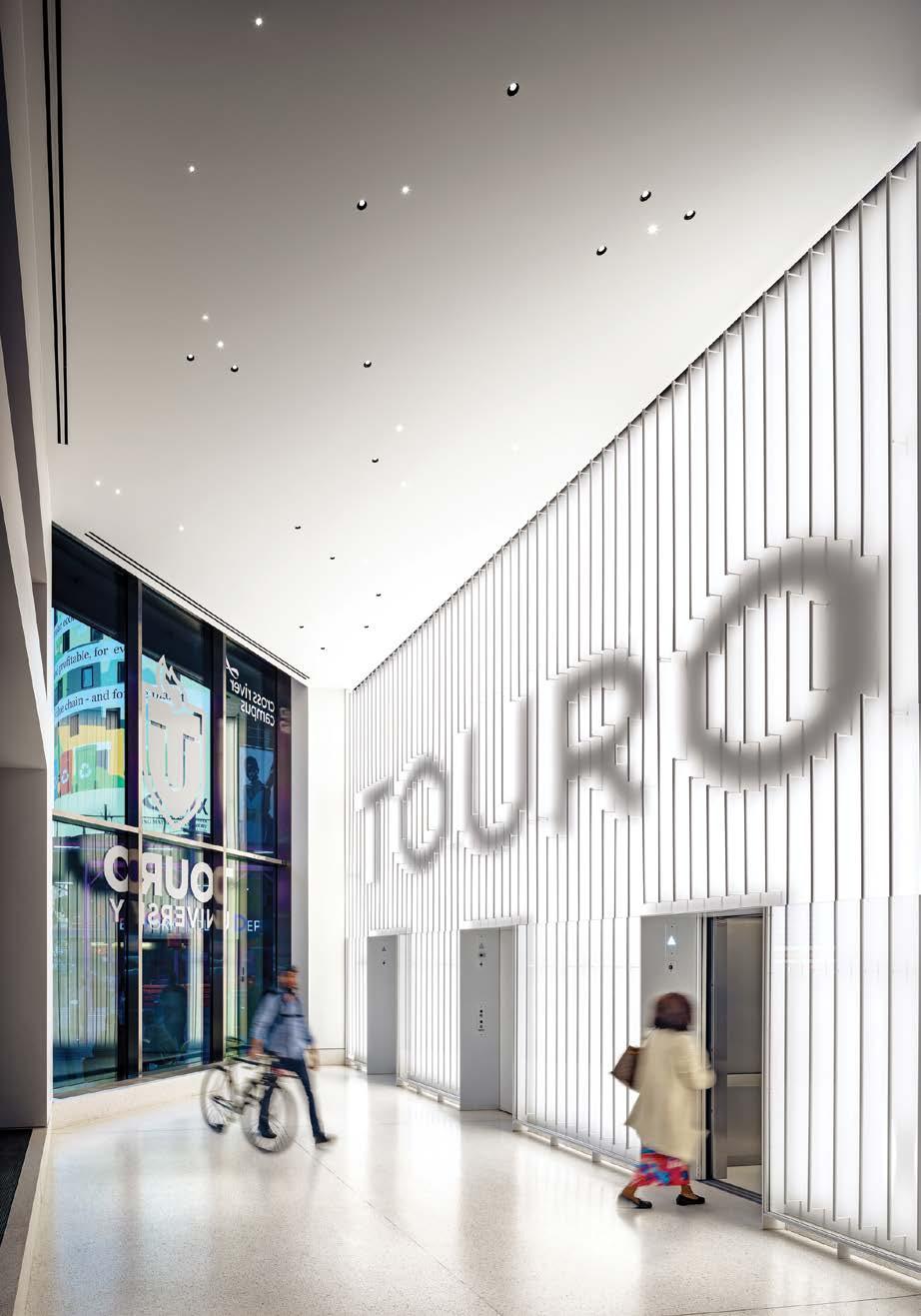

Touro University’s new flagship campus in the heart of Times Square needed a bold, dignified presence. Inspired by a performance where a soloist danced within a followspot of shadow on an illuminated stage, the design utilizes continuous ribbons of 3500K light to stencil the university’s name in complete shadow against a brightly illuminated 27 ft–tall identity wall.

The process began by surveying the existing evening light levels, which ranged from 200 to 650 lx measured at the ground. To compete with the highly animated environment, static white LEDs face a mattewhite wall, and the reflected light creates a luminous lobby. Delicate custom stand-offs disappear into the wall, doubling as wireways terminating at remote programmable drivers. Computer modeling and a series of mock-ups helped determine the optimal spacing for even illumination.

By employing a high contrast ratio of light and shadow, Touro’s identity stands out in counterpoint to the lively lighting that skins neighboring buildings. The campus’ visual identity is a distinctive new lighting feature to the area’s nightscape.

ARCHITECTS - Michielli + Wyetzner Architects: Frank Michielli, Michael Wyetzner, Jason Pogorzala

OWNER - Touro University: Alan Kadish, MD, President

Photography - Alexander Severin
