The Controls Layer By JAMES R. BENYA, PE, FIES, FIALD

Even in the most basic of lighting situations, providing manual control of lighting is fundamental. Giving choice to the user permits a light source or scene to be energized. Photo Credit: Prasanth - stock.adobe.com 12

designing lighting

BENYA’S ART & SCIENCE

In my June 2023 column, I revisited my personal design theory of lighting by layers, which I believe is a good fundamental technique that can be taught and eventually becomes innate with experience. But, as I noted, my layers were unveiled in the late 1990s when major changes in lighting controls were underway, and more importantly, long before LED lighting was efficient enough and practical for general lighting. Lighting controls had advanced considerably since the first generation of what we now call lighting designers began to employ lighting controls as a design tool. Yet, compared to today, little was possible, and the user interface was limited. My, we have come a long way. For indoor architectural lighting purposes, it’s probably best to differentiate among the over-arching “controls strategies” that lighting controls might employ in a particular space or building. These strategies are not standardized – heck, this article caused me to come up with them, and others might not agree. But I think that these fit the majority of approaches to controls.

Energy Codes and Efficiency This strategy is a slave to energy efficiency codes and standards like California Title 24 and ANSI/ASHRAE/IES 90.1 that have specific requirements including automatic shut-off (motion or time based), dimming controls, and daylight harvesting. Manual controls and manual overrides are permitted in some cases. Compliance is mandatory for government projects and in states that have adopted it. But we can get carried away with automation. For example, in Title 24 proceedings, I argued against certain automatic switching in homes and hospitality environments that could cause safety or security problems and successfully limited the locations where Title 24 requires motion sensors.

Convenience, Hospitality and Identity Even in the most basic of lighting situations, providing manual control of lighting is fundamental. Giving choice to the user permits a light source or scene to be energized. This strategy employs manual control stations and is particularly important in residential and hospitality spaces where automatically switched lights would be a distraction and detract from the quality of the environment, day or night. For example, the lighting for a hotel lobby should be inviting and speak to the character of the property, even at 3 a.m., and hotel room switching should be left to the occupant.

Functional and Occupant-Selected Scenes Lighting scenes are an important part in the artistry and/or functionality of the lighting in many space types. Until energy codes mandated controls, scene controls were, from my experience, the primary reason to have more than dimmers and switches, as they enabled a lighting design intent to be realized with the push of a button. I still use this approach, except codes will now require an automatic “off” function, usually using a time function to ensure lights are turned off during periods when the facility is closed. I think the most difficult spaces to design are performance venues where both theatrical controls and architectural controls have to (hopefully) work in unison.

Wellness

Photo Credit: Harry Marvin, Pexels

As we learn more about the role of light in what we now know as “wellness,” there is an increasing demand for lighting that

designing lighting

BENYA’S ART & SCIENCE provides positive reinforcement to circadian systems. Wellness controls may be highly integrated with daylight and shading controls to ensure proper directionality, intensity, duration, timing and spectral control of light exposure to occupants of a space. As I see it, the broad concept of wellness can also be applied to lighting in indoor agriculture, animal husbandry and zoos, medical facilities, and other indoor environments, and it is not just limited to human work and living environments.

Common Sense When all else fails, electric lighting is an integral part of living for most people. As the efficiency of LEDs has increased, the waste of electrical energy has fallen dramatically. But energy should only be part of the reason for lighting controls of the right type and reason for the situation. That’s my job and yours. I have generally not included theaters and similar spaces where there is a clear link between management and lighting operations, but even that is changing with the house lighting control being tied to an automated projection system. My primary concern with automated environments is what happens when things go wrong. Having an effective and accessible override is essential in any public building for emergencies, and of course it should be designed to provide emergency lighting in power outages. In this capacity, the more manual, usually the better. Pre-set scenes date to the use of theatrical lighting systems and then, after dimmers and motion sensors, were among the first lighting controls to gain wide acceptance in every application from residential living rooms to hotel function spaces and board rooms. What I particularly appreciate about scene dimming is that is preserves my design intent for the layers of lighting in the room it controls. In some rooms, it is essential for creating the right ambience or mood, as in a restaurant; in others, the scenes are coordinated to accommodate video environments that can change to become paper-intensive work or meeting environments, or perhaps to support the action in a concert or nightclub facility. Gone are the days of projected video and its low luminance needing a dark room, but lighting controls are still a tool for changing the luminance balance of a meeting space for recording or dramatic effect. All of this is good, as it expands the role of the lighting designer to more closely resemble that of the lighting designer in the theater. You create scenes and moods that can change with occupancy, time of day, daylight, and other factors like media. So, as you might imagine, the latest innovations in lighting controls expand and, for many projects, spread, the same challenges.

the Potential of Networked Lighting Controls: Insights from the DLC Controls Summit 2023.” Today, David Shiller wrote in LightNOW, “Here Comes the Lighting-HVAC Integration Tsunami.” The idea is to employ the lighting control system to provide additional information to the HVAC system, and with the added connectivity, HVAC systems can operate more efficiently. This idea is not new. I call your attention to my February 2023 column, “What Could Possibly Go Wrong,” in which I describe a new-in-2015 energy management system for a school that could not turn the lights off – ever. The system itself had failed, and because it was so highly integrated with all building systems, became a massive liability because the manufacturer was bankrupt and gone. To prevent this, I tend to specify systems from reliable, established and yet progressive companies, so I can sleep at night… Personally, I am torn. The integration of lighting controls and HVAC controls has been a dream since the first programmable energy management systems of the 1970s, but the truth is, the electrical industry speaks a different dialect from the HVAC industry. David Shiller makes the point that LED “socket saturation” has reduced lighting power density in commercial buildings so much that sophisticated penny-pinching controls are hardly warranted. But extending their role to better manage HVAC systems is worth looking into – and perhaps, may serve as the foundation for completely integrated building controls including the management of solar energy systems, battery storage, vehicle charging, and other energy uses. I think the lighting industry, our government agencies, and our industry organizations have done a superb job of reducing the energy consumption and carbon footprint of lighting with LEDs and control systems that are robust and reliable, but the integration with other energy uses in a manageable building is still evolving. I hope David’s “tsunami” is a friendly one that resolves the many problems and challenges of lighting and HVAC living and working together in ever more efficient and pleasant buildings of all types. Finally, the layer system breaks down outdoors, and new issues and meanings are needed. I’ll save that for future thoughts on outdoor lighting. As one might guess from my years of service with the Board of the International Dark Sky Association, I will try to explain how a host of environmental concerns and protecting the night sky are on track to collide with increasingly capable outdoor lighting and special effects, and how design professionals might address the challenges. P

There is of course, one big movement gaining strength that involves lighting controls. In today’s market, there is an over-arching temptation to integrate building energy systems with lighting control systems. In an email blog I got the other day, our Editor, Randy Reid, presented his take on “Unlocking King, Ryan. Smart Home System. Canva. 15 Oct 2023 14

designing lighting

THE BUSINESS OF LIGHTING DESIGN™

Digitizing Lighting in the

Era of Decarbonization

By CAROL JONES DALI Alliance, NA Market Development Manager

Photo Credit: Ilker - stock.adobe.com 16

designing lighting

THE BUSINESS OF LIGHTING DESIGN™

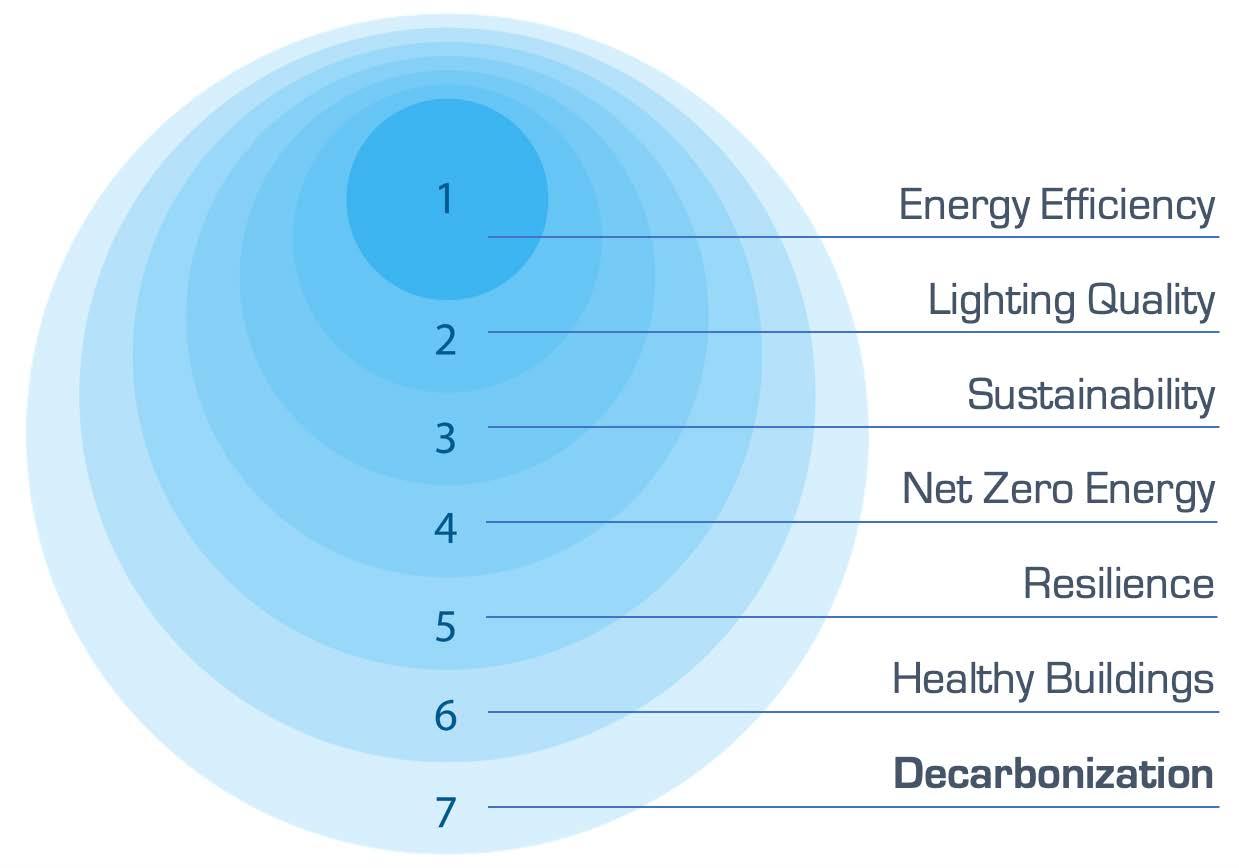

Webster defines an era as "a period identified by some prominent figure or characteristic feature," and "a stage in development." Reflecting on my years in lighting, it wasn't hard to identify distinct developmental stages. In some cases, we can be proud of our participation as an industry. We have been leaders in energy efficiency, lighting quality, and healthy buildings. Sustainability and circularity are an ongoing effort. On the other hand, our presence and leadership have been lacking in the net zero, resilience, and decarbonization movements. It begs the question—why? In this author’s humble opinion, it’s because these challenges in particular require digital, addressable and granular lighting controls features. There has been awareness, buzz, and a sliver of good examples—but if we are honest with ourselves, we can't say we've made major progress. North America is a 0-10V analog region. To be fair, there are legitimate reasons why we haven't transitioned to interoperable digital controls. There are profound barriers integral to sales channel dynamics, including financial disincentives, as well as educational gaps throughout the lighting ecosystem. I recently went to several conferences to learn about the relevance of digital lighting in the decarbonization era. My findings were consistent and troubling. At this year's CREtech in NYC, decarbonization was THE topic. Most attendees were real estate professionals, with a decent number of trade vendors, practitioners and domain experts represented. I spoke with many highlevel real estate executives and contractors from large global firms, including Brookfield Properties, Vornado Realty Trust, The Durst Organization, GSA, Tishman Speyer, JLL, Johnson Controls, Schneider Electric, and more. I couldn’t resist calculating the square footage of the real estate owners and operators that I spoke with: >5.6 billion square feet. The Greenbuild conference was similar, and upcoming conferences are also prioritizing the topic of decarbonization. The takeaway from my short interviews and conversations is: "We are done with lighting." The sentiment was echoed by an onstage reply to a

question from the audience, "What is the first thing we should do towards decarbonization—what is the low-hanging fruit?" Answer: "The first thing that comes to mind is lighting, but we have already converted to LEDs. There could be controls, but all the vendors talk about is what makes them different and better than the next guy, and we can't figure it out." Then he moved on to heat pumps and other technologies. These people are not ideologues. They are sophisticated real estate leaders. According to Schneider Electric, 90% of existing buildings will become a financial risk if they fail to decarbonize. Importantly, the ROI for medium-level decarbonization efforts is expected to be in the range of 8-15 years, which could make a significant difference in the viability of controls retrofits. In a conversation with Lance Davis, FAIA, LEED Fellow, GSA, Sustainability Architect and P100 Manager, he said, "GSA has the largest managed inventory in the country, totaling 366 million SF of owned and leased property. Most of our buildings are long-term assets, so we need to be concerned about what happens 5, 10, 30 years from now. If a driver or sensor is discontinued or a manufacturer goes under, will we be stuck without the data that we use for real-time operations?" Clearly, digital, interoperable technology is the best way for GSA to be good stewards of our government buildings. Real-time operation has taken on a new meaning now that commercialization of AI and machine learning for buildings is underway. Gary Chance, CEO of the award-winning and industry-leading company Prescriptive Data, creator of Nantum OS, offers an important sentiment: "Breaking down the silos of digital data within buildings is the cornerstone of operational decarbonization. Once data has been collected, cleaned, and properly stored, it can be applied to additional machine learning algorithms that help detect patterns and anomalies, creating economic opportunities for real estate owners. We don't work with lighting as often as we would like, but we see tremendous value in integrating lighting automation with other buildings systems.”

"We are done with lighting." designing lighting

THE BUSINESS OF LIGHTING DESIGN™

rather than competing with each other using an offering that is compromised in the eyes of the decisionmakers. Huge money is being invested into decarbonizing buildings, and as it stands, we will not get a meaningful slice of that pie.

It helps to clarify the priority criteria for customer success. Building owners and managers want a global open protocol that enables interoperability between sensors and drivers and delivers data in a standardized format to support APIs and integration with multiple controls and buildings systems. Michael Amato, a Systems Sales Specialist at Signify and formerly an integrator at FSG, says: "Digital solutions and system integration is the future, and end-users want interoperability and smooth operations for the long-term. Meeting their needs builds trust, expands markets, and allows our innovations to deliver their full value. Isn't it time for the lighting industry at large to make this a priority?" The global DALI Alliance delivers on these requirements. DALI-2 is now capable of providing data about luminaires, energy measurement, color control, fault diagnostics, and emergency. Most recently, the release of the D4i specification now extends to wireless technology and supports integral sensors and controllers when paired with the Zhaga Book 20 standard. Critically important, interoperability is verified through testing and certification. Efforts are ongoing to enable functionality with multiple wireless communication protocols including Bluetooth mesh, Zigbee and Thread. The elephant in the room is us, and it's a lonely place to be. We do not have a seat at the decarbonization table. Our ongoing competition between proprietary controls technologies has made us irrelevant in the eyes of most decision-makers. I submit that our focus should be on industry alignment to expand opportunities overall, 18

designing lighting

Putting aside the most well-known integration use cases (e.g., realtime feedback from sensors to room reservation systems and HVAC systems), there are a multitude of new market drivers. For example, the highly nuanced dimming of individual luminaires in consideration of their room type and occupant needs enables maximum load shedding at peak hours. Digital interaction with Grid-interactive Efficient Buildings helps to manage electrification including integration of renewable energy and batteries. Monitoring lighting energy consumption in real-time helps owners to report progress and compliance with the rapid proliferation of Building Performance Standards (BPS) such as Local Law 97 in New York City, where the consequence of non-compliance with carbon reduction requirements will be heavy fines. LL97 has received the most visibility, but according to the National BPS Coalition, there are 40 municipalities that have adopted similar requirements. So how do we make this happen? Spec it. Defend it. Learn, and teach. For many years I've heard our specification community pleading for interoperability and reliability. Avraham Mor, CLD, IALD, says it well: "The world is going digital all around us with every kind of technology imaginable, yet the industry is still defaulting to 0-10V dimming. It's way past time for the lighting industry to make the shift to digital, addressable, and interoperable controls technology. Designers have the responsibility to commit to the learning curve and advocate for this in our specs. Morlights can't do it alone, but we can be part of the solution." The next era? Considering decarbonization is mission critical to mitigating the climate change crisis, it's difficult to imagine the next era. Whatever it is, I can guarantee that digital and interoperable technology will be central to success. P

The next generation of the Parscan spotlight range means 3x more!

More effectiveness - More light to the target surface (Fc/W)

More flexibility - 6 sizes - 30 spectra + tunable white + RGBW - 12 interchangable distributions - Extensive accessories

More digitality - For 120V and 48V - Casambi Bluetooth and Zigbee wireless control

First Americans Museum © ERCO GmbH, www.erco.com, Photography: Ryan Linton

Light is the fourth dimension of architecture.

designing lighting Light your next project with Parscan New

LIGHT AND HEALTH

Be Creative! Three Approaches to a Tailored Lighting Intervention for Improving Sleep-Wake Cycles in Dementia Patients By MARIANA G. FIGUEIRO AND DAVID PEDLER

Light and Health Research Center at Mount Sinai

In previous Light and Health Research Center (LHRC) contributions to designing lighting (dl), we described studies employing tailored lighting interventions using circadian stimulus (CS) to improve sleep using single devices among nursing home residents living with ADRD and home-dwelling patients living with a related neurodegenerative disorder, Parkinson’s disease (PD). Those studies showed that, despite the difficulties commonly encountered when delivering therapeutic lighting interventions in the field, the simple principle of promoting brighter days (i.e., high CS), dimmer evenings (i.e., low CS), and darker nights can significantly improve objectively and subjectively assessed sleep outcomes. Because patient compliance can pose formidable challenges to the efficacious application of nonpharmacological light therapies in controlled settings, the key to success in field studies lies in being able to deliver the treatment as participants go about their daily activities.

This study followed the same general approach described in our previous two articles but differed in its use of three separate lighting systems/devices among 14 cognitively impaired participants with sleep disturbances residing in three separate assisted living and memory care facilities in Westborough (5 participants), Northborough (4 participants), and Medway (5 participants), Massachusetts.

Study Method Following specifications proven in previous studies,1, 2 we delivered a tailored lighting intervention (TLI) designed and specified to provide a robust light–dark pattern to maximally stimulate the human circadian system based on the mathematical model of CS developed by Rea and colleagues.3, 4 Our research has shown that providing a criterion CS value of 0.3 improves sleep, mood, and behavior in ADRD and PD patients.5, 6 The TLI employed

Figure 1. The TLI modes used in the study: light table (left), light tray (middle), and retrofitted ambient room lighting (right).

designing lighting

LIGHT AND HEALTH were used at the Northborough site. Custom built by the LHRC, the trays house an LED array and measure (l × w × h) 64 cm × 53 cm × 4 cm. The participants were assigned to seats facing the tabletop light trays for breakfast and lunch over the course of the study. As measured in the laboratory at eye level when seated with a single dinner plate occluding the tray's surface, the active intervention delivered 602 lx and a CS of 0.456 and the control condition delivered 65 lx and a CS = 0.064. As the trays could deliver only a single condition, they were alternated between the active intervention and the control. Ambient room lighting. The retrofit of the dining/community room lighting at the Medway site was performed with assistance from the researchers. In the area that received the retrofitted lighting, the mean illuminance measured at the eyes for occupants seated at the tables was 307 lx and the mean CS value was 0.28. The retrofit employed six 30-in diameter dimmable, direct/indirect circular (5-in lens aperture) ring pendant Figure 2. The experimental protocol followed at the Medway facility. The experiment lighting fixtures (3000 K; Sketch, Axis at the Westborough and Northborough facilities followed the same protocol and Lighting, Lasalle, QC, CA) suspended occurred between July and December 2022. over the dining/community room's six tables and four 4-ft linear dimmable, direct/indirect (2-in lens aperture) (3000 three device modes (light tables, light trays, and retrofitted K; Beam 2, Axis Lighting) fixtures mounted on adjacent, ambient room lighting [Figure 1]) over two 8-week opposing walls. The retrofitted system was driven by a intervention periods separated by a 4-week washout. programmable power/relay pack and on-screen controls The TLI’s (high CS) efficacy was compared to that of a (Acuity Brands, Conyers, GA, US) to deliver a CS of 0.4 non-therapeutic placebo (control) lighting intervention from 07:00 to 17:00, gradually transitioning (from 17:00 to (low CS), and both lighting conditions were compared to 18:00) to a CS <0.1 from 18:00 to bedtime. As confirmed via baseline data collected in the existing facility lighting at spectroradiometer, the actual average vertical illuminance the beginning of each 8-week intervention period (Figure (measured at eye level when seated at the table) was 520 lx 2). The study participants wore actigraphs on their wrists (mean CS = 0.37) for the intervention lighting and 135 lx (CS and completed questionnaires assessing depression, sleep = 0.1) for the control condition. quality, and sleep disorders during the first (baseline) and final assessment weeks of the two intervention periods. Results

TLI Modes

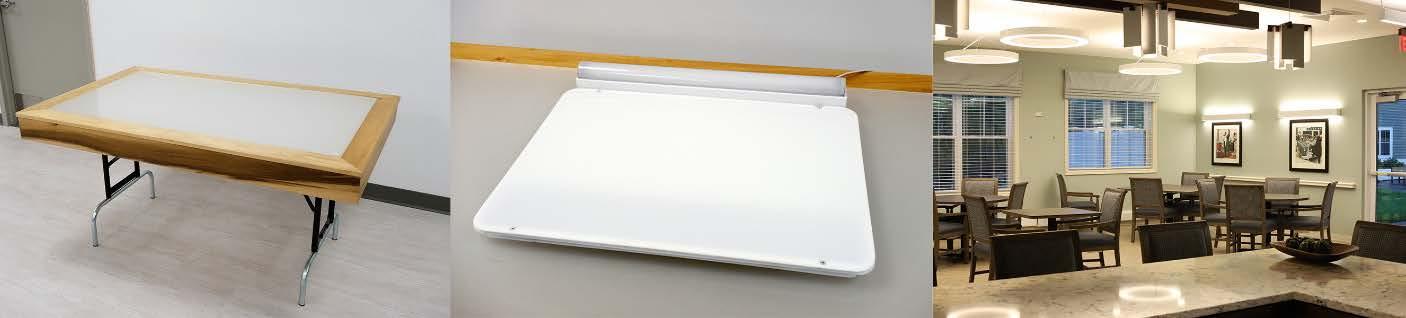

Light tables. Custom-built light tables (XtraLight, Houston, TX, USA) were used at the Westborough site. The tables measure (l × w × h) 156 cm × 99 cm × 13 cm, with a luminous area on the tabletop measuring 137 cm × 79 cm and sitting 76 cm above the floor. The light is provided by 13 lightemitting diode (LED) strips measuring (l × w) 61 cm × 6 cm (model BB0040, ver. 001.1, XtraLight) recessed 9.5 cm beneath the tabletop and covered by a 1 cm thick diffused acrylic lens that serves as the table's durable work surface. The active TLI (measured in the lab) provided 1887 lx and a CS of 0.625 at eye level, and participants were encouraged to sit at the light tables whenever they were using the facility’s dining/community room. Light trays. Light trays serving as light-emitting dining/work surfaces and fashioned after a conventional cafeteria tray
