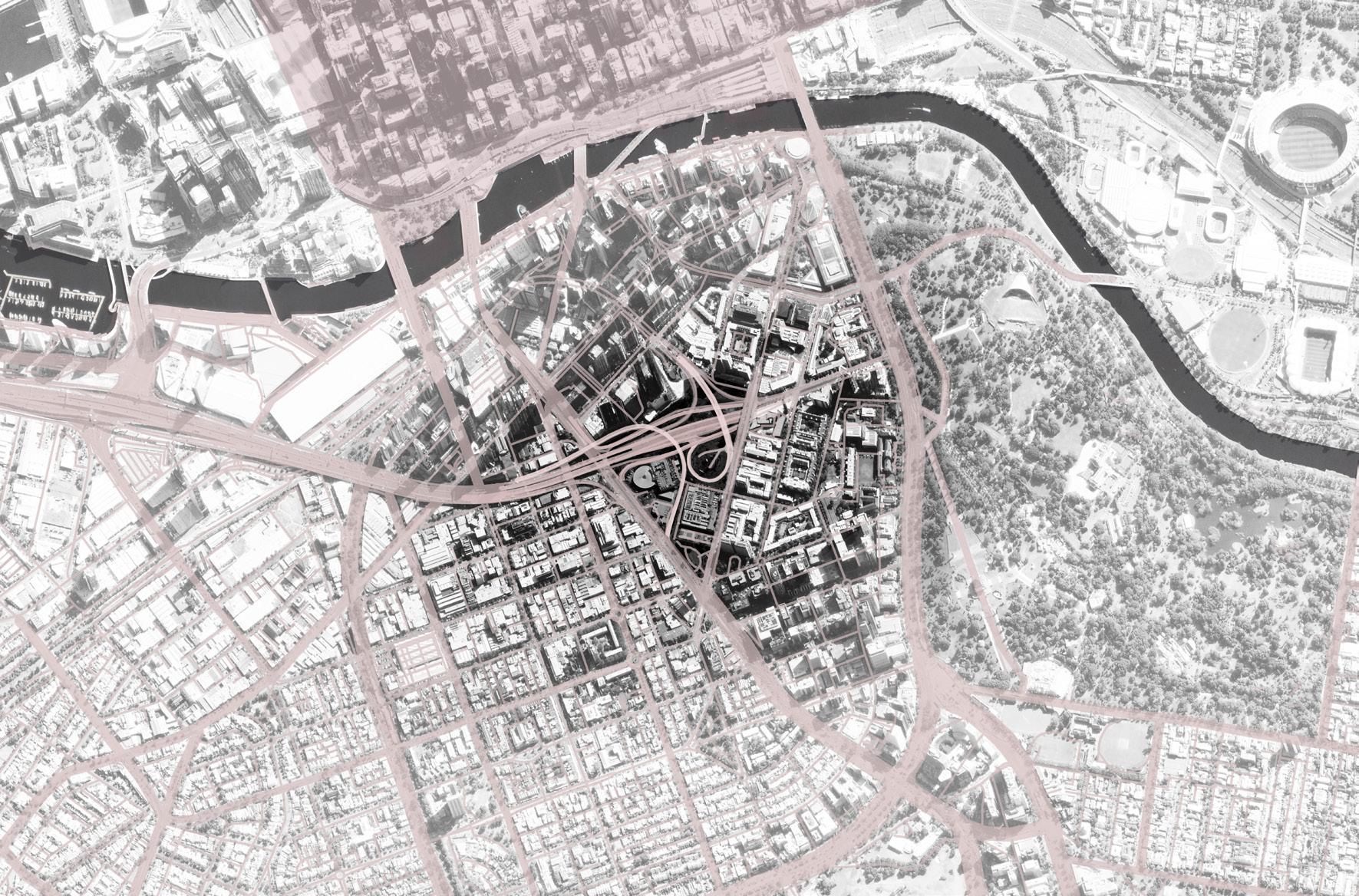

Urban renewal to balance city and animals Site: Melbourne, Australia Area: 11.6 hectares Date: 11/2022 Type: Individual Work; Academic Design Instructor: Qing Chang

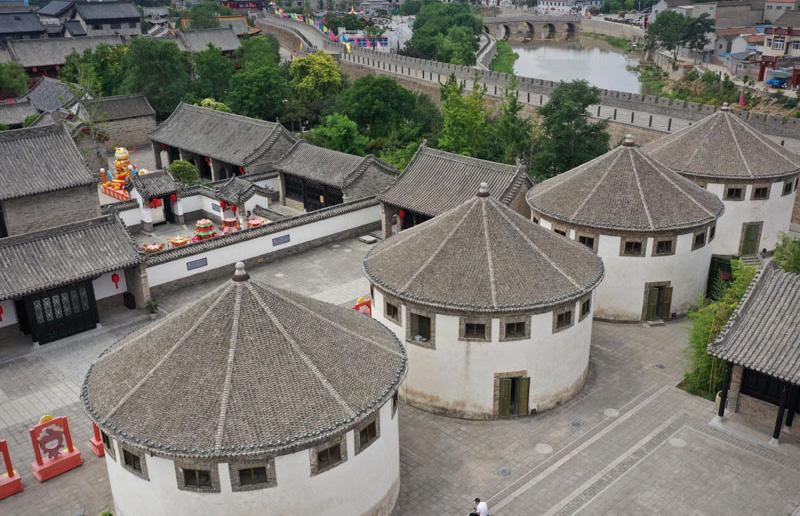

05 OTHER PROJECT Rural restoration project on historical barns in Henan, China Site: Henan, China Area: 113 square meters Date: 07/2021 - 01/2022 Type: Team Work (Leader); Academic Design Instructor: Shan Cui

36

01 COAL MOUNTAIN Rebirth of industrial remains Site: Shanghai, China Area: 3.3 hectares Date: 10/2019 Type: Individual Work; Academic Design Instructor: Yijia Wang I n t r o d u c t i o n : Y a n g j i n g g a n g D o c k i s lo c a t e d o n t h e s o u t h b a n k o f t h e lo w e r r e a c h e s o f H u a n g p u R iv e r, w it h a s h o r e lin e o f a b o u t 2 3 5 m e t e r s lo n g . It is u s e d t o b e a c a o l d o c k b u ild t b y J a p a n e s e a n d w a s s e v e r e ly p o llu t e d . N o w a d a y s , in S h a n g h a i, t h e r e is g r e a t e v o lu t io n o f w a t e r f r o n t s p a c e a n d d e -in d u s t r ia liz a t io n .

B a s e d o n t h e h is t o r y o f t h e s it e , t h is p r o je c t a im s a t b u ild in g a m e m o r ia l u r b a n w a t e r fro n t p a r k w h ic h c o u ld a ls o a d d t o t h e v it a lit y o f t h e re g io n .

4

5

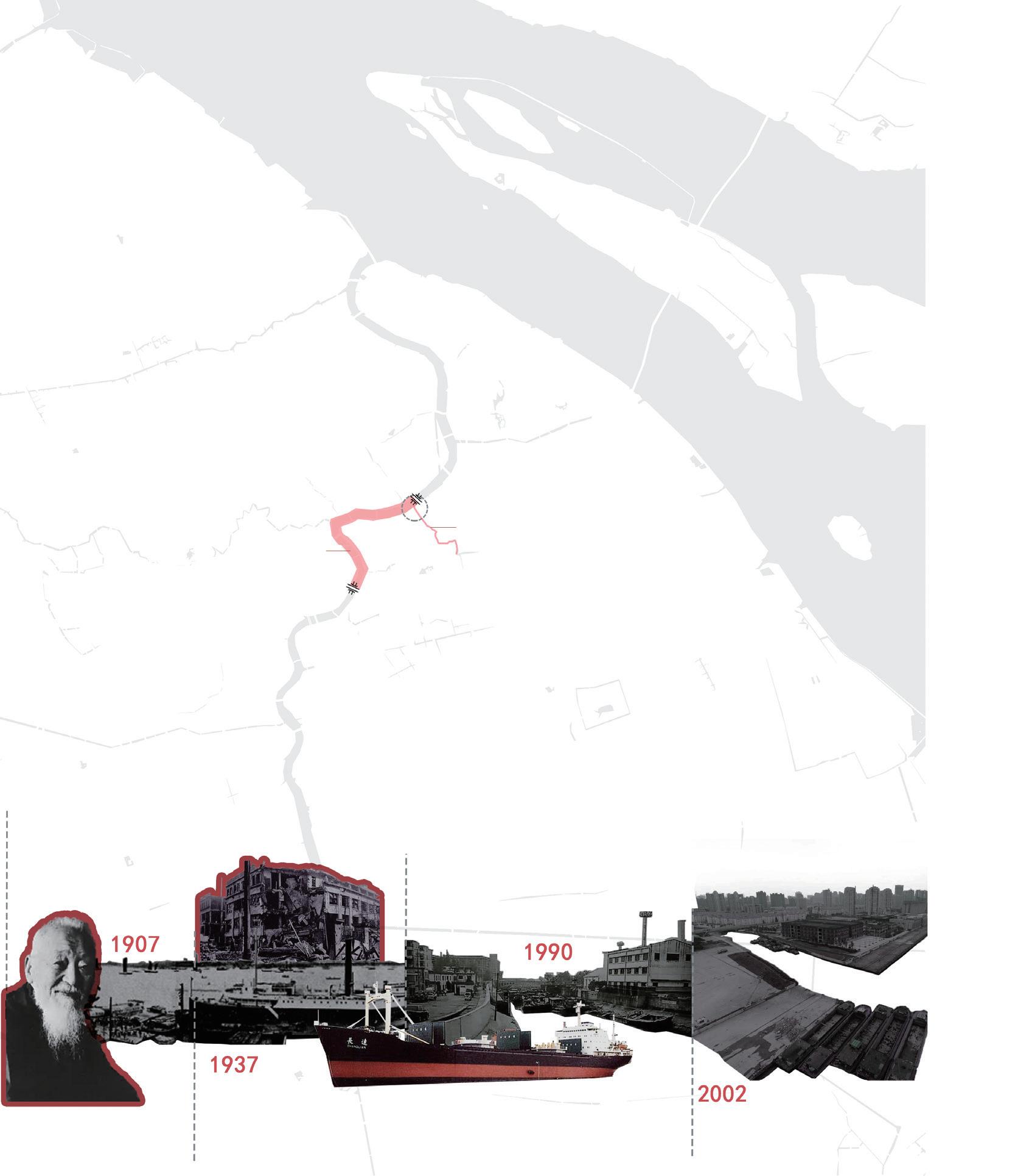

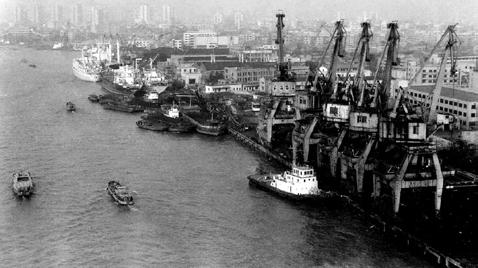

HISTORY OF YANGJINGGANG DOCK

CURRENT SITUATION

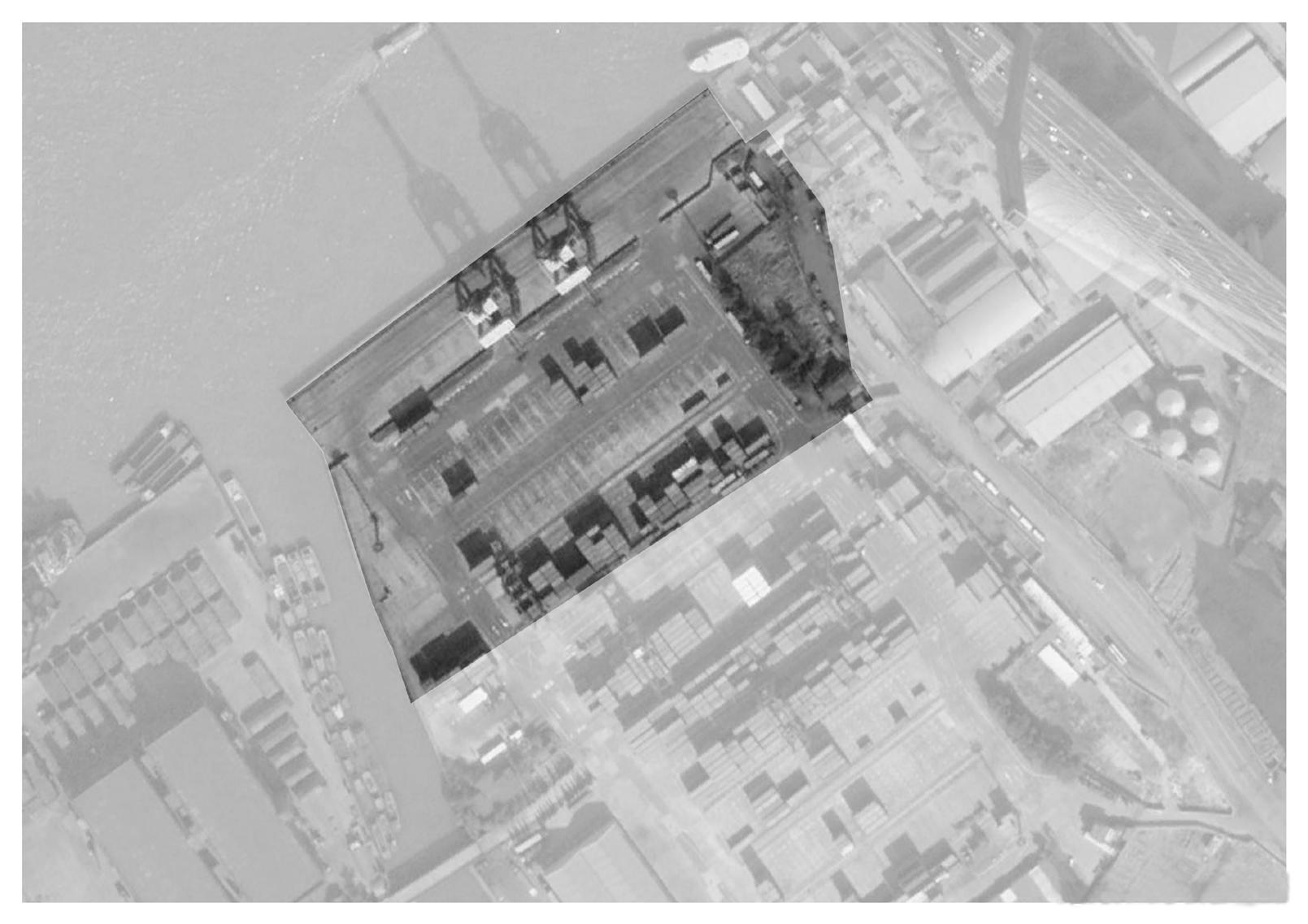

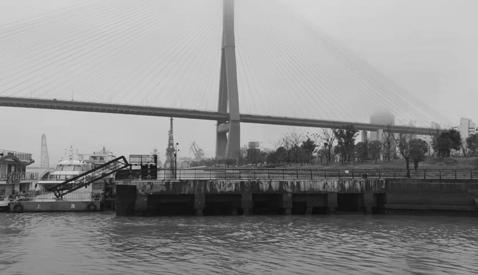

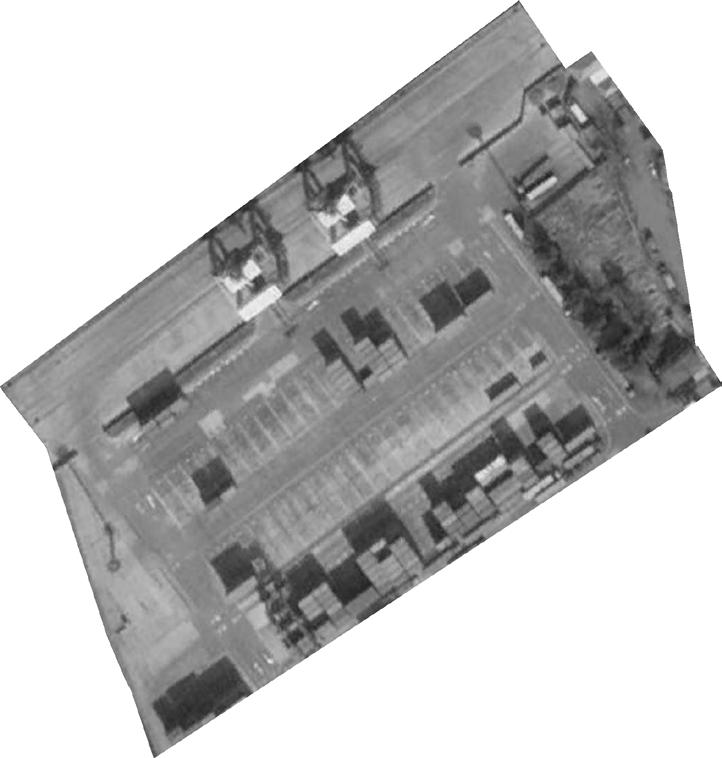

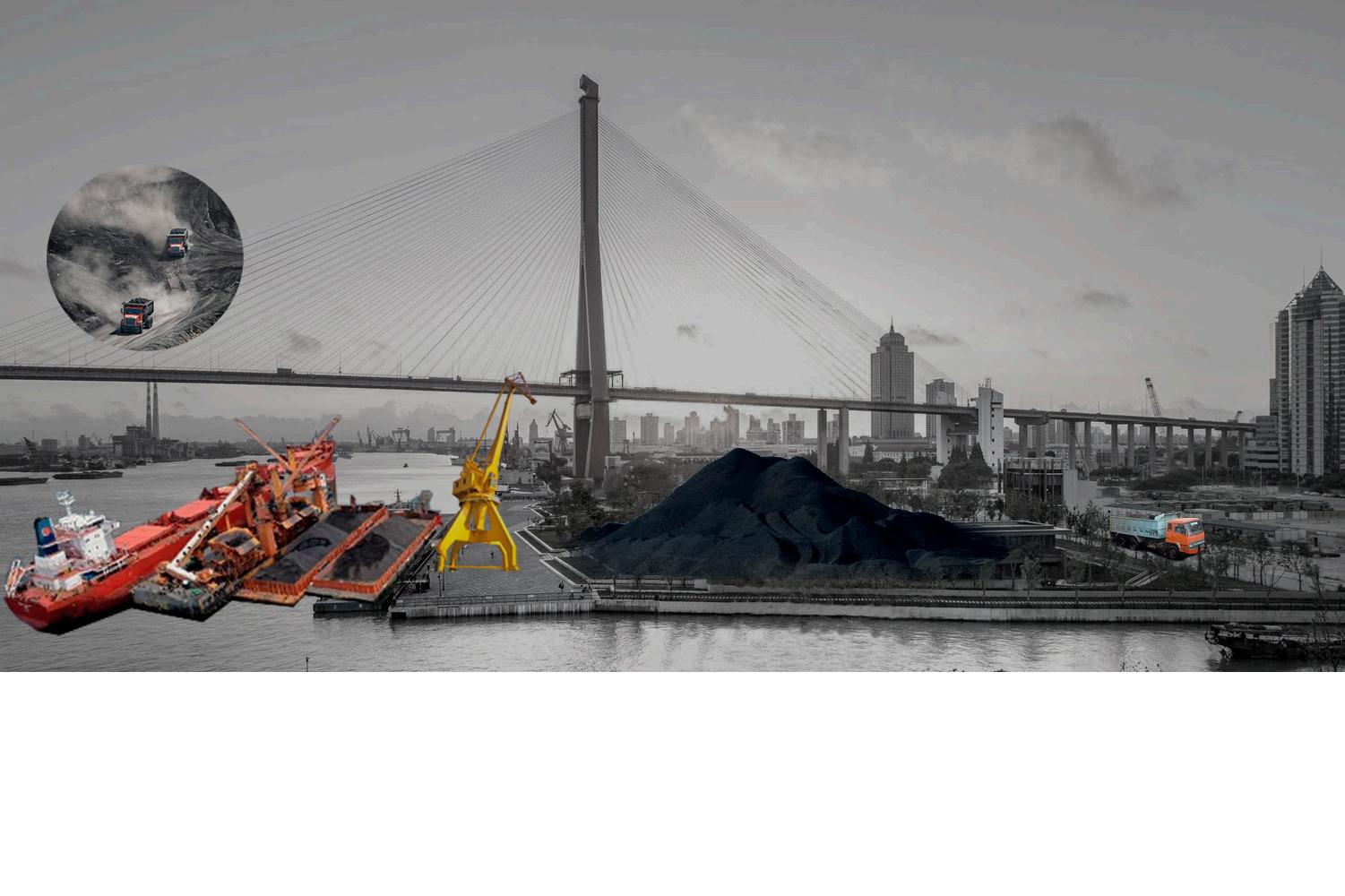

Yangjinggang Dock is located on the south bank of the lower reaches of Huangpu River, with a shoreline of about 235 meters long, it is a universal wharf of Shanghai Port.

The site is under the main bridge of Huangpu River and very accessible by residents. With the history about coal, there could be a perfect urban waterfront park.

YA N

G

R

U

P NG

A HU

E RIV

XI

EP

O

PR

LU NG E SH CK IN M DO

RS

VE

RI

E ID

N ME

BR

ID

E AD

PU

NT

E EM G A AN ION M IS CK DIV D OA DO

U

G

E

RO

AD

IR

GY

N HA

C

EVOLUTION OF WATERFRONT SPACE POWER INVASION (1843-1949)

In o rd e r t o m e e t t h e n e e d s o f a g g re s s io n , a la rg e n u m b e r o f n e w d o c k s a n d w a re h o u s e s w e re b u ilt a n d re b u ilt b y J a p a n e s e . A m o n g t h e s e w h a r v e s in P u d o n g , t h e m o s t re p re s e n t a t iv e is t h e W h a r f u n d e r t h e M it s u i c o a l s t a c k b u ilt o n M it s u i Ya n g h a n g b a s e in 1 9 0 7 , c o m m o n ly k n o w n a s 'o ld M it s u i'(n o w Ya n g jin g p o r t w h a r f ).

Foreign-funded enterprises forcibly settled on both sides of Huangpu River, and separated the space on both sides of the river.

B y t h e e n d o f 1 9 9 0 , t h e w h a r fs o n b o t h s id e s o f t h e P u jia n g R iv e r in t h e a re a w e re d iv id e d in t o t h re e lo a d in g a n d u n lo a d in g c o m p a n ie s . Ya n g jin g g a n g M a t o u b e lo n g s t o M in s h e n g lo a d in g a n d u n lo a d in g c o m p a n y lo c a t e d o n t h e S o u t h B a n k o f H u a n g p u R iv e r.

T h e c o m p a n y h a s m a n y m a c h in e r y . T h e t h ro u g h p u t in 1 9 9 0 w a s 7 .0 4 m illio n t o n s .

INDUSTRIALIZATION (1949-1990)

As the center of industrial development of new China, the berth capacity had been enhanced, and intermodal transport facilities had been built.

DE-INDUSTRIALIZATION (1990-2002)

Overall function of the city had changed from industry to finance, and the docks had become capital-intensive rather than labor-intensive.

O n A u g u s t 1 6 , 1 9 3 7 , J a p a n e s e p la n e s d ro p p e d m u lt ip le b o m b s in P u d o n g a re a . O n N o v e m b e r 1 0 , t h e J a p a n e s e in v a d e r s p lu n d e re d t h e g o o d s s t o re d in t h e fa c t o r y s t a c k in v a r io u s d is t r ic t s o f H u d o n g . O n t h e 1 1 t h , J a p a n e s e s h ip s a n d s a n d s h ip s t r a n s p o r t e d m o s t o f t h e c o a l s t o re d in t h e c o a l s t a c k o f M it s u i w h a r f.

In 2 0 0 2 , t h e c o m p re h e n s iv e d e v e lo p m e n t p la n o n b o t h s id e s o f t h e P u jia n g R iv e r w a s o ffi c ia lly la u n c h e d , w h ic h is c o n s id e re d t o b e t h e s e c o n d m ile s t o n e in S h a n g h a i s in c e t h e d e v e lo p m e n t o f P u d o n g . Ya n g jin g p o r t w h a r f is lo c a t e d in t h e m id d le o f t h e c o re a re a a n d m a in ly d e v e lo p s b u s in e s s t o u r is m .

URBAN COMBINATION (2002-2010) The space was desired to shift from productionoriented shoreline to comprehensive serviceoriented shoreline.

6

MATERIAL FLOW ANALYSIS Coal still plays an important role in modern industry. There has been mature precedures which show the wisdom.

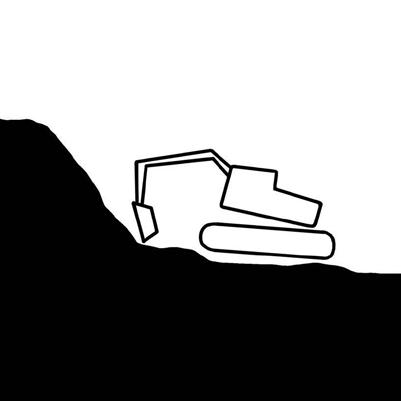

D IG G IN G

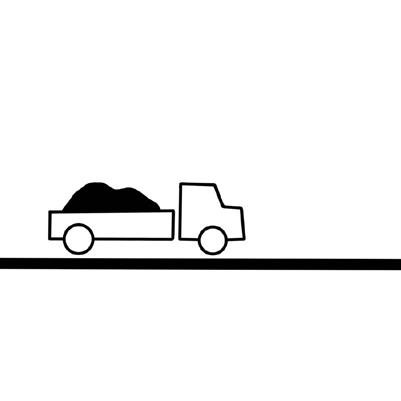

T R A N S P O R T IN G

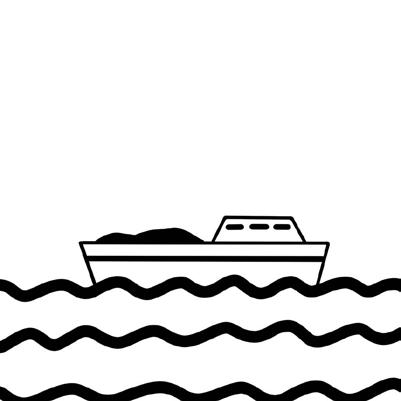

S H IP P IN G

U N L O A D IN G

T R A N S P O R T IN G

S TA C K IN G

T h e d r e d g i n g o f la k e s o r p o r t s w i ll i n e v i t a b ly p ro d u c e d a la rg e a m o u n t o f s e d im e n t d e p o s it io n .

A s c o a l d u s t is a c id ic , it p o llu t e d s o il r e s o u r c e s .

W a t e r p o llu t io n a ls o c a u s e d b y s e d im e n t d e p o s it io n s h o u ld n o t b e u n d e re s t im a t e d .

T h e p r o c e s s o f c o a l s t o r a g e , t r a n s p o r t a t io n a n d s t e v e d o r in g w ill b e a c c o m p a n ie d b y s e r io u s d u s t p o llu t io n , e n d a n g e r in g t h e a t m o s p h e re a n d s u r r o u n d in g e n v ir o n m e n t , a n d t h e r e a r e p o t e n t ia l s a fe t y h a z a r d s a t t h e s a m e t im e . C o m b u s t ib le d u s t h a s t h e r is k o f fi re a n d e x p lo s io n ; T h e v is ib ilit y o f h ig h c o n c e n t r a t io n d u s t is p o o r, w h ic h a ff e c t s t h e lin e o f s ig h t .

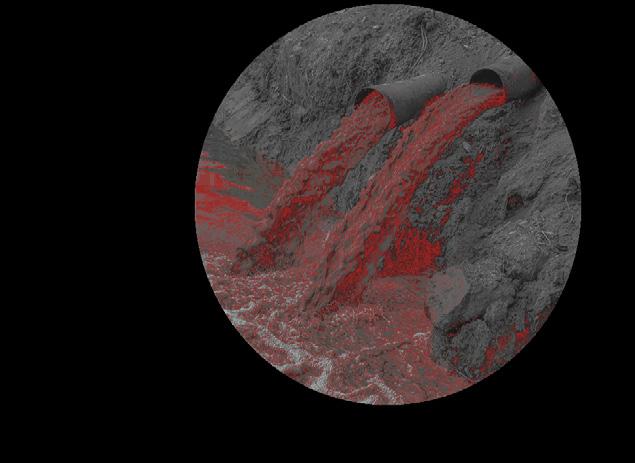

M o s t fa c t o r ie s t h e re h a d n o t re a t m e n t e q u ip m e n t fo r w a s t e w a t e r, a n d d is c h a rg e d w a s t e w a t e r in t o Y a n g jin g p o r t in la r g e q u a n t it ie s w h ic h g re a t ly e x c e e d e d t h e s e lf p u r ifi c a t io n c a p a c it y o f Y a n g jin g p o r t .

7

GENERATION OF 'COAL MOUNTAIN'

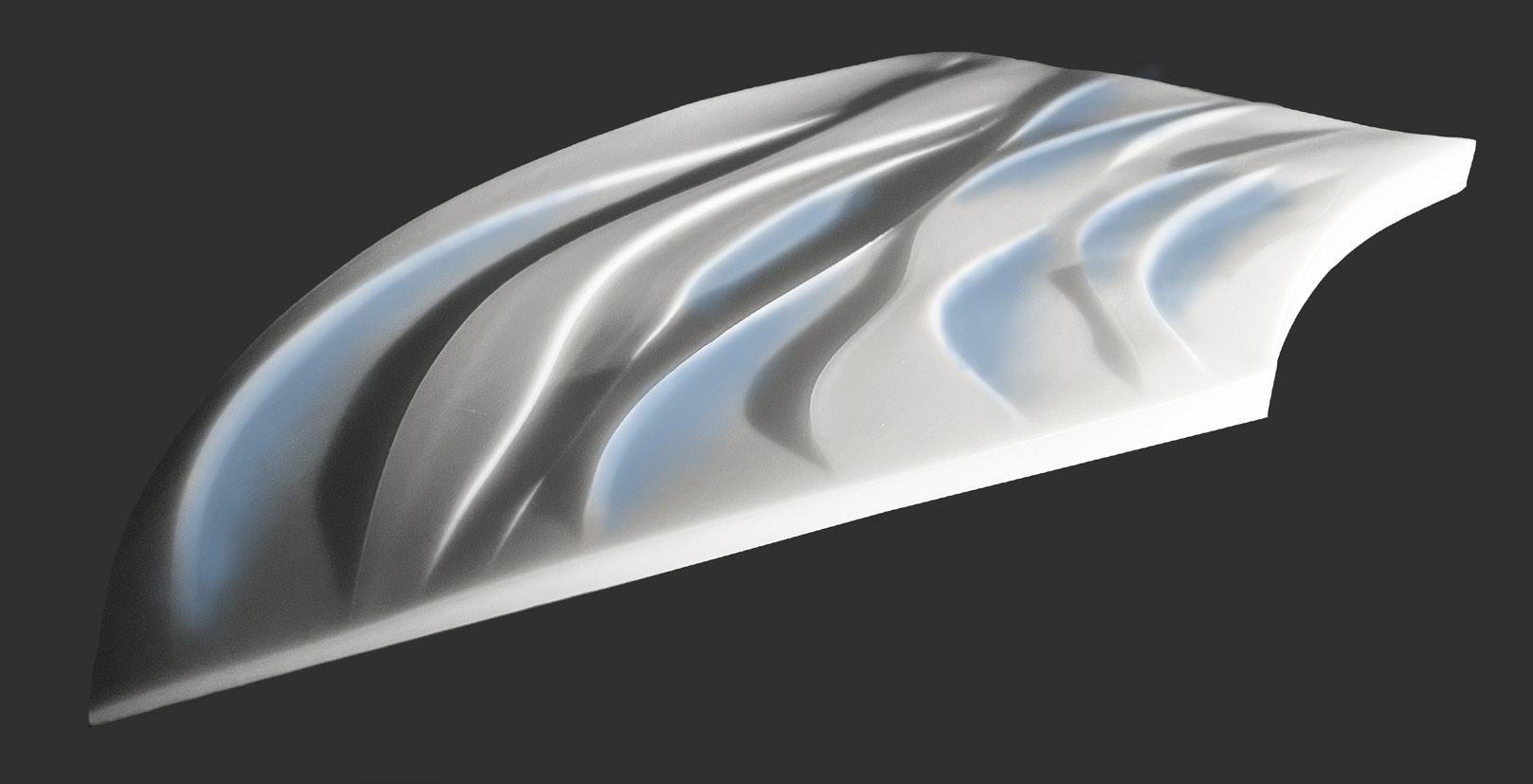

LANDFORM PROTOTYPE 3D PRINTING MODEL

In order to ventilate and store, coals are always stacked like 'mountain' on the dock. Based on the shape of coal piles, create the terrain of the park to refresh the memory about coal.

Use the underground space to realize the integration of artificial wharf and natural water body, and strengthen the interaction between tourists and water body.

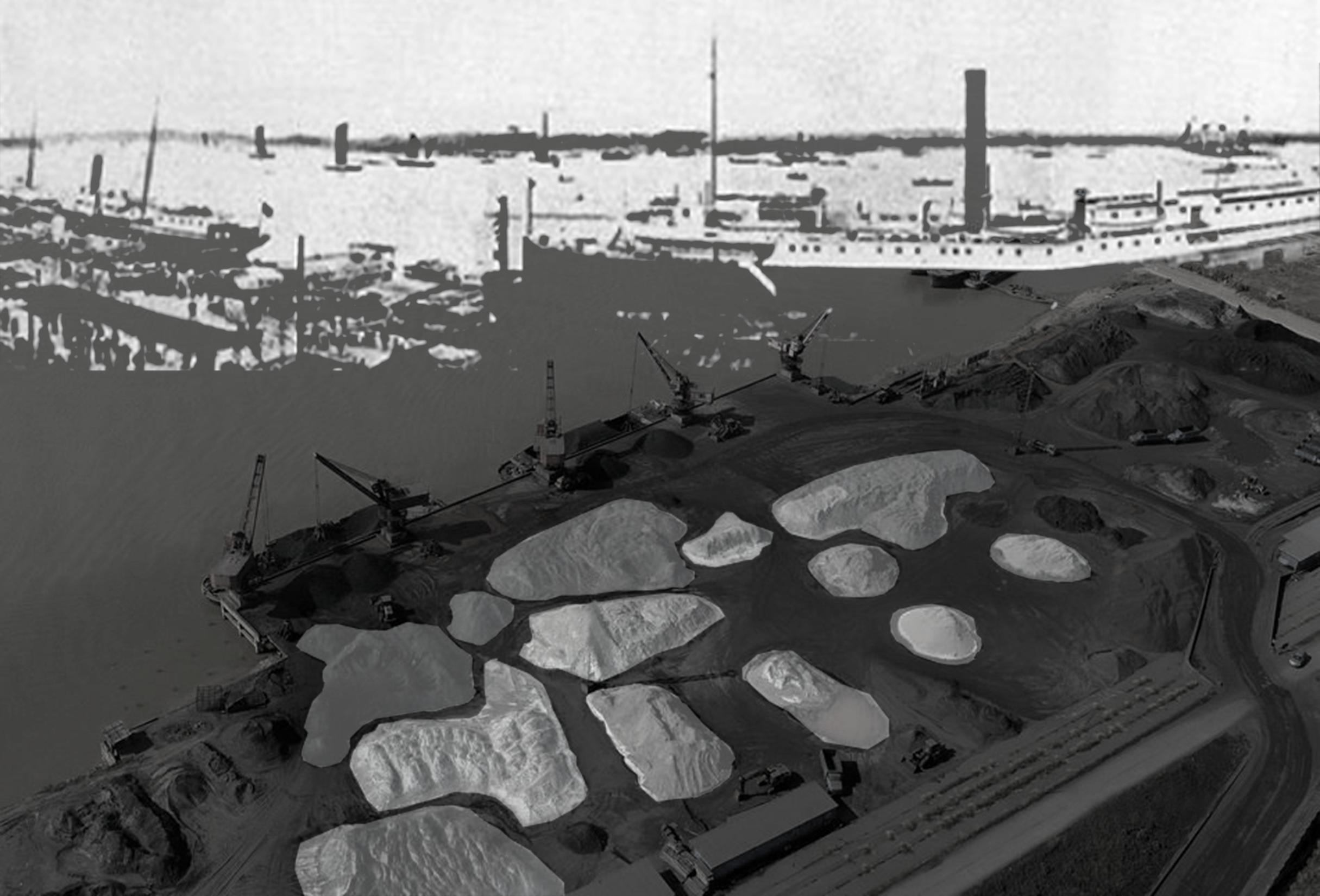

fig. Coal Mountain on the dock

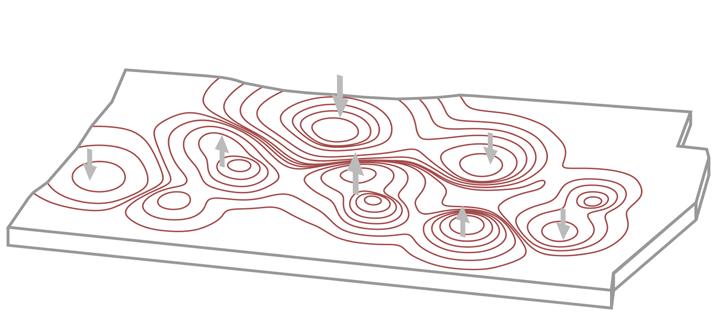

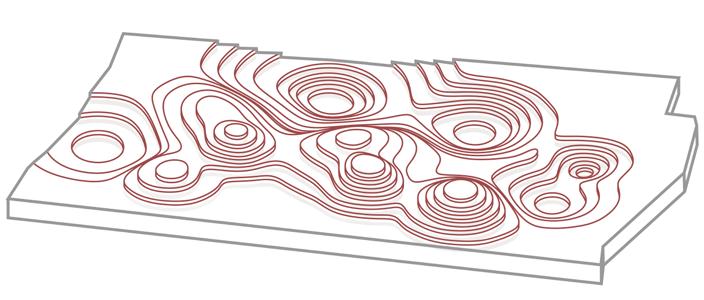

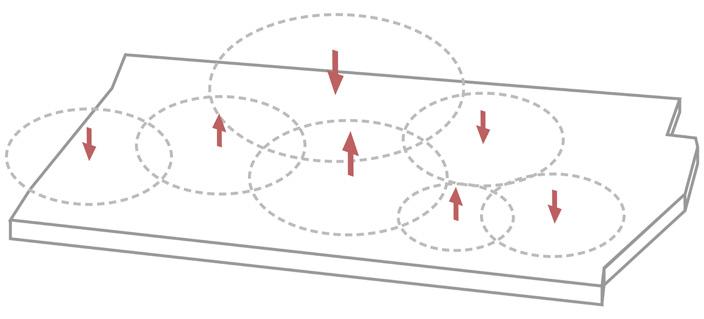

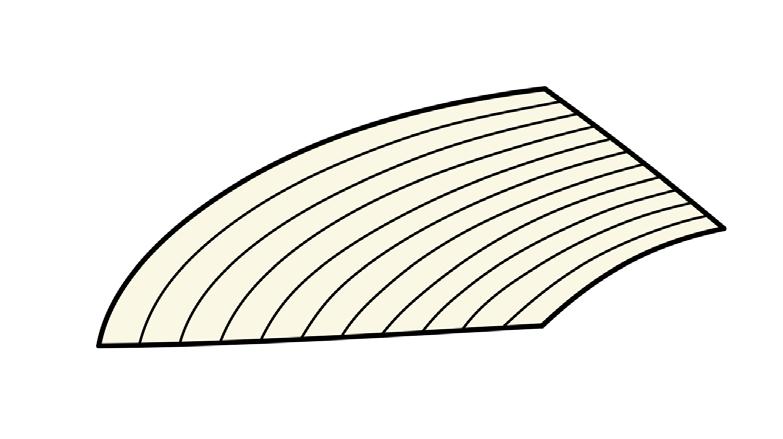

2. SOFTMOVE Deform the basic shape to form bulges and depressions as the terrain.

A

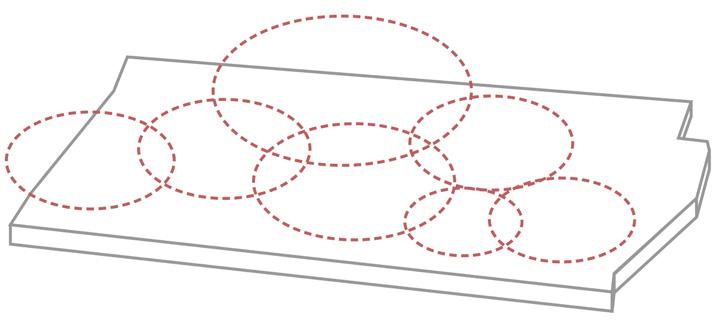

1. SHAPE

B

Firstly, create several circles of different sizes.

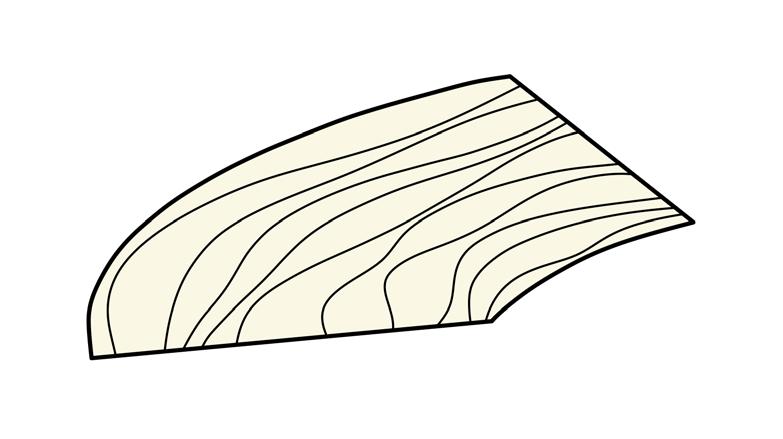

3. CONTOUR Then, form terrain on the basis of vertical design.

4. EXTRUDECRV Extrude curves and form the steps.

A

Bulge

B

Depression

5. RECTIFY Rectify the site including vegetation, road planning, etc park design.

8

MASTER PLAN 1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Overlooking Platform Waterfront Square Climbing Children Activity Zone Water Stage Theater Open Leisure Zone Scenic Overlooks Bridge Metasequoia Plantatio Skateboarding Ground Great Lawn

8

8

7

9

4

5

10 6

1 3

2

N 25

50

100m

9

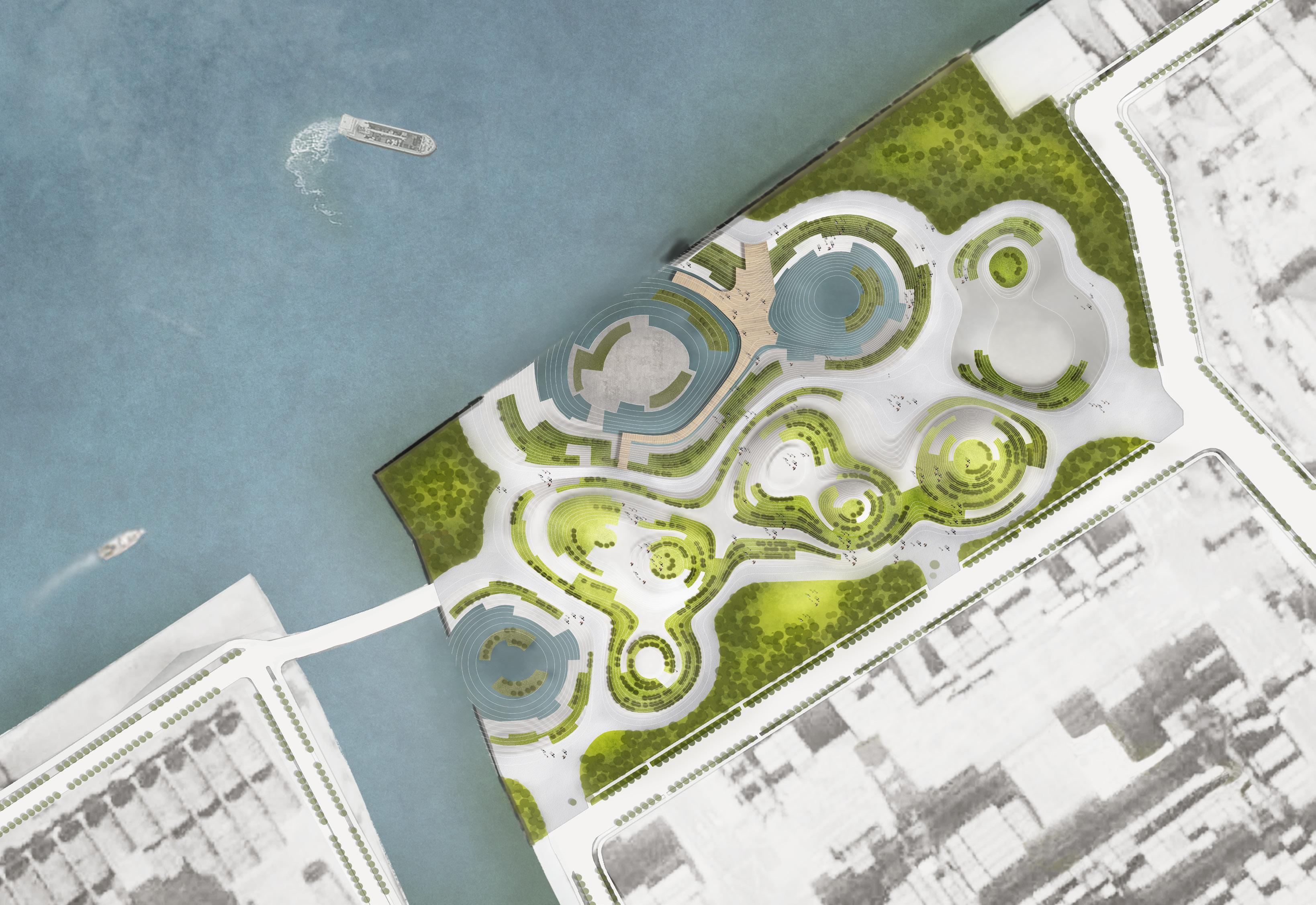

RENDERING OF 'COAL MOUNTAIN' This park could provide abundant green space for the city, and build a variety of activity space for different groups. Those figures show several parts of it.

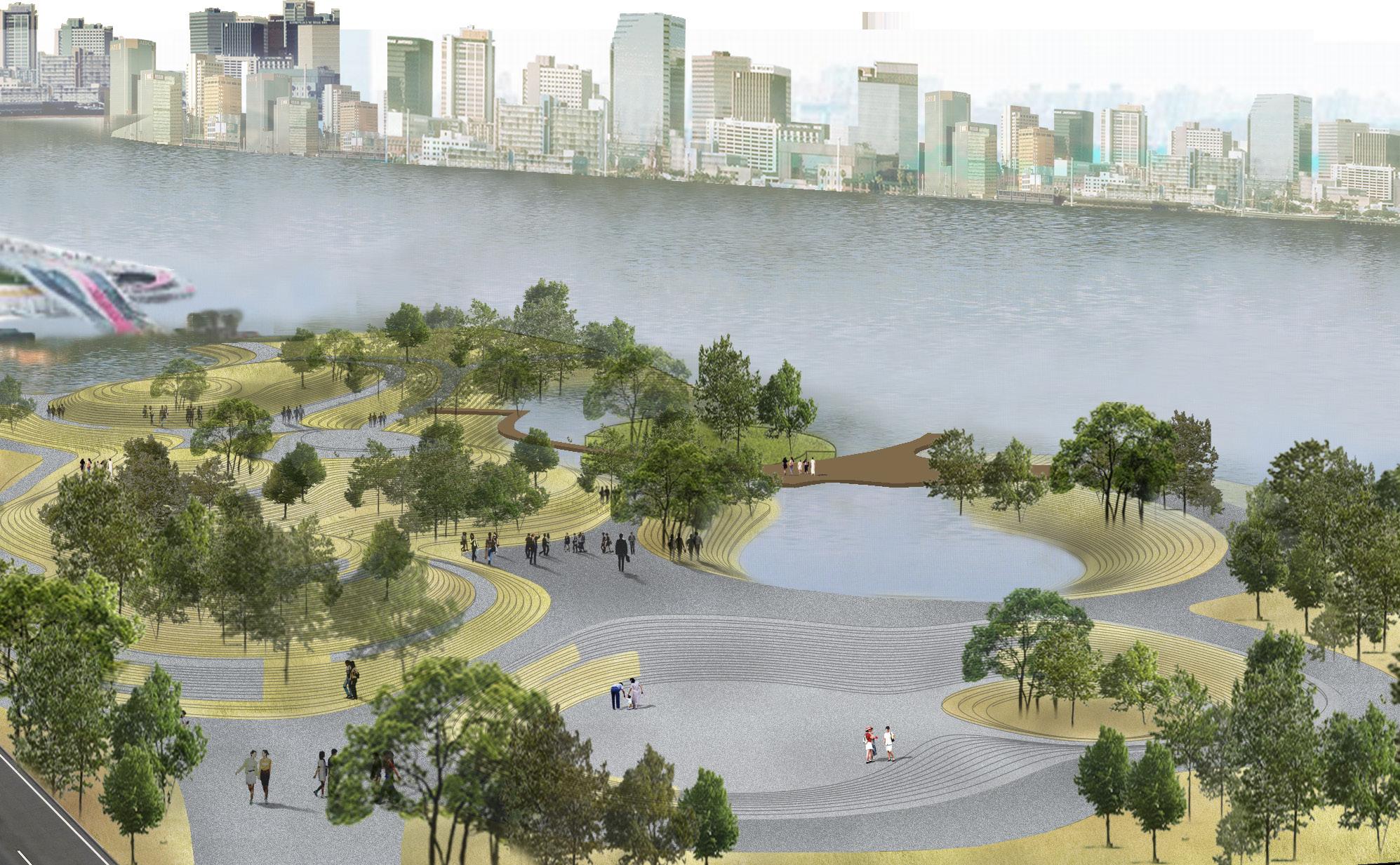

AERIAL VIEW

DETAILS OF DIFFERENT ACTIVITY AREAS A Scenic Overlooks Bridge

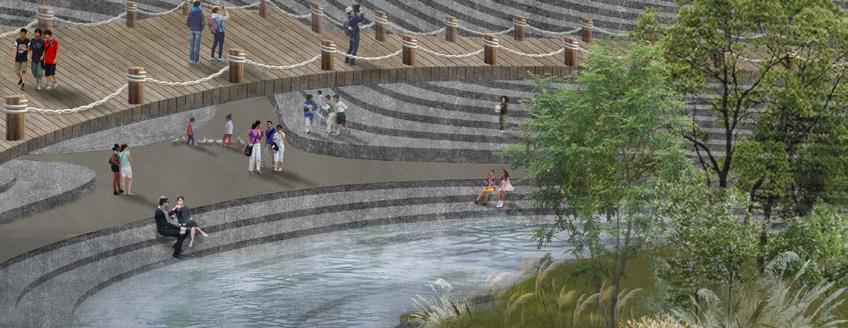

Use of steps to adapt to different water levels and create different landscapes, and on the upper bridge people can always overlook the scene.

B

Open Leisure Zone

C

Skateboarding Ground

1' 1

B

A

C

A Scenic Overlooks Bridge C Skateboarding Ground

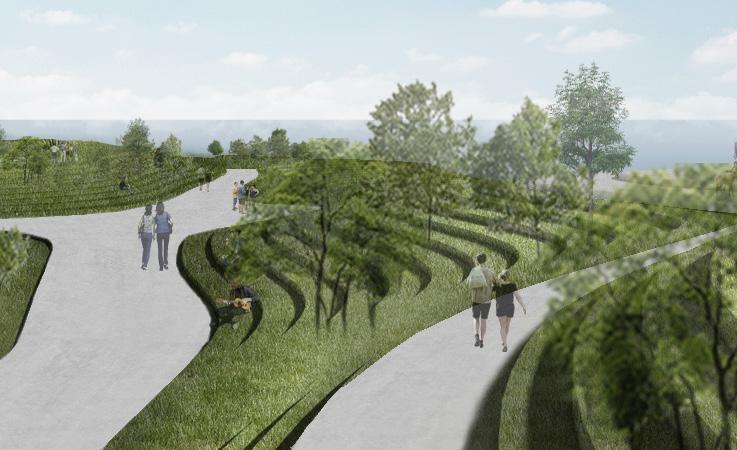

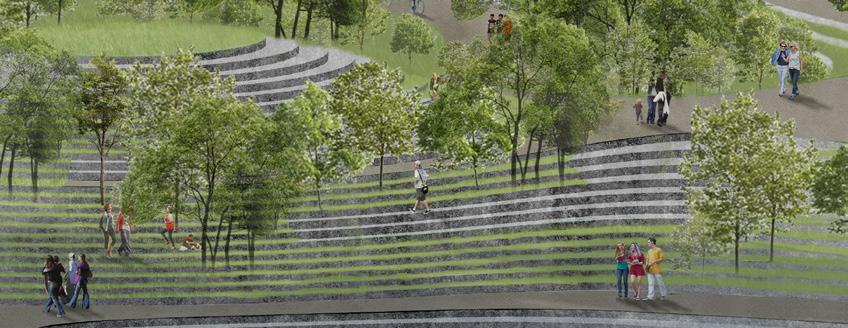

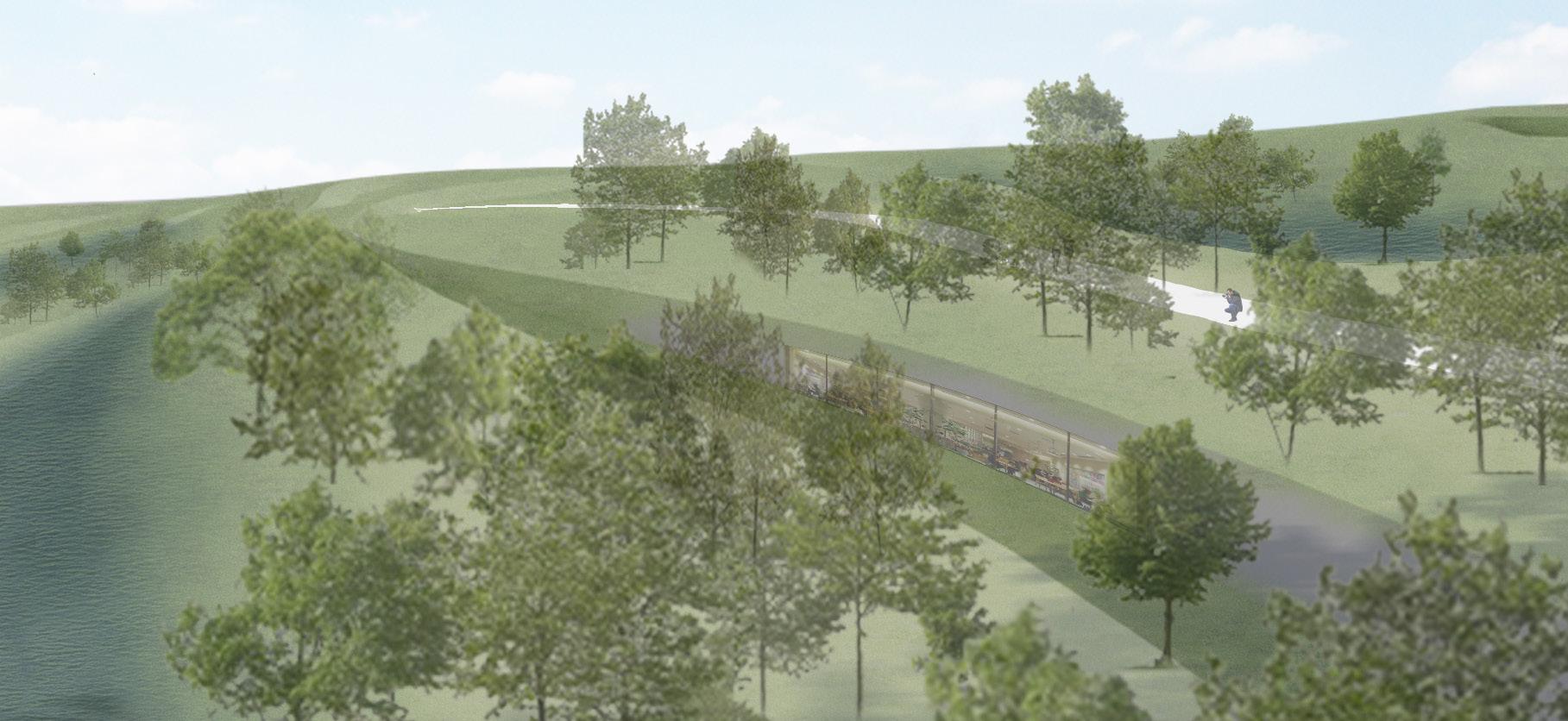

The stepped slopes planted with grass and trees form shade for people, allowing rest between the steps and leaving more open space for recreation at the top of the 'mountain'.

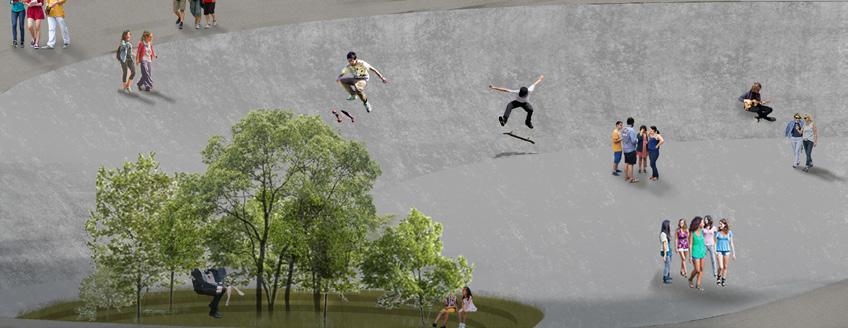

The bowl-shaped skateboarding ground allows for roller skating, skateboarding and fancy riding and other activities that different people enjoy, adding a fresh touch to city life.

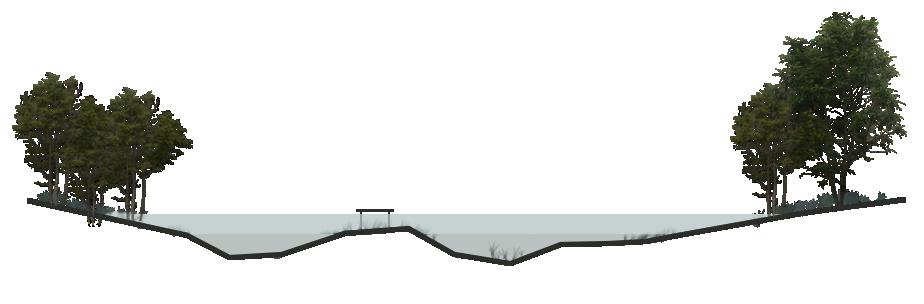

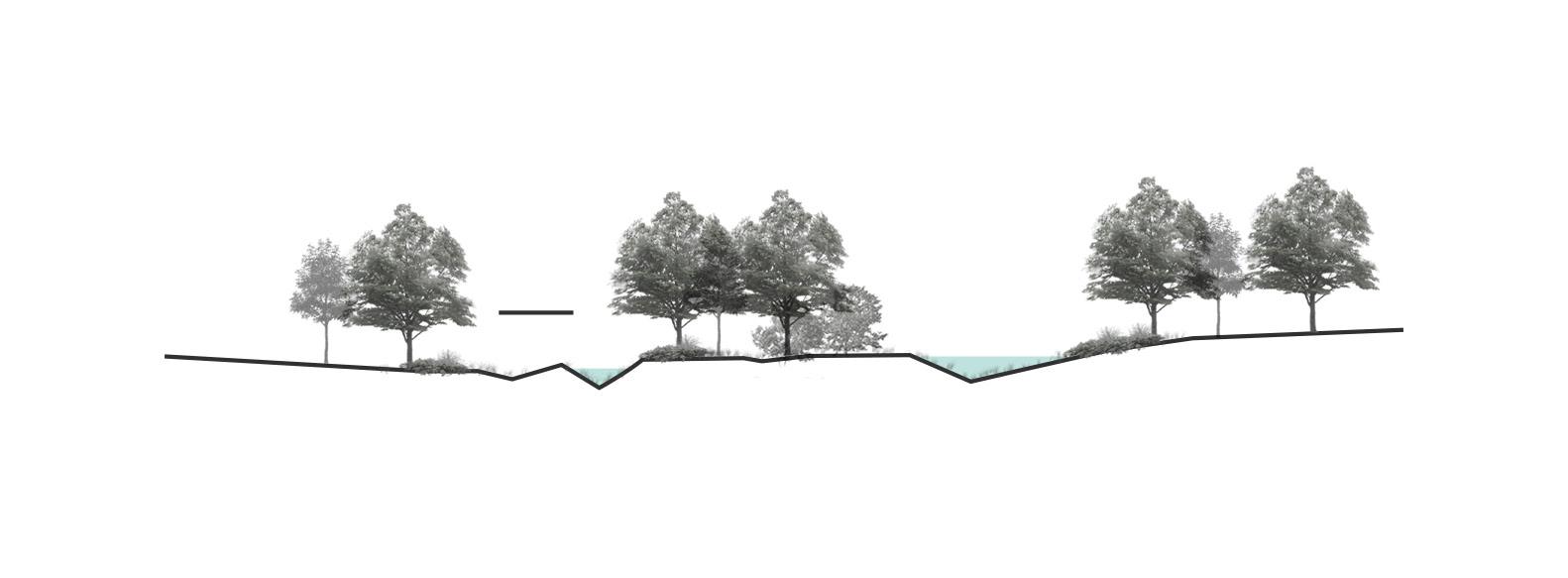

B Open Leisure Zone 1-1' Typical Section

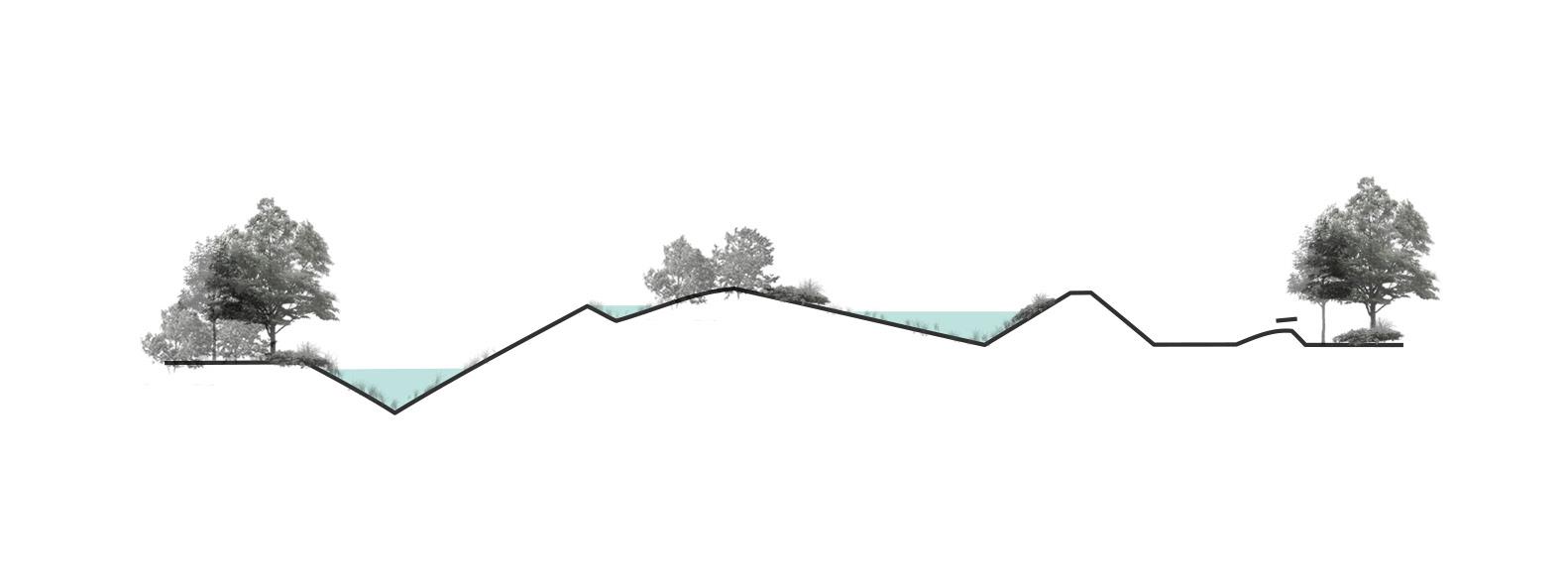

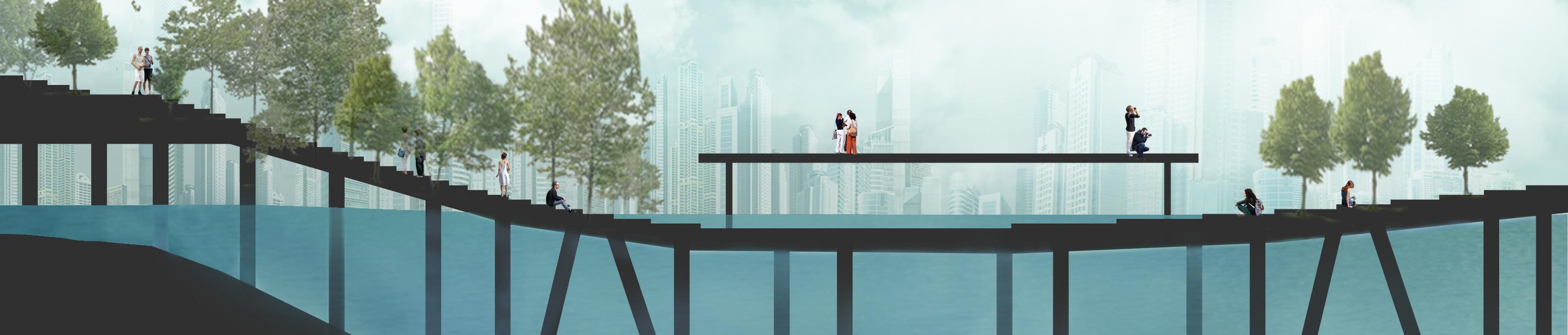

SECTION 1-1' SHOWING RELATIONSHIP BETWEEN PEOPLE AND WATER

10

EYE VIEW People here have rich viewing experience and different levels of vision. The eye view rendering shows one of the possibilities.

Climbing Children Activity Zone

Theater

Open Leisure Zone

11

02 PAPERCUTTING TERRAIN Design of firefly park Site: Nagano, Japan Area: 5.5 hectares Date: 05/2021 Type: Individual Work; Academic Design Instructor: Yijia Wang In t ro d u c t io n : T a t s u n o is o n e o f s a c re d p la c e s t o w a t c h fi re fl ie s in J a p a n , lo c a t e d in t h e o u t s k ir t s o f N a g a n o P re fe c t u re . It is fa m o u s fo r it s fi re fl ie s a n d a ls o o n e o f t h e b e s t p la c e s t o e n jo y t h e fi re fl y fe s t iv a l in s u m m e r. H o w e v e r, t h e F ire fl y S a n c t u a r y a ls o f a c e d c h a lle n g e s w h e n fi r e fl ie s n e e d e x t r e m e ly p u r e e n v ir o n m e n t t o e x is t .

T h is p r o je c t a im s t o c r e a t e a m o r e p le a s a n t e n v ir o n m e n t fo r b o t h f ir e f lie s a n d p e o p le .

12

13

FIREFLY CULTURE

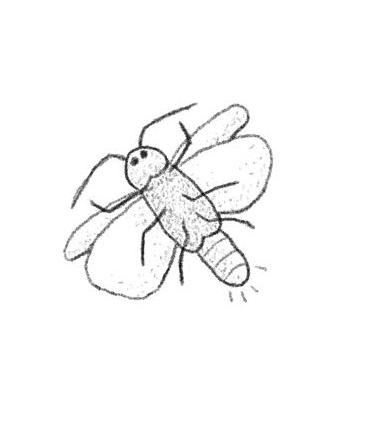

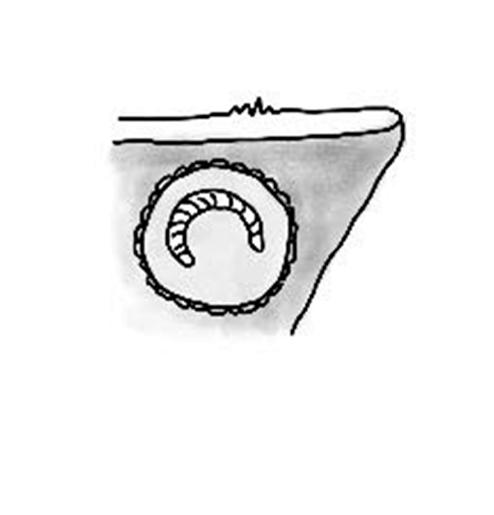

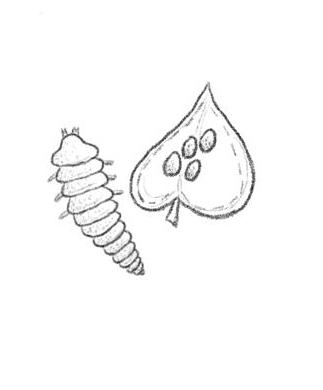

LIFE CYCLE OF FIREFLIES

Tatsuno is one of sacred places to watch fireflies in Japan, located in the outskirts of Nagano Prefecture. It is famous for its fireflies and also one of the best places to enjoy the firefly

Why Japan has firefly culture 1. FAIRY TALE

4 . P re p u p a

2. POPULATION DENSITY

Traditional Japanese novel 'Tale of Genji' describes a scene: in order to let the p r i n c e s e e o n e b e a u t y, Guangyuan hid fireflies in the bag and released them in the dark room. Under the glimmering light of fireflies, he saw the graceful beauty.

late April

3 . C lim b in g la r v a NAG ANO (S IT E )

Less people

More fireflies

TO K YO

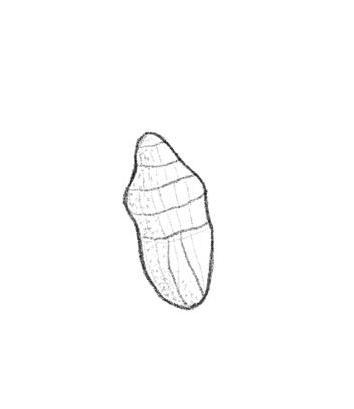

5. Pupa early May More people

Less fireflies

Why fireflies live in Tatsuno, Japan Firefly is a very delicate and fragile creature. Each aquatic firefly has a different ecological habitat. Tatsuno is very suitable for Fireflies to live and famous of Genji Firefly (a kind of aquatic firefly).

Period Food

A d u lt s Dew Nectar

Snail

Box Elder

Larvae Earthworm

Pupae & Eggs

2. Larvae

Shellfish

Photinia

late July

Pond Lily

Height

6 . A d u lt mid-to-late June

Daphne

Arrowhead

Lu sh Tre e s Spiraea Cattail Lo w Sh ru b s

1. Eggs

A q u atic Plan ts

7 . C o u r t s h ip

late June

late June

River

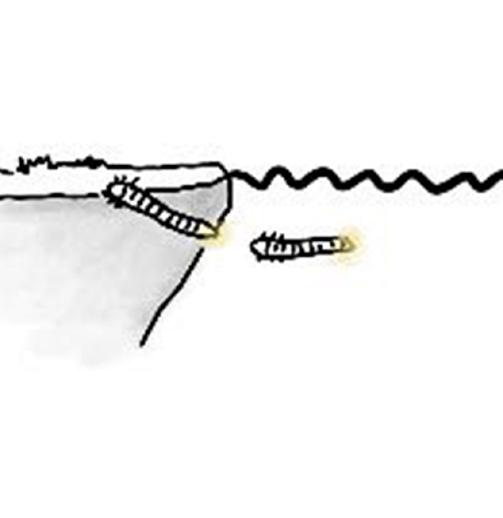

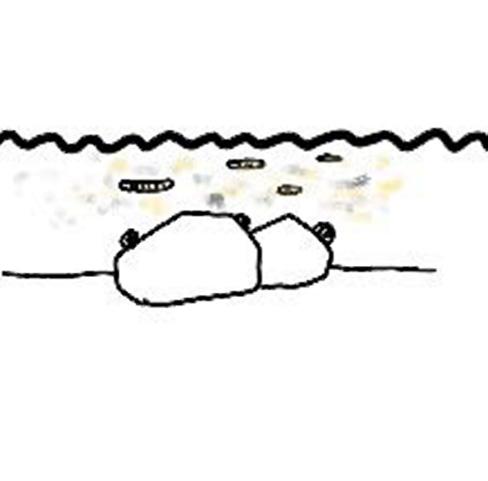

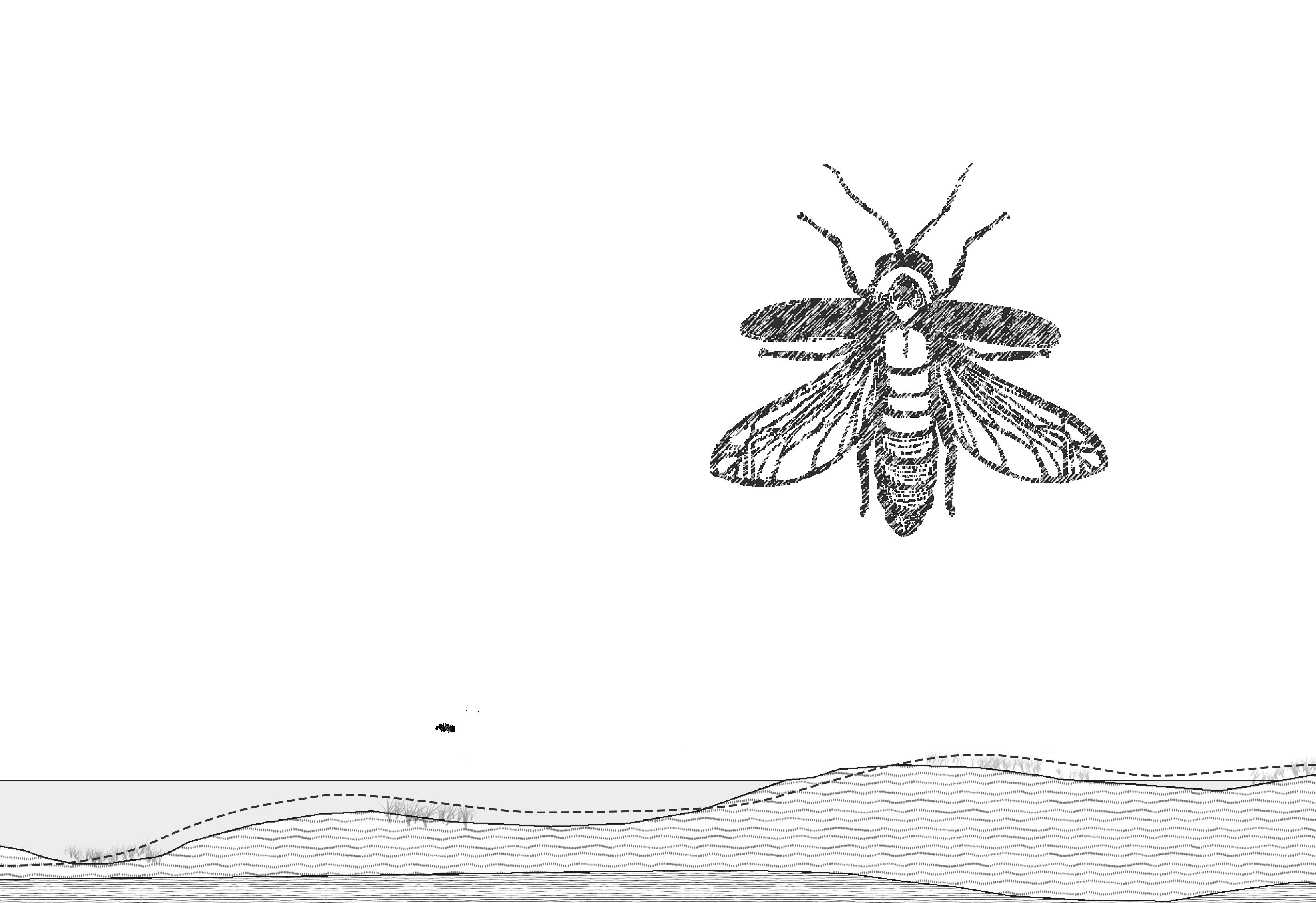

Firefly movement in short life

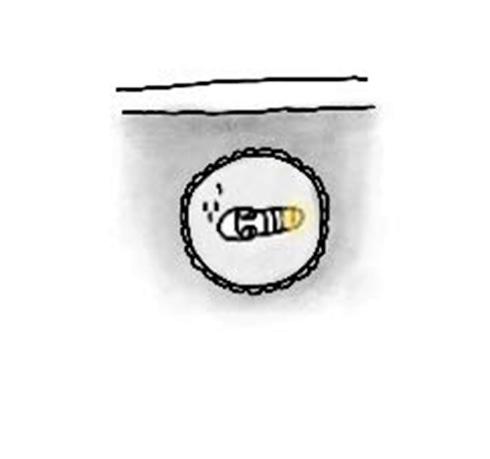

2. Hatching 1. Spawning

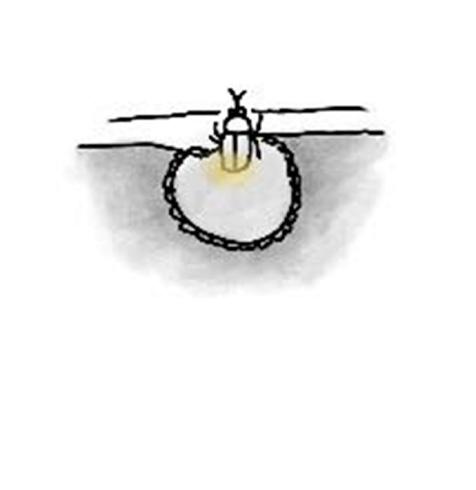

4&5. Digging 3. Climbing

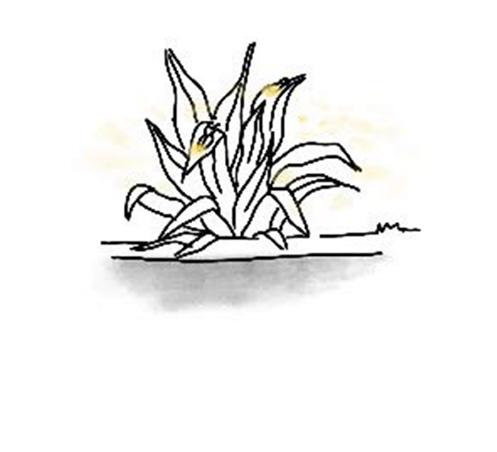

6. Activating

7. Mating

14

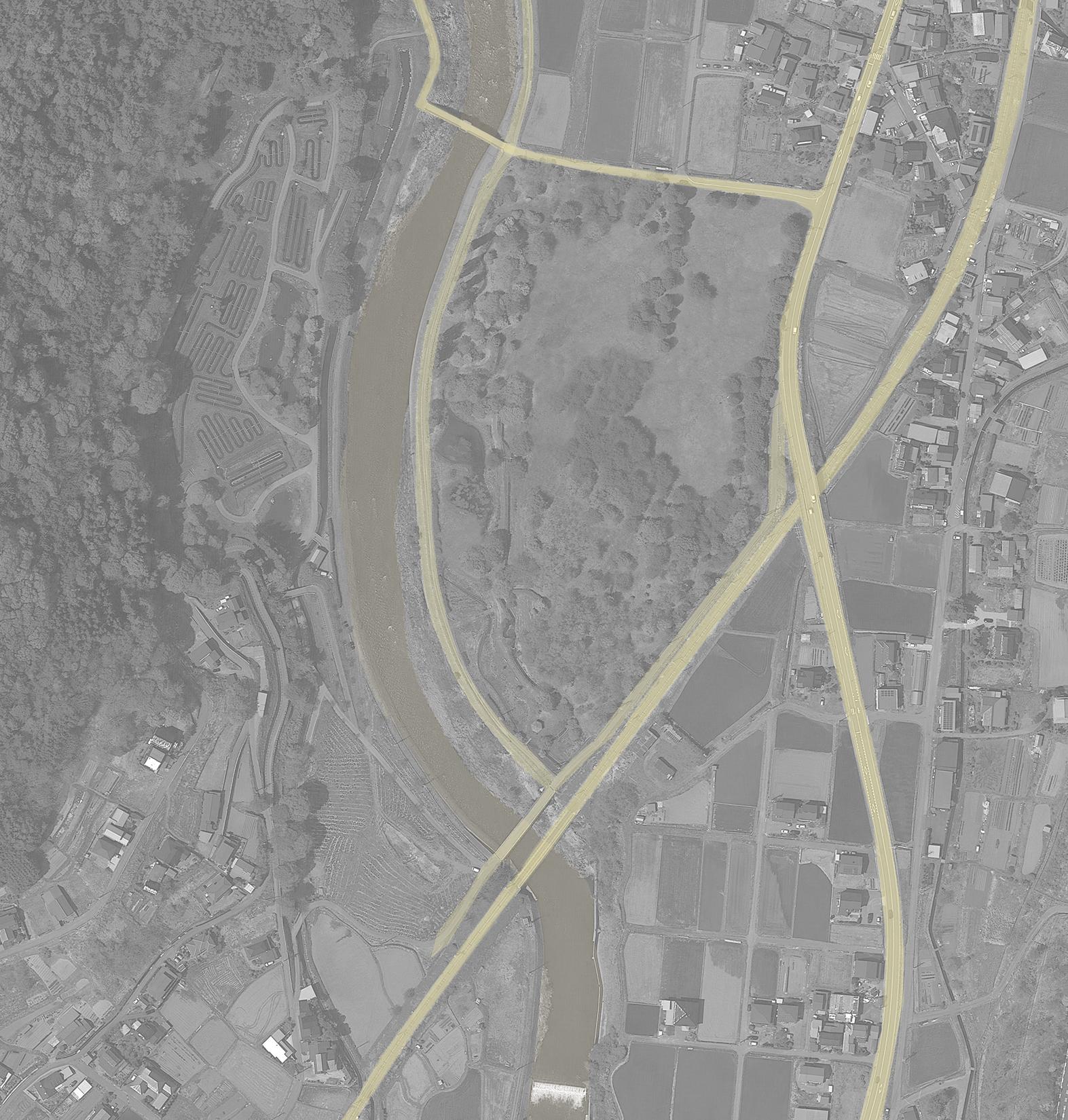

HOMETOWN VILLAGE OF FIREFLIES Fireflies only like the natural environment with lush vegetation, clean water and fresh air. Aquatic Fireflies have even higher requirements for the environment. Tatsuno is very suitable for Fireflies to live. In the middle of June every year, Firefly Festival held here is deeply loved by people. Since the 1955s, however, with the increase in various kinds of pollution, the number of fireflies has gradually decreased.

PROS AND CONS

DIFFERENT REQUIREMENTS

The natural environment and the water of the Tenryu River could provide fireflies good habitats and sufficient food.

Pollutions including Factory wastewater, domestic wastewater, and pesticides damage living environment of

At different life stage, fireflies in Tatsuno require different habitats. The basic types include the following three.

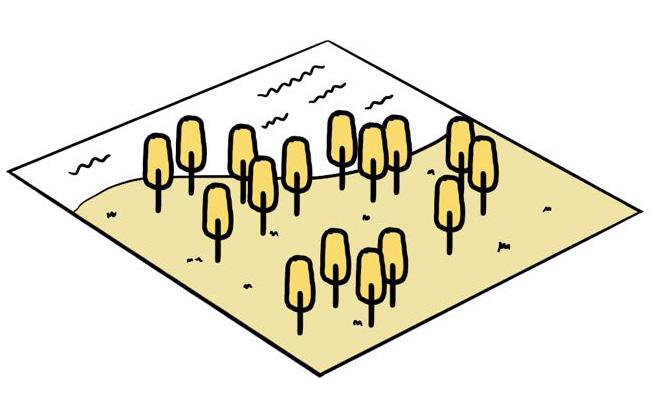

Lush woods Factories, houses

Clear, ample river

1

A d u lt s - m o is t t re e s o r g r a s s

A

Snail, earthworm,etc.

B

2

L a r v a e - g r a s s n e a r r iv e r s , p o n d s a n d p a d d y fi e ld s

Farmland Residents, visitors

N C

1 2 Merit 25

A B C Demerit 50

100m

P u p a e - m o is t s o il

15

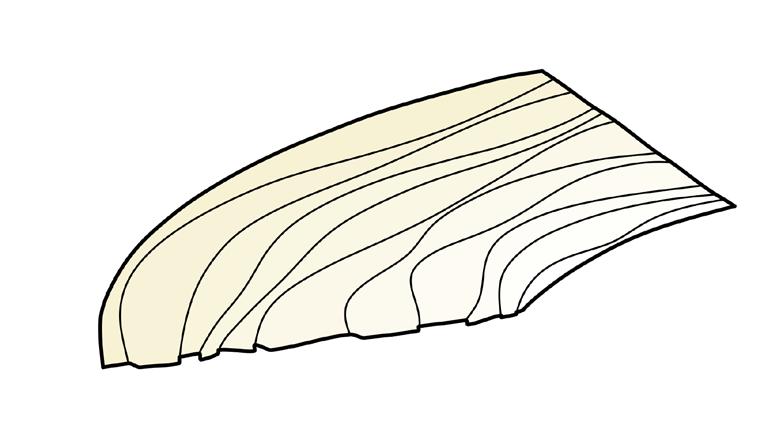

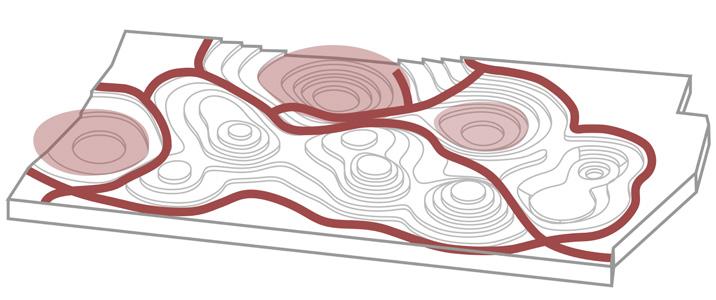

PAPERCUTTING TOPOGRAPHY In o rd e r t o s a t is fy p e o p le 's c u r io s it y a b o u t n a t u re a n d c h e r is h n a t u re a t t h e s a m e t im e , it is v e r y im p o r t a n t t o c re a t e a c o m fo r t a b le a n d le s s d is t u r b in g v ie w in g s p a c e fo r t o u r is t s a n d a g o o d liv in g e n v iro n m e n t fo r fi re fl ie s .

T h e s p a c e p la n s t o u s e t h e fo r m o f p a p e r c u t t in g t o fo r m a w a v e s h a p e a n d a ls o fo r m a h e ig h t d iff e re n c e , s o t h a t t h e b u ild in g c a n in t e g r a t e in t o t h e t e r r a in , m in im iz e t h e im p a c t o n fi re fl ie s , a n d c re a t e m o re p o s s ib ilit ie s fo r p e o p le t o in t e r a c t w it h fi re fl ie s . S e t t in g m u lt i-la y e r e le v a t io n d iff e re n c e a ls o c a n a c h ie v e t h e p u r p o s e o f fi lt e r in g w a t e r la y e r b y la y e r a n d e n r ic h in g t h e la n d s c a p e .

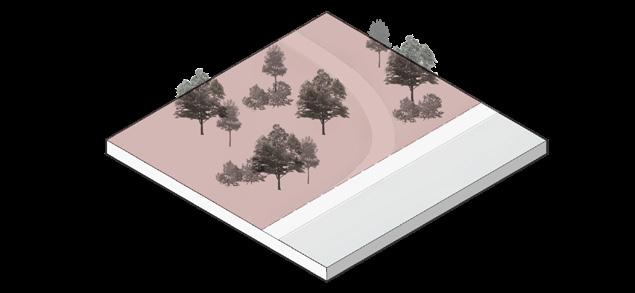

S t e p 1 : S p lit t h e p la n e

S t e p 2 : A d j u s t t h e p la n e

S t e p 3 : D e t e r m in e t h e h e ig h t

P re lim in a r ily s e p a r a t e t h e s p a c e fro m t h e p la n e a n d c o n fi r m t h e e le v a t io n d iff e re n c e c la s s ifi c a t io n .

A d ju s t t h e s iz e a n d s h a p e o f t h e s p a c e t o m e e t s p a c e a n d s t re a m lin e re q u ire m e n t s a n d sm o o th w a v y sh a p e .

D e t e r m in e t h e h e ig h t d iff e re n c e o f e a c h la y e r t o fo r m t h e b a s ic t e r r a in .

FITRFLY-VIEWING SECTION PROFILE F o r t h is s it e , t h e re a re s e v e r a l d iff e re n t m o d e s o f in t e r a c t io n b e t w e e n p e o p le a n d fi re fl ie s . P e o p le c a n w a t c h fi re fl ie s fl y in g t h ro u g h t h e w in d o w s in e a r t h c o v e re d b u ild in g s , o r t h e y c a n w a t c h t h e m c lo s e ly in t h e o u t d o o r s p a c e o n t h e b a s is o f o b s e r v in g t h e r u le s o f s ig h t s e e in g t h a t d o n o t h a r m fi re fl ie s .

Floor-to-ceiling glass obversation space

Atrium skylight

Overlooking

Intereact

16

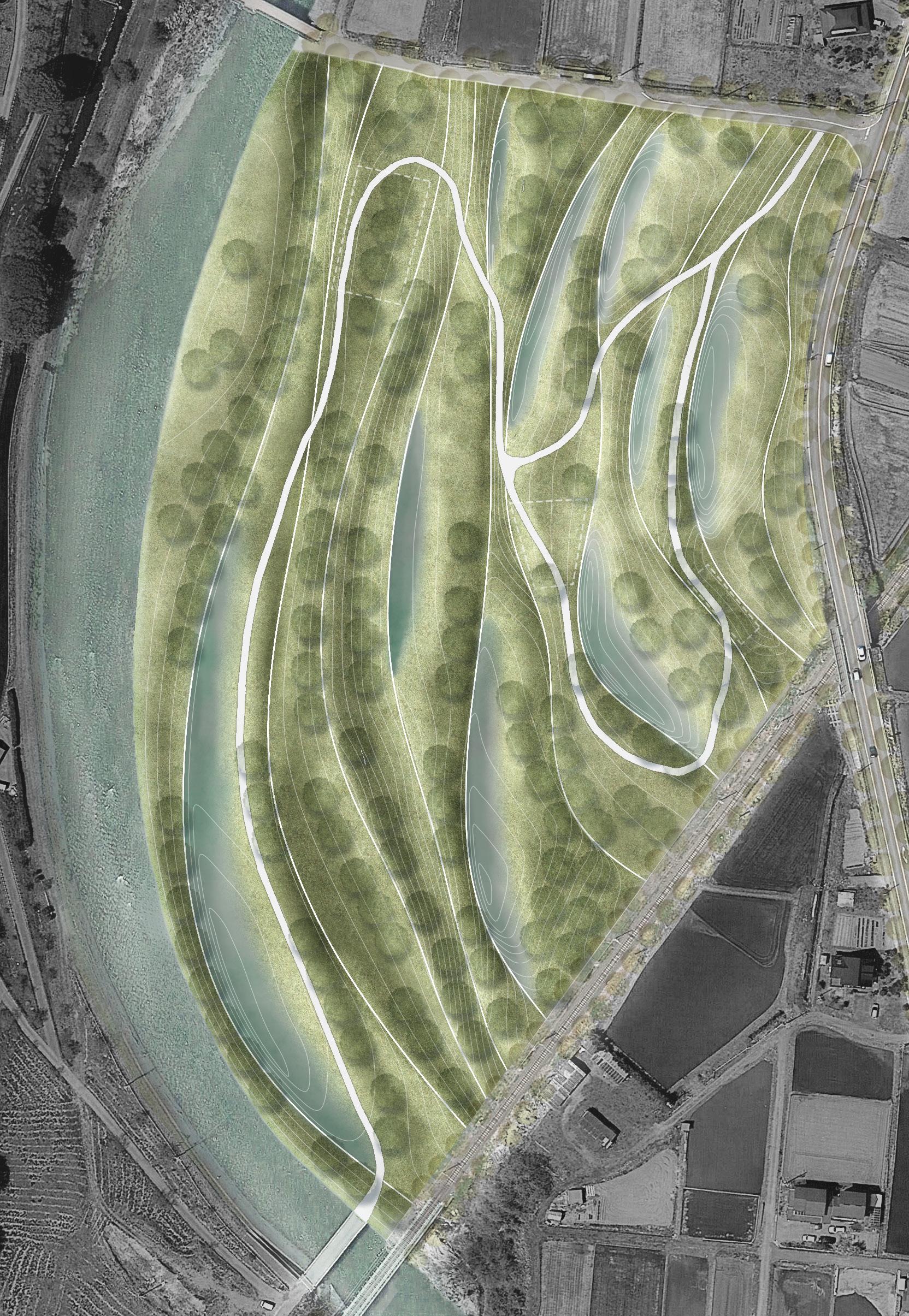

MASTER PLAN A' A B'

B

C'

ZONING FOR PEOPLE The higher side near the outer main road is used as the main activity area for people, and the cladding architecture is used to enrich the viewing experience.

D' C

2

1

FOR FIREFLIES According to the living habits of fireflies, the area near the water and lower is divided into living area for fireflies with more lush vegetation while reducing crowd disturbance.

D

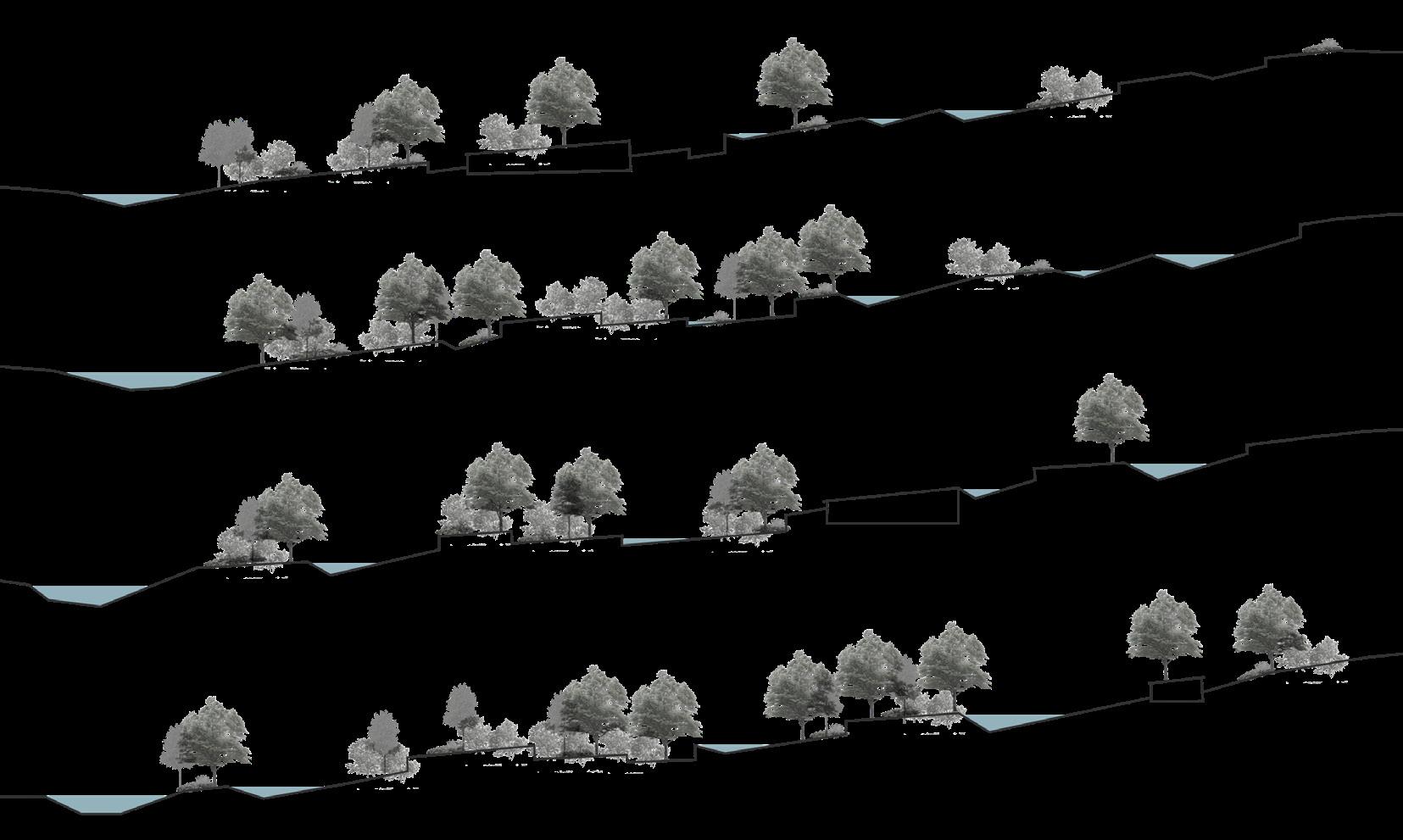

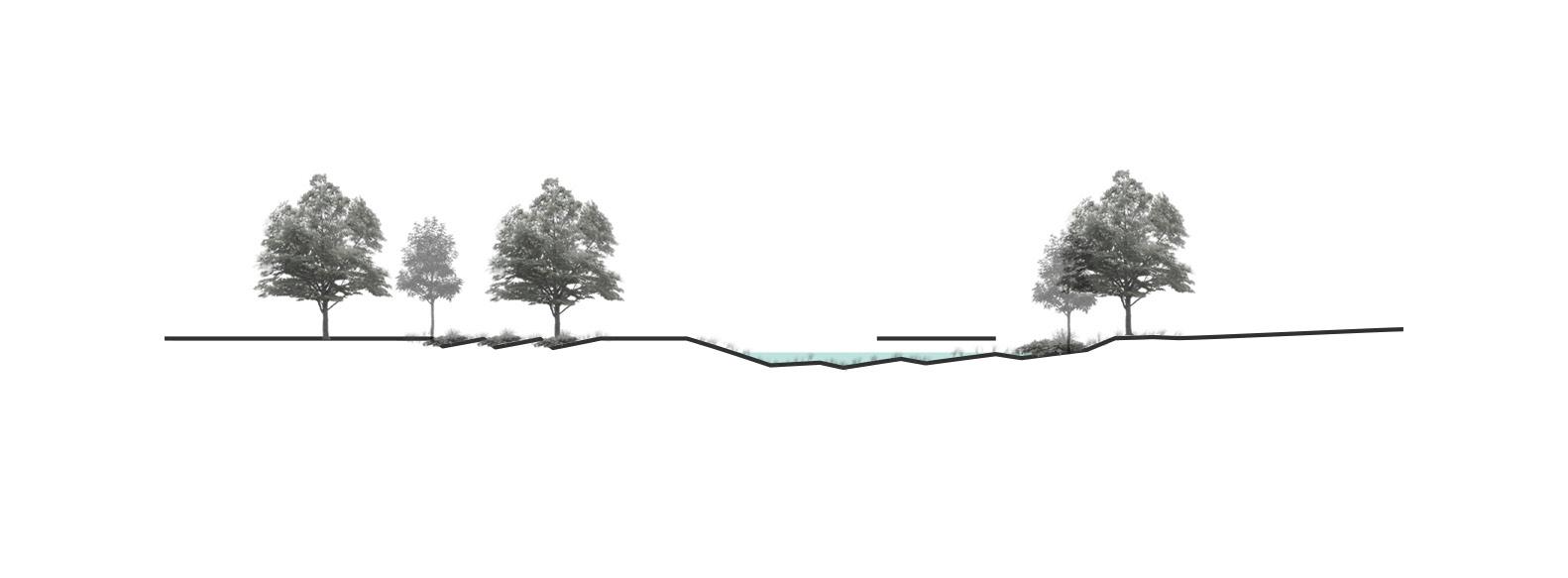

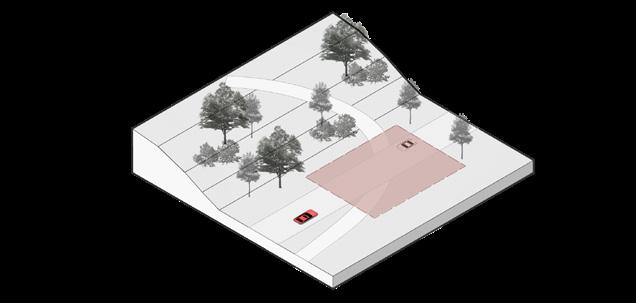

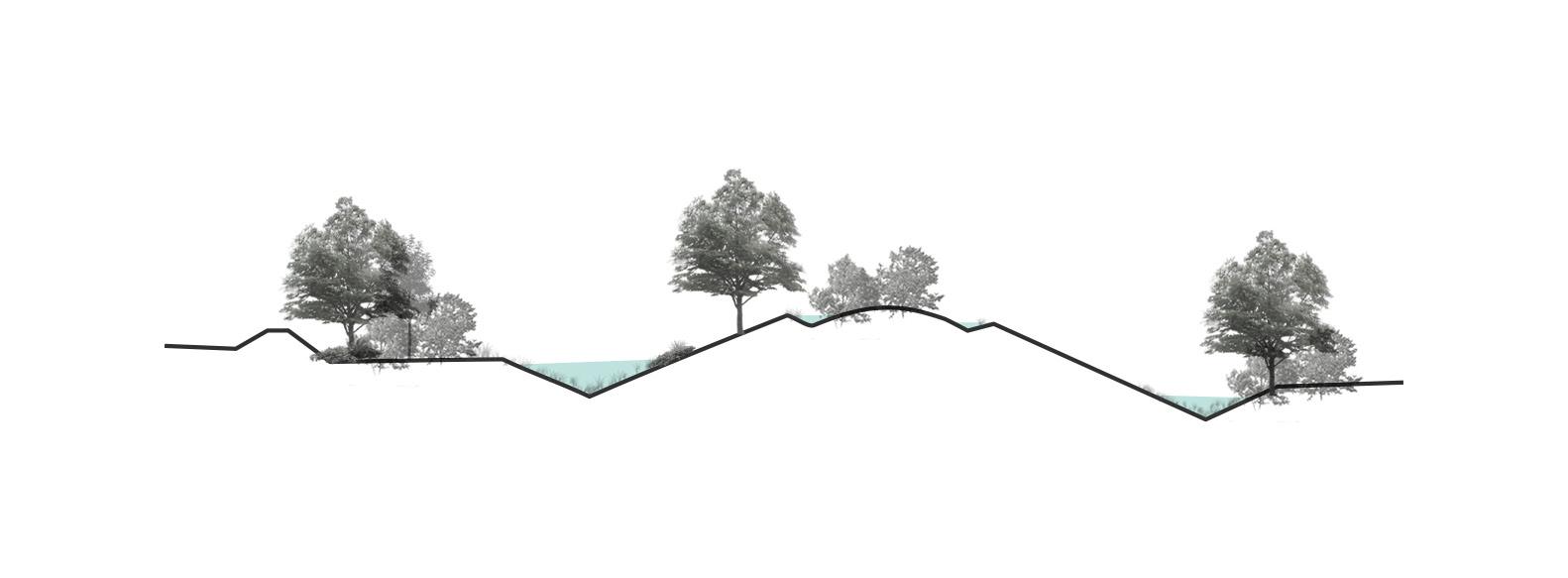

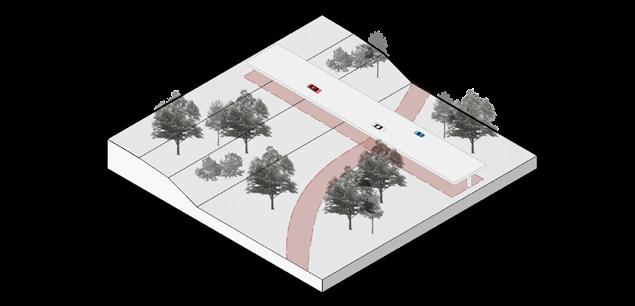

SECTIONS SHOWING VEGETATION AND BUILDINGS 1

A'

3

1

A

3

B'

1-A

B C' 3

1-C

C

D' 1-D

D 1. Cladding construction 2. Main Park Road 3. Ditches and Ponds

LIVIN G AREA FO R FIREFLIES

ACTIVITY AREA FOR PEOPLE

N 25

50

100m

1-A

1-C

1-D 17

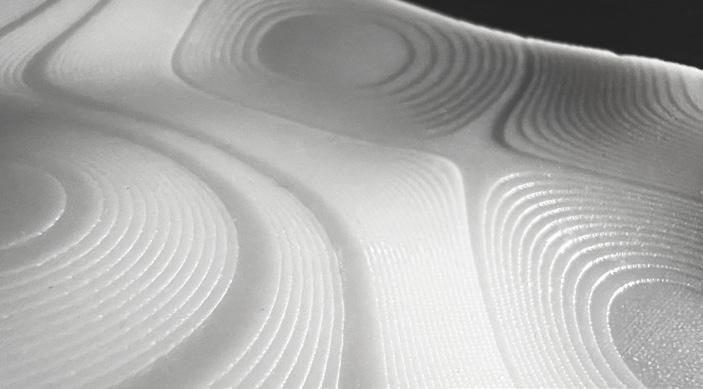

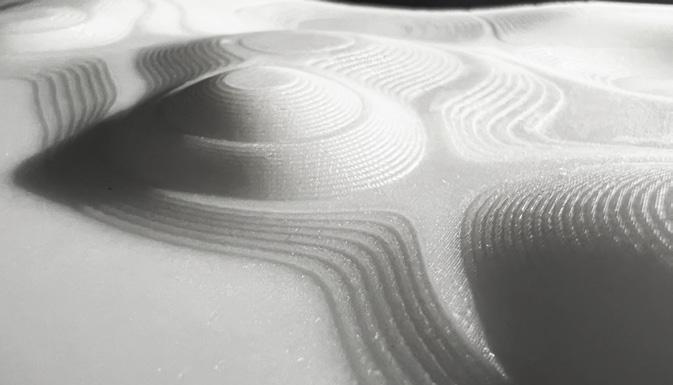

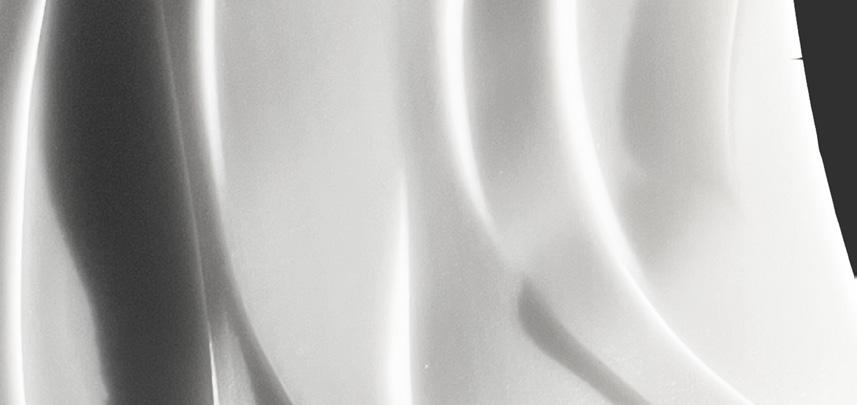

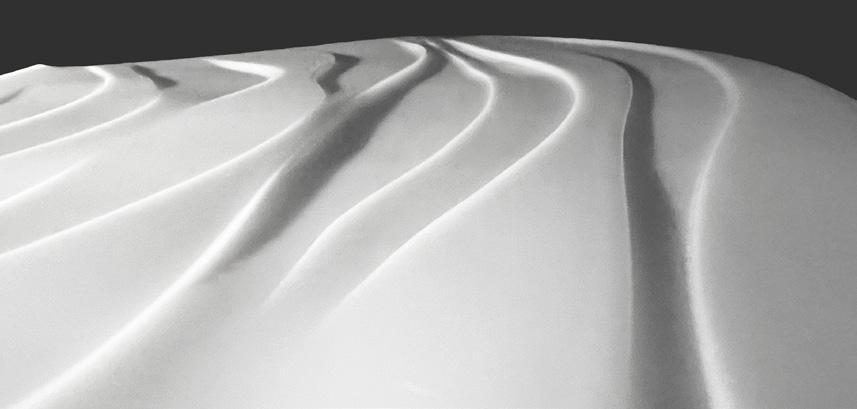

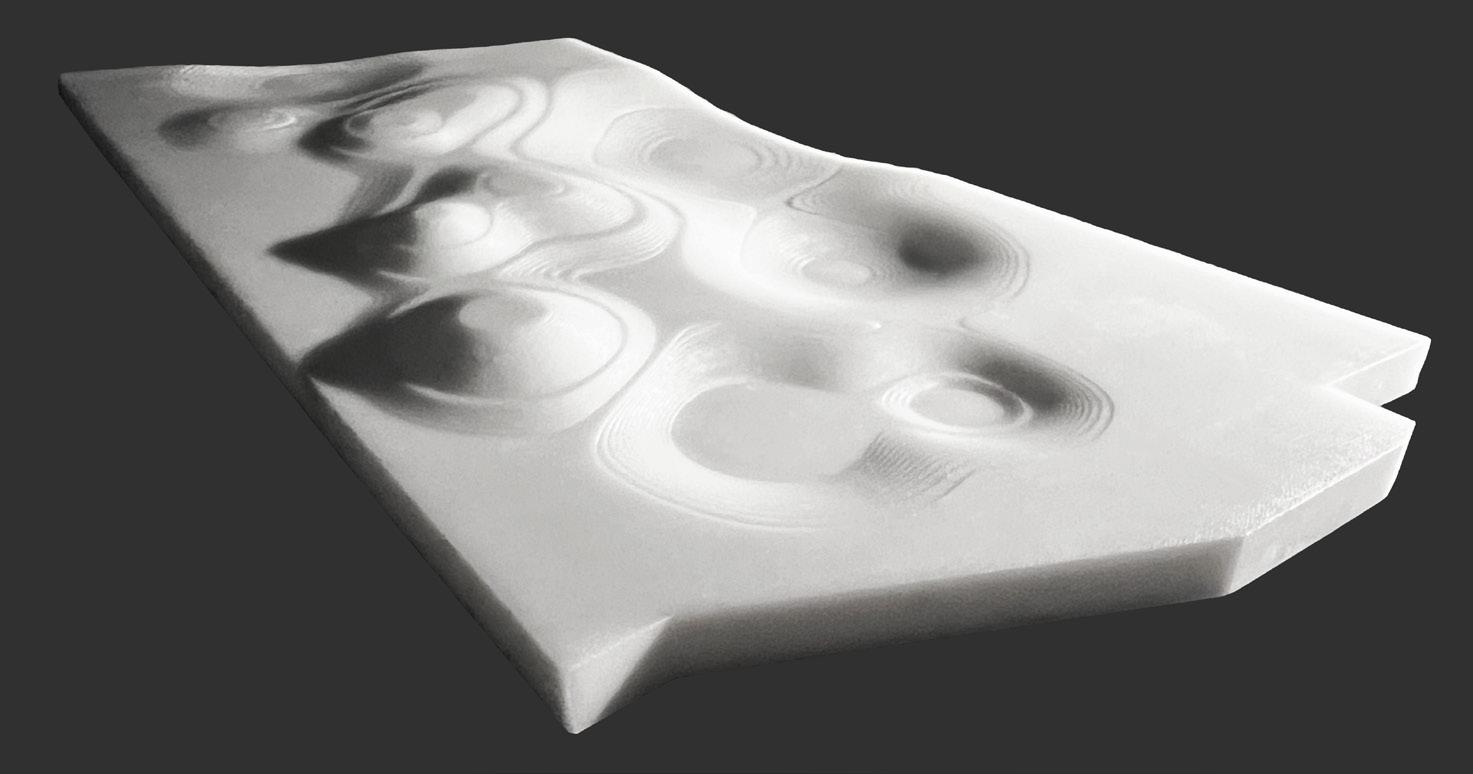

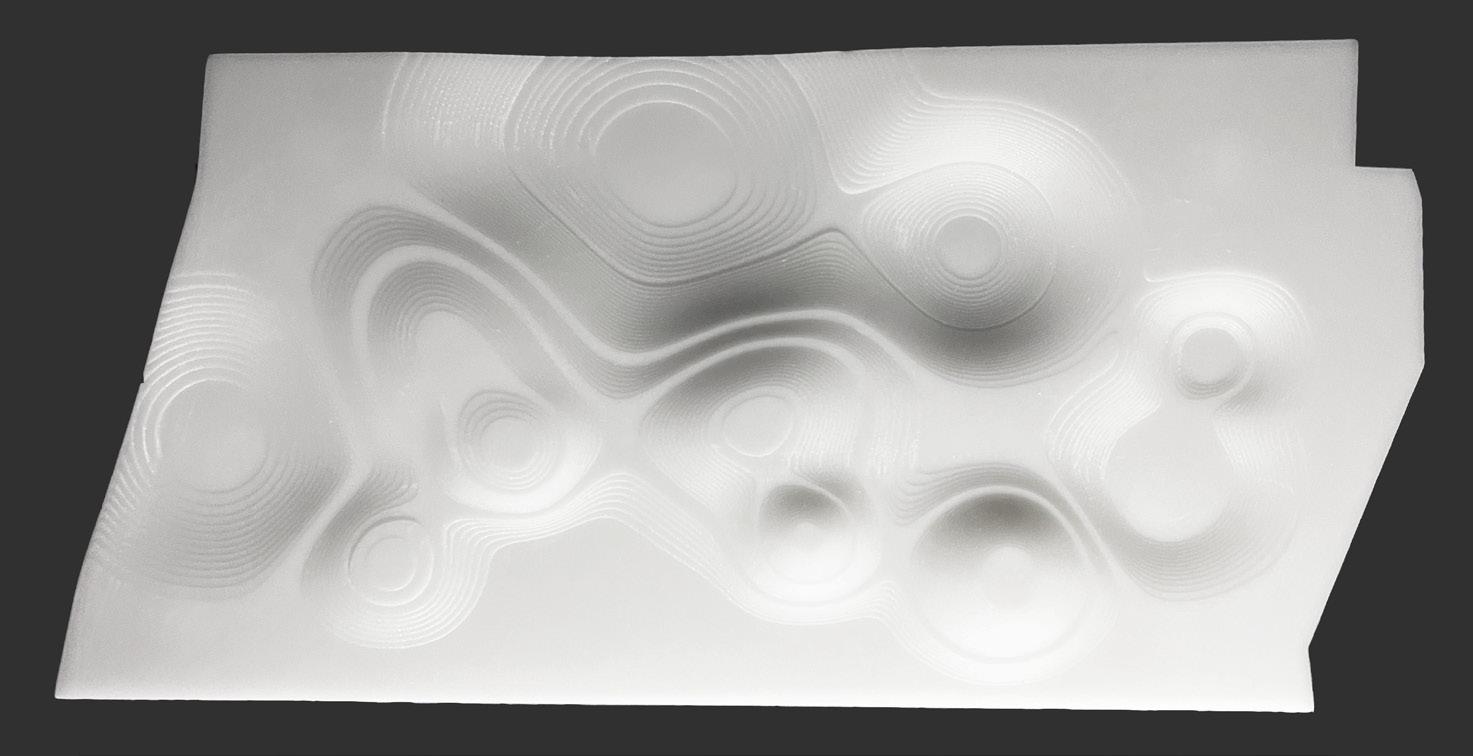

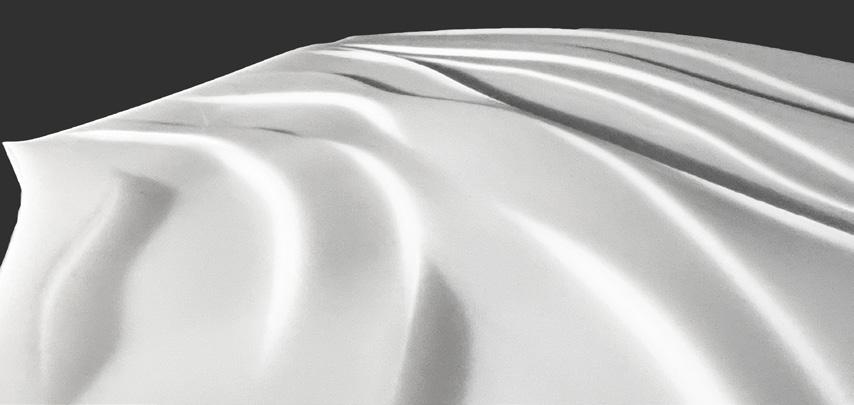

3D PRINTING MODEL SHOWING TERRAIN UNDULATIONS The model shows the general state of the water strategy, including flood management and water purification.

FLOOD MANAGEMENT

WATER PURIFICATION

When the tide comes in, the terrain with layers of height difference functions as natural water filtration system.

When polluted water flows from high to low, the terrain with ditches can functions as natural water filtration system, filtering sewage layer by layer. At the end, the relatively clean water flows into the river.

B

Water Flow

A

A

B

18

DIFFERENT RELATIONSHIPS BETWEEN PEOPLE AND FIREFLIES

DAYTIME In the daytime, fireflies are seldom active, and people can't see them. And because of its good natural environment and rich terrain, it can also become a place for people to take a daily walk.

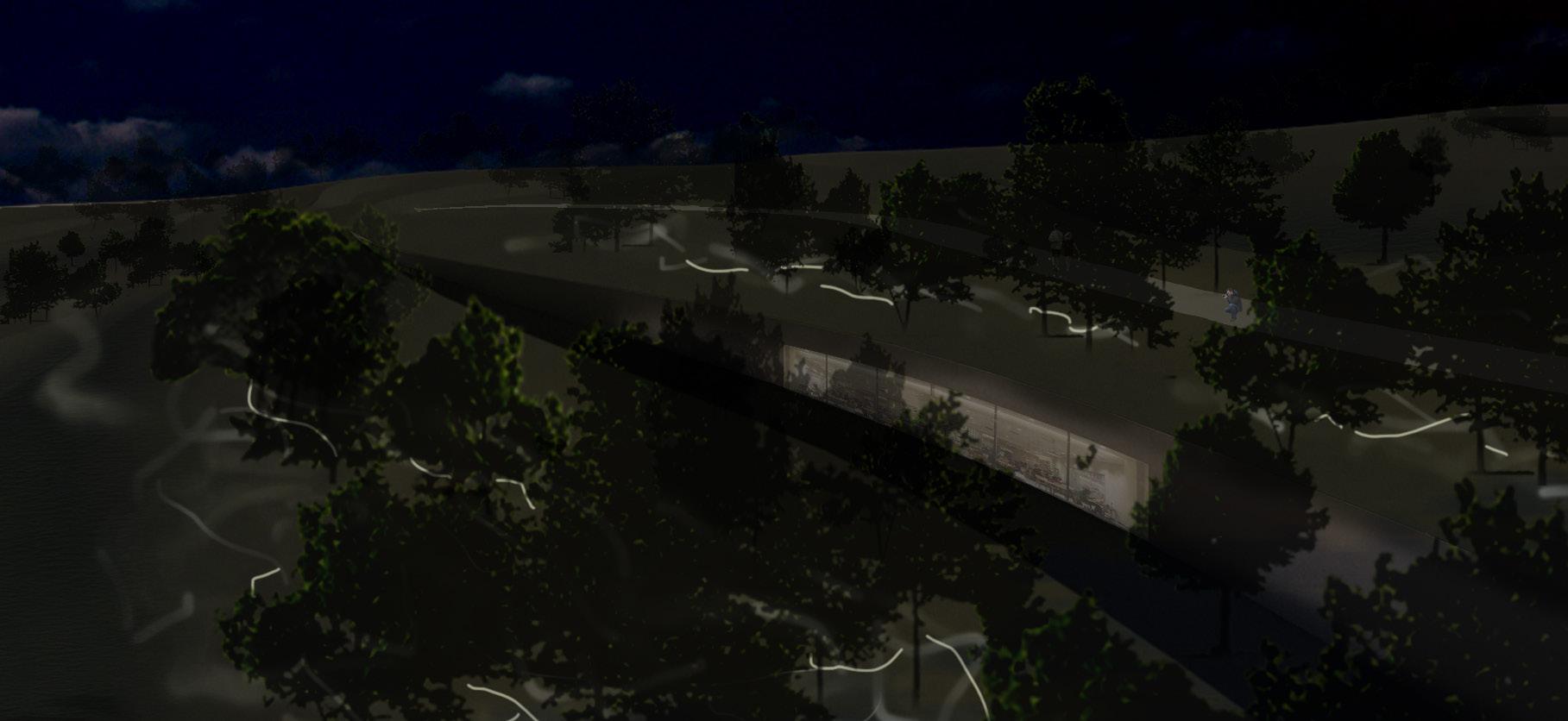

NIGHTTIME On summer nights, fireflies become active, and this place becomes an excellent place to watch fireflies. You can get close contact with fireflies outdoors, and also have indoor space for people to rest and watch fireflies 19

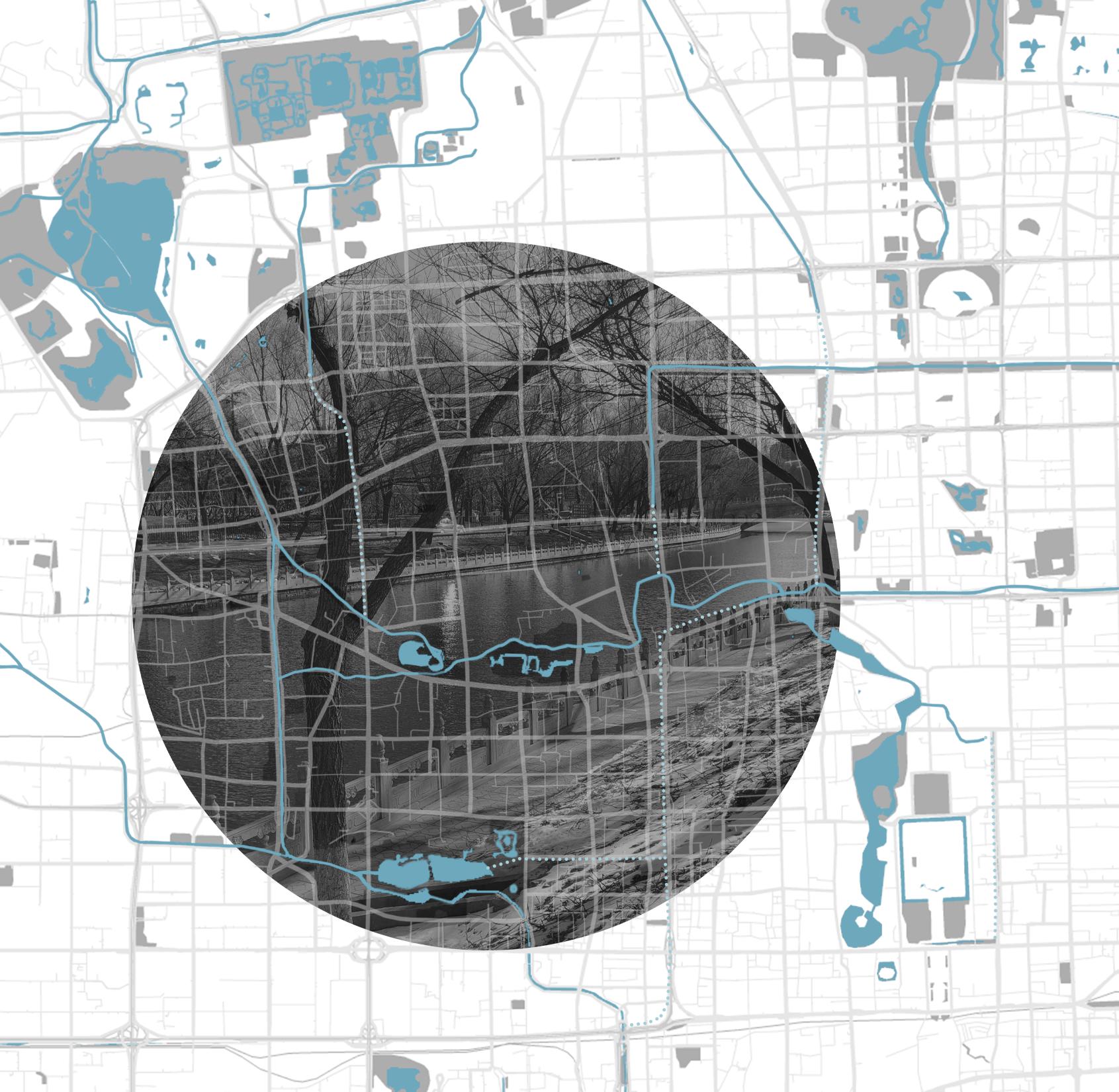

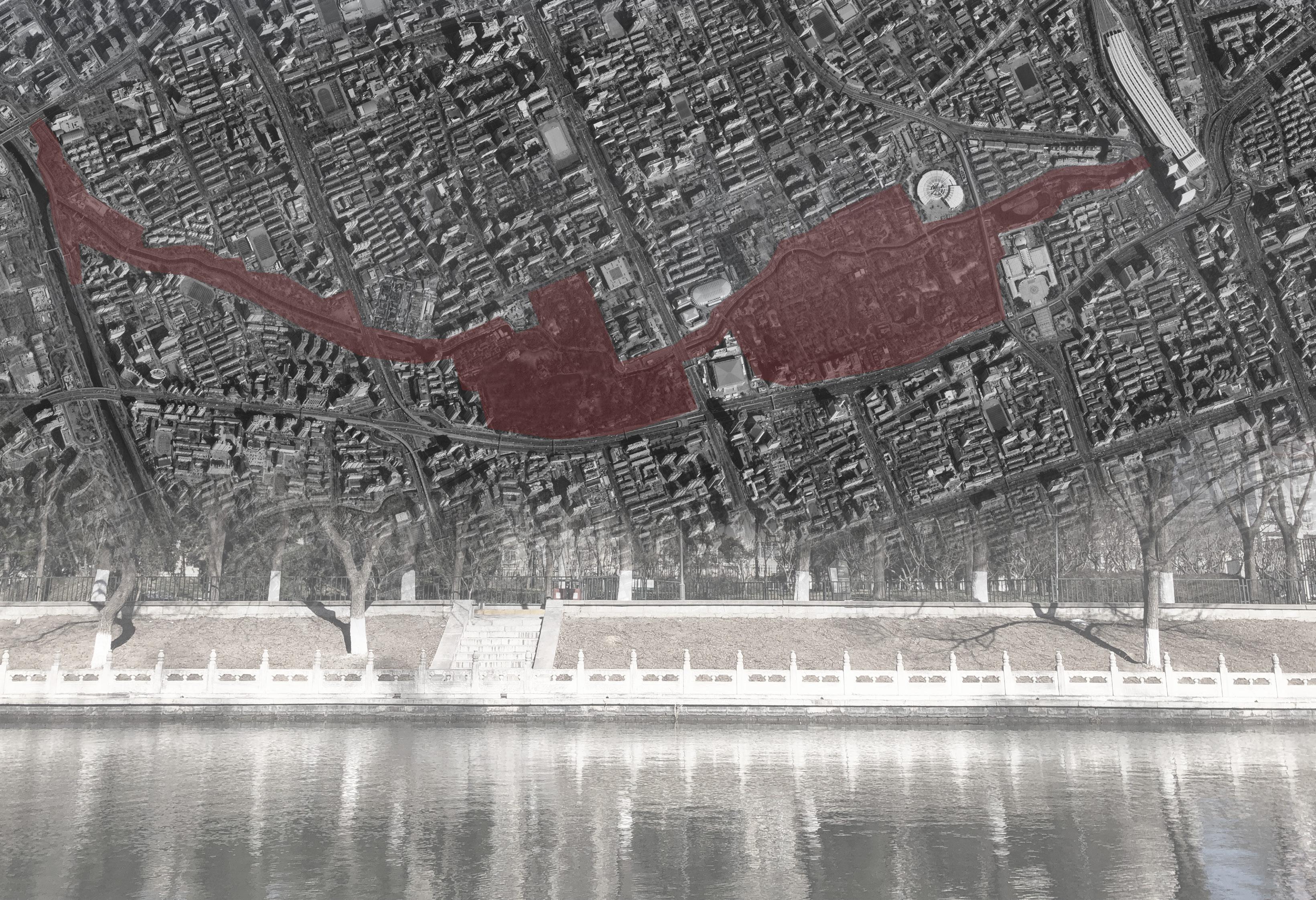

03 RETURNING RIVER Naturalization of urban channelized river Site: Beijing, China Area: 166 hectares Date: 04/2022 Type: Individual Work; Academic Design Instructor: Feng Xu In t ro d u c t io n : R iv e r c h a n n e liz a t io n is t o t r a n s fo r m t h e n a t u r a l r iv e r in t o a n e a r ly p a r a lle l a n d r e g u la r c h a n n e l o n b o t h b a n k s b y t a k in g s o m e e n g in e e r in g m e a s u re s . N a n c h a n g R iv e r w a s c h a n n e liz e d in 1 9 t h c e n t u r y b e c a u s e o f d e m a n d f o r f lo o d c o n t r o l, ir r ig a t io n . B a s e d o n s t u d y o f n a t u r a l r iv e r, t h is d e s ig n h a s a p ro p o s a l t o re s t o re e c o s y s t e m s c a p a b ilit y t o re s p o n d t o c h a n g in g e n v iro n m e n t .

20

21

CHANNELIZATION

ENGINEERING MEASURES

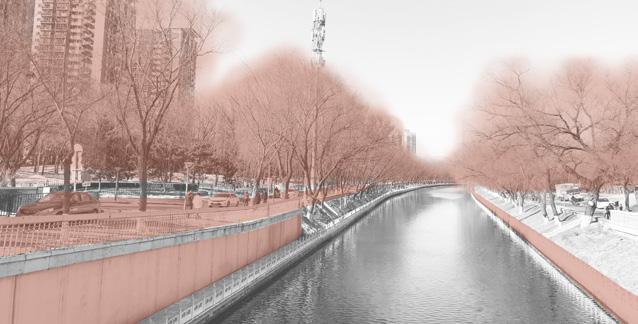

In the past centuries, because of increasing demand for irrigation and flood control, rivers in Beijing were seriously channelized.

Manual cutting

Solidifying the river

Narrowing the riverbed

NEGATIVE EFFECTS After the implementation of the canalization project, the boundary conditions of the river have been changed, which is bound to have a certain impact on the upstream, downstream, left and right banks of the river.

50 % RIVERS DISAPPEARED 95 % RIVERS CHANNELIZED SITE

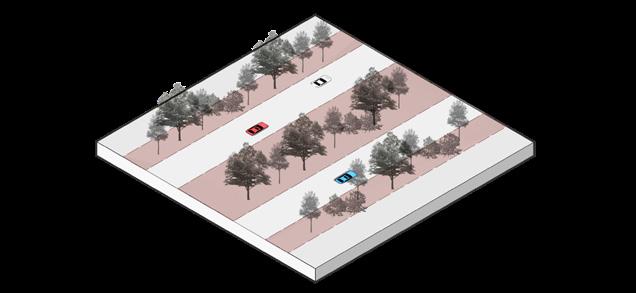

V e h ic u la r in t e r fe re n c e

VDeohmiceuslat icr inw taesrtfee wreant ce er

S t e e p s lo p e p ro t e c t io n

p ot ellur fet iorenn c e V e hR icu nu olaffr in

VNeahr ro ic uwlarrivine tr es id r fee reronacde

V e h Siceualas or ninatleflr ofeored n c e

V eE hc oiclou lag icr in a l tde ar fe m re a gnec e

V e h ic L auclak ro inf vt eitrafelitrey n c e

Poor accessibility

Seasonal flood Accessibility

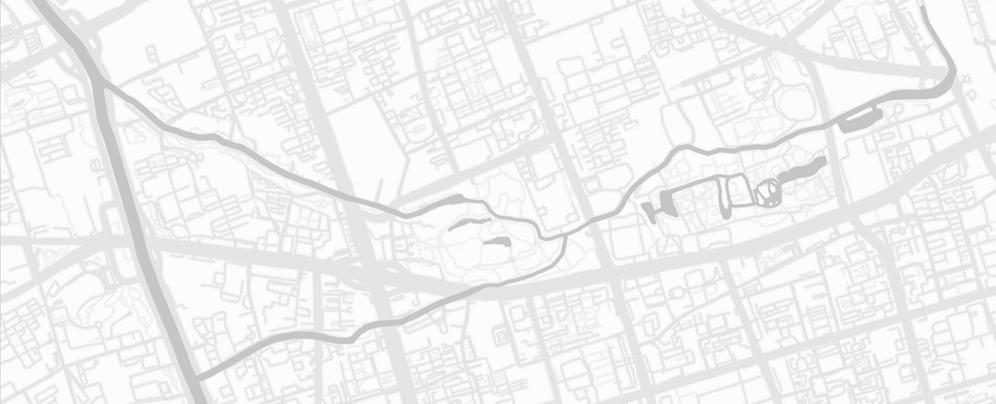

EVALUATION

D is a p p e a re d r iv e r

C h a n n e liz e d r iv e r

Collapse of ecology

Flood

Ecology 22

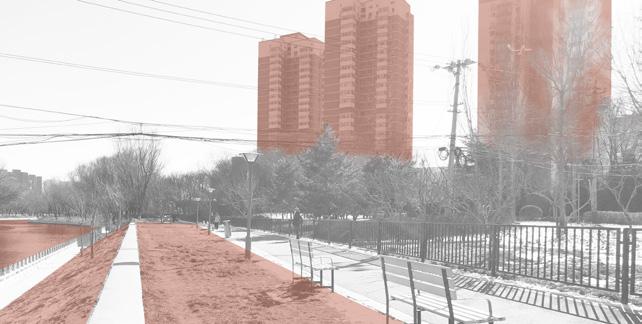

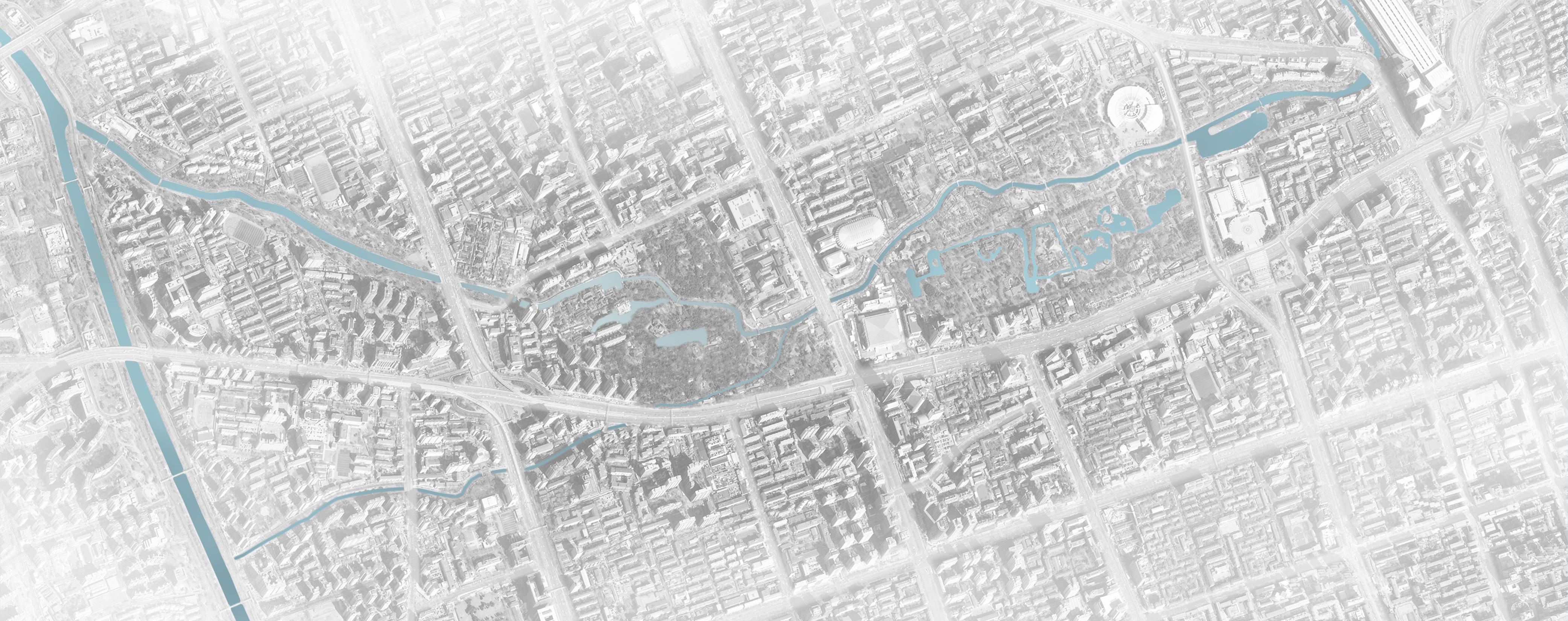

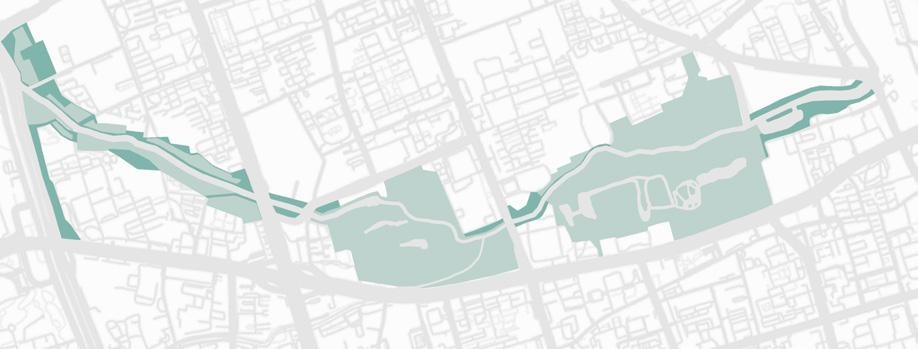

EXISTING SITUATION

Fa c to ry D ock S it e Pa rk

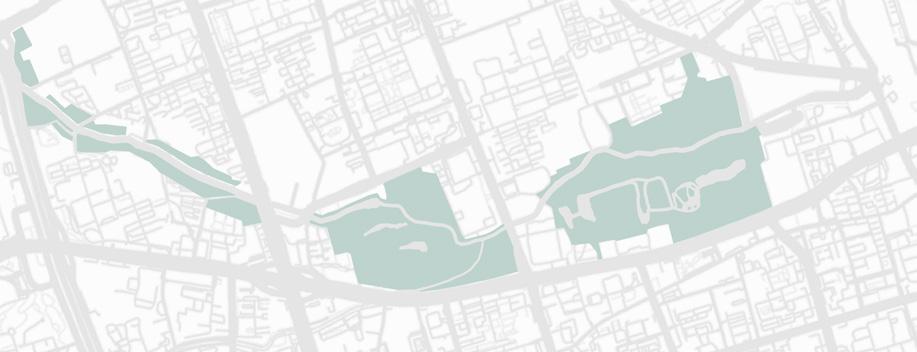

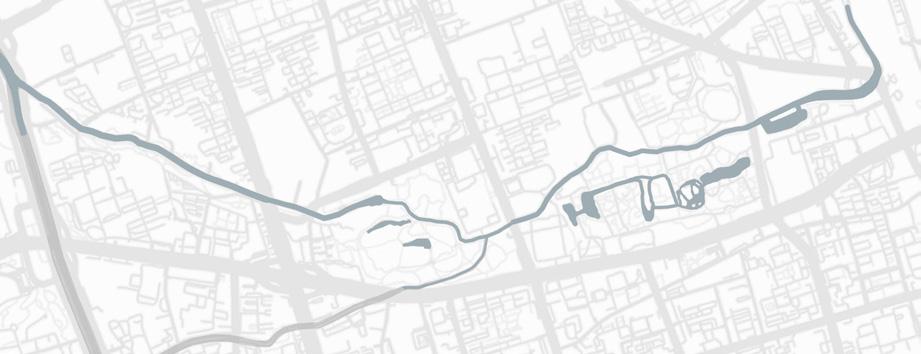

STRATEGIES FOR THREE PROBLEMS

C irc u la t io n b re a k in g p o in t s R e s id e n t

P la n n in g ro a d w a y R iv e r s y s t e m

R e s id e n t

N o r m a l w a t e r le v e l

N o r m a l w a t e r le v e l F lo o d s t o r a g e

Connect +In fi lt r a t e

E x is t in g ro a d w a y R iv e r s y s t e m

E x is t in g g re e n s p a c e

E la s t ic +S e t b a c k

Collapse of ecology

Seasonal flood

Connect +In v it e

Poor accessibility

E x is t in g g re e n s p a c e P la n n in g g re e n s p a c e 23

STRATEGY FOR REPROFILING

STRATEGY LAYOUT

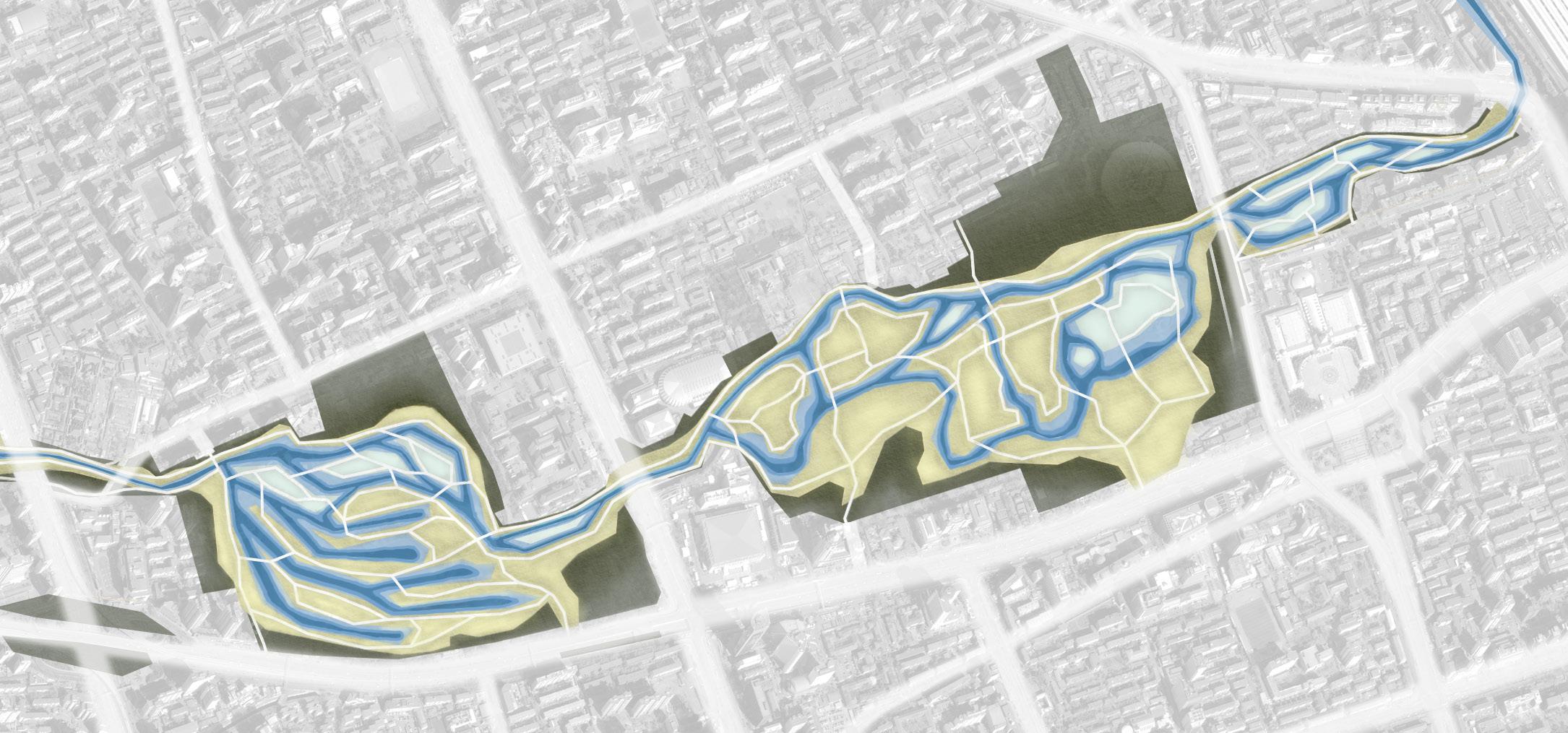

The river flows through different type of land, so the bank functions vary from place to place. According to landuse, sewage system and other factors, we can reprofile the river to reduce negative effects of channelization.

Distributary Section a/f/i

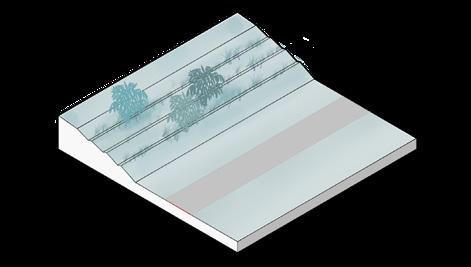

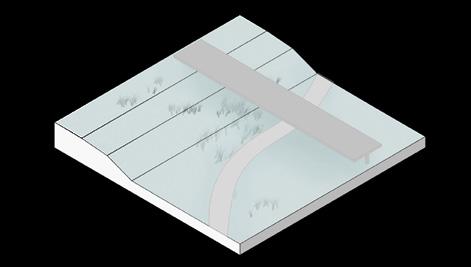

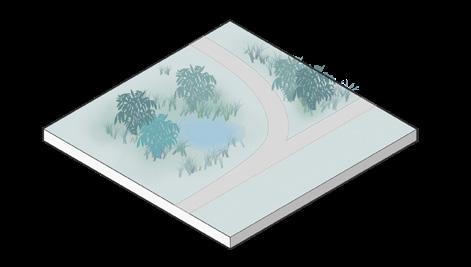

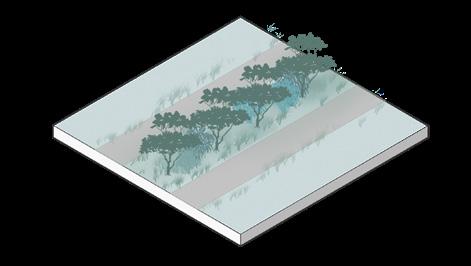

1. Banks 2. Wetlands

Seasonal flood

3. Branches Collapse of ecology

A c c e s s ib ilit y

4. Stairs

Before

Poor accessibility

After

F lo o d

E c o lo g y

1. Banks

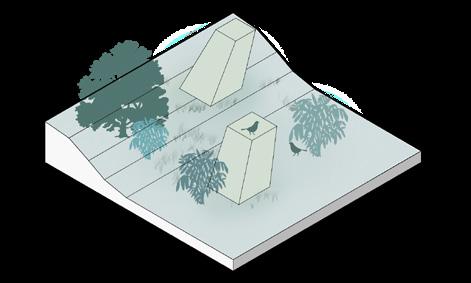

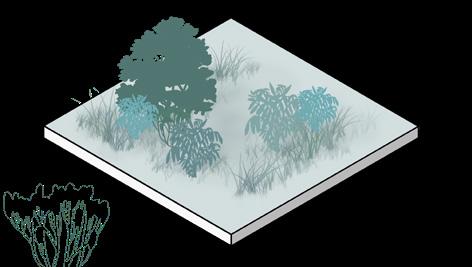

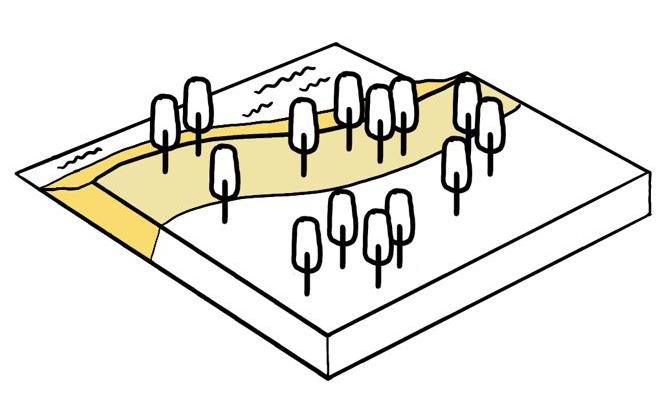

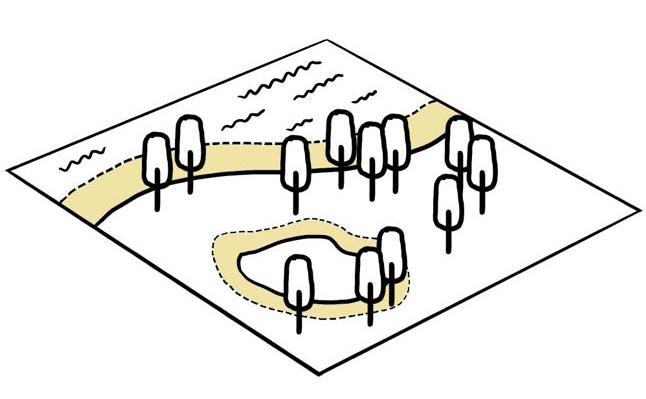

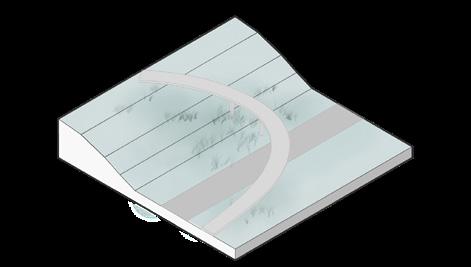

Banks combine plants with biotechnique to enhance self-purification ability and form natural landscape.

Bio-tecnical bank

Ero sio n

g

Su b w ay statio n

a

3 Branches

Branches create new water areas that are not subject to the strict rules of the channel and valuable natural areas.

Sed im en ta tio n

Aeration Pool

2. Wetlands

Wetlands can regulate runoff, improve water quality, regulate microclimate, and protect biodiversity.

4. Stairs

Sed im en ta tio n a t O utlet

c Sedimentation Pond f d

Emergent Wetland i

e

Eco-island

Bio -te c h n ic al b an k

Perfo ra ted D ra in Pip e

R ain g ard e n

R ive r d e lta

Stairs enable people to approach the water, and have activities by the river.

Em e rg e n t w e tlan d

Infiltration Pond

Dock

Ec o -iso lan d

b

h

Platform

Submergent Wetland 24

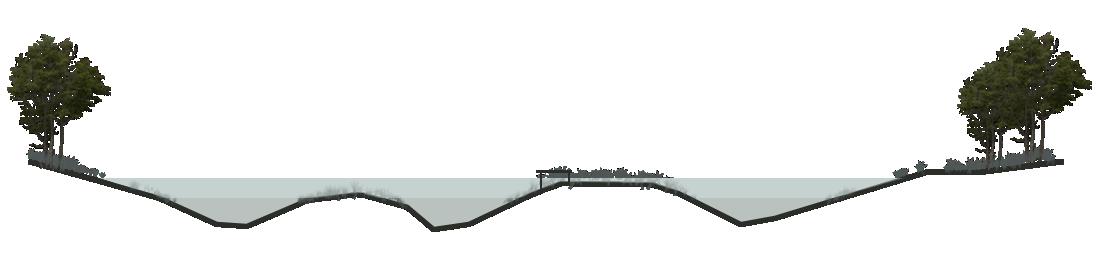

River Beginning Section c /g Wetland Section A c/d/e Wetland Section B b/d/e/h

Sc e n ic h ill

O u td o o r c in e m a

Su b m e rg e n t w e tlan d

In filtratio n Po n d

Em e rg e n t w e tlan d

Sig h tse e in g trail

D ock

A e ratio n p o n d

N

A c tivity law n

Se d im e n tatio n p o n d

500m 250 100

D e e p w a te r S h a lo w w a t e r P e d e s t r a in t r a il S it e W o o d la n d G r a s s la n d M a rsh

25

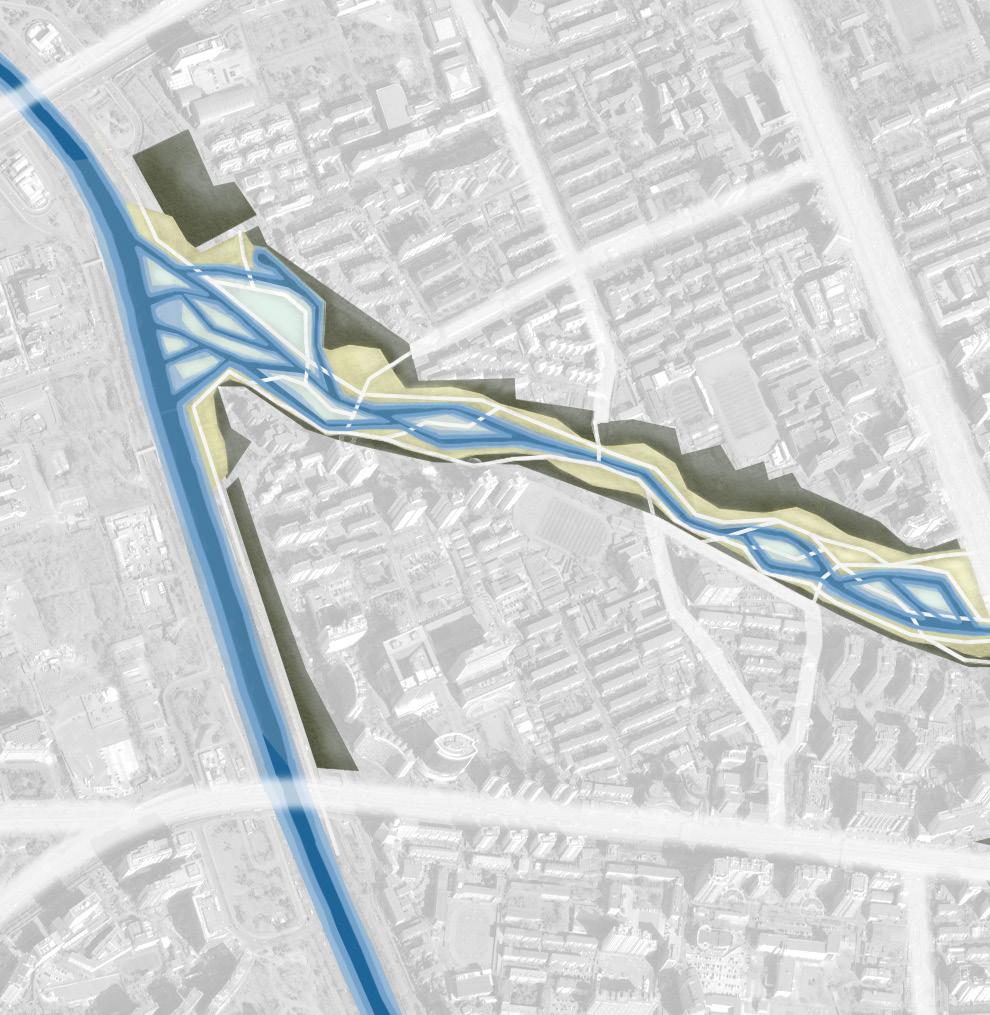

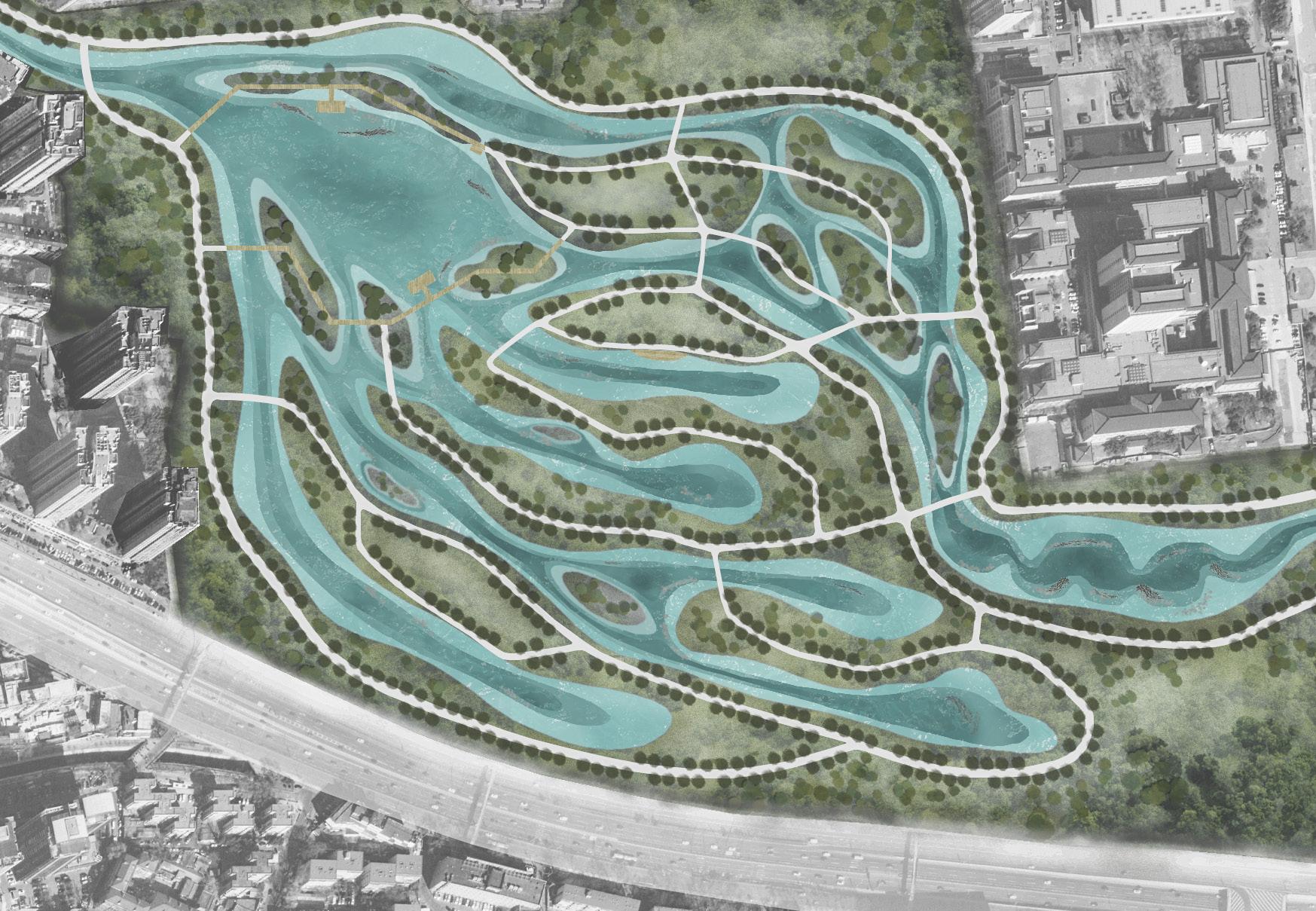

MASTER PLAN WETLAND PURIFICATION SECTION

PROJECTED CIRCULATION A'

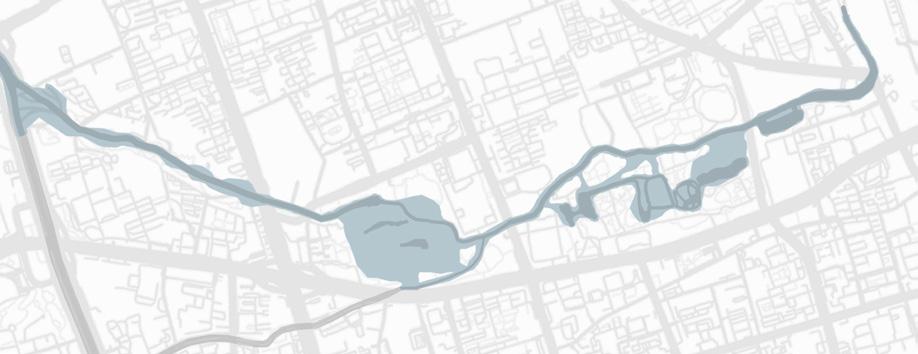

This wetland section include the main reservoir lake, multiple branches, eco-island, etc. The purification system based on natural river flowing functions when river

C'

B

5

6

C' 7

1

A' 3 2

B'

8

4

More plentiful and legible circulation brings more fummy experience to people when they are staying here.

1 9

PROJECTED ACTIVITIES

11 10

Various activities would happen in the different space and structures of the site, part of which would provide a better life to the citizens, and others would bring more vitality to the nature.

12

5

LIGHTWEIGHT FILL

N 25

Fishing Platform Lake Waterside Steps Water Stage Lush Woods Open Green Space Main Park Road Eco-island Peninsula Waterside Theater Mixed Use Lawn Entry Garden

11

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

50

100m

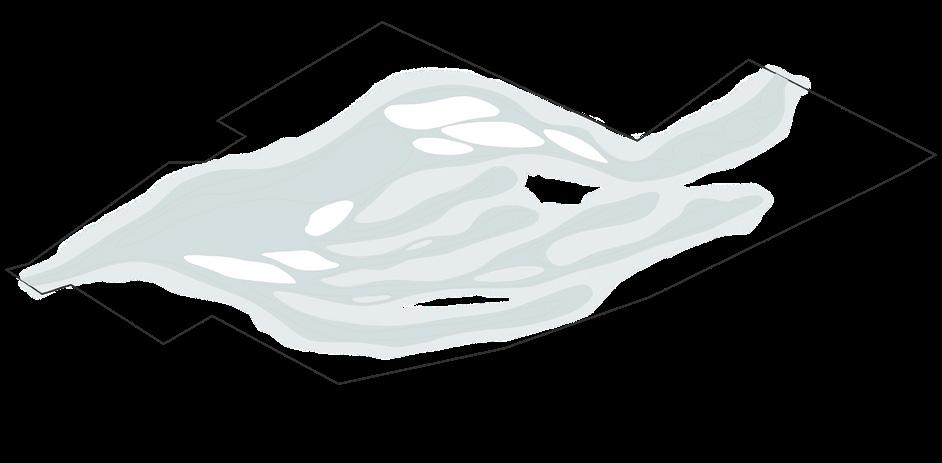

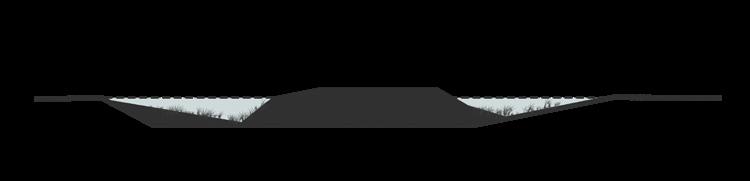

SECTION Projected Water Lightweight Fill

A-A'

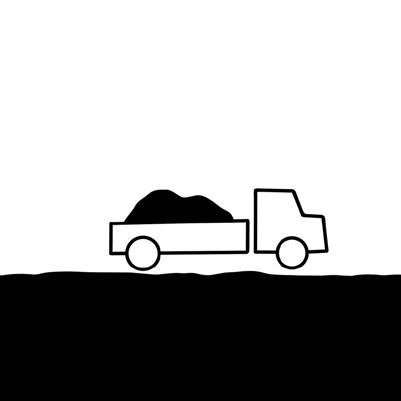

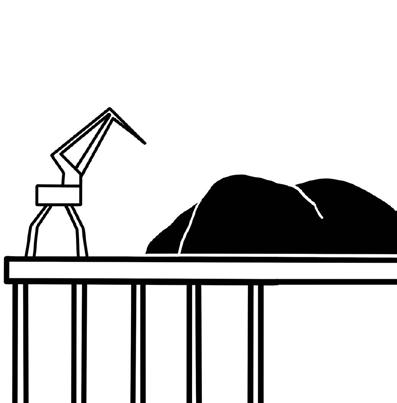

To deal with seasonal flooed, lightweight fill would become new water field, and also enhance the feelings of experience.

B-B'

C-C'

26

27

04 REWILDING Urban renewal Site: Melbourne, Australia Area: 11.6 hectares Date: 11/2022 Type: Individual Work; Academic Design Instructor: Qing Chang I n t r o d u c t io n : T h e s it e is lo c a t e d in t h e s o u t h b a n k a r t d is t r ic t o f M e lb o u r n e , w it h c o m p le x t r a f f ic f lo w lin e s . O n a c lo s e d e x p r e s s w a y r a m p r o u n d a b o u t , t h e g o v e r n m e n t h a s b u ilt a s c u lp t u r e in s t a lla t io n a n d a n im a l s h e lt e r, w h ic h c a n b e u s e d a s a n a r t in s t a lla t io n a n d p r o v id e a t e m p o r a r y s h e lt e r f o r w ild a n im a ls , b u t t h e e v a lu a t io n is m ix e d . T h e p r o j e c t f o c u s e s o n t h e u r b a n e n v ir o n m e n t .

C o n s id e r in g t h e p o t e n t ia l t h r e a t o f u r b a n d e v e lo p m e n t a n d h u m a n a c t iv it ie s t o u r b a n a n im a l h a b it a t s , o u r g o a l is t o m a k e fu ll u s e o f t h e g r a y s p a c e o f t h e c it y , s o t h a t h u m a n b e in g s c a n liv e in h a r m o n y w it h n a t u re .

28

Habitat-Filter

Urban Wild

Urban Environment

29

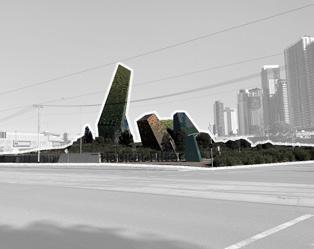

Memory of Habitat Filter Southbank is a comprehensive community integrating catering, entertainment, commerce and residence in the center of Melbourne. Since 1990, there has been transformed from an industrial type into a residential and office type downtown community. Habitat Filter, located in Southbank, is not only an art installation, but also a temporary shelter for wild animals.

Critic

It adds interest and colour to this foreground of Southban, but redeem that chasm of motorway that divides City Road from Sturt Street, it does not.

Urban Rewilding New Model

Do you think Habitat Filter is a good idea?

With the development of city, the habitat of animals is squeezed. There is mutual repulsion between animals and residents.

CITY

CBD Ya rra

ANIMAL

RESIDENT

Ri

LIVING SPACE

ve r

PAST

I will pass this landmark on a daily basis, but not know its purpose or even its name. It's a little ugly, I don't like it.

M u t u a l R e p u ls io n

With the development of city, the habitat of animals is squeezed. There is mutual repulsion between animals and residents.

Resident

CITY

N 125

250

500m

ANIMAL

RESIDENT

LIVING SPACE

FUTURE E x p lic it c o n n e c t io n s

The new sculpture Habitat-Filter was too intrusive and just a road with some stuff that you look at.

Designer Politician

It's not meant to create a separation between what the urban city is built for, it's meant to blend the two together.

30

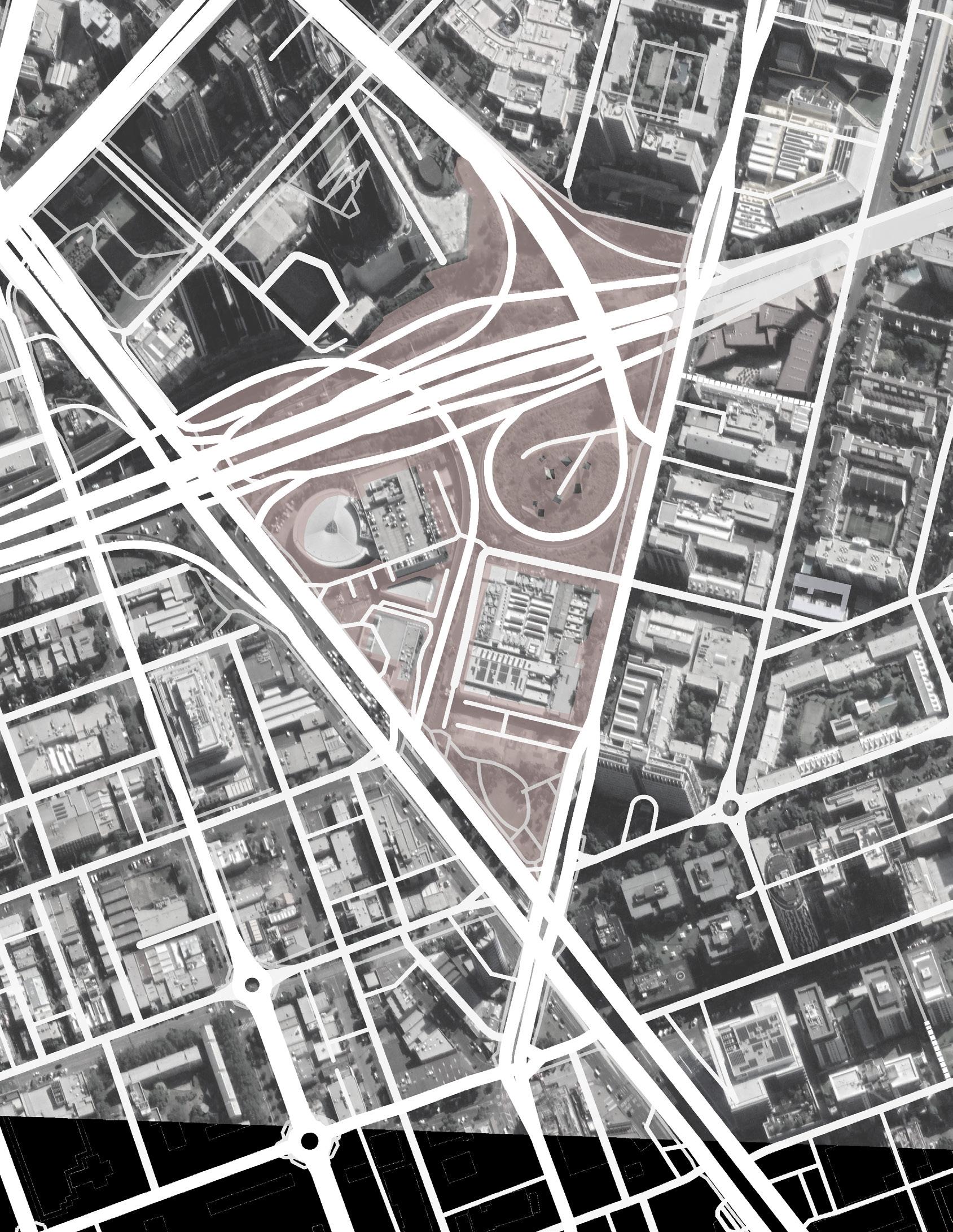

Site Current Situation

Three Types of Site Issues Issue 1

Chaotic road flow

Type A_Parking lot

Issue 2

Type B_Main road

Negative urban space Type B_Roof

Type A_Viaduct

Issue 3

Destruction of habitats

Type A_Greenbelt

Type B_Park

N

25

50

100m

Local Habitat

Vertical

O ve r Tre e s

Australia has a variety of animals and plants that can not be found anywhere else in the world because of its geographical isolation over time. Meanwhile, the biodiversity of Southbank of is also realized in the long-term planning.

Diversity (by genus) 2015

25%

2025

18%

2040 5% 5% 10% 0%

9% 7%

7% 7% 6%

8%

8% 7% 7% 7%

10% 20%

Canopy

10%

10% 40%

38% 46%

50% WITH 47 OTHER GENUS TYPES 60%

80%

100%

Platanus Ulmus Quercus Angophora Ficus Eucalyptus Other

1%

Sturnus

Trichoglossus

Egernia

Varanidae

25% 7%

0%

Pteropus

O p e n w o o d lan d

15%

4%

Trichosurus

Canopy Park

33% 10%

20%

C ave

Canopy Road 30%

40%

31

Strategy Strategies are proposed to solve the above site problems from three aspects, which are respectively reflected in sidewalk optimization, storm flood management and habitat enrichment.

Sidewalk optimization

Pedestrian Bridge

Under-viaduct Sidewalk

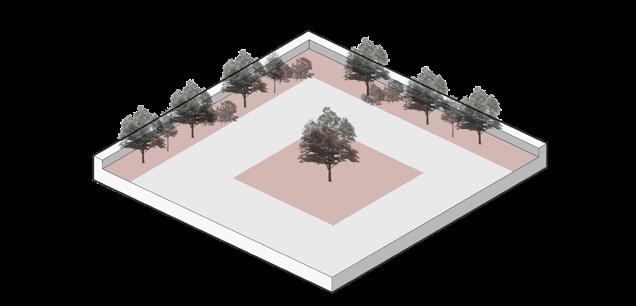

Roadside Tree

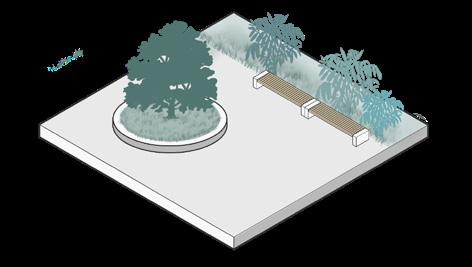

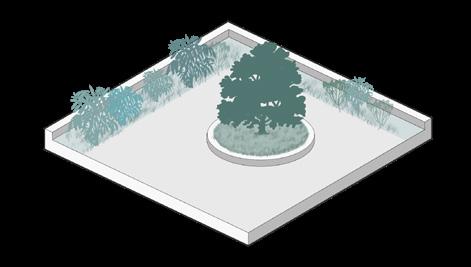

Pocket Park

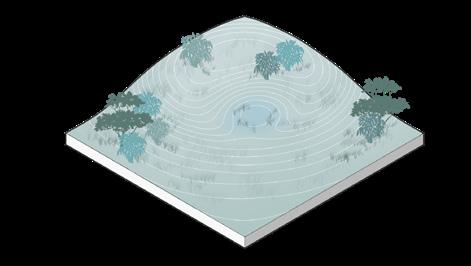

Microtopography

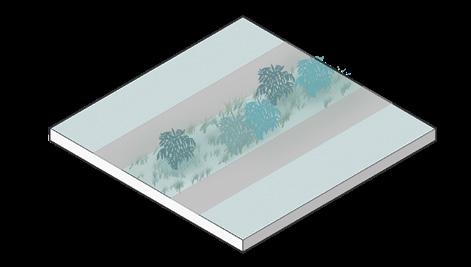

Road Greening

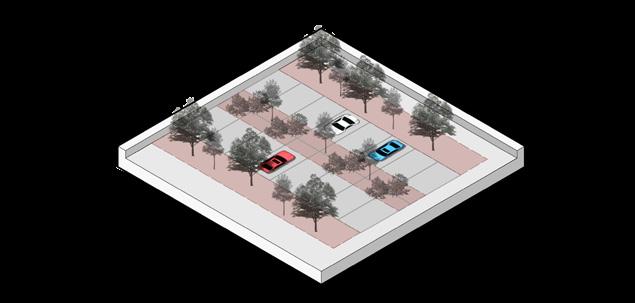

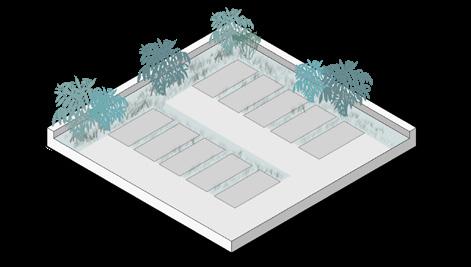

Parking Lot

Planning Road Existing Road

Flooding management

Drainage Ditch

Roof Greenery

Rain Garden

Waterway

Slope Greening

Habitat enrichment

Wetland

Vegetation

Animal Habitat

Plant Diversity

Animal-friendly Infrastructure

32

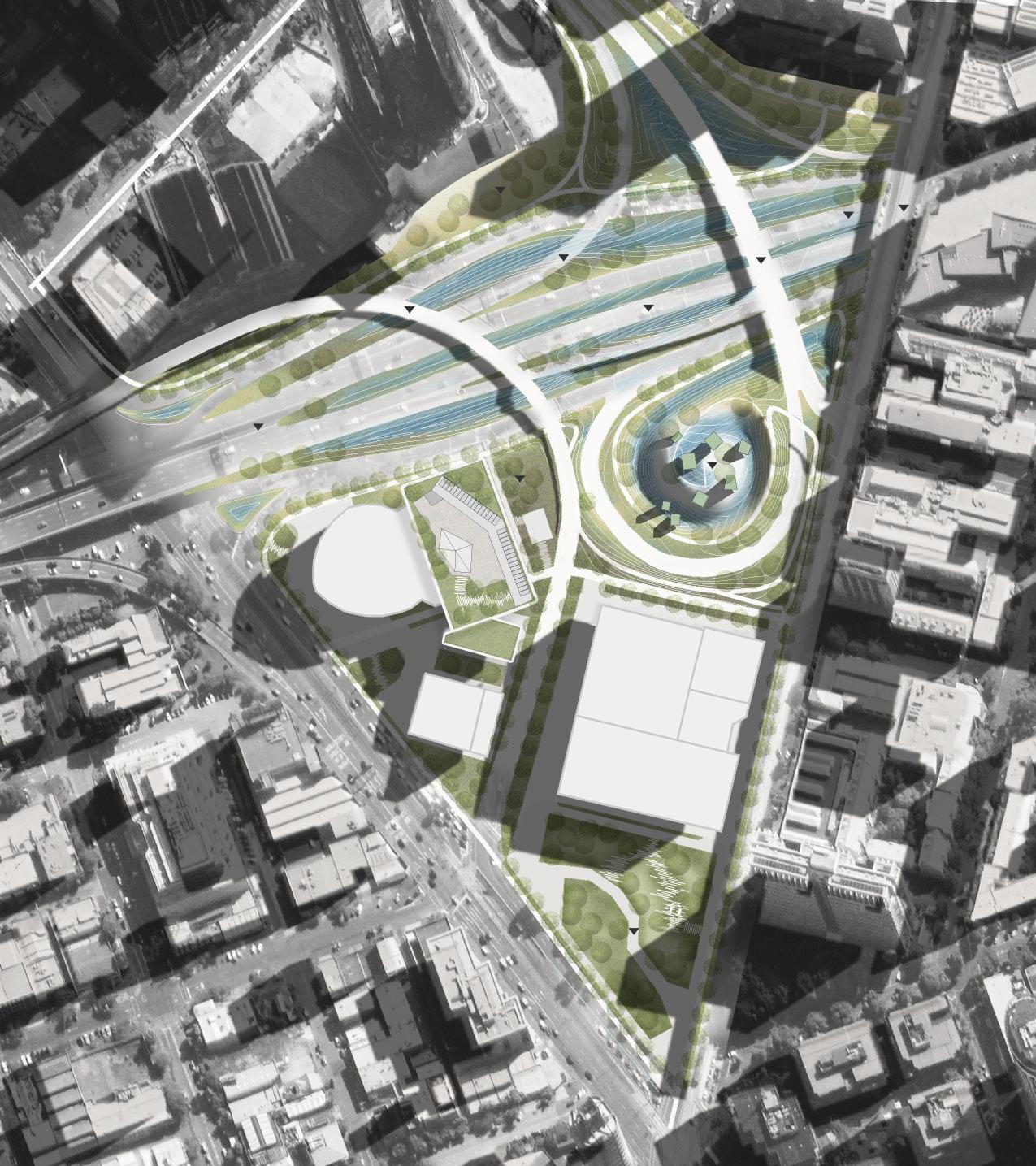

Master Plan

Platanus D' D

Ulmus

Quercus

Angophora

Highway

Ficus Sidewalk

Eucalyptus Footbridge

C' -2.00

2.50

4.50

5.00

A

A'

-1.00

4.25

Wetland

C

B

Highway

1.00

Animal-friendly Infrastructure

Wetland

Greenbelt

Sidewalk

Sidewalk

A' ±0.00

A

B

B'

B' Greenbelt

Sidewalk

Highway

Wetland

Highway

Animal-friendly Infrastructure

Highway

Highway

Wetland

Highway

Sidewalk

C'

C

Greenbelt

±0.00

Sidewalk

Wetland

Highway

Greenbelt

Highway

Sidewalk

D

D'

N 25

50

100m Greenbelt

Wetland

Greenbelt

33

Rendering and Potential Habitat Southbank is a comprehensive community integrating catering, entertainment, commerce and residence in the center of Melbourne. Since 1990, there has been transformed from an industrial type into a residential and office type downtown community. Habitat Filter, located in Southbank, is not only an art installation, but also a temporary shelter for wild animals.

Highway Bats usually live in dense vegetation and close to water. According to research, their diet mainly includes eucalyptus flowers, and they are considered to be the main pollinators of eucalyptus. The rewilding viaduct can provide them with daytime rest conditions.

Pteropus

Wetland

Footbridge

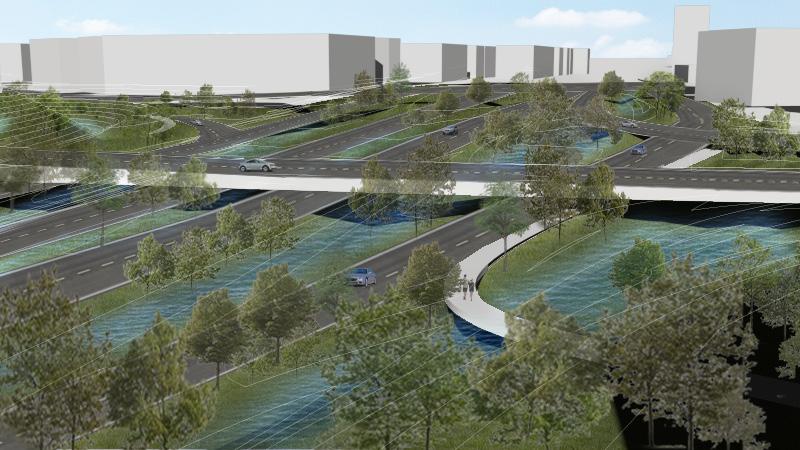

Fig.1 Between-road wetland system There is a more ecological possibility for the complex urban transportation system, weakens the negative part of urban space, not only provides a more comfortable environment for urban residents who commute daily, but also reduces traffic noise, purifies exhaust pollution, and provides more possible habitats for urban wildlife.

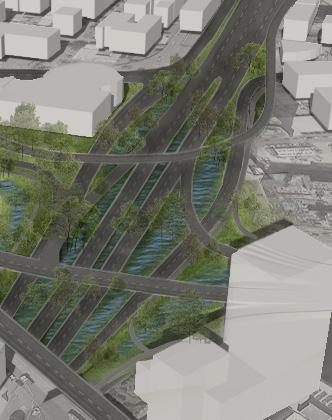

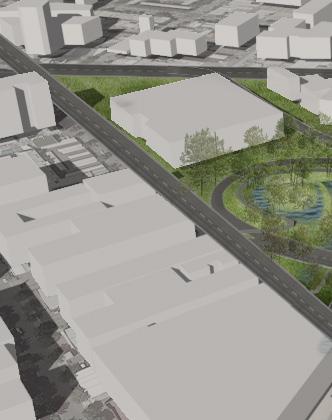

Fig.2 Bird's eye view 34

Habitat-filter This construction is not only an art installation, but also a temporary shelter for wild animals. The solar panel on the device can provide power for lighting, while the hollow box can provide shelter for wild animals.

Roof garden Sturnus

Footbridge Trichoglossus

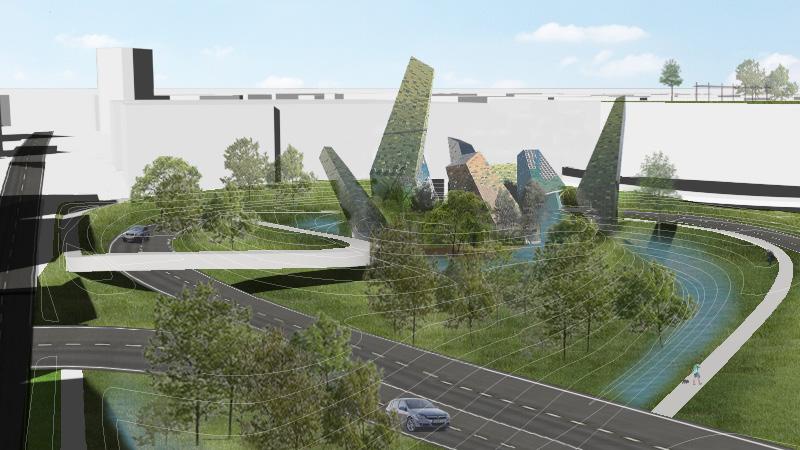

Fig.3 Central terrain remodeling The spiral terrain is used here to reshape the terrain of the central sculpture device, increase the water system, and provide more abundant and excellent habitats for urban animals. At the same time, the pedestrian overpass is also used to communicate urban residents and wild animals, which not only solves the problem of mixed traffic, but also improves the accessibility of urban residents.

35

05

OTHER PROJECT - RURAL RESTORATION

Site: Henan, China Area: 113 square meters Date: 07/2021 - 01/2022 Type: Collaborative Work (Team Leader); Academic Design Instructor: Shan Cui

With the theme of "The Millennium Canal, the granary of the world", the development and evolution of granaries are demonstrated through creative exhibition. In terms of space, Tuyuan granary has a high floor height, and a two-layer platform is built to enrich the sense of spatial hierarchy and functions and add interest.

After the project is completed, not only the local people and tourists have a good response, but also many media reports.

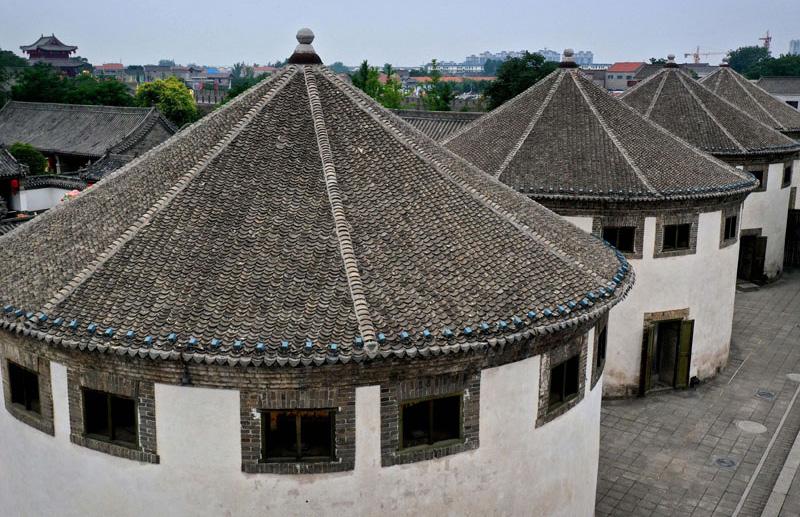

Historical barns: Aerial view taken by UAV

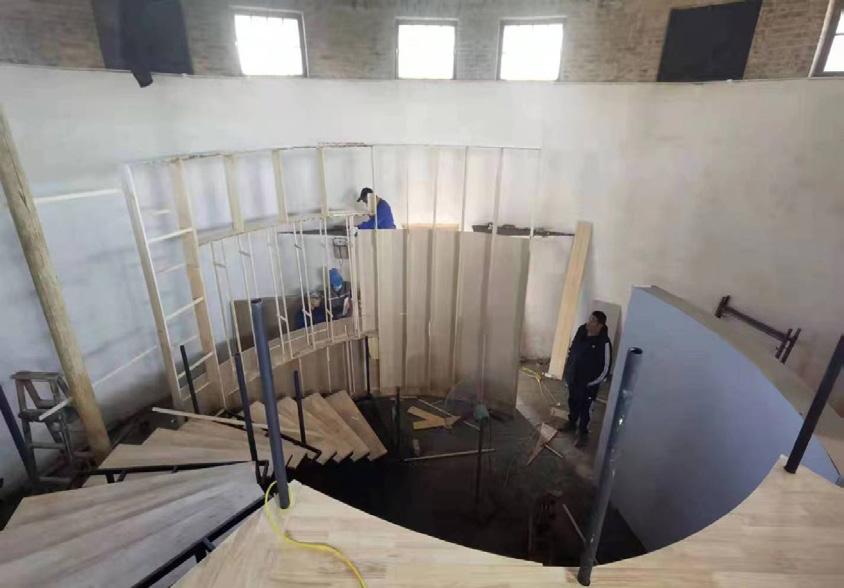

Under construction

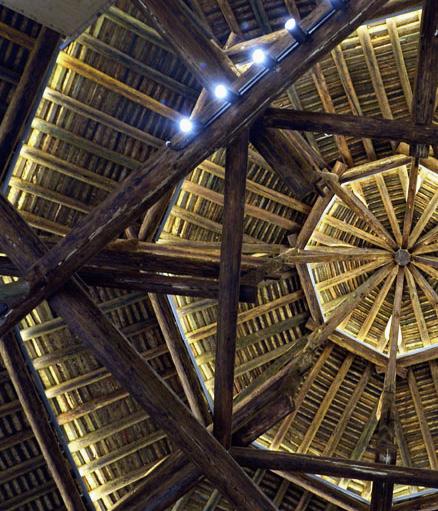

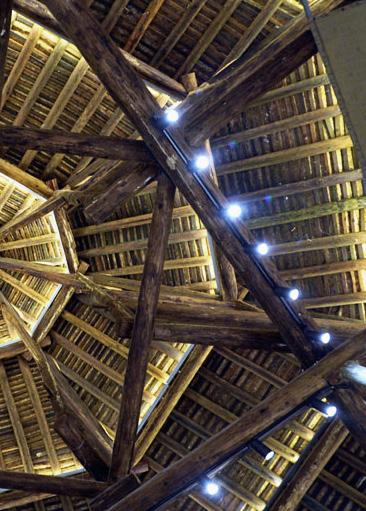

New lighting design 36

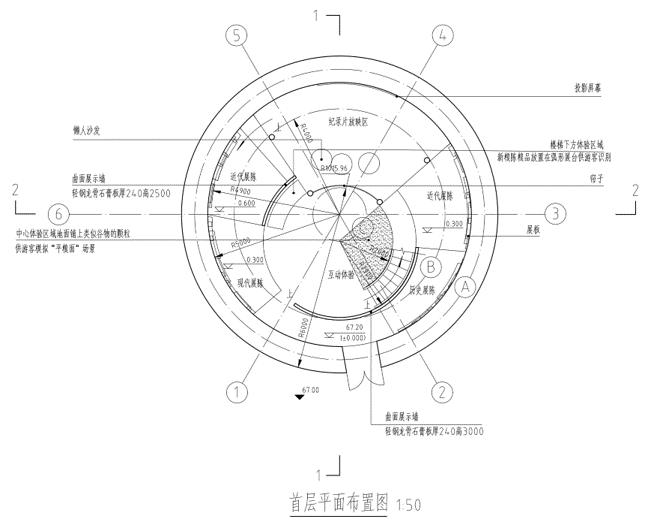

First floor plan

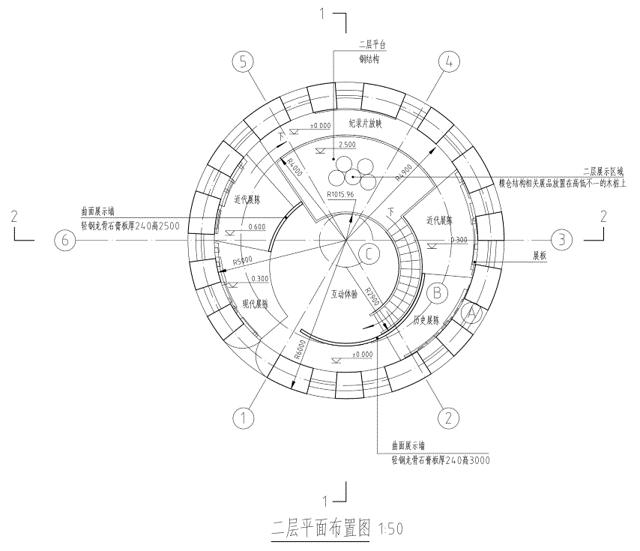

Second floor plan

Construction plans

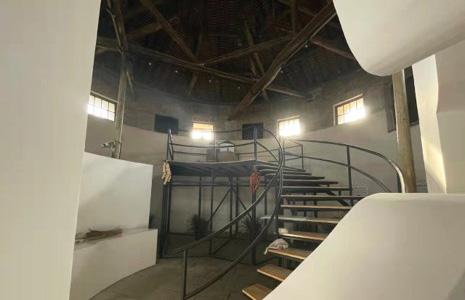

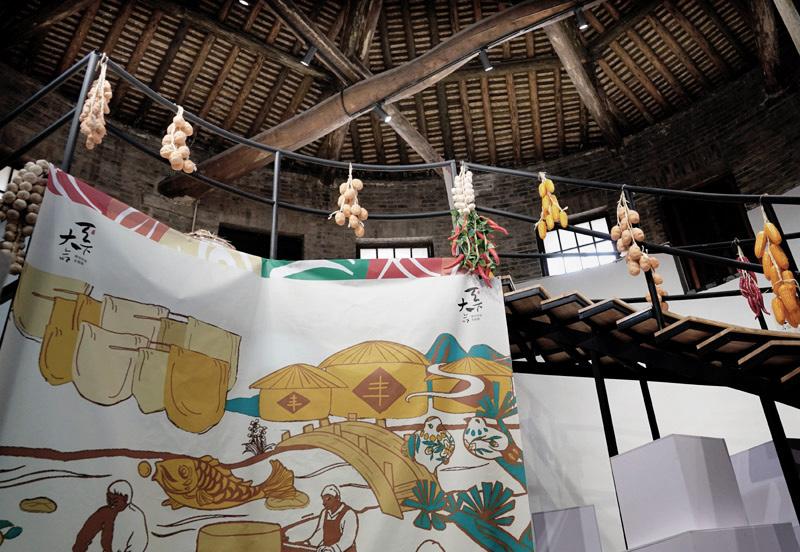

Interior decoration 37
