portfolio(lin deng )

Application number: 21204059

E-mail:ddd0dl@126.com

Construction

Watercolor

Instructor: Xiaofan Wu

Site: Hart Island, New York , America

Date:10/09/2020

Group work

Group member:Lin Deng,Anchi Liu

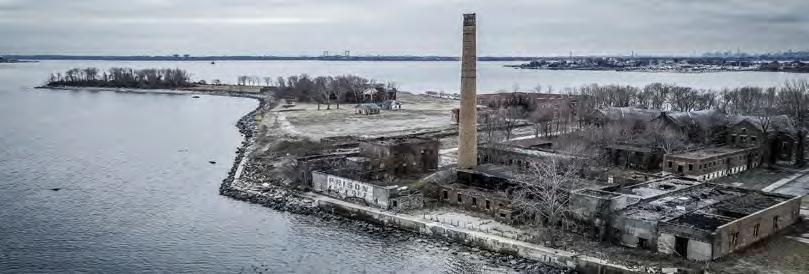

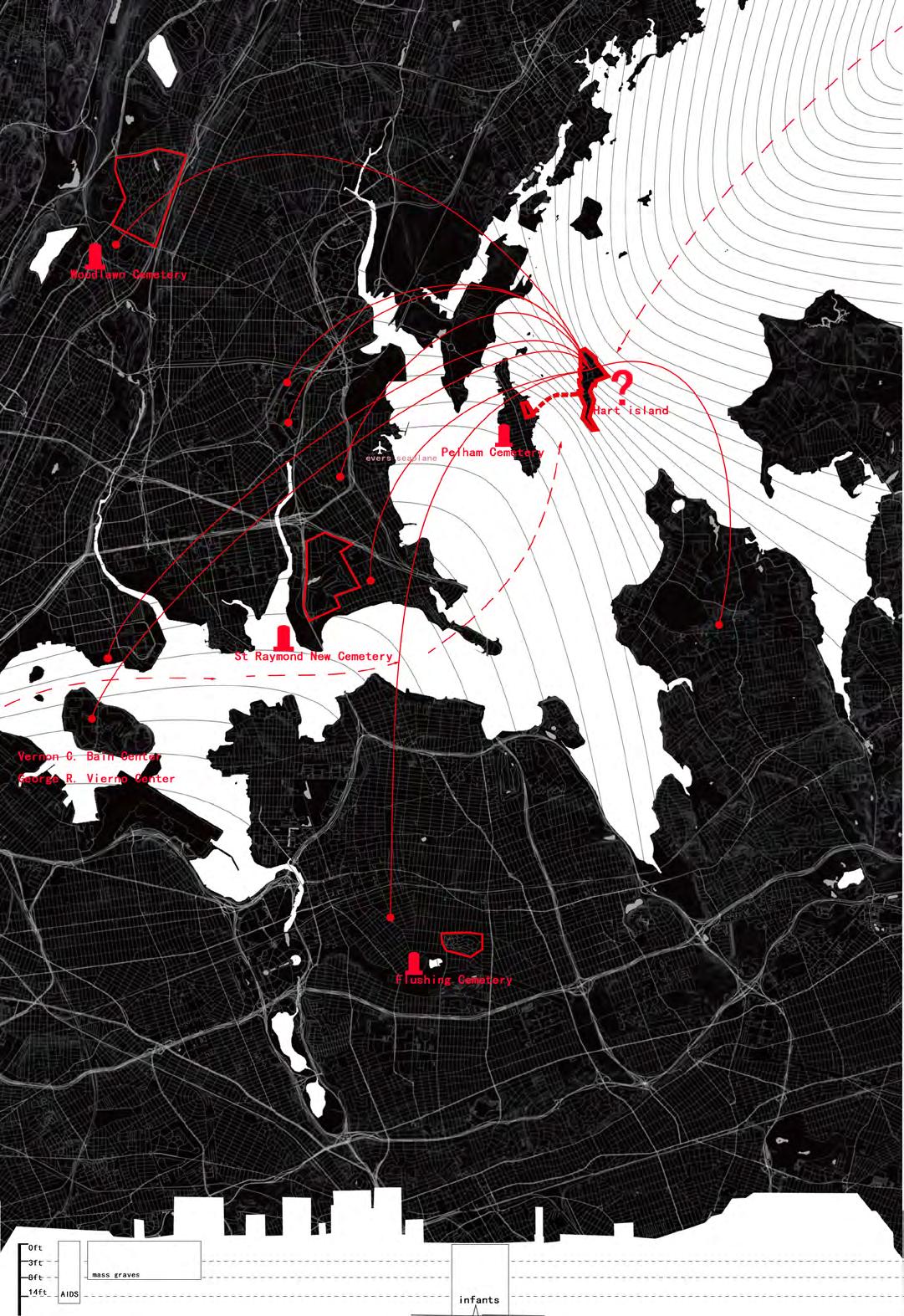

Harts Island, or Hart's Island, at the western end of Long Island Sound in the Bronx, northeast of New York City. About 1 mile (1.6 km) long and 0.33 miles (0.53 km) wide, it is part of the Pelham Islands east of the city Island.

There is the burial site of countless sad stories of people who were poor, missed by education, made bad choices, or were just unlucky enough to be priced out of the funeral industry and end up wandering the lonely island of the sea.In all, more than a million people are buried on Hart, although fewer than 1,500 have been buried each year since the 2000s. Those buried on Hart island include those who have not been claimed by their families or who have not held a private funeral, as well as the homeless and the poor. Novel Coronavirus is now popular. More and more people are burying here. The capacity of the island is insufficient and the coastline erosion has washed out the bones buried here.

In this sad place, which is an ominous place for the local people, The Soul Ark is a place to hold a memorial ceremony and propose a new way of burial, which will bring new life to the island

Each pit can bury about 150adults,or 1000 infants.

The ultimate destination of homeless people

In 2020.the unclaimed body of a novel Coronavirus was buried there.

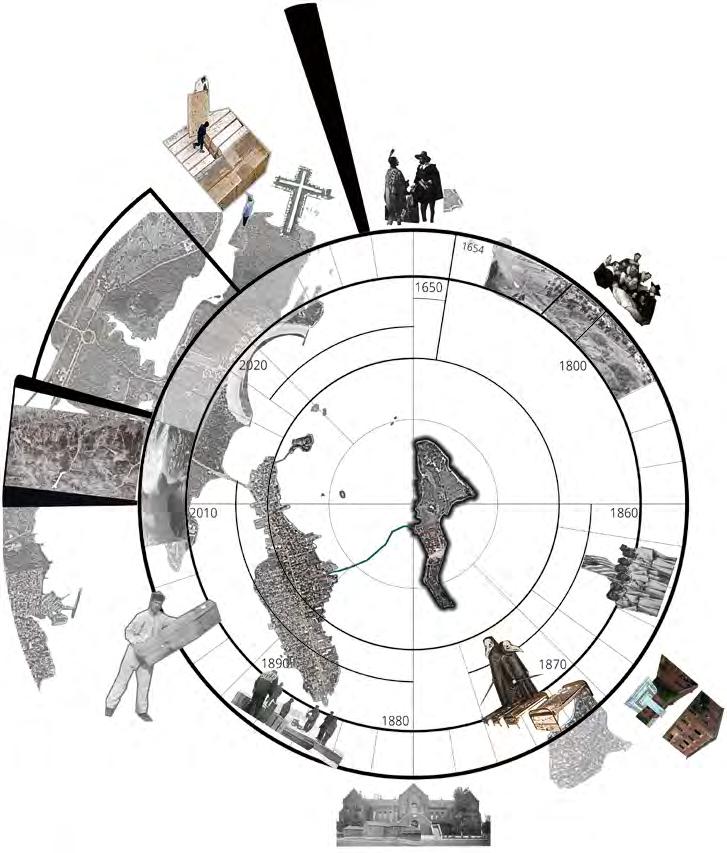

In 1654 Tomas Pell,an English doctor,bought the island from the Indians as his family’s private property.

In the early 9th century (1800 --),medical schools needed corpses for autopsy teaching.After the corpses were used for education, If no one claimed them,the corpses were sent to Hart island for burial .

Different senses for sacrifice

At the end of the 19th century,thousands of bodies are still sent to the island each year,and the New York government recruits criminals from Lex Island.prison, to carry and bury them.

Different senses for sacrifice

During the American Civil War in 1864,a training camp for colored recruits was first built,After the American Civil War (1865),Hart island was once used to hold soldiers of the southern army.

In 1868,New York City bought the island and built a mental hospital,a tuberculosis hospital and a juvenile prison.

In 1870,Yellow fever broke out in New York,and Hartisl and became an isolation area for yellow fever patients. Whether they were cured or dead,people buried on the spot. In 1885,new residents of Hart Island poor female mental patients and tuberculosis patients.

Every country has its own way of funeral. There aredifferent ways of commermorating.

Change of commemorative form

Rainstorm broke out in Hart Island,and the coastal erosion exposed bones.

The southern coastline of Hart Island has been increasingly eroded

Sailing of the Ark of the Soul

Rising sea levels are also a problem for the whole world and for Hart Island

Soul Ark can not only maintain the eroded coastline, but also extends to the memorial form of the seabed and saves the land for tombs

The most central area of soul ark is a memorial space for prayer, which adopts a dome space similar to the Pantheon.

The prayer table is above the pool, and the prayer table is surrounded by surrounding seats

The lighting at the top of the dome is also a symbol of the cross on the ground

After the corpse is treated, the calcium and other elements are extracted and put into a degradable container

The degradable container adopts hexagonal prism shape, and multiple boxes are attached to the pillars for coral reef growth

The coral reef formed can finally protect the island from erosion

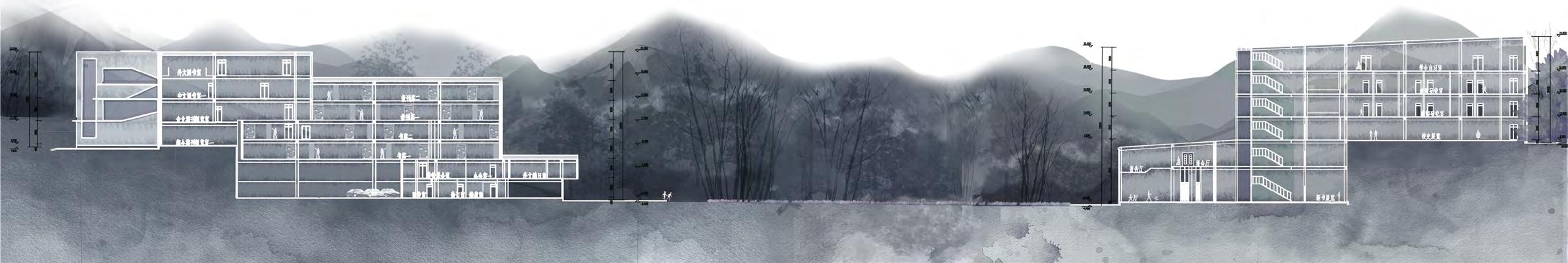

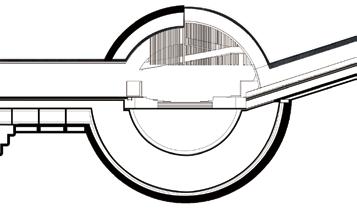

2-2 plan section

3-3 plan section

site-plan

main entrance

The original minor entrance

cemetery

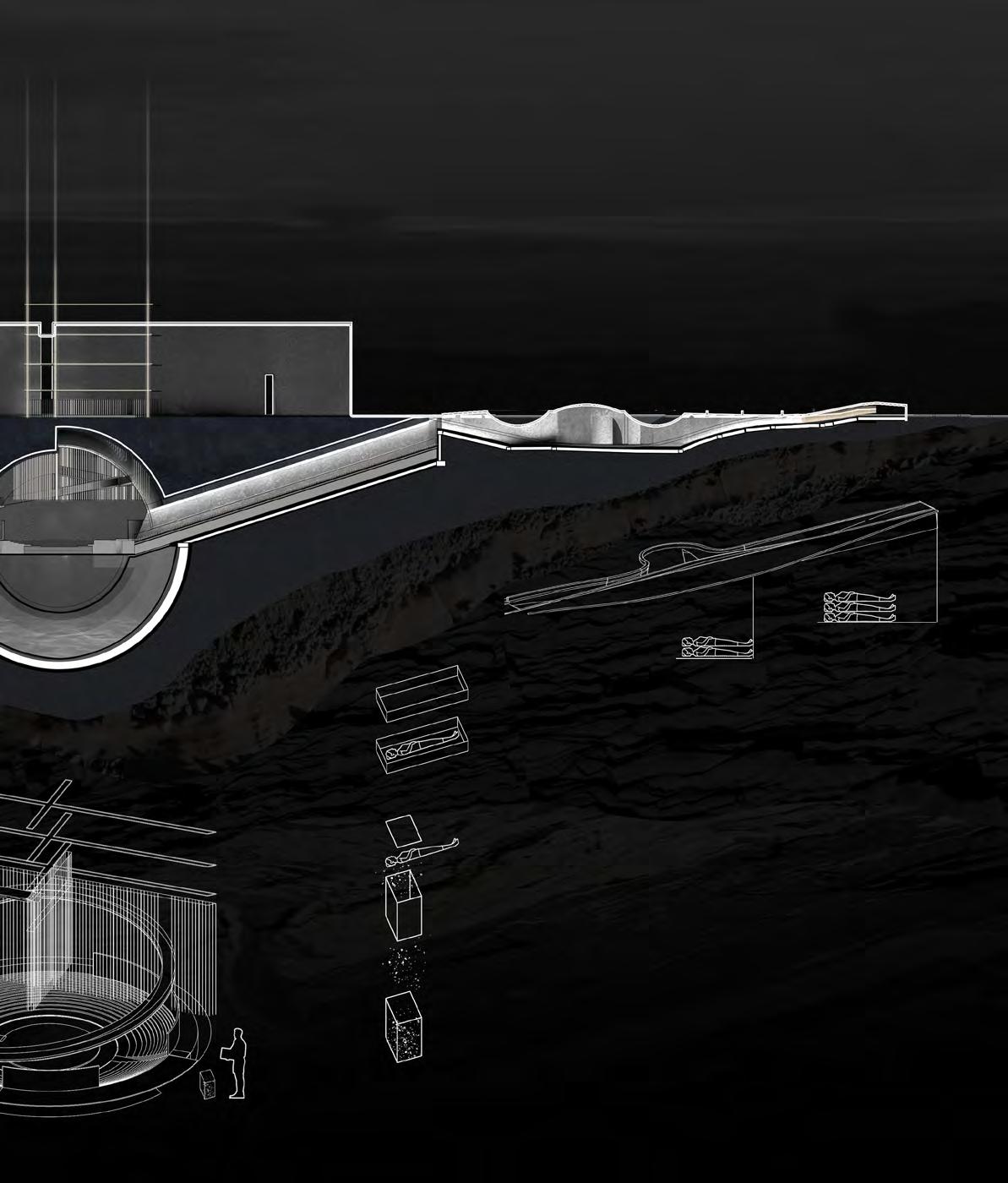

1-1 plan section

down

viewing platform

Light of hope at the entrance

The Rebirth of the Undersea

The dialogue between the soul and nature

Pray for the past sorrow

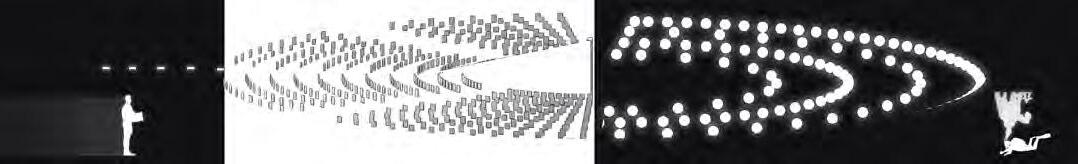

Sequence of burial

A spherical marker floating on the sea

A thin pole connecting a coral reefs which connected by multiple the calcified box

The calcareous box provides a habitat for marine benthos. The life lost exists in a different form.

ⅣLong

The box is placed to the final spatial node.

Hold a prayer service

A mass burial site for the homeless. A burial site for people who died of AIDS.

To the side of the entrance is the original site where the bodies are buried. At the southern end of the site,16 people with AIDS were buried at the disease in the height of fear and ignorance about the disease in the 1980s.The bodies were buried under 14 feet of soil instead of the usual three.

The people who had been buried on Hart Island had a lot of trouble before, and the burial after their death was not decent. The burial method of the new "Soul Ark" cemetery is coral burial.

The bodies transported to the site wre treated technically. Retaining the calcare ous skeleton of the carcass,and placing the processed calcium in abox to be taken to the "Soul Ark".

02 Recreation of cultural symbols

Instructor: Zhe Liu

Site: Yuzhong, Chong Qing, China

Date:01/09/2019

individual work

Name: DengLIN

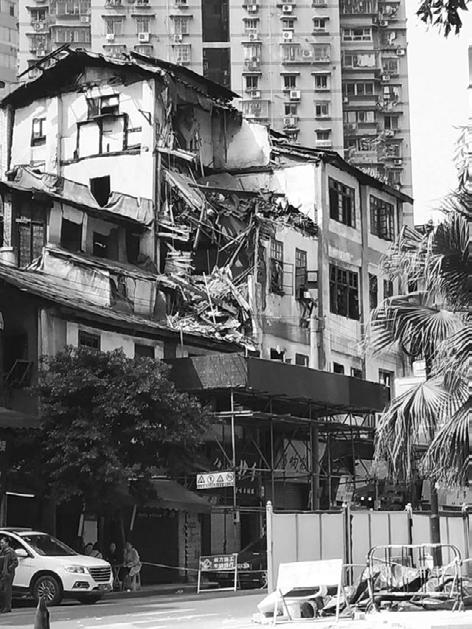

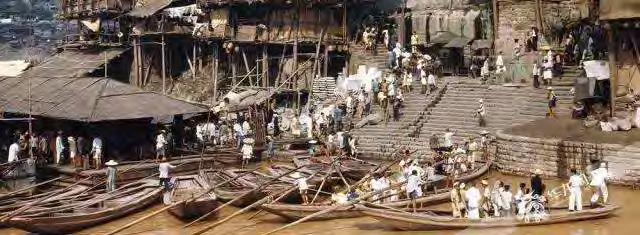

In Chongqing, due to the rapid development of the city,Since old buildings cannot adapt to the new environment, they are subject to the fate of demolition and reconstruction, hence urban texture and cultural regionalism of architecture gradually disappearing. The uniqueness of a city is lost while changes take place. Especially in big cities, many unrecognizable places are often cut off from culture, history, and tradition. These isolated "urban decay" areas dot in urban fringes in Chongqing.

The site of this project is located in Chongqing Coral Dam, a natural gravel bank formed by the siltation of the Yangtze River.In 1933, the then Sichuan provincial government funded the construction of Coral Dam Airport.Coral Dam Airport is a seasonal airport, opened and closed with the ebb and flow of the Yangtze River tide.Because every year when the flood season comes, the coral dam airport will be out of use, the building on the dam will also be removed, so the airport office and airport, is composed of dozens of simple bamboo shed.

Floating food bar

Walk on water

Traffic core unaffected by water level

Sightseeing cable car

Lack of space to move

Active period

DIET

Media worker

DELICECY

SHOPPING EXPERIENCE

CLOCK-IN ATTRACTIONS

AFTERNOON TEA

square dancing

Regional culture cell

Variable space assumption of waterfront fluctuation zone

After the Three Gorges reservoir area is filled with water, the coral dam will be inundated for up to six months and will no longer be suitable for recreational activities of citizens.

The design hopes to welcome citizens to use this "negative space" under the bridge and gather there to restore the vitality of the wetland without damaging the natural ecology of the coral dam in terms of shape and environment.

Tidal flat concert

In the dry season, there are outdoor cinemas, teahouses and ecological promenades, which integrate with the natural wetland environment and blend with the nature

Hydrophilic space

Closed theatre

It will not be affected by changes in water level, so that citizens can use this enclosed life theater whenever they want, and at the same time, it will accept tourists from other places to play

Mountain city walk

Bubble bus

As a way to reach the water under the bridge

Mountain city walk

Simulate the mountainous landform of Chongqing, lengthen the distance of users' traffic flow, experience the fun of walking in the mountain city, and make various groups gather and communicate.

Hydrophilic space

There are children flying kites here, there are fishing enthusiasts here fishing, there are teenagers playing in the water here.

03 Campus library

Instructor: Fan li

Site: Yong chuan, Chong Qing, China

Date:01/03/2019

individual work

Name: DengLin

The library design is an extension of the old library of the school. Starting from the old library, the design transforms the old library block into the new library form by cutting, stacking and splicing.

The overall trend of the building continues the mechanism of the surrounding buildings, combined with the special terrain of the mountain, drawing lessons from the treatment of the facade of the old library; In space, a continuous rhythmic space is formed by referring to the scattered and stacked layers of mountains, and the environment is integrated into the building through reasonable treatment of the mountainous terrain. The horizontal space of the building divides the interior through functions, and connects each space with stairs and ramps, extending the space and making the whole space form a continuous change. The vertical space connects the reading rooms and the lobby through the courtyard and the stairs beside it, forming a distinct and rich interior space. The outdoor area provides students with a good outdoor activity area by introducing a mountain stream, placing a small bridge, platform and outdoor desk.

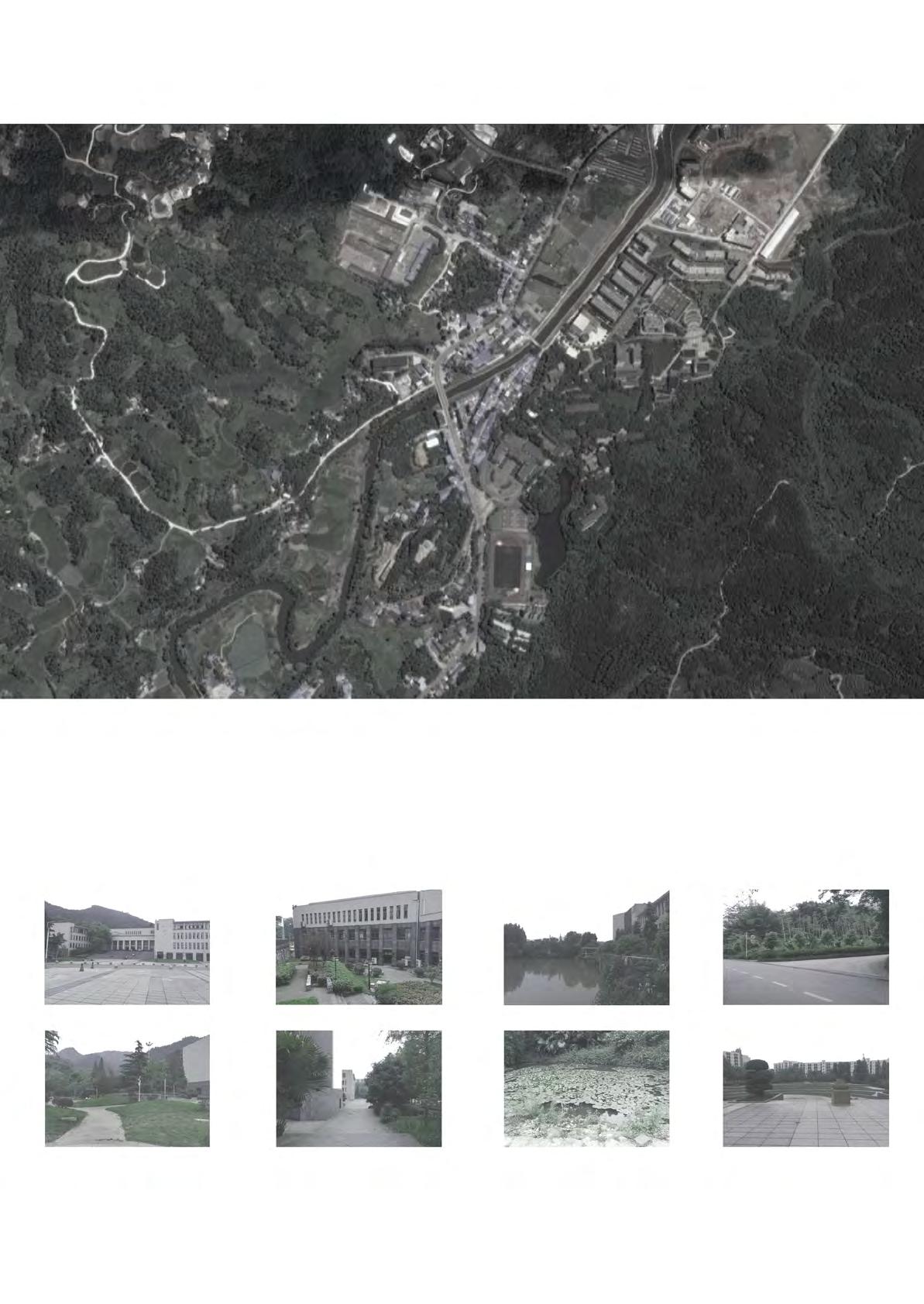

The site

The base is located on the west side of Chongqing "Tea Mountain Bamboo Sea" Scenic Spot, with abundant natural resources, including abundant bamboo plants, etc. The terrain increases from southwest to northeast, so the site has a large lighting surface, which can give good lighting to the library. The project is located next to the old library. On the basis of the original library, multi-functional libraries such as library, multimedia room, self-study room, library, dining bar and so on should be added.

The surrounding environment

Old Library and Entrance Square

The greenery and road

The wooden fence element The lotus pond next to the old library Wide campus square and dormitory buildings

The building lot is at a fork in the road

The lake by the old library Activity space at the old library

Physicoclimate

The library design is located in Yongchuan District, Chongqing City, China. It is an old map of Chongqing University Urban Science and Technology College

An empty lot next to the library.Chongqing is a region with poor wind energy resources. The dominant wind direction in the region is the northwest wind, which accounts for one quarter of the time in a year when there is no wind. So there are a lot of Windows in the northwest to facilitate ventilation.

Average daily temperature

The highest temperature

The lowest temperature

Average daily temperature

The highest temperature

The lowest temperature

According to the chart of sunshine hours in March, June and December above, it can be concluded that the sunshine hours in Chongqing are relatively short throughout the year, and Yongchuan (red dot) is located in the southwest region and has the shortest sunshine hours. Therefore, the library needs a lot of daylighting, which is solved through facade openings, skylights and indoor lighting.

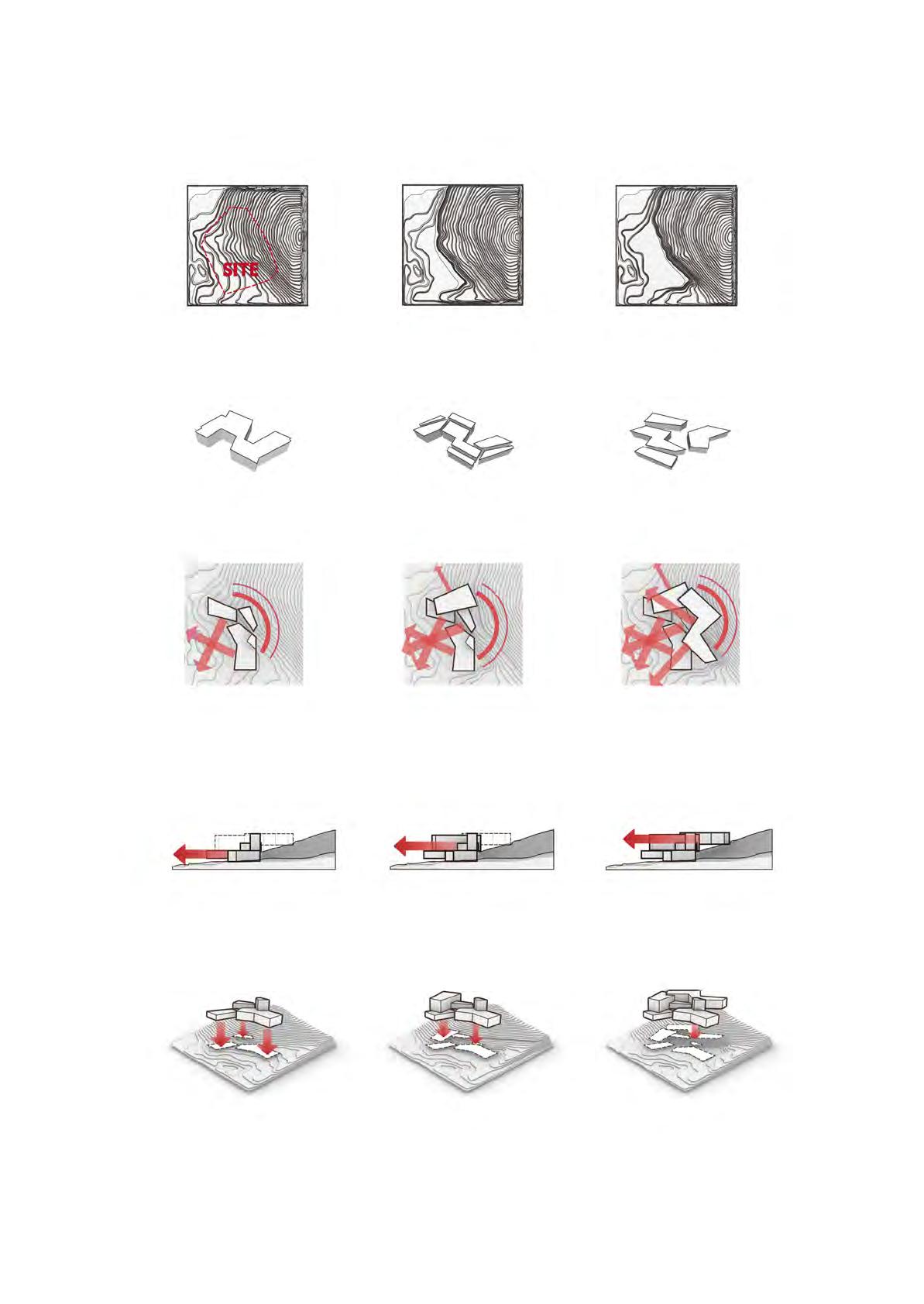

Blends with the natural form

The base at the foot of the hill

Fit the shape of the mountain to make the block

Set the ground floor block with open view

The first layer of overhead

Overhead areas provide a resting platform

Externally equipped with sightseeing elevator floor

The receding volume provides an outdoor terrace on the upper level

A block that recedes along a hill

The whole is built against the mountain

Adjust the orientation of the volume above the second floor

Broken line blocks increase the lighting surface

Divide areas by function

Arrange blocks along the mountain

Select areas with low slope

Dig out parts of the mountain

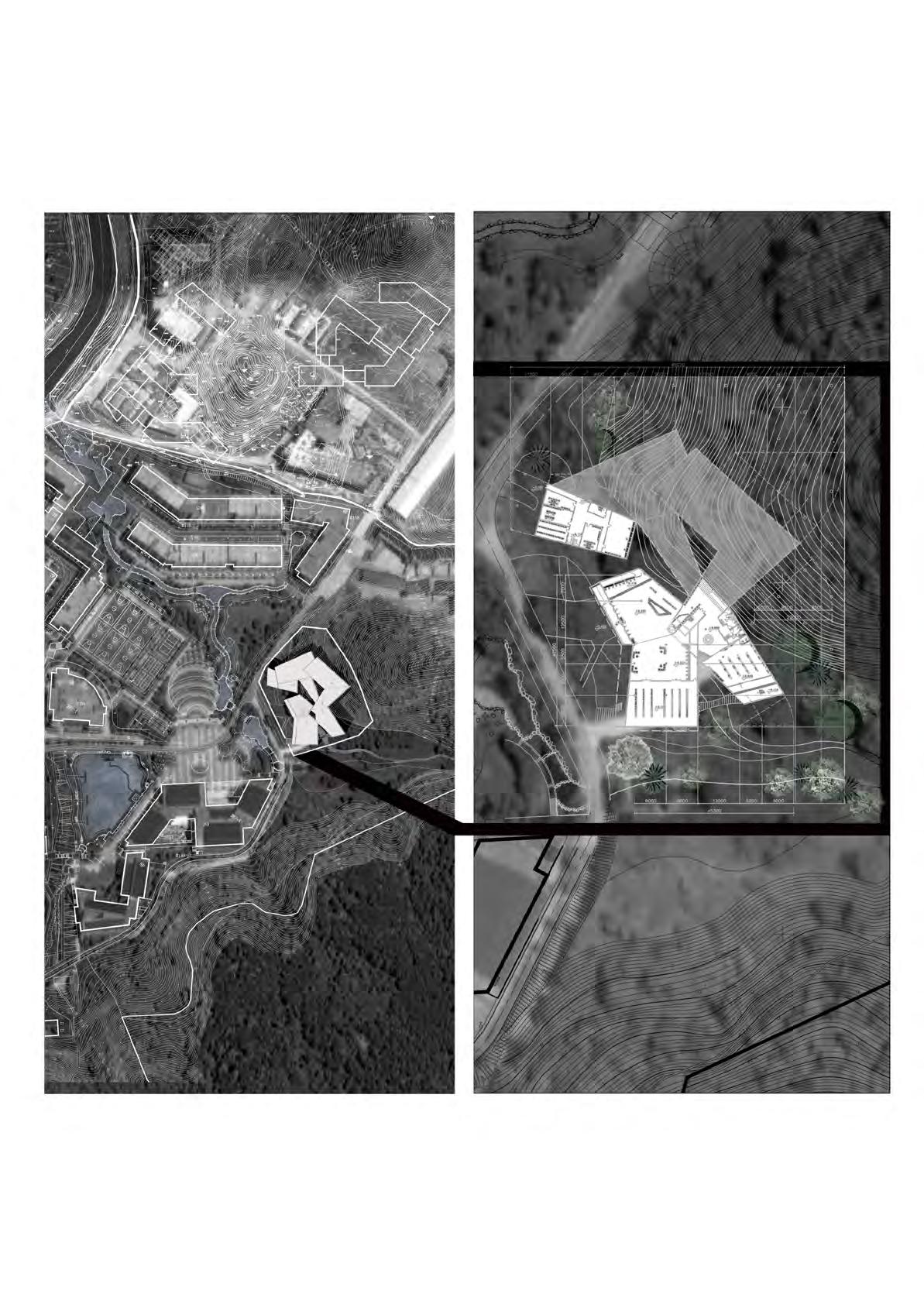

The site plan

Fit the first plane of the mountain

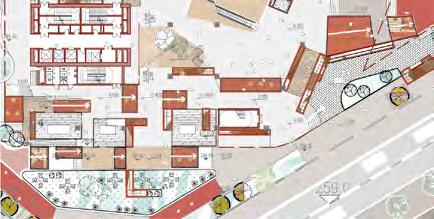

plan

third layer of floor plan

Crowd activity analysis

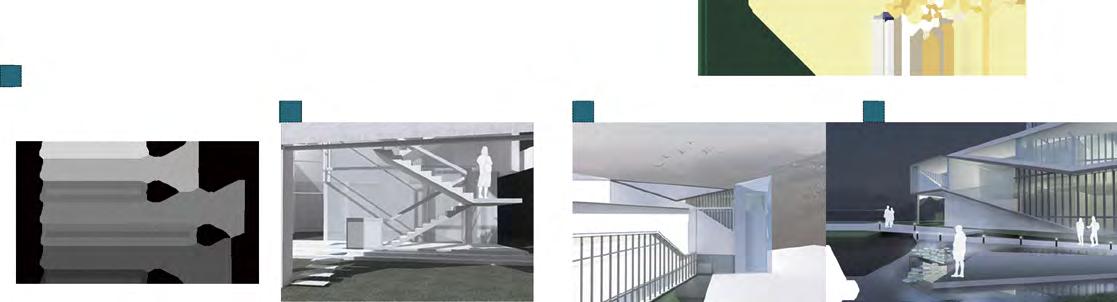

Interaction space in the lobby

Outside of the landing Two storeys high bookshelveswith stairs

The view from the reading room

Instructor: Wangchong

Site: Yuzhong, Chong Qing, China

Date:20/05/2022

individual work

Name: DengLin

The acceleration of the urbanization process, makes the position of chongqing live balance problems become very serious. Business district (CBD), because of the large scale, density and function structure is not reasonable, the jiangbei CBD traffic, rush hour traffic congestion, lead to a series of urban problems. So will live and work function "distance" of the high-rise building will become a development trend. The urban design of high-rise building of "vertical", will strive to create more humanized, livable and pleasant space. For example, in the design of high-rise building, also consider to create a wider space, create a harmonious community, providing air garden, the interior walls of pleasant landscape, creating multiple links and so on.

This design is mainly consider the emotional needs of the people, need to pass throughPlace protection and create link the past, present and future.

Urbanization - Longer commutes

Busy people in the city

We need to restore the inherent state of the city, to create a flexible new complex space that accommodates work, consumption and living behavior.

Key spatial combing

Ms.Lin Florist Kid Zhou: Grade one in primary school SITE

Grandma Zhang: A housewife Grandpa Liu: Chef of the Grand Hotel 5km 2km 1km Urbanization

Reside Share Shared restaurant Sports facility Market park Flower fair

Vertical farm Small theatre Mountain trail Bottomup

Shared balcony Open Office

Work Future

Enhance social distancing Healthy office Reproducing urban memory

Vertical

Health

Singlehood Couples Family Resident Tourist

Regionalism Translation

Neighbor relations Ecology Communication Open Construction Democratic

Traditional urban centers have become purely commercial and business districts.

Working during the day and resting at night, the inner and outer parts of the city are hollowed out at different times

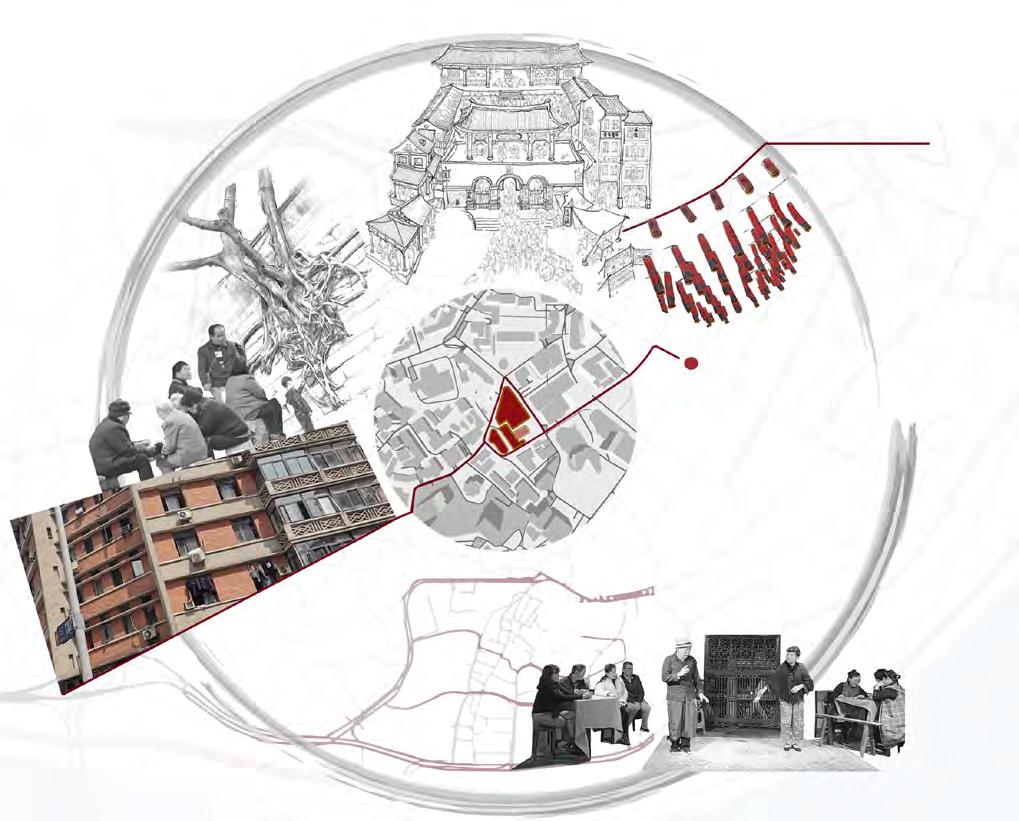

How to preserve the culture of the site?

Wish blessings

playchess

Culturebuilding

Translation of traditional architectural space

Drama stage

Street space

Ficus virens

Mountain ladder

Pray

Flower fair

Morning market

Tea culture

The Ruzu opera

Mountain ladder Evening theatre

The memory box is on the vertical city

Mountain Trail

CoupleRoof

Dendritic Column

Hanging Garden

Rest ladder

Exhibition Hall

Reading ladder

Electronic Wishing wall

Archway window

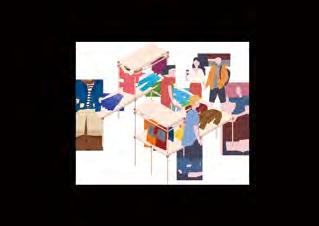

A bottom-up approach to business and life

The function of the place is determined according to the di erent activity time of the crowd, leaving the decision of space to the users

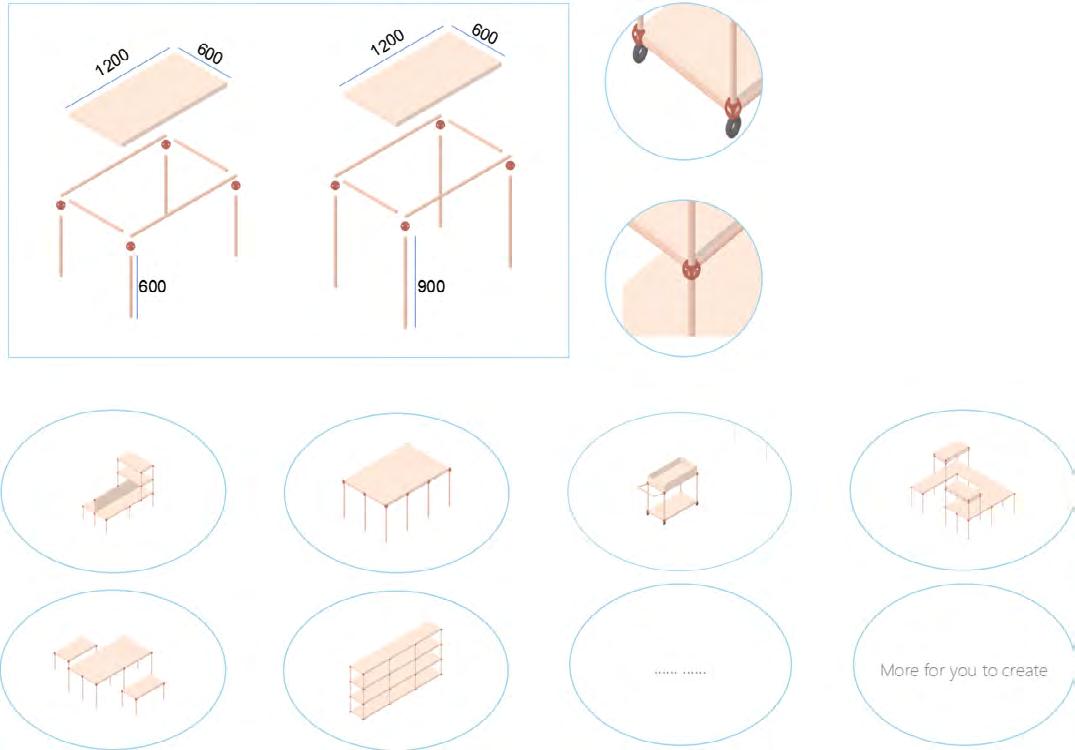

Stitching module

Retaining the original historical scene block of Lu Zu Temple makes the old city memory present and continue in another way.

Pulleys can be added to increase the ease of movement and form portable booths.

Flexible hinge points, which can be easily disassembled so that furniture can be assembled according to user needs

Integrate green plants into the atrium space to create a green corridor, making the building a part of the ecology.

The original historical street landscape is restored, the memory of the place of praying culture in the Temple of Lu Zu is retained, and the form of burning incense and worshiping Buddha in the past is changed to electronic praying wall panels, where visitors can make good wishes again.

The square and market gather people, but also into the old Chongqing life memory and folk features, retain the old site of the market activities, inject new vitality, Lu Zu Temple 24 hours of vitality street business to maximize the commercial and cultural value.

Chick in the Chongqing characteristic vertical block!!!

ADDITIVE DIGITAL DESIGN

The Light Design with Sls materials

Instructor: Steven MA

Site: ShangHai, China

Date:15/11/2020

individual work

Name: DengLIN

Titled “The Pursuit of 3D Printable Design in the Era of Digital Fabrication,” this workshop will focus on how 3D printing can be developed into real consumer products that suit market needs, as well as business strategies on 3D printing design applications.

Additive manufacturing technology (3D printing) not only brings new beginnings to an industrial revolution, it also brings self-expression to new design approaches, allowing abstract ideas to be realized and new techniques to develop new form of geometries.

Today, additive manufacturing technologies can quickly create tangible items that allow individuals to touch, feel and assess their design.

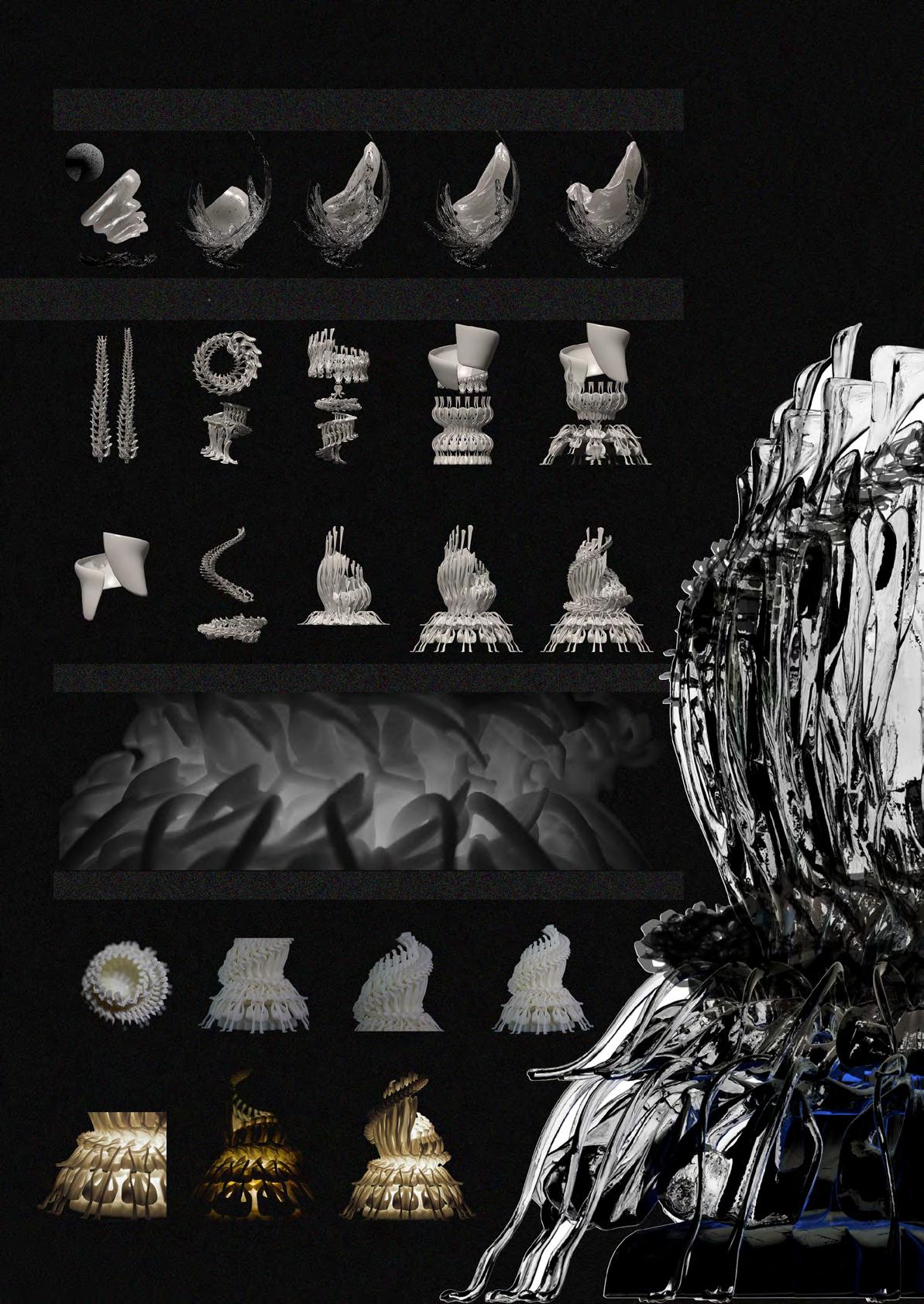

The light design with Sla materials

Considering that the lamp is a kind of light container, I want to make a fusion of light and water. A bowl body can be symmetrical with each other, and then the two can be connected in one way. Finally, the upper part of the lamp can place liquid, and the lower part can be used as a mask for light. The gou'cheng element takes the tail of a whale as its base form.

Simulate the bowl shape formed by the ball hitting the water, which serves as the basic space for the upper part of the lamp to hold water

The abstract shape of the fishtail symbol is extracted and then rotated and repeated to shape the basic shape framework of the overall lamp

The ambiguous relationship between the upper and lower parts of the space

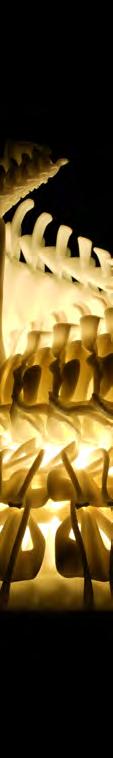

Finally, the solid model is generated by SLA materials using 3D printing technology

Group work group member:Deng lin, Lin yao,Yi yinhe,Ren yichen

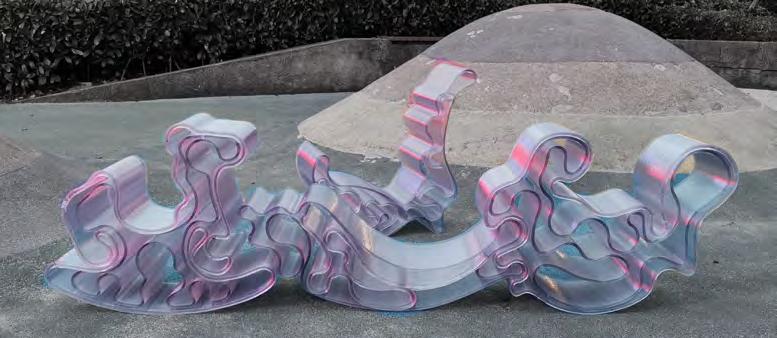

We want to create a series of seats that can be spliced and assembled for children at different stages. Children can create their own amusement park according to their imagination

Combination games

The running state of cartoon rabbit is extracted, and an arc with a turning radius of 6-8mm is used as the support inside, which can be used as a Trojan horse seat for children aged 3-5.

By Deng lin

The abstract form of children Trojan horse is extracted, the main function is the straddle Trojan horse. It can be combined with the first two seats to produce new furniture.

By Ren yichen

Using butterfly wings as the main form, it functions as a recliner for children aged 1-3, and is also the main link between the two rocking horses.

By Lin yao

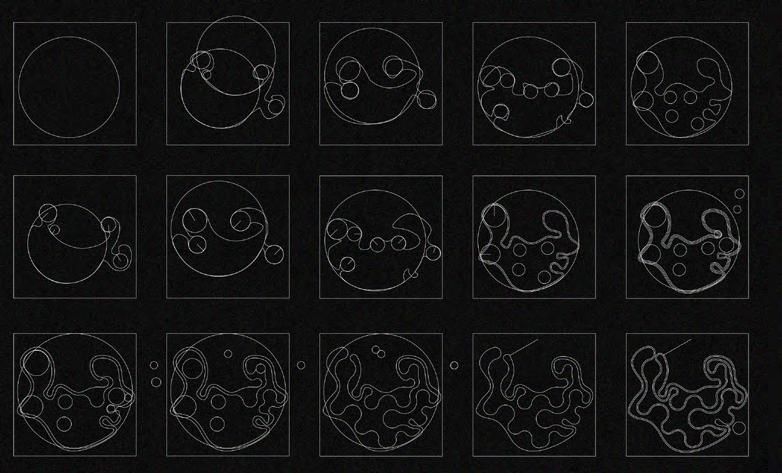

One touch Drawing——The running rabbit

Combination games

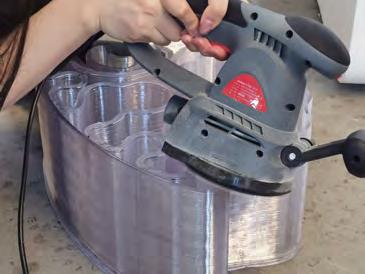

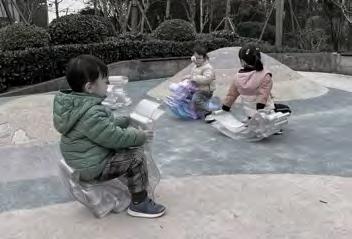

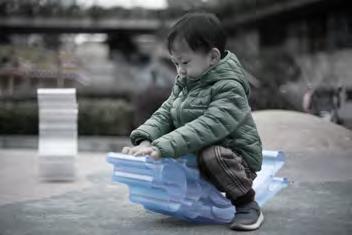

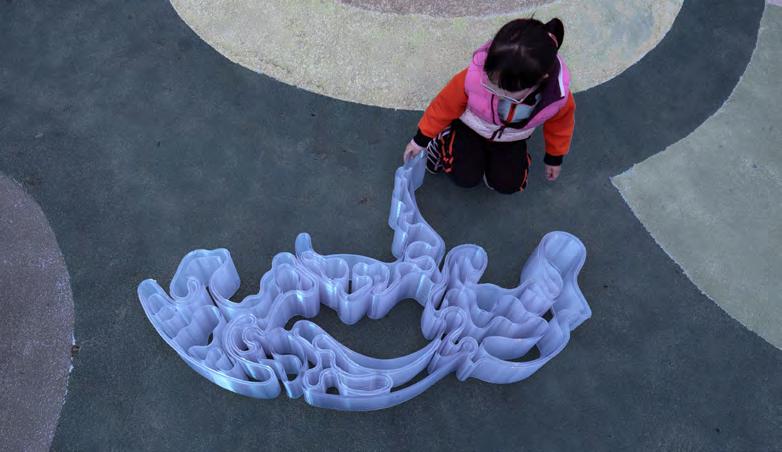

We took the assembled chair to the park, and many children were willing to try this novel "toy".

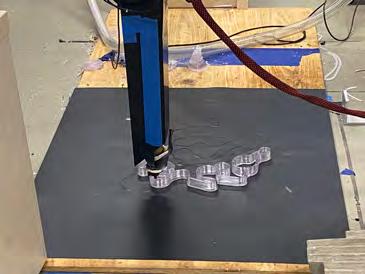

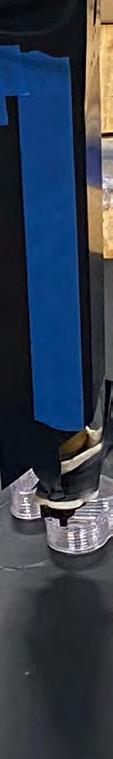

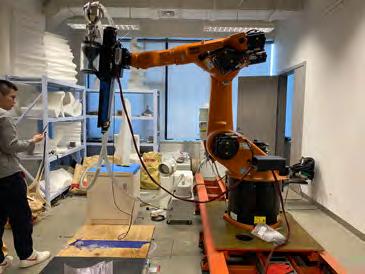

Mechanical arm manufacturing process Display video

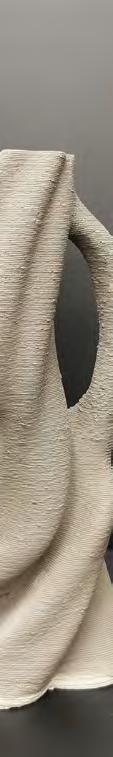

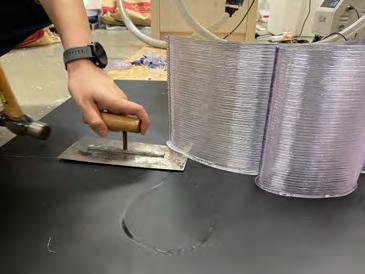

3D-printed clay cans

Clay printing technology is more limited and can not do more complex spatial modeling, so I will only discuss a single modeling change. Maya animation was used to simulate the texture of the liquid wrapped vase to make the overall shape.

Water surface to give the top of the base vase

Twist the texture of the surface

straws

As a support structure, it has high flexibility

06 Other works

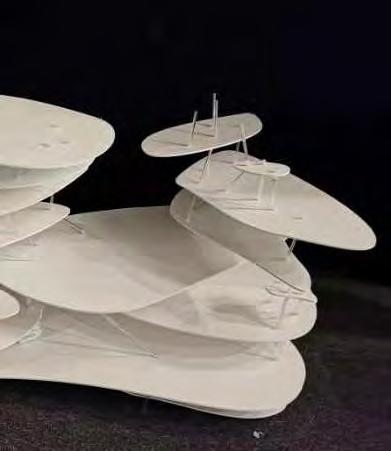

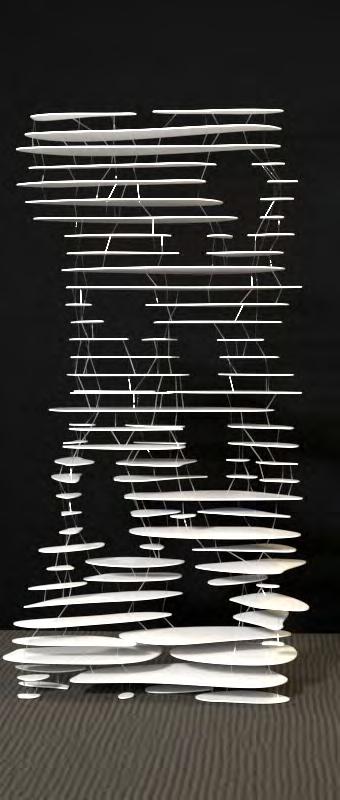

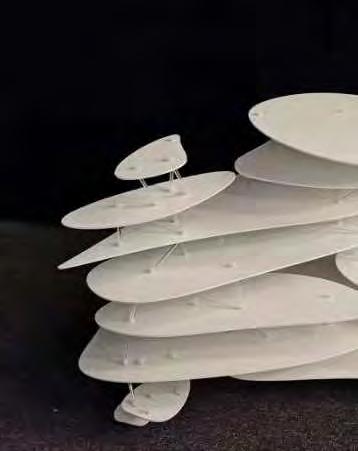

Construction Design

Material

rods

As a support structure, it has strong stability

PVC sheet

As a flat layer

Physarum polycephalum is a large, single-celled amoeboid organism that forages for patchily distributed food sources. It can find the shortest path through a maze or connect different arrays of food sources in an efficient manner with low total length yet short average minimum distance between pairs of food sources, with a high degree of fault tolerance to accidental disconnection.

Points Curves Triangles

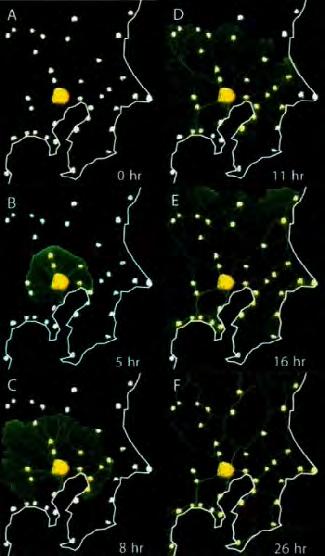

Atsushi Tero from Hokkaido University in Japan, along with colleagues elsewhere in Japan and the United Kingdom, placed oat flakes on a wet surface in locations that corresponded to the cities surrounding Tokyo, and allowed the Physarum polycephalum mold to grow outwards from the center. They watched the slime mold selforganize, spread out, and form a network that was comparable in efficiency, reliability, and cost to the real-world infrastructure of Tokyo's train network.

Based on a computer scientist Jeff Jones's Processing program, the algorithm was put it to 3D form, which is the plugin for Rhino/ Grasshopper. Then, some new settings were added to gain more artistic expression.

Triangles

Cubes

Layers
