Figure 6.28 is the breakdown of the spaces with occupant density. The occupancy schedule for the same can be found in Appendix B. The number of units is lower than the co-working desks as it was studied that the these units would be only occupied by the members who are from small towns away from the city.
Internal corridors

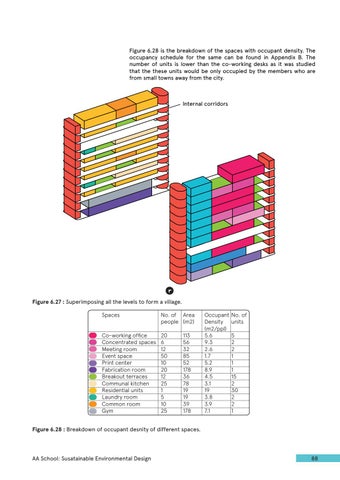

Figure 6.27 : Superimposing all the levels to form a village. Spaces
No. of Area people (m2)
Co-working office Concentrated spaces Meeting room Event space Print center Fabrication room Breakout terraces Communal kitchen Residential units Laundry room Common room Gym
20 6 12 50 10 20 12 25 1 5 10 25
113 56 32 85 52 178 36 78 19 19 39 178
Occupant Density (m2/ppl) 5.6 9.3 2.6 1.7 5.2 8.9 4.5 3.1 19 3.8 3.9 7.1
No. of units 5 2 2 1 1 1 15 2 30 2 2 1
Figure 6.28 : Breakdown of occupant desnity of different spaces.
