Arizona State University
INN
Deeksha & Shrinidhi
HILTON GARDEN
AUTHENTICALLY “THAT HAVE STORY WORTH
HISTORIC HOTELS STORY TO TELL” ARE
MORE
WORTH
SITE PLAN & SURROUNDINGS
1 2 3 4 5 6 7 8 1.
2.
3.
4.
6.
7.
8.
EXISTING HOTEL
EXPANSION
BALL ROOM
HYATT REGENCY 5. RENAISSANCE
CHASE TOWER
PAID PARKING
METRO STATION
EXISTING CONDITION OF THE HOTEL

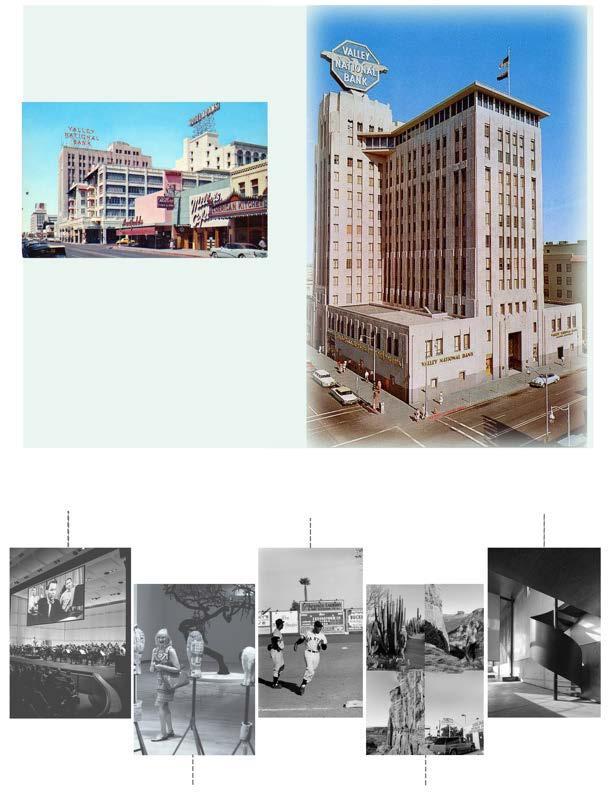

HISTORY l PEOPLE
- In the late 1940s several organizations, including the Phoenix Symphony Orchestra and the Phoenix Art Museum, introduced a notable program of visiting artists and touring exhibits.
Sports have a central role in the cultural life of Phoenix.
Baseball is particularly popular. The tourist industry is the longest running of today’s top industries in Phoenix.
Phoenix is the home of a unique architectural tradition and community. Frank Lloyd Wright moved to Phoenix in 1937 and built his winter home
CULTURAL VALUES
CONVENTION HALL
SPORTS
ARCHITECTURE
ART GALARY
TOURISM
ENTERTAINMENT ASPECT
- In the opening shot of Alfred Hitchcock’s 1960 film, Psycho the building along with the rotating sign can be seen as the the camera pans across the then-skyline of downtown Phoenix. After that the building also got a name the Psucho building
MUSIC MOVIE
COMEDY
CULTURE
ART
FOOD FUN MUSEUM VINTAGE MOVIE
YOUTH
DESIGN PROPOSAL
The Entertainment Hotel
As this building has a great historical significance & ancient Architectural value (art deco style building) make it much precious & we want to keep the value of the history intact in-terms of respecting the Architectural style & historical events which made this structure unique in downtown phoenix, Which is also one of milestone of Phoenix’s cultural evolution. This site has got an identity through the movie psycho which proves, the building has a great impact from entertainment sector/ celebrities. Based on these facts we want make this hotel as The Entertainment Hotel. The proposed programs are designed considering the cultural evolution of Phoenix & target users
The downtown Phoenix building that was once home to Steiniger Lodging House, Golden West Hotel and Newman’s Cocktails was demolished & there were controversies around it ,Being an historical building
I Zoning HISTORY PEOPLE
Theater Exhibition spaces Hotel Expansion Garden resturant Radio/ Podcast
Programs
Existing Empty
Souvenir shop/lobby
Potential MOVIE Travel evolution Entertainment
Potential Targets
Target Users
Expansion
Youths Tourists Celebrities
MOVIE HOSPITALITY ENTERTAINMENT Lobby Roof top Basement Dining Multipurpose hall Room Upliftment Travel in to cultural evolution of Phoenix Entertainment Hotel
Adaptive Reuse
EXISTING BUILDING CONDITION
The historical building which is now known as Hilton garden inn has 2 main entry which leads in to a double heighted hotel lobby which was used as Vally nationl bank’s main lobby, back in 1938. It has a elements of art deco style in the exterior & interior of the building.
LIGHT RAIL
HILTON
GARDEN INN
RENAISSANCE
CHASE TOWER
BALL ROOMPAID PARKING
REGENCY
HYATT
EXPANSION SITE
HILTON
EXISTING BUILDING
Strength
- Great proximity from various kinds of transport systems
-It has a strong historical background
-It is located in the heart of the city
-The building has good accessibility
-The locality attracts divergent crowds
-Stroung history & cultural aspect
LOBBY/RESTUARANT
RENTAL SPACE RENTAL SPACE VAULT SPACE STORAGE SPACE
1ST
BASEMENT 1 PLAN
FLOOR PLAN
KITCHEN
Weakness
- Noise levels are eccentuated
- There is no transition space between the road and the building
- Availability of parking space is limited
-The current building attracts mostly corporate crowds
- Lack of greenery around
-No outdoor space
Opportunity
- The building has a scope to be made as an entertainment hub, considering the history and the location
- To attract more of a young crowd, as educational institutions (Downtown ASU) are close by
- Scope of adding a sustainable feature and more greenery into the heart of the city
- To give the building a new identity on the basis of its’ history
Threat
- No great view points as it is between the busy city center, and amidst other tall buildings
- The building being a historical building
- Parking and traffic might become an issue
- Homeless people are/will surround the locale, as it is the downtown
2ND FLOOR PLAN
BUILDING PLANS
MEETING SPACE ROOMS ROOMS MEETING SPACE ROOMS RENTAL SPACE OFFICE WAITING KITCHEN DOWN
NORTHELEVATION WESTELEVATION
THIRTEENTH FLOOR
251’-3’’
TWELFTH FLOOR
237’-9’’
ELEVENTH FLOOR
222’-0’’
TENTH FLOOR
210’-6’’
NINETH FLOOR
199’-0’’
EIGHTH FLOOR
187’-6’’
SEVENTH FLOOR
176’-0’’
SIXTH FLOOR
164’-6’’
FIFTH FLOOR
153’-0’’
FOURTH FLOOR
141’-6’’
THIRD FLOOR
130’-0’
SECOND FLOOR
116’-0’
FIRST FLOOR
100’-0’
3RD - 11TH FLOOR
ROOMS
EAST ELEVATION NORTH ELEVATION TYPICAL FLOOR PLAN
12TH FLOOR PLAN
ROOMS
PASSAGE
ROOMS
ROOMS
FLOOR THIRTEENTH FLOOR
NINETH FLOOR TENTH FLOOR ELEVENTH FLOOR
EIGHTH FLOOR
FLOOR SEVENTH FLOOR
FLOOR
FLOOR
FLOOR ELEVENTH FLOOR
FLOOR
FLOOR
ELEVATION WEST ELEVATION
PASSAGE
FIRST FLOOR SECOND FLOOR 100’-0’ 116’-0’ THIRD FLOOR FOURTH
FIFTH
SIXTH
FLOOR
FLOOR
TWELFTH
141’-6’’ 176’-0’’ 187’-6’’ 130’-0’ 153’-0’’ 164’-6’’ 199’-0’’ 210’-6’’ 222’-0’’ 237’-9’’ 251’-3’’ FIRST FLOOR SECOND FLOOR 100’-0’ 116’-0’ THIRD FLOOR FOURTH FLOOR FIFTH FLOOR SIXTH FLOOR SEVENTH
EIGHTH
NINETH
TENTH
TWELFTH
141’-6’’ 176’-0’’ 187’-6’’ 130’-0’ 153’-0’’ 164’-6’’ 199’-0’’ 210’-6’’ 222’-0’’ 237’-9’’ 251’-3’’
FLOOR
THIRTEENTH
ENTERTAINMENT HOTEL
THE
PROPOSED PROGRAMS
P.20 / 61

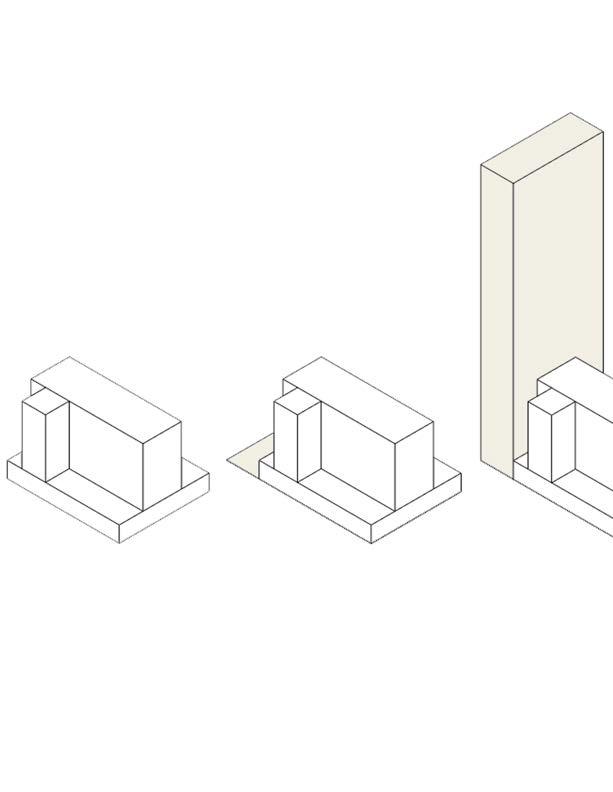

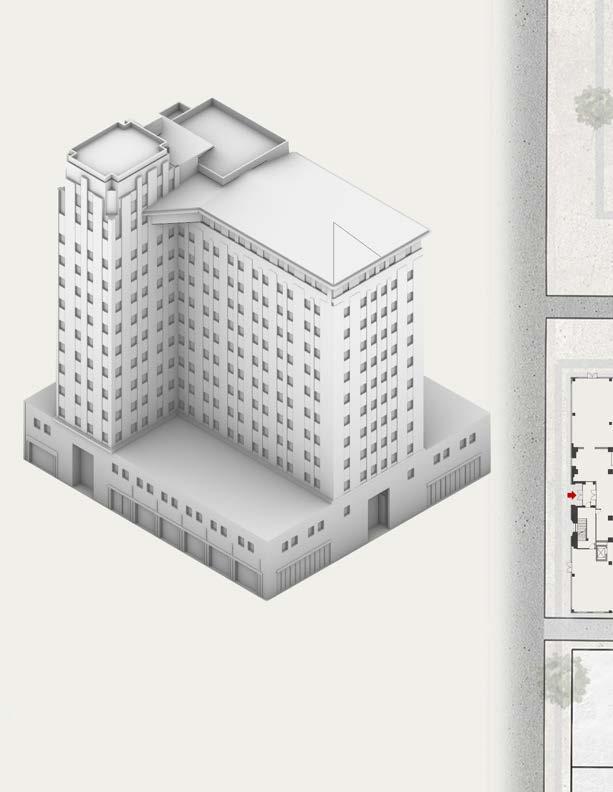

BUILDING DEVELOPMENT
EXISTINGBUILDING EXPANSIONSITE BUILDINGEXPANSION
BUILDINGENTERVENTION ENTERTAINMENTHOTEL
EXPANSION
PROGRAM BLOCKING
PROGRAMS
VISITOR EXPERIENCE
ENTRANCE LOBBY
MUSEUM
GALLERY SPACE
VOAGE
ILLUSION OF DESERT
MEDIA EXPERIENCE
PODCAST
MULTIPURPOSE HALL
BOUTIQUE THEATER
HOSPITALITY EXPERIENCE
HOTEL RECEPTION
LOBBY
HOTEL ROOMS
OUTDOOR EXPERIENCE
OPEN AIR THEATER
RECREATIONAL EXP.
ROOFTOP RESTAURANT
EXTERIOR FACADE DEVELOPMENT
THEFACADE EAST&WESTSIDE
NORTH&SOUTHSIDE
ALUMINIUM VERTICALS FINISHED WITH POWDERCOATING GLASS LAYER BEHIND THE VERTICALS
MULLION TO HOLD THE EXTERNAL SKIN OF THE
VERICAL TAPERED CLEAN GLASS
TEXTURED GLASS
SIDE
CUT-OUT LOOKING IN TO MUSEUM
WAITING AREA

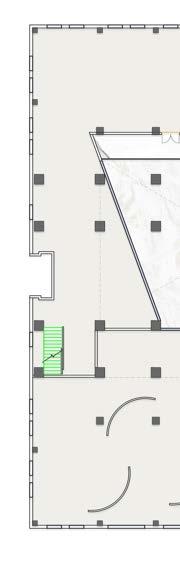

1ST & BASEMENT FLOOR
VISITOR EXPERIENCE
ENTRANCE LOBBY- 1ST FLOOR
GRAND ENTRANCE
EXI. OFFICE
LOBBY
CUT-OUT BELOW
VOYAGE/ JOURNEY
ENTRANCE LOBBY
AREA
COFFE POINT
BASEMENT PARKING TOILET TOILET HOTEL
EXI. OFFICE DRIVE WAY TO
DROP OFF
BASEMENT 1 LEVEL
SPIRAL STAIR
SPIRAL STAIRCASE CONNECTIONG 3 FLOORS BEING PART OF JOURNEY THROUGH THE CULTURAL EVOLUTION
HISTORIC
EXPERIENCE
MUSEUM & VOAGE- BASEMENT 1 VISITOR
HISTORIC MUSEUM
COFFEE SHOP
JOURNEY THROUGH THE VAULT DOOR
CUTOUT ABOVE
ARCH. FEATURE TILL 2ND FLR
VOYAGE/ JOURNEY
TICKET COUNTER
HISTORIC MUSEUM
P.41 / 61
TOILETS TOILETS JANITOR
STORE RM

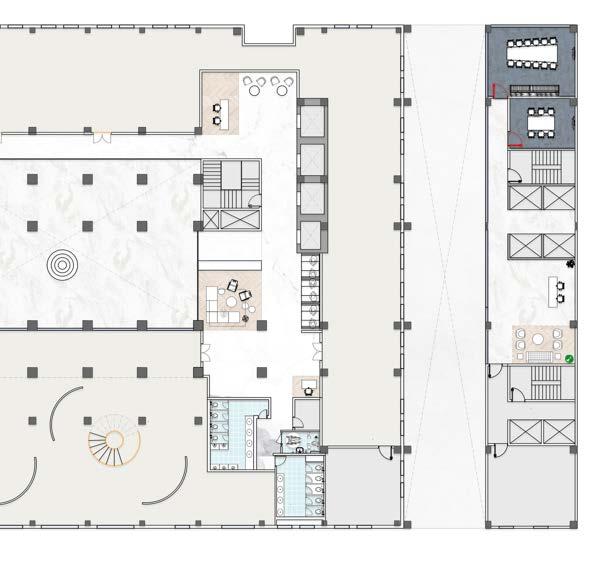

2ND FLOOR :EXHIBITION & MEETING
P.42 / 61
SHOWING CUT-OUT EXPANSION
DIAGRAM
VISITOR EXPERIENCE
EXHIBITION SPACE -2ND FLOOR
JOURNEY
CUT-OUT BELOW COFFEE SHOP TICKET COUNTER STORE BOH 12 PAX 6 PAX TOILETS TOILETS JANITOR FLOOR PROJECTION EXHIBITION SPACE 2
VOYAGE/
EXHIBITION SPACE 1
3RD FLOOR : GELERY & HOTEL RECEPTION
DIAGRAM SHOWING THE GLASS TOP ONN THE CEILING TO GET DRAMATIC EFFECT OF LIGHT
GELERY VISITOR
VISITOR & HOSPITALITY EXPERIENCE
GELERY & HOTEL RECEPTION SPACE -3RD &4TH FLOOR
OUTDOOR EVENT SPACE
GELLERY SPACE 1
AREA
GELLERY SPACE 4
OUTDOOR EVENT SPACE
DINING
WAITING
COFFEE TOILETS TOILETS ART SHOP STAGE
RECEPTION
KITCHEN RESTAURANT WITH STAGE SHOW TICKET COUNTER
AREA
5TH -7TH FLOOR
VISITOR EXPERIENCE
ILLUSION OF DESERT5TH FLOOR
ILLUSION OF DESERT TICKET
PODCAST STUDIO -6TH FLOOR
BOUTIQUE THEATER & MUILTIPURPOSE HALL-7TH FLOOR
TICKET COUNTER
POPCORN COUNTER
BOUTIQUE THEATER
MULTI-PURPOSE HALL
MEDIA
EXPERIENCE
STUDIO RECEPTION 14 PAX 6 PAX SUPPORT STAFF TOILETS REPRO

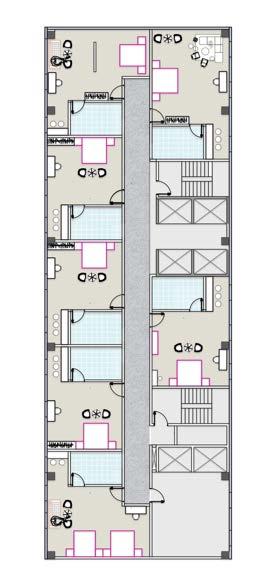

TYPICAL ROOM LAYOUT HOSPITALITY EXPERIENCE
TYPICAL ROOM & 13TH FLOOR
BOH
ROOM
BATH
OPEN AIR THEATER -13TH OUTDOOR EXPERIENCE
OPEN AIR THEATER
RM TOILETS
MECHANICAL
THE
TOP
ROOF
30TH FLOOR
OUTDOOR EXPERIENCE
OPENABLE ROOF SUSPENDED BAFFLE CEILING
TOP -30TH
ROOF
-30TH FLOOR
ROOF SHEETS
EXPERIENCE
POOL
BAR BAR
PIZZA BAR
STAGE SEATING
TOILETS
KITCHEN
SUNLIGHT
GREEN WALL FOR INDIRECT
3D VIEW
BUILDING ELEVATIONS
EAST SIDE ELEVATION NORTH SIDE THIRTIETH 328’-0’’
WEST SIDE ELEVATION SIDE ELEVATION FIRST FLOOR 0’-0’’ THIRTEENTH FLOOR 151’-3’’ THIRTIETH FLOOR 328’-0’’

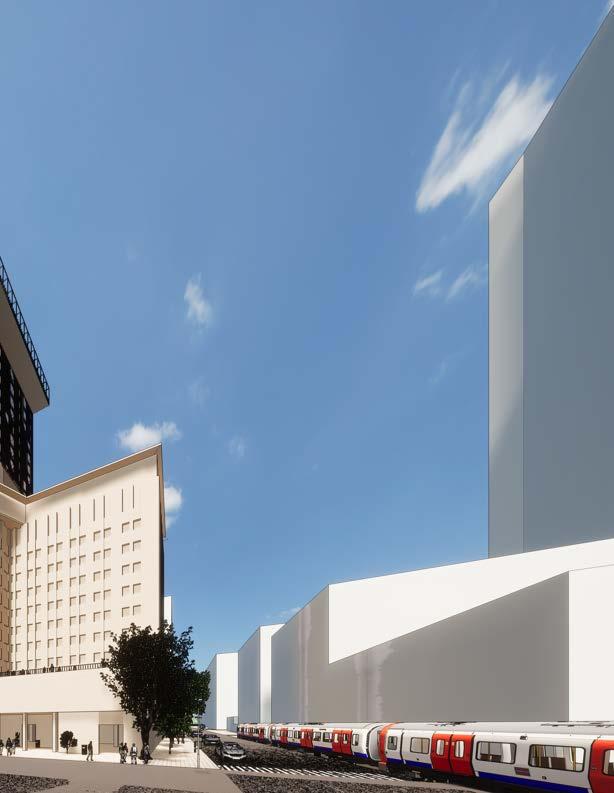

BUILDING VIEWS
PHYSICAL MODEL
