THESIS 2024 PORTFOLIO

RECREATIONAL SPACES FOR URBAN DWELLERS

G A N JI PA V A N N E T H A

19171AA024

F O R U R BAN DW E L L E R S

RECREATIONAL SPACES

ABSTRACT Urban areas are often characterized by a high density of buildings, traffic congestion, and limited green spaces, which can adversely affect the physical and mental wellbeing of residents. In cities like Hyderabad, the rapid pace of urbanization has led to the reduction of natural landscapes and recreational areas, making it challenging for urban dwellers to find spaces for relaxation, exercise, and social interaction. This issue is compounded by the increasing stress levels and sedentary lifestyles associated with urban living, which contribute to various health problems such as obesity, cardiovascular diseases, and mental health disorders.

This thesis explores the design and development of a sustainable recreational space at Durgam Cheruvu, Hyderabad, aimed at enhancing urban dwellers' physical and mental well-being. Integrating elements such as eco-friendly structures, cultural activity zones, and educational facilities, the project addresses the need for natural catchment improvement, alternatives to concrete structures, and community engagement.

Through a combination of innovative landscaping, sustainable architecture, and diverse recreational amenities, the proposed design aims to revitalize the lakefront area, promoting environmental conservation and social interaction. The study includes comprehensive site analysis, case studies, and design strategies to create a vibrant, inclusive, and sustainable urban oasis

PROBLEM STATEMENT The rapid urbanization of Hyderabad has led to the encroachment and degradation of many natural areas, including Durgam Cheruvu, also known as the Secret Lake. Once a pristine water body, Durgam Cheruvu has faced pollution, loss of natural vegetation, and encroachment by urban development. This has not only impacted the ecological balance of the area but has also limited the recreational opportunities available to the city's residents. The lack of accessible, high-quality recreational spaces in urban areas contributes to a range of health issues, including increased stress levels, reduced physical activity, and a rise in lifestyle-related diseases such as obesity and cardiovascular conditions. Additionally, the absence of green spaces impacts mental health, leading to higher rates of anxiety and depression among urban dwellers.

AIM OF THE PROJECT The aim of this thesis project is to design a recreational space at Durgam Cheruvu, Hyderabad, India, that fosters a harmonious relationship between human activity and the natural environment.

Utilizing the existing landscape contours: The design will leverage the natural slopes of the site to create a functional and visually appealing recreational space that minimizes disruption to the existing ecosystem.

Prioritizing user experience and accessibility: The project aims to create a space that caters to a diverse range of users and activities, ensuring easy navigation, inclusivity, and a sense of connection for all visitors.

Promoting sustainable practices: The design will incorporate environmentally conscious features to minimize the ecological footprint of the development and encourage responsible resource management

LITERATURE STUDY

OBJECTIVES Analyze the Existing Landscape and User Needs: Studying the topography, vegetation, viewshed, and potential constraints. Research existing recreational facilities in the area and identify user needs and preferences through surveys, focus groups, or community engagement workshops.

Designing a Functional Recreational Space with Zoned Activities: Developing a master plan for the recreational space that utilizes the natural contours to create distinct activity zones Designing each zone to cater to specific activities (e.g., fitness, community events, children's play, art/culture) ensuring functionality and user comfort.

User Experience and Accessibility Principles: Ensure clear and accessible pathways throughout the space, with options like ramps, switchback paths, or elevators (if necessary) to address slope challenges.

To improve mental well-being through spaces dedicated to relaxation, yoga, meditation, and nature walks.

To create spaces that support cultural and educational activities, fostering community engagement.

SCOPE The scope of this thesis encompasses the comprehensive design and planning of a sustainable recreational space at Durgam Cheruvu, Hyderabad. The project aims to integrate various aspects of environmental sustainability, community engagement, and health promotion. Key areas of focus within the scope include Creation of serene environments for mental well-being, including yoga and meditation areas, nature walks, and relaxation zones.

RECREATIONAL SPACES: Recreational spaces refer to purposefully designed areas that offer leisure and enjoyment to individuals and communities. These spaces are intentionally created to provide a break from routine activities, offering a range of activities that cater to physical, mental, and social well-being.

WHY RECREATIONAL SPACES ?

1. Physical Well-being: Recreational spaces often include facilities for physical activities such as sports, jogging, and fitness. Engaging in these activities promotes cardiovascular health, muscle strength, and overall physical well-being.

2. Mental Health Benefits: Access to recreational spaces has been linked to improved mental health. Green environments, in particular, are associated with reduced stress levels, enhanced mood, and decreased symptoms of anxiety and depression.

3. Social Interaction: Recreational spaces serve as social hubs where people from diverse backgrounds come together. This fosters community bonds, encourages social interaction, and contributes to a sense of belonging.

4. Stress Reduction: Participation in recreational activities has a stress-relieving effect.

Whether it's playing a sport, strolling in a park, or enjoying a cultural event, these activities divert attention from daily stressors, promoting relaxation.

5. Creativity and Inspiration: Natural and aesthetically pleasing recreational spaces can stimulate creativity and provide inspiration. Exposure to greenery and well-designed landscapes has been shown to enhance cognitive function.

6. Improved Quality of Life: Communities with well-planned recreational spaces tend to have a higher quality of life. Access to such spaces contributes to a healthier and happier population, making the area more attractive for residents.

7. Cultural and Community Events: Recreational spaces often host cultural and community events. This not only provides entertainment but also strengthens community ties and promotes cultural diversity.

8. Family Bonding: Family-friendly recreational spaces offer opportunities for families to spend quality time together. Playgrounds, picnic areas, and family events contribute to bonding and the creation of lasting memories.

9. Educational Opportunities: Some recreational spaces incorporate educational elements, such as nature trails, interpretive signage, or science-themed installations. This provides learning opportunities in a relaxed setting.

10. Economic Benefits: Well-designed recreational spaces can contribute to the economic vitality of an area. They attract visitors, support local businesses, and increase property values.

SUSTAINABLE DRAINAGE SYSTEM (SuDS): Sustainable Drainage Systems (SuDS) play a crucial role in the design of outdoor spaces, especially in a lakefront development.

SuDS focuses on managing surface water runoff in a way that mimics natural drainage, offering multiple benefits for both the environment and the community.

Here's how SuDS can enhance our lakefront recreational space design: 1. Reduce Flooding: SuDS helps manage and slow down the flow of rainwater, reducing the risk of flooding. This is particularly important in a lakefront setting where water levels may vary.

2. Improved Water Quality: SuDS components, such as vegetated swales and filter strips, naturally filter pollutants from runoff, enhancing the quality of water entering the lake.

3. Biodiversity Enhancement: SuDS designs often incorporate green infrastructure like rain gardens and swales, providing habitats for diverse plant and animal species. This aligns with the goal of creating a sustainable and ecologically rich environment.

4. Aesthetic Appeal: SuDS features can be aesthetically pleasing, with the integration of natural landscaping elements. This aligns with the goals of your urban and landscape design components.

5. Permeable Paving: SuDS often involves the use of permeable surfaces. Integrating permeable paving in pathways aligns with your sustainable design goals by reducing surface water runoff.

6. Sustainable Irrigation: Collected rainwater from SuDS features can be used for landscape irrigation, promoting sustainability and reducing reliance on mains water.

7. Community Engagement: Involving the community in the design and maintenance of SuDS components can create a sense of ownership and environmental stewardship. This engagement can be woven into your landscape design.

8. Educational Opportunities: SuDS components offer educational opportunities by showcasing sustainable water management practices. Interpretive signage can explain how these systems work, fostering environmental awareness.

9. Sustainable Irrigation: Collected rainwater from SuDS features can be used for landscape irrigation, promoting sustainability and reducing reliance on mains water.

10. Water Recirculation Features: SuDS can include features like water recirculation systems, contributing to the overall aesthetic and recreational appeal of the lakefront space.

Incorporating SuDS principles into your lakefront development aligns with your sustainability objectives and enhances the overall functionality and resilience of the recreational space.

LITERATURE STUDY

Spa�e� Be����� P���r�

G���� R��

Ag��ega�� �ed��n� c��r� �n� ���� �ra�e� ba�e�

R���wa��� h���es��n�

Dr��na�� ����

PE�M���LE �AV�M�NT DE���L P���e���� P���n� Re��n�i�� P�n�

PERMEABLE PAVING: Permeable paving surfaces are made of either a porous material that enables stormwater to flow through it or nonporous blocks spaced so that water can flow between the gaps. Permeable paving can also include a variety of surfacing techniques for roads, parking lots, and pedestrian walkways.

Permeable pavement surfaces may be composed of; pervious concrete, porous asphalt, paving stones, or interlocking pavers.

Unlike traditional impervious paving materials such as concrete and asphalt, permeable paving systems allow stormwater to percolate and infiltrate through the pavement and into the aggregate layers and/or soil below. In addition to reducing surface runoff, permeable paving systems can trap suspended solids, thereby filtering pollutants from stormwater.

F���b��

S���e� Ch�����

R���wa��� St�ra�� T���

P�nd� / R�e�

Sl�� ���ea�� m��n� s�r�� �����

Sl�� ���ea�� m��n� s�r��

Power Generating Equipment: Incorporating energy-generating equipment in a gym and exercise area is a fantastic way to promote sustainability and harness human energy for useful purposes.

Cardio Machines with Integrated Generators: Cardio machines like treadmills, elliptical trainers, and stationary bicycles can be equipped with integrated generators. As individuals use these machines, the kinetic energy generated by their movements can be converted into electrical energy through the generators.

O���fl�� �r��� P����h�u�� Wa��� ���� Re���v���

T����

T������

S��n� P.M.M Det���

R���� C�ut�� Det���

ILabs CAPITAL

During the post-monsoon and winter months, which occur from October to February, experiences cooler temperatures and drier weather conditions. Winds from the northeast and east directions are common

SITE ANALYSIS

ITC KOHENOOR Lakefront Park

E

W LAKE

During the summer months March to June, During this time, the prevailing winds often blow from the southwest and west directions.

During the monsoon season, which usually occurs from July to September, the winds are southwest and south directions

Depending on the specific context and development plans, this area could be utilized for various activities such as walking paths, seating areas, landscaped gardens, and many recreational zones or viewpoints that offer scenic views of the lake and its surroundings.

CABLE BRIDGE

Co

LOCATION AND CONTEXT The Durgam Cheruvu site is located in Hyderabad, the capital city of Telangana state in southern region of India.

Hyderabad is a major urban center known for its rich history, vibrant culture, and rapid urbanization.

Durgam Cheruvu is a serene and picturesque lake situated in the heart of Hyderabad, surrounded by urban neighborhoods and commercial districts. It is located in the Jubilee Hills area, which is known for its upscale residential communities, commercial establishments, and recreational amenities. The lake serves as a tranquil oasis amidst the bustling cityscape, offering residents and visitors a respite from the urban hustle and bustle.

SOUTHERN REGION OF INDIA

WHY DURGAM CHERUVU Durgam Cheruvu's picturesque location amidst lush greenery and tranquil waters provides a serene backdrop for recreational activities. The scenic beauty of the lake and its surrounding landscape offers a respite from the hustle and bustle of urban life, making it an ideal setting for relaxation and rejuvenation.

Urban Connectivity: Situated in close proximity to urban areas, Durgam Cheruvu serves as an accessible escape for residents seeking recreational opportunities without having to travel long distances. Its convenient location encourages regular visits from local residents, fostering a sense of community engagement and ownership of the space.

Waterfront Potential: As a lakefront development site, Durgam Cheruvu offers vast potential for waterfront activities and amenities. From lakeside promenades and boating facilities to waterfront cafes and recreational docks, the site can b activated to offer a diverse range of experiences that capitalize on its natural beauty and water resources.

mm inch

40 35

175 6.9

30

150 5.9

25

125 4.9

20

100 3.9

15

75 3.0

10

50 2.0

5

25 1.0

0

1

2

3

4

5

6

7

8

9

10

11

12

0

0.0

Graph showing Temperature and Rainfall of Hyderabad

:CIMATE AND WEATHER

MAP OF HYDERABAD

BIODIVERSITY:

Durgam Cheruvu supports a variety of flora and fauna. The vegetation around the lake includes both native and introduced plant species, creating habitats for birds, insects, and small mammals. The lake itself is home to several species of fish and aquatic life, contributing to the overall biodiversity of the area.

RAIDURGAM , MADHAPUR

Hyderabad experiences a tropical wet and dry climate (Savanna climate), characterized by a distinct monsoon season, a hot summer, and a mild winter. The climate is generally warm and temperate, with variations influenced by the monsoon winds. This results in distinct wet and dry periods throughout the year with moderate to high temperatures.

Summer (March to May): Temperatures can rise significantly, often reaching up to 40°C (104°F) during the day. Nights are relatively cooler.

Monsoon (June to September): The city receives moderate to heavy rainfall, especially in July and August. Temperatures during this season are relatively cooler than in summer, ranging from 25°C to 35°C (77°F to 95°F).

Winter (December to February): Winters are mild and pleasant, with daytime temperatures around 22°C to 28°C (71.6°F to 82.4°F).

Nighttime temperatures can drop to around 15°C (59°F).

Rainfall: Hyderabad receives most of its rainfall from the Southwest monsoon. The average annual rainfall is around 800 mm (31.5 inches), with the bulk of it falling between June and September.

Humidity: Humidity levels vary throughout the year, with higher levels during the monsoon season and lower levels during the dry season.

During the post-monsoon and winter months, which occur from October to February, experiences cooler temperatures and drier weather conditions. Winds from the northeast and east directions are common

CULTURE AND HERITAGE: During the summer months March to June, During this time, the prevailing winds often blow from the southwest and west directions.

W

E SITE 81,710 SQM 20.2 ACRES DURGAM CHERUVU LAKE

The lake is also known as the 'secret lake', as it was naturally hidden between rocks, with Jubilee Hills on one side and Madhapur on the other. The originally 150-acre Durgam Cheruvu is said to have been built somewhere between 1518 and 1687 by the Qutb Shahi kings to supply water needs for the residents of the Golconda fort. In the 1970s, the historian added that many people would visit the lake for picnics, and to admire the natural rock formations around the water body. Till the late 1990s, many residents of 'villages' nearby like Madhapur, would visit the lake to catch fish or to while away time. The lake which was blue and scenic then, is now algae-ridden and emits a foul smell caused by effluents discharged into it.

INORBIT MALL 15 MINS WALK 10 MINS WALK

SITE

DURGAM CHERUVU

RAIDURGAM BUS STATION

WALKING PATH

SITE ACCESSIBILITY

During the monsoon season, which usually occurs from July to September, the winds are southwest and south directions

MAJOR ROAD MINOR ROAD METRO STATION TEMPLES

NOISE

LOCAL BUS STOPS

MOSQUE

TOPOGRAPHY MAP OF THE SITE HEIGHTS FROM SEA LEVEL 601M 592M 587M 576M 568M 564M 587

32 0M

560M

601

The site feature hills or elevated areas, which can create variations in elevation and topography. These hills can offer scenic views of the surrounding landVEGETATION OF TREES ON SITE BANYAN TREE scape and the lake itself.

Percentage: 35% The terrain on the site may also include sloping areas, Benifits: Providing shelter, food, and protection to where the land gradually descends or ascends. Sloping various forms of wildlife. terrain can influence the design and layout of the site, NEEM TREE 30 as well as the placement of structures and amenities.

5M Percentage: 8% Benifits: withstand air and water In addition to hills and slopes, the site conpollution, as well as heat. tains other natural features such as rocky PEEPAL TREE outcrops, vegetation, and water bodies.

Percentage: 30% These features contribute to the overall Benifits: Provides shade and is an excellent habitat for landscape character and ecological birds and other animals. diversity of the area.

The topography of site influences the PEEPAL TREE drainage patterns of the site, affecting Percentage: 10% how water flows across the landscape Benifits: Provides shade and is an excellent habitat for and into the lake. Understanding these birds and other animals. drainage patterns is important for managOTHERS 558 ing stormwater runoff and ensuring the site Percentage: 17% remains resilient to flooding events.

HIGH TOPOGRAPHY LEVEL OF THE SITE

GREENERY

EVENING SUN

Percentage: 80%

S

U

M

M

E

WALKING TRACK R

NOON SUN

NATURAL FLOODING

MORNING SUN

DURGAM CHERUVU LAKE

ALFISOLS SOIL Alfisols are moderately leached soils that have relatively high native fertility. These soils have mainly formed under forest and have a subsurface horizon in which clays have accumulated.

LOW TOPOGRAPHY LEVEL OF THE SITE

INCEPTISOLS

ACCESS ROAD INTO THE SITE AND PARKING AREA

These are young, immature soils that haven't yet developed distinct layers (horizons). They can vary in texture and drainage depending on the parent material from which they formed.

LAKE AREA : 83 ACRES

TOPOGRAPHY MODEL

Vertisols are clay-rich soils that shrink and swell with changes in moisture content.

During dry periods, the soil volume shrinks and deep wide cracks form.

VERTISOLS

SITE DEVELOPMENT This conceptual design for recreational spaces at Durgam Cheruvu leverages the natural contours of the site to create a "recreational tapestry" woven into the landscape. It prioritizes user experience through careful consideration of visibility and accessibility, while offering a variety of activities that cater to diverse interests.

The upper slopes offer the most stunning panoramic views of the Durgam Cheruvu lake.

Placing the recreational block here allows users to enjoy breathtaking scenery while engaging in indoor activities. A strategically designed building on the upper slopes can become a landmark, visible from various points within the recreational space and potentially from beyond, drawing visitors in.

The opposite side of the amphitheater can be designed with a clear view of the recreational block positioned on the upper slopes

PLACEMENT OF OPEN AMPHITHEATER EXISTING SITE CONTOURS

Maintaining a safe distance from the lake's edge protects the building from potential hazards like water erosion or wave action during heavy rain.

Positioning the building on higher ground ensures it remains above the Full Tank Level (FTL) of the lake, minimizing the risk of flooding and property damage.

The natural slope of the land provides a perfect base for constructing stepped seating tiers. This minimizes the need for extensive earthworks while offering excellent sightlines for everyone in the audience.

Placing the open-air amphitheater (OAT) on medium slopes offers a unique opportunity to create an immersive and visually captivating experience for the audience. Taking advantage of the medium slope positioning, the amphitheater can be oriented with one side facing the Durgam Cheruvu lake.

This allows the audience to enjoy the tranquil beauty of the lake as a backdrop for the performance.

Level paths eliminate concerns about sudden inclines or declines, making navigation safer and more comfortable for everyone. This is especially important for cyclists who require a predictable and stable riding surface.

PLACEMENT OF RECREATIONAL BLOCK

Following level contours allows for greater flexibility in routing the pathways and cycle tracks. This enables you to optimize the use of available space and create a more engaging and dynamic experience for users.

PATHWAYS AND CYCLE TRACKS

Maintaining level pathways and cycle tracks caters to users with varying abilities, including those with mobility limitations, children, and older adults.

FORM DEVELOPMENT 1

2

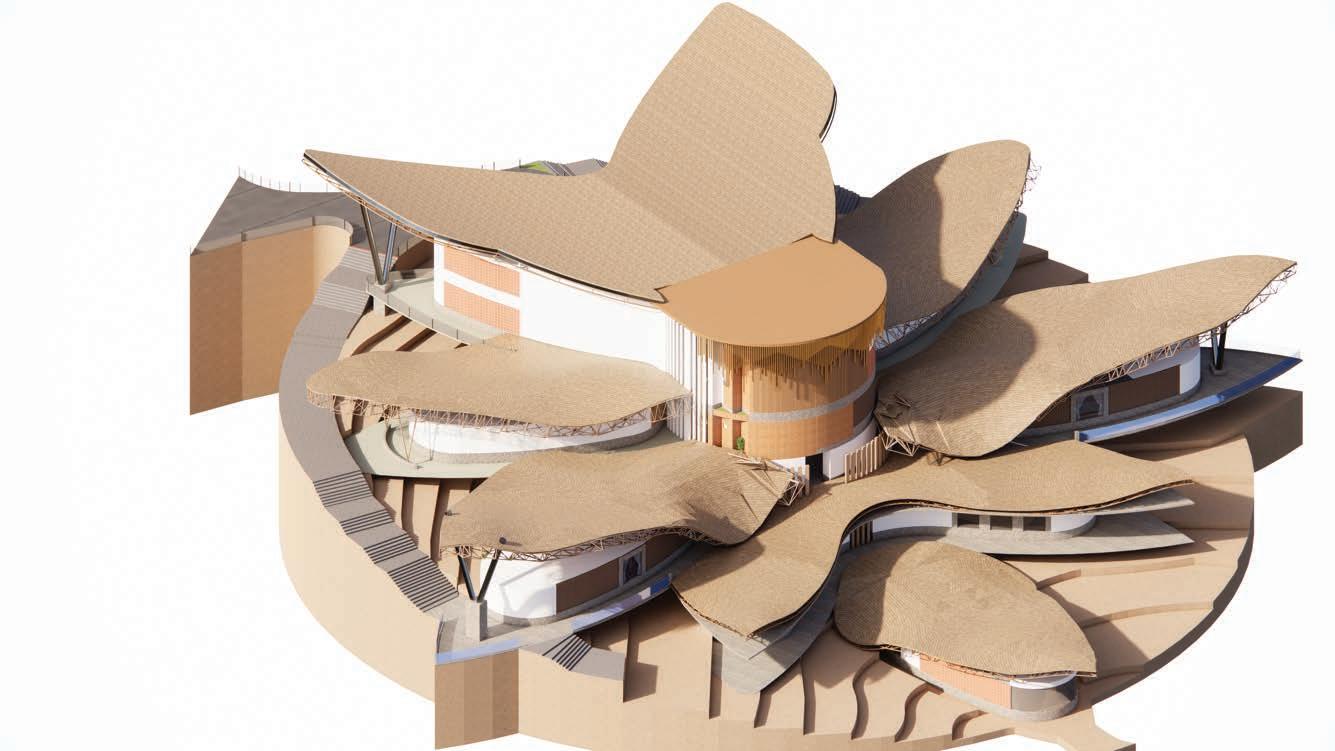

The lotus flower, a sacred symbol in India, serves as the central inspiration for the abstract form of recreational block.

The lotus flower's association with water and purity resonates perfectly with the lakeside location. It creates a harmonious visual and symbolic connection between the building, the Durgam Cheruvu lake, and the natural environment.

The building form will rise from the upper slopes like a lotus emerging from water. The base of the structure can be embedded slightly into the slope, creating a sense of connection with the earth.

This metaphor aligns well with the purpose of the recreational space, offering a place for people to relax, rejuvenate, and connect with nature.

3

Abstract form of Lotus Flower The lotus form provides a unique and aesthetically pleasing design language that is also culturally relevant in the Indian context. It adds a layer of meaning and symbolism to the recreational space.

Stage 4: Massing from Abstract form The main body of the building can be divided into sections resembling lotus petals. These sections can be arranged in a radial or asymmetrical pattern, creating a dynamic and visually intriguing form.

4 Services block with circulation

Stage 3: Making desired form from Abstract The internal layout of the building should be designed to seamlessly integrate with the lotus form while ensuring optimal functionality for the planned activities. Consider open floor plans with flexible spaces to maximize usability.

Each Wing(Petal) serves as different zones for internal recreational activities.

The final Part in Form development, will follow contours and create levels , each petal(wing) as each block connecting with services, and diving into levels as per contour levels.

Stage 5: Final Form Development and Zones

5

AREA CALCULATIONS S.NO. SPACE NAME

THESIS : RECREATIONAL SPACES AREA OF SINGLE (IN SQM)

NO. OF PERSONS (USERS)

AREA (MULTIPLIED) (SQM)

ADDITIONAL AREA (SQM)

TOTAL AREA (AREA + ADDITIONAL)

NOs.

FINAL AREA (IN SQM)

AREA CALCULATIONS FOR "RECREATIONAL PLAZA" 01

TABLE TENNIS

AREA OF ONE TABLE IS 50SQM (APPROX)

ASSUME : 5 TABLES

50 x 5 = 250 SQM

+ 20% CIRCULATION i.e., 50SQM

250 + 50 = 300 SQM

1

300 SQM

02

CARROMS

TABLE : 10 SQM

ASSUME : 5 BOARDS

5 x 10 = 50 SQM

+ 20% = 10SQM

50 + 10 = 60 SQM

1

60 SQM

03

FOOSBALL

TABLE : 20 SQM

ASSUME : 5 BOARDS

20 x 5 = 100 SQM

+ 20% = 20SQM

100 + 20 = 120 SQM

1

120 SQM

04

CHESS

TABLE : 5 SQM

ASSUME : 5 BOARDS

05 x 5 = 25 SQM

+ 20% = 5 SQM

25 + 05 = 30 SQM

1

30 SQM

05

INDOOR GYM

PER PERSON : 12 SQM

ASSUME : 30 USERS

12 x 30 = 360 SQM

+ 20% = 72 SQM

360 + 72 = 432 SQM

2

870 ≈ 900 SQM

06

ART WORKSHOP HALL

PER PERSON : 3 SQM

ASSUME : 200 USERS

3 x 200 = 600 SQM

+ 30% = 180 SQM

600 + 180 = 780 SQM

1

≈ 800 SQM

07

MUSIC WORKSHOP HALL

PER PERSON : 3 SQM

ASSUME : 100 USERS

3 x 100 = 300 SQM

+ 30% = 90 SQM

300 + 90 = 390 SQM

1

≈ 400 SQM

08

EDUCATIONAL MULTI - WORKSHOP

PER PERSON : 3 SQM

ASSUME : 150 USERS

3 x 150 = 450 SQM

+ 30% = 135 SQM

450 + 135 = 585 SQM

2

1170 ≈ 1200 SQM

09

DIGITAL WORKSHOP HALLS

PER PERSON : 2.5 SQM ASSUME : 100 USERS

2.5 x 100 = 250 SQM

+ 30% = 75 SQM

250 + 75 = 325 SQM

2

650 ≈ 700 SQM

10

SEMINAR HALLS

PER PERSON : 3 SQM

ASSUME : 200 USERS

3 x 200 = 600 SQM

+ 30% = 180 SQM

600 + 180 = 780 SQM

2

1560 ≈ 1600 SQM

11

LIBRARY

PER PERSON : 3 SQM

ASSUME : 150 USERS

3 x 150 = 450 SQM

+ 30% = 135 SQM

450 + 135 = 585 SQM

1

≈ 600 SQM

12

DIGITAL LIBRARY

PER PERSON : 2.5 SQM ASSUME : 50 USERS

3 x 50 = 150 SQM

+ 20% = 30 SQM

150 + 30 = 180 SQM

1

≈ 200 SQM

13

AMPHITHEATRE

PER PERSON : 2 SQM

ASSUME : 2000 USERS 2 x 2000 = 4000 SQM

+ 30% = 1200 SQM

4000 + 1200 = 5200SQM

1

≈ 5400 SQM

14

EXHIBITION HALL

PER PIECE : 10 SQM

ASSUME : 100 FP

10 x 100 = 1000 SQM

+ 30% = 300 SQM

1000 + 300 = 1300SQM

1

= 1300 SQM

AREA CALCULATIONS FOR "OUTDOOR RECREATIONALS" 15

OUTDOOR GYM

PER PERSON : 10 SQM

ASSUME : 50 USERS

10 x 50 = 500 SQM

+ 30% = 150 SQM

500 + 150 = 650 SQM

2

= 1300 SQM

16

CHILDREN PLAY

PER PERSON : 5 SQM

ASSUME : 100 USERS 100 x 5 = 500SQM

+ 30% = 150 SQM

500 + 150 = 650 SQM

2

= 1300 SQM

ASSUME : 200 USERS

200 x 3 = 600SQM

+ 30% = 180 SQM

600 + 180 = 780 SQM

1

≈ 800 SQM

17

YOGA & MEDITATION PER PERSON : 3 SQM

18

BADMINTON (S)

COURT: 69.539 SQM

BUFFER : 20SQM

69.5 + 20 = 89.5SQM

+ 30% = 26.5 SQM

89.5 + 26.5 = 116 SQM

5

580 ≈ 600 SQM

19

BADMINTON (D)

COURT: 81.74 SQM

BUFFER : 20SQM

81.74 + 20 = 101.7SQM

+ 30% = 30 SQM

100 + 30 = 130 SQM

5

650 ≈ 700 SQM

20

BASKETBALL

COURT: 28x15 = 420SQ 3 ROWS OF SEATING 0.6x3 = 1.8 ≈ 2M

420+180 =600 SQM

+ 30% = 180 SQM

600 + 180 = 780 SQM

4

3120 ≈ 3150 SQM

21

PROMENADES

AREA : 25SQM

25+10 = 35 SQM

+ 50% = 17.5 SQM

35 + 18 = 53 SQM

5

265 ≈ 270 SQM

=20130

≈ 20200 SQM

=40400

≈ 40500 SQM

BUFFER : 10SQM

TOTAL AREA GRAND TOTAL

LANDSCAPE: CIRCULATION : OTHER AMENITIES(TOILETS, SEATING, CAFES. ETC.

AREA STATEMENTS

50% 20% 30%

+ 100% 20200 + 20200

G. PAVAN 19171AA024

B.ARCH (2019-24 BATCH) X-SEM

SUBJECT: DESIGN THESIS

NOTES/LEGEND: BANYAN (Ficus benghalensis)

10.00

AREAS: RECREATIONAL BLOCK: 3955SQM AMPHITHEATER : 5300SQM CYCLE BAY 1 : 470SQM OPEN YOGA : 180SQM OPEN GYM : 1250SQM PAVILION 1&2 : 50SQM PAVILION 3 : 250SQM PAVILION 4 : 360SQM CYCLE TRACK : 1780SQM WALKING TRACK : 5400SQM PARKING : 2550SQM

:30% :58% :5% :3%

581.

6

2

0

OR

2.50

+572.8 LVL

3.05

+584.8 LVL

6 581.

B'

ION 2 PAVIL

LE B A

+575.1 LVL

+577.8 LVL

CYC

1:21 SLOPE

RW

+576.8 LVL

+576.8 LVL

+576.8 LVL

R WATE

+576.8 LVL

+576.8 LVL

B

2 DEN

6.8

+578 .4 LVL

+576 LVL

+567.2 LVL

OPE

24.08 1:21 SL

LD CHI

+565.6 LVL

L

+579.2 LVL

+578.4 LVL

+564 LVL

4

+582.4 LVL

8.8 5

.7 16

+576.8 LVL LVL +576

+562.4 LVL

+573.6 LVL

+585.6 LVL

+562.4 LVL

4

4 M WIDE PATH

72 M

A PLAZ

+569.6 LVL

OM ME RZO N

85.00

18.63

1

2 3

G

G KIN

4.0 0

+584.8 LVL +575.2 LVL

PAR

4

+584

+581.6 LVL

+580.8 LVL

G

+580LV

L

+579.2 LVL

+578.4 LVL

+577.6 LVL

+562.4 LVL

+563.2 LVL

7.0 0

11

10 9

4-W

8

HEE

+582.4 LVL

+564 LVL

.74 16

+576.8 LVL

24 25 26 27

R PARKIN G - 1.5X2.5 M

STAMP/SIGNATURE

.0

.0

.0 584

.0 588

.0

596

.0

600

75.80

DURGAM CHERUVU LAKE

565.64 566.

580

NE

0

L

+583.2 LVL

IN K R A P

+561.6 LVL

4.0

LVL LV +576

LER

6 7

HEE 2-W

+574.4 LVL

4-WHEEL ER PARK ING - 2.8X 12 13 14 5M 15 16 17 18 19 20 21 22 23

2-WHEEL E

560.0.8 560 561.6 562.4

+564.8 LVL

+585.6 LVL

5

KIN PAR LER

ARD TOW

+586.4 LVL +573.6 LVL

SC

INO OR OH S IT CK

+560.8 LVL

+572.8 LVL

24.6

TOW ARD

1M

+572 LVL

+587.2 LVL

30.

LVL

+560.8 LVL

576

S CO MME RZO

IT H P M A QM S 0 0 53

+571.2 LVL

+588

+560 LVL

.2 567 .0 568 .8 568 .6 569 4 .

570 .2 571 .0 572 .8 572

TOW ARD

ER T A E H

+570.4 LVL

E

XIT

66.28

3.00

LVL +588

CYC L 470 E BAY 1 SQM

+570.4 LVL

560.8 560.0 8.5M 1

+560.8 LVL

JBR ARCHITECTURE COLLEGE, YENKAPALLY, MOINABAD, TELANGANA. (AFFILIATED TO JNAFAU)

2M

162.92

90.00

OPE 1:21 SL

LVL

0

+571.2 LVL

4.0

+587.2 LVL

NAME: G. PAVAN ROLL NO: 19171AA024 SEM: X SEC: A

12.

29.2

+561.6 LVL

+586.4 LVL

A'

561.6

+572.8 LVL

+572 LVL

Y/E

562.4 M 52

+563.2 LVL

+574.4 LVL

OR INDO ATIONAL E R C E R

560.8 26.45

+564 LVL

+575.2 LVL

LVL

+584.8 LVL

+588

561.6

+564.8 LVL +577.6 LVL

+583.2 LVL

A

560.8

3

2.50

CHIL D

N1 RDE

+576.8 LVL

4.00

GA

563.2

+566.4 LVL

+580LV

1:500

+567.2 LVL

11.15

+576.8 LVL

GAR

ETE

05

29.

+576 LVL

PAVILIO N1

30 M

+576.8 LVL

BODY

+577.6 LVL

+584

SCALE

+567.2 LVL

19 .25

Y2

TER S

+580.8 LVL

+580.8 LVL

YOGA N E OP

29.37

320

+575.1 LVL

29 .1

20.00

INO ME

+580.8 LVL

7.6

+580.8 LVL

.07

17

24

+580.8 LVL

N

564.8

15.

GYM N E OP

+568.8 LVL

+567.2 LVL

+576 LVL

4 LION PAVI +580.8 LVL

565.6

+569.6 LVL +568 LVL

+575.2 LVL

+580.8 LVL

TR

+573.6 LVL

+574.4 LVL

+584.0 LVL

+581.6 LVL

EN

+571.2 LVL

+570.4 LVL

3.05

+580.8 LVL

FTL LINE

+572 LVL

6.71

+580.8 LVL

6.71

13.41

+585.6 LVL

+580.8 LVL

567.

2 566.

4

+586.4 LVL

ORIENTATION:

C'

E BA Y3

1.98

13.41

6.10

L PAVI

6

0

4.73

53.2

CYC L

6.10

13.11

ION 3

RO AD

13.11

19.11

+587.2 LVL

1.98

KO H

19

576.

8 576.

C 0 575.

2 575.

2 574.

4 573.

6 572.

0 571.

2 570.

4 569.

568. 6 568. 8 0

INT

BADM

4.73

IDE

URTS O C ON .11

+586.4 LVL

4

577.

14.5

3

578.

4

STO RE R

+585.6 LVL

+580.8 LVL

579.

OO M

+584.8 LVL

580.

+580.8 LVL

580.

8

29.0

5

ARD S TOW

TOTAL SITE AREA : 78610SQM (19.4 ACRES)

+580.8 LVL

581.

6

CH A RO NGIN OM G

ME CO M

ITC TOW ARD S

15.2 4

+580.8 LVL

+579.2 LVL

ASPHALT ORANGE FOR CYCLE TRACK, PERMEABLE PAVEMENTS FOR WALKING TRACKS

81

+584.0 LVL

+578.4 LVL

WATER POOL

304. +583.2 LVL

+580.8 LVL

LAWN GRASS

CYCLE TRACK

4.70

15.2

MAHOGANY(Swietenia)

PAVER BLOCKS

580.

8

RZO

NE

KO HIN O

OR

580.

8

580.

0

579.

2

579.

2

BUILT-UP(INCL. ALL AMENITIES) GREENERY PROMENADE PREMISES PARKING AREA

ASHOKA (Saraca asoca)

42.51

DEAD-END

MAIN ENTRY

142.64

10X10M GRID

69.43

THESIS TOPIC: RECREATIONAL SPACES FOR URBAN DWELLERS

SHEET TITLE: SITE PLAN

SECTION AT (PROMENADE) BB’

RECREATONAL BLOCK

SECTION AT INDOOR RECREATIONAL BLOCK

SECTION AT (PROMENADE) CC’

therapy strip: Therapy gardens are designed to promote physical, mental, and emotional well-being through the natural environment. The presence of greenery and natural elements in a therapy garden can create a serene environment, helping to reduce stress, anxiety, and mental fatigue. The garden can serve as a space for mindfulness practices and meditation, offering visitors a chance to escape the hustle and bustle of urban life and connect with nature. The garden can serve as a communal space where people can meet, interact, and engage in social activities. This can foster a sense of community and reduce feelings of isolation.

RENDERS

B.ARCH (2019-24 BATCH) X-SEM

SUBJECT: DESIGN THESIS 4M WALK

1.5M PATH

0.55M SEATING

2.55M CIRCULATION

KEY SITE PLAN

13.3M STAGE

12M BUFFER

+572.0LVL

+568.0LVL +565.75LVL

+564.0LVL

SECTION AT EE' E'

NOTES/LEGEND:

IT WA ILE

TO

T

MATERIALS USED: RCC FOR STRUCTURAL FRAME, BRICK FOR WALLS, PVC FALSE CEILING. STEEL AND BAMBOO FOR TRUSS

WA

ING

ITIN

G

+563.2 LVL

TO

COLUMN SIZE: 230X400MM

ILE

GIR RO LS CO OM M - 40 MON SQ M

ON MM QM O C 0S 4 YS BO OM RO

T

CAPACITY: 1000 USERS STAGE AREA: 270 SQM TOTAL AREA : 5300 SQM

STO 43 RE R SQ M OOM

1.2

0

M OO E R SQM R STO 43

VL

4.8 0

+562.3 L

0

3.1

0

1.5

LE

0

.0

+5

59

LV

SQ

M

L LV

59

L

0 3.1

R49

.0

18

1.50

+5

0

MA

5.0

5

1.7

LE MA M E F SQ 18

1.4

18

1

TO .80 ILE T

0

E

FE 18 MAL SQ E M

2.8

L MA

2.00

5

TO

M SQ

0.5

T ILE

21

.08

ORIENTATION:

5

2.5

5

2.5

N

L +559.0 LV

SCALE 2.0 0

0

2.0

+562.6 LVL

+562.6 LVL

1:200

NAME: G. PAVAN ROLL NO: 19171AA024 SEM: X SEC: A JBR ARCHITECTURE COLLEGE, YENKAPALLY, MOINABAD, TELANGANA. (AFFILIATED TO JNAFAU)

+563.2 LVL

E

OPEN AIR AMPHITHEATER PLAN

THESIS TOPIC: RECREATIONAL SPACES FOR URBAN DWELLERS

SHEET TITLE: OPEN AIR THEATER

STAMP/SIGNATURE

B.ARCH (2019-24 BATCH) X-SEM

SUBJECT: DESIGN THESIS KEY SITE PLAN

4.00

12.40

ROOFING SHEET

4.00

+592 LVL.

+588 LVL.

STEEL TRUSS

KEY BLOCK PLAN

WEST ELEVATION (FRONT) BAMBOO TRUSS

4.00

MULTI PURPOSE LOBBY DANCE AND MUSIC WORKSHOP

+592 LVL.

4.00

ENTRANCE LOBBY ENTRANCE

+588 LVL.

TRUSS ROOF EXPLODED VIEW NOTES/LEGEND:

SECTION AT AA' 13.80

MATERIALS USED: RCC FOR STRUCTURAL FRAME, BRICK FOR WALLS, PVC FALSE CEILING. STEEL AND BAMBOO FOR TRUSS

15.50

7.25

5.70

5.90

4.55 1.90

6.8

8.00

7.25

5.70

5.90

4.55 1.90

COLUMN SIZE: 230X400MM

8.00

4.50

6 L.

.85 LV

.05 LV

L.

.5 LV

+592

DN

SE R CA STAI Y 1 LOBB

0 0.1

UP

L.

0

2.0

ORIENTATION:

SE R CA STAI Y 1 LOBB

7.98

+589

7.98

+590

2.00

0.4

UP

5 5 0.4

BUFFER

7.03

MALE TOILET

3.92 2.10 5.52

A

A' STORE ROOM

E CAS R I STA BY 2 LOB

ASE RC I A ST BY 2 LOB

7.04

2.00

7.04

UP

FEMALE TOILET

N

L.

4.63

BUFFER

0

R7.70

A' 2.00

3.07

2.0

.2 LV

+592

3.00

LVL.

EXHIBITION HALL

4.63

ENTRANCE

36.57

+588

EXHIBITION & SERVICES

2.11

A

ENTRANCE LOBBY 550 SQM

3.00

R6.13

24.54

2.00

+588

LVL.

DN

36.57

1.90

1.80

2.10

LVL.

5.52 20

7.81

6.86

3.92

5 0.4

+588

DN

2.80

1:200

NAME: G. PAVAN ROLL NO: 19171AA024 SEM: X SEC: A JBR ARCHITECTURE COLLEGE, YENKAPALLY, MOINABAD, TELANGANA. (AFFILIATED TO JNAFAU)

4.50

ENTRANCE BLOCK PLAN AT +588LVL

SCALE

FIRST FLOOR PLAN AT +592LVL

THESIS TOPIC: RECREATIONAL SPACES FOR URBAN DWELLERS

SHEET TITLE: ENTRANCE BLOCK

STAMP/SIGNATURE

B.ARCH (2019-24 BATCH) X-SEM

SUBJECT: DESIGN THESIS KEY SITE PLAN ROOFING SHEET ROOFING SHEET

BAMBOO TRUSS

1.58

KEY BLOCK PLAN

4.00

6.16

LOUVERED BRICK WALL STAIRCASE

5.60

WEST ELEVATION (FRONT) NOTES/LEGEND: MATERIALS USED: RCC FOR STRUCTURAL FRAME, BRICK FOR WALLS, PVC FALSE CEILING. STEEL AND BAMBOO FOR TRUSS

4.00

DIGITAL WORKSHOP HALL 2 - 134 SEATS

EDUCATIONAL WORKSHOP HALL 2 - 134 SEATS

2.50

4.00

6.50

LOUVERED BRICK WALL

COLUMN SIZE: 230X400MM

WOODEN TABLES

SECTION AT BB'

LEVELED SEATING 5.60

16.60

4.83

5.52

2.10 3.72

17.92

ORIENTATION:

5.80

B

3.71

STEEL SUPPORTS FOR TRUSS B

EXPLODED VIEW OF BLOCK

LOB

BY

BY

LOB

7.00

N

P SHO ORK ATS AL W E DIGIT 2 - 134 S L HAL

EDUCATIONAL WORKSHOP HALL 2 - 134 SEATS

1:200

UP

6.50

1.00

SCALE

8MM STEEL BAR

100X200MM BRICK

8.03

L.

.8 LV

+583

EXHIBITION LOBBY

2.0 0

DN

DIGITAL AND EDUCATIONAL WORKSHOP HALLS PLAN AT +584LVL

THESIS TOPIC: RECREATIONAL SPACES FOR URBAN DWELLERS

5 CM. GAP

NAME: G. PAVAN ROLL NO: 19171AA024 SEM: X SEC: A JBR ARCHITECTURE COLLEGE, YENKAPALLY, MOINABAD, TELANGANA. (AFFILIATED TO JNAFAU)

BRICK LOUVERS (1:10 SCALE)

SHEET TITLE: WORKSHOP BLOCK

STAMP/SIGNATURE

B.ARCH (2019-24 BATCH) X-SEM

SUBJECT: DESIGN THESIS KEY SITE PLAN ROOFING SHEET TOILETS

4.10

1.50

BAMBOO TRUSS

EXHIBITION & SERVICES

0.50

KEY BLOCK PLAN

2.50

2.50 1.00

4.10

EXHIBITION & SERVICES

SECTION AT CC'

3.99

6.68

FALSE CEILING

2.76

2.79

CURTAIN WALL LOUVERED BRICK WALL

2.80

EXPLODED ISOMETRIC VIEW

NOTES/LEGEND: MATERIALS USED: RCC FOR STRUCTURAL FRAME, BRICK FOR WALLS, PVC FALSE CEILING. STEEL AND BAMBOO FOR TRUSS

2.60

SOUTH ELEVATION

4.00 4.10

4.00

1

.0 4 1

4.10

1 3

2.0

LL

EAST ELEVATION

2.0 0

A EH OS .

P R PU SQM TI 5 UL 23

UP

3.9

0 2.0

TA

0.61

BL

6.45

7.93

ES

TIN

G

0

8.7

TA B

LE S

AR

TW

3 10.5 5

WORKSHOP AND MULTI PURPOSE HALL + 576LVL

14.83

N DN

C' 8 FOOT BILLIARDS TABLE 2

C'

SCALE

1:200

L.

.2 LV

+571

TABLE TENNIS BOARDS

8 FOOT BILLIARDS TABLE 1

NAME: G. PAVAN ROLL NO: 19171AA024 SEM: X SEC: A

1

IN

2.0

OR K 235 SHO SQ P H M. ALL

PA

0

2.0

4.66

G

12.28

MALE TOILET

2.0 0

.952.00 10

IN

FEMALE TOILET

5.52

STORAGE

C

2.10

1.50

AW

5.71

LOBBY

L. .4 LV

+575

DR

7.94

UP

C'

EXHIBITION LOBBY

DN

3.92

2.10

EXHIBITION LOBBY

6.45

5.52

C

ORIENTATION:

10 2 .95 .00

M

1.50

80.7

COLUMN SIZE: 230X400MM

1.65 4.10

0.55

14

.01

THESIS TOPIC: RECREATIONAL SPACES FOR URBAN DWELLERS

INDOOR GAMES BLOCK + 572 LVL

SHEET TITLE: INDOOR GAMES BLOCK

JBR ARCHITECTURE COLLEGE, YENKAPALLY, MOINABAD, TELANGANA. (AFFILIATED TO JNAFAU)

STAMP/SIGNATURE

B.ARCH (2019-24 BATCH) X-SEM

SUBJECT: DESIGN THESIS KEY SITE PLAN ROOFING SHEET

TOILETS

BAMBOO TRUSS CURTAIN WALL

CURTAIN WALL

FALSE CEILING

KEY BLOCK PLAN

LOUVERED BRICK WALL

4.00

EXPLODED ISOMETRIC VIEW

1.00

1.00

NOTES/LEGEND:

EAST ELEVATION

MATERIALS USED: RCC FOR STRUCTURAL FRAME, BRICK FOR WALLS, PVC FALSE CEILING. STEEL AND BAMBOO FOR TRUSS

LOBBY

WORK SPACE

INDOOR MEDITATION HALL - 230 SQM

LIFT

FEMALE TOILET

MALE TOILET

4.00

2.35

COLUMN SIZE: 230X400MM

ORIENTATION:

INDOOR MEDITATION HALL - 230 SQM

WORK SPACE

SECTION AT DD'

N

11.5

11.5

9.70

ALL GA H R YO LL O O IND QM HA S 230

2.50

D'

LOBBY

UP

2.00

.6 LV +579

L.

WOR

3.40

3.72

2.10

1:200

FEMALE TOILET MALE TOILET

JBR ARCHITECTURE COLLEGE, YENKAPALLY, MOINABAD, TELANGANA. (AFFILIATED TO JNAFAU)

16.82 2.39

SCALE

NAME: G. PAVAN ROLL NO: 19171AA024 SEM: X SEC: A

ACE KSP WOR SQM 80

KSP 80 S ACE QM

DN

INDOOR M EDITATIO N HALL 230 SQM HALL

5.10

12.25

9.70

12.25

5.10

D

5.52

4.84

WELLNESS BLOCK PLAN AT 580 LVL YOGA AND MEDITATION

THESIS TOPIC: RECREATIONAL SPACES FOR URBAN DWELLERS

SHEET TITLE: WELLNESS BLOCK

STAMP/SIGNATURE

B.ARCH (2019-24 BATCH) X-SEM

SUBJECT: DESIGN THESIS

6M

13.2M

28M

88.2 M

12.4M

4M

45.60

PATH WAY

SETBACK

CYCLE BAY 1

INDOOR RECREATIONAL BLOCK - BUILDING PREMISES

BUFFER ZONE

PATH WAY

OPEN AIR AMPHITHEATER - SEATING AREA

1.80

SERVICES 13.04

SERVICES

SERVICES

4.2

20.2M

PATH WAY

PROMENADE

LAKE

+592.0LVL

+588.0LVL

+584.0LVL

+580.0LVL 4.00

2.35

3.78

35M BUFFER ZONE

4.00

SERVICES

ENTRANCE LOBBY 3.78

4M PATH WAY

4.00

SERVICES

14.2 OAT - STAGE AREA

4.00

FIRST FLOOR

12.00

4.00

32.90 KOHINOOR ROAD

+576.0LVL

RETAINING WALL

2.00

SERVICES

INDOOR GAMES BLOCK + 572 LVL

+572.0LVL

+568.0LVL

+564.0LVL FULL TANK LVL

+560.0 LVL

A

DURGAM CHERUVU LAKE

SITE SECTION AT AA' (1:500 SCALE)

8.00

SERVICES

4.70

8.00

7.56

4.00

SERVICES

ENTRANCE LOBBY 7.56

+592 FFL FIRST FLOOR

2.00

FIRST FLOOR

+592.0 LVL UPPER LEVEL

NOTES/LEGEND:

7.70

8.00

+596 CEILING LVL

7.20

4.00

17.84

0.00

+588.0 LVL FFL CYCLE BAY

EARTH

17.85

+588 FFL ENTRY LEVEL

WATER BODY

3.60

8.00

SERVICES

+584 FFL WORKSHOP HALLS

SECTION AT CYCLE BAY (1:250)

26.08

8.00

SERVICES

+580 FFL WELLNESS BLOCKS

SERVICES

+576 FFL MULTI PURPOSE

8.00

RETAINING WALL

4.00

PAVEMENT SECTION

INDOOR GAMES BLOCK + 572 LVL

SERVICES

3.00 CYCLE TRACK

1.2 3.2

4.00 WATER POOL 0.65

3.3

+572 FFL INDOOR GAMES

2.00 WALK

1.9

ASPHALT ORANGE FOR CYCLE TRACK, PERMEABLE PAVEMENTS FOR WALKING TRACKS +588.8 LVL CYCLE TRACK

ORIENTATION:

+584.0 LVL WALKING TRACK

SECTION AT INDOOR RECREATIONAL BLOCK (SCALE 1:250)

SECTION AT BB' (1:200 SCALE)

N 4.00

2.50

4.50

2.30

7.00

4.00

3.25

SCALE

1:500

+563.2 LVL CONTOUR SLOPE

RETAINING WALL

150MM PERMEABLE PAVEMENT 150MM SOIL FILL

+564.8 LVL 500MM THK. GRAVEL FILL RETAINING WALL

RETAINING WALL

+566.4 LVL

2

0

5

500MM

+568.0 LVL WALKING TRACK

200MM

DETAIL AT A (1:50)

NAME: G. PAVAN ROLL NO: 19171AA024 SEM: X SEC: A JBR ARCHITECTURE COLLEGE, YENKAPALLY, MOINABAD, TELANGANA. (AFFILIATED TO JNAFAU)

SECTION AT CC' (SCALE 1:100)

THESIS TOPIC: RECREATIONAL SPACES FOR URBAN DWELLERS

SHEET TITLE: SITE SECTIONS

STAMP/SIGNATURE
