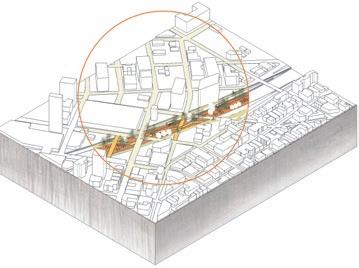

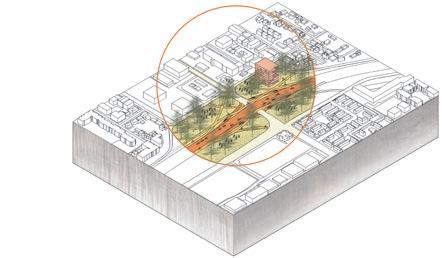

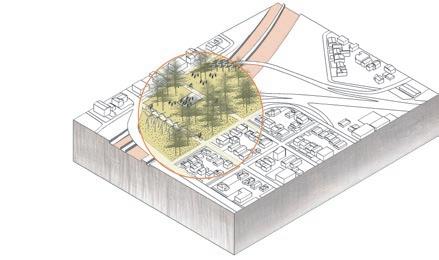

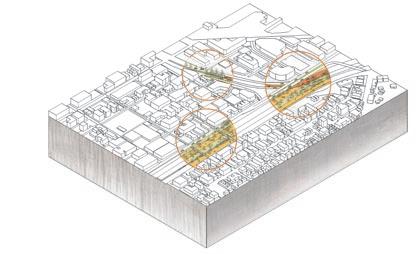

07 Colonizing the City Seams Restructuring the Future City

OTHER

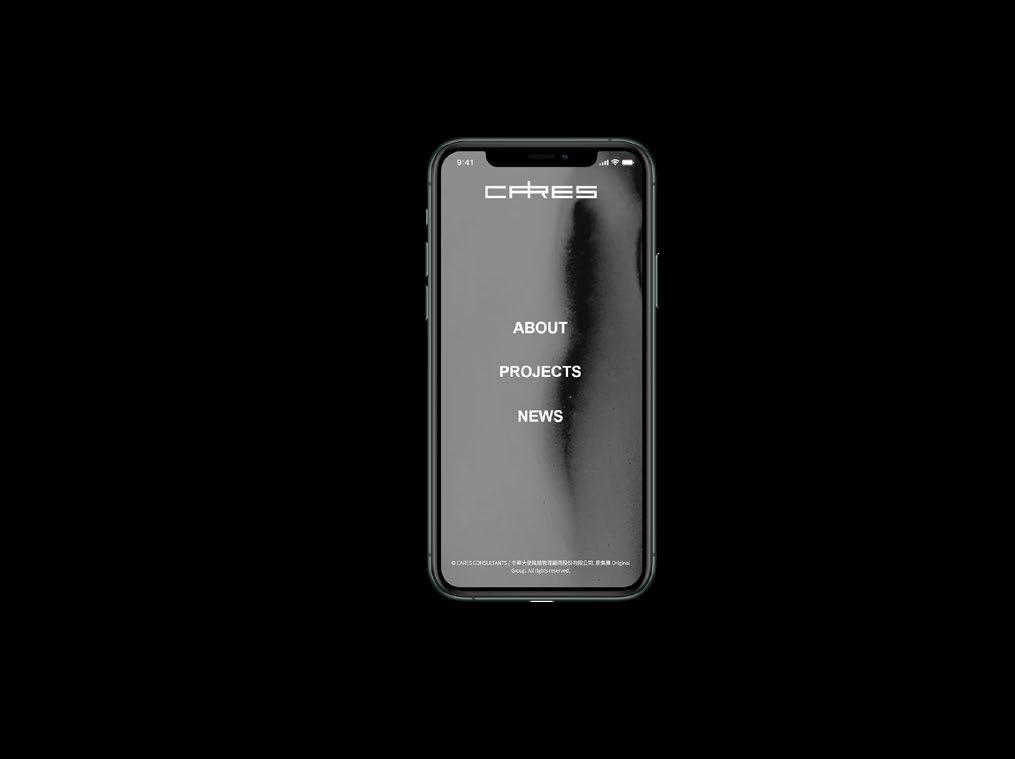

08 Visual Identity for CARES

Comprehensive Brand Identity Projects Compilation

01 ABOUT ME

TAI - YI HUANG

(Debbie)

Architecture + Art Designer Phone: Email:

Linkedin:

(206) 613 - 9162 tai.yi.debbie.huang@gmail.com linkedin.com/in/tai-yi-huang-9b17659b/

Dedicated and passionate architectural and graphic designer with 4+ years of experience, showcasing expertise in Seattle and Taipei.

Specialties include communication abilities, project management, concept development, permitting for residential and commercial developments.

Adept at coordinating with cross-functional teams, including engineers, architects, government officials, and corporate stakeholders.

WORK EXPERIENCE Taipei, Taiwan 2019-2021

Architectural Designer CARES Consultants Corp. | H.S. Architecture Design Development | 3D Modeling | Construction Drawing | Building Permitting | All Forms of Brand/Graphic Design

Taipei, Taiwan 2017-2018

Design Intern Daniel Stettler Design LLC Design Development | 3D Modeling | Construction Drawing | Model Making

SKILLS Digital Modeling Revit | SketchUp | Rhinoceros Graphic Illustration Photoshop | Illustrator | InDesign | V-Ray | Flamingo nXt Language Mandarin (Native) | English (Fluent) | Taiwanese (Limited) Other Photography, Lightroom | Web Design | Charcoal | Oil | Watercolor

EDUCATION Seattle, WA

Bachelor of Arts Degree in Architectural Design

2014-2017

University of Washington

AWARD Taipei, Taiwan 2022

Disappeared Manufacturing Sales Centre iF Design Award Winner in Architecture, Public Architecture Category

2021-2022

A’ Design Award Winner in Architecture, Building and Structure Design Category

2021

INNODESIGN Award Winner in Interior Design, Space Design and Architecture Category, Bronze

2

02

The Vanishing Maker Hub Pre-sale House Reception Center CARES Consultants Corp. | H.S. Architecture | 2017 - April 2018 Type: Pre-sale House Reception Center Location: New Taipei City, Taiwan

Collaboration: Design 90%, Visualization 80%

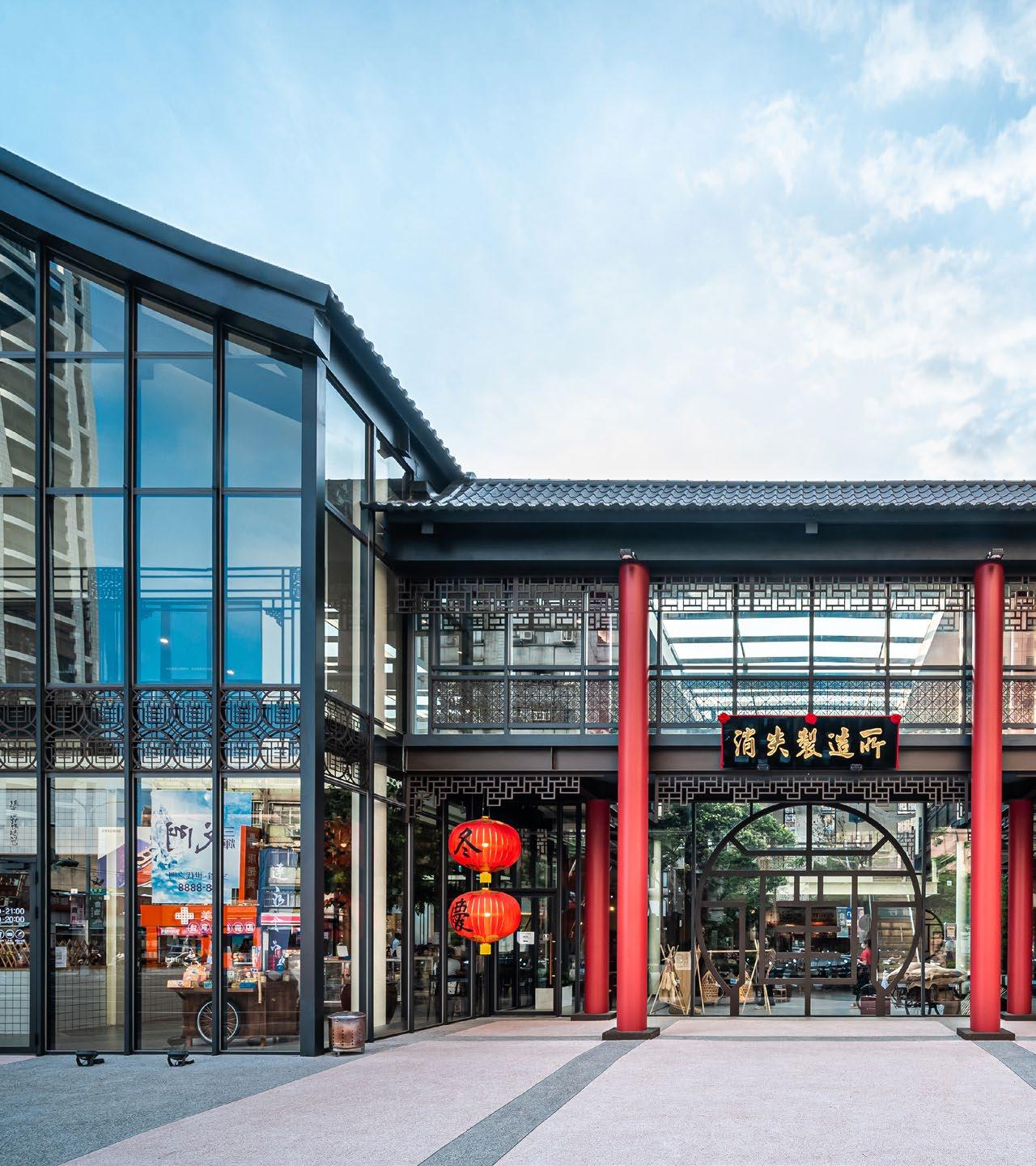

Drawing inspiration from Taiwan’s traditional architecture, the project reimagines the island’s rolling hills and intertwining cornices of yesteryear.

By applying modern construction techniques to reconstruct the traditional courtyard layout, the design revives the essence of Taiwan’s folk houses.

The infusion of steel, glass, and other contemporary elements reinterprets the traditional architectural vocabulary in contrast to the nearby Great Buddha Temple. This juxtaposition of old and new establishes an engaging dialogue, enriching the ambiance of the new space.

4

Responsibilities : • Lead designer working with the architect on design concept development, construction documents, and permitting for the entire project.

• Coordinated discussions about zoning laws with architects, clients, and government officials, iterating on building design revisions based on the feedback received.

• Main contact and coordinator for the engineers, various corporate team managers from the client, and government officials.

• Prepared and submitted documents for show house and opening permits in New Taipei City.

• Organized and developed all design concepts and presentation documents, actively participating in weekly client meetings, structural meetings, and construction meetings, occasionally taking over the meetings when the architect is unavailable.

• Coordinated with the coworker in charge of interior design and interns to develop visualizations.

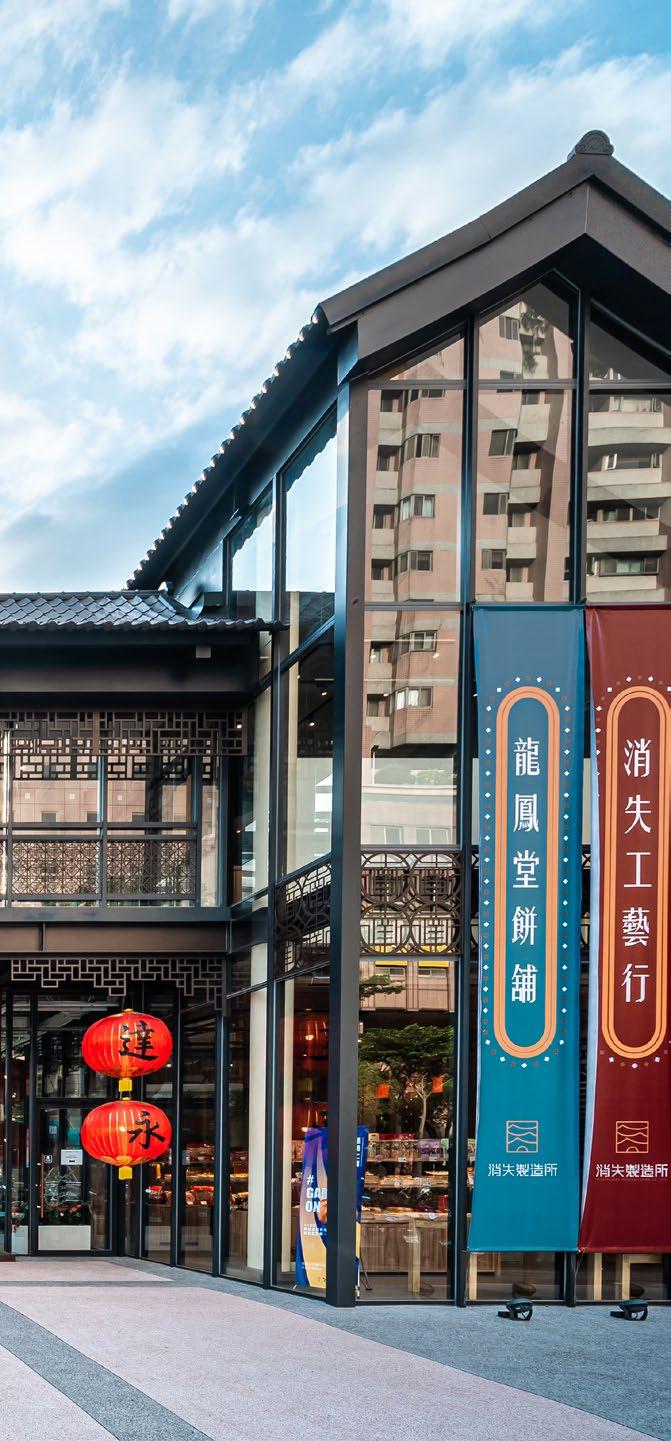

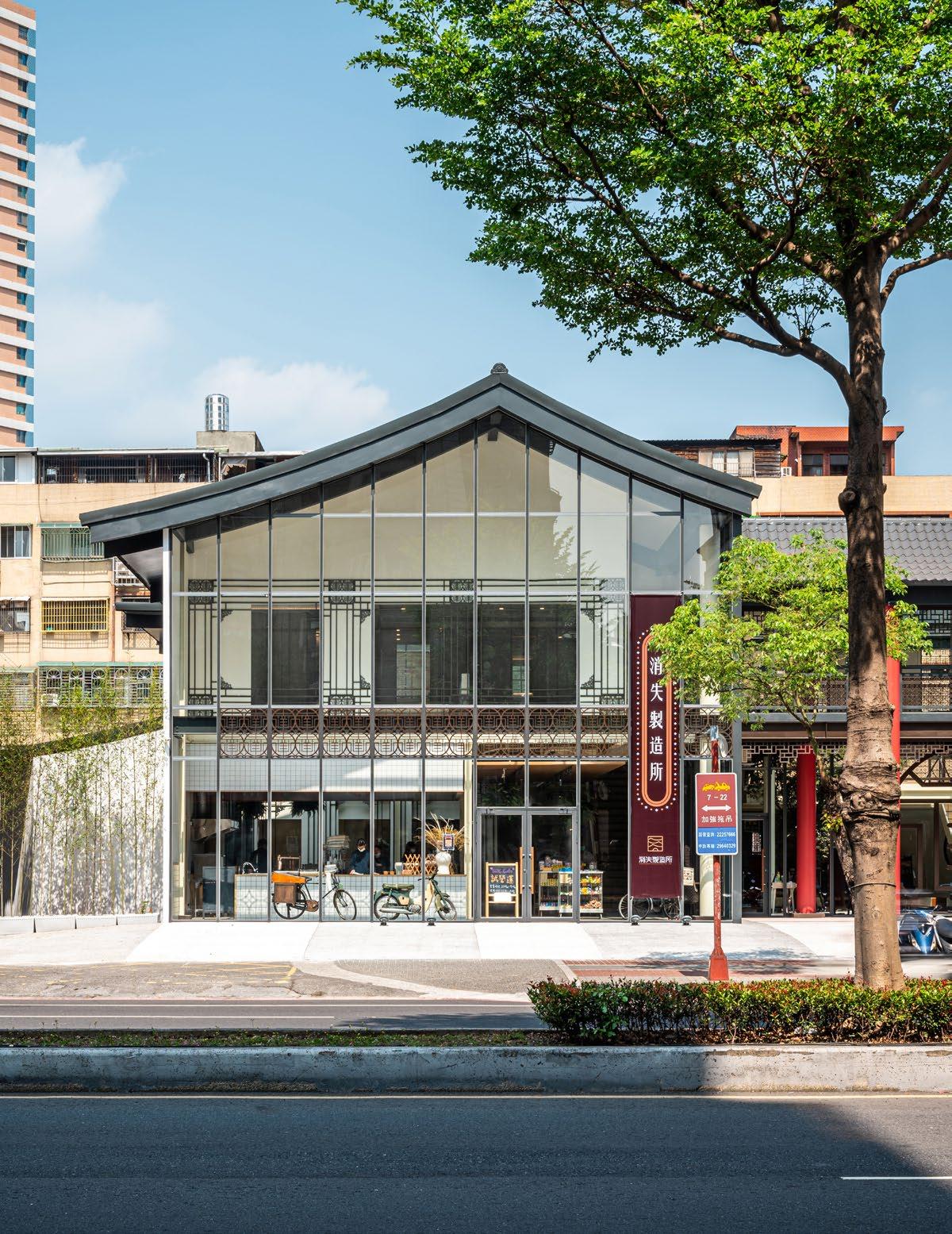

Pre-sale House Reception Center

New Taipei City, Taiwan

6

Pre-sale House Reception Center

New Taipei City, Taiwan

Inspiration The overall concept is based on Taiwan’s traditional houses, which reminds one of the forgotten scenes of the old days- the island’s rolling hills and cornices intertwined with one another. In the courtyard layout, the traditional form is reconstructed via modern methods, and the traditional folk house vocabulary is reinterpreted through steel structure, glass and other elements, which is in sharp contrast with the Great Buddha Temple next door. The dialogue between the old and the new unfolds the atmosphere of the new space.

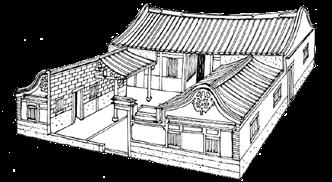

Triditional Court yard : 三合院 The sanheyuan is the basic layout of traditional Han Chinese residences, commonly found in mainland China and Taiwan, with some presence in Southeast Asia as well. Typically, a siheyuan consists of a main house facing north (the main building) and wing rooms on the east and west sides (the protective dragons). Its name, “Sanheyuan,” stems from the arrangement of buildings in three directions.

Sanheyuan Courtyard Charm The sanheyuan’s composition incorporates a central courtyard design, often adorned with ornamental plantings for gatherings and relaxation. Common choices include banyan trees, Chinese parasol trees, and camphor trees, providing both shade and aesthetic appeal.

8

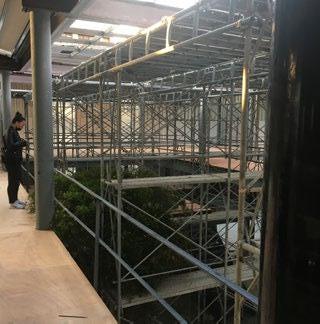

Background The project started in July 2020. It took 8 months of design and development until the construction began in Banqiao District, New Taipei City, Taiwan in February 2021, and it was officially opened in April 2021.

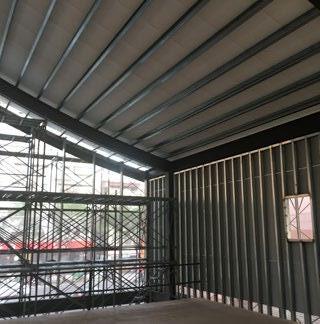

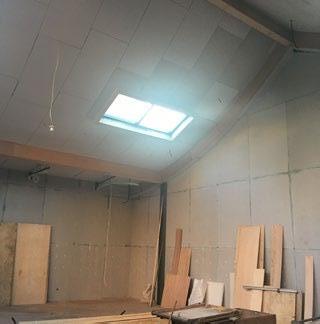

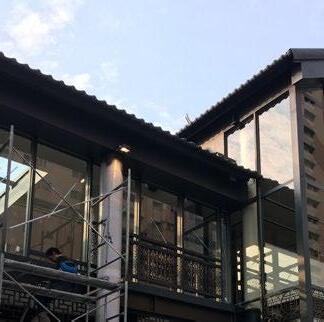

Specifications The project uses steel structure as the main construction method, and it is also applied onto the roof shape design. The site area is 1779.5m² and the building area is 1470.96m².

Pre-sale House Reception Center

New Taipei City, Taiwan

10

Pre-sale House Reception Center

New Taipei City, Taiwan

12

儲 藏 櫃 開 水 機 製 冰 機 儲 冰 槽

70* 70* 97 cm

臥室 室 內 : 22.73坪 銷坪 : 37.17坪

A1

6

(廁所 ) 60x30

1

主臥室

水 槽 及 火 爐

餐廳

臥室 GH

H

陽台

2

3

1 2 4

3 4 5

5

6

Indigo dyeing workshop Indigo outdoor landscaping Mezzanine platform Exhibition Live experience area Immersion Pre-sale house showroom unit

Second Floor Plan 1 : 300

製冰 機儲 冰 槽

不鏽鋼洗手槽

70*70*97 cm

開水 機

開水 機

1

烤箱上下疊放

咖啡 工作 區

咖啡渣槽 磨豆機

咖啡機

收銀 區

5

西式料理台 中式料理台

6

出餐區

衣帽間

2

衣帽間

1 臥室

客廳

室 內 : 17.21坪 銷坪 : 27.76坪

A1

餐廳

4

主臥室

3

7 GH

H

陽台

First Floor Plan 1 : 300

Pre-sale House Reception Center

New Taipei City, Taiwan

2 3 4 5 6 7

Long Fong Tarng pastry shop Pastry Classroom Sales office Business negotiation area ERC Cafe Staff lounge area Pre-sale house showroom unit

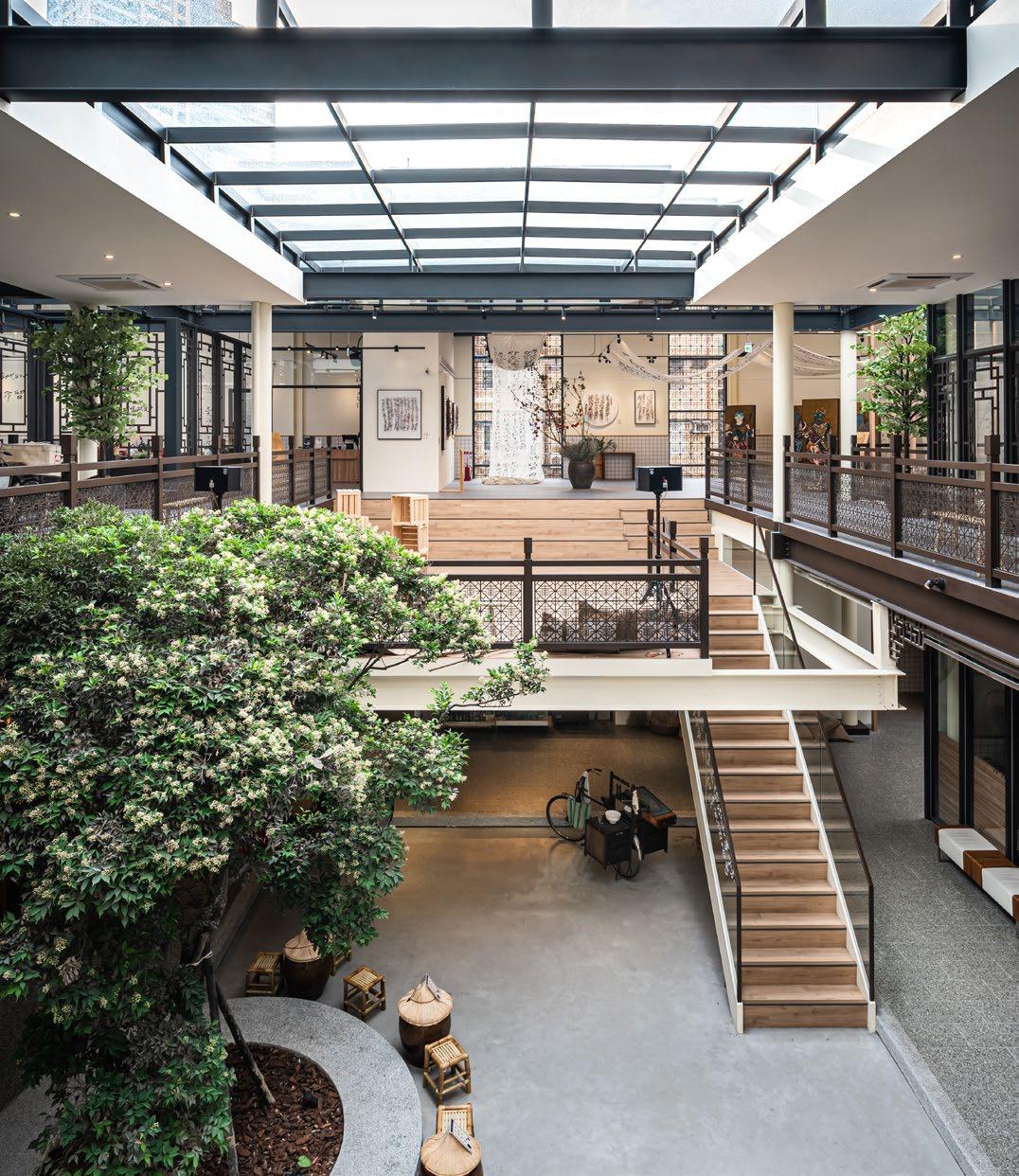

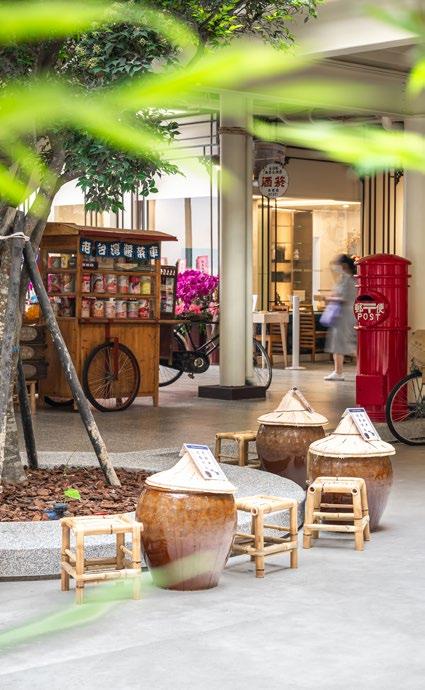

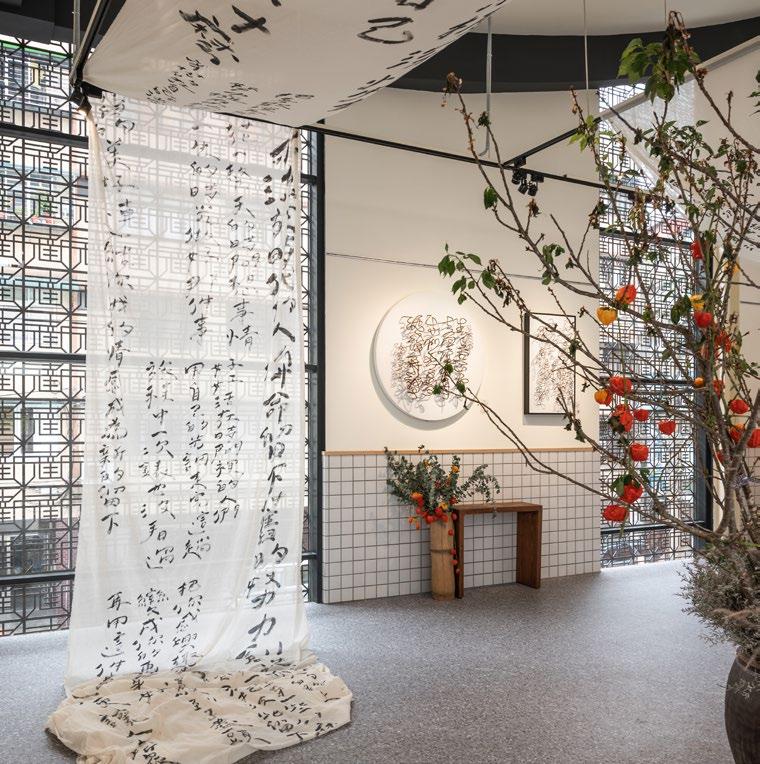

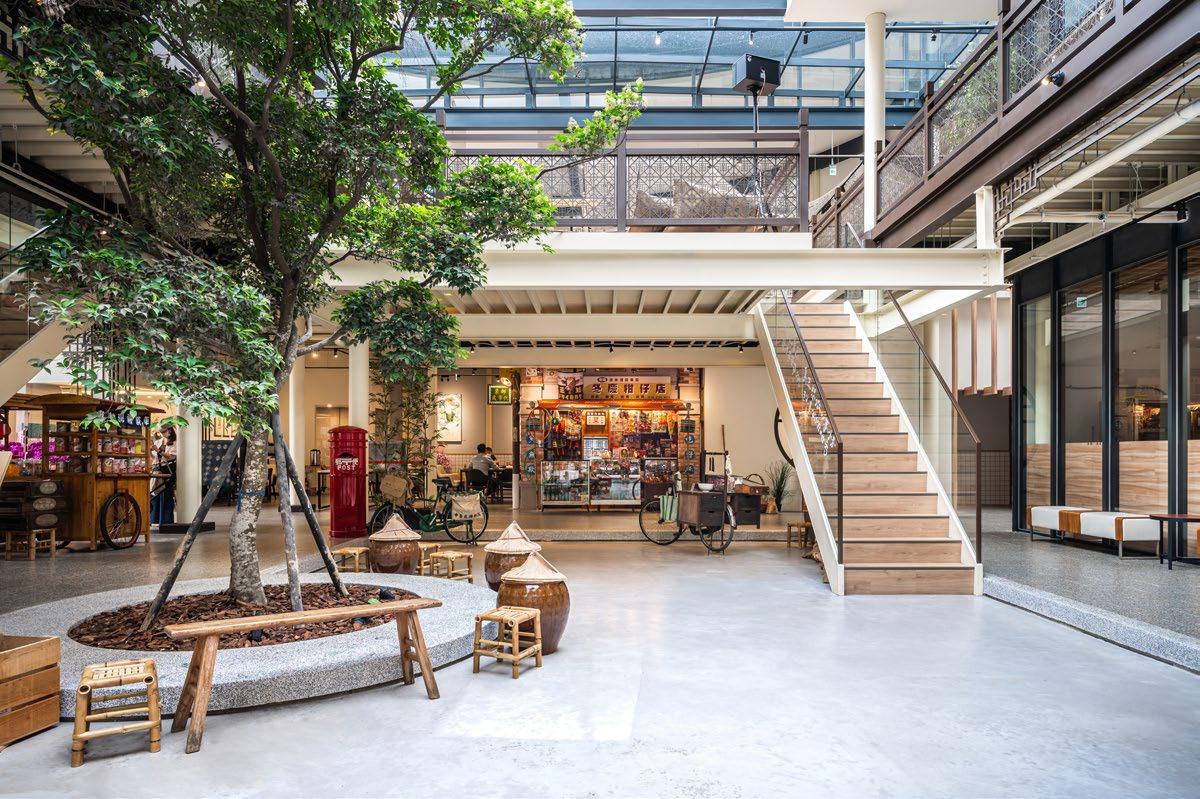

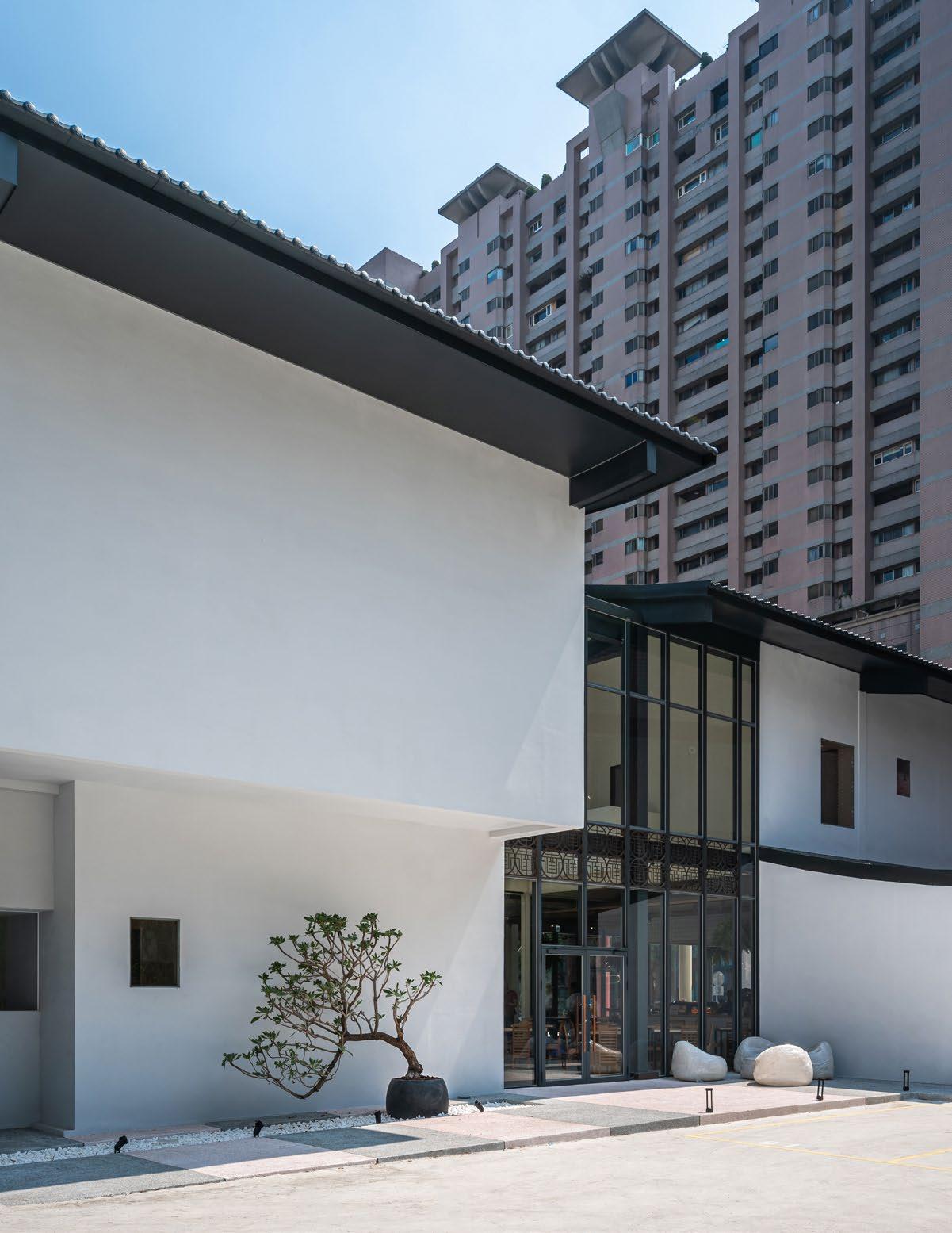

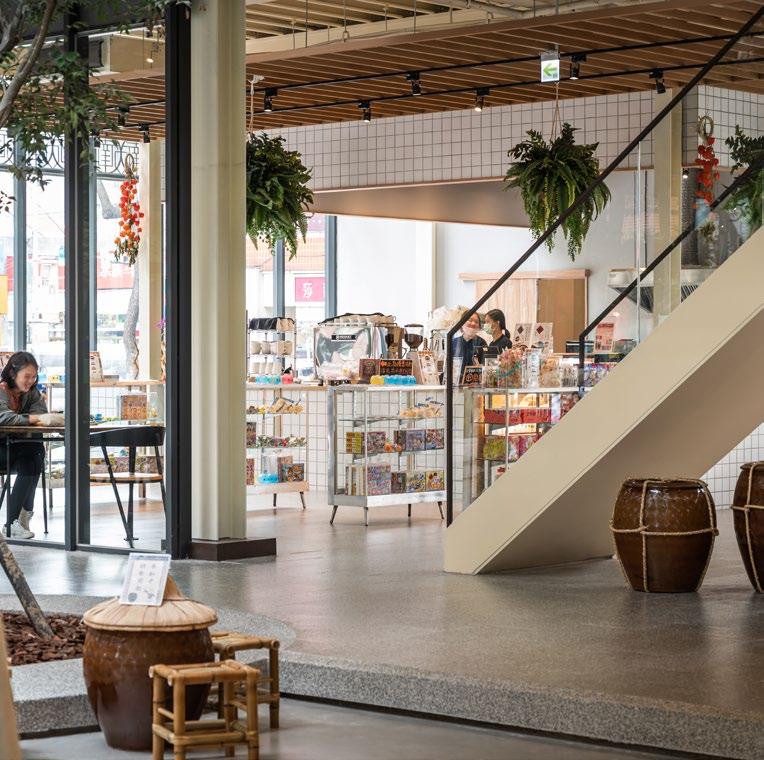

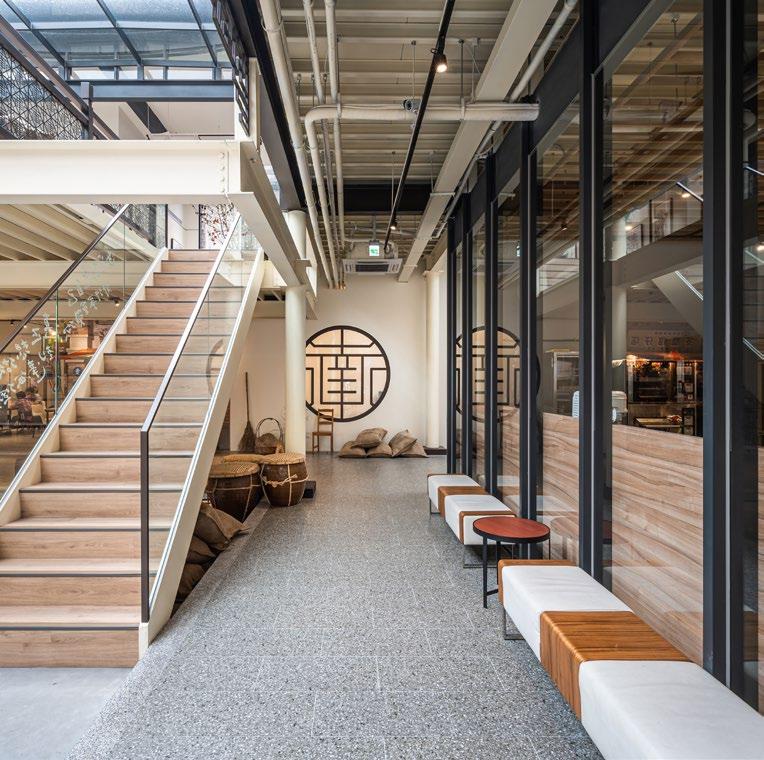

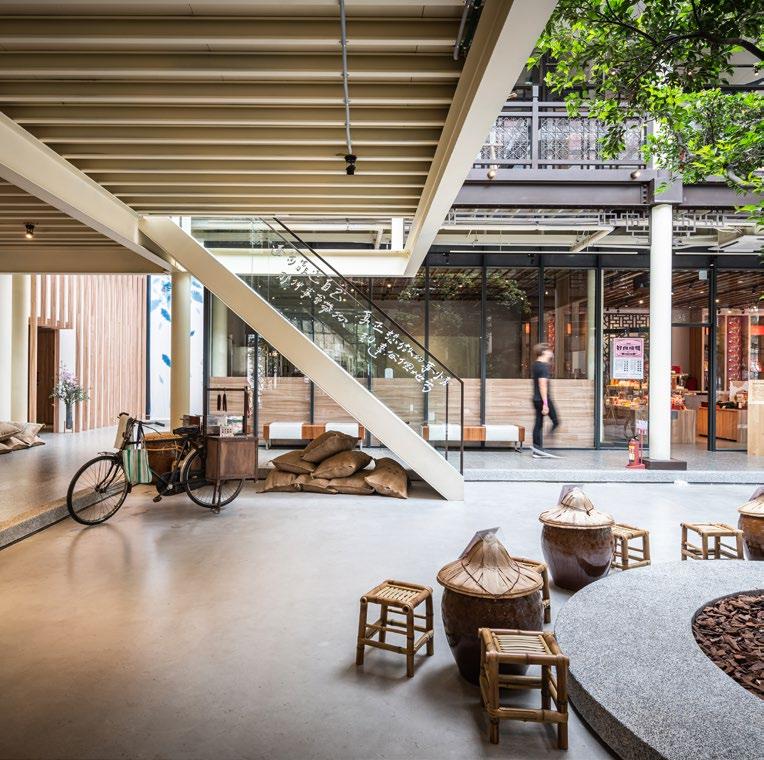

Interior Upon entering through the front entrance, reminiscent of an oriental city gate, visitors encounter a split path: to the right, stairs ascend to the second-floor exhibition space of the pre-sale house, while the left path leads to the ground-floor exhibition space, following a counterclockwise direction.

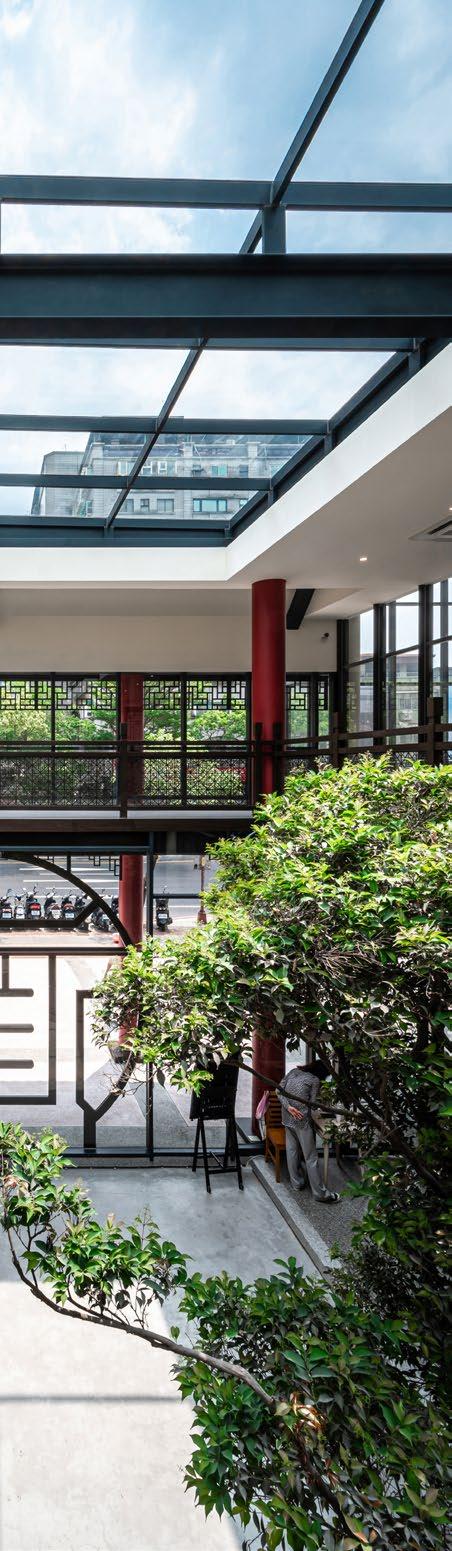

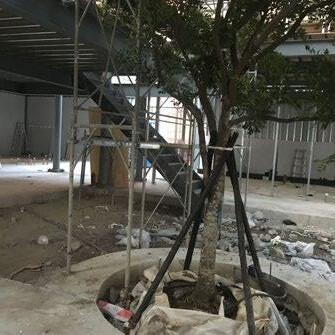

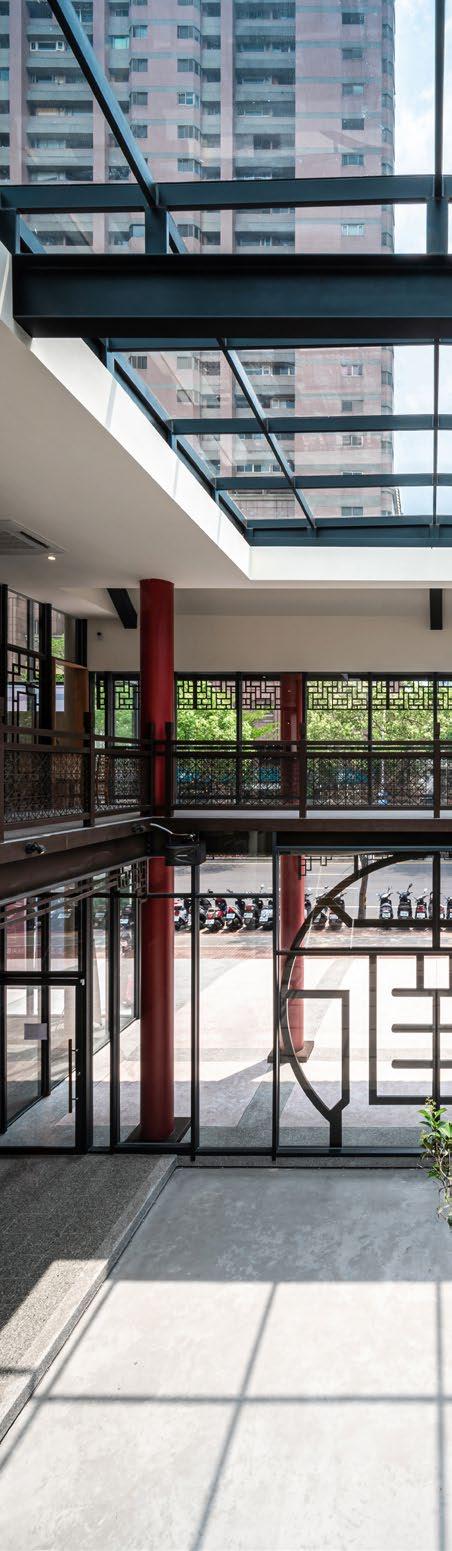

In the semi-open courtyard, a small tree stands, casting its greenery into the building as sunlight filters through the ceiling curtain glass, bluring the boundary between the street and the structure, seamlessly merging nature with city life.

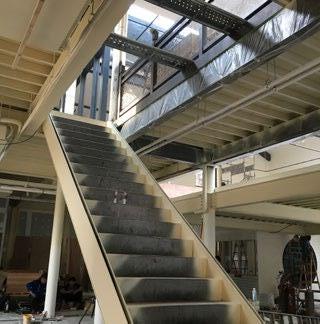

Up the stairs, the display spaces on the two floors are separated by traditional Chinese windows, and various exhibition spaces for life celebrations surrounding a semi-open space (indicating threshing floor in traditional Taiwanese housing. In this way, the commercial advertising of the real estate is integrated into the local cultural experience activities, coffee shop, pastry shop and other complex spaces.

The sense of distance also attempts to evoke the sense of sight of rural families enjoying the coolness under the trees. Whether it is a mezzanine platform or a cool space under the shade of a tree, it forms a way to interrupt the rapid urban pace and provide visitors with different types of resting areas.

14

1 2 3

1 2

4 5

3 4 5

Indigo dyeing workshop

6

Indigo dyeing workshop

7

Long Fong Tarng pastry shop

12

Long Fong Tarng pastry shop

8

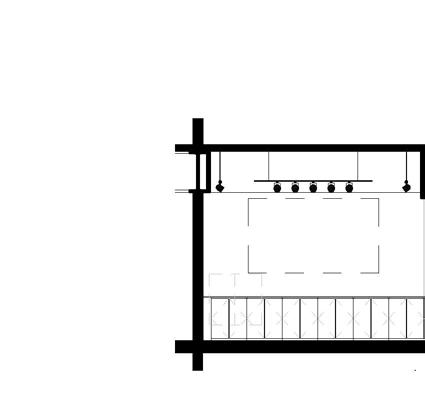

Wall Detail 2 1 : 65

Pre-sale House Reception Center

New Taipei City, Taiwan

9 10 11

1 2 3 4 5 6 7

Color corrugated board H beam 12.5*5*2 C beam Calcium silicate board Wood grain laminate sheet MP-1 Stone paint Clad sheet

8 RC pad foundation 9 faux terrazzo plastic floor tiles 10 18mm plywood 11 15*6.5*2 C beam 12 Wood panels 13 Drain pipe

1

1

2

2

3

3

4

4

5

5

13

Indigo dyeing workshop

6

Wall Detail 3

Wall Detail 4

1 : 65

1 : 65

16

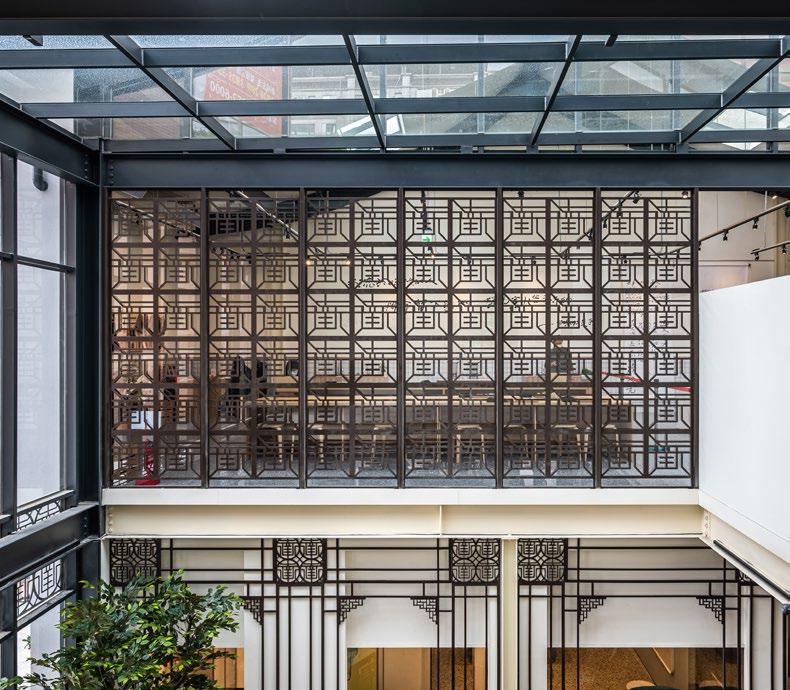

Window grating design featuring the company logo

Window gratings Window gratings were once a ubiquitous sight in Taiwan. Starting around the 1950s, homeowners began installing stylized metal barriers in front of their windows to keep out thieves. But gratings soon became more than a theftdeterrent. They turned into elaborate, labor-intensive works of art that reflected the tastes and interests of those who commissioned them.

Pre-sale House Reception Center

New Taipei City, Taiwan

Terrazzo Originating in Venice, Italy, was introduced to Taiwan during Japanese colonial rule. Early homeowners, building their own houses, engraved unique patterns into terrazzo floors, symbolizing blessings and prosperity. Temples often featured depictions of mythical stories and auspicious symbols. Terrazzo thus showcases exquisite craftsmanship from that era.

18

Pre-sale House Reception Center

New Taipei City, Taiwan

20

03

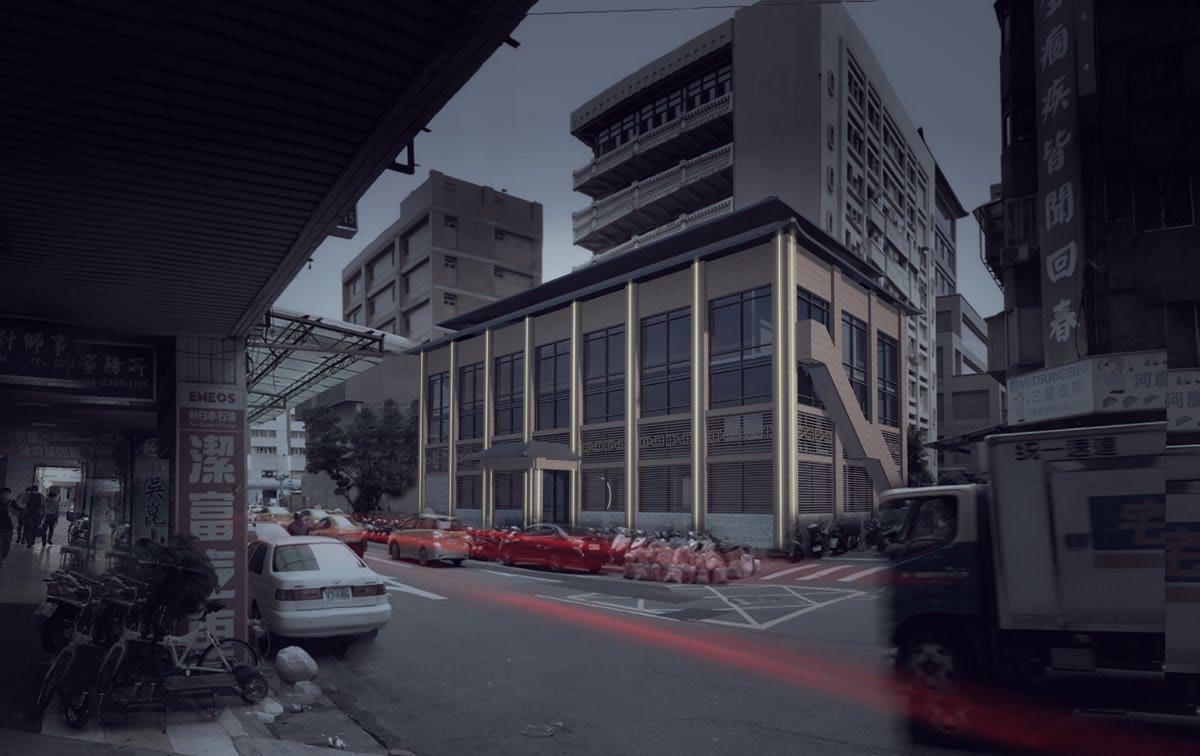

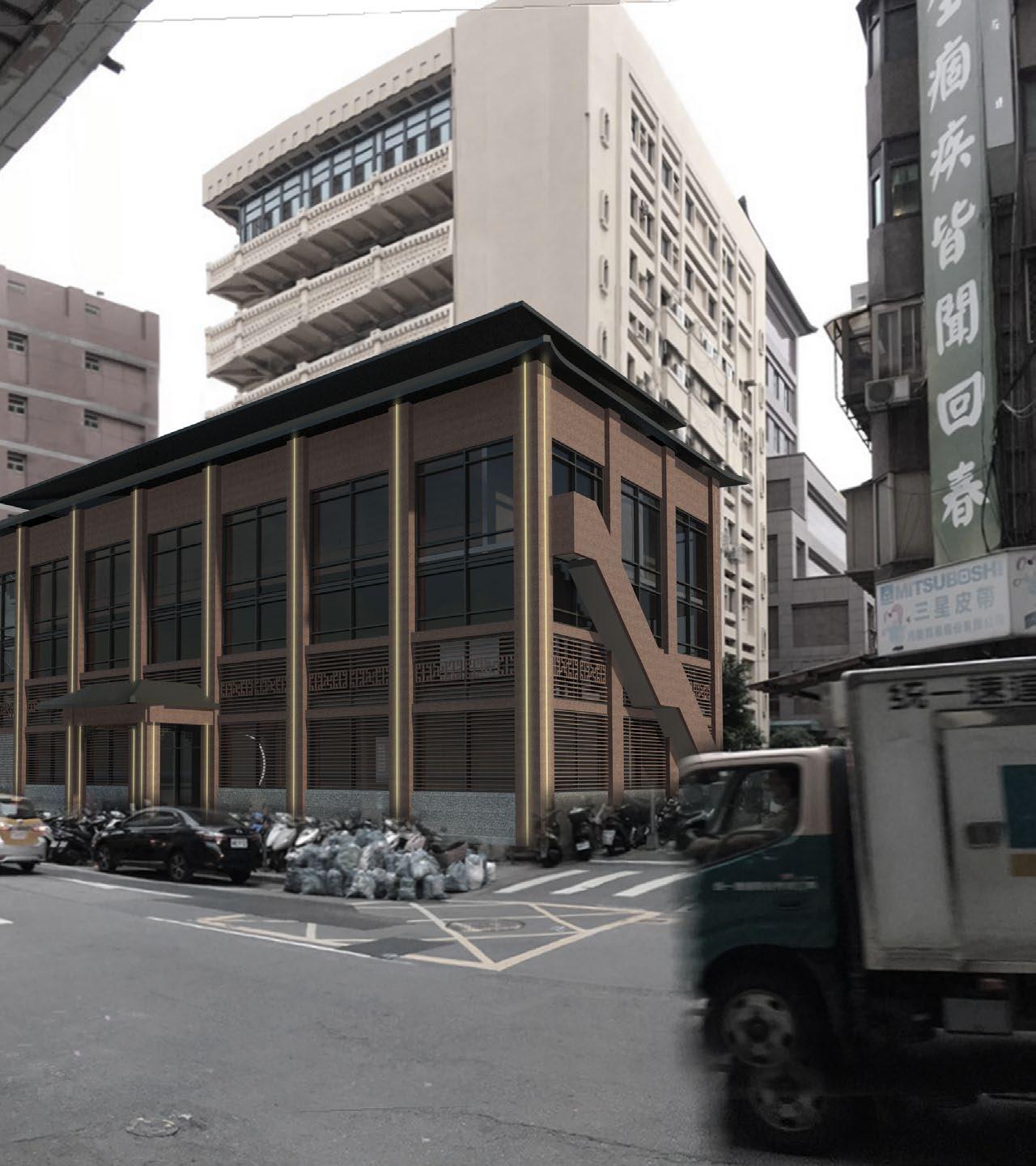

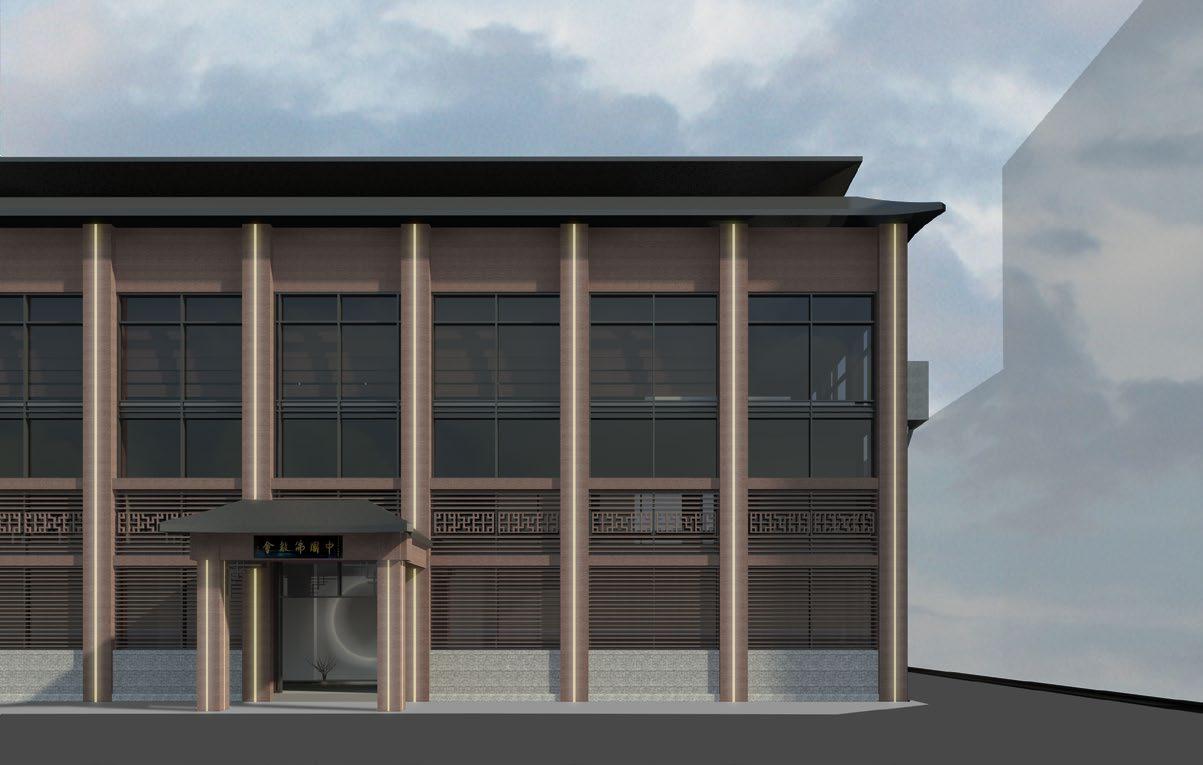

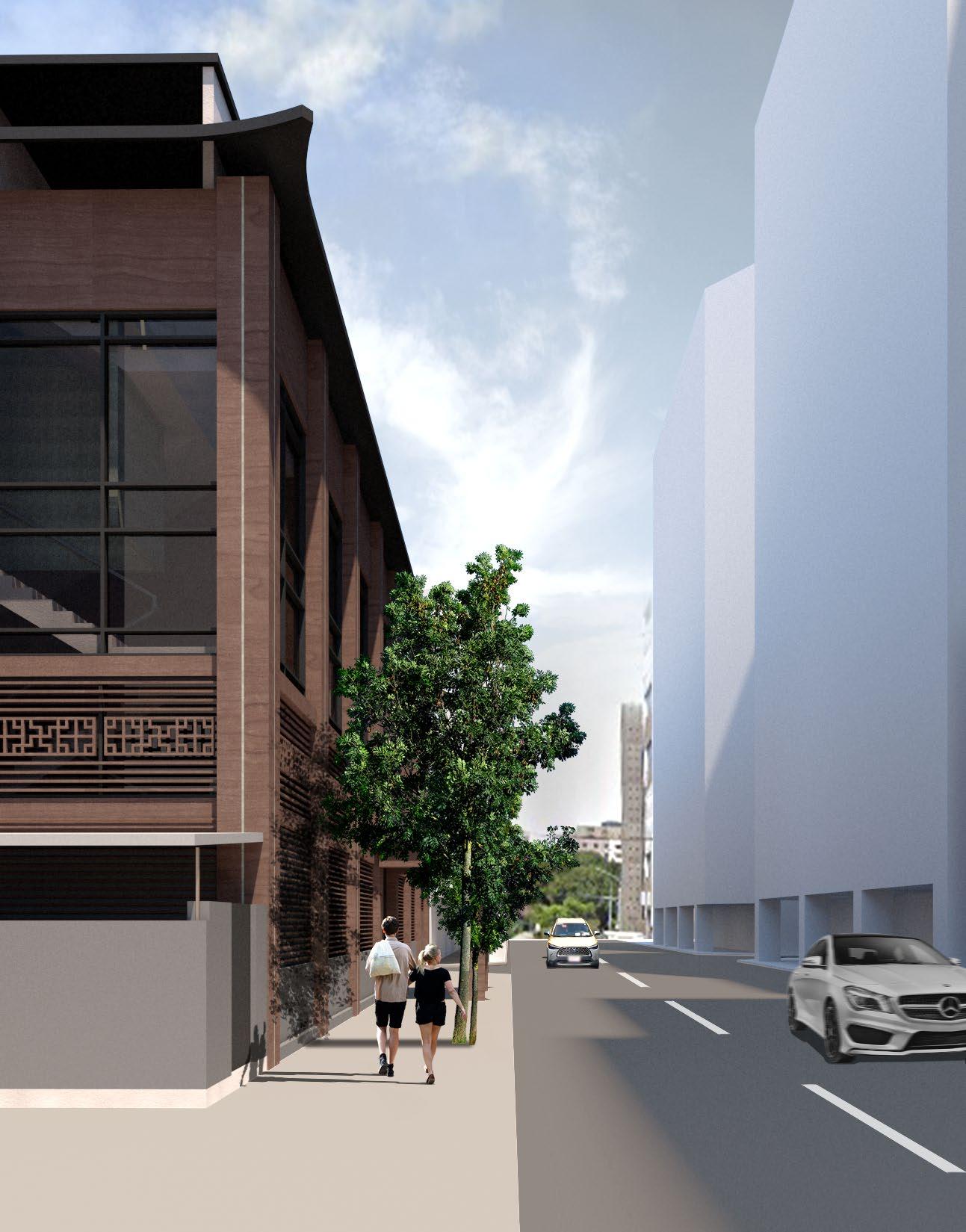

Buddhist Association of the Republic of China Headquarters Buddhist Temple Office Renovation CARES Consultants Corp. | H.S. Architecture | 2020 - 2021 Type: Temple Office Renovation Location: Taipei City, Taiwan

Collaboration: Design 90%, Visualization 100%

Founded on 30 May 1953 in Beijing,and was disbanded in the late 1960s during the Cultural Revolution. The Chinese Buddhist Association was reinstated in Taipei after the relocation of the Republic of China government to Taiwan in 1949.

The headquarters temple of the Chinese Buddhist Association Office holds a profound and enduring history. However, the decades-old building is now in need of restoration and renovation.

22

Temple Office Renovation

Taipei City, Taiwan

Responsibilities : • Lead designer working with the architect on design concept development and permitting for through the early phases of the project.

• Coordinated discussions about zoning laws with architects, clients, and government officials, iterating on building design revisions based on the feedback received.

• Main contact and coordinator for structural engineers, client representatives, and Taipei City Department of Urban Development officials.

• Prepared and submitted documents for reconstruction of urban unsafe and old buildings permit in Taipei City.

• Organized and developed all design concepts and presentation documents, actively participating in weekly client meetings and structural meetings.

• Took measurements and prepared 3D Revit models and renderings for presentations.

• Coordinated with the coworker in charge of interior design and interns to develop visualizations.

24

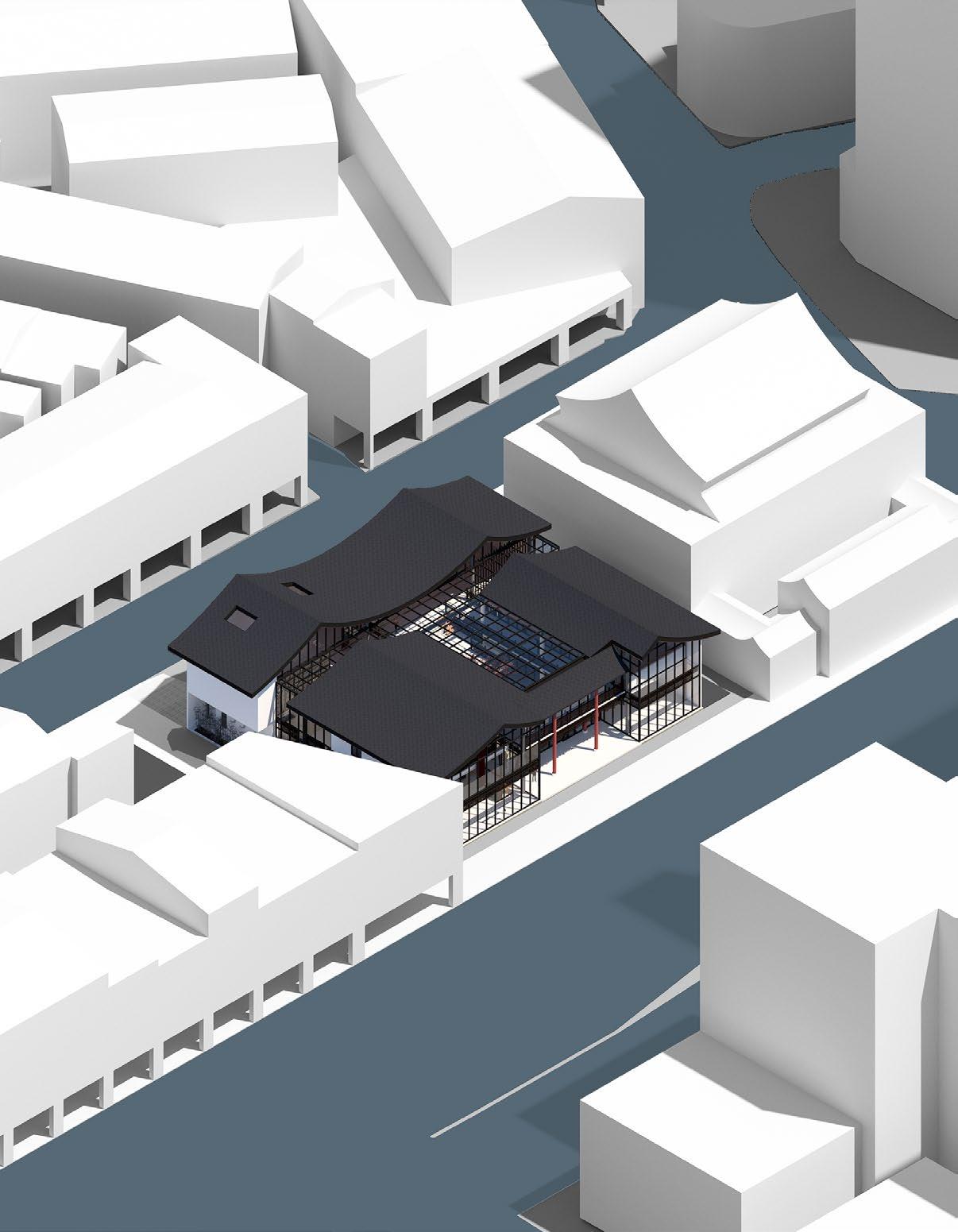

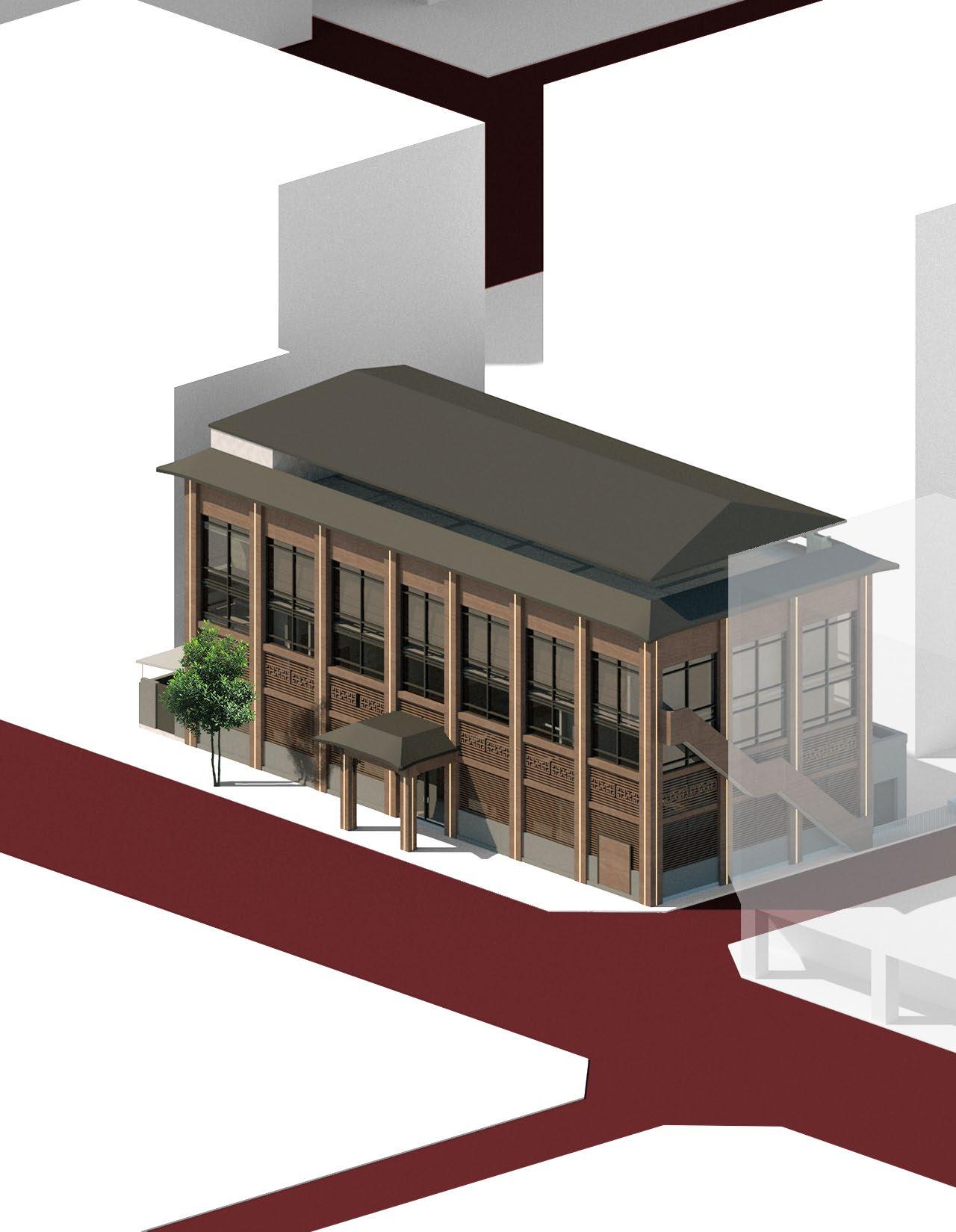

Design Elements With deep roots in both China and Taiwan, the renovation of the Chinese Buddhist Association primarily focuses on elements of traditional Chinese culture and Buddhist cultural design. After evaluating various color themes and design elements, we have opted for a darker, natural, and Zen-inspired theme. Key considerations include incorporating Buddha statues, brass accents, cassocks, serene water features, bamboo motifs, and the use of redwood.

Temple Office Renovation

Taipei City, Taiwan

26

Temple Office Renovation

Taipei City, Taiwan

10 人 90m/min 供行動不便者使用

1

4

2

3

1 2 3 4

Counter Main Temple Hall Stage Storage

1 2 3 4 5

Bar Area Meeting Room (16 People) Multifunctional Conference Room Meeting Room (6 People) Bedroom

1 2 3 4 5

Reception Office (8 People) Office (6 People) Lobby Tea Room

Third Floor Plan 1 : 300

4

10 人 90m/min 供行動不便者使用

3 1 2 5

Second Floor Plan 1 : 300

1

2 5

4

3

First Floor Plan 1 : 300

28

Temple Office Renovation

Taipei City, Taiwan

30

04

CARES Office Remodel Renovation of Existing Office Space CARES Consultants Corp. | H.S. Architecture | 2021 - 2022 Type: Office Interior

Location: Taipei City, Taiwan

Collaboration: Design 90%, Visualization 100%

As CARES continues its expansion, the company has recently undergone a comprehensive office remodel, enhancing the workspace with a variety of functional areas.

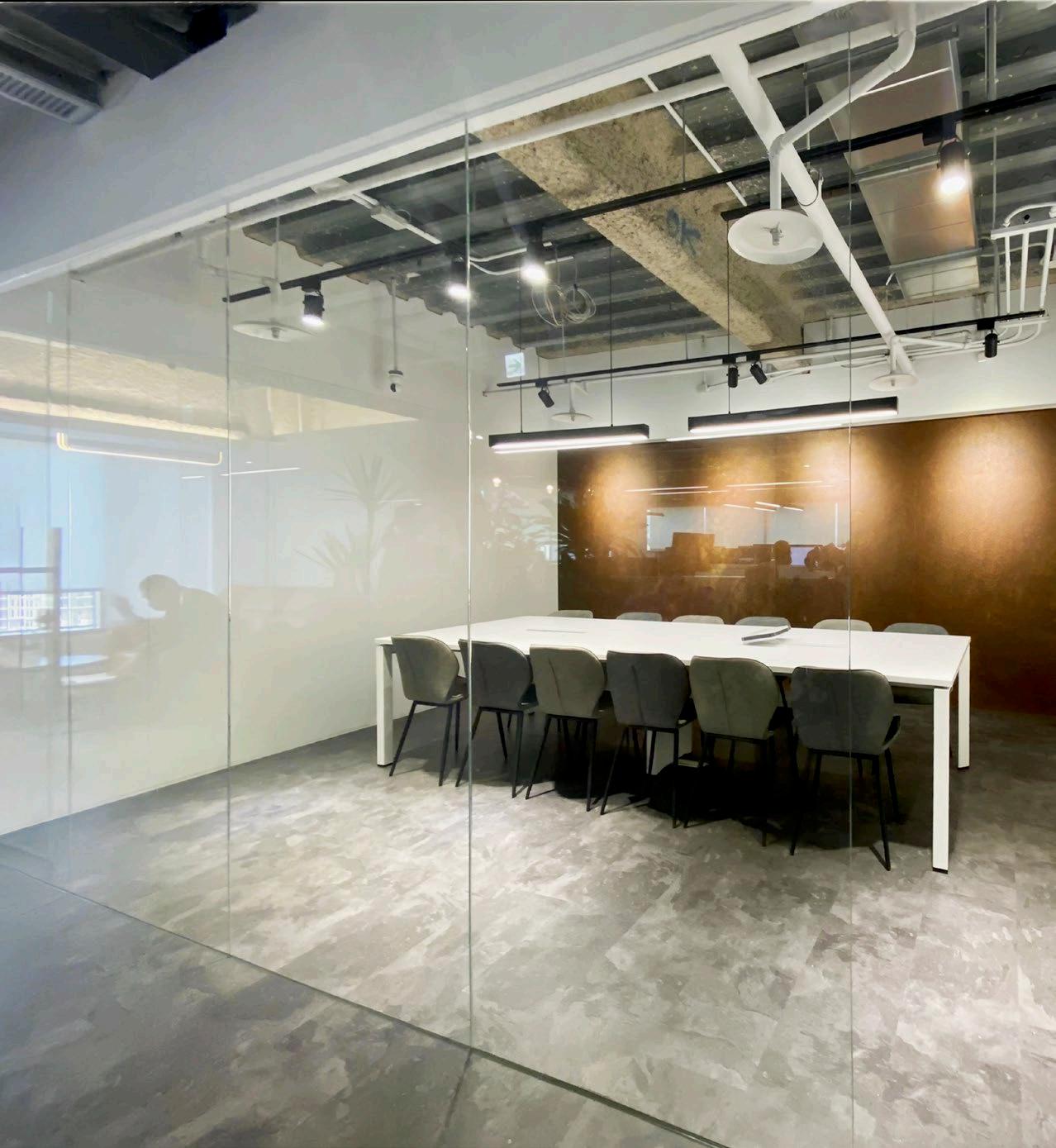

The newly renovated office features a versatile meeting space, designed to seamlessly separate from the main office area when needed. Additionally, a private manager’s room has been incorporated for confidential discussions, while an inviting open rest area encourages employee gatherings, fostering idea exchange and teamwork.

32

Entrance /

Through the entrance, the path is mainly divided into two general groups: visitors and workers. The office plan and workstation arrangement are strategically placed to provide clear visual indications of paths and directions for any visitor. Storage units are limited to a height of 4 feet or are placed against solid walls to ensure the main office area remains see-through. Additionally, we ensured that each workstation has storage space below or nearby.

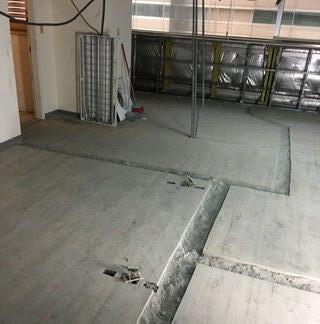

To maintain a clean and clutter-free environment, accessible cable channels are discreetly concealed beneath the floorboards, ensuring both functionality and aesthetics are seamlessly integrated.

Office Interior

Taipei City, Taiwan

Responsibilities : • Lead designer working with the architect and team, planning, executing, and coordinating the entire project.

• Developed renderings, walkthroughs, construction drawings, and detail drawings using Revit 3D. • Communicated with construction workers and the manager on site to execute project plans and resolve any emerging issues.

• Worked with the team and 10+ manufacturing factories to select materials, furniture, and lighting items, and sorted out costs and scheduling.

• Estimated and ensured that everything stayed on track with the overall schedule and finishing date in coordination with the team.

• Checked HOA rules and communicated with the committee to ensure a smooth process.

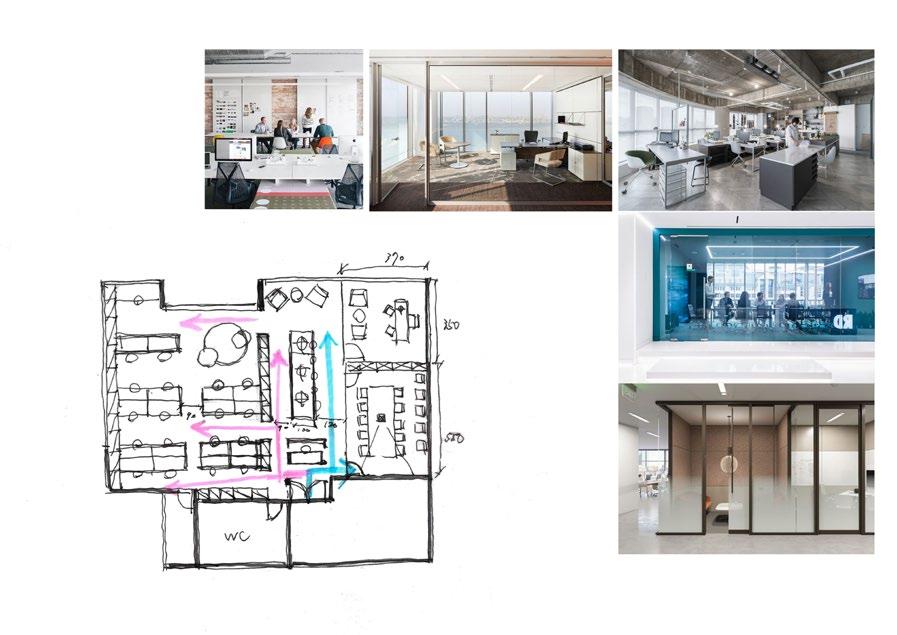

• Assessed and analyzed the needs of employees, managers, renters, and visitors for working, resting, meeting and entertaining. Synthesized all gathered information to create a versatile, cohesive design space.

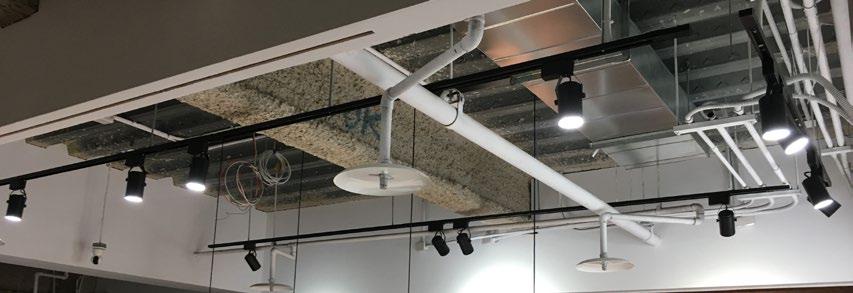

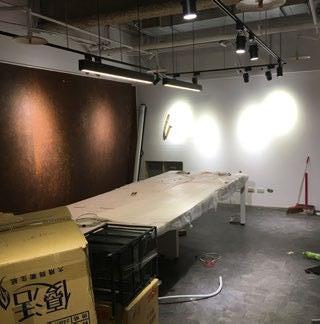

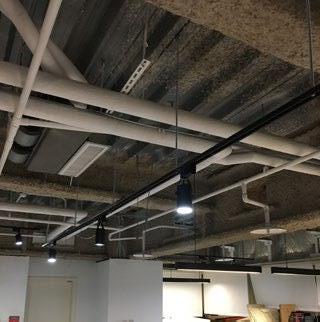

Material Palette : With the choice of a completely exposed ceiling comes the challenge of the office feeling cluttered and messy. To counter this, I chose a simple material palette. Dark gray PVC flooring hides certain imperfections and adds richness and contrast to the room. Light warm wood tabletops bring warmth to the space. Rusted metal sheeting ties the rough industrial look together and also adds warmth.

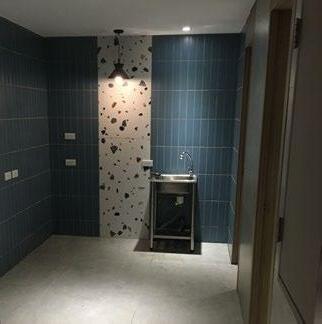

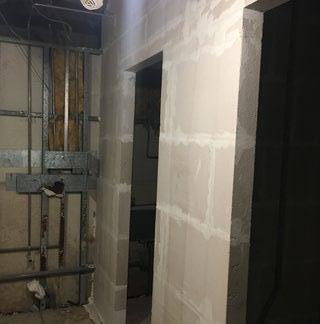

In the restroom, a touch of terrazzo adds playfulness. With specks of blue in the terrazzo, it echoes the blue primary color of our company logo, complemented by the blue backsplash tiles.

34

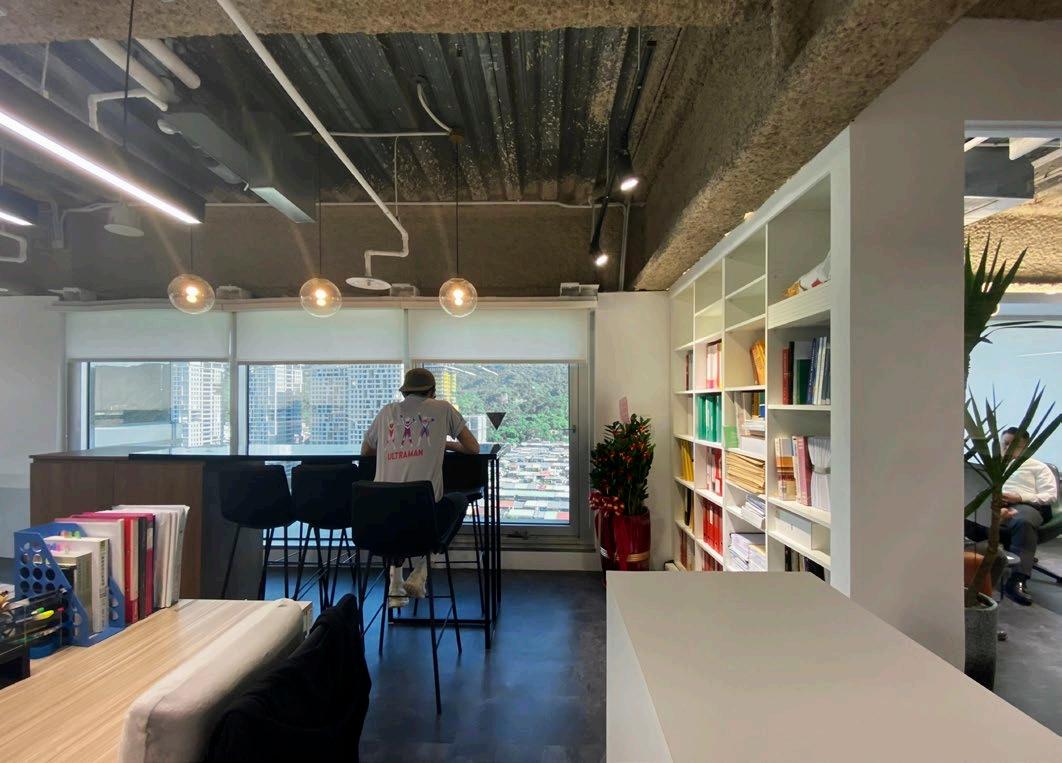

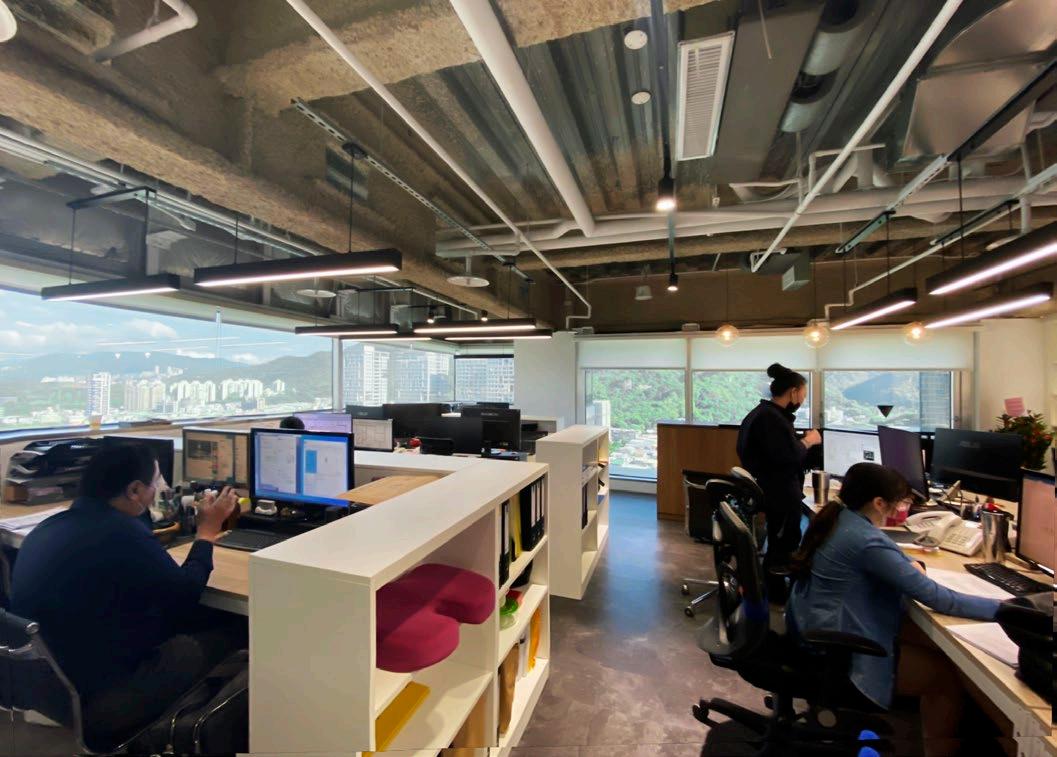

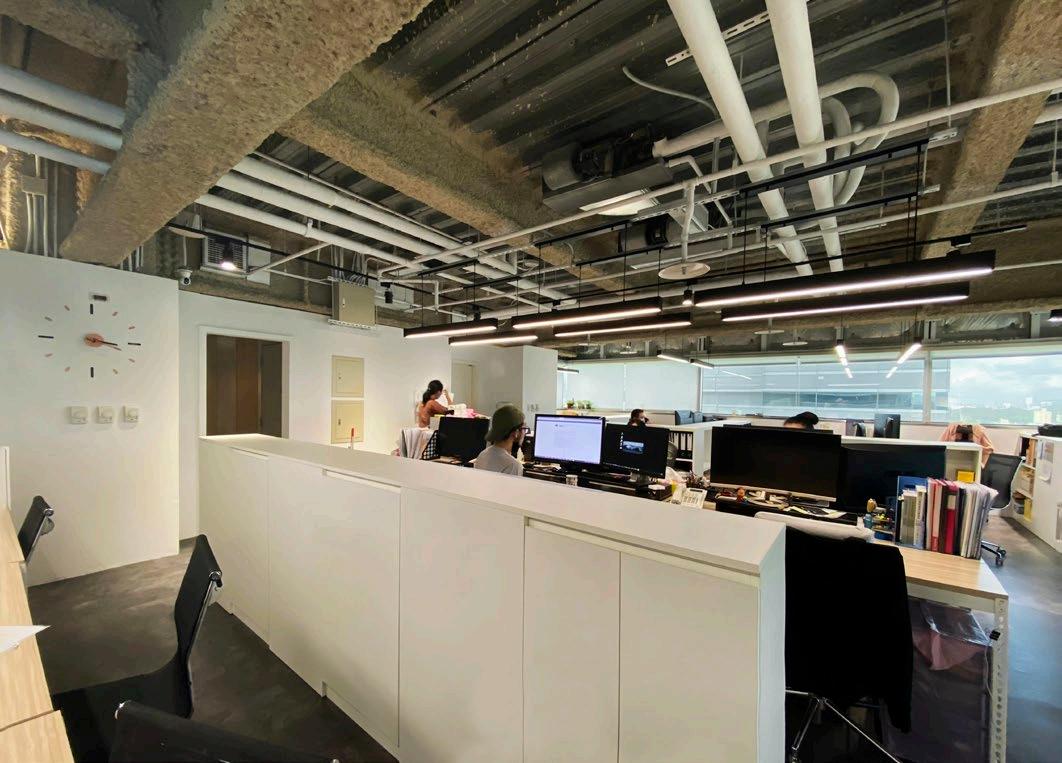

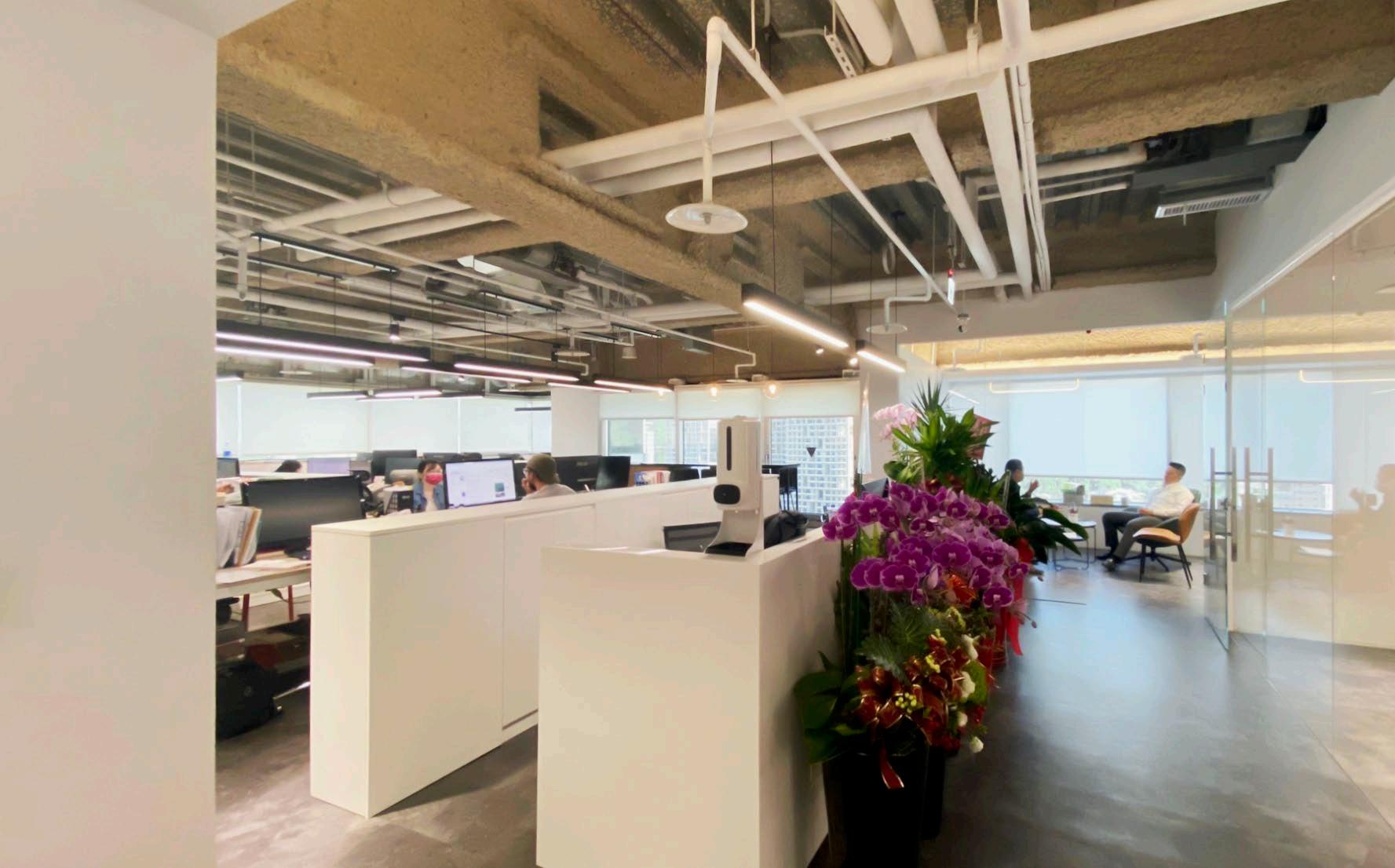

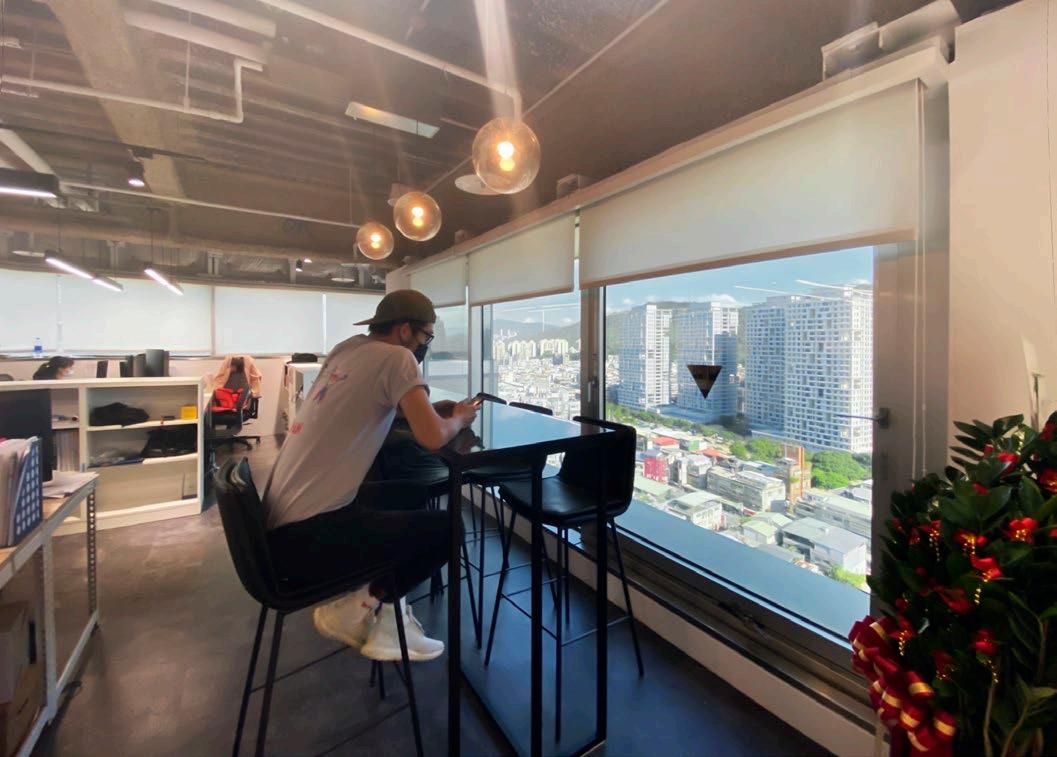

An Open Office Space To create an open and inviting environment that encourages the creative exchange of ideas, I opt for a completely open office space design, complemented by a main meeting space and a manager’s office that provides occasional privacy when needed.

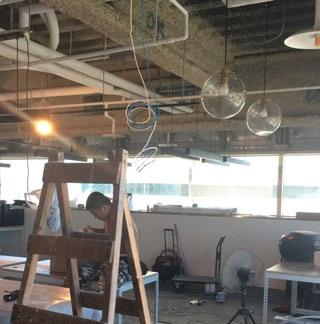

In the pursuit of a more spacious workspace, a deliberate choice was made to remove the ceiling, opting for an industrial aesthetic. The exposed structure not only contributes to a sense of openness but also serves as a real-life learning example for visitors and employees.

Office Interior

Taipei City, Taiwan

36

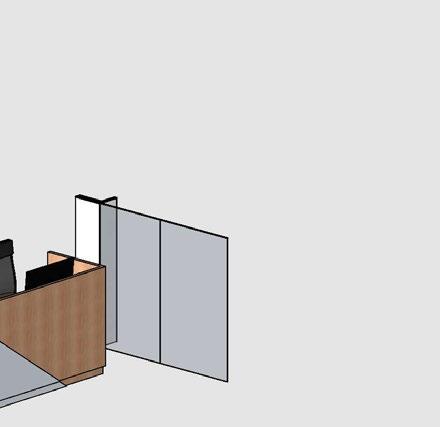

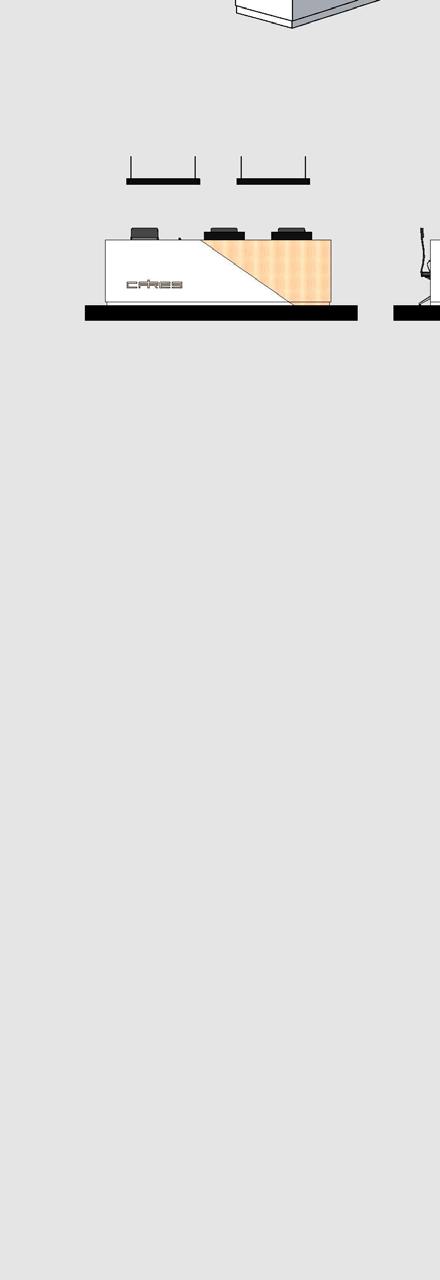

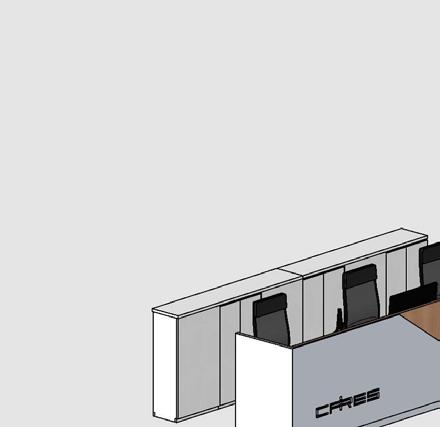

Design Detail : Counter

Plywood Toe Kick Lighting Light Box Acrylic Board

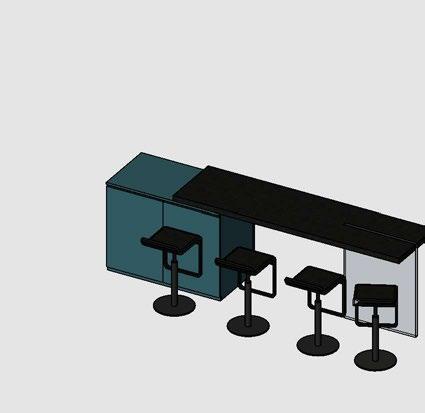

Design Detail : Bar Table Engineered Marble

Office Interior

Taipei City, Taiwan

Meeting Room Restroom

Manager’s Office Main Office Space

38

Office Interior

Taipei City, Taiwan

3

5

2

4 6

8

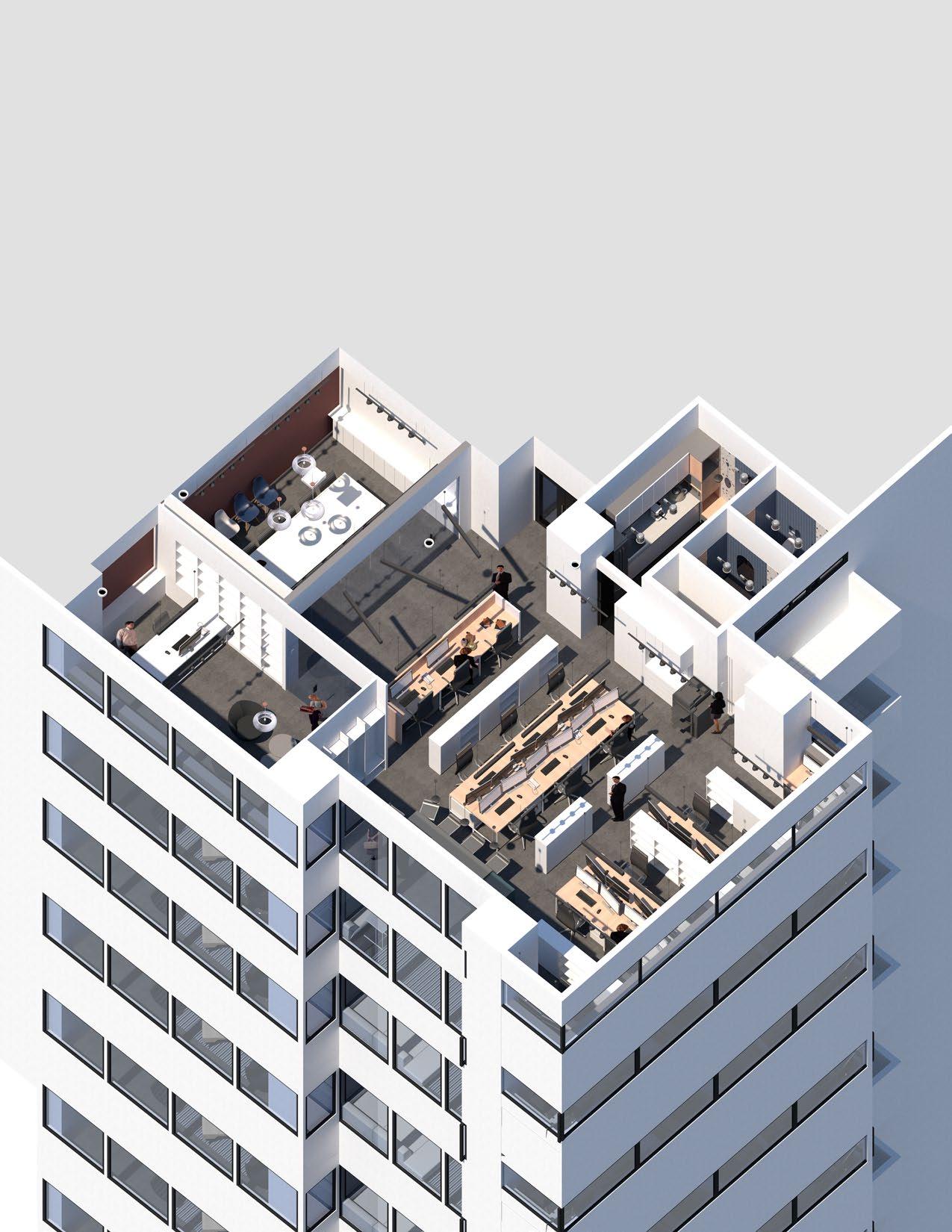

Office Floor Plan 1 : 100

7

1

15人90m/min

15人90m/min

供行動不便者使用

供行動不便者使用

1 2 3 4 5 6 7 8

15人90 供行動不便者使用

Hallway Meeting Room Architect's Office Main Office Area Employee Break Lounge Counter Tea Room Balcony

40

Meeting Room

Front Door

Restroom

Balcony Door

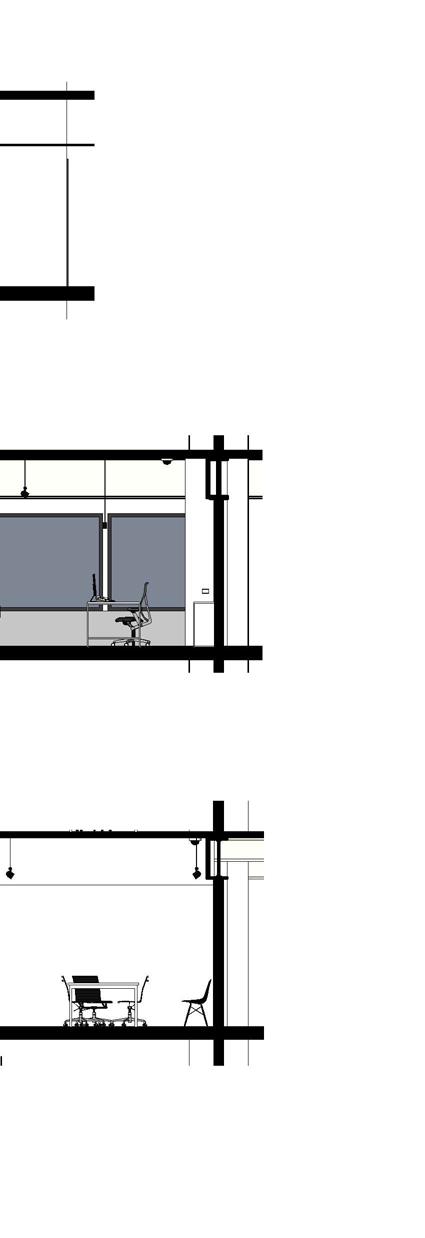

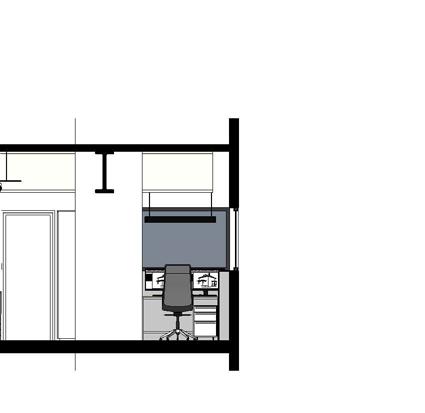

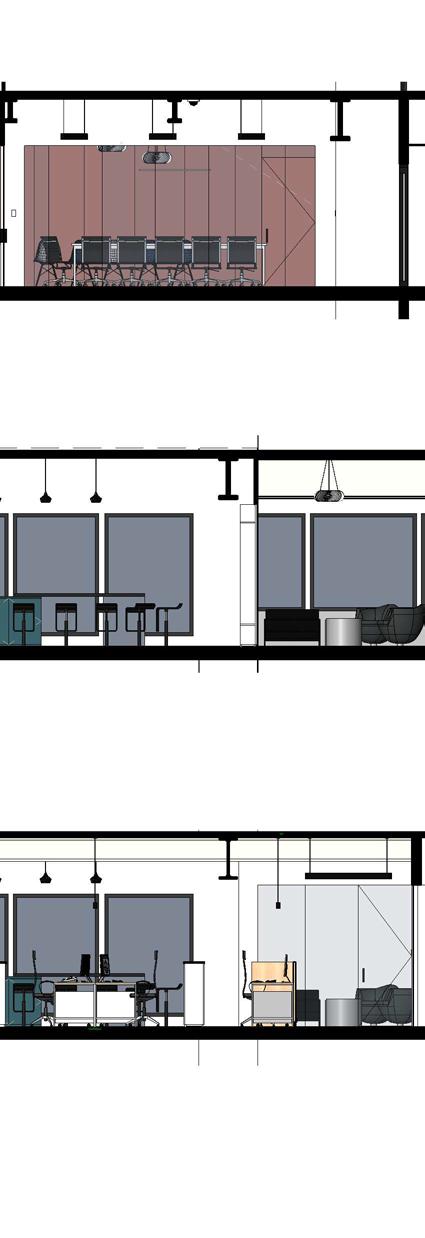

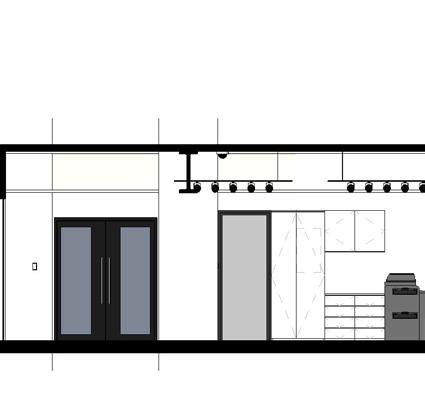

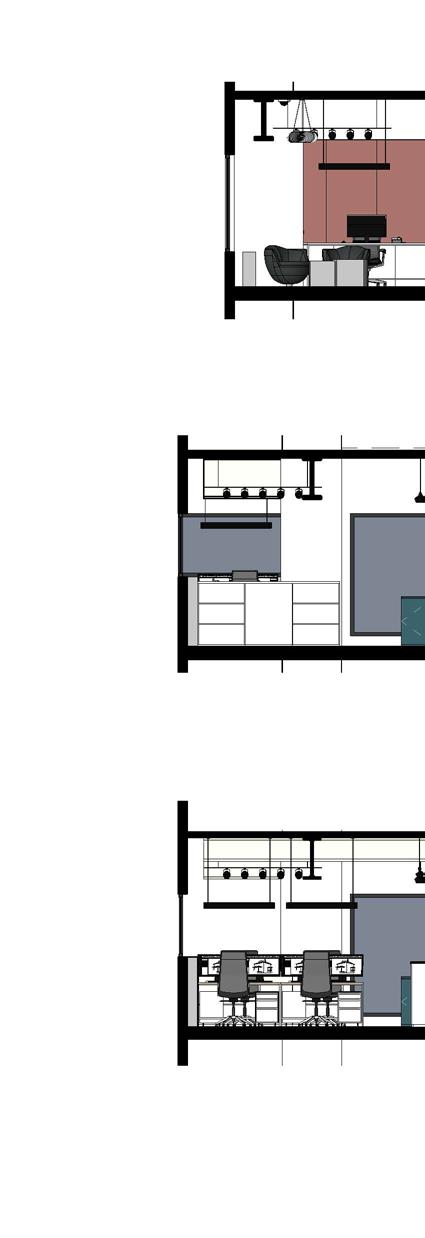

Section 1 1 : 100 Manager's Office

Hallway

Lobby

Section 2 1 : 100 Staff Rest & Discussion Area

Manager's Office

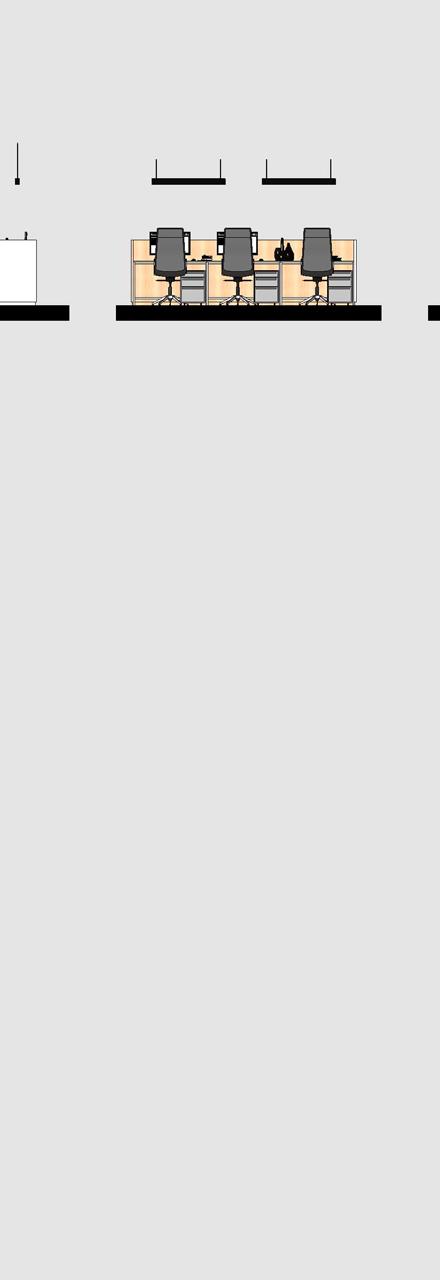

Section 3 1 : 100 Main Office Area

Section 4 1 : 100

Office Interior

Taipei City, Taiwan

Meeting Room

42

05

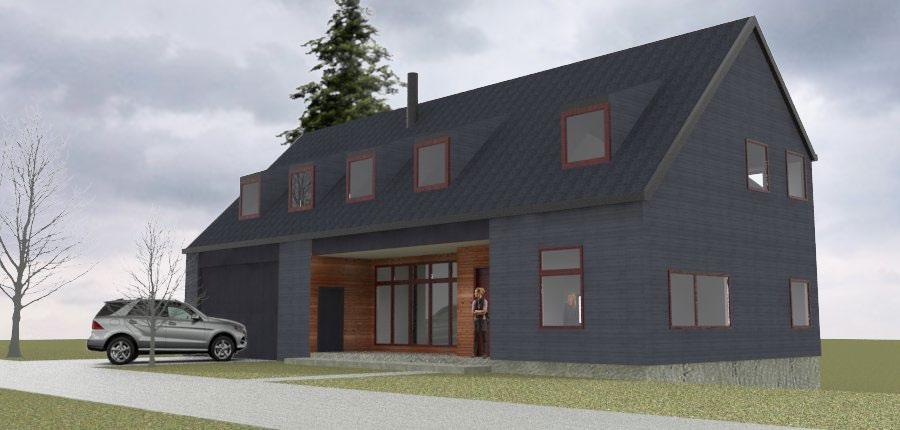

Pytte Residance Additional Dwelling Unit to existing house Stettler Design LLC Internship | 2017 - April 2018 (on going project) Type: Residential

Location: Seattle, King Kounty

Collaboration: Design 10%, Visualization 90%

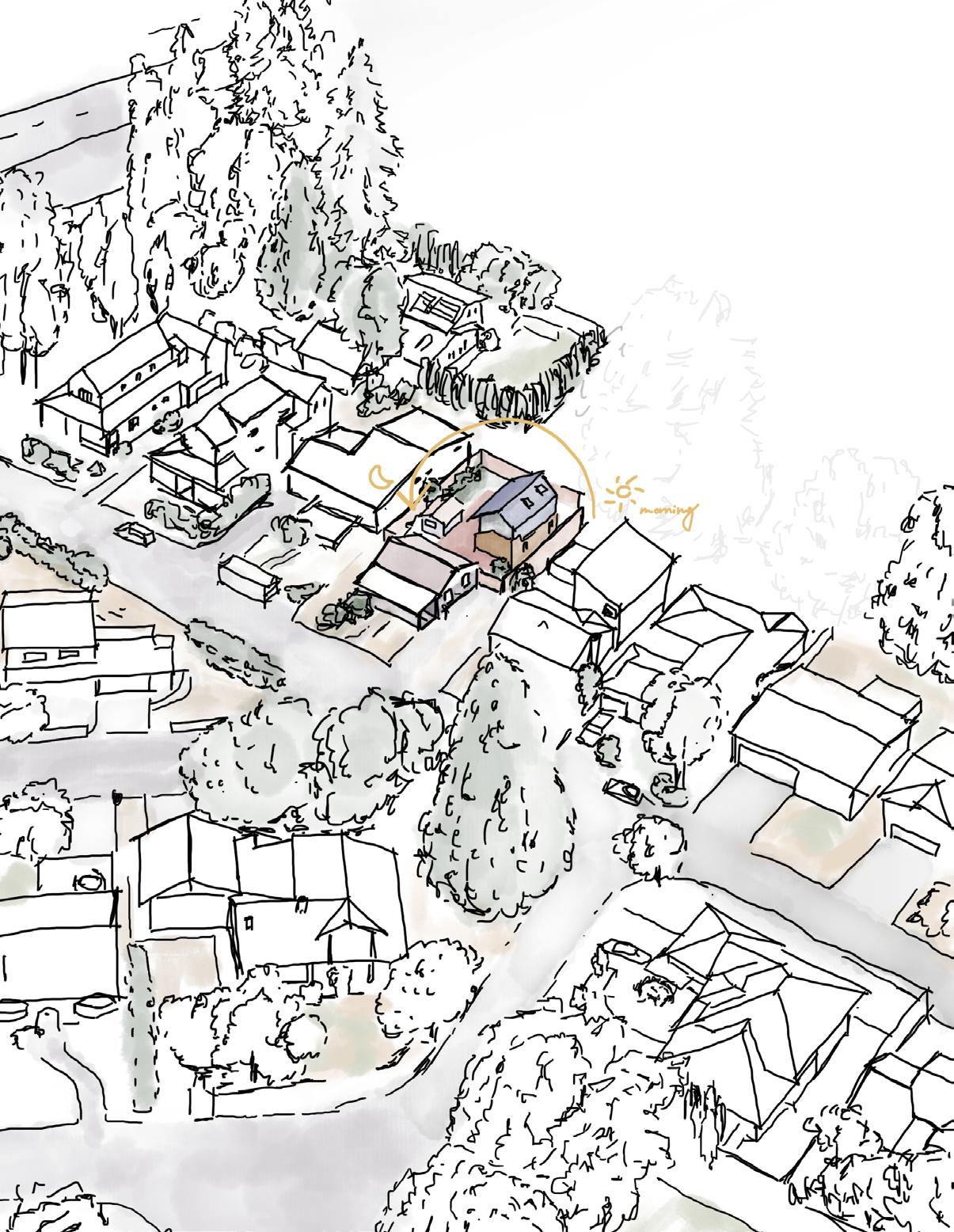

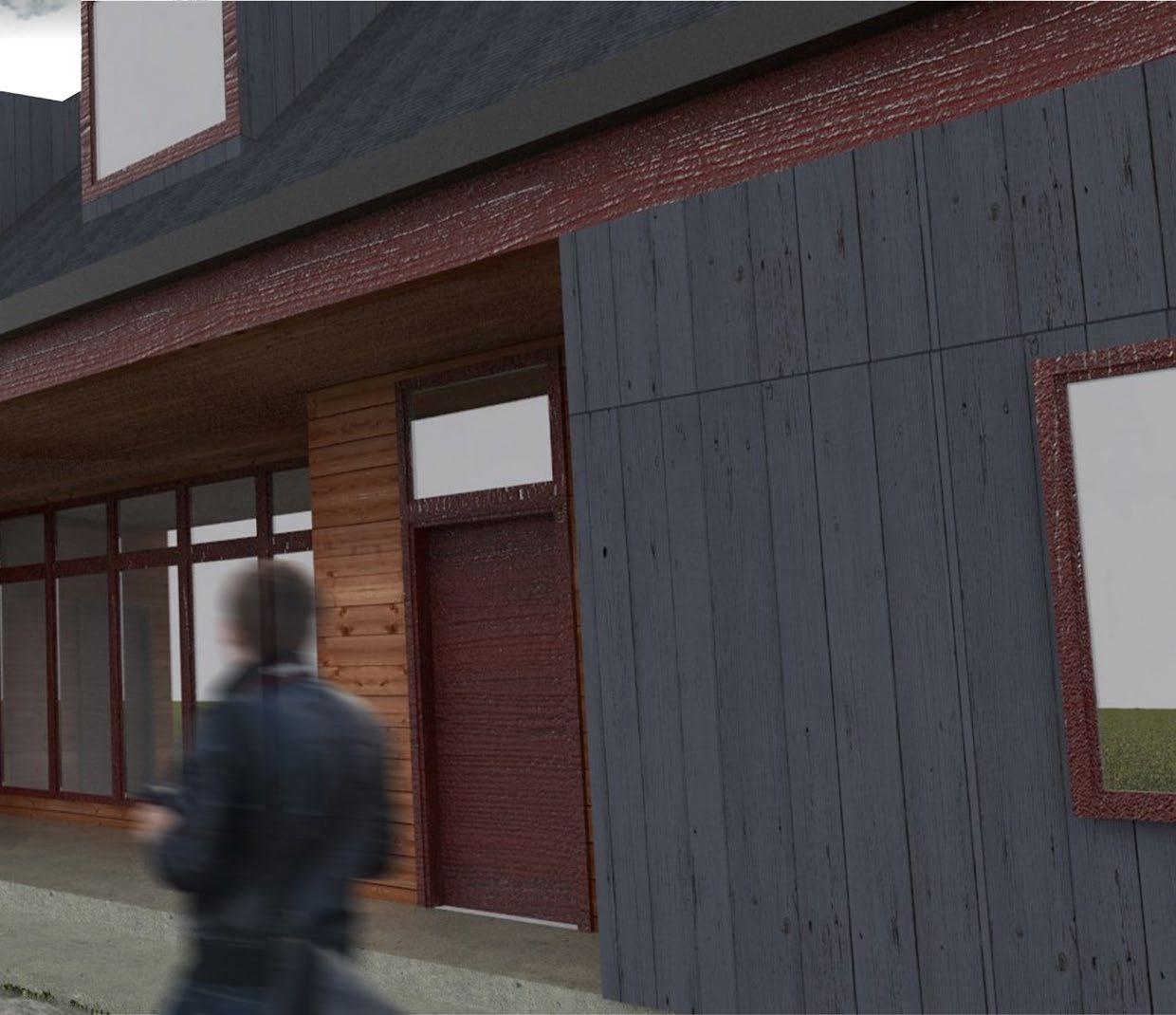

This house is undergoing refurbishment and extension to cater to the evolving needs of the family. The design is meticulously crafted to accommodate their daughter, who necessitates additional care and assistance. Bedrooms and bathrooms are conscientiously designed with extra space to facilitate wheelchair use. The kitchen, serving as a focal point for the family’s shared passion for cooking and hosting large family dinners, is given special attention.

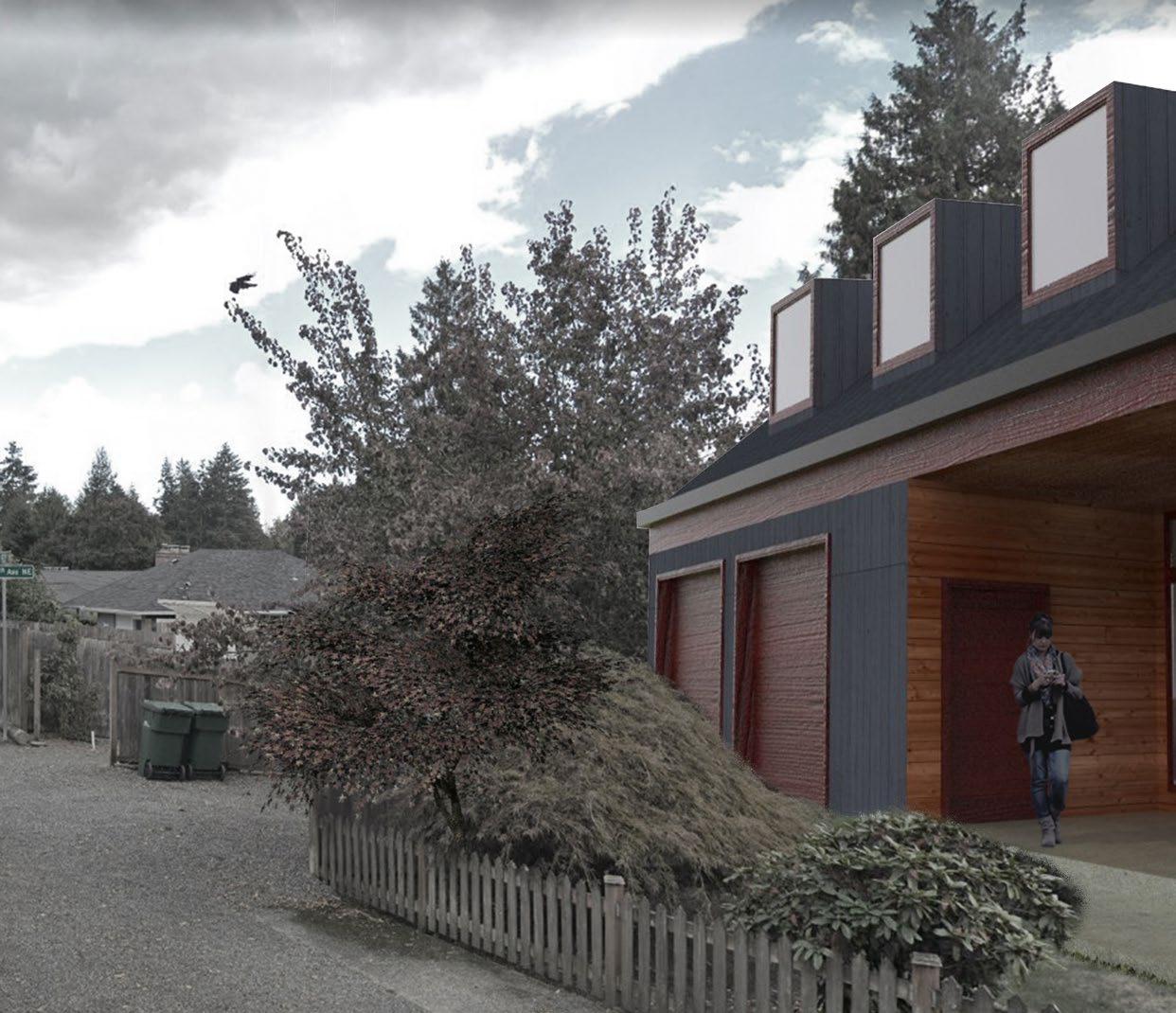

Moreover, the addition of a floor above the garage is strategically designed for future purposes, including short-term renting and visits from family members. This added space functions as a compact studio, intentionally separated from the main house, accessible through a long staircase that extends to the entrance patio, offering a distinct and flexible living arrangement.

44

Responsibilities : • Attended structural meetings with architects and engineers; recorded notes and revised detail drawings based on follow-up emails and meeting discussions.

• Participated in design meetings with architects and clients, focusing on exterior façade and interior design; documented discussions and updated all related drawings accordingly.

• Created 3D models and renderings using Rhinoceros and Flamingo, supporting clear and compelling design presentations for client meetings.

• Organized and printed drawing sets and files systematically to ensure preparedness for a range of project scenarios.

Residential

Seattle, King Kounty

Pytte Renovation

3555 NE 93rd St. Seattle WA

Second Floor Plan Scale 1”=20’ Second Floor Plan Scale 1/8"=1' 1881 SF

Proposed Plans

A1.3

Pytte Renovation

3555 NE 93rd St. Seattle WA

ALL WORK SHALL COMPLY WITH THE 2015 SRC AND ALL OTHER APPLICABLE CODES. ALL MANUFACTURED PRODUCTS SHALL BE INSTALLED IN ACCORDANCE WITH THE MANUFACTURER'S RECOMMENDATIONS AND APPROVED TEST REPORTS. CONTRACTOR SHALL VERIFY AND BE RESPONSIBLE FOR ALL MEASUREMENTS AND CONDITIONS ON SITE.

First Floor Plan Scale 1”=20’ First Floor Plan

27. April 2018

Proposed Plans

A1.2

Pytte Renovation

3555 NE 93rd St. Seattle WA

Scale 1/8"=1' 1317 SF inside + 385 SF outside + 715 SF garage

Basement Floor Plan Scale 1”=20’

Basement Floor Plan Scale 1/8"=1' 992 SF

27. April 2018

Proposed Plans

A1.1

46

12

12

12

12

248.3'

12

7'-4"

5

244.2' 242.8'

12 12

12

9

12 12

micro Ov. Ov.

245.6' 243.8'

242.9'

Potential Fireplace to remain

244.2' 244.05'

Residential

242.9'

Seattle, King Kounty

242.8'

Stettler Desig

Interrior Details

3346 NE Blakeley Seattle WA 98105 T (206) 729.3663 c (206) 227.4 e-mail info@stettlerdesign

micro

Ov.

Kitchen South Elevation

2 A2.1

Scale: 1/2" = 1'-0"

Ref.

Pytte Renovation

1 A2.1

3555 NE 93rd St. Seattle WA

Ov.

Kitchen West Elevation Scale: 1/2" = 1'-0"

Ref.

DW

Permit Set not for constructio 3 A2.1

Kitchen North Elevation

4 A2.1

Scale: 1/2" = 1'-0"

Kit. Island North Elevation

5 A2.1

Scale: 1/2" = 1'-0"

Kit. Island West Elevation Scale: 1/2" = 1'-0"

6 A2.1

Kit. Island South Elevation Scale: 1/2" = 1'-0"

7 A2.1

Kit. Island East Elevation

10 Apr. 2018

Scale: 1/2" = 1'-0"

Interior Elevations

A2.1

ALL WORK SHALL COMPLY WITH ANY APPLICABLE CODES. ALL MANUFACTURED PRODUCTS SHALL BE INSTALLED IN ACCORDANCE WITH THE MANUFACTURER'S RECOMMENDATIONS AND APPROVED TESTS REPORTS. CONTRACTOR SHALL VERIFY AND BE RESPONSIBLE FOR ALL MEASUREMENTS AND CONDITIONS ON SITE.

Stettler Des

Towel Radiator

1 A2.7

Bathroom 3 - North Elevation

2 A2.7

Scale: 1/2" = 1'-0"

Dryer

Bathroom 3 - East Elevation

3 A2.7

Scale: 1/2" = 1'-0"

Bathroom 3 - South Elevation

4 A2.7

Scale: 1/2" = 1'-0"

Bathroom 3 - West Elevation Scale: 1/2" = 1'-0"

Pytte Renovation

3346 NE Blakeley Seattle WA 9 T (206) 729.3663 c (206 e-mail info@stettlerd

Washer

Permit Set not for construc 5 A2.7

Bathroom 5 - North Elevation Scale: 1/2" = 1'-0"

6 A2.7

Bathroom 5 - East Elevation Scale: 1/2" = 1'-0"

7 A2.7

Bathroom 5 - South Elevation Scale: 1/2" = 1'-0"

ALL WORK SHALL COMPLY WITH ANY APPLICABLE CODES. ALL MANUFACTURED PRODUCTS SHALL BE INSTALLED IN ACCORDANCE WITH THE MANUFACTURER'S RECOMMENDATIONS AND APPROVED TESTS REPORTS. CONTRACTOR SHALL VERIFY AND BE RESPONSIBLE FOR ALL MEASUREMENTS AND CONDITIONS ON SITE.

8 A2.7

Bathroom 5 - West Elevation

10 Apr. 201

Scale: 1/2" = 1'-0"

A2.7

48

Roof (verify metal or asphalt roof) Membrane Plywood Sheathing Per Structl TJI Rafters Per Structl R49 min Insulation GWB Vaulted Ceiling Typical Window

12

Head Flashing Header per Structl w/ Rigid ins.

H&H Tilt&Turn Window

5

12

8

Typical Second Floor 3/4” Hardwood Flooring Plywood Subfloor TJI Framing per Structl VERIFY Radiant Heat in Joist Bays Balcony 1/2” Hat Channel 5/8” GWB Ceiling

12 12

Den

Typical Exterior Wall Siding Plywood Sheathing per Structl 2x6 Framing w/ R21 Insulation GWB or Plaster per Finish Schedule First Floor 3/4” Hardwood Flooring 3/4” PW Subfloor Existing Framing to Remain 1/2” Hat Channel 5/8” GWB Ceiling

Covered Porch

Living

Typical Wall Below Grade free draining backfill on drainage fabric (Miradrain 6000 or sim drainage composite) R10 EPS rigid insulation fluid applied waterproofing on concrete foundation wall R15 batt insulation gwb finish Typical Basement Floor

Den

Finished, Sealed Concrete Slab per Structl with Radiant Heat R10 min Rigid Insulation Vapor Barrier Gravel, Drainage per Civil Footing Drain 4” perforated hard pvc pipe with at least 6” of 1-inch-minimum washed rock wrapped in non-woven, geotextile filter fabric invert pipe 6” min. below bottom of floor slab

ale: 3/4" = 1'-0"

Residential

Detail 3 Seattle, King Kounty

Scale: 3/4" = 1'-0"

12 12 12 12

12 12 12

12

1212 8

10

12 12 12 12

12 8

12

10

50

06

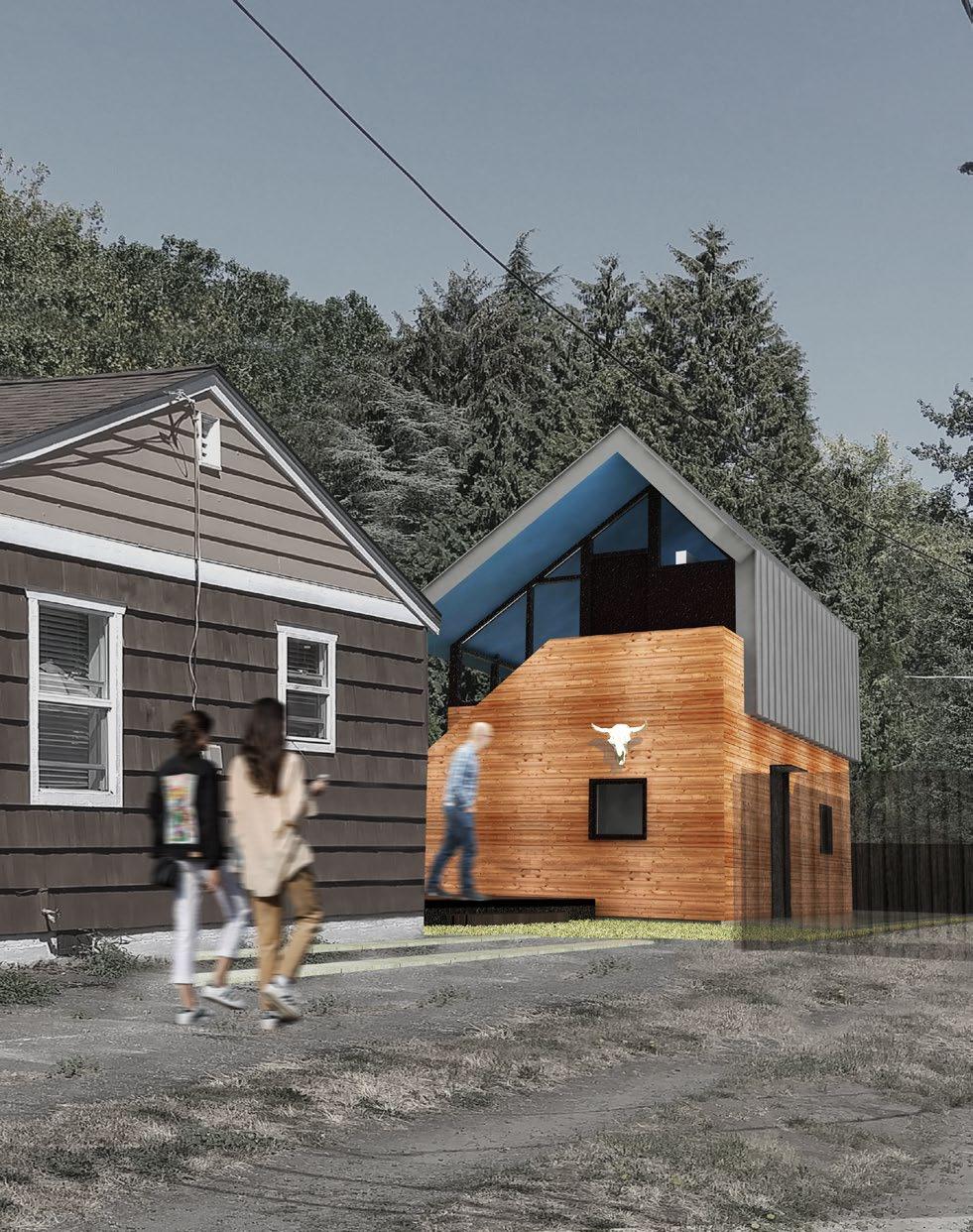

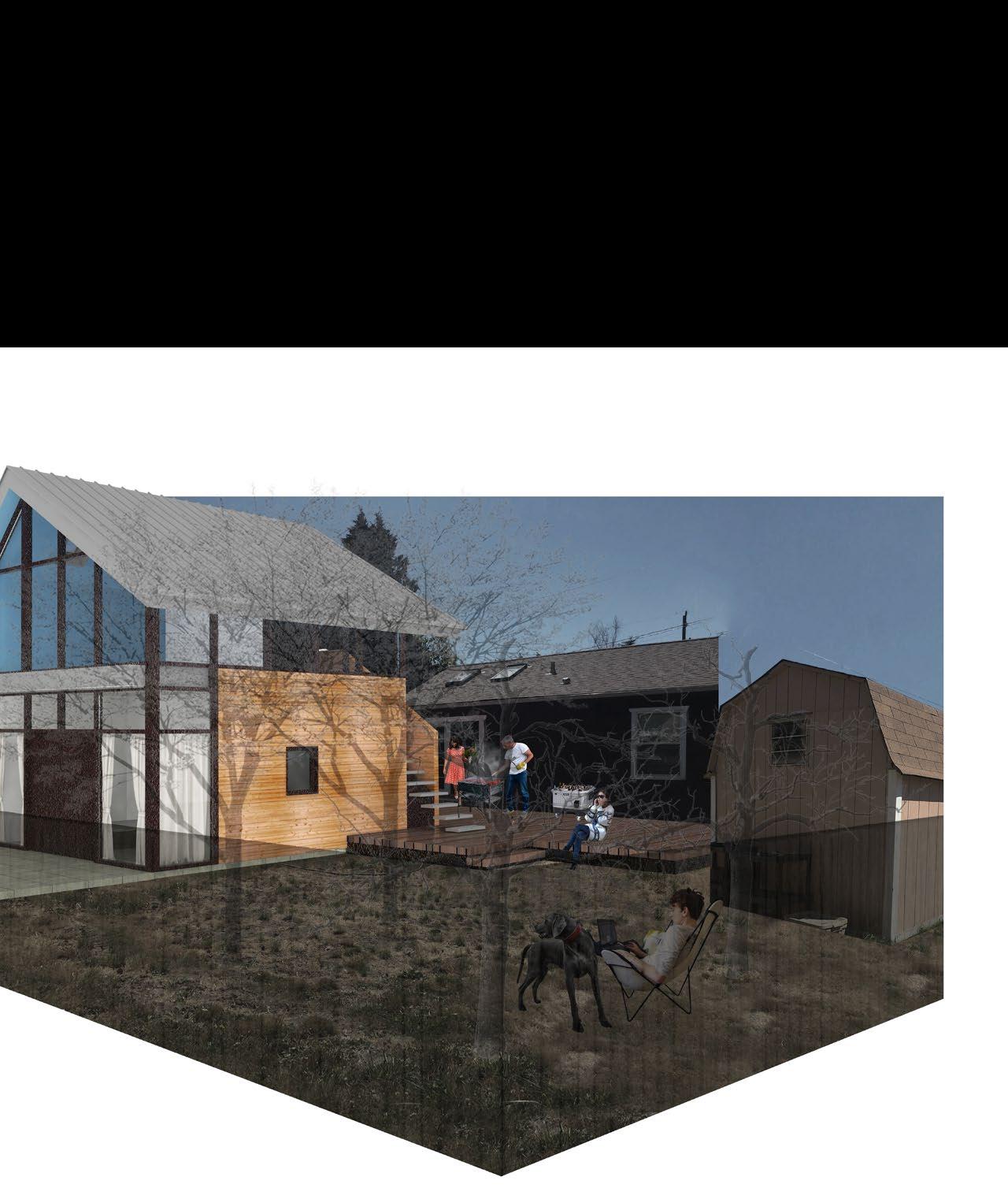

Bell Elizondo Residance Additional Dwelling Unit to existing house Stettler Design LLC Internship | 2017 - April 2018 (on going project) Type: Residential

Location: Lake Forest Park Dist.

Collaboration: Design 50%

This design is program to two seprate groups of users. The bottom floor is design for the use of short term renting and visits of family members. A compact studio space that feels spacious with the small patio at the back of the structure that connects outdoor space but still keeps the space feeling rather private. The upper level is design for the use of the main house residents. As request, of a space for psychology therapy sessions, group gatherings with the ability of using a projector.

52

PL 100'-0"

Existing Shed 120 SF

PL 50'-0"

PL 50'-0"

Brentwood Place NE

Covered Porch 226 SF

Concrete Path

Existing House 685 SF

CL

Ref.

Kitchen

D

W

Bath Entry

Concrete Driveway 550 SF

PL 100'-0"

Site Plan Scale 3/32”=1’

Residential

Lake Forest Park Dist.

CL

CL

UP

Ref.

Kitchen

D

W

Work Space DN

Ridge

CL

Entry

CL

Potential Murphy Bed

Bath

CL

Ridge

First Floor Plan

Second Floor Plan

Scale 3/16”=1’

Scale 3/16”=1’

Responsibilities : • Proposed and revised design concepts based on site studies, field measurements, and client feedback; solutions were implemented into the project under the guidance of the lead architect.

• Participated in design meetings with architects and clients, contributing to exterior façade, interior, and landscape design discussions; documented meeting outcomes and updated all related drawings.

• Developed 3D models and renderings using Rhinoceros and Flamingo to enhance clarity and effectiveness in client presentations.

• Systematically organized and printed all drawing sets and project files to ensure preparedness for review sessions and team coordination.

Work Space

CL

DN

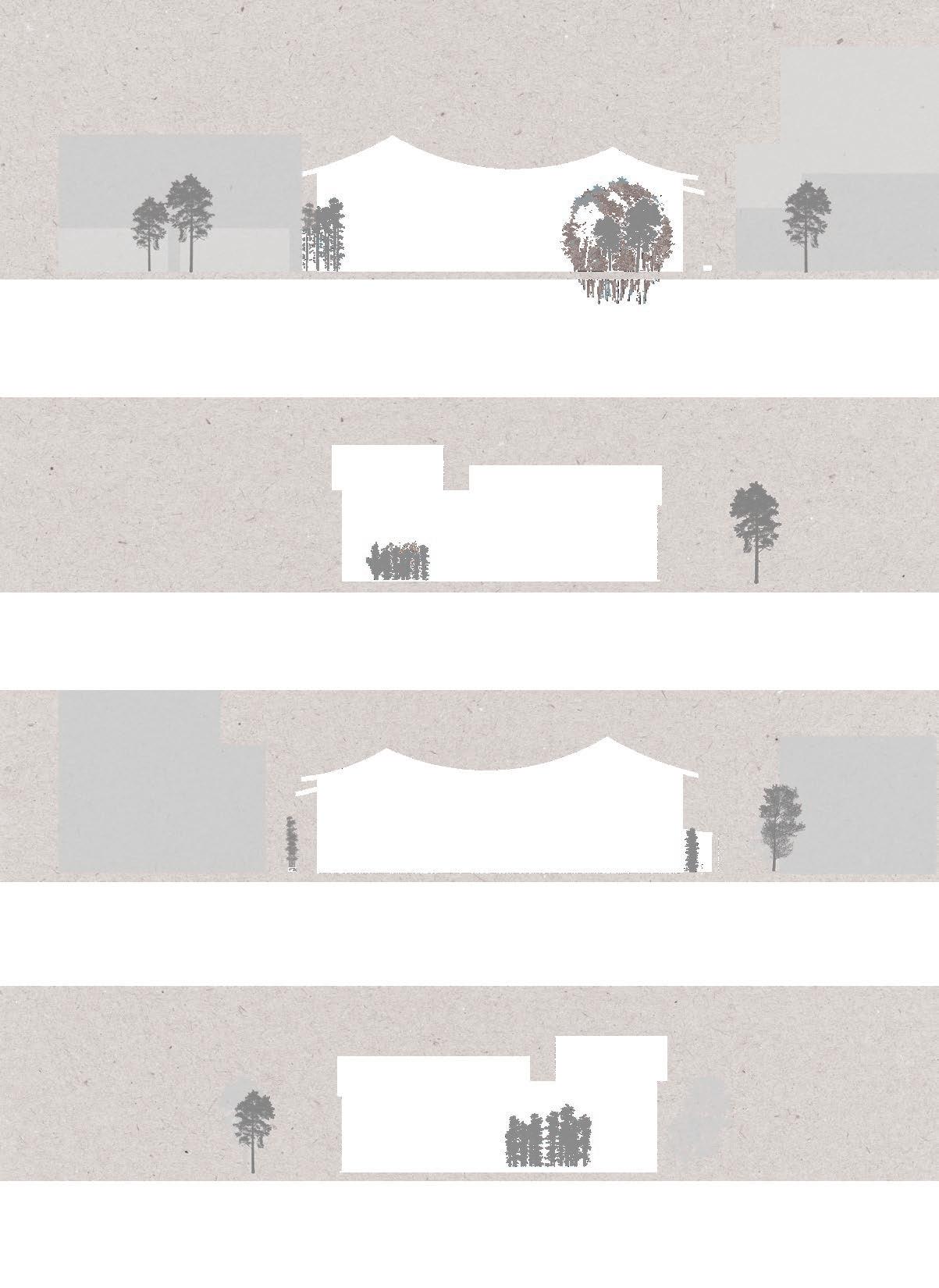

Elevations Scale 3/32”=1’

54

Residential

Lake Forest Park Dist.

In consideration of the sunpath, windows are strategically placed to maximize natural light. The second floor is designated for psychology therapy sessions, requiring a private, isolated, and uninterrupted space. To ensure privacy, we have carefully offset and blocked views of neighboring houses, particularly neighboring windows.

56

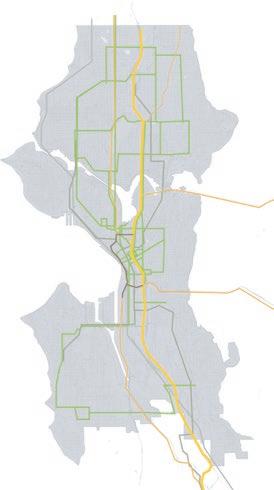

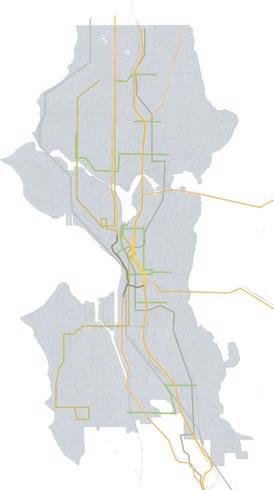

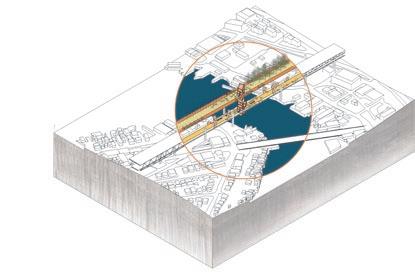

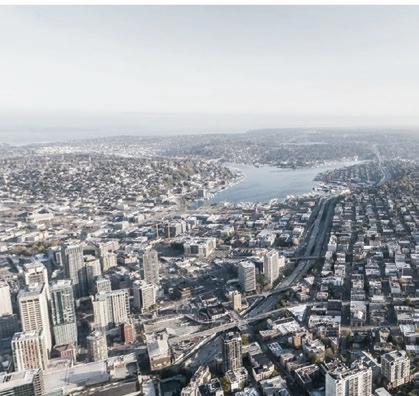

STRUCTURE SEATTLE I-5 URBAN REPURPOSE & REINFORCE IN 2100 >2X GROWING POPULATION CONSTRUCTED IN 1950s AGEING INFRASTRUCTURE

07 MOVING TOWARD

SEGREGATED the CITY INCREASE IN

MASS TRANSIT MULTI-MODAL Colonizing the City Seams

BIKE RIDESHARE Restructuring the Future City PEDESTRIAN FRIENDLY 4th year McKinley Futures studio | Spring 2017

Type: Urban Planning IN THE TRANSITION

I-5 BECOME LESS EFFICIENT

TRANSPORTATION

DECREASE IN

SINGLE OCCUPANT VEHICLE

CITY IS TRANSFORMED

Location: Downtown first Hill, Seattle

DECENTRALIZATION

Collaboration: Hanna, Kun, WenW en | Concept : 20% | Design : 30% | 3D Modeling : 70% | Graphics : 60%

I-5 USAGE RETHINK

I-5 & 99

IS CONVERGE WITH

TUNNEL

CIRCULATION PATH CITY RECONNECTED IS “What will designers need to think about in 20, 50, or 100 years? How will society, business, law, theIS economy, the environment, etc. be different and how will they MODIFIED INTERSECTION IS EMBRACED influence design?”

STITCH INTERTWINE STAPLE STACK WEAVE WELD KNIT DOWNTOWN SEATTLE IS RECONNECTED - McKinley Studio Call for Proposals

…As in any design process, ideas of site come through making. Designers confront

the challenge of defining urban sites through a creative process of representation. … representation is not about depicting reality, but about making knowledge.

…[defining urban sites] involves recognizing the overlay and interplay of multiple realities operating at the same time on the same place.

Andrea Kahn, Site Matters

NEW PUBLIC REALM IS CREATED

HUMAN CONTACT WALKABILITY

URBAN

HUB

REINVENTION of I-5 REINFORCING WITH NEW PURPOSE ENERGY, ECOLOGY, ECONOMY RECREATION, REMEDIATION PUBLIC COMMUNITY, PUBLIC TRANSPORTATION

58

CAPITOL HILL

PRIOR TO I-5

EARLY CONSTRUCTION

LATE CONSTR

PRIOR TO I-5

EARLY CONSTRUCTION

LATE CONSTR

FIRST HILL

TIMELINE 2020

Urban Planning

2035

Downtown first Hill, Seattle

2050

2100

RUCTION

PROJECTED 2117

RUCTION

PROJECTED 2117

0

60

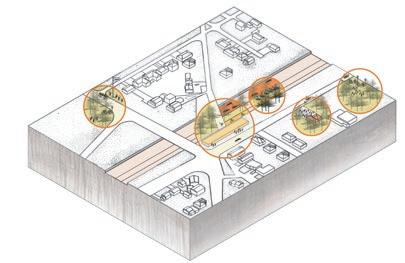

GRNERAL STRATEGY Colonization models offer novel adaptive reuse strategies for I-5, borrowing ideas from fabric making process such as stitching, intertwining, GRNERAL STRATEGY patching, kniting, weaving and welding. Based on

KNITING

making process such as stitching, intertwining, patching, knit, stacking, weaving and welding. Based

different I-5 locations and conditions, as well as

at increasing the east-west connection, as well as become an answer for energy, ecology, economy, recreation, public and community, remediation of pollution, and public transportation.

I5

become an answer for energy, ecology, economy,

Recreational spaces

Express lane

STREET CAR LANE

recreation, public and community, remediation of

AUTOMOBILITIES

pollution and public transportation.

STITCHING

STACKING Ecology layers

Obsolete I5 lanes I5 Public space

Recreation layers

COMMUNITY CENTER MASSTRANSIT STATION

recreation & tarnsit

Transportation layers

ECOnomy & TRANSIT

SS

RE

XP

I5 E

SS

RE

XP

I5 E

ECOLOGY & TRANSIT

PARK AND BIKE CENTER

CAR-SHARING STATION STREET CAR STOP

INTERTWINING

WEAVING

Alternative streets I5

City streets Public spaces I5

urban trail

Bike lanes

Public spaces

new connection

entrances of I5

alternative streets weaving urban trail

PATCHING

WELDING

Obsolete I5 lanes I5

Obsolete I5

habitats

Patch land RECREATION SPACES

obsolete I5 reuse

ENERGY GENERATOR

Urban Planning

new tunnel

I5

Passing streets

Downtown first Hill, Seattle

I5 shifting direction

CONCEPT DIAGRAM­ ___________________ CHILDRENS

BUSINESS OWNERS

COMMUNITY VISITORS FAMILIES WORKERS PUBLIC

STRATEGY : WEAVING

The highway, I-5, runs through Seattle like a cut, blocking connection between areas. Since it’s a structure not allowed to branch off, we need to use the strategy of weaving.

CONNECTIONS

Multiple pathway connecting downtown to first hill and I-5 CHILDRENS platform.

BUSINESS OWNERS With mulitiple layers of platforms, both underground and above ground, and with the city street runs diagonally above the highway, COMMUNITY the city is able to connect again.

PROGRAMS

Colonization of I-5 to give back to the city. The city is able to heal from the cut and connect again.

VISITORS FAMILIES WORKERS PUBLIC

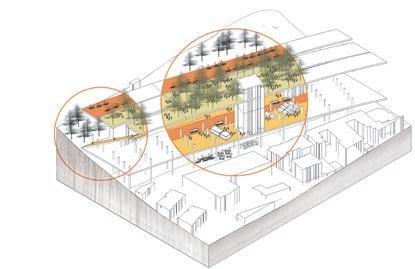

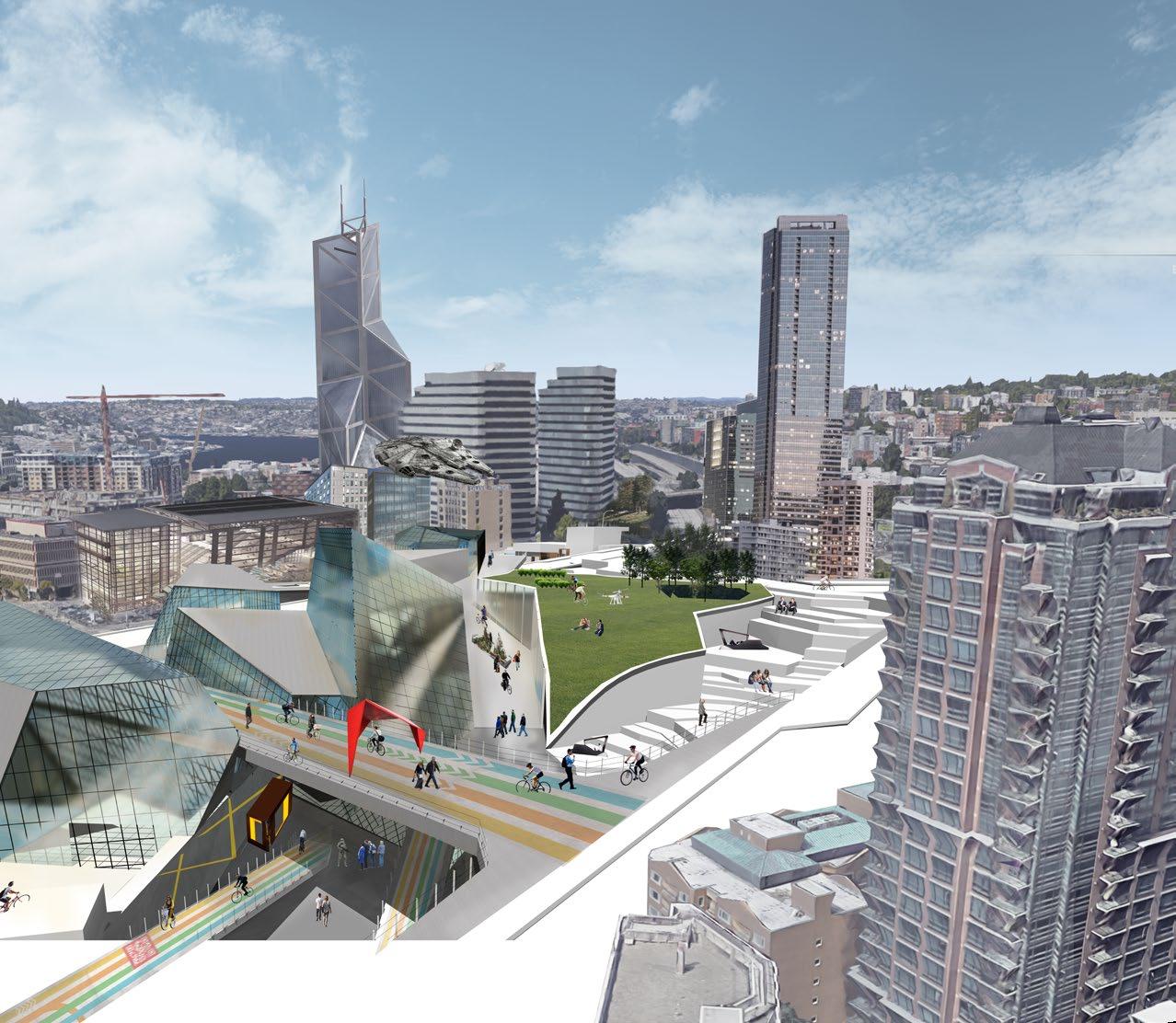

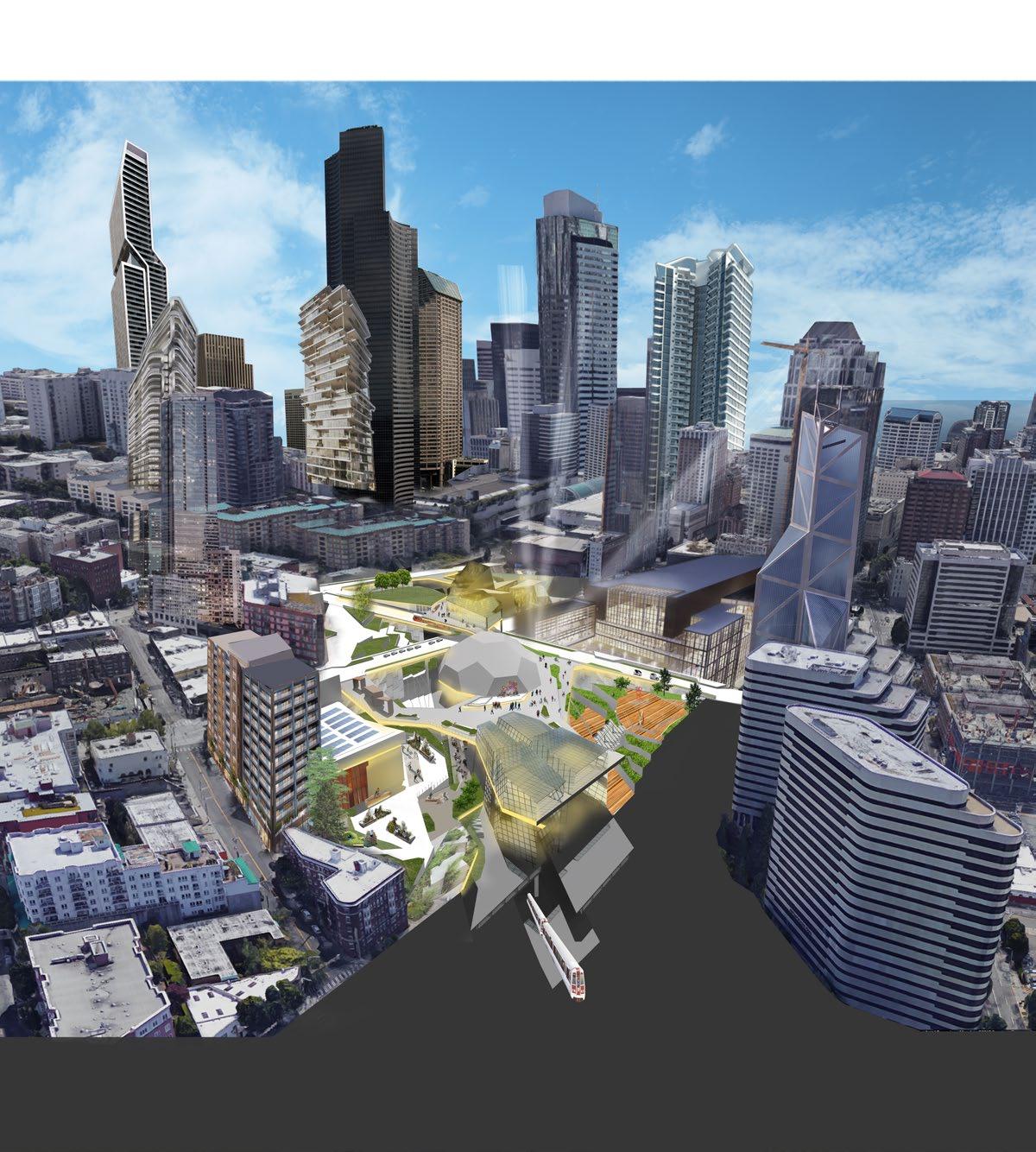

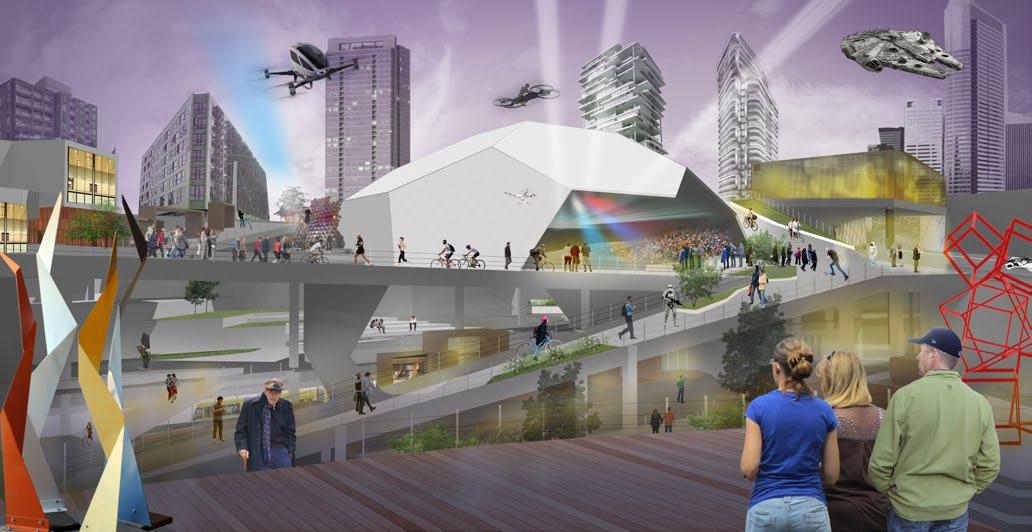

Perspective view : Connection between layes

62

LANDSCAPE

2117 INFRASTRUCTURE

Open space for play, rest and restore

FACILITIES

Programs to activate the space

URBAN PATHWAY Pedestrian and bike lane to improve walkability Street Market Level & Transport Level

STREET LEVEL:

ADAPTIVE REUSE OF CURRENT INFRASTRUCTURE

Shared road for multimodal transportation and parking for ride share

MULTI-MARKET LEVEL Platform that opens up for programs and connected to other site

TRANSPORTATION LEVEL Street car STREET CAR

Urban Planning

Downtown first Hill, Seattle

MUSEUM OF HIGHWAY

TRANSIT STATION

RETAIL ARTWORK

COMMUNITY CENTER

LOWER GROUND MALL ACCESS

AMPITHEATHER STORMWATER BIKE SHARING LOWER GROUND MALL ACCESS

PLAYGROUND AMPITHEATHER RETAIL AUDITORIUM

URBAN TRAIL

EVENT PLAZA

BIKE SHARING

URBAN TRAIL

PUBLIC PARK

VIEWPOINT

ARTWORK

LOWER GROUND MALL ACCESS

PUBLIC PARK

REST AREA

64

08

Visual Identity for CARES Comprehensive Brand Identity Projects Compilation CARES Consultants Corp. | H.S. Architecture | 2017 - April 2018 Type: Brand Identity

Location: Taipei City, Taiwan

Collaboration: Design 100%, Visualization 100%

During the transition of ownership in 2017, CARES underwent a significant transformation, necessitating a refreshed brand identity to convey the company’s new direction. I took on the responsibility of overseeing the entire brand identity design process, which encompassed creating a new logo, designing business cards, creating the website, developing nametags, stickers, and stationary, among other collateral. This comprehensive endeavor aimed to effectively communicate its renewed vision and values to stakeholders and clients alike.

The company primarily specializes in building laws, architecture design services, and interior renovation permitting for large-scale hotels. I opt for an upright and foursquare design that conveys the company’s professionalism and expertise. Spruce blue evokes feelings of calmness, serenity, and peace. Additionally, blue is perceived as a sign of stability and reliability, which aligns well with the company’s image.

CARES

Logo Concept / Brand Identity

Taipei City, Taiwan

中華大使風險管理顧問股份有限公司

Logo /

Business Sign Display /

66

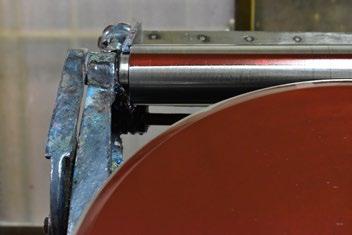

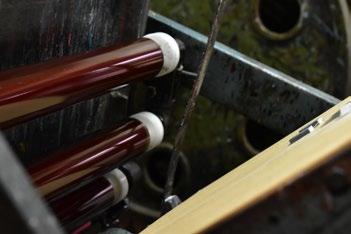

Letterpress Printing process To create an elegant and professional look, I opt for letterpress printing. The front is strategically designed with tactile and visual impressions into the paper, a technique known as “debossed.”

The choice of cotton paper communicates an elegance and handcrafted quality that can’t be matched by digital printing methods.

#4a4e5e

#909cac

#596878

#81a7c7

#00000

#a7a9ac

#dcddde

#ffffff

Stationary /

Brand Identity

Taipei City, Taiwan

68

Name Tag /

Stationary /

Brand Identity

Taipei City, Taiwan

Moon Festival Greating Card /

70

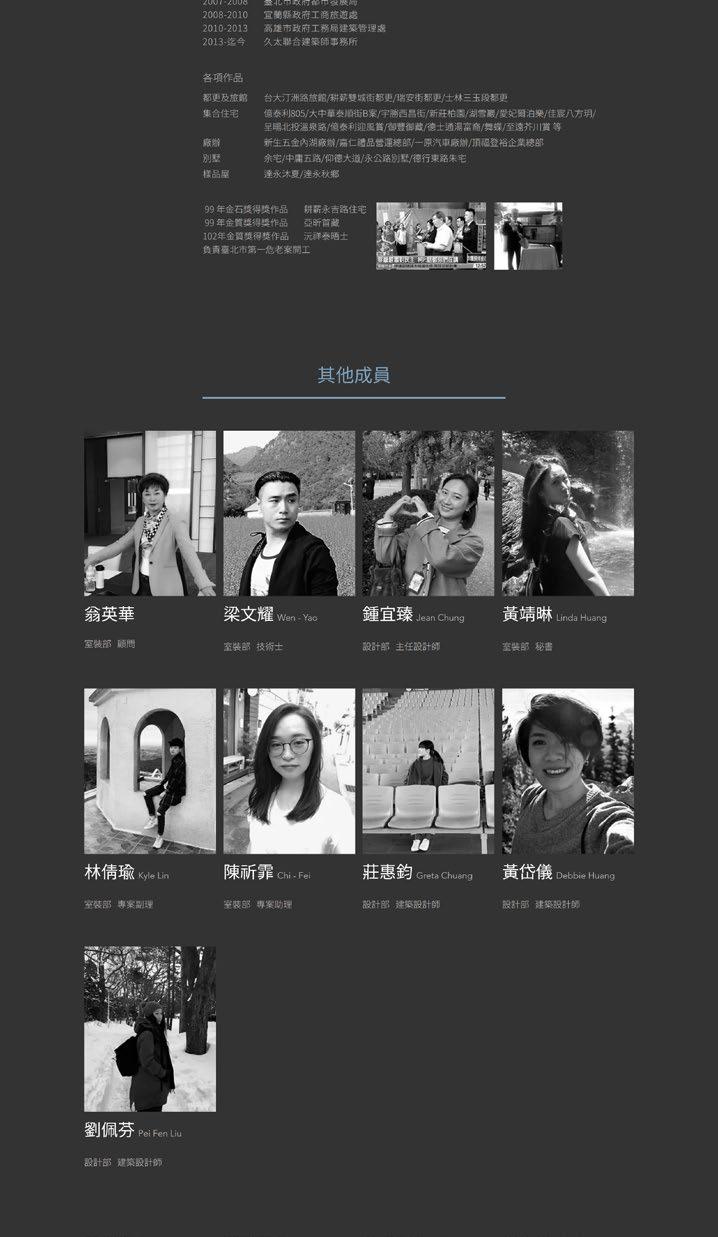

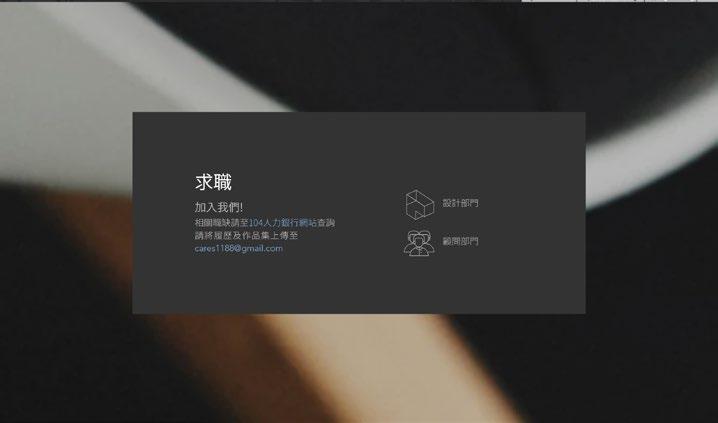

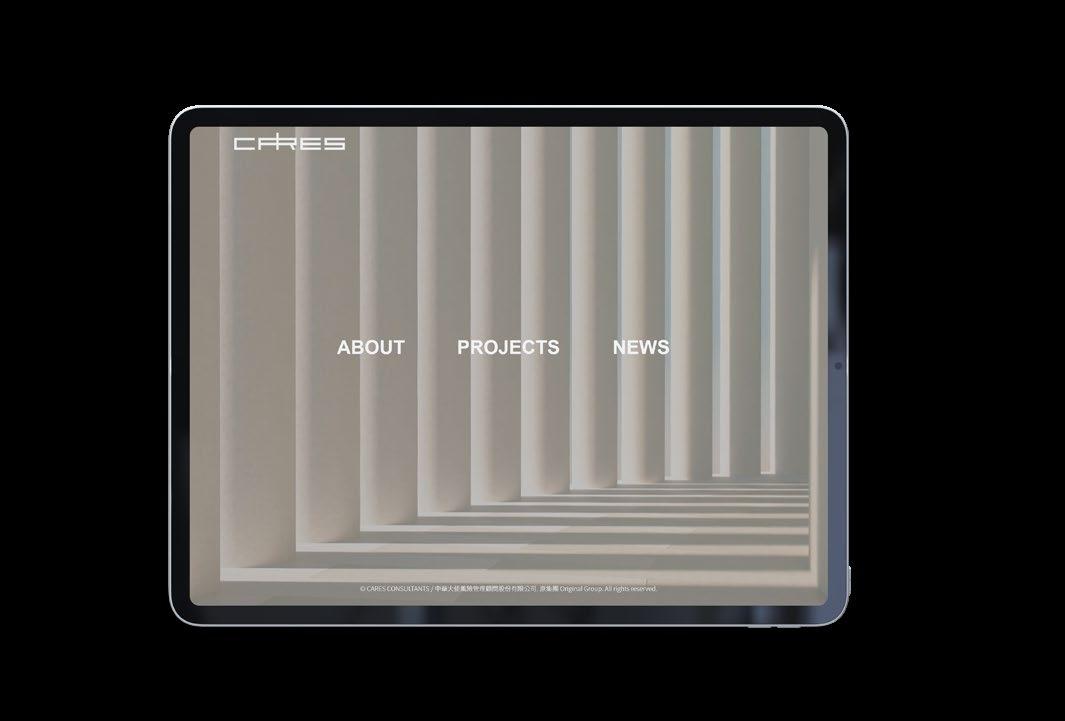

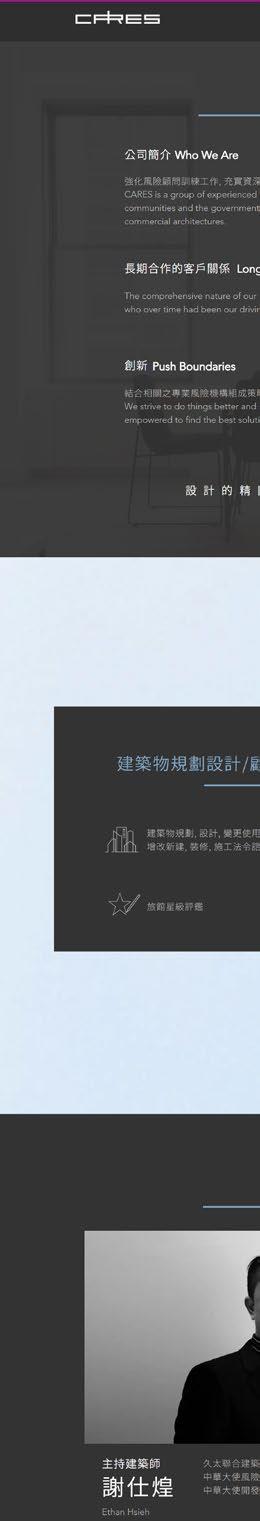

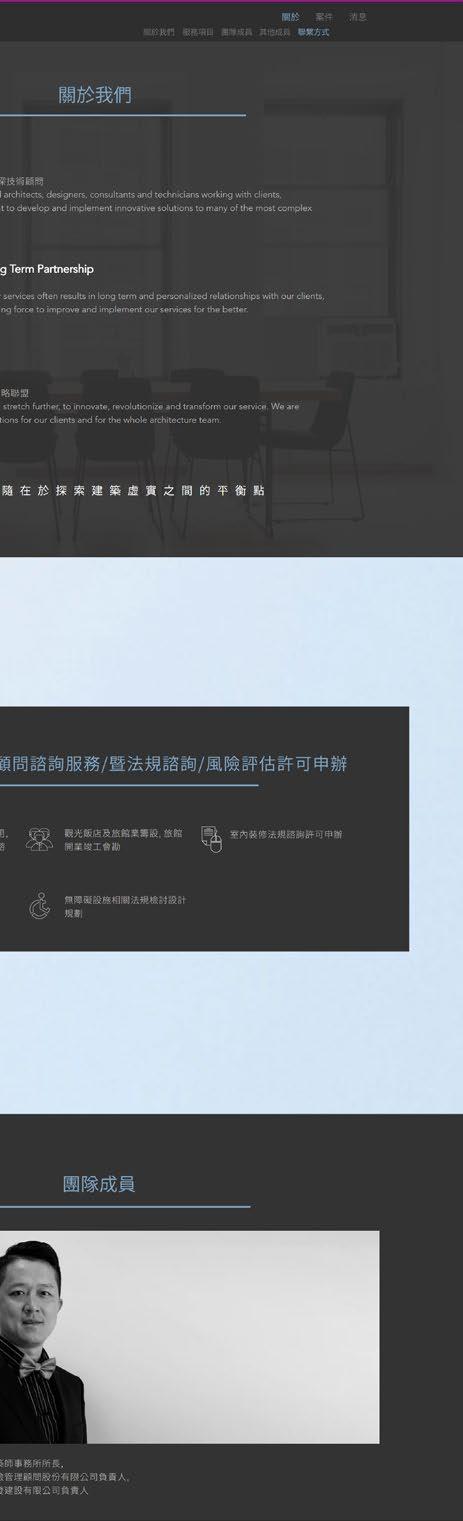

Company Website Design As digital media gains prominence in Taiwan’s architecture industry, CARES acknowledges the necessity of establishing an online presence to exhibit our work, engage with potential clients, attract talented individuals, and foster collaborations with partner companies. Tasked with designing our website, I meticulously crafted a digital platform that embodies our company’s identity while ensuring a seamless and captivating experience for visitors. Emphasizing a clean visual aesthetic and a simplified structure, the website utilizes minimal color palettes and darker themes to enhance readability and provide users with a pleasant browsing experience, especially for prolonged screen viewing.

Brand Identity

Taipei City, Taiwan

72
