Industry Experts – Specialist manufacturer and supplier of external flooring solutions
We are a UKAS ISO9001 manufacturer and supplier of UV stable quality surfacing materials. We advise architects and specifiers on finding the best SuDS permeable paving solution for their commercial, industrial and domestic projects and see the work through from start to finish.
Our complete service includes UK manufacturing, research and development and testing to BS EN standards in line with industry FeRFA guidance notes, offering personal CPD representation and having our products technical data sheets, health and safety documents, structural sectional base build up details all available to download on our website www.limegatesolutions.co.uk. We offer approval of drawings, ongoing site inspections and leading one stop product ITC warranties, when working with approved installers from our network of UK specialist contractors.
All our specialist ranges when required are tested and are compliant with BS 8204-6:2008+A1:2010 Appendix B for slip resistance whilst maintaining a decorative appearance to blend in with various surroundings on all types of client projects.
Our permeable resin bound ranges are developed using UV stable, aliphatic polyurethane formulations, which include our traditional LimeBound system and LimeTreePit system and our environmentally friendly LimePath hybrid natural aggregate and rubber systems. Where slip resistance is key we have our LimeBonded range of decorative and high friction surfacing for paths and roads.

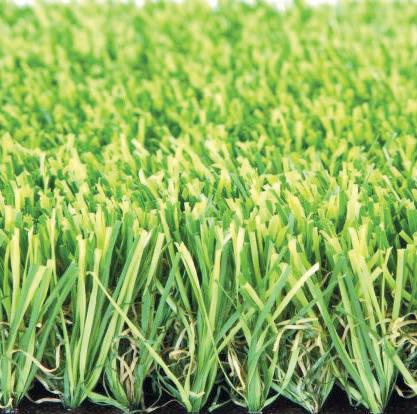

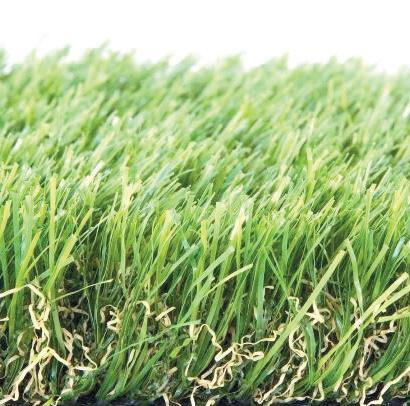

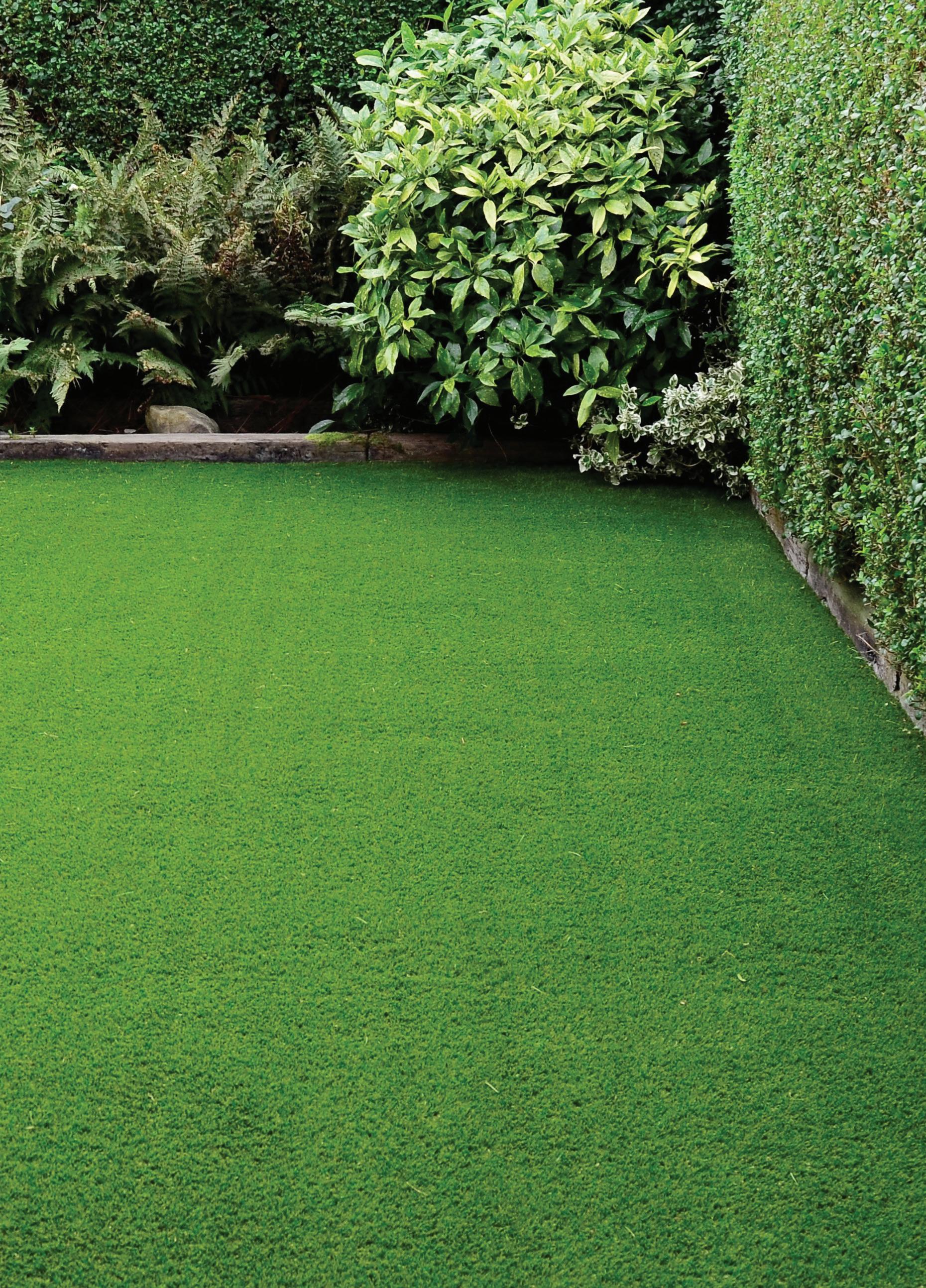

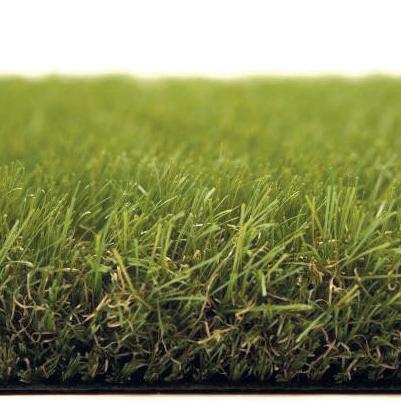

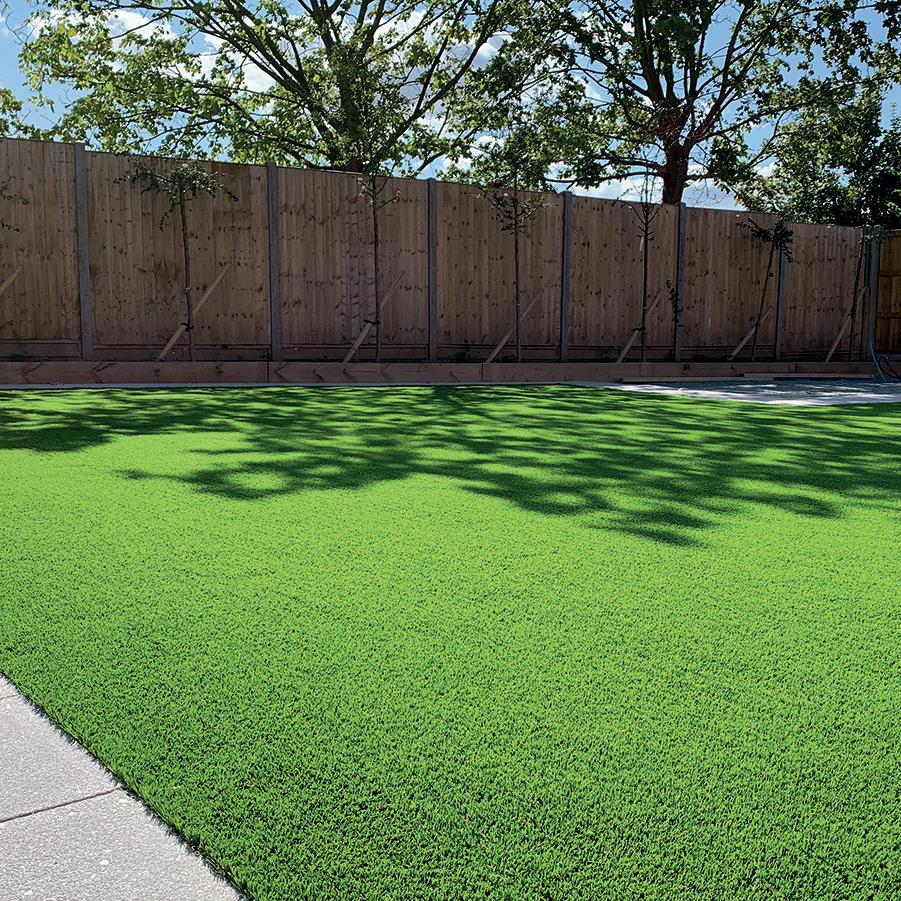

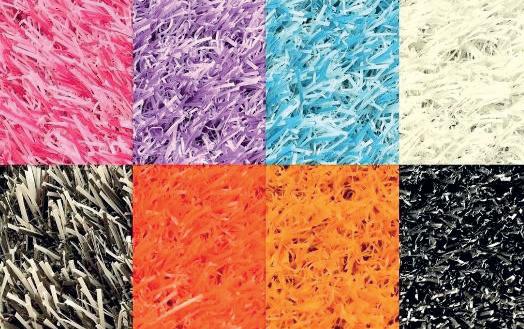

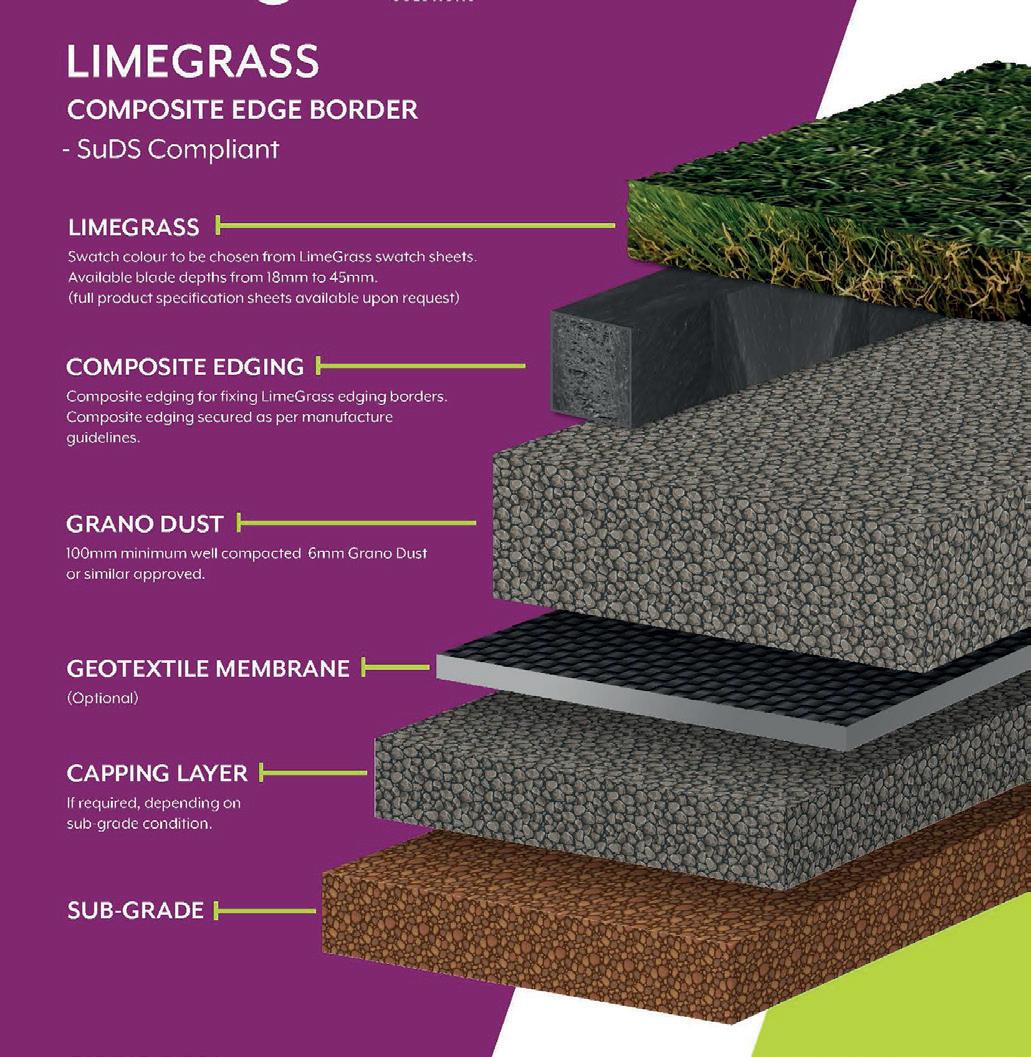

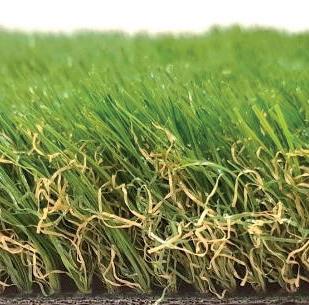

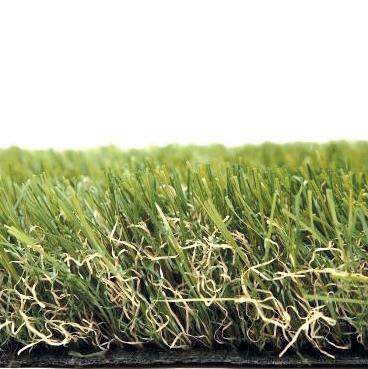

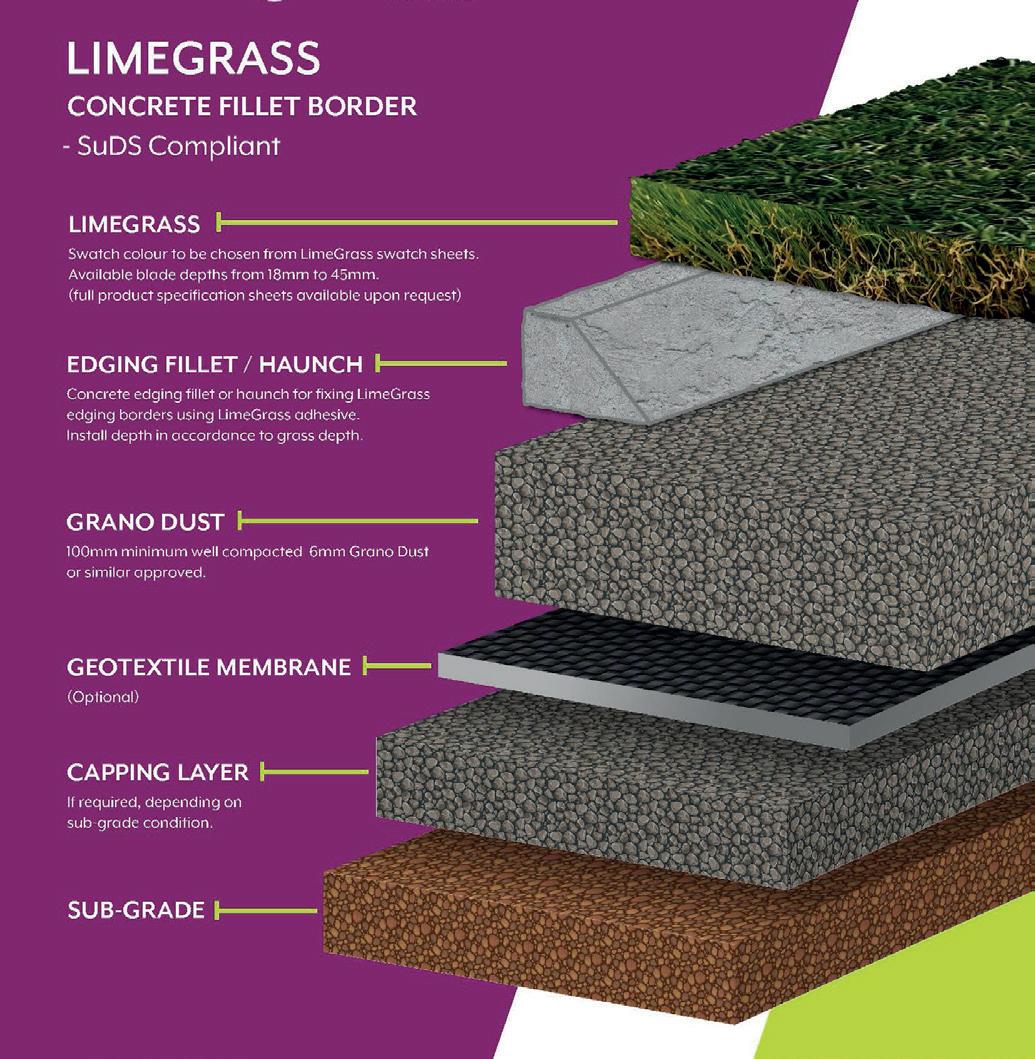

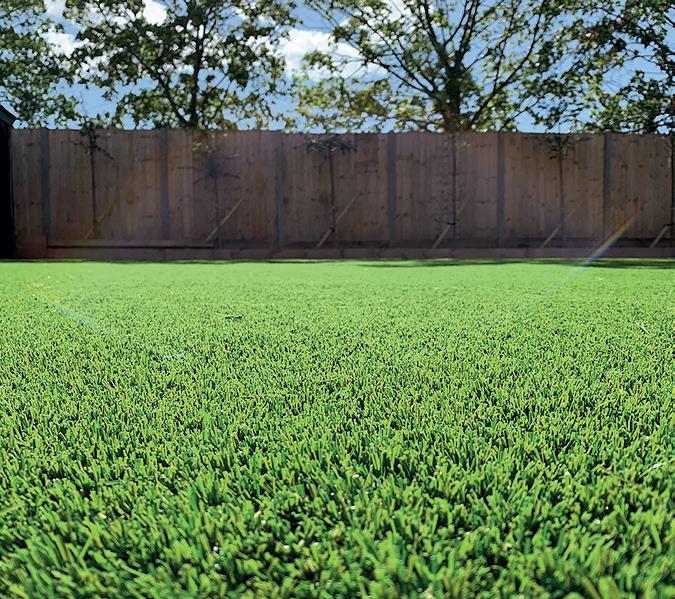

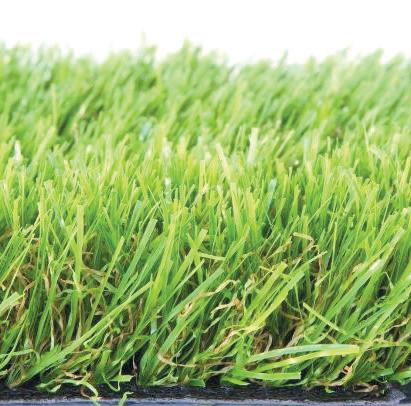

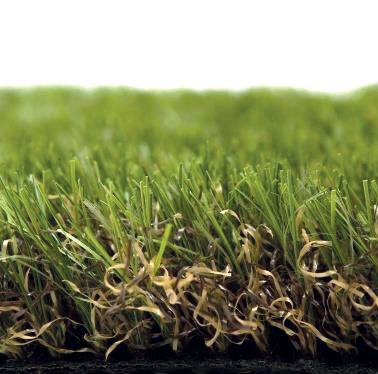

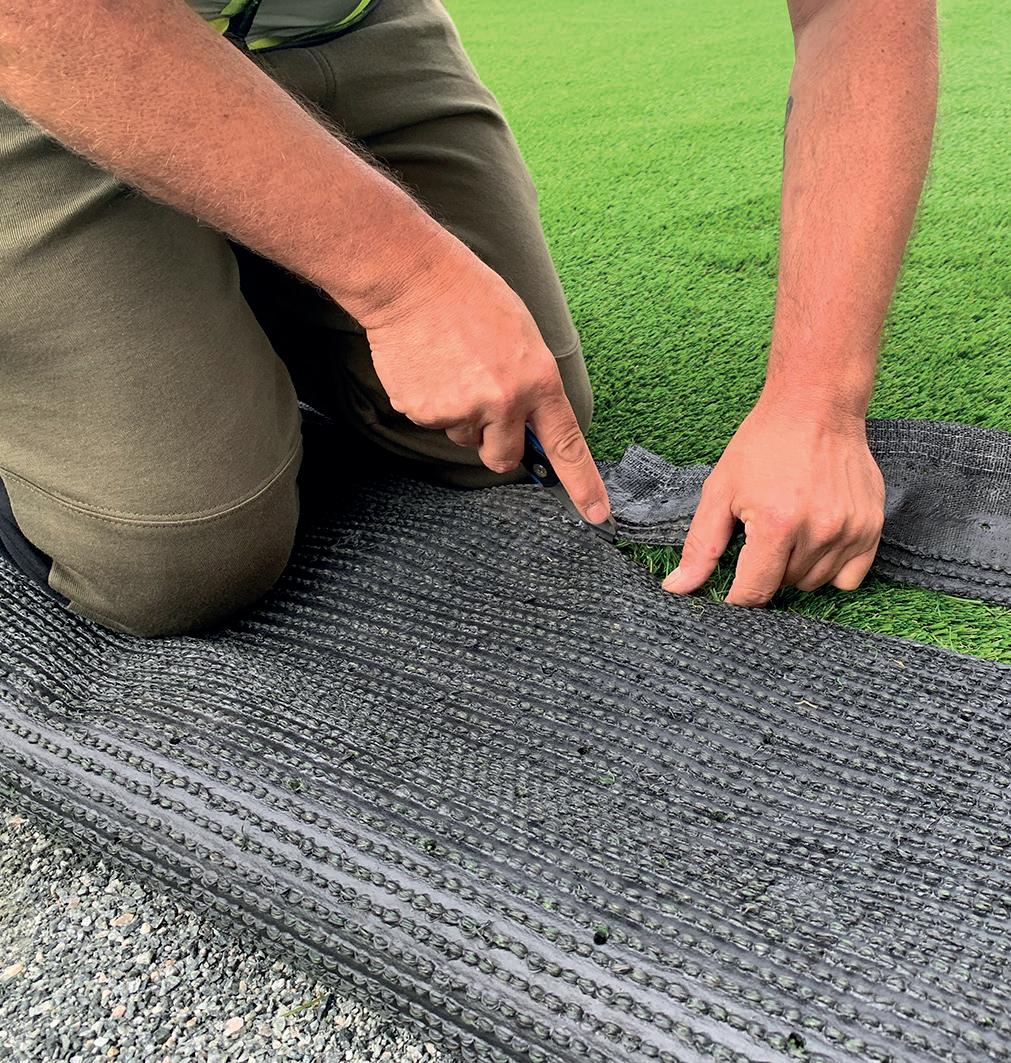

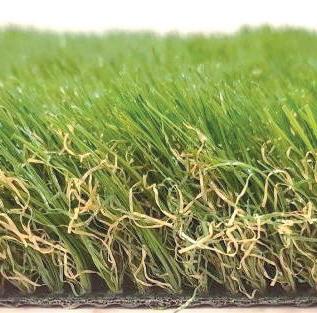

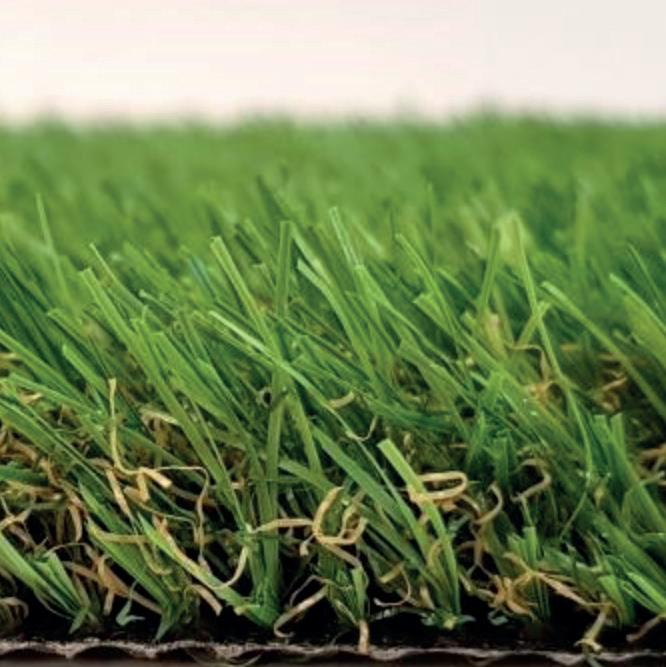

We supply market-leading quality LimeGrass artificial grass, our LimeRubber ranges have the highest grades of aliphatic and aromatic rubber binders as well as quality EPDM and SBR granules used for play safe systems and all types of cushion paving. This versatile selection means that we have always got the right solution for any project regardless of scope, sector and size.
Having worked over many years with the BS EN standards and industry guidance notes as issued by FeRFA, The Resin Flooring Association and The Organisation for the Resin Bound Technical Committee, we have been able to develop solutions tailored to customers specific demands. Our experience gives architects the peace of mind that our team have unrivalled knowledge and the ability which allows them to help specify quality products that will exceed their client’s expectations.
All our solutions under the Limegate brand can be combined into a unique single source service package including specification, estimation, management, groundworks and installation. Limegate can give a one stop ITC warranty for each stage ‘inception to completion’ that is not available elsewhere in the UK.
The right solution for the job.
Who We Are
We are leading manufacturer and suppliers of quality external surfacing products in the UK
We are expert manufacturers and suppliers of surfacing systems, helping specifiers to specialist trade, which can be used for commercial, industrial, or domestic projects. We aim to be your surfacing one-stop shop, getting you market leading surfacing supplies in line with industry standards, that meet your clients high expectations. We have an experienced team on hand who can help and advise you, plus our website www.limgatesolutions.co.uk is full of useful resources to help you understand our products from specification to the quantities you will need and how to install them. Here are some of the reasons why people choose to use us as the market industry experts across the UK:
• Manufactured to UKAS ISO9001:2015
• Products tested to the latest FeRFA, Resin Bound Technical Committee 2020 guidance notes in line with British standards and European standards exceeding all outdated independent certification

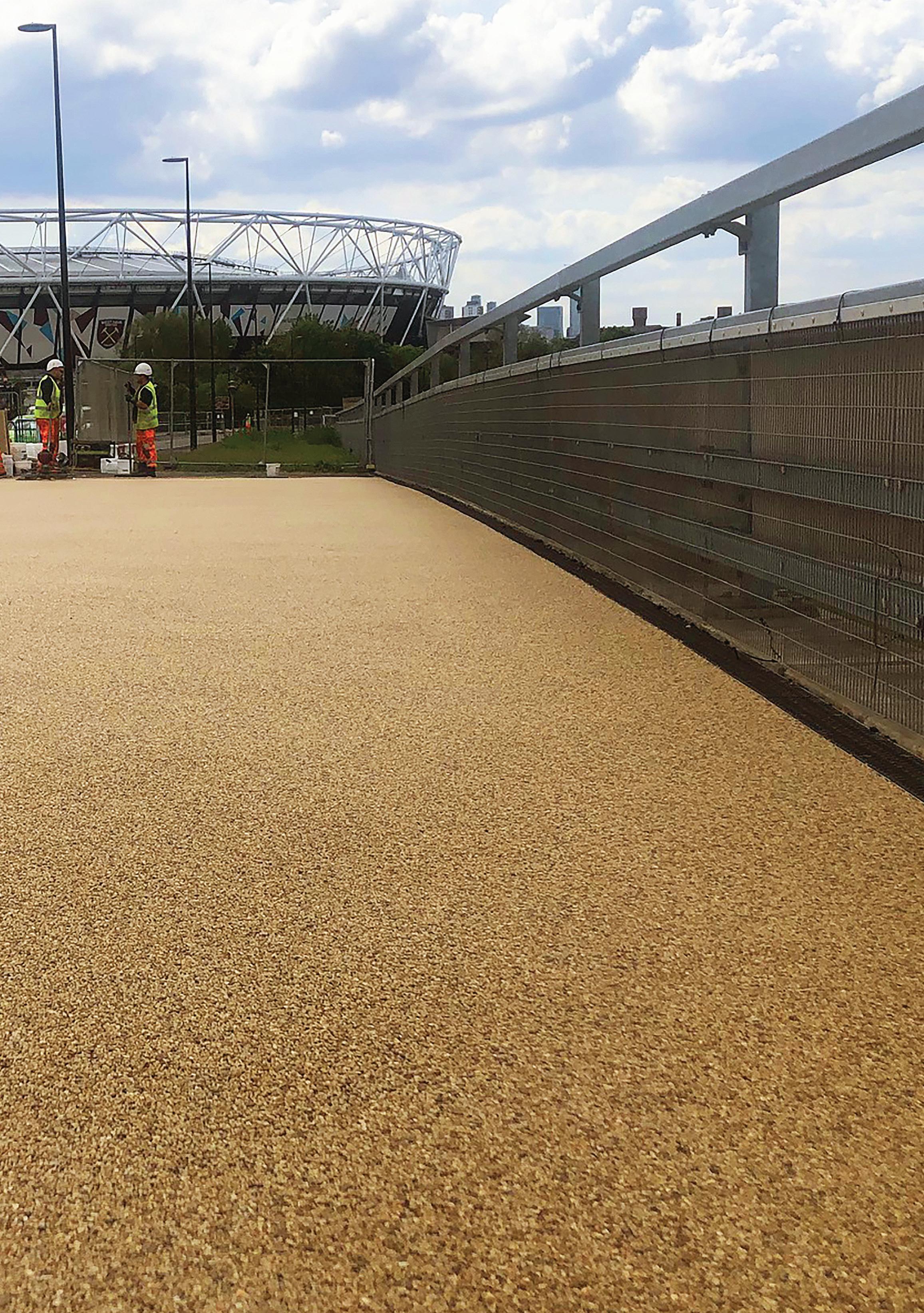

• Used on major high-profile projects
• Specified by architects, main contractors, and high-profile clients
• Only UV stable resin bound surfacing binders manufactured and supplied – we do not endorse non-UV systems
• Technical support literature, H&S and CPD services to architects and specifiers
• One stop ITC warranty ‘inception to completion’ from the ground upwards - unique to the industry
• Used by the best and UK leading commercial installers
A wide range of products to select Choose from quality resin-bound surfacing, rubber safety surfacing for playgrounds, and eco- friendly solutions.
Quality surfacing supplies
We are known for the durability of our supplies, and our products are manufactured in the UK, giving us complete control over quality.
• Durability and track record having been used in excess 1,000,000 m2 across the UK
• Over 100 years combined expertise from manufacturing to installation
• A wide range of quality products to suit both quality, aesthetic, and environmental needs
• Suitable for all industry types from commercial to industrial to domestic for pedestrian and vehicular use
• We are known for the durability of our supplies, and our aggregates are sourced in the UK, giving us complete control over quality. We do not endorse crushed glass or marbles not suitable for performance use
• Installation experts and not just manufacturer and supplier so our products have been developed using industry knowledge across all points of view
• Our surfacing solutions are eco-friendly and allow for fast application

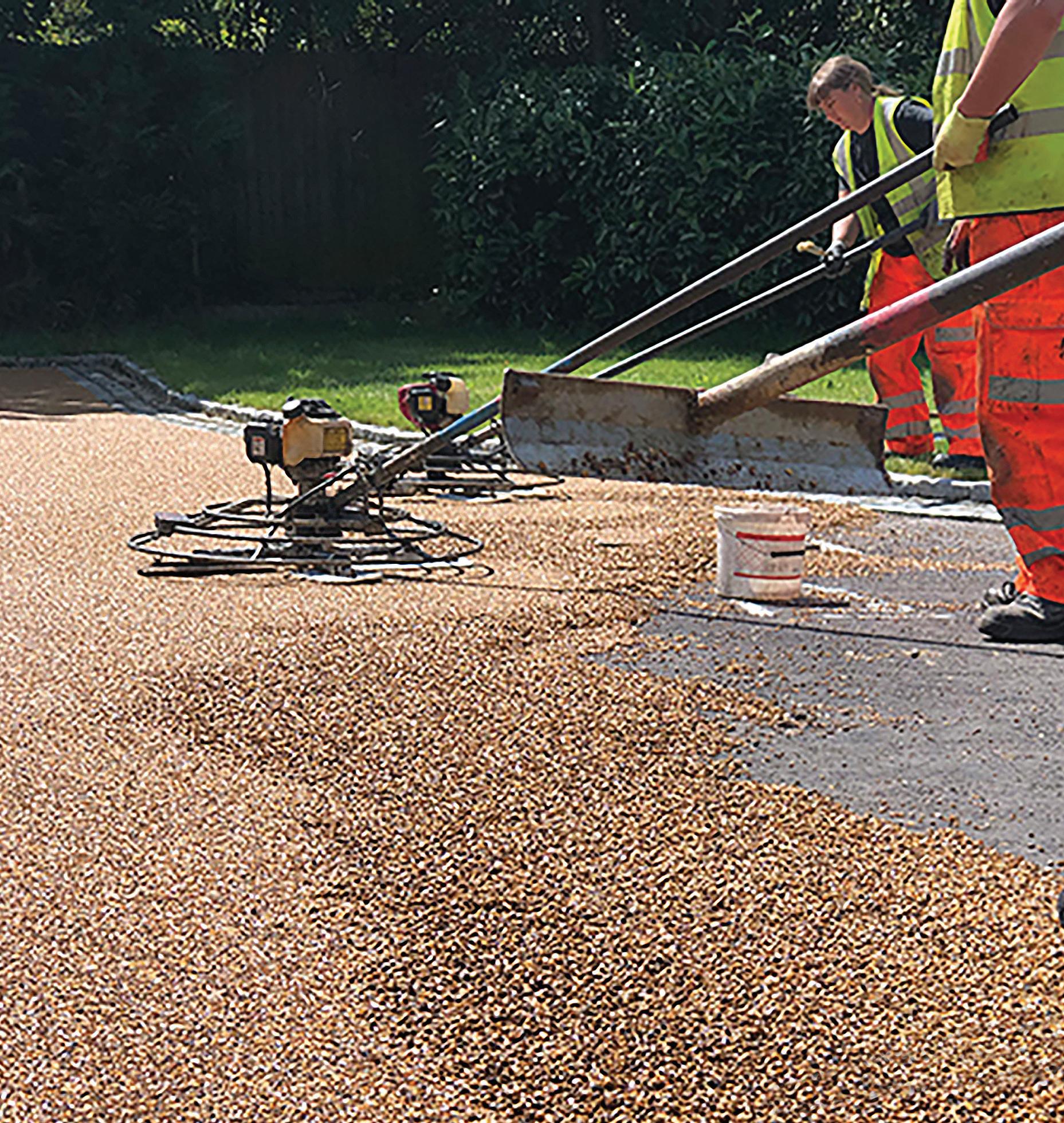

Installation experts
Our approved contractor can carry out all warrantied installations from inception to completion.
Innovative solutions
Our surfacing solutions are eco-friendly and allow for fast application. They are market leaders, making your life easier.
Health & Safety
Installation commitment to health and safety and best practice
A product will only perform to the standards expected if the installation is by a specialist and accredited approved contractor that has a commitment to good practice.
Under the Limegate brand, the following is a part of our commitment to installation.
CHAS
Helping clients (buyers) and contractors (suppliers) ensure compliance across the different areas of risk management and mitigate risks and support efficient supply chain management.
Constructionline
Helping members simplify procurement procedures, reduce risk, and keep pace with legislation.
Cards provide proof that individuals working on construction sites have the appropriate training and qualifications for the job they do, improving standards and safety on UK construction sites.
Committed to ensure reduction in health and safety assessment costs and bureaucracy in the supply chain, by making cross-recognition between member schemes as effective as possible.
Acclaim Accreditation
Assesses contractors health and safety standards to ensure they meet the current industry standards and regulations.
Association Membership
Market leading commitment to quality, service and supply
FeRFA – The Resin Flooring Association since 1969 – Represents the major product manufacturers, specialist contractors, raw material suppliers and specialist service providers within the UK resin flooring, screeding and surface preparation industry sectors.
Resin Bound Technical Committee – the industry technical committee for Resin Bound Systems and Resin Bonded Systems for External Applications under the guidance of FeRFA have released the industry guidance notes based on the collective knowledge of FeRFA members having extensive experience in the requirements for successful applications of resin bound surfacing. The guide gives recommendations for the selection, design, substrate preparation, application, maintenance and for the inspection and testing of resin bound surfacing.
Participation – Co-founder and current Chairman of the Resin Bound Technical Committee, which is part of FeRFA, setting todays guidance notes and standards as adopted for the resin bound and resin bonded industry in the UK.
BALI – British Association of Landscape Industries – members of the leading trade association for the UK’s landscape professionals established in 1972, vetting over 900+ professionals including garden designers, landscape contractors and suppliers of landscaping materials ensuring the highest level of industry standards are met.
CSCS
SSIP
Technical Support
Technical support and expertise under the Limegate Brand
The Limegate brand consists of three specialist companies;
// Limegate Solutions Ltd. – UKAS ISO9001 manufacturing and supplier of quality flooring products used externally
// Limegate Ltd. – Industry leading specialist commercial contractor for SuDS compliant surfacing
// Limegate Industrial Flooring Ltd. – Award-winning commercial industrial applicator of leading specified internal flooring coatings and systems
With this unique and combined market industry leading experience of over 100 years at senior level from industry quality product manufacturing made in the UK to certificated R&D testing facilities to leading installation in line with the current industry guidance notes, whilst meeting quality and Health and Safety accreditations for commercial and industrial applications our commitment and dedication to supporting architects and specifier, main contractors to sub-contractors to end user clients with a directive and focus on quality and the environment to provide an unrivalled service from inception to completion from the ground up.
Manufacturing Manufacturing – commitment to quality products
UKAS ISO9001:2015 – Materials are manufactured in the UK to ensure consistency of materials supplied. Certification to ISO Standards or British standards demonstrates that our organisation works to international or national best practice, demonstrating credibility and competence to stakeholders and customers.
Product warranty – commitment to the correct supply
Limegate are the only UK company that can provide an ITC warranty ‘inception to completion’ from the ground upwards - one stop warranty for external surfacing from supply to installation. We will only supply, endorse and warranty in line with the industry standard and FeRFA guidance notes the use of UV stable aliphatic polyurethane binders. We do not supply for resin bound systems non-UV stable aromatic polyurethanes that will yellow and darken and lead to early UV degradation and loss of gloss known as “chalking” where the surface becomes duller over time.
Application and supply to approved contractors is our commitment to make sure all applicators can demonstrate competence in line with our product awareness, training to our installation standards keeping to and committing to regular auditing.
Architects & Specifications
Architects and specifications – complete support and service
Guidance notes and standards – Resin bound surfacing standards and test methods
• EN 13108-1 – application to concrete, asphalt concrete binder course
• EN 13108-4 – application to hot rolled asphalt binder course
• BS EN 13892-2 – Compressive strength testing of ≥ 5 N/mm2 and flexural strength testing flexural strength ≥ 2 N/mm2 before and after artificial weathering
• BS EN 13892-1 (synthetic resin) – Samples carried out in accordance with allowing comparison of physical properties before and after artificial weathering
• BS EN ISO 16474-3 – Method A cycle No 1 with an exposure duration of 2000 hours as the specified weathering regime
• BS 8204-6 (pendulum or trolley/ramp test) – Slip resistance tests carried out in both wet and dry conditions. The pendulum test value (PTV) should generally not be less than 40
NBS Source / RIBA – members of the specifiers source for NBS BIM Library, NBS Plus and RIBA Product Selector to aid in the correct selection of products. A source for Continue Professional Development (CPD) and a service offered by Limegate to many hundreds of architects and specifiers over the years for SuDS permeable paving.
Environmental Benefits
Our commitment to the environment is an integral part of our business strategy and includes sourcing materials to ISO 14001 certification. Policies cover waste reduction, waste management, the use of recycled and recyclable materials, responsibly sourcing materials from within the UK, and only working with manufacturers that share our ethos for sustainability. All Limegate’s resin bound surfaces comply with sustainable drainage system (SuDS) building regulations, helping to alleviate issues of water pollution and flooding in urban areas.
100% of our business partners will support our environmental mission
Increase the use of recycled, naturally-sourced materials by 50% 80%
Reduce transportation and emissions by Reduce the amount of plastic packaging going into landfill by 75% 75%
Source 90% of products from UK manufacturers recycled packaging
SuDS Compliance
What is SuDS (Sustainable Drainage Systems)?
Origins:
The floods of 2007 led to the Pitt Review (Michael Pitt, civil servant) which highlighted that two thirds of the 57,000 homes affected were flooded not by swollen rivers but by surface water runoff or surcharge from overloaded sewers.
The Pitt Review led to the 2010 Flood and Water Management Act with provisions set to make SuDS mandatory for any construction work that affects the ability of land to absorb rainwater, enforced by new, local authority ‘SuDS Approved Bodies’ (SAB’s).
Since 6th April 2015 the implementation of legislation through local authority SuDS Approved Bodies is no longer. SuDS is now dealt with as part of the overall planning process, with each individual council planning team consulting with the local flood authority on the management of surface water. This consultation will determine whether or not the proposed SuDS meets planning criteria for the prevention of flooding.
SuDS applies to new housing developments of 10 or more dwellings, as well as commercial and mixed-use developments. With regard to existing domestic properties, Permitted Development rights have been removed from new or replacement driveways or other hard surfaces (patios etc), unless permeable paving is used or water drains onto a permeable area within the property. Otherwise planning permission will be required.
How can SuDS compliance be achieved?
Provide an alternative to the conventional means of piping surface water directly into the public sewer. The aim is to drain surface water into the ground or provide temporary storage so water can be released slowly. This can be achieved by surface water runoff to soft landscaped areas, soakaways, attenuation tanks, retention ponds and permeable paving.
Without adequate surface water control downstream flooding can occur and overwhelmed drainage systems, when released to watercourses, can cause deterioration in river quality.

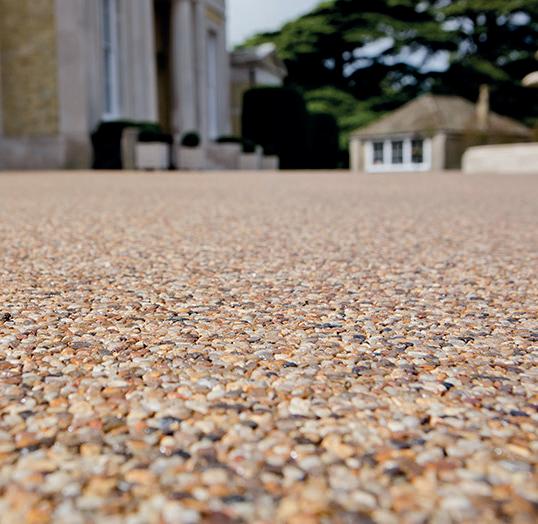

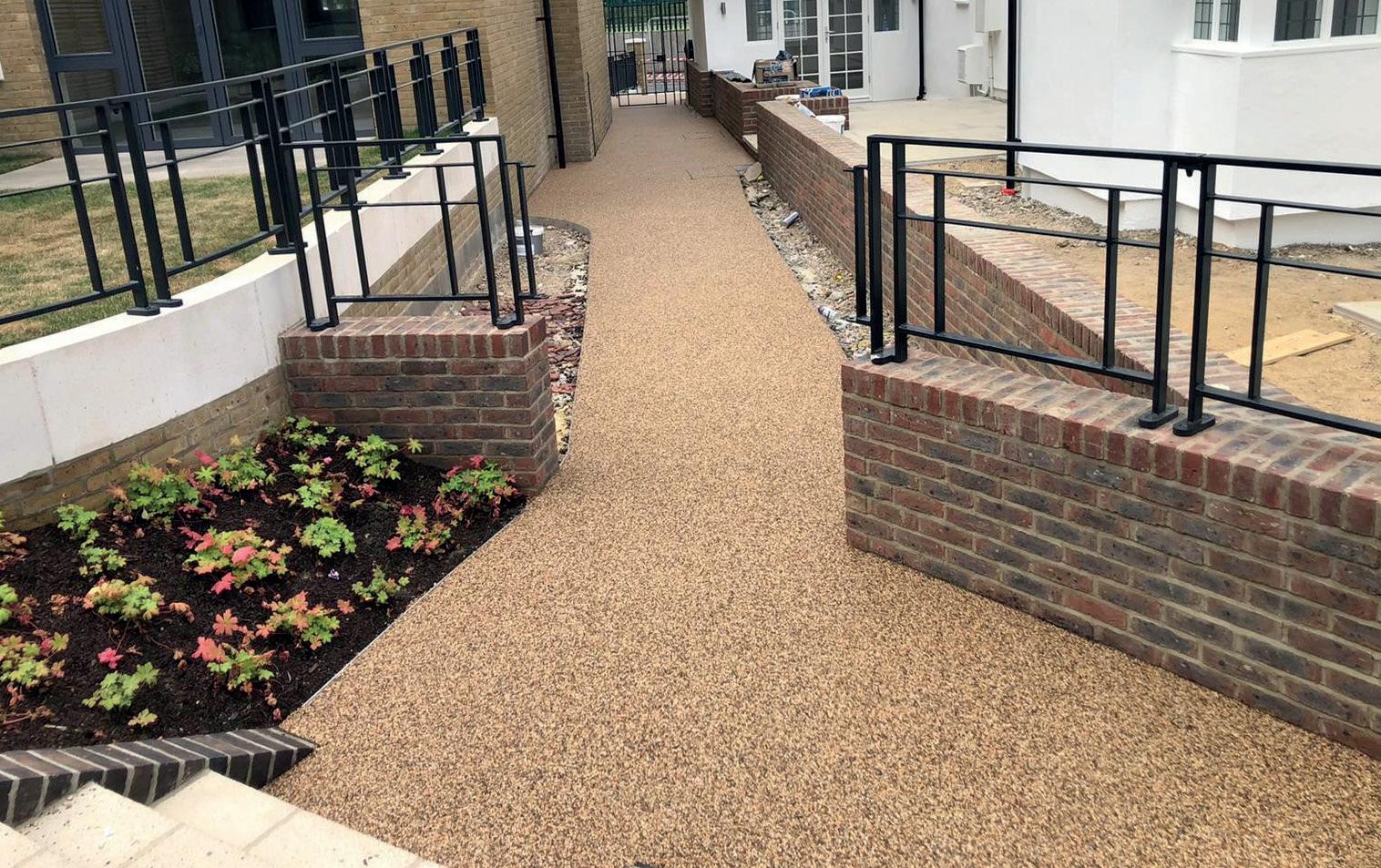

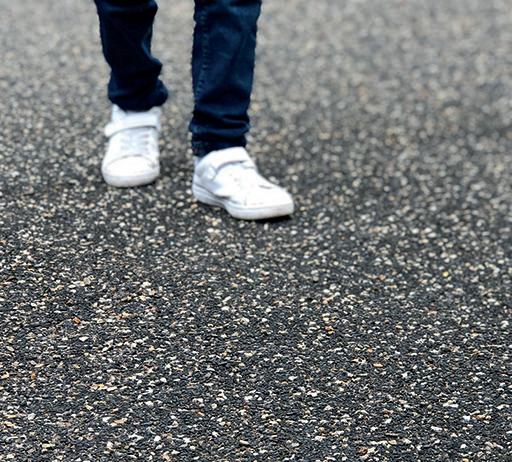

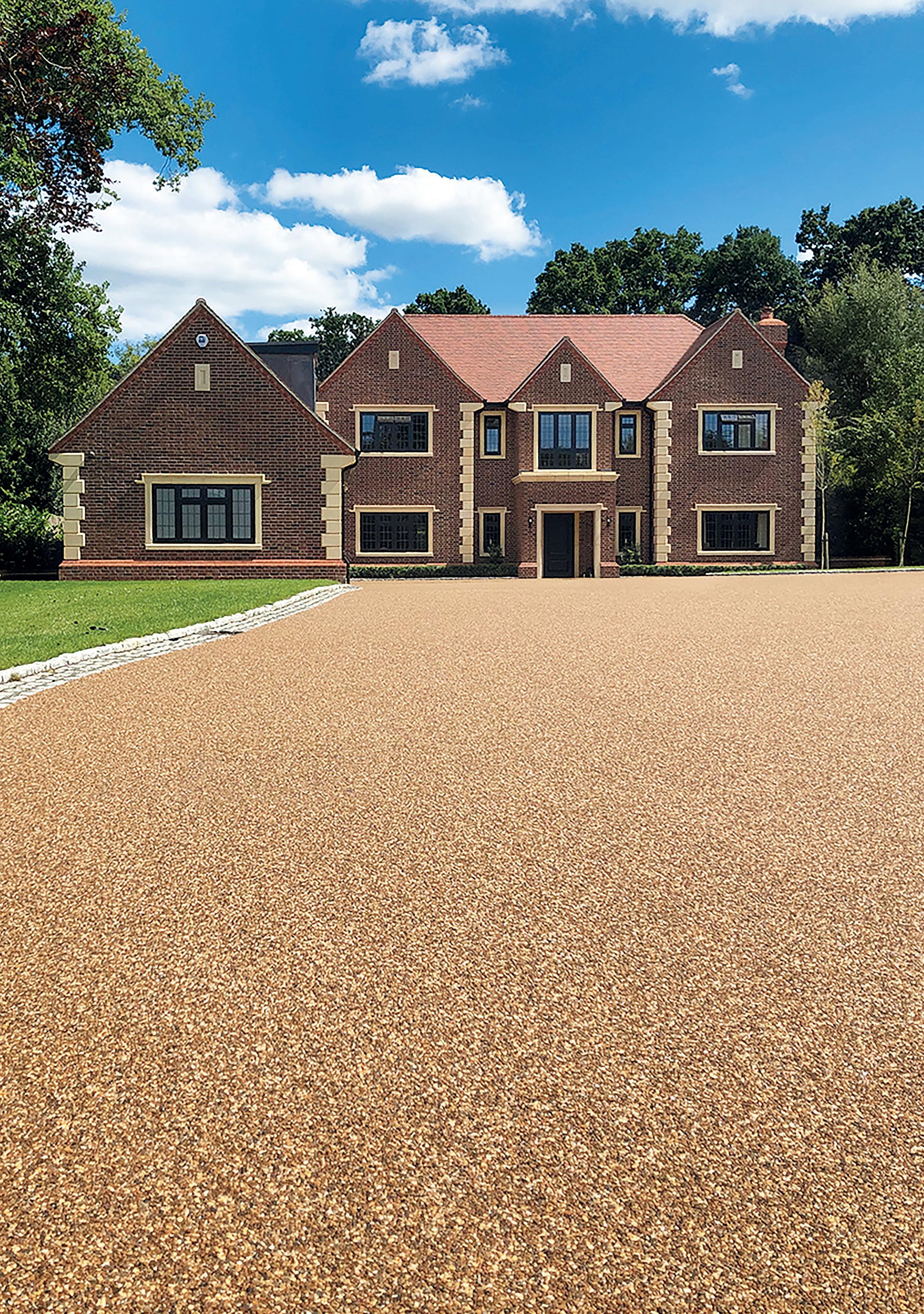

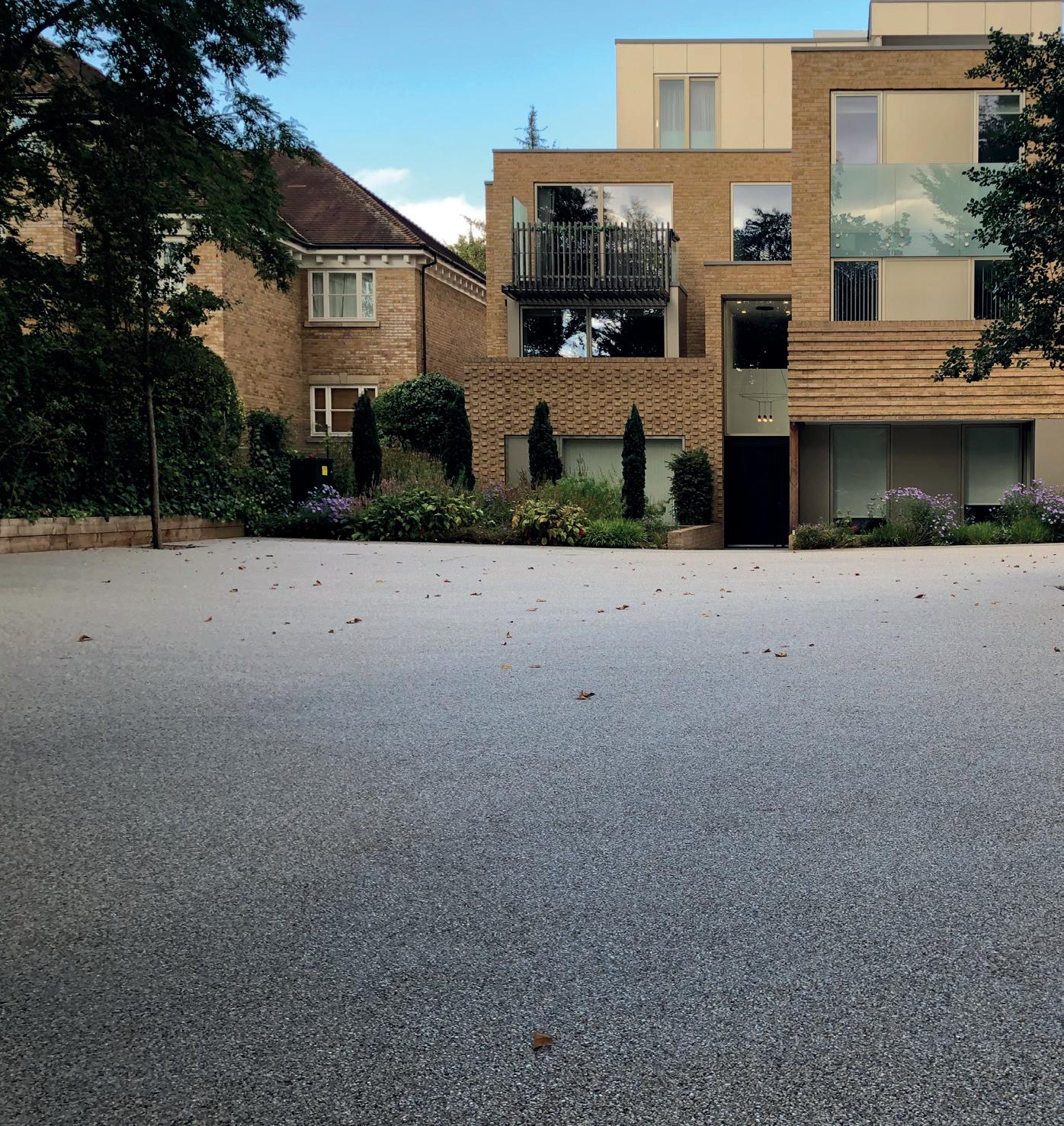

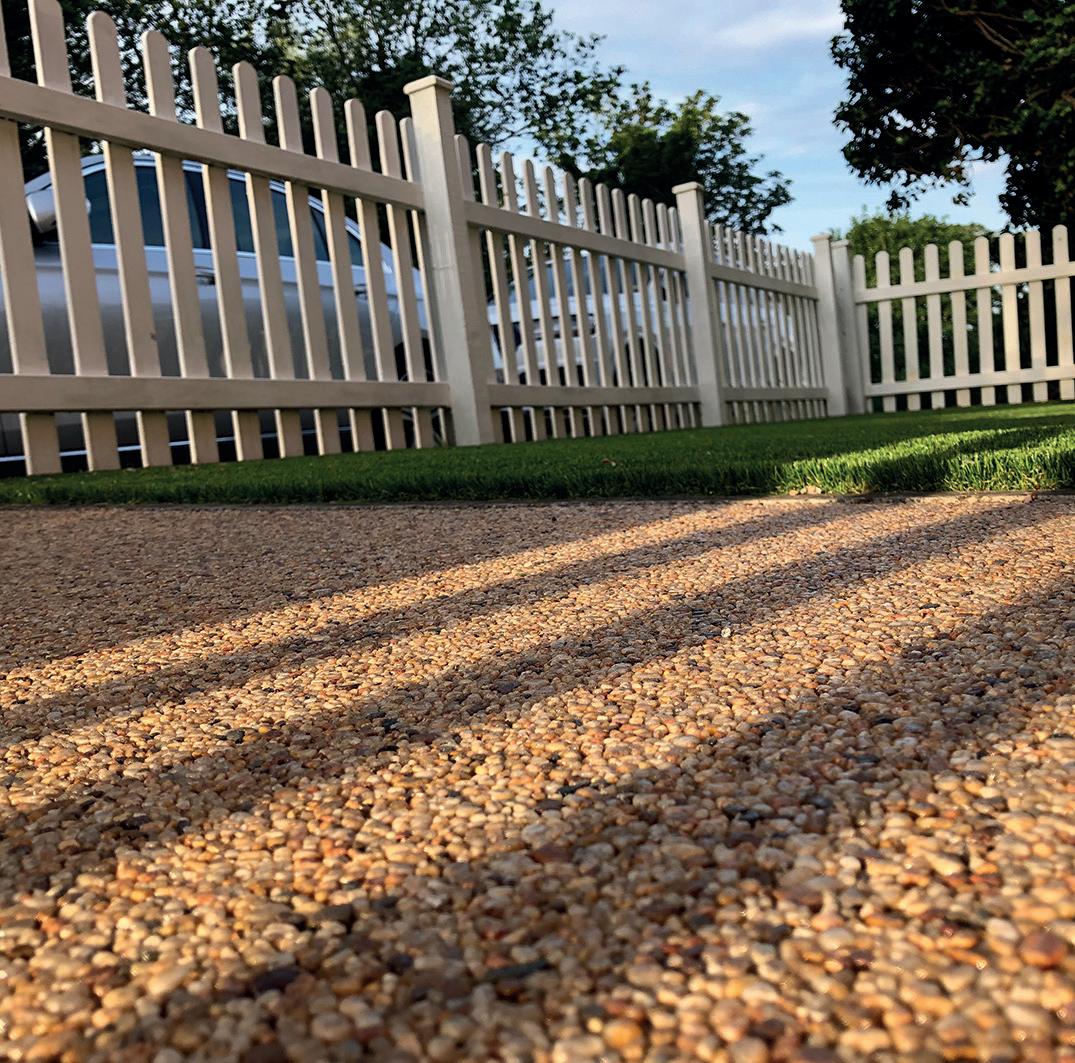

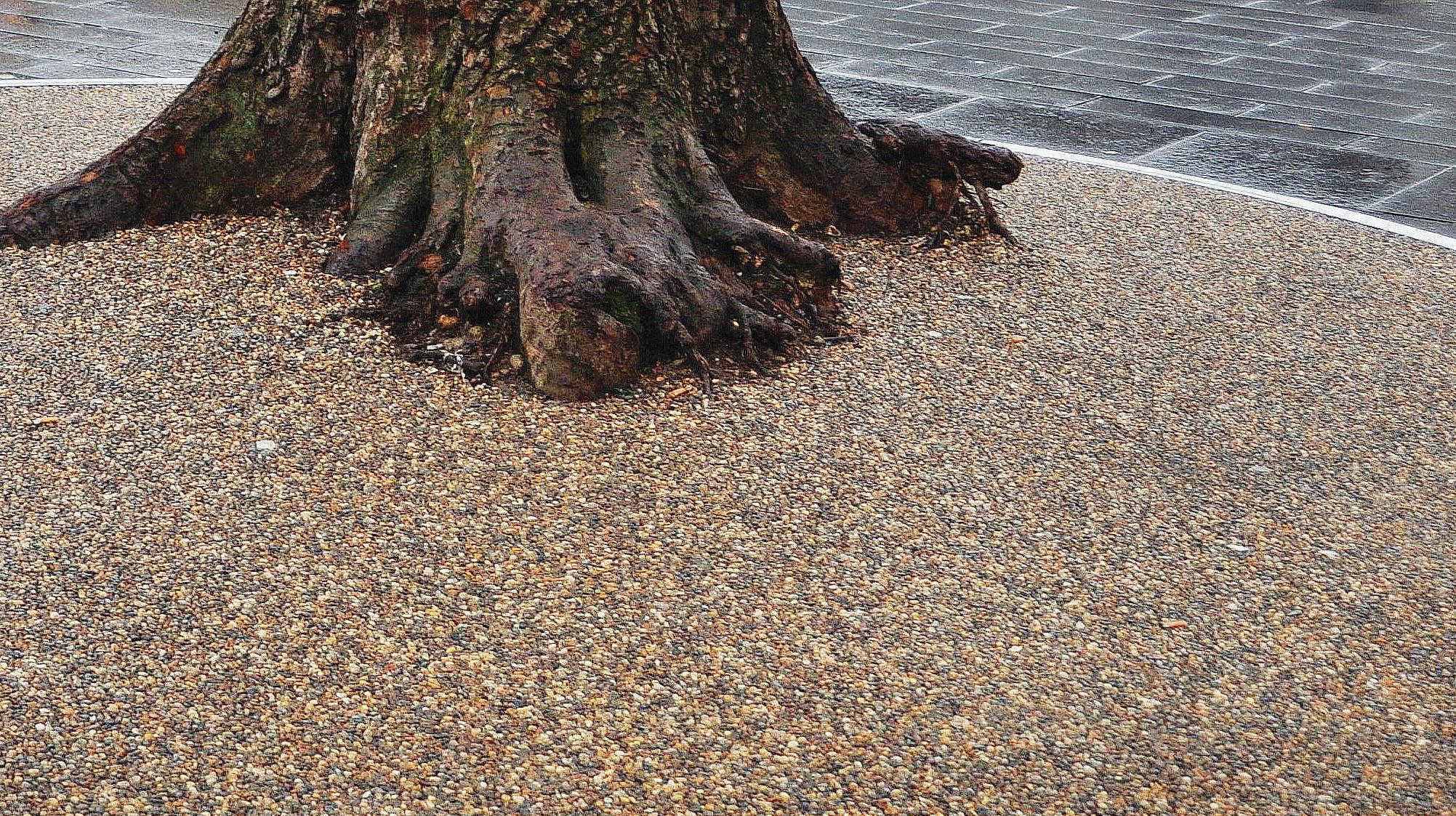

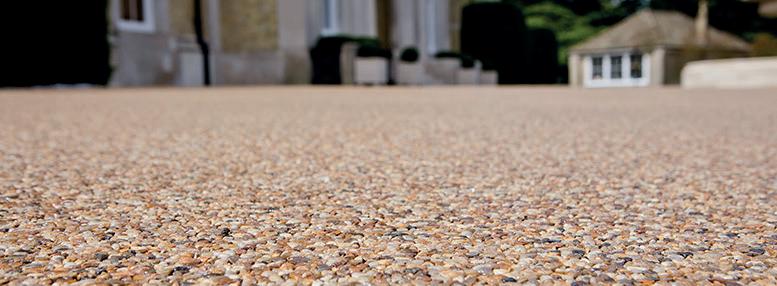

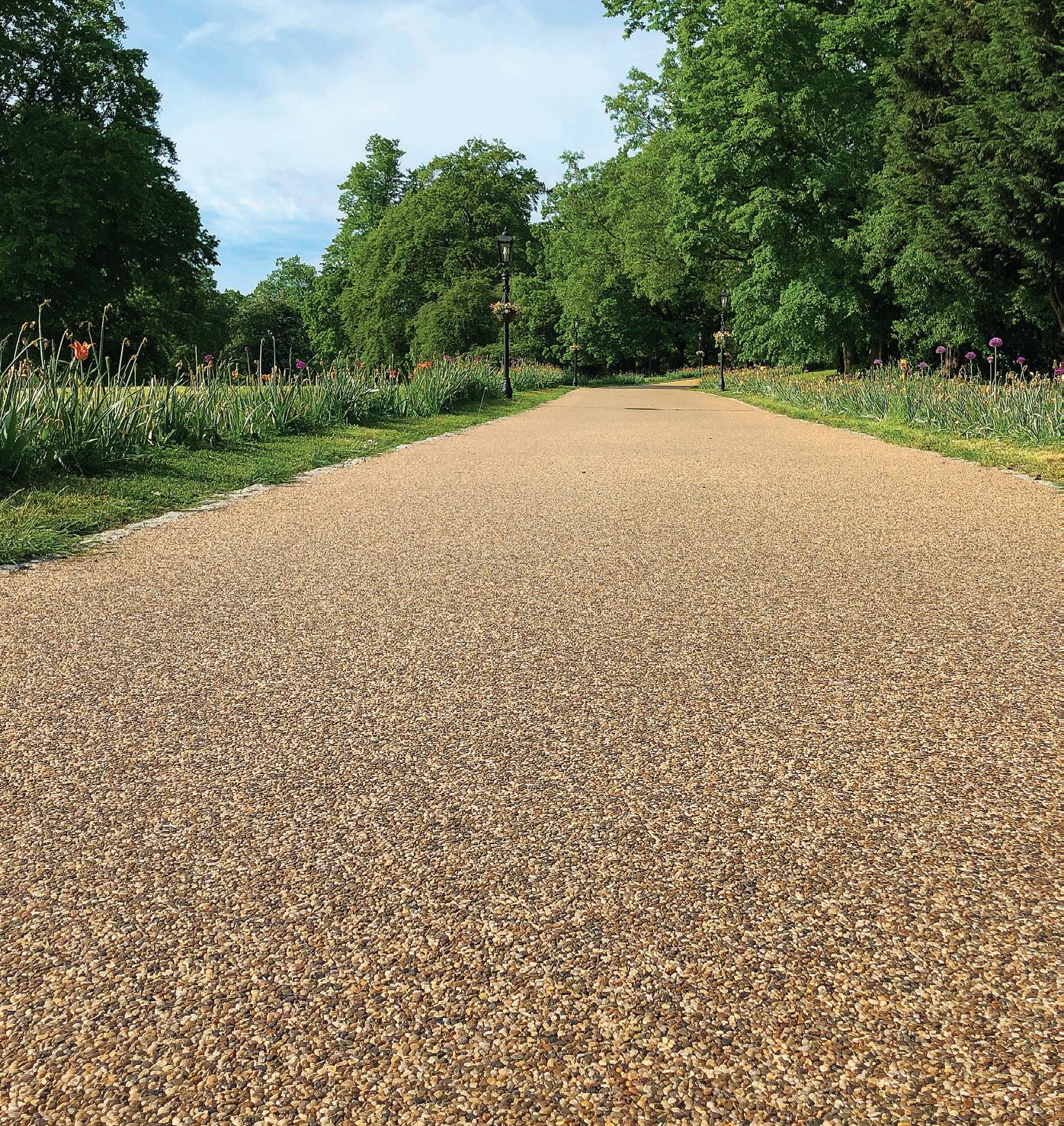

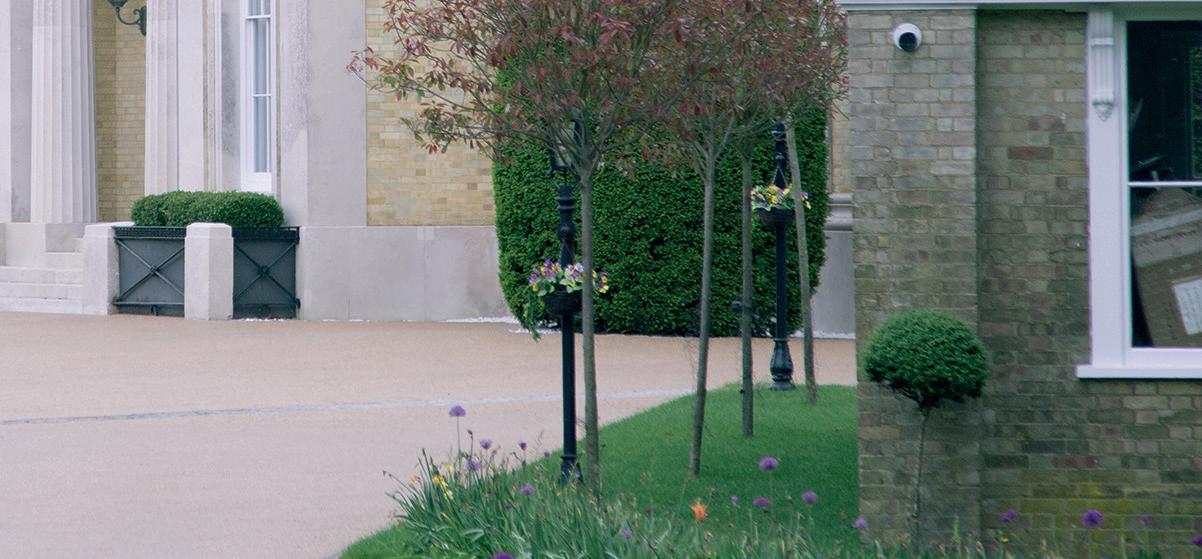

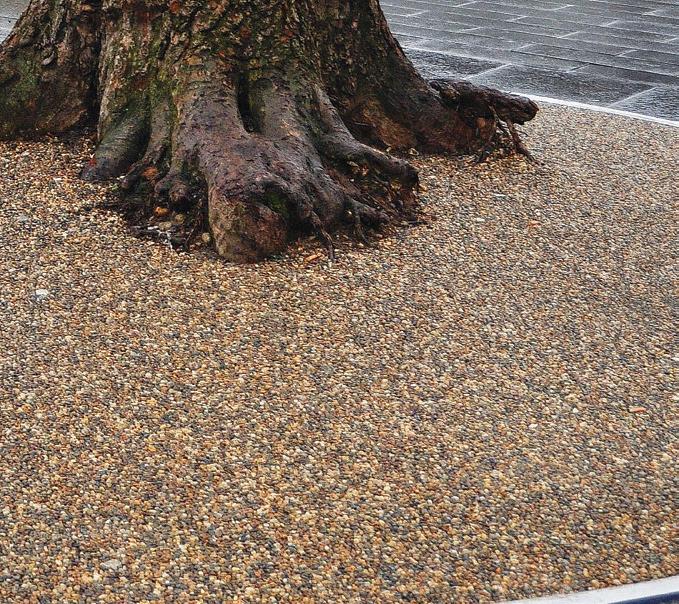

LimeBound UV Stable Resin Bound System is a resin bound aggregate surface for pedestrian and vehicular traffic which is permeable (SuDS compliant), decorative and functional, seamless and slightly flexible. The open matrix allows water to drain through to the base, eliminating water ponding and allowing water to drain to planted areas or land drains. The surfacing may be applied to SuDS compliant bases and sub-bases, reducing the impact of urban development on flood risk and allowing water to flow into water courses. Edgings created from brick, stone, timber or steel should be installed to retain and protect the resin bound surfacing. LimeBound UV Stable Resin Bound System is a two component mixture of the highest grade aliphatic and latest technology ingredients which binds a range of selected decorative kiln-dried aggregates.

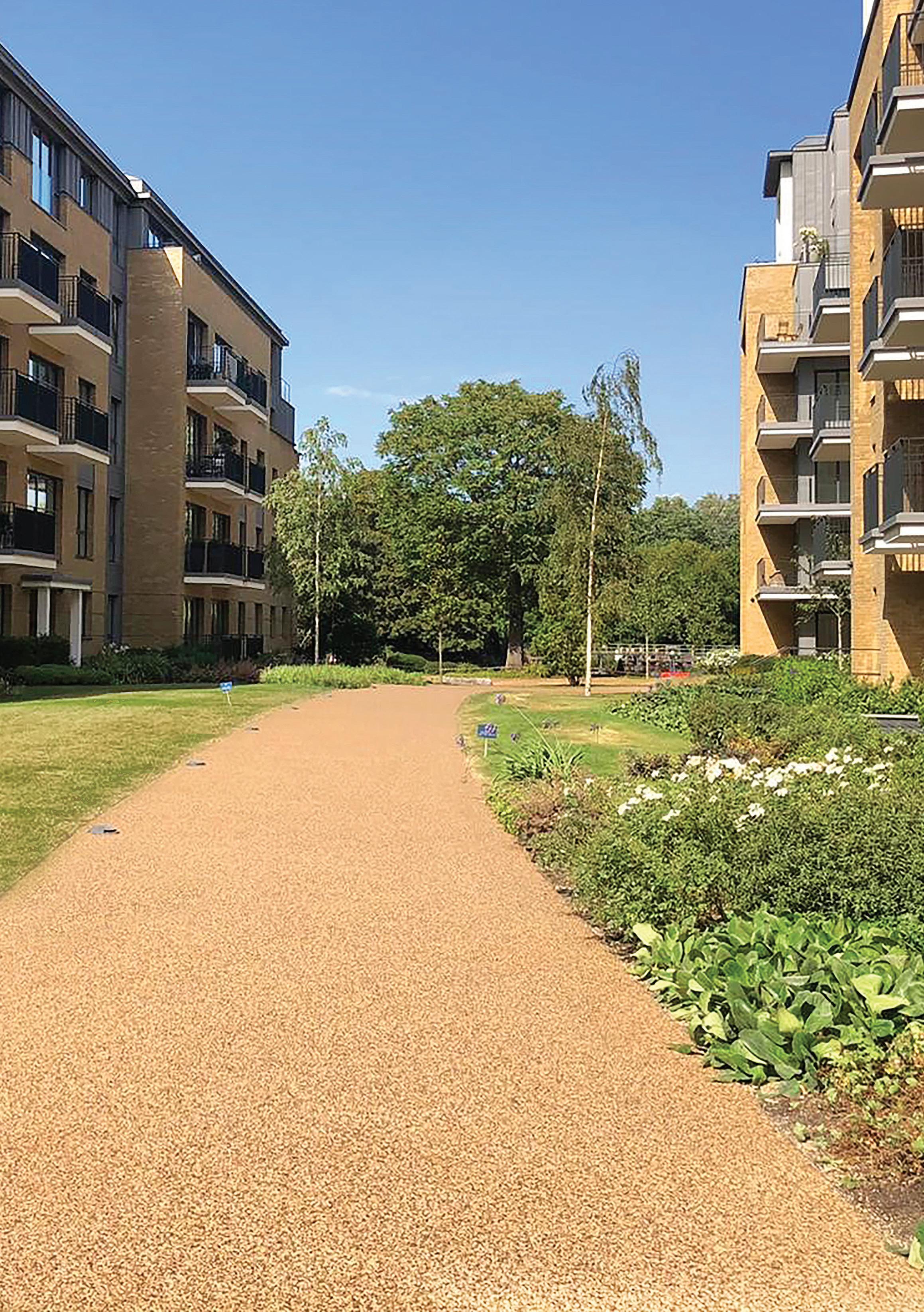

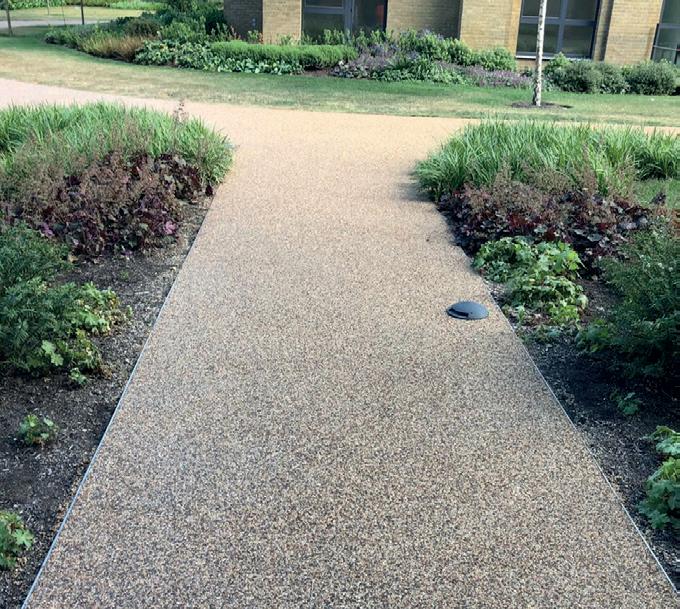

LimeBound UV Stable Resin Bound System provides an attractive porous surface which is strong enough for foot and light vehicle traffic up to 7.5 tonne.
• 15mm depth install paths and drive on / drive off driveways
• 18mm depth install turning driveways / car parks up to 7.5 tonne
• All aggregates selected to reduce chances of rust appearing
• Optimised ratio of resin to aggregate mix blends in line with industry standards (7%)
• Foot traffic after 14-15 hours @ 20°c
• Manufactured to UKAS ISO9001
Shelf Life & Storage
Shelf life of LimeBound Resin
Bound Surfacing Resin is 6 months, aggregates have an unlimited shelf life.
Store materials in clean, dry, frost free warehouse conditions between 5°C and 25°C.
Protect from sunlight.
MADE IN THEUK
Mix Design and Pack Sizes
LimeBound Resin
Bound Surfacing Resin
7.5kg
LimeBound Resin Bound Surfacing Aggregate
100kg (4x 25kg bags)
LimeBound Fine Aggregate
6.25kg
Coverage
Coverage rates for individual blends can vary. Please refer to the Limegate Solutions LimeBound Mix Blend & Aggregate sheet. Coverage is based on application to a smooth flat surface and will vary when applied to undulating surfaces, according to compaction, and to the aggregate grading, which can change from batch to batch.
Product Specification
Product
LimeBound UV Resin
Bound Surfacing Thickness
15mm/18mm (dependant on required usage)
Aggregate (select mix blend as required)
Technical Performance Standards
• Compressive and flexural strength testing to BS EN 13892-2
• QUV weathering chamber testing to BS EN ISO 16474-3 method A
Working Times & Temperatures
Working time is affected by temperature; at temperatures above the maximum recommended 25°c the pot life and working time may be insufficient to allow a wet edge to be maintained.
Do not therefore proceed when product and/or air temperature exceeds recommendations.
The air temperature must be monitored during application and work should stop when the temperature exceeds recommendations. Care must be taken to keep materials as cool as possible in warm weather.
At low temperatures 5°C and below the resin will not flow sufficiently to achieve a smooth finish and work should not proceed.
Substrate Requirements
LimeBound UV Stable Resin
Bound System is designed for foot traffic and occasional vehicle traffic such as on domestic driveways, residential developments with light domestic traffic or car parking bays. It is however, not a road surface for heavy volumes of domestic or commercial traffic. Heavier vehicle traffic, including heavy impact and high point loading will damage the surface and may result in failure. Due to the destructive scuffing forces created by power steering (e.g. three point turns) in car parks or on driveways where cars will repeatedly turn within a confined area, localised wear is more likely.
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
• Slip resistance testing to BS 8204-6:2008+A1:2010
Appendix B
• Application to concrete, asphalt concrete conforming to EN 13108-1 and hot rolled asphalt conforming to EN 13108-4.
Services Available
• Technical Support
• Installation and Setup
• Maintenance
• Application Support
• Hardware Support
• Guaranteed Warranty

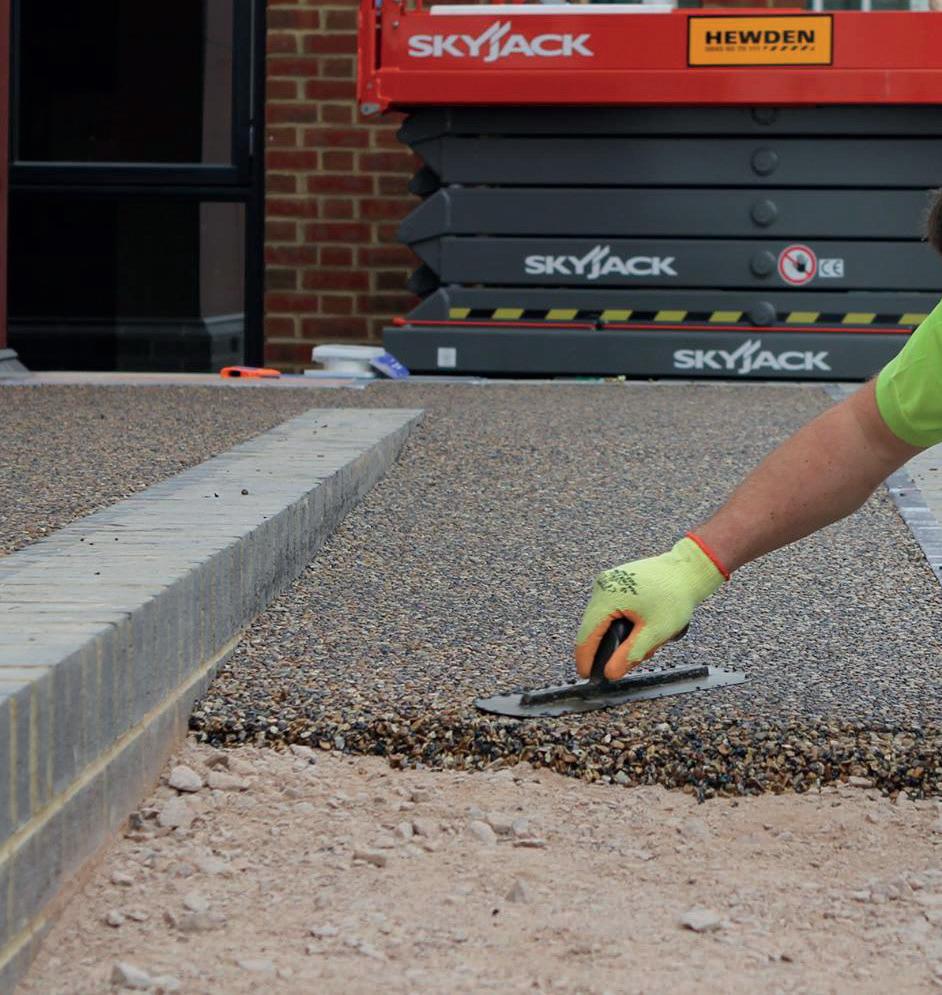

LimeBound Contractors

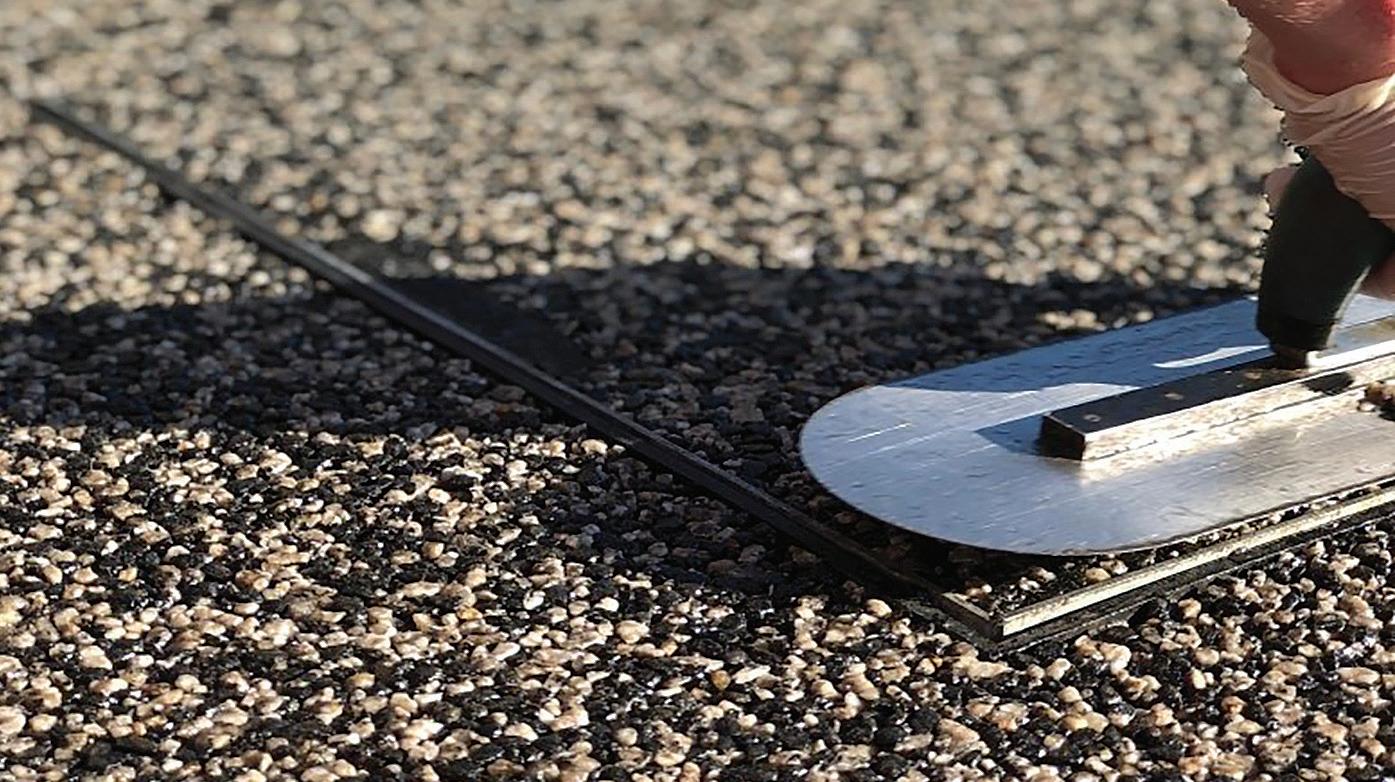

LimeBound UV Resin Bound Surfacing is a specialist product and must only be applied by specialist applicators. Do not apply or allow it to be applied by contractors who do not possess the necessary experience. You should consider appointing a Limegate Solutions Approved Contractor. Please call us on 03330 155 560.

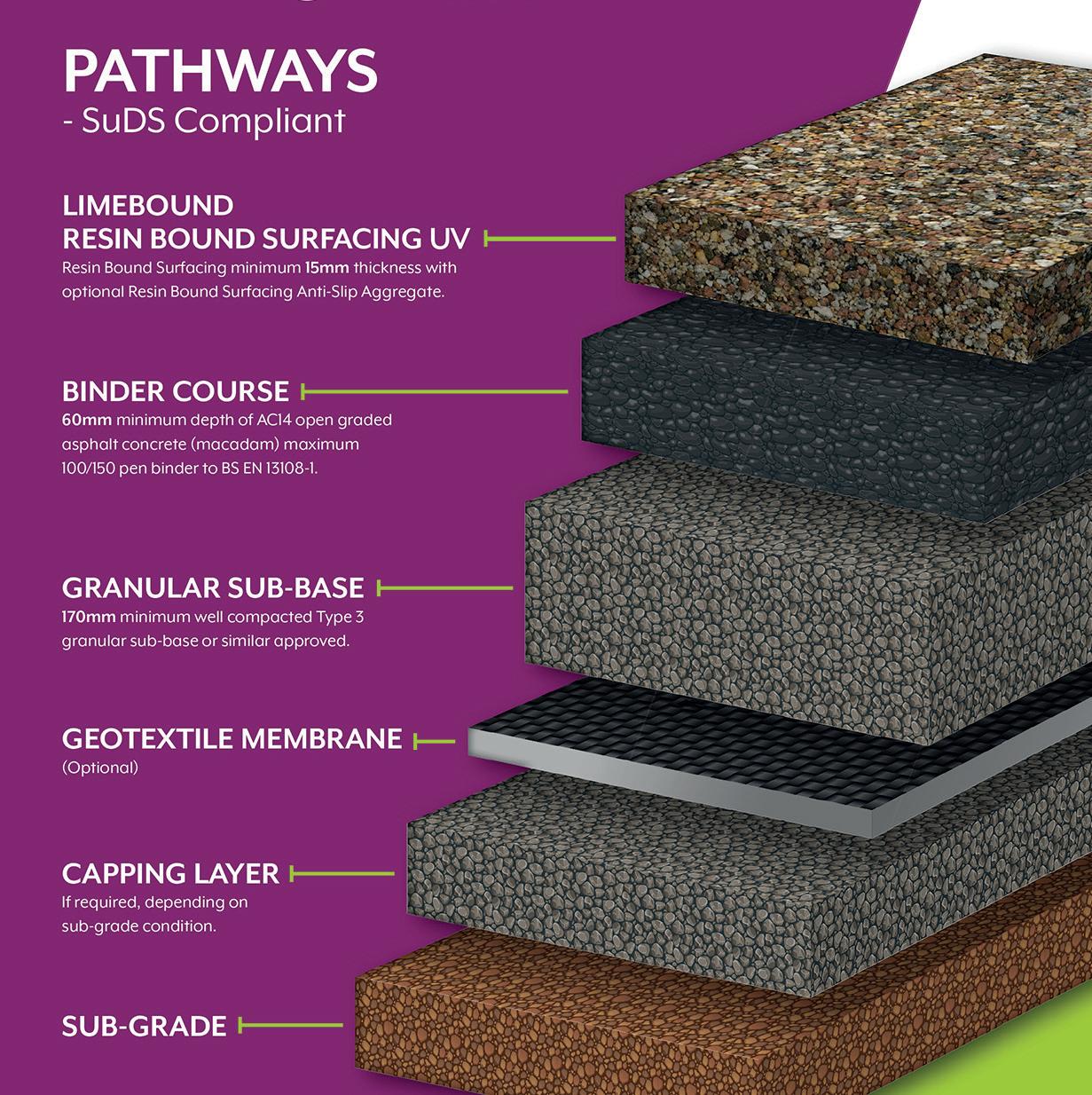

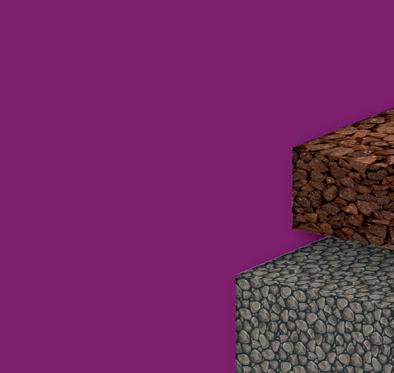

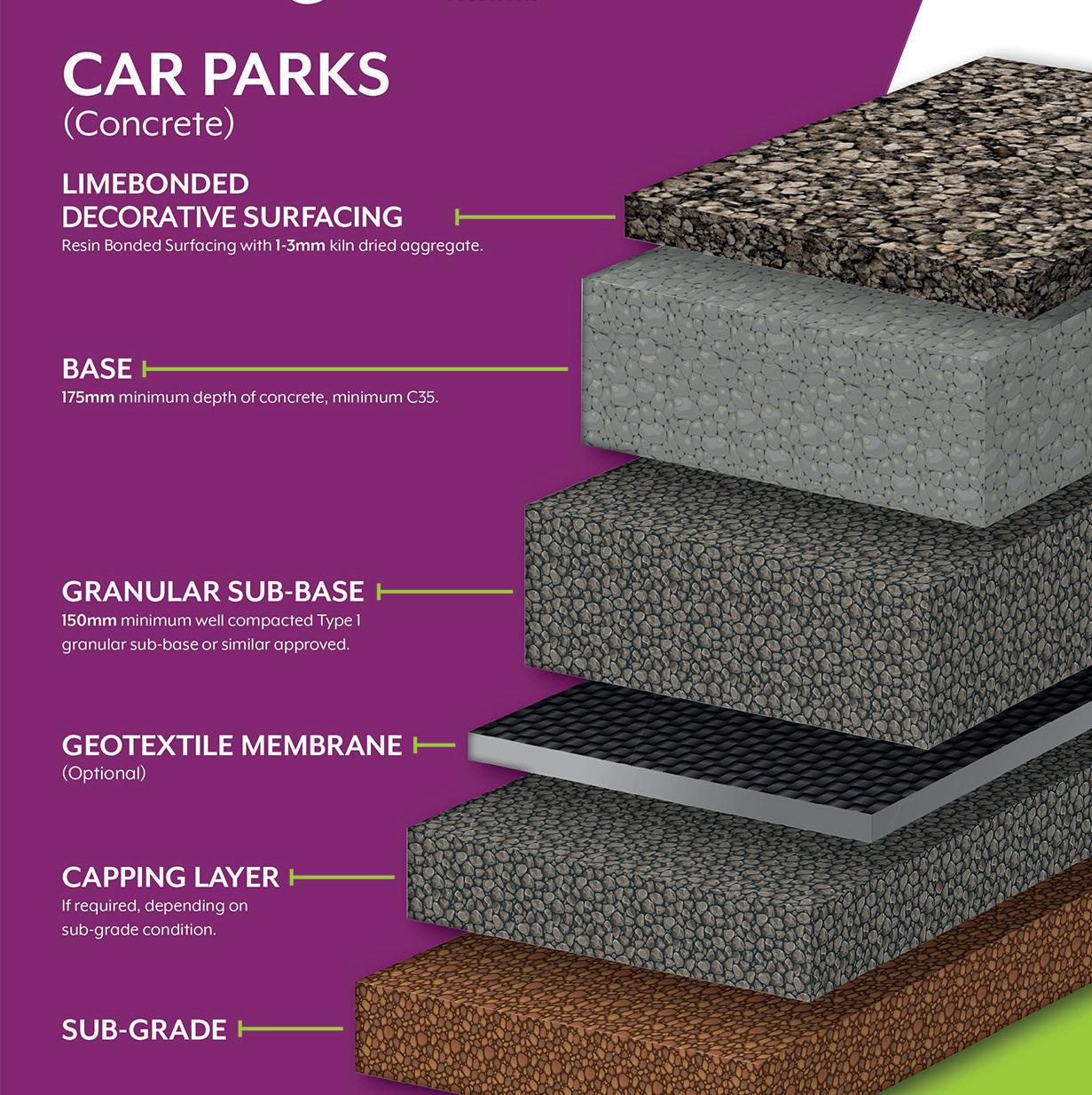

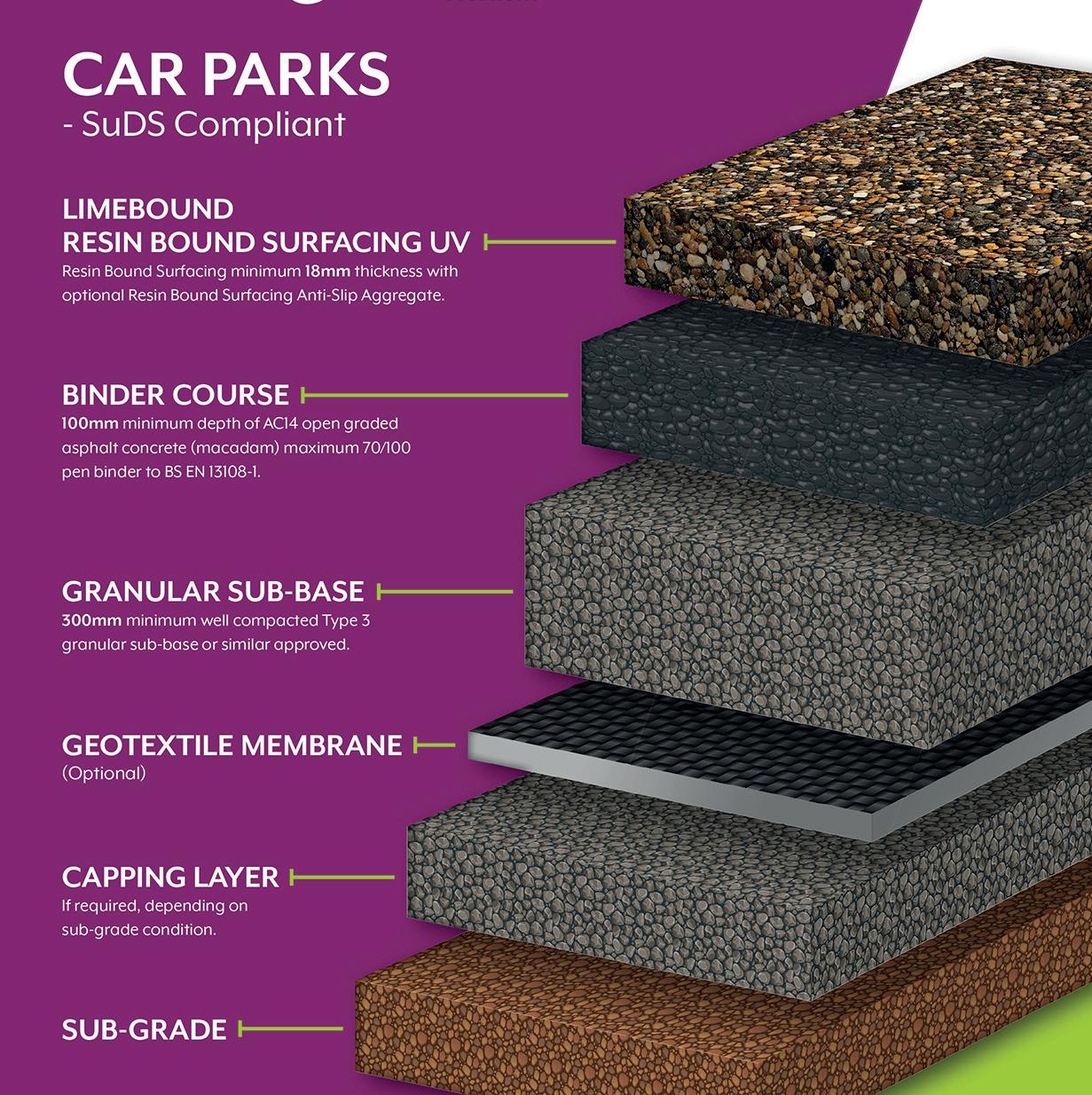

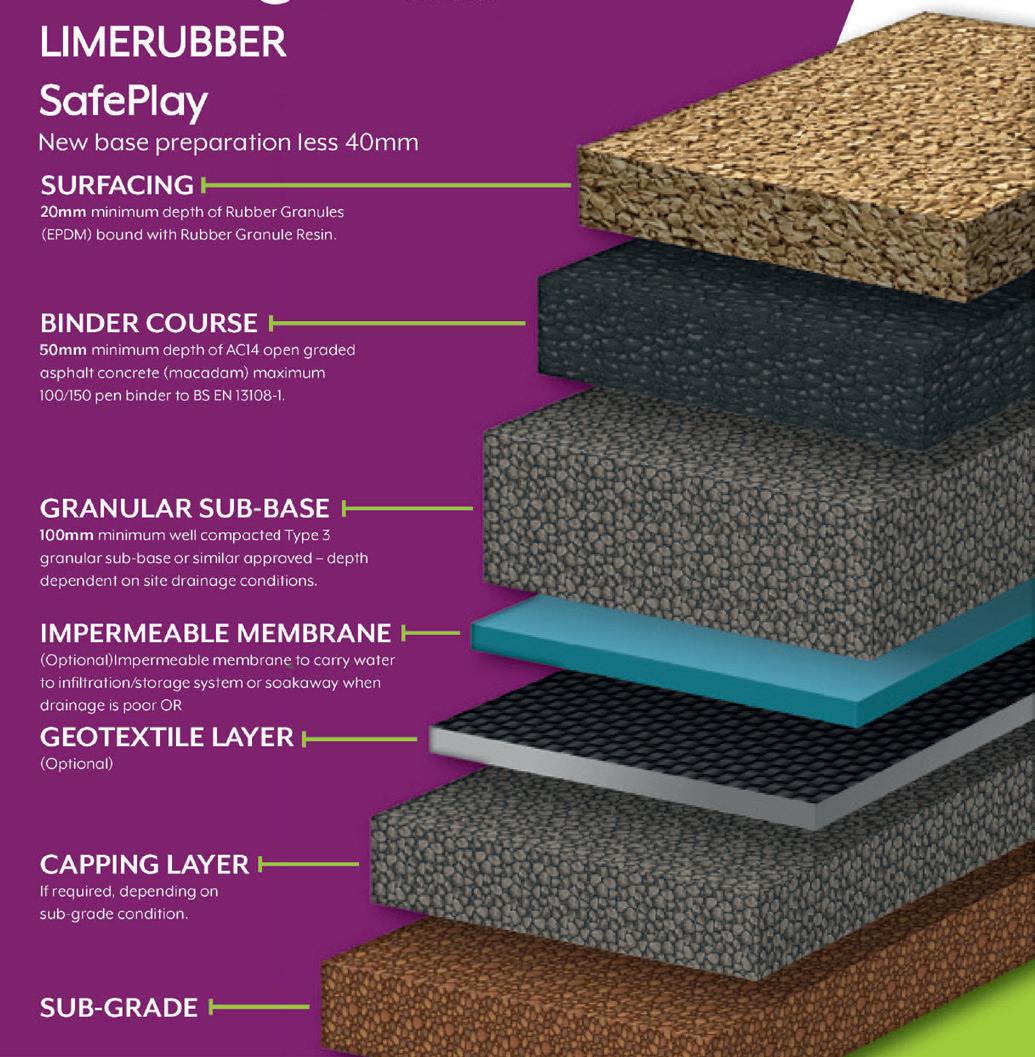

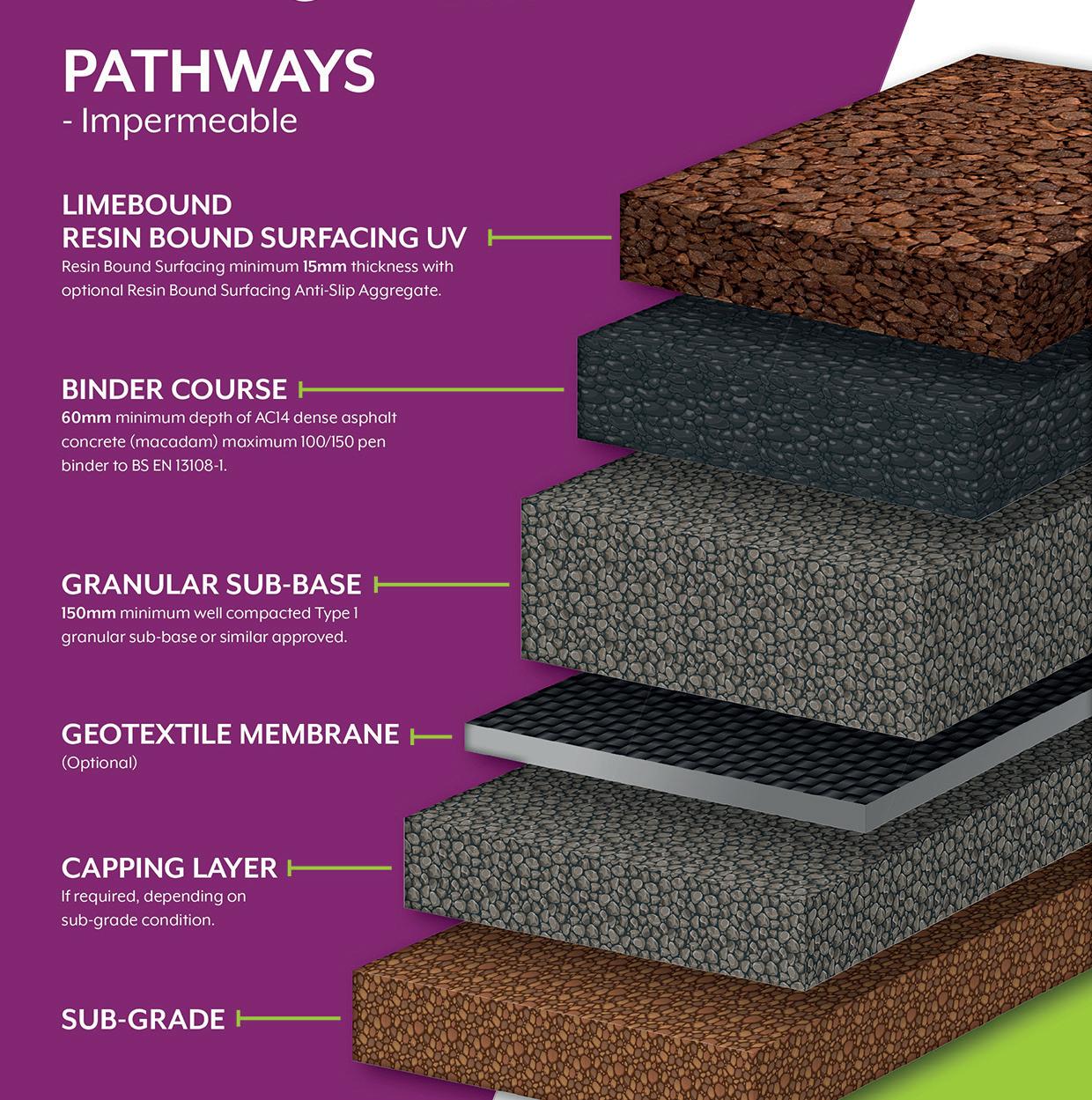

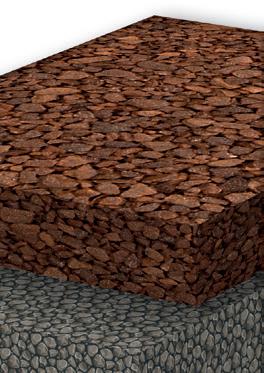

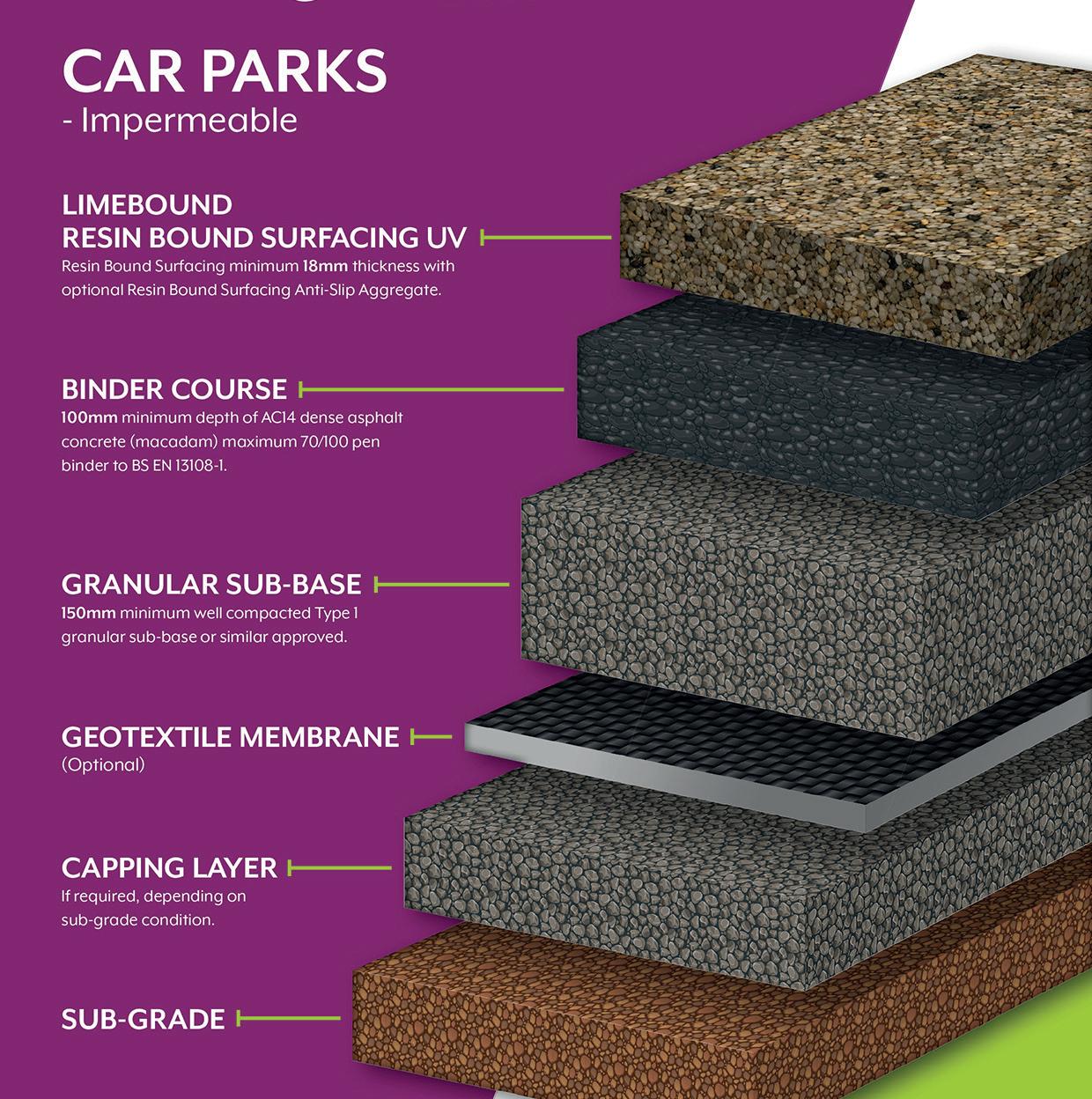

Base Build-up
Resin & Aggregate
LimeBound UV Resin Bound Surfacing is UV resistant resin and will not yellow on exposure to UV light. This is a more attractive option than some other types of resin which can yellow and dramatically alter the appearance of the finished surface. The resin is formulated using aliphatic HDI which will not deteriorate or become brittle when exposed to UV light when tested to BS EN ISO 16474-3 method A. The performance and appearance of the finished surface is dependent on the aggregate used (see Limegate Solutions LimeBound mix blend swatch sheet for colour options). The LimeBound UV Resin Bound surfacing aggregate blends have been designed to achieve strength, resilience, porosity and decoration.

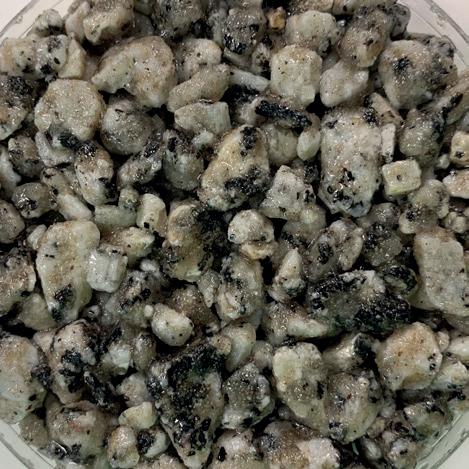

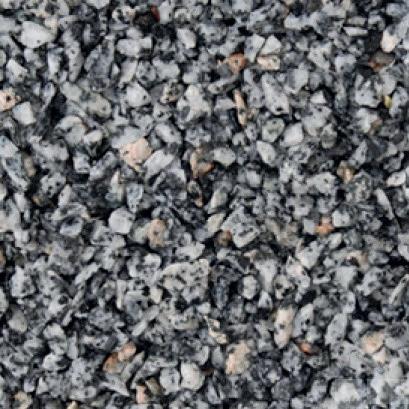

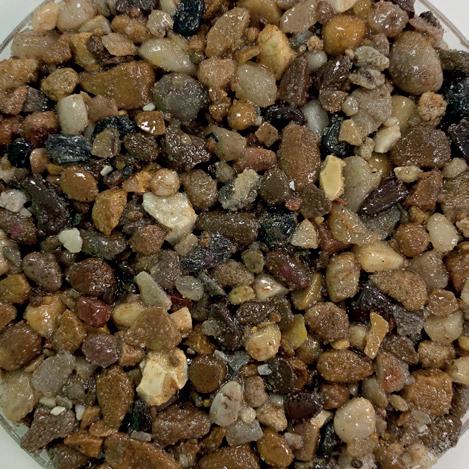

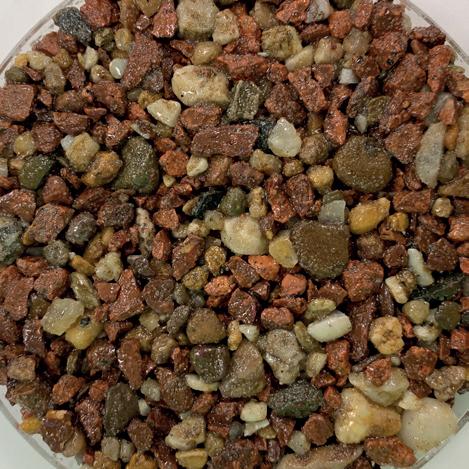

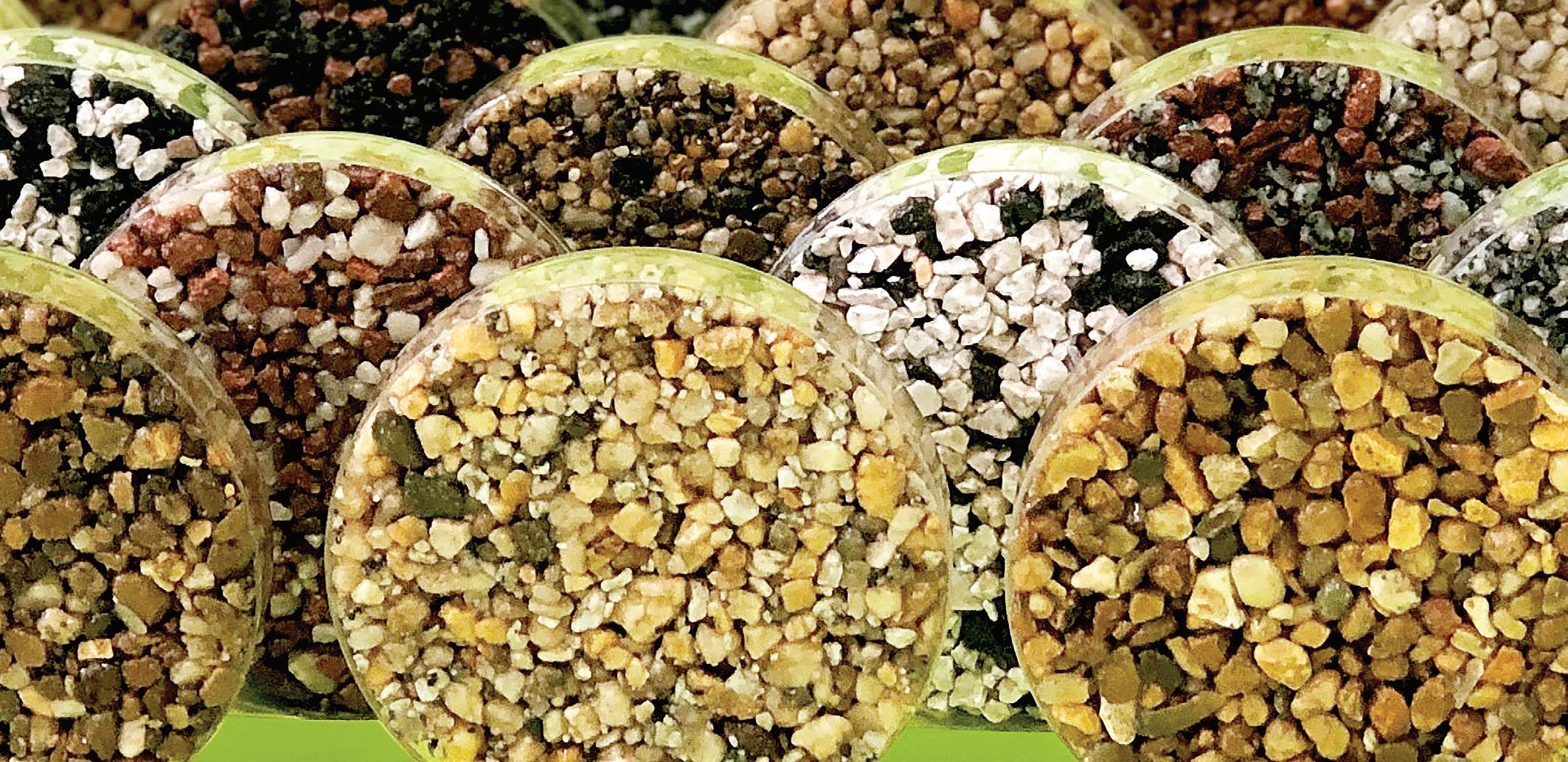

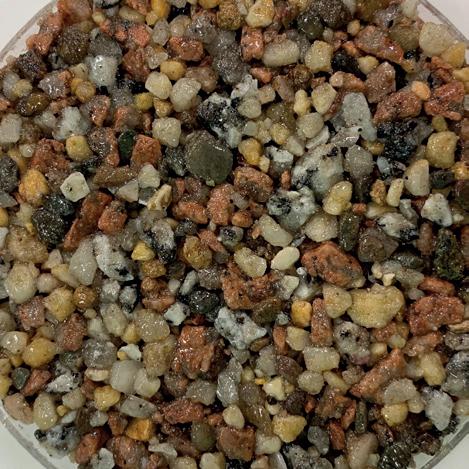

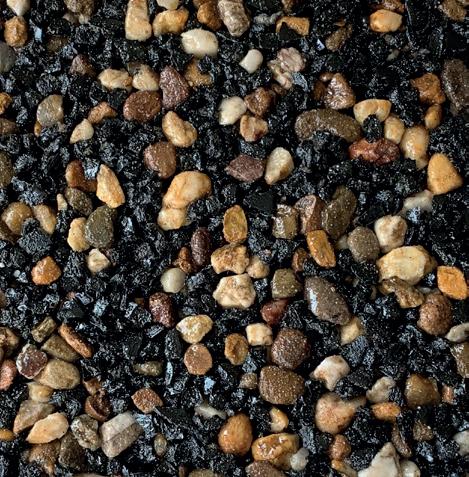

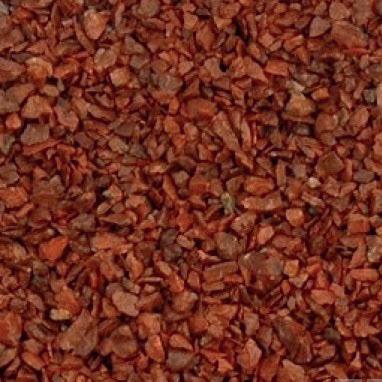

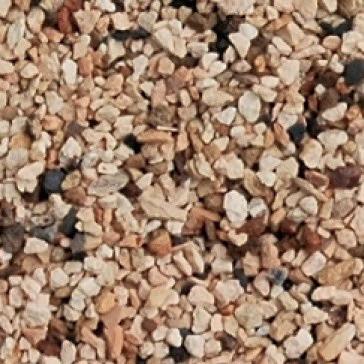

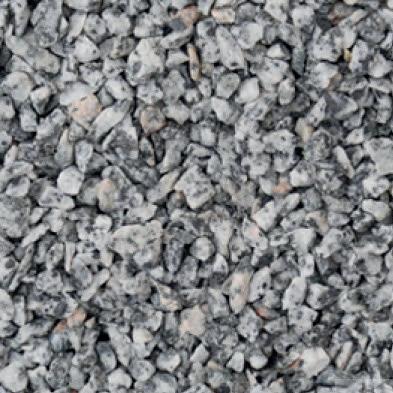

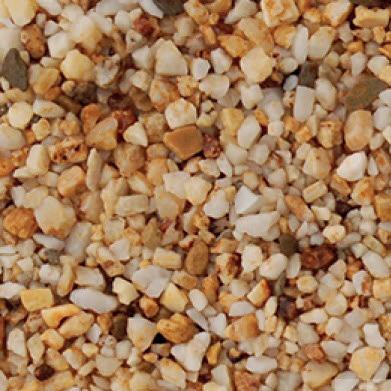

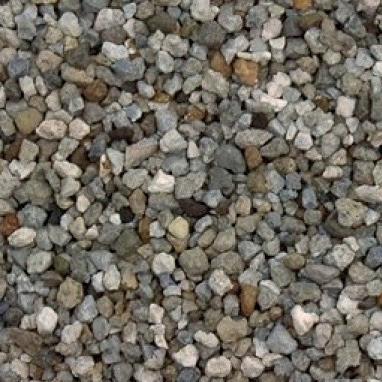

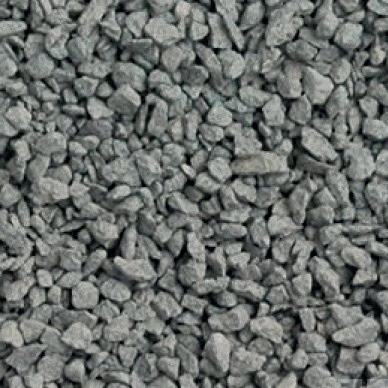

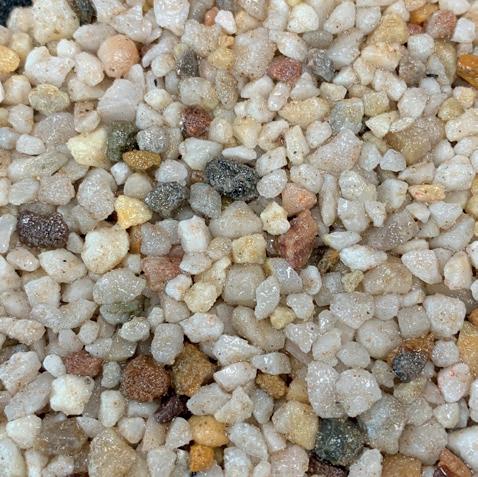

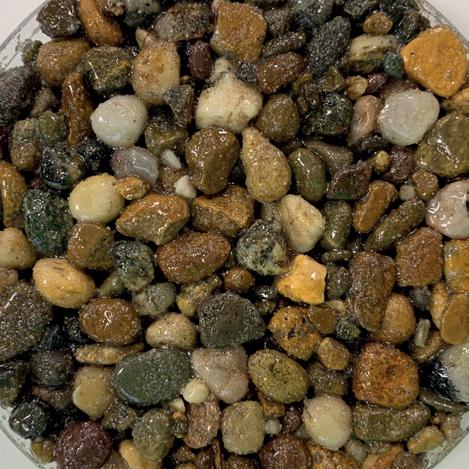

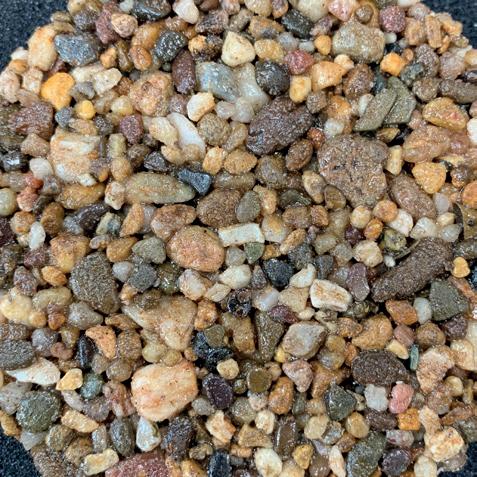

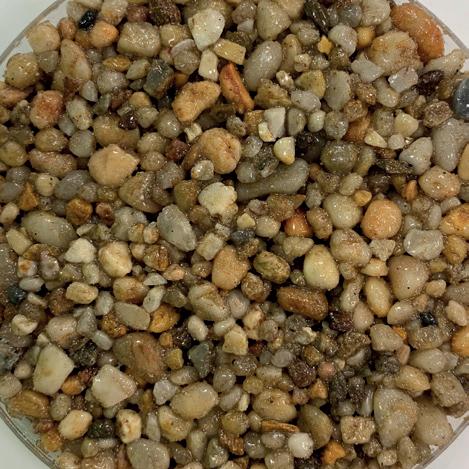

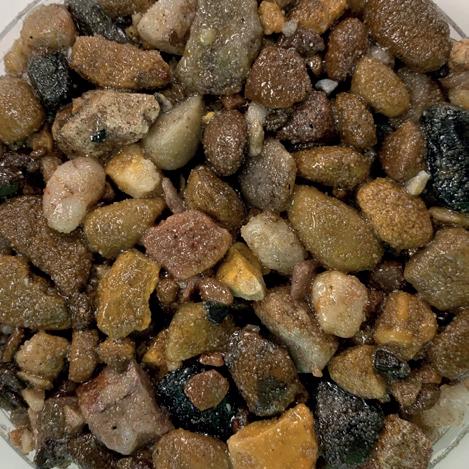

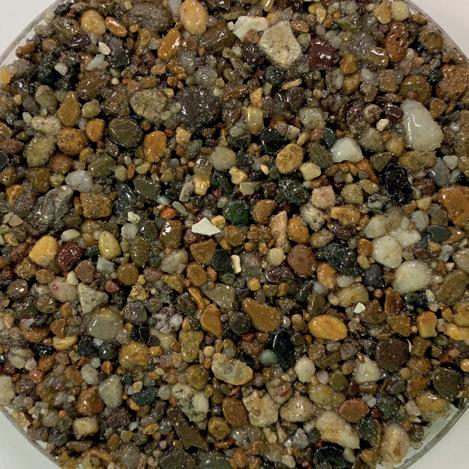

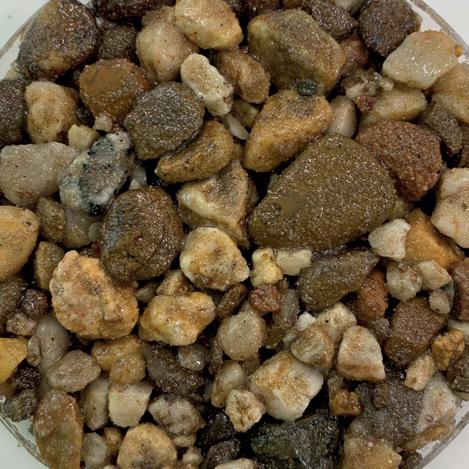

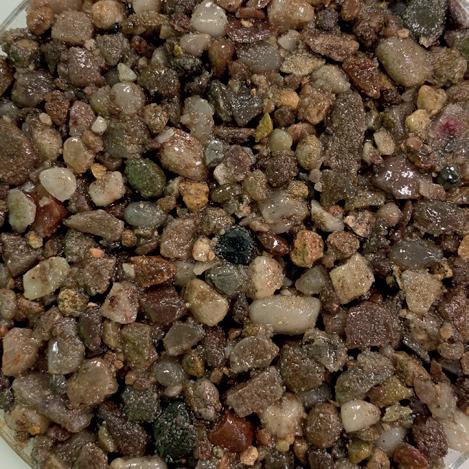

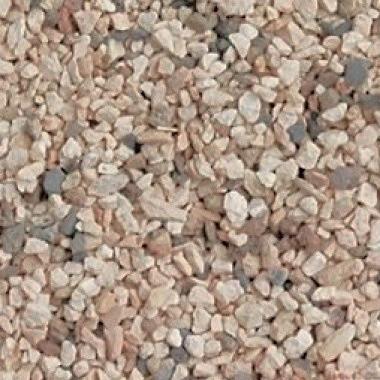

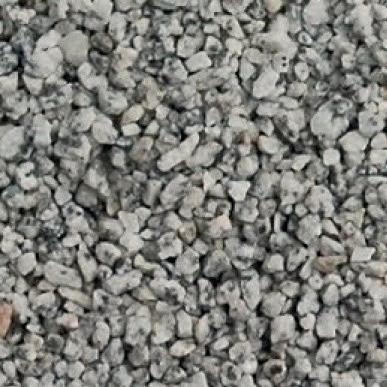

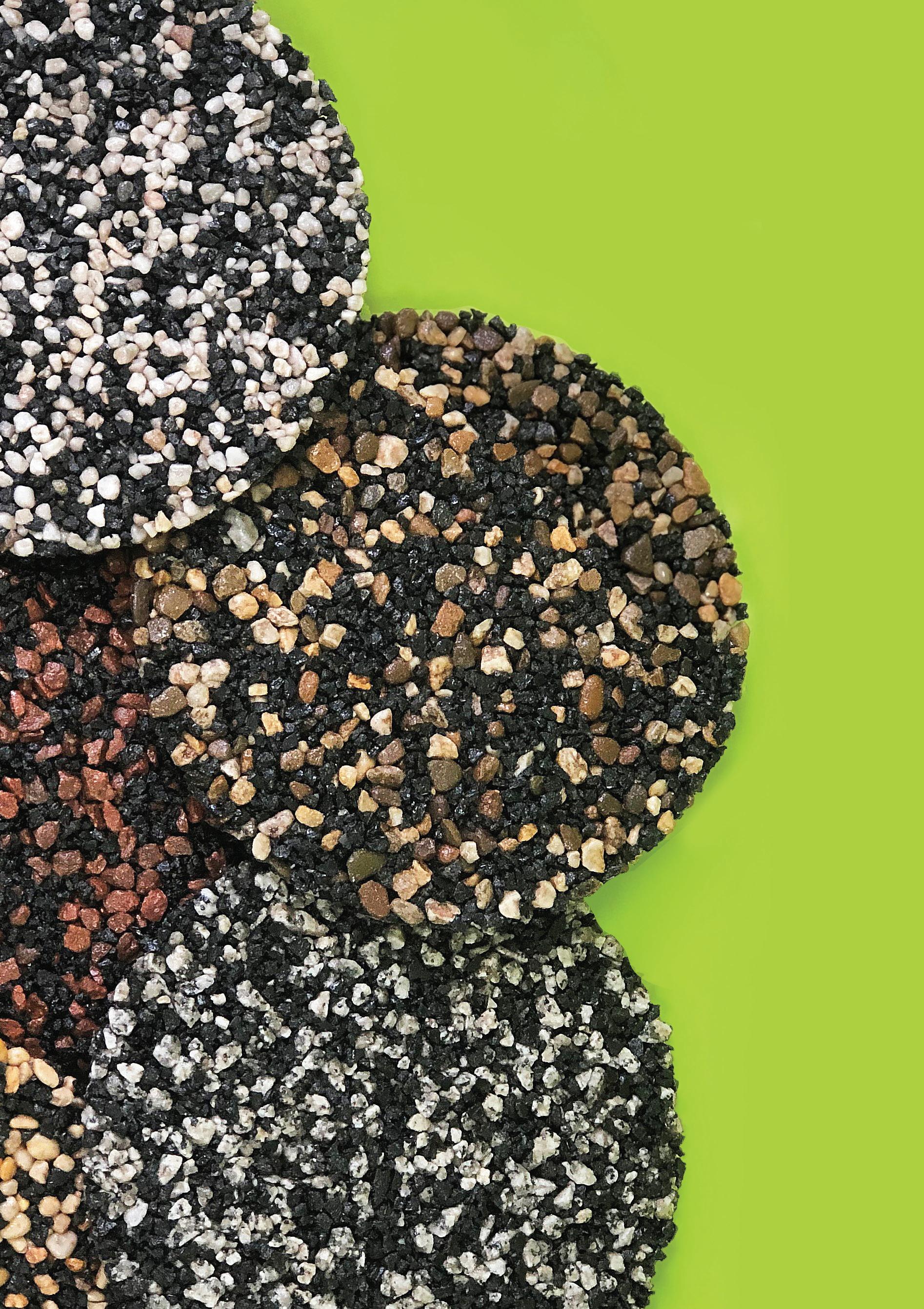

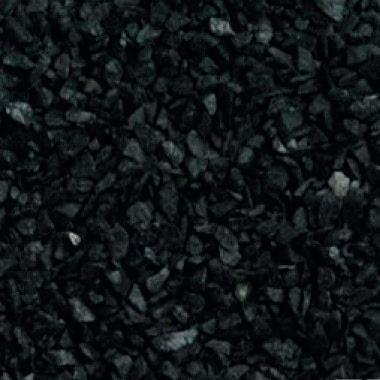

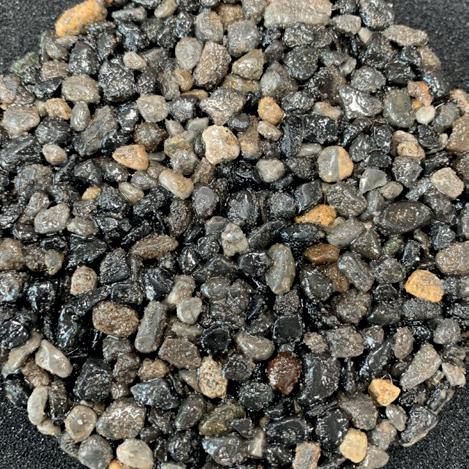

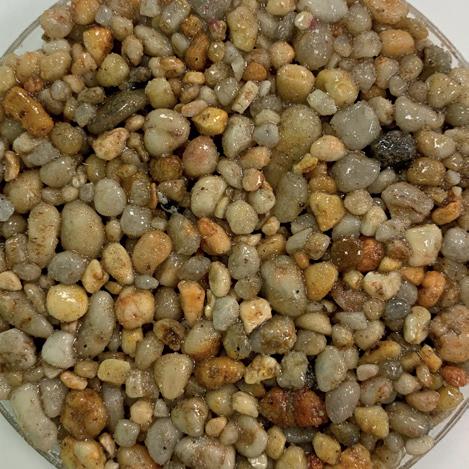

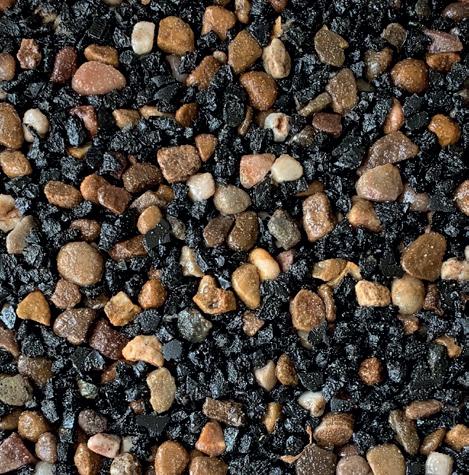

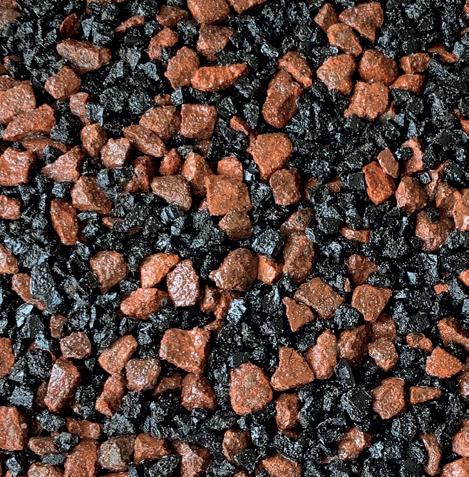

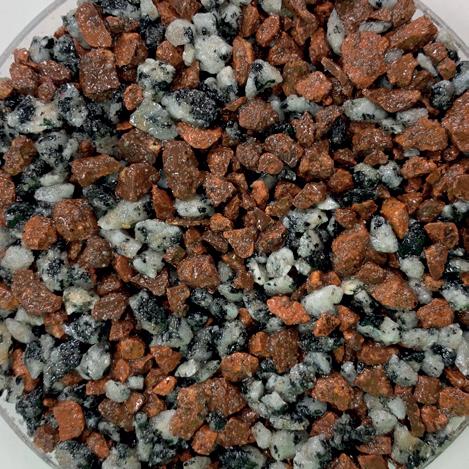

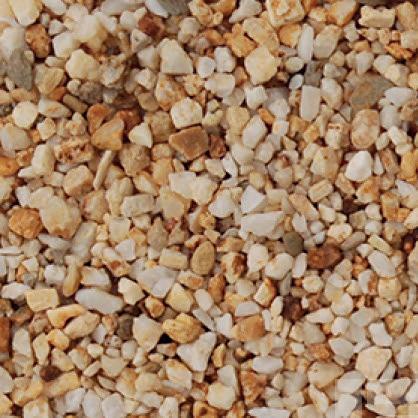

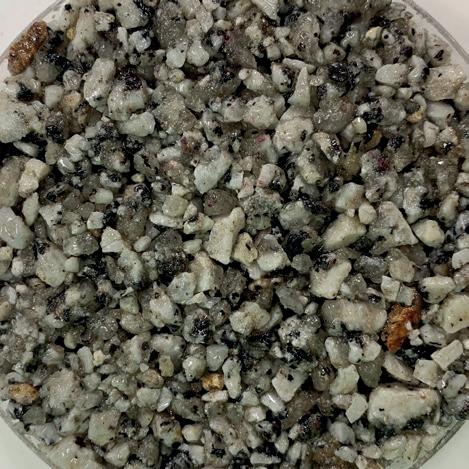

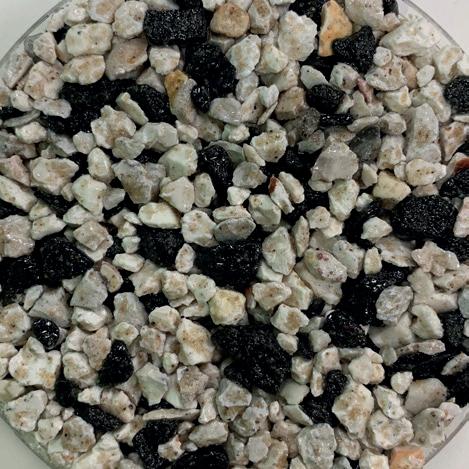

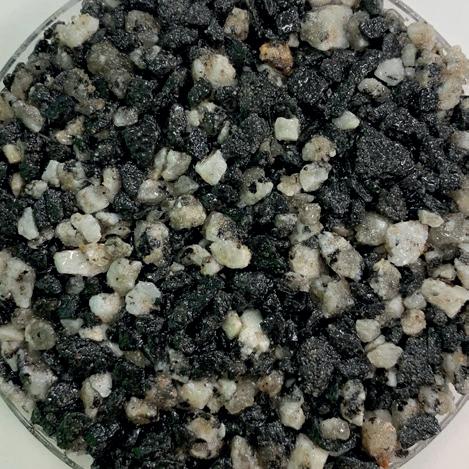

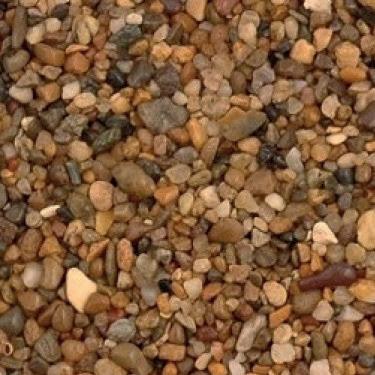

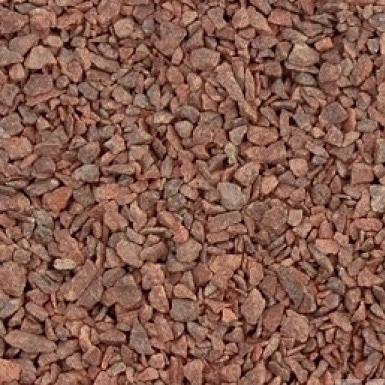

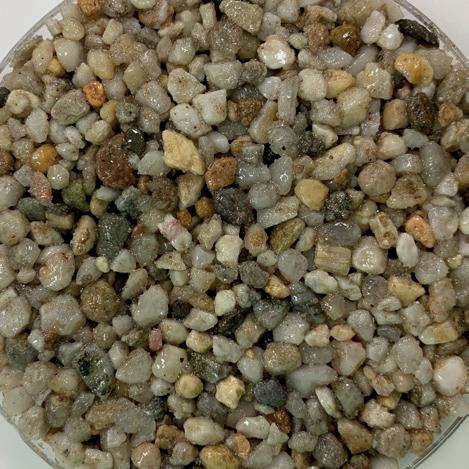

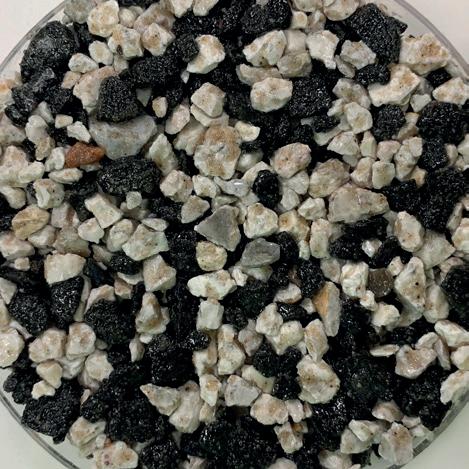

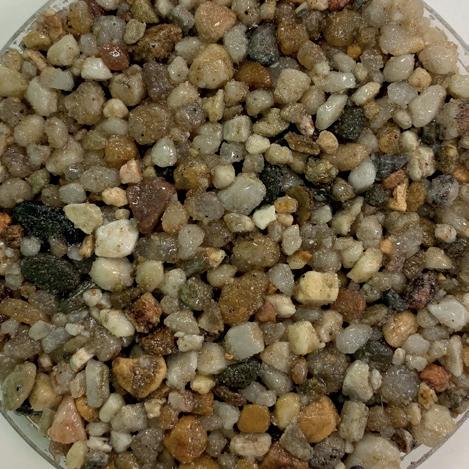

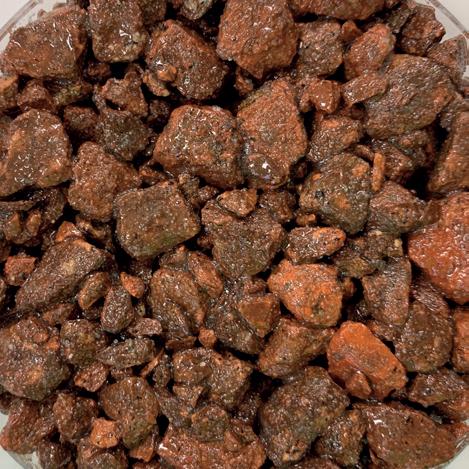

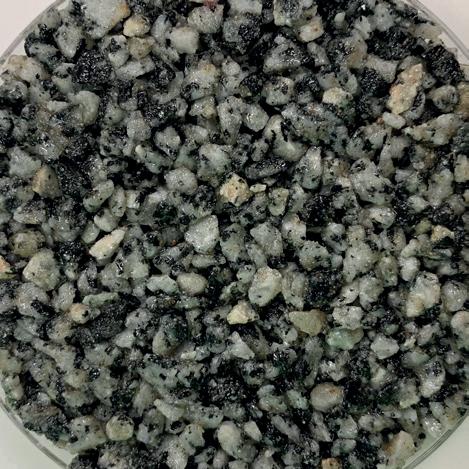

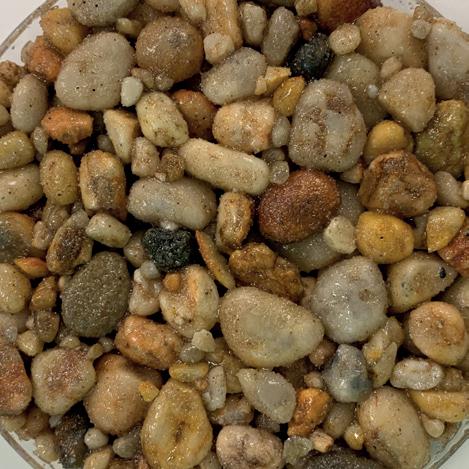

LimeBound UV Mix Blends
CROSSWORD
HONEY BEACH
IVORY PEBBLE
MARS SNOW
HONEY GOLD
MARS ECLIPSE
HONEY PEBBLE
MARS GOLD
IVORY MEADOW
Slip Resistance
Slip resistance is an important consideration when selecting any project where there is a requirement for use by pedestrian or vehicular traffic – all systems will perform to BS 8204-6 (pendulum or trolley/ramp test). Slip resistance tests carried out in both wet and dry conditions. The pendulum test value (PTV) should generally not be less than 40.
MARSCAPE
MONOCHROME
RURAL ROSE
SILVER BUFF
SILVER MARS
WOODLAND WALK
DIOR 10MM
ESPRESSO 10MM
SILVER BUFF 10MM
HONEY GOLD 10MM
WOODLAND WALK 10MM
HONEY PEBBLE 10MM MARSCAPE 10MM

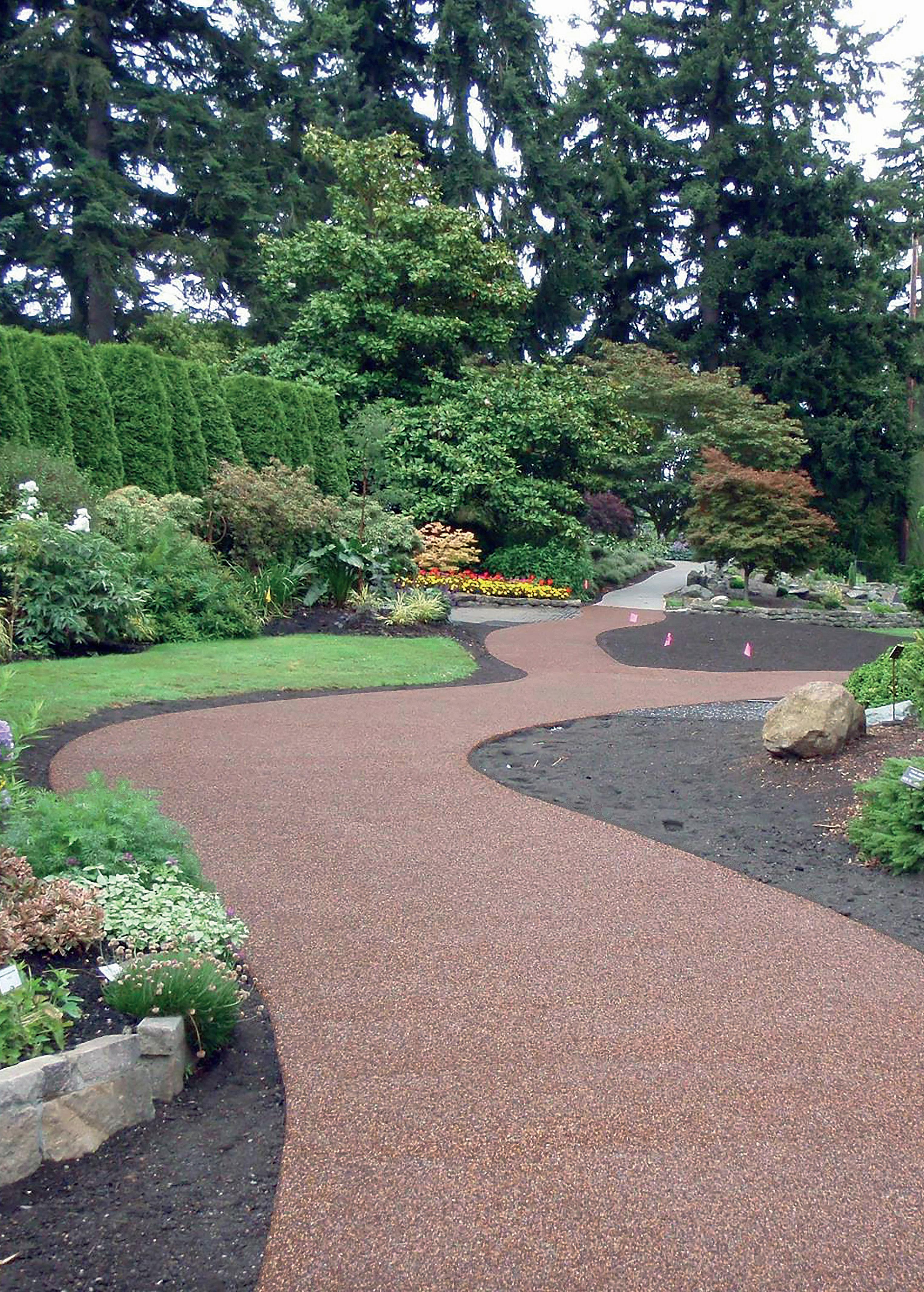

LimePath EasiWalk UV
LimePath EasiWalk UV is ‘no dig’ system that provides a UV stable permeable system ideal for footpaths where there are access limitations for alternative sub bases. Installed at 40mm onto a well compacted and edged MOT type 1 or MOT type 3 base, LimePath EasiWalk UV creates a natural appearance whilst meeting SuDS (Sustainable Drainage Systems) requirements by allowing through its matrix rain water to be returned to the ground helping to prevent the risk of flooding. Using UV stable polyurethane technology, the strength and resistance to UVA and UVB prolongs the performance both durability wise and visually. Available in a variety of colours (see LimePath EasiWalk swatch sheet) due to the use of high performance UV stable resin protecting the stability of the natural colour from obvious change, the aggregate surface is widely specified across the UK in many forms.
• Compressive and flexural strength testing to BS EN 13892-2
• QUV weathering chamber testing to BS EN ISO 16474-3 method A
Working Times & Temperatures
Working time is affected by temperature; at temperatures above the maximum recommended 25ºC the pot life and working time may be insufficient to allow a wet edge to be maintained.
Do not therefore proceed when product and/or air temperature exceeds recommendations.
The air temperature must be monitored during application and work should stop when the temperature exceeds recommendations. Care must be taken to keep materials as cool as possible in warm weather.
At low temperatures 5ºC and below the resin will not flow sufficiently to achieve a smooth finish and work should not proceed.
Substrate Requirements
LimePath EasiWalk UV System is designed for foot traffic and after consultation occasional vehicle access traffic such as light infrequent maintenance vehicles or pedestrian two wheel mode of transportation. All resin bound products by nature will be vulnerable to heavy impact and high point loading. It is good practise that the product is subject to cleaning and maintenance and regularly inspected by the client or installer and maintained as required.
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
• Slip Resistance testing to BS 8204-6:2008+A1:2010 Appendix B
• Application to concrete, asphalt concrete conforming to EN 13108-1 and hot rolled asphalt conforming to EN 13108-4.
Services Available
• Technical Support
• Installation and Setup
• Maintenance
• Application Support
• Hardware Support
• Guaranteed Warranty
LimePath EasiWalk Contractors
LimePath EasiWalk UV is a specialist product and must only be applied by specialist applicators. Do not apply or allow it to be applied by contractors who do not possess the necessary experience. You should consider appointing a Limegate Solutions approved contractor. Please call us on 03330 155 560.

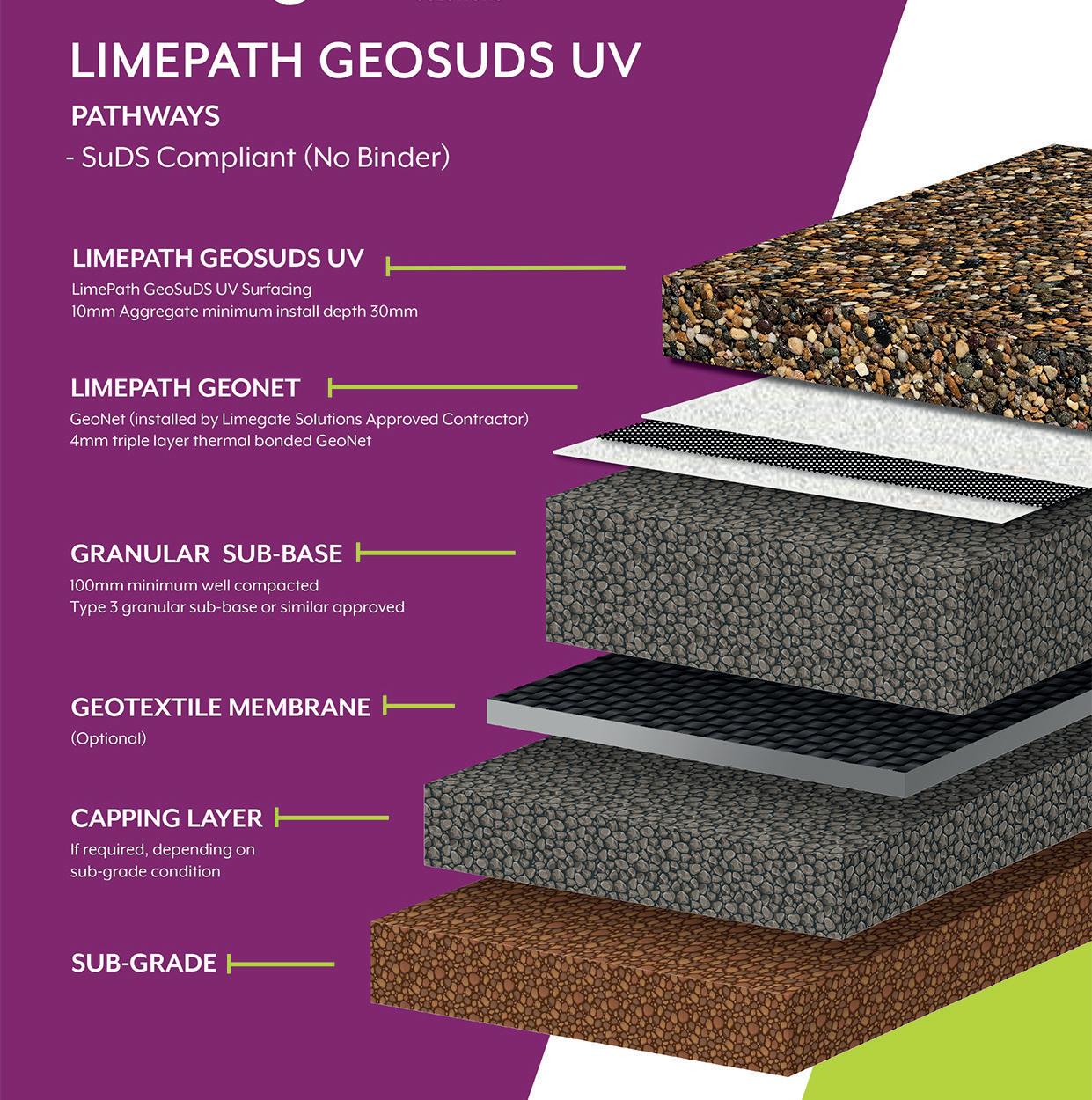

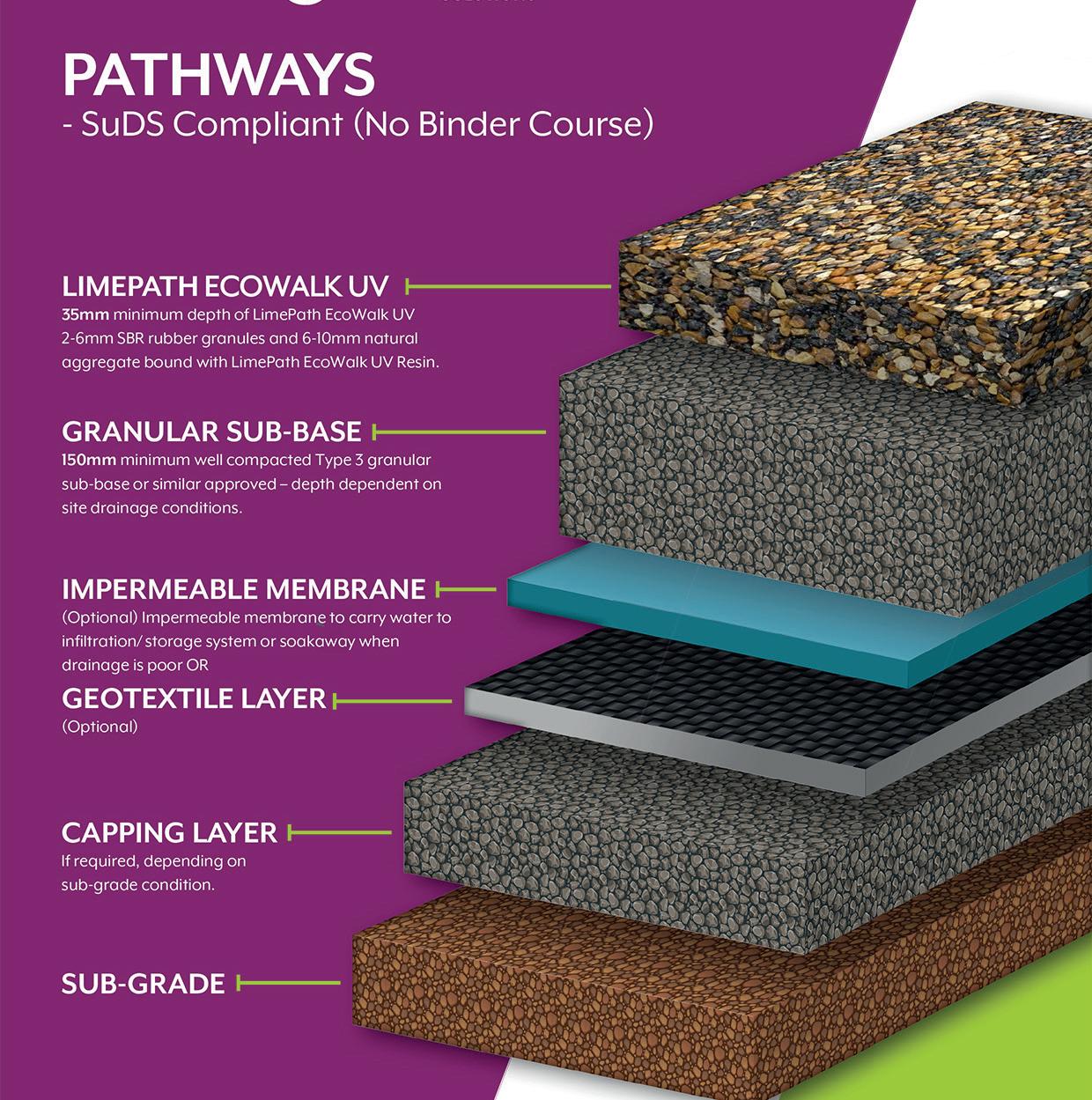

Base Build-up
Resin
& Aggregate
LimePath EasiWalk UV system uses an aliphatic UV resistant resin in line with the guidance notes published by the Resin Bound Technical Committee as part of FeRFA The Resin Flooring Association. Manufacturers commit to ISO9001 standards and QUV testing to raise the standards within the industry. The aggregates sourced are also provided by FeRFA members that meet the highest standards.

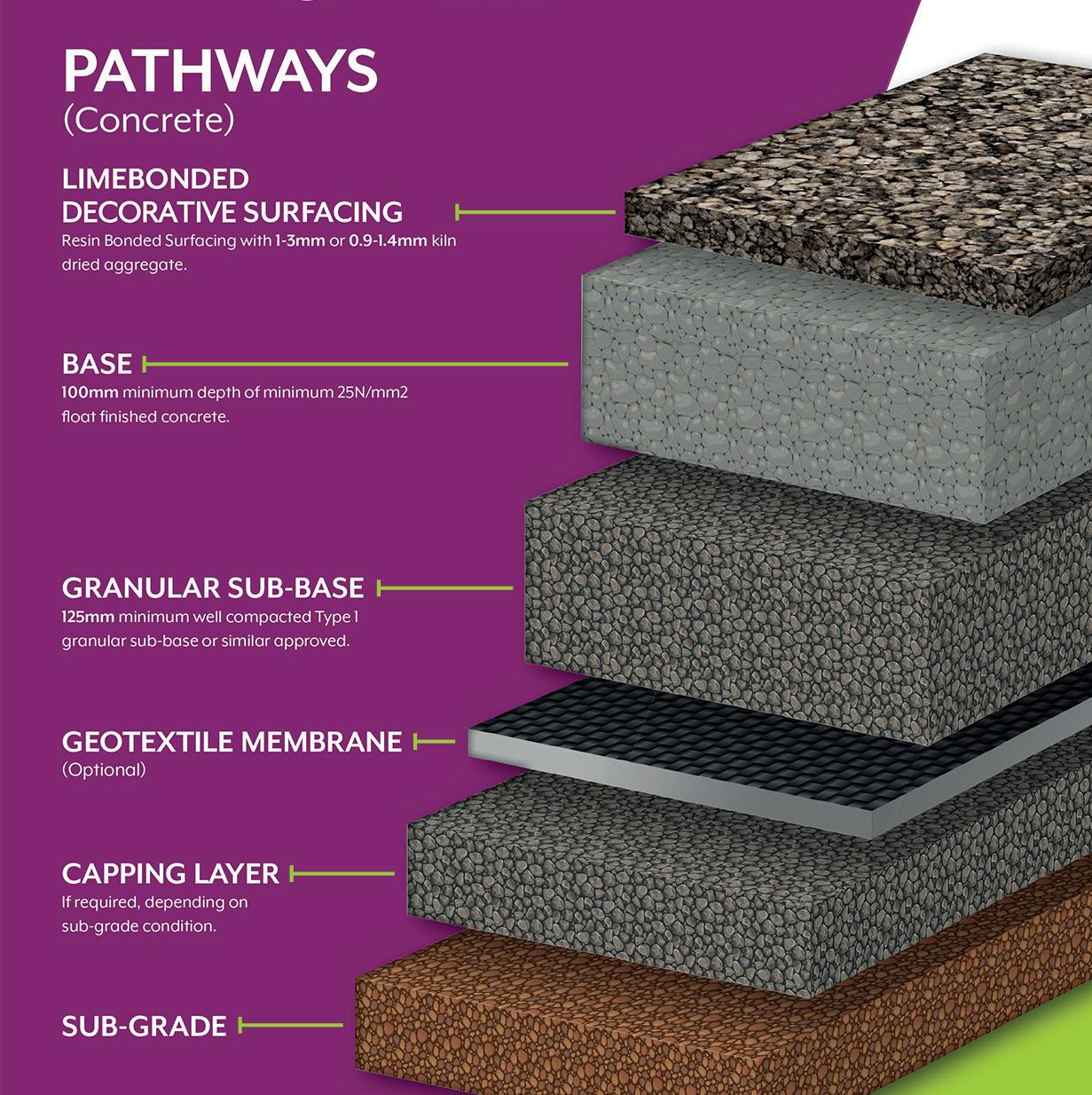

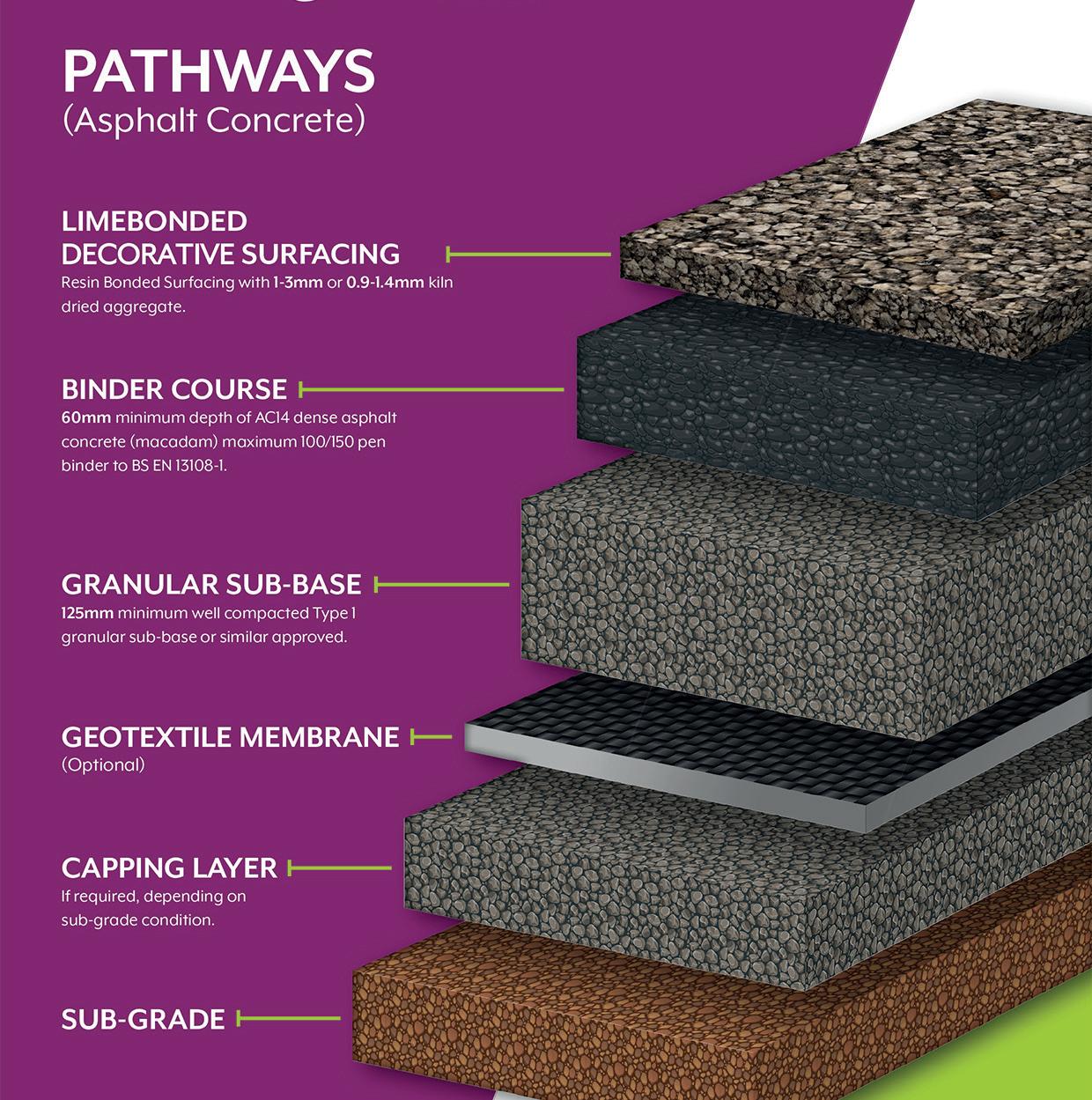

PATHWAYS
- SuDS Compliant (No Binder Course)

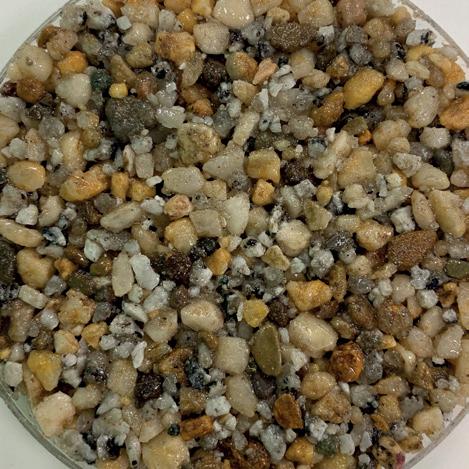

EasiWalk Mix Blends
Slip Resistance
All LimePath EasiWalk UV aggregate blends have been tested for slip resistance in wet and dry conditions. Anti-slip aggregate broadcast onto the surfacing during installation will significantly increase the slip resistance of the surface in the wet and on steep gradients without substantial change to appearance.
SILVER BUFF 10MM
DIOR 10MM
HONEY PEBBLE 10MM
WOODLAND WALK 10MM
ESPRESSO 10MM
MARSCAPE 10MM
HONEY GOLD 10MM

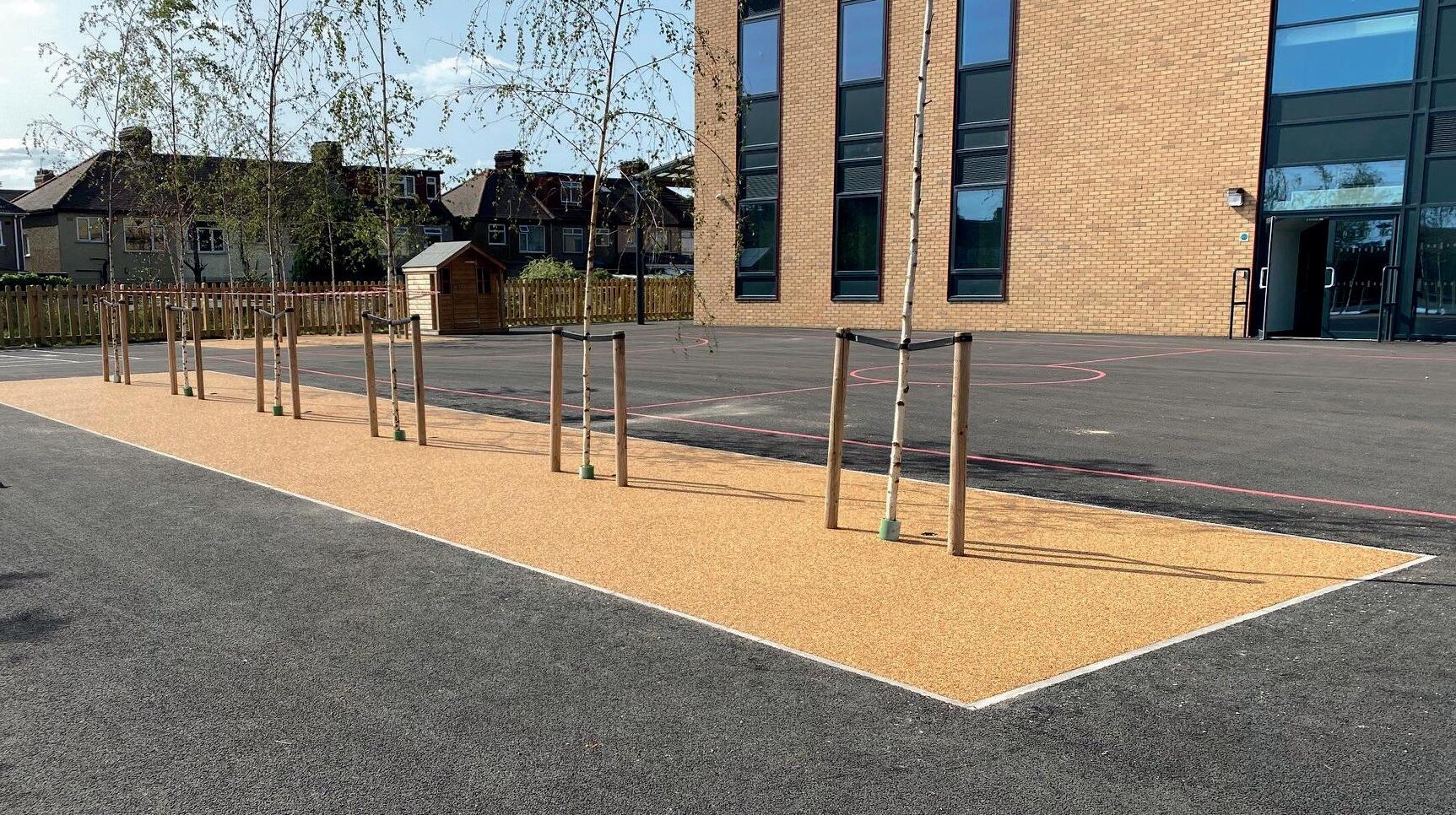

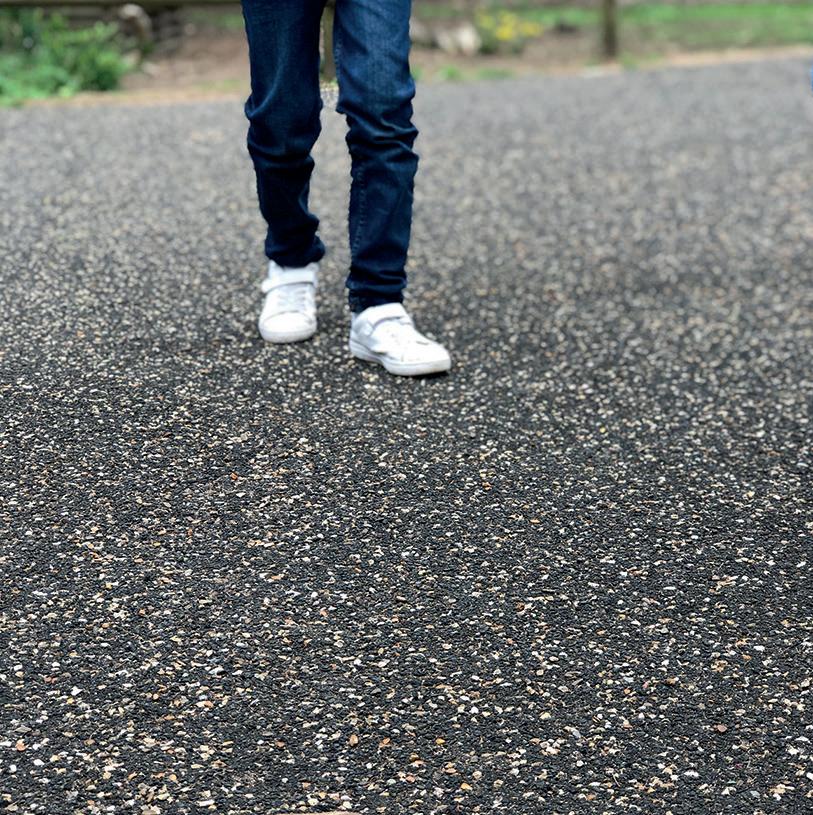

LimePath EcoWalk UV

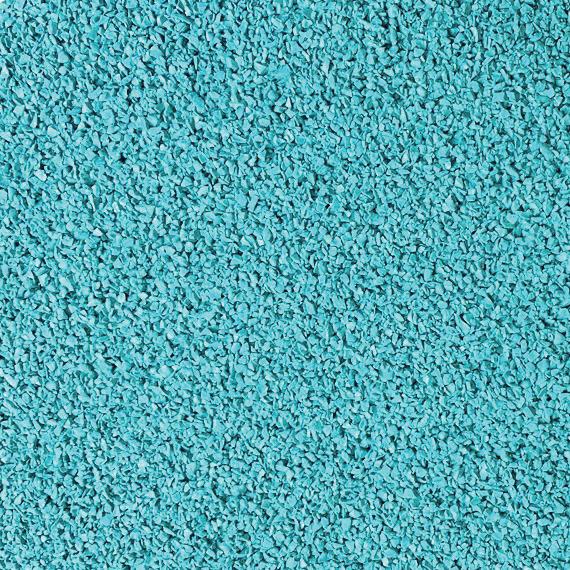

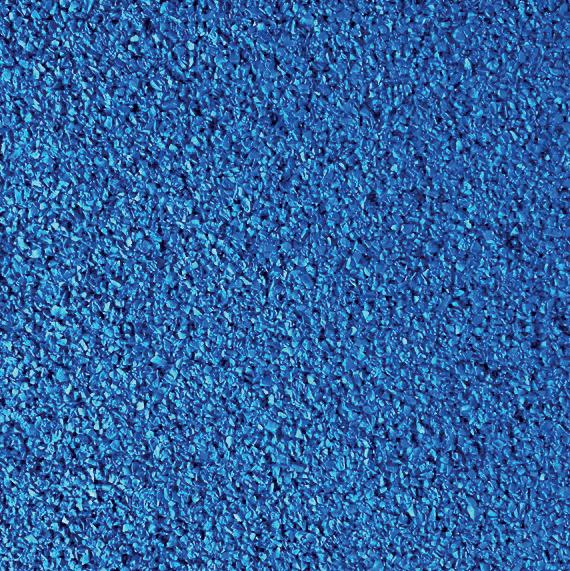

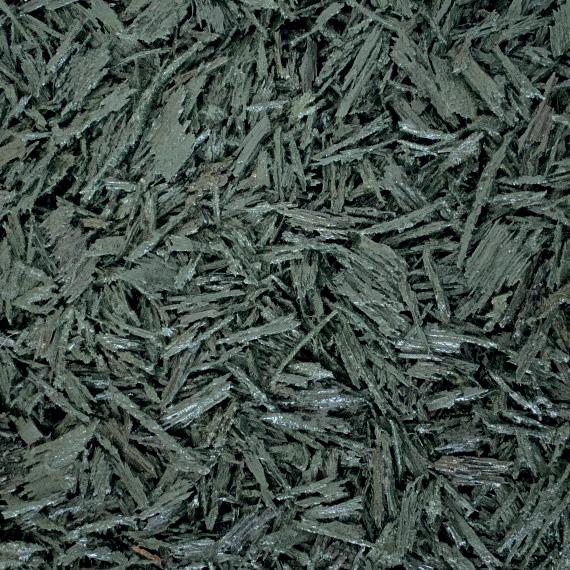

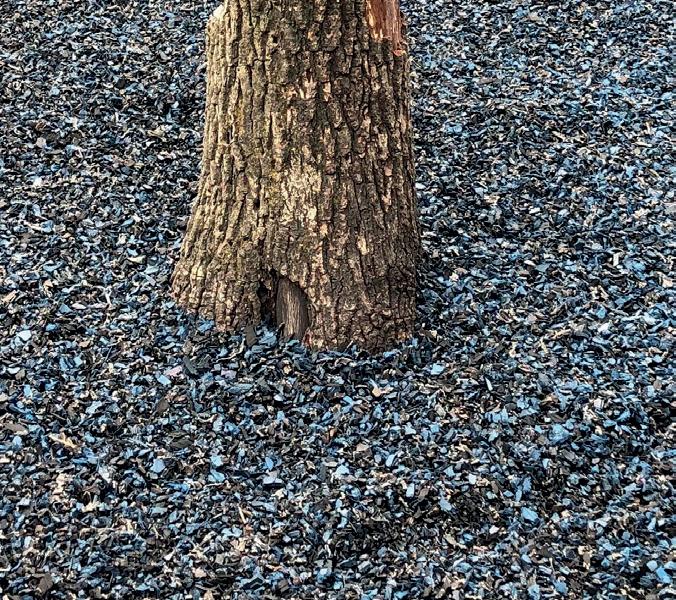

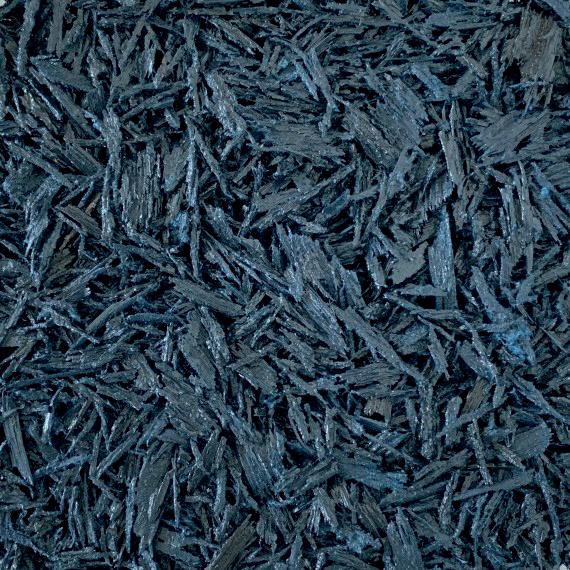

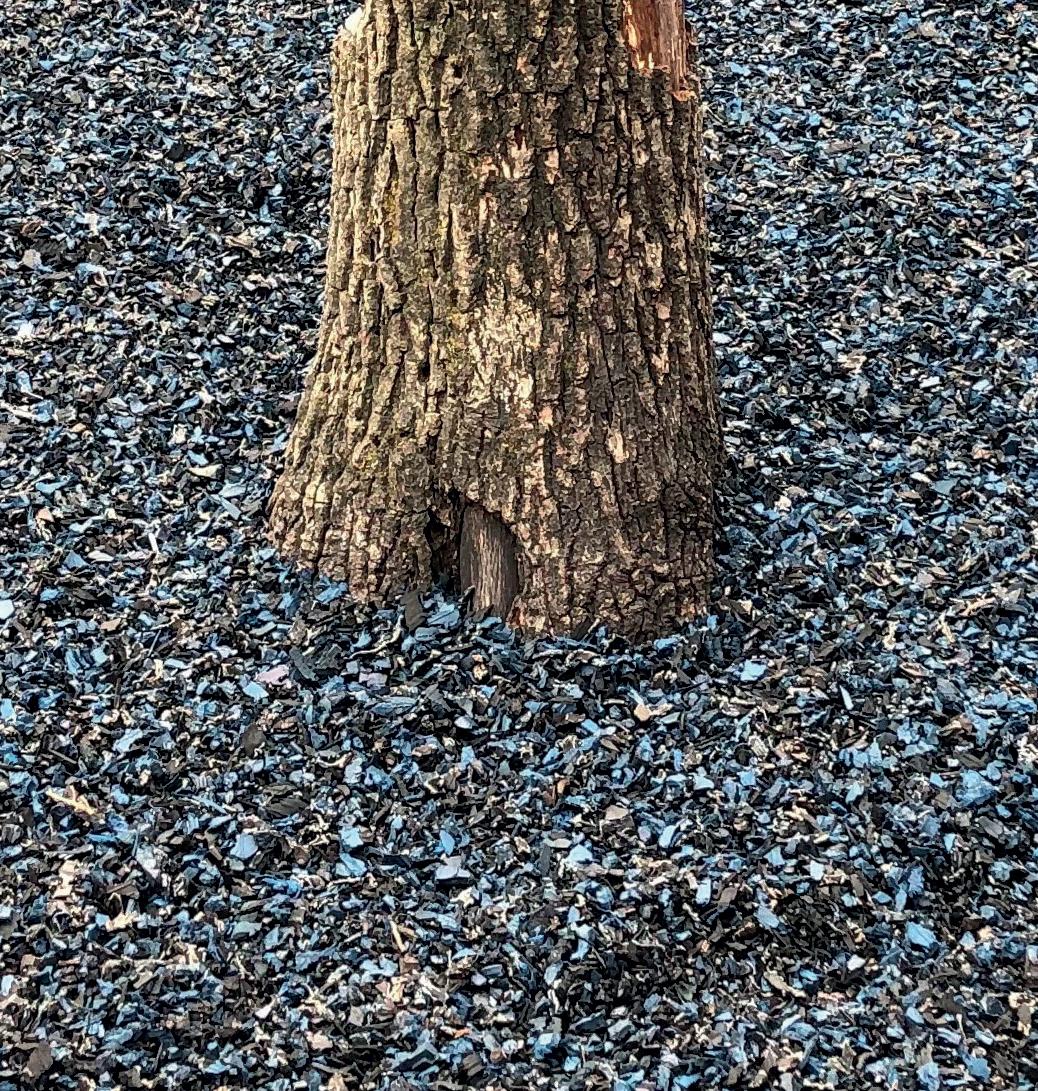

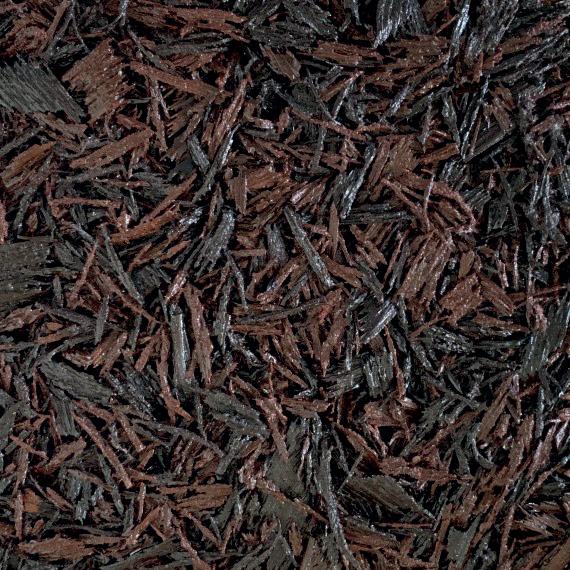

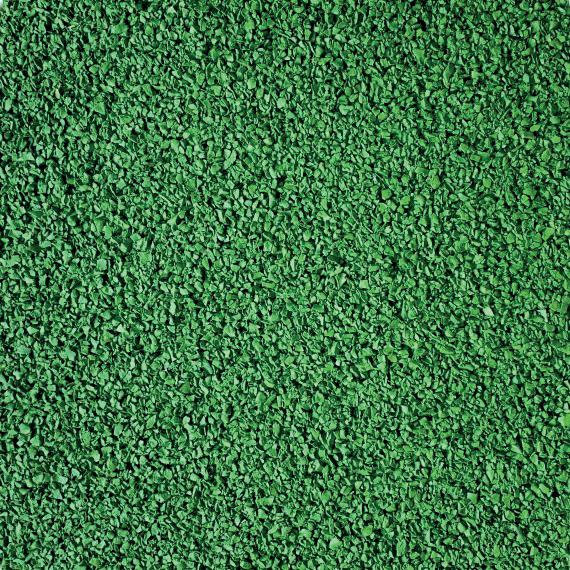

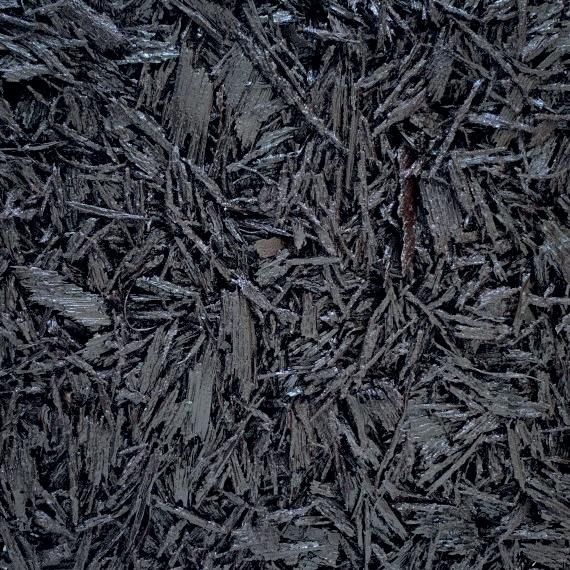

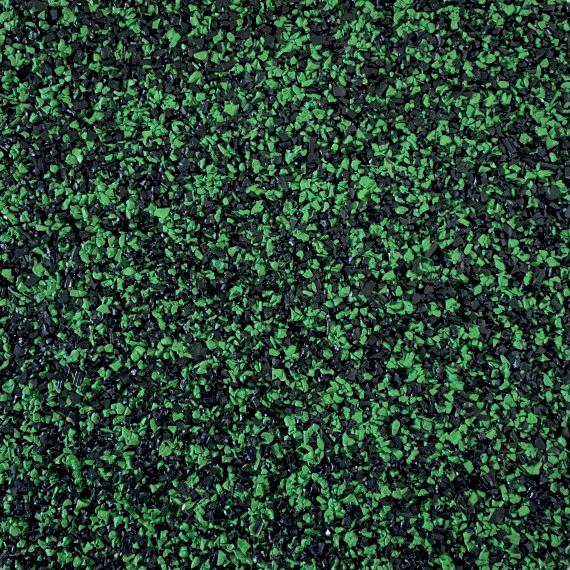

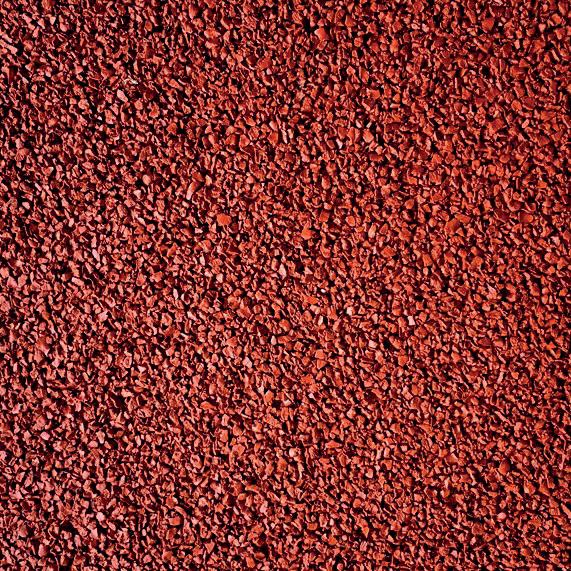

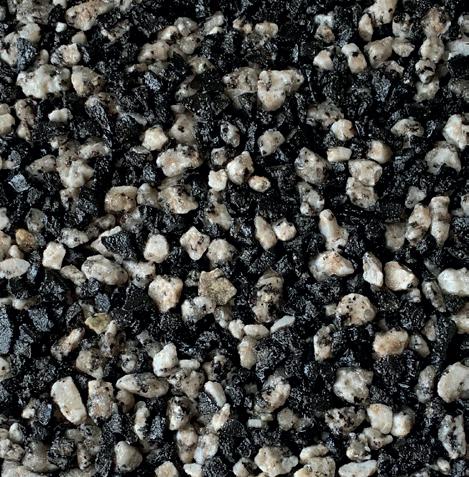

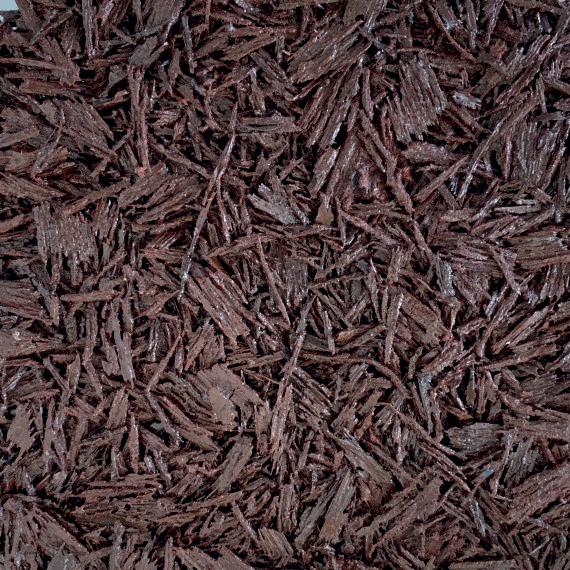

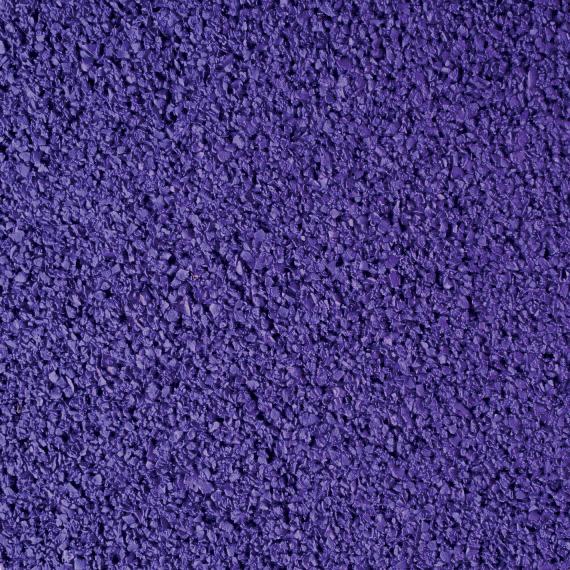

LimePath EcoWalk UV is a combination of recycled rubber sourced from used vehicle tyres and natural aggregates bound together with a specially formulated aliphatic HDI polyurethane resin which will not deteriorate or become brittle when exposed to UV light when tested to BS EN ISO 16474- 3 method A, FeRFA guidance notes 2020. LimePath EcoWalk UV was developed to be a SuDS compliant permeable resin bound system that provides environmental benefits as a surface for pedestrian and low vehicular traffic remaining Slip-resistant, Resistant to freeze-thaw, Decorative, Functional and Seamless.
The environmentally designed open matrix allows water to drain through to the base, eliminating water ponding and allowing water to drain to planted areas or land drains. The ‘No Binder’ system eliminates the need for macadam and/or concrete bases, reducing the impact of additionally sourced materials greatly reducing transportation and emission.
Edgings created from brick, stone, timber or steel should be installed to retain and protect the LimePath EcoWalk UV System.
Features & Benefits
25%
• Over 25% recycled content
• Tested to slip resistant BS 8204-6
• SuDS compliant permeable paving in excess of 1000 litres/m²/minute
• Reduced transportation and emissions
• Reduction of waste to landfill
• Resistant to freeze-thaw
• Reduction in oil derived binder courses
• Ideal for nature walks, pedestrian paths and local authority recreational parks
• All aggregates selected to reduce chances of rust appearing
• Optimised ratio of resin to rubber/aggregate mix blends
• Foot traffic after 24 hours @ 20°c
• Manufactured to UKAS ISO9001
• Made in the UK
Shelf Life & Storage
Shelf life of LimePath EcoWalk
UV resin binder is 6 months, aggregates and recycled rubber granules have an unlimited shelf life.
Store materials in clean, dry, frost free warehouse conditions between 5°C and 25°C.
Protect from sunlight.
Mix Design & Pack Sizes
LimePath EcoWalk UV Resin
7.5kg
LimePath EcoWalk UV Aggregate 75kg
LimePath EcoWalk UV SBR 25kg
LimePath Fine Aggregate 6.25kg
Coverage
Coverage rates for individual blends can vary depending on depths which ideally are recommended from 35mm to 40mm. Please refer to the Limegate Solutions LimePath EcoWalk UV Mix Blend sheets.
Coverage is based on application to a flat surface and will vary when applied to undulating surfaces, according to compaction. Please contact us if you have any queries.
Product Specification
Product
LimePath EcoWalk UV System
Thickness
35mm/40mm (dependant on required usage and binder course)
Aggregate (select mix blend as required)
Installation
Limegate Solutions Approved FeRFA association member contractor
Technical Performance Standards
• Meets the Environmental policy requirements to increase in excess of 50% the use of recycled materials.
Working Times & Temperatures
Working time is affected by temperature; at temperatures above the maximum recommended 25°C the pot life and working time may be insufficient to allow a wet edge to be maintained.
Do not therefore proceed when product and/or air temperature exceeds recommendations.
The air temperature must be monitored during application and work should stop when the temperature exceeds recommendations. Care must be taken to keep materials as cool as possible in warm weather.
At low temperatures 5°C and below the resin will not flow sufficiently to achieve a smooth finish and work should not proceed.
Substrate Requirements
LimePath EcoWalk UV System is designed for foot traffic and occasional and infrequent maintenance vehicle traffic. The range of LimePath systems are not a road surface for heavy volumes of domestic or commercial traffic. Heavier vehicle traffic, including heavy impact and high point loading will damage the surface and may result in failure due to the destructive scuffing forces created by power steering (e.g. three point turns).
Please refer to:
Limegate Solutions LimePath EcoWalk UV system base build up sheets for individual substrate requirements. See website for more details.
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
• Compressive and flexural strength testing to BS EN 13892-2
• QUV weathering chamber testing to BS EN ISO 16474-3 method A
• Slip Resistance testing to BS 8204-6:2008+A1:2010 Appendix B
• Reduced transportation and emissions by 50% in line with environmental policy.
• In line with FeRFA guidance notes for permeable resin bound systems
Services Available
• Technical Support
• Installation and Setup
LimePath EcoWalk Contractors
LimePath EcoWalk UV system is a specialist product and must only be applied by specialist Limegate Solutions approved FeRFA association member contractors. Do not apply or allow it to be applied by contractors who do not possess the necessary experience. Contact Limegate Solutions Ltd to verify your approved contractor. Please call us on 03330 155 560.
• Maintenance
• Application Support
• Hardware Support
• Guaranteed Warranty

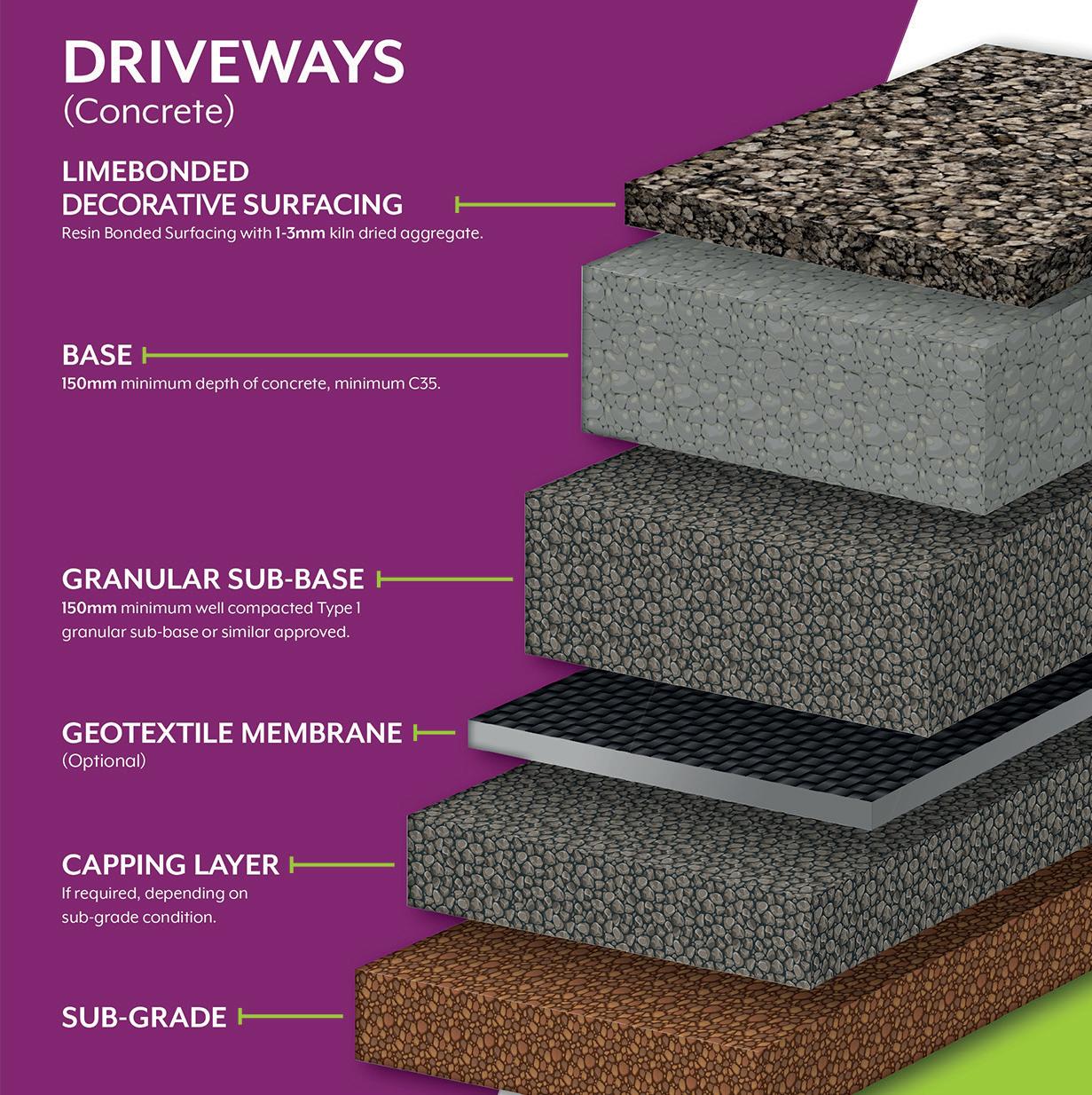

Base Build-up
Resin & Aggregate
LimePath EcoWalk UV system uses a UV resistant polyurethane resin and will not yellow on exposure to UV light. This is a more attractive option than some other types of resin which can yellow and dramatically alter the appearance of the finished surface. The resin is formulated using aliphatic HDI which will not deteriorate or become brittle when exposed to UV light when tested to BS EN ISO 16474-3 method A, FeRFA guidance notes 2020. The performance and appearance of the finished surface is dependent on the aggregate used (see Limegate Solutions LimePath EcoWalk UV mix blend swatch sheet for colour options). The LimePath EcoWalk UV System Aggregate blends have been designed to achieve strength, resilience, porosity and decoration.
EcoWalk Mix Blends
Slip Resistance
Slip resistance is an important consideration when selecting any project where there is a requirement for use by pedestrian or vehicular traffic – all systems will perform to BS 8204-6 (pendulum or trolley/ramp test). Slip resistance tests carried out in both wet and dry conditions. The pendulum test value (PTV) should generally not be less than 40.
WOODLAND WALK 10MM
DIOR 10MM
SILVER BUFF 10MM
HONEY PEBBLE 10MM
HONEY GOLD 10MM
MARSCAPE 10MM
ESPRESSO 10MM

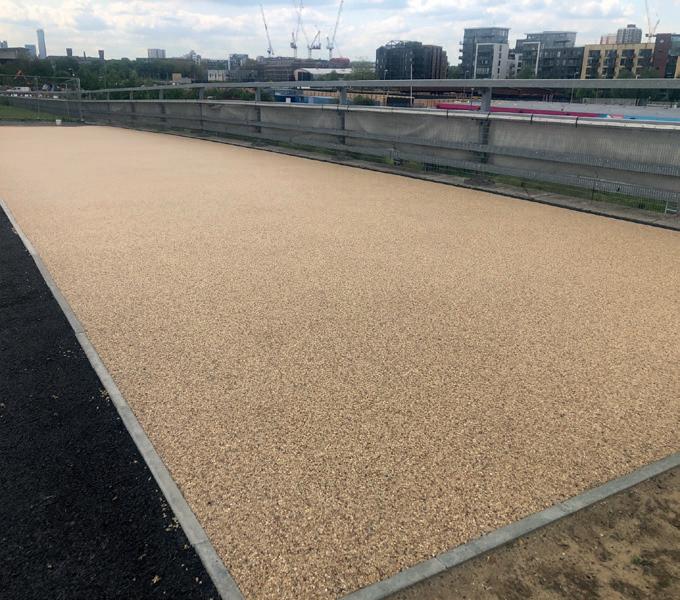

LimePath GeoSuDs UV
LimePath GeoSuDS UV is a UV stable resin bound surfacing system which is installed at 30mm/40mm depth onto a 4mm high performance triple layer system of geotextiles and a stabilisation geonet. This system reduces the need for a binder courses such as concrete and asphalt concrete (macadam) whilst still providing high permeability and strength. The structure allows rainwater to pass through being SuDS (Sustainable Urban Drainage Systems) compliant. With permeability rates of up to 850l/m²/m. LimePath GeoSuDS UV has a triple lock stabilisation layer which is thermally bonded on both sides to provide excellent drainage and filtration whilst helping to stabilise the decorative UV Resin Bound surface layer and sub-base.
Available in a variety of colours LimePath GeoSuDS UV is ideal for both commercial & domestic pathways, nature walks and general pedestrian areas.

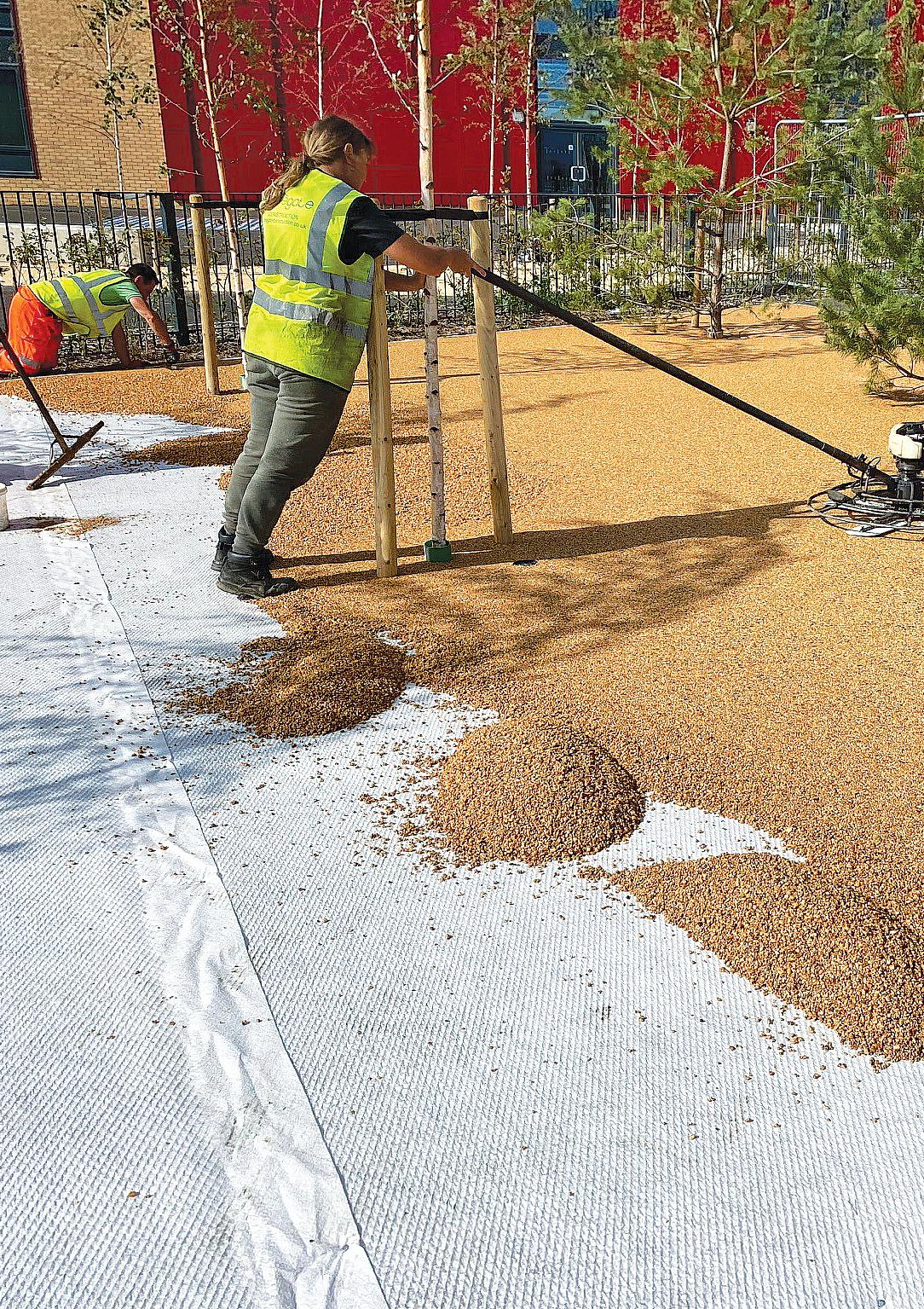

• 30mm/40mm depth install directly onto type 1 or 3
• Triple lock GeoNet to help base stabilisation and water drainage
• All aggregates selected to reduce chances of rust appearing
• Foot traffic after 14-15 hours @ 20°c
• Manufactured to UKAS ISO9001
• Made in the UK After 14-15 hours
Shelf Life & Storage
Shelf life of LimePath GeoSuDS UV Resin is 6 months, aggregates and GeoNet have an unlimited shelf life.
Store materials in clean, dry, frost free warehouse conditions between 5ºC and 25ºC.
Protect from sunlight.
MADE IN THEUK
Mix Design & Pack Sizes
LimeBound Resin Bound
Surfacing Resin
7.5kg
LimeBound Resin Bound Surfacing Aggregate
100kg (4x 25kg bags)
LimeBound Fine Aggregate 6.25kg

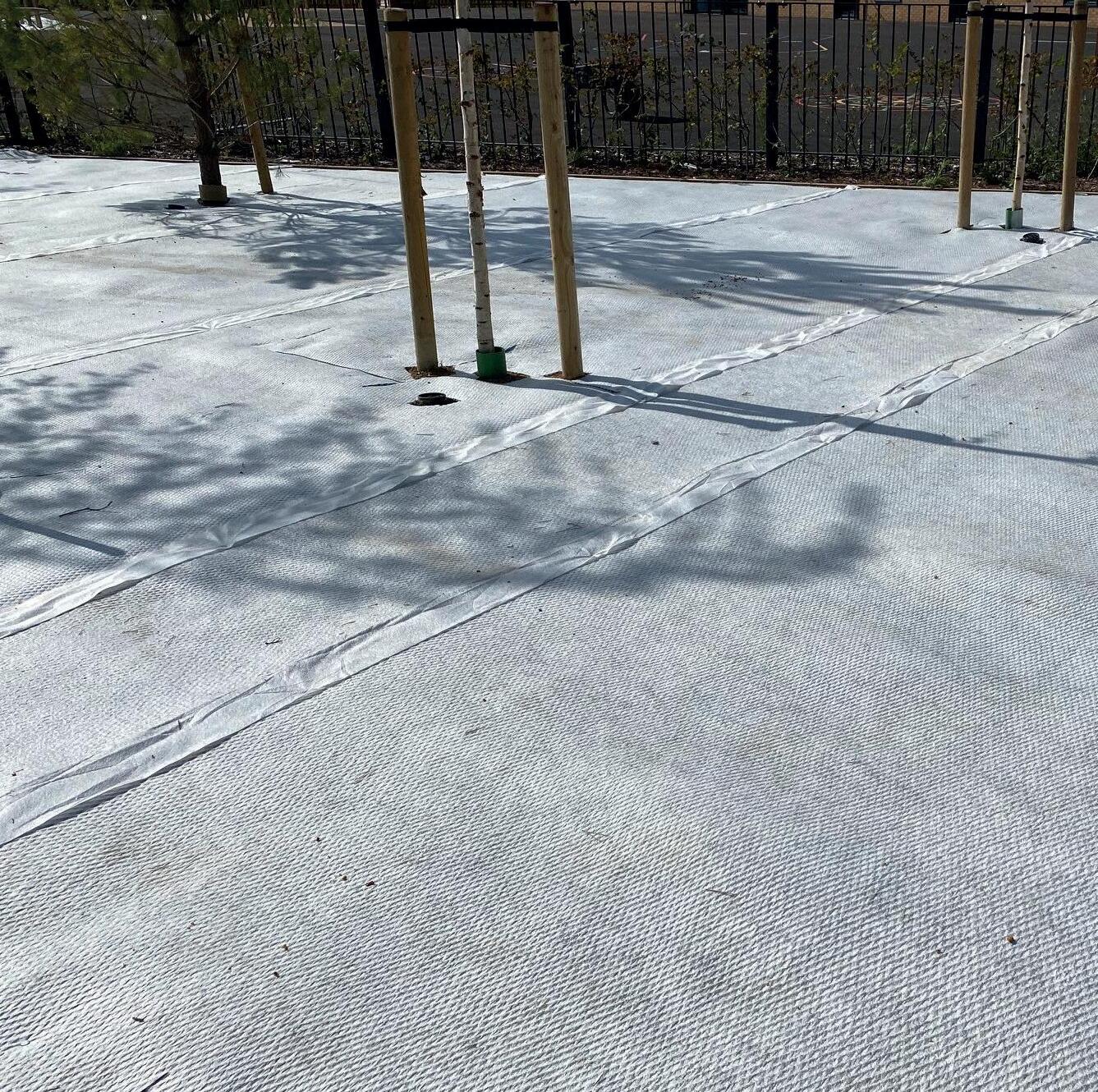

GeoNet
2m x 50mm x 4mm Rolls (100m²)
Coverage
Coverage rates for individual blends can vary. Please refer to the Limegate Solutions LimePath GeoSuDS UV mix blend & aggregate sheet. Coverage is based on application to a smooth flat surface and will vary when applied to undulating surfaces, according to compaction, and to the aggregate grading, which can change from batch to batch. Please contact us if you have any queries.
Product Specification
Product
LimePath GeoSuDs UV Thickness
30mm/40mm LimePath
GeoSuDS surface course (dependant on required usage)
Aggregate
(Select mix blend as required)
Installation
Limegate Solutions Approved
FeRFA association member contractor
Technical Performance Standards
Working Times & Temperatures
Working time is affected by temperature; at temperatures above the maximum recommended 25ºC the pot life and working time may be insufficient to allow a wet edge to be maintained.
Do not therefore proceed when product and/or air temperature exceeds recommendations.
The air temperature must be monitored during application and work should stop when the temperature exceeds recommendations. Care must be taken to keep materials as cool as possible in warm weather.
At low temperatures 5ºC and below the resin will not flow sufficiently to achieve a smooth finish and work should not proceed.
Substrate Requirements
LimePath GeoSuDS UV System is designed for foot traffic and after consultation occasional vehicle access traffic such as light infrequent maintenance vehicles or pedestrian two wheel mode of transportation. All resin bound products by nature will be vulnerable to heavy impact and high point loading. It is good practise that the product is subject to cleaning and maintenance and regularly inspected by the client or installer and maintained as required. Please see LimePath GeoSuDS UV O&M Manual for further maintenance information.
Please refer to:
Limegate Solutions LimePath GeoSuDS UV Base Build Up Sheets for individual substrate requirements
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
• Meets the Environmental policy requirements to increase in excess of 50% the use of recycled materials.
• Compressive and flexural strength testing to BS EN 13892-2
• QUV weathering chamber testing to BS EN ISO 16474-3 method A
• Slip Resistance testing to BS 8204-6:2008+A1:2010 Appendix B
• Reduced transportation and emissions by 50% in line with environmental policy.
• In line with FeRFA guidance notes for permeable resin bound systems
Services Available
• Technical Support
• Installation and Setup
LimePath GeoSuDs Contractors
LimePath GeoSuDS UV is a specialist product and must only be applied by specialist applicators. Do not apply or allow it to be applied by contractors who do not possess the necessary experience. You should consider appointing a Limegate Solutions approved contractor. Please call us on 03330 155 560.
• Maintenance
• Application Support
• Hardware Support
• Guaranteed Warranty
Base Build-up
Resin & Aggregate
LimePath GeoSuDS UV resin is a UV resistant resin and will not yellow on exposure to UV light. This is a more attractive option than some other types of resin which can yellow and dramatically alter the appearance of the finished surface. The resin is formulated using aliphatic HDI which will not deteriorate or become brittle when exposed to UV light when tested to BS EN ISO 16474-3 method A. The performance and appearance of the finished surface is dependent on the aggregate used. The LimePath GeoSuDS UV Aggregate blends have been designed to achieve strength, resilience, porosity and decoration.
GeoSuDs Mix Blends
Slip Resistance
All LimePath GeoSuDS UV aggregate blends have been tested for slip resistance in wet and dry conditions. Anti-Slip aggregate broadcast onto the surfacing during installation will significantly increase the slip resistance of the surface in the wet and on steep gradients without substantial change to appearance.

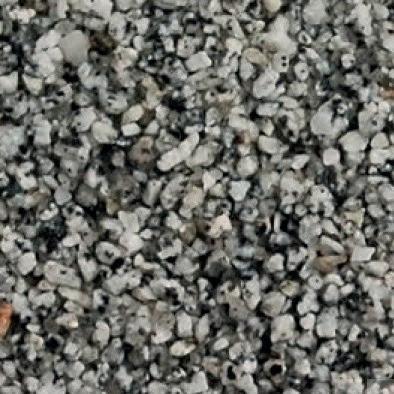

SILVER BUFF 10MM
DIOR 10MM
HONEY PEBBLE 10MM
WOODLAND WALK 10MM

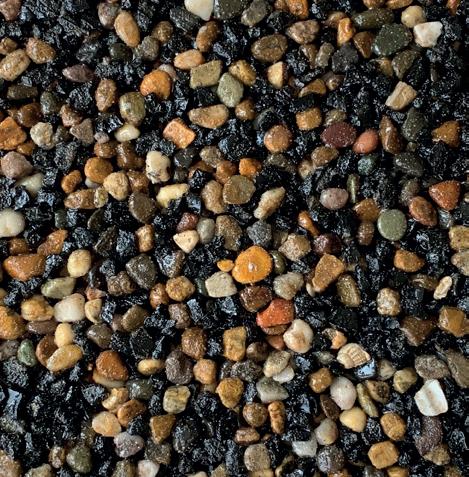

ESPRESSO 10MM
MARSCAPE 10MM
HONEY GOLD 10MM

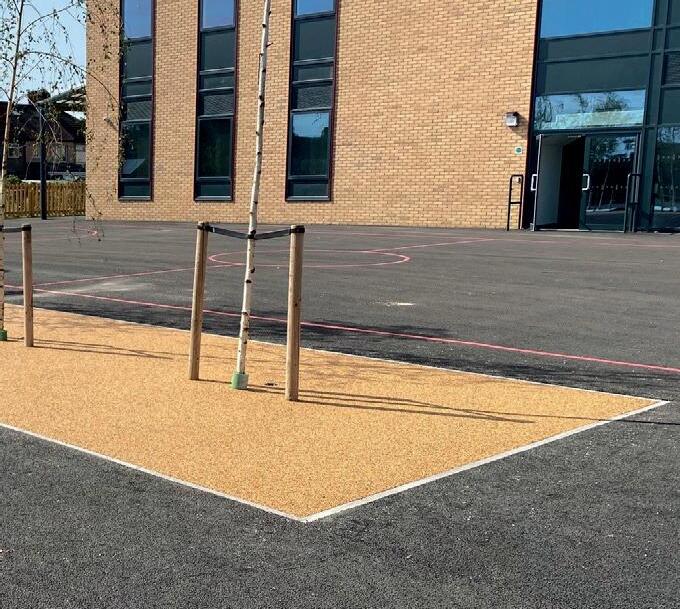

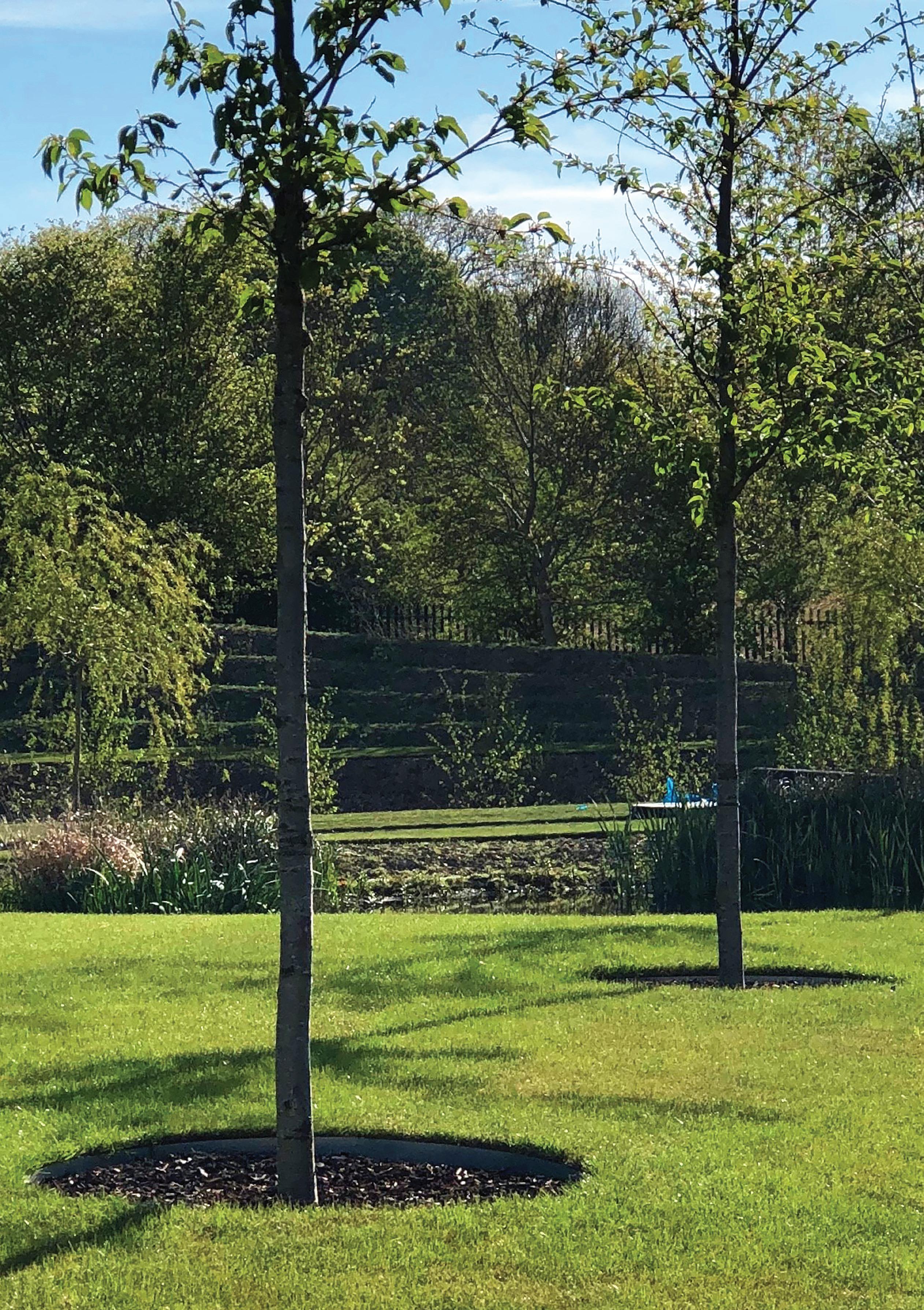

LimeTreePit Natural UV

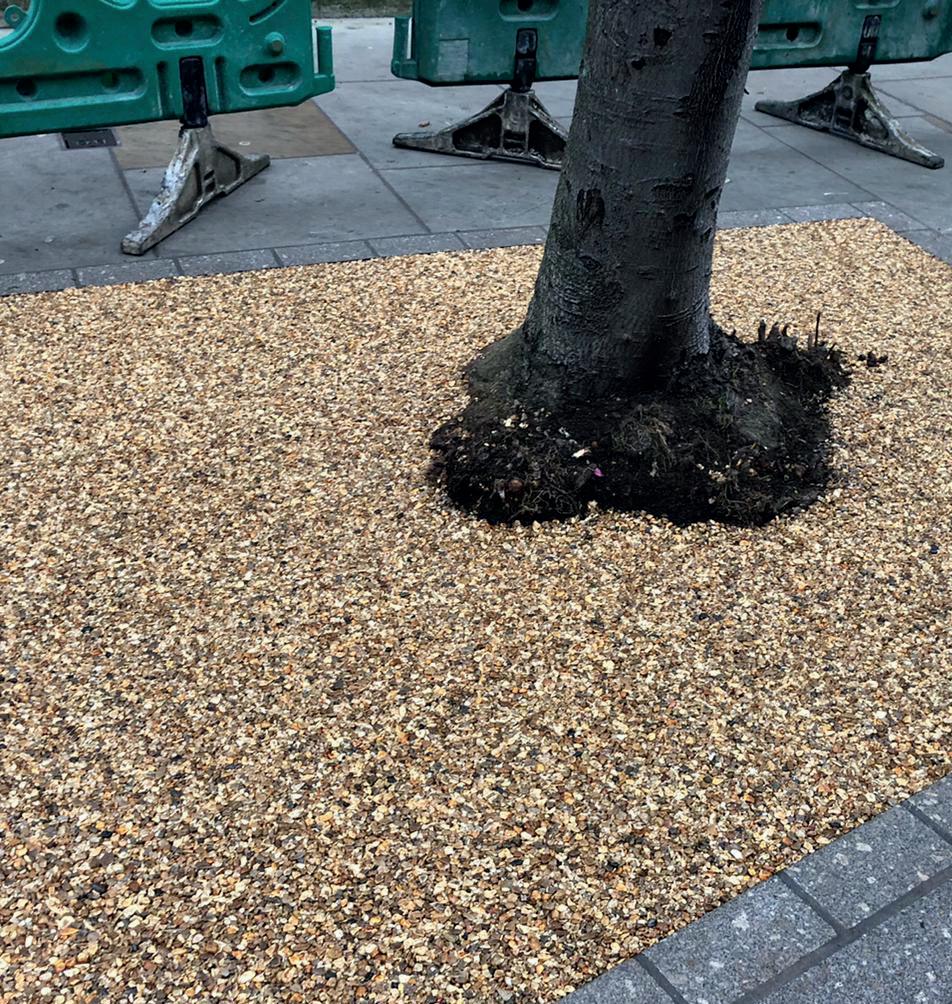

LimeTreePit Natural UV is a 40mm natural aggregate surface surround for planted trees. Surrounding the tree in a permeable construction which allows for water to feed the tree whilst keeping the tree pit free from rubbish and hazardous items. The structure allows rainwater to pass through being SuDS (Sustainable Drainage Systems) compliant.
Available in a variety of colours due to the inclusion of a high performance UV stable resin the aggregate surface system.
LimeTreePit is ideal for pedestrian and low vehicular traffic whilst still keeping the system decorative, functional, seamless and slightly flexible which is also low maintenance. Edgings created from brick, stone, timber or steel should be installed to retain and protect the system and prolong it’s life span.
• All aggregates selected to reduce chances of rust appearing
• Optimised ratio of resin to aggregate mix blends in line with industry standards
• Foot traffic after 14–15 hours @ 20°C
• Manufactured to UKAS ISO9001
• Made in the UK After 14-15 hours
Shelf Life and Storage
Shelf life of LimeTreePit Natural UV Resin is 6 months, aggregates have an unlimited shelf life.
Store materials in a clean, dry, frost free warehouse condition between 5ºC and 25ºC.
Protect from sunlight.
Mix Design & Pack Sizes
LimeTreePit Natural UV Resin
6.5kg
LimeTreePit Natural UV Aggregate
100kg (4x 25kg bags)
LimeTreePit Natural UV Fine Aggregate 6.25kg
Coverage
Coverage rates for individual blends can vary.
Average rate for reference: 1.6m² @ 40mm
Please refer to:
Limegate Solutions LimeTreePit Natural UV Mix Blend & Aggregate sheet. Coverage is based on application to a smooth flat surface and will vary when applied to undulating surfaces, according to compaction, and to the aggregate grading, which can change from batch to batch. Please contact us if you have any queries.
Product Specification
Product
LimeTreePit Natural UV Thickness
40mm/50mm (dependant on required usage)
Aggregate (Select mix blend as required)
Installation
Limegate Solutions Approved FeRFA association member contractor
Technical Performance Standards
• Meets the Environmental policy requirements to increase in excess of 50% the use of recycled materials.
• Compressive and flexural strength testing to BS EN 13892-2
Working Times & Temperatures
Working time is affected by temperature; at temperatures above the maximum recommended 25ºC the pot life and working time may be insufficient to allow a wet edge to be maintained.
Do not therefore proceed when product and/or air temperature exceeds recommendations. The air temperature must be monitored during application and work should stop when the temperature exceeds recommendations. Care must be taken to keep materials as cool as possible in warm weather.
At low temperatures 5ºC and below the resin will not flow sufficiently to achieve a smooth finish and work should not proceed.
Substrate Requirements
LimeTreePit Natural UV is designed for foot traffic and occasional low vehicular traffic.
Please refer to:
Limegate Solutions LimeTreePit Natural UV Base Build Up Sheets for individual substrate requirements.
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
LimeTreePit Natural UV Contractors
LimeTreePit Natural UV is a specialist product and must only be applied by specialist applicators. Do not apply or allow it to be applied by contractors who do not possess the necessary experience. You should consider appointing a Limegate Solutions approved contractor. Please call us on 03330 155 560.
• QUV weathering chamber testing to BS EN ISO 16474-3 method A
• Slip Resistance testing to BS 8204-6:2008+A1:2010
Appendix B
• Reduced transportation and emissions by 50% in line with environmental policy.
• In line with FeRFA guidance notes for permeable resin bound systems
Services Available
• Technical Support
• Installation and Setup
• Maintenance
• Application Support
• Hardware Support
• Guaranteed Warranty

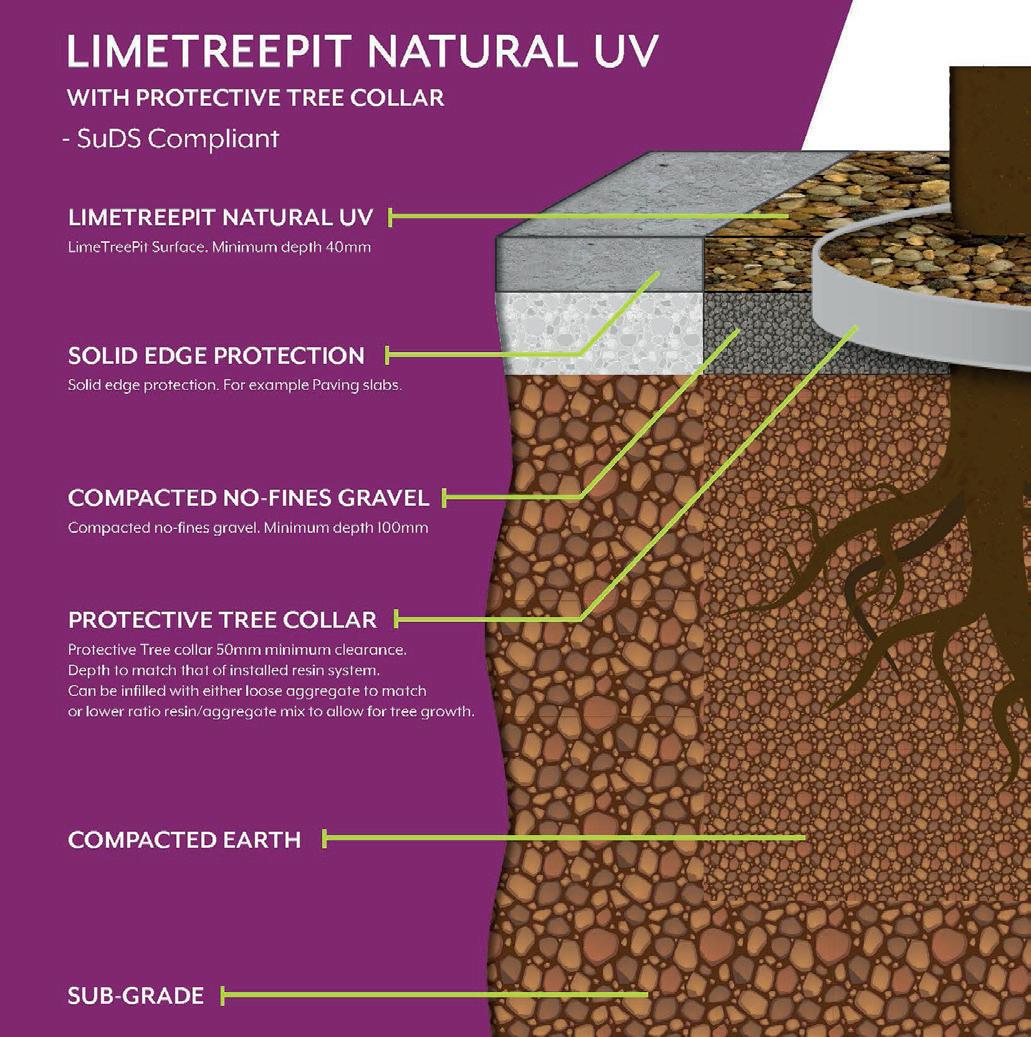

Base Build-up
Resin & Aggregate
LimeTreePit Natural UV uses a UV resistant resin and will not yellow on exposure to UV light. This is a more attractive option than some other types of resin which can yellow and dramatically alter the appearance of the finished surface. The resin is formulated using aliphatic HDI which will not deteriorate or become brittle when exposed to UV light when tested to BS EN ISO 16474-3 method A. The performance and appearance of the finished surface is dependent on the aggregate used (see LimeGate Solutions LimeTreePit mix blend swatch sheet for colour options). The LimeTreePit Natural UV aggregate blends have been designed to achieve strength, resilience, porosity and decoration.
LimeTreePit Natural UV Mix Blends
Slip Resistance
All LimeTreePit Natural UV aggregate blends have been tested for slip resistance in accordance with: BS 8204-6:2008+A1:2010
Appendix B. All aggregate blends achieved ’low potential for slip’ in wet & dry conditions. Application of LimeTreePit Natural UV AntiSlip Aggregate broadcast onto the surfacing during installation will significantly increase the slip resistance of the surface in the wet and on steep gradients without substantial change to the appearance.
SILVER BUFF 10MM DIOR 10MM
HONEY PEBBLE 10MM
WOODLAND WALK 10MM ESPRESSO 10MM
MARSCAPE 10MM
HONEY GOLD 10MM
LimeTreePit Rubber & Mulch
LimeTreePit Rubber & Mulch
LimeTreePit Rubber & Mulch is a more flexible alternative to traditional tree pits. Providing an environmentally friendly system using recycled EPDM, SBR & Rubber Mulch which is bound together to create a decorative, safe & low maintenance system which is SuDS (Sustainable Drainage Systems) compliant. Ideal for both for new and established trees used in parks and street schemes the system allows the tree to grow through the flexibility of the surface. LimeTreePit Rubber is ideal for pedestrian and low vehicular traffic whilst still keeping the system decorative, functional, seamless and slightly flexible which is also low maintenance.
LimeTreePit Rubber & Mulch Surfacing is a system consisting of either rubber EPDM granules installed over SBR rubber granules or a fully rubber mulch system. Both options using a quality non-UV aromatic binder resin for pedestrian traffic. Available in a variety of colours both from the standard range and bespoke designs on request.
Features & Benefits
• High quality polyurethane binder/resin
• Optimised ratio resin to rubber blend for optimum performance
• Absorbent SuDS compliant system to drain surface water
• 40mm depth for optimum performance
• Multiple standard colours and bespoke designs available
• Recycled for environmental benefits
• Flexible and strong
• Low maintenance
• Manufactured to UKAS ISO9001
• No additional carcinogenic catalyst handling required on site
• Approved contractors available for installation
Shelf Life & Storage
Shelf life of LimeTreePit Rubber & Mulch Resin is 6 months, rubber granules and rubber mulch have unlimited shelf life.
Store materials in a clean, dry, frost free warehouse condition between 5ºC and 25ºC.
Protect from sunlight.
MADE IN THEUK
Mix Design & Pack Sizes

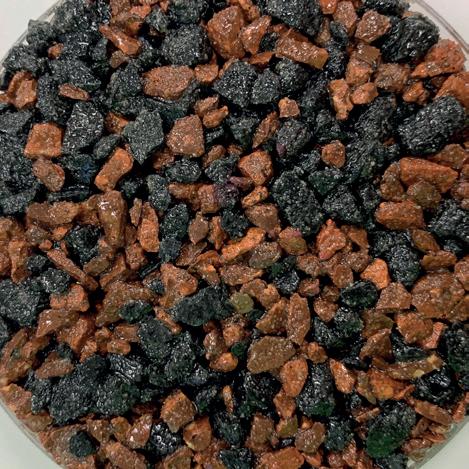

LimeTreePit Rubber EPDM
50kg (2x25kg bags) & 10kg binder

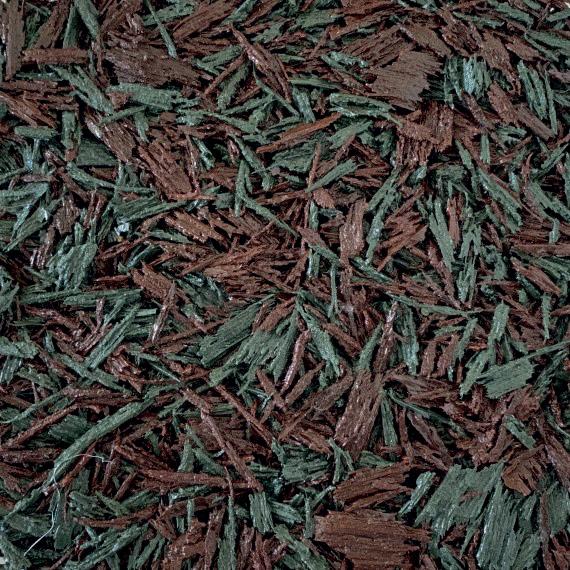

LimeTreePit Rubber Mulch
20kg (2x10kg bags) & 4kg binder
LimeTreePit Rubber SBR
50kg (2x25kg bags) & 5kg binder
LimeTreePit Rubber & Mulch Binder
Available in 25kg & 220kg drums
Product Specification
Product
LimeTreePit Rubber & Mulch
Thickness
Coverage
Coverage rates vary for the binder/ resin due to a number of factors from application thickness to the type of rubber component used i.e. EPDM to rubber mulch/bark to SBR. Approximate yields are available on request, please contact Limegate Solutions technical department.
03330 155 560
Working Times & Temperatures
Working time is affected by temperature; at temperatures above the maximum recommended 25ºc the pot life and working time may be insufficient to allow a wet edge to be maintained.
Do not therefore proceed when product and/or air temperature exceeds recommendations.
The air temperature must be monitored during application and work should stop when the temperature exceeds recommendations. Care must be taken to keep materials as cool as possible in warm weather. At low temperatures 5ºC and below the resin will not flow sufficiently to achieve a smooth finish and work should not proceed.
Substrate Requirements
LimeTreePit Rubber & Mulch systems are designed for foot traffic and occasional low vehicular traffic.
Please refer to:
Limegate Solutions LimeTreePit Rubber & Mulch Base Build Up Sheets for individual substrate requirements.
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
LimeTreePit Rubber & Mulch Contractors
EPDM thickness: 15mm installed onto SBR thickness: min 25mm (Total min 40mm)
• Low density for excellent coverage (1.60 ± 0.05 g/cm3)
• Minimum EPDM content > 20% Non toxic
• Binder
• Single component & Solvent free
Services
Available
• Technical Support
• Installation and Setup
• Maintenance
• Application Support
• Hardware Support
• Guaranteed Warranty
LimeTreePit Natural UV is a specialist product and must only be applied by specialist applicators. Do not apply or allow it to be applied by contractors who do not possess the necessary experience. You should consider appointing a Limegate Solutions approved contractor. Please call us on 03330 155 560.

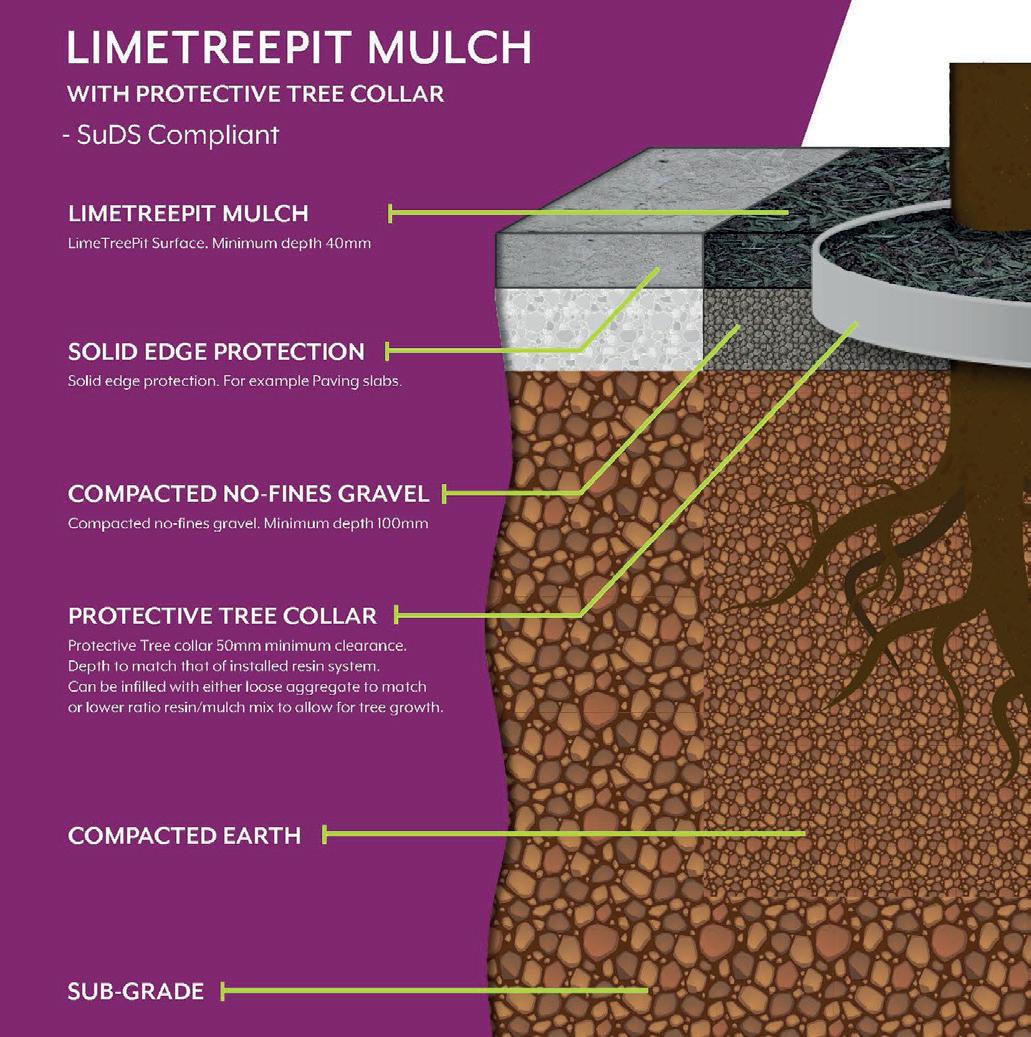

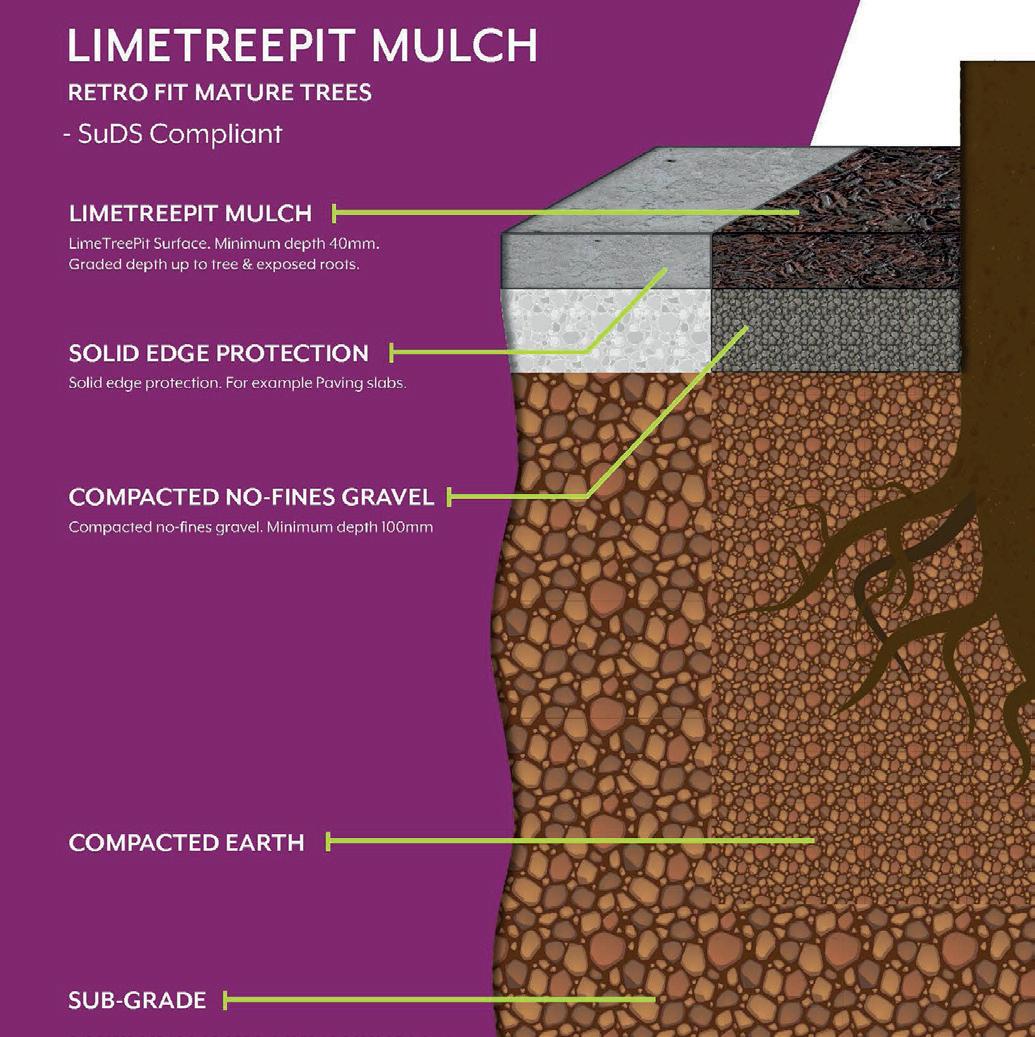

Base Build-up
Resin, Rubber Granules and Mulch
LimeTreePit Rubber & Mulch use a non UV polyurethane binder as used on playground surfaces and is designed specifically for bonding rubber granules and mulch. The rubber binder is a single component, moisture curing, medium viscosity polyurethane binder. The rubber EPDM layer as a topping/wearing course is installed at 15mm onto a suitable 25mm SBR shock pad/base (40mm total). The rubber mulch is installed at 40mm. Coloured EPDM granules are made from a compound of EPDM rubber, specialist pigment and UV stabilisers. The LimeRubber SBR shock pad/base is a recycled tyre granulate suitable for base layer applications. The rubber mulch/bark is processed to remove steel, fibre and dust to produce a clean high quality rubber granulate.

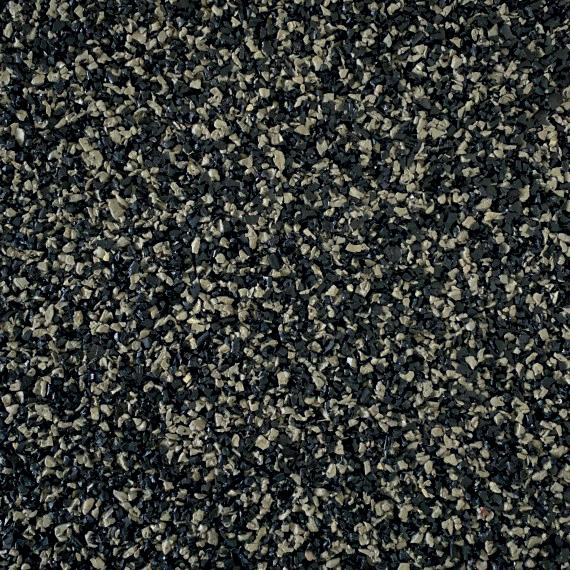

LimeTreePit Mix Blends

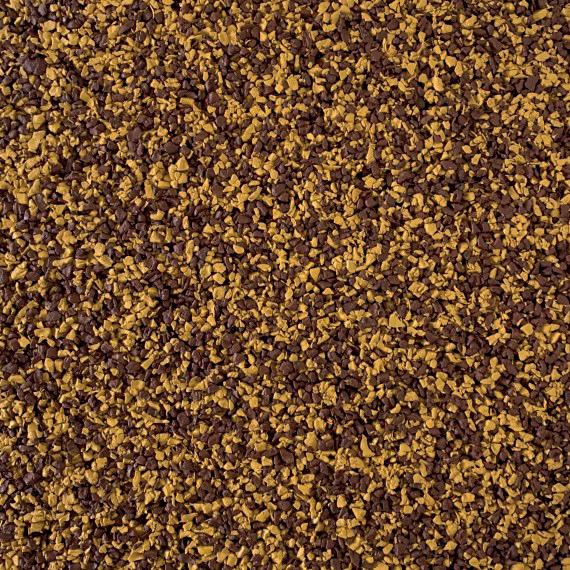

MAHOGANY
PINE
WOODLAND FLOOR
OCEAN
CHESTNUT

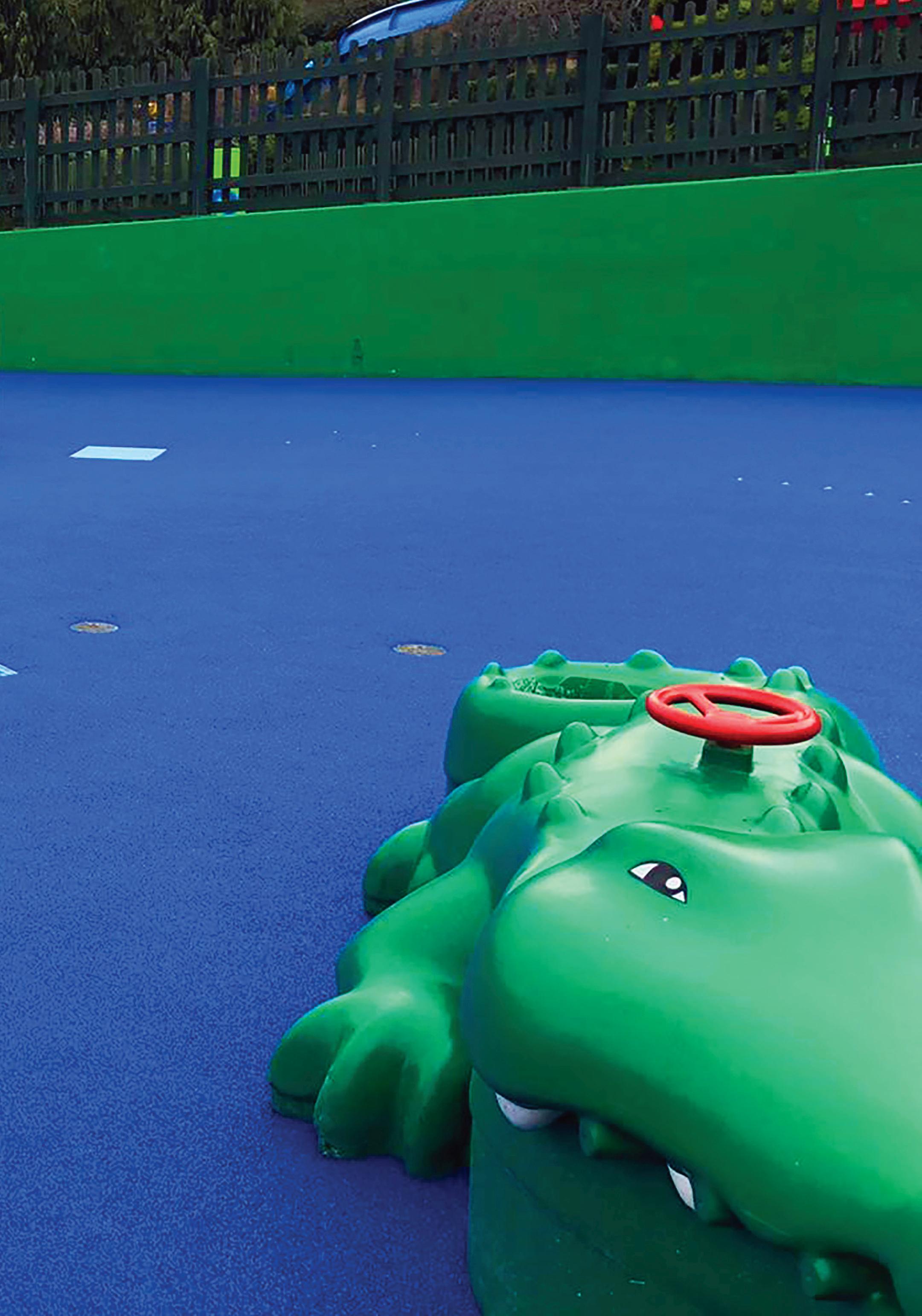

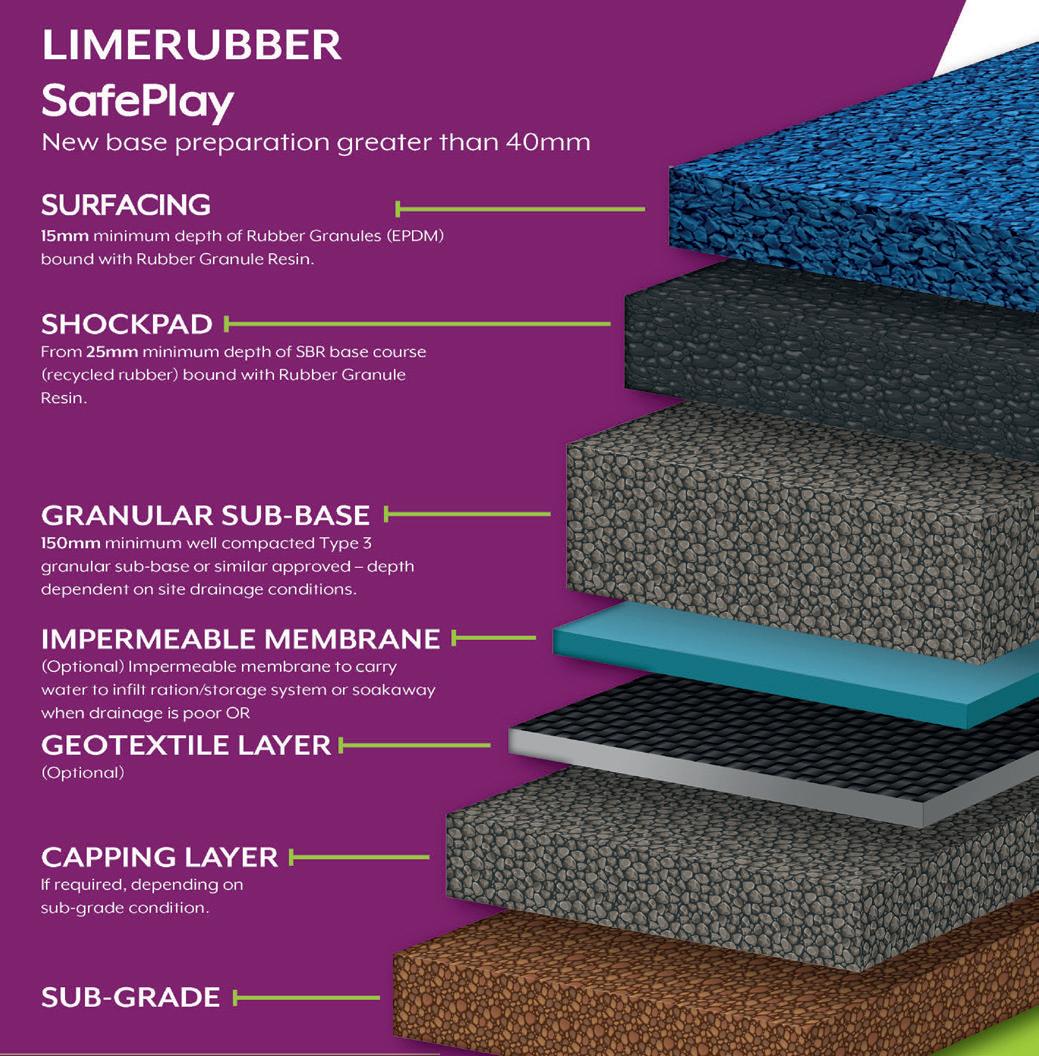

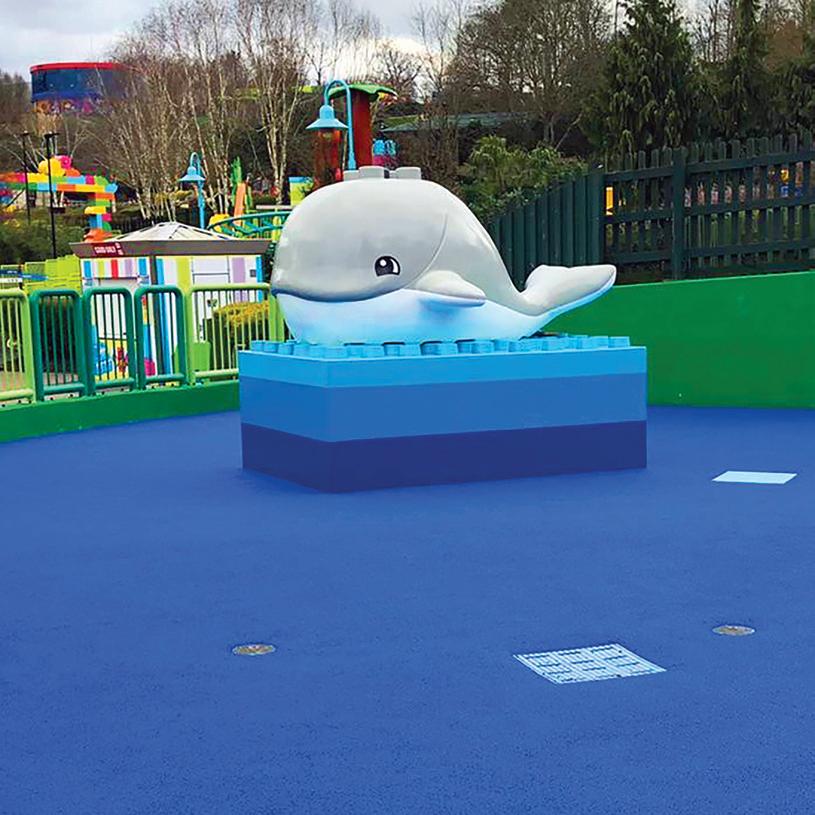

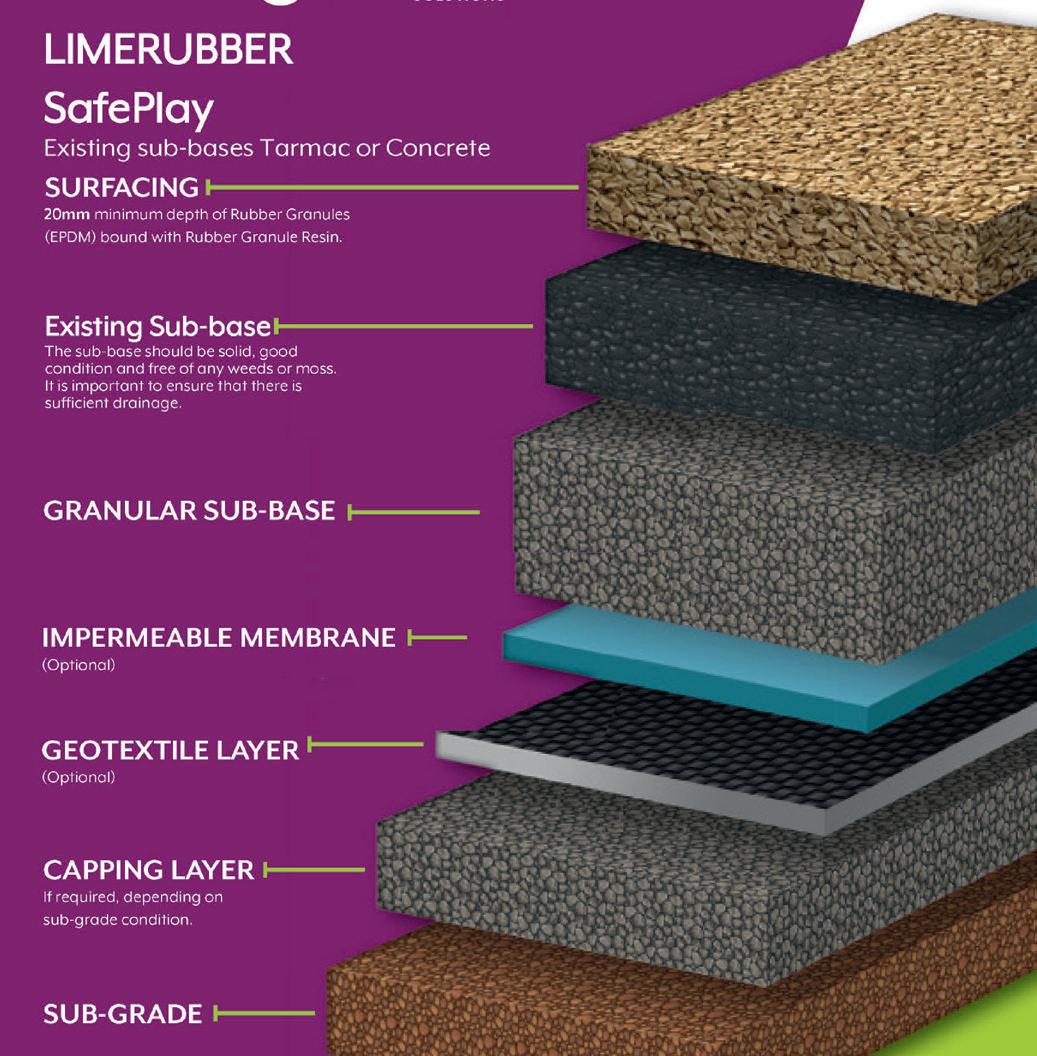

LimeRubber SafePlay System

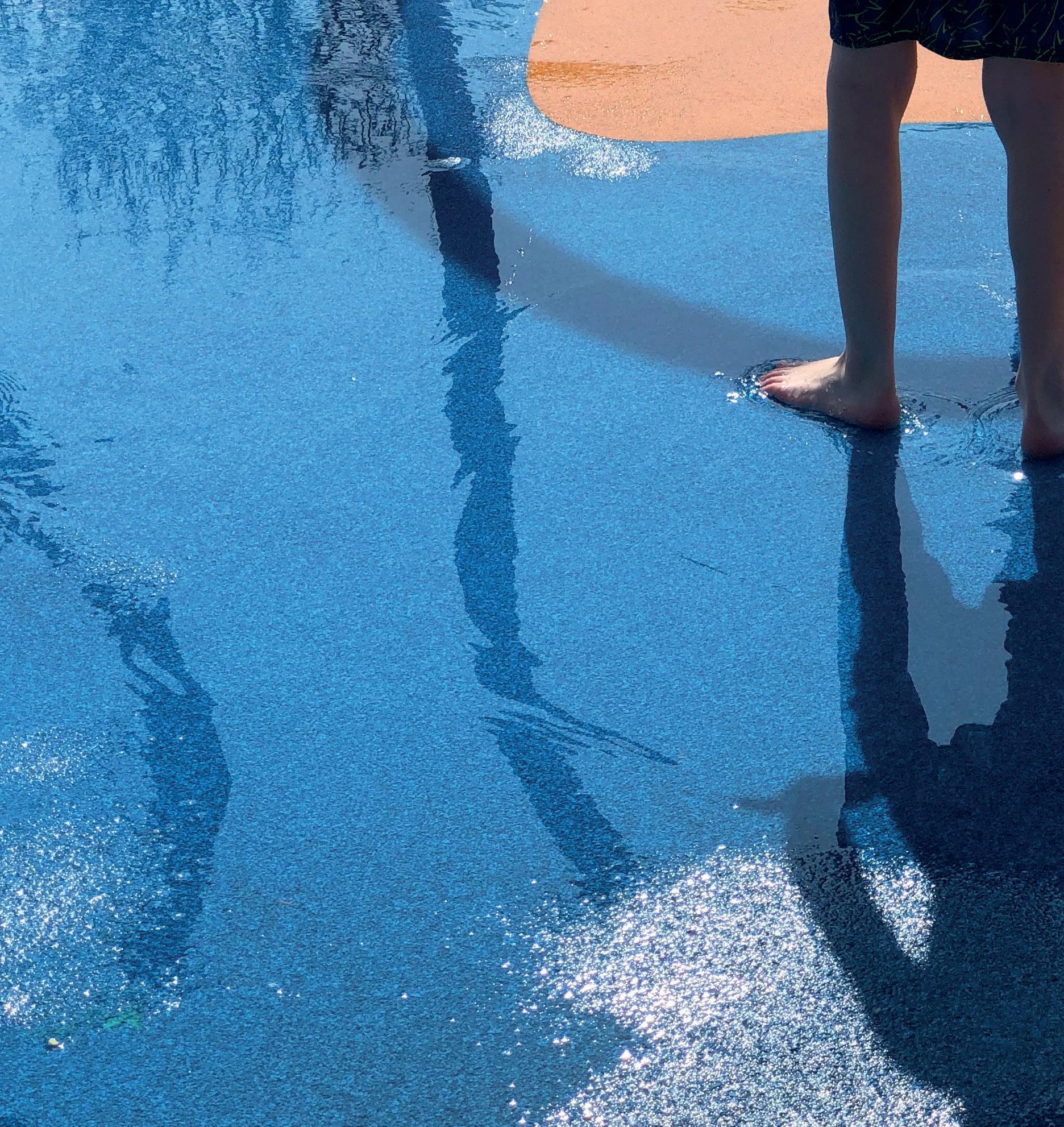

LimeRubber SafePlay Surfacing is a system consisting of either rubber EPDM granule and/or rubber mulch and a quality non-UV aromatic binder resin for pedestrian traffic. UV stable aliphatic binders are available where colour and optimum performance is required. The system is used to create a permeable, highly decorative, safe surface which absorb sound and impact and can be installed onto a sound stable and solid base such as concrete or no fines concrete or macadam/ asphalt surface. When installed onto a SBR granule shockpad the system will conform to the requirements of the CFH (Critical Fall Height) guidance notes for the safety of children using a variety of playground apparatus.
Ideal for children playgrounds surfaces where critical fall height requirements are a major consideration, sports surfaces (athletics tracks, hockey and football pitches, multi-use games areas), walkways, golf bunker linings, tree pits, swimming pool surrounds, universities, schools, colleges and multiple landscaping projects.
Features & Benefits
• Maintains surface colour during wear
• High quality polyurethane binder/resin
• Optimized ratio resin to rubber blend for optimum performance
• Absorbent SuDS compliant system to drain surface water
• 15mm onto shockpad and 20mm onto solid base
• Multiple colours available
• Meets CFH (Critical Fall Height) requirements
• Recycled for environmental benefits
• Flexible and strong
• Low maintenance
• In excess of 200m2 can be installed per day
• Manufactured to UKAS ISO9001
• No additional carcinogenic catalyst handling required on site
• Approved contractors available for installation
Shelf Life and Storage
Shelf life of LimeTreePit Rubber & Mulch Resin is 6 months, EPDM and Mulch have an unlimited shelf life.
Store materials in clean, dry, frost free warehouse condition between 5°c and 25°C.
Protect from sunlight.
MADE IN THEUK
Mix Design & Pack Sizes

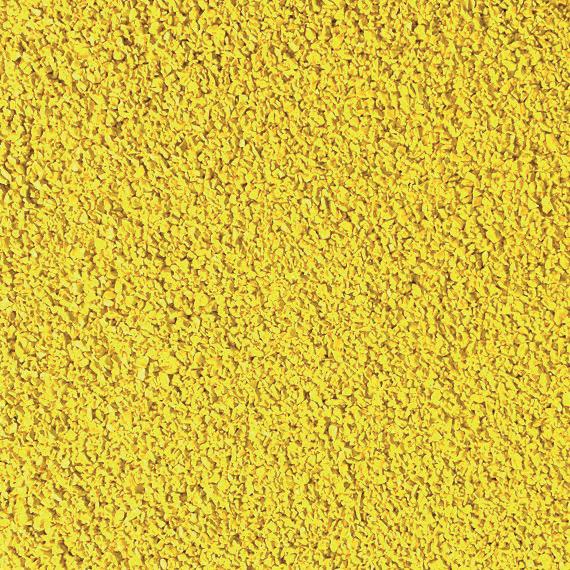

LimeRubber EPDM
50kg (2x25kg bags) & 10kg binder
LimeRubber Mulch
20kg (2x10kg bags) & 4kg binder
LimeRubber SBR
50kg (2x25kg bags) & 5kg binder
LimeRubber & Mulch Binder
Available in 25kg & 220kg drums
LimeRubber Primer 25kg units
Coverage
Coverage rates vary for the binder/ resin due to a number of factors from application thickness to the type of rubber component used i.e. EPDM to rubber mulch/bark to SBR. Approximate yields are available on request, please contact Limegate Solutions technical department.
03330 155 560
Product Specification
Product
LimeRubber SafePlay/Mulch
Thickness
15mm/20mm/40mm/50mm (dependant on required usage) EPDM colour: (select colour as required)
LimeRubber
Shockpad Thickness
25mm-115mm (dependant on required usage*) *LimeRubber
Critical Fall Height Chart
Technical
Performance Standards
• Maintains surface colour during wear
Working Times and Temperatures
Working time is affected by temperature; at temperatures above the maximum recommended 25ºC the pot life and working time may be insufficient to allow a wet edge to be maintained.
At low temperatures 5ºC and below the resin will not flow sufficiently to achieve a smooth finish and work should not proceed. Do not therefore proceed when product and/ or air temperature exceeds recommendations.
The air temperature must be monitored during application and work should stop when the temperature exceeds recommendations. Care must be taken to keep materials as cool as possible in warm weather.
Traffic & Scuffing
LimeRubber SafePlay system is designed for foot traffic and occasional light service vehicle traffic. It is not to be used as a road surface for either domestic or commercial traffic.
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
• High elasticity and wear resistance (Elongation at Break ≥ 650 % Tensile Strength > 6.0 Mpa)
• Low density for excellent coverage (1.60 ± 0.05 g/cm³)
• Minimum EPDM content >20% non toxic
• Binder Single component and solvent free
Services
Available
• Technical Support
• Installation and Setup
• Maintenance
LimeRubber Contractors
LimeRubber SafePlay & Rubber Mulch is a specialist product and must only be applied by specialist applicators. Do not apply or allow it to be applied by contractors who do not possess the necessary skills and experience. You should consider appointing a Limegate Solutions approved contractor. Please call us on 03330 155 560.
• Application Support
• Hardware Support
• Guaranteed Warranty
Base Build-up
Resin & Rubber Granules
LimeRubber polyurethane binder is designed specifically for bonding rubber granules and other rubber products. The binder is available as an aromatic isocyanate (standard) or an aliphatic prepolymer (UV resistant) on request. Both products are single component, moisture curing, medium viscosity polyurethane binders. The rubber EPDM and/or Mulch/bark layer as a topping/wearing course is installed at 15mm onto a suitable SBR shockpad or from 20mm when directly onto a solid base. Coloured EPDM granules are made from a compound of EPDM rubber, specialist pigment and UV stabilisers. The rubber compound is produced under carefully controlled factory conditions which are then granulated at high speed where dust is removed at every stage to ensure granules are as clean as possible. Thorough testing ensures that the physical and chemical properties are of high quality. The LimeRubber SBR shockpad/base is a recycled tyre granulate suitable for base layer applications. This is installed before a wearing layer at depths from 15mm to 130mm subject to CFH requirements. SBR tyre granules are produced from waste truck tyres, recycled by means of ambient grinding. The rubber mulch/bark is processed to remove steel, fibre and dust to produce a clean high quality rubber granulate.

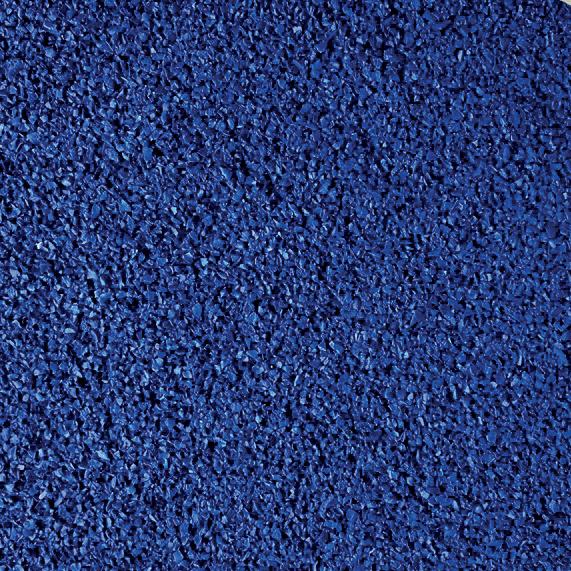

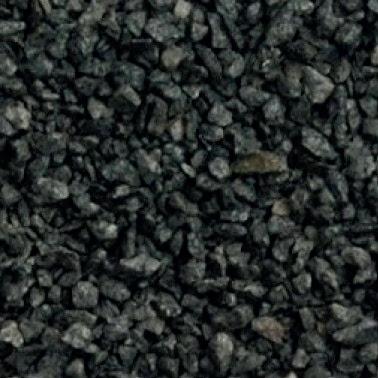

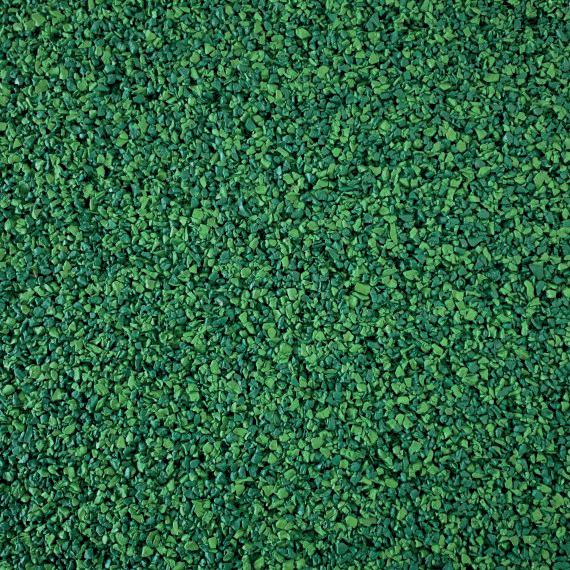

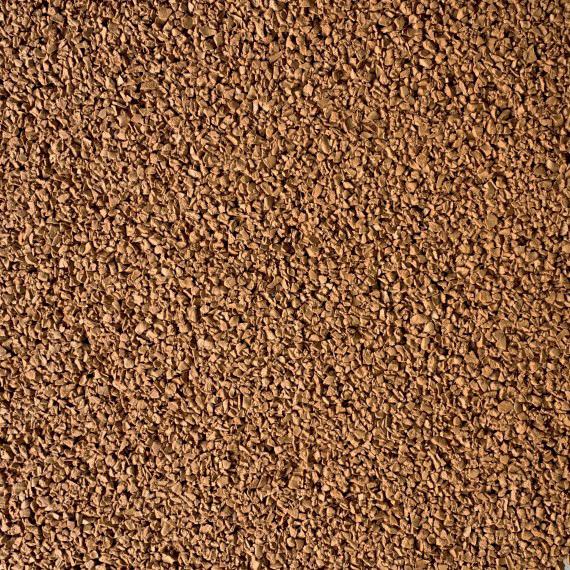

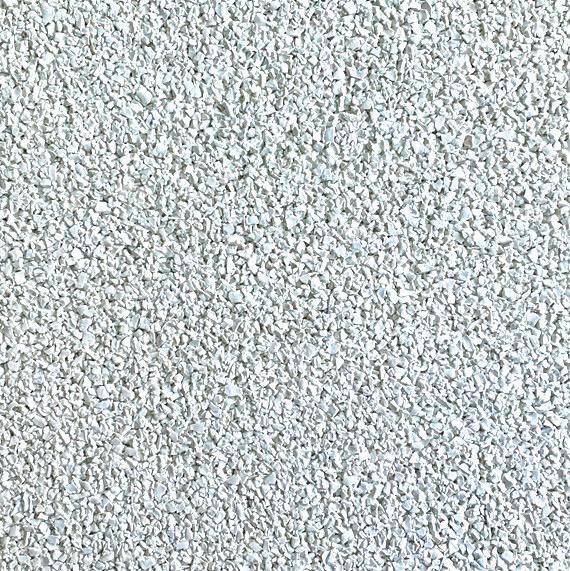

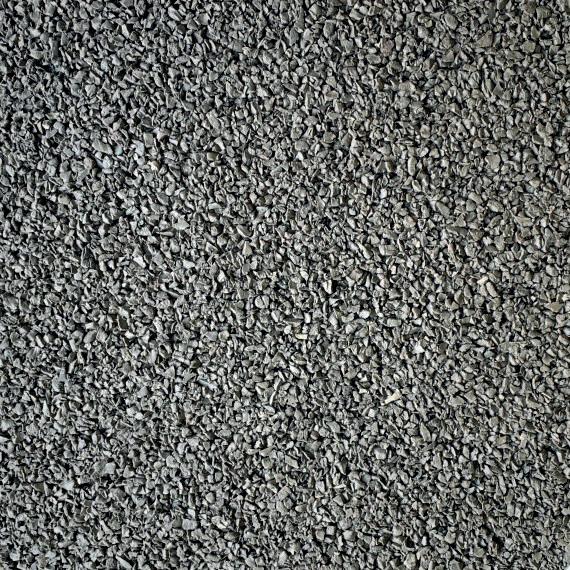

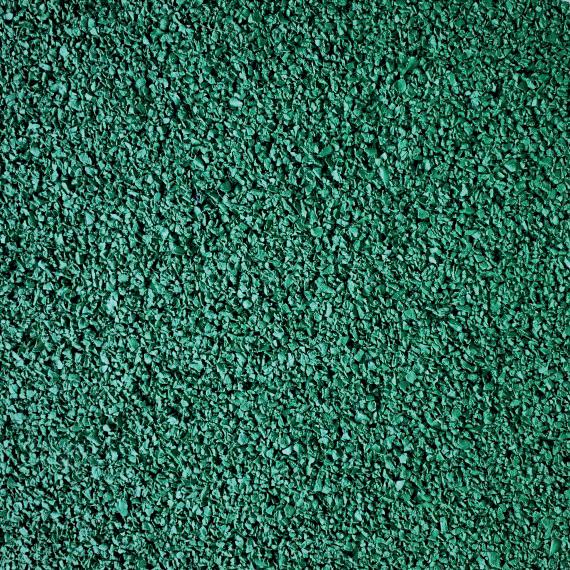

LimeRubber EPDM Mix Blends

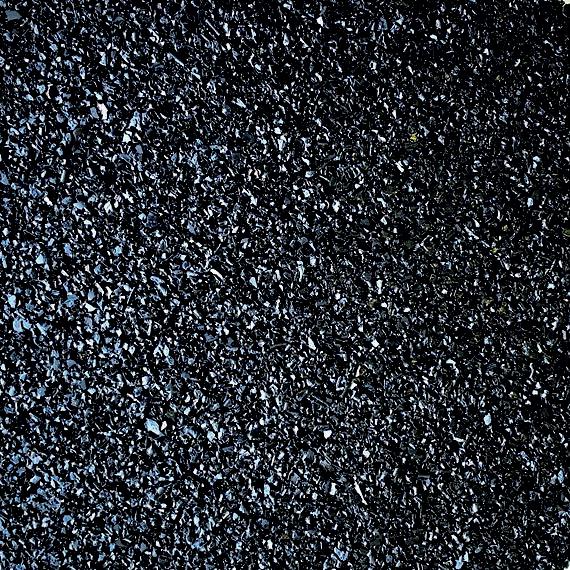

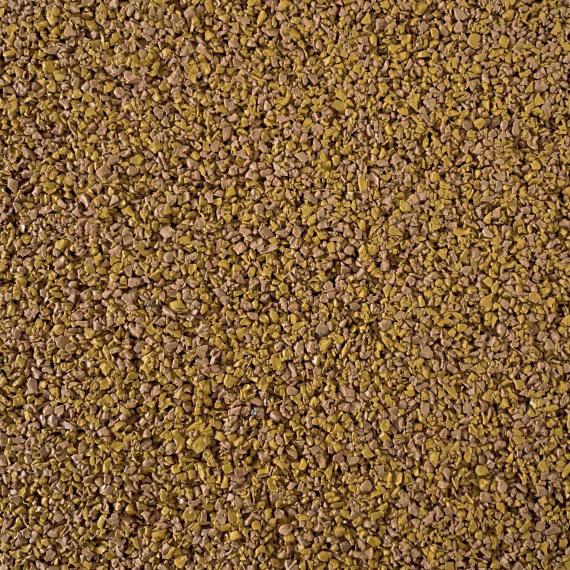

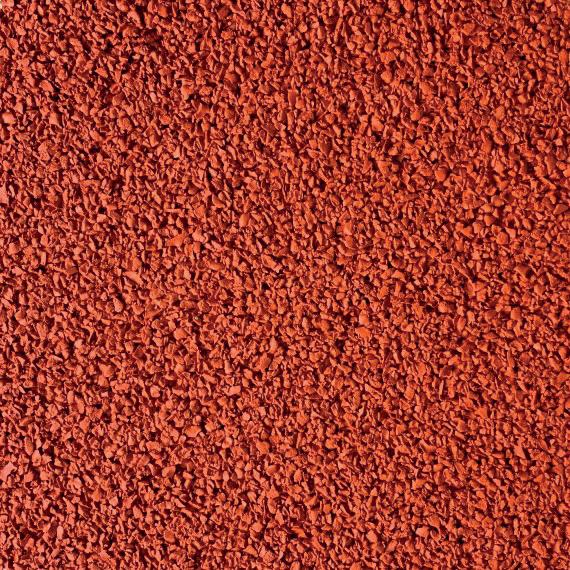

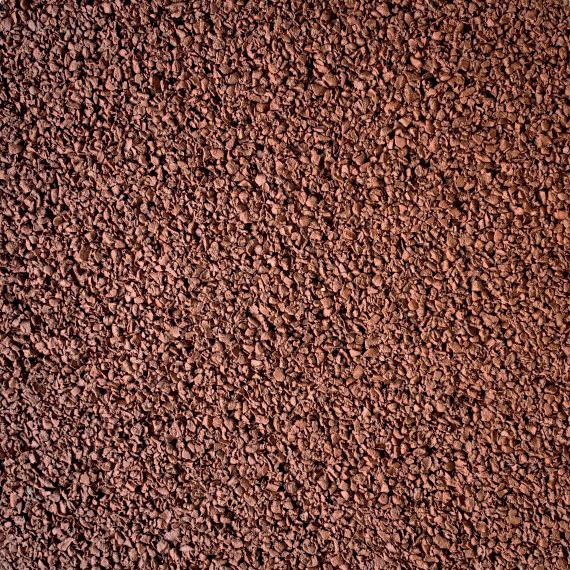

ARCTIC PEARL AZURE BUTTERCUP DENIM
EBONY GINGERBREAD
GOLDEN SANDS
SEA GREEN
WALNUT
GRAPE
SLATE GREY
PINE LEAF
SPEARMINT
PUMPKIN
TUSCAN FIELD
LimeBonded Decorative Surfacing and High Friction Surfacing

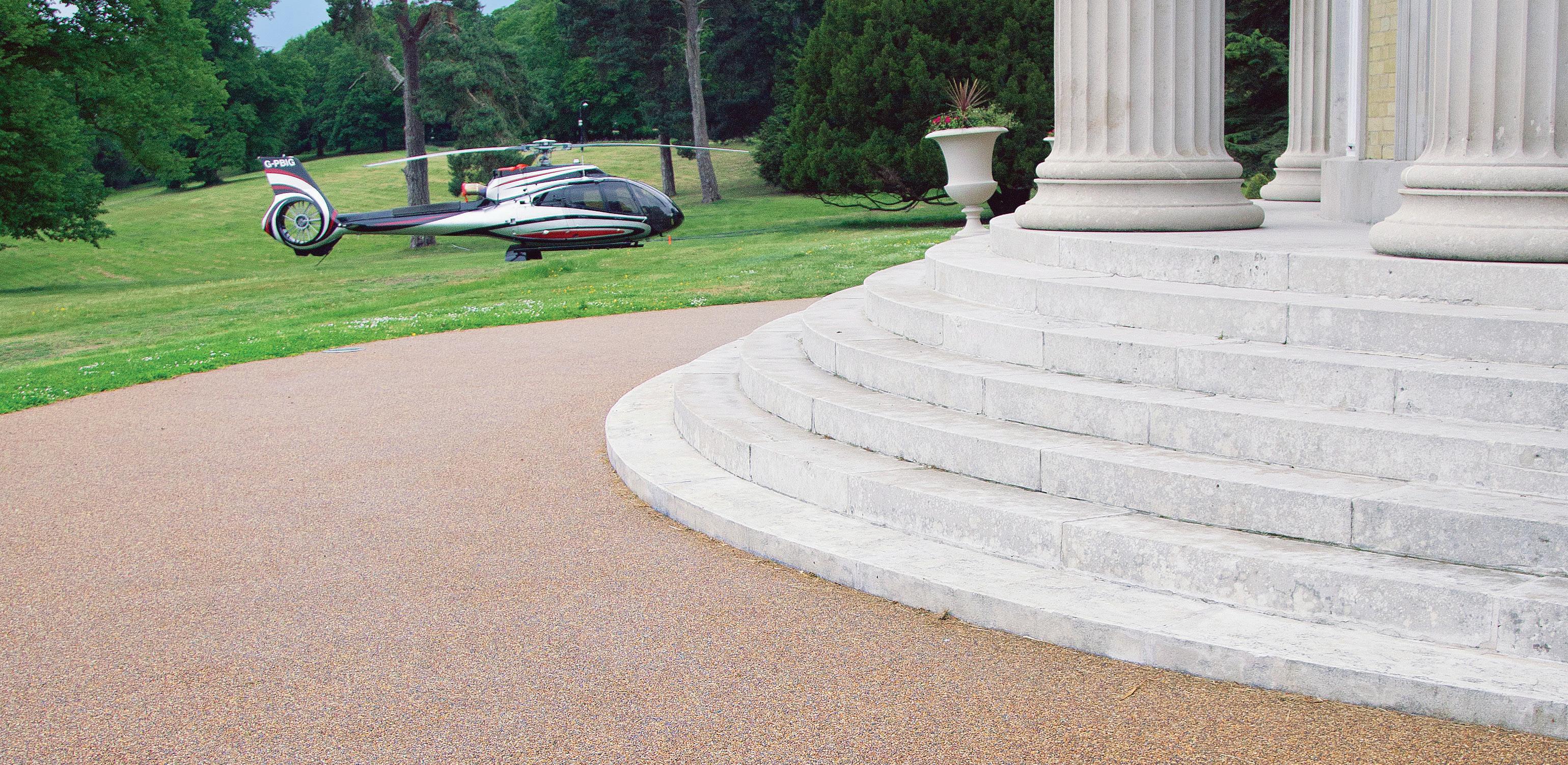

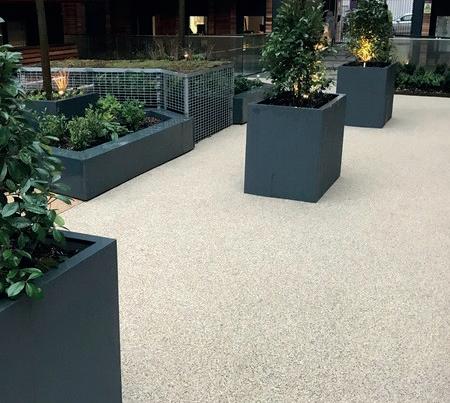

LimeBonded Decorative Surfacing
LimeBonded Decorative Surfacing (LimeBonded High Friction Surfacing) is a high performance, flexible polyurethane based anti-slip/anti-skid system for installation onto asphalt and concrete substrates. LimeBonded systems are ideal for all Type 1 Roads (LimeBonded High Friction Surfacing), cycle paths, walkways, drives, pathways (LimeBonded Decorative Surfacing). The benefits of these systems are that they provide an anti-slip/anti-skid surface for up to 10 years. It is also fast curing, has an excellent wear performance, no odour, is non-flammable and resistant to oil, diesel and petrol.
Features & Benefits
• Up to 10 years performance
• Fast curing
• Excellent wear
• Anti-slip/Anti-skid
• No odour
• Non flammable
• Resistant to oil, diesel and petrol
• Optimised ratios of resin to aggregate sizes
• Foot traffic after 24 hours @ 20°C
• Natural aggregates available
• All aggregates selected to reduce the chances of rust appearing
• Low maintenance
• In excess of 500m² can be installed per day
• Manufactured to UKAS ISO9001
Shelf Life & Storage
Shelf life of LimeBonded
Surfacing Resin is 12 months, aggregates have an unlimited shelf life.
Store materials in a clean, dry, frost free warehouse conditions between 5°C and 25°C.
Protect from sunlight.
Mix Design & Pack Sizes
LimeBonded Resin
31kg
LimeBonded Aggregate 25kg bags
LimeBonded Scratch/Void Filler 31kg
Coverage
LimeBonded Decorative Surfacing Resin 1.5kg per m²
LimeBonded Decorative Surfacing Aggregate 8kg per m²
Product Specification
Product
LimeBonded Decorative Surfacing and/or LimeBonded High Friction Surfacing (select as required, see page 62)
Thickness
1.5–2mm of PU Resin
Aggregate
(select as required)
Technical Performance Standards
• Temperature Resistance Resistant to temperatures of over 50˚C for long periods.
Working Times & Temperatures
Working time is affected by temperature; at temperatures above the maximum recommended 25°C the pot life and working time may be insufficient to allow a wet edge to be maintained.
Do not therefore proceed when product and/or air temperature exceeds recommendations. The air temperature must be monitored during application and work should stop when the temperature exceeds recommendations. Care must be taken to keep materials as cool as possible in warm weather.
At low temperatures 5°C and below the resin will not flow sufficiently to achieve a smooth finish and work should not proceed.
Substrate Requirements
The substrate should be dry to 75% RH as per BS8204 and free from rising damp.
Concrete: (Minimum 25N/mm²) Primer required.
Asphalt: No primer required.
Asphalt or Asphalt Concrete: (macadam) Should have a bitumen binder recommended to a maximum 90 pen, 40/60 pen. The contractor should be satisfied that the substrate is adequately compacted. Older asphalt or asphalt concrete may be too weak for application. New asphalt or asphalt concrete should be at least 3–4 weeks old before application begins.
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
• Chemical Resistance To various acids, diesel and petrol.
• Scuffing at 45˚C After 500 wheel passes Erosion Index > –3
Greater than the cohesive strength of the concrete, >3 N/mm2
• Speed of Cure Traffic Ready: 2 hours @ 20˚C
Services Available
• Technical Support
• Installation and Setup
• Maintenance
LimeBonded Contractors
LimeBonded is a specialist product and must only be applied by specialist applicators. Do not apply or allow it to be applied by contractors who do not possess the necessary experience. You should consider appointing a Limegate Solutions approved contractor. Please call us on 03330 155 560.
• Application Support
• Hardware Support
• Guaranteed Warranty
Base Build-up
Resin & Aggregate
LimeBonded systems use an aromatic formulation that provides a strong bonded finish. The performance and appearance of the finished surface is dependent on the aggregates used. The LimeBonded aggregates recommended have been selected for their strength and decorative appearance. LimeBonded Decorative Surfacing aggregates are high performing and available in a variety of colours. When selecting for roads and high traffic areas where high friction surfacing is required it is always advised to use bauxite aggregates. Appearance can be affected by the size of selected aggregates for example when using a larger aggregate such as a 2-5mm the open appearance will show the base resin bleeding through.
LimeBonded UV Mix Blends
Slip Resistance
All LimeBonded Decorative Surfacing aggregate blends provide excellent traction and ‘low potential for slip’ in both wet and dry conditions. The LimeBonded Decorative Surfacing system for driveways, pathways and similar applications gives a hard wearing antislip surface and as a LimeBonded High Friction Surfacing system using bauxite aggregates gives a hard wearing anti-skid surface.
CHINESE BAUXITE 1-3MM
RED GRANITE 1-3MM

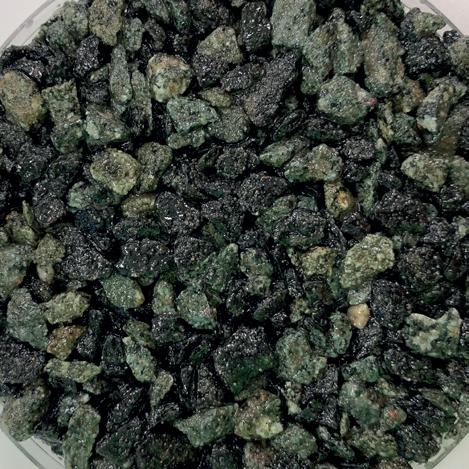

GREEN GRANITE 1-3MM
GUYANAN BAUXITE 1-3MM
SILVER BLUE
SILVER GRANITE
WITH UV SEALCOAT
LimeBonded Mix Blends
DRY
DRY
CHINESE BAUXITE 1-3MM DRY
RED GRANITE 1-3MM DRY
GREEN GRANITE 1-3MM DRY
GUYANAN BAUXITE 1-3MM DRY
SILVER BLUE
SILVER GRANITE
Artificial Grass
LimeGrass
LimeGrass Artificial Grass
LimeGrass Artificial Grass is selected for its range of quality products that provide a natural feel and grass look. With an expected life span of up to 20 years, LimeGrass Artificial Grass is ideal for high traffic areas, under trees, where there are poor soil conditions, steep banks or slopes or where there is a safety surface required, landlocked areas, high security areas or generally where maintenance is a problem or require low upkeep. Meeting BS 7044 for porosity the tough, robust and vandal resistant surface is also flame retardant.
Available in a variety of blade lengths and textures. Edgings created from brick, stone, timber or steel should be installed to retain and protect.
Features & Benefits
• UV stable
• When natural grass doesn’t work
• High traffic areas
• Ideal under trees
• Ideal for poor soil conditions
• Steep banks or slopes
• Where a safety surface is required
• For landlocked areas
• Where maintenance is a problem or requires low upkeep
• Highly permeable
• Flexible and strong
• In excess of 100m2 can be installed per day
Shelf Life & Storage
Shelf life of LimeGrass Artificial Grass is 5 years.
Store materials in a clean, dry, frost free warehouse conditions between 5ºC and 25ºC.
Protect from sunlight.
Mix Design & Pack Sizes
LimeGrass is available in numerous swatch designs (see swatch sheets)
LimeGrass is supplied in 2m & 4m widths and up to 25m rolls
LimeGrass is available in shorter roll lengths upon request (cutting service).
Coverage
When installing LimeGrass Artificial Grass consideration should be made in calculating required materials.
Available up to 100m2 rolls. It is advised to start area measurements from the longest and straightest edge if site conditions allow.
Please contact us if you have any queries.
Product Specification
Product
LimeGrass Artificial Grass Thickness
• 18mm-45mm (select as stated in LimeGrass swatch sheets)
• The grass is slightly directional - for best results look into the pile
• You may have to join rolls together for the width –make sure rolls going in same direction
• Multiply the width by the length of the area to calculate the m2
Additional Materials
• Weed membrane – if going over an area that has had previous vegetation
• Additional shock pad and underlay options provided
Working Times & Temperatures
Working time for adhesives used to install the products can be affected by temperature, at temperatures above the maximum recommend 25ºc the pot life and working time may be insufficient to allow a wet bond edge to be maintained. Work should therefore not proceed when product and/ or air temperature exceeds recommendations.
At low temperatures LimeGrass Artificial Grass can be ridged and it is advisable to keep the rolls warm to avoid kinking or creasing.
Substrate Requirements
LimeGrass Artificial Grass is designed for foot traffic. Heavier vehicle traffic, including heavy impact and high point loading will damage the surface and may result in failure due to the destructive scuffing forces created by power steering.
Please refer to:
Limegate Solutions LimeGrass Artificial Grass Base Build Up Sheets for individual substrate requirements.
Site Attendance and Warranty
When on site Limegate Solutions representatives are if asked, able to give a general indication of the correct method of installing Limegate Solutions products. It is important to bear in mind that Limegate Solutions is a supplier and not an application contractor. It is the responsibility of the contractor and his employer to ensure they follow the correct practices and procedures for installation. The liability for the correct installation is with the contractor and not with Limegate Solutions Ltd.
• Joining tape and adhesive if joining two widths together
• Fixing pins if going into the ground
• Coloured grass available
• Sports grass – 3G and 4G
Technical Performance Standards
• Looks like natural grass
• Feels like natural grass
• Non abrasive
• Tough, robust & vandal resistant
• Porous to BS 7044
• Flame retardant
• Critical Fall Height options
LimeGrass Contractors
LimeGrass Artificial Grass is a specialist product and must only be installed by specialist applicators. Do not install or allow it to be installed by contractors who do not possess the necessary experience. You should consider appointing a Limegate Solutions approved contractor. Please call us on 03330 155 560.
