PORT FOLIO.

DARYL GOON

Selected Works 2021 - 2024

TAKE A LOOK !

River Medlock

t: +44 7928580805

e: daryl.g@hotmail.com

Daryl Goon daryl.g@hotmail.com

+44 7928580805

in/daryl-kin-kit-goon

TELL STORIES 03 07 10 13 16 18 20

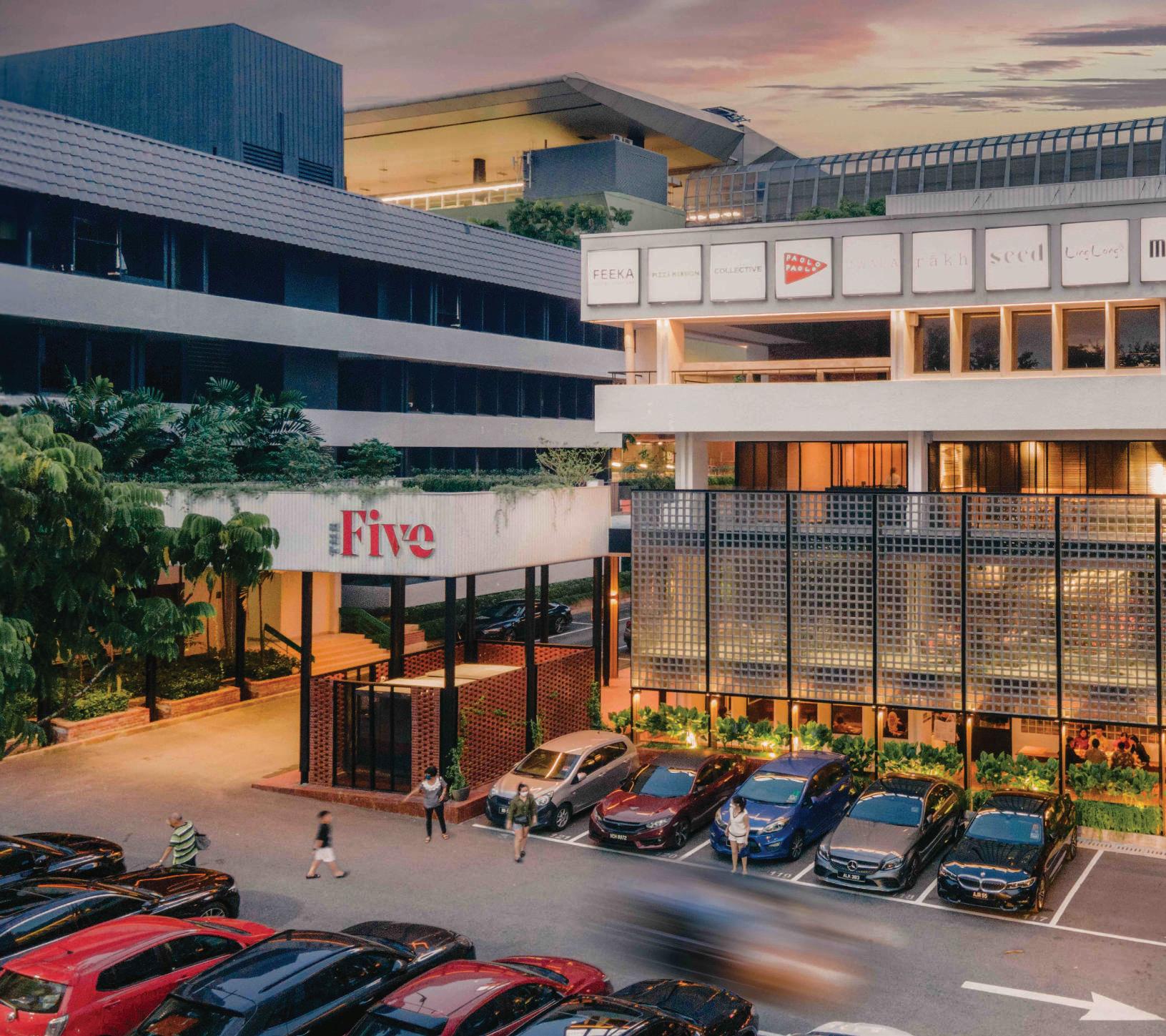

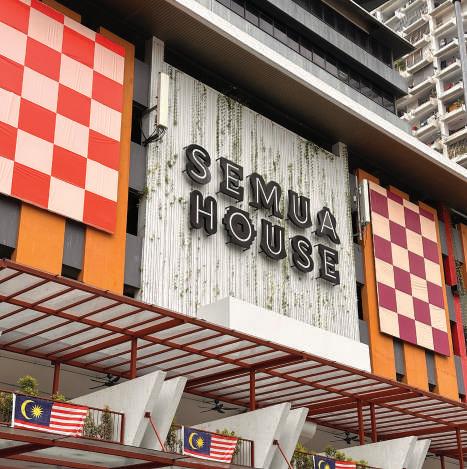

The Drip Tower Cummersdale Valley Florence Hub The Five Block E Semua House Feeka Coffee Roaster Others

Academic Academic Academic Practice Practice Practice

my script in architecture_

01.

02.

03.

listen, as every place

and boring buildings into

spaces; to understand a

has a story waiting to

something interesting

‘place’ before making a

to always be there to

be told

to help transform old

again!

to design people-centred

‘place’; placemaking

Selected Works

_the drips of Mayfield

_the valley of Cumbria

_the miners of Egremont

03

07

10

13

16

18

_the planters of Block E

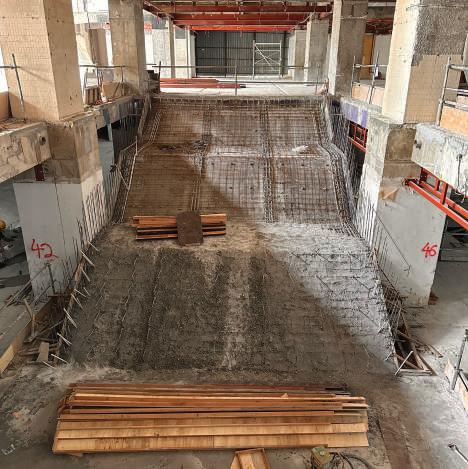

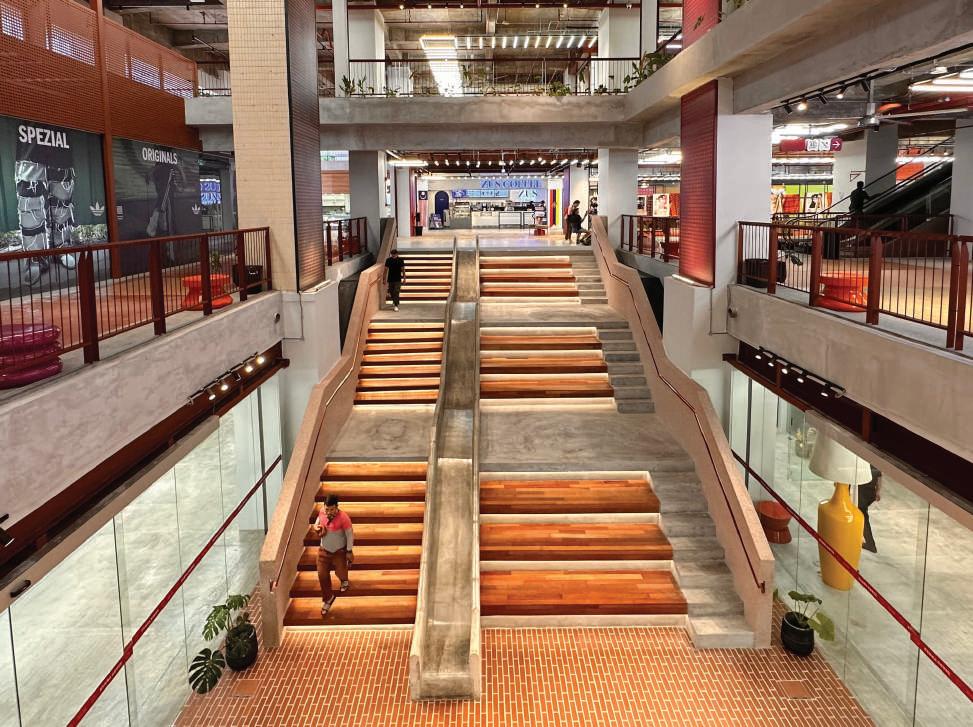

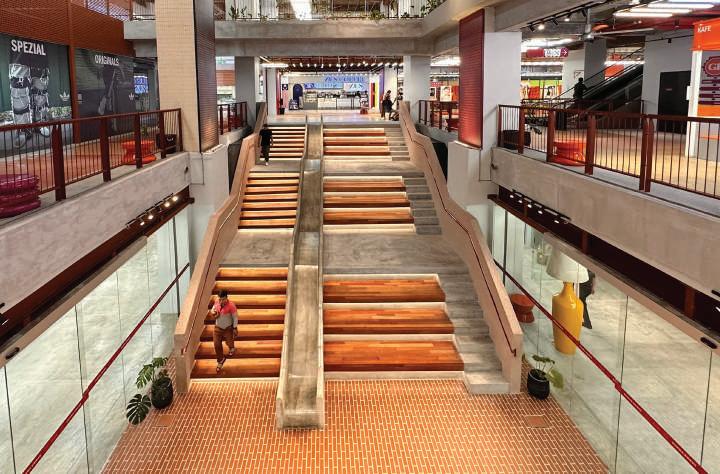

_the slide of Chow Kit

_the beans of Feeka

Daryl Goon

MY OWN STORY SO F DARYL Hi there! I’m Daryl, a Masters in Architecture graduate from the MSA and I’m currently seeking for full time role as a:

Part 2 Architectural Assistant

About Me With nearly 2 years working in a small award winning studio, my practical experience ranges from retrofits, placemaking, large to small scale residential and interior design projects — I’ve gained extensive site experience and developed a keen eye for design and passion for details.

I believe storytelling and narratives is a core part to a good design. Every place has a story, a story to be told, to be heard, an essence to be embraced. To make a place, one has to understand the place - placemaking, and it is through site sensitive and thoughtful details are what gives a place meaning.

Behind the Scenes • Coffee addict, my morning starter pack, Flat White over Latte • My photo album shouts : “ ARCHITECTUREEE! FOODDD! ”.

• OCD? No... Perfectionist? Yes...

• Trying to hit the gym at least 4 times per week...( trying ) • Love playing badminton, anyone wants to play?

• I’m into all things cars, Go-karting, Formula 1...

• Chocolate’s my go to snack, all day...everyday!

• Trying to drink more water and eat my veges...

• I can speak 3 languages ! ( with a few broken dialects )

CV/ Resume

FAR

t: +44 7928580805 e: daryl.g@hotmail.com li: /daryl-kin-kit-goon

Employment

Softwares

2022

SketchUp Revit AutoCAD

8 years experience 3 years experience 7 years experience

• Enscape • Lumion • Microsoft

8 years experience 5 years experience 8 years experience

• Illustrator • Photoshop

8 years experience 8 years experience

Urban Agenda Design ( UAD ) Petaling Jaya, Selangor, Malaysia

PART 1 ARCHITECTURAL ASSISTANT | 1 year 3 months

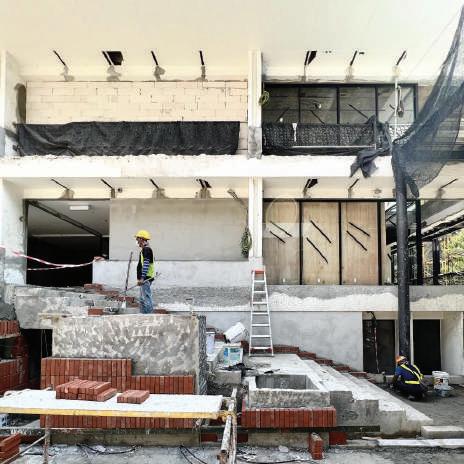

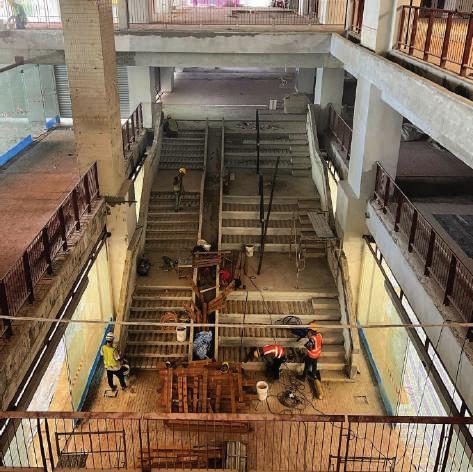

• Assisted on all design, tender & construction packages of the transformation of an an unused office block into a food and beverage hub for Selangor Properties Berhad in an upscale neighbourhood of Bukit Damansara.

• Assisted on all design, tender & construction packages of an an outdated shopping centre into a community cultural hub in the heart of Kuala Lumpur.

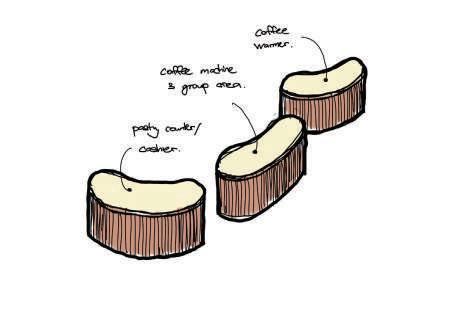

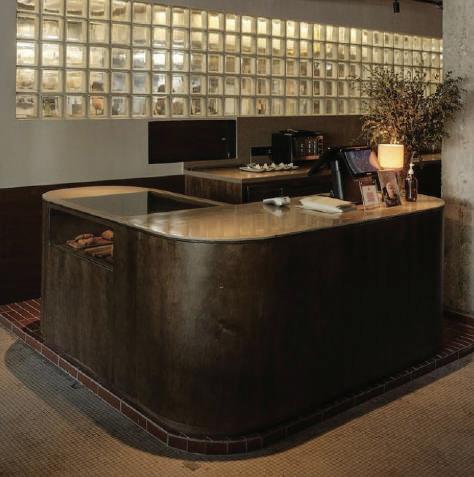

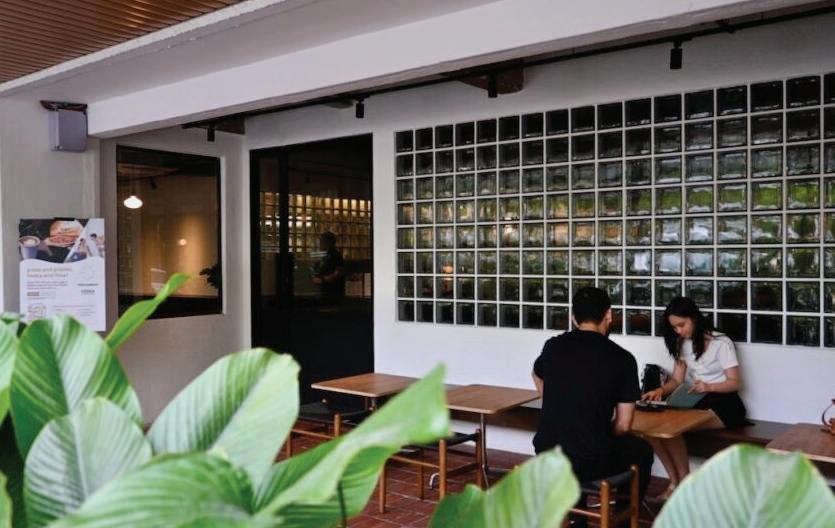

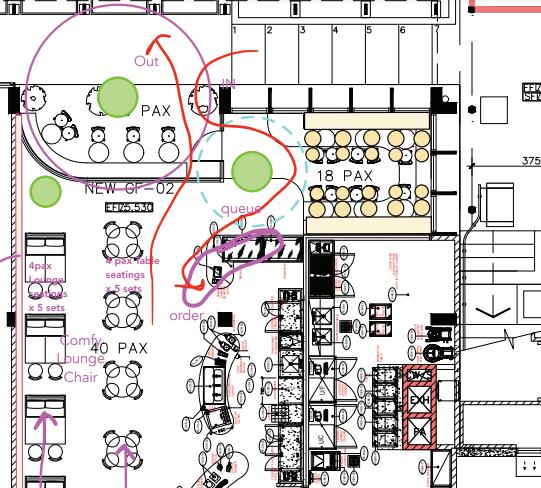

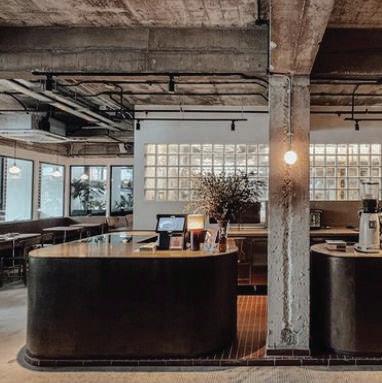

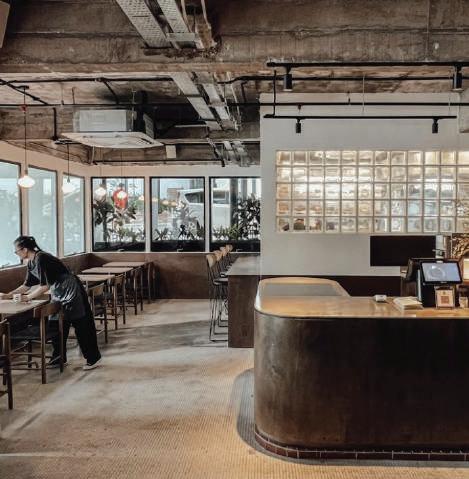

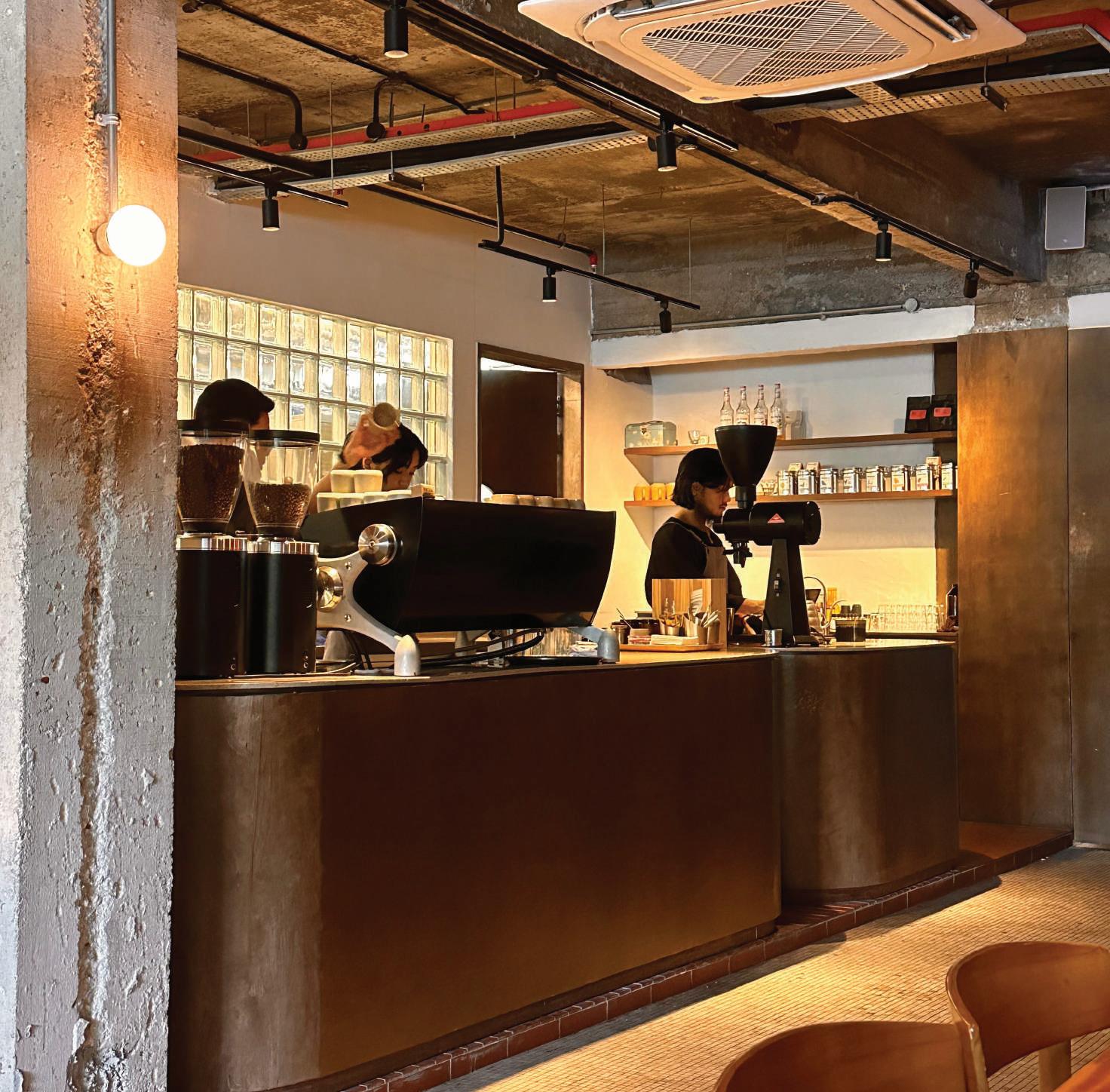

• Visualising, Designing the interior of a coffee roaster/ cafe that was also a tenant in The Five Block E F&B Hub.

• Sime Darby Concept Home 2030 ( Participation ) • Senja Aman Penang Mixed Development 2022 ( Awarded Tender )

2021

BEP Arkitek SDN Berhad

Petaling Jaya, Selangor, Malaysia PART 1 ARCHITECTURAL ASSISTANT | 3 months • Worked closely with the company director in designing a few high rise condominiums.

• Designed and drafted typical unit layouts, drop off areas, communal areas, and main lobbies of a few condominiums.

Languages • English ( Native ) • Mandarin Chinese • Malay

• Cantonese • Hokkien

Referees Dan Dubowitz

6th Year Tutor at MSA • d.dubowitz@mmu.ac.uk

Shin Tseng

Ex Employer at UAD • st@urbanagenda.design

Co-Curricular Board of Student Librarian

2020

Hedzril & Nik Architects ( HXN ) Sri Hartamas, Kuala Lumpur, Malaysia INTERNSHIP | 3 months

• Conceptual Proposal for a micro house in Surabaya, Indonesia for a family of 4 with client’s brief of positioning the masterbed room on the ground floor for easier accessibility.

• Head of Disciplinary Committee

10th KL Air Scout Group • Rover Rank

Leaderonomics Club • Committee Member

[ RE:D ] EFINE The 30th PAM Architectural Student Workshop • Food & Beraverage Committee Volunteer

Education

Achievements

2022 2024

Landsec U+I Excellence in Urban Design Award Winner 2024

Manchester School of Architecture ( MSA ) Master of Architecture ( M.Arch ) Certification:

• Distinction

• The Drip Tower MArch Year 06 ( WInner )

Sheppard Robson Jicwood Award 2024 • The Drip Tower MArch Year 06 ( Shorlisted )

2018 2021

Taylor’s University ( TU )

Bachelor of Science ( Honours ) in Architecture Certification: Dean List:

• Second Class Upper Honours • Year 3, 4 and 6

Bauhaus Campus Competition 2021 • Finalist ( Group Work )

TRX Installation Competition 2019 • First Prize ( Pair Work )

Daryl Goon

THE DRIPS OF MAYF AWARDS: Landsec U+1 Excellence In Urban Design ( Winner ) Sheppard Robson Jicwood Award ( Shortlisted )

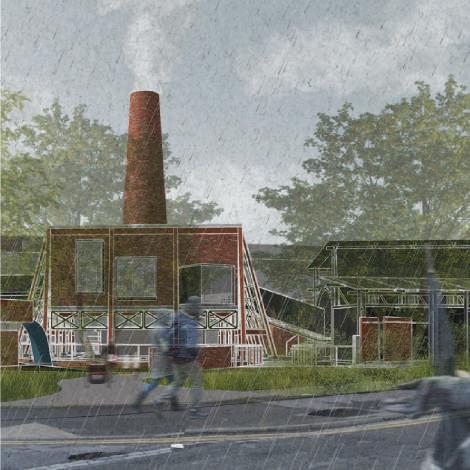

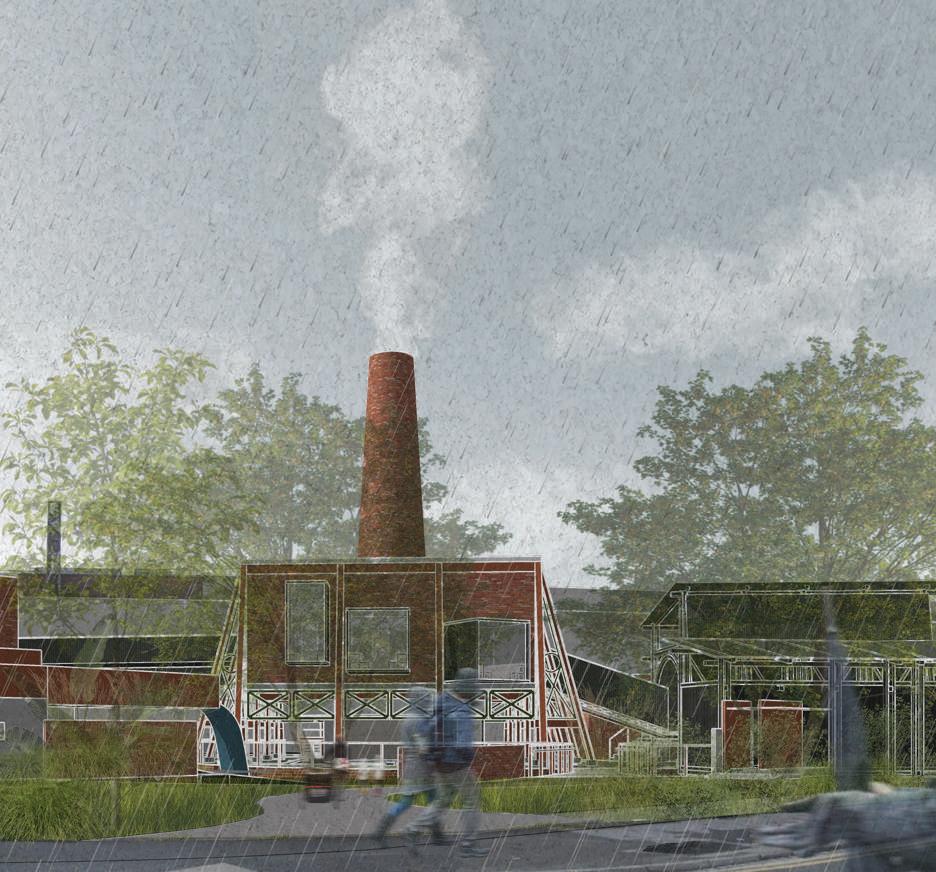

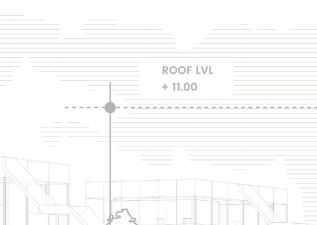

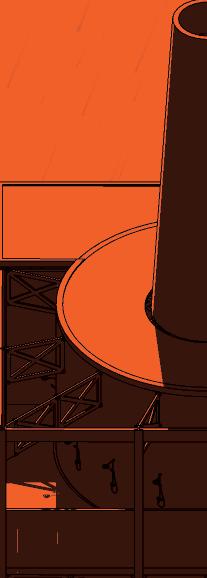

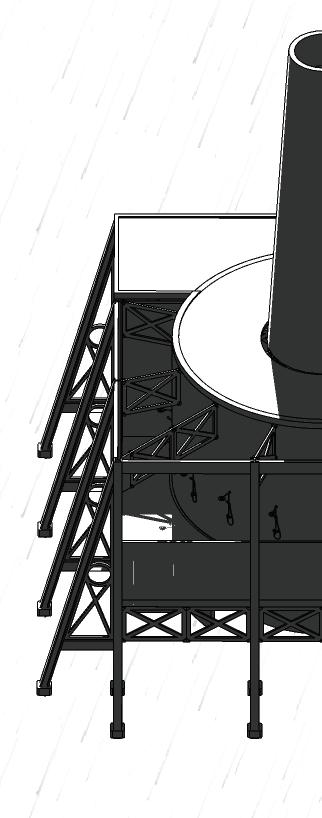

THE DRIP TOWER In the heart of Mayfield, where the pulse of the city beats in rhythm with the constant trickle of water, lies a hidden treasure trove of nature's poetry. To some, the persistent droplets, the humble puddles, and the gentle seepages may seem nothing more than nuisances, overlooked in the rush of daily life. Yet, if one pauses, lingers a moment longer, a deeper essence emerges, weaving a tapestry of sentiment and nostalgia. For within these seemingly mundane elements lies a beauty that transcends the ordinary—a beauty that speaks to the soul.

MArch Year 06

FIELD; RAIN

Type: Location: Project Year: Atelier:

RAIN & BATH Diving into the history of Mayfield also reveals the remains of the forgotten Mayfield Baths, once a social retreat for the industrial workers in the past.

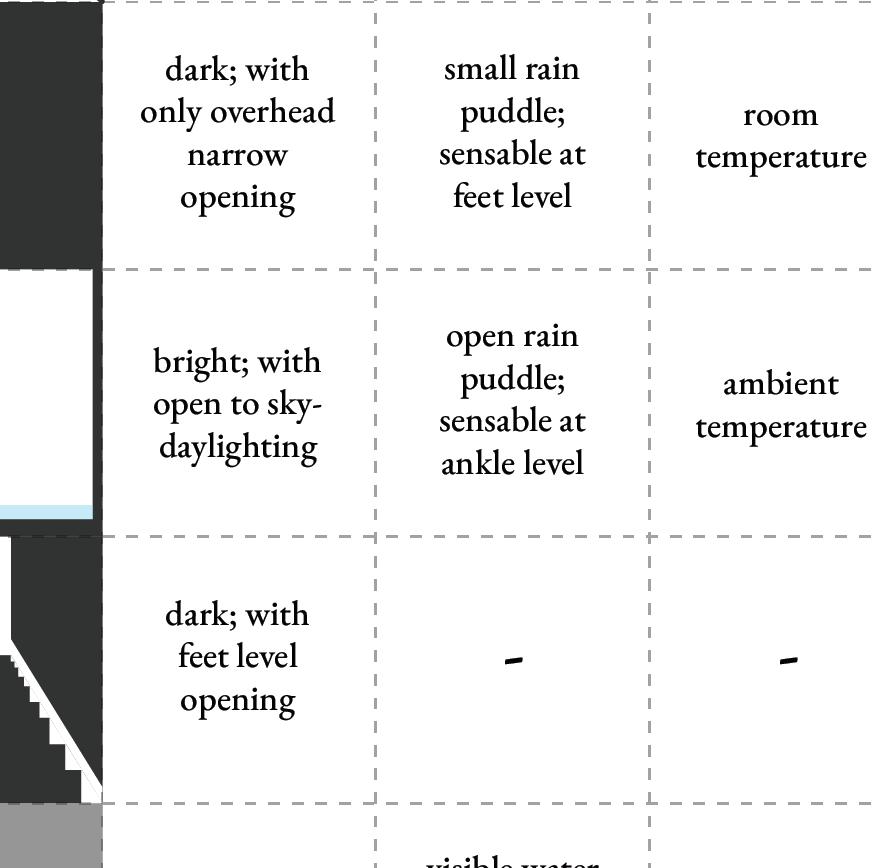

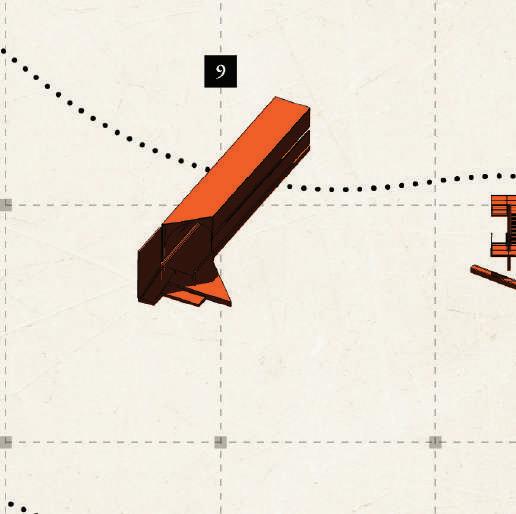

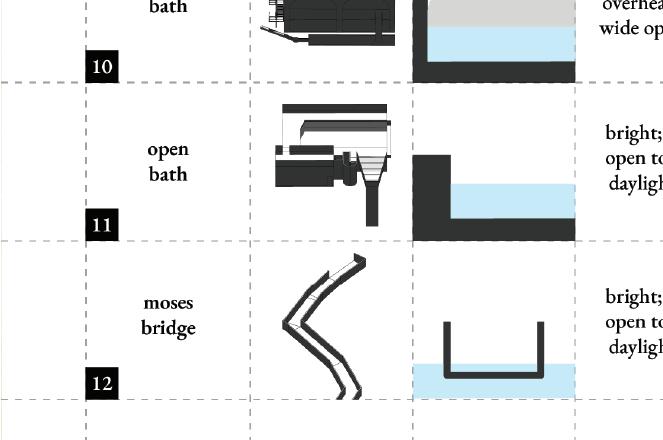

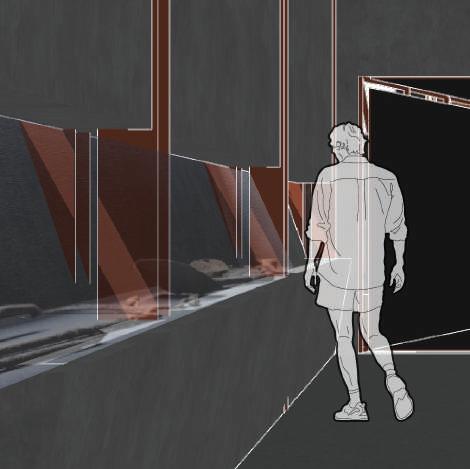

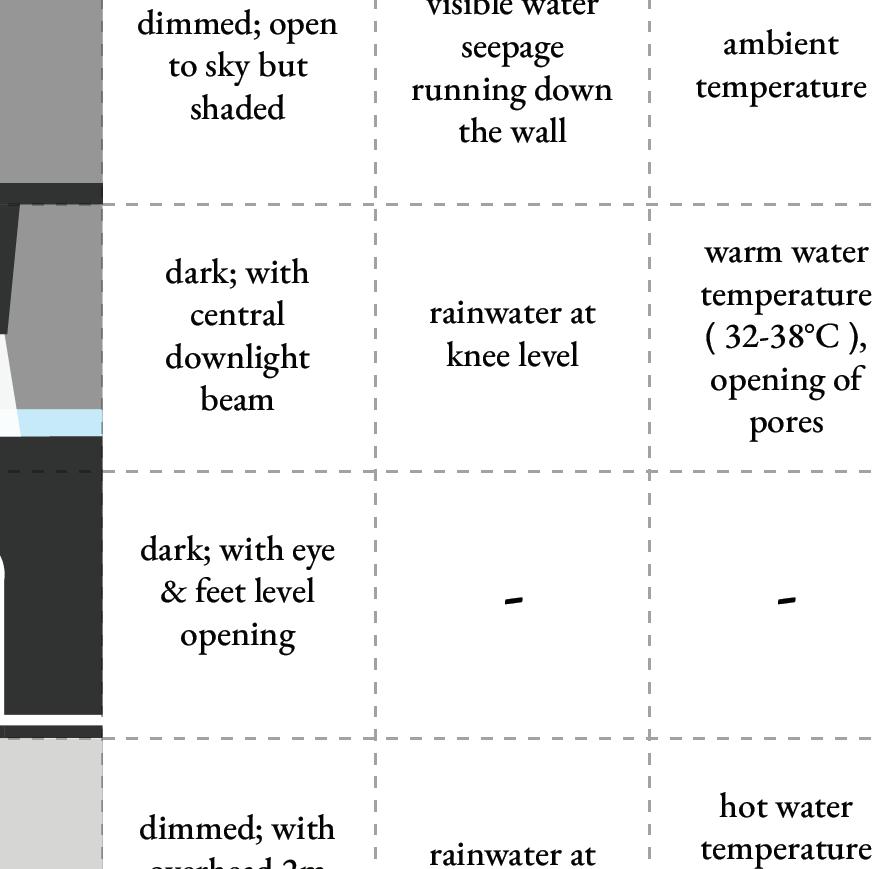

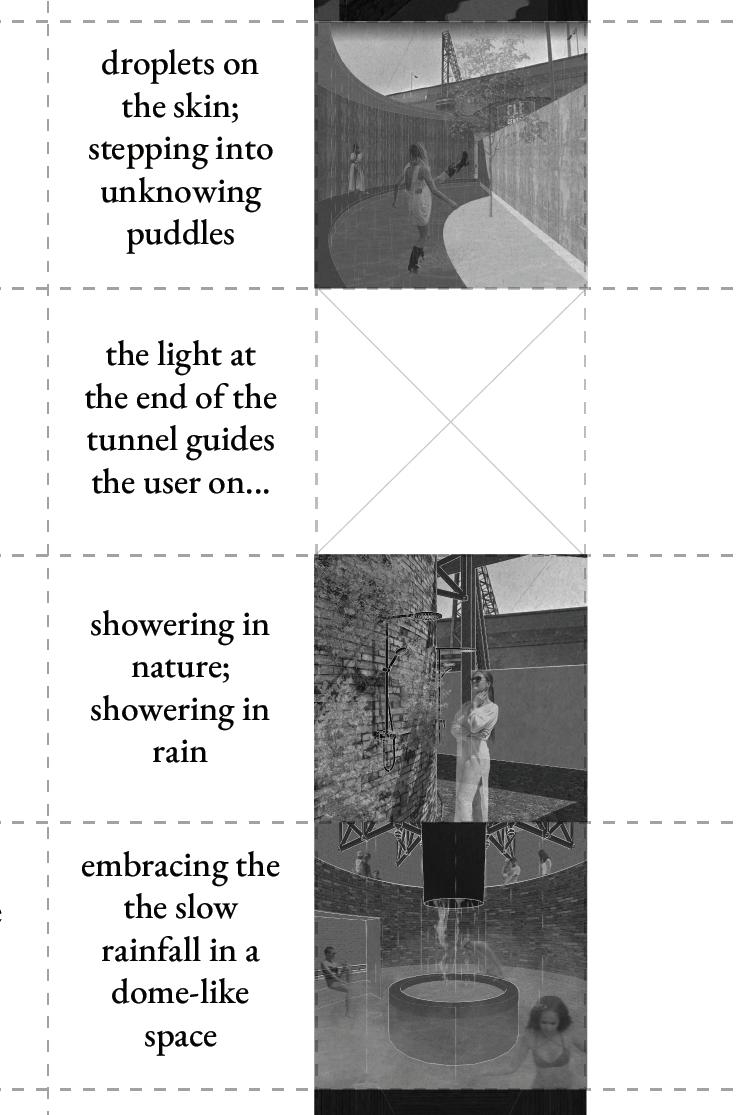

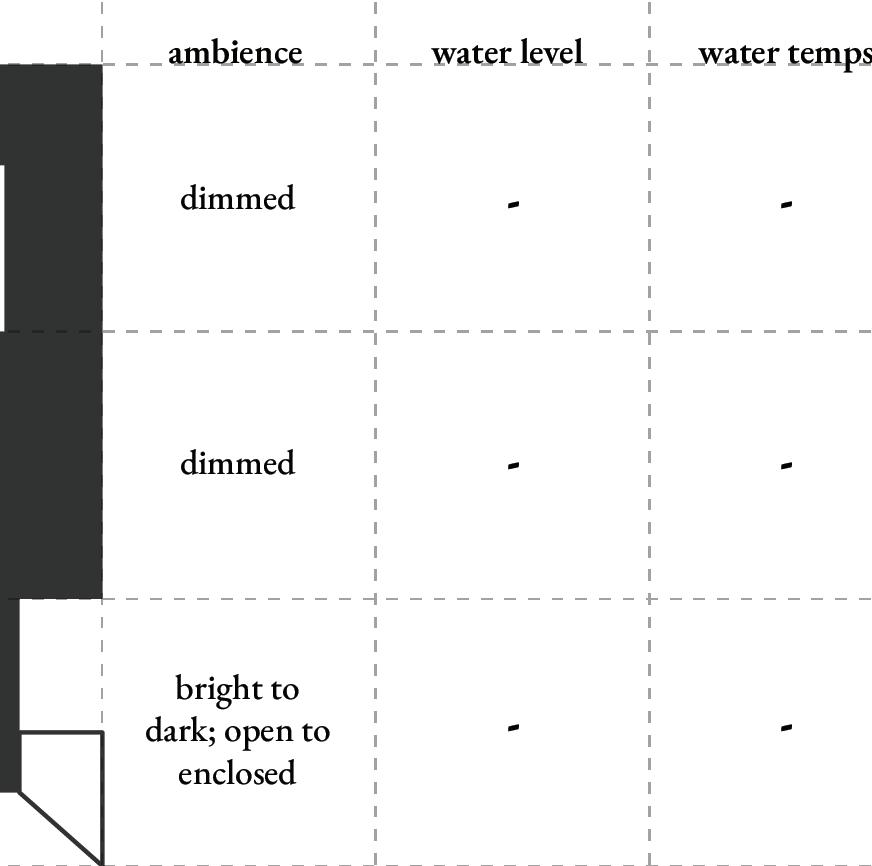

THE WET & THE DAMP The Drip Tower draws inspiration from the essences of water in Mayfield like the constant water droplets from the arches of Mayfield, the scattered water puddles, the water seepages trickling behind the heritage walls and the Manchester rain!

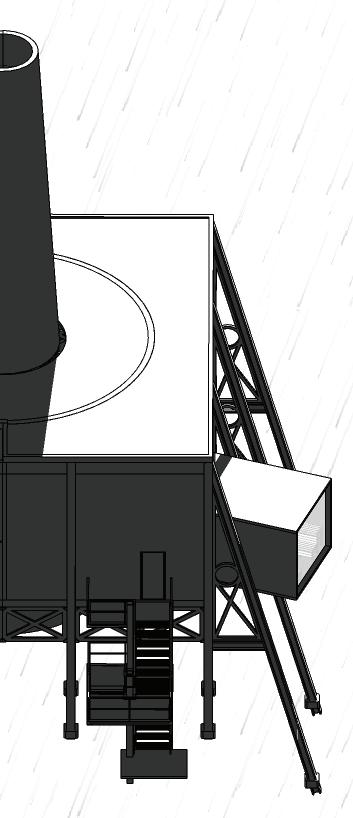

THE LOST TOWER Diving into the history of Mayfield also reveals the remains of the forgotten Mayfield Baths, once a social retreat for the industrial workers in the past.

An Experiential Bathhouse Mayfield, Manchester MArch Year 06 FLUX Atelier

Daryl Goon

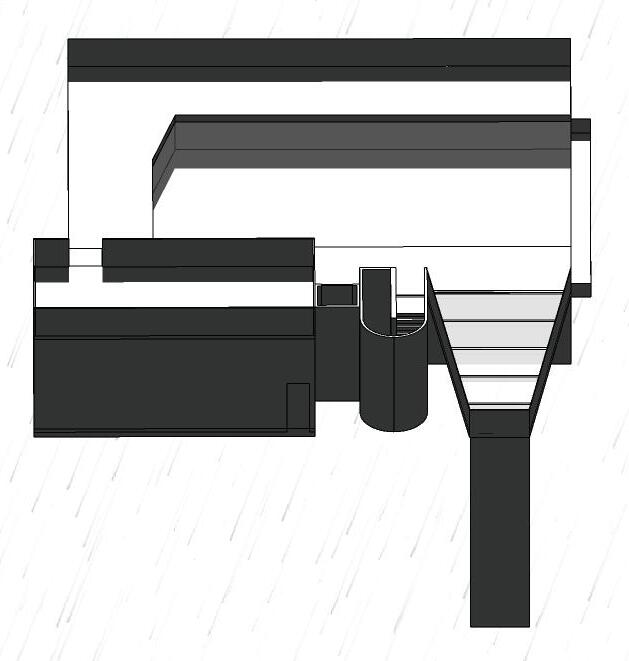

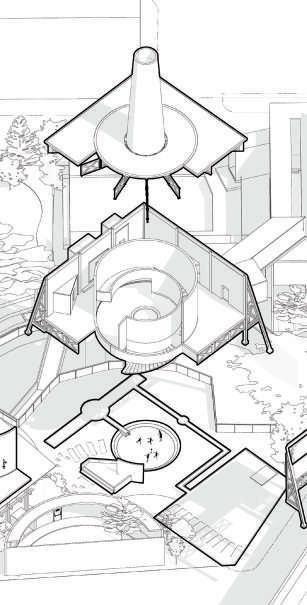

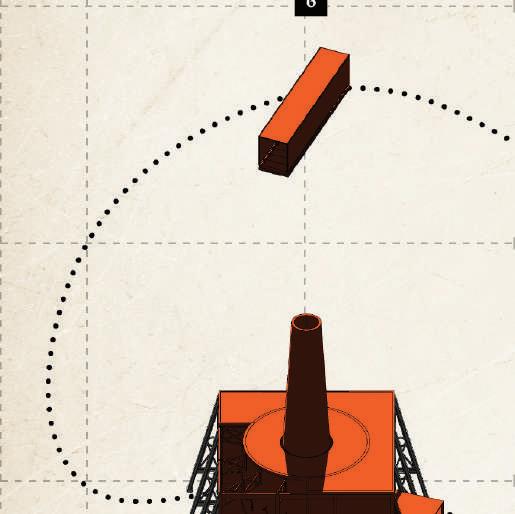

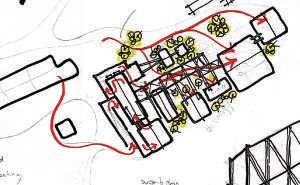

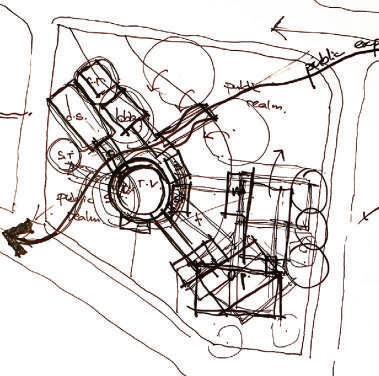

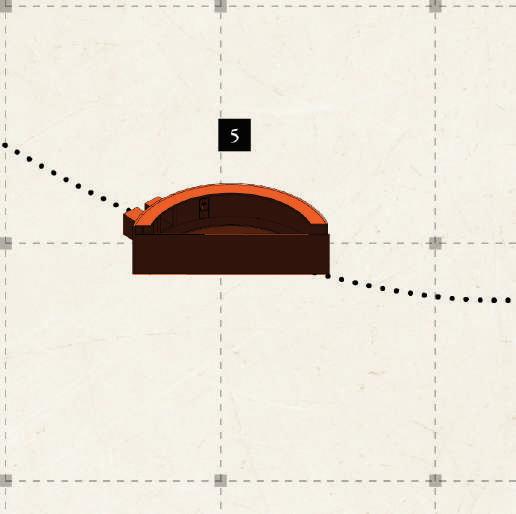

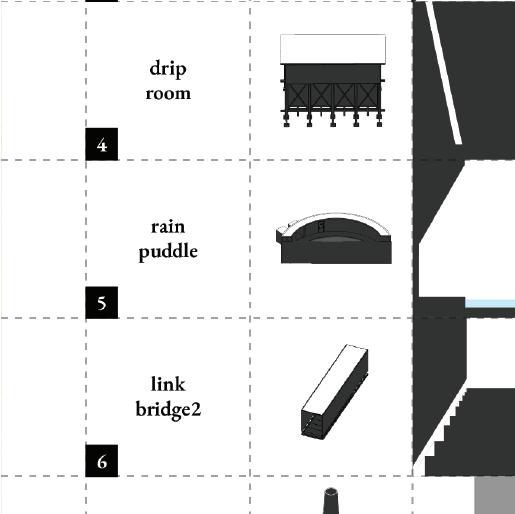

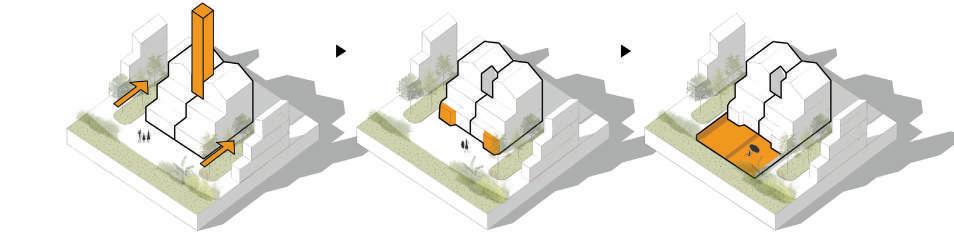

Blocks on Site B was arranged with consideration of program flow, aligning rest and slow spaces by the river, staying true to the river activation idea.

Elevating the blocks that were block the shortcut axis through the site towards Mayfield Park and Picadilly Station from Bradford and Beswick.

Opting back to a square form but keeping a circular spatial layout, being site sensitive to Mayfield context where most buildings are of rectangular forms.

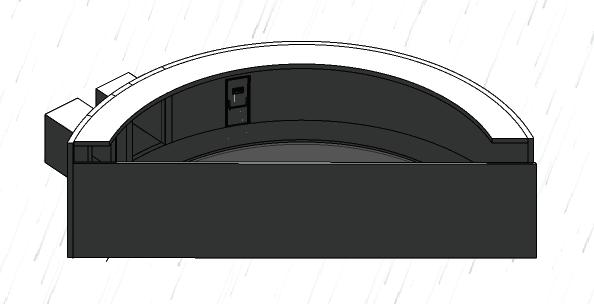

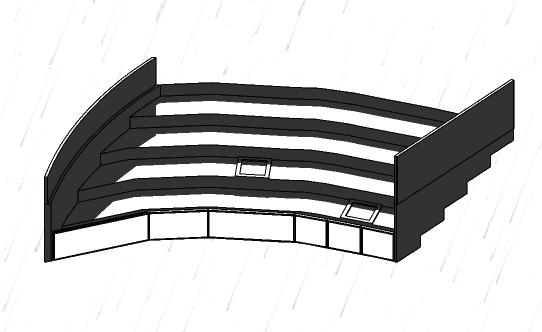

Introducing a open concept rain puddle area where visitors can contemplate in silence, an addition to the previous enclosed puddle area.

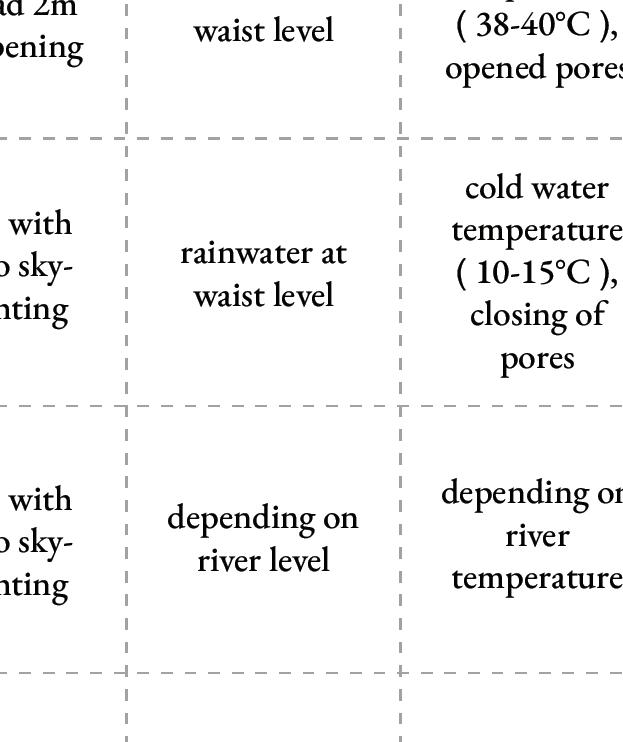

Introducing sauna rooms and steam baths rooms that are orientated towards the River Medlock, bringing nature into the spaces.

Reshuffling the Wall Growth area to be in between dry and wet spaces, where condensation and water seepages are most of highest concentration.

The previous loop transition tunnel solution results with visual impacts on River Medlock hence a lowered connecting bridge back to the start.

A separate public access into the rain vortex dome was introduced, allowing pasto take shelter while appreciating the poetics of rain when it pours.

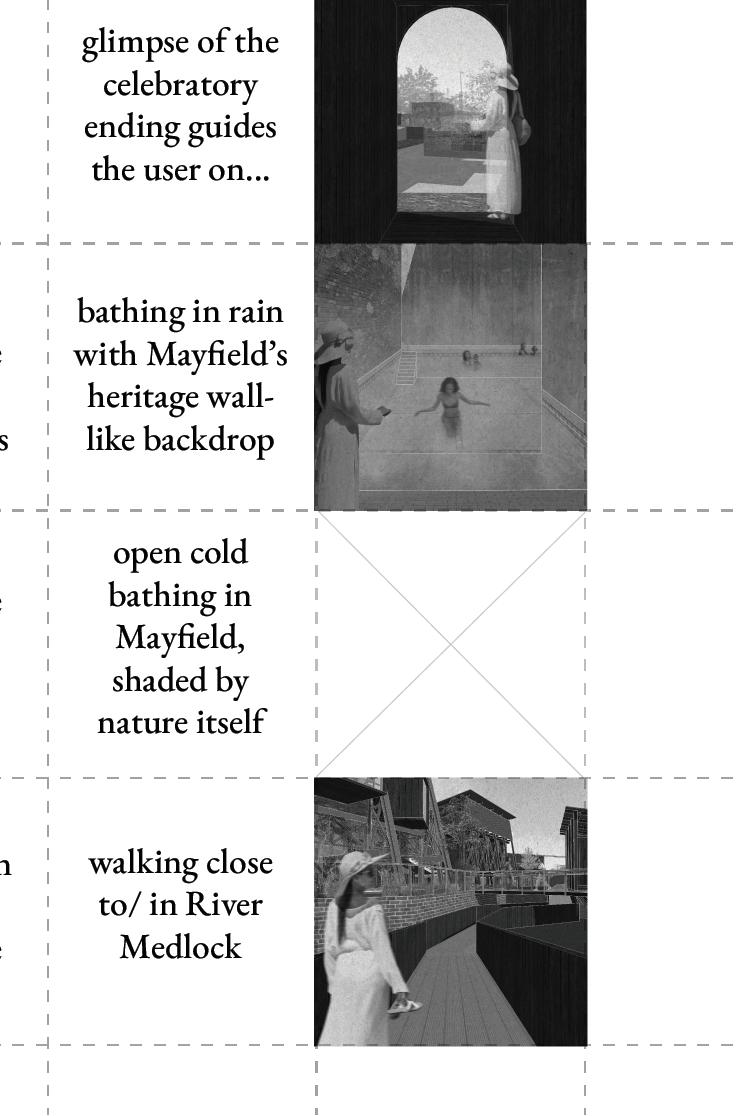

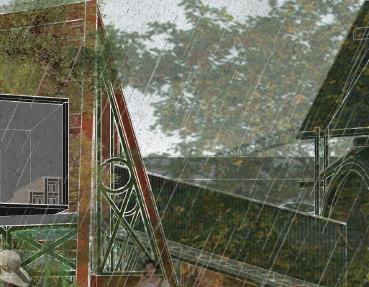

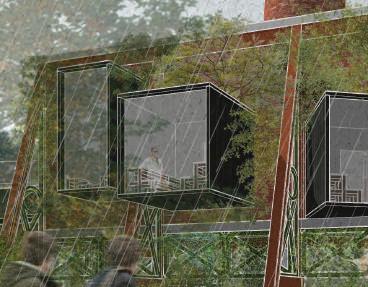

A PLACE WHERE RAIN & BATH COALESCE !

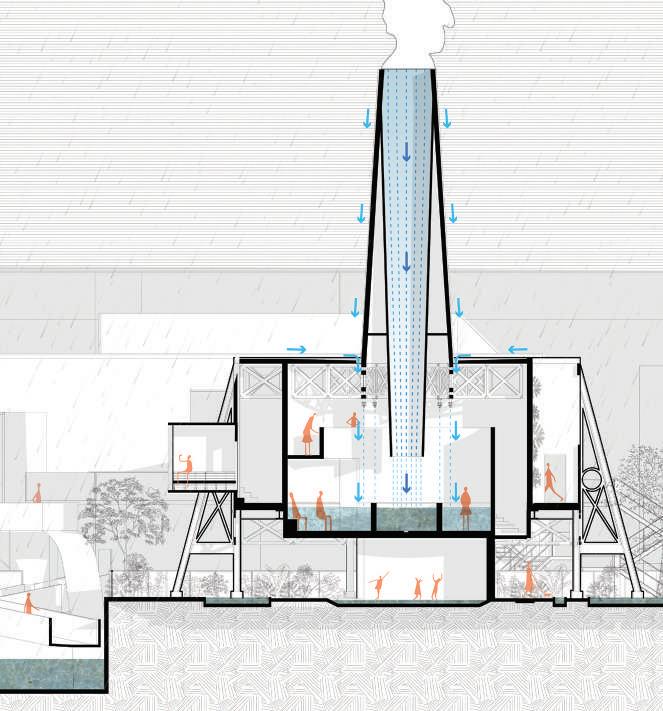

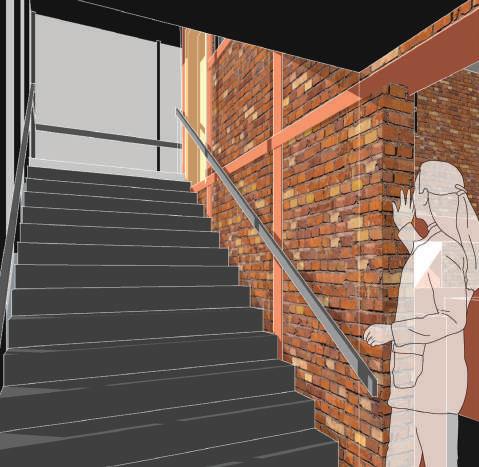

The Drip Tower seeks to see water as reconnection rather than a disconnection in Mayfield. I developed an experiential narrative that weaves together the Essences of Mayfield, unifying body, water and matter.

Embracing water and rain as an integral element of Mayfield, an element that brings people together.

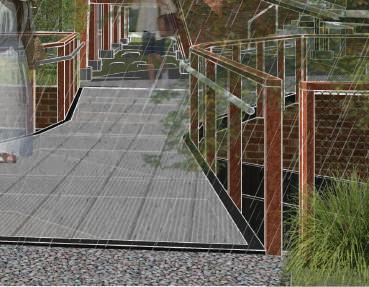

River Bridge

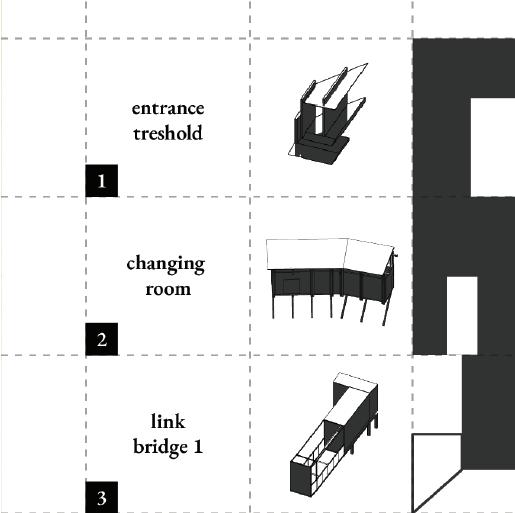

Entrance Treshold

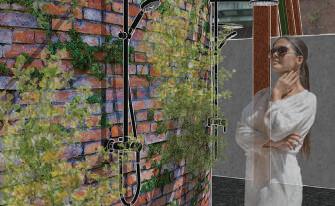

Bush Shower

Rain Puddle

MArch Year 06

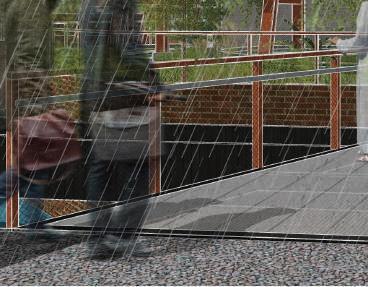

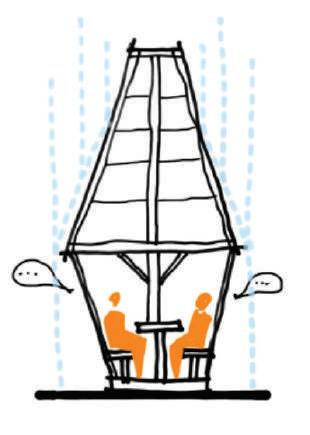

A PUBLIC RAIN SHELTER The Rain Deck is open to the public, welcoming passersby to step into the heart of the Drip Tower. It provides shelter while encouraging people to embrace the tranquility of trickling water especially during rainy days.

Public Puddle

Public Threshold

Rain Deck

Daryl Goon

MAYFIELD’S WATER MONASTERY!

MArch Year 06

Daryl Goon

A BUILDING THAT’S ALL WATER !

The presence of water not only travels within the building but also outside and around the Drip Tower.

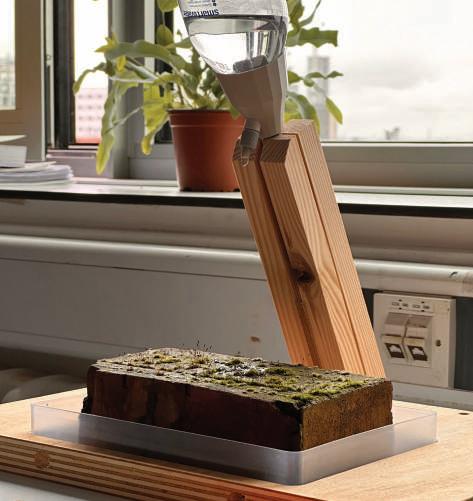

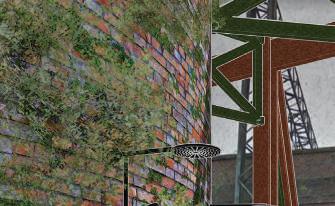

Passerbys can hear the sound of water trickling down the brick facade into a shallow pond, enticing them to approach the building. The extrusion pattern of the brick facade promotes the natural growth of wall bushes overtime.

Trickling Brick Facade

MArch Year 06

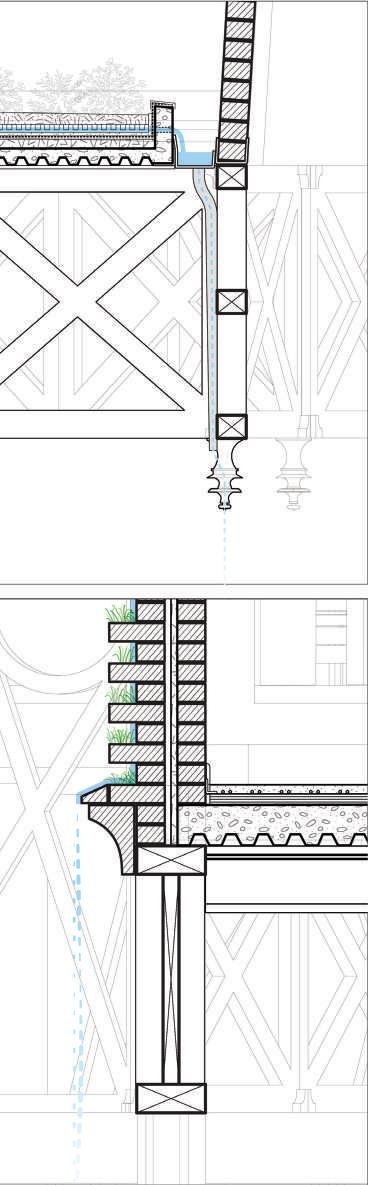

2x100m thk Double Clay Brick Wall

Water Filtration Plantings Extensive Substrate Geotextile, Protection & Drainage + Bitumen Layer 100mm thk Thermal Insulation

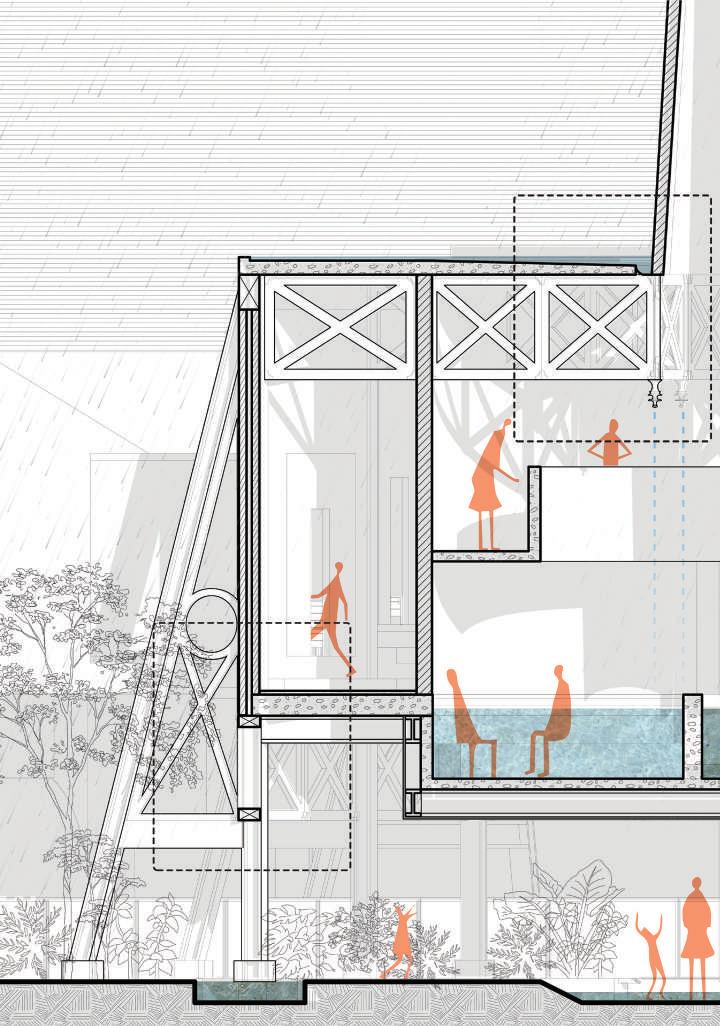

The Drip Tower’s structural details were inspired by the Mayfield Baths existing elements, close comparisons can be drawn with the old Mayfield Baths drawing. The traditional design elements were reimagined and rearranged with new structural purposes in The Drip Tower, celebrating them on the outside rathen than the inside.

Composite Concrete Roof Slab 200mm wide Rain Gutter 100mm thk 1500x1500mm Victorian Style Cast Iron Ring Beam 100mm(D) Rainwater DownPipe

Victorian Style Pendant design Rain Chain/ Dropper

2x100m thk Double Clay Brick Wall

Water Filtration Plantings Extensive Substrate Geotextile, Protection & Drainage + Bitumen Layer 100mm thk Thermal Insulation Composite Concrete Roof Slab 200mm wide Rain Gutter 100mm thk 1500x1500mm Victorian Style Cast Iron Ring Beam 100mm(D) Rainwater DownPipe

Victorian Style Pendant design Rain Chain/ Dropper

MAYFIELD BATHS REIMAGINED

Daryl Goon

VALLEY OF THE CUM

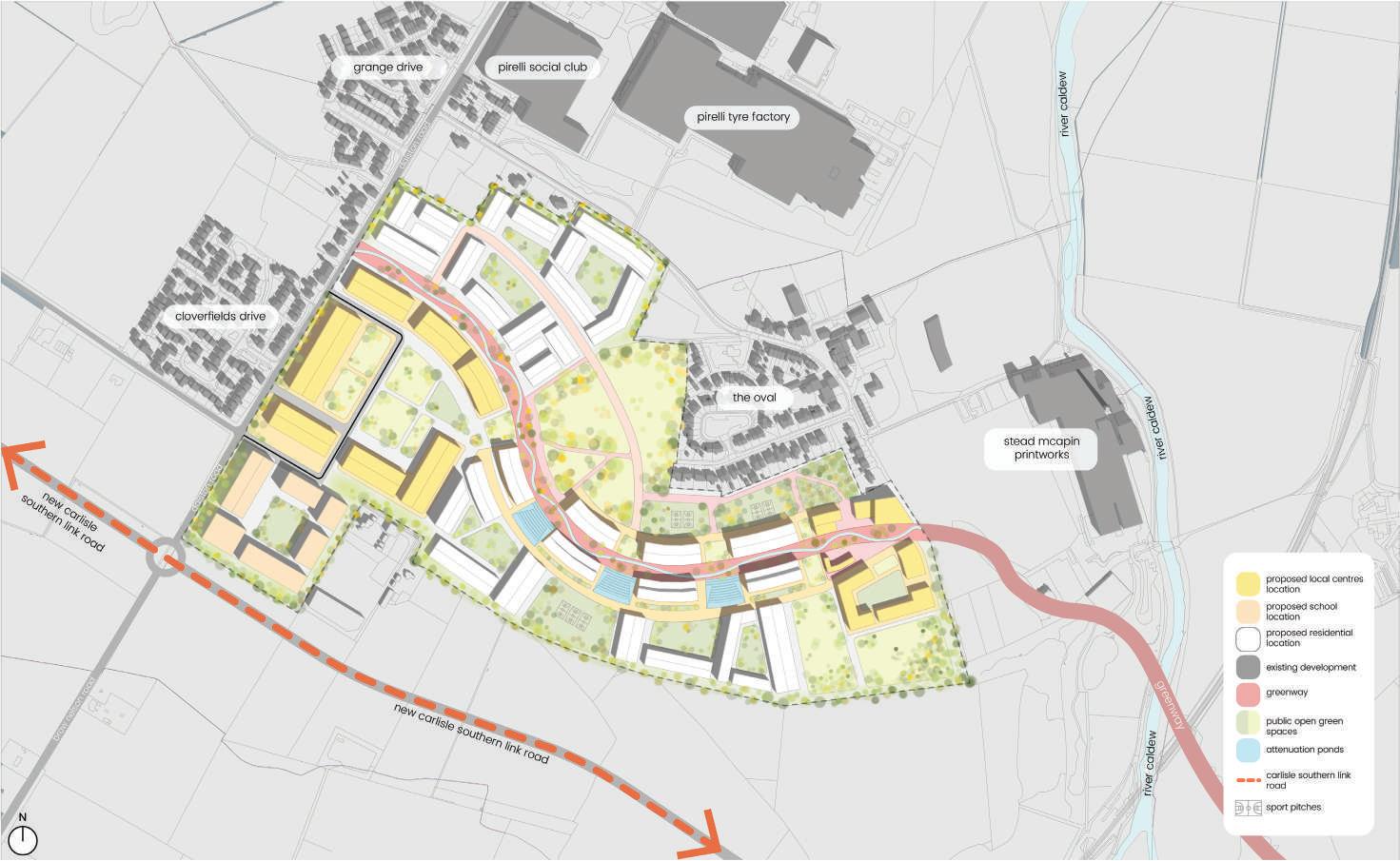

CUMMERSDALE GARDEN VALLEY The reimagined masterplan for Cummersdale Valley takes inspiration from its name, “The Cumbrian’s Valley”, blending Victorian architecture with a human-scaled valley design.

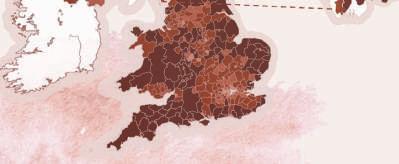

Addressing social challenges like deprivation, flooding, and water conservation, the design integrates the "Aging in Place" concept. The adaptable design also allows for future modifications, fostering a sustainable, high-quality neighborhood that supports individual well-being and community longevity.

MArch Year 05

MBRIAN

Type:

Masterplanning Reproposal; Residential Project

Location: Project Year: Atelier:

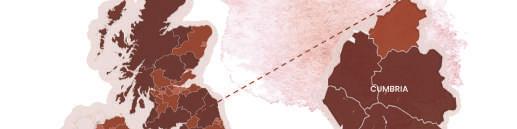

Cummersdale, Cumbria MArch Year 05 INFRAstructure Space Atelier

By critically analysing the existing townscape condition and the Arup's proposed masterplan design, a set of guiding design principles was further proposed that will be used to guide my proposal for Cummersdale in St Curtbert Garden Village.

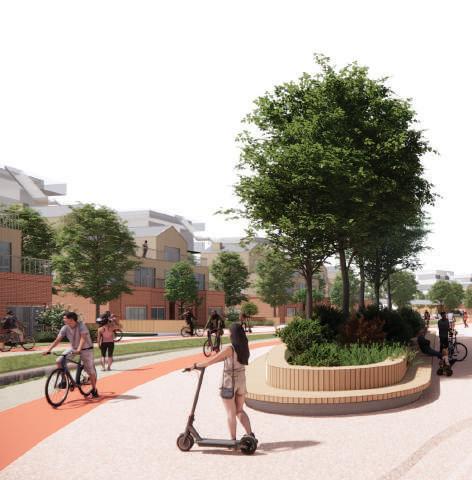

GREENWAY

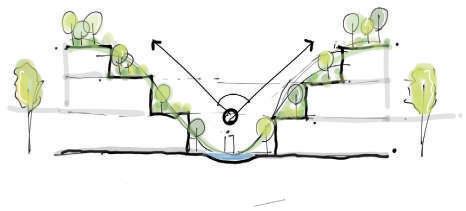

VALLEY CONCEPT

CENTRALIZED HUB

GREEN INFRASTRUCTURE

BLUE INFRASTRUCTURE

...through the neighbourhood allowing equal views for all dwellings and eases walkability from one end to another.

... reflecting on the original meaning of Cummersdale as A valley of The Cumbrian Britons.

...to improve reachability and reduce the walking radius from all new and existing neighbourhoods.

...green spaces were spreaded out around the masterplan, intergrated with sport pitches and play areas.

...retention ponds, basins and canals were introduced strategically on site to mitigate flood and water crisis.

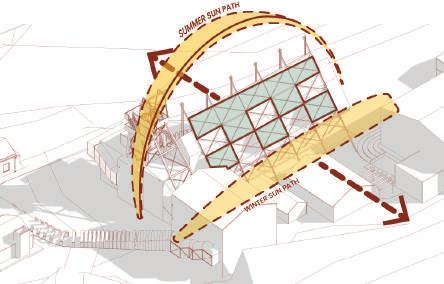

SOLAR TRAJECTORY

PEDESTRIAN FRIENDLY

LINKAGES CONNECTITY

NOISE BUFFERING

SAFETY BARRIER

...dwelling were oriented towards the souther side to maximize sunlight exposure, reducing lighting energy use.

...local centres and mobility hub were seperated from the neighbourhood to keep the it pedestrian friendly.

...provided to all adacent neighbourhoods to connect the new and existing community as a single identity.

...the school was shifted to the south west corner to mitigate noise pollution and traffic congestion.

...lush foliages and green spaces creates a natural barrier between the residents and main streets.

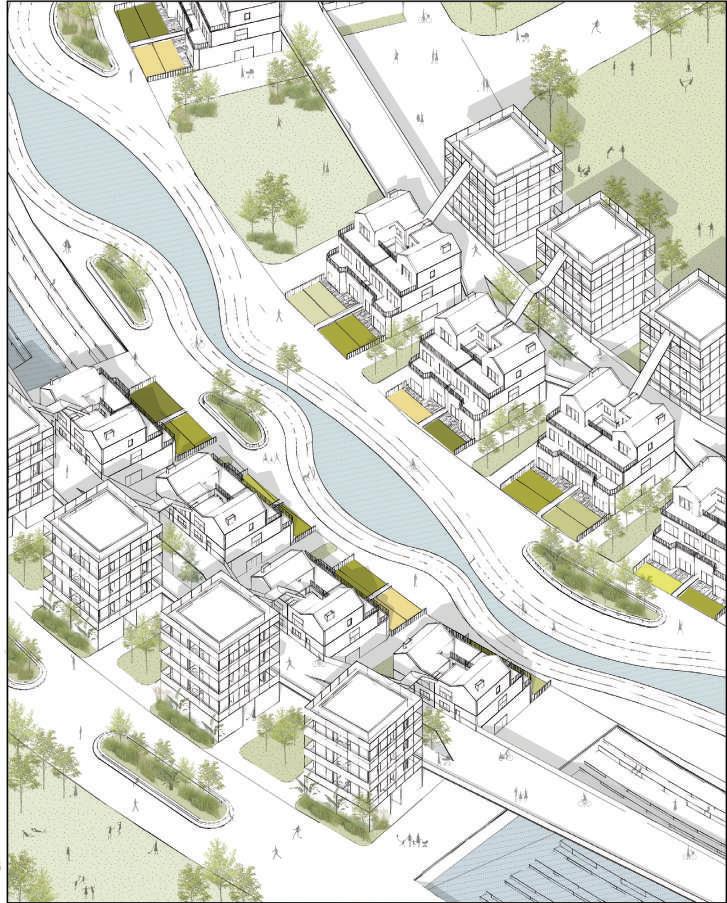

A VALLEY-INSPIRED MASTERPLANNING

Daryl Goon

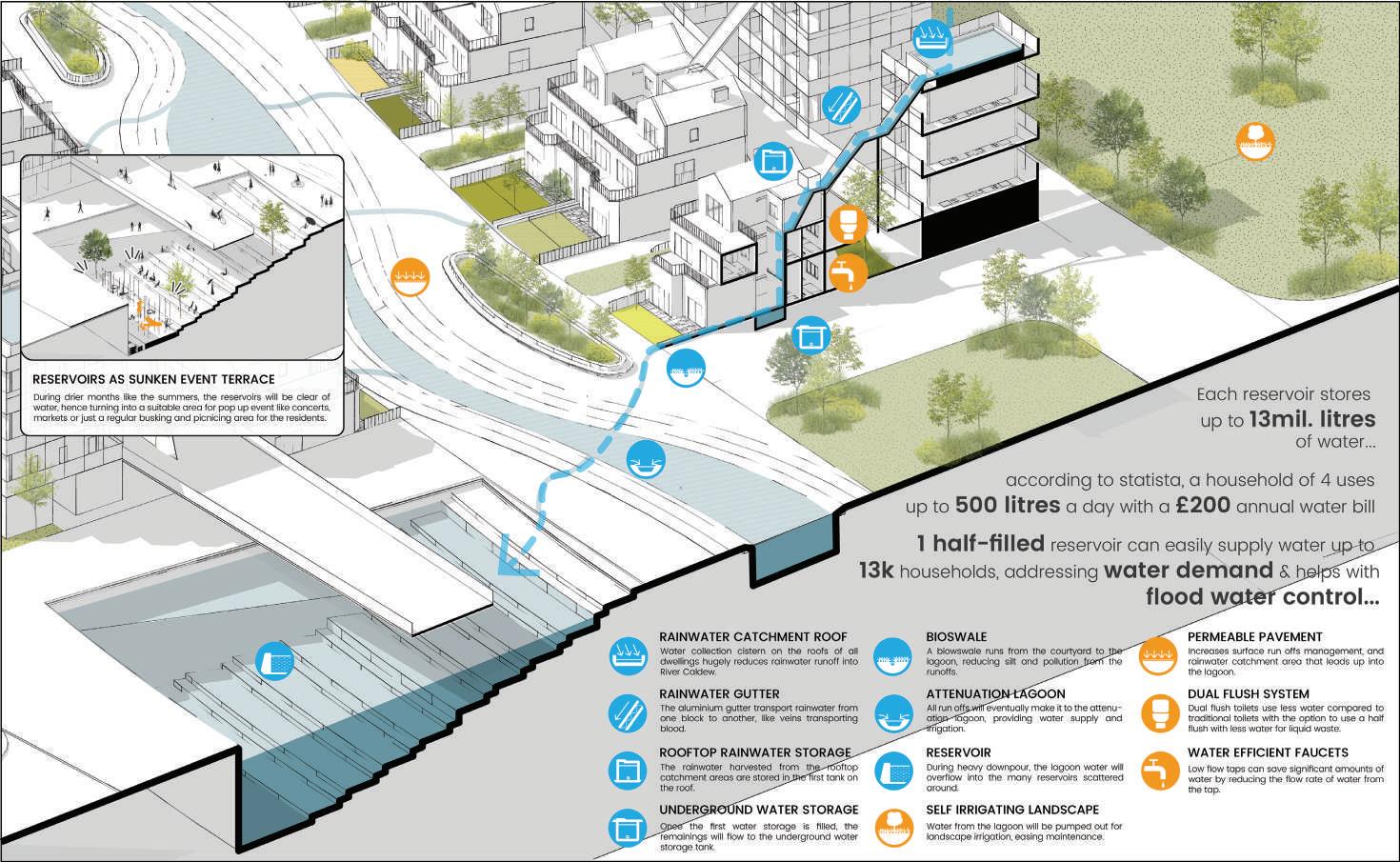

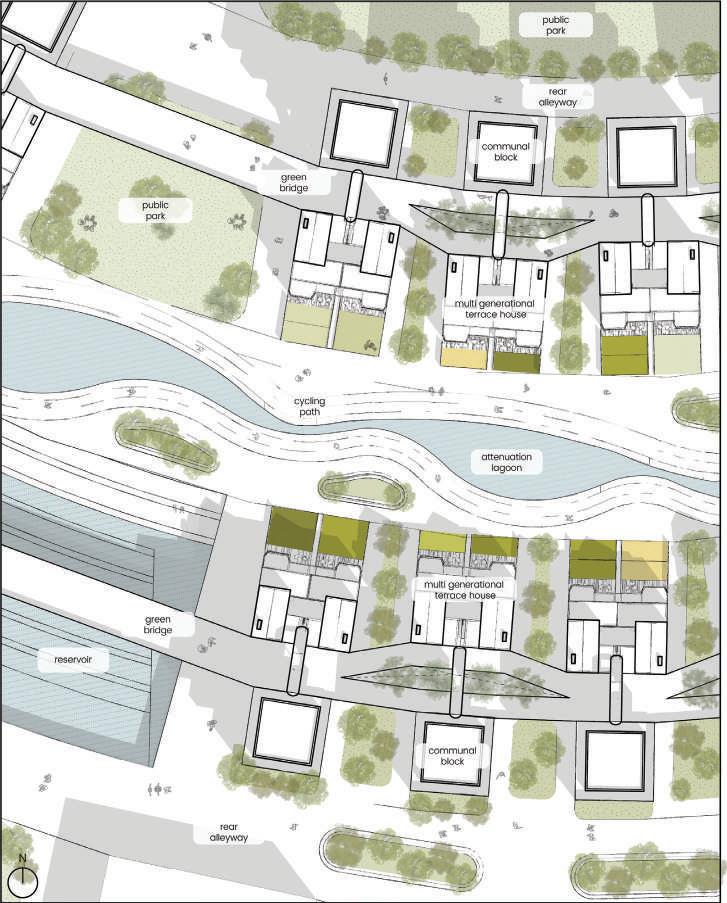

VALLEYS OF WATER A linear attenuation lagoon spans the length of Cummersdale Garden Village, serving as an attenuation reservoir to manage agricultural runoff and capture rainfall for irrigation. By controlling excess surface water, the lake reduces flood risk to the East, intercepting rainwater that would otherwise flow into the River Caldew and contribute to flash floods.

MArch Year 05

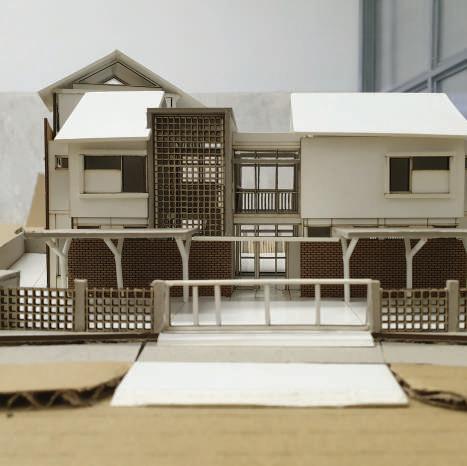

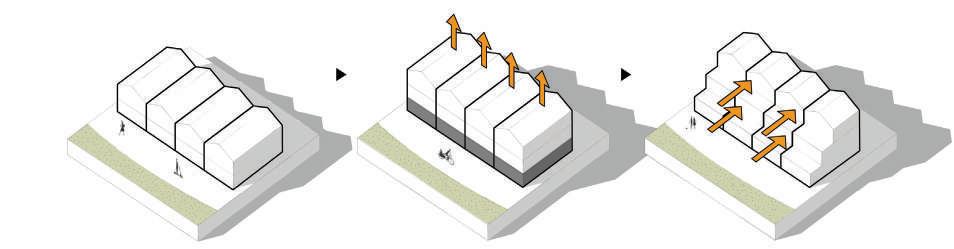

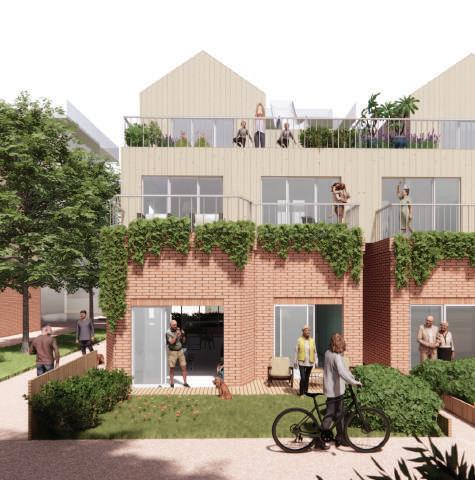

VICTORIAN STYLE The proposed massing in Cummersdale draws inspiration from Victorian architecture. The staggered valley design, echoing the village's name. Elements like bay windows, shared front gardens, and rectangular chimneys ensure a sensitive response to the existing character.

EXISTING

STACKED

STAGGERED

FINAL DESIGN with BIOSWALE AIR WELL

BAY WINDOW

FRONT GARDEN

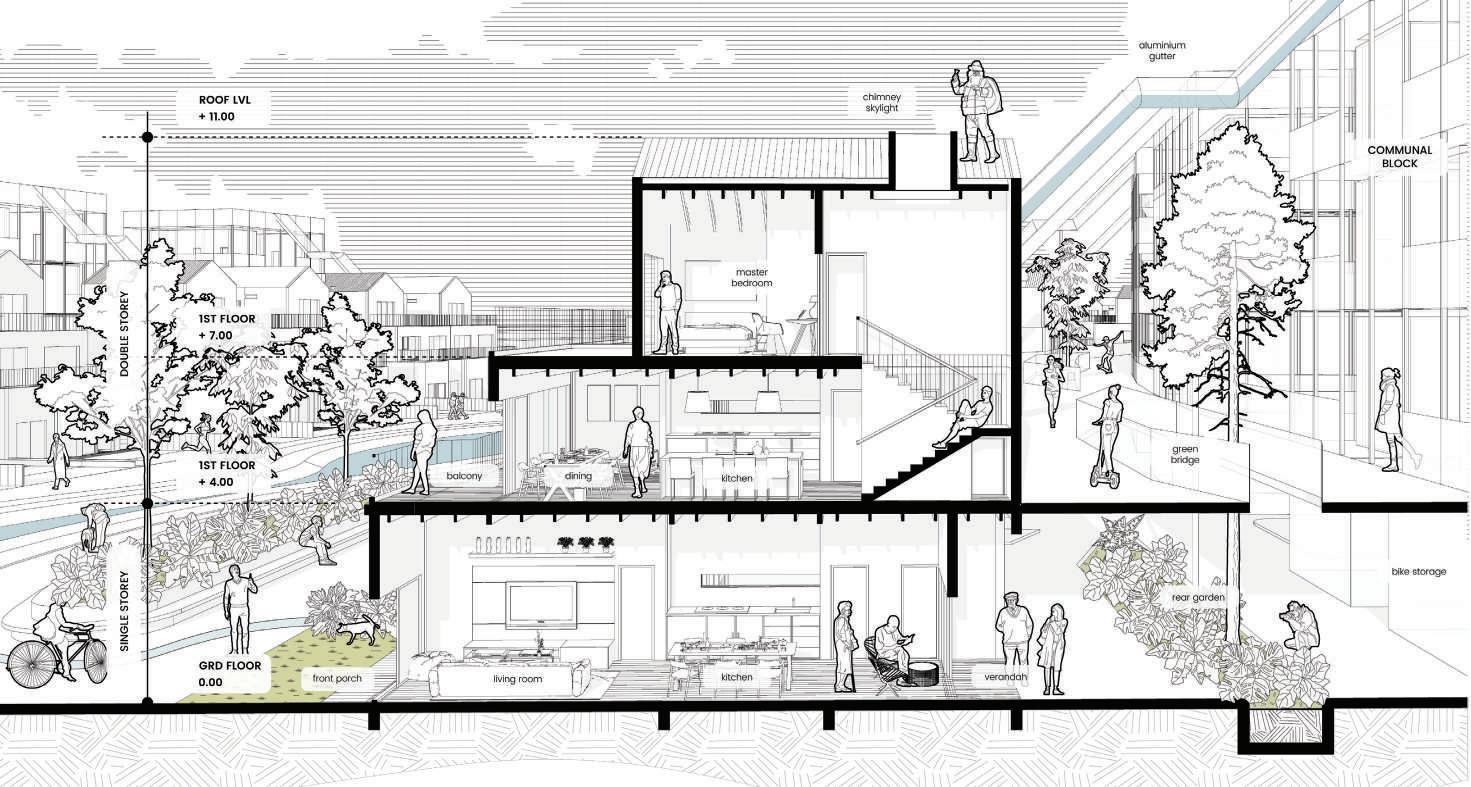

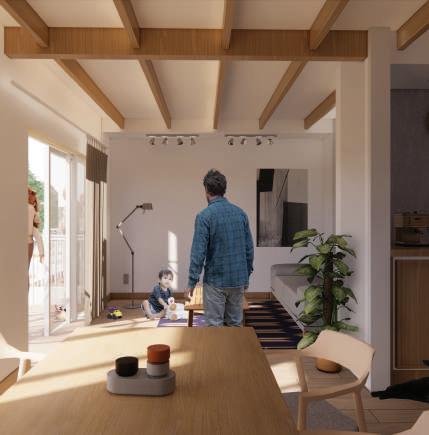

AGING IN PLACE These double-storey units on the first floor are adaptable catered to young couples and families. The single-storey unit on the ground are tailored for senior citizens, with accessible layouts and wheelchair-friendly features.

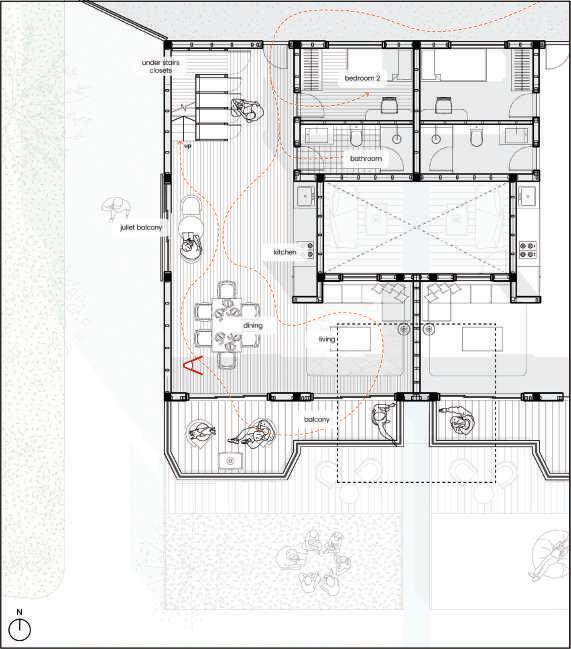

Typical Units

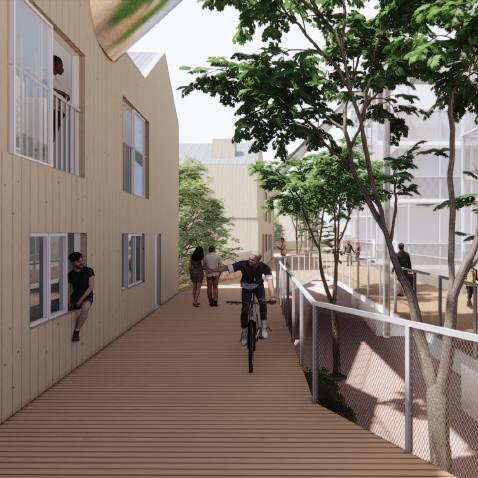

Green Way

Green Bridge

Daryl Goon

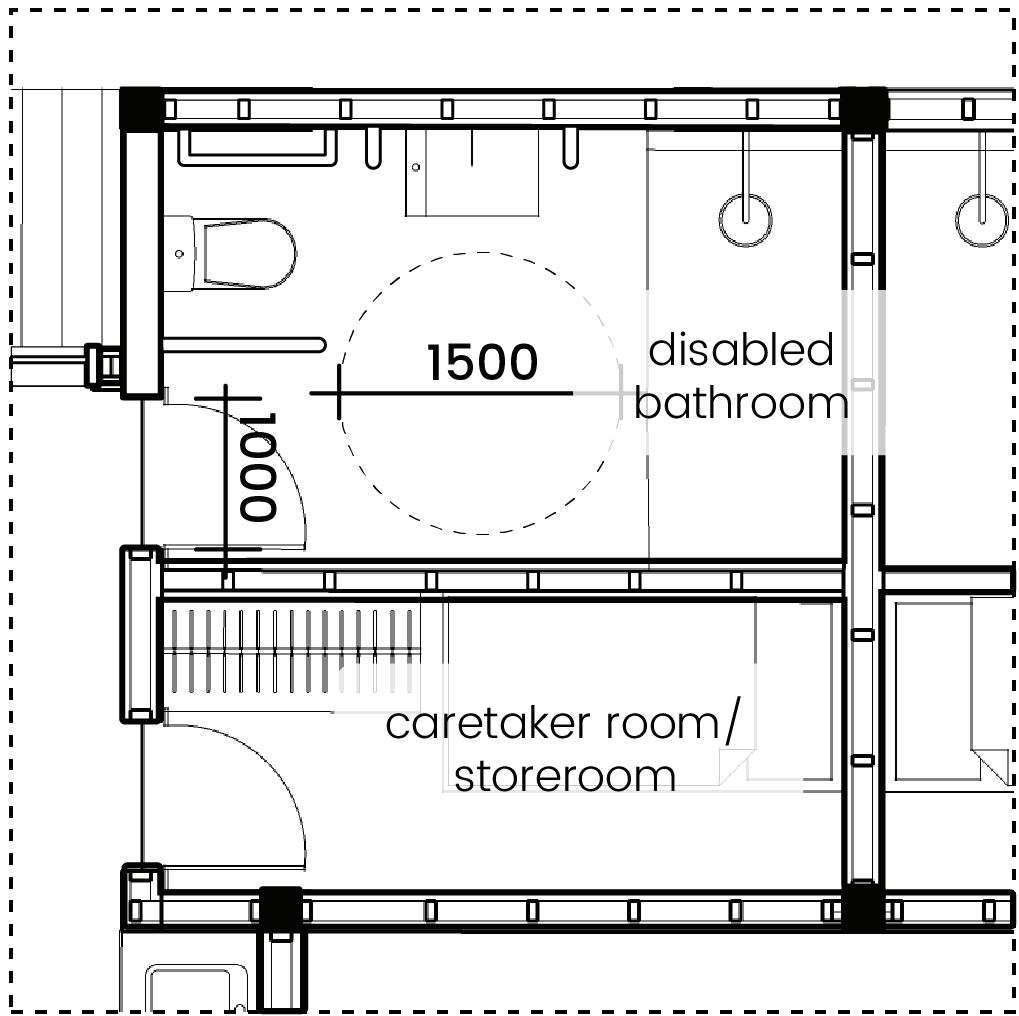

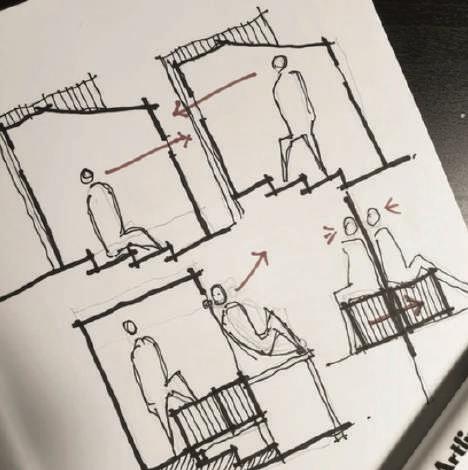

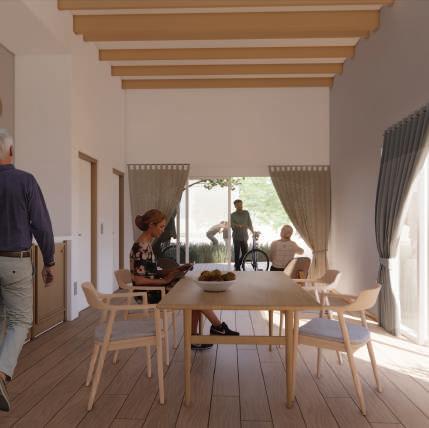

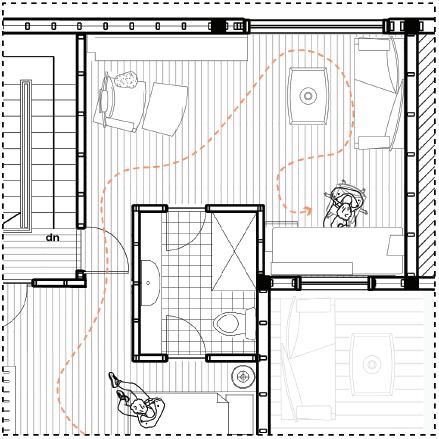

ADAPTABLE TO BE ACCESSIBLE The functions of the rear rooms can be flipped in the future, to meet the requirements for a disabled bathroom just in case where the user, a senior citizen, is wheelchair bound. The bathrroom satisfies the required turning radius, fitted with supports arm bars and an entrance of 1000mm.

Single Storey - GF

The smaller room will be used as a care taker room or as a regular storeroom to store possible medical equipments.

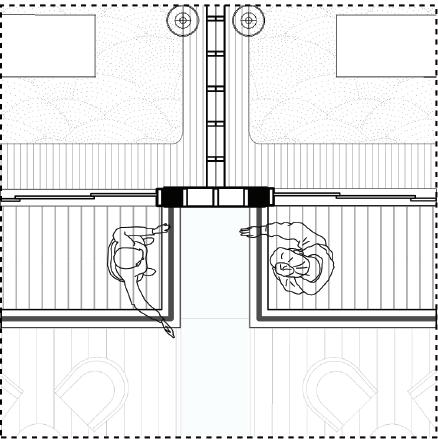

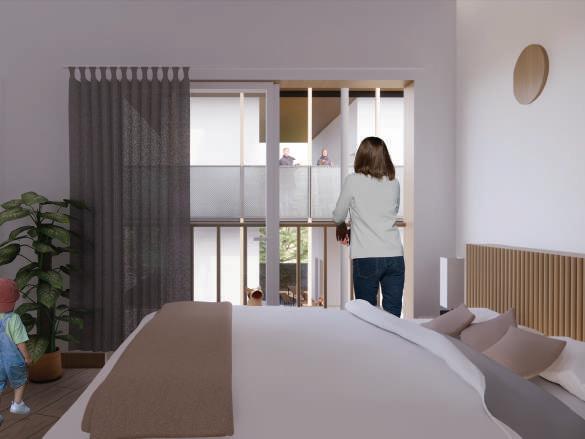

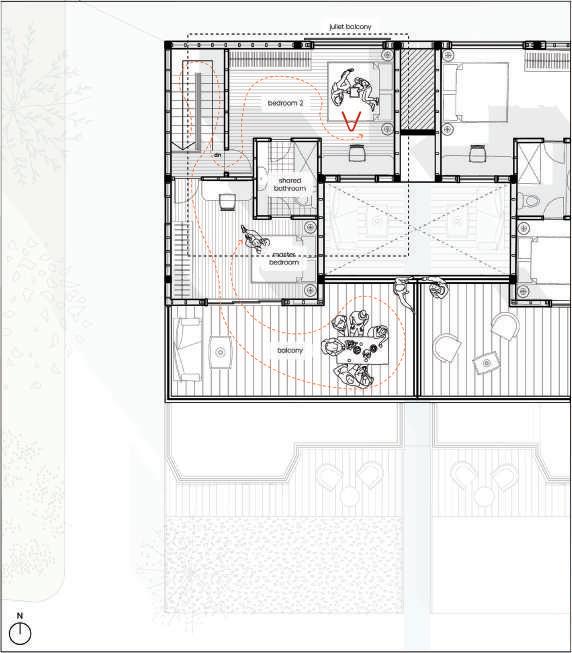

APART BUT A PART The balconies are closely designed together to allow neighbours to interact over the railings while still being seperated with a gap for security purposes. This concept was implemented throughout the dwelling design, visible throught the front garden, balconies and the shared center courtyard.

Double Storey - 1F

This increases chance of visual contact and interaction, strenghtening the sense of community in Cummersdale as a whole.

snettab reb

pag ria mm0

detalusni mm draobretsalp

hsinfi retsalp

BSO mm21

pag ria mm5 evisehda htiw stnioj detnio lenap rekcab enarbmem r

FUTURE ADAPTABILITY The space can originally function as a study room for the young couple for time where they need to “ work from home “ or be transformed into an additional bedroom if the young couple decides to have a child in the future.

Double Storey - 2F

Vice versa, bedroom 2 can be transformed into a study room in the future if their child decides to permanently move out.

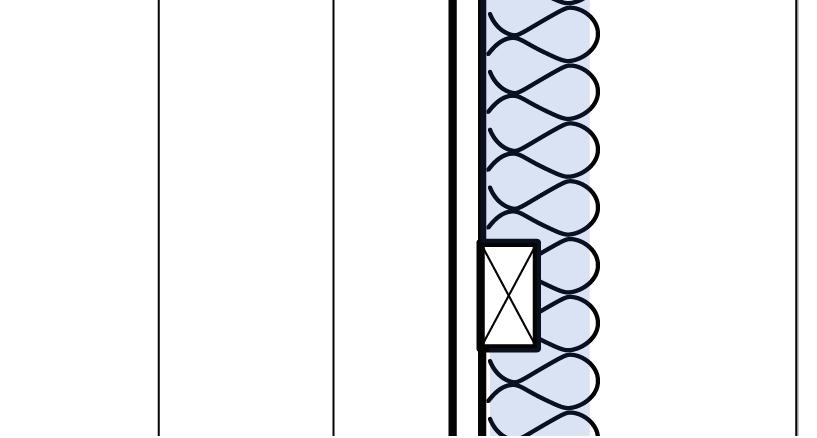

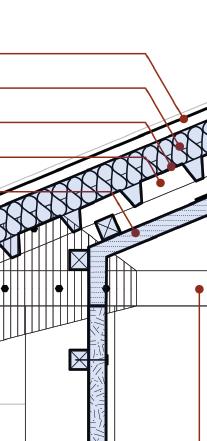

MArch Year 05 Corrugated Treated Steel Roof Sheating 25x38mm Batten and Counter Battens 50mm Cavity to Roof Breather Membrane 18mm Marine Grade Plywood Kingspan Rigid Roof Insulation Roof Blanket Insulation 2x 12.5m Insulated Plasterboard 3mm Ceiling Skim White Finish Exposed Glulam Roof Beams Robust Recessed Powder Coated Aluminium Box Gutter with Drip Detail over External Wall Fabric Timber Counter Battens 75m Air Cavity with Rainwater Downpipe Hidden behind Cladding Recycled Vertical Timber Panels 200x100mm Glulam Horizontal Beam

BOX PROFILE CORRUGATED STEEL ROOF CARBON FACTOR = 1.86kg CO2e/kg TOTAL QTY USED = 1.9m3 EMBODIED CARBON = 1.86 Co2e/kg * 1.9m3 = 3.534 CO2e

GLULAM TIMBER STRUCTURE CARBON FACTOR = -660 CO2e/kg TOTAL QTY USED = 0.8m3 * 33 columns + 0.7m3 * 37 beams + 0.1m3 * 86 studworks EMBODIED CARBON = -600 CO2e/kg * 60.9m3 = -36540 CO2e

300mm Double Glazing Top Hung Window Slit Installed 1500mm from Floor Finish External Aluminium Window Sill Internal Timber Window Sill

RECLAIMED TIMBER WALL PANELS CARBON FACTOR = 0 CO2e/ kg TOTAL QTY USED = 2.45m3 TOTAL EMBODIED CARBON = 0 CO2e

Breather Membrane 18mm Marine Grade Plywood Mineral Wool Insulation Kingpsan Internal Rigid Insulation 2x 12.5m Insulated Plasterboard 3mm Lime Render And White Finish

75m Air Cavity With Rainwater Downpipe Hidden Behind Cladding

DENSED PACK CELLULOSE FIBRE INSULATION PANELS CARBON FACTOR = 0.106 CO2e/ kg TOTAL QTY USED =12.04 m3 TOTAL EMBODIED CARBON = 0.106 CO2e/ kg * 12.04 m3 = 1.315 CO2e

TIMBER FRAME DOUBLE GLAZED CASEMENT WINDOWS & DOORS

300mm Double Glazing Top Hung Window Slit Installed 1500mm From Floor Finish External Aluminium Window Sill Internal Timber Window Sill

CARBON FACTOR = 40 CO2e/ kg per m2 TOTAL QTY USED = 5.6m2 ( double casement windows + window slits ) + 41 m2 ( sliding doors ) TOTAL EMBODIED CARBON = 224 CO2e = 1864 CO2e

3mm Lime Render And White Finish 2x 12.5m Insulated Plasterboard Mineral Wool Insulation Kingpsan Internal Rigid Insulation 18mm Marine Grade Plywood Breather Membrane Horizontal Timber Battens Recycled Vertical Timber Panels Removable For Downpipe Maintenance

caf pils kcirb

TOTAL QTY USED = 1.872 m3 TOTAL EMBODIED CARBON = 0.41 CO2e/ kg * 1.872 m3 = 0.768 CO2e

ECO FRIENDLY LAMINATED FLOORING CARBON FACTOR = -6.01 CO2e/ kg

Treated Timber Joist Brick Slips Carrier Board

TOTAL QTY USED = 4.125 m3

100mm High Timber Floor Skirting

vo gniroofl hsinfi

CARBON FACTOR = 0.41 CO2e/ kg

Eco Brick Slips With Red Sandstone Color Finish Or Equivalent External Treated Timber Decking

Damp Proof Membrane t etartsbus gnitaehs

ECO BRICK SLIPS

TOTAL EMBODIED CARBON = -24.8 CO2e

Timber Laminate Tongue & Groove Flooring 2nos Of 1/2’’ Plywood Nailed Into Base Concrete Floor Base Lightweight Concrete Block Rigid Floor Insulation Thermal Block mm051 ytivac ria

FABRIC FIRST APPROACH The "fabric first" approach focuses on an energy-efficient envelope using airtight, low-carbon, and high-resistance materials to minimize heat loss. Low embodied carbon finishes are chosen to reduce the footprint while respecting the character of neighboring dwellings.

Daryl Goon

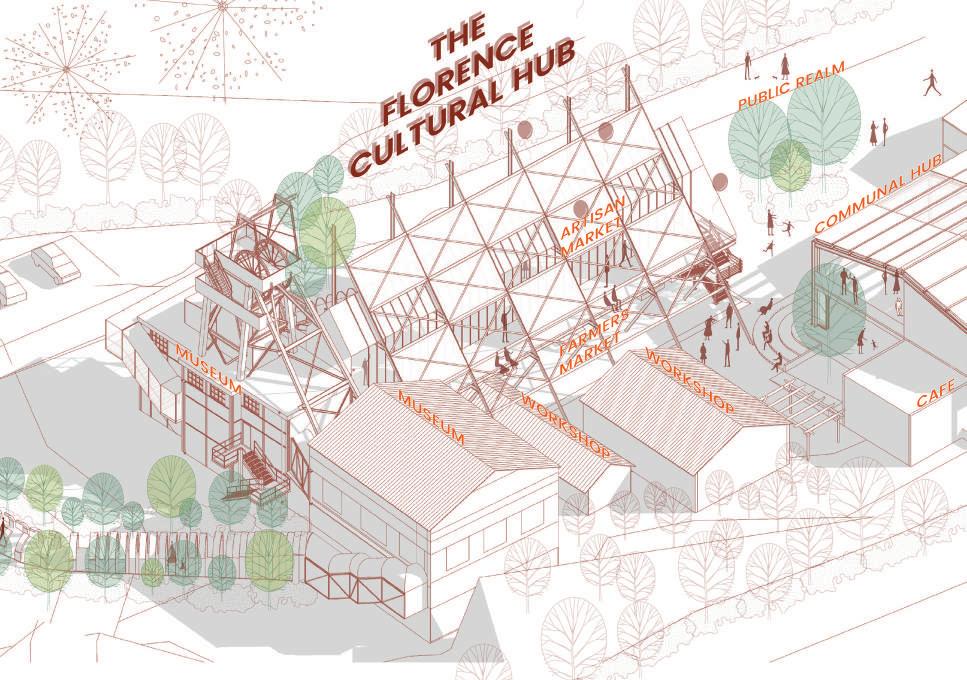

LIFE OF AN IRON OR Florence Cultural Hub

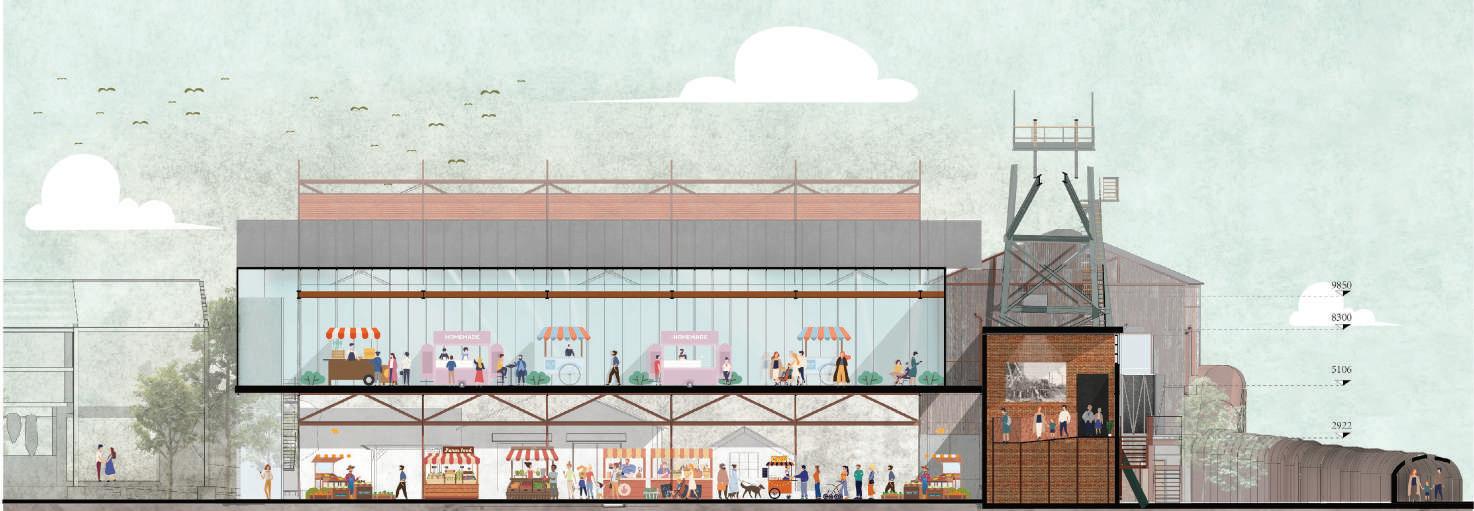

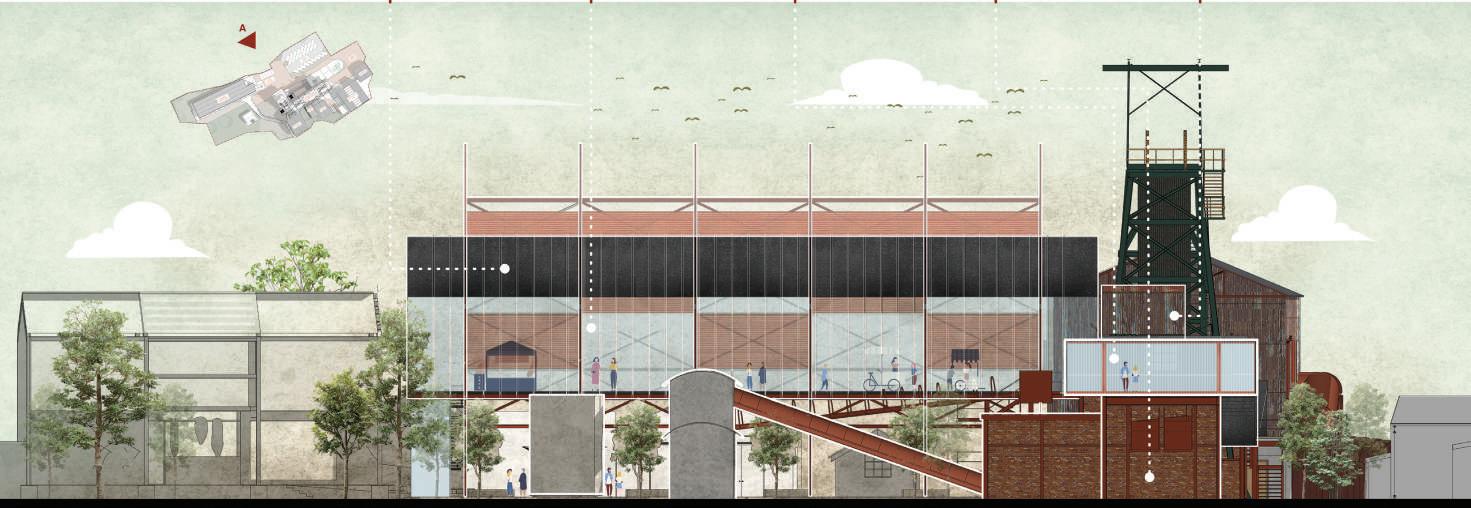

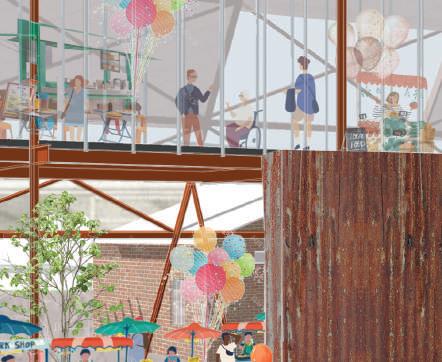

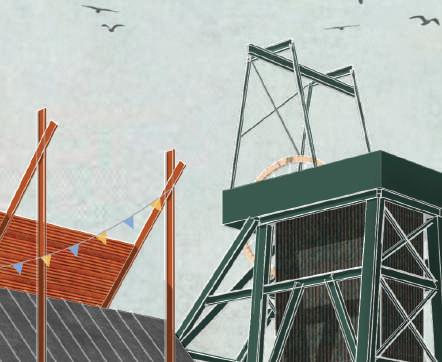

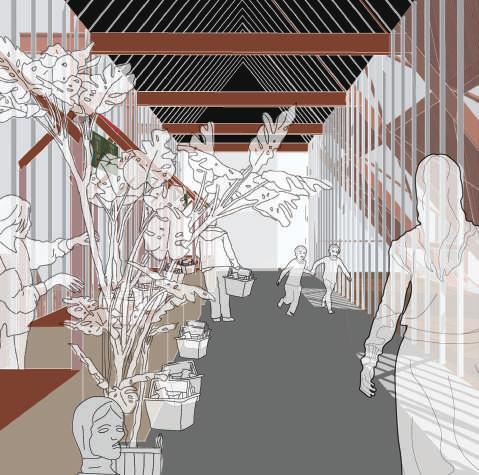

FLORENCE CULTURAL HUB Drawing inspiration from the daily encounters of a regular iron ore miner, we meticulously documented these experiences to craft an immersive journey within the museum. Visitors will traverse through the life of a miner, experiencing the trials, triumphs, and routines of this vital profession. Inspired by existing structures, the extension blurs the boundary between old and new, ensuring harmonious integration and enhancing the cultural narrative of Egremont.

MArch Year 05

RE MINER

Type:

A Cultural Hub ( Adaptive Reuse )

Location:

Florence, Cumbria

Project Year:

MArch 05

Atelier:

INFRAstructure Spacet

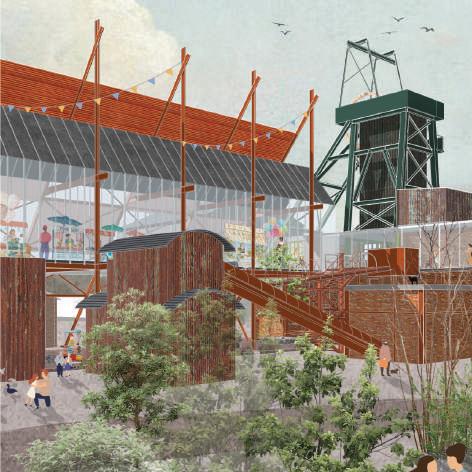

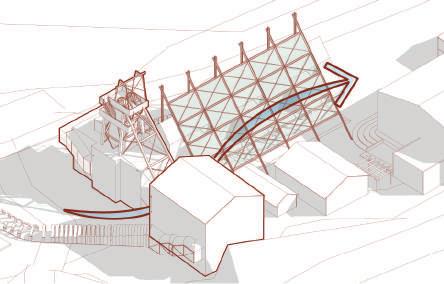

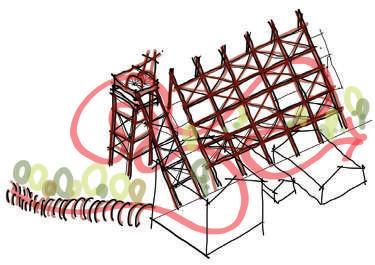

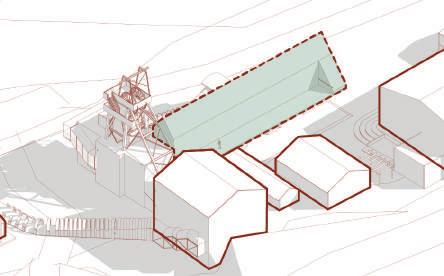

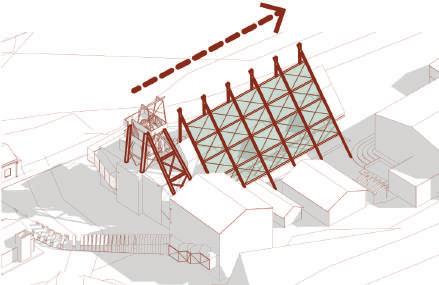

2. The Proposal Using Florence Mine as a spark, we propose transform the abandon mine into a Cultural Hub that merges Time and Art, a museum and an arts centre. To pause time, provide job opportunities in the creative arts sector, and attarct youngsters back again by place making,

YO OU UTTH HEE Y TH H ??

EE’’SS T R R E E HH W W

mining mining museum museum tourists tourists

retired retired citizens citizens

artisans artisans community community participation participation

time time

SI ON

i’ll be back mom...

CR C REE AA

transcient transcient

art art market market

&PPA ASSTT MEE& ++TTIIM + RRTTSS + A A VEE TTIIV p_ause p_ause

VI

p_rovide p_rovide opportunities opportunities

NN EEEE W O OW TT DD A A H H W W

low low employment employment

1. The Issue

H AT C

W W

EE SSUU S S I I E E H TTH

The mass population in Egremont are citizen over 65 years old, consisting of retired and unemployed citizens. Most teenagers have moved out of Cumbria to find better jobs, causing the drop in Cumbria’s economy.

p_lace p_lace making making

3. Our envision We aim to provide a congregating ground to have the main users of Egremont - The tourist, the local artisans and the local community to gather and interact. This cultural hub will act as magnet to spark interest in investors and teenagers will return ones again to their hometown.

AN BE D O NE

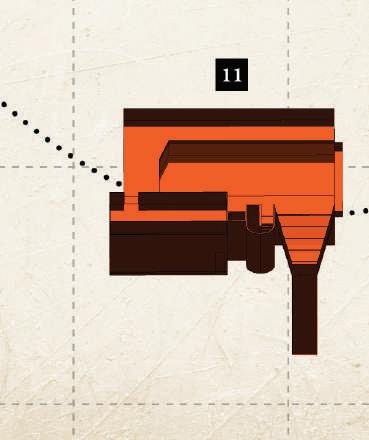

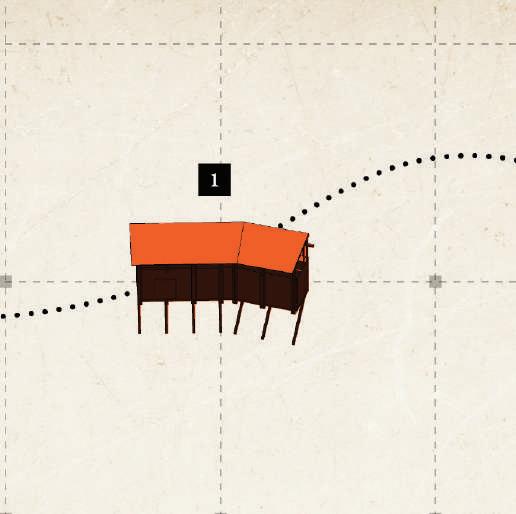

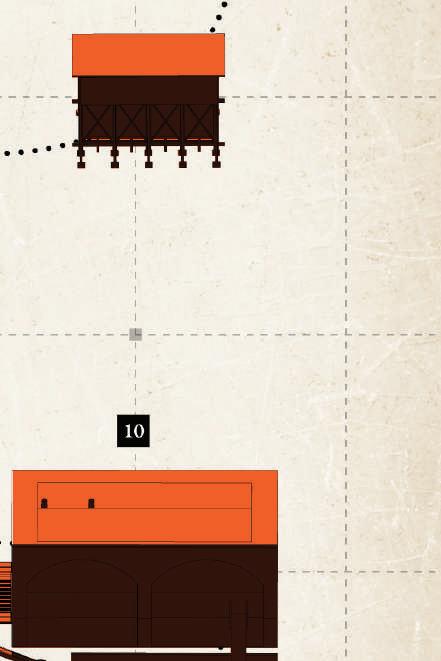

1. LEAVING FOR WORK

2. LOCKING OF LAMPS

3. DESCENDING THE TUNNELS

4. WORKING THE ORE FACE

5. SURFACING OF BOUGIES

From the age of five and up, I worked down in the dirty dusty pit, so every morning I stumbled out of bed at 4.30 in the morning out of habit.

Once I arrived at the pit, I strolled over to my locker and collected my overalls, lamp, battery pack, knee pads, ear protectors, gloves and steel toe-capped boots

We were all prepared to start work, so we squashed together into the small, cramped and metal cage ready for the lengthy descent ahead of us...

We worked long hours underground, blasting and breaking the iron from the earth to stones with sledgehammers and wedges, to be carried in bougies up to the surface.

Bougies full of iron stones are surfaced via a lift shaft hooked to a winding machine. Full bougies go out while empty ones comes back down...

6. SORTING, SCREENING, LOADING

7. BACK TO DAYLIGHT

8. PAYTIME

9. LIGHT AFTER DARK

When everyone had made their way out of the cage, we were greeted by our deputy who wrote our identity numbers on the blackboard.

Friday ( our favourite day ) was when we collected our well-earned wage from the cash office. This money is what put food on the table for my family for yet another week.

Nothing feels more comforting than returning home to my family that sees me off every morning. We then gather around the fireplace talking about each others day.

The cart full of iron stones will be sent to the ore processing plants, to be crushed to iron powder, going through water rolling mills and heated, it will turn into the iron pellets.

Daryl Goon

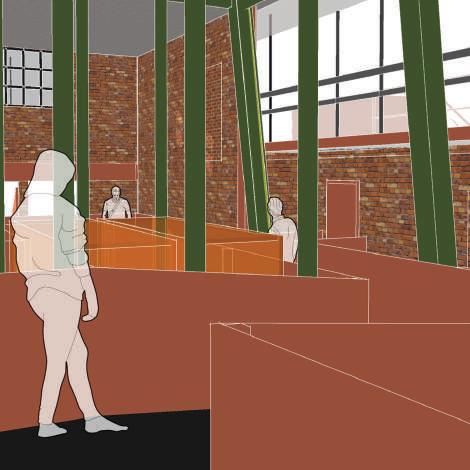

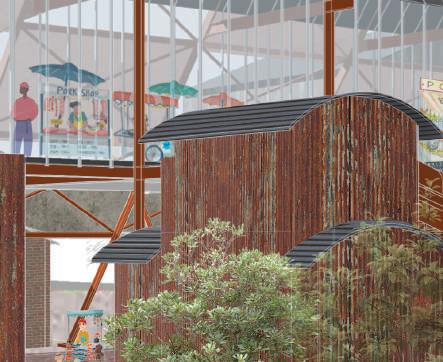

DESCENDING THE TUNNEL The experiential journey of the Florence Cultural Hub is inspired by the daily life of an iron ore miner. By weaving their story into the design, the hub creates a timeless experience, capturing and preserving their journey indefinitely.

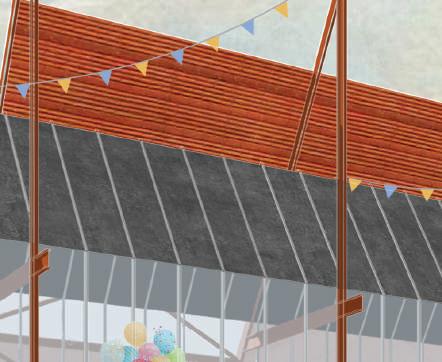

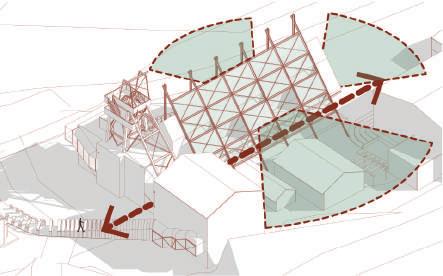

PITCHED ROOF FORM ...inspired by existing roof designs on site

SOLAR ORIENTATION ... determined the orientation of the shading device

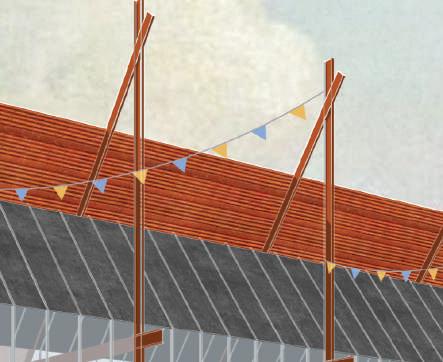

A-STEEL STRUCTURE ... repeated as new structures paying homage to existing structure.

VENTILATION ... a wind tunnel effect was continued in between the existing blocks.

VIEWS ... viewing gap in between the existing blocks were retained, while creating high vantage point for a 360 views into the vast pastures.

1. EXISTING BUILDING

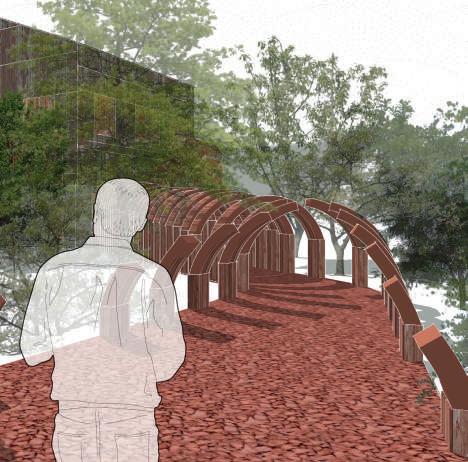

2. THE GARDEN OF DESCEND ...miners descend into the tunnels by foot

3. ELEVATING CORRIDOR ... bougies full of iron ores are elevated

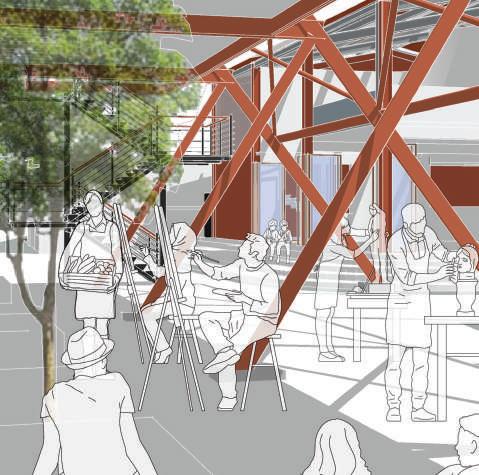

5. ARTISAN MARKET ... light after dark, paytime for the miners

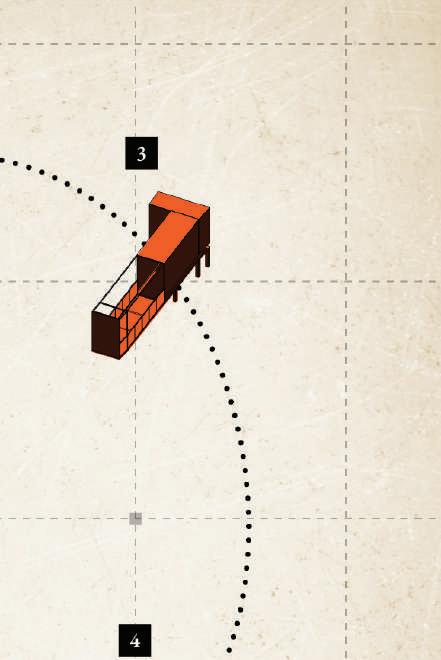

4. THE ASCEND

... miners surfacing, back to daylight

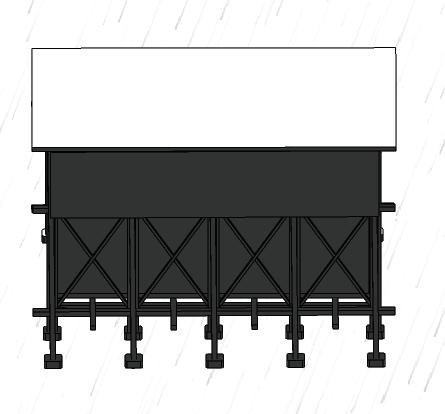

6. ‘A’ STEEL STRUCTURE

... inspired by the existing pithead structure

MArch Year 05

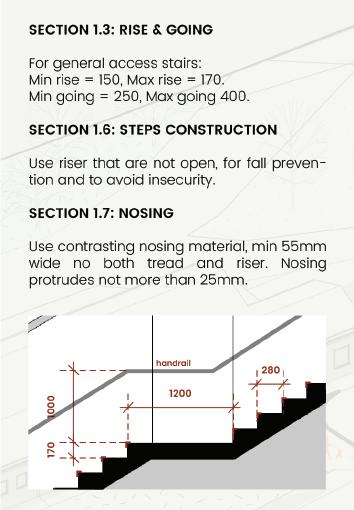

PART B - FIRE SAFETY The 18m travel distance for Purpose Group 5 is met with strategically placed fire doors and exits, exceeding the one-exit requirement for 60 occupants. External fire staircases are 1200mm wide, surpassing the 1100mm minimum.

Garden of Descend

18M

RA D

S IU

EXTERNAL FIRE STAIRS

US DI RA

North West Elevation

RA D

S IU

Elevating the Corridor

EXTERNAL FIRE STAIRS

18M

EXTERNAL FIRE STAIRS

Winder Engine House

RADIUS

18M RAD IU S

18 M

18M

ONE OF THE LAST IRON ORE MINES

Daryl Goon

The Ascend

To be Demolished

New Built

Ground Floor Plan

Artisan Market

To be Demolished

New Built

Artisan Hub

Second Floor Plan

STRUCTURALLY INDEPENDENT Grade 2 listed buildings are identified pror to a design proposal. New linkages and elevated corridors will be built around the existing structure, with screen projections to further preserve the building structures.

Engine Exhibit

Shaft Exhibit

MArch Year 05

8

EXISTING ELEMENTS 1. Corrugated Metal Roof 2. Steel Roof Truss 3. Angle Purlin Cleat 4. Corrugated Metal Sheet 5. 8mm thk MS Gusset Plate 6. Double Steel I Beam 7. Fixing Cleats to both sides of Gusset Plate 8. Gutter

NEW ELEMENTS 9. Rock Woll Thermal Insulation 10. Vapour Barrier 11. Trapezoidal Galvanized Steel Sheet 12. Suspended Ceiling 13. Lightweight CONCRETEFLEX Composite Panel

= New Elements

EXISTING ELEMENTS 1. Corrugated Metal Sheet 2. 100x50mm Rectangular Hollow Section 3. Double Steel I Column

NEW ELEMENTS 4. Single Shhet Polycarbonate Glass 5. Window Sealant 6. Narrow Beam Recessed Downlight.

7. Aluminium Capping 8. 1000 x 490 x 2mm thk Lightweight CONCRETEFLEX Composite Panel 9. 50x50mm Rectangular Hollow Section 10. Nut & Bolt 11. Rock Wool Thermal Insulation 12. 15mm Reclaimed Timber Panels 13. 60mm Heating Screed 14. Seperating Layer 15. 30mm Impact-sound Insulation 16.Vapour Barrier 17. 140mm Composite Floor Slab 18. Perforated Steel Beam 19. FireStop 20. 230x110x80mm Inner Brickwall

= New Elements

PART K - PROTECTION FROM FALLING

Daryl Goon

THE PLANTERS OF B

THE FIVE BLOCK E The project repurposes Block E at "The Five" in Kompleks Pejabat Damansara from an unused office block into a Food and Beverage Lifestyle Hub, catering to office workers and maximizing its potential. This refurbishment extends the building's life into the night, creating a vibrant, safer community space. Key design elements like the iconic vertical shading fins are preserved, while new clear glass blocks along the northern façade offer views inside and provide heat insulation. Vertical steel columns highlight the fins, and entrances are repositioned to improve connectivity.

Post Part 1 Practice

BLOCK E

Before

Type:

Food & Beverage Hub ( Placemaking/ Retrofit )

Location:

Bukit Damansara, Kuala Lumpur

Project Year:

2021 - 2022 ( Completed )

Project Involvement:

RIBA Stage 3 - 7 or Equivalent

After

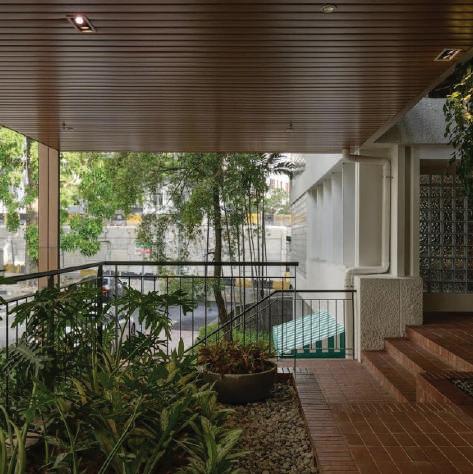

Outcome: Alfresco Area

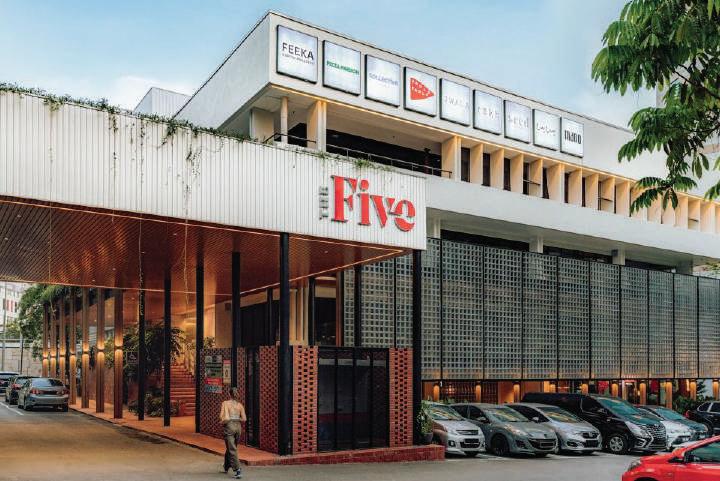

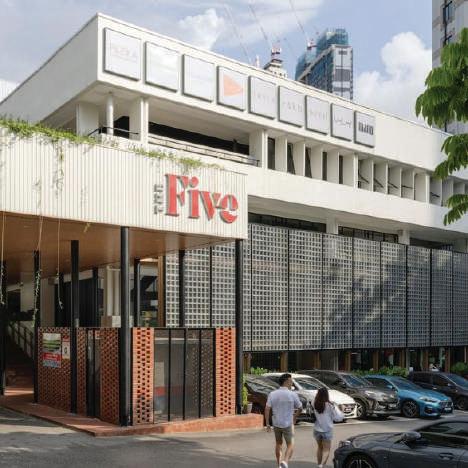

Approach View

FROM AN OFFICE BLOCK TO A F&B HUB A warm and natural material palette was proposed for Block E. The goal was to open up the enclosed office building to accommodate its new role as an F&B hub.

Corridors were added to increase exposure for ground-floor units and guide visitors up to the main lobby on the first floor from the sides, enhancing accessibility.

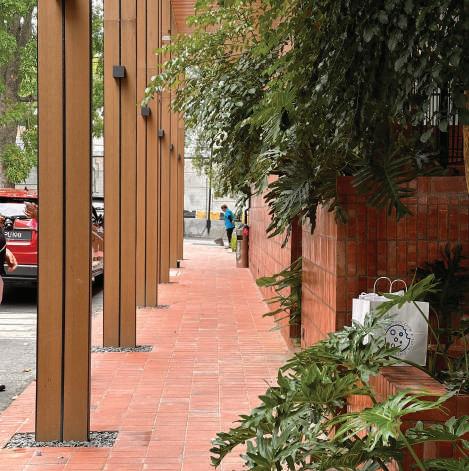

Front Corridor

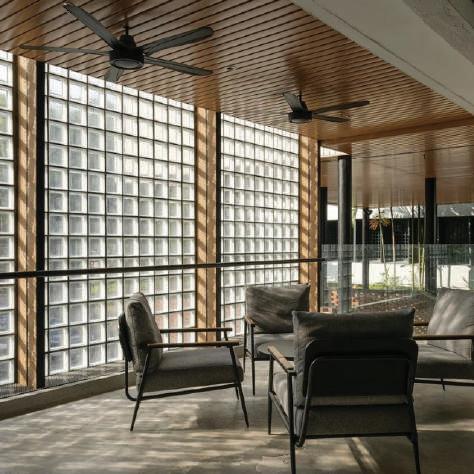

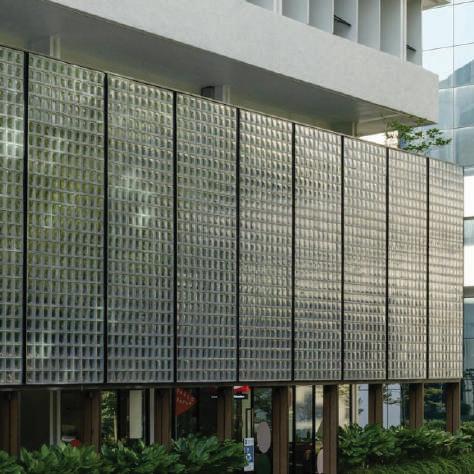

Mashrabiya Glassblock Facade

-

NOTE: ALL GALVANIZED PLANTER TO BE BUILT BY MAIN BUILDER

A

Daryl Goon

450(W) X 600(H) MATT BLACK GALVANIZED IRON PLANTER BOX SUPPORTED IN BETWEEN UC BY T-SECTION

NOTE: ALL WATERTIGHT FIBREGLASS PLANTING POT, PLANTS AND TREES TO BE SUPPLIED BY LANDSCAPE CONTRACTOR

LIGHT WEIGHT FIRRE GLASS PLANTING POT BY LANDSCAPE CONTRACTOR PLANTING TRAY

UNIVERSAL COLUMN

G.I PLANTER BASE TO FALL

MATT BLACK WALL FLANGE MATT BLACK T-SECTION WITH MICACEOUS IRON OXIDE PAINT FINISH TO ENGR'S DETAIL 20MM Ø BENDED GALVANIZED STEEL PIPE CONNECTED TO G.I PLANTER WITH WALL FLANGE WITH MATT BLACK FINISH

NEW KERB WITH TILE FINISH TO ENGR'S DETAIL

LIGHTWEIGHT FIBREGLASS PLANTER POT

Brick Laying

MATT BLACK GALVANIZED IRON PLANTER ( POWDER COATED/ SPRAY PAINTED STEEL ) PLANTING TRAY

GALVANIZED STEEL STAND SUPPORT

OVERFLOW DRAINAGE HOLE LOOSE DRAIN PAN

-

TYPICAL GALVANIZED IRON PLANTER SIDE SECTION DETAIL

2

1:10

-

3

TYPICAL SIDE BALCONY G.I PLANTER SIDE SECTION DETAIL

-

1:10

GALVANIZED STEEL PLATE GALVANIZED STEEL STAND SUPPORT

SECTION A 1:20

230X114MM KIA LIM HERITAGE RED SERIES PAVER LAID ON EDGE TO MANUFACTURER'S DETAIL

5 -

NOTE: ALL BRICK CLAD RC PLANTER AND RECESSED RC PLANTER TO BE BUILT BY THE MAIN BUILDER

20MM Ø BENDED GALVANIZED STEEL PIPE CONNECTED TO G.I PLANTER WITH WALL FLANGE WITH MATT BLACK FINISH GALVANIZED STEEL BRACKET

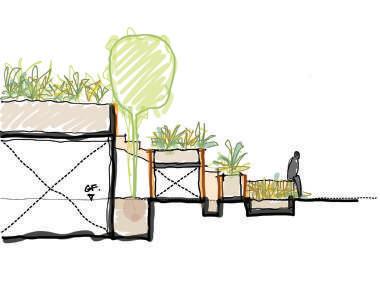

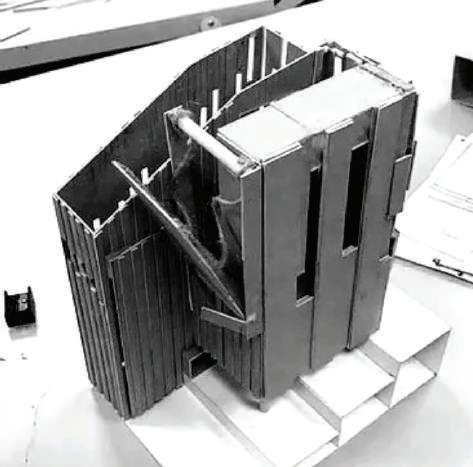

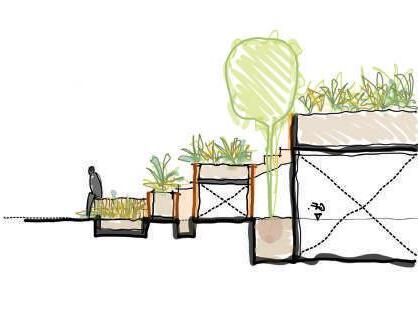

Quick Sketch

4 NOS OF 100X12 DML100G ALUMINIUM STRIP CLAD FRONT AND BACK OF EACH UC

STONE AGGREGATE FILL IN SCUPPER DRAIN

G.I PLANTER BASE TO FALL

MATT BLACK T-SECTION WITH MIO PAINT FINISH TO ENGR'S DETAIL NEW KERB WITH TILE FINISH TO ENGR'S DETAIL

GALVANIZED STEEL PLATE

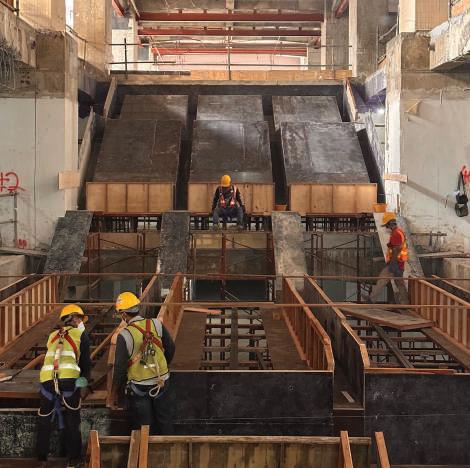

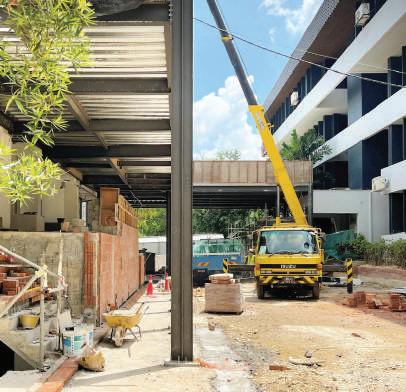

Construction Phase

1

G.I PLANTER BASE TO FALL

2 NOS OF 150X75 UNIVERSAL 'I' COLUMN WELDED TOGETHER WITH MICACEOUS IRON OXIDE PAINT FINISH TO ENGR'S DETAIL

GALVANIZED STEEL PIPE CLAMP BRACKET

POWERLESS SELF FEEDING PUMP ( OSMOSIS )

TOW: 79.880

NEW WINDOW (NW 09)

SIDE ENTRANCE

END OF STAIRS MID LANDING

FFL: 78.780 FFL: 78.190

-

RC COLUMN TO SFL: ENGR'S DETAIL

NEW GENSET

SIDE PATH

3

WHEELCHAIR LIFT RAILING

150MM THK BRICKWALL RECESSED RC PLANTER

TOW: 77.207

77.490

EXISTING WINDOW

TOW: 77.050

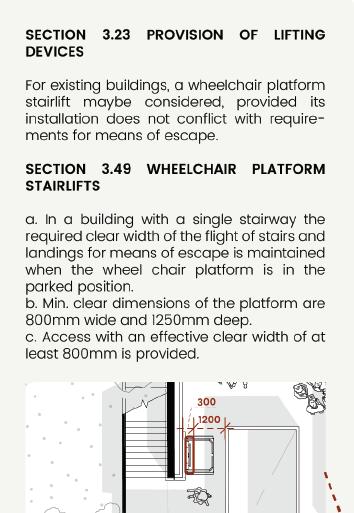

WHEELCHAIR PLATFORM LIFT TO SUPPLIER'S DETAIL

DROP OFF AREA

FFL: 76.420 SFL: 76.363

Private Resting Space FFL: 75.080

FFL: 75.080

NEW COLUMN

MAIN STAIRS

TOW: 77.990

SFL: 78.730 SFL: 78.190

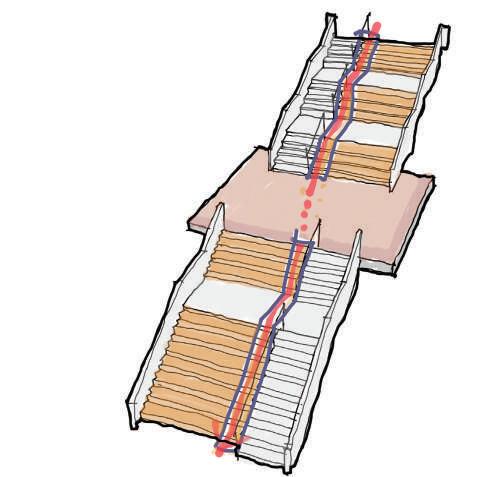

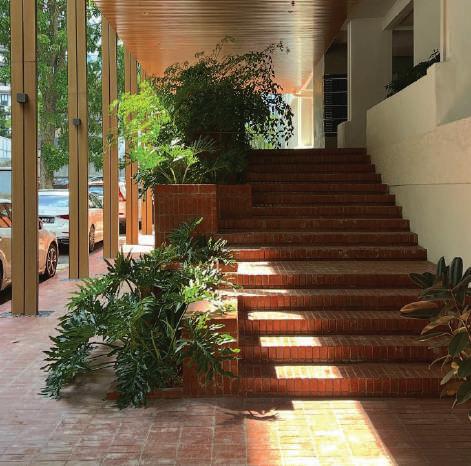

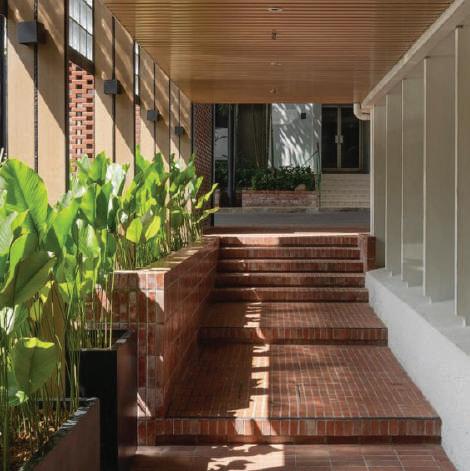

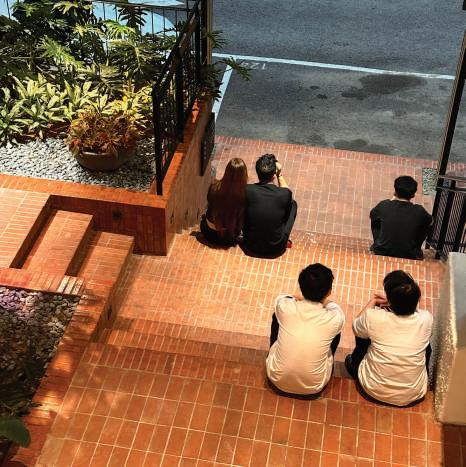

Planterbox Stairs

PLANTER BOX

6 -

TOW: 78.780

RC COLUMN TO ENGR'S DETAIL

SFL: 75.970 WaitIng Space

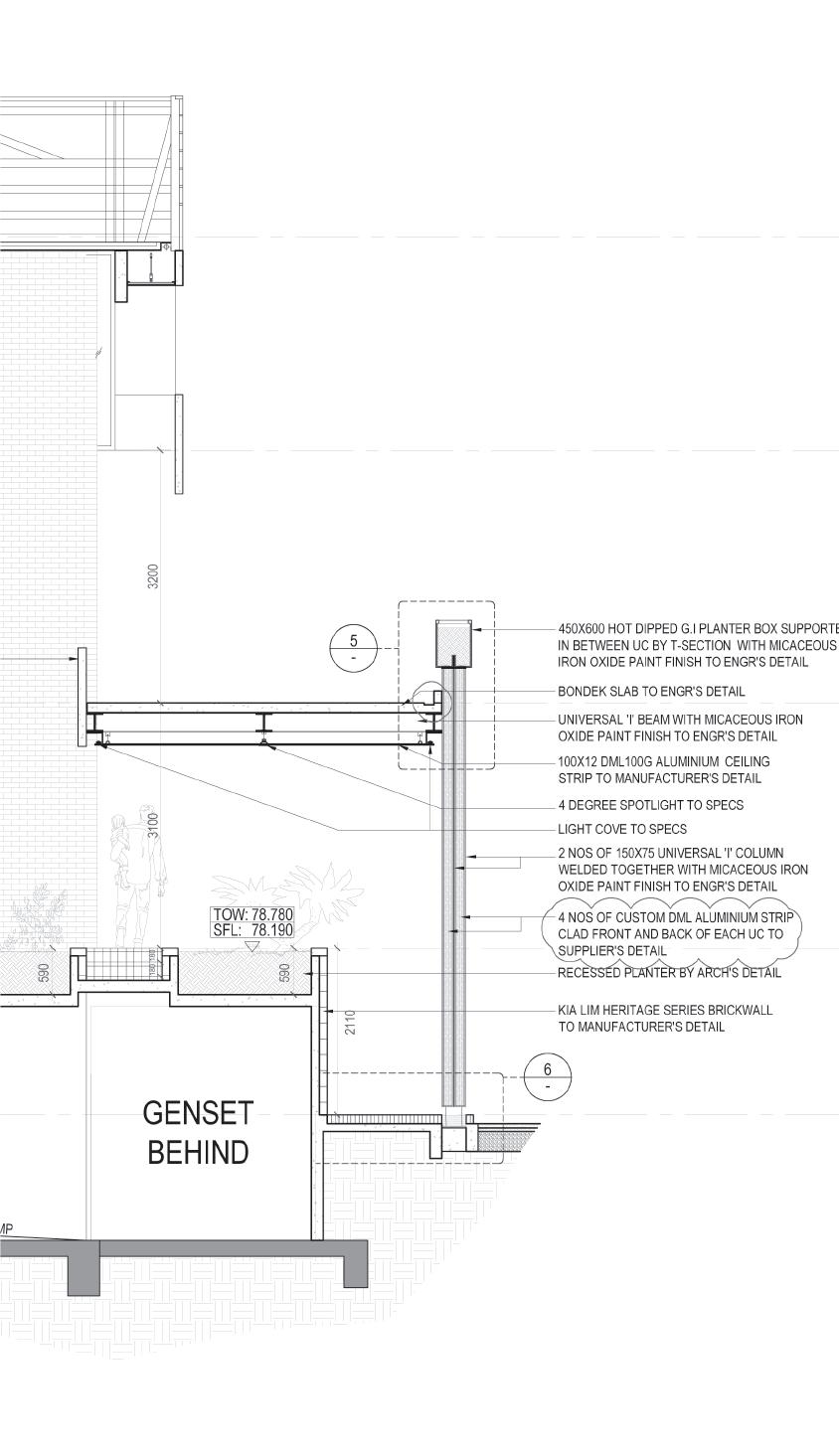

OVERALL RC PLANTER SECTION 1:40

900X5695MM PLANTER BOX INFRONT OF MAIN LOBBY 200X100MM KIANLIM PREMIER SERIES PAVER LAID ON EDGE TO MANUFACTURER'S DETAIL

400MM DEEP BOX UP SEATING WITH KIA LIM HERITAGE RED SERIES PAVERS

TOW: 79.880

TOW: 77.207

PLANTER SOIL MIX TO LA'S SPECS

WHEELCHAIR PLATFORM LIFT TO SUPPLIER'S DETAIL

500(W)X1600(L)MM RECESSED PLANTER

50MM CLEAN SAND BINDING NYLEX CORDRAIN 25MM THK LAID TO MANUFACTURER'S DETAIL

50MM CLEAN SAND BINDING SCREED TO FALL SCREED TO FALL

RC SLAB AND WATERPROOFING TO ENGR'S DETAIL

SCREED TO FALL

MIN 600X600MM SQUARE GEO FABRIC OVER CAPPING TO PREVENT SOIL DROPPAGE

100MM THK RC WALL CEMENT BOX UP

RC PLANTER SUNKEN FROM FLOOR LEVEL

100mm ø DROPPER DRAINPIPE TO NEAREST DRAINAGE OUTLET

TYPICAL SUSPENDED RC PLANTER BOX DETAILS

WORKING THE EXISTING

6 -

At the project's outset, we identified key design elements to retain, such as the vertical fins, mosaic tiles, and U-columns. Given the delicate condition of the structures, more on-site discussions with contractors were necessary compared to typical projects.

SCREED TO FALL

SFL: 76.260

MIN 600X600MM SQUARE GEO FABRIC OVER CAPPING TO PREVENT SOIL DROPPAGE

SFL: 75.970

TYPICAL RECESSED PLANTER DETAILS

SEALANT ALL AROUND PIPE

1:20

230X114MM KIA LIM HERITAGE RED SERIES PAVER LAID ON EDGE TO MANUFACTURER'S DETAIL

5695

TOW: 79.880

150MM THK BRICKWALL

1200

FFL: 75.080

FFL: 75.080

PLANTERBOX BRICK STAIRS DETAIL

1200

TOW: 77.207

SFL: 76.363

1340

NEW GENSET

SFL: 77.490

MAIN STAIRS

RC COLUMN TO ENGR'S DETAIL

TOW: 77.050 DROP OFF AREA

1600

FFL: 76.420 450

1800

TOW: 77.990

SFL: 78.730

500

FFL: 78.190 SFL: 78.190

SIDE PATH

100

844

3810

TOW: 78.780

3507

MID LANDING

FFL: 78.780

150

END OF STAIRS

1100

SIDE ENTRANCE

590

1:20

150

-

SCREED TO FALL

FFL: 76.420

100MM ø DROPPER DRAINPIPE TO NEAREST DRAINAGE OUTLET

SEALANT ALL AROUND PIPE

2960

5

FFL: 76.420

SCREED TO FALL

SFL: 76.260

NYLEX CORDRAIN 25MM THK LAID TO MANUFACTURER'S DETAIL

SFL: 75.970

Post Part 1 Practice

URBAN AGENDA DESIGN GROUP SDN. BHD. Block A - Level 1, Menara Harvey Norman, 13A, Jalan 51A/ 219, Seksyen 51A, 46100 Petaling Jaya, Selangor GENERAL NOTES: 1. DO NOT SCALE FROM THE DRAWINGS. 2. ALL DIMENSIONS ARE IN MILLIMETERS AND LEVELS IN METERS UNLESS NOTED OTHERWISE. ALL DIMENSIONS TO BE VERIFIED ON SITE & APPROVED BY THE SUPERVISOR.

3. THIS DRAWING SHOULD BE READ IN CONJUNCTION WITH OTHER RELEVANT ARCHITECTURAL, STRUCTURAL, MECHANICAL AND ELECTRICAL DRAWINGS AND ALL RELEVANT SECTIONS OF THE SPECIFICATIONS.

NOTE : ALL DRAWINGS PROVIDED BY UAD ARE FOR DESIGN INTENT ONLY. THE CONTRACTOR IS SOLELY RESPONSIBLY FOR DEVELOPMENT OF DETAILS , INCLUDING VERIFICATION OF LOADS , HARDWARE , ADEQUATE WALL SUPPORT , BRACING AND FIXATION METHODS.

MASHRABIYA GLASSBLOCKS SECTIONAL DETAIL

C UAD COPYRIGHT 2021

PROJECT PHASE :

STIFFERNER DETAIL

DESIGN DEVELOPMENT

-

-

-

-

-

-

-

-

-

REV.

-

-

-

-

-

-

ISSUED FOR

DATE

CHEK.

CONSULTANT:

MORTAR CLEAN UP A builder was seen cleaning up excess mortar using a trowel and a damp sponge in between the mashrabiya glassblocks.

PROJECT:

THE FIVE BLOCK E

CLIENT :

SELANGOR PROPERTIES SDN. BHD.

DRAWING TITLE :

PLANTING SCHEDULE -

APPROVED BY:

-

DRAWN BY:

DG

1st ISSUE DATE:

-

SCALE:

1:20

PROJECT NO.

SHEET NO.

REVISION NO.

-

Front Facade

FRONT TERRACE DETAIL

Front Terrace

Daryl Goon NOTE: ALL GALVANIZED PLANTER TO BE BUILT BY MAIN BUILDER

450(W) X 600(H) MATT BLACK GA PLANTER BOX SUPPORTED IN B

NOTE: ALL WATERTIGHT FIBREGLASS PLANTING POT, PLANTS AND TREES TO BE SUPPLIED BY LANDSCAPE CONTRACTOR

LIGHT WEIGHT FIRRE GLASS PL LANDSCAP

MATT BLAC

MATT BLACK T-SECTION W IRON OXIDE PAINT FINISH TO

20MM Ø BENDED GALVANI CONNECTED TO G.I PLANTER WIT WITH MAT

GALVANIZED STEEL PIPE C

POWERLESS SELF FEEDING PUMP ( OSMOSIS )

NEW KERB W TO

LIGHTWEIGHT FIBREGLASS PLANTER POT

GALVANIZE

MATT BLACK GALVANIZED IRON PLANTER ( POWDER COATED/ SPRAY PAINTED STEEL )

STONE AGGREGATE FILL IN S

PLANTING TRAY

GALVANIZED STEEL S

OVERFLOW DRAINAGE HOLE LOOSE DRAIN PAN

1 -

TYPICAL GALVANIZED IRON PLANTER SIDE SECTION DETAIL

2

1:10

-

TYPICAL 1:10

5 -

NOTE: ALL BRICK CLAD RC PLANTER AND RECESSED RC PLANTER TO BE BUILT BY THE MAIN BUILDER

SIDE ENTRANCE

END OF STAIRS MID LANDING

FFL: 78.780

TOW: 78.780

FFL: 78.190 SFL: 78.190 RECESSED RC PLANTER

SIDE PATH

FFL: 75.080

3 -

OVERALL RC PLANTER SECTION 1:40

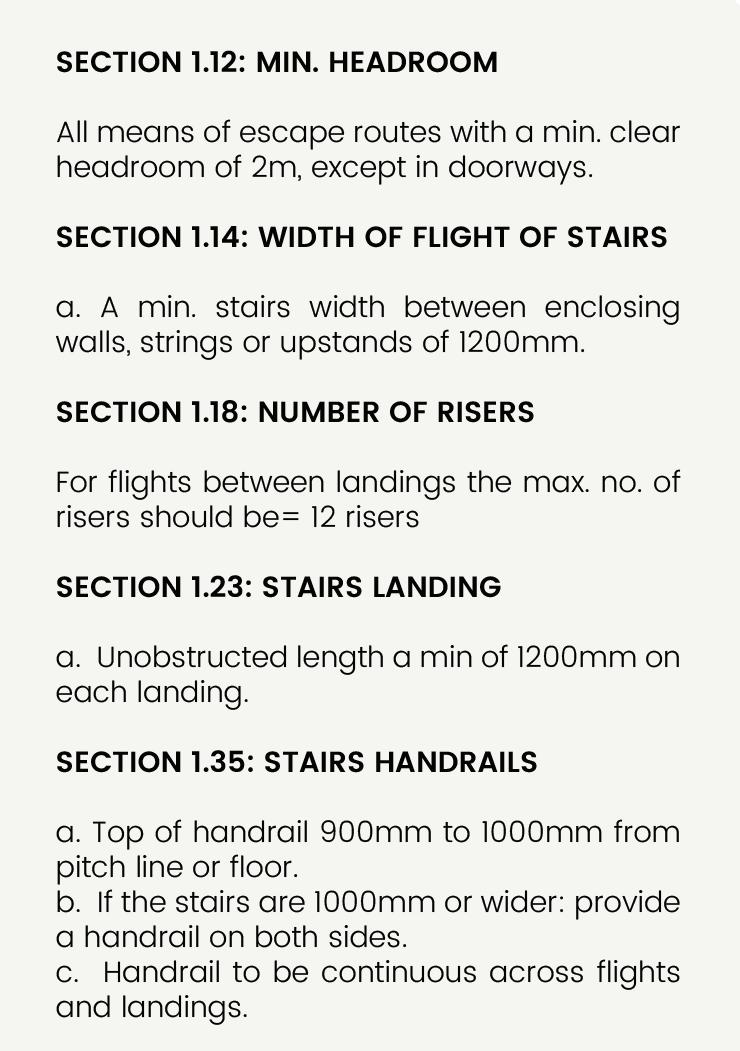

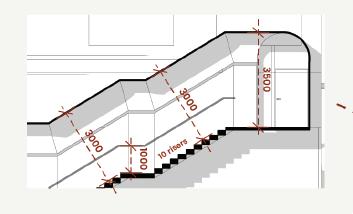

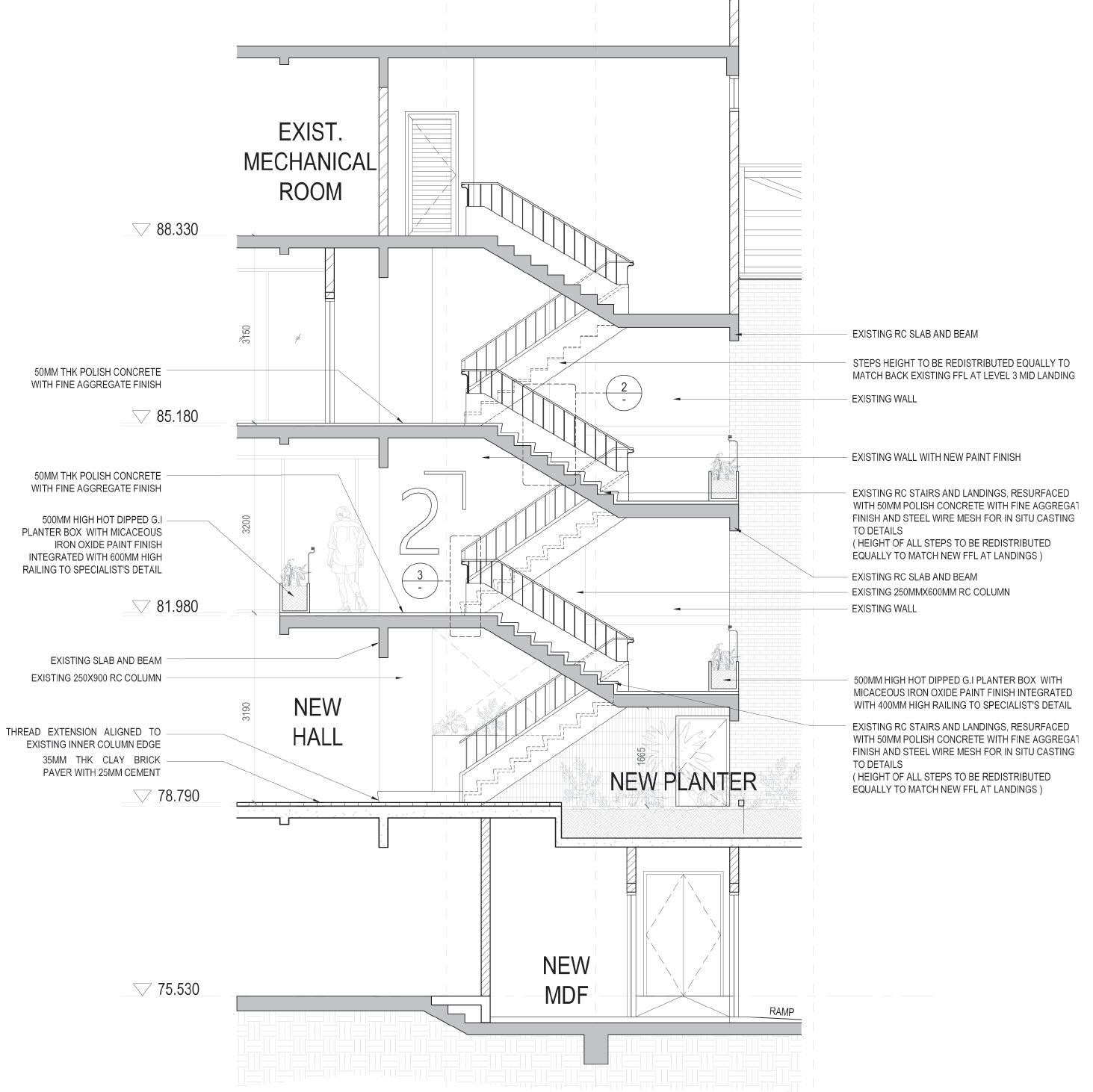

FIRE STAIRS SECTION DESIGN

900X5695MM PLANTER BOX INFRONT OF MAIN LOBBY

200X100MM KIANLIM PREMIER SERIES PAVER LAID ON EDGE TO MANUFACTURER'S DETAIL

TOW: 79.880

50MM CLEAN SAND BINDING NYLEX CORDRAIN 25MM THK LAID TO MANUFACTURER'S DETAIL SCREED TO FALL

RC SLAB AND WATERPROOFING TO ENGR'S DETAIL

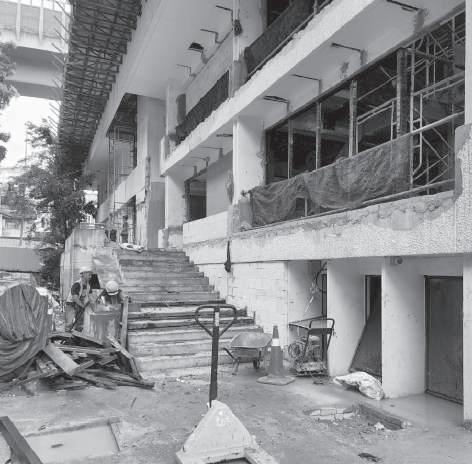

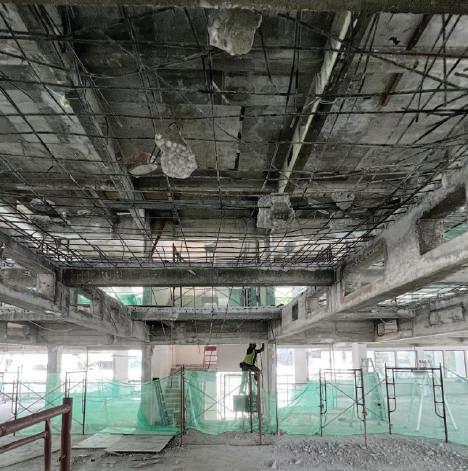

Demolition Phase

100MM THK RC WALL

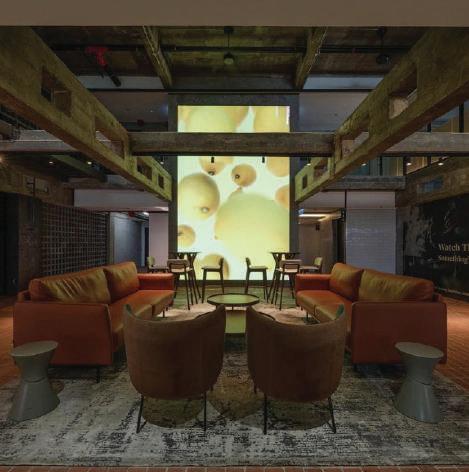

New Lobby

Existing Beam

CEMENT BOX UP

5 -

TYPICAL SUSPENDED RC PLANTER BOX DETAILS 1:20

-

A

Post Part 1 Practice

ZED IRON EN UC BY SECTION

G POT BY RACTOR

NG TRAY

UNIVERSAL COLUMN

G.I PLANTER BASE TO FALL

FLANGE

CACEOUS S DETAIL

G.I PLANTER BASE TO FALL

2 NOS OF 150X75 UNIVERSAL 'I' COLUMN WELDED TOGETHER WITH MICACEOUS IRON OXIDE PAINT FINISH TO ENGR'S DETAIL

BRACKET

E FINISH S DETAIL

G.I PLANTER BASE TO FALL

MATT BLACK T-SECTION WITH MIO PAINT FINISH TO ENGR'S DETAIL NEW KERB WITH TILE FINISH TO ENGR'S DETAIL

EL PLATE 4 NOS OF 100X12 DML100G ALUMINIUM STRIP CLAD FRONT AND BACK OF EACH UC

R DRAIN

SUPPORT

20MM Ø BENDED GALVANIZED STEEL PIPE CONNECTED TO G.I PLANTER WITH WALL FLANGE WITH MATT BLACK FINISH GALVANIZED STEEL BRACKET GALVANIZED STEEL PLATE GALVANIZED STEEL STAND SUPPORT

PLANTERBOX SECTION A 3

E BALCONY G.I PLANTER SIDE SECTION DETAIL

-

SECTION A

IN DESIGN EVERY ELEMENT MATTERS

1:20

230X114MM KIA LIM HERITAGE RED SERIES PAVER LAID ON EDGE TO MANUFACTURER'S DETAIL

TOW: 79.880

NEW WINDOW (NW 09)

PLANTING POT, PLANTS AND TREES TO BE SUPPLIED BY LANDSCAPE CONTRACTOR

150MM THK BRICKWALL

RC COLUMN TO SFL: ENGR'S DETAIL

NEW GENSET

-

TOW: 77.050

WHEELCHAIR PLATFORM LIFT TO SUPPLIER'S DETAIL

MATT BLACK T-SECTION DROP OFF AREA WITH MICACEOUS IRON OXIDE PAINT FINISH TO ENGR'S DETAIL 20MM Ø BENDED GALVANIZED STEEL PIPE CONNECTED TO G.I PLANTER WITH WALL FLANGE WITH MATT BLACK FINISH

SFL: 76.363

RC COLUMN TO ENGR'S DETAIL

SFL: 75.970

NEW KERB WITH TILE FINISH TO ENGR'S DETAIL

LIGHTWEIGHT FIBREGLASS PLANTER POT

GALVANIZED STEEL PLATE

MATT BLACK GALVANIZED IRON PLANTER ( POWDER COATED/ SPRAY PAINTED STEEL )

-

GALVANIZED STEEL STAND SUPPORT

TYPICAL GALVANIZED IRONSIDE PLANTER SIDE SECTION DETAIL BALCONY 1:10

2 -

SECTION DESIGN

TYPICAL SIDE BALCONY G.I PLANTER SIDE SECTION DETAIL PLANTERBOX 1:10

PLANTER SOIL MIX TO LA'S SPECS

SIDE ENTRANCE

END OF STAIRS MID LANDING

SCREED TO FALL

SIDE PATH

m ø DROPPER DRAINPIPE TO NEAREST DRAINAGE OUTLET

TOW: 79.880 500(W)X1600(L)MM RECESSED PLANTER

TOW: 78.780

FFL: 76.420

SCREED TO FALL

SFL: 78.190

SCREED TO FALL

SCREED TO FALL

RECESSED RC PLANTER

NEW SFL: 76.260 GENSET

MIN 600X600MM SQUARE GEO

Side Entrance FABRIC OVER CAPPING TO

PREVENT SOIL DROPPAGE

SFL: 75.970

100MM ø DROPPER DRAINPIPE TO NEAREST DRAINAGE OUTLET

6 -

TYPICAL RECESSED PLANTER DETAILS 1:20

FFL: 76.420

150MM THK BRICKWALL

Side Corridor

RC PLANTER SUNKEN FROM FLOOR LEVEL

WHEELCHAIR PLATFORM LIFT TO SUPPLIER'S DETAIL

50MM CLEAN SAND BINDING NYLEX CORDRAIN 25MM THK LAID TO SFL: 78.730 MANUFACTURER'S DETAIL

FFL: 78.190

SFL: 76.260

230X114MM KIA LIM HERITAGE RED SERIES PAVER LAID ON EDGE TO MANUFACTURER'S DETAIL

400MM DEEP BOX UP SEATING WITH KIA LIM HERITAGE RED SERIES PAVERS

FFL: 78.780

SCREED TO FALL

SIDE SECTION 5 -

NOTE: ALL BRICK CLAD RC PLANTER AND RECESSED RC PLANTER TO BE BUILT BY THE MAIN BUILDER

TOW: 77.207

4 NOS OF 100X12 DML100 ALUMINIUM STRIP CLAD F AND BACK OF EACH UC

STONE AGGREGATE FILL IN SCUPPER DRAIN

OVERFLOW DRAINAGE HOLE LOOSE DRAIN PAN

1

2 NOS OF 150X75 UNIVER COLUMN WELDED TOGET WITH MICACEOUS IRON O PAINT FINISH TO ENGR'S

GALVANIZED STEEL PIPE CLAMP BRACKET

PLANTING TRAY

SEALANT ALL AROUND PIPE

G.I PLANTER BASE TO FALL

MATT BLACK WALL FLANGE

FFL: 76.420

FFL: 75.080

Construction Phase

EXISTING WINDOW

PLANTING TRAY

POWERLESS SELF FEEDING PUMP ( OSMOSIS )

IN 600X600MM SQUARE GEO FABRIC OVER CAPPING TO PREVENT SOIL DROPPAGE

WHEELCHAIR LIFT RAILING

LIGHT WEIGHT FIRRE GLASS PLANTING POT BY LANDSCAPE CONTRACTOR

TOW: 77.207

77.490

NEW COLUMN

450(W) X 600(H) MATT BLACK GALVANIZED IRON PLANTER BOX SUPPORTED IN BETWEEN UC BY T-SECTION

MAIN STAIRS

TOW: 77.990 NOTE: ALL WATERTIGHT FIBREGLASS

SFL: 78.730

PLANTER BOX

6 -

NOTE: ALL GALVANIZED PLANTER TO BE BUILT BY MAIN BUILDER

A

EEL PIPE FLANGE K FINISH

FFL: 75.080

SEALANT ALL AROUND PIPE FFL: 75.080

RC COLU ENGR'S

Daryl Goon

THE SLIDE OF CHOW

SEMUA HOUSE KL Inspired by the district's rich tapestry of colors, textures, and patterns—evident in its vibrant fabrics, architectural facades, and the diverse characters who have enlivened its halls—the reimagined Semua House stands as an eloquent testament to its rich heritage through a contemporary brand identity. This refurbishment project seamlessly integrates new spaces with the old, generating fresh content within the historic district. Our vision brings the dynamic streets into the mall, fostering a symbiotic relationship where activities within the mall influence the street life and vice versa.

Post Part 1 Practice

W KIT

Type: Project Year:

Project Involvement:

Before

Front Facade

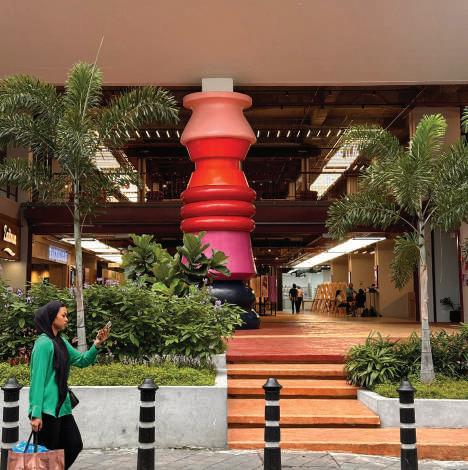

BRINGING IN THE STREETS Key upgrades include relocating the entrance to a prominent corner, adding pocket gardens, and a giant staircase connecting the ground floor to the basement. This redesign creates a semi-outdoor space, bringing the vibrancy of Masjid India Street into the mall and revitalizing Semua House as a cultural and commercial hub.

Shopping Centre ( Placemaking/ Retrofit )

Location:

After

Main Entrance

Atrium

Chow Kit, Kuala Lumpur 2022 - 2024 ( Completed ) RIBA Stage 3 - 5 or Equivalent

Daryl Goon

FORMWORK PREPARATION

CONCRETE FOUNDATION CASTING

TREADS AND SLIDE CONCRETE CASTING

Giant Staircase’s TImber Formwork in preparation for the concrete structure casting

Concrete casting of the Giant Staircase’s foundation, letting it set for a few days, before preparing treads’ formwork.

Concrete casting of the treads and concrete slide, and laying of timber studs for merbau wood finish to rest on.

GIANT STAIRCASE PLAN

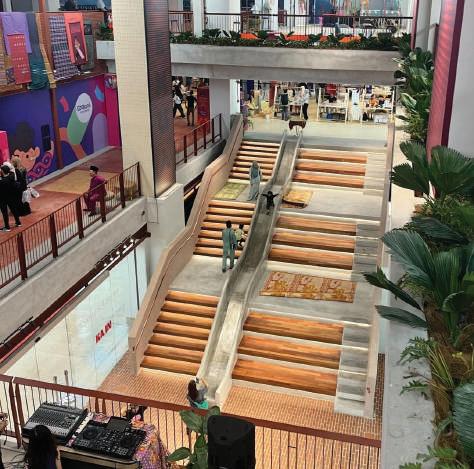

THE GIANT STAIRCASE: PLACEMAKING The giant staircase acts as a multipurpose space where talks, lectures and events can be held or even just as a public resting space.

New Build

Existing

GIANT STAIRCASE SECTION

URBAN AGENDA DESIGN GROUP SDN. BHD. Block A - Level 1,

900X5695MM PLANTER BOX INFRONT OF MAIN LOBBY

Post Part 1 Practice

200X100MM KIANLIM PREMIER SERIES PAVER LAID ON EDGE TO MANUFACTURER'S DETAIL

TOW: 79.880

25

PLANTER SOIL MIX TO LA'S SPECS 50MM CLEAN SAND BINDING NYLEX CORDRAIN 25MM THK LAID TO MANUFACTURER'S DETAIL

SCREED TO FALL

RC SLAB AND WATERPROOFING TO ENGR'S DETAIL 100MM THK RC WALL CEMENT BOX UP

SCREED TO

MIN 600X600MM SQUARE GEO FABRIC OVER CAPPING TO PREVENT SOIL DROPPAGE 100mm ø DROPPER DRAINPIPE TO NEAREST DRAINAGE OUTLET

5

TYPICAL SUSPENDED RC PLANTER BOX DETAILS

SEALANT ALL AROUND PIPE

1:20 GIANT STAIRS

-

SHADOW GAP DETAIL

300 50

100 300

GIANT STAIRS TREAD DETAIL 150

50

50

50

25

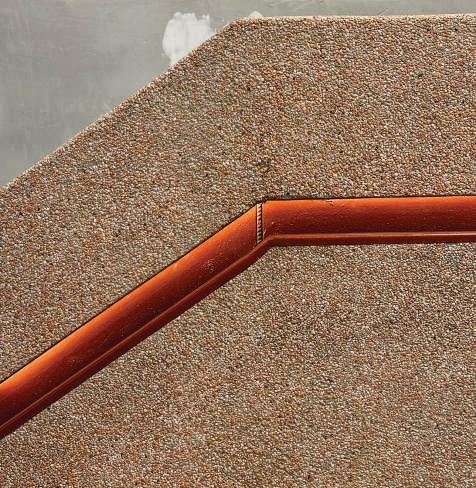

GIANT STAIRS RECESSED HANDRAIL DETAIL

6

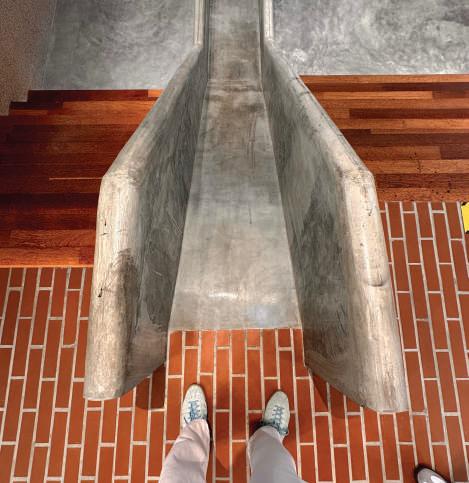

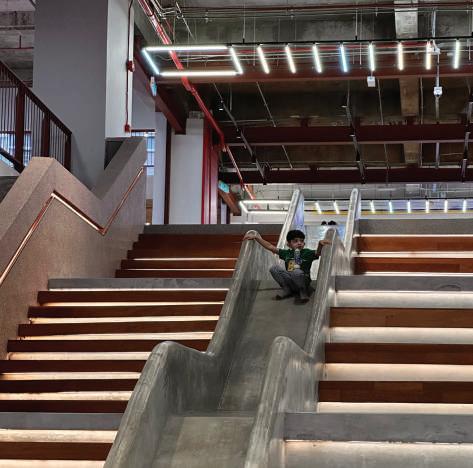

THE SEMUA STAIRS, A STAIRS FOR ALL

T

1:

Daryl Goon

THE BEANS OF FEEK

FEEKA COFFEE ROASTER

Drawing inspiration from the Scandinavian concept of 'Fika'—a gathering to take a break and connect—Feeka has seamlessly embodied its name, providing a serene oasis amidst the bustling Damansara Heights. The coffee counters, designed in a bean-like shape, take direct inspiration from the form of a coffee bean, with their smooth, rounded corners and gently curved edges.

Post Part 1 Practice

KA

Type:

PIZZA MANSION Location: 2 Project Year:

1

Coffee Roastery ( Interior Design )

Project Involvement:

RIBA Stage 0 - 3 or Equivalent

Freezer

FOOD PROCESSOR

GREASE TRAP

SOUS VIDE

Vacuum Packer

CW/S

FA

EXH

C

Bukit Damansara, Kuala Lumpur 2023 ( Completed 3)

SS 4 Tier Rack

FT

SD

KITCHEN

GREASE TRAP

2 1 GN Upright Freezer

SS 4 Tier Rack

GREASE TRAP

FT

2 1 GN Upright Chiller

POTWASH SINK TABLE

SD

SD 01

4-OPEN BURNER

BOOTH SEATING

Chiller

2 1 GN Upright Freezer

SS 4 Tier Rack

Freezer Chiller

1

GREASE TRAP

SD

Chiller

Chiller

VINYL MIXER

590 2339

3160

500

DP

GREASE TRAP

3 BEER TAP

695

1350

D 1345

Chiller

PICK UP 400

GREASE TRAP

Chiller

D1

HR

1900

1800

KITCHEN

NEW FCC

3 TIERS TROLLEY

1800

GN 1/3

SS 4 Tier Rack

2/1 GN TROLLEY

GN 1/6

SS 4 Tier Rack

SD

N DIS

PIZZA MANSION

GN 1/9

Chiller

E

DP

FRONO BRAVO OVEN

EXISTING WINDOWS

100

GRAB PICK-UP

1

2

3

SHORT PANTS & SLIPPERS FRIENDLY The owner envisions a relaxed coffee experience where casual attire like slippers and shorts is welcomed. Feeka’s shopfront incorporates the same glassblocks as The Five Block E, reinforcing its role as an anchor tenant and integral to the building’s identity.

T

D 05 ENTRANCE

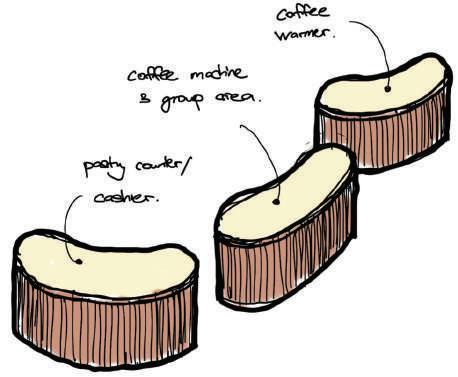

bean-like counters

46100 Petaling Jaya, Selangor REFERENCE DRAWINGS: DRAWING NO.

Daryl Goon CONSULTANTS :

WINE AREA

FEEKA

4

6

7

8

C

1655

REVISION HISTORY :

3300

900

3300

5580

WINE BAR OFFICE

GLASS BLOCKS

2055

650

1200

FEEKA OUTDOOR

900

1890

12050

1175

D 03

D 01

ENTRANCE

1765

500

1060

D 04

EXISTING WINDOWS

HR

D

C0

ISSUED FOR CONSTRUCTION

14.07.22

REV.

DESCRIPTION

DATE

ISSUE TYPE:

CONSTRUCTION UNVEILING LAYERS PROJECT TITLE :

THE FIVE - BLOCK E - LOT GF - 01

D 02

DP

NEW MDF

SD

SD

Upright Chiller Upright Freezer

FT

E

7

BLURRING BOUNDARIES

FEEKA | PIZZA MANSION

DP

CW/S

EXH

6

FT

FA

Upright Chiller

4-TIERS SHELVING

We uncovered a whole layer of existing mosaic tiles hidden away beneath a thin layer of vinyl PROJECT NUMBER : flooring, we immediately knew that this heritage tiles will be a coreUAD21012 element in our new design.

CLIENT :

PROVISIONAL AREA FOR REC,STORAGE AND OFFICE Upright Freezer

5

D1

KITCHEN

NEW MSB

EXIST. LIFT PIT

GLASS BLOCKS

GREASE TRAP

ICE MACHINE

Upright Chiller

4

5

Chiller

00

DRAWING TITLE

8

DRAWING TITLE :

The outdoor seating area’s brick flooring GF-01 OVERALL LAYOUT seamlesslyLOTblends with the public corridor, guiding customers through a side entrance past the pastry display and cashier.

DRAWING NUMBER :

UAD21012-ID-CD-100 SCALE

: 1:125@A3

DRAWN BY

: MS

CHECKED BY

: IN

REV NO :

DATE

: 14.07.2022

C0

ALL DIMENSIONS ARE IN MILLIMETERS

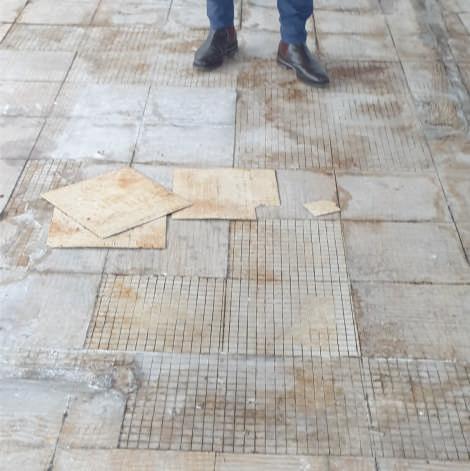

Existing Mosaic Tiles

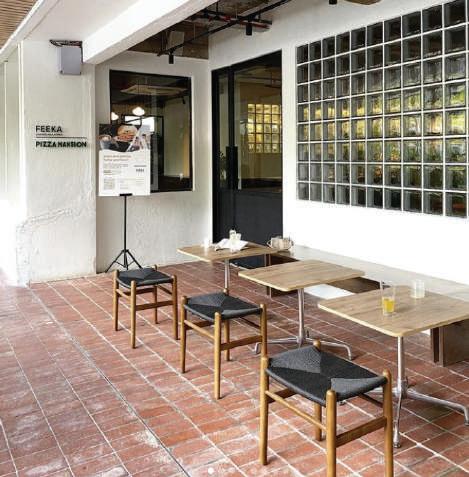

Outdoor Seating Area

Post Part 1 Practice

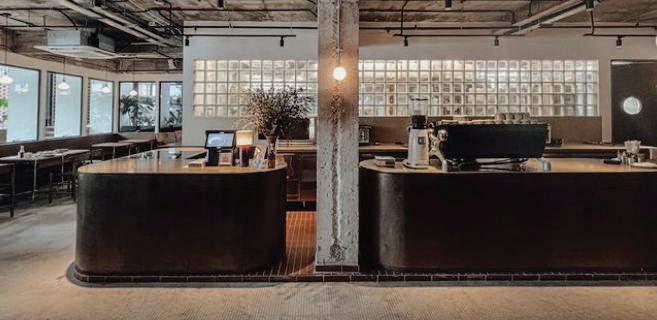

OPTIMISED COUNTER DESIGN

25MM SOLID SURFACE COUNTERTOP W/ 15MM H. SHADOW GAP

The original bean-shaped counters were replaced with chamfered designs, allowing easier integration of straight cabinets and improving staff circulation.

25MM GRAY COLOR STONE QUARTZ SLAB

50MM H. SHADOW GAP

1.2 MM THK. ALUMINIUM PERFORATED METAL SHEET TRAY

5MM THK. CLEAR ACRYLIC TO BE CUT IN SHAPE W/ FITTINGS 25MM FLUTED PANEL CLADDING ON WOOD BASED PANEL

DRAWER SYSTEM DISPLAY

TYPE A: PASTRY DISPLAY/ PAYMENT COUNTER

RECESSED RINSER DRIP TRAY

25MM THK. GRAY COLOR STONE QUARTZ SLAB

25MM FLUTED PANEL CLADDING ON WOOD BASED PANEL 25MM GRAY COLOR STONE QUARTZ SLAB W/ 15MM H. SHADOW GAP

ON SHELF

50MM H. SHADOW GAP

TYPE B: DRIP COUNTER

BUILT-IN ICE BIN

25MM THK. GRAY COLOR STONE QUARTZ SLAB

25MM GRAY COLOR STONE QUARTZ SLAB W/ 15MM H. SHADOW GAP BUILT-IN ICE BIN

HIDDEN DRAWER

HIDDEN CABINET

25MM FLUTED PANEL CLADDING ON WOOD BASED PANEL

50MM H. SHADOW GAP

TYPE C: COFFEE MACHINE COUNTER

Daryl Goon

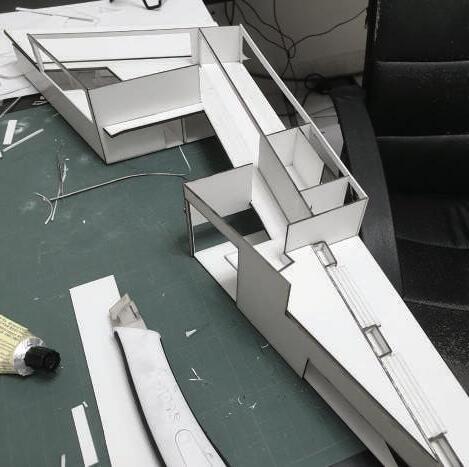

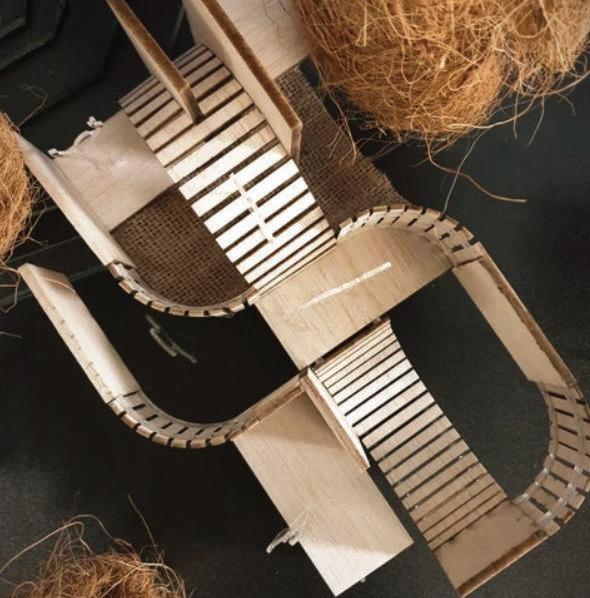

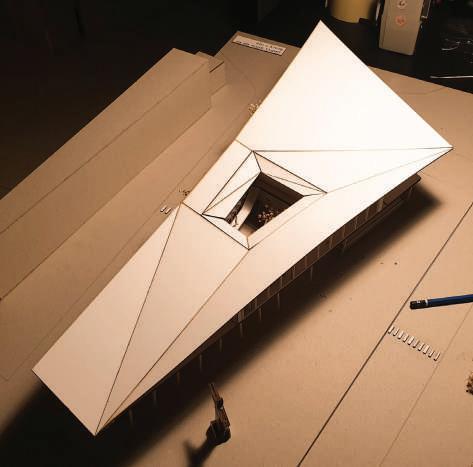

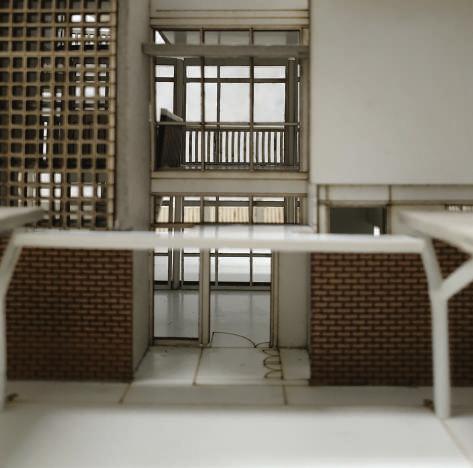

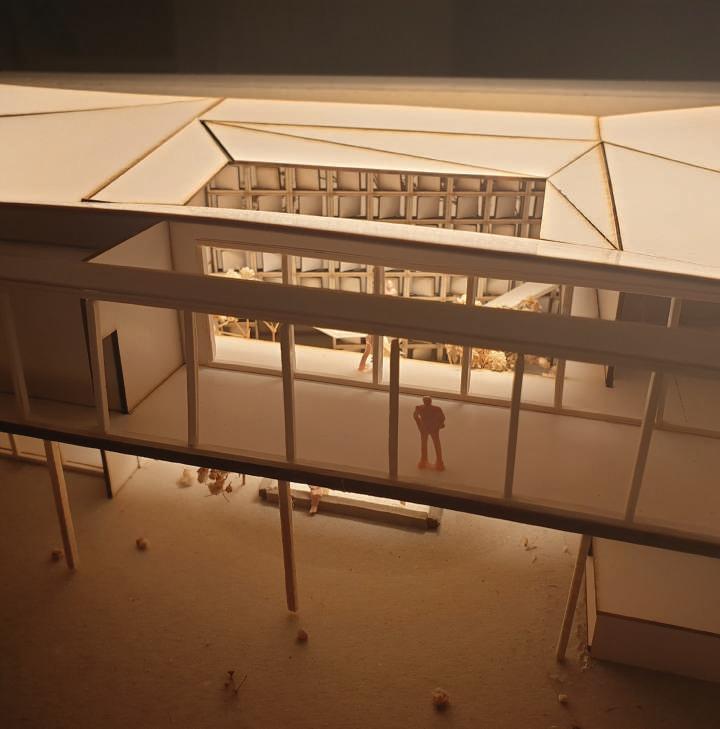

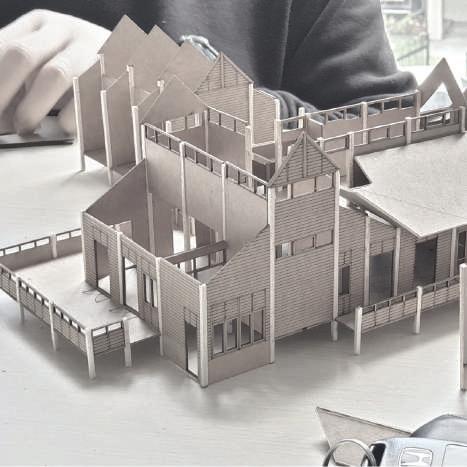

Mock Ups

CRAFTING I believe crafting bridges the gap between abstract ideas and tangible reality, offering a hands-on approach to design exploration. I have worked with a variety of crafting materials such as balsa wood, MDF, grayboards, whiteboards etc and operated woodworking machineries under supervision.

Crafting/ Installations

Mock Ups

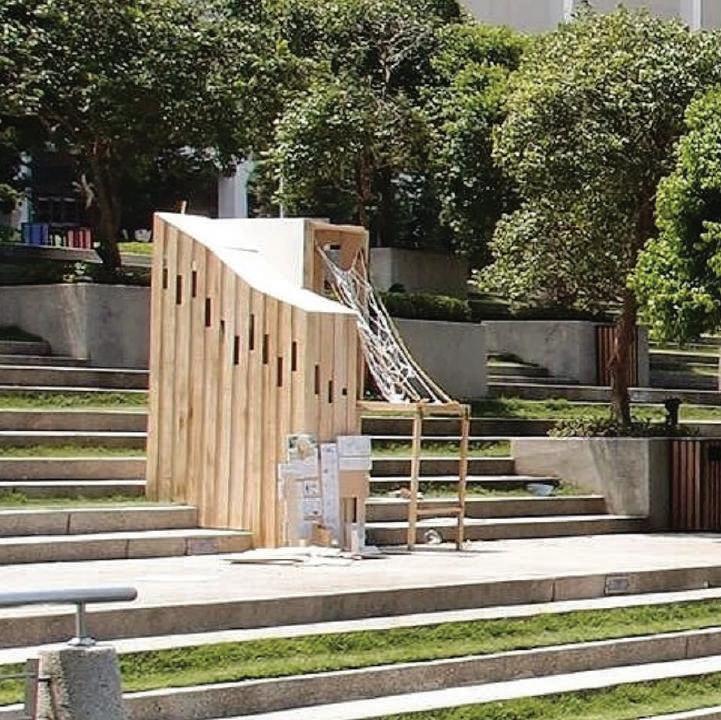

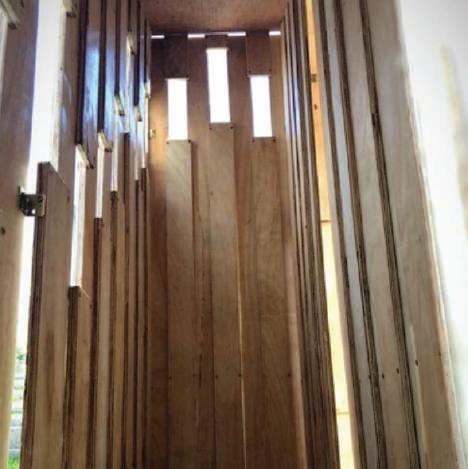

INSTALLATIONS I have been involved in various installations projects for both academic purposes and community outreach. Through these experiences, I’ve gained skills in carpentry and working with heavy machinery under the supervison of workshop technicians.

Daryl Goon

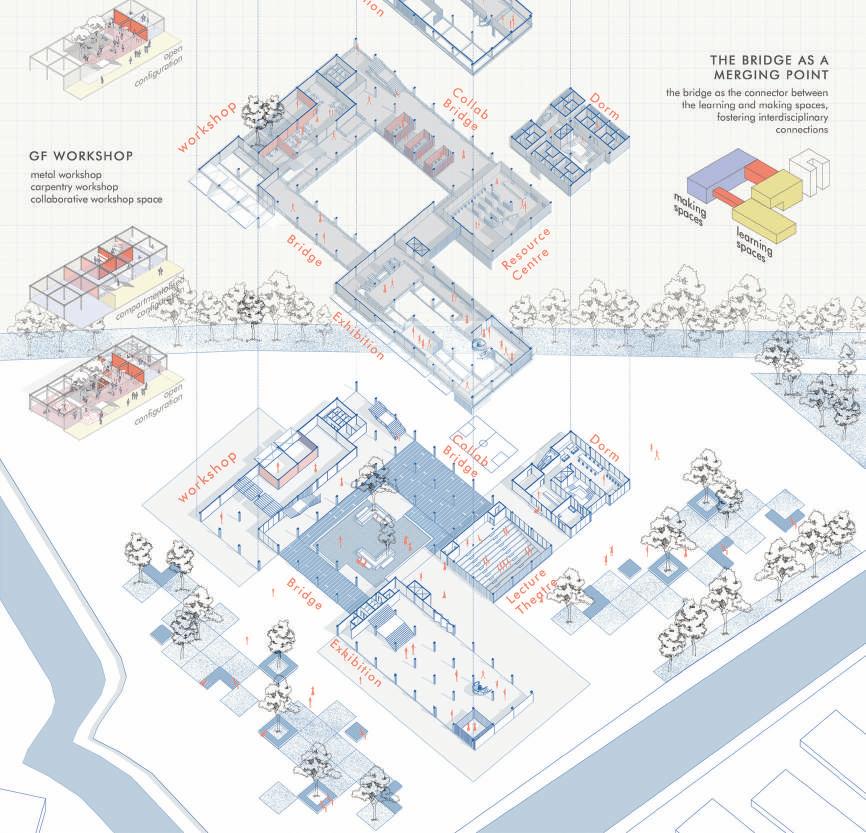

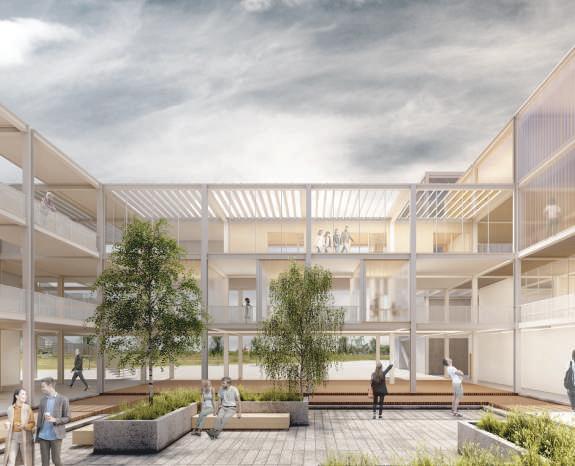

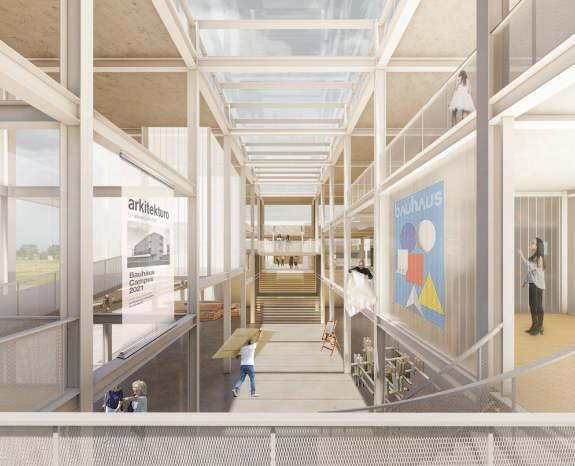

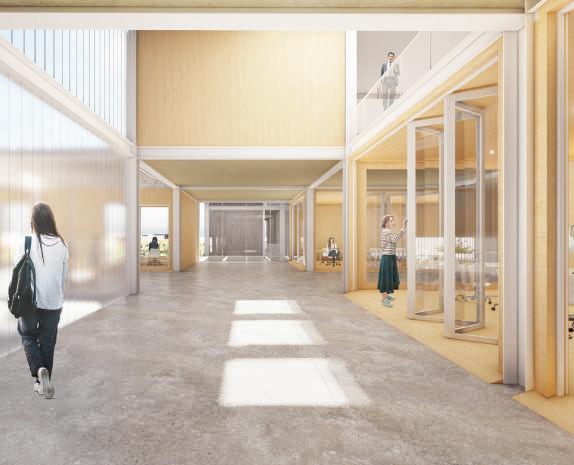

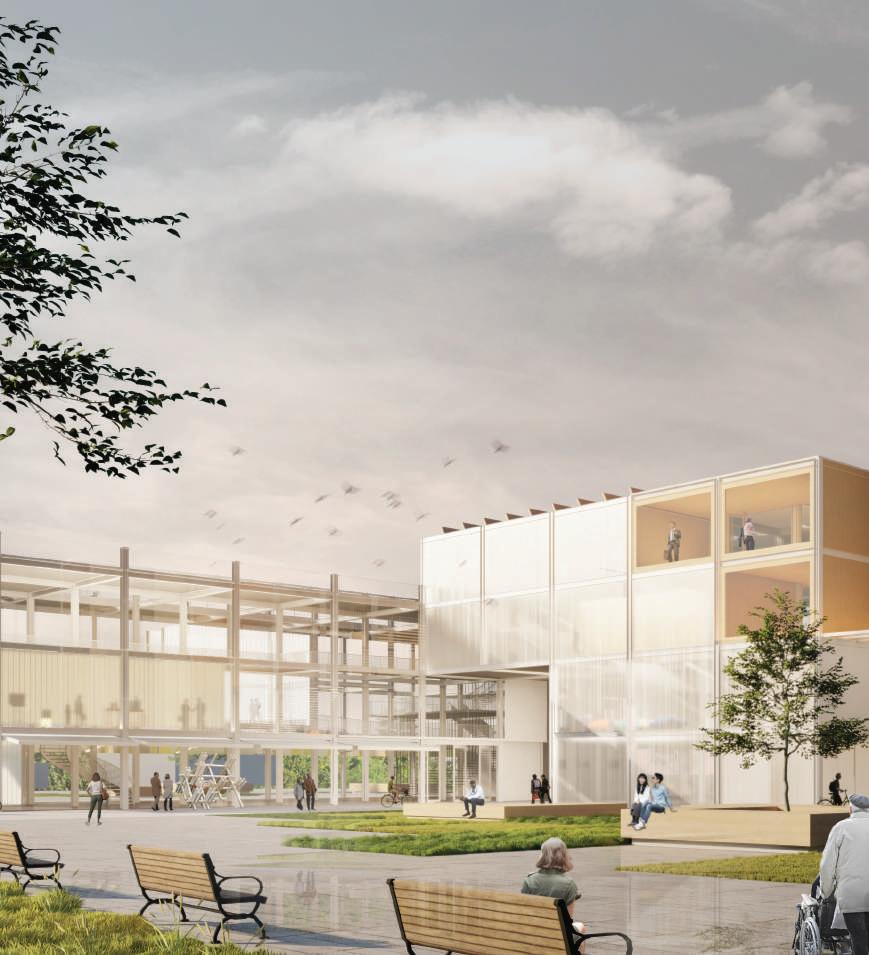

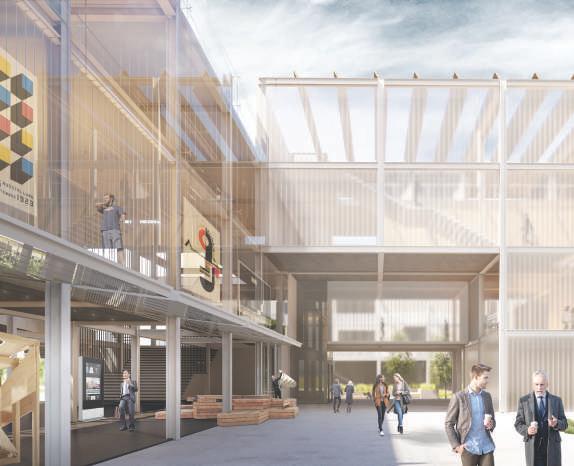

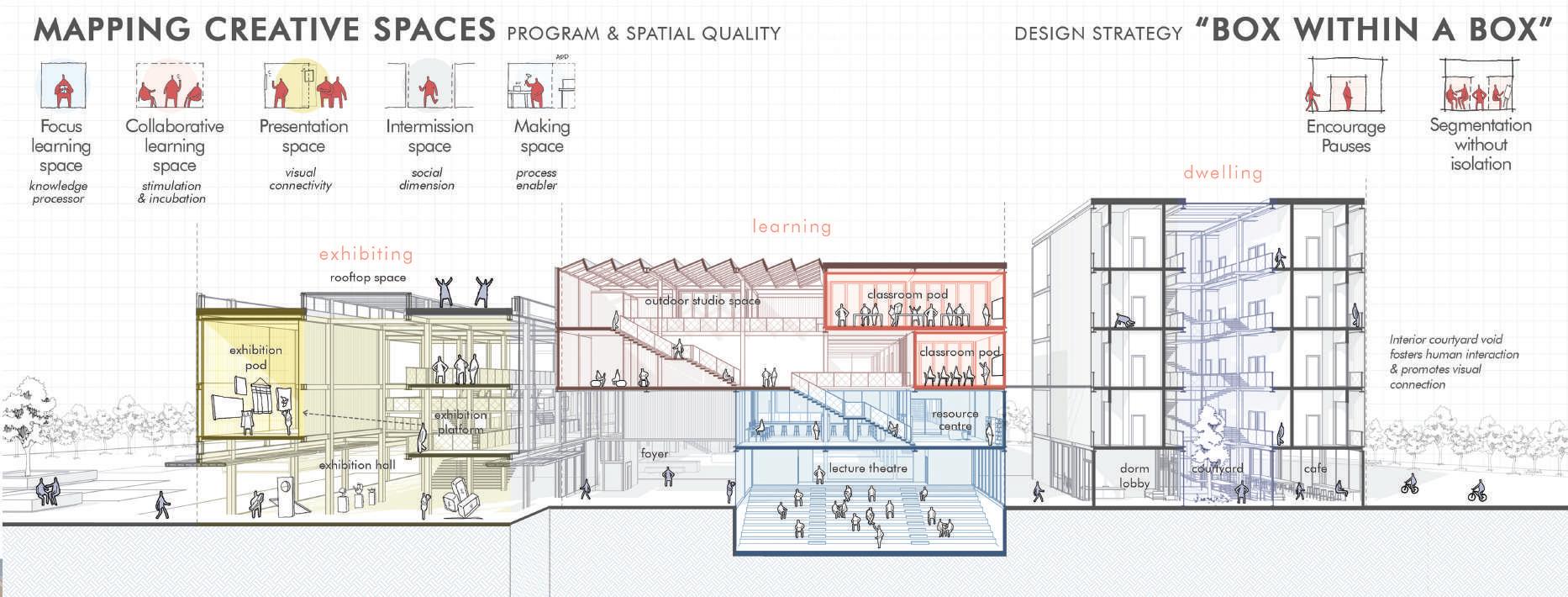

CHANGED W/IN UN The Bauhaus philosophy transcends time, championing interdisciplinary collaboration and architectural progress. *Change within the Unchanged* embodies this ethos by reimagining the architectural syllabus to align with today’s knowledge economy.

Instead of pursuing originality, our proposal builds on the Bauhaus legacy, reinterpreting its campus to explore modern spatial potential within its original footprint. The design promotes democratic space, fostering adaptability, connectivity, and interdisciplinary interaction, creating opportunities for meaningful social and educational encounters.

arkitekturo’s Bauhaus Campus 2021 Finalist Award

Competition

NCHANGED

PAYING HOMAGE The existing Bauhaus campus is a physical and symbolic cataclysm of architectural revolution. The original building configuration embodies spatial opportunity - and through its replication, we are attempting to generate further spatial potential within the footprint.

Type:

Bauhaus Campus Competition

Location:

Bitterfelder, Dessau, Germany

Project Year: Organizer:

2021 arkitekturo

LET’S GET IN TOUCH !

River Medlock

t: +44 7928580805 e: daryl.g@hotmail.com
