PARC HURON
a multi-family amenity spa refresh
BRIEF
Parc Huron is a luxury multifamily residence situated in Chicago’s vibrant River North district. The basement-level spa is being renovated to align with the aesthetic of the newly updated lobby and refreshed brand standards. This portfolio highlights the detailed design process behind the transformation.
Project: Parc Huron
Location: Chicago, IL
Developer: Bozzuto
Designer: Variant Collaborative
Size: 2,750 sf
CONCEPT
light / bright / airy / textural / modern / botanic
SITE ANALYSIS

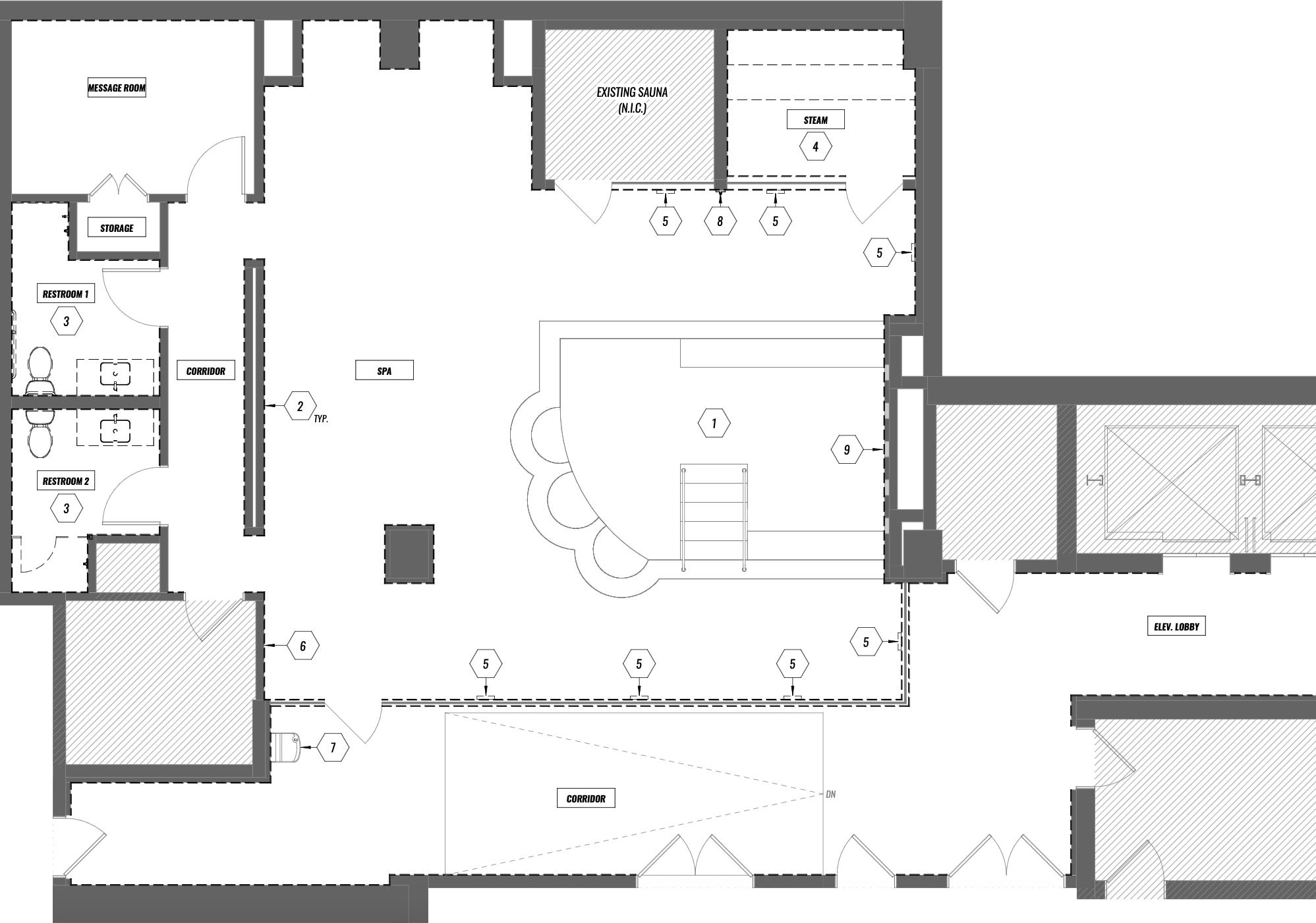

DEMOLITION PLAN
OVERVIEW
The client’s main goal is to refresh the existing pool area so it better aligns with the newly renovated lobby and updated brand standards. Currently, the space feels dark and worn, with visible moisture damage caused by high humidity over time. The new design will focus on introducing updated fnishes, improving lighting levels, and repairing any existing damage.
SCOPE
This renovation focuses on upgrading the key areas along the tour path — specifcally the elevator lobby, spa, steam room, massage, and restrooms. The sauna (recently renovated), storage and mechanical rooms will remain as is.
EXISTING
The existing bones of the space will remain intact for cost effciency. All existing fnishes on walls, foors, and ceiling are to be removed and prepared for new fnishes. Existing plumbing fxtures are to be removed and replaced with new fxtures in the same locations. The existing pool and coping will remain and be thoroughly cleaned.
PROCESS
a combination of mixed media including words, concept images & sketches

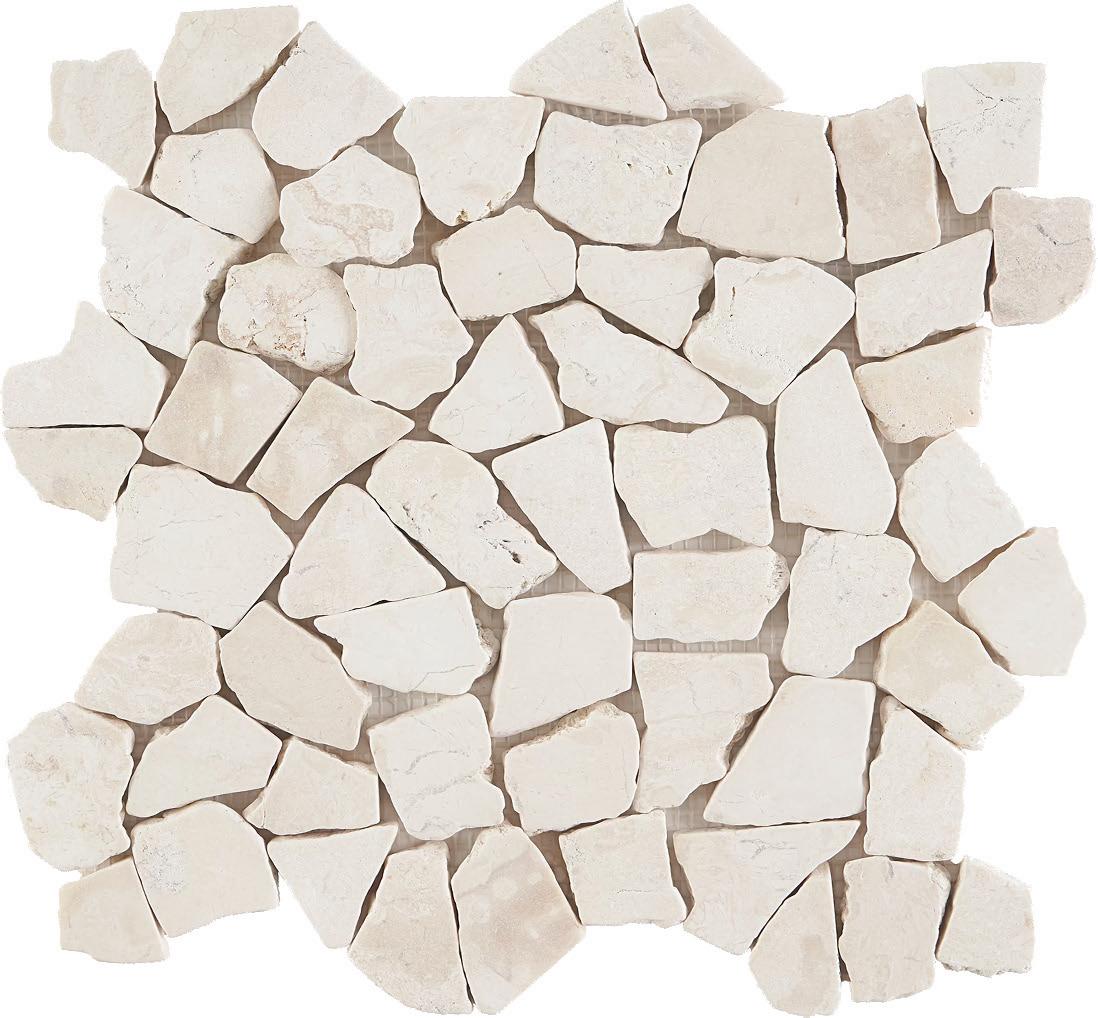

up-lighting to activate corridor with a soft ambient glow
tile to have visual movement to conceal water scaling & provide traction for wet feet
wet-rated plaster designed to withstand humidity & chlorinated water
screening element to pique curiosity and engage users along tour path
FLOOR PLAN
FINISH PALETTE
seamlessly blends earthy neutrals, natural textures, and rich green accents

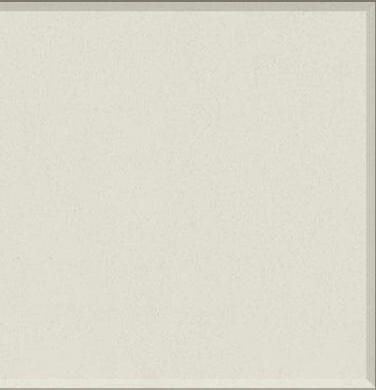

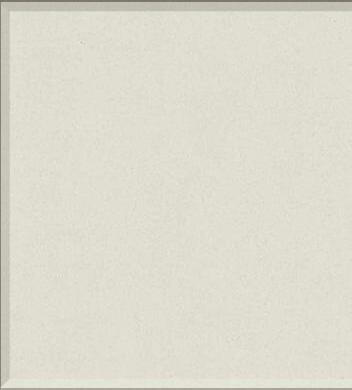

Field Paint Throughout
Accent Paint at Restrooms
Accent Paint at Corridor

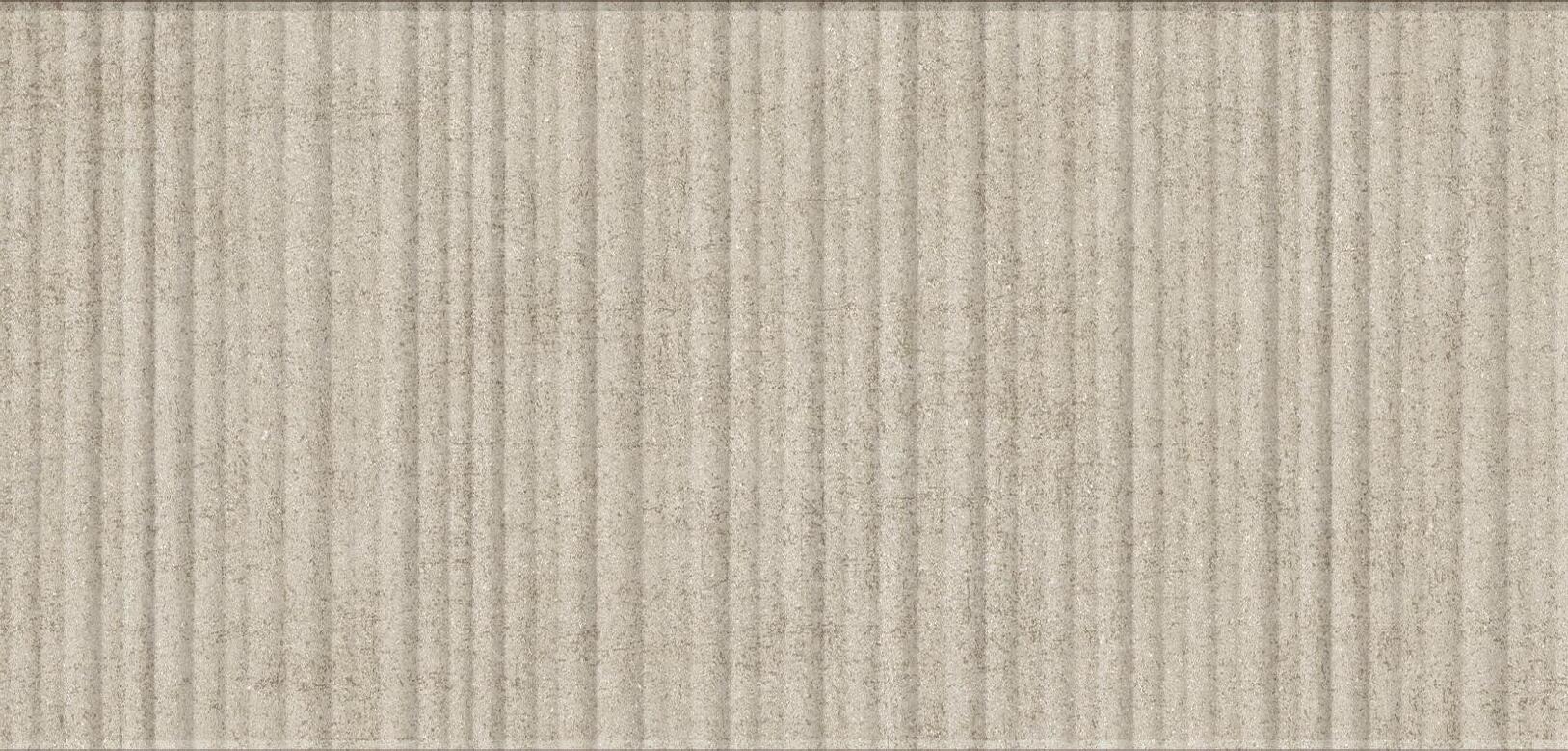

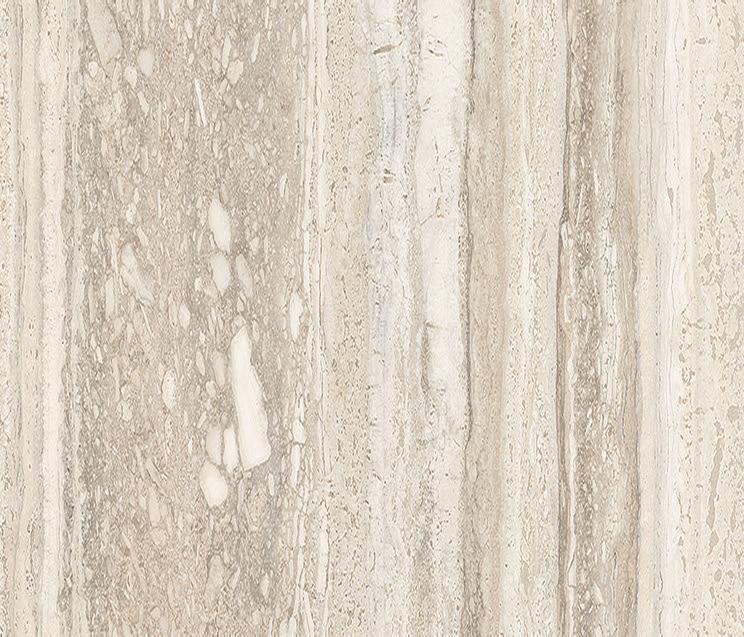

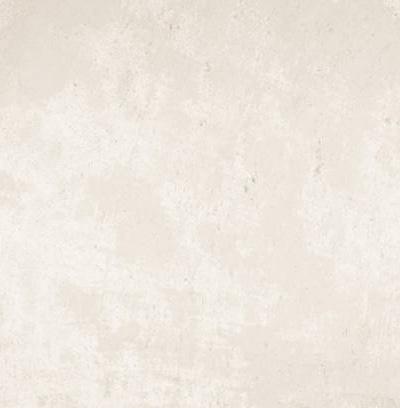

Field Tile Throughout

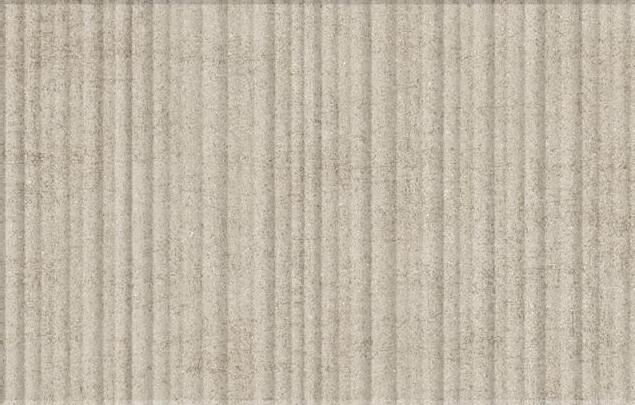

Tile at Restroom Walls
Tile Floor at Restrooms
Solid Surface at Sauna
Accent Tile at Massage

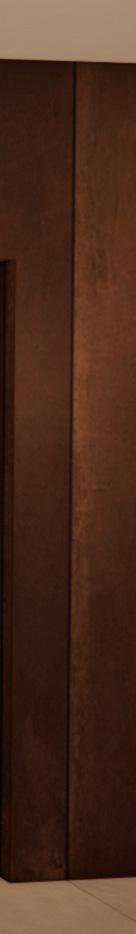

Metal Panel at Elevator Lobby

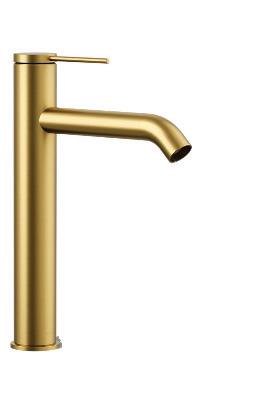

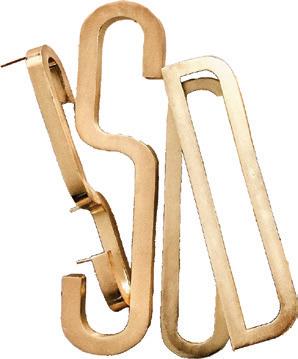

Brass Accents Throughout

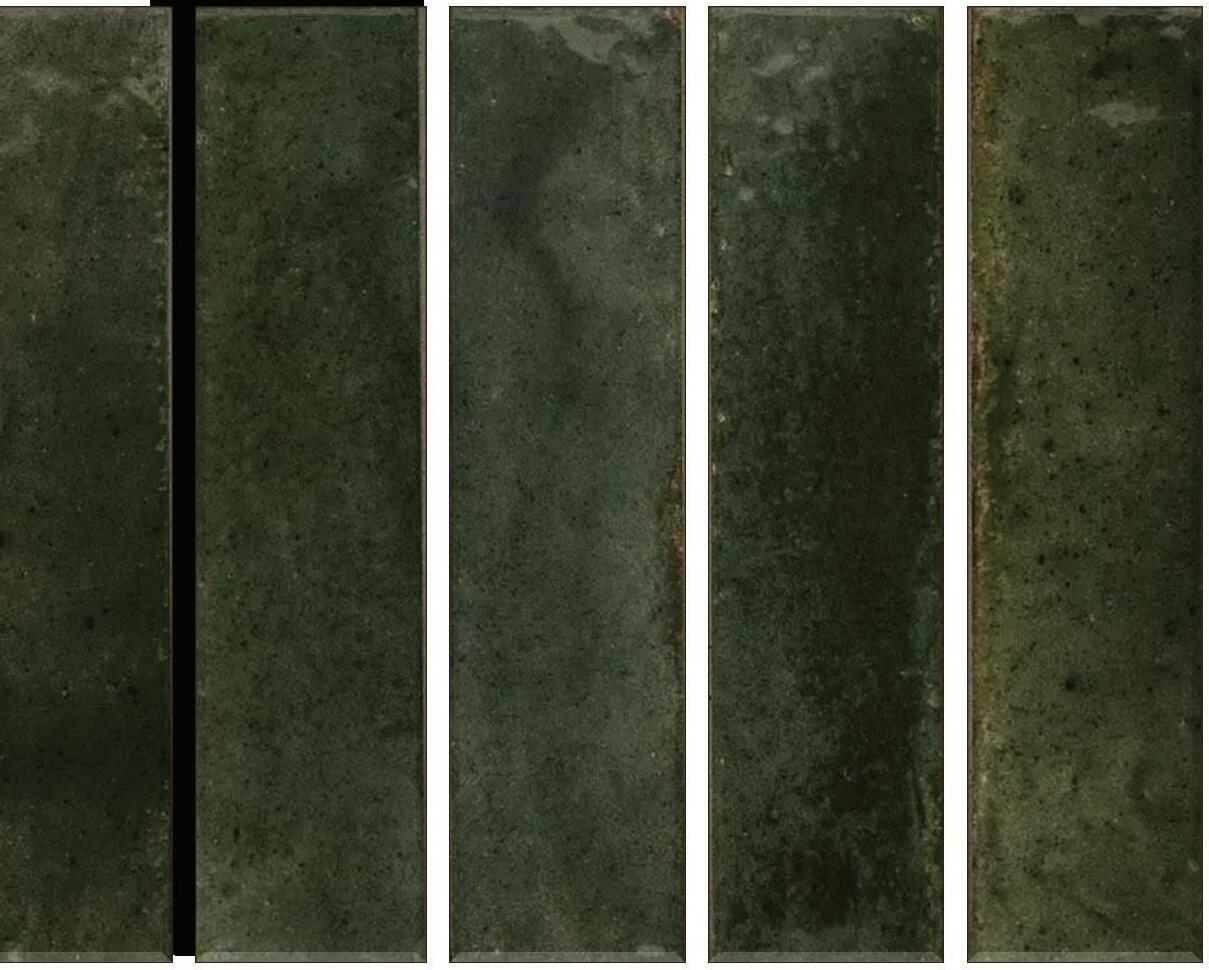

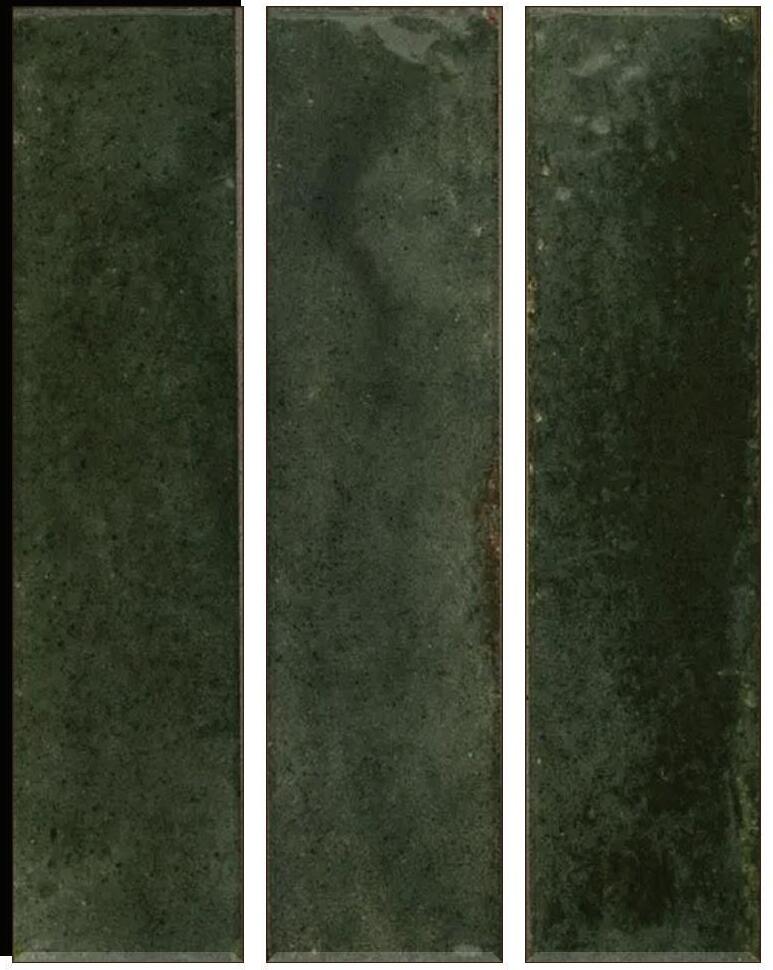

Accent Tile at Spa Feature Wall
Wet-Rated Pillow Textile
Woven Mesh Furniture

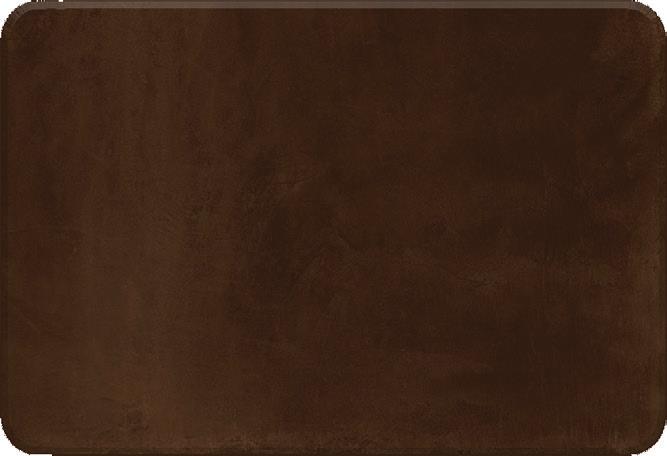

Wood Accents Throughout
Tile at Restroom Feature Wall

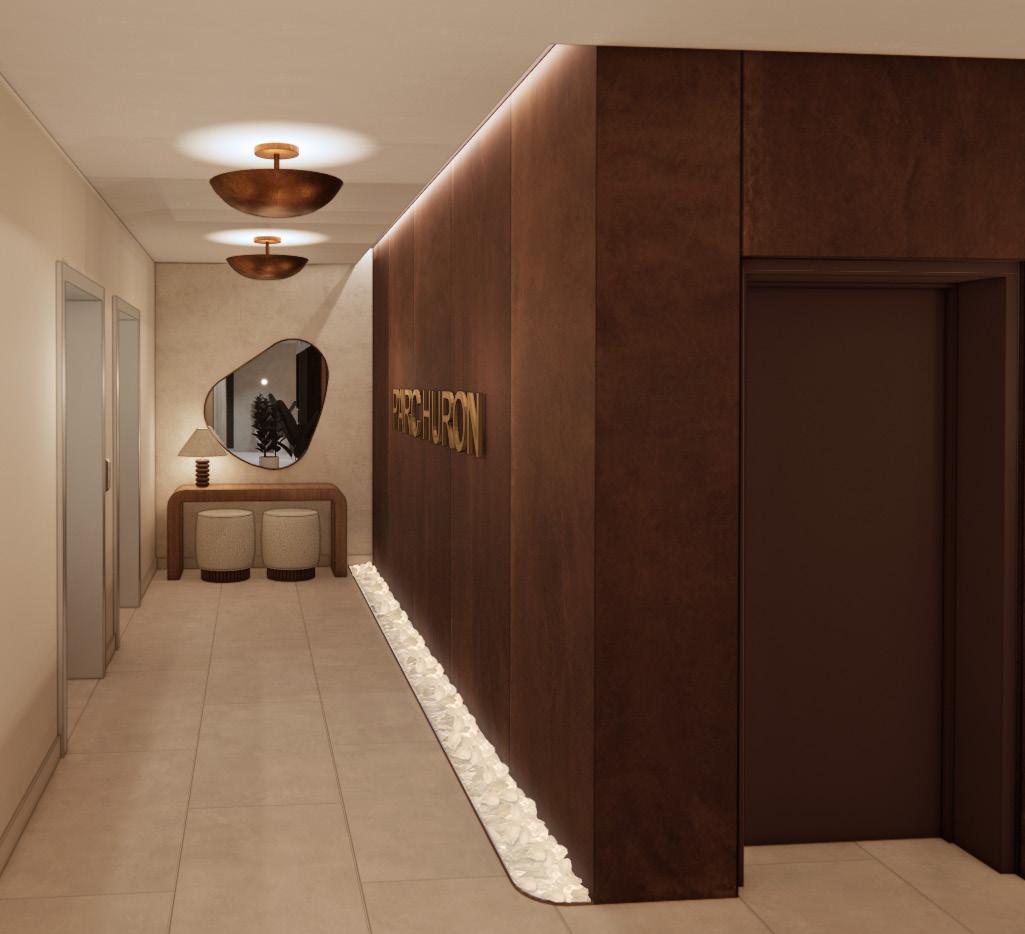

ENTRY
the tour path enters the space from the elevator lobby

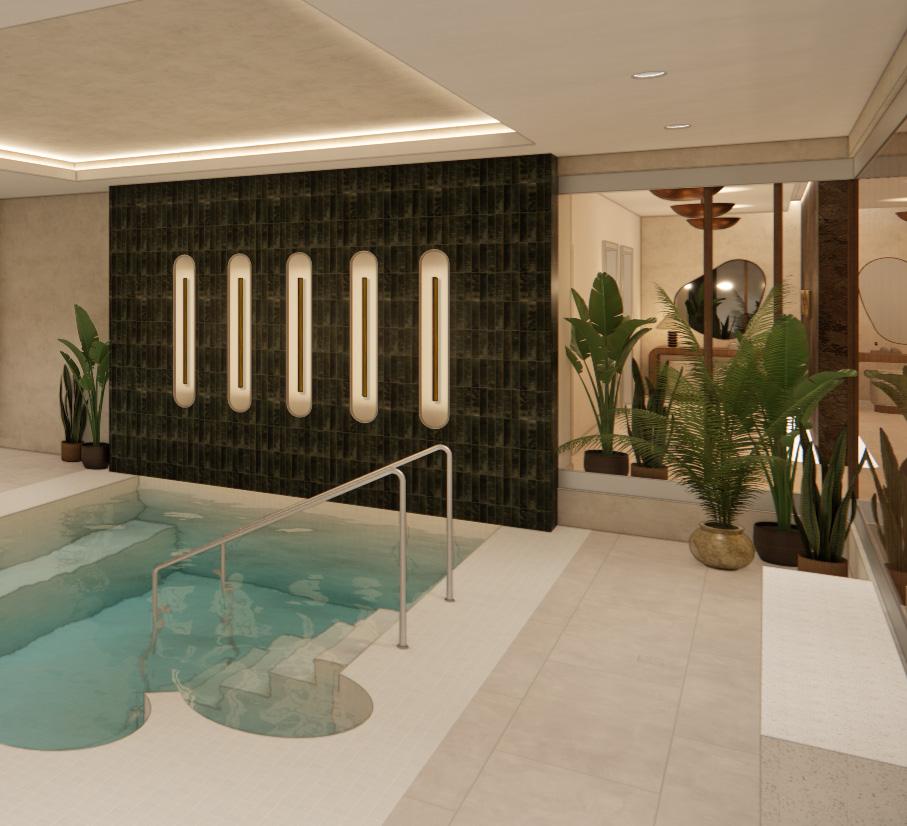

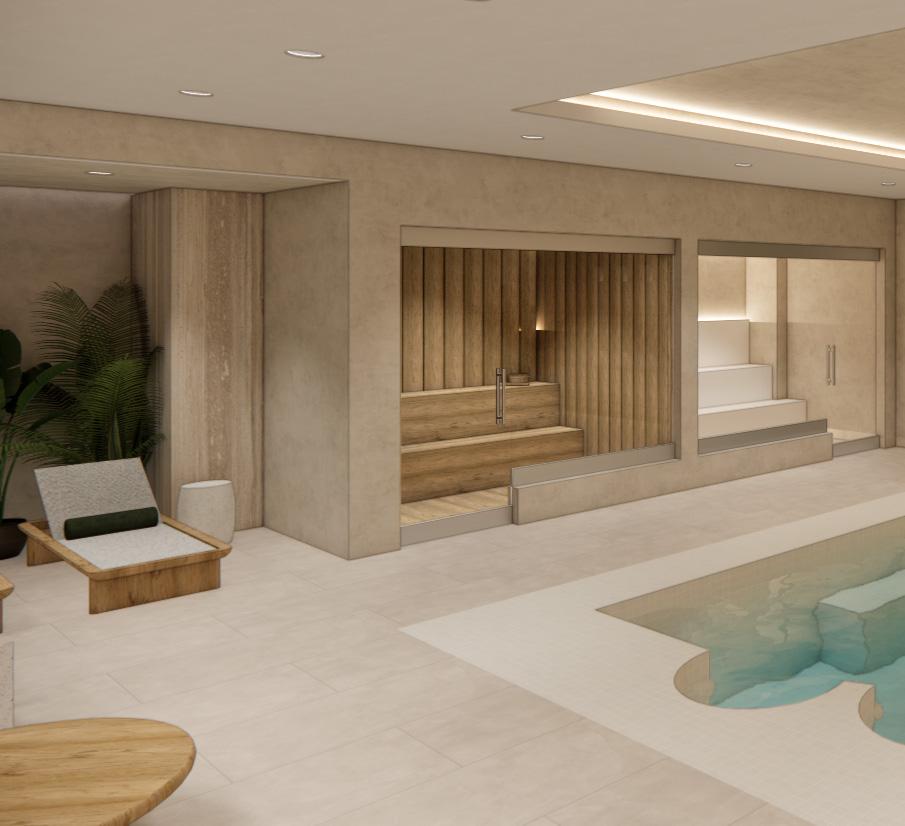

SPA
the feature wall grounds the space with an handmade zellige tile

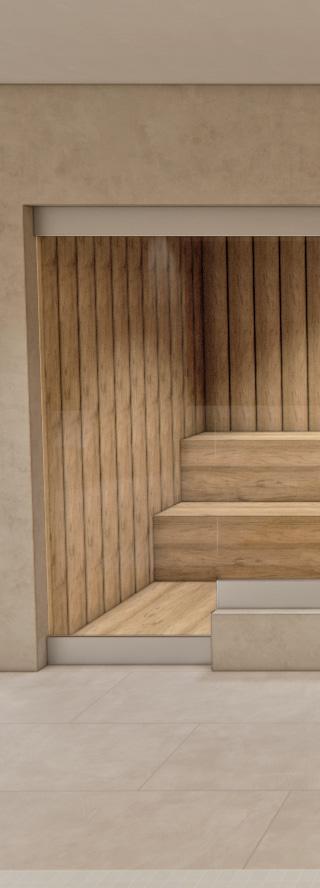

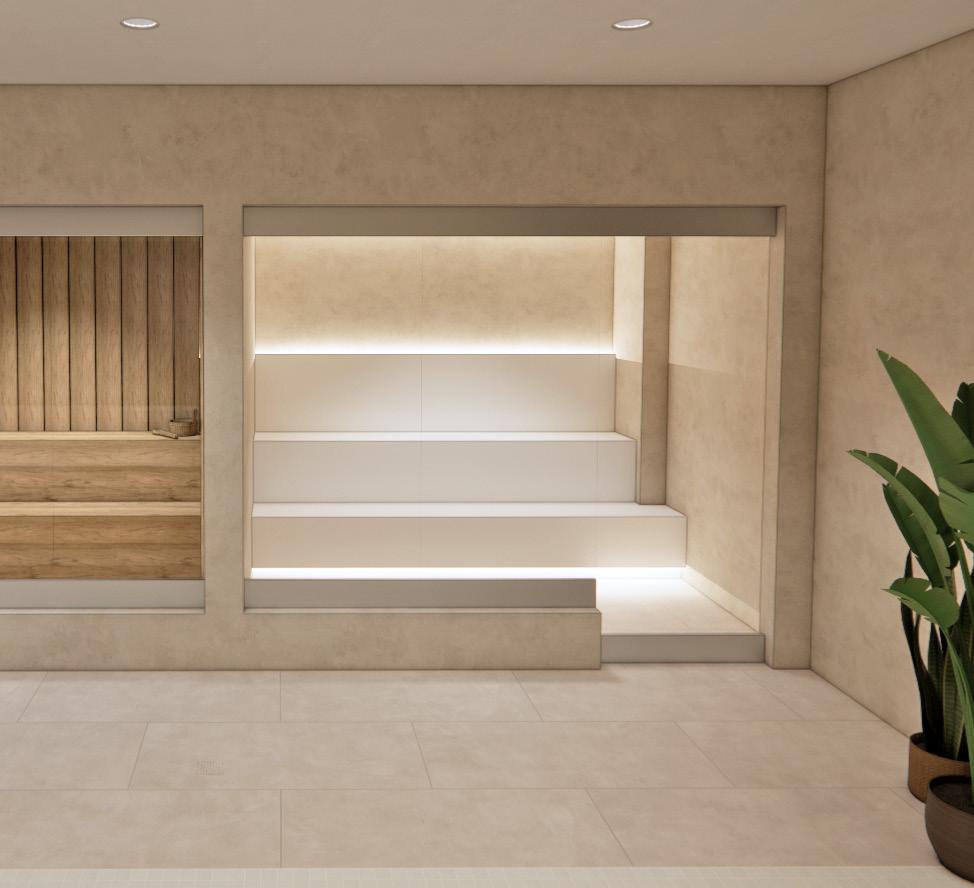

SUANA & STEAM

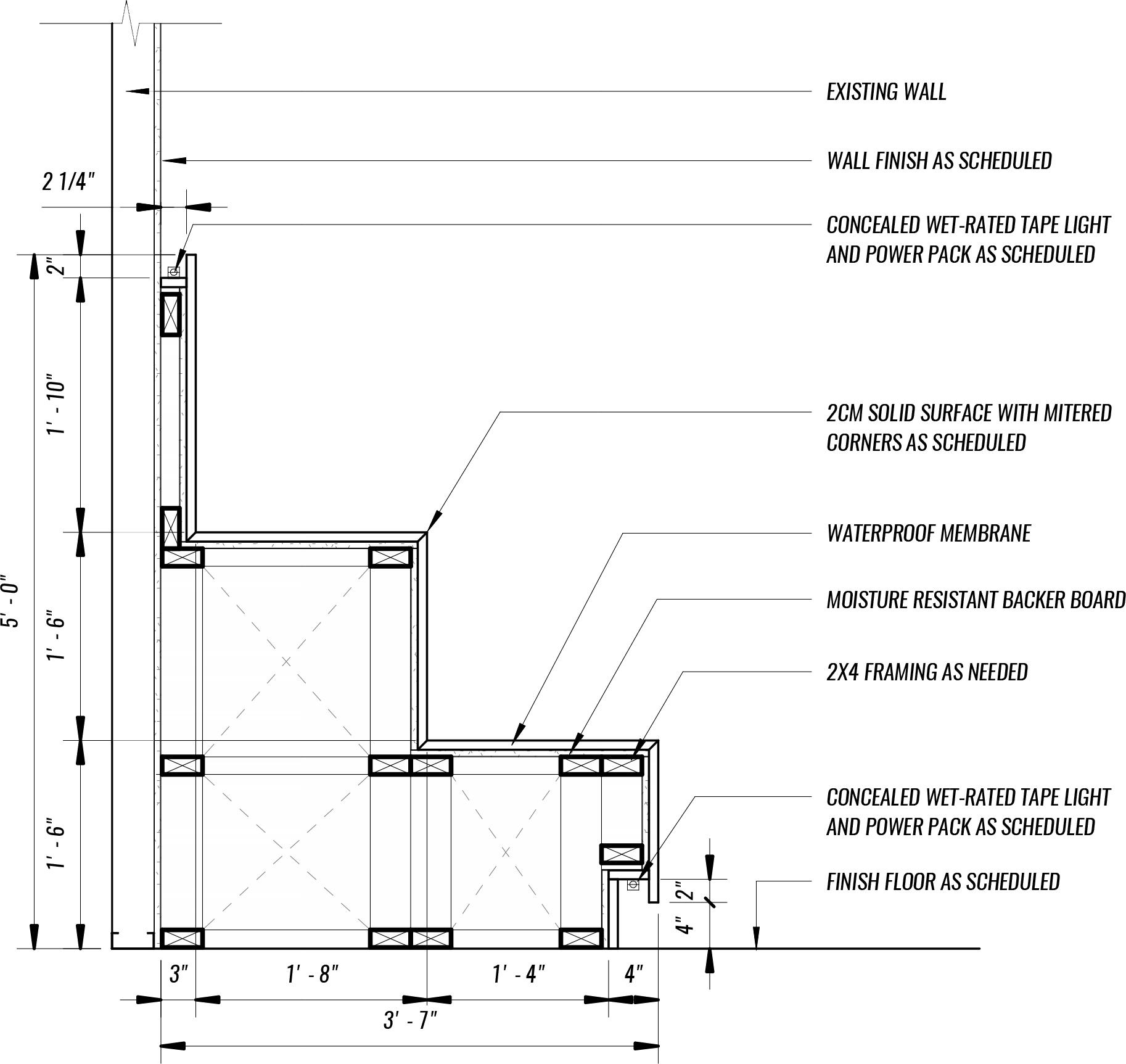

custom millwork bench with integrated lighting

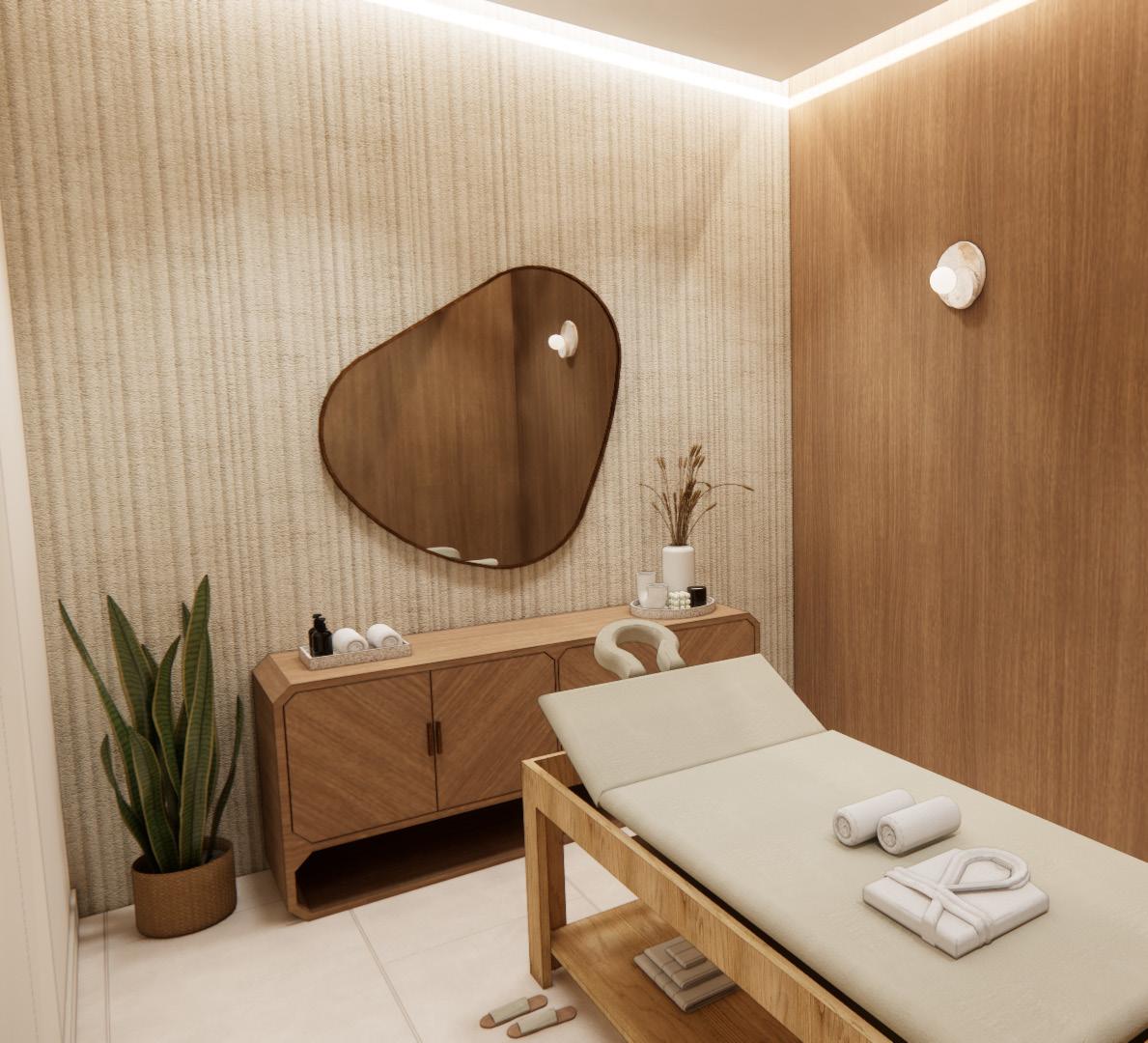

MASSAGE ROOM
tranquil massage room with ambient lighting & rich textures

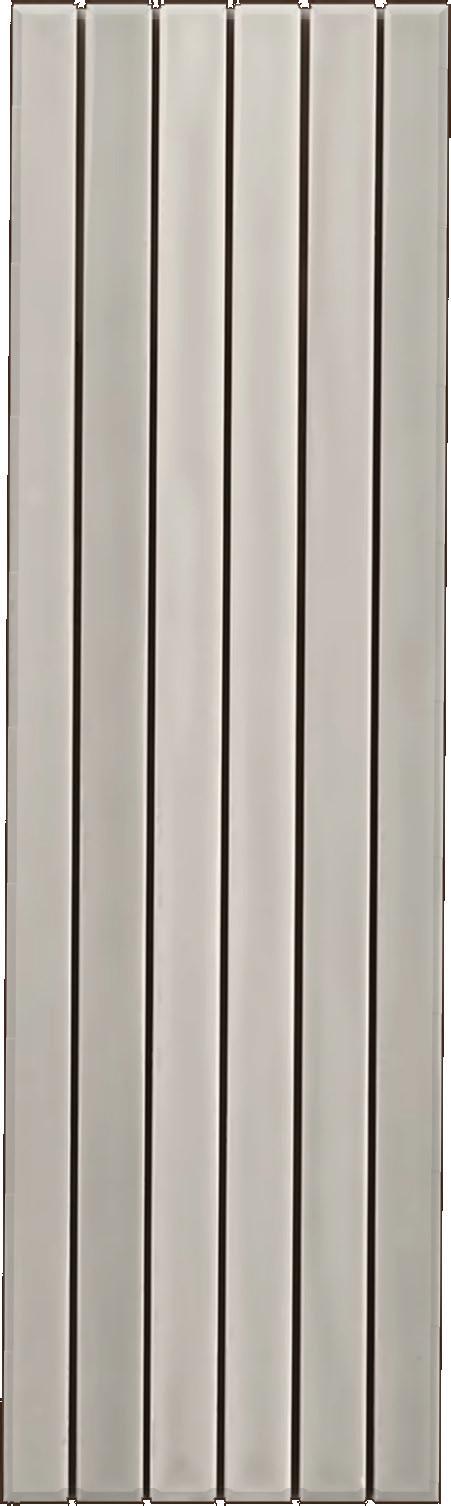

3D Feature Wall Tile

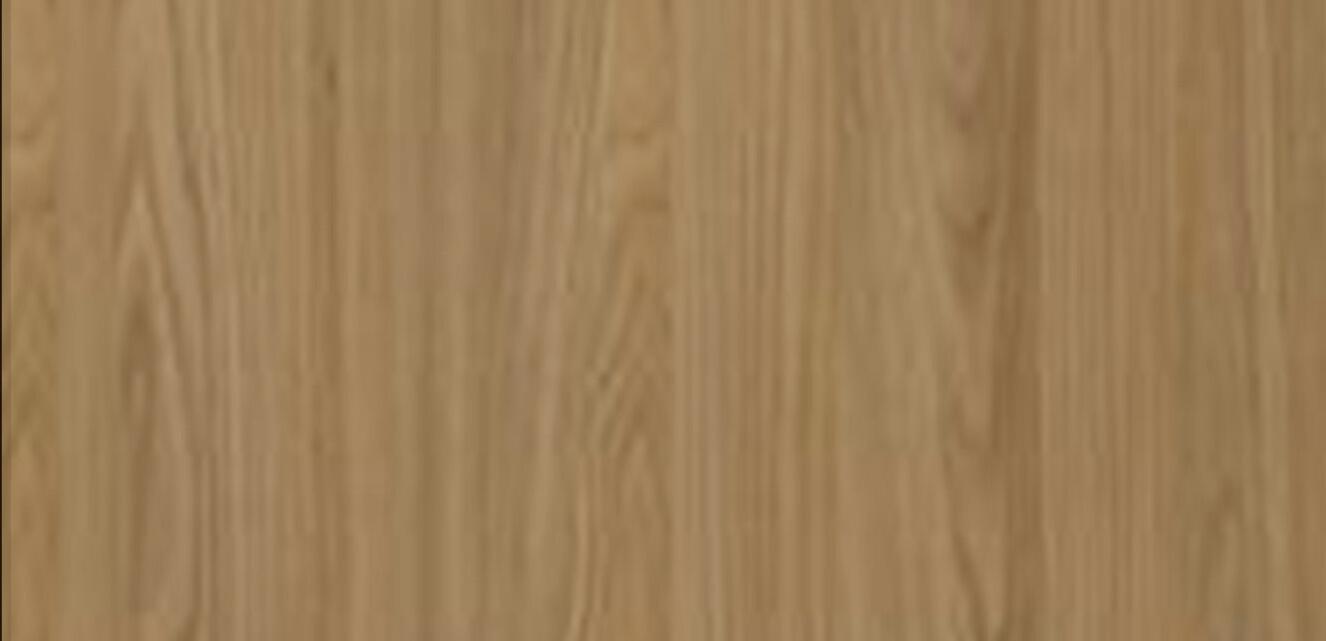

Wood Veneer Wall Panels
Field Floor Tile

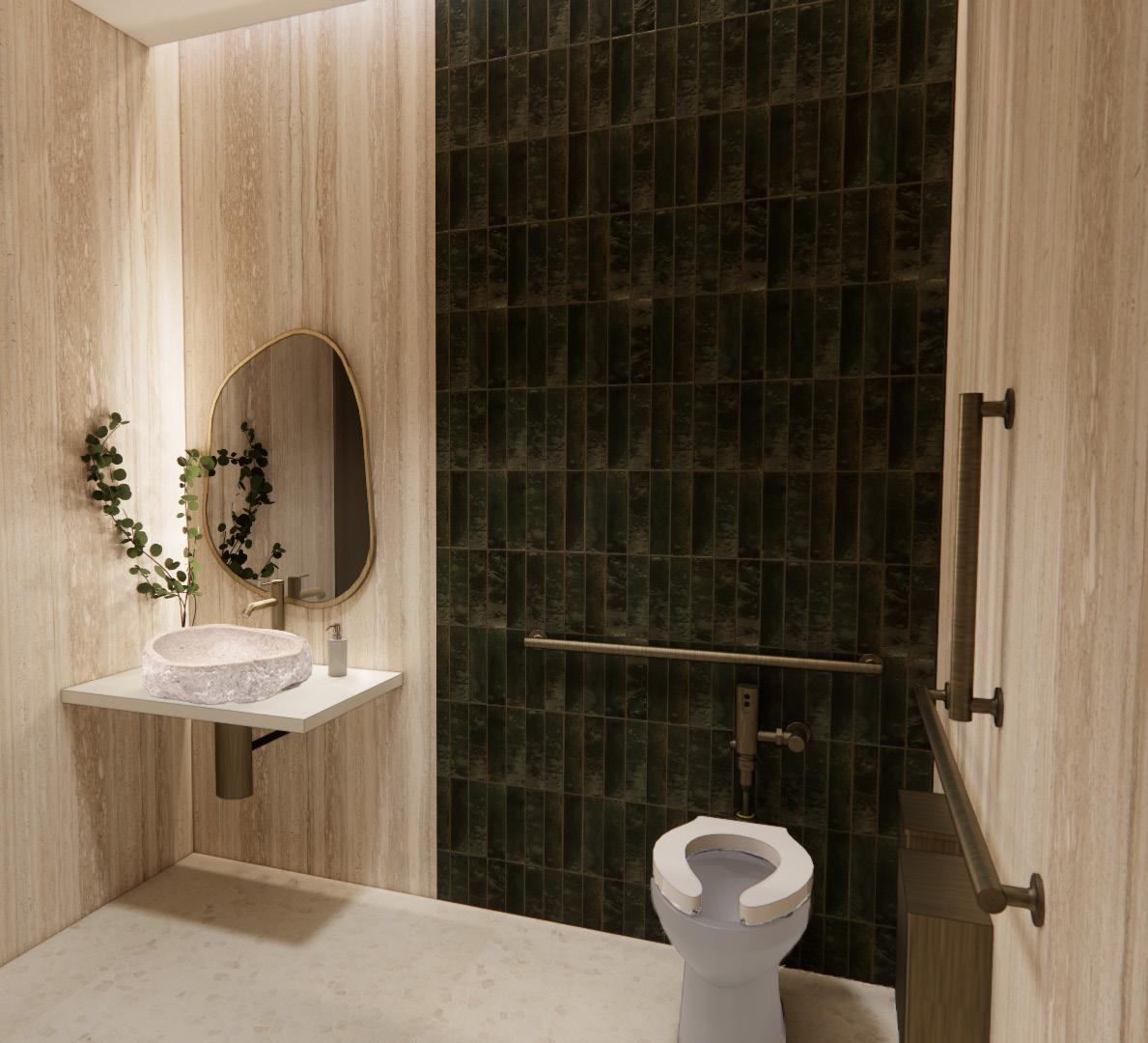

RESTROOMS

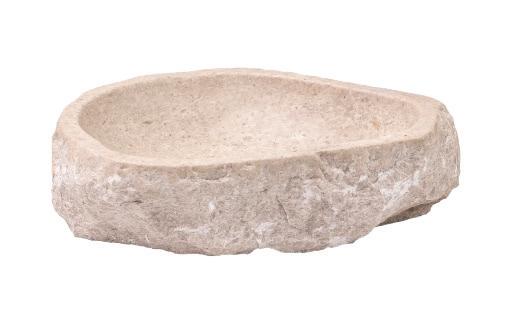

design fows seamlessly into restrooms with new fxtures & fnishes
LIGHTING SCHEME

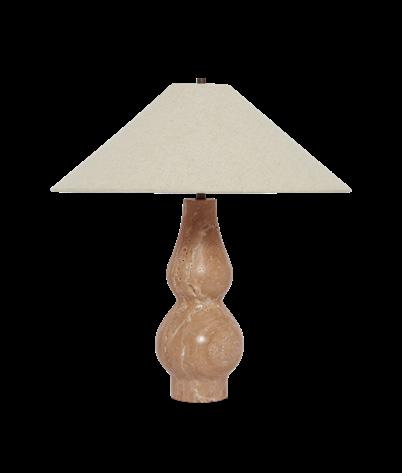

Table Lamp at Elevator Lobby

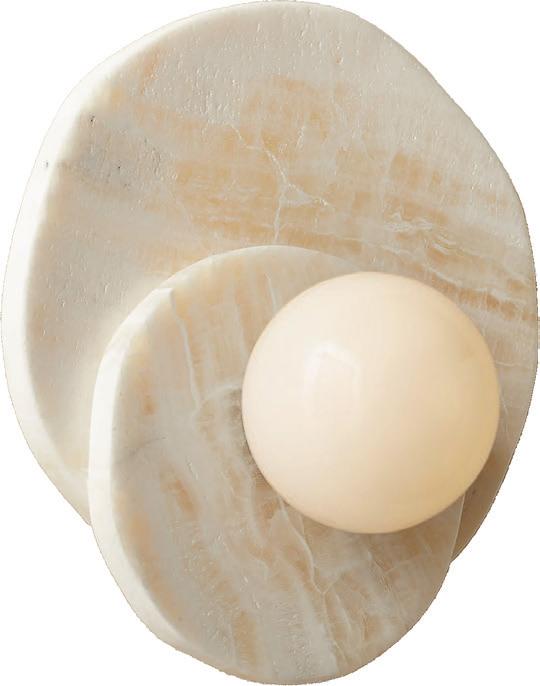

Wet-Rated Custom Wall Sconce at Spa

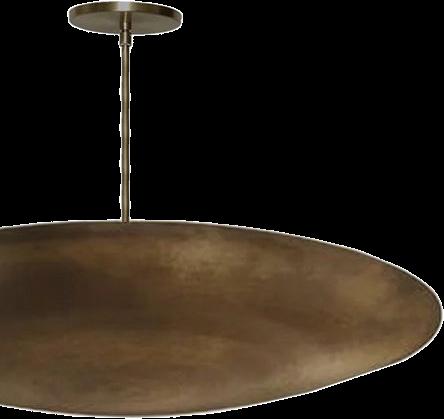

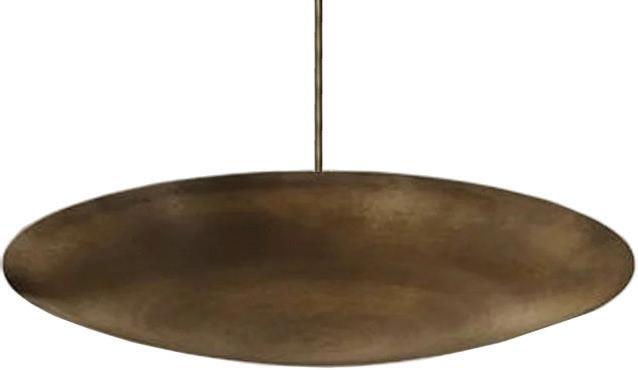

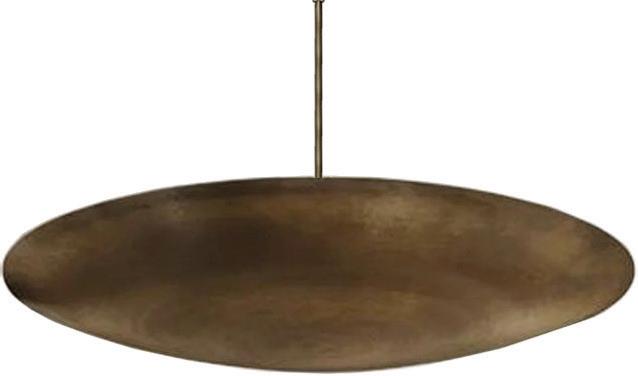

Damp-Rated Flush Mount at Corridor

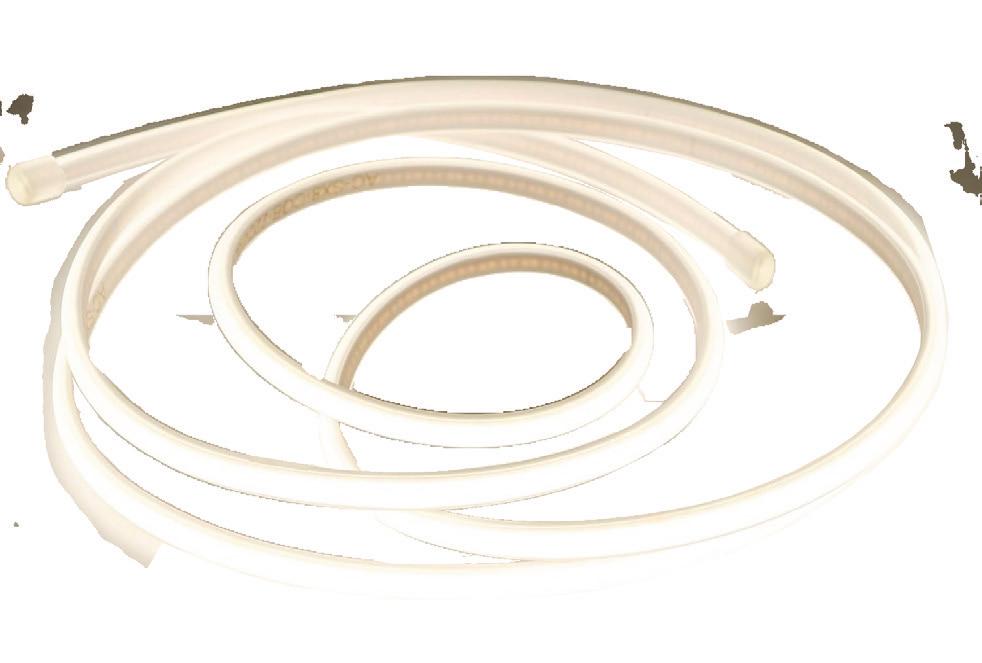

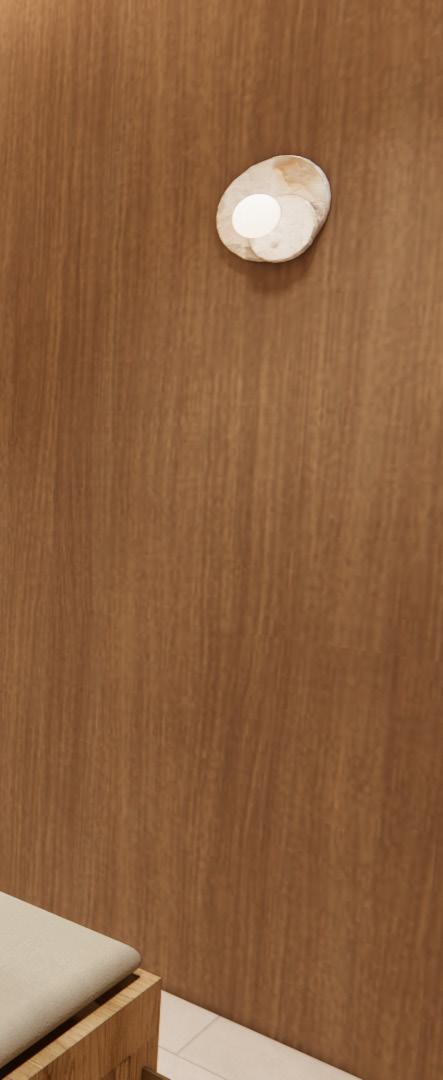

Wet-Rated Tape Light Throughout Wall Sconce at Massage
FURNITURE SELECTION

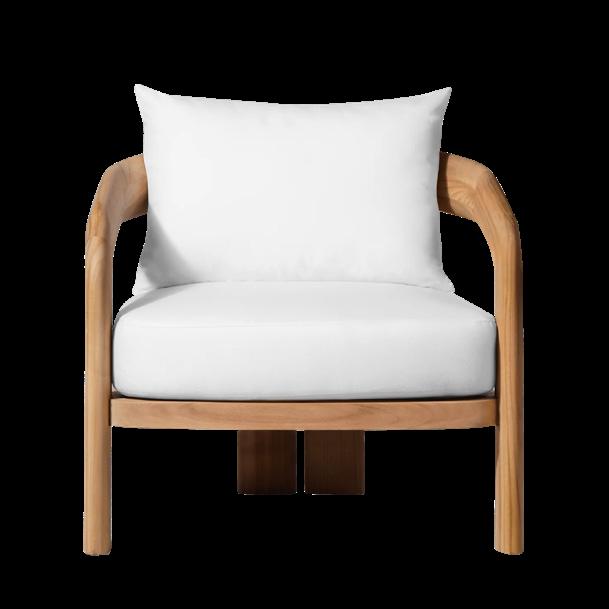

CH-01 Lounge Chair

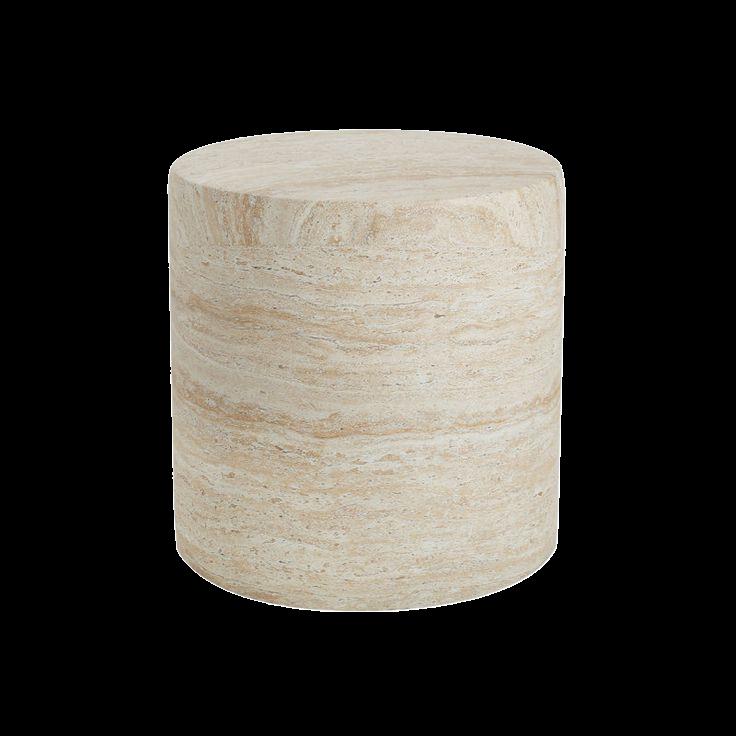

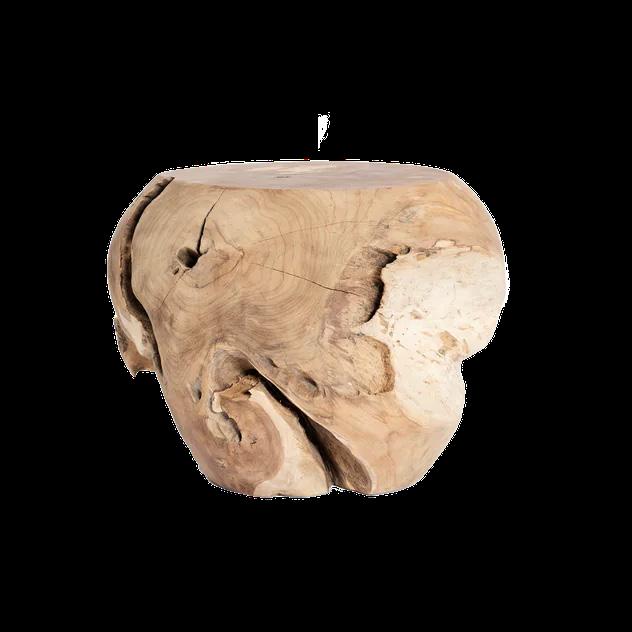

TA-01 Side Table

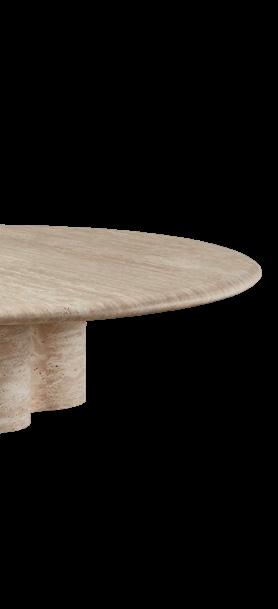

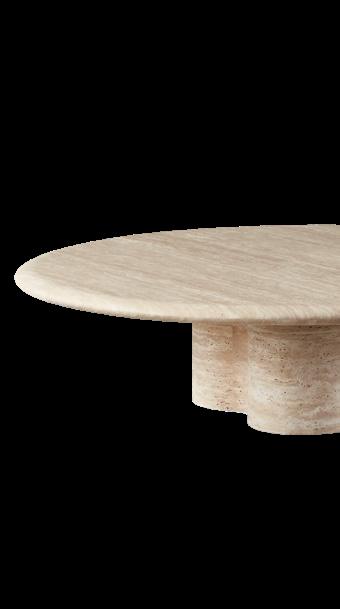

TA-02 Coffee

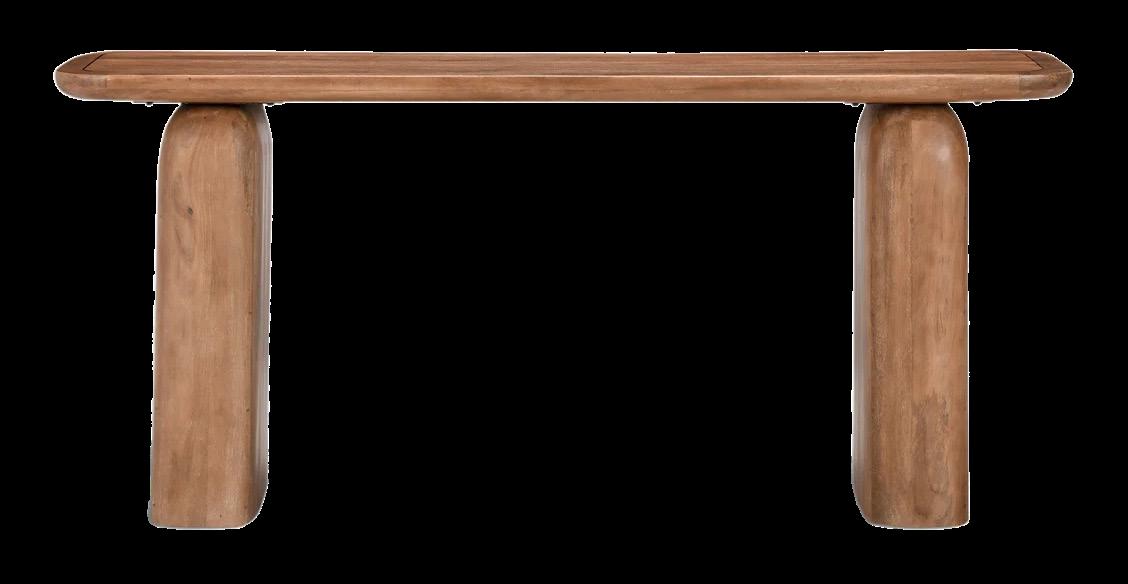

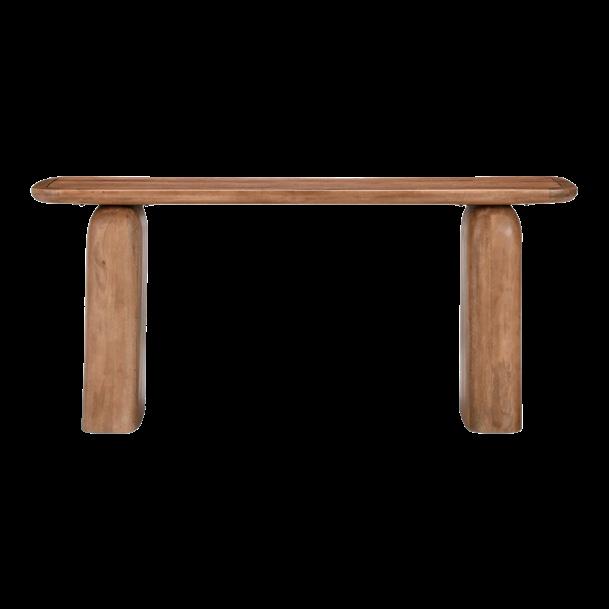

TA-04 Console Table

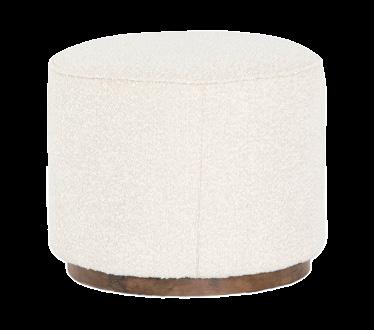

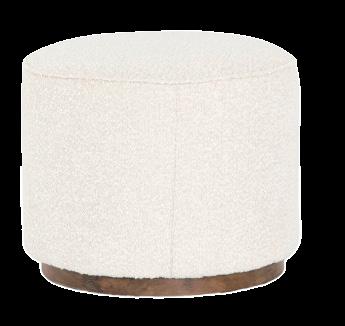

CH-03 Ottoman

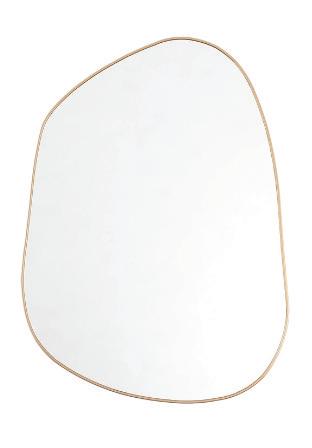

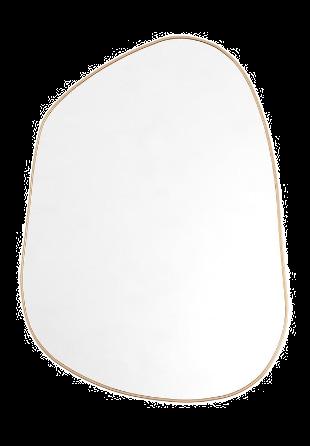

MI-01 Mirror

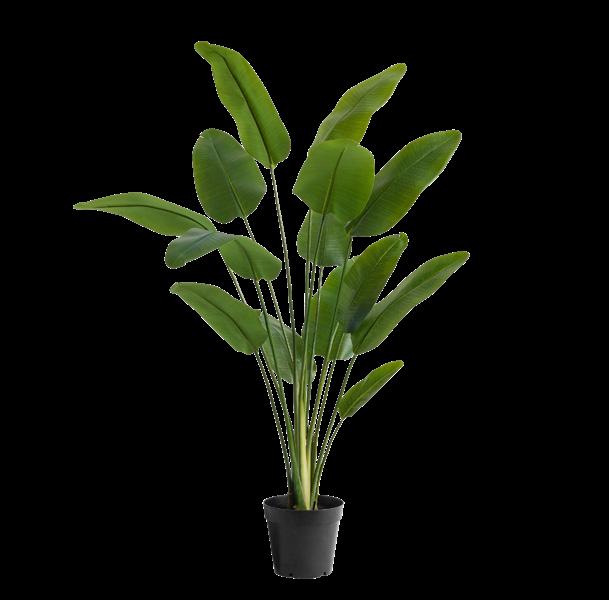

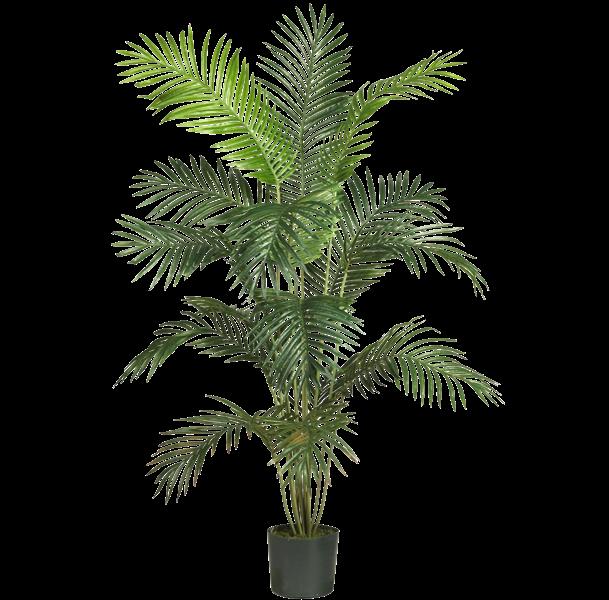

PL-01 Faux Plant
PL-02 Faux Plant
PL-03 Faux

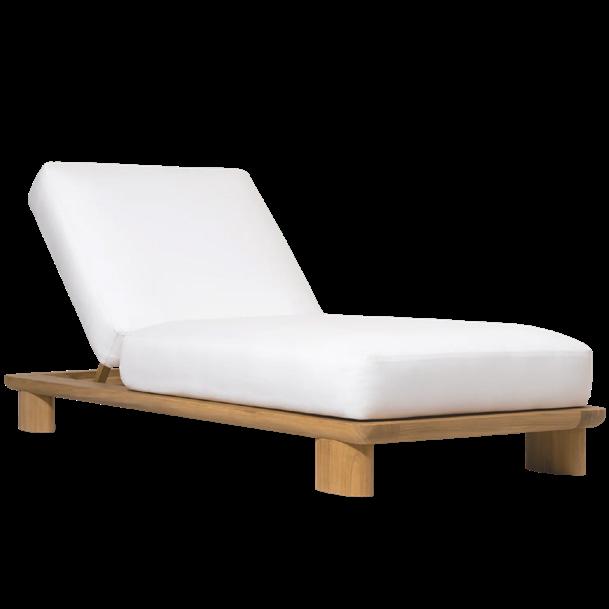

CH-02 Chaise Lounge
TA-03 Side Table
Mirror

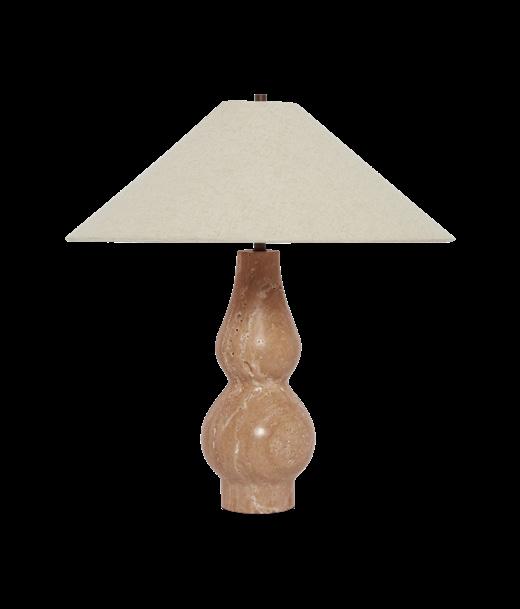

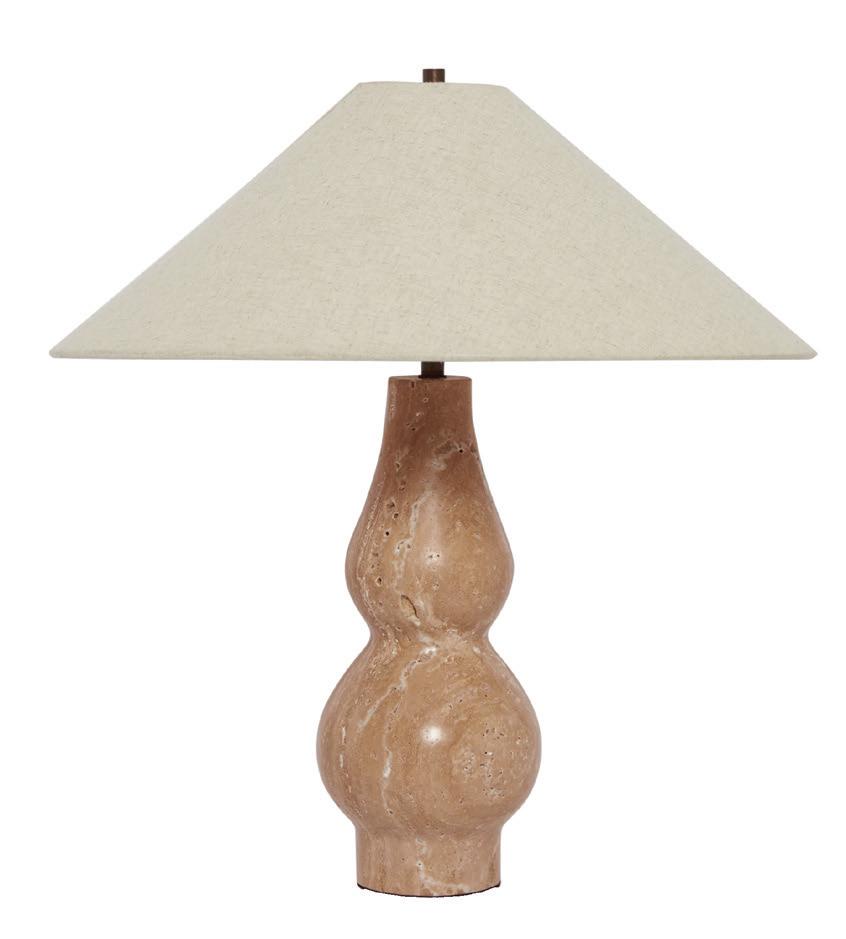

LT-01 Table Lamp

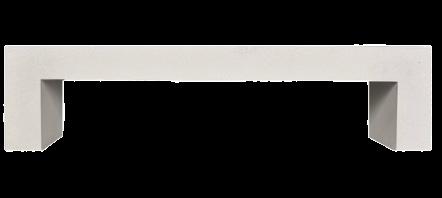

CH-04 Bench
Faux Plant

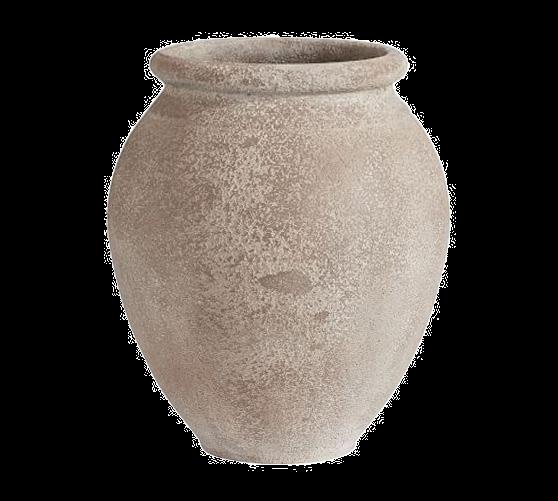

PT-01 Planter
PT-02 Planter
DOCUMENTATION
a few sheets from the construction documentation set
I am a certifed interior designer based in Chicago, with over eight years of experience in hospitality, multi-family, and corporate interiors. I earned my Bachelor’s in Design with an emphasis in Interior Architecture from the University of Nebraska—Lincoln. My approach blends creativity with functionality, and I’m passionate about crafting spaces that center around the human experience. Whether working on large-scale developments or intimate interiors, I strive to create thoughtful environments that enhance the way people live, work, and connect.
Please note, this project was completed during my time at Variant Collaborative and I was the Lead Designer.
