Final Project, Spring 2022 Pre-Fab ADU

This Studio focused on the development of pre-fabricated accessory dwelling units that are becoming super popular in California. In my design approach I chose to go with a volumetric approach and I kept the modules between the maximum limits for transportation purposes, which are 16 feet wide and 60 feet long. A concept I believed in was just because ADU’s are smaller in square footage it does not mean that they are not entitled to feel big, so I went about my design with an open floor concept. I focused heavily on the kitchen and the living room area because this is where people gather, live and spent time the most. I like the open floor concept becasue it opens up the view, creating a bigger feel for the space. I used ample glass because I wanted to connect the indoor space with the outdoor space as well as making the space feel large as it allows for plenty of sunlight.

Figure 1: Exploded Axonometric

Figure 2: ADU Kit of Parts

Figure 3: Small ADU Exterior + Interior

Small Variations

Figure 4: Small ADU Variations

Option A: 1-story, 1-bedroom & 1-bathroom (418 sf)

Option B: 1-story, 1-bedroom & 1-bathroom (418 sf)

Option C: 1-story, 1-bedroom & 1-bathroom (407 sf)

Rendering: Interior

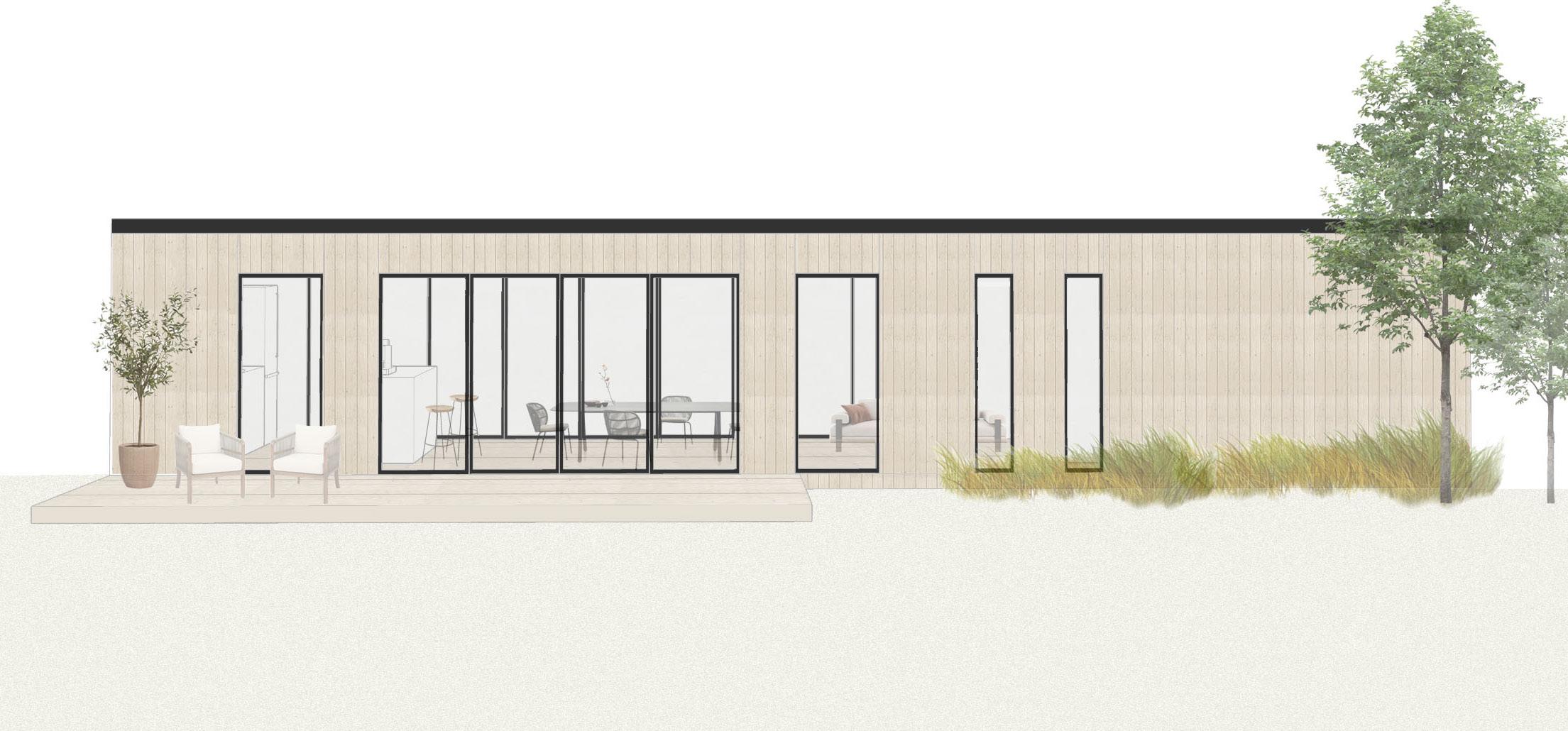

Figure 5: Medium ADU Exterior + Interior

Medium Variations

Option A: 1-story, 1-bedroom & 1-bathroom (665 sf)

Option B: 1-story, 1-bedroom & 1-bathroom (695 sf)

Option C: 1-story, 1-bedroom & 1-bathroom (695 sf) 2’

Figure 6: Medium ADU Variations

Rendering: Interior

Figure 7: Large ADU Exterior + Interior

Large Variations Option

Figure 9: Link to Assembly Gif https://danielap106596d5.myportfolio.com/

Final Project, Fall 2021 Writer’s Retreat

In this studio we designed a writers retreat in Mojave Dessert, with a representational approach.

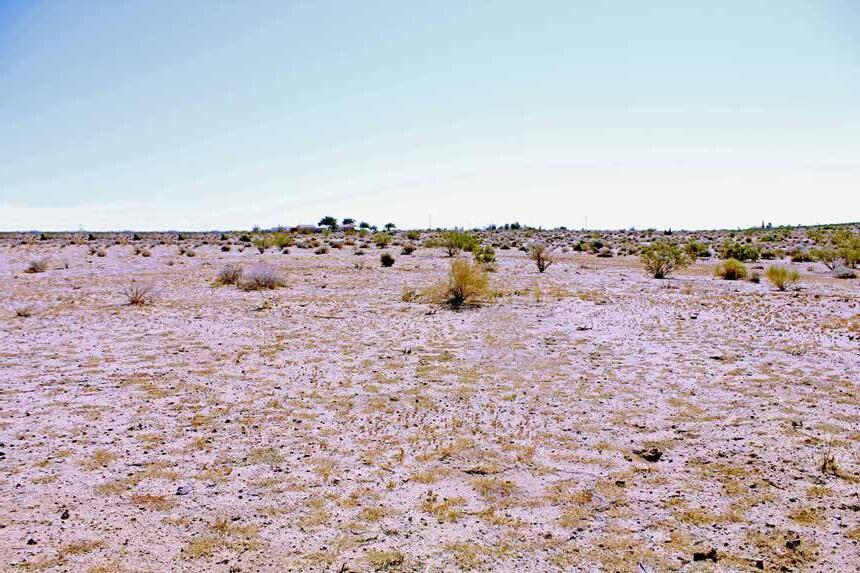

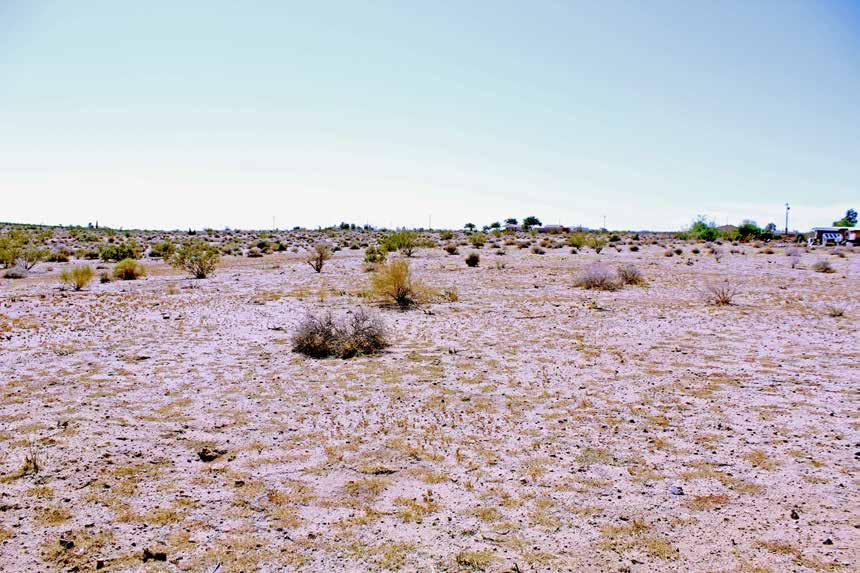

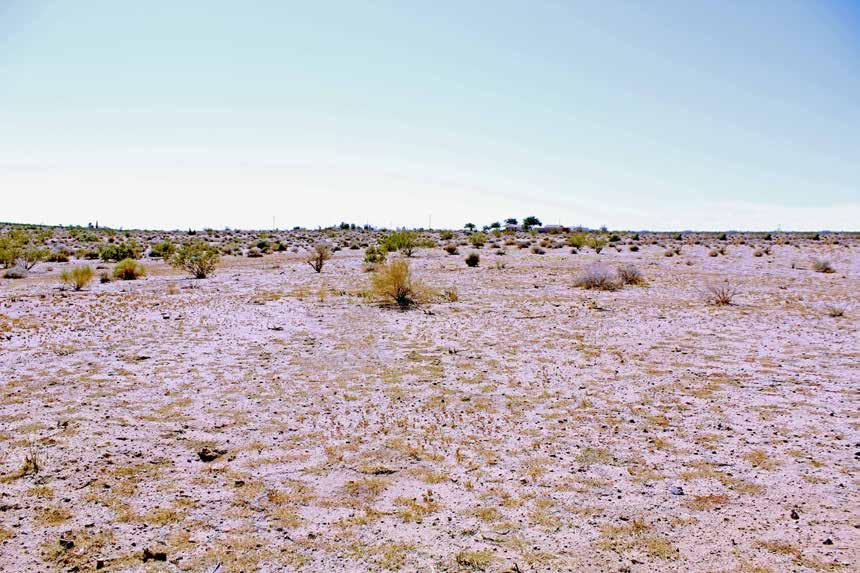

I was interested in the plant life as one specific plant stood out to me because it was all around the site hugging the surface of the desert floor acting as a starfish. This plant had a spongy texture to it almost feeling like a carpet. It felt moist as it was absorbing water waste to survive the intense heat and punishing sunlight in the desert. I was interested in as to why this plant was everywhere and how it survived in this desert climate?

This plant develops storage structures and hoards water to survive periods of drought. It can store water in either its leaves, stems or roots. The root goes deep into the soil, collecting water which is keeping this plant alive.

From this research I decided to take a biomimicry approach to integrate the function and livability of the plant with the writers retreat. The writers retreat rests half above ground and half underground mimicking how the plant lives and absorbs the sun above ground and how it survives by absorbing water underground. I have integrated a system of pipes that show both the circulation of how people move in and out of the retreat and how the water flows through the system.

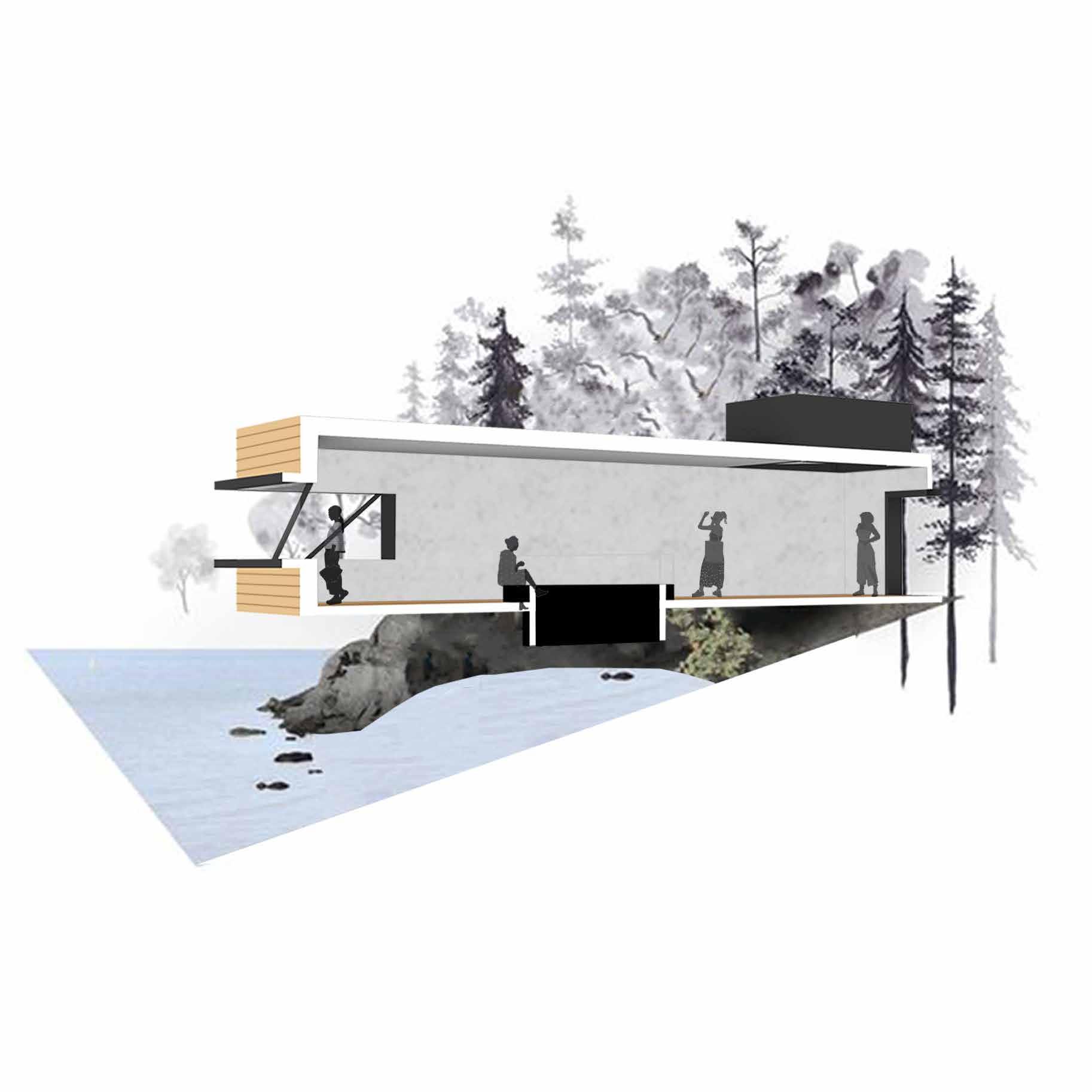

Figure 1: Writer’s Retreat Perspective

Figure 2: Axonometric

Figure 3: Water Flow Diagram

Figure 4: Section

Final Project, Spring 2021 West Hollywood Mixed Use

This 45 unit mixed use development is situated in Los Angeles at the intersection of Hollywood Blvd. and Prospect Ave. This project is designed to create an oasis in the urban environment of Los Angeles that overlooks Downtown LA with views of the Hollywood Sign, the Griffith Observatory, and Dodger Stadium. The project rises five stories high and houses a variety of apartment units that range from studios, one bedroom and a two bedroom unit. The building runs along the perimeter of the site and creates a secluded public courtyard space separated from the loud and busy intersection that both the residential tenants, commercial tenants and customers can enjoy. With an arched way arcadia at the ground floor, residents are able to enjoy the spanish feel as they mingle and sip their coffee away as well as enjoy the restaurant, bar, organic grocery, coffee shop, and a yoga studio that the ground floor provides. This project is home to the urban environment that is away from all the rush of the city, making it a safe place for young couples, friend groups and the hard working doctors from the hospitals down the street to enjoy themselves in this mixed use project.

Figure 1: Section

Figure 2: Floor Plans

trashchute/loadingdock restaurantbar

sandwhichshop

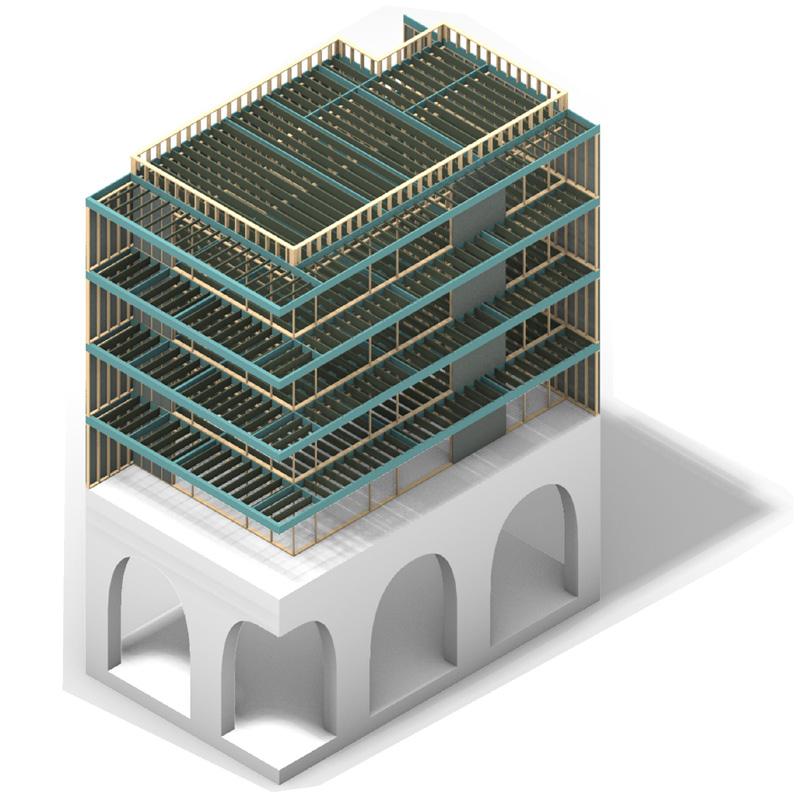

Figure 3: Structural Diagram

Figure 4: Elevation + Section

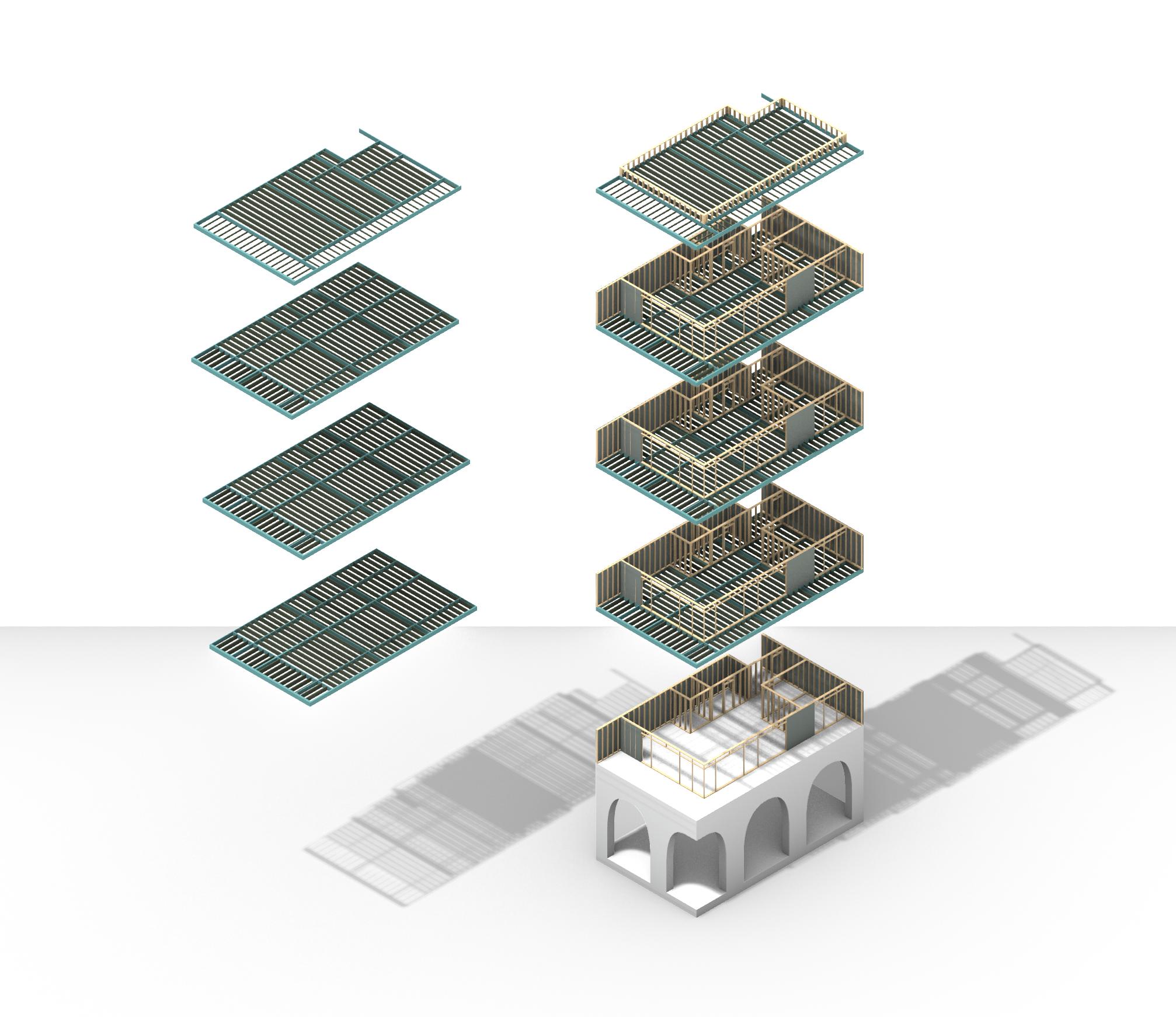

Figure 5: Axonometric Section

Figure 6: Axonometric Core Diagram

Core

Elevators Stairs Eagress Path

PLUMING + HVAC PLAN

LEGEND

HVAC System

Ducting

Exhaust

Air Return

Air Supply

Vents

Drop Down Ceiling

8’ - 0” Clearance

Hot Water

Cold Water

Waste Water

Main Stack

In Line Water Heater

Figure 5: Axonometric Section

ELECTRICAL PLAN LEGEND

CEILING MOUNTED LIGHT

RECESSED LIGHT

WALL MOUNTED LIGHT

FAN

DUPLEX RECEPTACLE

DUPLEX RECEPTACLE OUTLET (WATERPRROF)

GROUND FAULT CIRCUIT INTERRUPTERS

OUTLET SWITCH

DIMMER SWITCH

Figure 6: Axonometric Core Diagram

Figure 5: Axonometric Section

Figure 13a: Unit entrance view

Figure 6: Axonometric Core Diagram

Final Project, Fall 2020 (ARC 4011L) Mountain Retreat

This project was designed as a scientist retreat facility where researchers can work, stay for extended periods of time and educate as well. Perched atop the summit of Mount Vetter in Southern California, the compound has incredible views of the San Gabriel Mountains. The site is on land that has been leased from the Angeles National Forest. There are two existing foundation pads and a concrete cistern on the mountain. One pad is located at the summit, the lower pad is approximately 15 feet below the summit. This is where cars can park providing the possibility of ADA compliant access to a public viewing platform. The scientist retreat facility is divided into two spaces with access from a rear footpath. The private scientist quarters are set on top of the peak to provide more privacy and houses the office, bedroom, bathroom and other amenities needed for extended stays. The public observation deck is easily accessible to the public being at the end of the path. The facility has the ability to entertain a larger amount of people for lectures and demonstrations hosted by the scientists.

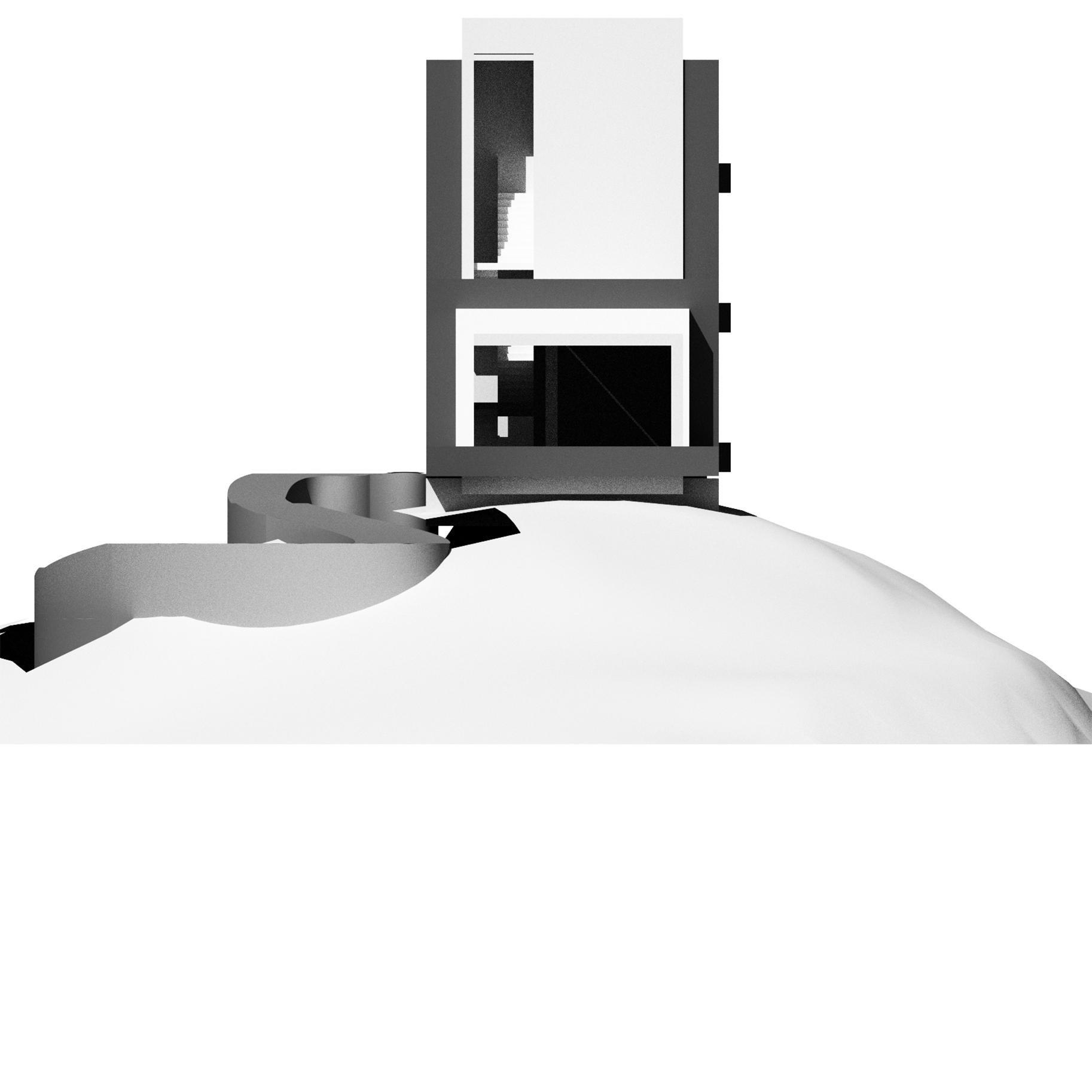

Figure 1: Exterior Perspective

A3 Cantileaver, Daniela Palomino

Small Project, Fall 2020 (ARC 4011L) Cantileaver

This project was designed to understand Cantileavers, in terms of the code requirements and structure. Cantilevered major horizontal structures may be wall beams, frames and trusses in which cross bracing or diaphragm are required for lateral stability as used in my design.

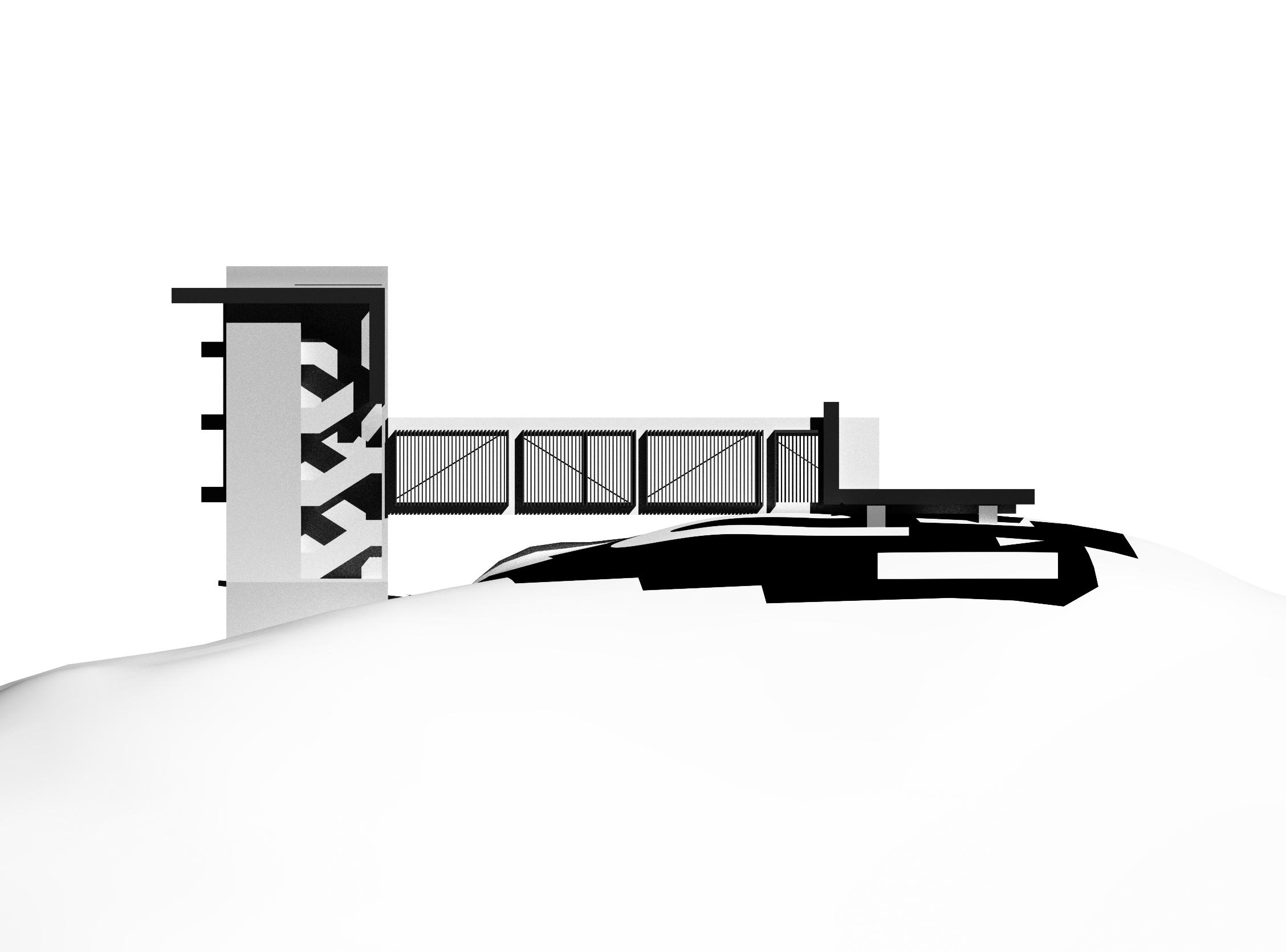

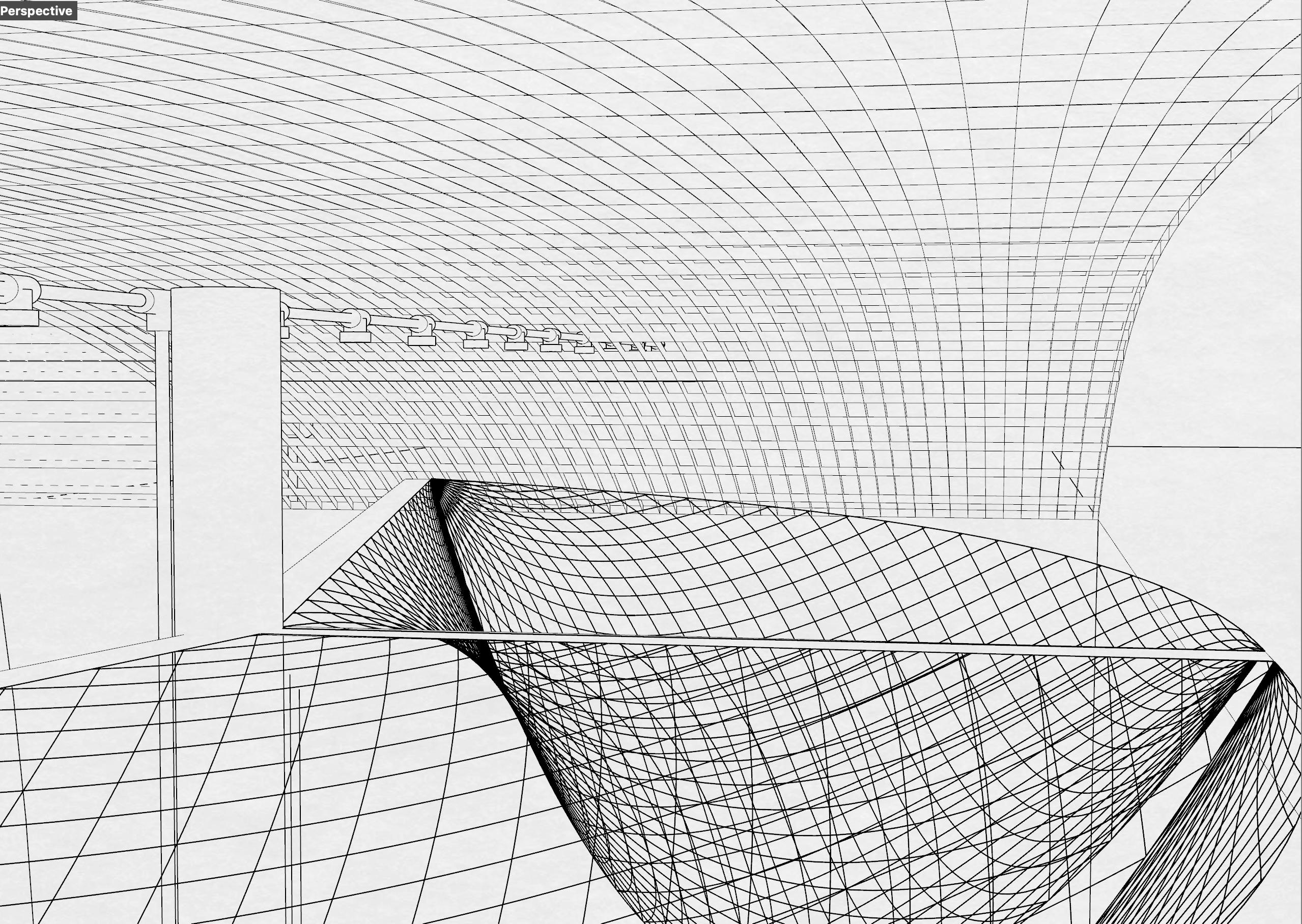

Figure 1: Axonometric

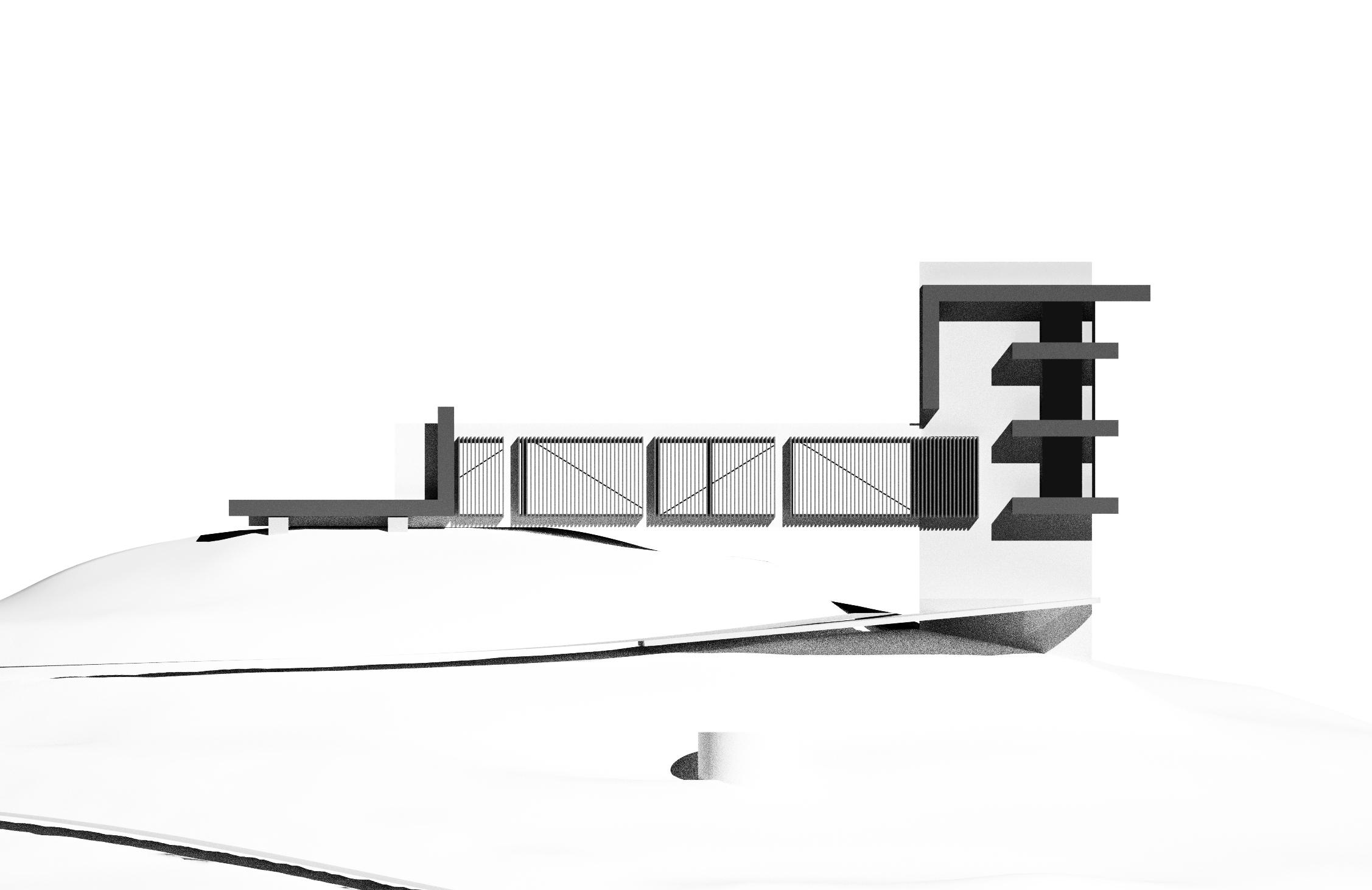

Figure 2: Perspective

WEST ELEVATION

scale 1/4” = 1’

EAST ELEVATION

scale 1/4” = 1’

NORTH ELEVATION

scale 1/4” = 1’

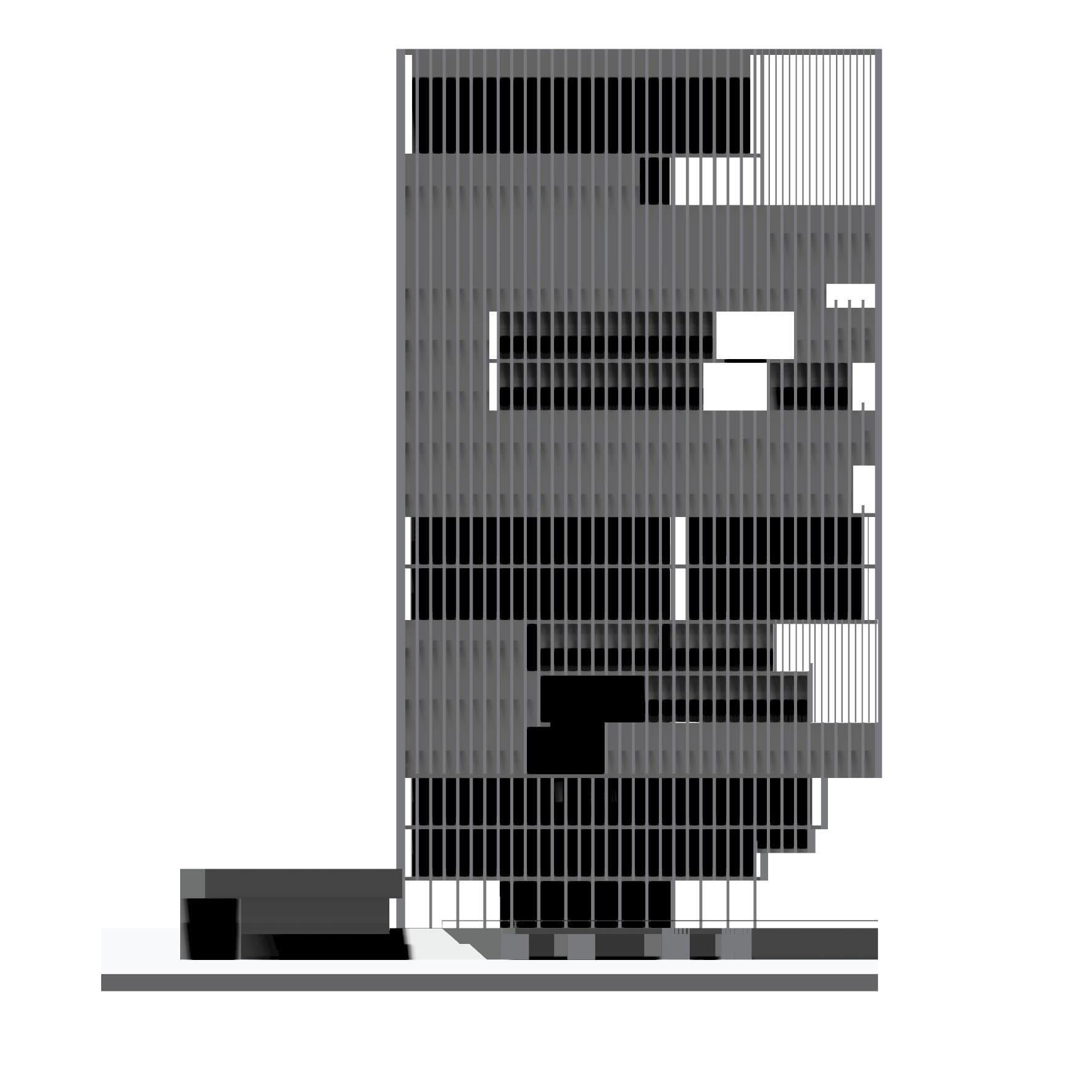

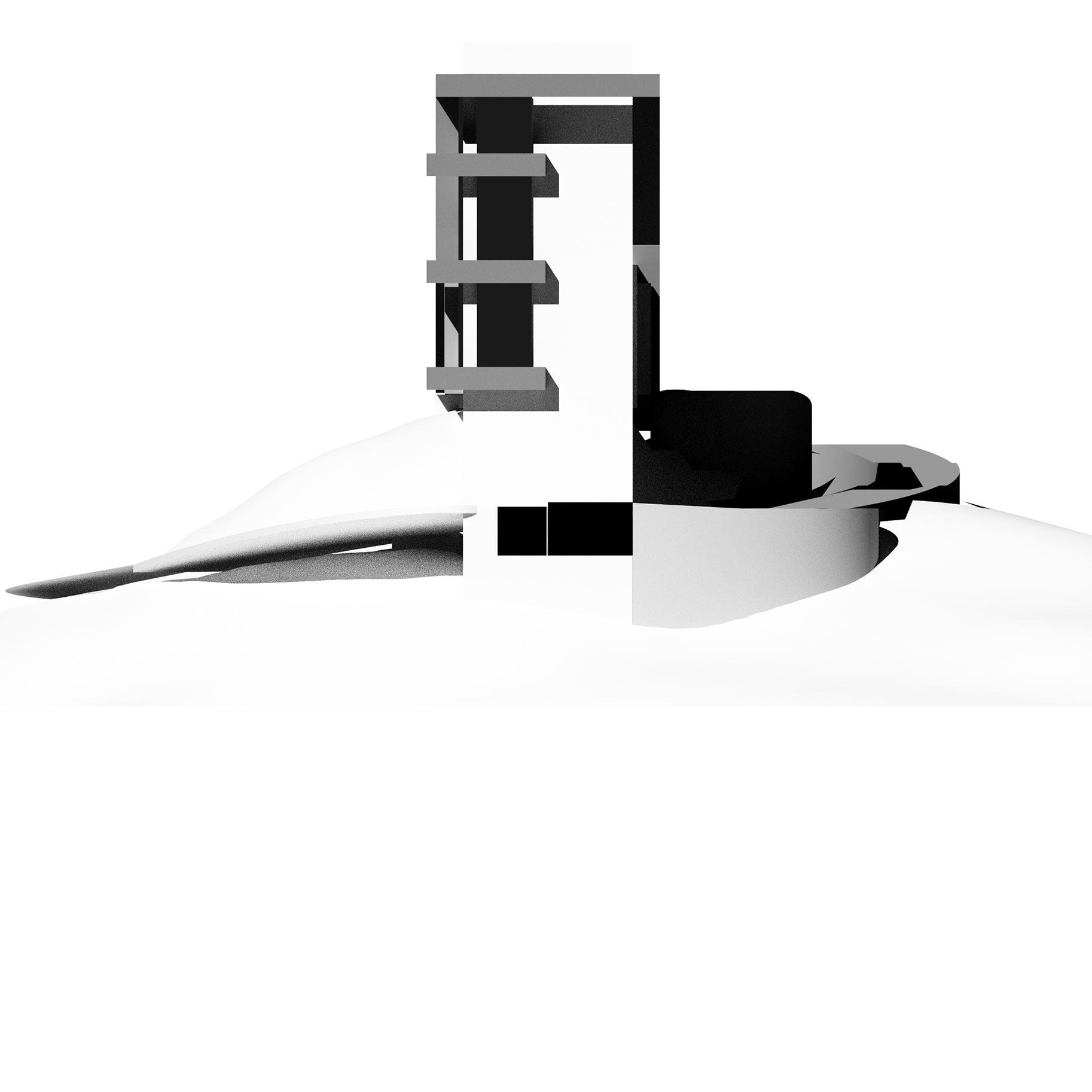

Figure 3: Elevations

ARC 3011L DANIELA PALOMINO

Figure 4: Section, Roof Plan, Plan

Final Project, Spring 2020 (ARC 4011L) School of Architecture Tower

This project was to design a tower that would house the College of Environmental Design’s Architecture School on Cal Poly Pomona’s Campus. The tower would occupy the existing footprint of the CLA Tower that was recently demolished. The concept behind my tower deisgn is a series of boxes sliding back and forth within a narrow perimeter, creating cavities and allowing for courtyards and double height spaces to exist, with the purpose to maximize the amount of daylight as it is 240 ft long by 65 ft wide.

The facade is made up of a system of steel beams that are spaced out 5 feet apart with three different depths. On the western and southern facades, they are 3 feet deep to provide more shading as they get the most direct sunlight throughout the day. While the eastern facade has a depth of 2 feet and the northern has a depth of a foot and a half, since they don’t recieve as much daylight. The beams are spaced out at two and a half feet apart to act as a mesh, shaping the outdoor spaces. The beams also change between the connection with the tower and the plinth to 10 feet apart to allow for wide enough entrances and exits, between the tower and the plinth.

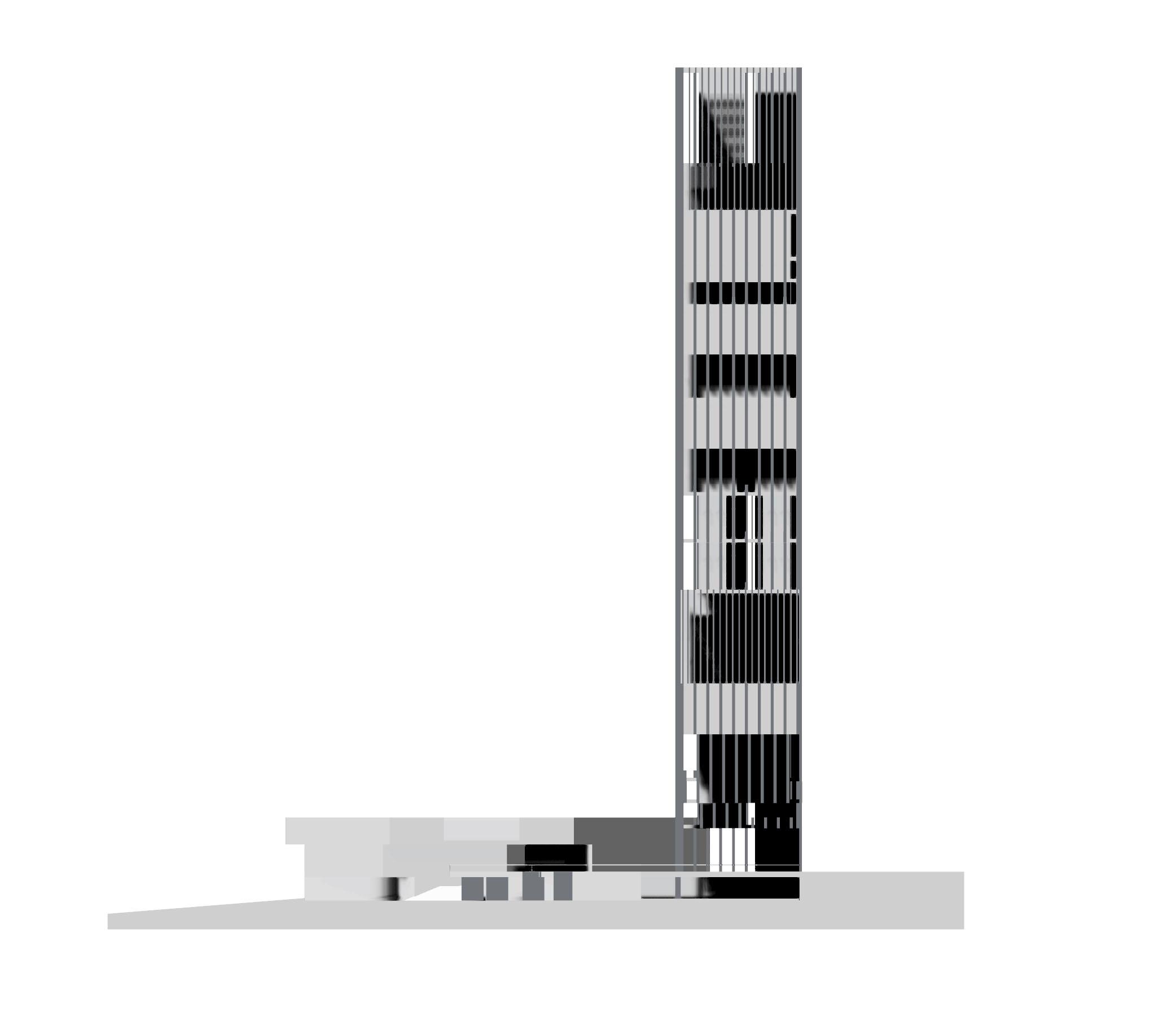

Figure 1: Exterior Perspective
