Architecture Portofolio - Dandi Agung Prasetyo

Dandi Agung Prasetyo

Date of Birth | February 19, 2002

Email | dandiagungprasetyo02@gmail.com

Phone | +62 852 7333 8461

Institut Teknologi Bandung (2020-present)

Undergraduate in Architecture

SMAN 1 Pringsewu (2017-2020)

Mathematics & Natural Science

Graduated in Top 5 Mathematics & Natural Science Class of 2020

S K I L L S

Software : Rhino 3D | AutoCAD | Sketchup | Enscape

| Grasshopper | Twinmotion | Figma | Photoshop

1st Place of Chemistry Subject in Regional Highschool National Science

Olympiad Pringsewu (2018 & 2019

1st Place of Chemistry Subject in Provincial Highschool National Science

Olympiad Bandar Lampung (2019)

Finalist of Chemistry Subject at Highscool National Science Olympiad

Manado (2019)

Unit Budaya Lampung (Ubala) ITB

Secretary and Treasurer at Bulan Bakti Ubala XVIII (2021-2022)

Head of Financial Division Unit Budaya Lampung ITB (2022-2023)

Hands-on : Sketching | Graphic Design

| Model Making

Ikatan Mahasiswa Arsitektur - Gunadharma (IMA-G) ITB

Staff of Extracampus Division BP IMA-G (2022-2023)

Staff of Regeneration Division BPA IMA-G (2023-present)

Studio

Gempol Market : Reimagined

Mixed-Use | Commercial & Residential

Individual Project on Architectural Design Studio III 2022 Supervisor : Ir. Tri Yuwono, M. T.

This project, which was finished in half a semester, focuses on renovating Pasar Gempol's current market and housing area. The primary goal of the project is to construct a single structure that can serve both business and residential purposes. I reconstructed spaces within a four-story building for this project.

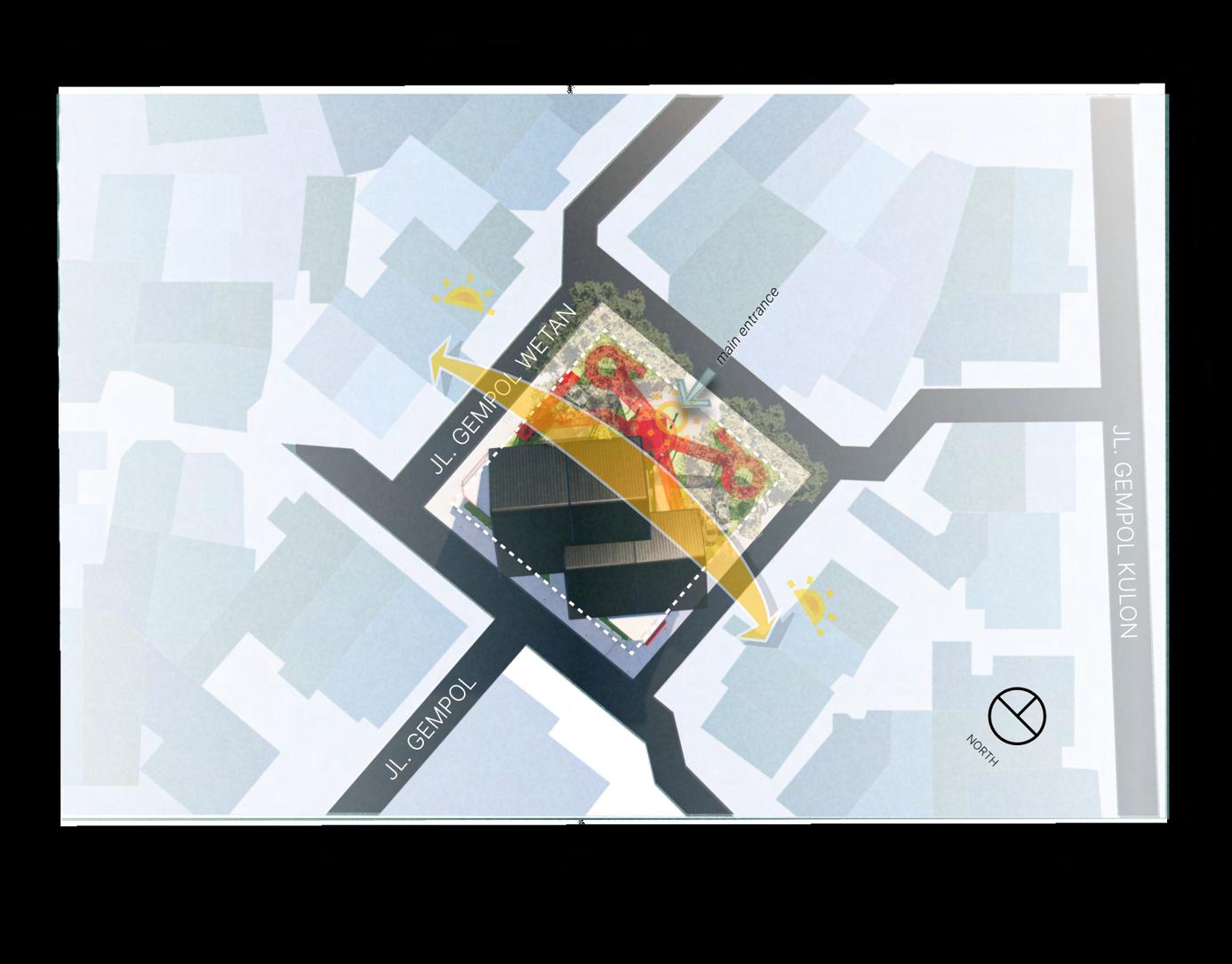

A traffic street encircles the land, creating options for commercial usage. Then there are the existing natural structures of Pohon Trembesi (Samanea saman), which can be considered a powerful design center. Aside from that, the biggest issue was that the canopy covered a large portion of the site. Furthermore, its root created a constraint by reducing the buildable area.

Just New Face, Old Ambience Remains

Pasar Gempol is known as the "urban legend of the culinary center." So, basically, Pasar Gempol is dominated by tourists.

As mentioned before, Pasar Gempol has a natural landmark: two gigantic Trembesi. Those make the streets sheltered and give a calm feeling to anyone who passes by.

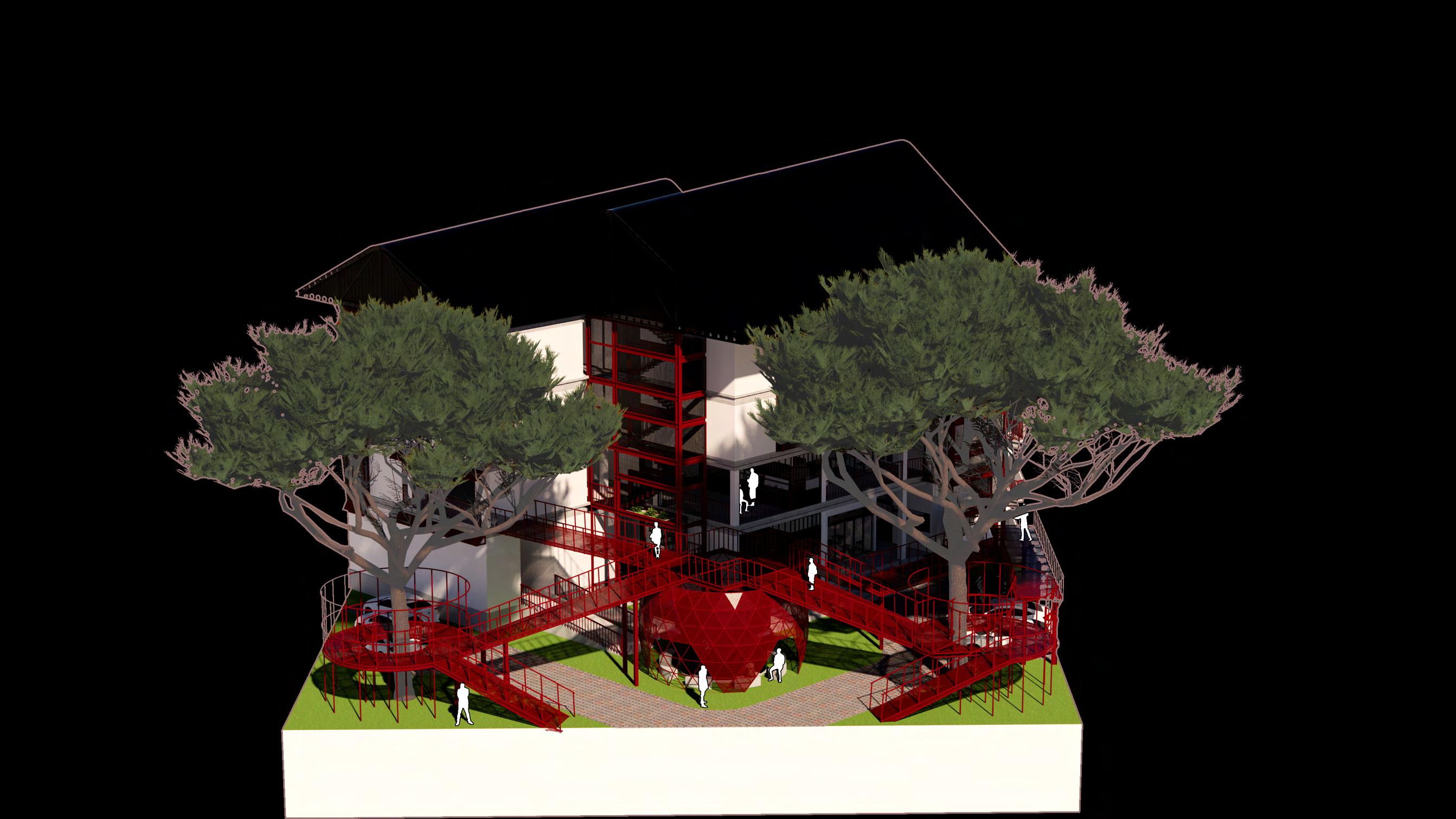

Based on observation and analysis of facts, the design goal is to renew the complex while preserving the traits of Pasar Gempol. By focusing on the commercial and public areas. Also, emphasize the Trembesi as an identity of Pasar Gempol.

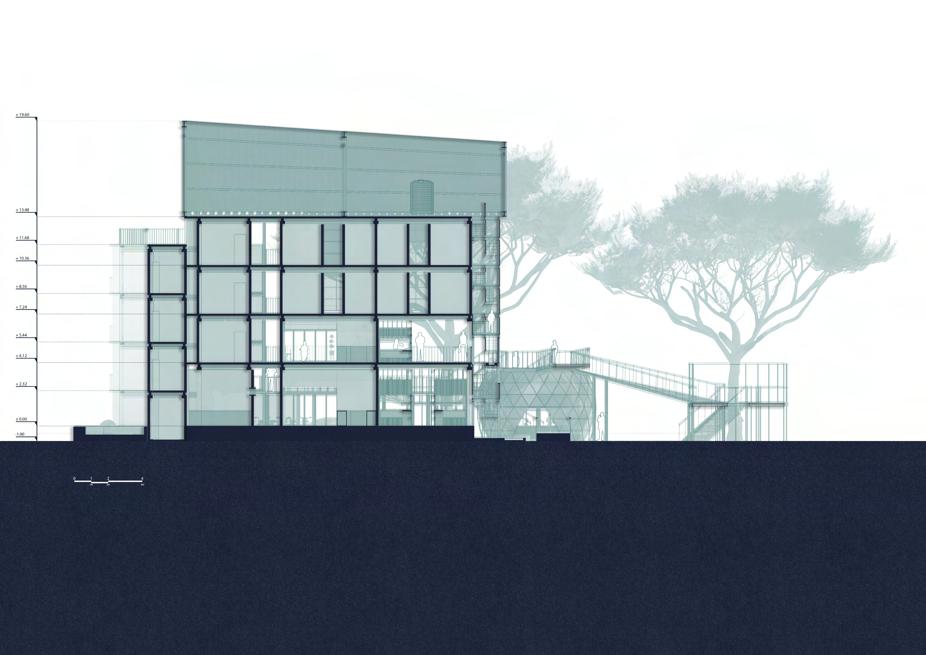

SECTION A

The façade of the building is basically defined by its openings and structures.

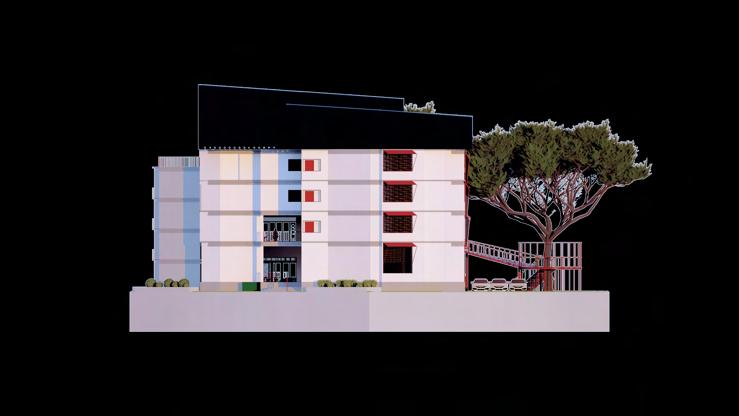

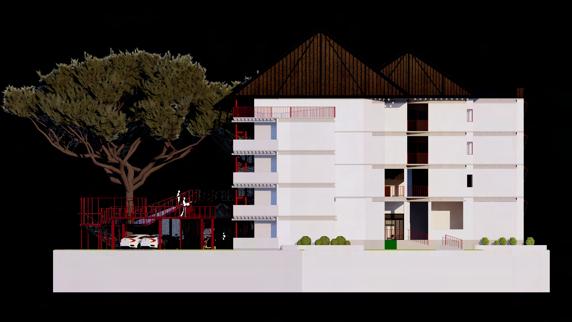

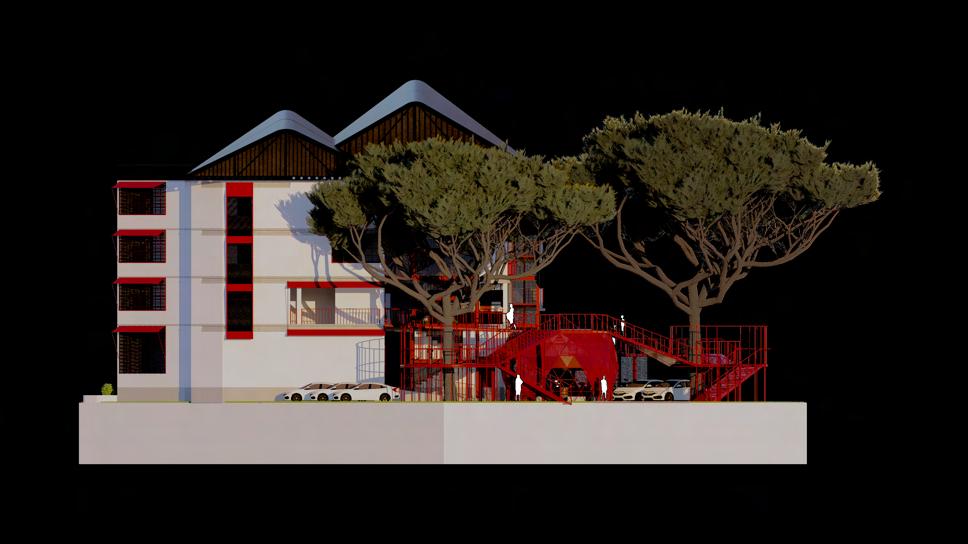

REAR ELEVATION

LEFT SIDE ELEVATION

Trees are a gateway element for welcoming people. The area below the canopy is designed as an outdoor public space with a light-structured sky bridge.

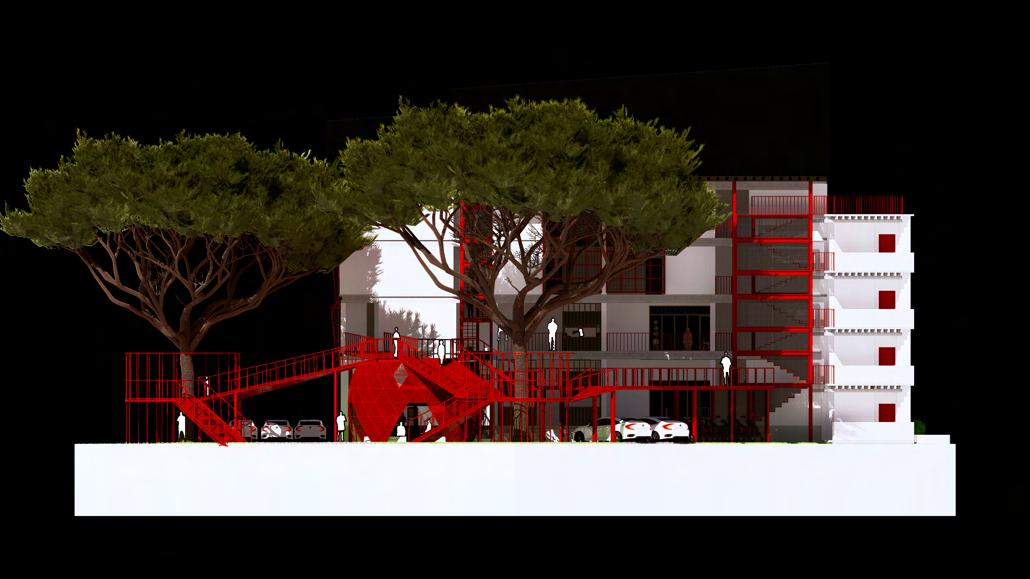

RIGHT SIDE ELEVATION

The main reason for the design wasn't to build up a lot of elevation to avoid the dominance of the building over its surroundings.

The goal is to settle space with regularity, not make it monumental.

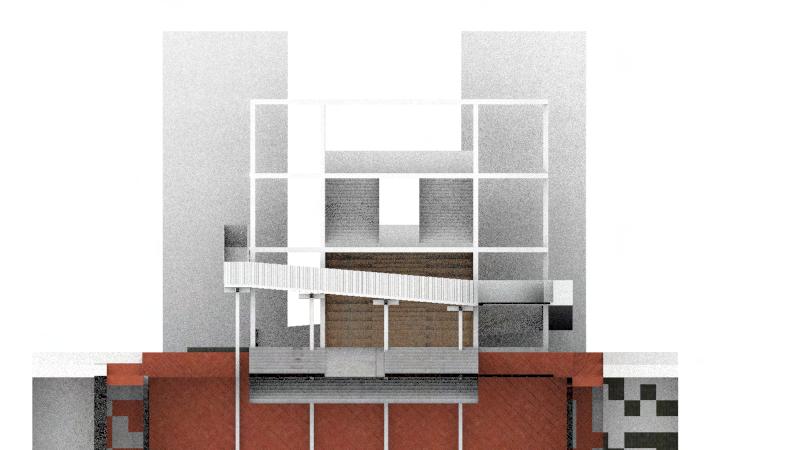

FRONT ELEVATION

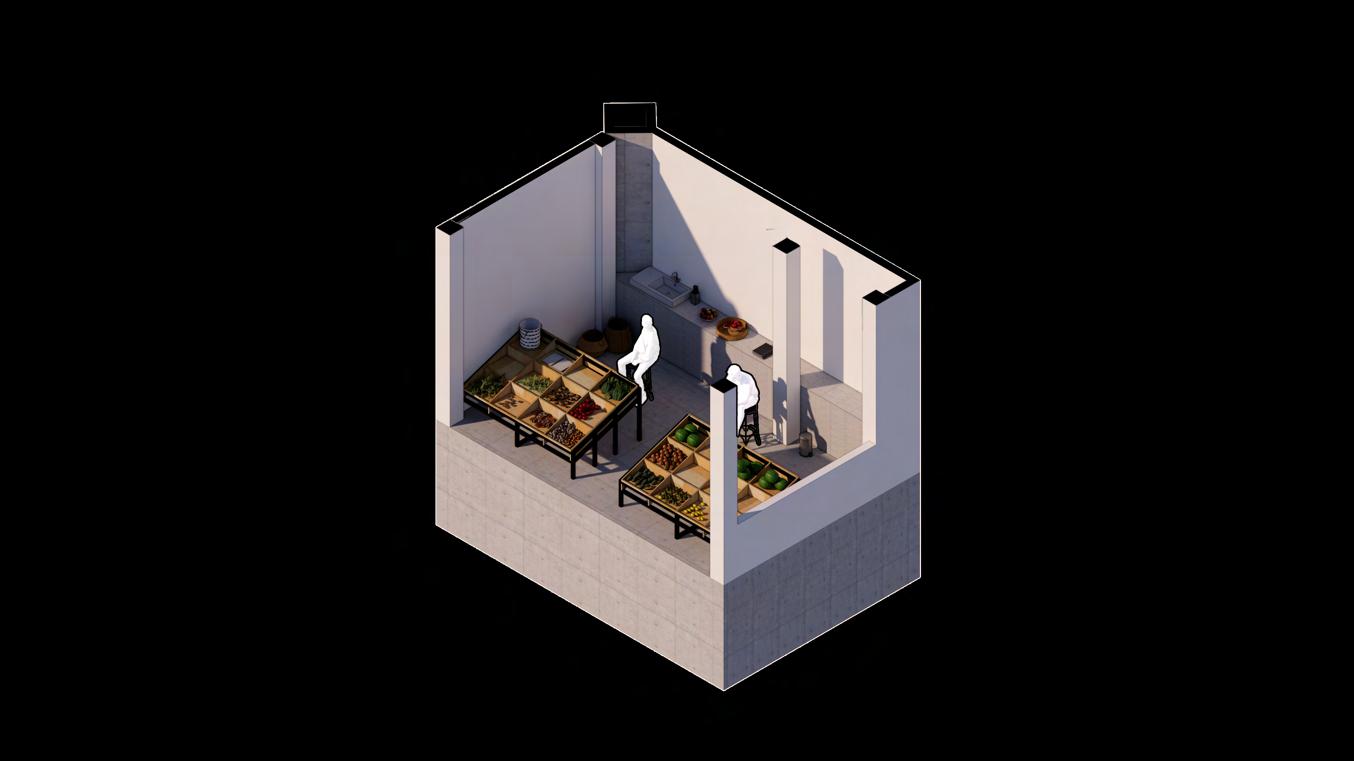

Dividing function by floor, the first and second are used in public areas such as economic and social activities. Moreover, the renewal is giving commerce an upgrade. By accommodating all preferences and scenarios, various kinds of space are aimed at maximizing the sense of community.

R E S I D E N T I A L

The third and fourth floors are used for housing. Even though the area is on commercial land, residents must remain respectful of their privacy. Therefore, there must be boundaries through territoriality. By adding a narrow staircase for access, it makes that more private.

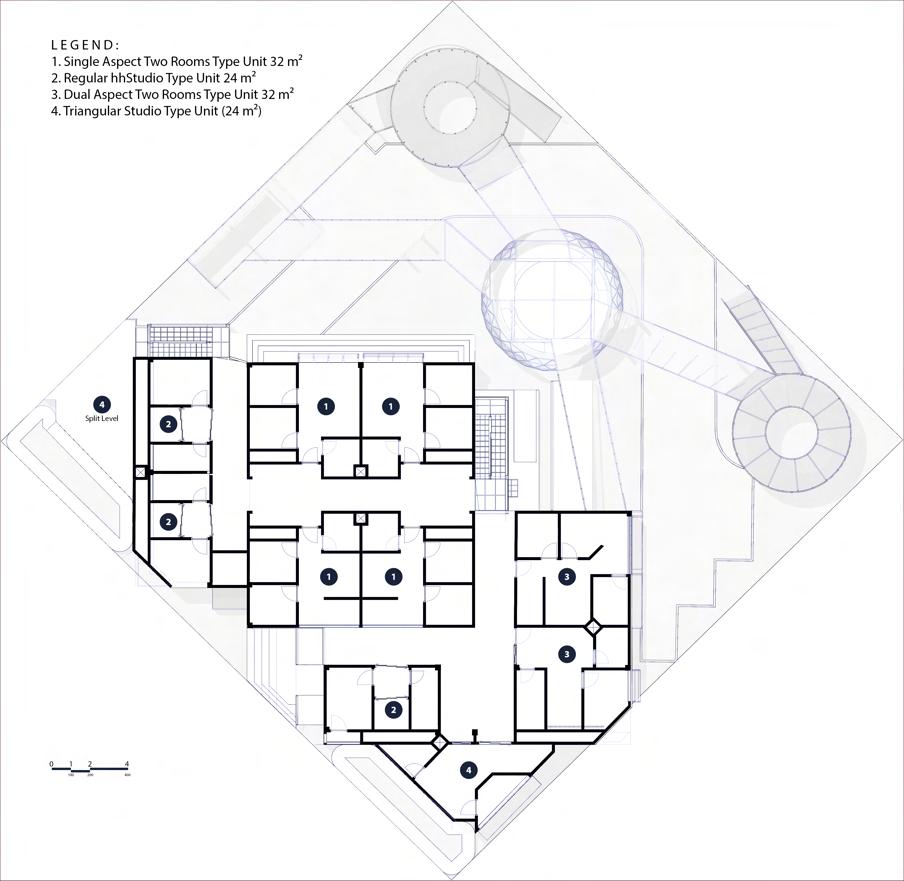

3rd - 4th FLOOR

PSA NEWaEGMPoRL

“shaded ambience,” view to main court

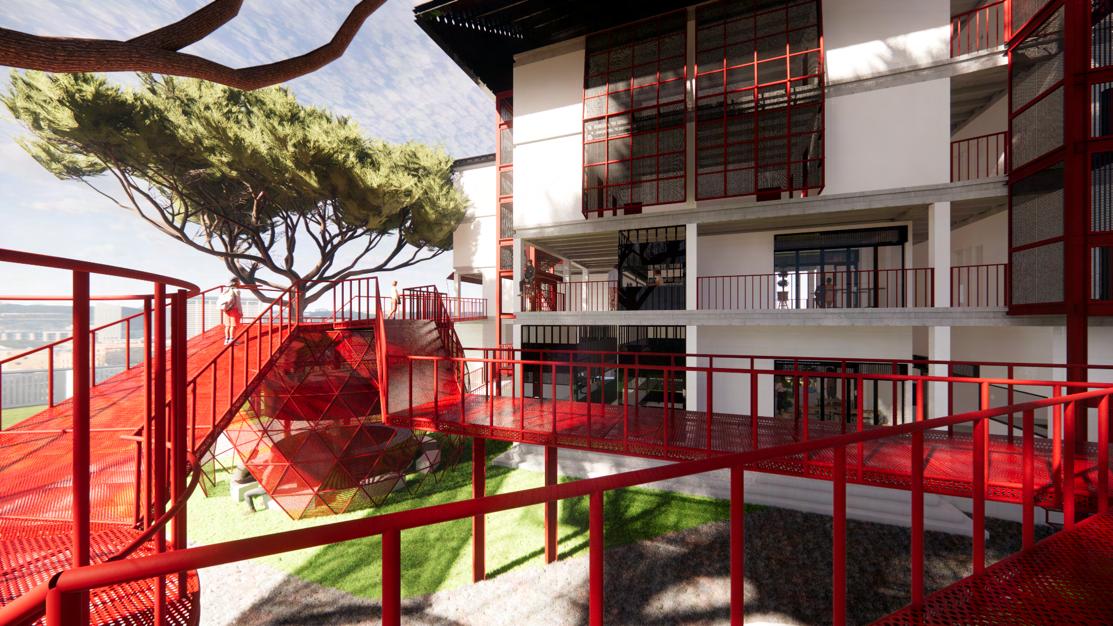

“outdoor area,” view from sky walk

“panoramic dining,” view from retail zone

“stair vista”, view from 2nd floor.

Teduh

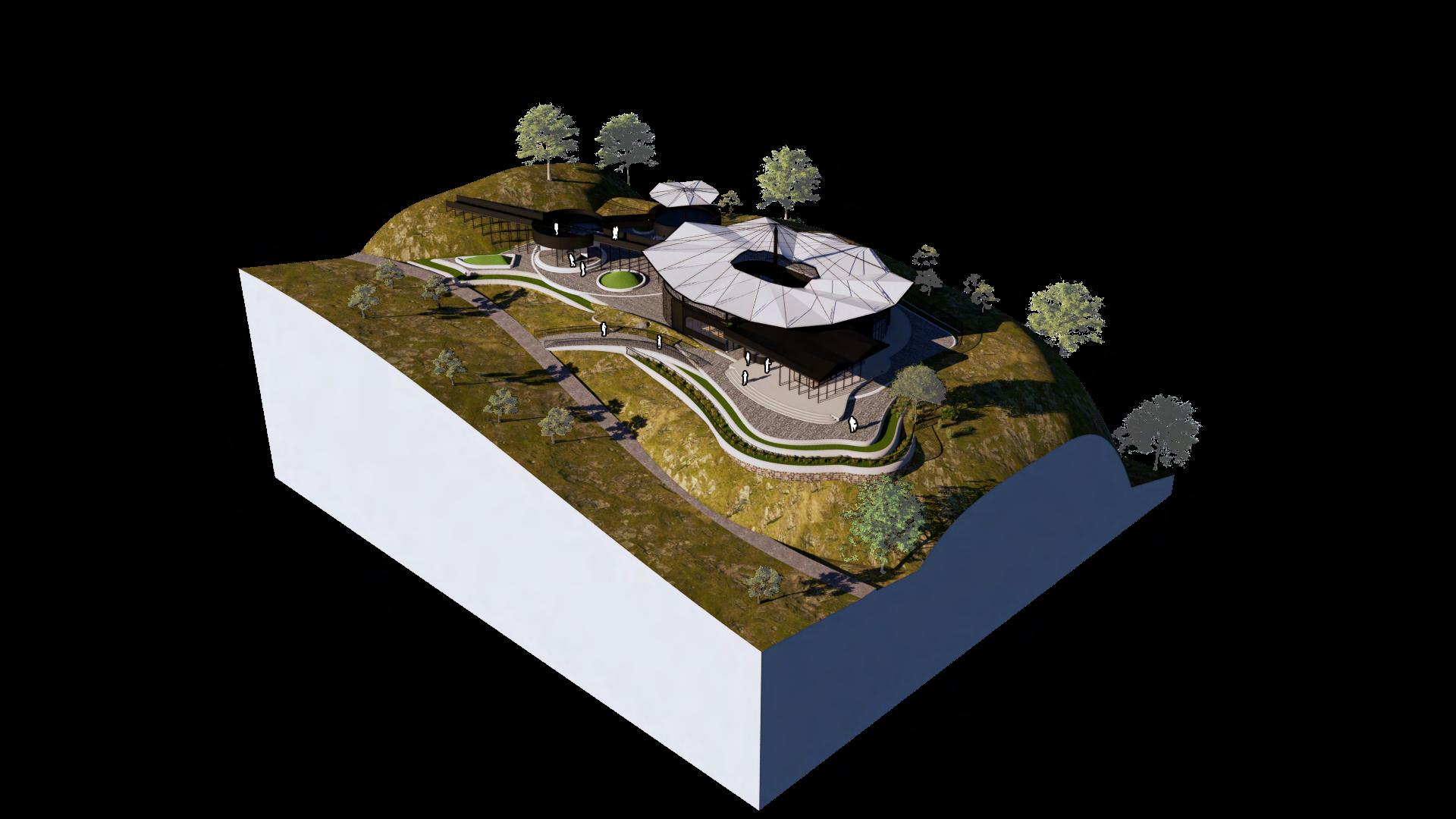

Stone Garden Citatah, Bandung, West Java | 1.200 m² Visitor Centre | Education & Recreation

Individual Project on Architectural Design Studio III 2022 Supervisor : Ir. Tri Yuwono, M. T.

The project is completed in half a semester and focuses on the design of the visitor center in the Karst Zone in Citatah. The space program includes spaces for the gathering of knowledge about Stone Garden and also areas for social support. The problem of design is the contour of the soil with the surface of the stone. In that case, the design challenge arises with the designer through a mass molding approach.

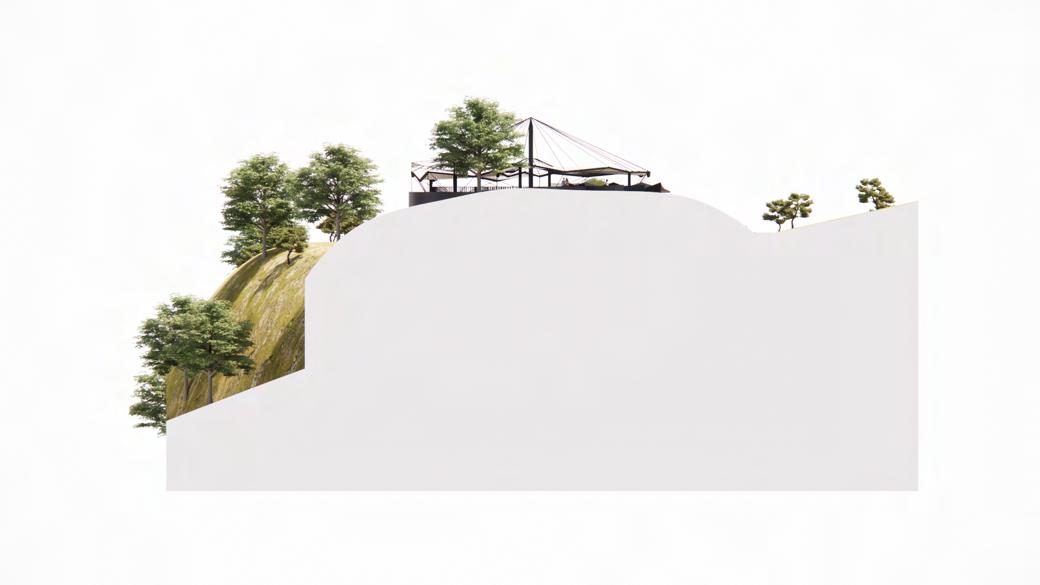

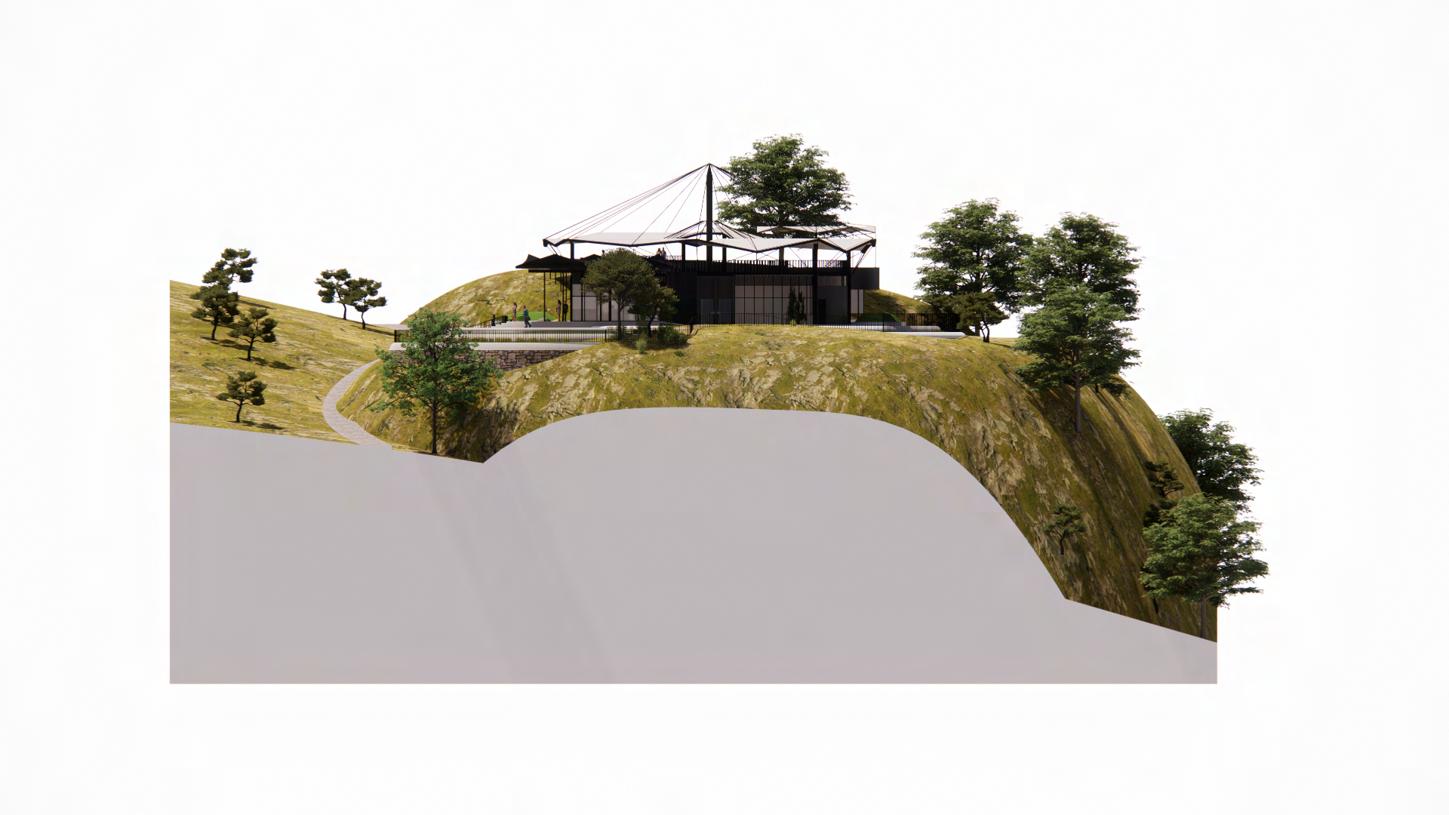

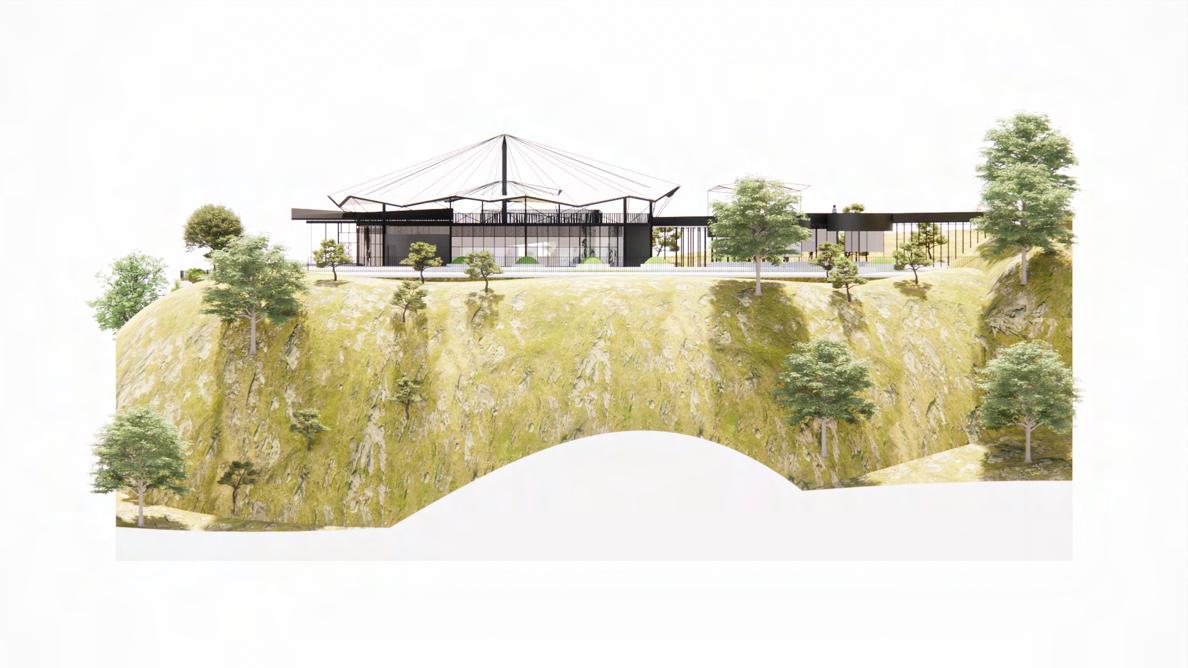

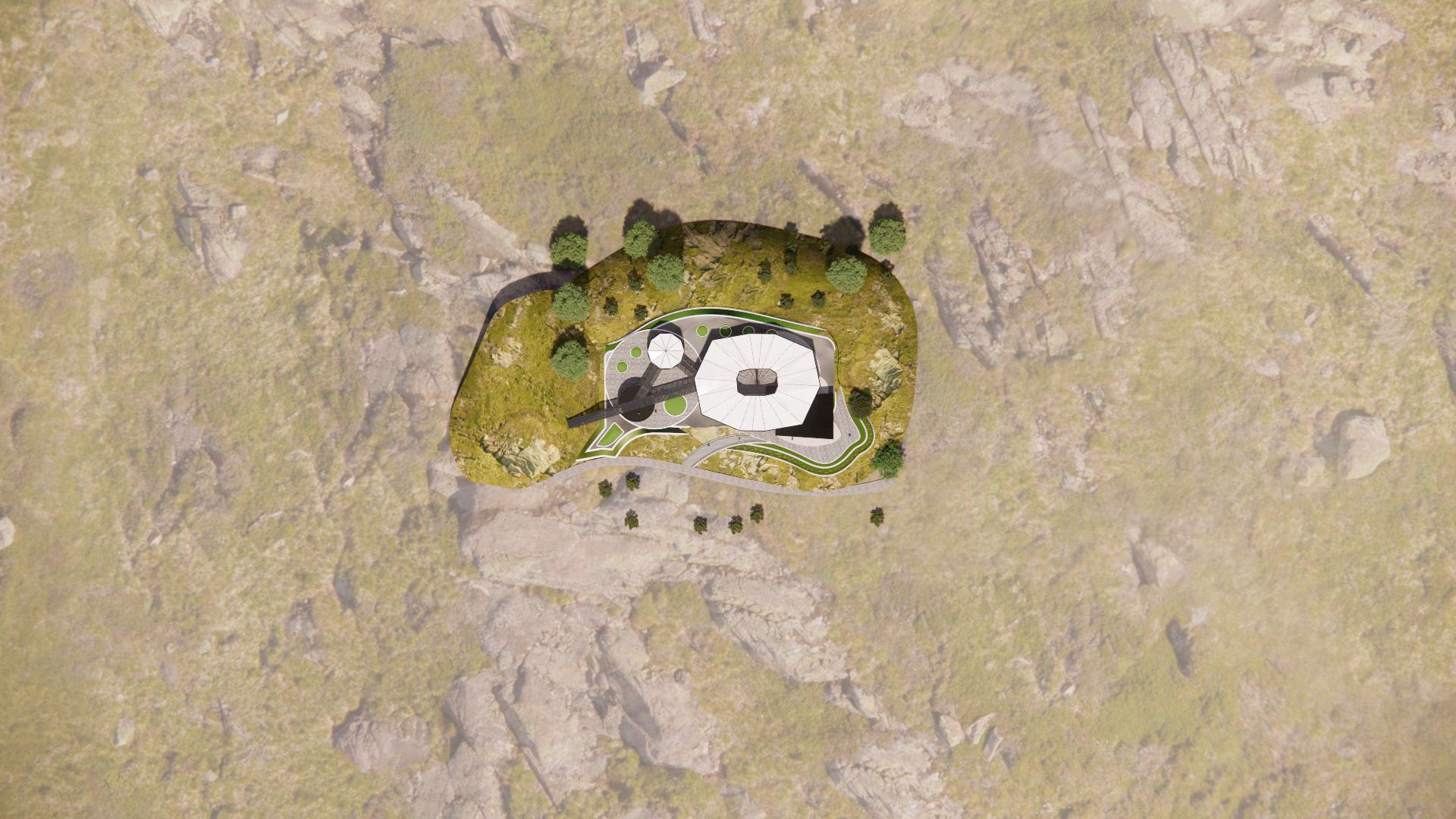

The site is in a more flat area, making it suitable for construction. However, because of its proximity to steep terrain, it is necessary to plan ahead for the protection of the land from damage caused by construction-related errors. There is a parking lot nearby that is easily accessible on foot under the circumstances. As a result, the building area on the land can be maximized.

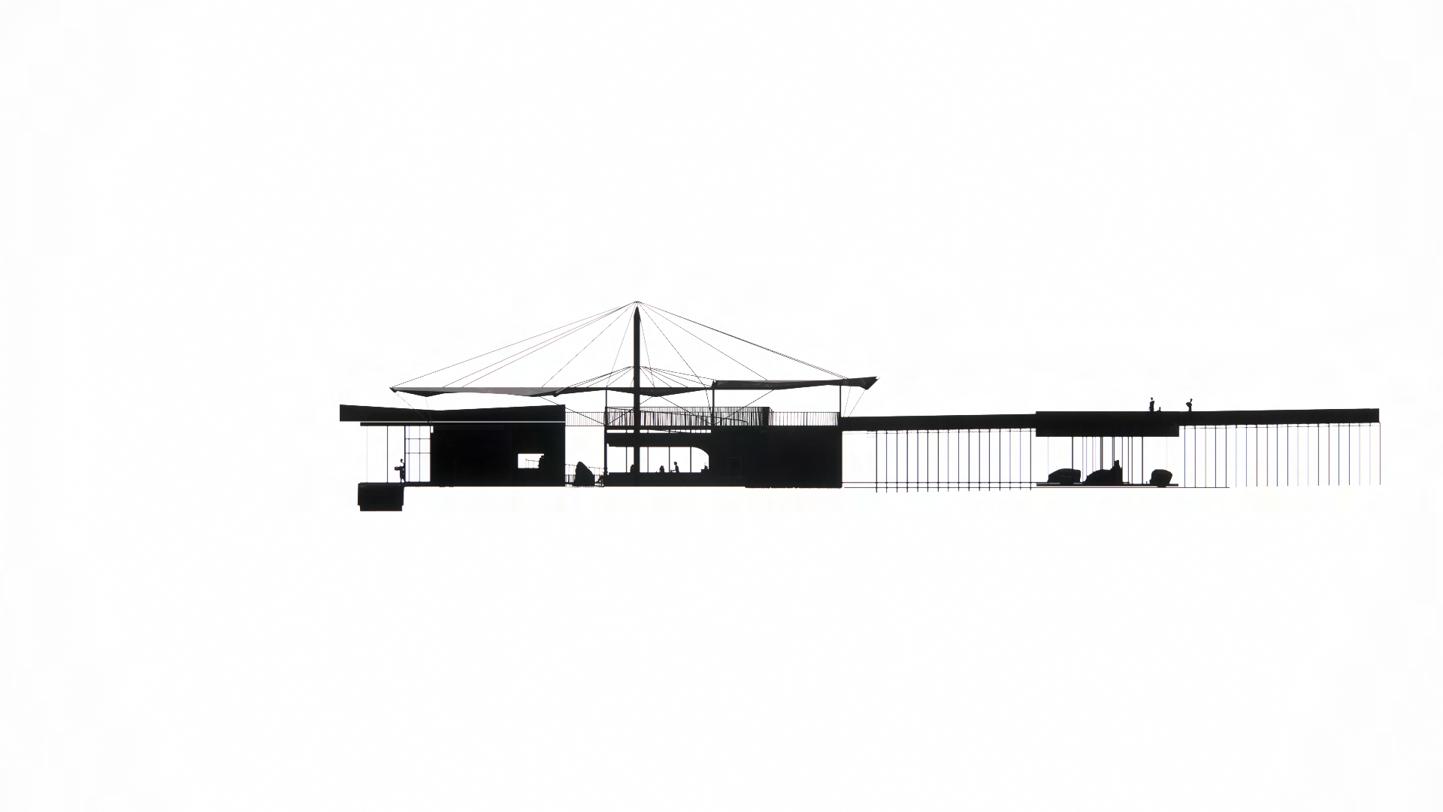

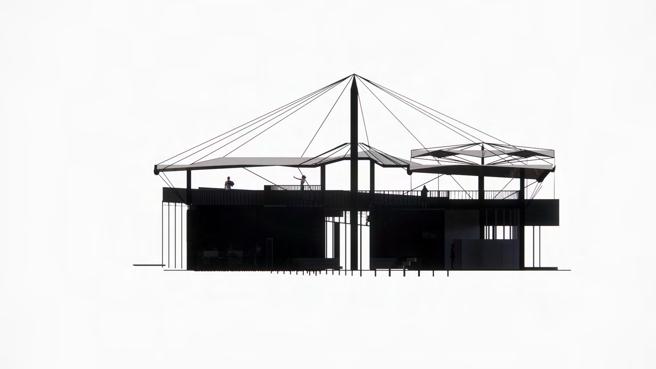

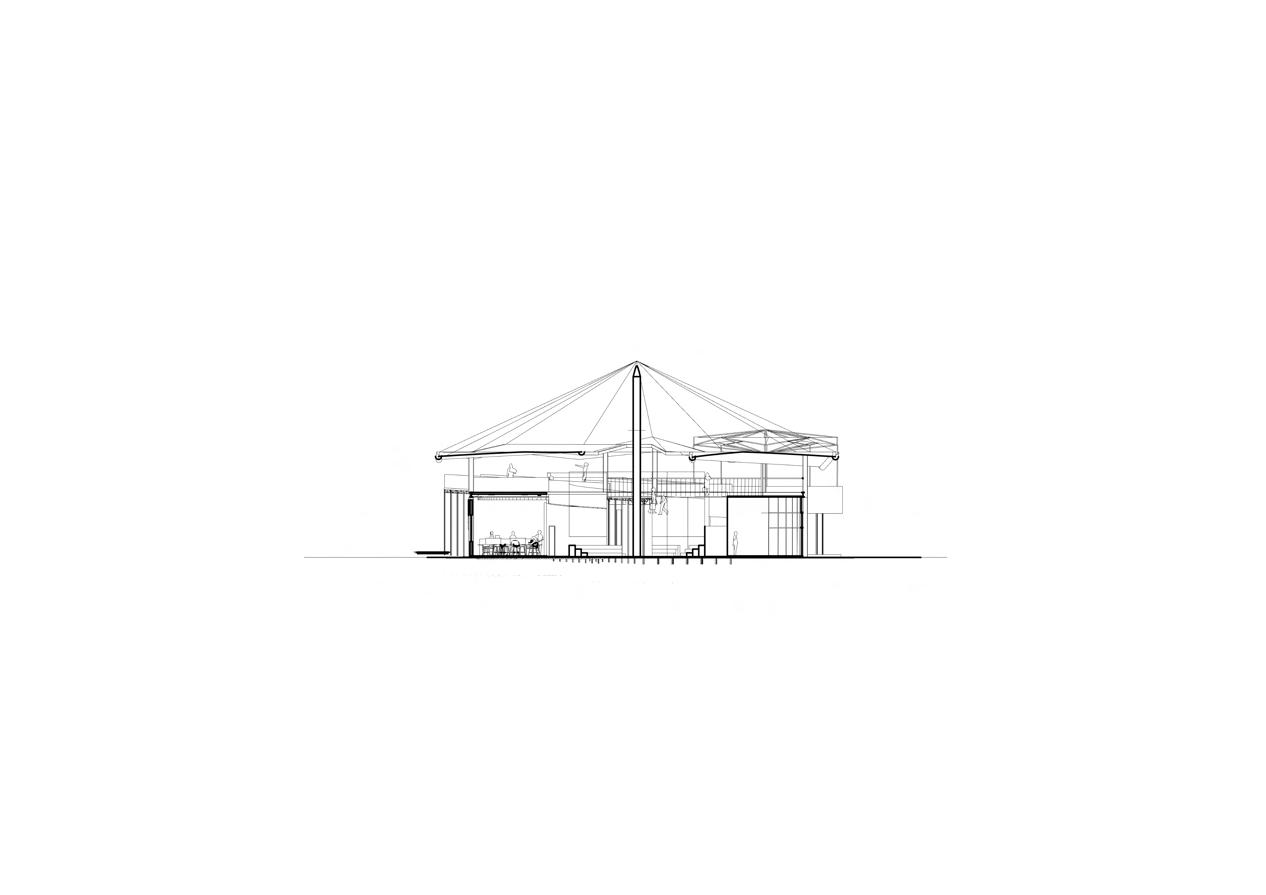

Tensile Structure and Connected Form

The physical and biological components of the site were taken into consideration when designing this project so as not to disturb or even harm them. For all of those reasons, choosing temporary structures looked into the primary idea behind the construction of this building. It is possible to more effectively build the cable and pillar's structure without leaving much of a trace. Additionally, due to its flexibility, it can withstand a significant stretch. Simply put, in order to maintain the shape due to its weakness, a lot of wiring is needed as a wind bond.

The development of alternative studies of shape arrangement led to the formation of the mass concept. A collection of masses connected by straight lines is the end result. It is meant to make clear each's existence and purpose. The main mass, the inviting mass, and the supportive mass form the mass. The inviting mass serves as the building's wayfinding, the main mass determines its size and function, and the supporting mass accommodates more specialized uses.

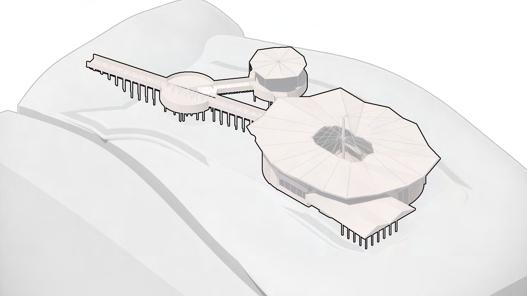

The design is formed by multi-mass geometry as analogy for sprawling stone at stone garden. About space organization, there’s a strong mass as prime area for visitors. Then, another mass become supporting unit with providing specific function such as viewing deck and outdoor exhibition.

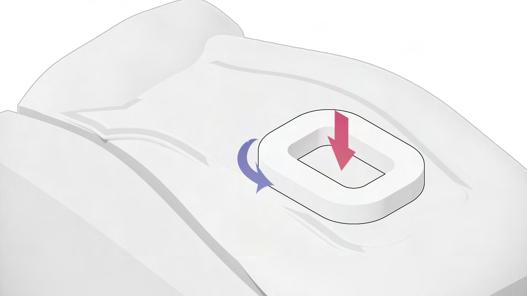

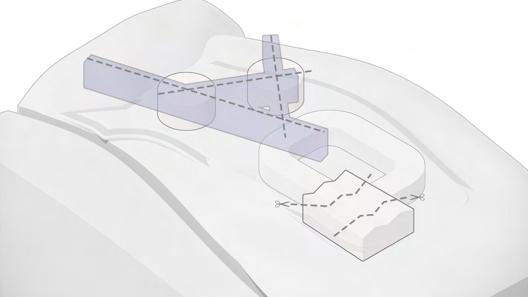

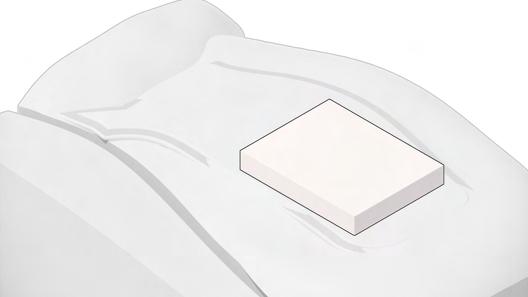

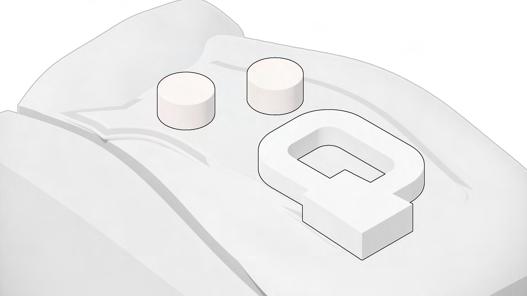

flat box as initial form fillet edge on four corner, forming rounded box and adding inner court due to substraction adding two identic cylindrical mass as supporting mass connect all with intersecting liniear mass resulting datum and cutting the top of mass to create sharp rock-like roof articulating the previous mass to be more void and detail

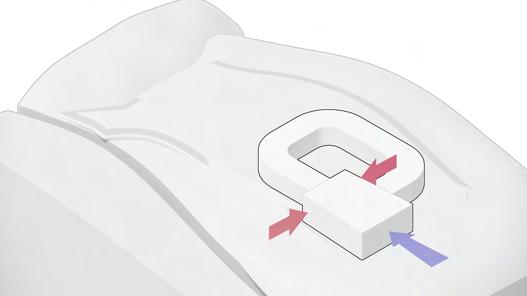

interlocking current mass on one corner with trapezoid-like box (created by pushing parallel side near one edge of another box)

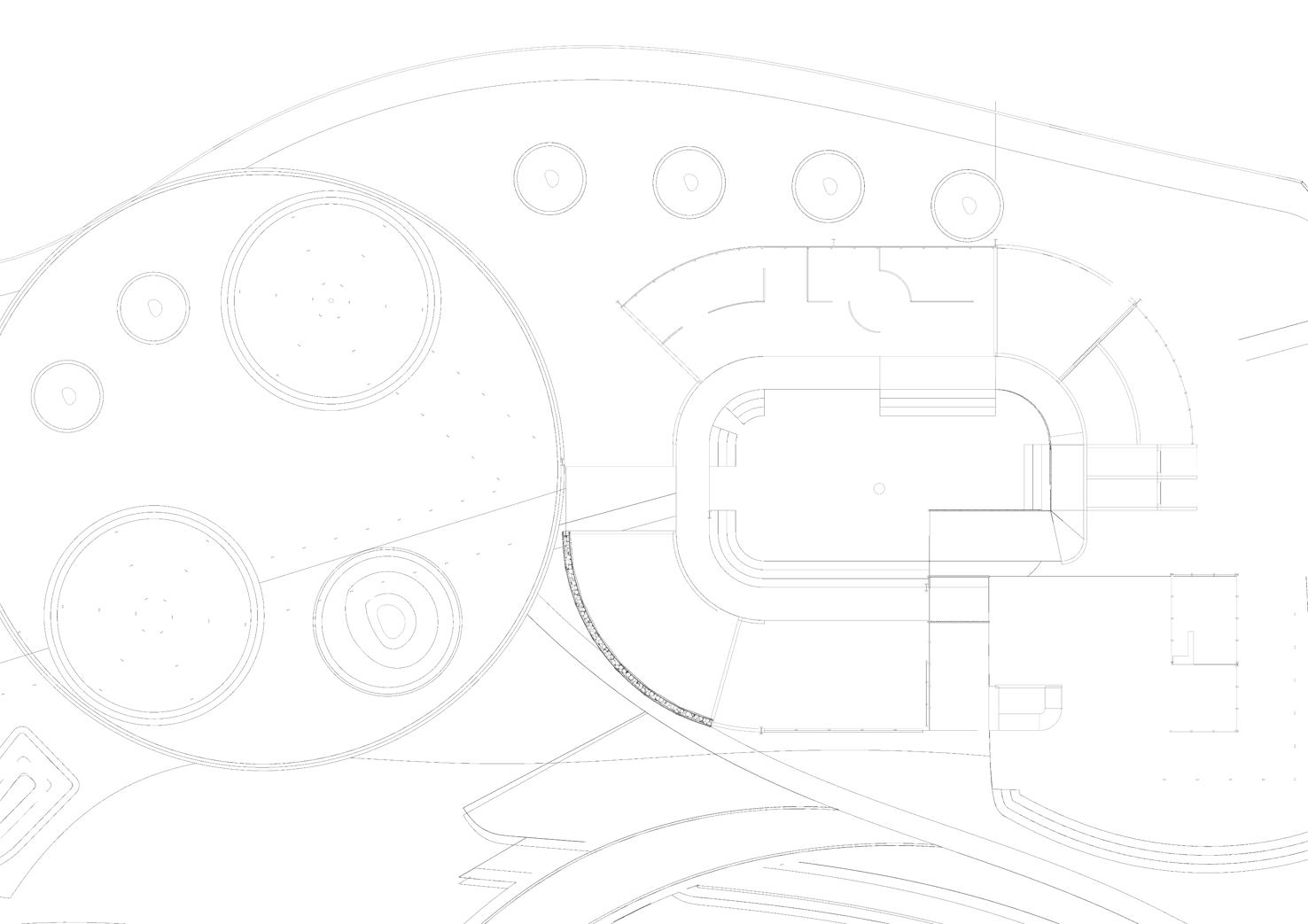

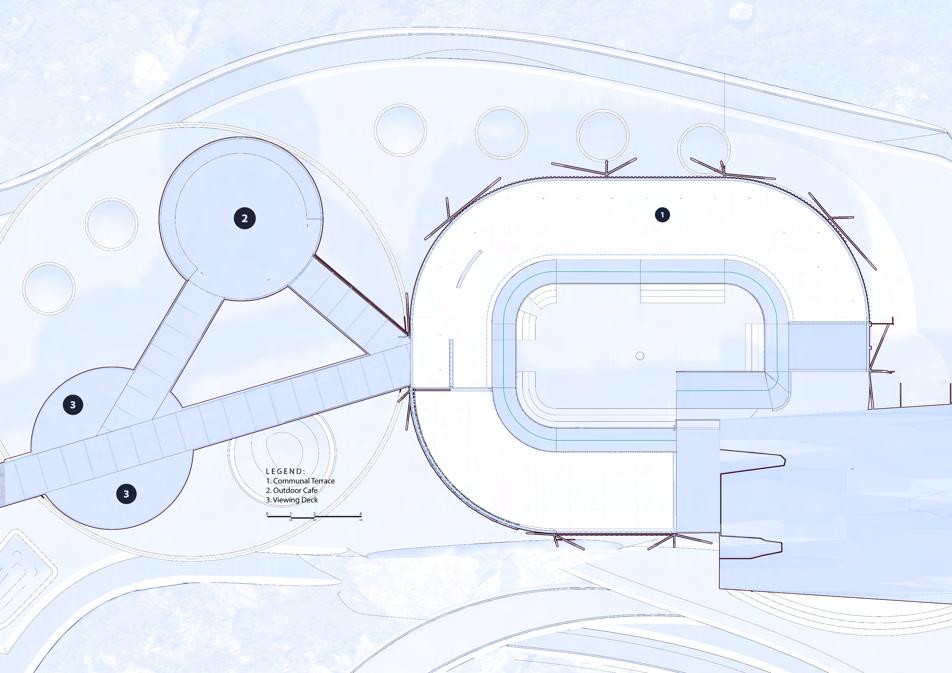

TERRACE FLOOR

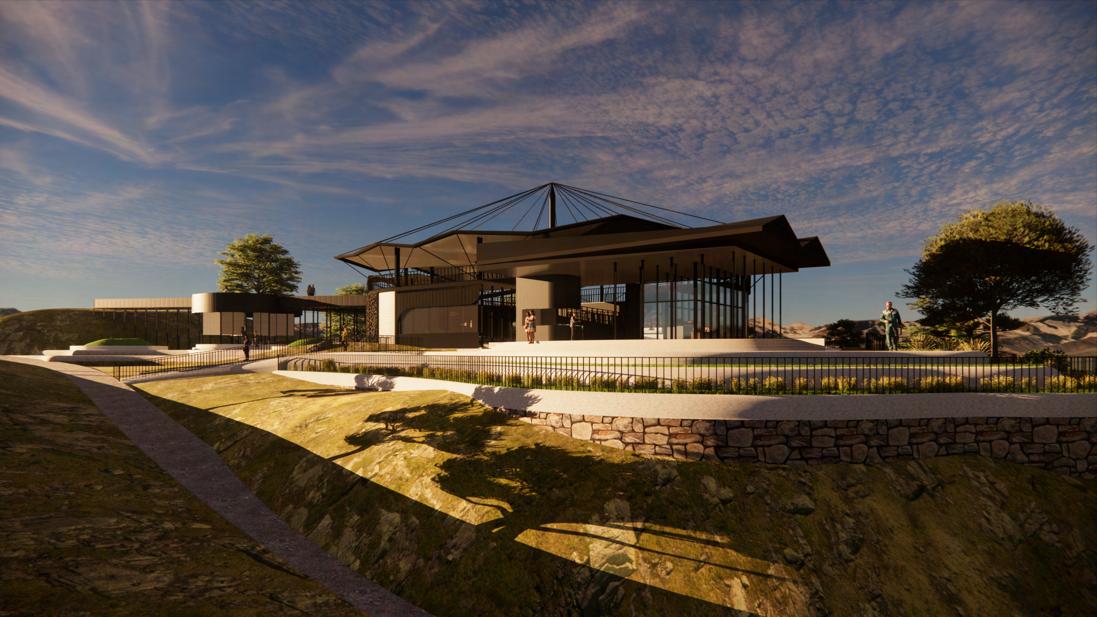

“let the gravel leads,” view to entrance

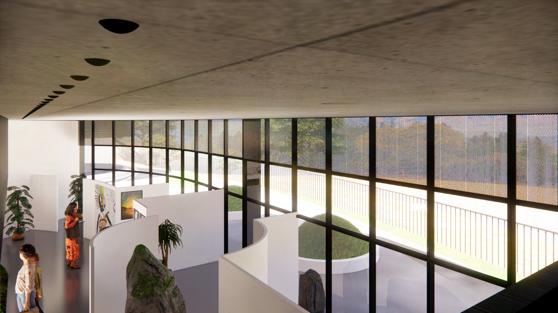

“stone’s night exhibition,” view of indoor exhibition

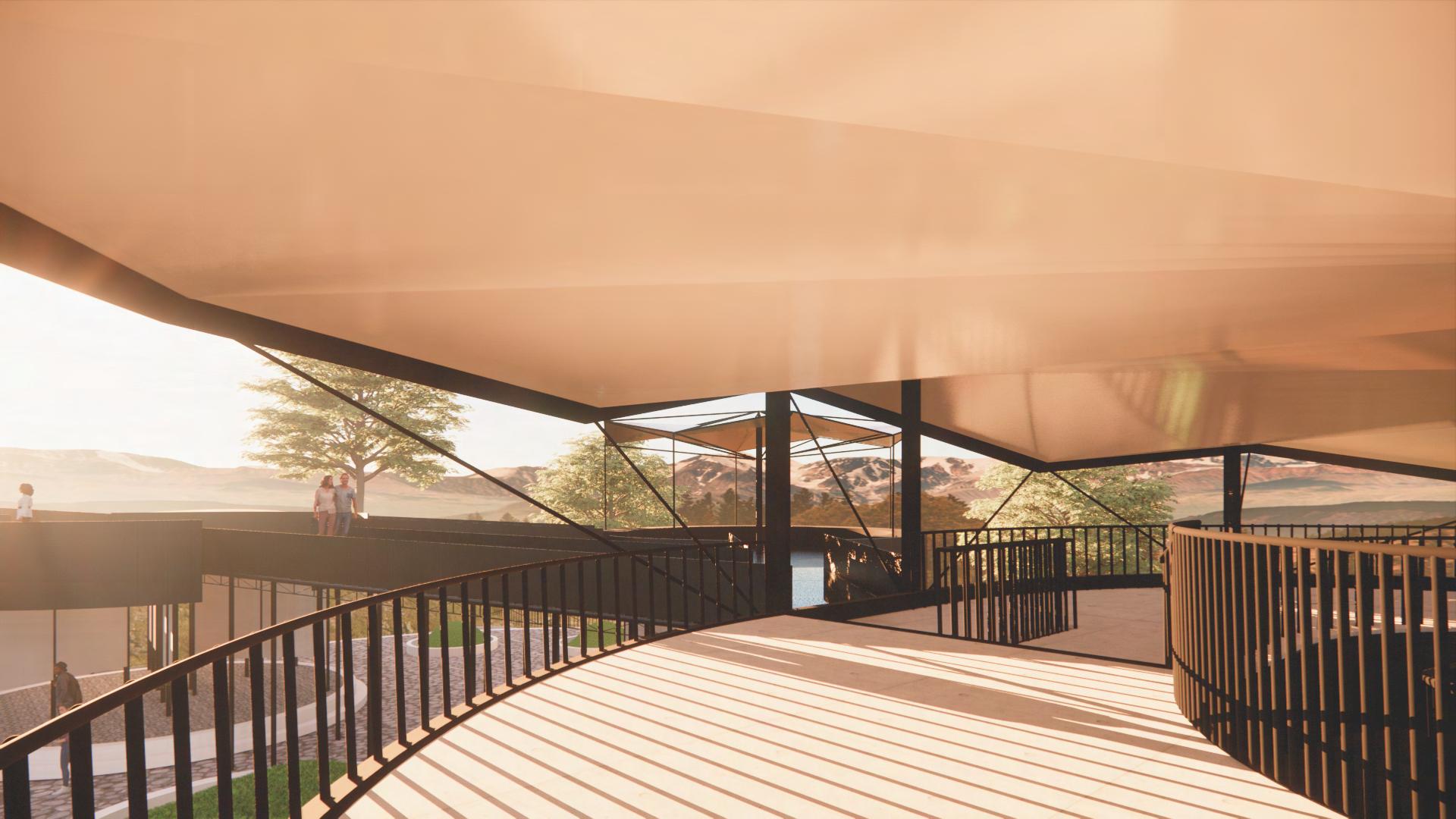

“underneath the umbrella,” view from terrace floor

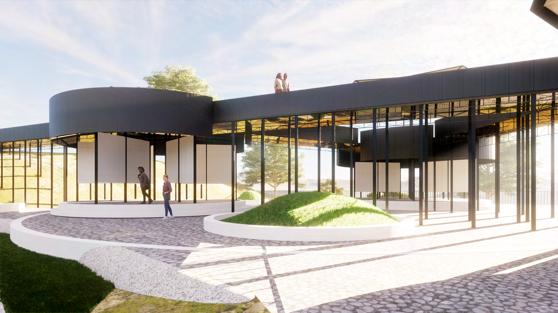

“stone’s day exhibition,” view of indoor exhibition “courtyard ambience,” view of inner court “outdoor exhibition,” view of open yard

Titik

Under Tol Pasupati at Jl Kebon Bibit, Bandung, West Java | 2.500 m² Lifestyle and Community Center | Social, Recreation & Commercial

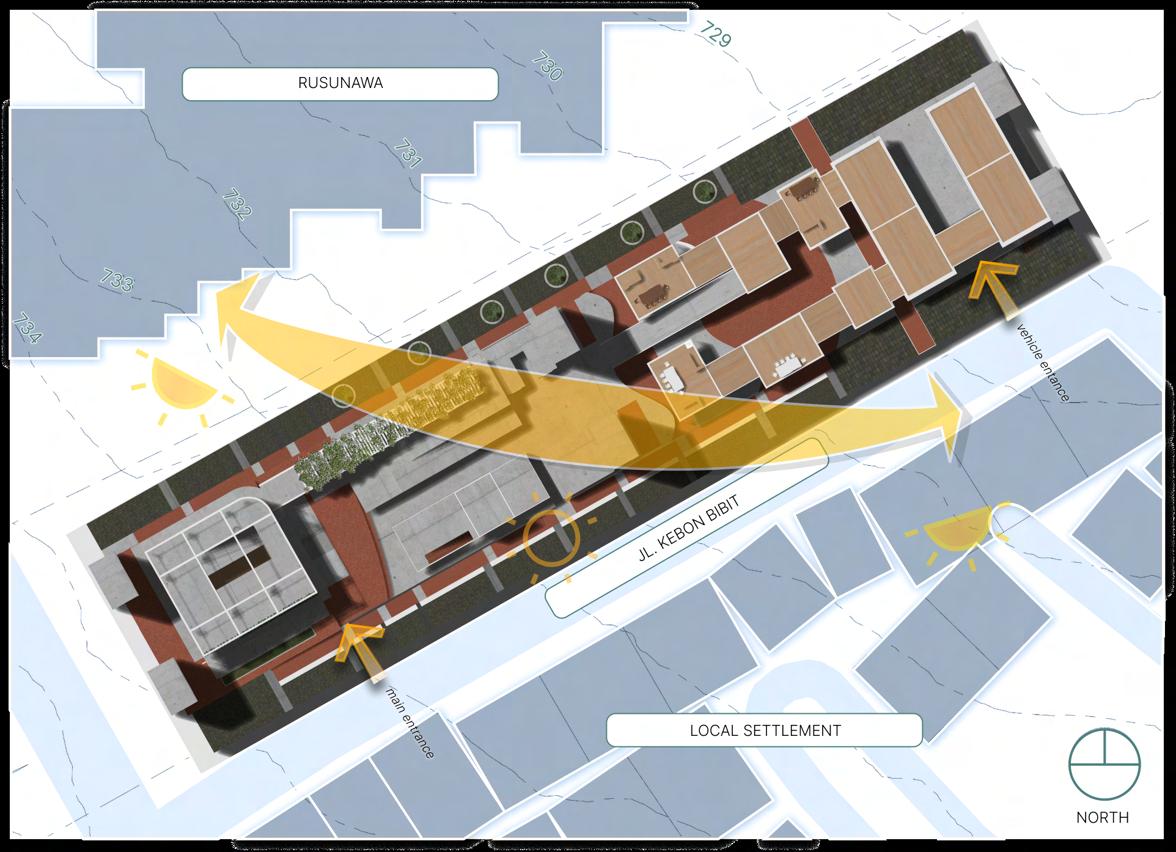

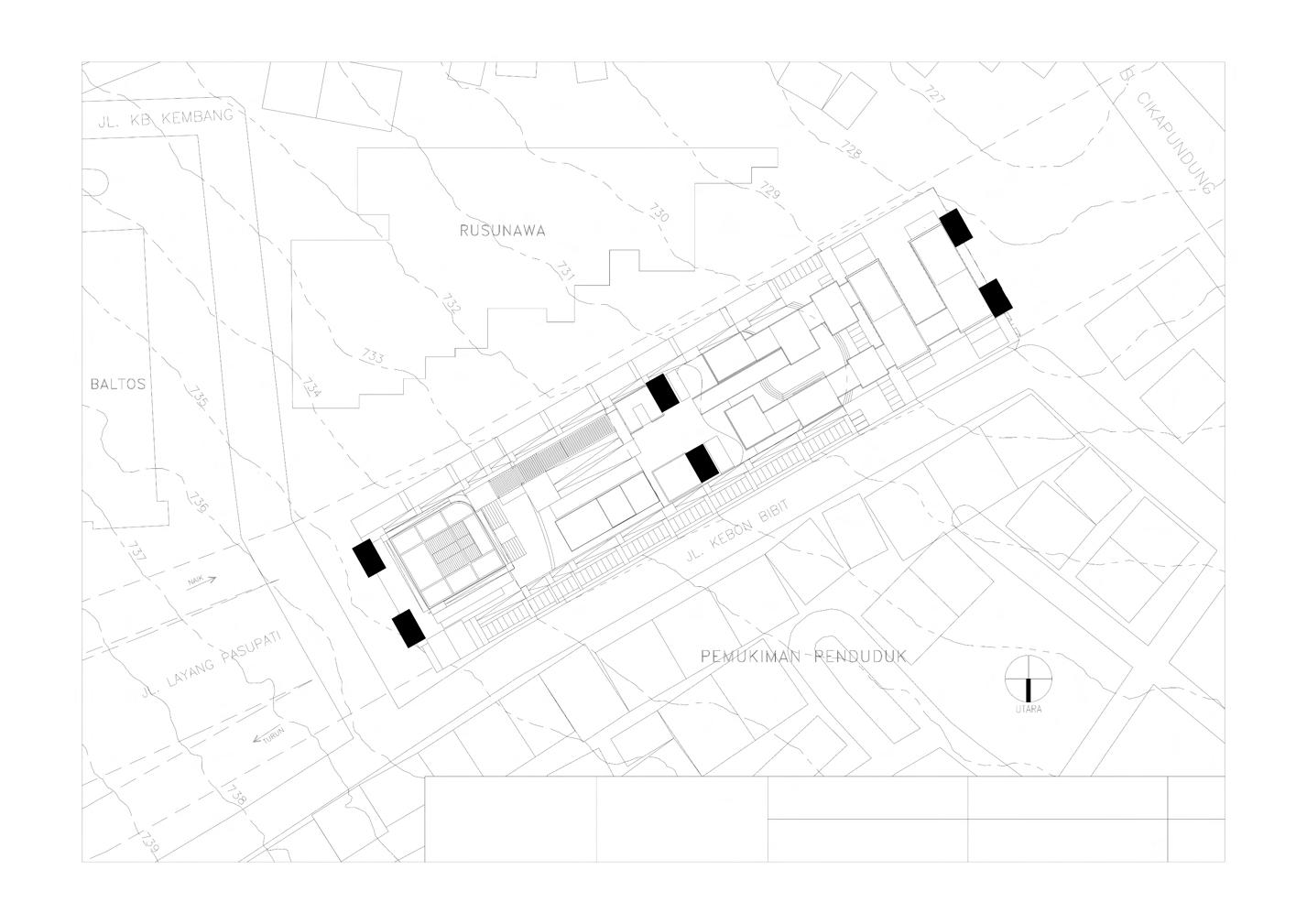

The site is under a bridge that extends for 100 meters. The existing built-up area is in the form of parks, street stalls, and wild parking areas. The condition of the soil is in the form of contoured land with less lighting. So far, the strategic area has been used by the local community for activities such as gathering and chilling.

Therapeutic Approach

In this project, use a social approach to determining concepts. Through the search for selected issues, problems related to reducing stress levels will be developed. The use of therapeutic concepts produces two main concepts, namely art therapy and biophilic

Healing by Arts

Art therapy allows the community to channel its artistic soul through the art of painting and performance. Divided into two phases, the first visitors will channel their emotions through art. The second stage of the exhibition and show. The works of art to be displayed can be an exhibition product that will be continuously updated so that anyone can come back many times to enjoy them.

Green Facade

The concept of the introduction of natural elements into design through the use of green walls and green roofs Especially as a building blanket, it absorbs the polluting gases around the site. Some species of creeper plants are known to have such characteristics. In addition, the selection of the green element as a derivative of the biophilic design concept

SECOND

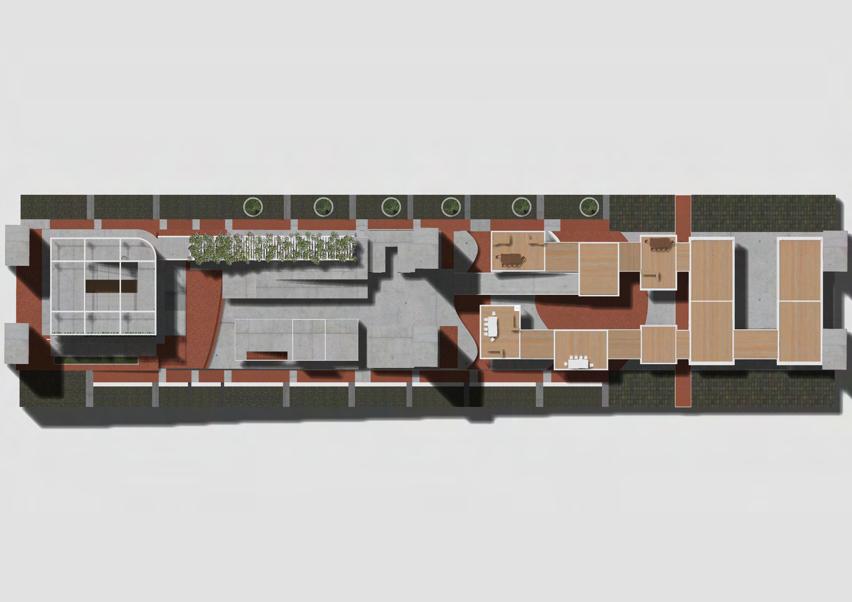

GROUND FLOOR PLAN

THIRD

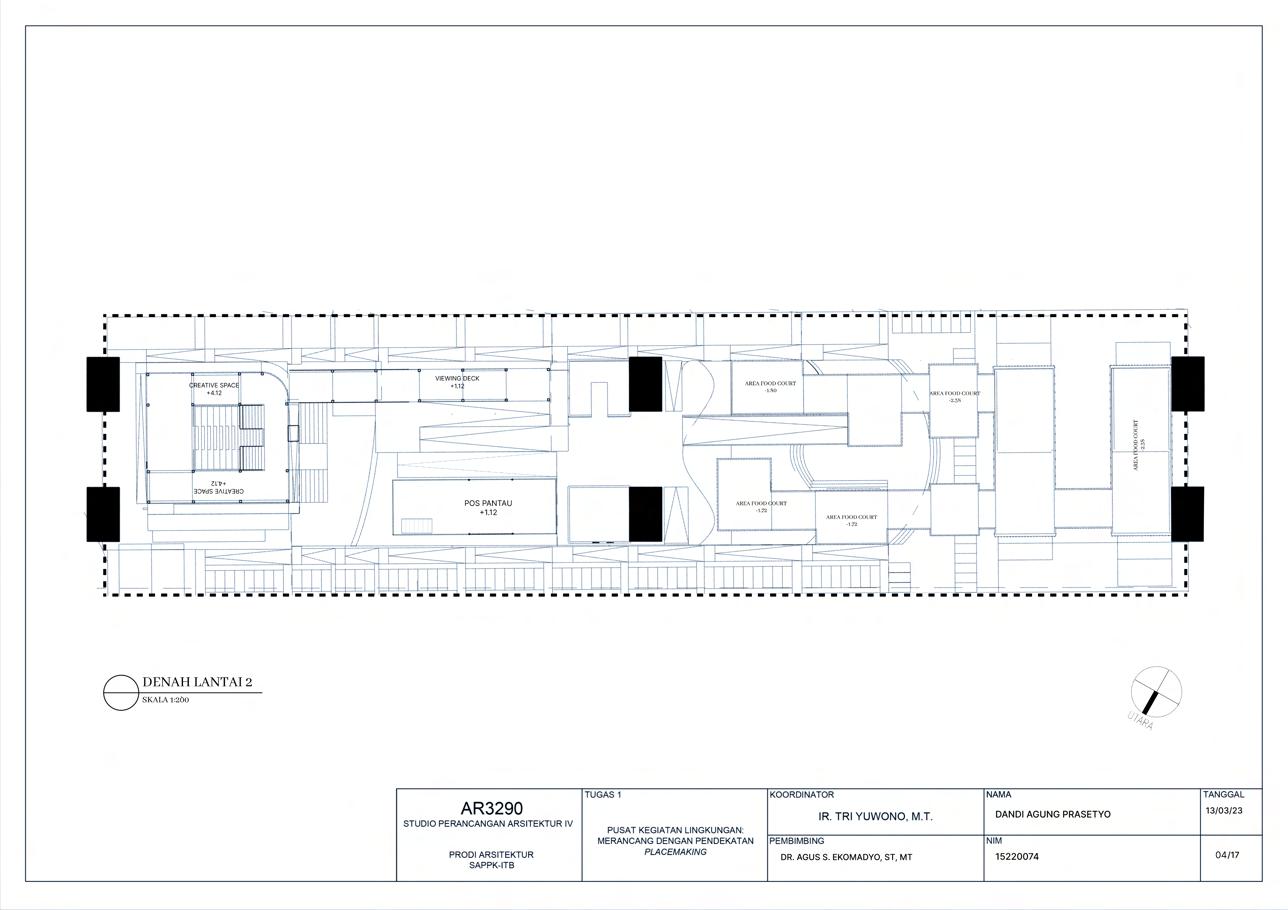

LEVEL FLOOR PLAN

LEVEL FLOOR PLAN

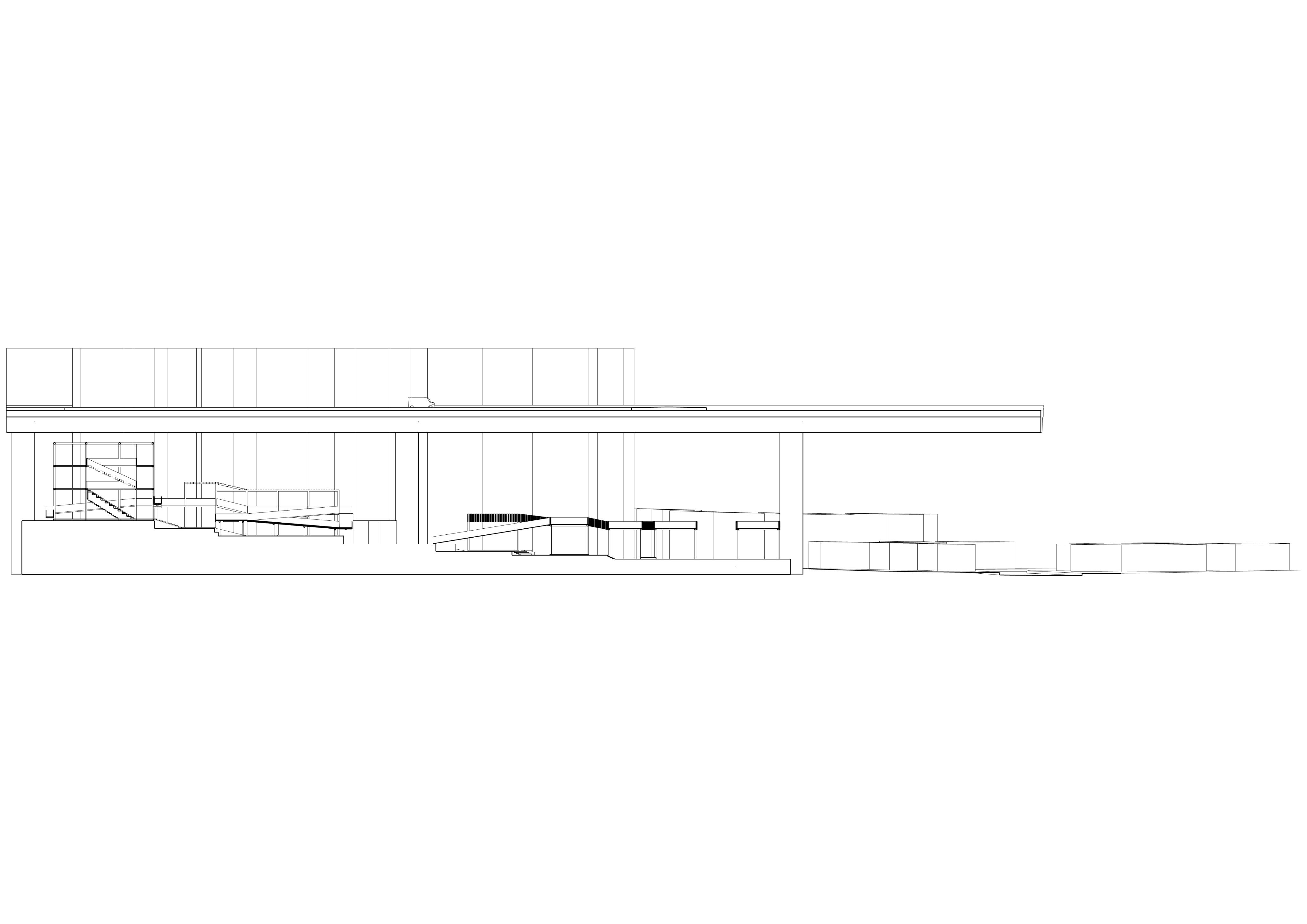

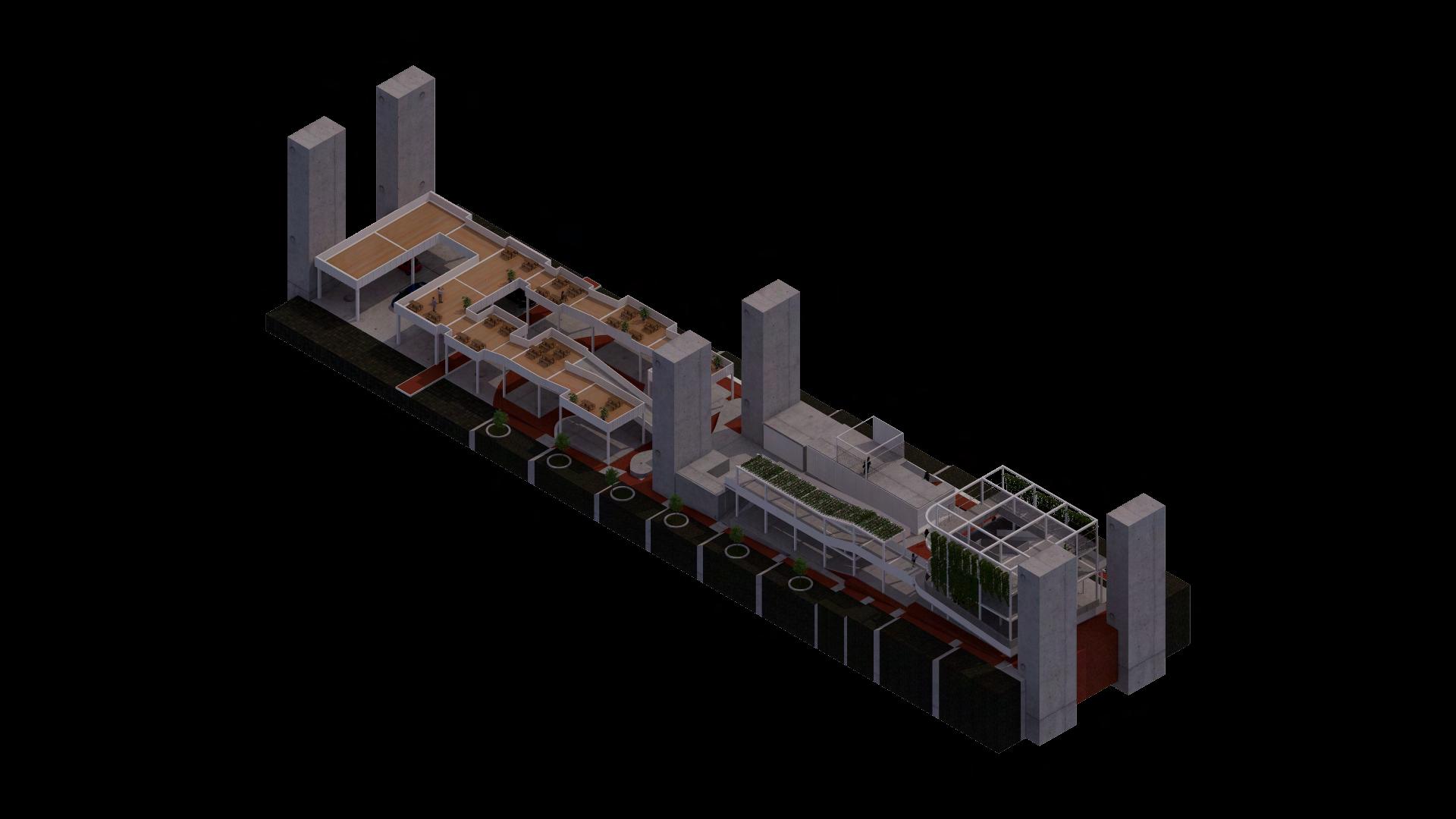

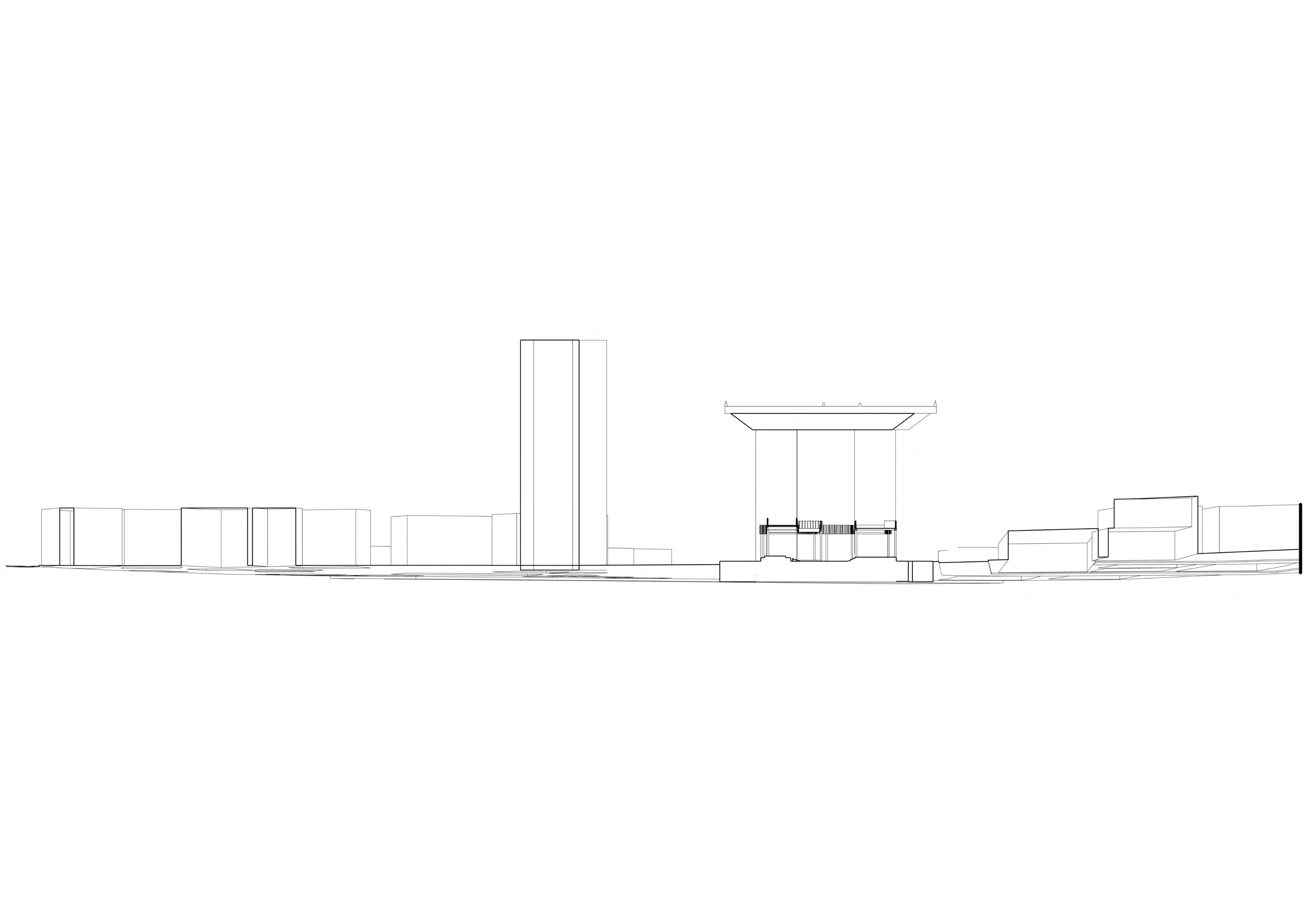

LONG SECTION

GROUND FLOOR

SECTION A

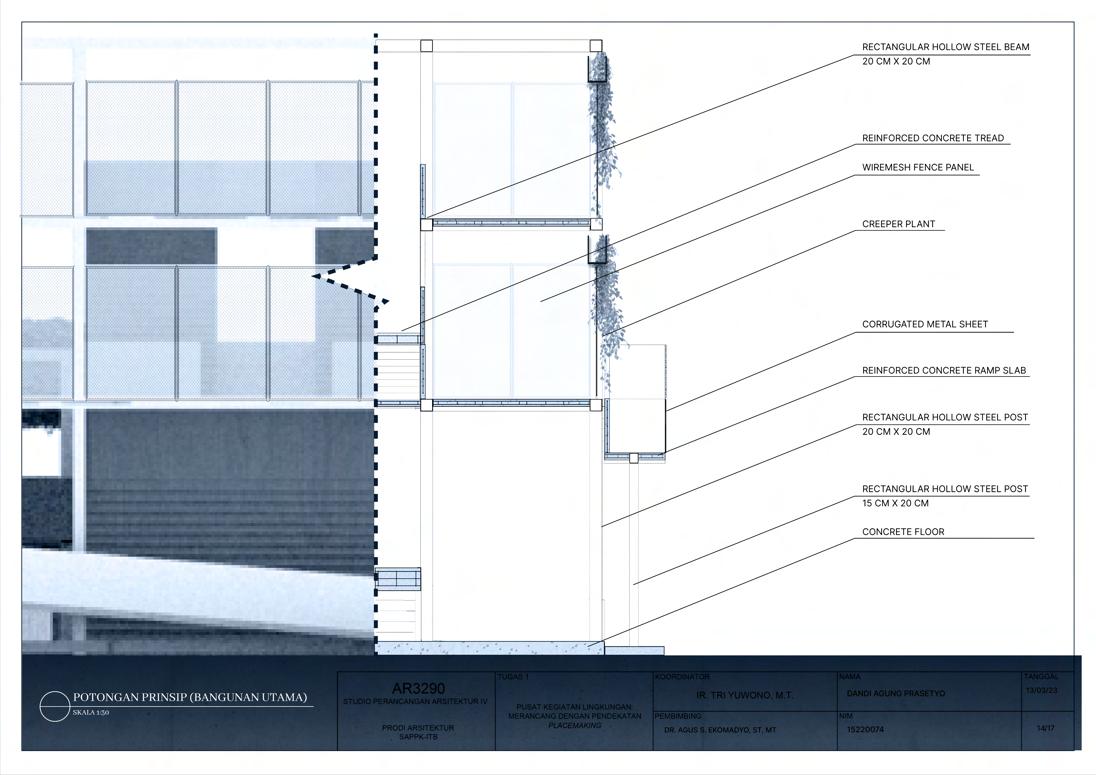

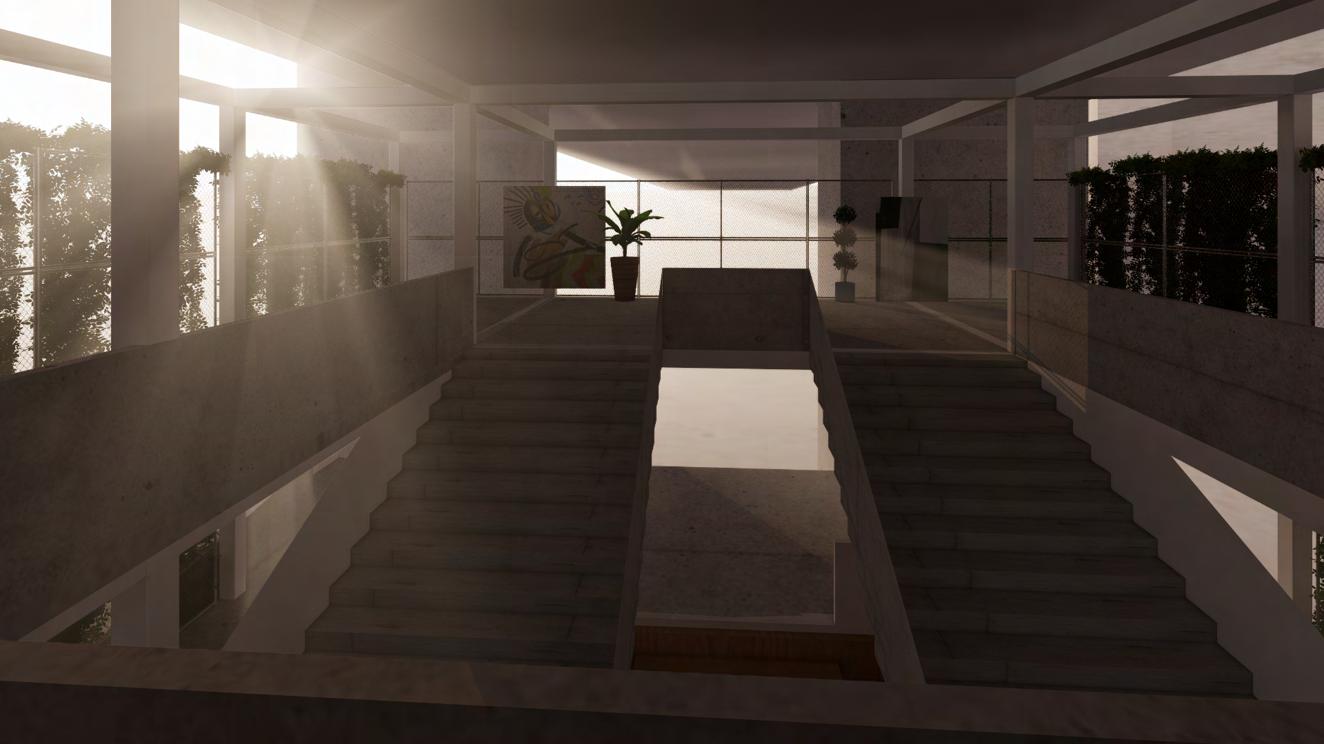

The exhibition area serves as the second part of art therapy. The building's mass is distinguished by transparent walls and exposed structures. It was meant for exhibitions that could be accommodated. Long-term art display with light installations that are always accessible. The usage of wiremesh walls maximizes the use of display area that can be used as a hanging location. It is also consistent with the concept of a vertical garden.

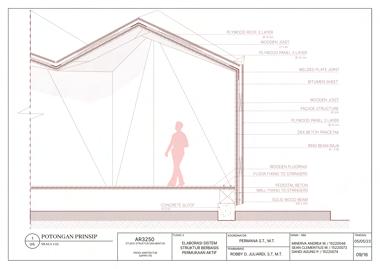

PRINCIPAL SECTION

ARTS & EXHIBITION

SURVEILLANCE & VIEWS

UTILITIES

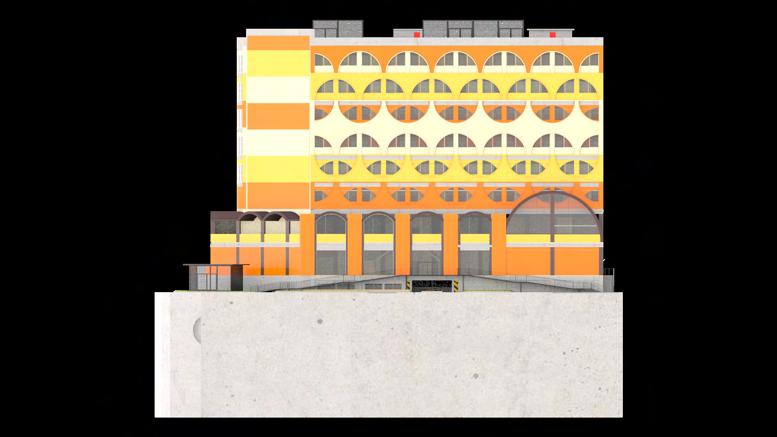

SIDE ELEVATION

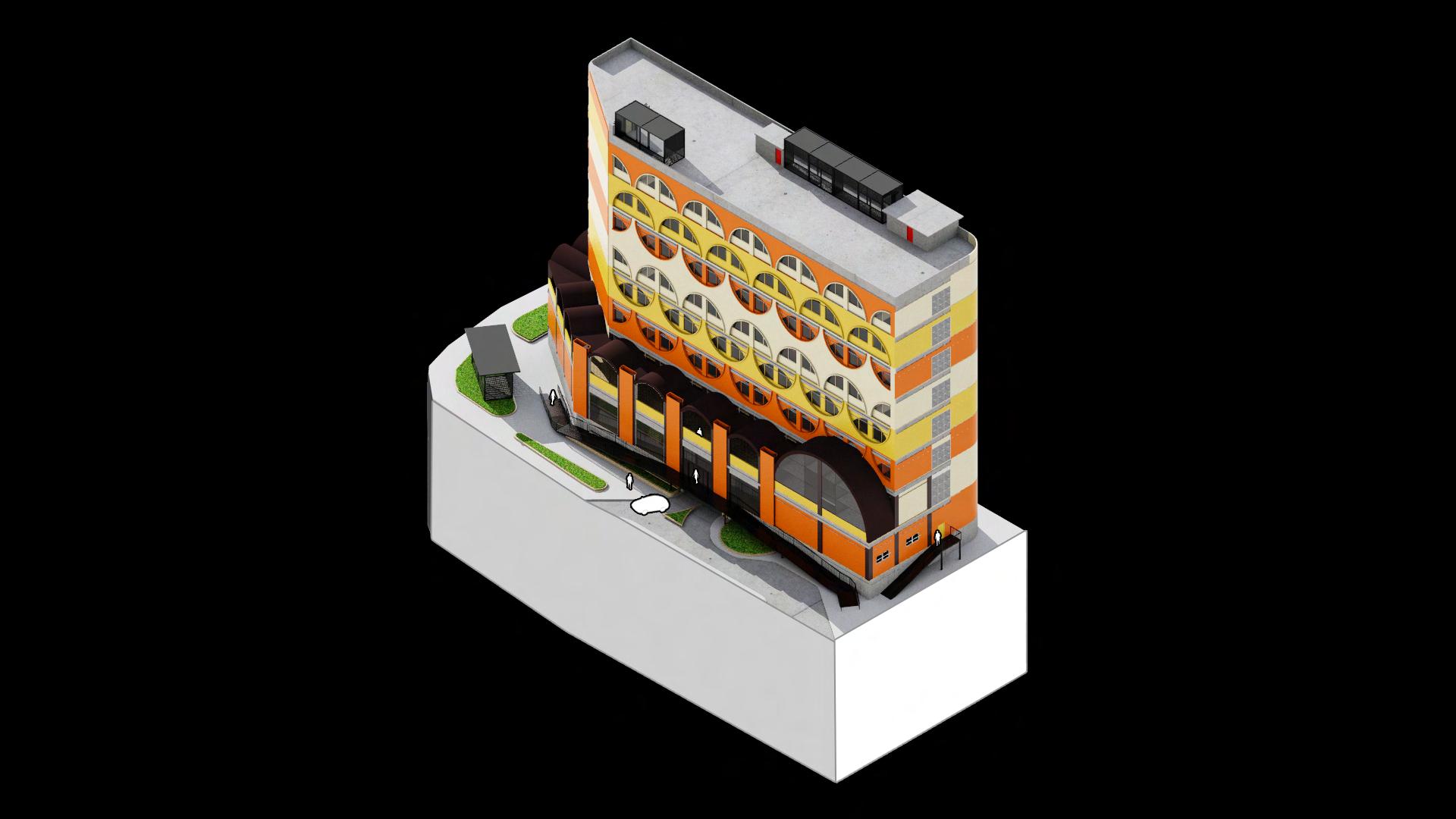

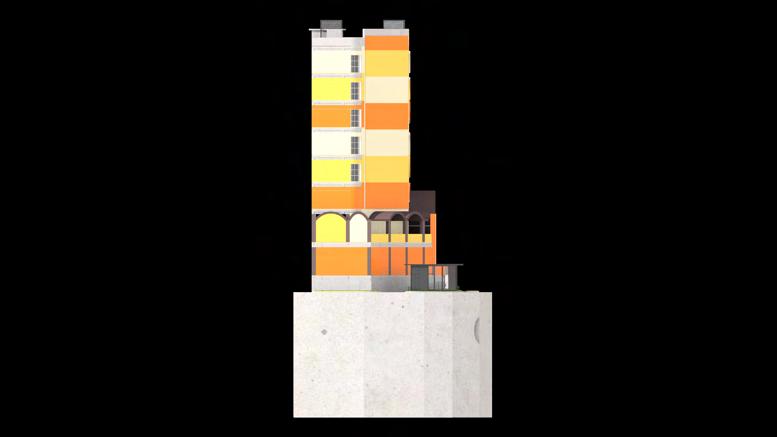

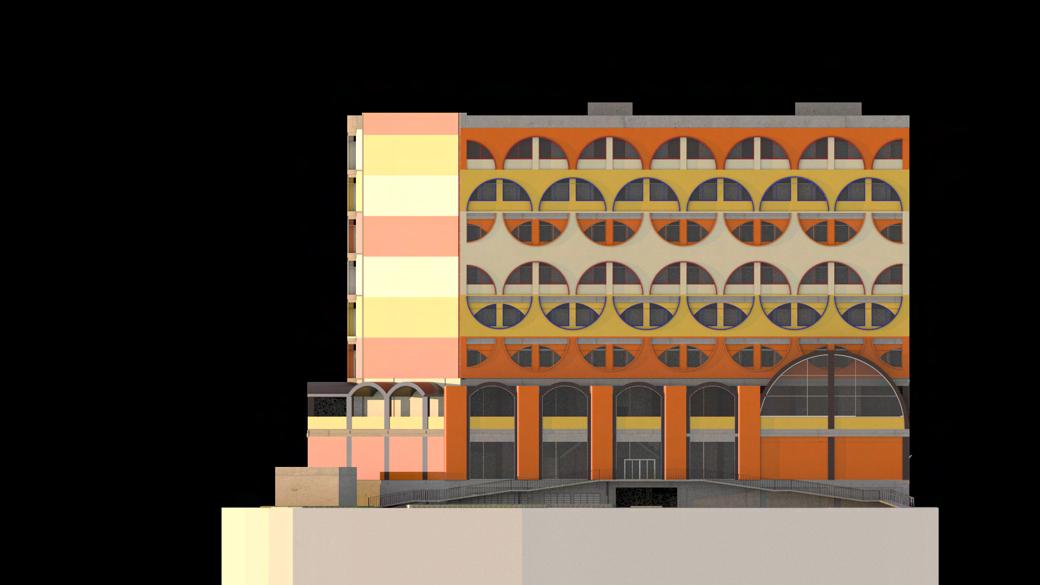

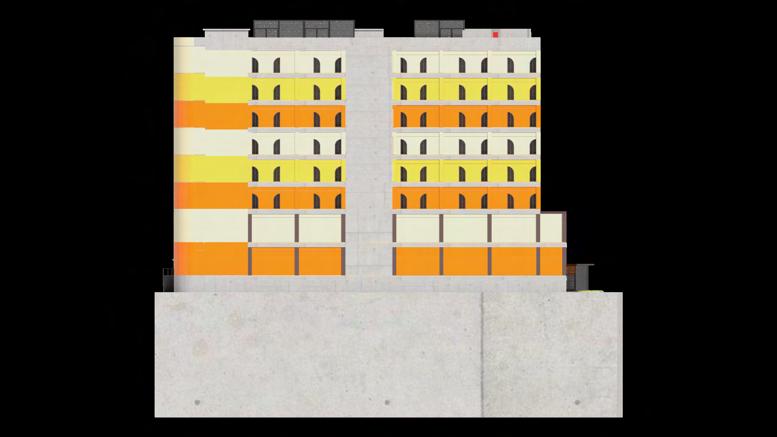

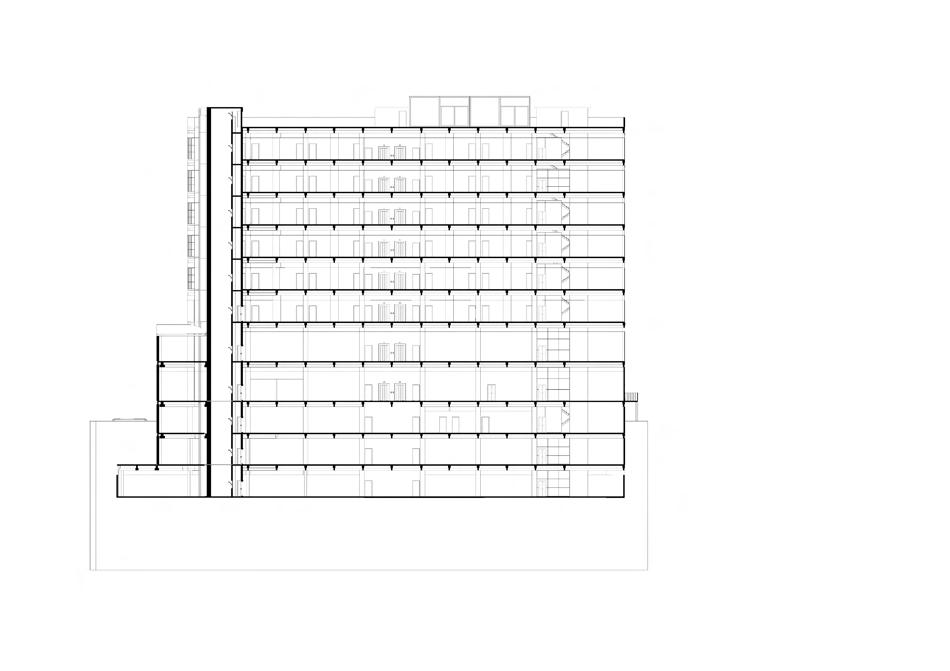

Shine Hotel

Jl Banda, Bandung City, West Java | 2.001 m² Budget Hotel | Commercial

Individual Project on Architectural Design Studio IV 2023

Supervisor : Dr. Agus Suharjono Ekomadyo, S. T. , M. T.

a hotel with reasonably priced hotel rooms for travelers on a tight budget. even without extravagant conveniences, deliver an unforgettable experience. The hotel's unique and engaging looks become its signature to draw visitors back.

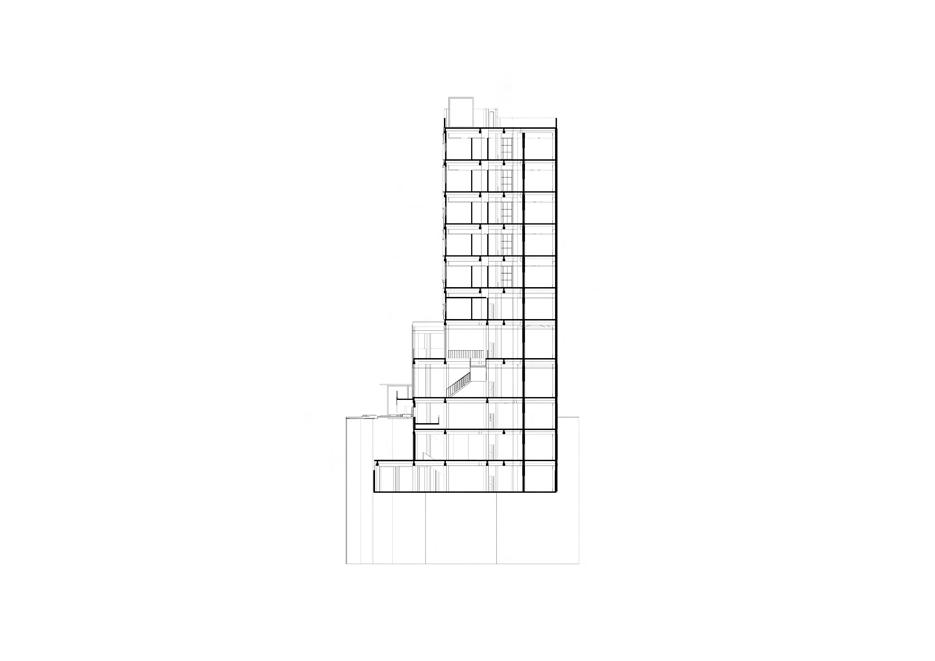

The project, which took up a portion of the semester, was focused on designing a mid-rise structure with a commercial use as a lowcost hotel and the building's utility system. As a result, knowledge of the building's technical aspects is required for project drafting. Until this project is finished, the design is not only driven by engineering concerns, but also focuses on addressing problems with affordability and land use regulations.

a square-shaped ground that is relatively long. In addition, rules that decrease building mass are enforced. In terms of closeness, the land's positioning is quite advantageous for the hotel building because it is at the intersection of two streets, allowing for a clear view of the site from the outside. An orange-colored office building for the Indonesian Post dominates the neighborhood, which is also teeming with shopping centers and spots for recreation. In fact, the area that surrounds the street is fairly crowded.

Gaining Engagement Through Impression

Starting from the Indonesian train community and having travel and exploration as a hobby. Travelers' main concern will be finding a place to stay in an unfamiliar land. However, not every room is reasonably priced. Even though there is a boring and unworthy type of room.

Giving an impression becomes a supporter of sales power especially if a positive reaction for the former resident. phenomenon word of mouth will be a passive promotion to increase sales.

main entrance JL. BANDA

JL. BANDA

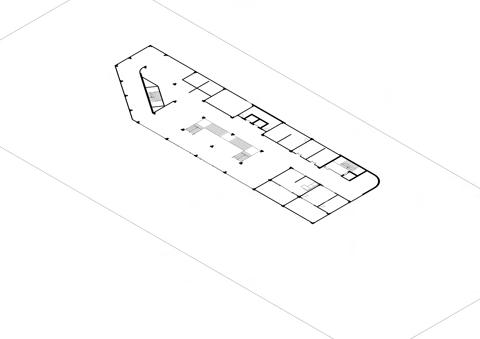

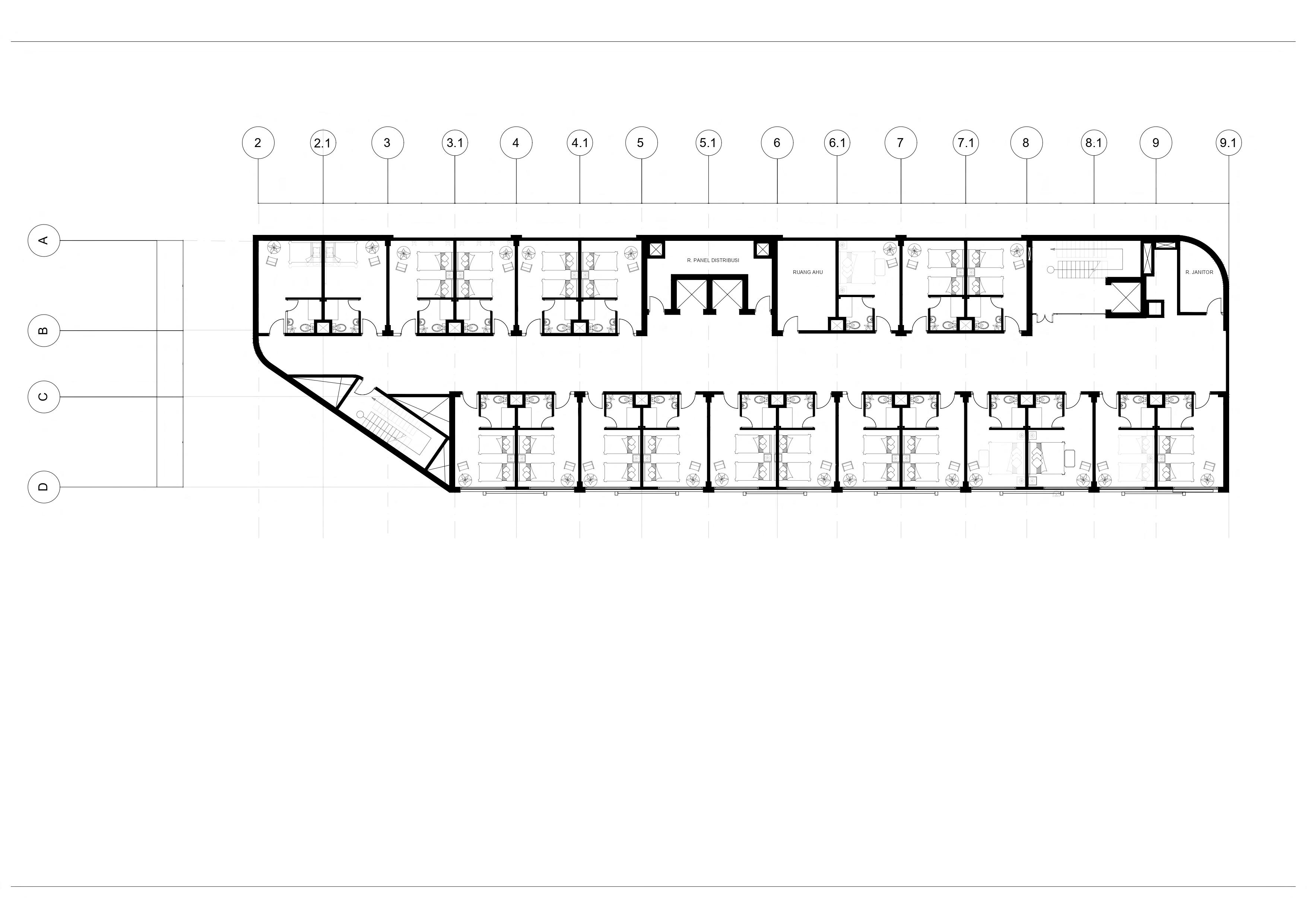

TYPICAL ROOM UNIT FLOOR (6 FLOORS)

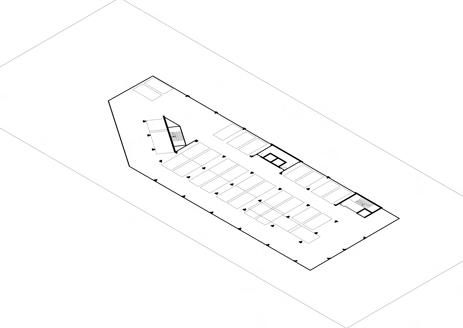

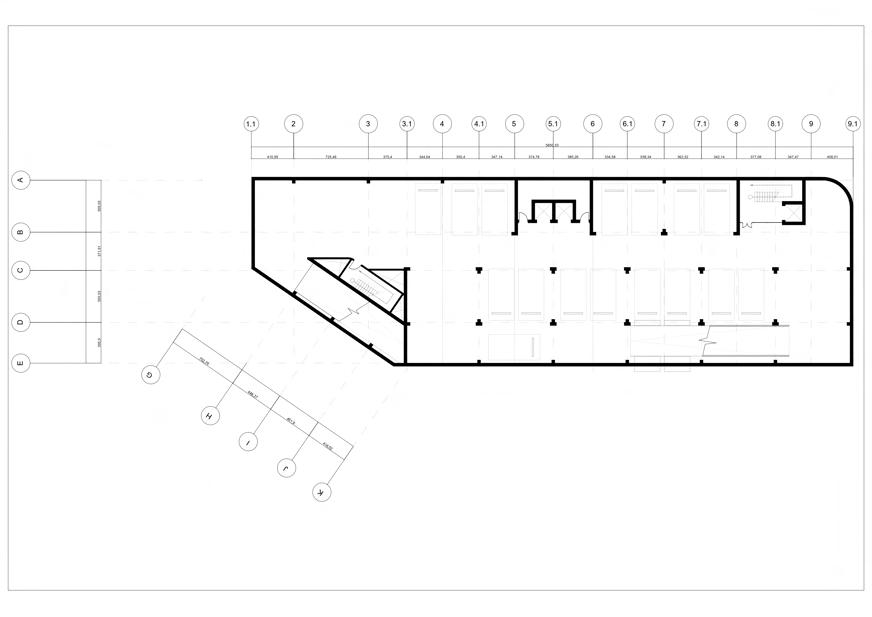

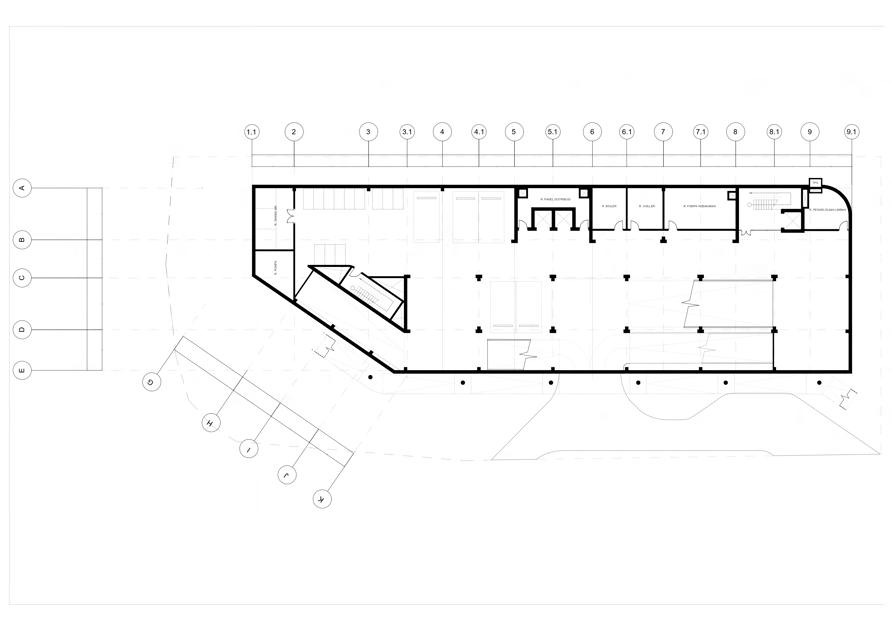

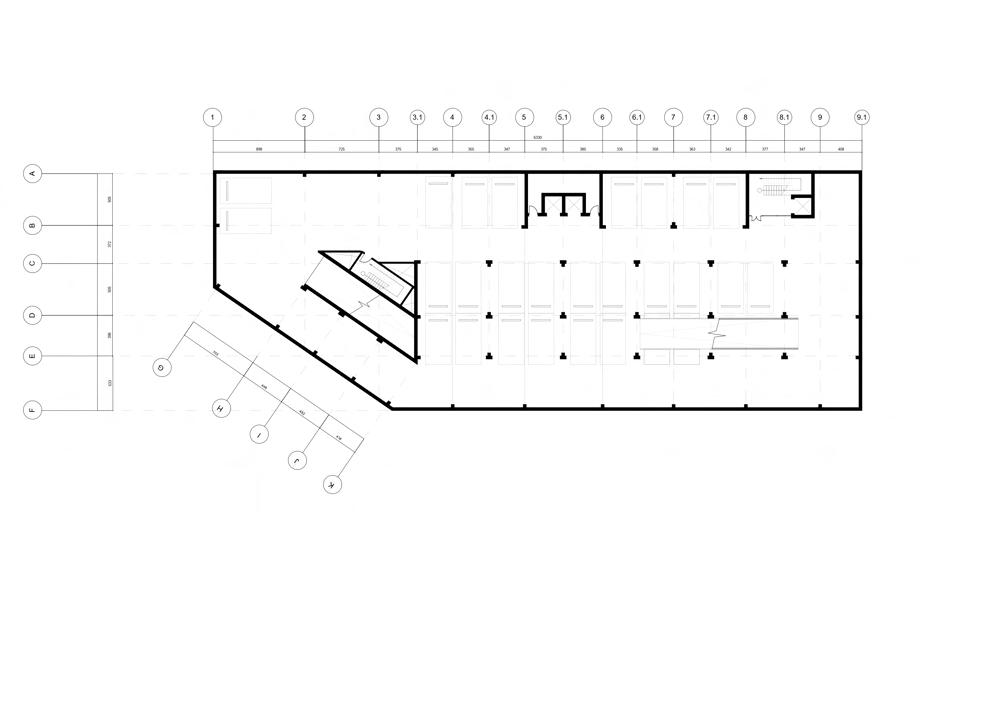

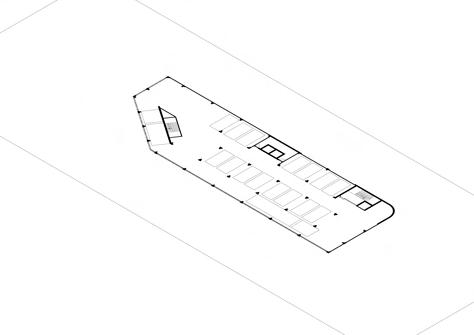

2nd BASEMENT FLOOR

1st BASEMENT FLOOR

SEMI BASEMENT FLOOR

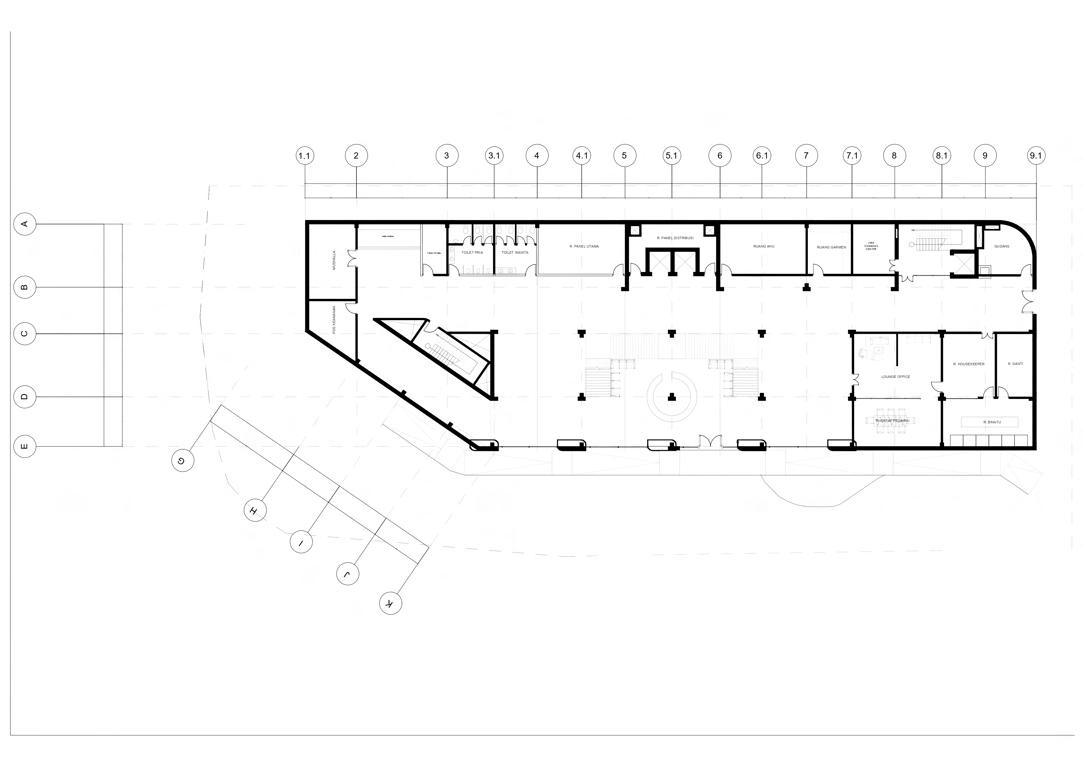

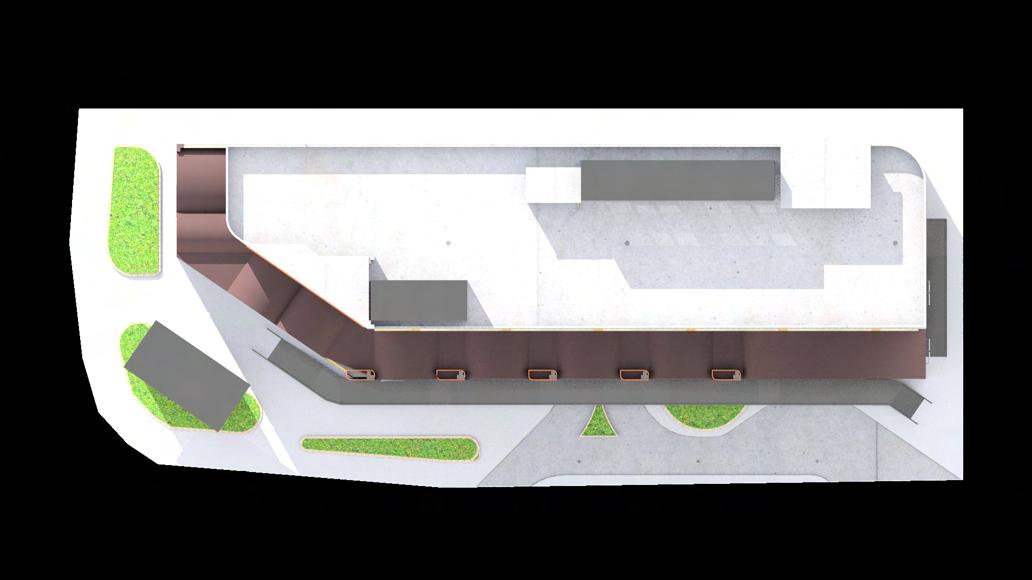

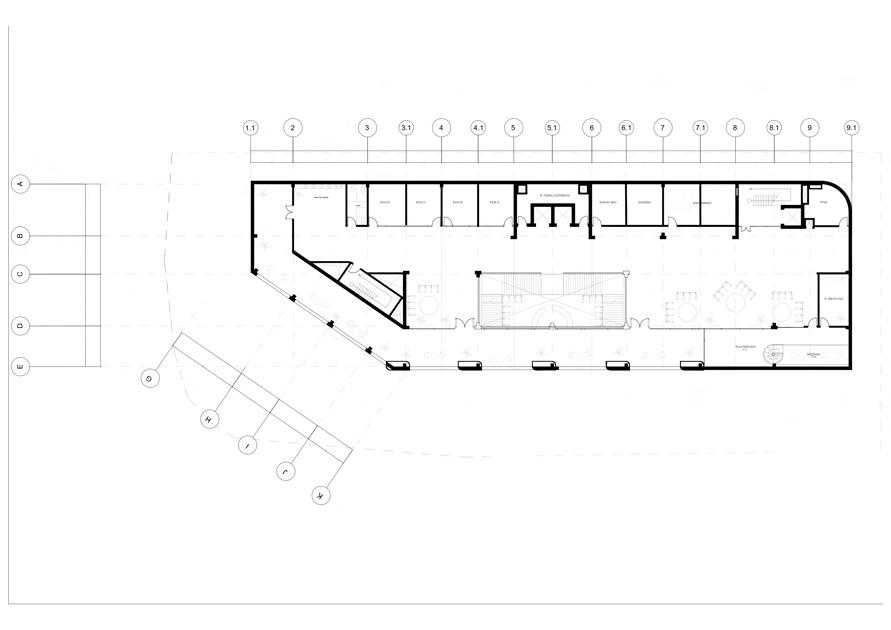

GROUND PLAN

UPPER GROUND FLOOR

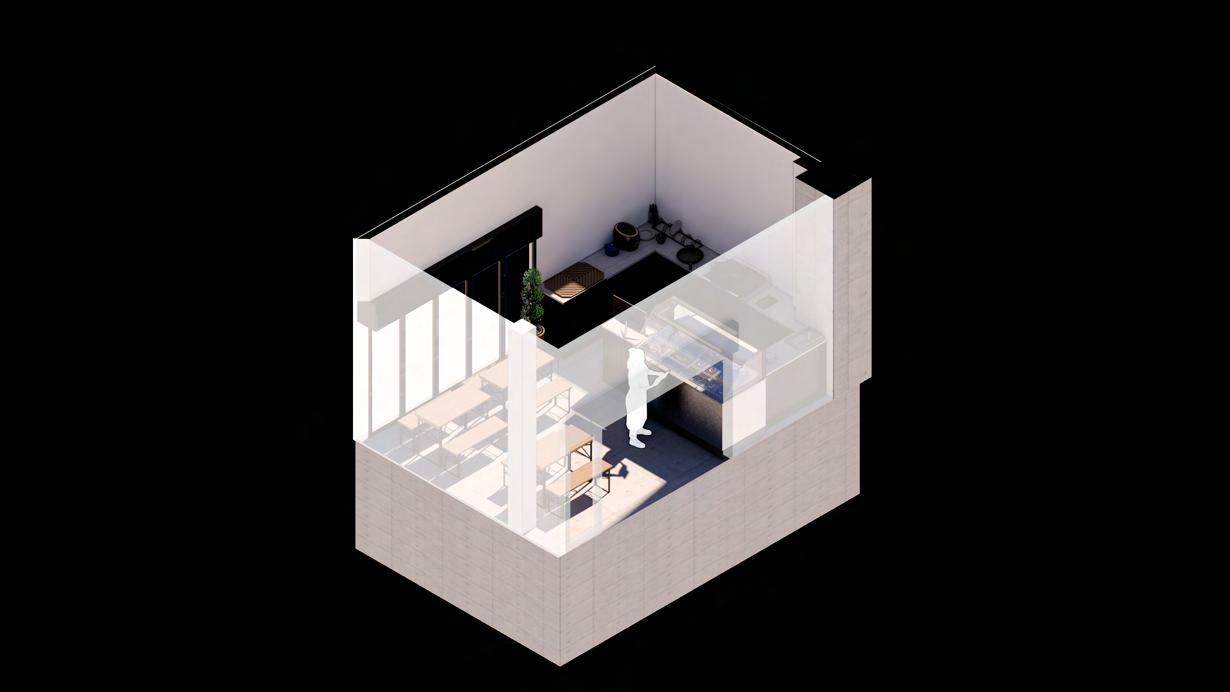

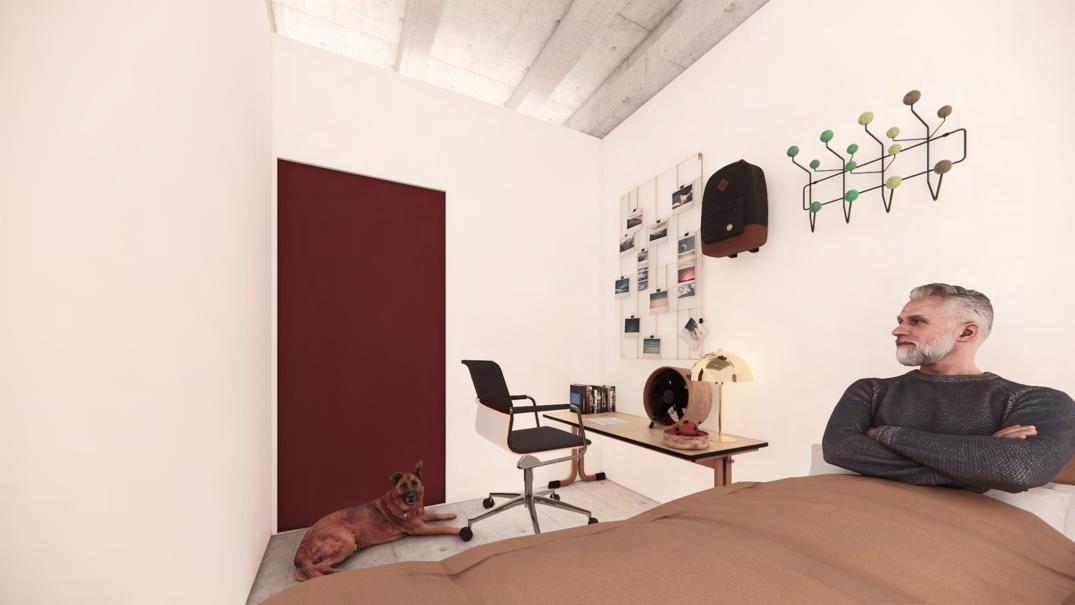

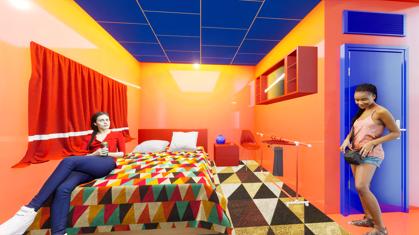

Queen Bed Type

16 square meters

Twin Bed Type

16 square meters

Bunk Bed Type

16 square meters

for every travelling star

view of outdoor lounge, providing space for relax or eat

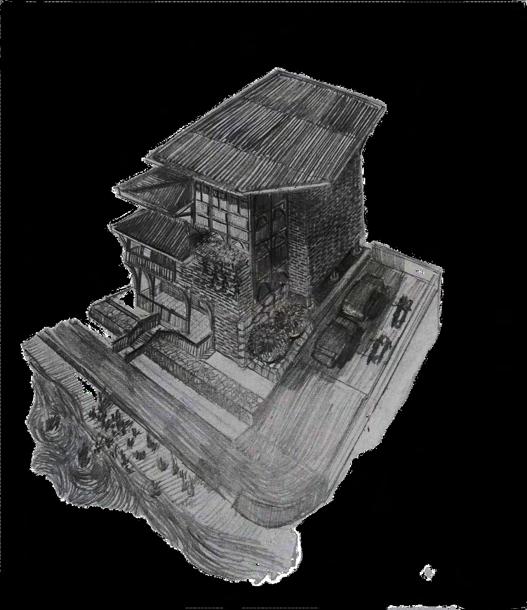

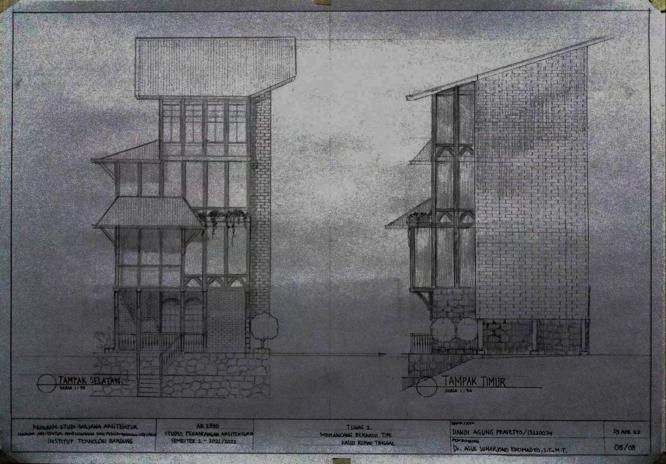

pencil works compilation (2021-2022)

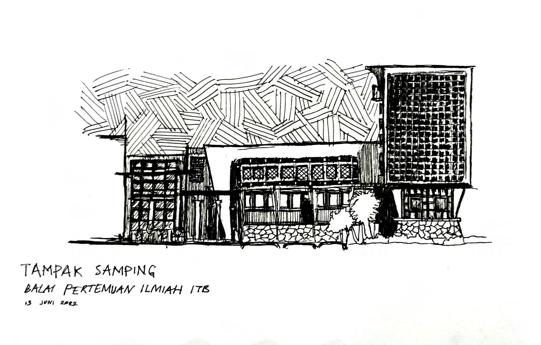

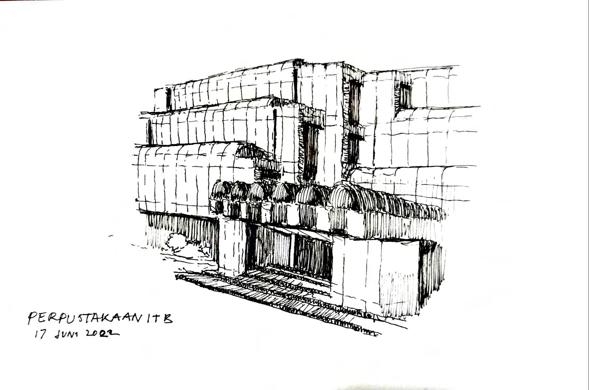

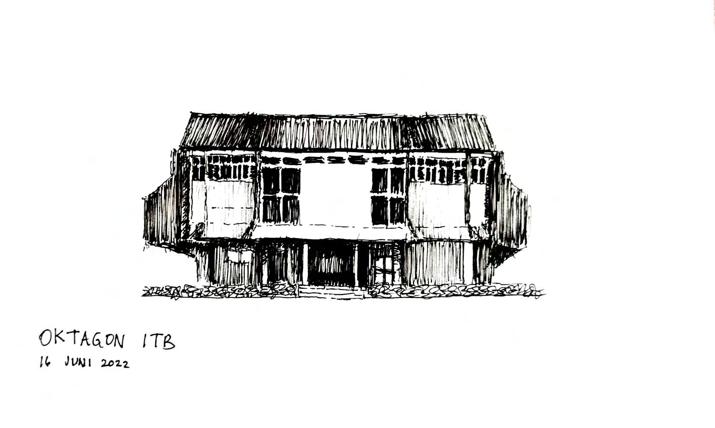

freehand architectural sketches (2022-2023)

Thank You.
