Secret DUO Product Brochure

S EC RET DUO SP ECIF I C AT I ON S

DUO

1 5 4 0 NM E R : G L ASS Wavelength

1540 nm

Laser Power

Up to 12W

Pulse Duration

700 - 5000 μs

Energy

8.4 - 60 mJ

Distance

0.1 - 2.0 mm

i-Stack

Up to 10

MODE

0.2 / 0.5 / 0.7 / 1 / 1.5/ 2 sec / Single

Treatment size

10 x 10 mm, 15 x 15 mm

DYNAMIC FACIAL RESU RFAC I NG AND REMODELIN G RF Microneedling + 1540 nm Technology

R A D I O F R E Q UE N CY MIC RONEEDLI NG Technology

Bipolar Radiofrequency Microneedling

Needle Tips

25 non-insulated/25 semi-insulated/ 64 semi-insulated

Frequency

2 MHz

Maximum Power

70W (64Pin) / 25W (25Pin)

Treatment Time (RF emission)

50 ms ~ 950 ms

Depth

0.5 ~ 3.5 mm (0.1 step)

Repetition Rate

0.2 / 0.5 / 0.8 / 1 / 2sec / Single

RF Intensity

0 ~ 100% (10 step)

Electrical Power

100 -240 VAC, 50/60 Hz

REFERENCES: 1 Tierney, Emily, and William Hanke. “Fractionated Carbon Dioxide Laser Treatment of Photoaging: Prospective Study in 45 Patients and Review of the Literature.” Dermatologic Surgery, vol. 37, no. 9, 2011, pp. 1279– 1290., https://doi.org/10.1111/j.15244725.2011.02082.x. 2 Yadav, Savita, and Aashim Singh. “Microneedling: Advances and Widening Horizons.” Indian Dermatology Online Journal, vol. 7, no. 4, 2016, p. 244., 3 Ryu, Han-Won, et al. “Clinical Improvement of Striae Distensae in Korean Patients Using a Combination of Fractionated Microneedle Radiofrequency and Fractional Carbon Dioxide Laser.” Dermatologic Surgery, vol. 39, no. 10, 2013, pp. 1452–1458., https://doi.org/10.1111/dsu.12268. https://doi.org/10.4103/2229-5178.185468. 4 ASDS Consumer Survey on Cosmetic Dermatologic Procedures 5 ISAPS international survey on Aesthetic/cosmetic procedures, 2021-2022 6 Absolute Reports Pvt Ltd, 2022 ABOUT CUTERA Cutera is a leading provider of laser and other energy-based aesthetic systems for practitioners worldwide. Since 1998, Cutera has been developing innovative, easy-to-use products that enable physicians and other qualified practitioners to offer safe and effective aesthetic treatments to their patients.

Cutera, Inc. World Headquarters | 3240 Bayshore Boulevard, Brisbane, California 94005 USA 888-4-CUTERA or 415-657-5500 | info@cutera.com | cutera.com | Nasdaq CUTR @2023 Cutera, Inc. All rights reserved. AP004021 rA (09/23)

Model. Not Actual Patient.

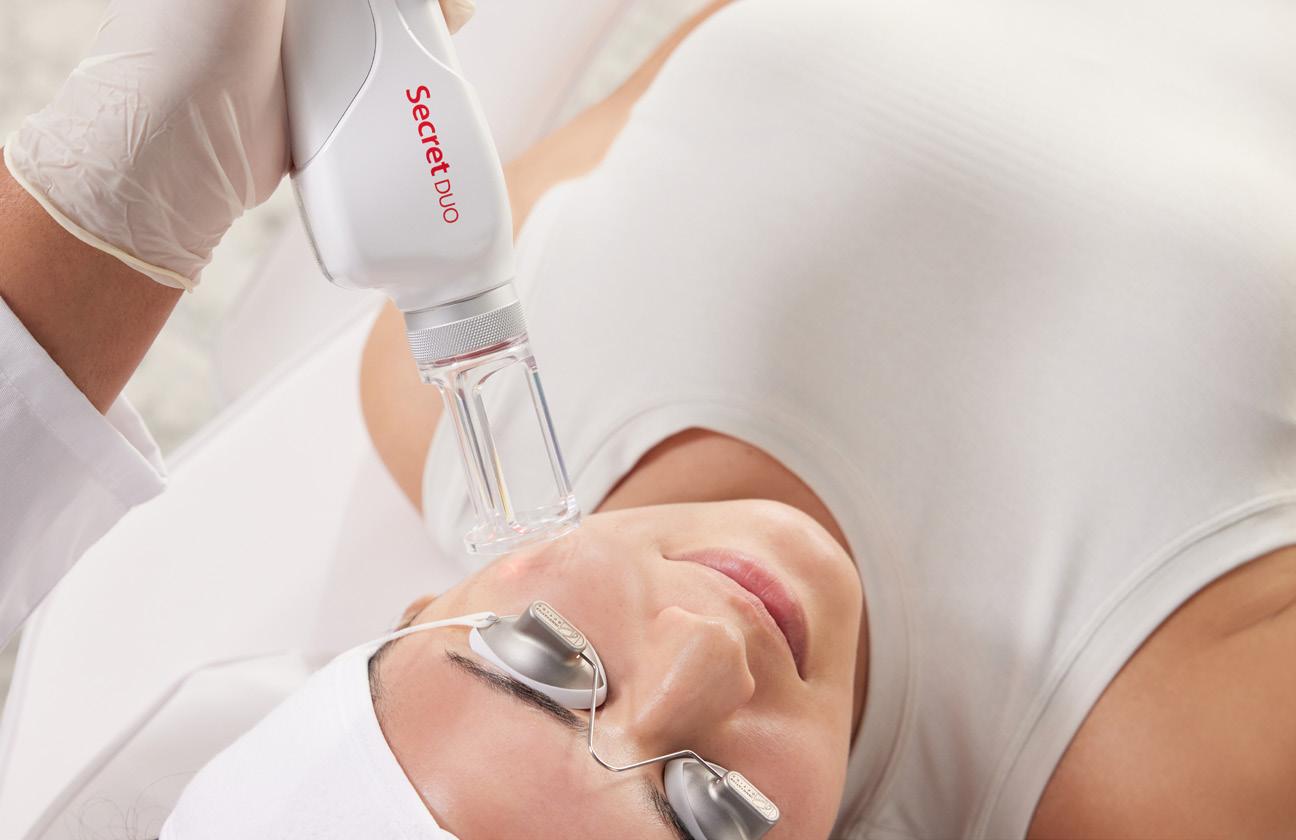

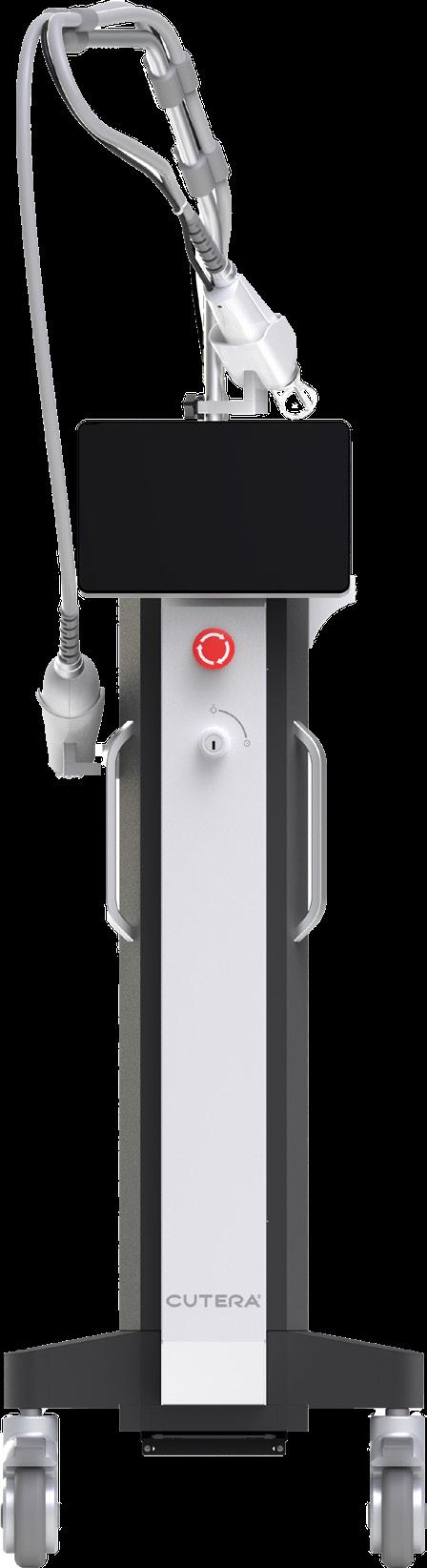

T H E DY N A M I C A P P R OAC H TO FAC I A L R E S U R FAC I N G AND REMODELING Secret DUO pairs RF Microneedling with a non-ablative 1540 nm laser in a single platform to target the common signs of facial aging such as fine lines, texture, striae, and scars.1,2,3 Each modality, used individually or in combination, offers customizable treatments and optimal flexibility to address a variety of skin types and conditions.

T WO C L I N I C A L LY P R OV E N T E C H N O LO G I E S

FAST T R E AT M E N T T I M E S

L I T T L E TO N O D OW N T I M E

I N T U I T I V E , E ASY-TO - U S E

M E E T T H E D E M A N D W I T H A DY N A M I C S O LU T I O N F O R R E S U R FAC I N G A N D R E M O D E L I N G

70%

4th

$2B

of today’s patients are bothered by lines and wrinkles around the eyes and skin texture and/or discoloration4

most in-demand treatment by patients worldwide is non-surgical skin tightening treatment5

projected reach of the skin rejuvenation and resurfacing market by 20286

R E A L R E S U LTS

RF Microneedling Secret RF delivers precise, controlled radiofrequency energy at adjustable depths to target patients’ most common skin concerns on the face and body with little to no downtime.

BEFORE

AFTER

E.B. McClendon, MD

3 Treatments

• Semi- and non-insulated needles available in 25- and 64-pin tips microneedles treat all skin types and a wide range of aesthetic concerns.

• Controlled energy delivery at the point of needle insertion results in greater treatment precision, improved treatment outcomes, and patient experience.

SA F E FO R A L L S K I N T Y P E S

+

D UA L , N O N -A B L AT I V E T E C H N O LO GY WO R K I N G I N CO M P L E T E SY N E R GY

BEFORE

AFTER

M. Peredo, MD

1 Treatment

• Adjustable needle depths ranging from 0.5-3.5 mm enable providers to treat at various depths based on area and concern.

1540 nm Er:Glass Fractional Laser Secret DUO’s 1540 nm wavelength offers a gentler approach to skin resurfacing with significantly reduced downtime.

By delivering dermal thermal heating in multiple micro-columns without any damage to the skin surface, patients of all skin types can safely achieve meaningful improvement in their skin concerns.

• Adjustable scanning sizes and patterns up to 15x15 mm provides fast treatments covering various treatment areas on the face and body.

BEFORE

AFTER

T. Sands, MD

3 Treatments

BEFORE

AFTER

T. Sands, MD

3 Treatments

• Two unique lens lengths (600 and 300 um) expand treatment modes and capabilities, and provide a higher level of control of treatment intensity and outcomes.

• Reduced downtime with multi-sub pulses that allow for deeper penetration of energy with less heat dissipation and thermal damage to surrounding tissue.

BEFORE

AFTER

M. Aggarwal, MD

1 Treatment

Results may vary.
