DEMO TASK 2.3 Use a flowchart to represent a system that checks the entry of a new password. The user must enter the password twice. If the two entries match the system will accept the new password and output a message to the user. If the two entries do not match the system will reject the password and repeatedly prompt for it to be re-entered until the two password inputs match.
LE
Solution START
INPUT Password1 INPUT Password2
FALSE
Password1 = Password2
P
OUTPUT "Passwords do not match, please re-enter"
M
TRUE
Accept New Password
A
OUTPUT "New Password accepted"
STOP
S

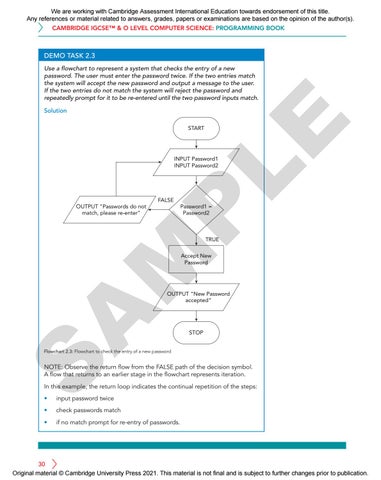

Flowchart 2.3: Flowchart to check the entry of a new password
NOTE: Observe the return flow from the FALSE path of the decision symbol. A flow that returns to an earlier stage in the flowchart represents iteration. In this example, the return loop indicates the continual repetition of the steps: •
input password twice
•
check passwords match
•
if no match prompt for re-entry of passwords.
