HIGH PERFORMANCE ™ DRUM
The Con-Tech® High Performance™ Drum is designed from head to toe with the producer in mind. From the material we use, to the manufacturing process, to the jobsite, we have developed the drum that sets the industry standard. Expect smooth, consistent pours from extreme paving to filling wheel barrows.
BENEFITS OF THE CON-TECH ® HIGH PERFORMANCE ™ DRUM:
NEW! Tail Cone Fin Hole Configuration with Elevated Surge Fins: Limits buildup, improves mixing, and reduces wear on your equipment
Manufactured in the USA: All HP drums are built with pride in Dodge Center, MN
Patented A.R. Steel Lip Doubler: Doubles fin thickness for ultimate wear protection and fin life
EcoFin® Technology: Reduces wear, buildup, and improves mix consistenc
Precision Fit Panels: Eliminates flats spots that cause accelerated wear areas — Ensures optimal fin position for even, smooth pours
High Performance Tail Cone: Special fin spiral with an additional 1/4 turn allows for unmatched charging speed and discharge performance
Fabricated A.R. Steel Head: 1/4” true nominal thickness reduces wear areas throughout
Straight Taper Cone: Straight angle from the belly to the drip ring eliminates surging caused by non-straight cones in a high-production pour
One-Piece Solid Roller Track: Premachined and crowned — eliminates weld cracking and increases structural integrity over hollow designs
High Capacity Mixing Bowl:
25% increase in mixing area with a lower center of gravity for improved stability
Ball Buster Paddle System: Drastically reduces or eliminates cement balls
5/16 Hatch Frame with Tapped Holes: Increases frame thickness by 85% and eliminates square-welded nuts
Removable Lifting Lug: For easy and safe drum removal and replacement—a removable lifting lug is included with each HP drum
UPGRADE TO HIGH PERFORMANCE
SUPERIOR DESIGN

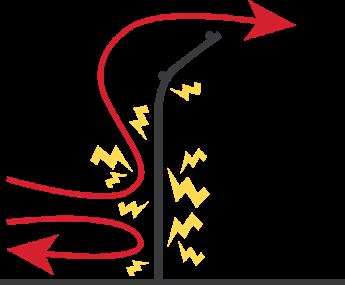

Con-Tech’s patented design allows concrete to flow through each hole and immediately fold into the mixture coming over the top of the fin.
EFFICIENT MIXING
EcoFin® provides a more homogenized mix faster and more efficient than ever before. Each fin contains multiple mixing holes to incorporate each component with ease.
MAXIMIZED CAPACITY
Mixing holes allow for concrete to pass through the fins along the drum skin. This process creates a larger mixing area, increasing the capacity of the mixing chamber.
REDUCED
The EcoFin® allows the material to flow through the fin rather than against it. This reduces stress and fatigue on the mixing fins and drum shell connection point.
