CHUCKY SUNG CAL POLY ARCHITECTURE PORTFOLIO 2023

ECOTECH - CONTINUATION

LOCATION: MARINA GREEN, SAN FRANCISCO

AREA: 45,000 SQFT

PROJECT TYPE: WORLD’S FAIR EXPOSITION

PROGRAM: WORLD’S FAIR VENUE / SCIENCE AND TECHNOLOGY LAB

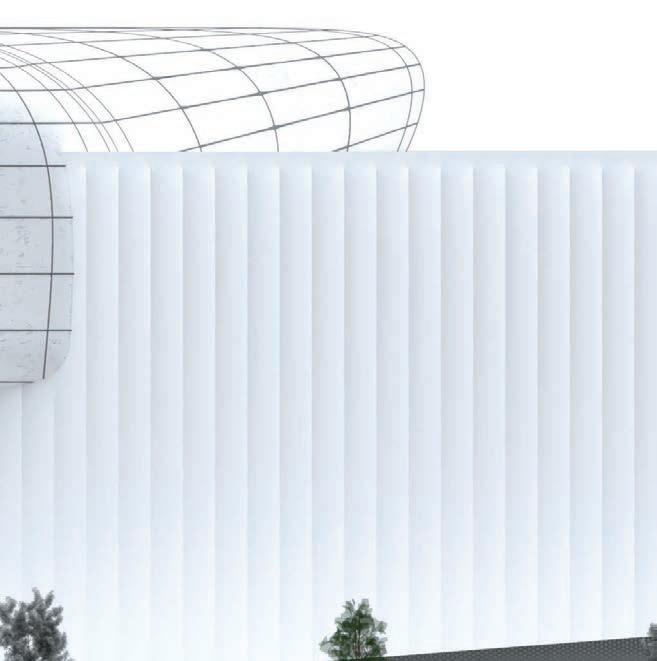

THE BIOMORPHIC ORGANIC MASS REPRESENTS THE NATURE IN WHICH RENEWABLE ENERGY IS OBTAINED FROM, WHILE THE RIGID EXTRUSION SYMBOLIZE MAN-MADE, ARTIFICIAL MASS THAT INTEGRATES/UTILIZES GENERATED ENERGY

01

01.5

ECOTECH - PROGRESS

LOCATION: MARINA GREEN, SAN FRANCISCO

AREA: 45,000 SQFT

PROJECT TYPE: WORLD’S FAIR EXPOSITION

PROGRAM: FERRY TERMINAL, BRIDGE, EXHIBITION VENUE

AS A PREMISE OF WORLD’S FAIR, THE FOCUS IS TO DEMONSTRATE MEANS OF RENEWABLE ENERGY GENERATION, WHICH IS HARNESSED FROM WAVE, WIND, SOLAR, AND GEOTHERMAL.

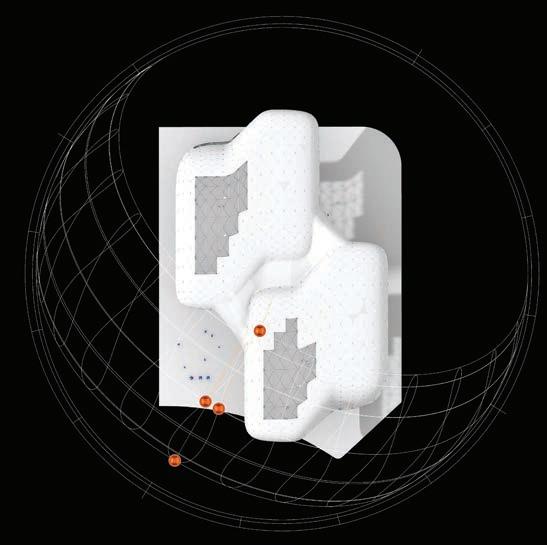

THE PROJECT INCLUDES DOMINANT SPACES FOR OUTDOOR AND INDOOR EXHIBITIONS, WHICH PROVIDES OPPORTUNITIES FOR USERS TO ACTIVELY EXPERIENCE INNOVATIVE TECHNOLOGY OF RENEWABLE ENERGY. THE FORM IS PRIMARILY DRIVEN BY SUN STUDY; THE GLAZED BRIDGE BETWEEN TWO MASSES IS ORIENTED TO MAXIMIZE POTENTIAL FOR THE SOUTH AND NORTH SUN

IN RESPONSE TO SITE GEOMETRY, THE NEGATIVE SPACE IS CREATED ON THE GROUND FLOOR, WHICH FACES SOUTH AND NORTH, SERVING AS CLEARANCE FOR SUFFICIENT DAYLIGHTING, OUTDOOR SPACE FOR COMMUNITY, AND BREATHING ROOM FOR CIRCULATION SPACE AND FLEXIBILITY.

.

N

W

EQUINOX S WINTER

GEOTHERMAL ENERGY

SKIN

OPERABLE 2 X 4 PV PANELS ATTACHED INNER OPERABLE INNER GLAZING

BATT INSULATION BETWEEN LAYER 16 GUAGE STEEL LAYER

SPACE TRUSS BAYS

EXHAUST

OFFICES

EXHAUST

EXHIBITION

INTAKE

OFFICES

CLASSROOM

LAB + CLASSROOM

OFFICES

EXHIBITION

MECHANICAL

GEOTHERMAL ENERGY

ASSEMBLY

FLOOR-FLOOR

2’ CONC SLAB W/REBAR

STEEL PANDECKING + BATT INSULATION

2’ BAR TRUSSES + STEEL BEAM W18 X 50

2” WOOD CEILING FINISHES SPACE TRUSSES ATTACHED TO END OF SLAB

STRUCTURE

30’X30’ STEEL BAY

2’ CONC COLUMNS + V COLUMNS

LATERAL PLACEMENT

3’ VERTICAL PILE + 2’ CONC FOUNDATION

MECHANICAL SYSTEM

DISTRIBUTION + AHU FROM GROUND + VERTICAL AIR SHAFT + HVAC, PLUMBING, ELECTRICAL IN BAR TRUSSES

+ CENTRAL SOLAR VENT ASSEMBLY (OPERABLE GLAZING, EXHUAST FAN, SHADING)

1 30’

15

15 X

2 3 4

BRIDGE CONNECTION FROM JETTY TO PEDESTERIAN PATH + DESIGNATED INDIVIDUAL SITE

ROOF + POCKET SEATING GREEN EXHIBITION + DRIP SYSTEM + SOLAR ENERGY

1ST FLOOR + EXHIBITION SPACE + SMART GRID OFFICES/STORAGE + CONFERENCE + LOBBY

2ND FLOOR + EXHIBITION + FUTURE TECHNOLOGY + CAFE SOUND ENERGY + OFFICES/CLASSROOMS + RESEARCH LAB

GROUND FLOOR + LECTURE HALLS + GEOTHERMAL WIND FUNNEL PATH + COURTYARD

E 4 7 F 6 9 C 8 AD 3 5 2 1 EB EF 9 E 4 F 7 F 5 B 4 6 9 CC 8 E 1 AA 2 D 6 3 D 3 5 2 7 1 B 8 3 E 9 D 5 3 9 4 8 AA 2 BC 6 7 8 5 2 4 11 7 6 F

OCCUPIABLE

9 7 DE 2 3 8 ABF 5 6 1 4 C 9 6 B 8 2 CD 9 1 4 2 8 4 3 1 7 3 5 E 7 5 AF 6 8 9 4 1 7 6 3 5 F 2 9 6 BB 8 CDF 2 CD 9 1 4 2 8 4 E 3 1 7 3 5 E 7 A 5 AF 6

1. MASSING + OUTDOOR AREAS 2. ORIENT TO SOUTH AND NORTH SUN 3. CHAMFER/CARVE OUT BOTTOM FOR SPATIAL EXPERIENCE & FLOW ADD CENTRAL ATRIUM 4. PROVIDE VIEW TO BAY AND CITY

CONNECTION - BRIDGE - WIND ENERGY

AS A MEANS OF TRANSITION BETWEEN THE MAIN VENUE PROJECT AND FROM JETTY, THE BRIDGE SERVES AS A PEAK OF EXPERIENTIAL RENEWABLE ENERGY DEMONSTRATION. THE OVERALL DESIGN IS INFLUENCED BY ORGANIC, CURVATURE LANGUAGE DERIVED FROM THE TERMINAL PROJECT, AS WELL AS THE IDEA OF MERGING INTO LAND. THE INCLUSION OF WIND TURBINES THAT ARE EACH ORIENTED IN VARIED ANGLES ADDS TO THE INTRIGUING EXPRESSION OF TRANSITION SPACE.

CONNECTION - BRIDGE - WIND ENERGY

WIND TURBINE CYLINDER +

STEEL BAND/COLUMNS +

CONCRETE ENVELOPE +

4” CONC DECKING +

OPERABLE FACADE +

PREVAILING WIND

WATER SURFACE

WIND TURBINE GENERATOR FIBER GLASS

N

15”

450’

32”

6” STEEL ROD

GENSET/ENERGY INTAKE 12’

ARRIVAL POINT - TERMINAL - WAVE ENERGY

SUPERPOSITION

OF WAVE PROGRAM DIAGRAM FORM THROUGH WAVE PATTERNS CIRCULATION FROM JETTY TO MAINLAND

ARRIVAL POINT - TERMINAL - WAVE ENERGY

BUOY RODS AROUND SEATING

BIKE LOCKERS

UNISEX BATHROOM

3’ STEEL COLUMN

BUBBLE PERFORATION

TICKETING OFFICE (350 SQFT)

PERFORATION SHELLS

SPIDER FITTING BUOY RODS ENERGY GENERATOR

TREX DECKING

02 THE LIVING

LOCATION: 2ND HOWARD ST, SAN FRANCISCO, CA

PROJECT TYPE: SECONDARY EDUCATION AREA: 45,000 SQFT

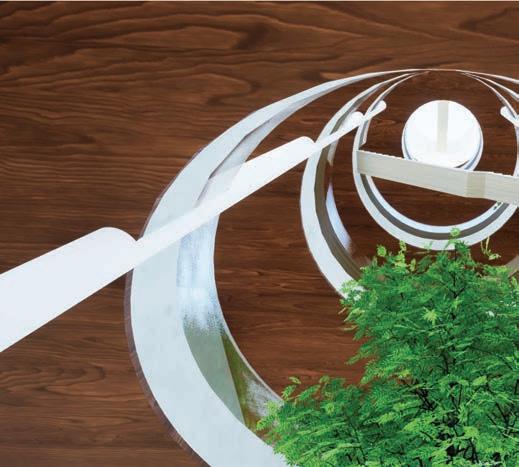

THE DESIGN IS INSPIRED BY THE ANALOGY OF THE BRAIN AND LUNG OF HUMAN ANATOMY.

THE BRAIN HAS TWO PARTS:

THE LEFT-SIDED BRAIN WHICH IS ASSOCIATED WITH ANALYSIS, REFLECTION, AND PRIVACY.

RIGHT-SIDED BRAIN INVITES CREATIVE THINKING AND PLAY FOR STUDENTS AND COMMUNITIES.

THE BRAIN WRAPS AROUND THE LUNG, IN WHICH SYMBOLIZES THE ACTIVE MOVEMENT, INTERACTIONS, AND TRANSITION BETWEEN TWO BRAINS.

LOOKING INTO THE DENSITY

OF URBAN CANOPY OF SAN FRANCISCO

N 14’ OUTDOOR + THEATRE 14’ FILM + ARCH 5’ FLOOR + CEILING 3’ FLOOR + CEILING 12’MEZZANINE 14’ENTERTAINMENT 14’GRAPHIC + ARCH 14’ LIBRARY 14’ADMIN +LOBBY 14’ COMMUNITY/PARK 146’ ALUMINUM FINISHING ATRIUM HELIOSTATS LIGHT INTO SPACE STACK EXHAUST SYSTEM ANIMATION WEST WIND OPERABLE SHADING SLIDING PV PANELS ROTABLE GLAZING SUSPENDED CEILING ETFE FILM GLAZING
