Sophomore Portfolio

Plants

and flowers native to Michigan, 2022

Part of my research for my design 4 project, a Detroit Urban Farm.

V.1 | View of The Second Floor Sky Bridge (Watercolor on Paper)

Detroit Urban Farm

Design 4 - Spring 2022

D4

This project gave me the opportunity to research the history of Detroit and the larger issues present in its current day. Detroit’s Infrastructure was largely influenced by the invention of the car, the streets are hostile for pedestrians and favor the car. Rich white suburbs and poor black inner city neighborhoods formed due to segregation. Car manufacturing plants first moved to the white suburbs, far from the inner city folk, and these plants later moved to Mexico and Canada, leaving Detroit’s

economy in shambles. Research led me to find the story of the lost neighborhood Black Bottom, named after the rich and fertile black soil that exists underneath it. Hastings street was located in Black Bottom. It was filled with black-owned businesses and housed venues and bars where many famous musicians performed. I learned of the 1950-60s “slum clearance” plan, the demolition of Hastings St., the destruction of Black Bottom, and the introduction of the I-375 highway built as part of Eisenhower’s US Highway System. I-375 was purposefully planned to cut straight through the Black Bottom and Paradise Valley

neighborhoods, effectively killing the communities and displacing families, leaving many with no resources to relocate. Streets, roads, highways, walkways, are important in Detroit. The city is designed against people, the roads are harsh for those who decide to walk on them. For these reasons there are two roads in this design. One unobstructed path runs through the existing building and leads from the garden on one end to the greenhouse on the other end. The second path runs on the second floor and allows people to walk amongst tree tops. Detroit will become a walkable city one road at a time.

Detroit Photomontage

Butterfly Weed Little Bluestem Grass Mountain Mint Showy Goldenrod Indian Grass Swamp Milkweed Great Blue Lobelia Asclepias Tuberosa Schizachyrium Scoparius Pycnanthemum Virginianum Solidago Speciosa Sorghastrum Nutans

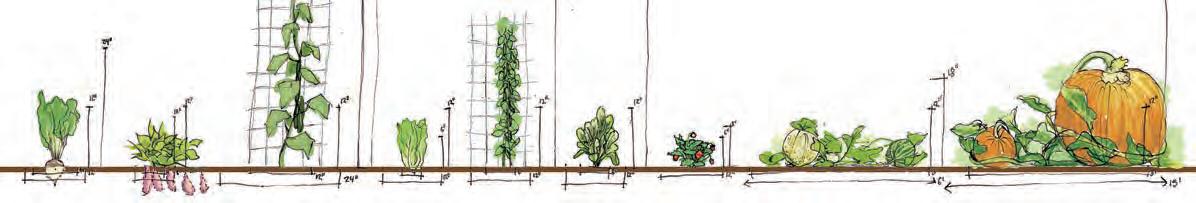

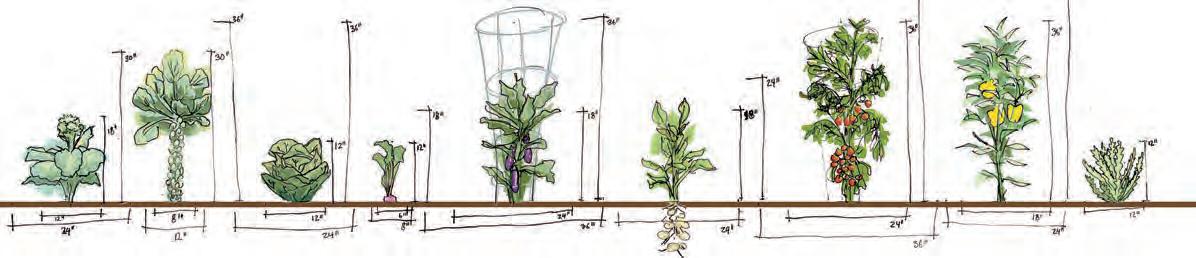

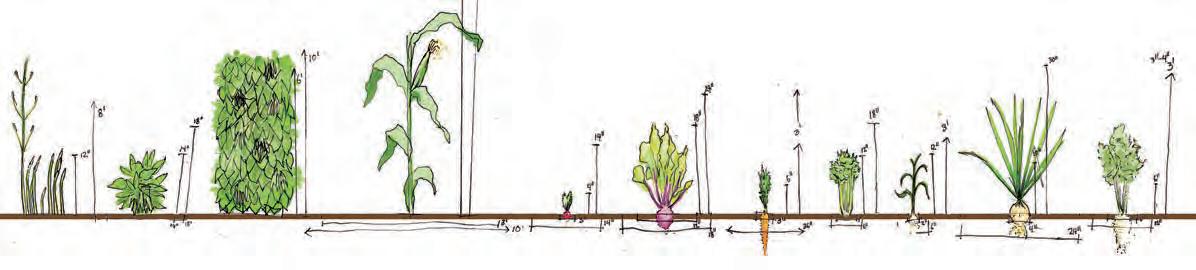

Height and Widths of Crops That Grow Well in Zone 6

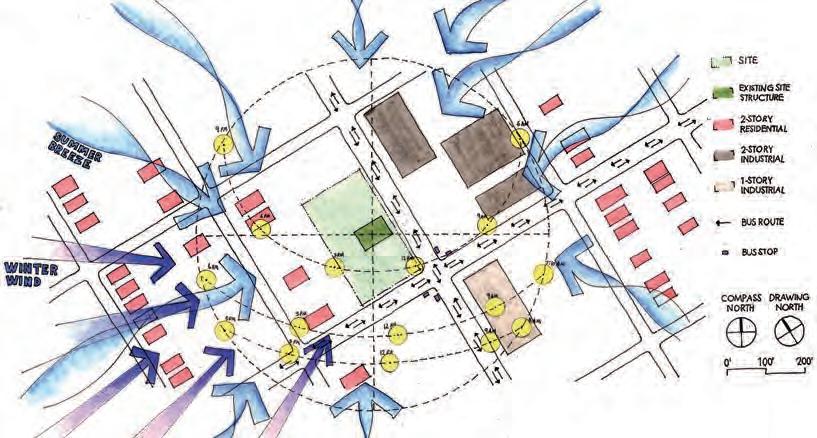

1’=1/200” Site Analysis

From studying Detroit wind roses and sun charts, I saw that the pleasant summer breezes seem to come from every direction, but the prevailing winter winds come from the south west. This Information influenced where I placed program elements, where to place walls to block winter winds, and which faces of the building had to have larger fenestrations and which had smaller ones.

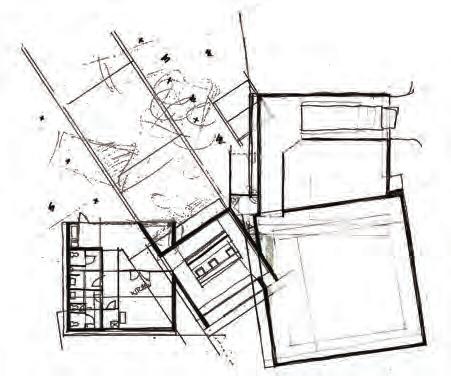

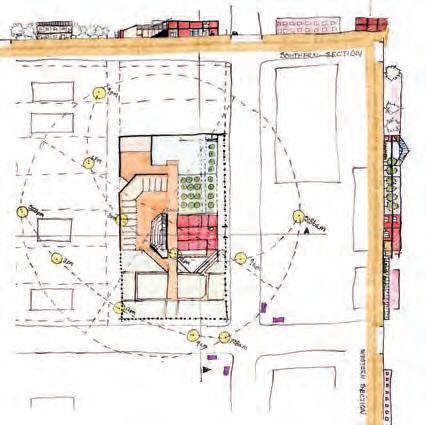

1’=1/100” Parti Drawings

Although I only show 4 itterations, I redrew my plans more than 10 times at this stage, I wanted to decide on the big gestures, such as where to place program elements like the greenhouse and the farmable market garden. I worried where the main circulation should be, and where the entrances were to go. These drawings are small, and did not allow to delve into smaller details.

1’=1/50” Plan and Section Studies

Now at a scale that is twice as large, I had room to plan out the programming inside the building, as well as study the elevation. I redid these plans twice before making the third study shown here. This plan and these sections were scaled up and printed out to be used as my guide on the following Parti Diagram Study Model.

1’=1/16” Parti Diagram Study Model

I began this model by placing the printed plan and section on cardboard, and building on top of the drawings with basswood and chipboard. After building according to the drawings, I would destroy and rebuild parts that I was not content with. The purpose of this physical model was not to be used as a clean, polished final model, but rather it was a designing tool. I used this model to think through how the spaces felt, and learned things that cannot be learned through a drawing alone.

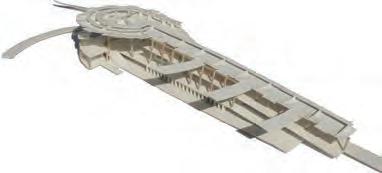

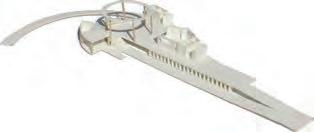

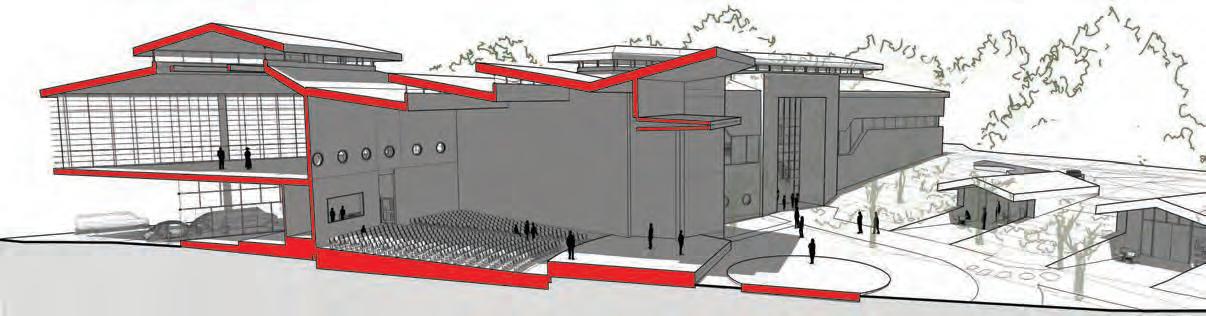

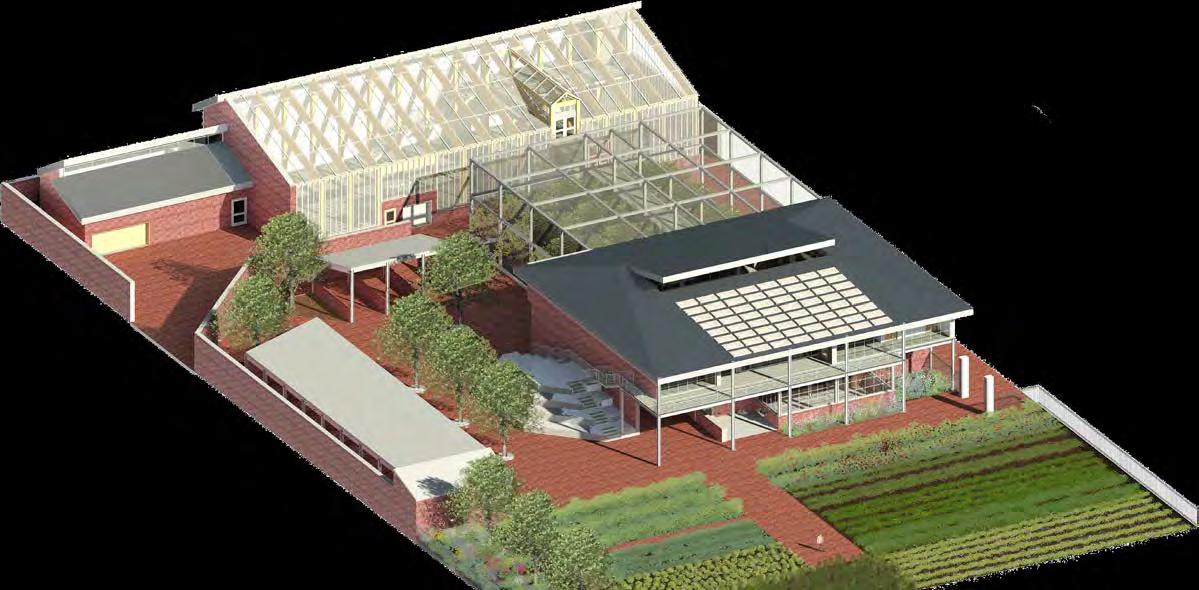

Final Revit Model

Using what I learned from the study model and drawings, I created the final model digitally using Revit. I decided what materials to use, and defined the structural components.

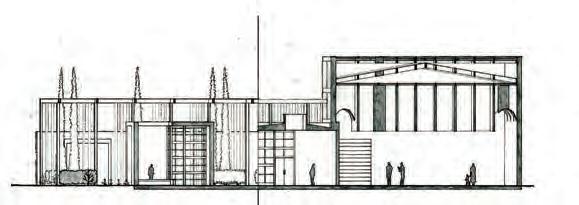

Floor Plans and Sections

V.2 | View of The Market Garden in Late Summer (Watercolor on Paper)

Miscel laneous Projects

Design 1, 2, and 3

Form and Space Study

Design 1 - Fall 2020(zoom)

This project began with a study of positive and negative space, and from our study diagram, we extruded the negative and postive shapes to create volumes. We then made a negative mould and casted our volumes out of Plaster of Paris. We then utilized the design language we had established to drive the logic and reasoning behind the extruded sculptural framing made of basswood and museum board.

D1

Positive and Negative Study

Study for Negative Mould

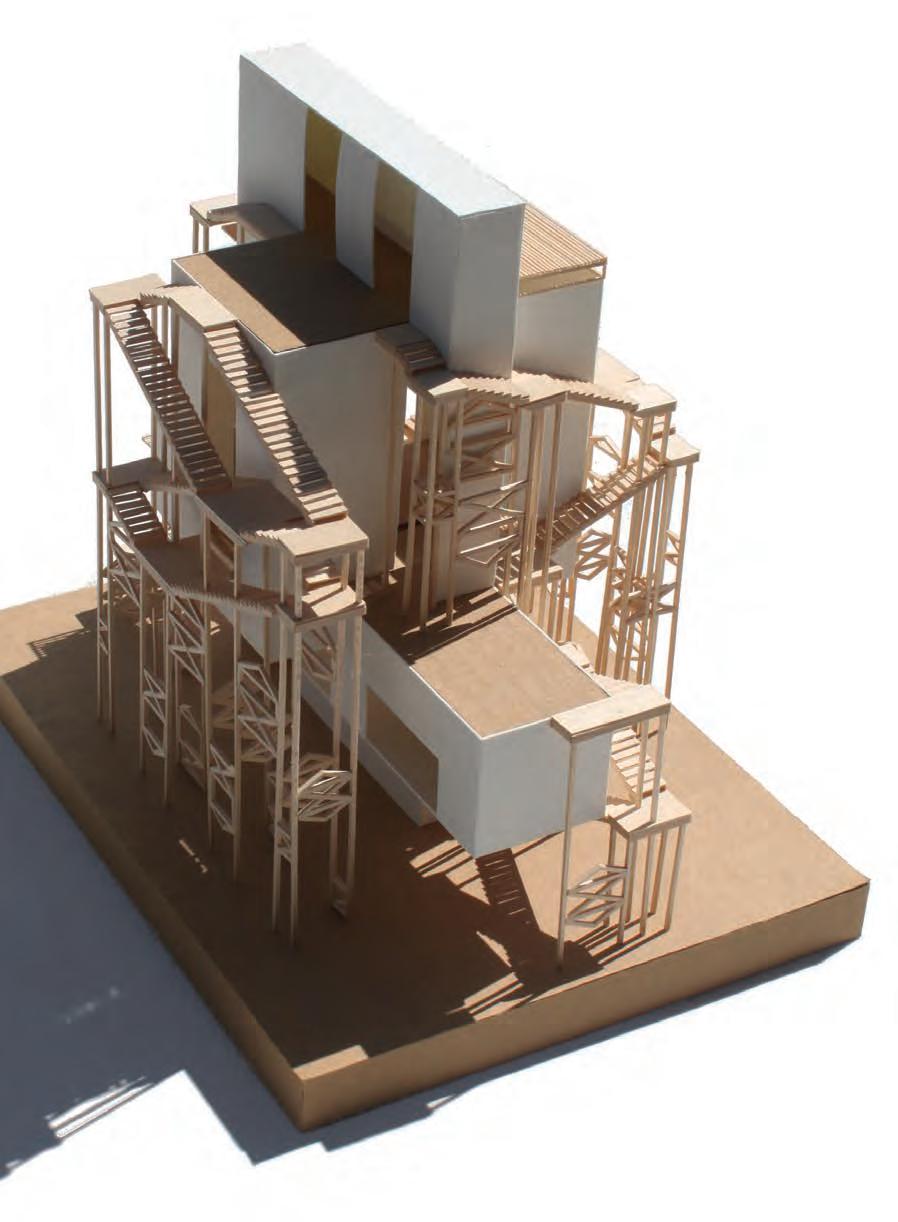

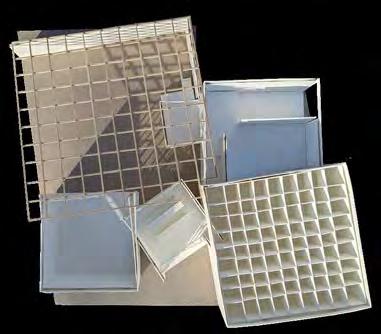

Final Model Plaster of Paris, Basswood, and Museum Board

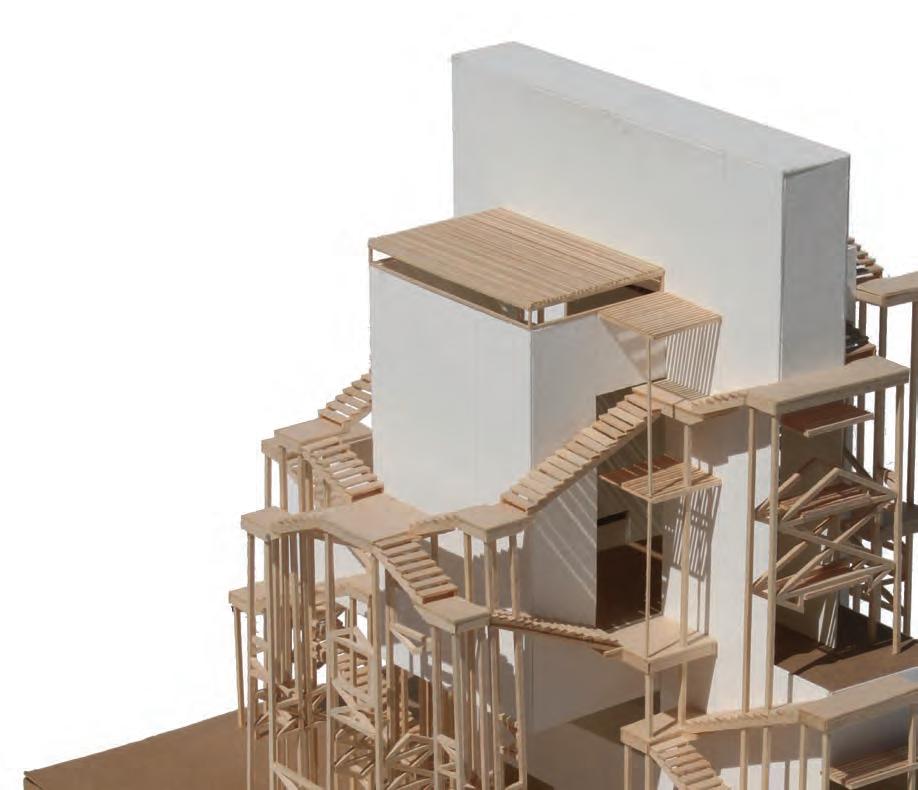

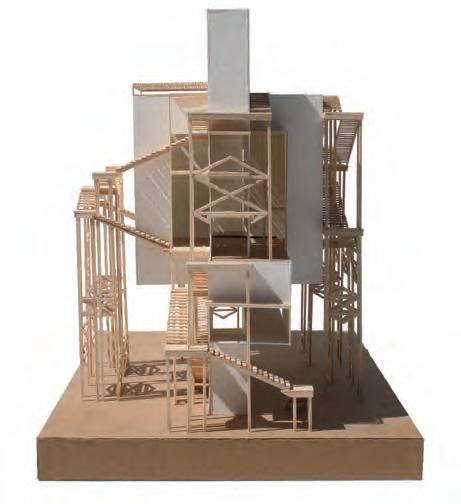

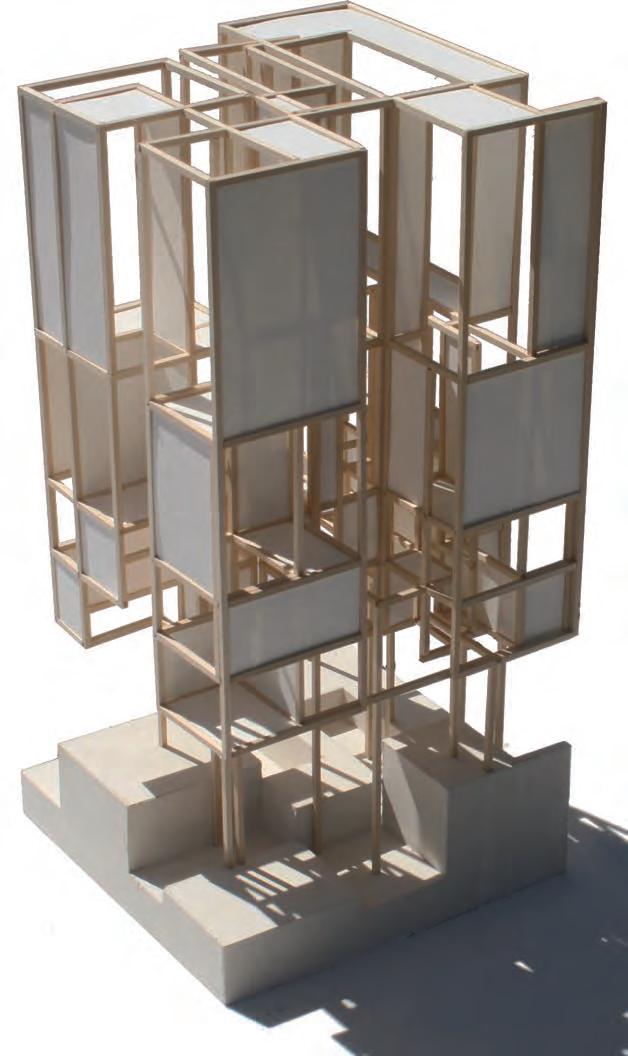

Intersecting Volumes Folly

Design 1 - Fall 2020(zoom)

This exercise began with intercecting three rectangular prisms together in a way that each volume interacts with the other two. We then were tasked to add fenestrations into to the outer surfaces of the prisms, and added a different material to create visually different “floors”. Afterwards, we added stairs to allow for circulation to the different floors, and we added shading louvers on the east, south, and west-facing fenesrations.

D1

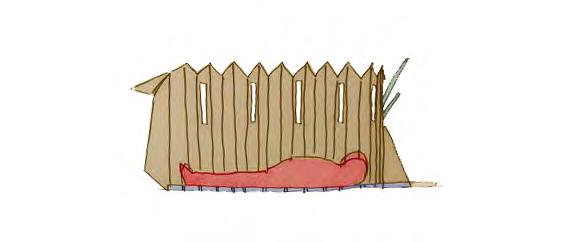

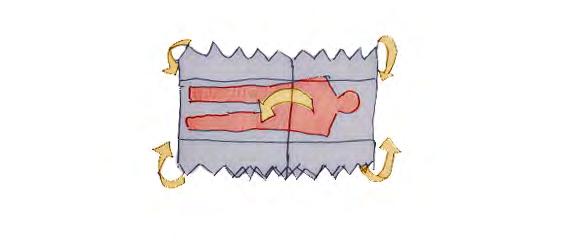

Foldable Floor View

Is wide enough to allow to lay down

Overhead View

Window flaps open on both sides and rear

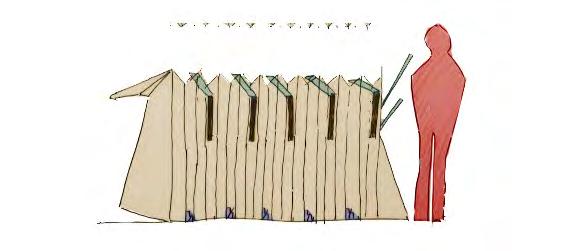

Side Elevation

Top of shelter reaches mid-chest height

Interior has a comfortable height and windows help prevent the space to feel cramped

Rear Front (Open/Closed)

Interior allows a person to sit upright and see out the windows

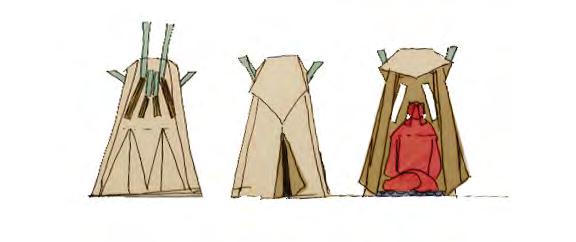

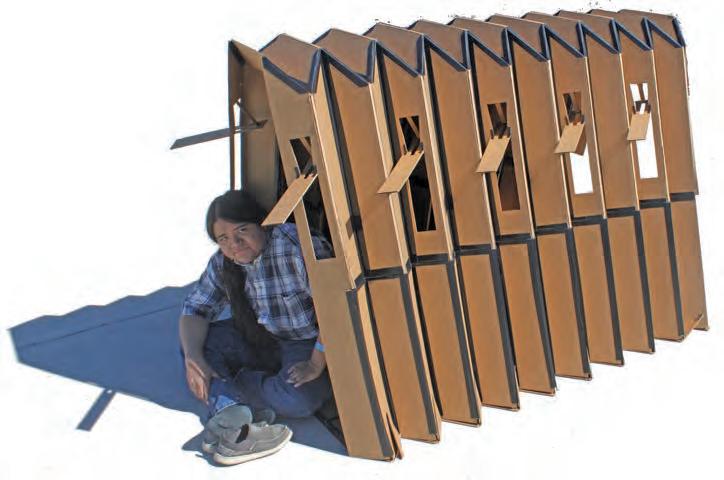

Collapsible Cardboard Shelter (Unfinished)

Design 2 - Spring 2021(zoom)

We were tasked to create a collapsible cardboard shelter that could fit within a 24”x36”x15” locker. The shelter could have a maximum of 3 separate moving parts, and could only be made using cardboard and two types of fasteners. We started by studying origami folding diagrams. We then measured our bodies and learned how large our shelters needed to be to be comfortable. My shelter had two parts: 1) a floor pad and, 2) an exterior shell, that interlock together using velcro tabs.

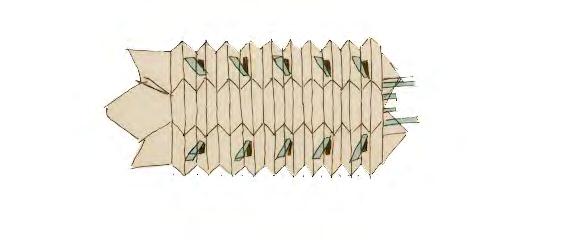

Section

Piece will compress when folding like an accordion

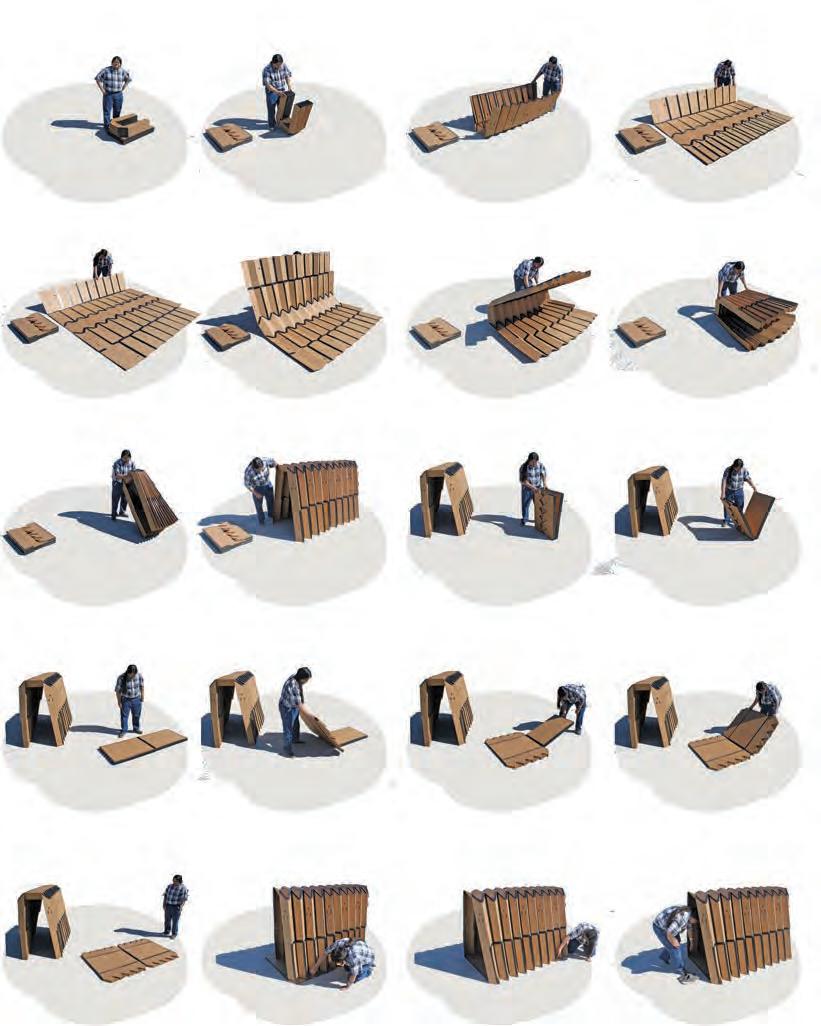

Top shell complete! Start floor pad Proceed to other end Lock velcro tabs from the floor pad onto shell

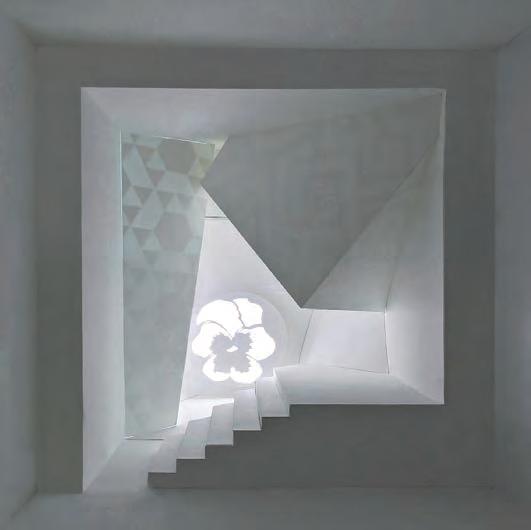

Sun Commemoration Room

Design 2 - Spring 2021(zoom)

D2

The purpose of this project was to design an addition to the northern face of an art museum in San Antonio, Texas. The room needed to have very specific visual appearances on 4 days throughout the year; 12 pm on the Summer Solstice, 4 pm on the Winter Solstice, and 10 am on the Spring and Autumn equinoxes. In addition, the room needed to appear completely white at night, but colorful in daylight. For my project, I added large, imposing volumes on the ceiling, floor and walls

used to give a sense of heaviness when experienced at night. These volumes illuminate like paper lamps during the day, removing their weight through the use of fun patterns and colored light. The volumes illuminate throughout the day, every day of the year, but the flower patterns in the back of the room only come into clear focus on the 4 specific hours, and cannot be seen clearly at any other time. The flowers are flowers that grow in my mother’s garden throughout the year.

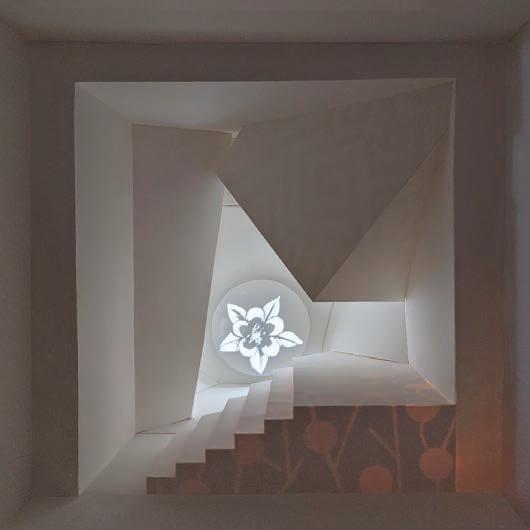

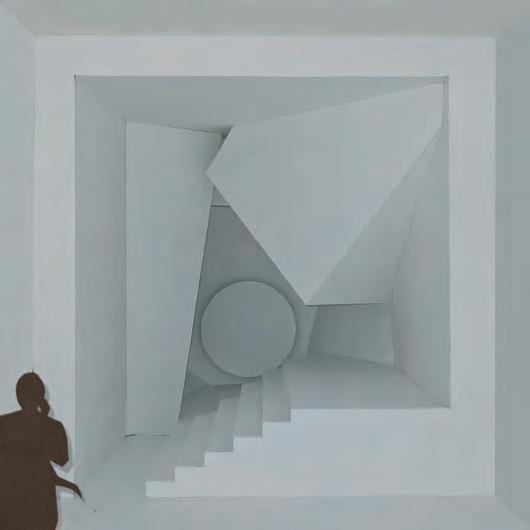

Columbine Flower - Fall and Spring Equinox 10 am

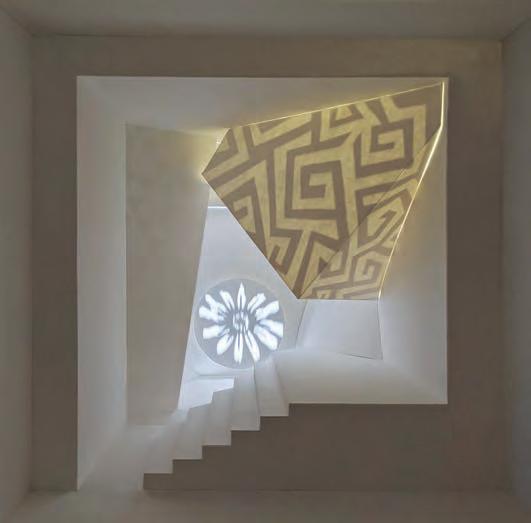

Night time

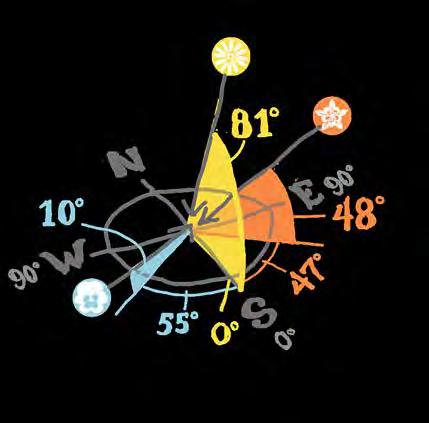

The Specific Angles that Sunlight Travels at: 12 pm on The Summer Solstice (Yellow)

pm on the Winter Solstice (Blue)

am on the Spring & Autumn Equinoxes (Orange)

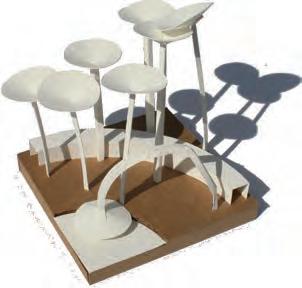

Concept Model 1: “Walking under mushrooms”

Concept Model 2: “Panels slightly out of phase from one another”

Study Model 1: Walking under a long run of modular shading panels, shading panels are excessive

Study Model 2: The form was decided, but I had to figure out how to cantilever all these overhead elements

Kayak Rental Facility @ Roosevelt Park

Design 3 - Fall 2021

D3

Our site was located in Roosevelt Park, south of the South Alamo art district. The extension of the river walk trail runs down the eastern side of our site, and the San Antonio River flowed down the western side of our site. The site was located above an embayment, a plot of sunken land that gets flooded with water whenever the river overflows. Many riverside plants and trees grow in this embayment, and I attempted to leave this area as unaffected as possible.

I wanted to allow bicyclists and walkers to be able to ride through my structure as an alternate path to the existing riverwalk bike path. This top floor path would allow passerby pedestrians to experience the structure, and perhaps be intrigued to try out kayaking. Seating would be on the upper level, overlooking the river. Walking down the curved slope ramp would lead you to the Kayak rental reception desk, and you could then launch on the riverbank walkway.

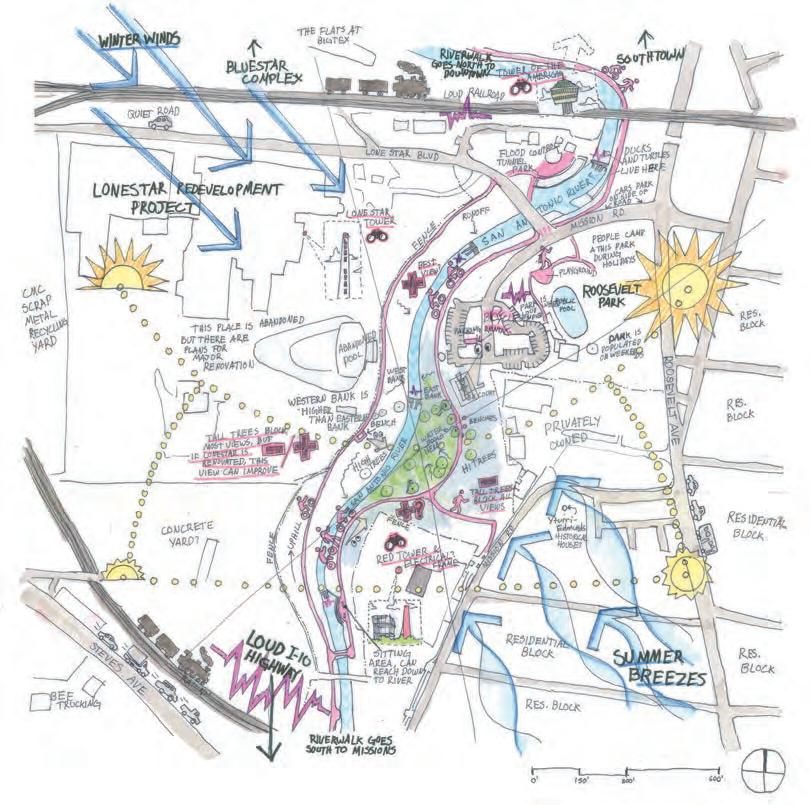

Site Analysis

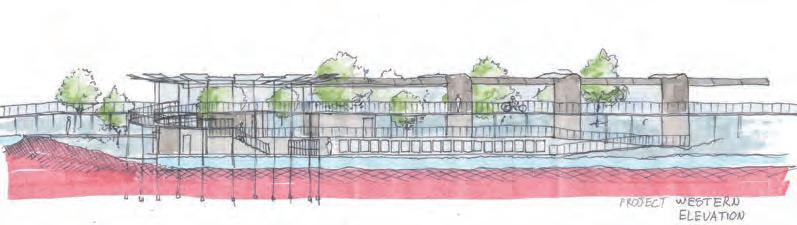

Western Elevation Study

Existing Acequia Park Trail

Roosevelt Park San Antonio River

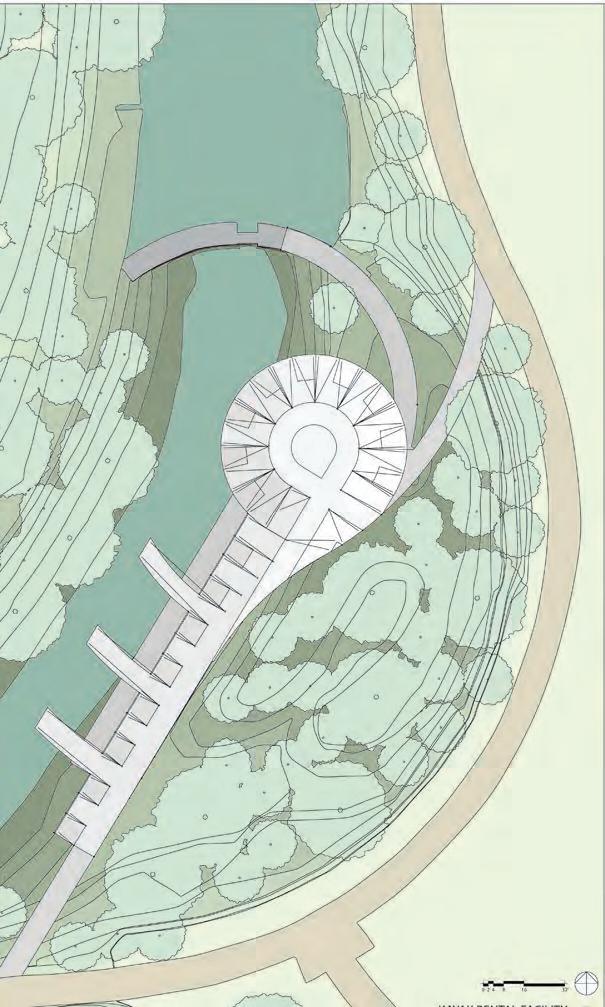

Site Plan

V.2 | Overhead View

V.1 | View of Kayak Launching Dock

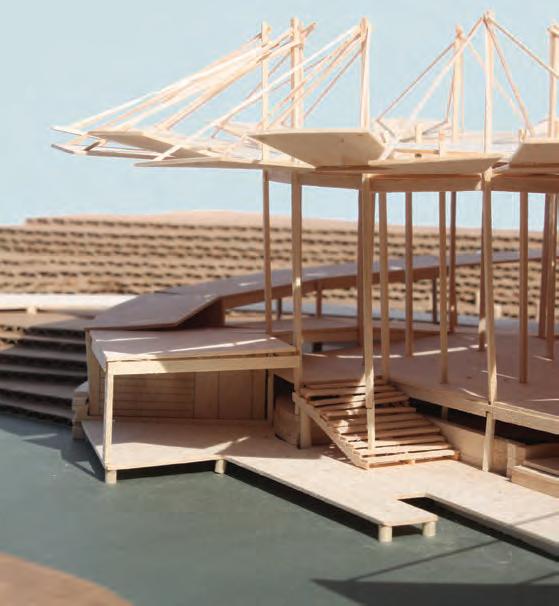

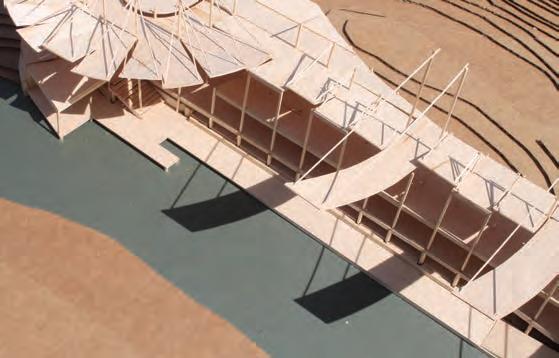

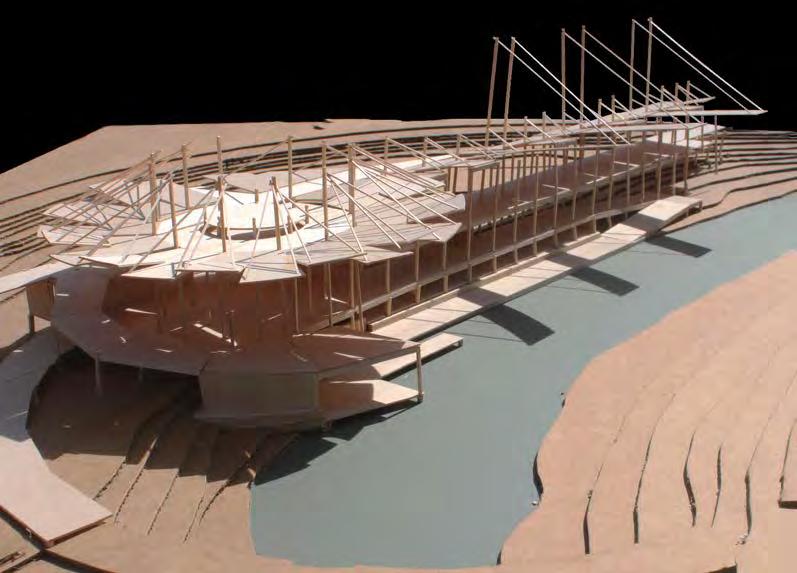

V.3 | View of Final Model made with Basswood and Cardboard

V.1

V.3

V.2

Concept Models

Sculpture Garden @ Ruby City

Design 3 - Fall 2021

D3

The Ruby City building shape is unique, and I did not want to compete with it with an equally odd-shaped abstraction. I decided to make the building a series of intersecting square prisms that would form one building, but the connection between the prisms could be experienced clearly. Visitors can experience the insides of these rectangular prisms in the gallery spaces. The interior gallery space has an overhead cast concrete waffle structure, and the outdoor garden has a matching steel grid pergola.

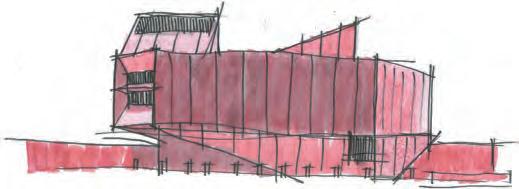

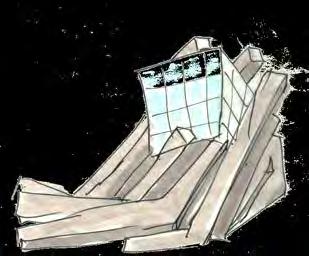

Concept Drawings: Rigid Building vs Soft Tissue Animals

Concept Drawings: Angular Building vs Square Grid

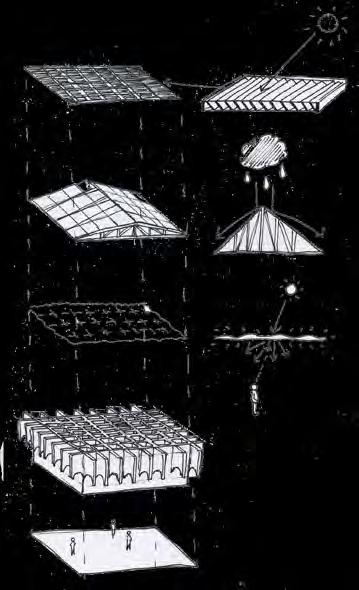

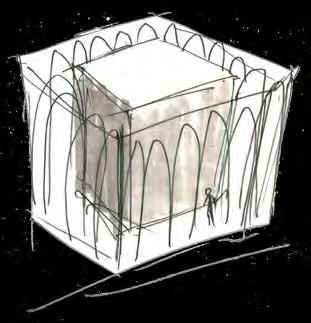

Concept of Roof over Main Indoor Gallery

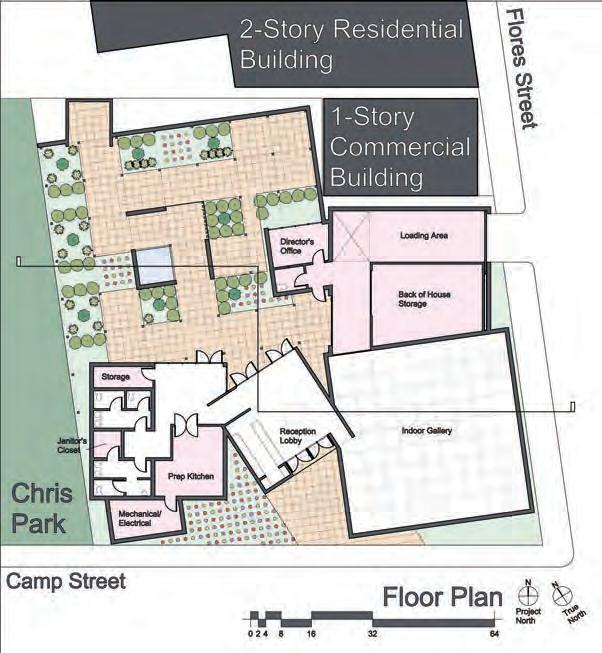

Floor Plan Study

Framing of Indoor Gallery

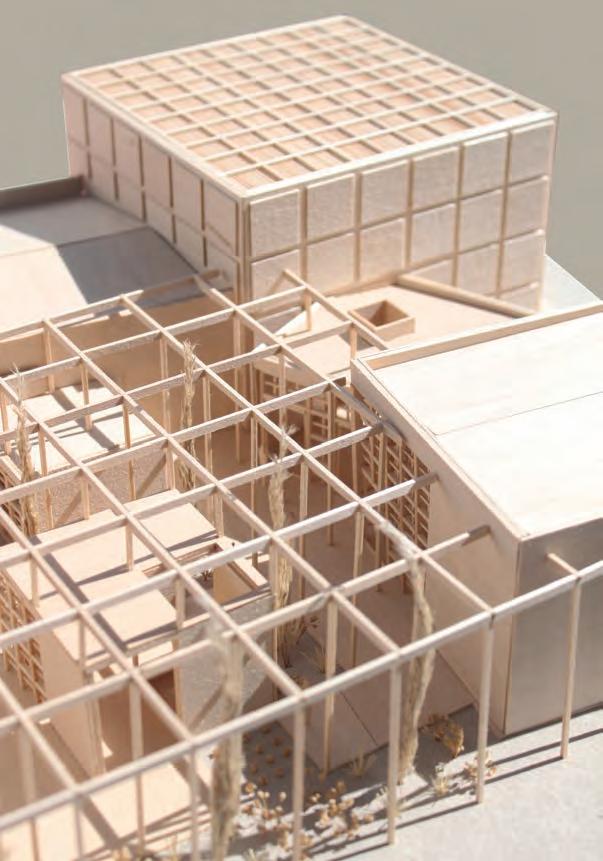

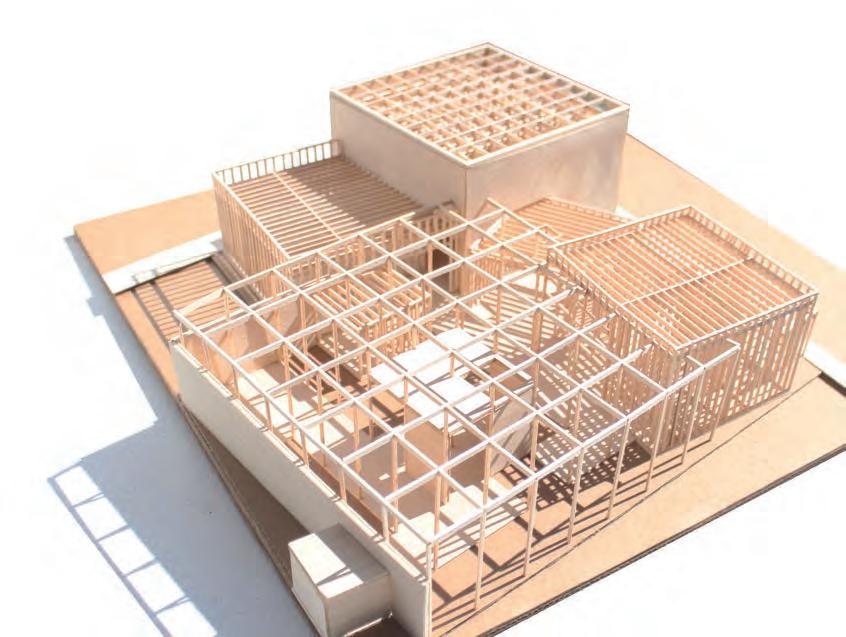

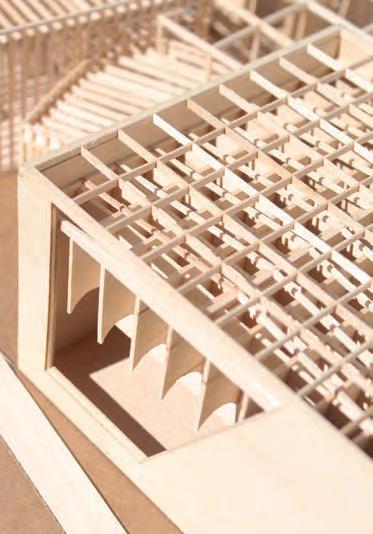

Framing Model

V.3

The Garden Grid is aligned with the Indoor Gallery Grid

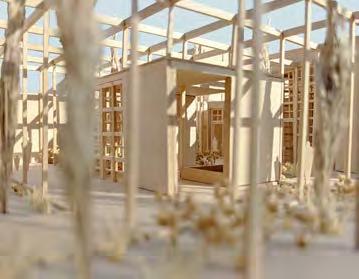

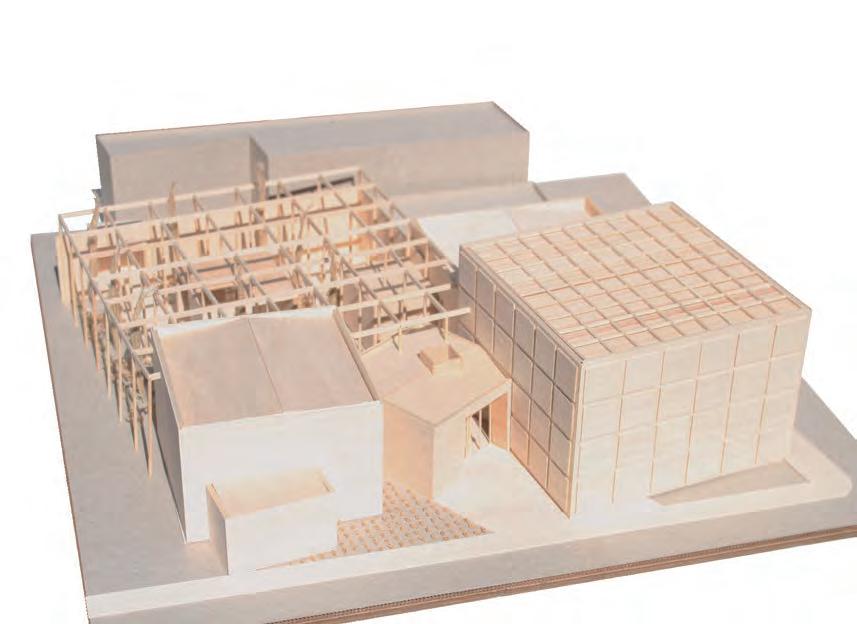

Final Model made with Basswood and Chipboard

V.1

V.2

V.3

| View of The Giant’s Hand from IH-37 and E. Cesar E. Chavez Blvd. (Watercolor on Paper)

1’=1/200” Site Model Footprint

SAAACAM Museum

Design 4 - Spring 2022

San Antonio African American Community Archive and Museum (SAAACAM) is a local organization who’s goal is to present the untold histories of local black San Antonians. I studied the history of eastern San Antonio and the many historical recordings in SAAACAM’s virtual library. The people in these stories were incredible and gigantic, and it surprised me that these people have remained invisible. The giant hand and footsteps represent these giants, invisible no more.

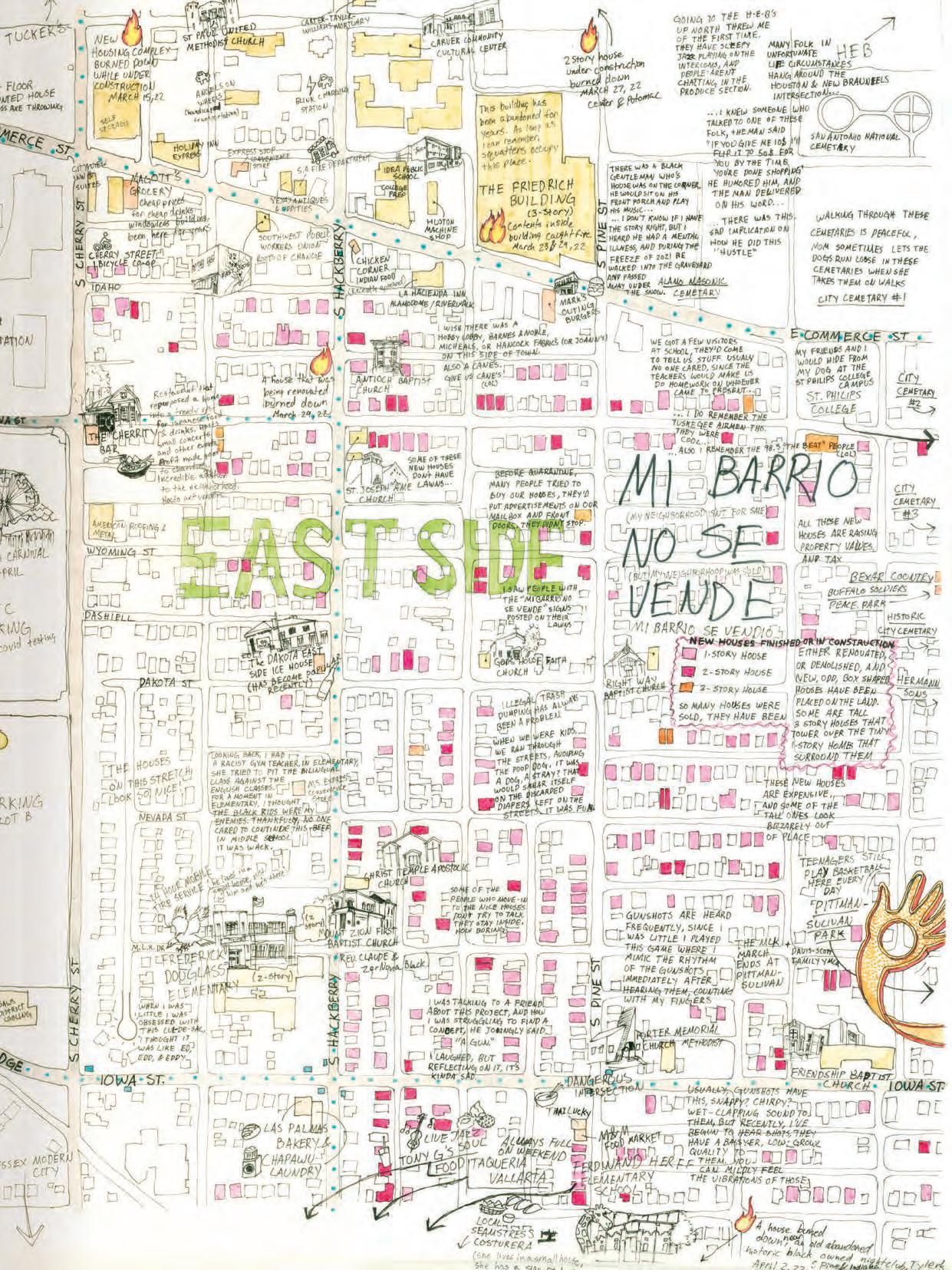

I grew up in the east side of San Antonio, and this project helped me learn a history I was not aware of. I learned a lot through this project, not only about the design process, but I also learned that a building’s purpose is not just to be a building, but it carries a message, and it is up to the designer to help make the message a positive one. After interning at MP Studio, I wanted to apply what I learned by creating a planting pallete and a planting plans.

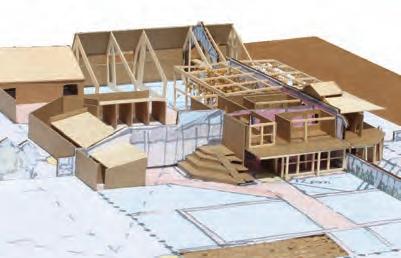

1’=1/50” Study Model

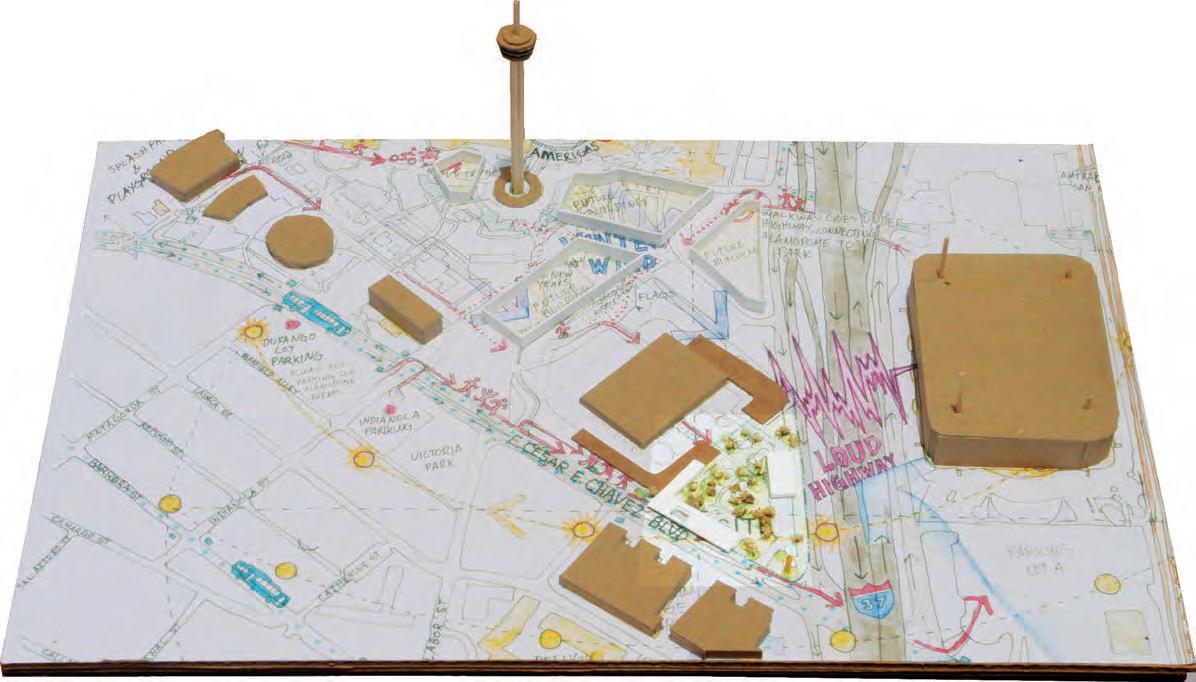

1’=1/200” Site Model

1’=1/50” Study Model Footprint

Floor Plans

Planting Palette

Shade Trees

Ornamental Trees

Shrubs

Whirling

Cenizo

Accent

Mexican

Pride

Cedar Elm Ulmus Crassifolia

Southern Live Oak Quercus Virginiana

Mexican Sycamore Platanus Mexicana

Texas Red Oak Quercus Texana

Mexican Plum Prunus Mexicana

Texas Mountain Laurel Sophora Secundiflora

Mexican Redbud Cercis Canadensis var. mexicana Palo Verde Parkinsonia Aculeata

Monterrey Oak Quercus Polymorpha

Honey Mesquite Prosopis Glandulosa

Cherry Sage Salvia Gregii

Blue Mealy Sage Salvia Farinacea

Butterflies Gaura Lindheimeri

Leucophyllum Frutescens Blue Plumbago Plumbago Auriculata

Butterfly Weed Asclepias Currasavica

Blue Nolina Nolina Nelsonii

San Pedro Echinopsis Pachanoi

Soft Leaf Yucca Yucca Recurvifolia

Shrimp Plant Justicia Brandegeana Esperanza Tecoma Stans

Conoclinium Greggii

of Barbados Caesalpinia Pulcherrima

Whale’s Tongue Agave Agave Ovatifolia

Mexican Feather Grass Nassella Tenuissima

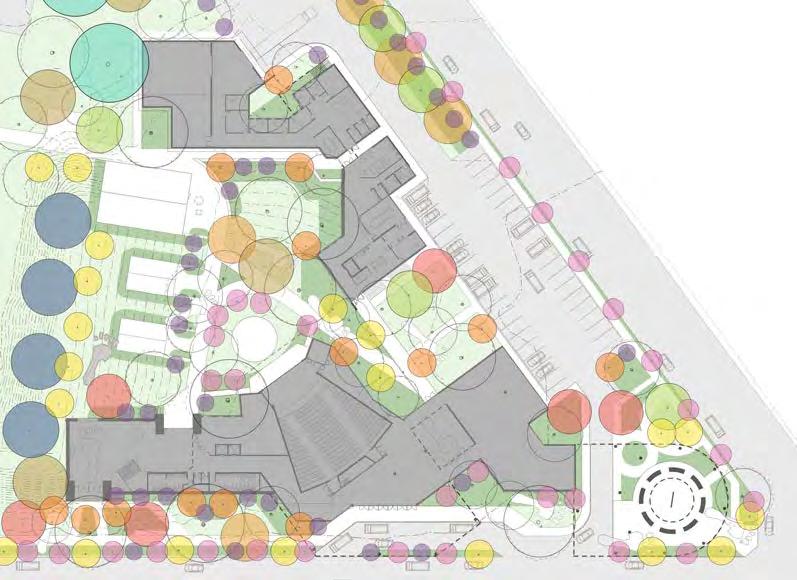

Tree and Softscape Plan

Planting Bed

Existing Trees

Cedar Elm | Ulmus Crassifolia Southern Live Oak | Quercus Virginiana Mexican Sycamore | Platanus Mexicana

Red Oak | Quercus Texana Honey Mesquite | Prosopis Glandulosa Monterrey Oak | Quercus Polymorpha Mexican Redbud | Cercis Canadensis

Verde | Parkinsonia Aculeata Mexican Plum | Prunus Mexicana

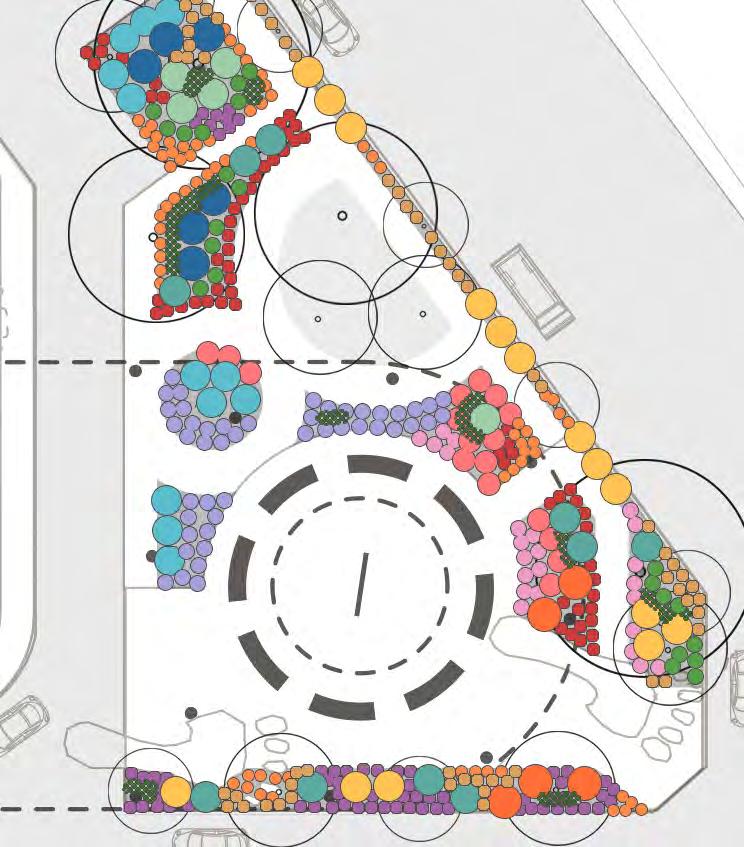

Planting Plan @ Giant’s Hand Echo Rotunda

Sage

Salvia Gregii

Blue Mealy Sage

Salvia Farinacea

Whirling Butterflies

Gaura Lindheimeri

Shrimp Plant

Justicia Brandegeana

Esperanza

Tecoma Stans

Cenizo

Leucophyllum Frutescens

Blue Plumbago

Plumbago Auriculata

Mexican Butterfly Weed

Asclepias Currasavica

Gregg Mistflower

Conocinium Greggi

Pride of Barbados

Caesalpinia Pulcherrima

Blue Nolina

Nolina Nelsonii

San Pedro

Echinopsis Pachanoi

Soft Leaf Yucca

Yucca Recurvifolia

Whale’s Tongue Agave

Agave Ovatifolia

Mexican Feather Grass

Nassella Tenuissima

E Cesar E Chavez Blvd.

Projects @ MP Studio Landscape Architecture

Internship Sep 2022- Aug 2023

10th Year Anniversary Mural

MP Studio Office - December 2022

During my time at MP Studio, I was involved in many tasks and works ranging from AutoCAD work, OPCC forms, image boards, tree preservation, planting plans, public input meetings, and all forms of design work in SD, DD, and CD phases. I wanted to highlight this mural I drew on two tall whiteboards that served as a backdrop to the open house we hosted celebrating our 10th Anniversary. It was the first time I felt like I could offer something to the company.

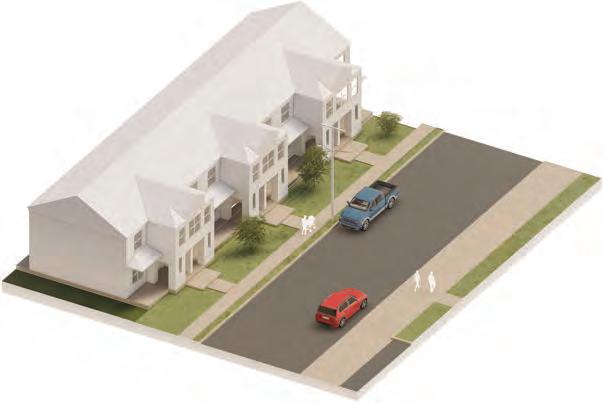

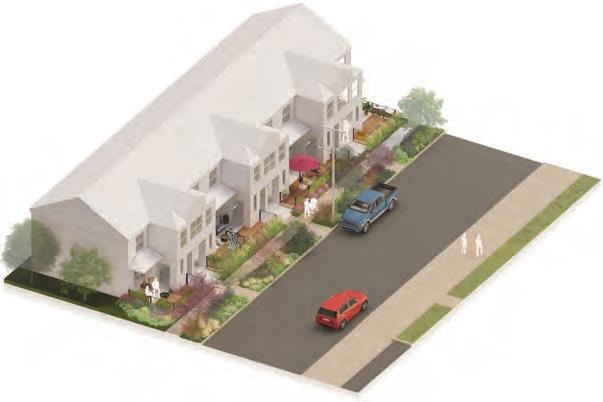

Streetscape Diagram

Alazán-Apache

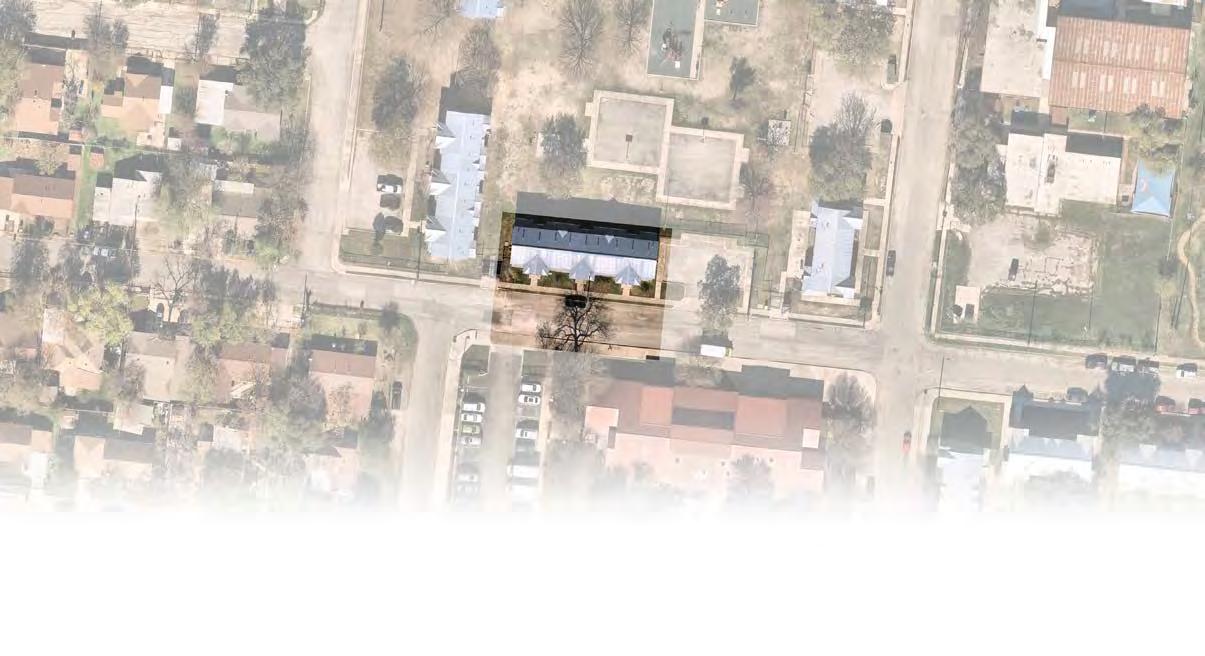

The Alazán-Apache Courts is a public housing community located in the west side of San Antonio. MP Studio took charge of designing the exterior spaces for the new master plan. With direction, I helped in creating these streetscape diagrams showing both the existing streetscape conditions as well as our proposal. We hoped to give residents of the existing buildings a private porch area, as well as move the sidewalk away from the road to increase pedestrian safety and comfort.

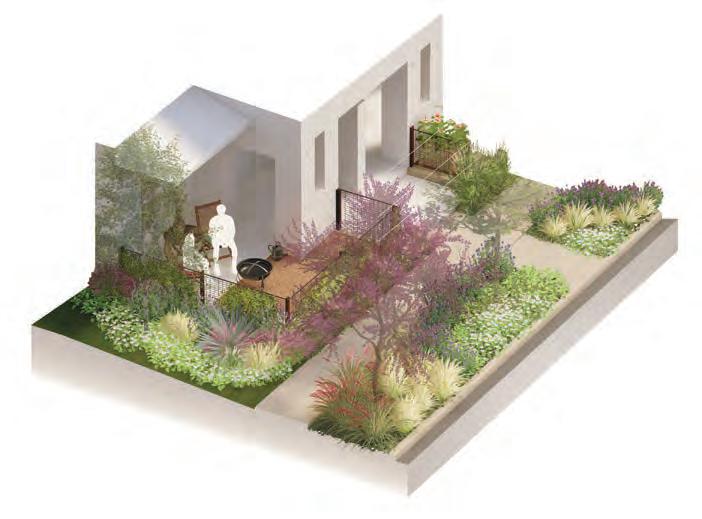

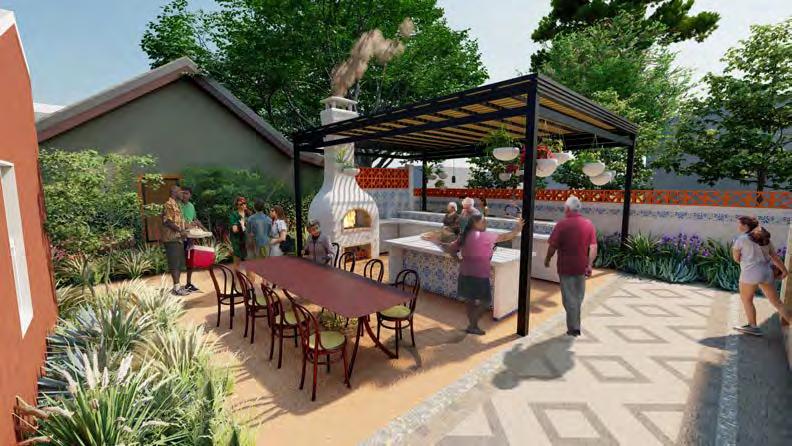

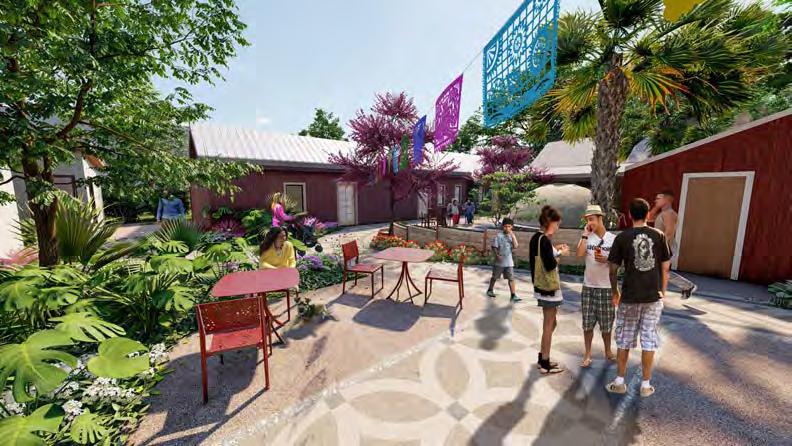

Outdoor Kitchen

Rinconcito de Esperanza - February 2023

We at MP Studio were in charge of designing the experior spaces of the Rinconcito de Esperanza historical district. We had heard that the people at Esperanza frequently cooked outside during the holidays, but had no dedicated space to cook outside. With guidance, and after many itterations, I was able to land on a design that was approved by my superiors and was later presented to the client. It was a very successful proposal, and it will hopefully be built one day.

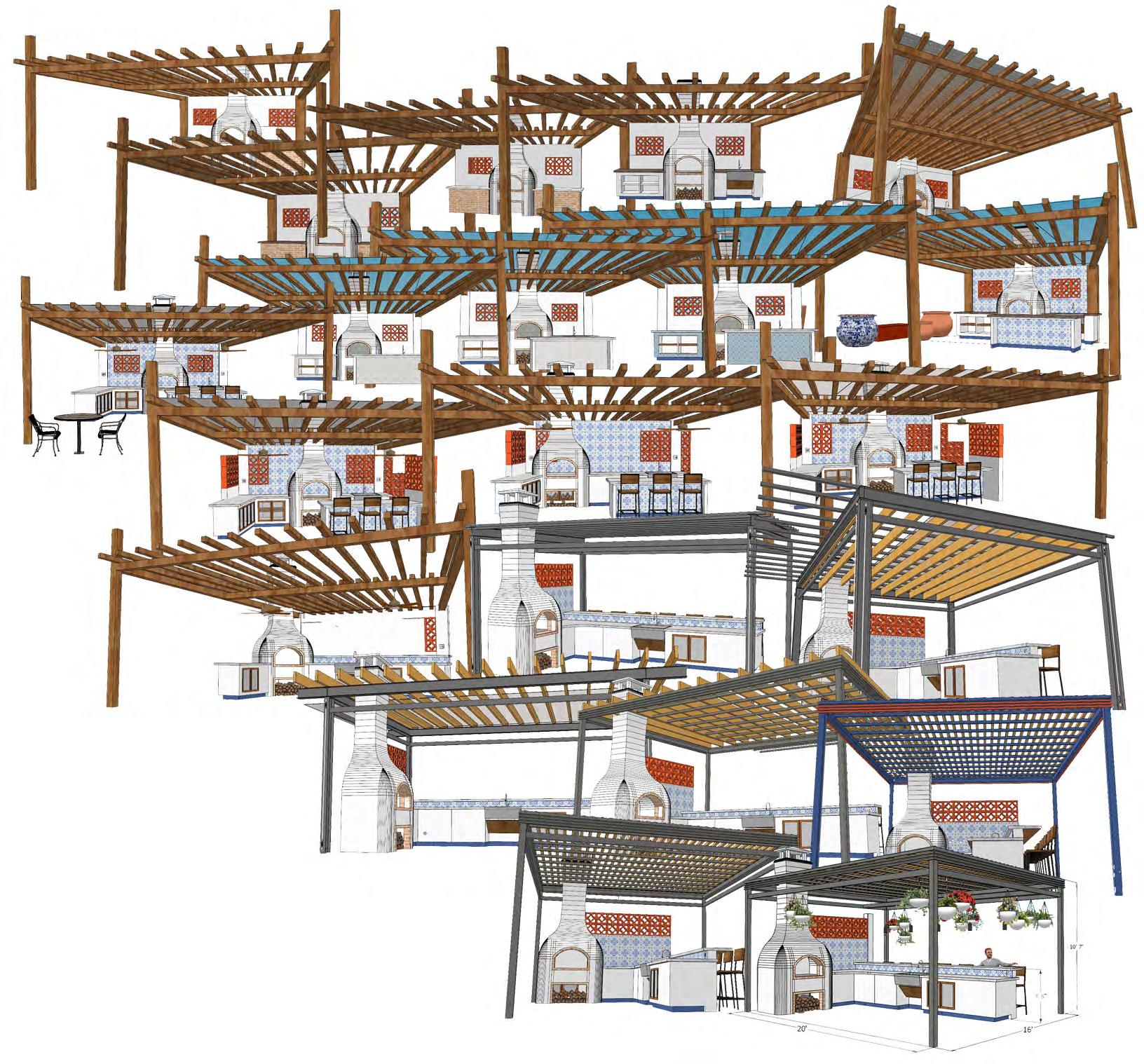

The many itterations of the Outdoor Kitchen, done in Sketchup

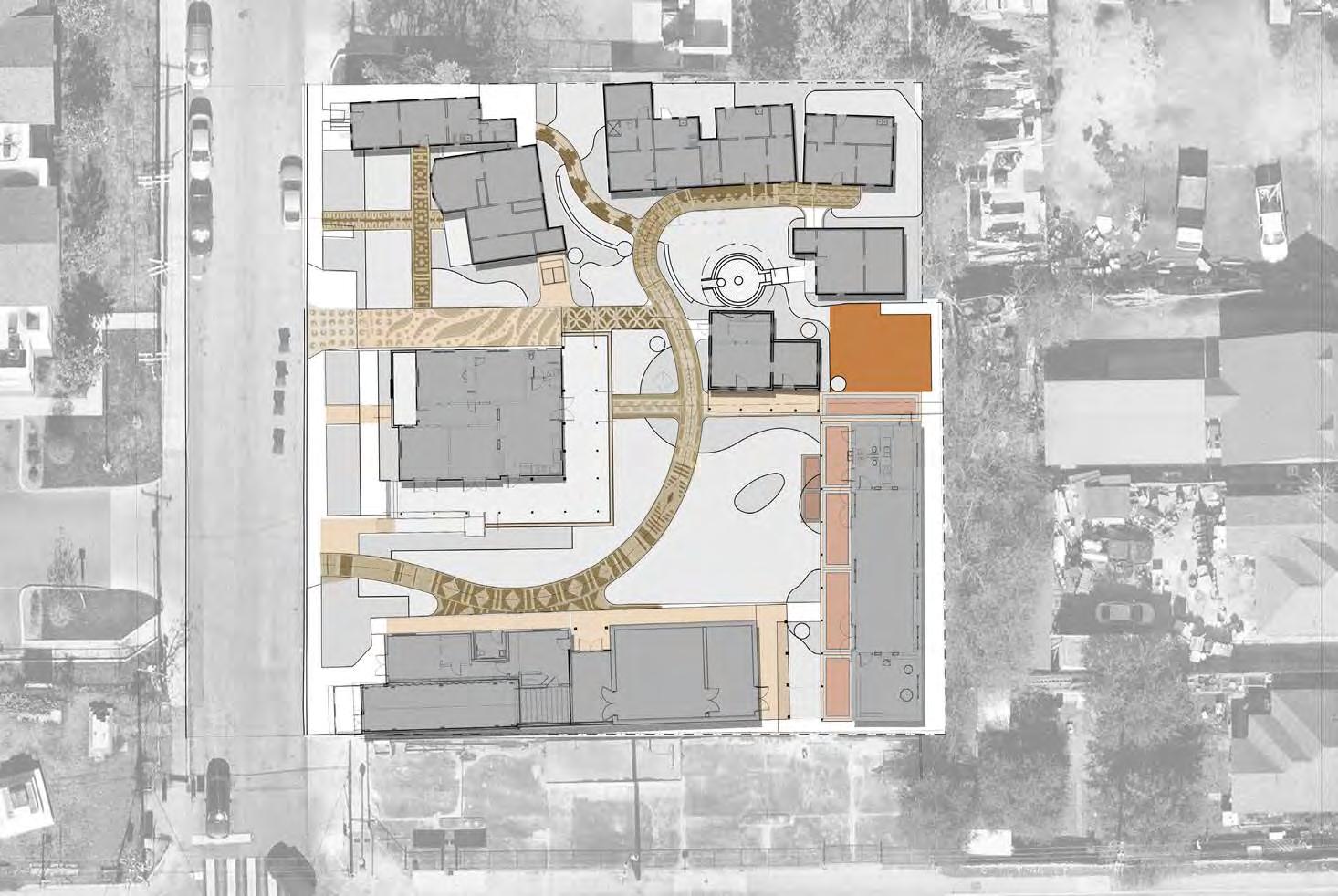

Paving Patterns

Rinconcito de Esperanza - February 2023

A circulating path was needed to connect all the buildings at el Rinconcito de Esperanza, and we at MP studio wanted to do something special paving. I was tasked with figuring out a possible design for the paving. I looked through the history of the San Antonio west side, mexican textiles, pottery, and chicano art to find inspiration. I realized that the west side isn’t defined by one person or one movement, but rather, many people and many patterns, all woven into one changing tapestry.

V.2
