Architecture Portfolio

When I began, I reflected a lot about what else is out there in this world of architecture. Now it takes my life from a different perspective. Being an architecture student that has aspiration to design an experiential built environment that fully serves sustainability without impairing well-being. I think It's time to contribute the skills and abilities that I developed during my four years of academic training.

Cibisaiprasad Egambaram

Education

2019 - Present

2016 - 2018

2014 - 2016

Creative Pursuits

Workshops

C.A.R.E School of Architecture, Tiruchirappalli / Bachelors in Architecture

Muvendar Matriculation School, Peravurani, Pattukkottai / HSC

Government High School, Amarasimmendrapuram, Aranthangi / SSLC

Competitions

Documentation - Kannanur Temple.

FOAID - Expressions’22 – GOLD WINNER

Ar.Maniyarasan, Ar.Ragul Ravichandran A national level art installation competition, Mumbai

Documentation - Thiruppalaithurai Rice Granary

Ar.Ragul Ravichandran, Er. Rajendiran

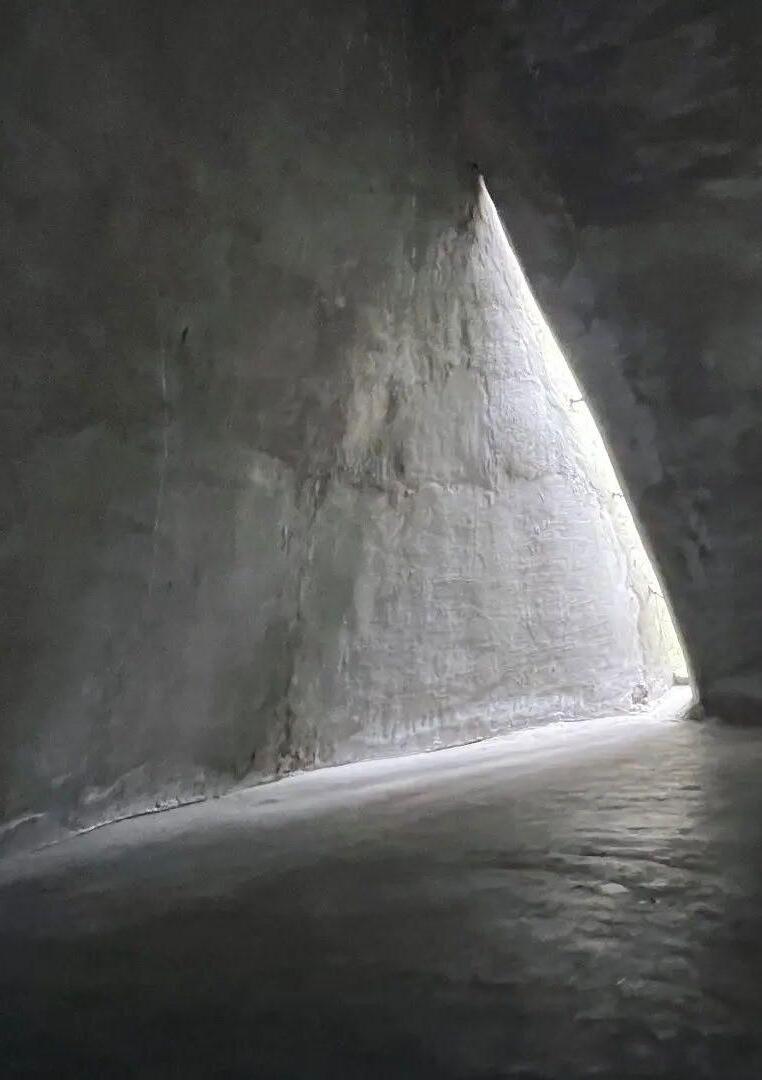

Light as a generator of Architectural experience

Ar. Balaji Rajasekaran

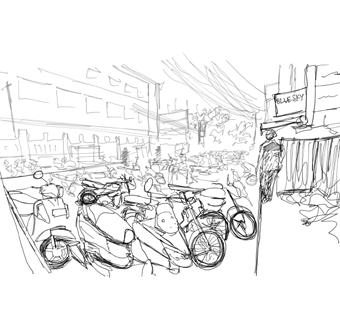

Travel and Terrain - Contour based travel sketch

Dr. Godwin Emmanuel, Dr. Ophylia Vinodhini

Earthen Dome Structure

Ar. Balaji Rajasekaran

Experiential Architecture and Human Behavior

Research

Introducing terrain landscapes in foundation years for undergraduate architecture students: An exploratory approach

Dr. Ophylia Vinodhini , Dr. Godwin Emmanuel

Contribution: Analytical studies of learning methods

Webinars

Z-axis 2022 ‘Form Follows Climate’

Ar.Prachi Sharma - Kaarwan India. Charles Correa Foundation - Edu and Research.

Geographic Information System (GIS)

Ar. Parvathy Kartha

Software Proficiency

Auto CAD Sketch Up Revit Rhino Modeling Renders

Lumion Enscape V - Ray D5

Production

UGREEN - Sustainability Architecture Weeks

Ar. Filipe Boni, Brazil.

Photoshop Illustrator InDesign

Premier pro After effects

DiaLUX

QGIS

EDGE

Climate consultant

Analysis Presentations

MS Office Google Canva

Address Contact Language Proficiency

Peravurani, Thanjavur, Tamilnadu cibisaiprasad.e@gmail.com +91 8838180751

Contents

Rest

Basic Space Design - An observation shelter

Thazhvaram

Rural Studio - Women self-help group center

Mixed Use Building - Interface design

Dravidian Enclave

Residential Design - Home away from home

Dome of Thoughts

Public Buildings - Re envision of district library

Competition

FOAID - Expression’ 22 - Art installation

Experiments

Workshop - Earth Dome Structure

Documentations

Workshops - Detailed drawings

Architectural Competences

Model making and architectural delineation

Thinnai

Rocky

Rocky Rest

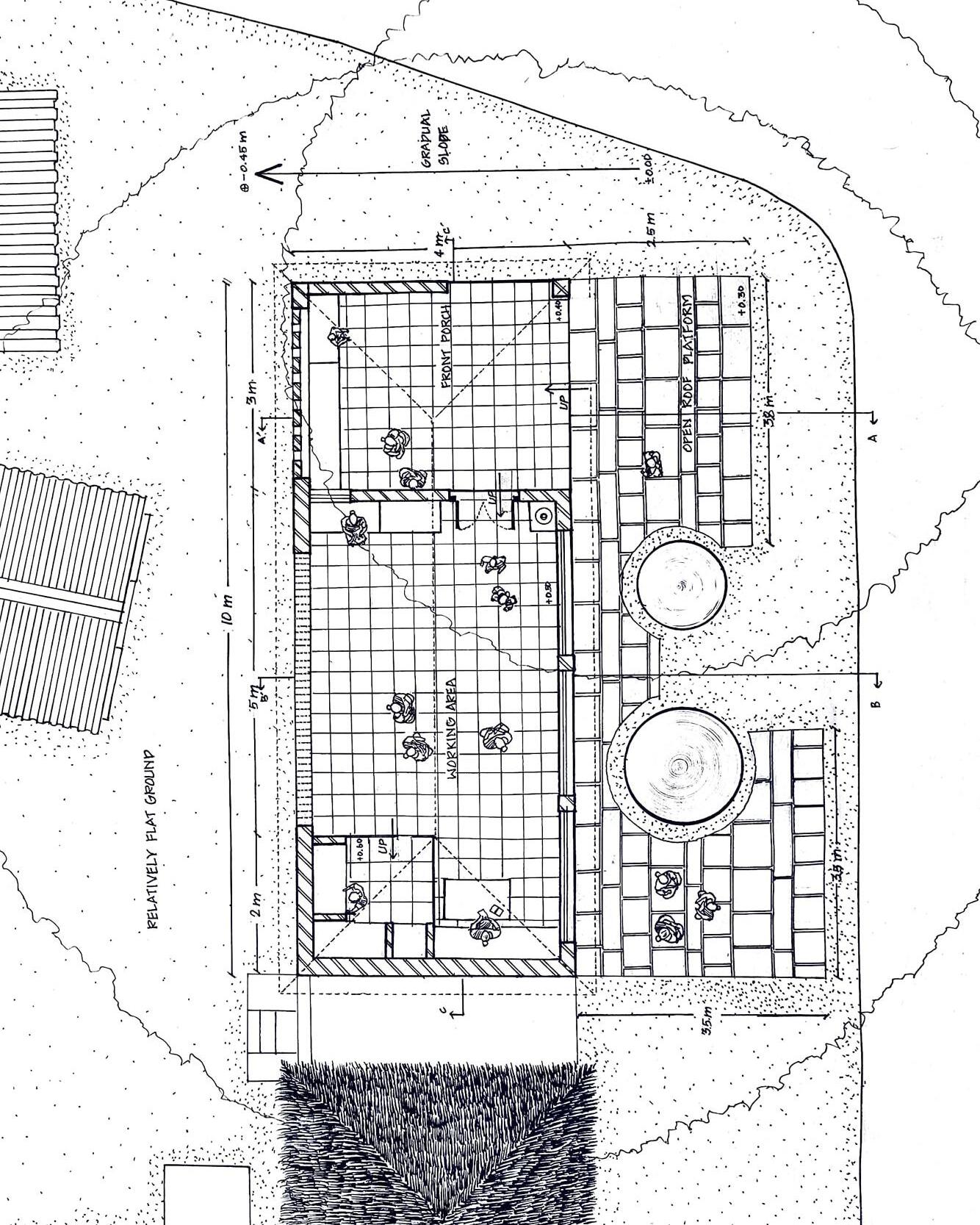

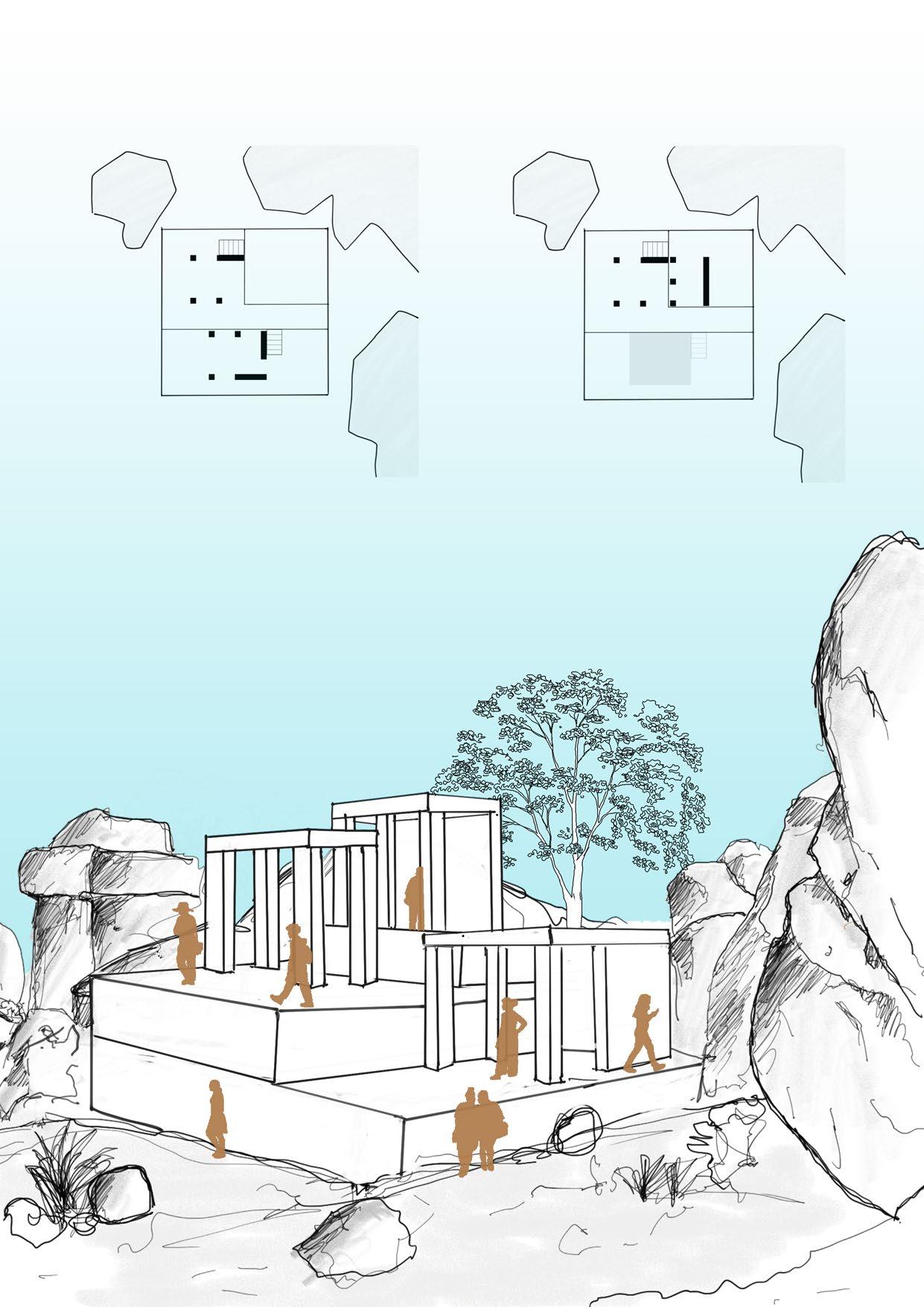

Semester Title Type Area Location Mentor

: 02

: An observation shelter

: Basic space design : 100 Sq.m : Hampi.

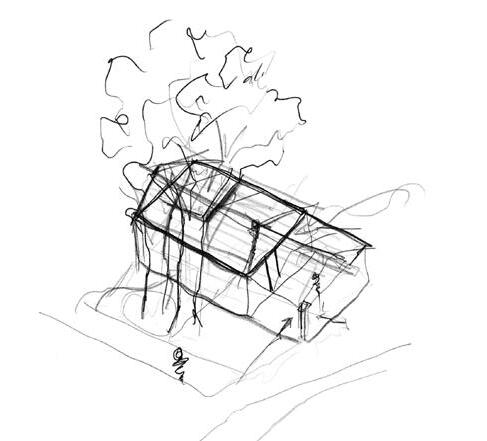

At the first available long weekend, me and my friend decide to return to the dazzling beauty of Hampi and explore the place further. As I was hiking in the landscape I received the news that the entire country is going into lock down because of a deadly virus. We both are now stranded there indefinitely!

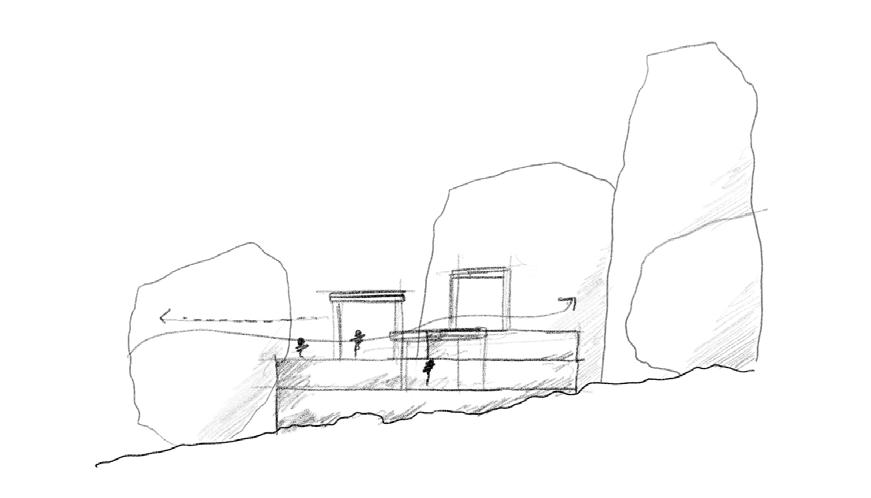

I must find now a place to stay for a longer time. I come across a ruined platform on a low, flat, rocky hill that must have held a building in ancient Vijayanagara. Now all that remain are the plinths. Scattered around are some building elements.

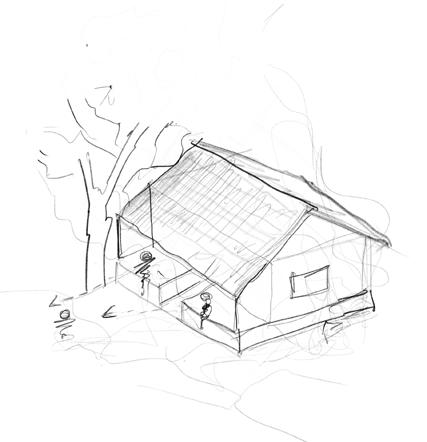

I realize that we can make a basic shelter with these. My friend and I argue over the best design and come up with these solutions.

Thazhvaram

Semester Title

Type Area Location

Mentor

: 03

: Centre for Women’s Community

: Rural Studio : 50 Sq.m

: Kiliyur, Thiruchirappalli.

: Ar. Vidhyashankar Srinivasan

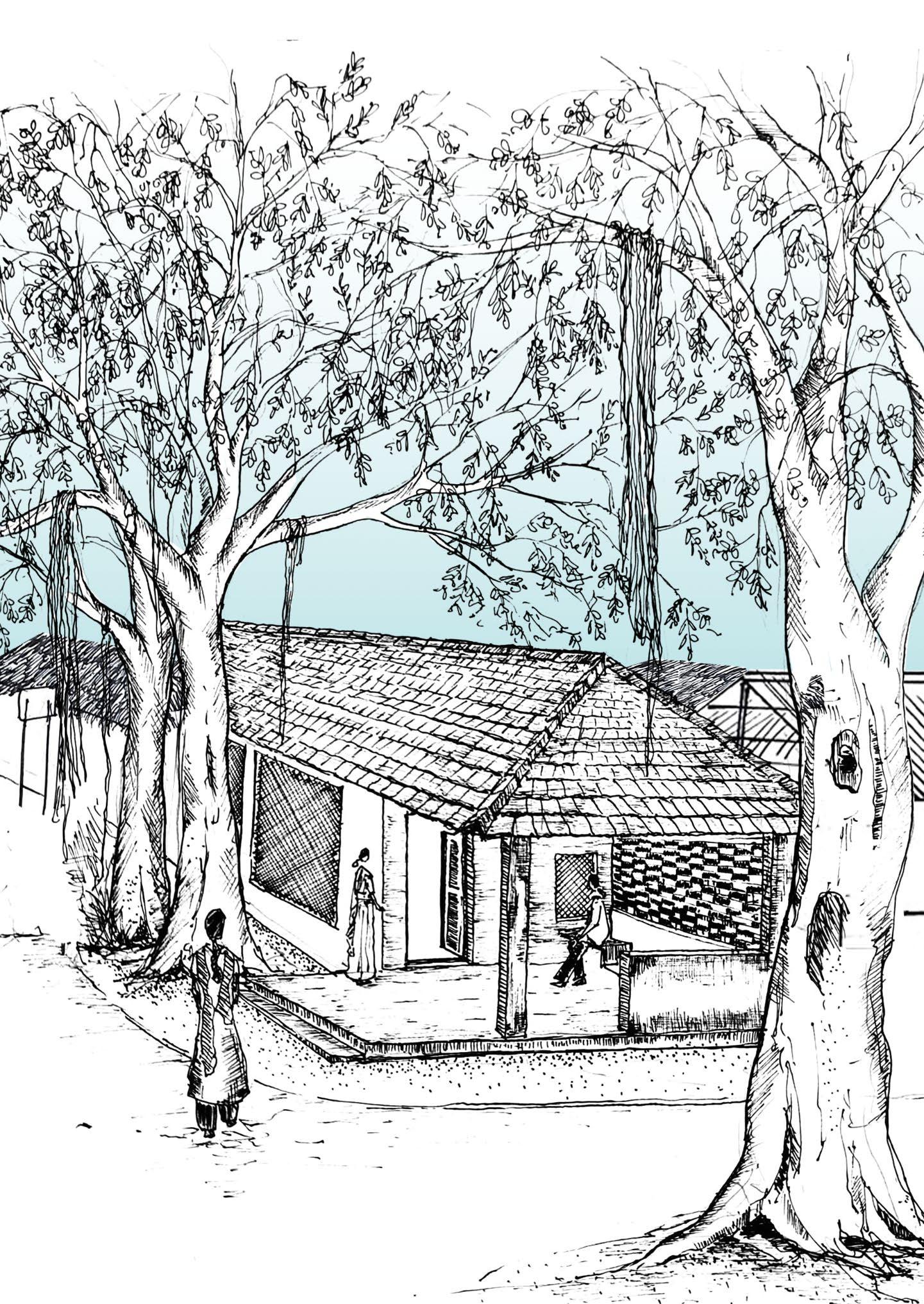

Design a gathering space for women of the village to interact over various events and activities. Especially the self help group and other women organizations that could evolve in the future.

Why do they need a certain space?

The freedom given to women in our rural is so limited that it is impossible to meet and talk in a tea shop where men look the same. This is why women need personal space. A place like this is very helpful to provide some assistance services for women provided by the government. It helps to describe the activities to every one according to the group and pick it up. And assign resolutions accordingly.

Helps to improve interpersonal communication for women and improve some personality development like their self-confidence in society and tends to play an important role in social development.

Context plan

This structure designed to adopt the local climate and environment by using traditional building materials and construction techniques that are well-suited to the local conditions. It is typically made from locally available materials such as mud, brick, and thatch, which provide good insulation against the heat of the sun and help to keep the interior of the building cool. Additionally, the buildings are designed to maximize natural ventilation and light, with features such as large windows. Traditional building techniques such as the use wooden supports, and terracotta tiles are also commonly employed to create durable and sustainable structures that are well-suited to the local climate and environment.

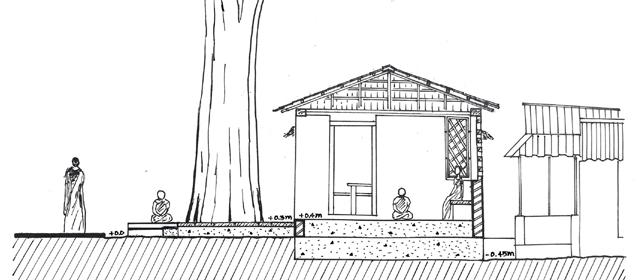

Section AA’

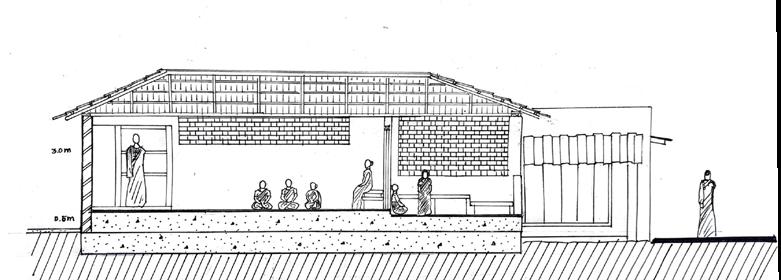

Section BB’

Section CC’

Thinnai

Semester Title

Type Area Location

Mentor

: 06

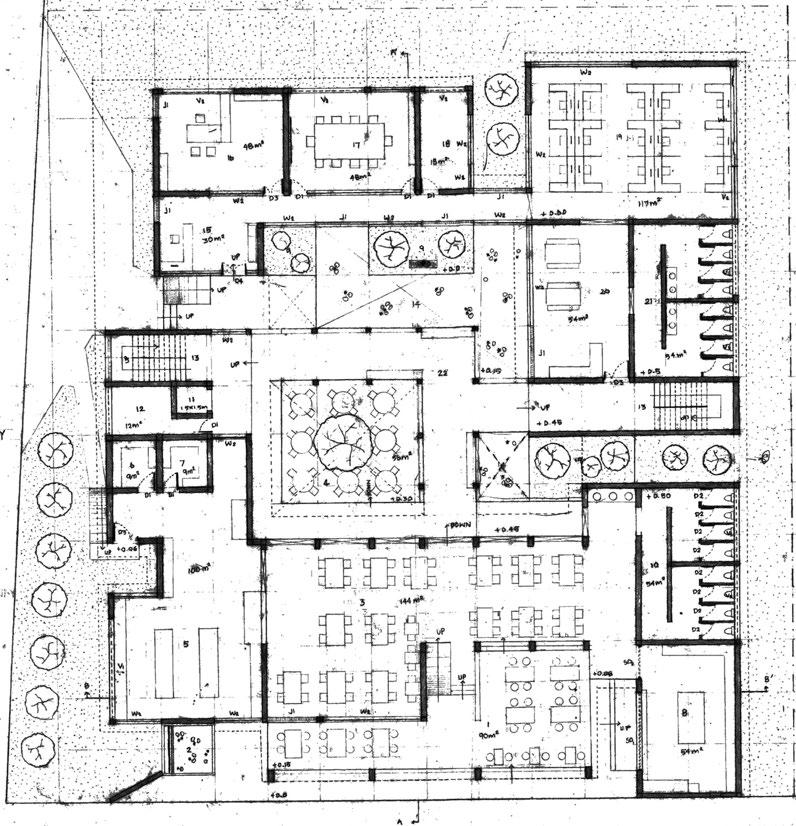

: Ofiice + Hotel

: Mixed Use Buiding - Interface design

: 2000 Sq.m

: Thiruvanaikovil, Thiruchirappalli.

: Dr. Dhanasekaran

This semester helped me in collaborating with practitioners in order to gain a better understanding of their design philosophy and approach conducted by ADG Architects

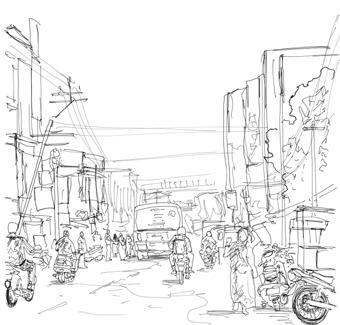

The main goal of this studio is to investigate and find alternative ways and solutions for one of the real-time issues. The street’s liveliness is based on the edges of the built forms that run along it. Transforming the edge character and thereby affecting the bond between the buildings and the street or the public space. To find alternative ways and solutions to retain or bring back liveliness in public spaces- the streets.

The thinnai plays a significant role in this street culture as it serves as a threshold between the outer world and the inner world, providing a space for socializing with neighbors and visitors while maintaining a level of privacy for the family inside the home.

This thinnai also serves practical purposes, such as providing shade and ventilation, and is often decorated with intricate carvings and patterns that reflect the family’s cultural and religious beliefs.

The design inference is derived from this street case study. Houses in North Chariot

Sreet, Thiruvanaikkovil.

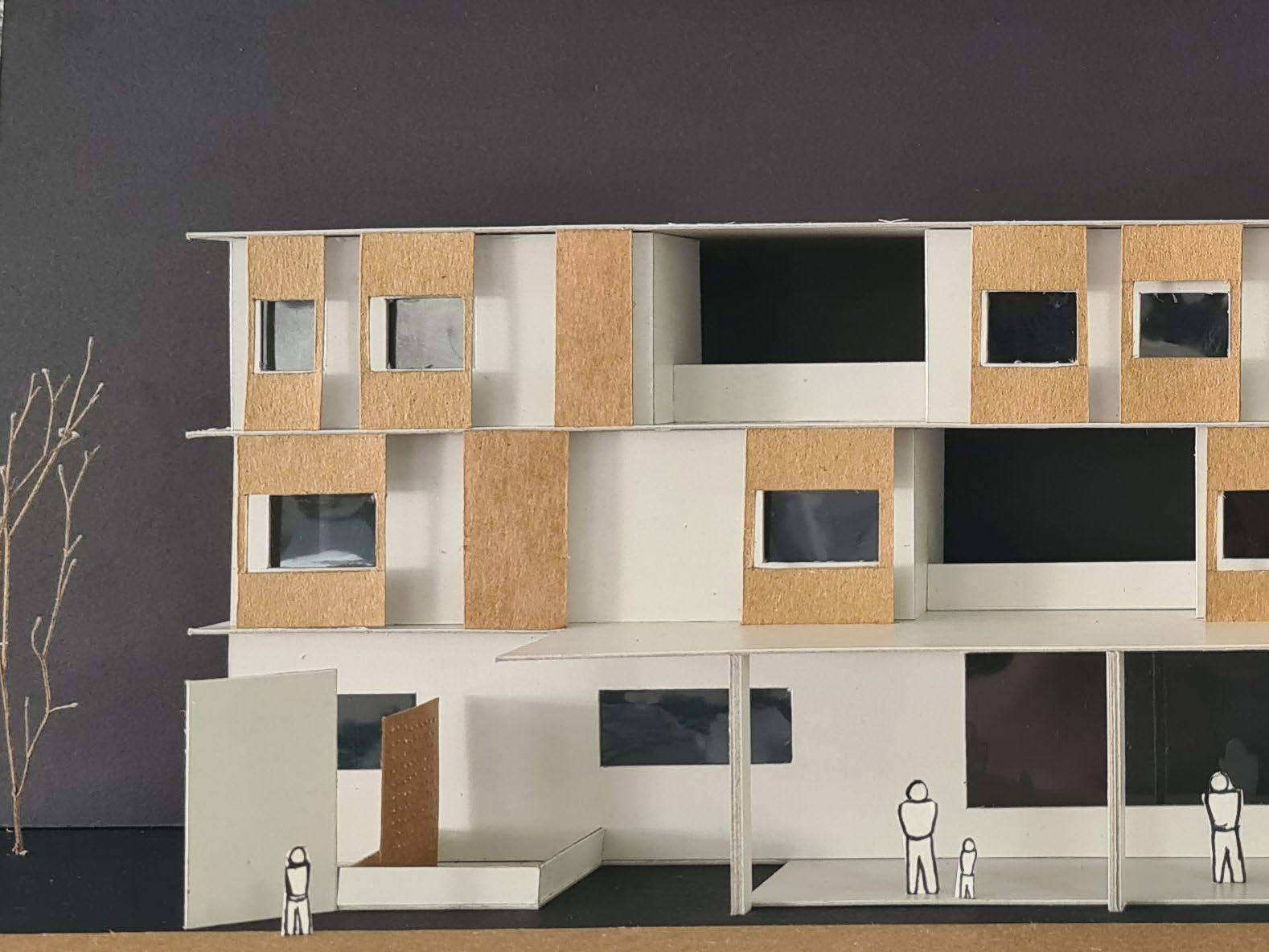

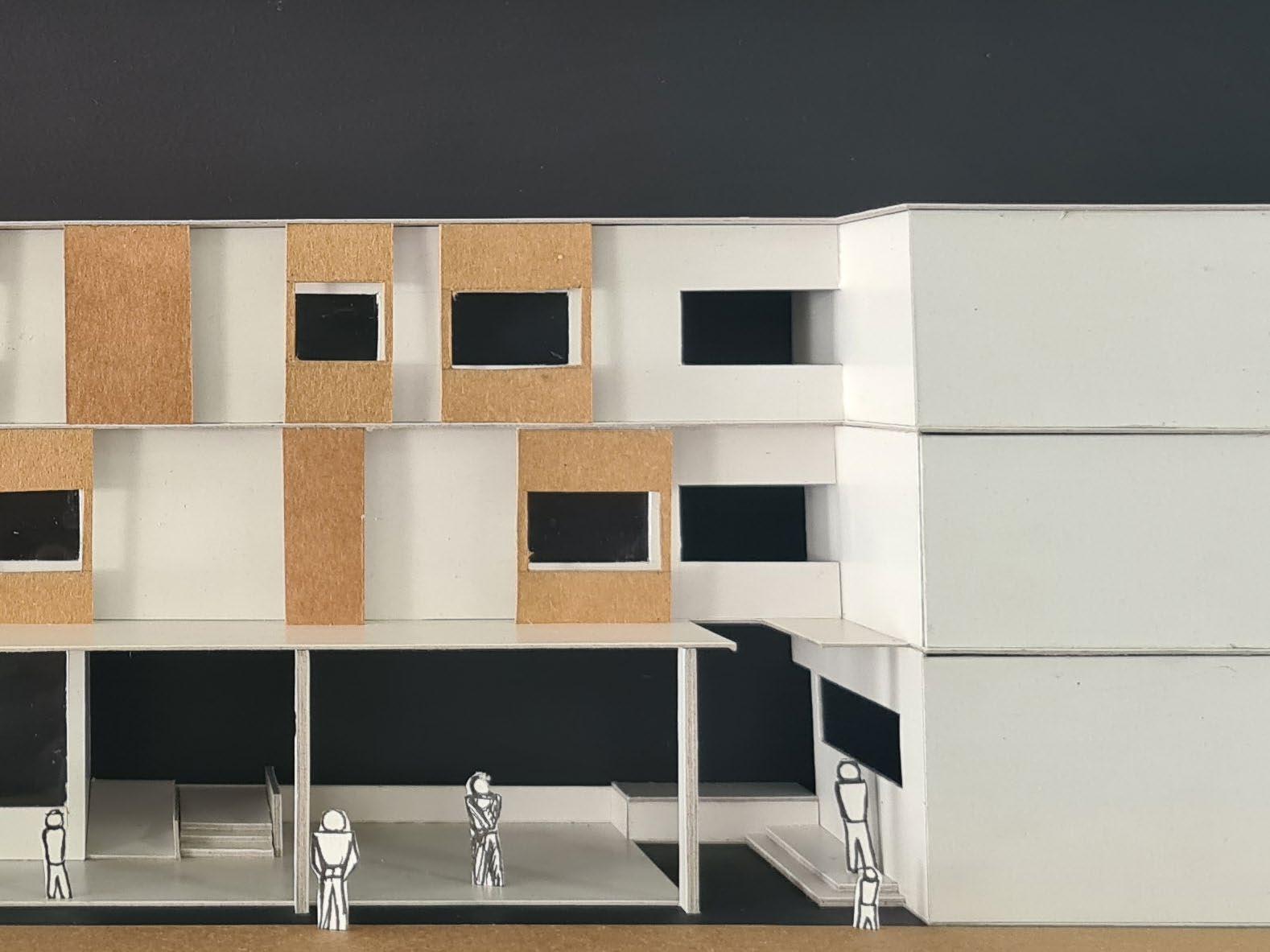

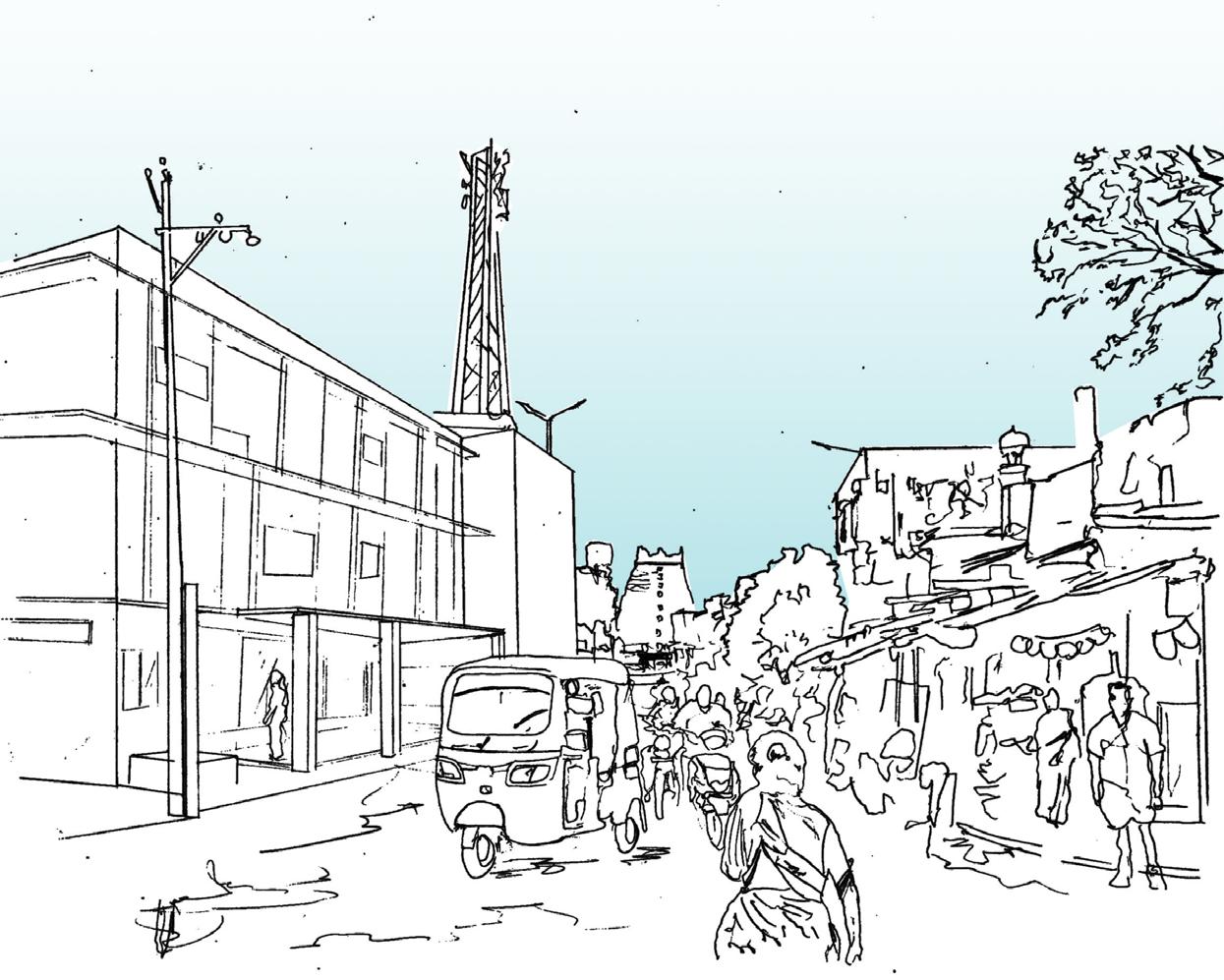

The view of designed building interface in the contexual axial street of thiruvaikkoil temple.

The Dravidian Enclave

Semester Title Type Area Location

Mentor

: 05

: Home away from home

: Urban Housing

: 1 Acre

: Rajkot, Gujarat.

: Ar. Neelkanth Chhaya

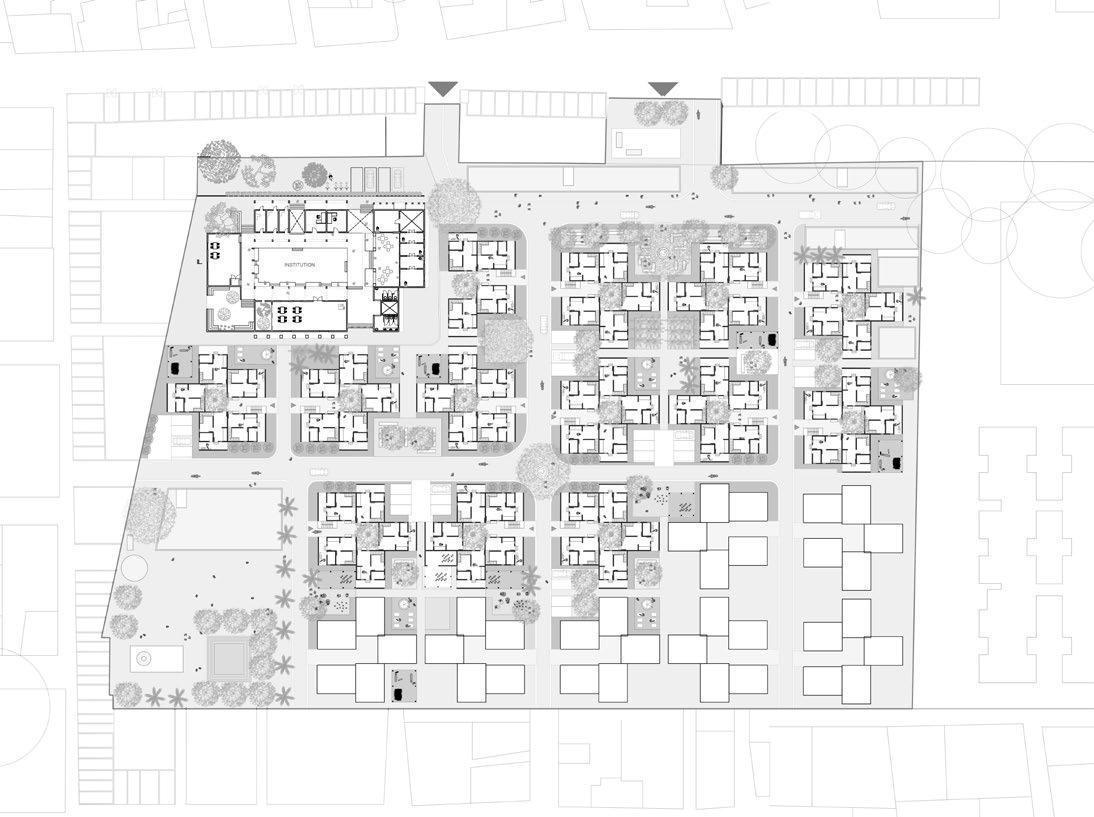

A collaborative design studio with IPSA, Rajkot.

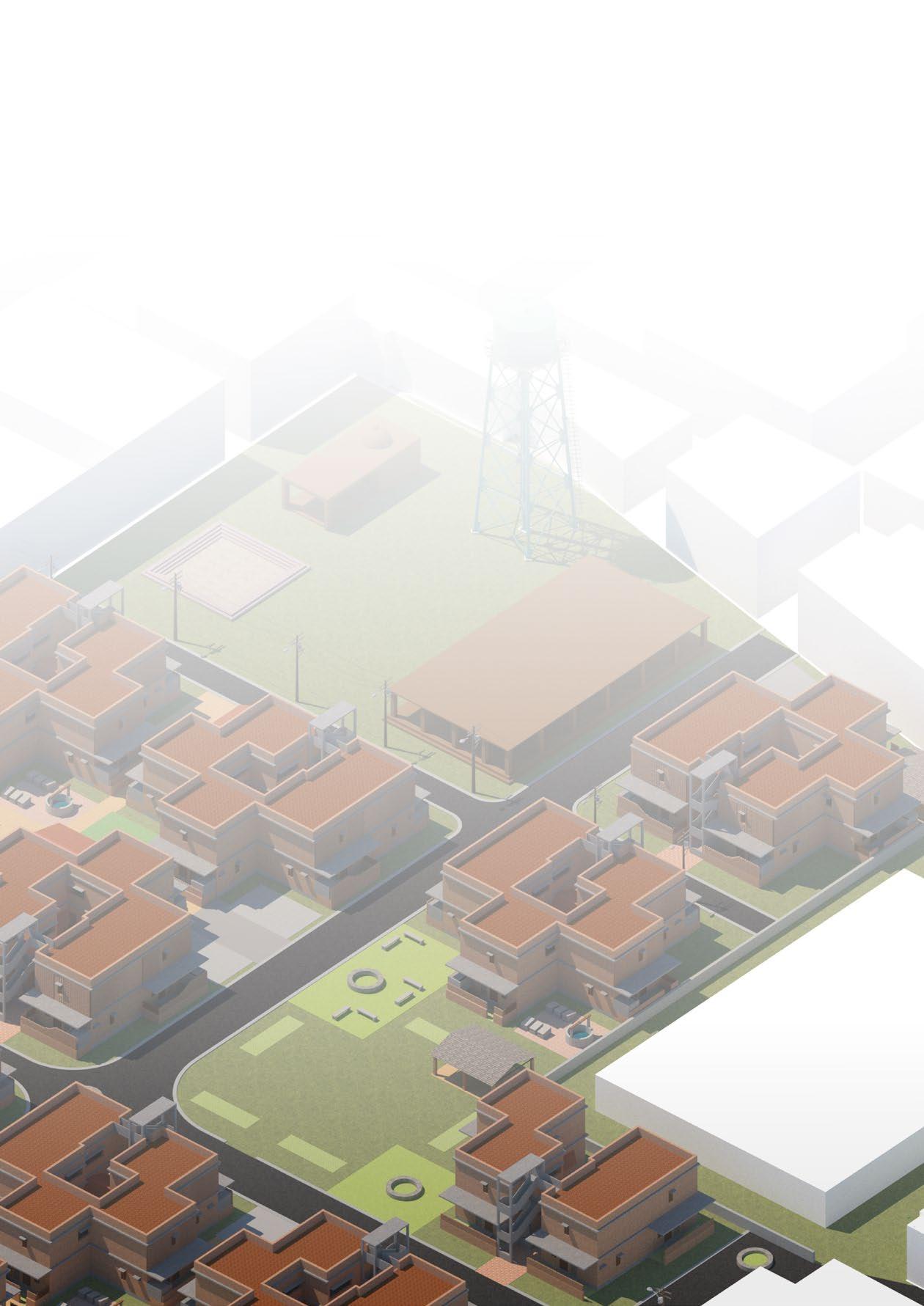

This studio focused on understanding the attributes of cultural exchange and the places that allow such exchanges possible. The studio was contextualized in Gujarat, and Tamilnadu in India.

People who go to far-away places wish to remember and keep alive the ways of their original place, but they also wish to fit into and become part of the new place. Thus, their place of living achieves a distinct and recognizable character. This would need a habitation form that allows personal expression without creating disorder.

Void

Dravidian Mega Dwelling

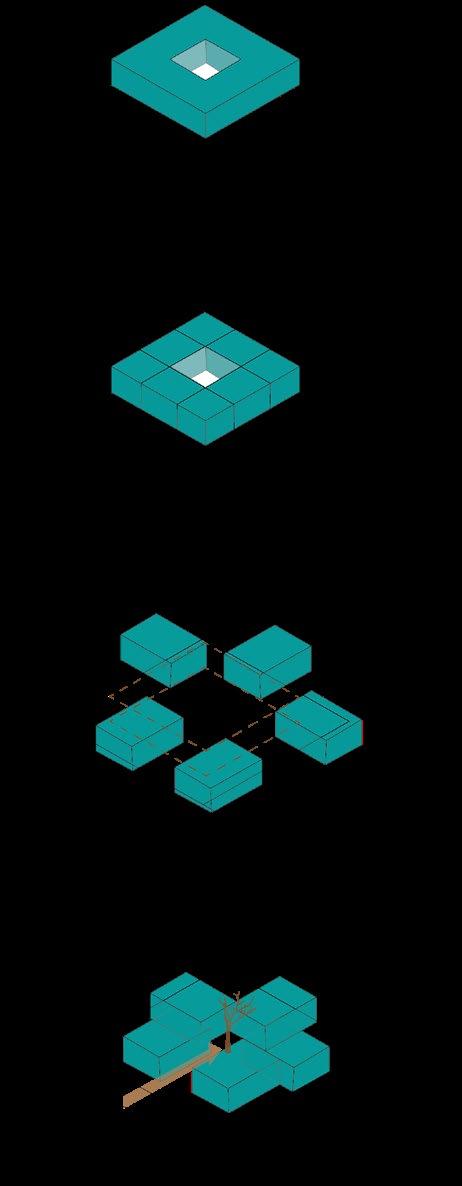

Optimum massing cluster

The terrace act as a connectivity space of the entire cluster people. Crating a neighbourhood should be achieved an interactive and multi-purpose spaces. Future expansions can be provide by this level of building.

Rat trap bonding is highly recommend for this region. The thermal comfortability of this building will be maintained in either summer or winter seasons.

And also providing a brick works like jallies and different waving techniques that protect the walls from the sun exposure to avoid gaining heat.

The area of spacing is defined for better living. Providing the requirements is also helping people for the various activity purposes.

eg. Court yard

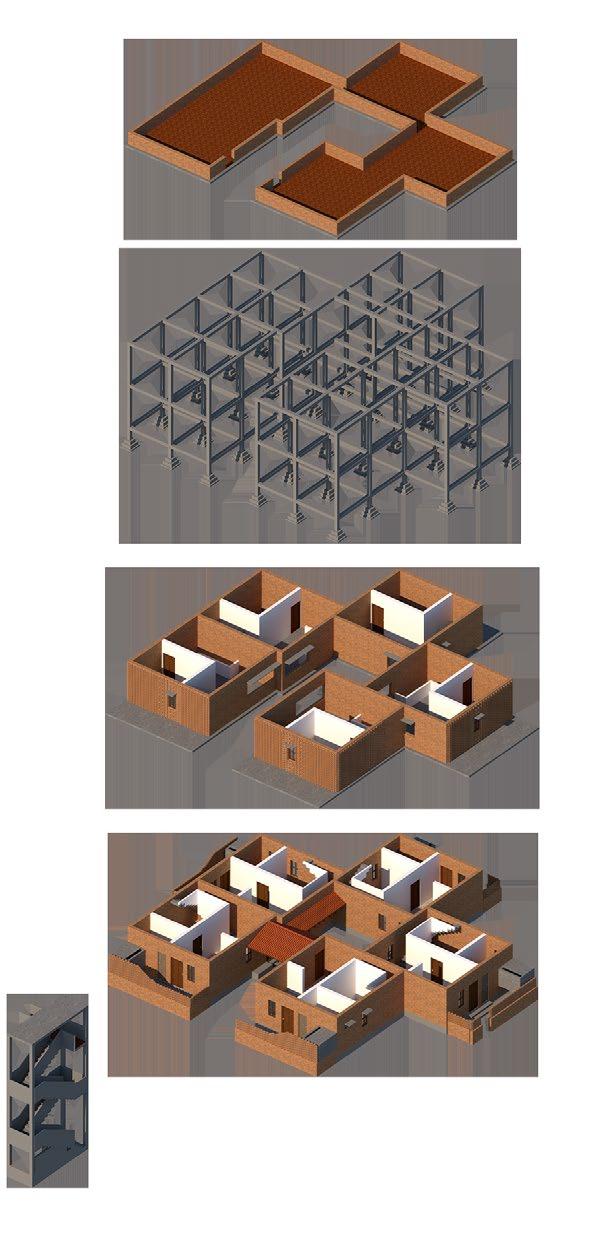

Framed structure

Traditional tiles

Integrated terrace

Mangalore tiles

Thinnai space

Rainwater tank

Jaly wall

Rat trap walls

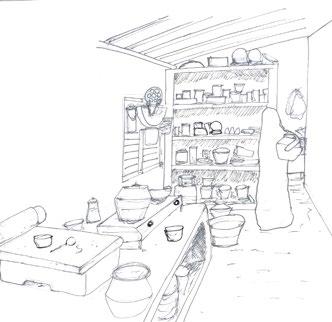

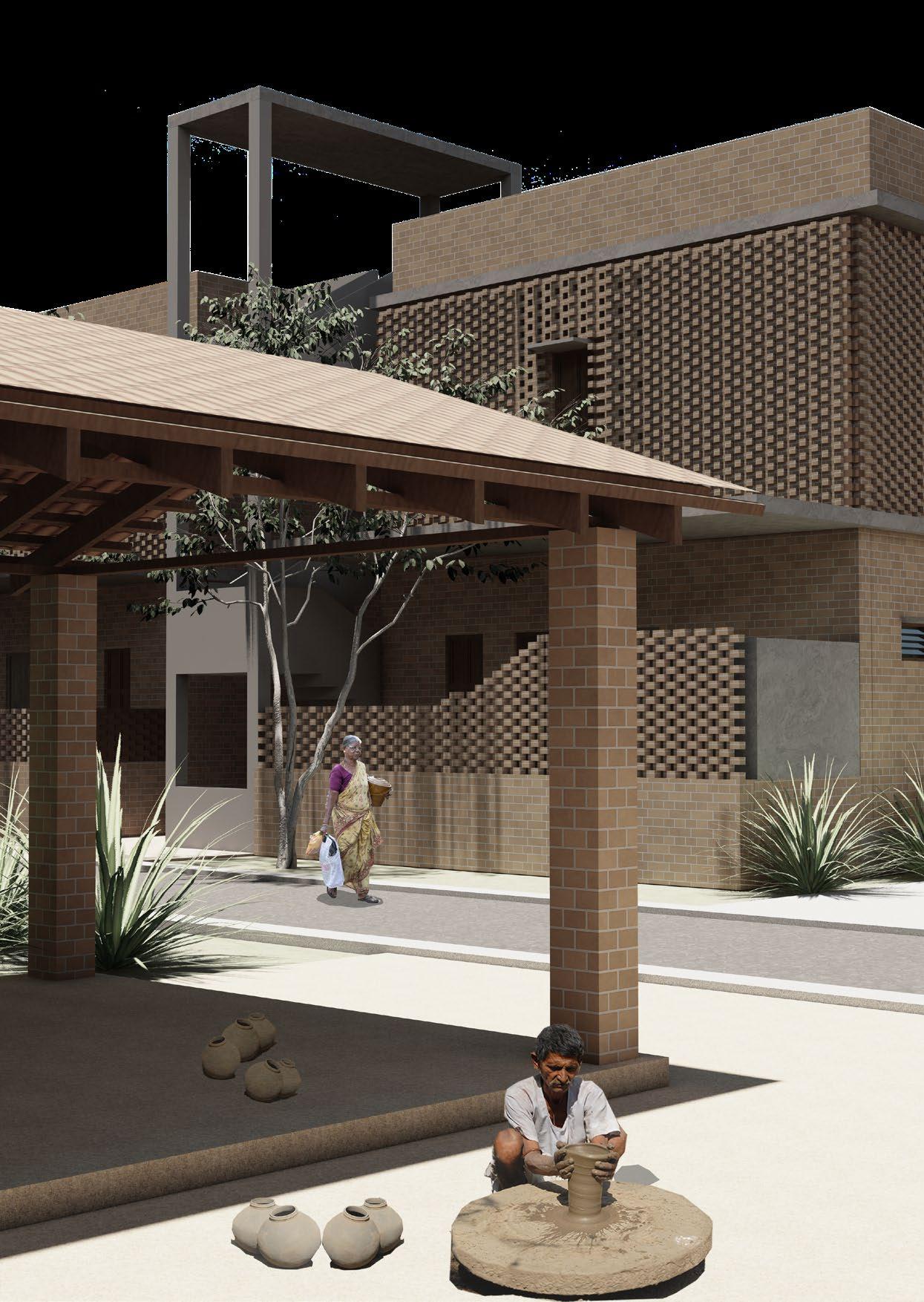

Indian pottery workers homes vary depending on the region and cultural background of the workers. These homes are often basic, with minimal amenities and limited access to resources such as clean water and electricity. They may be constructed from locally available materials such as mud, brick, or thatch, and may have few windows or ventilation.

Inference 01 : In Tamil culture, the kitchen is considered the heart of the home and is often a central gathering place for family members and visitors alike. Traditional Tamil kitchens are typically built separate from the main living quarters to minimize the risk of fire and smoke, and may be constructed from locally available materials such as clay, brick, or thatch.

Inference 02 : To growing their own crops and raising livestock, Tamil people often engage in communal activities such as festivals, religious ceremonies, and village meetings.

Inference 03 : These gatherings may take place in designated public spaces such as community halls or temples, or may be held in private homes or outdoor areas.

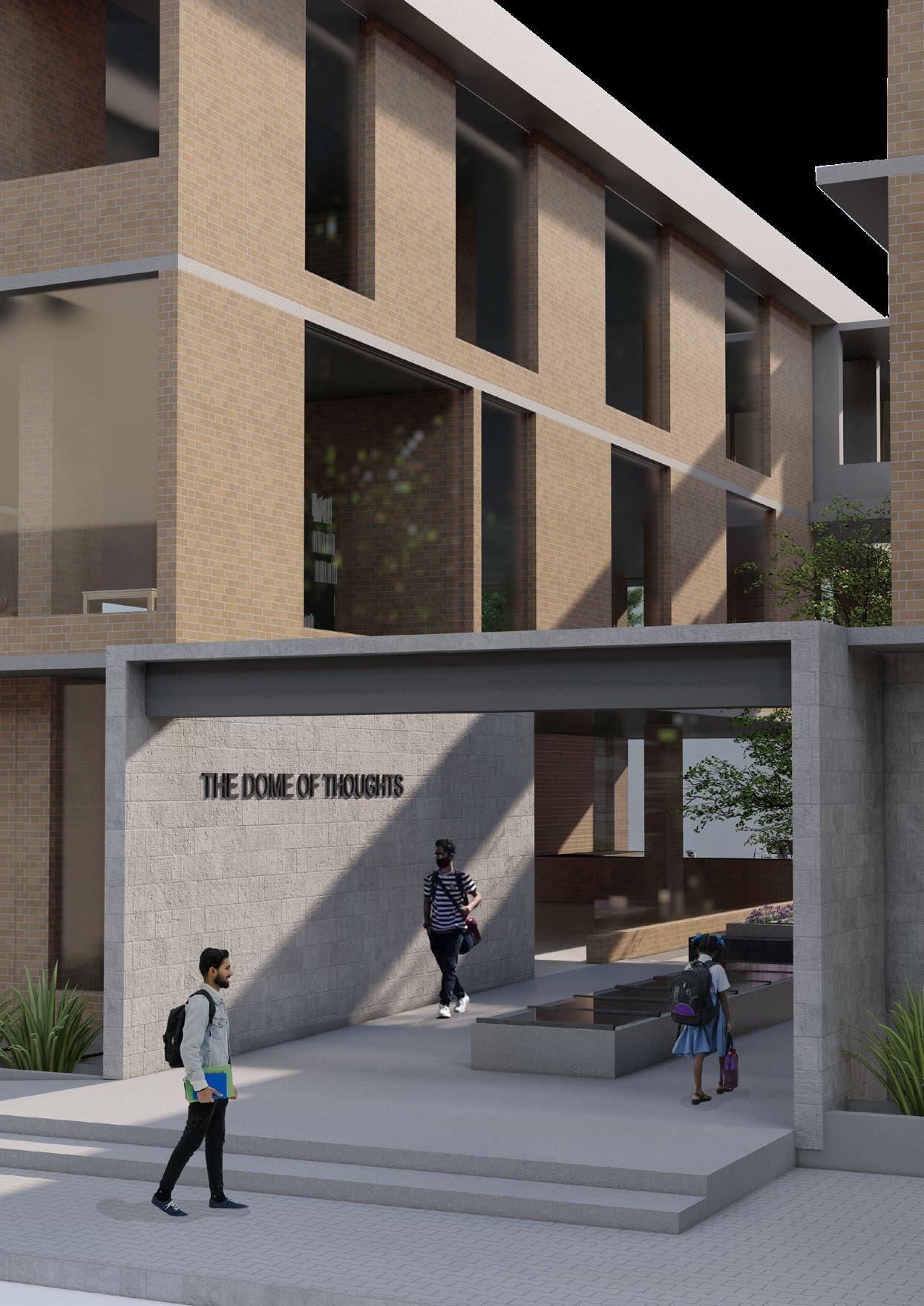

The Dome of Thoughts

Semester Title Type Area Location Mentor

: 07

: Re-envision of district central library

: Public buildings

: 2,700 Sqm

: Thiruchirappalli.

: Ar. Rameshwar PVK

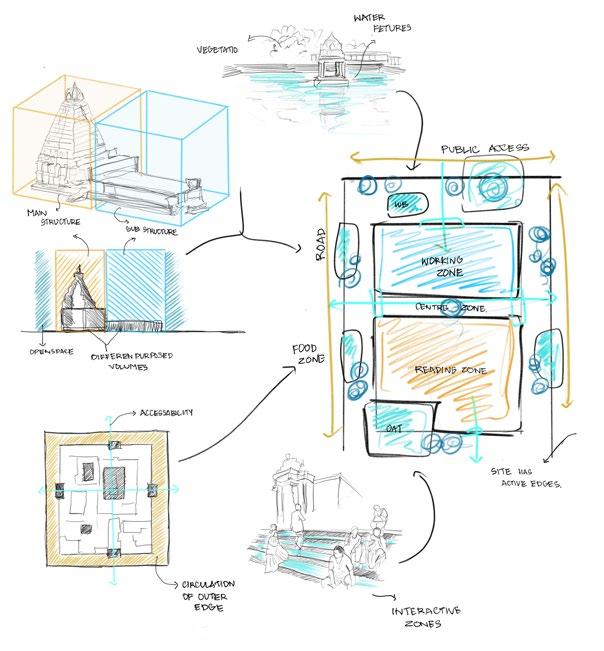

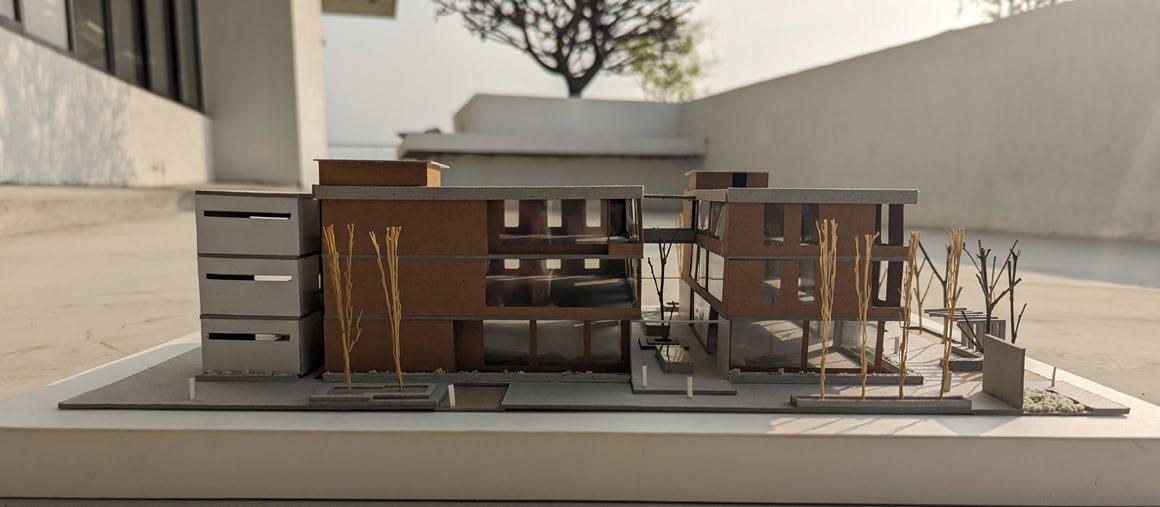

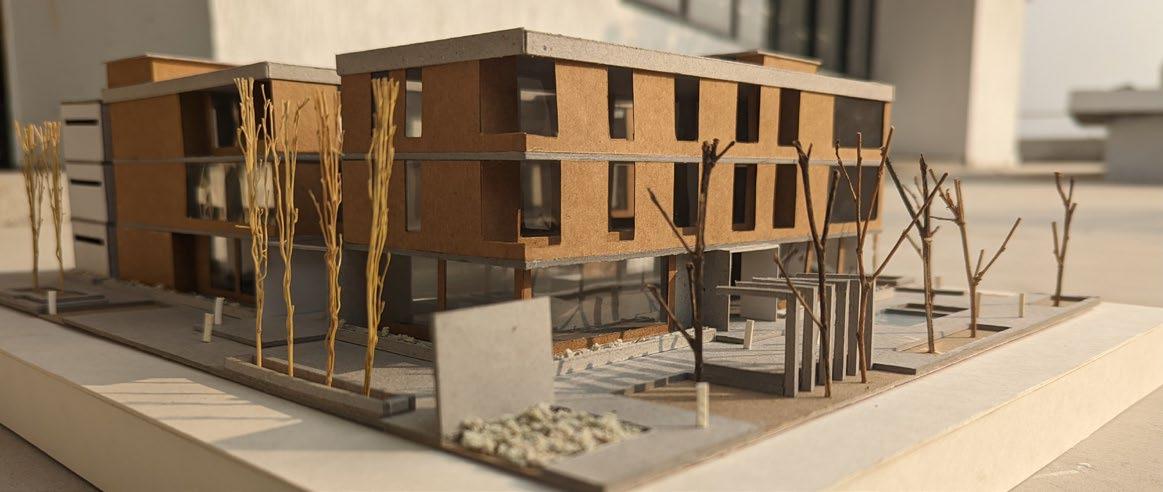

To redesign an existing public library by understanding the challenges and pain points to derive aspiration for the present and intended future. The library must be convenient to access and use; visibility and connectivity – the library must be a place for people to freely interact; Integrated with technology for present and future; flexibility and adaptability –the library must be modifiable to reflect people’s changing interests.

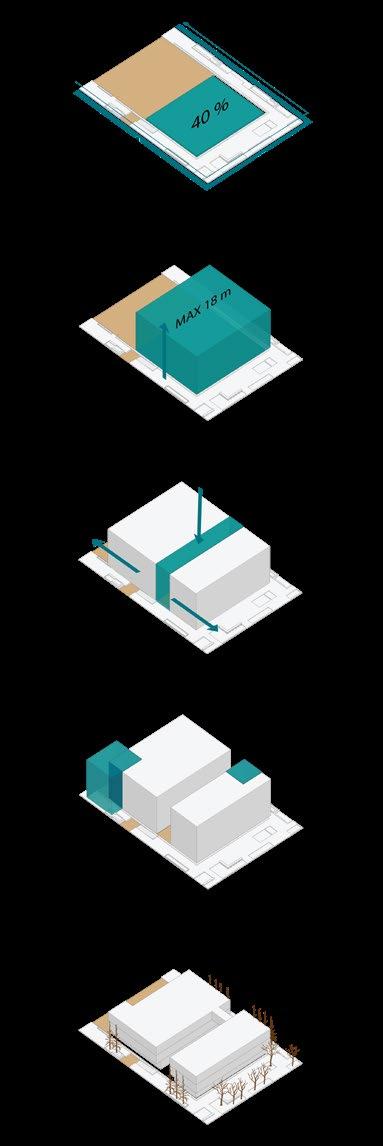

Treatment for the edges to respond th site context

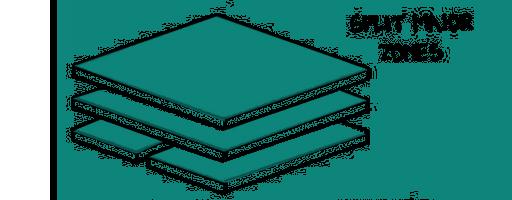

Voluming the area to be build and orient to the site accordingly

Try to integrate the site edges for the people to interact the building.

Adding service cores occasionally

Refine the floors and re-organize orientation.

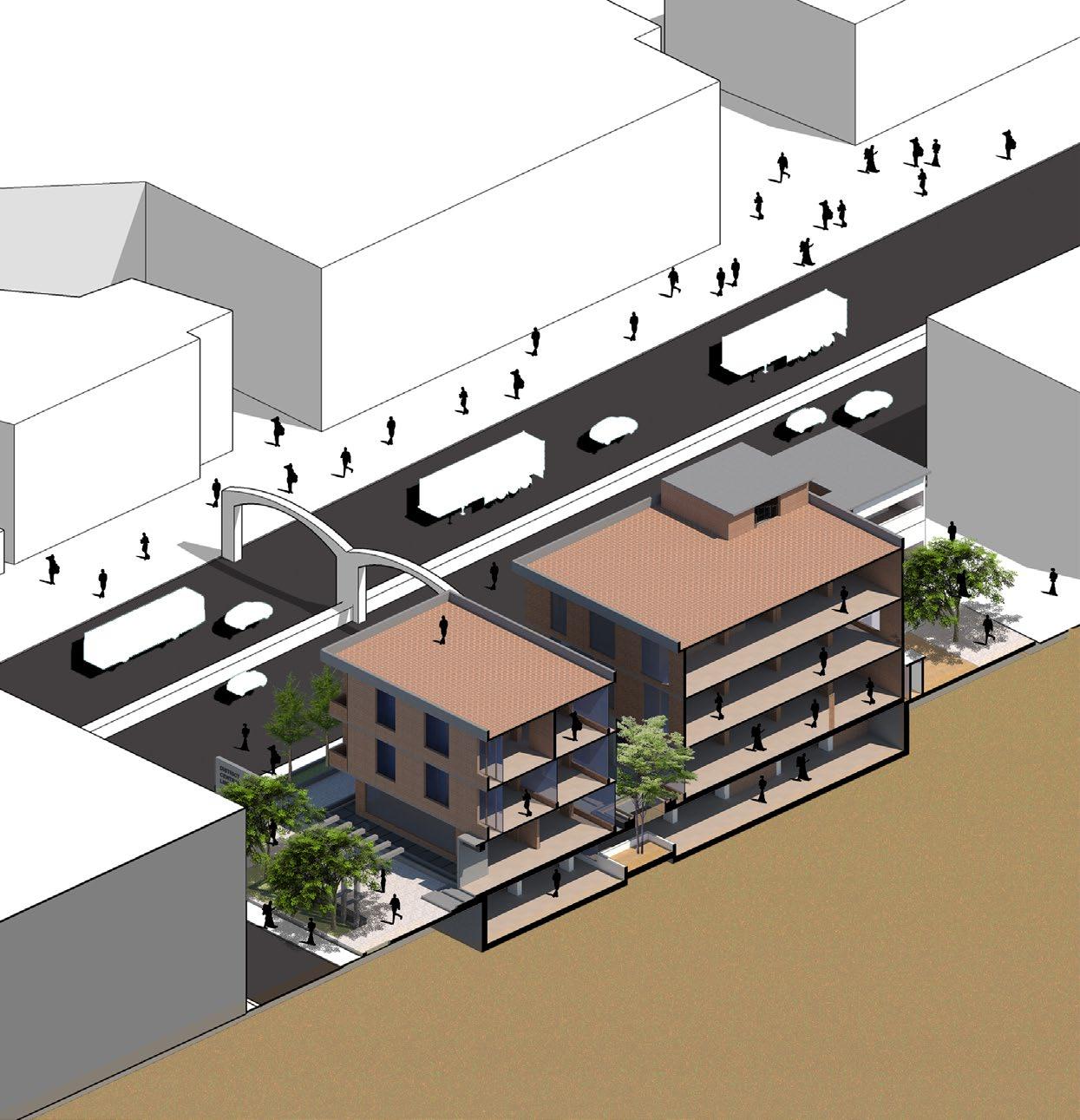

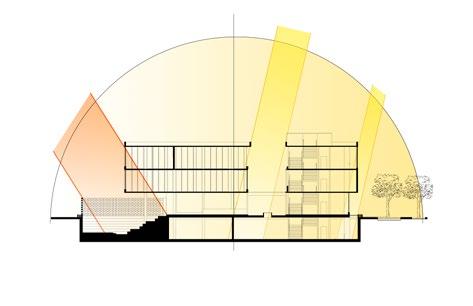

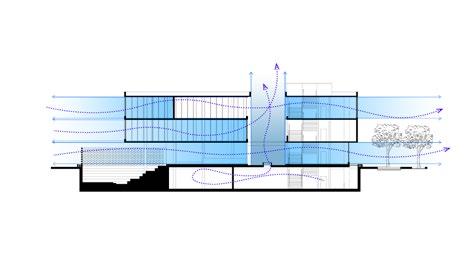

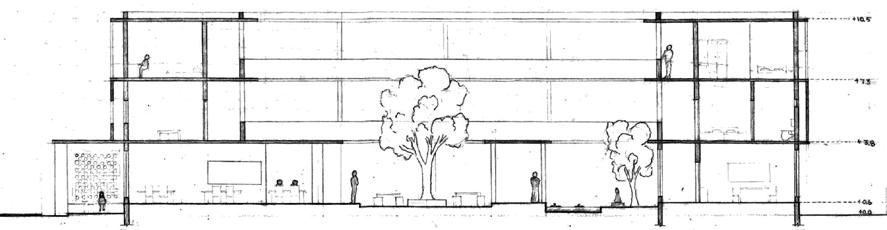

Cross section with site context

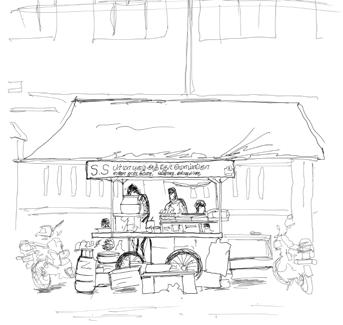

When I am re-designing this library building, it is important to consider the surrounding site conditions, including vendors’ encroachments, lack of parking and pedestrian facilities, and heavy traffic density.

A buffer zone is created around the library building to separate it from vendors’ encroachments and heavy traffic density. This can be achieved by setting the building back from the street, creating a green space around it and space for temporary vendors also.

To encourage pedestrian access, the library building edges modified with a clear entrance and exit, with signage and way-finding tools to help people navigate to and from the building. Additionally, the building has provided a safe and comfortable pedestrian environment by including features such as sidewalks, benches, and landscaping.

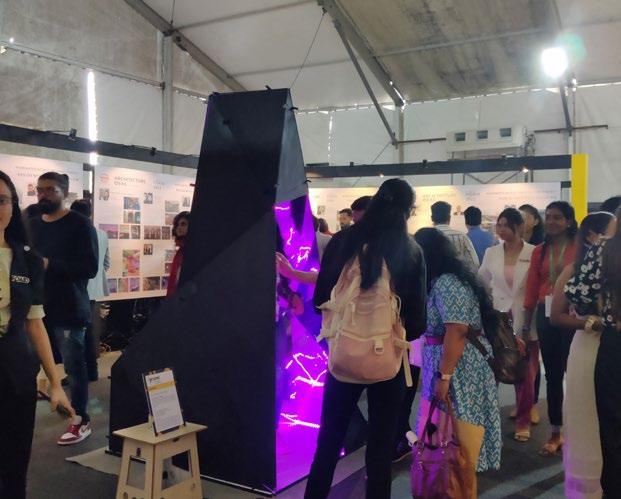

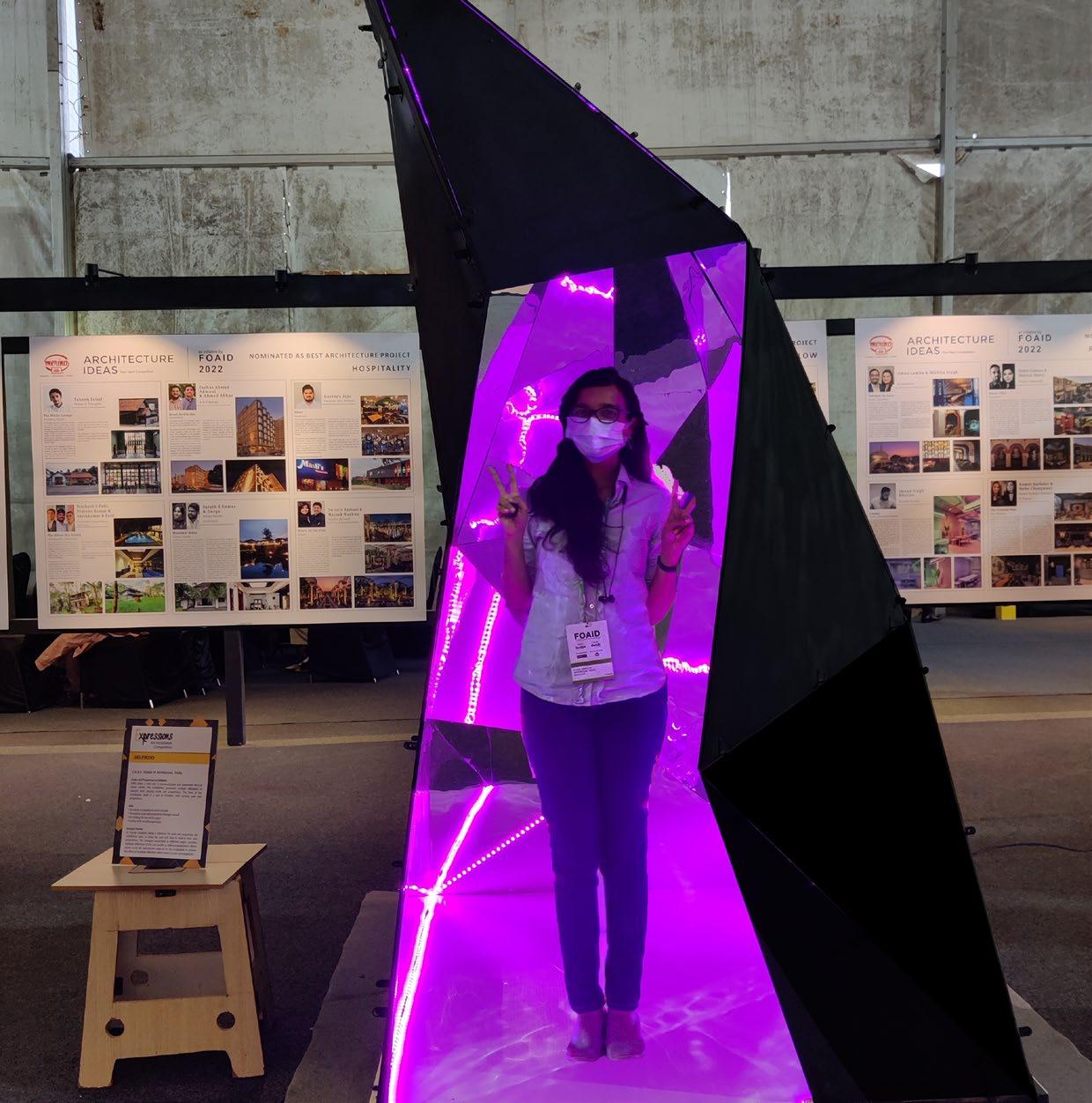

SelfieDo - FOAID’22 - Gold Winner

Competition Title Type Area Location

Mentor Team

: 01

: Scale and proportion

: Art Installation

: 4’ x 4’ x 7’

: Mumbai.

: Ar. Laxmi Kumaresan : Group of 4

Scale in architecture plays a very important role in determining the relation of architectural elements with the surrounding and with each other while being in harmony with the human body geometry. The role of scale is an integral part of architecture and design changing the way we perceive a space. Using the understanding of scale and proportion, the competition aims to explore a single form in multiples to create a selfie point. The selected form/ shape can be used as a module repeatedly scaled in varied proportions and combinations.

Scale and Proportion in Selfiedo

The form itself, is a cluster of multiple triangles of varying scale and proportion. As human anatomy being the reference for scale and proportion, Selfiedo aims to interact with the user. Selfiedo applies multiple reflection at different angles to play with the scope.

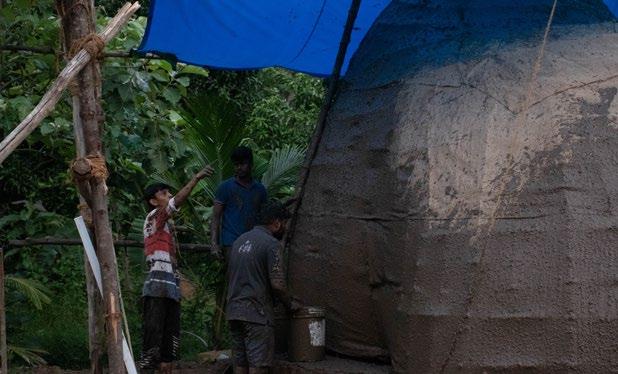

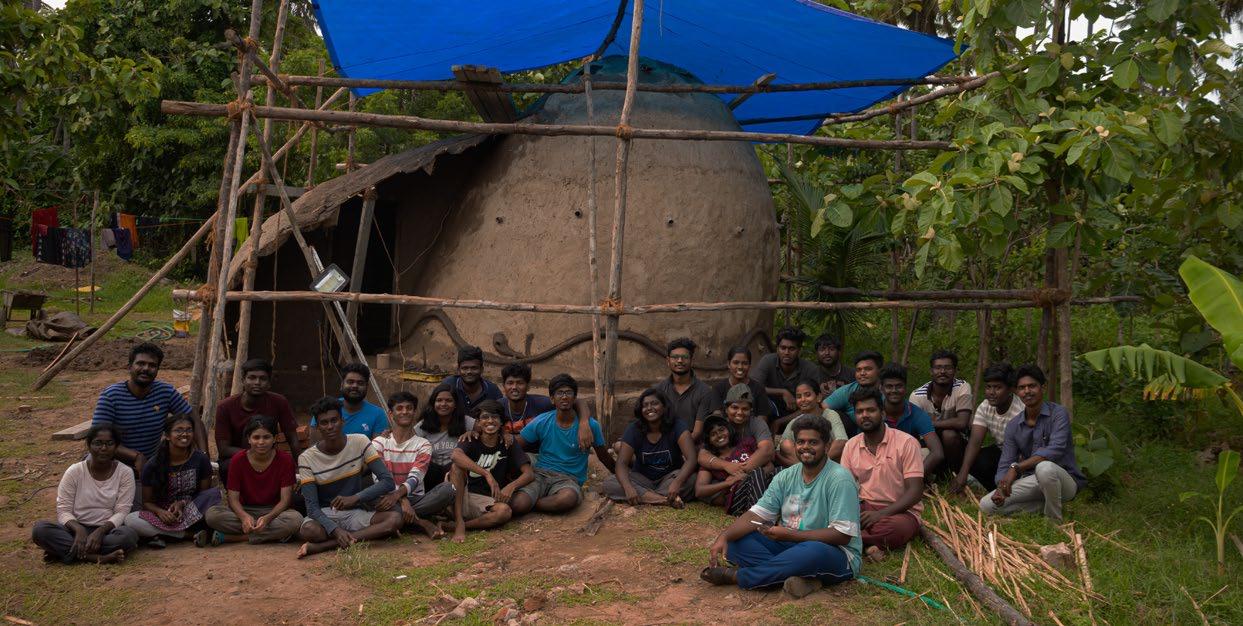

Earthen Dome Structure

Name Location Mentor Team

: A meditation space

: Sri Anjaneyam Ayurveda Vaidyasala Kiliyur, Thiruvarur.

: Ar. Balaji Rajasekaran

DMAC Groups, Kumbakonam.

: Group of 10 + Local Masons

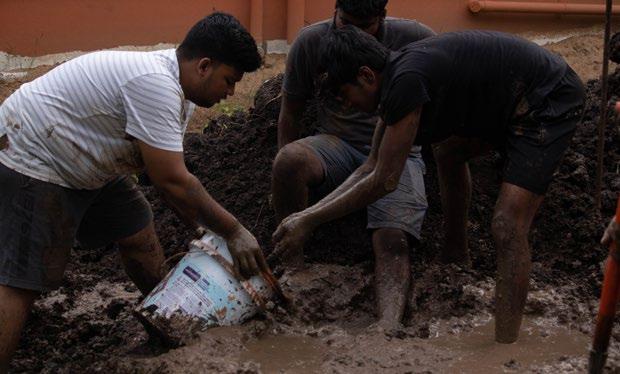

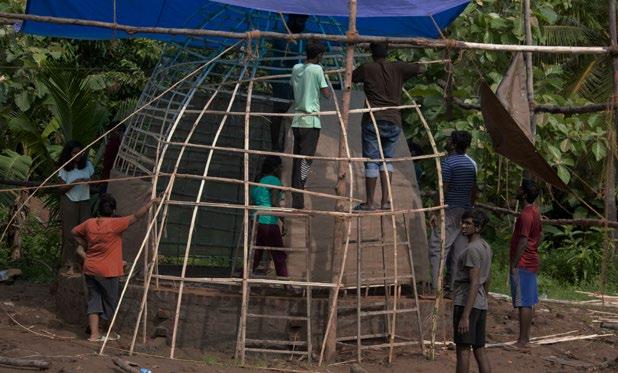

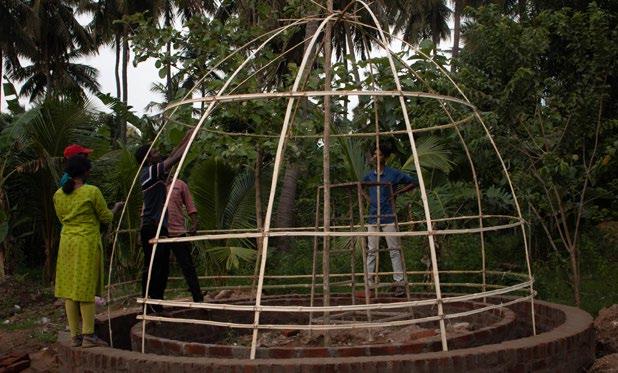

Designing an experimental earth dome structure for a meditation space in Kiliyur without any pre-data planning is a challenging task. However, assuming the context, the structure can be modeled like a snail shell. The snail shell structure can offer a unique and calming experience to the meditators. However, further research and planning was required to optimize the design and ensure the safety and stability of the structure.

Documentations

Name Location

Mentors

: Nayak’s Steps

: Vennar river bank, Thanjavur

: Ar. Maniyarasan

Ar. Rahul Ravichandran

The padithurai on the banks of Vennar river in Thanjavur was built during the reign of the nayaks. The exact time period of construction is not clearly known. It was built for the purpose of commuting between the banks. The opposite bank also has a similar structure. The ornamentation was added to the structure on a later date by marathas. The padithurai was also utilised by the nearby temples for their rituals. It was also used as a resting place.

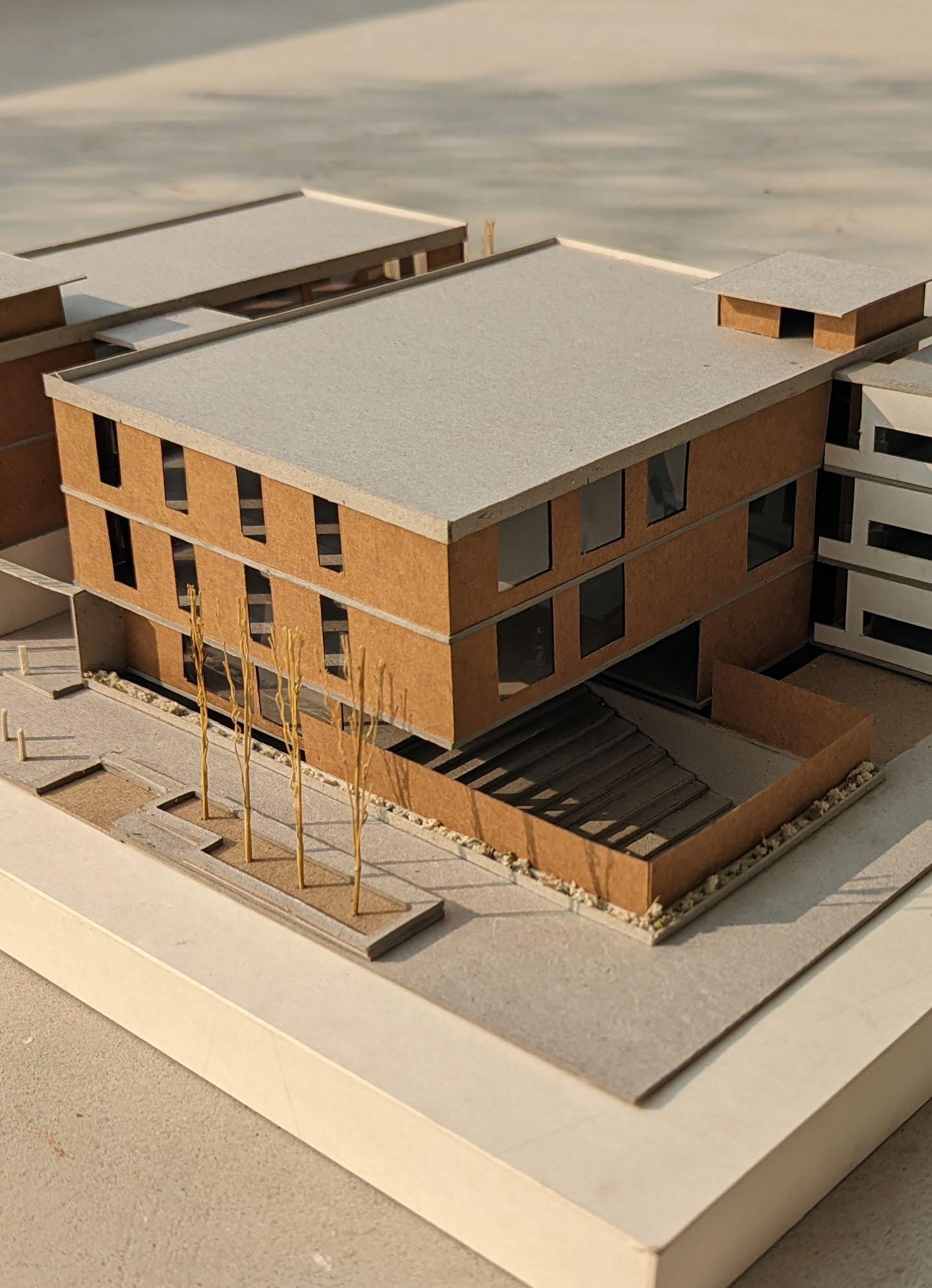

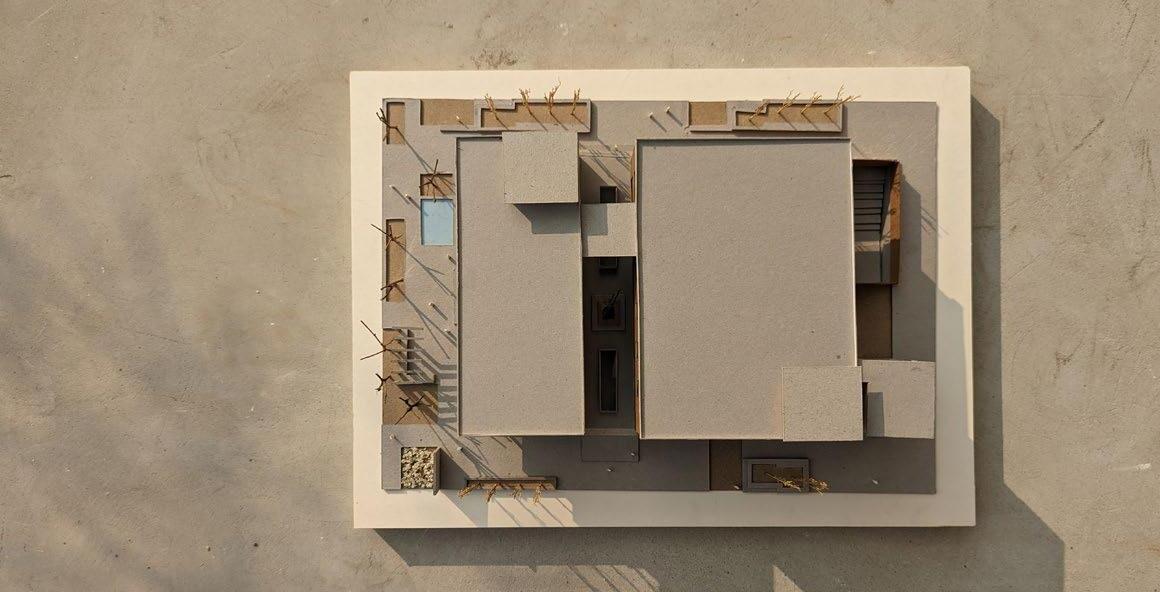

Model Making And Architectural Delineation

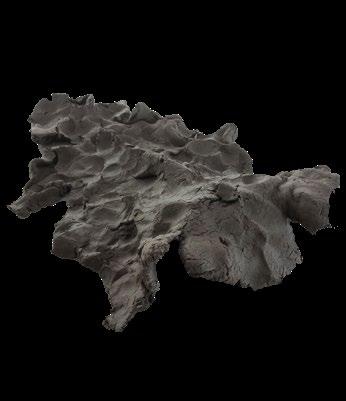

Exploring the form evolutions through the different materials using as a physical medium. The selected batch works will explain the outcome of the foundation studio.

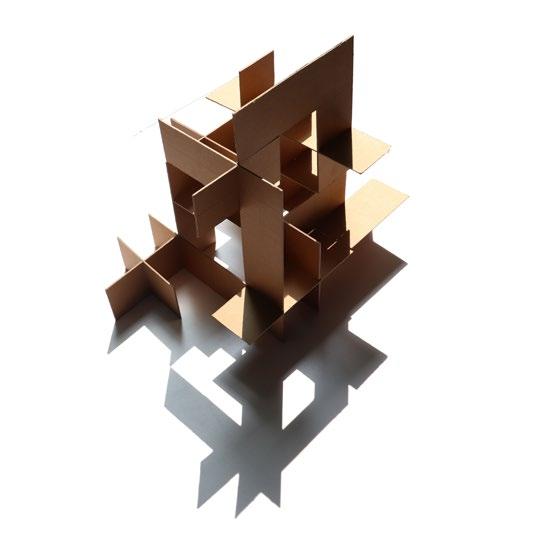

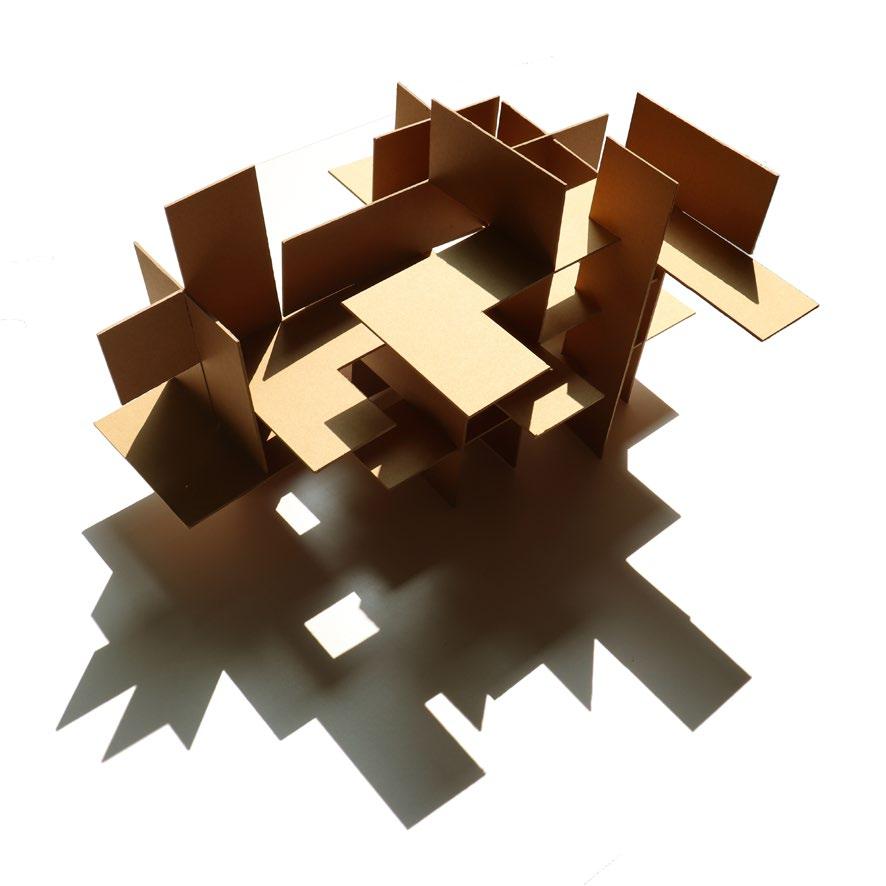

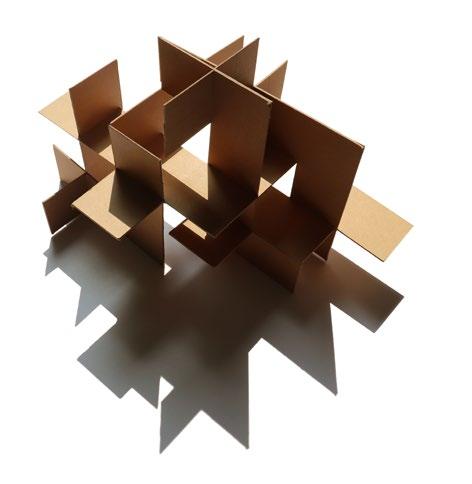

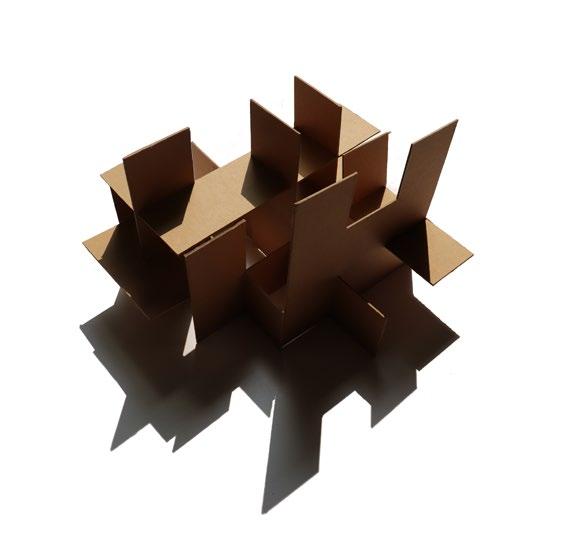

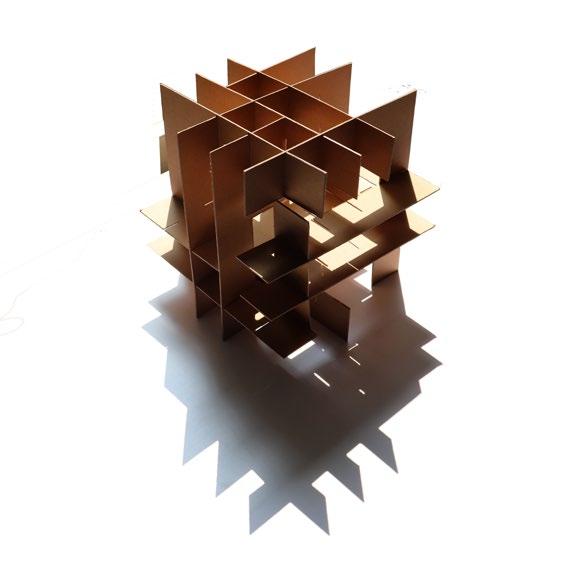

An interlock plane model making workshop to introduce the basic techniques of model making was also conducted as a part of the skill development agenda.

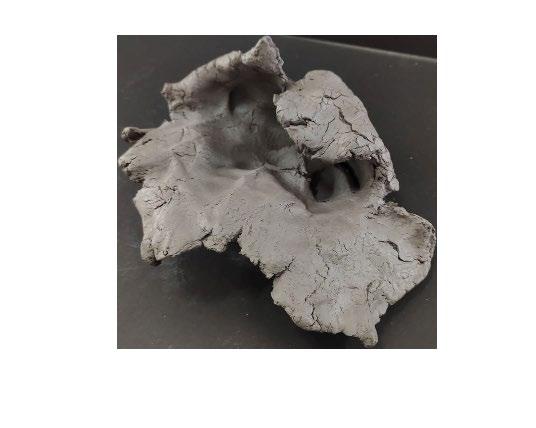

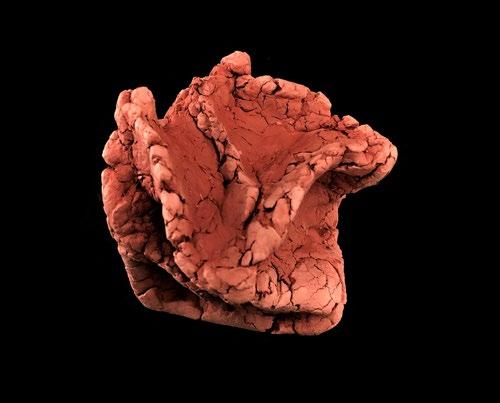

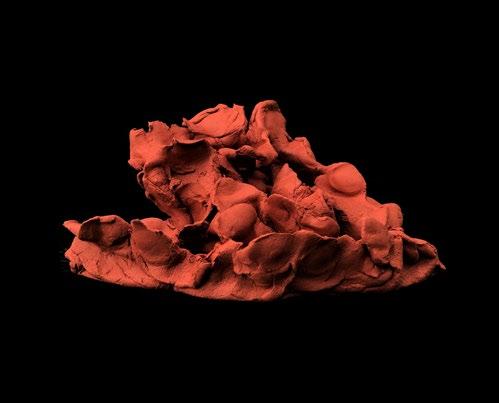

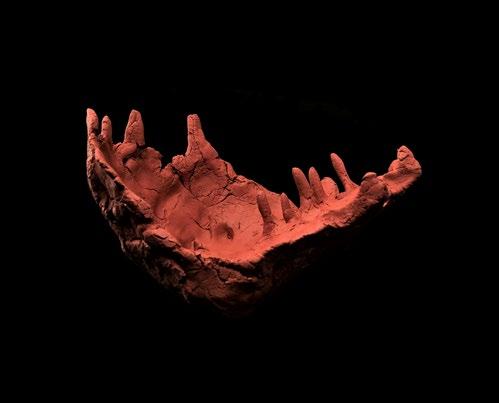

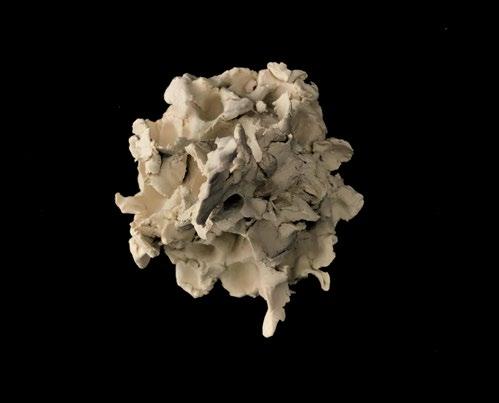

An intuitive / freewill expression with restraint in the method – As students we are only allowed to use the finger tips or thumb restricting the method to pinching / pulling or pressing down. Multiple interactions were done.

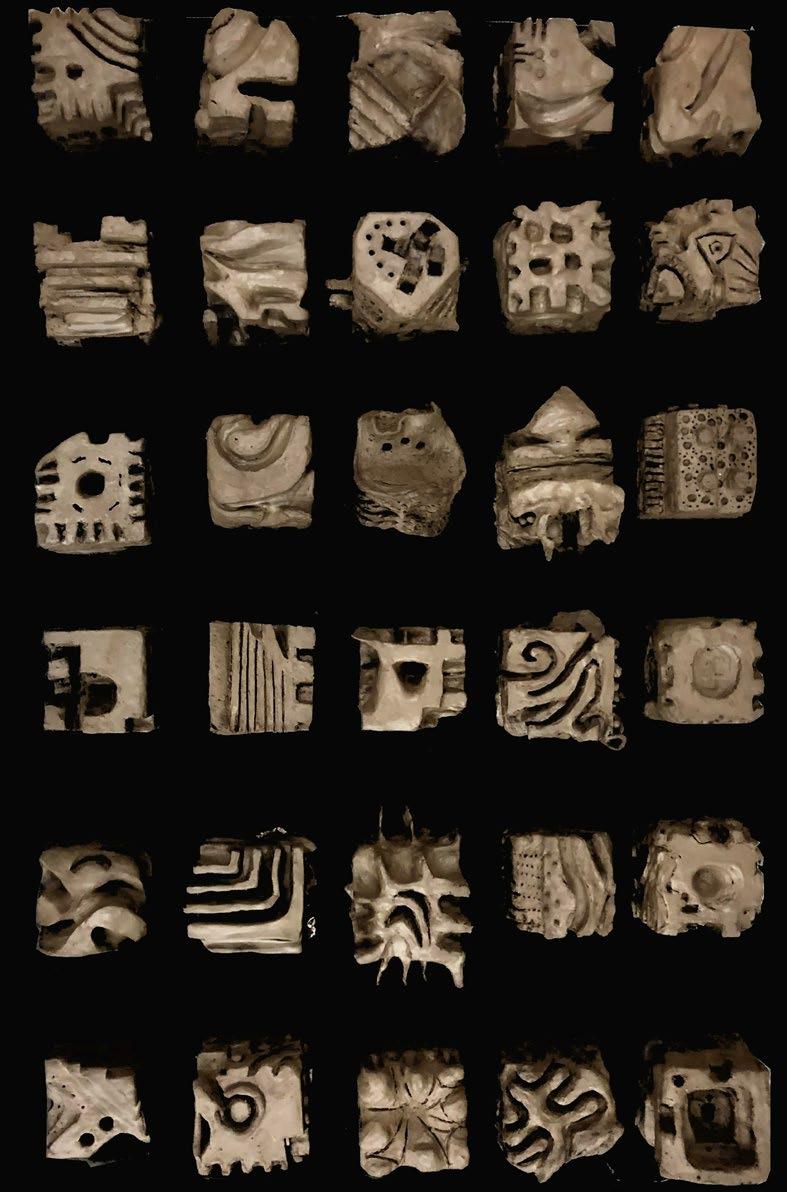

Expressing the musical composition in an geometrical form – a cube using the technique of subtraction.

Intent: Abstraction and Expression.

There’s an old saying: Manners maketh the man.

I think they also make good architecture.

- Laurie Baker
