The digital future of laser dermatology.
The ultimate laser dermatology platform/

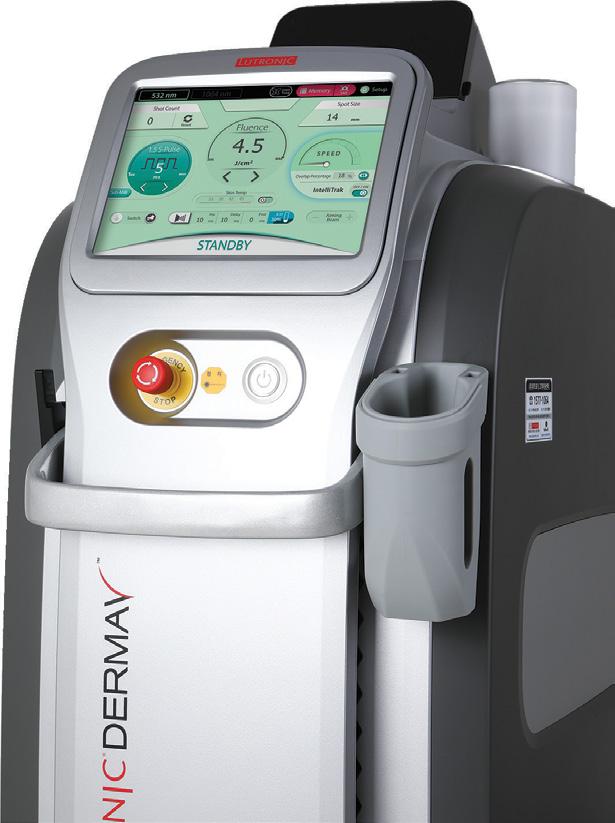

DermaV™ is the only digitally-powered 532/1064nm device that delivers energy at optimal fluences and varying pulse widths and pulse sequences.
When uniquely combined with larger spot sizes and cryogen, DermaV™ features the most effective skin cooling available. Undesirable vascular and pigmented lesions stand no chance.
Unique benefits:
Exclusively digitally-powered for higher energies, resulting in faster and more effective clearance of pigmented and vascular lesions
Cryogen Cooling for unmatched patient safety and comfort
Variable Sequential Pulsing (VSP) for new clinical capabilities and increased tissue effect
Real-Time Temperature Sensing for clinical confidence with lntelliTone

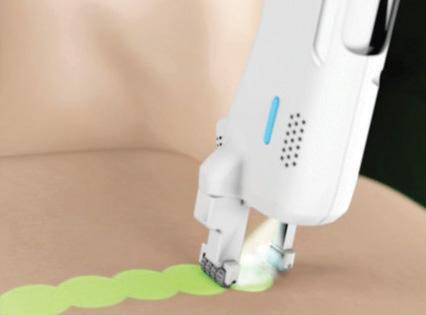

IntelliTrak ™ Technology for faster treatments and consistent overlap
No need to waste time and money with messy gels or expensive dye kits
Real patients. Real results/ Life-changing results/
PIGMENTATION
DÉCOLLETTÉ
Before and after 1 treatment
and after 1 treatment
Courtesy of Suzanne Kilmer, MD
GLOBAL TREATMENT Courtesy of Omar Ibrahimi, MD, PHD Before
PORT WINE STAIN Courtesy of Roy Geronemus, MD
SCARS AND ACNE Courtesy of James Y. Wang, MD
ROSACEA Courtesy of Eric Bernstein, MD, MSE
ROSACEA Courtesy of Eric Bernstein, MD, MSE
Courtesy of Omar Ibrahimi, MD, PHD
PWS POIKILODERMA Courtesy of Suzanne Kilmer, MD
Advanced innovations/
Versatility
DermaV combines 532nm and 1064nm wavelengths with cryogen cooling and large, high-energy spot sizes to treat a wide range of skin conditions, including fine wrinkles, acne scars, pigmentation disorders, stretch marks, scars, vascular lesions, and rosacea.
Unique Technology
DermaV offers Unique Variable Sequential Pulse modes that have successfully treated patients resistant to existing devices. DermaV has produced impressive clinical results, including lower rates of edema, while ensuring the highest level of patient comfort and safety.
Consistency

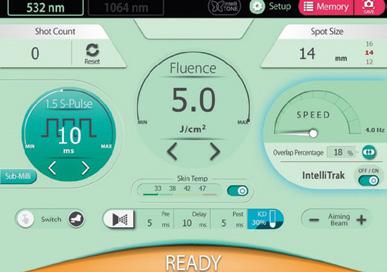

With the addition of a Real-Time Temperature Sensor and IntelliTrak™ , Cynosure Lutronic’s proprietary pulse tracking technology, DermaV offers unprecedented control and consistency for treating a variety of skin conditions anywhere on the body.
We’re your trusted partner on this journey/ Technology
• Forward thinking science
• Digitally powered innovations Product
• Significant clinical evidence
• Highest quality technological improvements
• Only 532nm laser with cryogen cooling Practice Development
• Practice marketing assets Clinical
• Comprehensive training
• Personalized in-office training for beginner and advanced teams Service
• Experienced technical support team
• Expert field service team
Attributes & Specifications Follow us/ Contact us/ Cynosurelutronicanz info@cryomed.com.au
Attributes
Wavelength(s)
Laser Delivery System
Platform Power
Pulse Width
Variable Sequential Pulsing (VSP)
Pulse Rate
Please contact your local Cynosure Lutronic representatives for more product information.
The DermaV medical/aesthetic workstation is indicated for the following: Coagulation & hemostasis of soft tissue, hemangiomas, angioma, rosacea, telangiectasia, venous lake, leg veins, sebhorreic keratoses, port wine stains, stable long term hair reduction and for treatment of pfb (pseudofolliculitis barbae) on fitzpatrick skin type i-vi, permanent hair reduction and for treatment of pfb (pseudofolliculitis barbae) on all skin types Fitzpatrick I-VI, hemostasis of vascular lesions, coagulation of vascular lesions. Hemostasis of cutaneous lesions, coagulation of cutaneous lesions, benign pigmented lesions, lentigines (age spots), café-au-lait.
©2024 CYNOSURE LUTRONIC, INC. All Rights Reserved. DermaV, IntelliTrak, and IntelliTone are trademarks of Lutronic Aesthetic, Inc. Cynosure, LLC and Lutronic Aesthetic, Inc. do not diagnose or treat medical conditions, prescribe treatment protocols, provide medical advice, or otherwise practice medicine.
Specifications
1064nm / 532nm (Nd:YAG / KTP)

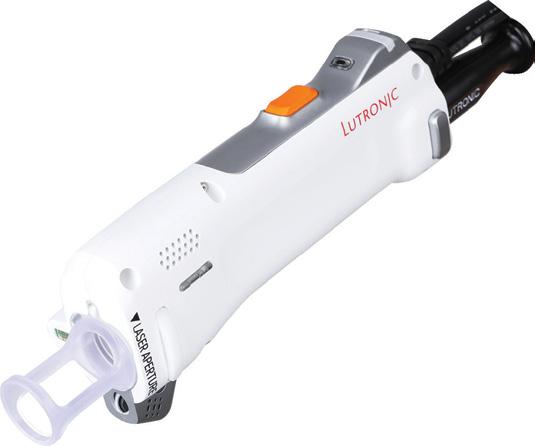

Optical Fiber with Handpiece
532nm: 13.5J
1064nm: 100J
532nm: 0.1ms-60ms
1064nm: 0.1ms-40ms
Single, Sub-Milli, Sub-Micro
0.5-10Hz
Multi-Spots Included 2, 3, 5, 7, 8, 10, 12, 14, 16mm Standard Fractional Ø10mm, 3x10mm
Cooling Type
Cyrogen Cooling or Air Cooling*
Standby to Ready Mode 12 seconds
Dimensions and Weight
Electrical Rating
*Customized Options
39.3in (H), 37.5in (D), 22.2in (W); 264.6lbs (120kg)
150VA (AC 100-240V) 50/60Hz. Fuse 250V/6.3A
