PRECISION SPRAYING
OUR STORY
When it comes to weed management, WEED-IT is light-years ahead.
In 2025 we are pleased to introduce two new sprayers to our WEED-IT line up. Croplands has combined our robust Pegasus 7000 Broadacre sprayer with a totally new 36m boom with integrated WEED-IT technology. Retaining the successful twin tank, twin line design found on our 7000 ground glider sprayers the new WEED-IT Pegasus 7000’s suspended truss boom fitted with boom leveller maintains WEED-IT’s unrivalled accuracy on a compact and user-friendly sprayer platform. Croplands also launched the Robot Ready Pinto, a 3000L trailed sprayer fitted with WEED-IT technology and a gooseneck arm, it is fully integrated with SwarmFarm Robotics’ lightweight autonomous SwarmBot.
Designed with the challenges that growers face in mind, WEED-IT, from Croplands, provides you with greater accuracy, control and maximised efficiency. That’s why it’s the best-selling optical spot spraying system in the world. Croplands does not charge a subscription model to access this technology.
Using advanced sensors, WEED-IT detects chlorophyll in the leaves of actively growing weeds in fallow fields, identifying and targeting them with unrivalled accuracy. This saves you water and time, preserves precious soil moisture and minimises the weed seed bank. It also drastically reduces herbicide use, which maximises your return on investment.
Get outstanding results, even on hard-to-kill weeds, with WEED-IT – the world’s number-one optical sprayer.
When you invest in a WEED-IT from Croplands you are also investing in proven spot spraying expertise, unparalleled service standards and ongoing technical support.
OPTICAL SPOT SPRAY RANGE
11-14
15-18
19-20

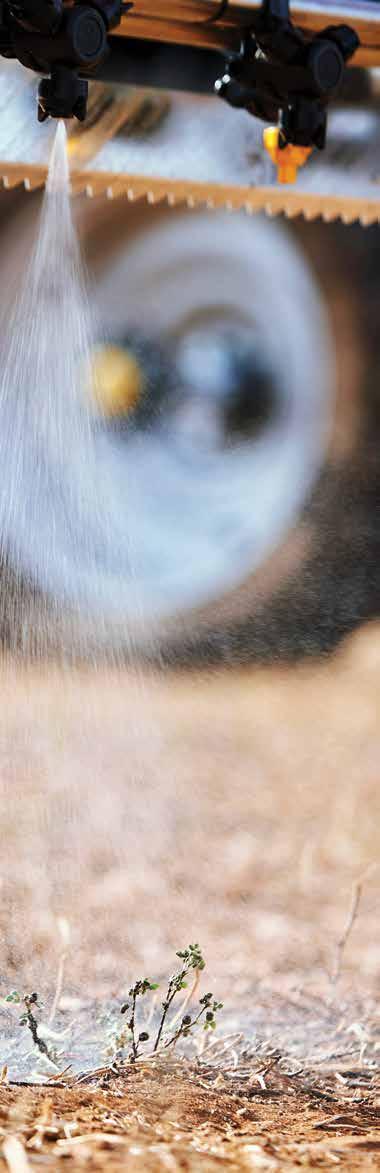

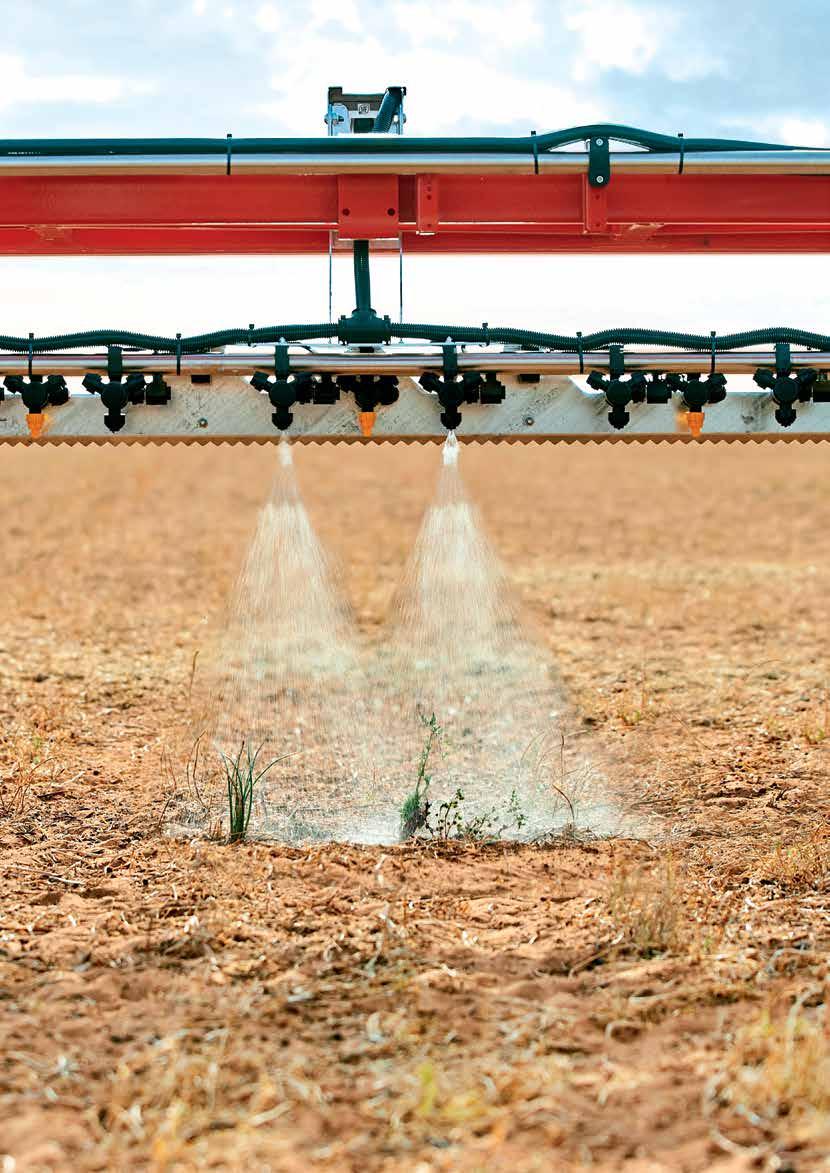

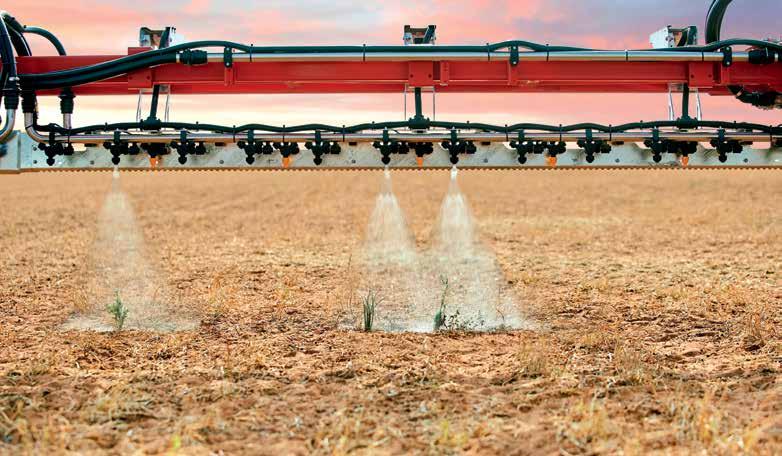

ACCURACY IS EVERYTHING
Engineered for efficiency, this optical spot spraying system’s nozzle activation, spacing and weed detection capabilities ensure speed and accuracy unlike anything else.

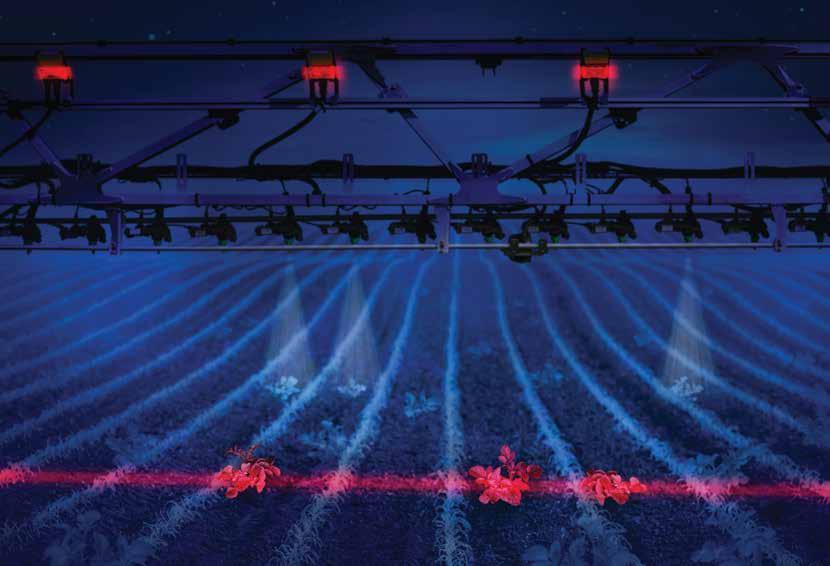

Superior mode of detection
WEED-IT’s near-infrared technology detects chlorophyll in the leaves of actively growing weeds in fallow fields, identifying and targeting them with unrivalled accuracy. This advanced mode of detection enables faster travel speeds and targets even the smallest of weeds. Plus, its 50Hz 6-volt PWM-capable solenoids ensure exceptionally fast and accurate nozzle activation.
Improved resistance management
WEED-IT uses a fraction of the herbicide normally used when blanket spraying. Because of this, you have the opportunity to include chemicals normally considered too expensive for blanket application and develop a long-term herbicide resistance management strategy. This means it’s economical to employ a ‘go hard and go early’ approach to weed management, targeting young weeds and driving down the overall weed seed bank.
Calibrated for effortless operation
WEED-IT automatically calibrates 40,000 times per second, compensating for factors such as soil type, dust, daylight conditions and the presence of stubble. Unlike some of its competitors it also performs just as well at night, giving you a wider window for application.
Excellent turn compensation
Weeds are targeted accurately around tight corners, regardless of boom tip speed. This is because each sensor is fitted with a three-axis accelerometer for integrated speed correction.
Enhanced electrical system
WEED-IT’s clever 48-volt system draws far less current. This means that unlike other weed detection equipment, there’s little strain on your tractor’s electrical system. This provides faster solenoid activation and enables superior results at higher travel speeds.

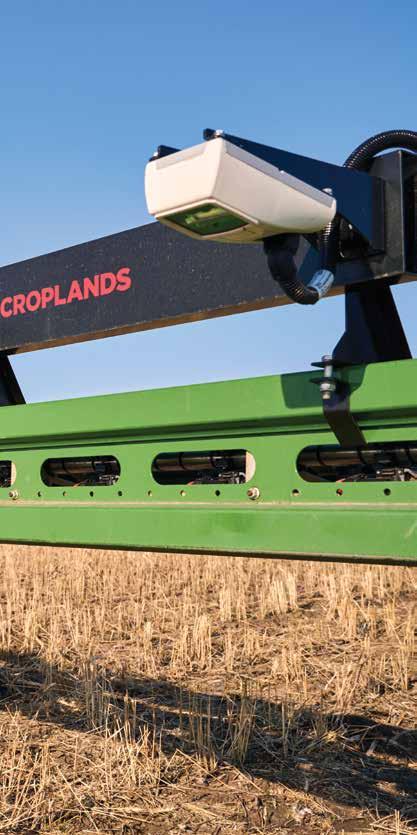

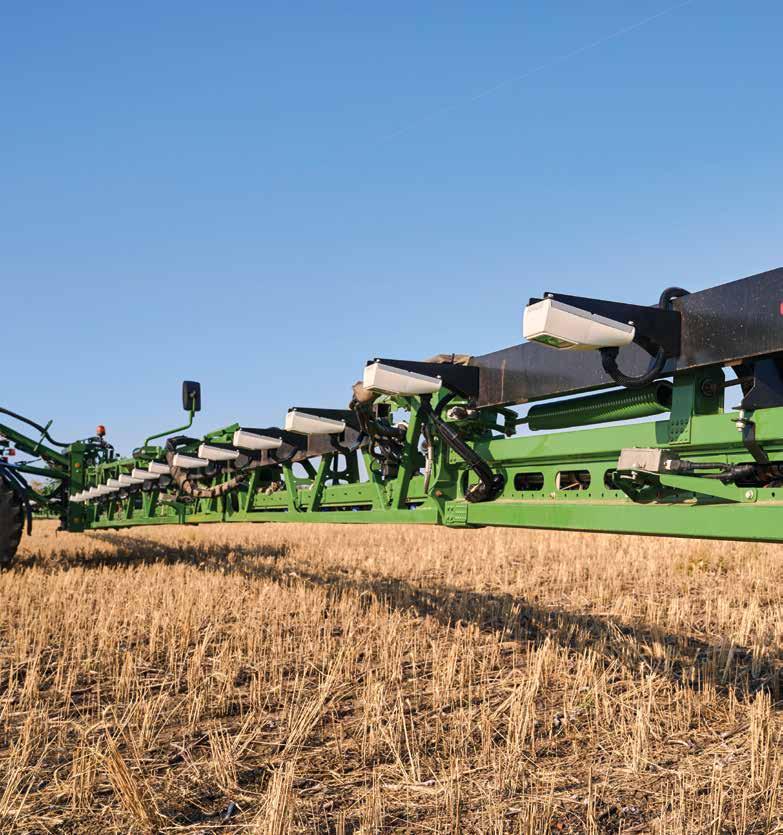

Sensors distributed for precision
WEED-IT’s sensors are spaced one metre apart. Fewer sensors mean less structural stress on the boom and improved travel speeds. A single sensor controls four nozzles at 25cm spacings, providing superior coverage than systems with wider nozzle spacing.

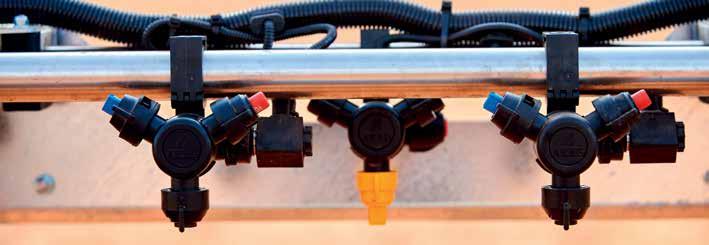

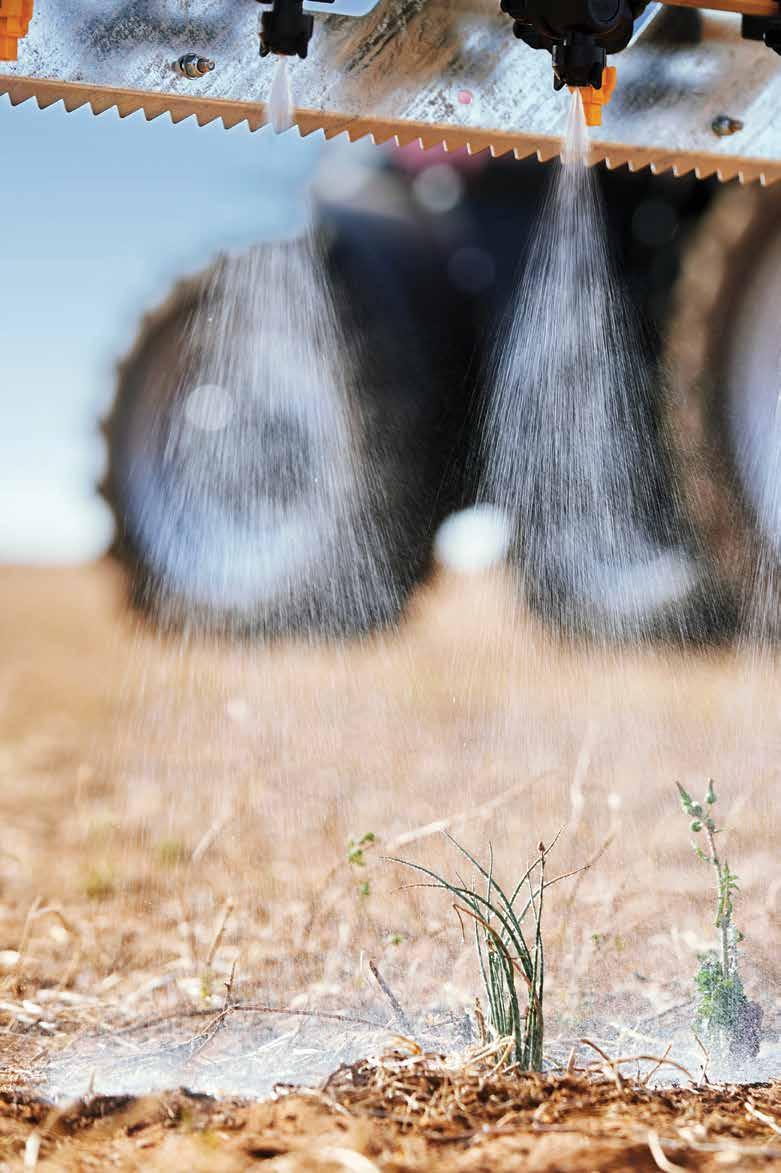

Nozzle selection
The standard 40-degree flat-even fan nozzles deliver a coarse droplet spectrum and provide great coverage for most environments.
Low drift air inducted versions of this nozzle are also available for sensitive operations where drift reduction is paramount.
Full-cone nozzles can be used for larger vertical targets where non-systemic (contact) chemicals are strategically employed. The full-cone nozzle gives you the advantage of spraying forwards and rearwards at an angle, enhancing penetration and giving exceptional coverage.
Row crop spraying
WEED-IT sensor spacing can be adapted to 40” to meet the needs of row cropping or to match tillage equipment based on imperial measurements.

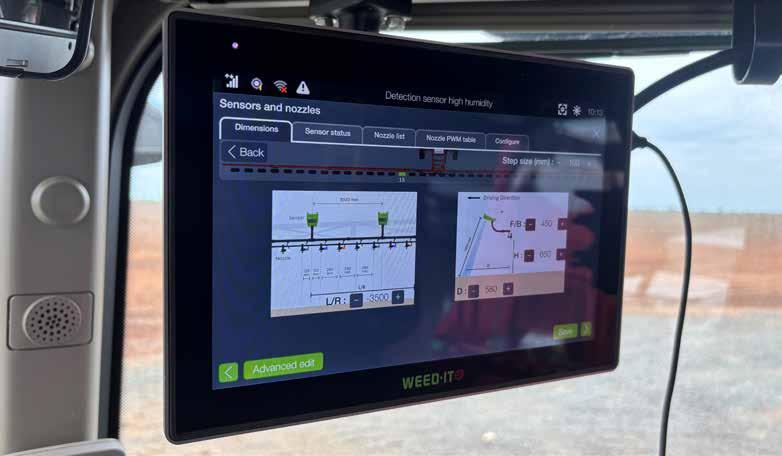

In-cab
monitor and controller
The easy-to-use display provides constant monitoring of solenoid and sensor operation. It reports any malfunctions or errors on-screen, including warnings for low pressure, sensor faults and voltage.
The smart design enables easy fault identification, resulting in increased productivity as you don’t need to check or monitor the machine as often.
You can also adjust the sensitivity from the menu, while the controller monitors increased boom speeds on corners and automatically adjusts response times to ensure the nozzle always hit its targets. The monitor also keeps a record of nozzle activation and sensor history.
ISOBUS
compatible
ISOBUS option available across all models, providing section control and mapping capabilities.
WORLD-CLASS COVERAGE

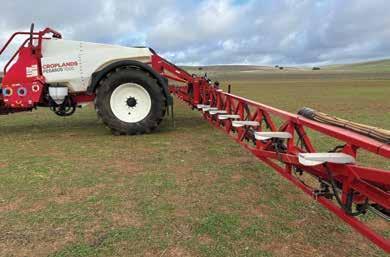

PEGASUS 7000 WEED-IT
NEW in 2025, Cropland’s introduces the WEEDIT Pegasus 7000, with a suspended truss boom fitted with boom leveller to maintain accuracy on a compact and easy to transport platform.
The NEW WEED-IT Pegasus 7000 combines exceptional productivity and effortless operation of the Pegasus with the accuracy of WEED-IT. With it’s 7000L main tank, a 300L flushing tank and 1500L hot/spot tank, the latter of which holds high-concentration chemicals for spot spraying which aid in the management of hard-tokill weeds and combating herbicide resistance. The unit has been engineered to fold up on the go and boasts a smaller than normal footprint, making it easy to transport and compact for storage.
Boom
Coming standard with twin tanks and twin spray lines the Croplands WEED-IT Pegasus 7000 gives you unparalleled flexibility to tailor the application to your specific requirements.
Both boom lines feature a prime/recirculation/flush system to eliminate waste at the headland, keep products in suspension, and easily decontaminate the sprayer.

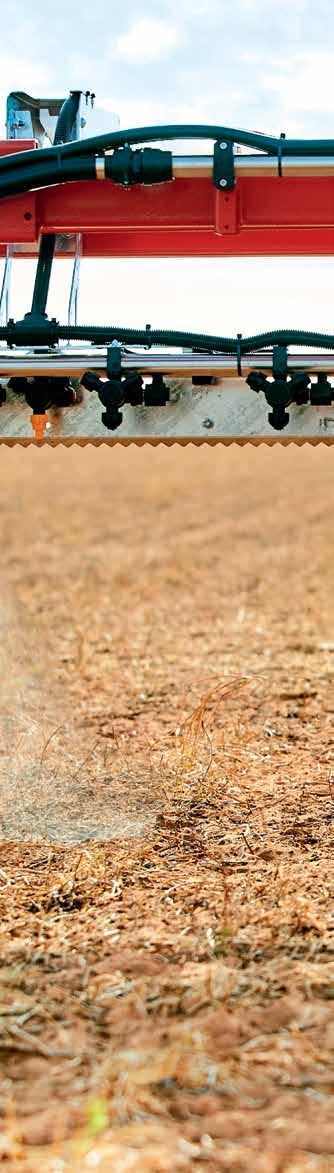

Nozzle Spacing
The WEED-IT spray lines have a 25cm nozzle spacing for precision spraying and the blanket spray lines have a 50cm nozzle spacing to support your knock down needs.
Standard air ride drawbar system
Heavy-duty adjustable hitch and swivelling eye drawbar and integrated Hendrickson airbag suspension.
1500L hot tank
Used for alternative or high-concentration chemicals for spot spraying.
Tank level indicator
Standard on hot tank with electronic in cab display. Optional on main tank.
Front tank chemical induction hopper
30L hopper transfers chemical directly to the 1500L hot tank.
Fully integrated chemical induction hopper
The 60L chemical hopper is fully integrated to the sprayer’s control system and delivers chemical to the 7000L main tank, combined with a chemical suction probe to induct chemicals from smaller drums. Optional 12V chemical transfer pump system for use with enviro drums.
7000L main tank
The WEED-IT or blanket line can be run from the main tank, making the unit a true dual system sprayer. For example, a pre-emergent herbicide could be applied through the blanket line, while the spot spray line may apply a knockdown herbicide to existing weeds.
Boom height control
This is a standard feature of the 36m WEED-IT ready boom and allows the boom to shadow the ground – even in rough or hilly terrain to maintain an optimum boom height, reduce drift and improve stability.

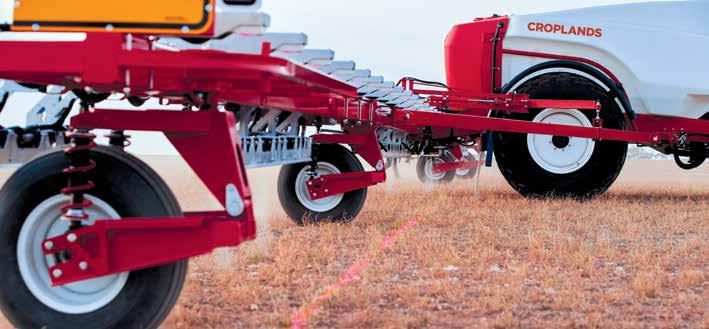

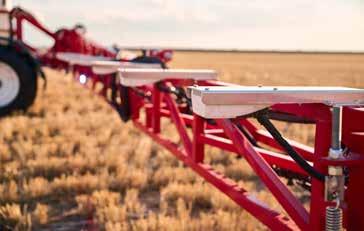

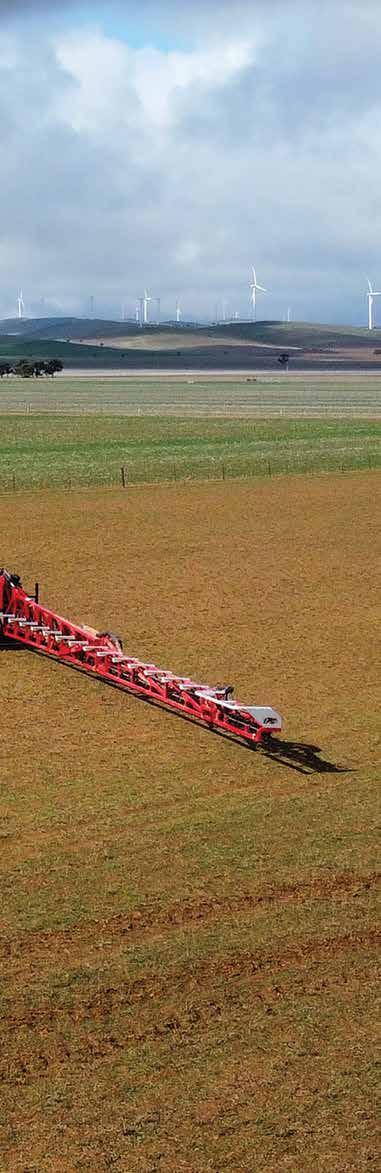

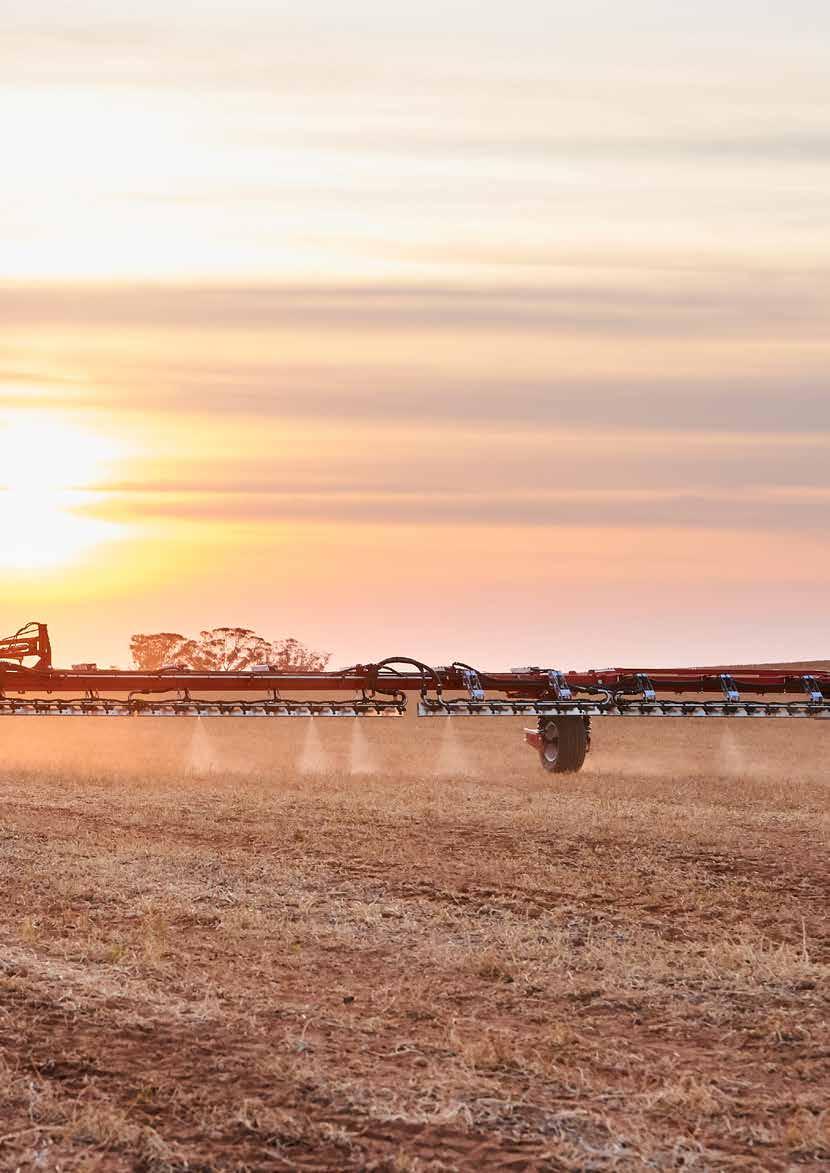

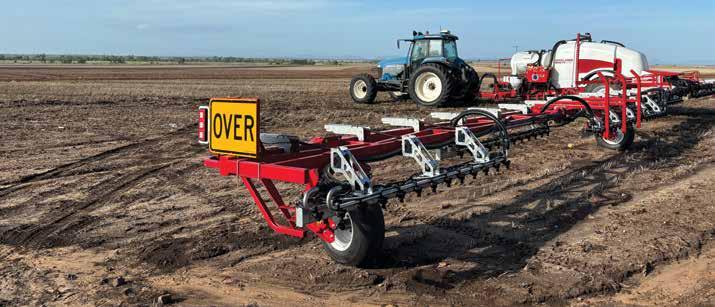

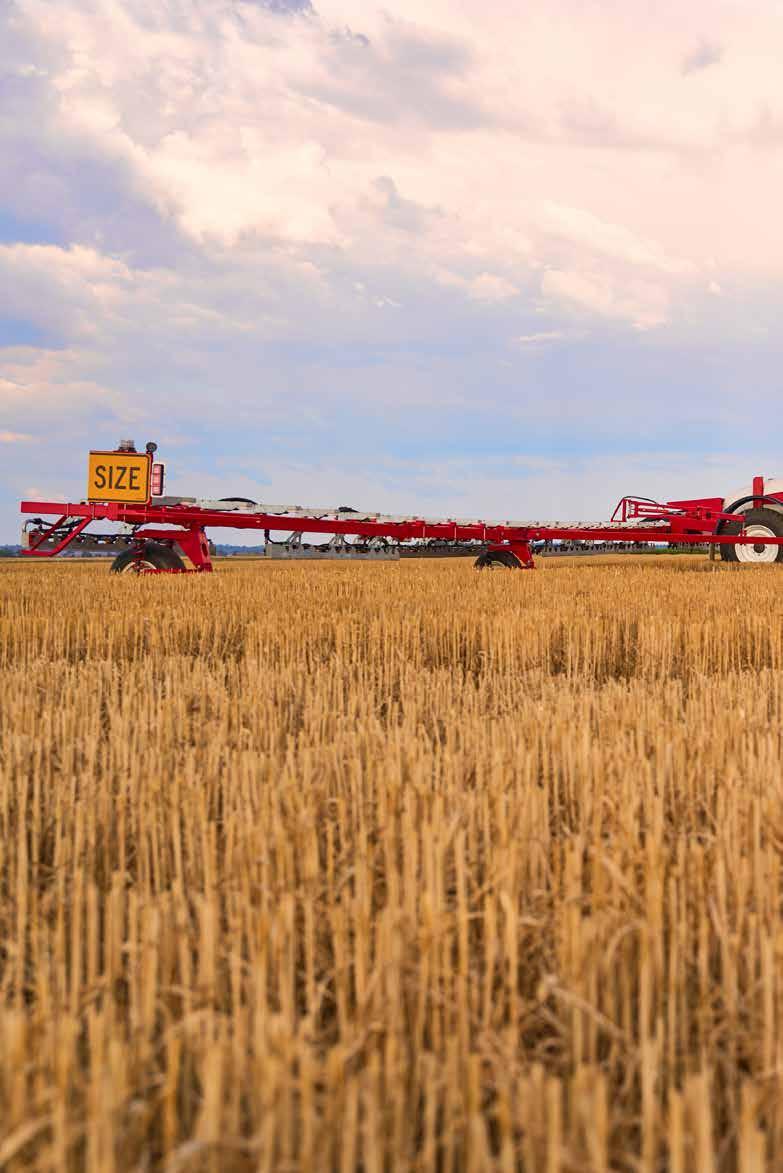

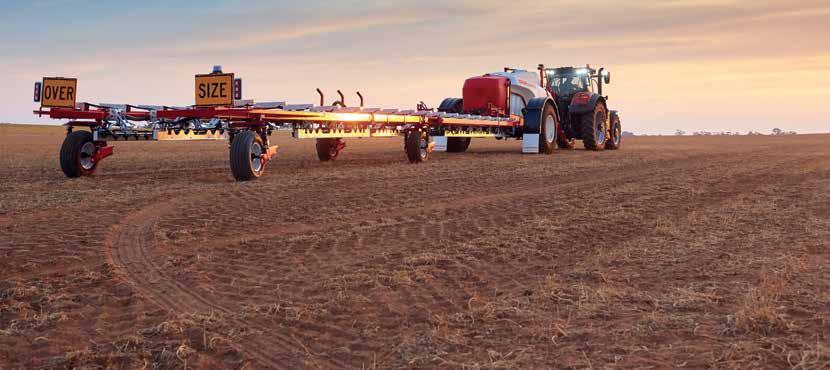

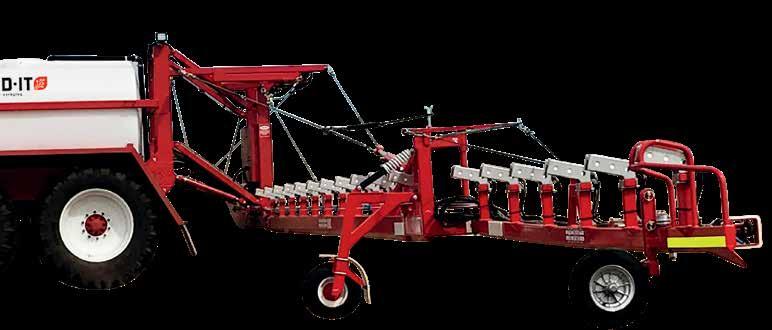

CONTOUR FOLLOWING BOOM
Croplands’ unique boom is designed to deliver the ultimate results in weed detection and eradication.
Croplands’ heavy-duty, hydraulic-fold 24 and 36-metre contourfollowing booms are designed to take on Australia’s challenging broadacre farming conditions.
Designed to maintain even height above the ground to optimise weed detection, Croplands’ contour-following booms can operate at five different planes to mirror the contours as accurately as possible. This means that, with only small variations in height, the sensors will target small grasses effectively as the boom height is maintained.
WEED-IT’s boom wheels are custom engineered with air-ride suspension. This helps to maximise sensor effectiveness by controlling compression and rebound, ensuring that sensors maintain an unparalleled level of detection.
The hydraulically steered inner-boom wheels control the folding and unfolding of the boom, which is also a pivot point for the boom to contour follow.
In-cab hydraulic-folding boom
The boom can be folded and unfolded hydraulically via controls in the cab, so transitioning from transport position to field operation is always quick and effortless.

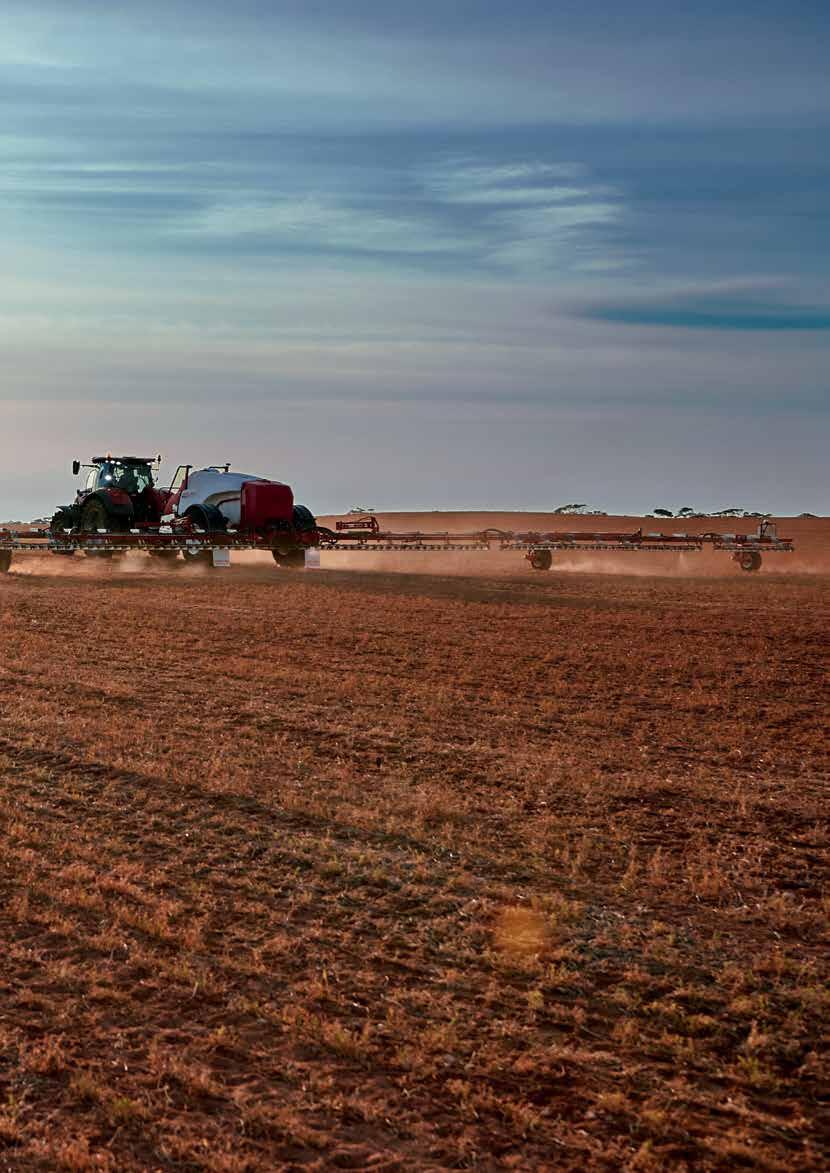

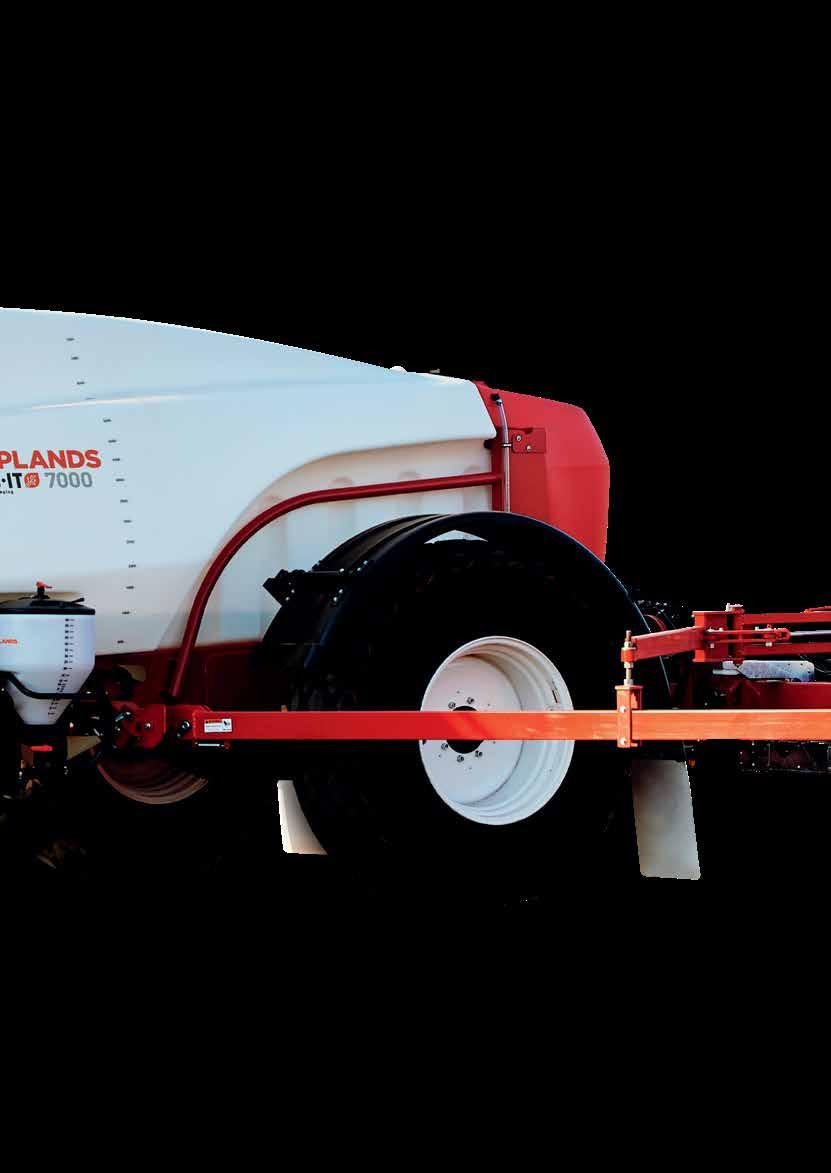

CROPLANDS
7000
The first fully integrated twin-tank, twin-line sprayer.
The WEED-IT 7000 takes weed control to the next level. Named after its 7000L main tank it also includes an 800L flushing tank and 1500L hot/spot tank, the latter of which holds high-concentration chemicals for spot spraying which aid in the management of hard-to-kill weeds and combating herbicide resistance.
Coming standard with twin tanks and twin spray lines, the Croplands WEED-IT 7000 gives you unparalleled flexibility to tailor the application to your specific requirements.
Both boom lines feature a prime/recirculation/flush system to eliminate waste at the headland, keep products in suspension, and easily decontaminate the sprayer.
The WEED-IT 7000 has been engineered with Australia’s tough conditions in mind. From improved chassis and suspension system to the development of the contour-following boom, which is specifically designed so sensors target even the smallest weeds, every element has been made for high durability and productivity.
To reduce your chemical use, minimise weed seed banks while retaining soil moisture, look no further.
CROPLANDS

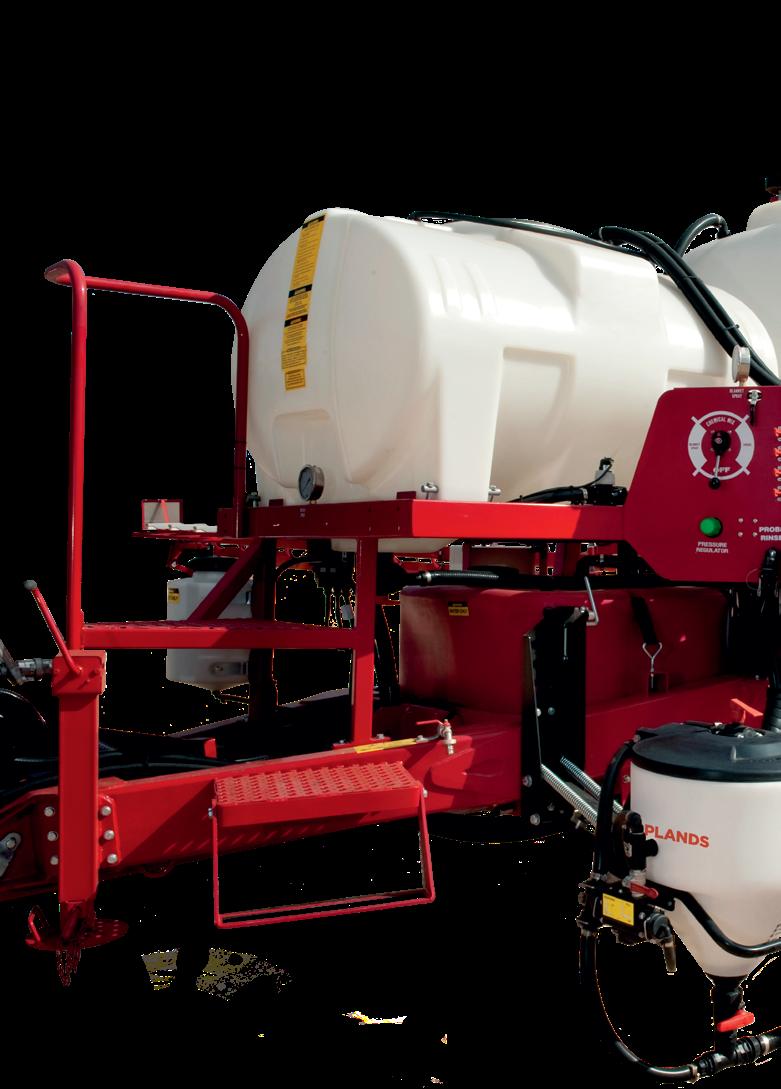

Access platform
The up-and-over platform allows safe and easy access from both sides of the sprayer to the tanks.
The smartly designed platform provides ample chemical storage space.
Standard air ride drawbar system
Heavy-duty adjustable hitch and swivelling eye drawbar and integrated Hendrickson airbag suspension.

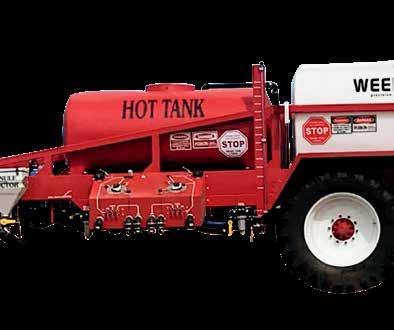

1500L hot tank
Used for alternative or high-concentration chemicals for spot spraying.
Tank level indicator
Standard on hot tank with electronic in cab display. Optional on main tank.
Front tank chemical induction hopper
30L hopper transfers chemical directly to the 1500L hot tank.
High capacity flow
Two hydraulically driven centrifugal pumps, ideal for both spot spraying and blanket applications. Optional stainless steel pumps available.
Self-fill function
The self-filling pump can be used with a 2” camlock for fast and efficient filling.

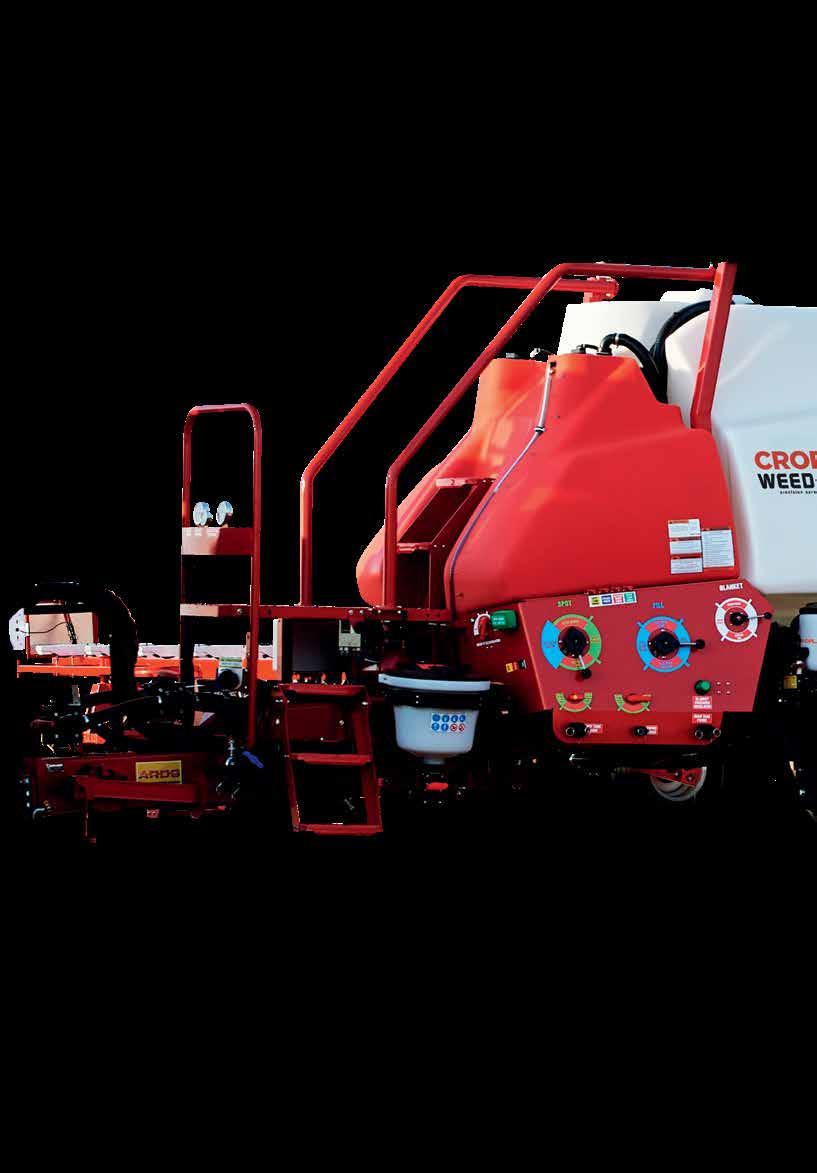

Central control panel
Filling, flushing, chemical mixing and induction are all managed from one central point.
Colour coded control panel
The control panel is colour coded and valves positioned for logical control of the Spot, Blanket and Fill operations.
7000L main tank
The WEED-IT or blanket line can be run from the main tank, making the unit a true dual system sprayer. For example, a pre-emergent herbicide could be applied through the blanket line, while the spot spray line may apply a knockdown herbicide to existing weeds.
Deeper sump capacity
Important for optical spot spraying, as 100L goes a long way and covers a lot of land.
Boom Prime/Recirculation/Flush
Both boom lines feature a prime/recirculation/flush system to eliminate waste at the headland, keep products in suspension, and easily decontaminate the sprayer.
800L flushing tank
Used to regularly flush the boom system and main tanks. Its large capacity may provide enough fresh water to finish the last few hectares.
Dual handwash facilities
To provide fresh water for any chemical spills or emergencies.
Fully integrated chemical induction hopper
The 60L chemical hopper is fully integrated to the sprayer’s control system and delivers chemical to the 7000L main tank, combined with a chemical suction probe to induct chemicals from smaller drums. Optional 12V chemical transfer pump system for use with enviro drums.
Off-centre jets for fence-line spraying, left and right
Provides the ability to spray closer to fence-lines and obstacles.
Air ride boom suspension
Features airbags to control ride height and coil springs to provide smooth and responsive ride for the sensors.

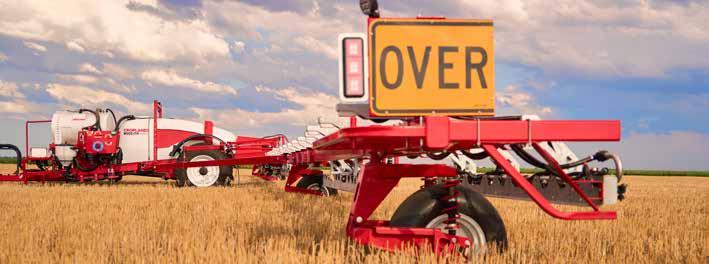

Chassis and axle
Robust design with three-metre air suspension axle and automatic ride height valve.

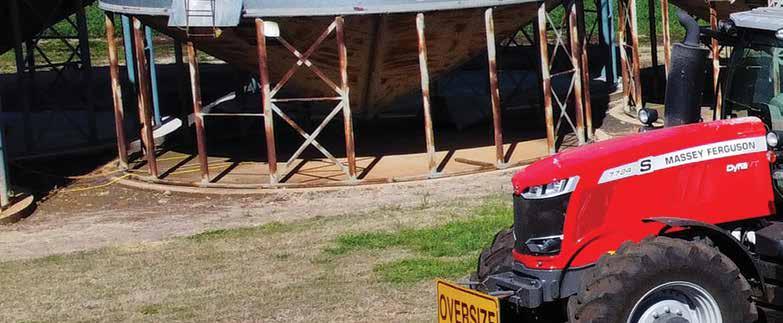

Oversize sign, mud guards and mud flaps along with rear mounted road lights, mounted at the boom tips, provide protection and safety.

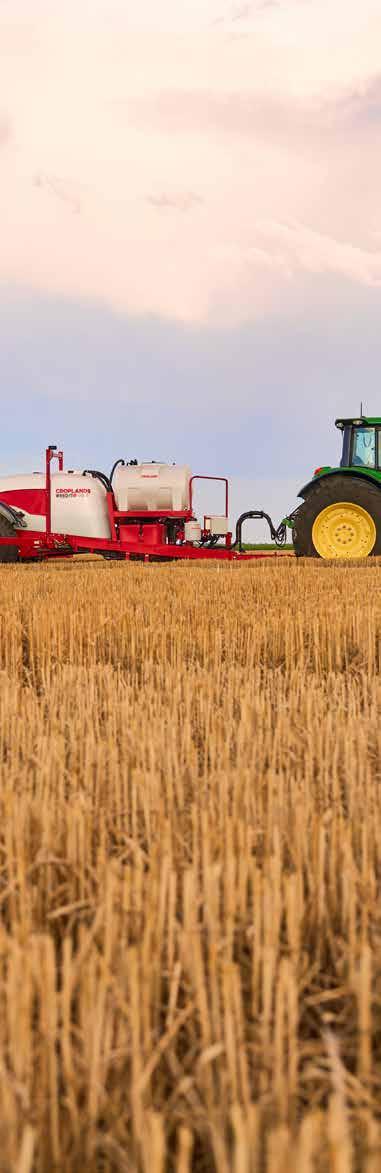

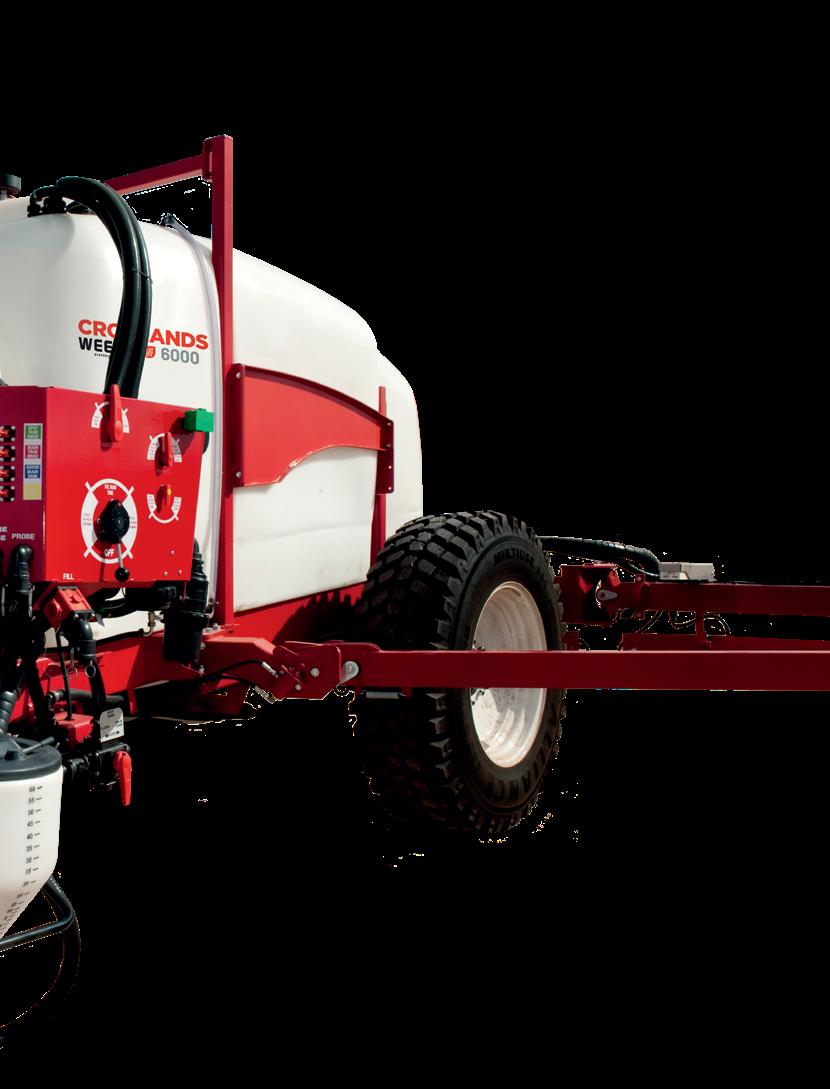

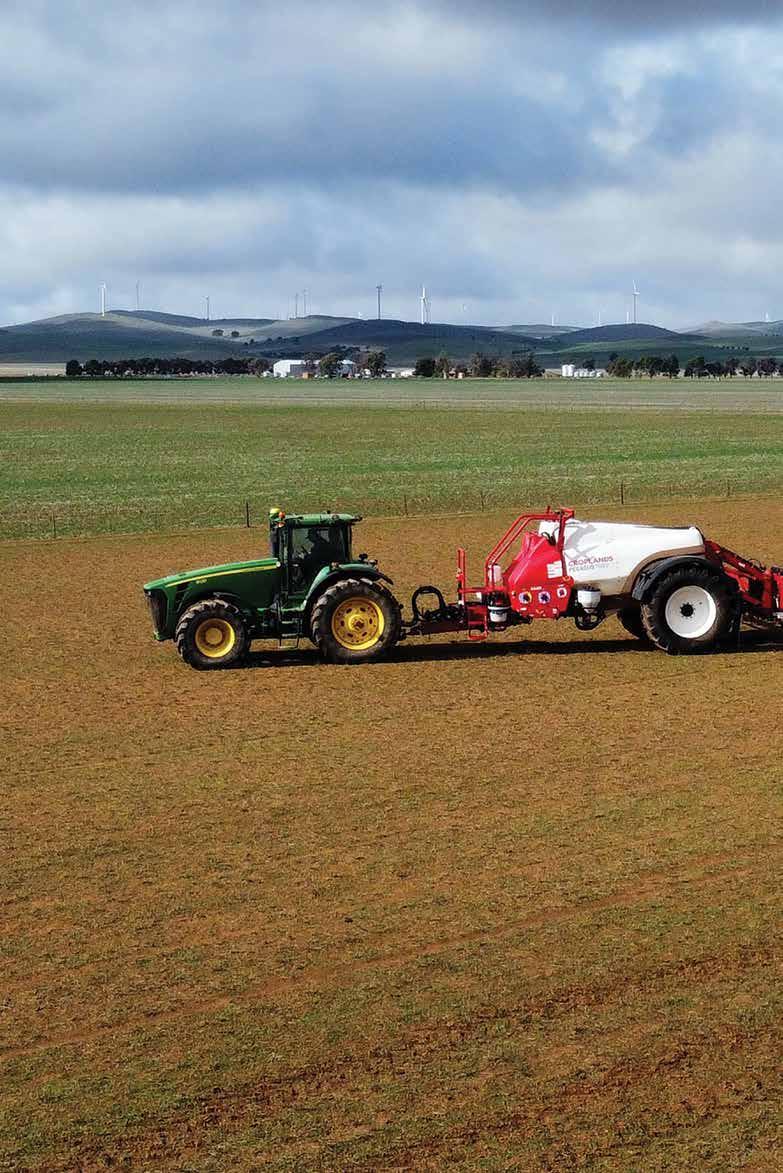

4000/6000 CROPLANDS
6000 CROPLANDS
As highly versatile as it is high performing.
Whether used as a single line spot sprayer only or with an optional dual (blanket) line, the WEED-IT 4000/6000 gives you the flexibility to select which tank configuration suits your operation.
Available with a 4000 or 6000L main tank, it’s engineered for high durability so is more than capable of taking on Australia’s harsh conditions.
Technology remains the same across all models and maintains all the features you need to manage hard-to-kill weeds, reduce chemical use, lower weed seed banks and retain precious soil moisture.
470L flush tank
Used to regularly flush the boom system and main tanks.
20L freshwater tank
To provide fresh water for any chemical spills or emergencies.
Optional 1100L hot tank
Spot spraying sensors can be run from the hot tank, leaving the main tank to perform a blanket spray. This common ‘hot mix’ strategy enables the use of alternative or high concentration chemicals for spot spraying.
Hydraulic drive centrifugal pumps
Ideal for spot spraying applications.
A second pump is provided if the twin tank and twin line option is selected. Optional stainless steel pumps available.
Chemical induction hopper
The 60L chemical hopper is fully integrated to the sprayer’s control system and delivers chemical to the main tank, along with a chemical suction probe to induct chemicals from smaller drums. 12V chemical transfer pump system for use with enviro-drums is standard.
Central control panel
Filling, flushing, chemical mixing and induction are all managed from one central point. Sight gauge is located on the main tank. Optional electronic in-cab display can monitor the hot tank and/or the main tank.
4000 or 6000L main tank
WEED-IT spot spraying or optional blanket line can be run from the main tank, utilising the dual pumps simultaneously. For example, a pre-emergent herbicide could be applied through the blanket line, while the spot spray line may apply a knockdown herbicide to existing weeds.
Boom Prime/Recirculation/Flush
When ordered as a twin tank/twin line unit both boom lines feature a prime/recirculation/flush system to eliminate waste at the headland, keep products in suspension, and easily decontaminate the sprayer.
Off-centre jets for fence-line spraying, left and right
Provides the ability to spray closer to fence-lines and obstacles.
Air ride boom suspension
Features airbags to control ride height and coil springs to provide smooth and responsive ride for the sensors.
Chassis and axle
Robust design with three-metre, air suspension axle and automatic ride height valve.
Oversize sign, mud guards and mud flaps along with rear mounted road lights, mounted at the boom tips, provide protection and safety.

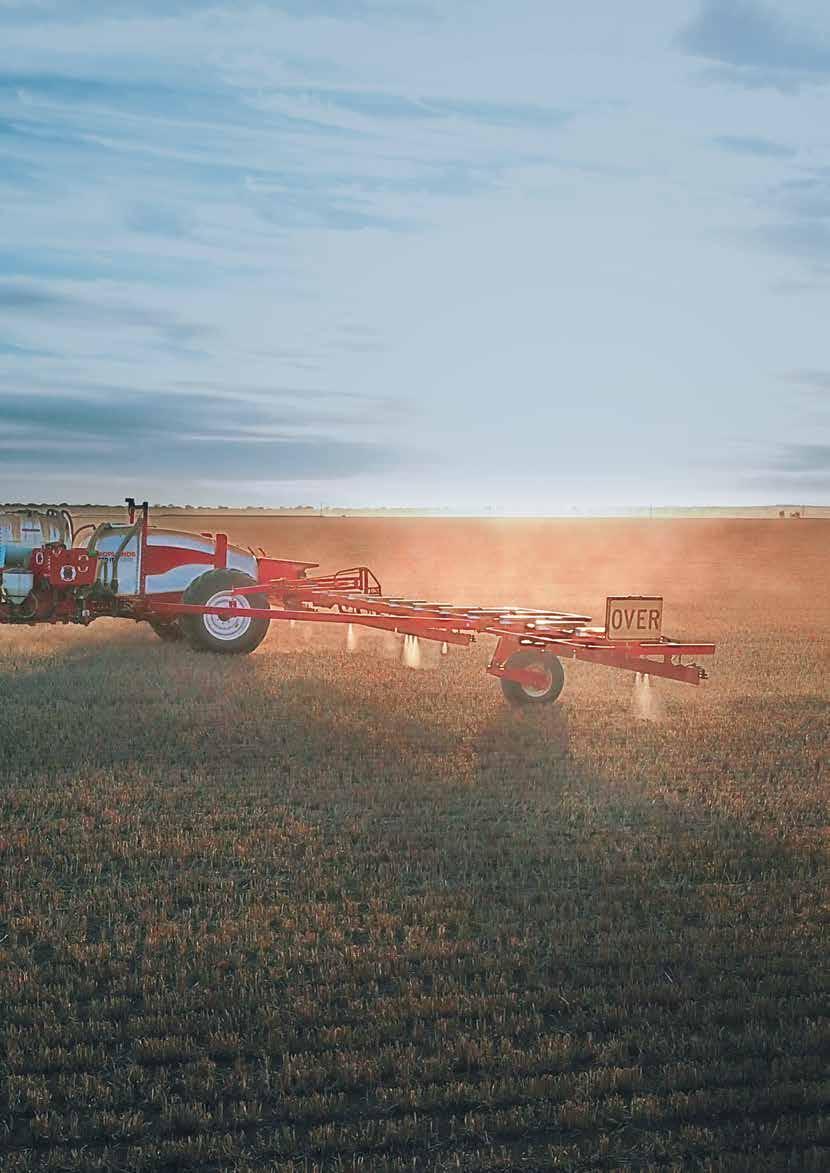

SONIC WEED-IT
Designed and manufactured in Western Australia, the Croplands Sonic is an alternative platform, utilising the same WEED-IT technology to control hard to kill weeds and delay the onset of herbicide resistance.
The cable-suspended hydraulic lifting boom is suitable in conditions where a ground-following boom would be compromised, such as avoiding ground obstacles and where quick folding for constant road usage is required.
LEARN MORE ABOUT THE
1500 or 3000L optional hot tank
Spot spraying sensors can be run from the hot tank, leaving the main tank to perform a blanket spray. This common ‘hot mix’ strategy enables the use of alternative or high concentration chemicals for spot spraying.
500L flushing tank
Used to regularly flush the boom system and main tanks, its large capacity may provide enough fresh water to finish the last few hectares.
Central control panel
Filling, flushing, chemical mixing and induction are all managed from one central point.
Chemical induction hopper
40L induction hopper is integrated to the sprayers control system to deliver chemical to either tank.
30L handwash tank
Adequate water available for hand washing when required.
5000 or 7000L main tank
Spot spraying sensors or blanket line can be run from the main tank, utilising the dual pumps simultaneously. For example, a pre-emergent herbicide could be applied
Hydraulic drive centrifugal pumps
Ideal for spot spraying applications. A second pump is provided if the twin tank and twin line option is selected.
24 or 36-metre boom
Left and right fence-line nozzles
Tank level indicators
Sight gauge is located on the main tank. Optional electronic in-cab display can monitor the hot tank and/or the main tank.
Tandem suspension
Standard mud guard and mud flaps
Taillights and rotating beacon
WEED-IT
RETROFIT KITS
SCAN FOR MORE INFO ON WEED-IT RETRO FIT KITS
WEED-IT can be retrofitted to most sprayers regardless of make, model and type.
Tech kits can be tailored to specific third party sprayer platforms. Self-propelled sprayer kits utilise a dedicated bracket specifically designed for each boom.

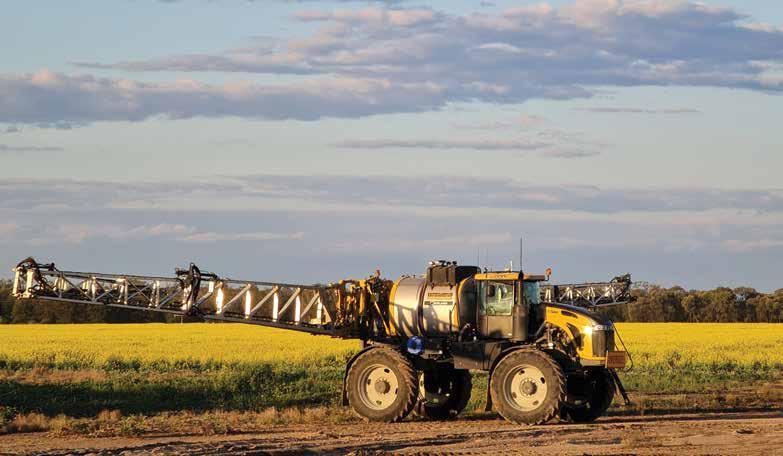

WEED-IT can be retrofitted to most self-propelled, 3-point linkage or trailed sprayer regardless of make or model.
Why add a Croplands WEED-IT Retrofit Kit to your self-propelled, trailed or 3 Point Linkage sprayer?
• 25cm nozzle spacing
• PWM – individual nozzle control
• Section controller & mapping
• ISOBUS
• Narrower footprint meaning more savings on chemistry
• Chlorophyll fluorescence detection
• Accurate and precise detection
• Chemical savings up to 95%
WATCH THE WALKTHROUGH VIDEO OF A WEED-IT RETRO FIT KIT
SOLUTIONS AUTONOMOUS
WATCH THE WALKTHROUGH VIDEO OF THE ROBOT READY PINTO
SOLUTIONS AUTONOMOUS
Autonomy at Croplands
Croplands is committed to product development, innovation and new technologies. We are proud to be bringing world class emerging technologies to the Australian grower. Earlier in 2024 we introduced the Robotics Plus Prospr, our very first autonomous vehicle to the horticulture market.

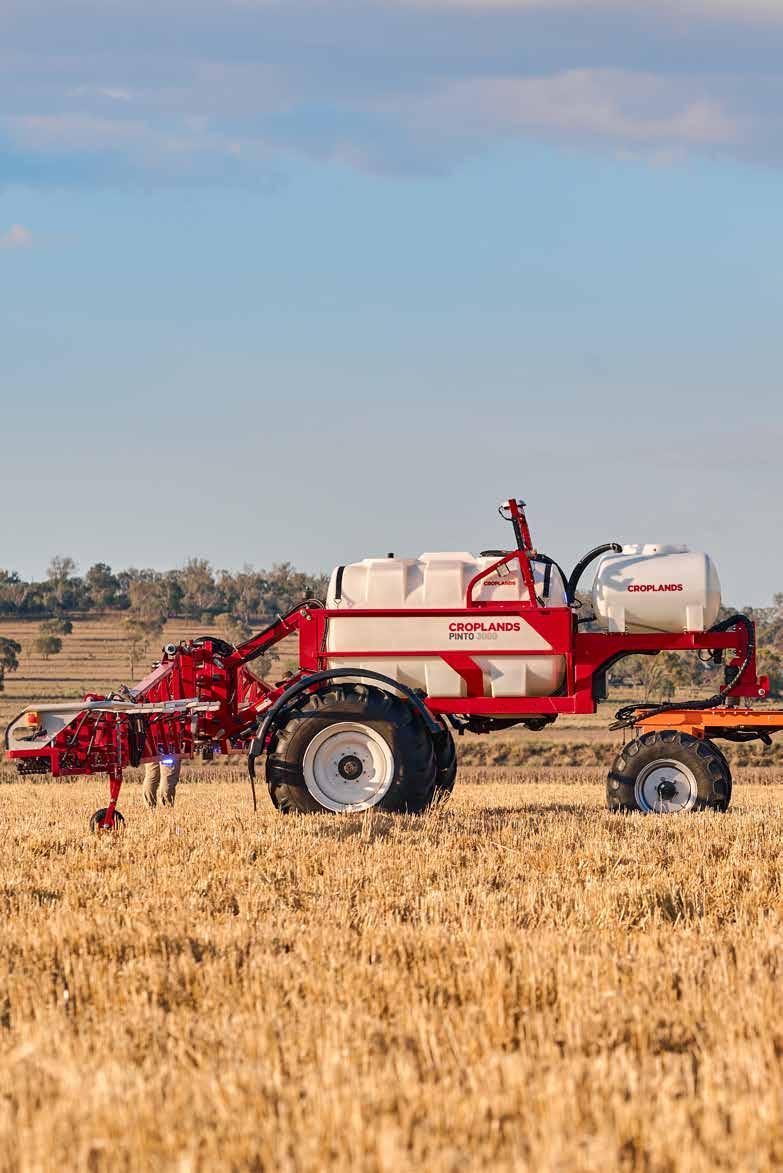

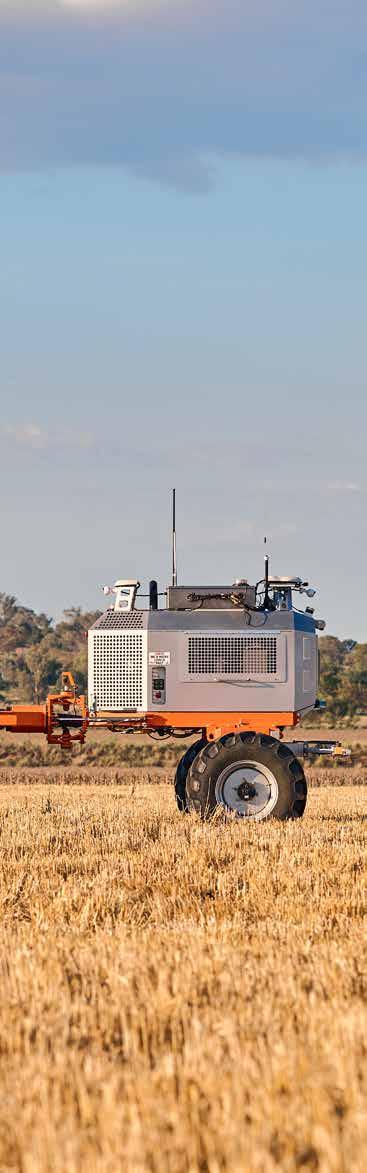

WeedIT optical spot sprayer robot ready
We are now pleased to release our first optical spot sprayer as a robot ready unit, suited to large scale broadacre growers looking to introduce new farming methods and efficiencies only possible with autonomy.
Why autonomous solutions are important
Autonomous solutions allows growers to free up one of their most precious resources – time.
• It reduces driver operational costs, allows a single operator to multitask and allows for efficient use of existing farm labour.
• Multiple units combined can allow for maximum efficiencies and operational gains for larger scale growers.
How optical spot spraying is perfectly matched with autonomous solutions
Precision application of chemicals through optical spot spraying technologies (OSST) is an established method of application in the Australian market and proven method of controlling hard to kill weeds in an economical and sustainable way. By marrying OSST with an autonomous solution, this recognised technology, when combined, can now be utilised in a highly efficient manner.

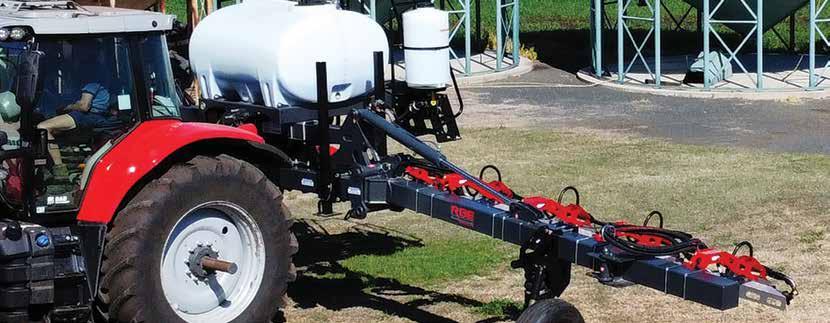

LINKAGE
12M/13M
Tank and chassis
• 500L polyethylene tank fitted with hinged lid top/bottom fill and fully draining sump. UV and chemical resistant. Easy-access bottom fill and controls.
• Can be filled with a fire-fighter through the standard 2” fill coupling.
• 12m chrome moly fabrication for excellent strength and reduced weight. Includes easy-access platform designed for maximum durability, fitted with stands for when it’s uncoupled.
Controls
• WEED-IT System – 13-sensor centre-plumbed metric system with easy-to-use intelligent display provides constant solenoid and sensor operation feedback, with malfunctions or errors reported on-screen.
• This display allows for setup and sensitivity adjustments from the intuitive menu.
• The controller also monitors increased boom speeds on corners and automatically adjusts response time to ensure the nozzle hits the target.
Flushing and safety
• 60L fresh water/handwashing tank fitted for operator safety.
Chemical handling
• 30L chemical hopper fitted as standard equipment.
WEED-IT controller and mount bracket
• For easy installation in the tractor cab.
GPS speed sensor
• The Astro 5 GPS Speed Sensor provides speed input when turning on headlands for consistent application and accurate speed readings.
Boom recirculation
• Recirculation plumbing keeps boom lines active with improved flow response.
Power box
• Mounted to the toolbar, it provides power to all sensors and solenoids.
Pressure filters
• Traps particles before reaching the solenoid valves and nozzles.

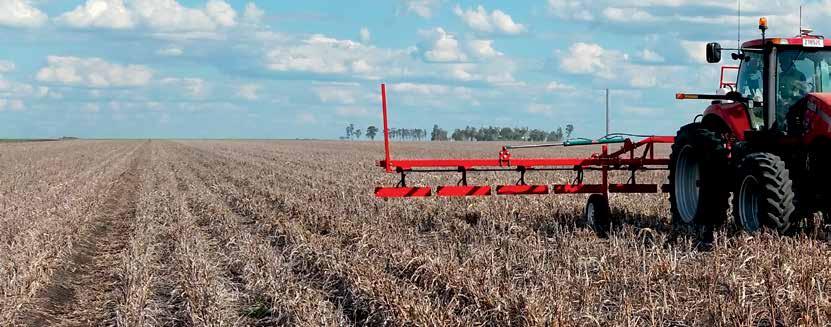

LINKAGE
The 12m Croplands WEED-IT Linkage sprayer is lightweight and easy to transport. We also offer the RBE WEED-IT mounted boom available in 12m-13m widths.
Tank and chassis
• 1600L polyethylene tank fitted with hinged lid top/bottom fill and fully draining sump. UV and chemical resistant. Easy-access bottom fill and controls.
• Can be filled with a fire-fighter through the standard 2” fill coupling.
RBE Linkage Platform
• 200 x 200 Main Beam for strength and durability
• 1500L Tank with easy access platform
• Stainless steel hypro pump with recirculation boom
• Airbag gauge wheels on wings
• Ground following wings and narrow fold options
• Stainless Steel nozzle protector’s
Controls
• WEED-IT System – 12-sensor centre-plumbed metric system with easy-to-use intelligent display provides constant solenoid and sensor operation feedback, with malfunctions or errors reported on-screen.
• This display allows for setup and sensitivity adjustments from the intuitive menu.
• The controller also monitors increased boom speeds on corners and automatically adjusts response time to ensure the nozzle hits the target.
Flushing and safety
• 60L fresh water/handwashing tank fitted for operator safety.
Chemical handling
• 30L chemical hopper fitted as standard equipment.
GPS speed sensor
• The Astro 5 GPS Speed Sensor provides speed input when turning on headlands for consistent application and accurate speed readings.
Boom recirculation
• Recirculation plumbing keeps boom lines active with improved flow response.
Power box
• Mounted to the toolbar, it provides power to all sensors and solenoids.
Pressure filters
• Traps particles before reaching the solenoid valves and nozzles.
WEED-IT DASH
Introducing the WEED-IT DASH!
COMING SOON NG SOON
The state-of-the-art DASH interface allows you to fully customise the WEED-IT QUADRO detection and spraying system, provides direct feedback of your on-field performance and allows you to store/collect data.
What DASH can do for your farming operation
DASH offers you real-time field and machine data to optimise your crop protection. The state-of-the-art Dash interface allows you to fully customise the WEED-IT QUADRO detection and spraying system and provides direct feedback of your on-field performance.
Easily installed onto your sprayer
WEED-IT DASH can be added to new or existing WEED-IT QUADRO systems.
Section control per nozzle
Controlling every nozzle enables you to reduce the amount of spray overlap on the field.
Mapping as visited and as applied
Check every corner of the field you’ve visited with the highest precision grid of 25×25 cm.
Prescription map
Create different task maps to spray your fields optimally and more efficiently.
Crop density data mapping
Gain deeper insights about weed density in your fallow fields, and monitor the growth and development of your crops.
DASH portal
The central hub where all your data is stored, collected and displayed, anytime, on any device.
Firmware updates over the air
Update your system via Wifi or LTE, a simple push on the button will get you the latest software of all your WEED-IT components.
WEED-IT SPOT-IN-CROP WEED-IT
Introducing Spot-In Crop
Get your WEED-IT sprayer out for post emergence precision spraying with the new Spot-In-Crop (SIC) spray mode.
SIC is best used during the early stages of emergence, on weeds of any height in between rows and weeds that are taller than the surrounding crop within a row.
The Power of Fluorescence
We use a simple yet clever law of nature to detect weeds which we call the Power of Fluorescence. By detecting the amount of chlorophyll, WEED-IT can distinguish the individual bigger unwanted plants. It then only activates the spray nozzles located directly above those weeds.
Post emergence Spot-in-Crop benefits
• Ultra small footprint
• Works 24/7, without alternative light sources
• Always on target, accurate and precise; due to 14,000 reads per second
• Also at speeds up to 25 km/h
• Easy to use; just plug and play; self calibrating system
• Hardly affected by external influences like dust, soil type and moving crops
• Includes turn compensation for spraying curves, turns and corners as standard
• No unforeseen expenses; doesn’t need (re)training and no pay-per-use
• Can be used in any row crop straight out of the box
NOZZLES
Nozzles & Solenoids
Coupled to the superior mode of detection of the WEED-IT is a liquid delivery system that gives excellent coverage and maximum dose every time. Unlike other optical spot sprayers where a detection system has been mounted to a standard broadcast boom with standard broadcast nozzles the WEED-IT uses truly unique 50Hz solenoids and narrow banding nozzles to form a system where weeds are detected and sprayed with true precision.
Solenoids
50Hz 6-volt PWM capable solenoids ensure exceptionally fast and accurate nozzle activation and attach to a standard nozzle body non drip valve for ease of fitment.
Nozzles
A wide angled elliptical nozzle is wasted in a spot spraying situation. This is why all WEED-IT nozzles are a narrow 40 degree banding nozzle to concentrate spray onto each target.
Several Nozzle options and sizes are available to tailor the rate and spray quality to the job at hand.
TP4003
40 degree #03 Banding Nozzle
Spot Fan
40 degree #02, #03, #04 Air inducted low drift Banding Nozzle
60 degree full cone nozzle for targeting vertical, hard to hit targets
Elliptical Nozzle, droplet distribution
Nozzle, droplet distribution
Nozzle, droplent distribution
ATF Full Cone
MAGROWTEC
The MagrowTec magnetic spray assist technology system can be retrofitted to most existing boom sprayers or on to new builds.
MagrowTec Technology has the impact of affecting the physical properties of the fluid that determine the spray droplet dynamics and adhesion. We typically see:
• Droplet optimisation
• Efficiency improvements; and
• Improved coverage.
Key Features
• No moving parts, zero maintenance
• Only 1% magnetic deterioration per 15 years
• Brand and product agnostic
• Complimentary to other technologies
• Install or move to any sprayer
• Easy to install and use
Magnetic spray assist technology for broadacre boom spray application.
NATIONWIDE DEALERS
CROPLANDS.COM/AU/DEALER-LOCATOR
STEP 1:
Scan the QR code or visit croplands.com/au/dealer-locator to find your local Croplands Dealer.
STEP 2:
Enter the location, WEED-IT and distance from you.
STEP 3:
Pick a Dealer from the map.
