Gauged Porcelain Panels (GPPs) are an innovative surface solution for commercial applications, offering large-format aesthetics, durability, and design flexibility.
SPECIFICATION OVERVIEW
High-Density Sinter Porcelain
Sizing Up to 63” x 126”
Thicknesses: 3.5mm - 5.6mm | Wall Cladding
5.6mm - 7mm | Suitable for Floor
Weight Range: 2.8 – 3.5 lbs/sq ft (Varies by Thickness)
Comprised of natural materials, no VOCs, recyclable. Can contribute to LEED credits.
NATURAL STONE
Limited color control; unique, natural variation
Approx. 60”x120”
2cm or 3cm
Heavy : Approx. 12-22lbs per square foot (varies by thickness)
Prone to scratches and stains. UV sensative. Heat resistant.
Countertops, walls & some floors
High: Requires sealing & specialized care
High environmental impact from quarrying. Natural material.
QUARTZ
LARGE-FORMAT STANDARD THICKNESS PORCELAIN
Consistent, engineered appearance; fewer natural patterns Wide range of stone, concrete, metal, wallpaper & custom looks
Standard sizes: 55”-63” x 120”-126”
Generally smaller, often max at 36”x72”
2cm or 3cm 8mm up to 12mm
Heavy : Approx. 20-25lbs per square foot (varies by thickness)
Not UV stable. Resistant to scratch, stain & heat.
Countertops & Walls
Low : No sealing required, easy to clean
May contain resins. Limited recyclability. Engineered.
Medium Weight : Approx. 5.5lbs per square foot (varies by thickness)
Equal to GPPs, but more grout joints required
Interior & Exterior: Walls, Floors,
Facades, Countertops
Low : No sealing required, easy to clean
Comprised of natural materials, no VOCs, recyclable. Can contribute to LEED credits.
GAUGED PORCELAIN | Common Questions
TOO FRAGILE?
While GPPs are large and slim, they are engineered for strength and durability. With proper tools, certified installers, and correct handling, GPPs can be safely installed with minimal risk.
LONG LEAD TIME?
For faster turn-around, Creative Materials has curated a selection of GPP sizes and colors produced in the US and readily available. Lead times for other GPPs are similarly aligned to those of other imported tiles.
FAILURE OVER TIME?
GPPs are manufactured to meet and exceed industry standards, including flexural strength and thermal shock resistance. When installed properly with best practices, GPPs offer exceptional longevity.
IS IT SUSTAINABLE?
GPPs are manufactured with natural materials, contain no VOCs, and contribute to LEED credits through low emissions and reduced construction waste.
QUALIFIED INSTALLERS?
A wide network of qualified installers is available, and our Quality Assurancfe and Technical team can support you project to provide added confidence and peace of mind.
HIGH INSTALL COST?
GPPs may involve specialized labor, but the larger panel sizes cover more area with fewer grout lines, reducing overall labor time and long-term maintenance costs.
MATERIAL
ORDERING
LOGISTICS & FREIGHT COORDINATION
SPECIAL CRATING & PACKAGING
POST-DELIVERY FOLLOW -UP
COORDINATION FOR DELIVERY
INSTALLATION SNAPSHOT | Confidence in
Every Step
REQUIRED TOOLS & EQUIPMENT
HANDLING & TRANSPORT

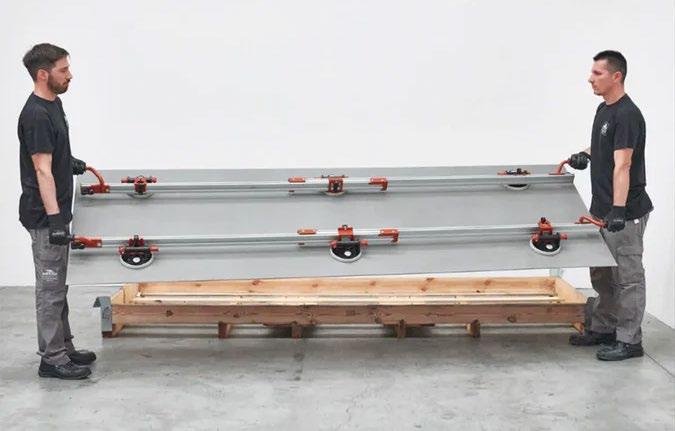

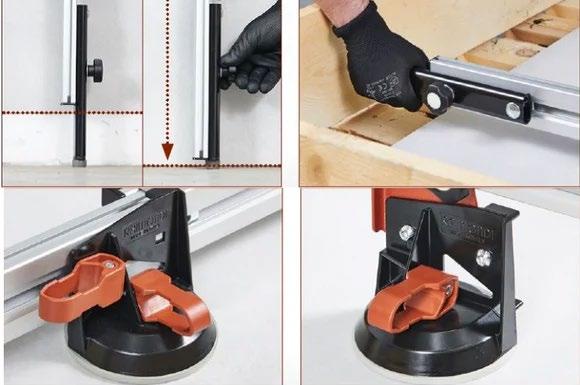

» Suction Cup Lifting System
» Frame Transport Carts
» Protective Gloves
» Foam or Ruberized Work Surface
FABRICATION
» Score & Snap Cutters
» Rail Saw
» Waterjet Machine
» Edge Polishing Pads
» Angle Grinder with Diamon Blade
INSTALLATION

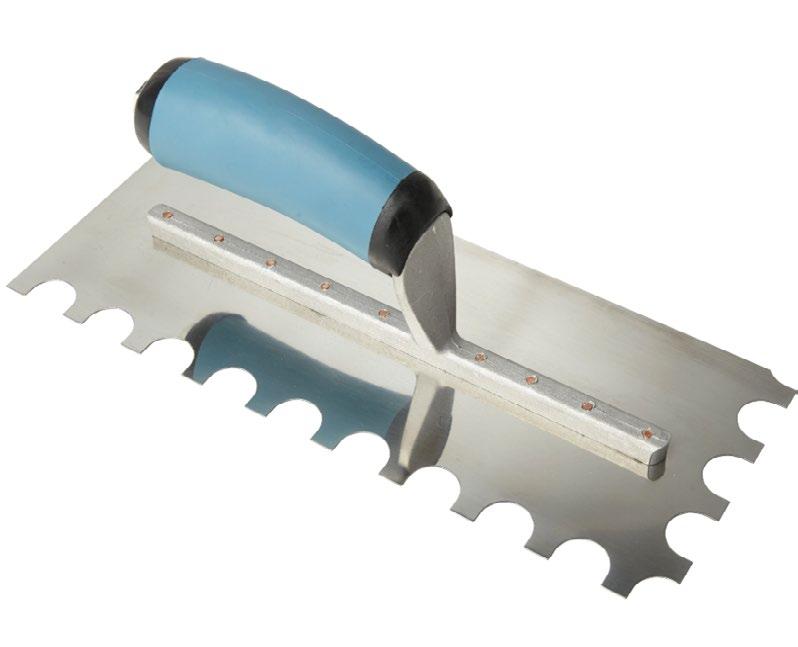

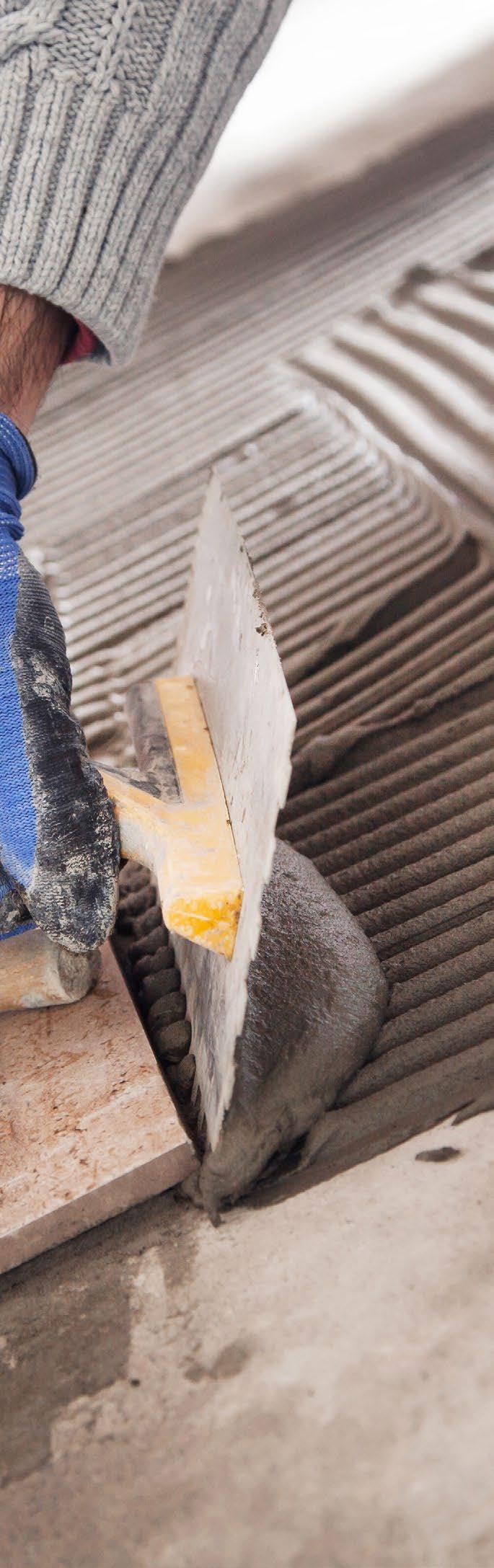

» Notched Trowels
» Thin-Set Mortar & Adhesive
» Tile Leveling Clips & Wedges
» Vibrating Suction Leveling Tools
SUBSTRATE PREPARATION
Proper surface preparation is critical for successfully installing GPPs. Best practice to achieve optimal adhesion and long-term durabilty include:
> Substrate Flatness: Must not exceed 1/8” variation in 10ft.
