1074 Working Platform
For max. 2 persons and tools. The robust work platform is constructed with a specially enforced corrugated floor panel and a protecting ceiling panel. All four sides are fitted with half-height impactresistant walls made of profiled steel and a highly resilient, circumferential safety railing. It is accessible from the narrow side. Built according to official occupational safety regulations.
Weight Load Capacity Max. Weight Necessarily min. load capacity of the lifting course: Width B Length L Height H 190 kg 200 kg 390 kg
660 kg
890 mm 1550 mm 2335 mm
1075 Man Basket
Stretcher cage
For 2 persons; the injured person in the stretcher and the first-aider. The two doors on the narrow sides of the fully enclosed cage permit the first-aider to enter and leave the rescue cage with the stretcher at whichever is the open side; four springloaded lifting eyes for shock-proofing when setting down. In conformance with official occupational safety regulations and safety regulations for hoistable passenger lifting equipment (passenger lifting equipment, "Test for Safety") Chain slings are not included in the standard delivery.
1075
Weight Load Capacity Max. Weight necessarily min. load capacity of the lifting course: Width Length Height 450 kg 250 kg 700 kg
960 kg
880 mm 2590 mm 2125 mm
Optionally with stretcher
1076 Man Basket
3-4 persons workplatform
For 3 or 4 persons and tools. Sheet metal panelling to a height of 1000 mm on all sides, guard rail all round. Work charge with four crane eyes, with 6 guide rollers on the broad side and the safety roof. Built in conformance with the official occupational safety regulations. Chain slings are not included in the standard delivery.
Weight Load Capacity
1076.1 duty 1076.2 light
850 kg 560 kg 570 kg 570 kg
Max. Weight
1420 kg 1130 kg Necessarily min. load capa city of the lifting course: 2130 kg 1695 kg Width with rolls B 1460 mm 1460 mm Width B1 1280 mm 1280 mm Length L 1800 mm 1800 mm Height H 2350 mm 2350 mm
1077 Man Basket
For 1-2 persons
Man basket for 1 or 2 persons with tools, suspended from crane hooks. Easy access possibilities and protective grating. Due to the slender design, the basket can be easily stored and is therefore quickly usable. Built in conformance with the official labour safety regulations.
1077
Weight Load Capacity Max. Weight Necessarily min. load capacity of the lifting course: Diameter D Diameter D1 Height H 2730 mm
H
H
H
D1
1082.9-17 with double-sided lever arms (not 1082.11)
1081 Automatic Grab
self dumping grab
Single-rope crane grab for the loading and transportation of bulk material and loose earth by crane. Automatic grabbing with the closing and opening mechanism of the clamshell bucket. The opened clamshell bucket is lowered onto loose material, the saws then close automatically when the grab is lifted. When lowered again the saws open allowing the grab to empty. Rugged construction, service-proven with numerous satisfied customers. High operational reliability and safety and easy to operate. With single-sided or double-sided lever arms and automatic relocation of the centre of gravity, special rubber jaws, rope suspension and plastic apron.
Type Load capacity
1081.1 600
Width B
Open width W Weight kg
850 1950 660 1081.2 800 1050 1950 770 1081.3 1000 1250 1950 860 1081.4 1200 1450 1950 980
Optional with gripping teeth.
1081.3
Optional with gripping teeth

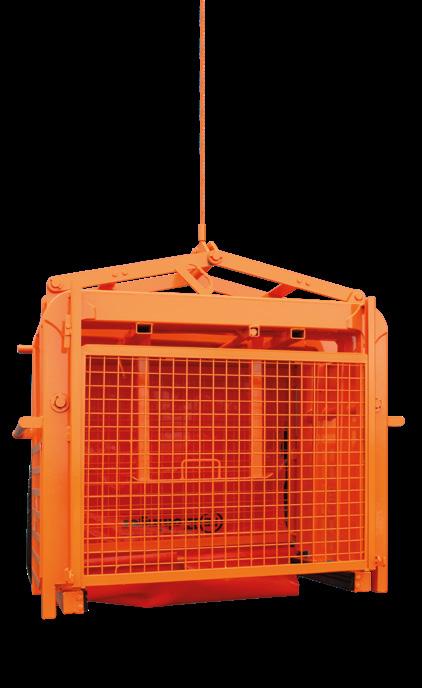

1082 Block Grab
caged crane grab
Type Load capacity Length L
Jaw width B Height H Weight kg
with single-sided lever arm 1082.1 750 960 720 720 190 1082.2 500 960 480 720 170 1082.3 1100 960 720 1020 310 1082.4 1200 960 720 1200 375 1082.5 800 1050-1120 720 720 225 1082.6 750 960 960 720 220 1082.7 1000 960 960 1020 340 1082.8 1000 960-1100 960 720 260 1082.11 1250 1000 960 300 150
with double-sided lever arms 1082.9 1400 750 - 1000 580 720 290 1082.10 1400 750 - 1000 720 720 290 1082.12 1550 750 - 1000 580 1020 390 1082.13 1550 750 - 1000 720 1020 390 1082.14 1550 750 - 1000 720 1000 290 1082.15 1550 750 - 1000 960 720 310 1082.16 1550 750 - 1000 720 1250 320 1082.17 1550 750 - 1000 960 1020 330
1082.1-8 and 1082.11 with singlesided lever arm
1083 Brick Grab
scissor grab
Specifically designed and developed for the UK market to lift palletised brickloads (Note: bricks must be securely bound). Suitable for handling all types of concrete products such as slabs, steel-strapped bricks, blocks kerb stones and paving blocks. Fitted with an automatic "open/closed" device that enables a single operator to stack or un-stack palletised bound loads. Lined with hard rubber pads to minimise damage to the load.
Type Load cap. Open width W Immers. depth T Jaw length B
1083.1 1500 1090 - 1250 200 1100 160 1083.2 1500 860 - 1250 590 1100 190 1083.3 1800 740 - 1250 780 1200 200 1083.4 1600 610 - 1250 980 1200 215 1083.5 1800 610 - 1250 980 1200 230 1083.6 1800 980 - 1250 400 1200 190
