Cleaning Units for Concrete Skips 72

3026 Sedimentation Tipping Skip

Equipped with a removable sheet to separate the solid elements of waste water, as well as a plug valve to drain recycled alkaline water. The swing retention bin is also equipped with a manual unlatching lever, in order to allow the driver to empty the bin completely from his seat. Rectangular shape from steel sheet with all-round edge profile and optimum tipping angle. The assembly is supported by a stable chassis with a forklift pocket for forklifts. Optional fixed and castor wheels.

Type Cap. Load cap. Length Width Height kg

3026.4 300 1000 1200 850 670 150 3026.8 500 1000 1450 850 770 170 3026.10 750 1000 1700 1100 880 220 3026.12 1000 1000 1700 1100 1000 260

3027 Sedimentation Drop Bottom Skip 3028 Treatment Skip

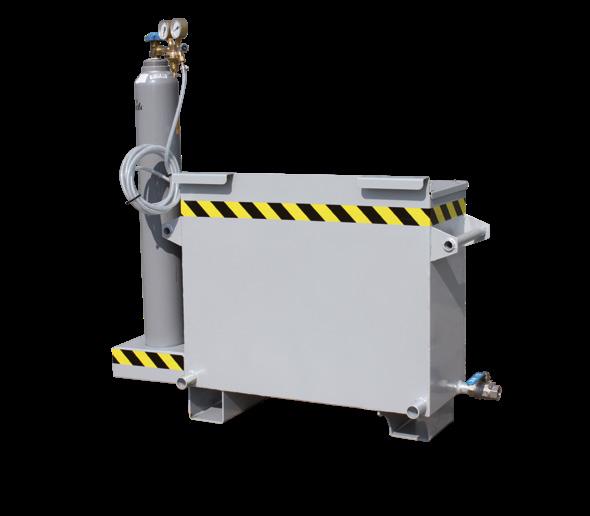

Equipped with a plug valve to drain recycled alkaline water and with a spring operated bottom-opening, to allow for the discharge of sludge deposits. The opening mechanism is operated with a cord and spring. The container can be supported by a crane or forklift. The containers can be piled up for storage or transport. Robust stainless steel container designed with lightly conical steel walls and secured chute which can be stacked and is suitable for crane as well as forklift truck handling. Equipped with a removable sheet, the water treatment with CO2 is done with a perforated hose in order to obtain an acceptable pH-value without adding strong acids. Stable aluminium construction, equipped with a forklift support.

Type Cap. Load cap. Length Width Height kg

3027.8 500 1000 1050 1220 600 200 3027.10 750 1500 1050 1220 700 220 3027.12 1000 2000 1050 1250 950 250

Type Cap. Load cap. Length Width Height kg

3028.0 120 400 700 250 600 30 3028.4 300 800 800 300 700 60 3028.8 500 1500 1000 300 700 90

Many useful accessories for your forklift 2275 Drum Rack

In the product range of FE Florian Eichinger GmbH you will find series of sophisticated and well-proven forklift auxiliary equipment, which facilitates heavy work and saves time. Easy, safe and without physical load.

• A broad range of tipping skips • Loading platforms • Loading and lifting equipment for drums • Environment protection and warehouse systems

You can find more www.eichinger-industry.com

Stable rack from high-grade steel sections with roller supports for positioning barrels. A separate drain pan protects the ground from uncontrolled leaking liquids. Extra deep, oil and watertight drain pan with conical side walls and stable, galvanised gratings according to industrial standard. The bases of the robust pallets are designed as docking pockets for transportation with forklift. Available in different sizes and depths.

Type NO L B H A Z G

2275.1 Drum rack 1x 200l 1120 540 880 480 200 x 100 20 2275.2 Drain pan 1220 825 340 550 200 x 80 60 2275.3 Drum rack 2x 200l 1420 540 880 480 200 x 100 25 2275.4 Drain pan 1220 1220 340 550 200 x 80 75 2275.5 Carboy stand 2275.6 Roller supports 530 360 110 10

NO= Number of drums L = Length in mm B = Width in mm H = Height in mm A = Prong distance in mm Z = Prong cross section in mm G = Weight in kg V = Draining volume in l L = Length in mm B = Width in mm H = Height in mm A = Prong distance in mm Z = Prong cross section in mm G = Weight in kg

3010.1-4 standard version with grating

3010.5-8 delivery without grating

3010 Drain Pan

Type V L B H A Z G Version with grating

3010.1 210 820 820 535 130 200x80 55 3010.2 220 1220 820 400 520 200x80 90 3010.3 240 1230 1230 320 560 200x80 115 3010.4 240 2430 820 275 450 200x80 160

Version without grating

3010.5 210 820 820 535 130 200x80 45 3010.6 220 1220 820 400 520 200x80 80 3010.7 240 1230 1230 320 560 200x80 105 3010.8 240 2430 820 275 450 200x80 150
