Clamps, Grabs & Lifters 60
Advertisement

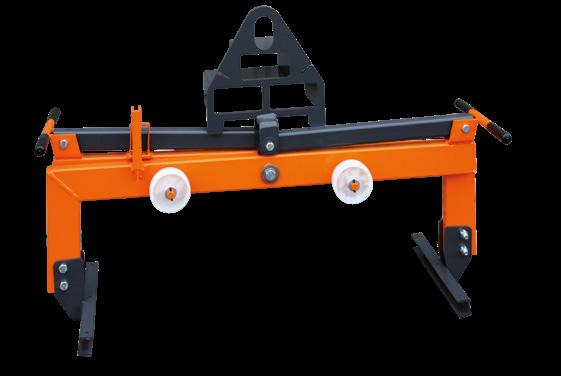

1566 Mechanical Slab Grab Grab for Angular Concrete Products Channel Clamp
1568 1569
For the safe and reliable handling of steel strapped packages of interlocking pavers, kerbstones and slabs. With pockets for forklift prongs and suspension eyelets for crane operation. Fully automatic change-over from full to empty. Designed and built in accordance with the occupational health & safety rules and regulations by the German employers' liability insurance association. For the safe and reliable handling of L-shaped blocks. Manual weight counterbalancing through individual positioning and automatic change-over from full to empty.
Type P W T B A Z kg
1566.1 800 750 - 1000 330 420 20 160 x 80 73
P = Load capacity in kg W = Öpen width in mm T = Immersion depth in mm B = Jaw length in mm A = Prong distance in mm Z = Prong cross section in mm
b x
Type
1568.1 1568.2
Load capacity Open width W
1000 15 - 245
Weight kg
59 3000 100 - 300 180 Inside-gripping mechanical pliers for handling and relocating prefabricated elements for cable ducts; with fully automatic change-over from full to empty. A range of different auxiliary adapters ensures optimum adaptability to a variety of different cable duct sizes.
Type Load cap. Clamping range S Jaw length B
Clamp Basic 1569.1 500 185 - 215 400
Design Weight kg
Adapter available in required size 1569.11 215 - 250 1569.12 340 - 375
1569.13 520 - 555
1569.14 270 - 305
1569.15 370 - 405
1569.16 470 - 505
1569.17 570 - 605 rubber grip steel grip steel grip steel grip steel grip steel grip steel grip
h
1801 Barrier Stand 1802 Barrier Stand 1803 Barrier Trestle 1806 Beacon Stand
Tripod made of tubular steel, collapsible, with lockable lantern holder. For hanging in barrier boards of bars, 1 m high. Weatherproof painted finish in statutory red and white. Weight approx. 4 kg With warning board holder. Tripod made of tubular steel, collapsible, with extension of the middle tube for attaching warning signs. Weatherproof painted finish in statutory red and white. Weight approx. 5 kg Three-legged trestle made of tubular steel, collapsible, with flag holder and for bolting on all traffic signs. Weatherproof painted finish in statutory red-and-white or red. Weight approx. 4 kg 1806.1 Beacon foot made of steel with three pockets for shaft tubes Ø 42 mm, 40 x 40 mm or 60x60 mm, with drive-over foot plate 500x800 mm made of flat and angle steel. Weight approx. 28 kg. 1806.2 Beacon foot made of recycled plastic with three pockets for shaft tubes Ø 42 mm, 40x40 mm or 60x60 mm, rounded edges in accordance with safety regulations, good stability and road grip thanks to the flat bevelled form; integrated handle. An environment-friendly product made of 100% recycled material. Weight approx. 27 kg. 1806.3 Shaft tube made of round tube Ø 42 mm or square tube 40x40 mm, painted or galvanized, with 2 clips made of plastic for universal use with round tubes from 48 to 60 mm.
New Design Old Design
1807 Barrier Trestle 1808 Barrier Post 1809 Barrier Post 1810 Paving Pins
Made of tubular steel with ringType foot and 3 lifting eyes, 1 m high, weatherproof painted finish in statutory red-and-white. Also available with metal sheet base for filling with concrete. Weight approx. 11 kg Made of round steel Ø 12, Ø 14 and Ø 16 mm, with double hook suitable for barrier rails, bars, boards and lines. Weatherproof painted finish in statutory red. Weight approx. 1.5 kg Made of square steel bar with forged and hardened point and a double hook for holding boards, lines, etc. Painted finish in statutory red and white Weight approx. 1.5 kg Made of round steel Ø 14 , Ø 16, Ø 18, Ø 20 and Ø 22 mm, with forged and hardened point.
1807.5 Barrier Trestle for dismantling
Made of tubular steel with ring-type foot, slot-in steel tube with 2 lifting eyes for barrier boards and rails.
Type Old design
1808.1 1808.2 1808.3
New design
1808.4 1808.5 1808.6
Steel Height
Ø 12 1200 mm Ø 14 1200 mm Ø 16 1200 mm
Ø 12 1200 mm Ø 14 1200 mm Ø 16 1200 mm
Type
1810.1 1810.2 1810.3 1810.4 1810.5
Length
500 700 800 1000 1200
1813 Barrier Set
Consisting of two galvanized stands and a 100 mm or 250 mm high barrier. Board made of galvanized metal sheet with double-bent edges. Red-andwhite fully reflecting original foil stock on surface. Accident-proven, without a cut-edge due to the security edges.
1814 Barrier Set
In conformance with German ZTV-SA regulations on Touch Rail Barriers 97 and Touch Rail Standing Equipment 97, with galvanized frame-edge profiles, holes for touch rail roadworks lamps, side tubular profile frames, weld-on galvanized mesh, touch rail barrier rails or touch rails with reflecting foil (DIN 67520 Part 2) in a recessed, protected galvanized frame.
1815 Barrier Set
Fully galvanized, rugged and sturdy tubular construction for the effective and speedy formation of temporary barriers or boundaries Integrated steel feet for variable positioning.
1817 Barrier
scissor Type barrier
Made of flat steel and tubular steel, two-legged stands for high stability, with lantern and flag holder, weatherproof painted finish in statutory red-and-white.
Type Height Width
1813.1 100 1600
100 100 100 250 250 250 250 2000 2400 2800 1600 2000 2400 2800
Type Len. Height Barrier Touch rail kg
1814.1 2400 1000 250 100 28 1814.2 2000 1000 250 100 23 1814.3 1600 1000 250 100 20 1814.4 2800 1000 250 100 32
Type Length Height Weight kg
1815.1 2500 1100 22 1815.2 2000 1100 18 1815.3 1500 1100 8.5
Light version
1815.8 2500 1100 15
Type
1817.1 1817.2
variable Width min. >>> max.
500 3000
500 4000
