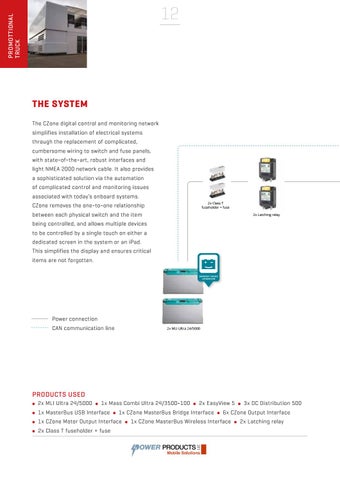

PROMOTTIONAL TRUCK
12
THE SYSTEM The CZone digital control and monitoring network simplifies installation of electrical systems through the replacement of complicated, cumbersome wiring to switch and fuse panels, with state-of-the-art, robust interfaces and light NMEA 2000 network cable. It also provides a sophisticated solution via the automation of complicated control and monitoring issues associated with today’s onboard systems. 2x Class T fuseholder + fuse
CZone removes the one-to-one relationship between each physical switch and the item
2x Latching relay
being controlled, and allows multiple devices to be controlled by a single touch on either a dedicated screen in the system or an iPad. This simplifies the display and ensures critical items are not forgotten.
Power connection CAN communication line
2x MLI Ultra 24/5000
PRODUCTS USED 2x MLI Ultra 24/5000
1x Mass Combi Ultra 24/3500-100
1x MasterBus USB Interface
1x CZone MasterBus Bridge Interface
1x CZone Motor Output Interface 2x Class T fuseholder + fuse
2x EasyView 5
3x DC Distribution 500
6x CZone Output Interface
1x CZone MasterBus Wireless Interface
2x Latching relay
