For more information on paving, compaction and milling equipment, as well as comparison charts, visit CEG's Web site at www.constructionequipmentguide.com. Bomag Unveils New Technologies, Easy Level System

Bomag recently showcased multiple pieces of milling, paving and compaction equipment from its vast product portfolio, showing the depth of its commitment to the asphalt industry.

With its 350-hp (260-kW) MTU engine meeting Tier IV Final/Stage V emissions standards, the new Bomag BM 1200/35-2 mill offers power and productivity. The new mill is more productive with its 164-ft./min maximum milling speed and gets around the site faster with its 410-ft./min transport speed.

Machine design optimizes engine output to milling speed to increase milling efficiency, and three milling drum speeds — 85, 95 and 107 rpm — help fine tune cutting speeds to jobsite conditions.

With Bomag’s easy level system, a large 7-in. screen displays all major operating parameters while milling to offer intuitive leveling and control of milling functions.

The new BM 1200/35-2 offers a 47.2-in. cutting width and maximum 13-in. cutting depth. Material is efficiently moved from the cutter housing to haul trucks via 25.6-in. wide inside and 23.6-in. wide outside conveyors at capacities reaching 235 cu. ft. per hour.

Offering a maximum discharge height of 224.4 in., the conveyor swivels 45 degrees to the left and right. The option-

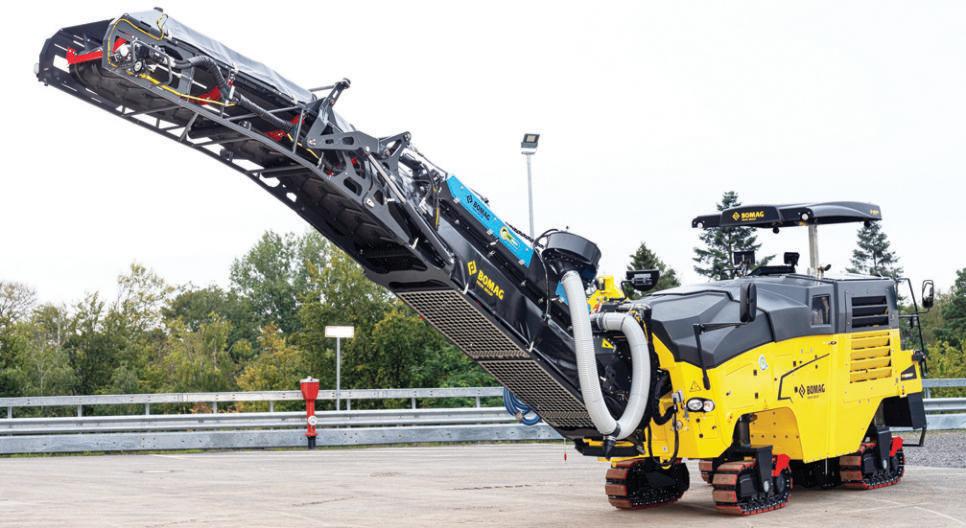

The Bomag BM 1200/35-2 mill is productive with its 164-ft./min maximum milling speed and gets around the site with its 410ft./min transport speed.

al Bomag ion dust shield supplements dust extraction by capturing up to 88 percent of fine dust particles less than 10 µm.

The BM 600/15-2 compact mill comes in 3- and 4-wheel designs and features machine leveling sensors integrated into the mill’s side plate cylinders. A 7-in. full graphic color display offers intuitive operation and leveling control for efficient mill set-up.

With a range of quick-exchange drum designs available in widths from 3.15 to 23.6 in., the BM 600/15-2 offers a maximum 23.6-in. cutting width. Its efficient hydraulic system boosts transport speeds to 3.7 mph for 3-wheel and 6.2 mph 4-wheel configurations, while its super-light 15.7-in. wide conveyor design features 30-degree left/right swiveling for efficient truck loading at up to 111.2 cu. yd. per hour discharge rates. A triple-setting water pump system allows the operator to adjust waterflow as needed. Technology, Rollers

Available as a free download for Android devices, the Bomag BOMAP app offers a simple, quick and intuitive way to see and document roller passes and compaction details at the job site. A color scale marks the compaction progress to reduce the number of passes. BOMAP requires no expensive hardware to install, and operators can easily
