Welcome to computersciencehomeworkhelper.com's PowerPoint presentation on combinational circuits. This concise resource is tailored for computer science students, offering essential insights into Boolean algebra, logic gates, and Karnaugh maps. Dive into meticulously crafted questions and detailed answers to enhance your understanding. Master the foundational principles crucial for digital circuit design and advance your proficiency in this vital aspect of computer science.

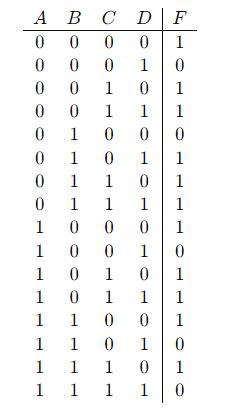

Problem 1. Given a function F defined by the truth table to the right, provide a minimal sum-of-products expression for F. Hint: Use a Karnaugh Map.

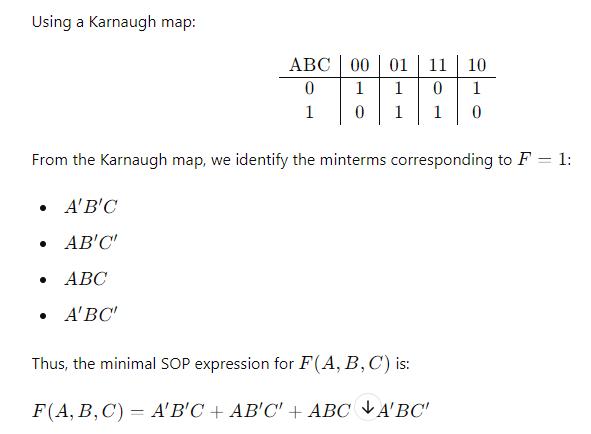

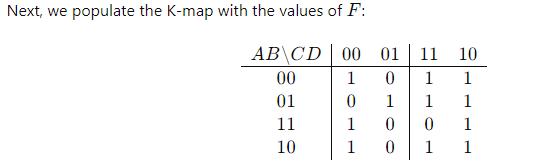

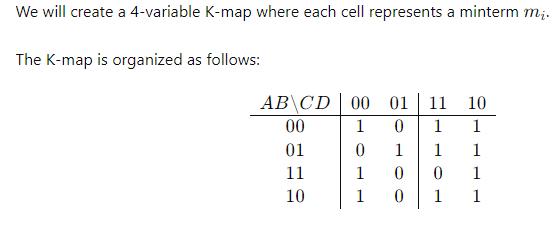

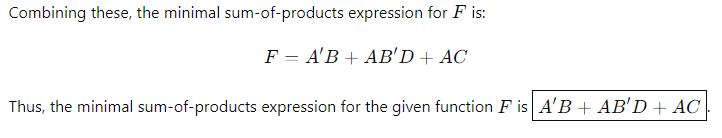

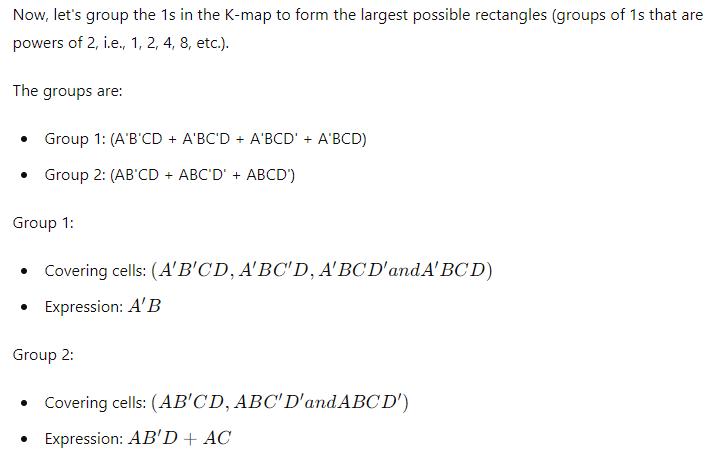

Solution: To determine the minimal sum-of-products expression for the function FFF using a Karnaugh map (K-map), let's start by organizing the given truth table into the K-map format.

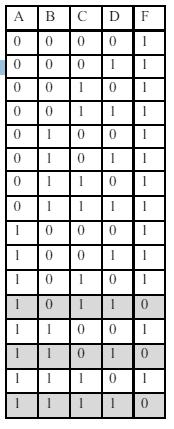

The given truth table is:
Problem

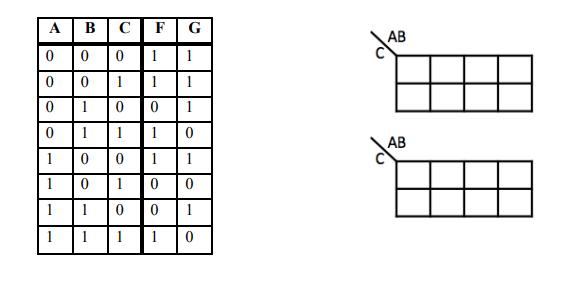

2. Consider the following truth table which defines two functions F and G of three input variables (A, B, and C)
https://www.computersciencehomeworkhelper.com/

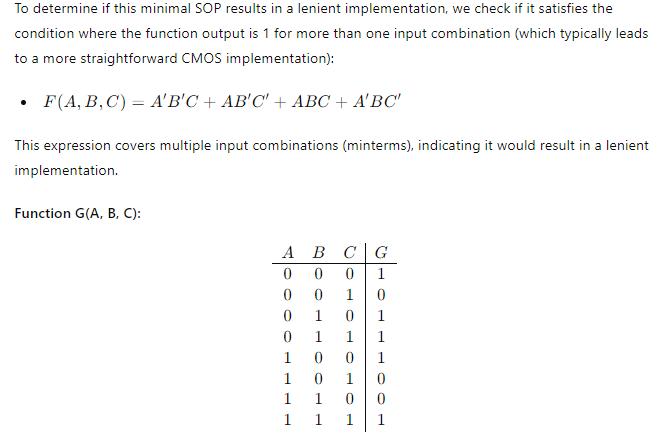

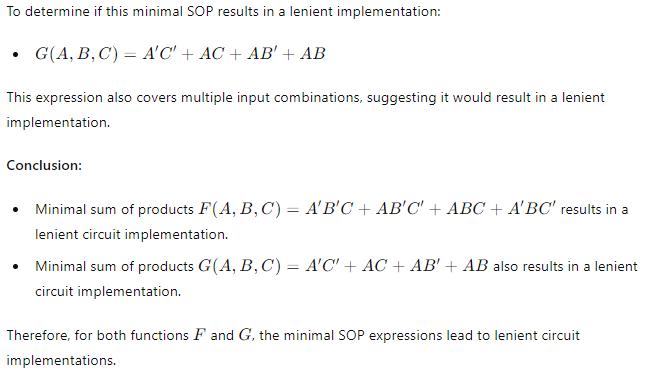

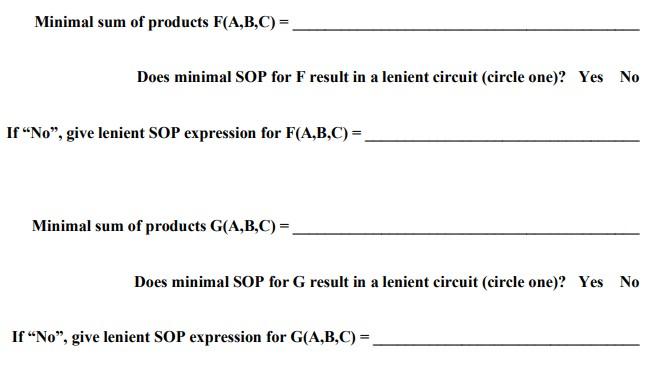

Give the minimal sum of products (minimal SOP) logic equation for each of the two functions. Then determine if the minimum sum of products expression would result in a lenient implementation of the function. If it does, then enter “SAME” for the lenient SOP expression. If not, specify what sum of products expression would result in a lenient implementation.
Hint: Use Karnaugh maps above to determine the minimal sum of products.

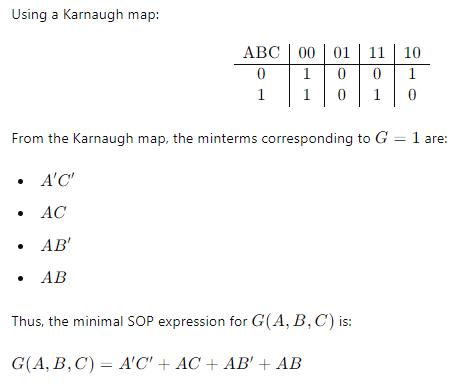

Solution:

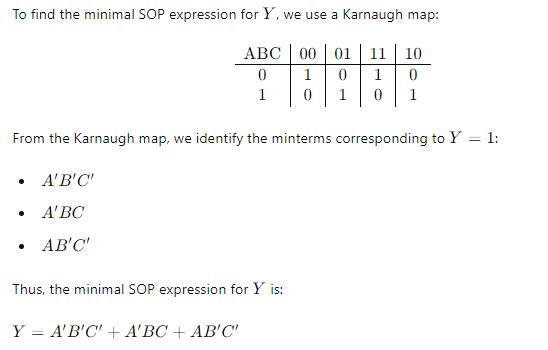

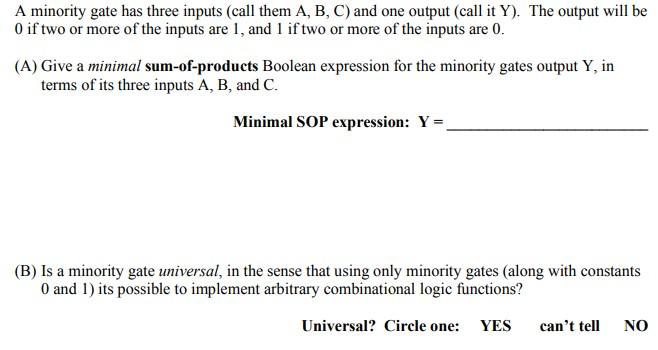

Let's address the problem step by step: (A) Minimal sum-of-products (SOP) Boolean expression for the minority gate output Y: A minority gate outputs 0 if two or more of its inputs are 1, and outputs 1 if two or more of its inputs are 0. The truth table for the minority gate is as follows
(B) Is a minority gate universal?
A gate is considered universal if using a combination of that gate and constants (0 and 1), you can implement any arbitrary combinational logic function.
To determine if a minority gate is universal, we need to check if it can implement all possible Boolean functions. A minority gate alone cannot implement all possible Boolean functions because it can only output based on the majority or minority of its inputs. It does not have the capability to directly implement functions that require arbitrary combinations of its inputs

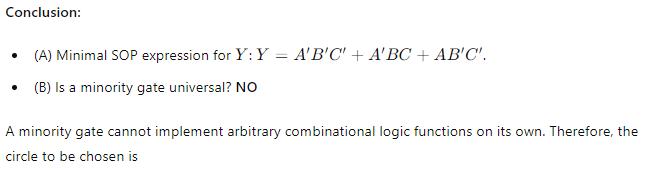

Conclusion
Thank you for engaging with our presentation on sequential logic. We hope the questions and answers provided have clarified your understanding and prepared you for your coursework and exams. At computersciencehomeworkhelper.com, we are dedicated to supporting your academic journey with expert assistance and resources tailored to your needs. Whether you're tackling complex assignments or seeking to deepen your knowledge, our platform is here to help you achieve academic success.
