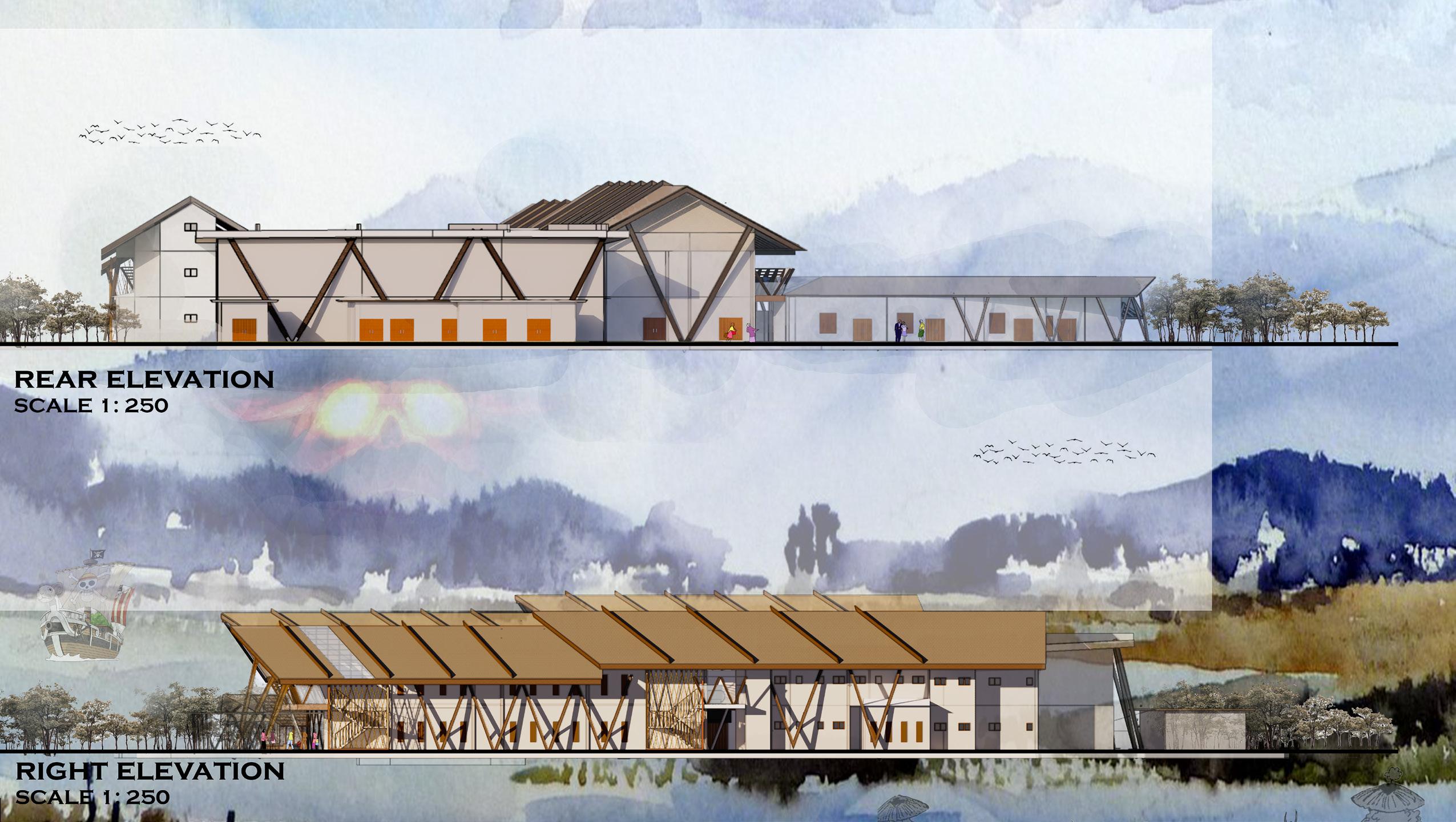

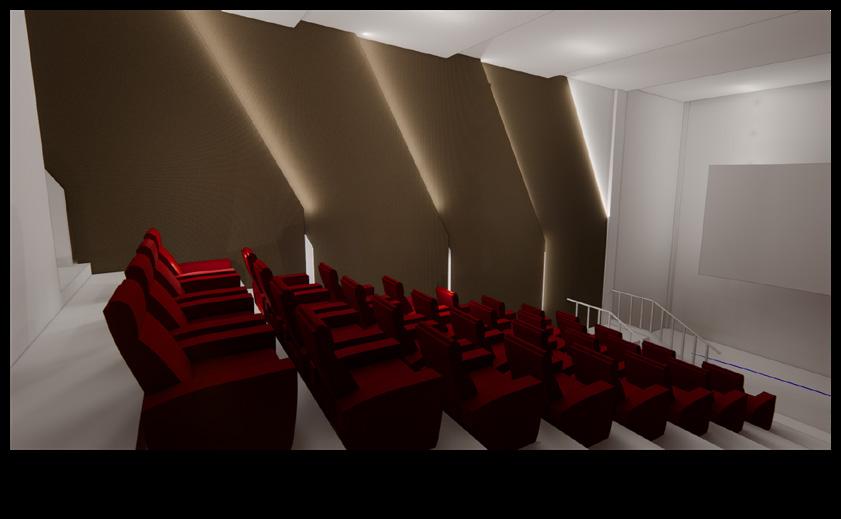

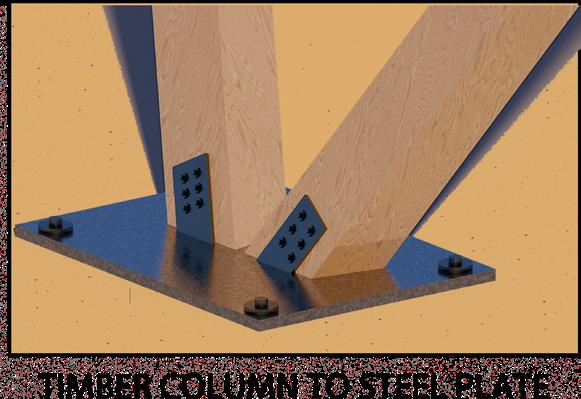

[NOH]TALGIA

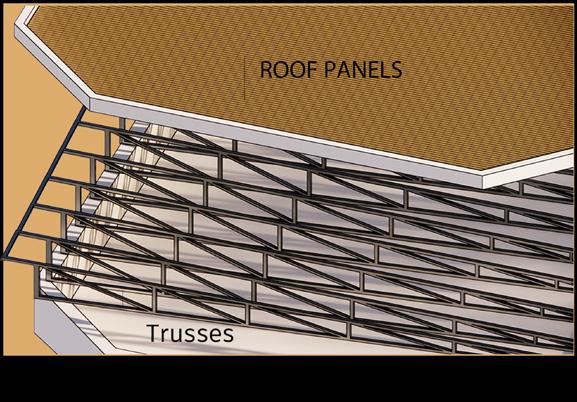

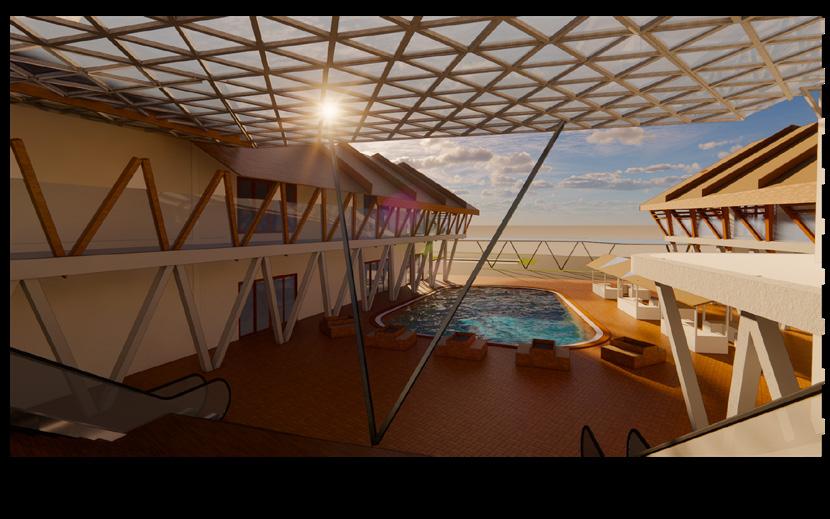

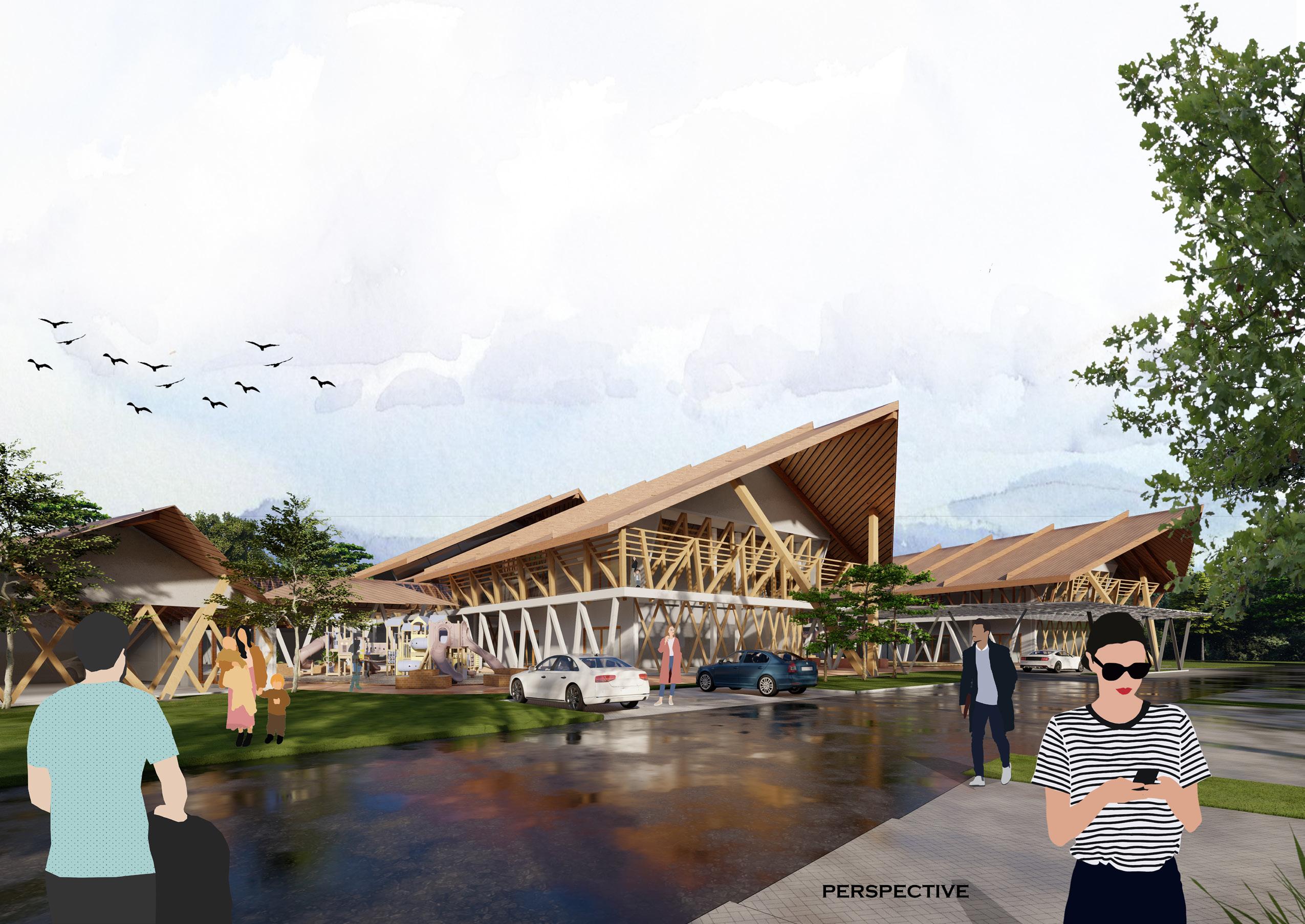

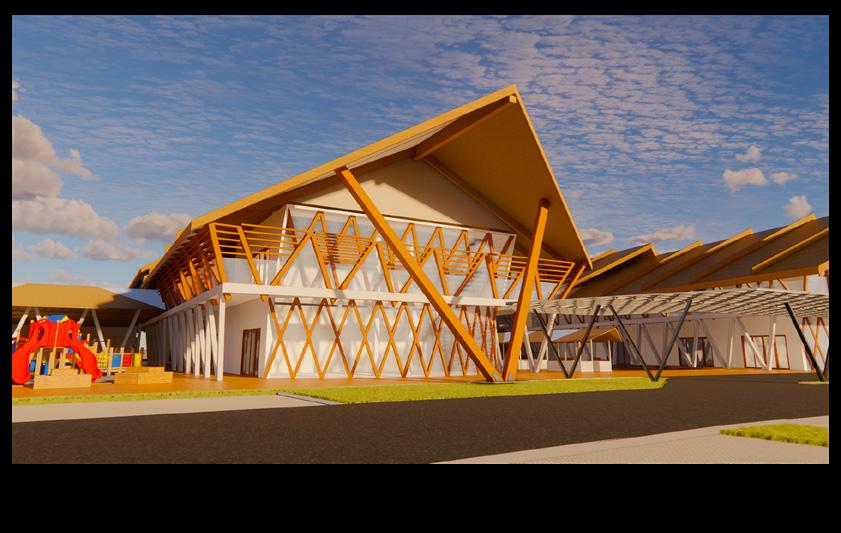

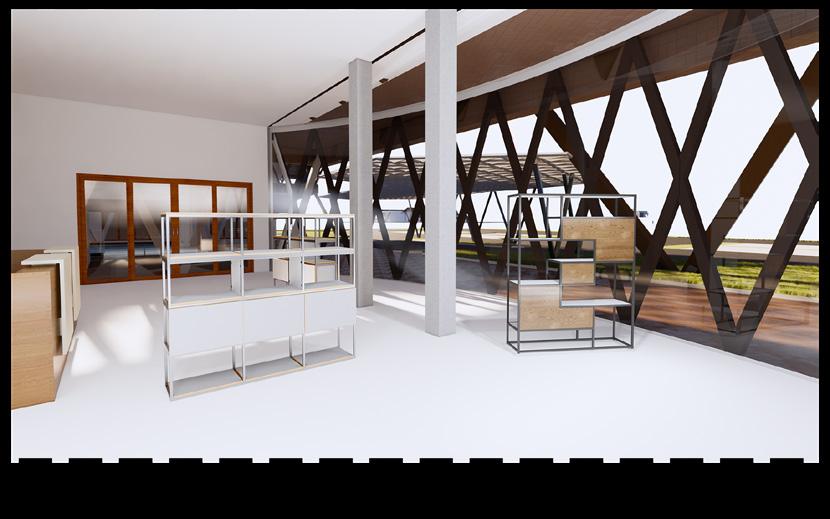

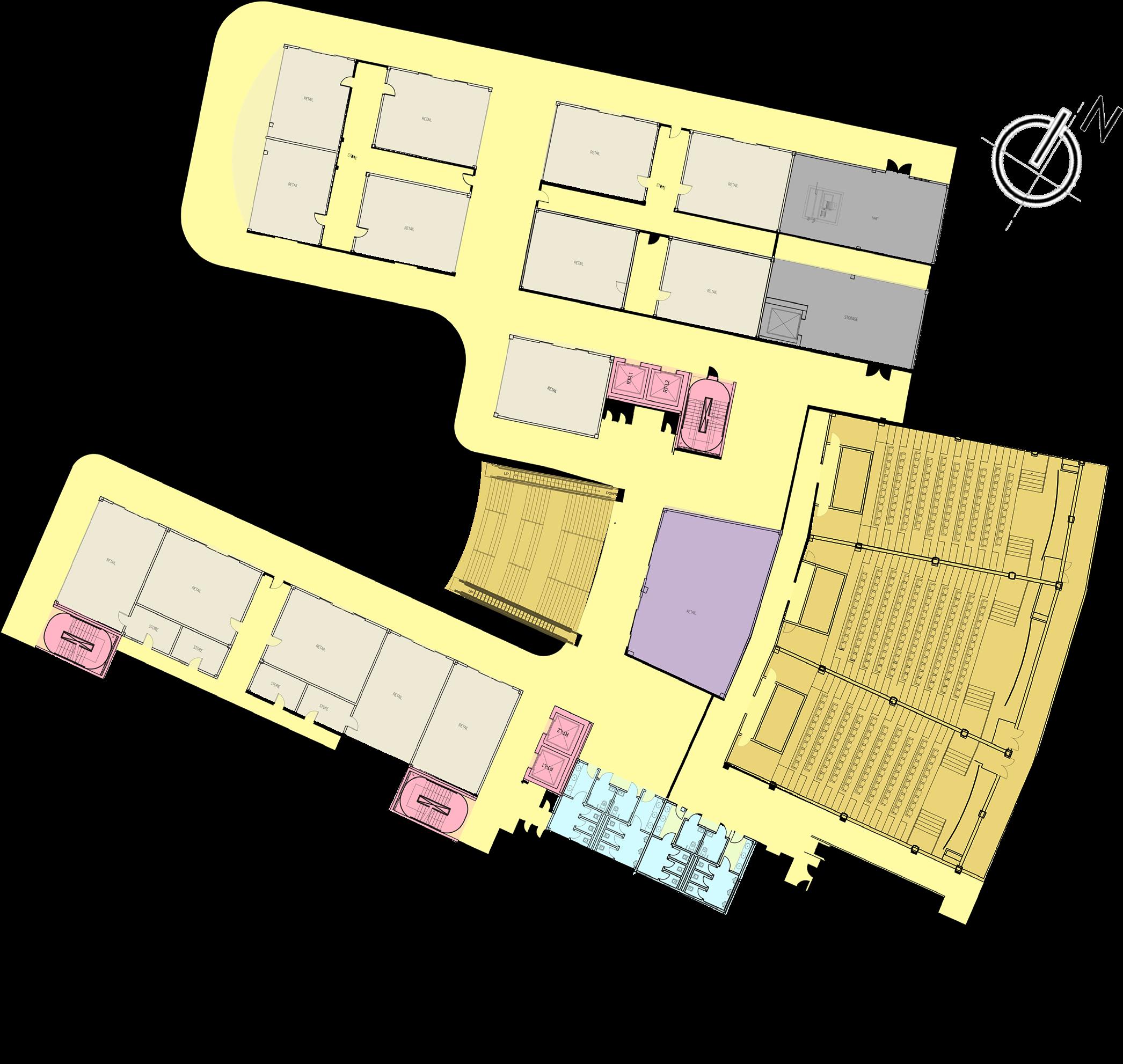

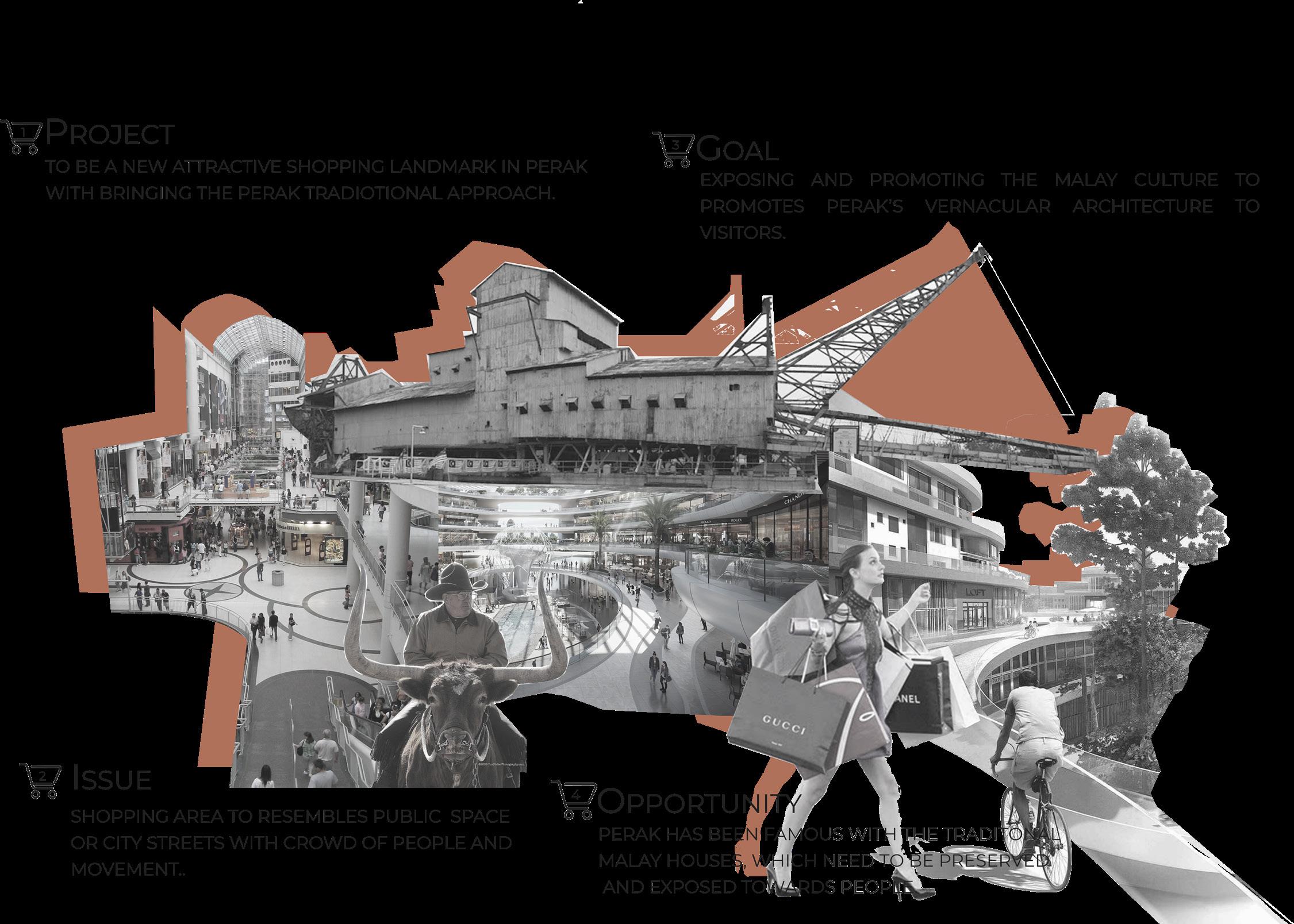

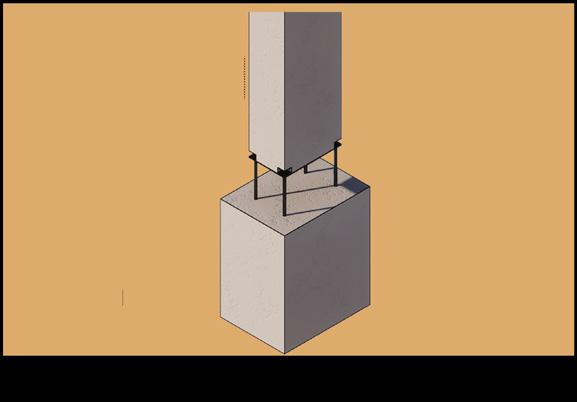

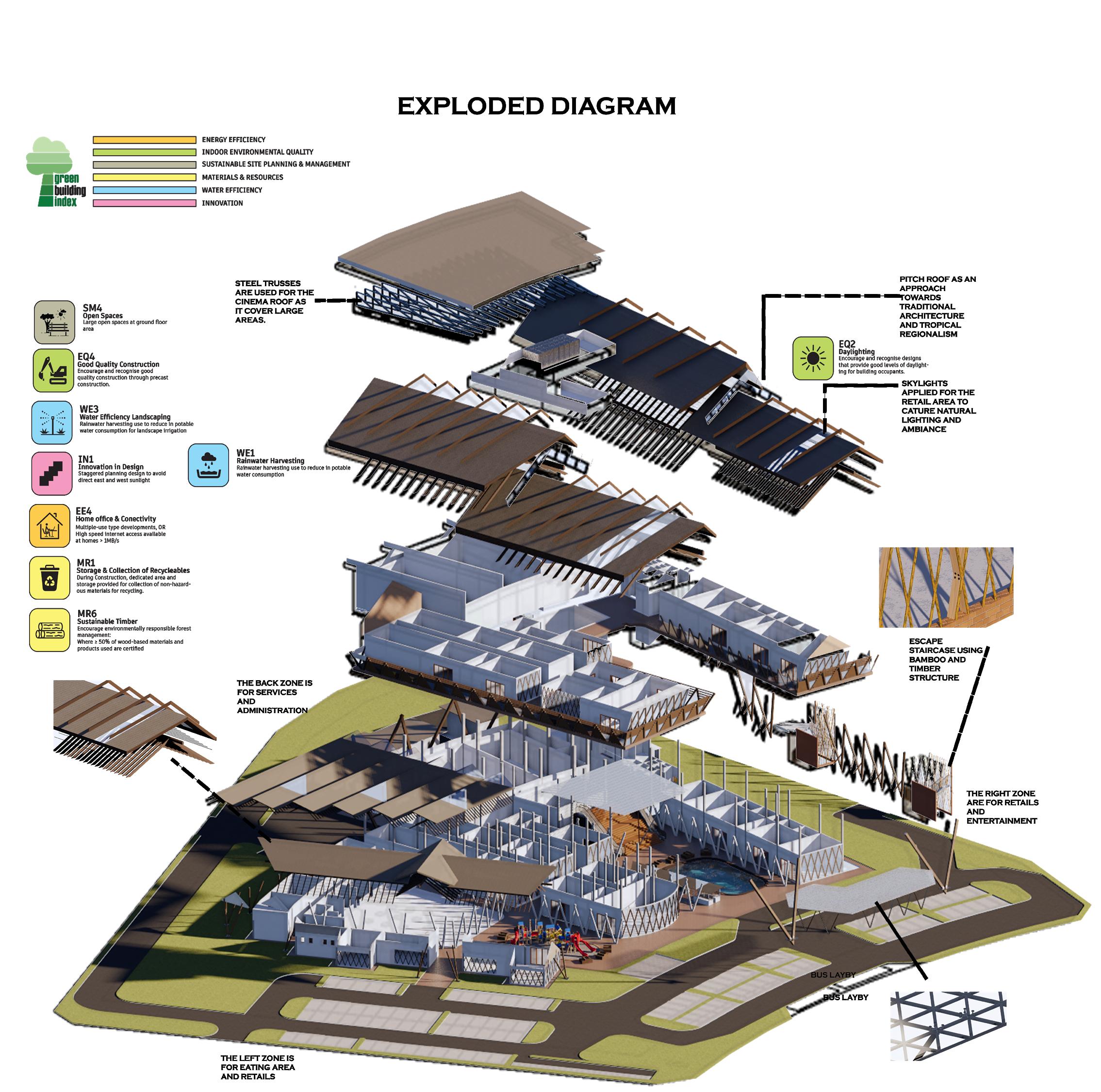

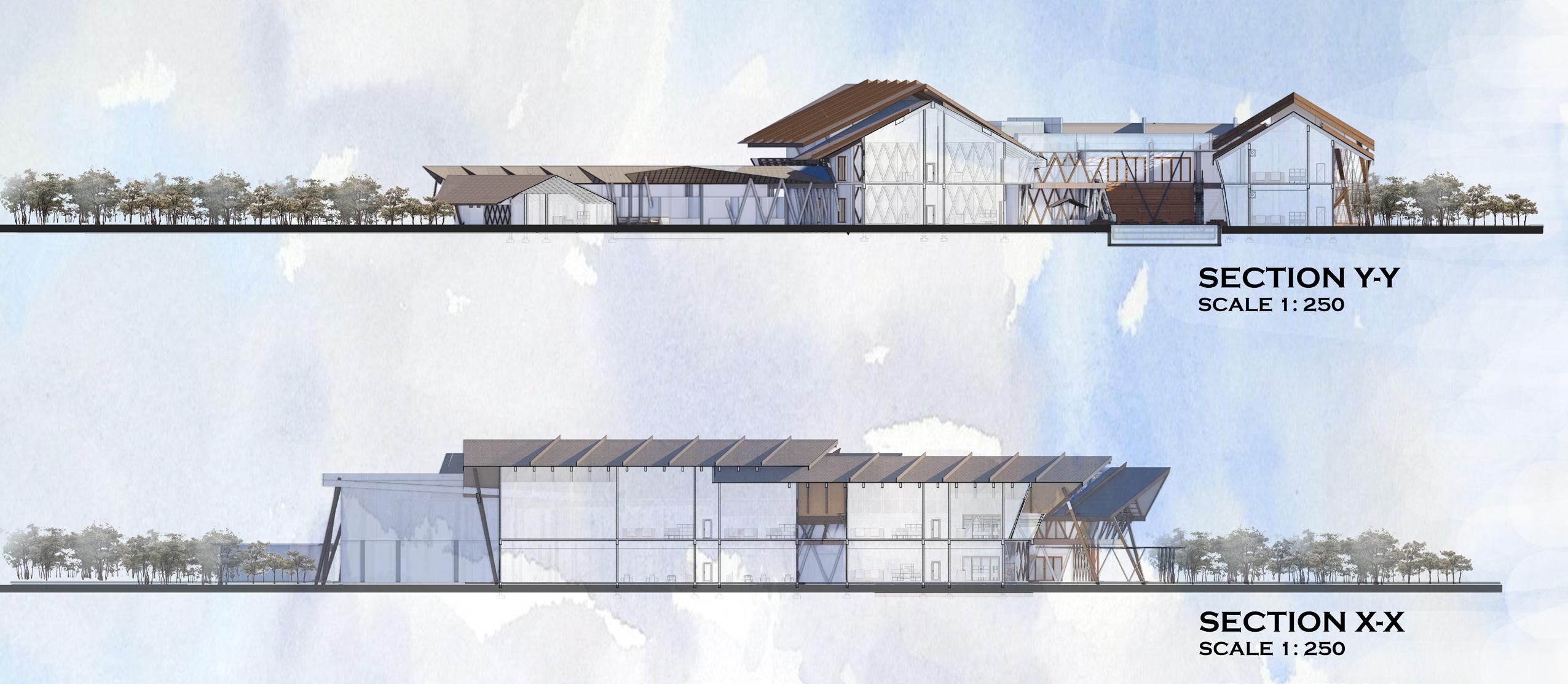

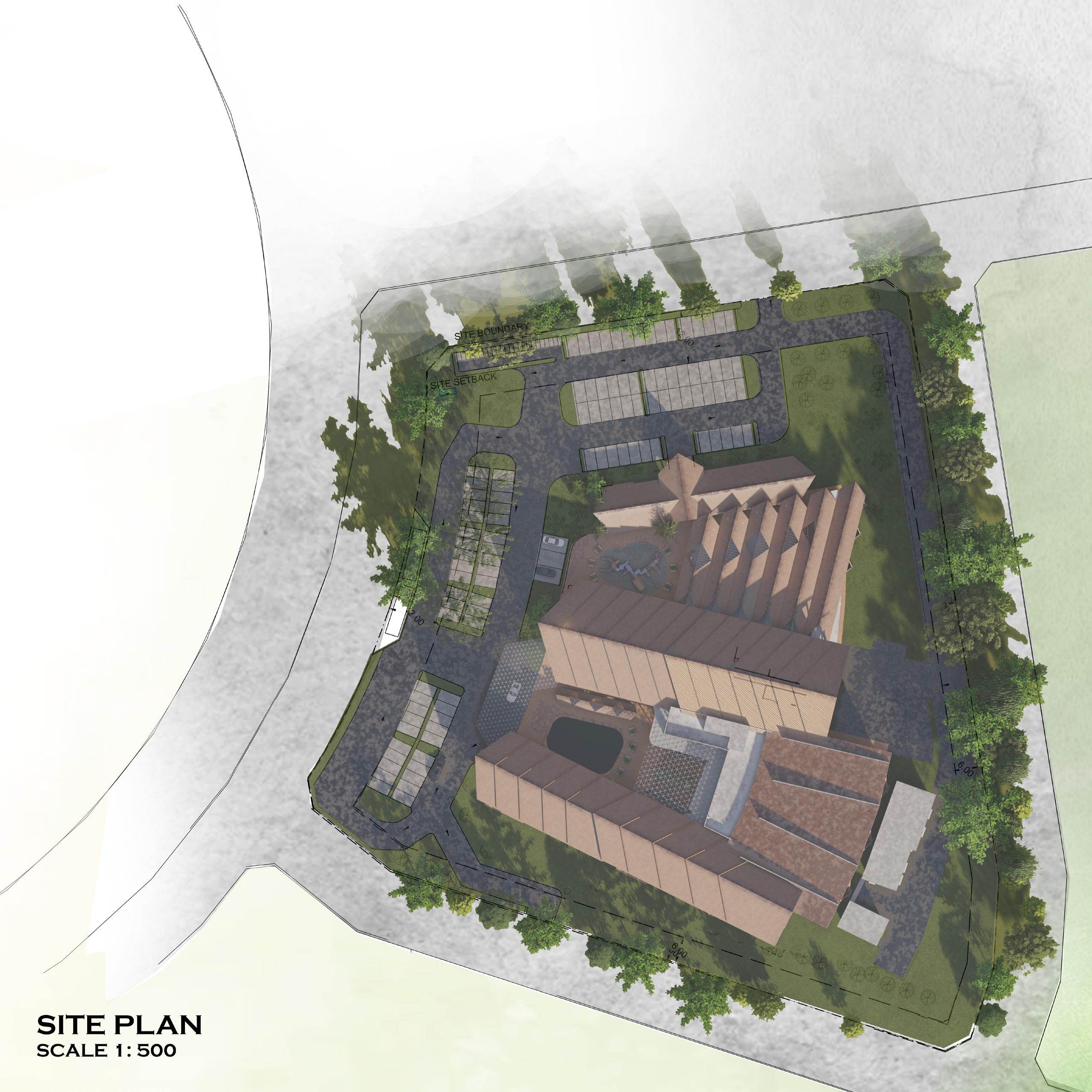

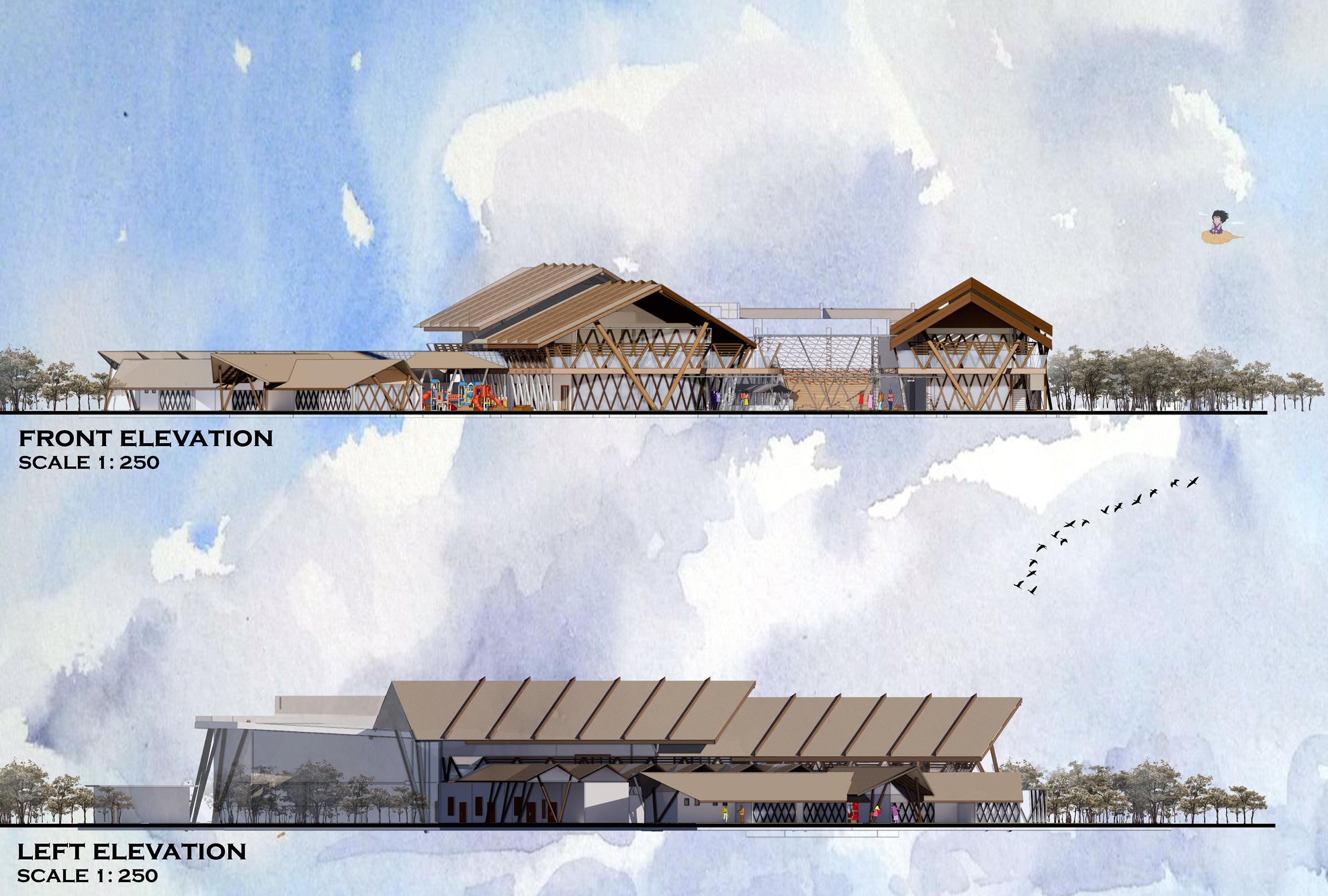

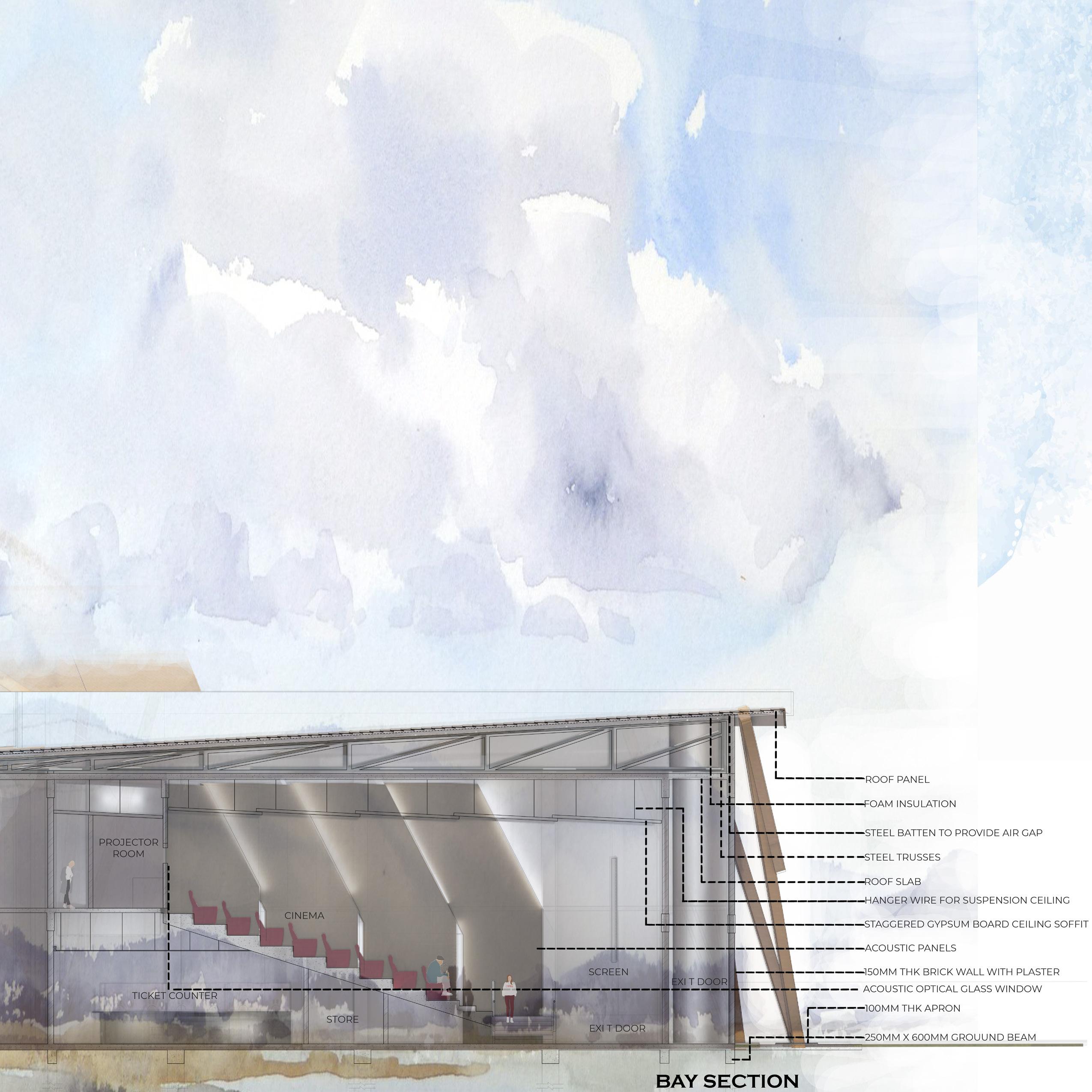

A HIGH-END VILLAGE SHOP HOME TO FAMOUS TENANTS THAT EXUDED A NOSTALGIC SENSE OF TRADITIONAL CULTURE LOCATED IN THE LANDMARK IN PERAK, MERU HAS LONG BEEN HISTORYCAL AND CULTURAL. THAT ARE ALWAYS BE BUSY WITH PEOPLE.

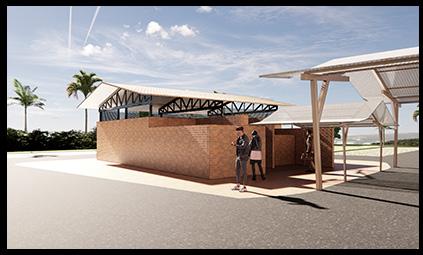

MALAY VERNACULAR ARCHITECTURE IS PROMOTED TO VISITORS. SINCE PERAK IS RICH IN HISTORICAL AND CULTURAL SIGNIFICANCE, IT HAS ALWAYS BEEN A POPULAR TOURIST DESTINATION. WITH THE INCORPORATION OF THE CITY’S PUBLIC SPACE CULTURE TO SERVE THE VISITOR IN THE UPSCALE OUTLET, [NOH]TALGIA IS TO BE A NEW ATTRACTION FOR LOCAL AND OVERSEAS TOURIST.
THE CULTURAL AND HISTORICAL VALUE HAS BEEN FORGOTTEN AS MODERNITY GROWS. IN ORDER TO PREVENT THAT, [NOH]TALGIA WILL SERVE AS A CAPSULE FOR THE NEXT GENERATION TO EXPERIENCE TRADITIONAL MALAYSIAN CULTURE.
INTRODUCTION

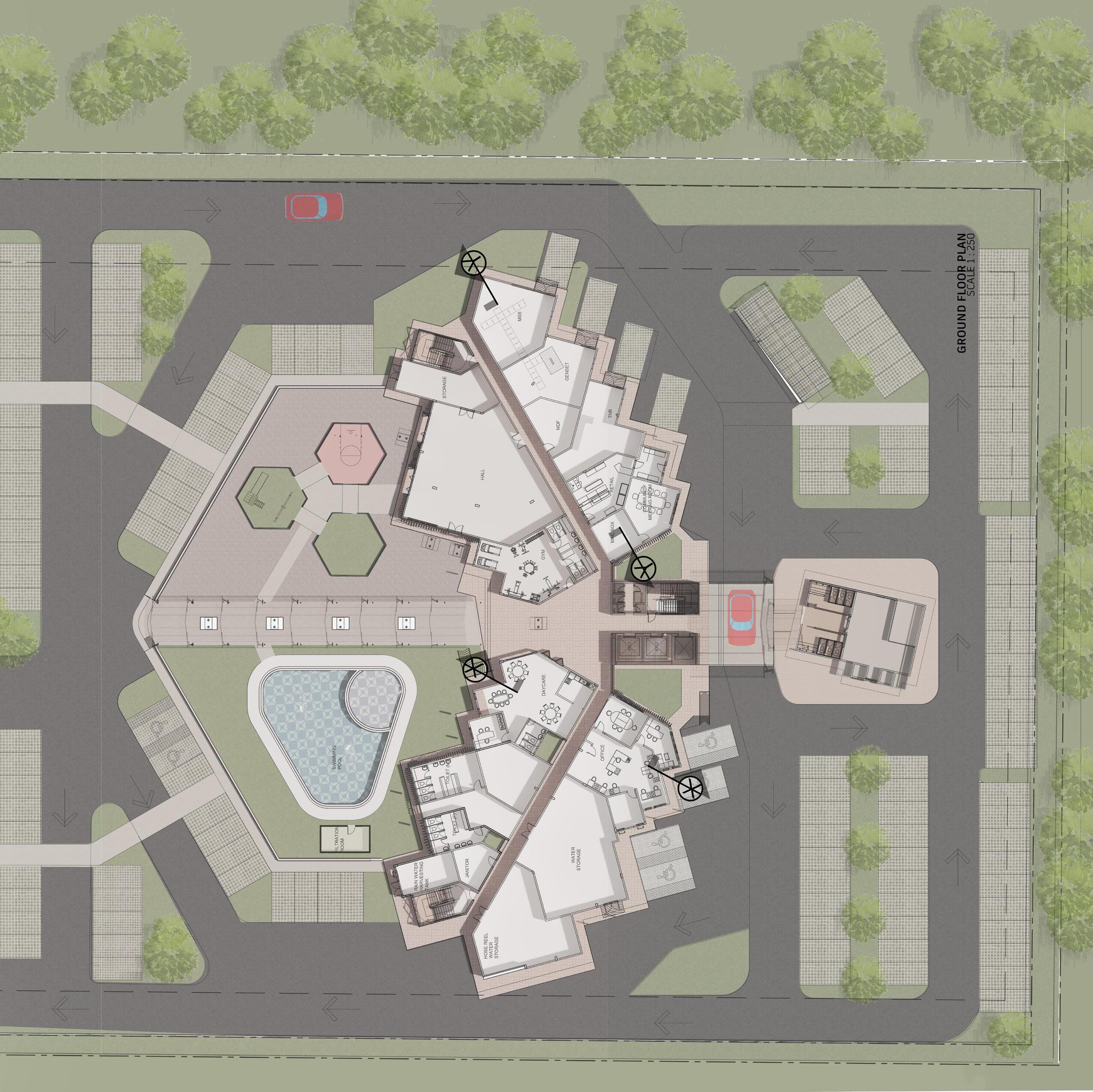

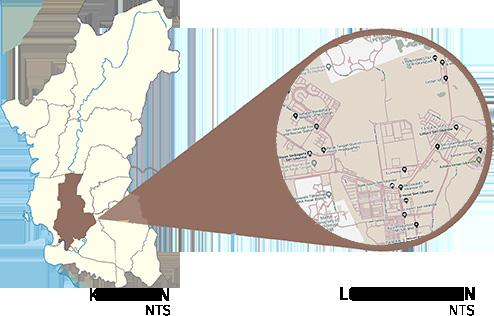

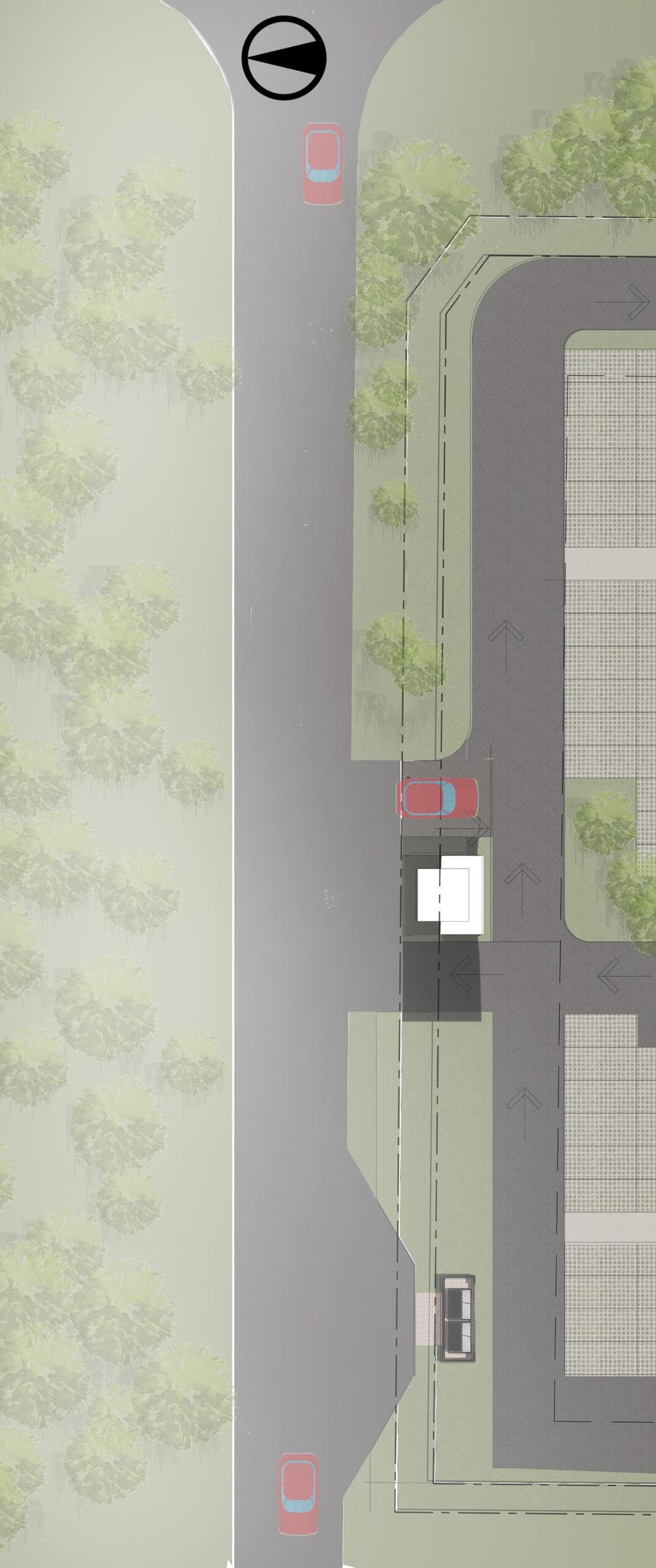

SITE SYHNTHESIS

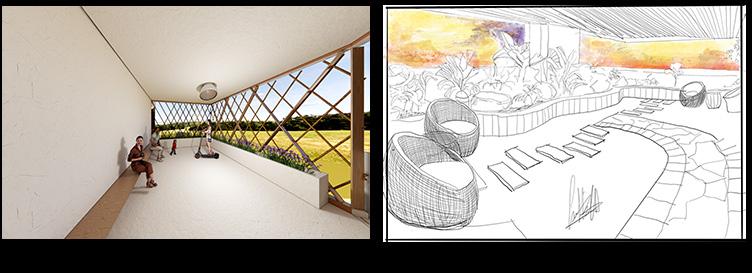

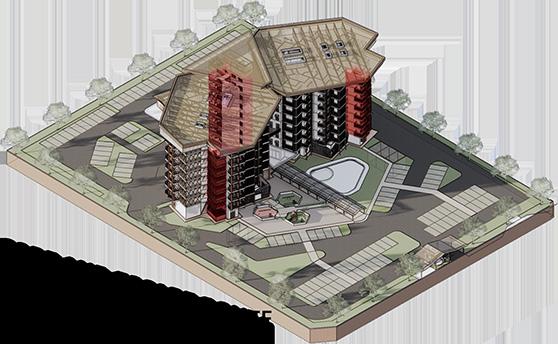

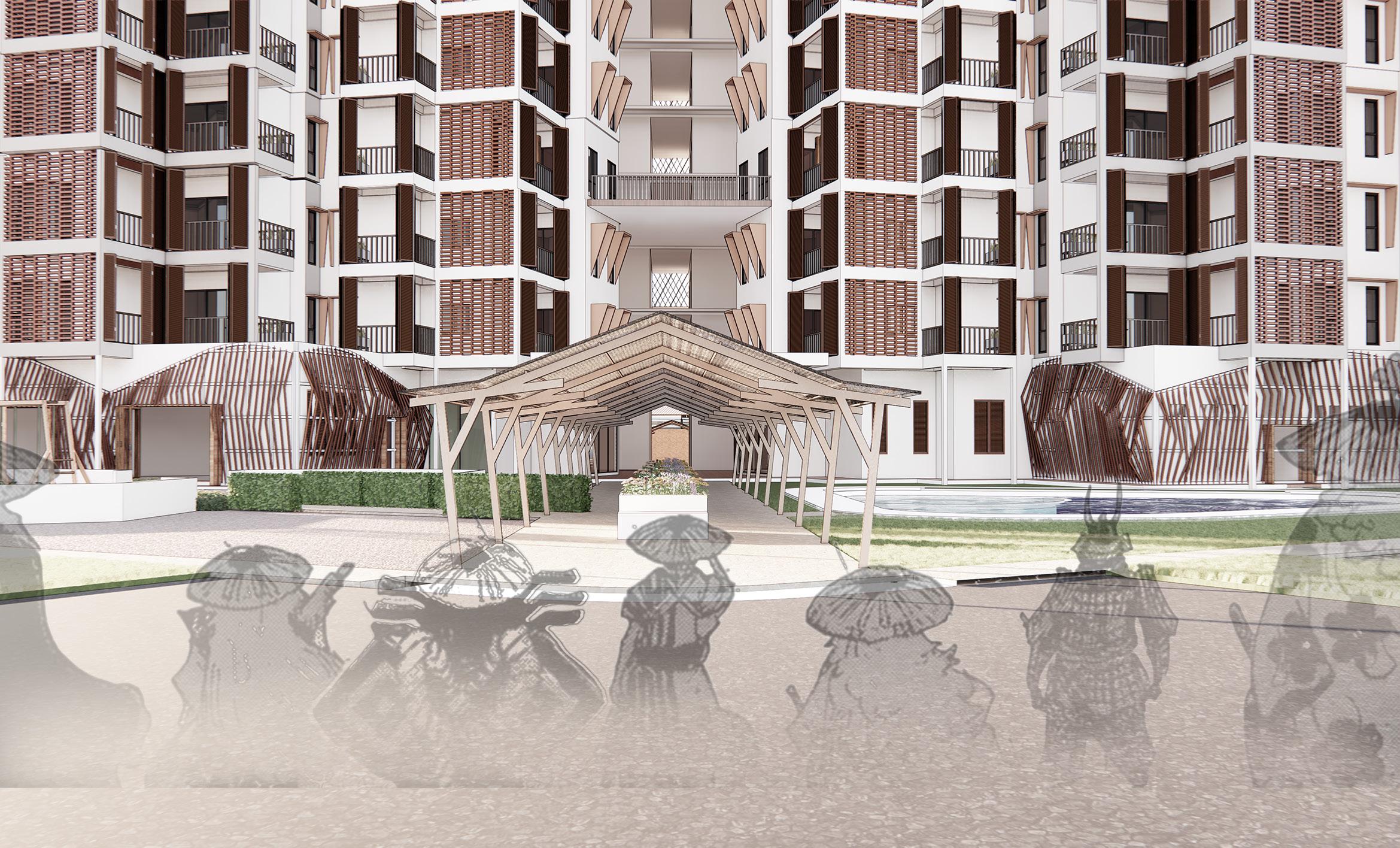

serendtitemu
"a serendipitous encounter"

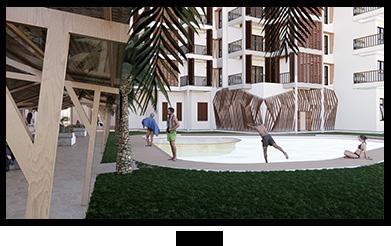

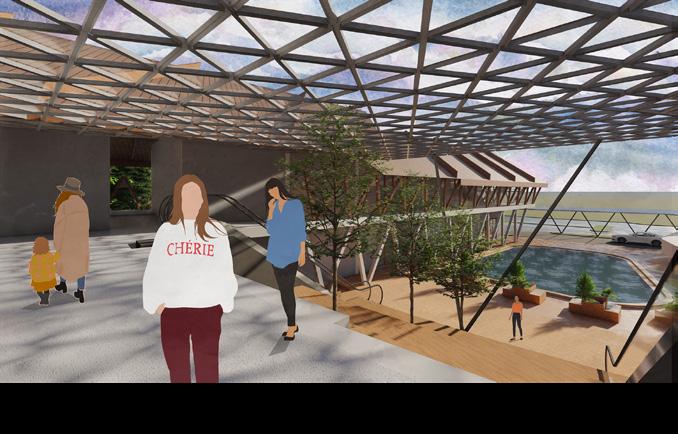

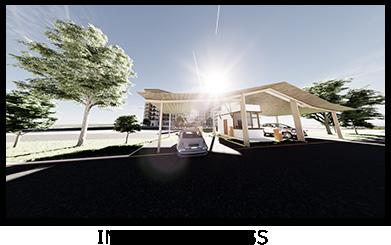

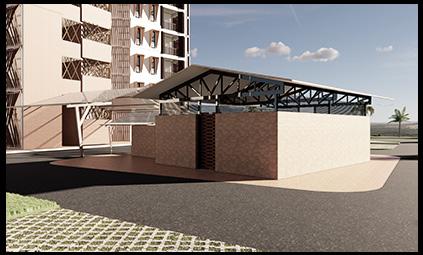

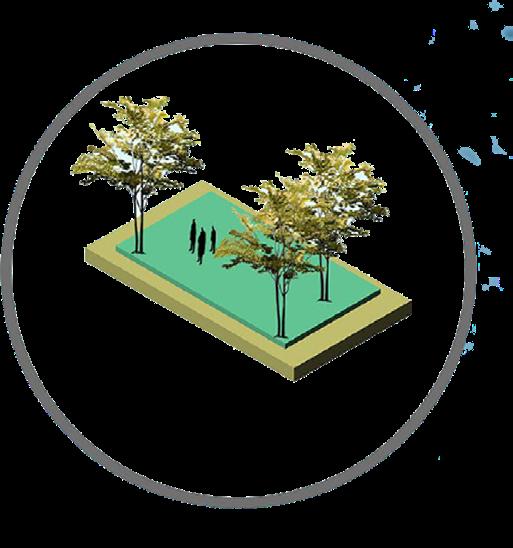

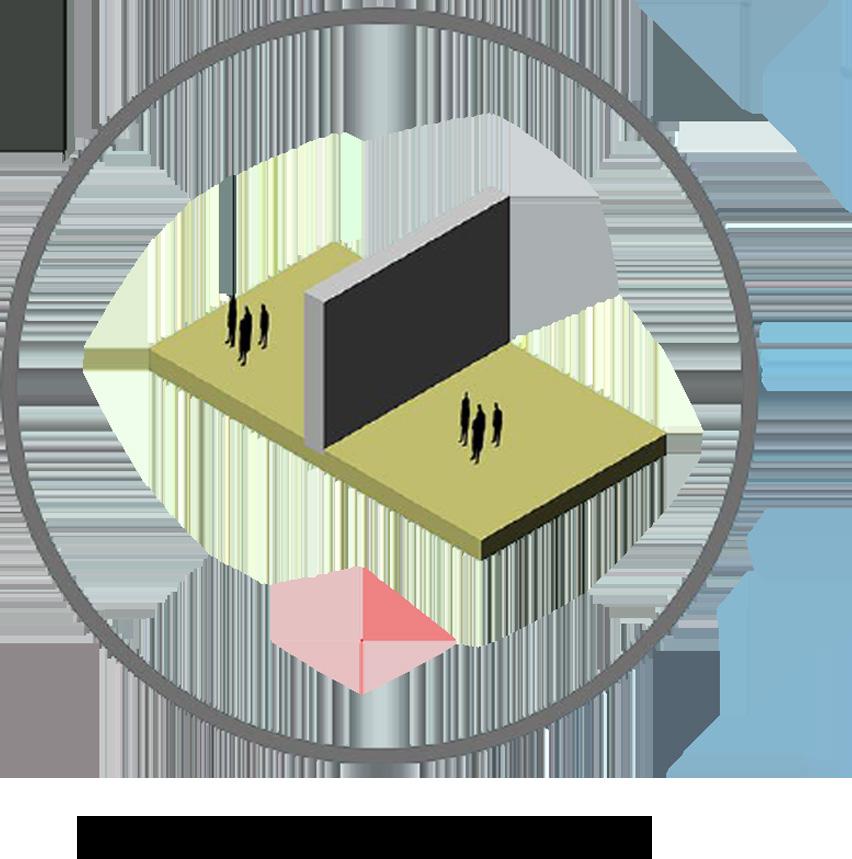

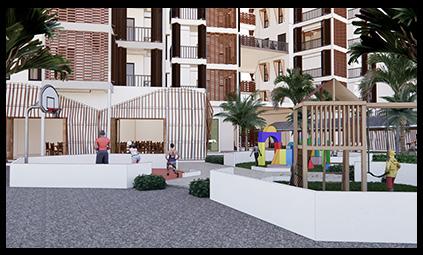

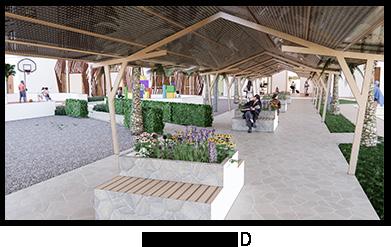

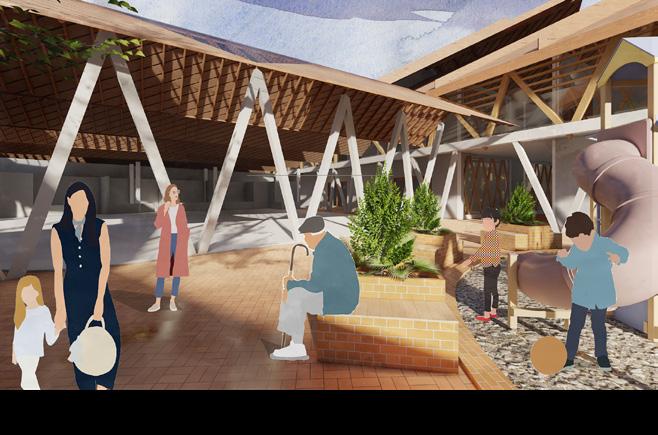

Serendipity refers to unexpected encounters with ideas or insights and their intentional application to achieve favorable outcomes. but in this issue, to enhance the encounters between residence to interact with each others. the legibility of open space that will help to enhance social interactions. by creating the courtyard space as a connector between all spaces and the addition of greeneries to provide health benefits.
07

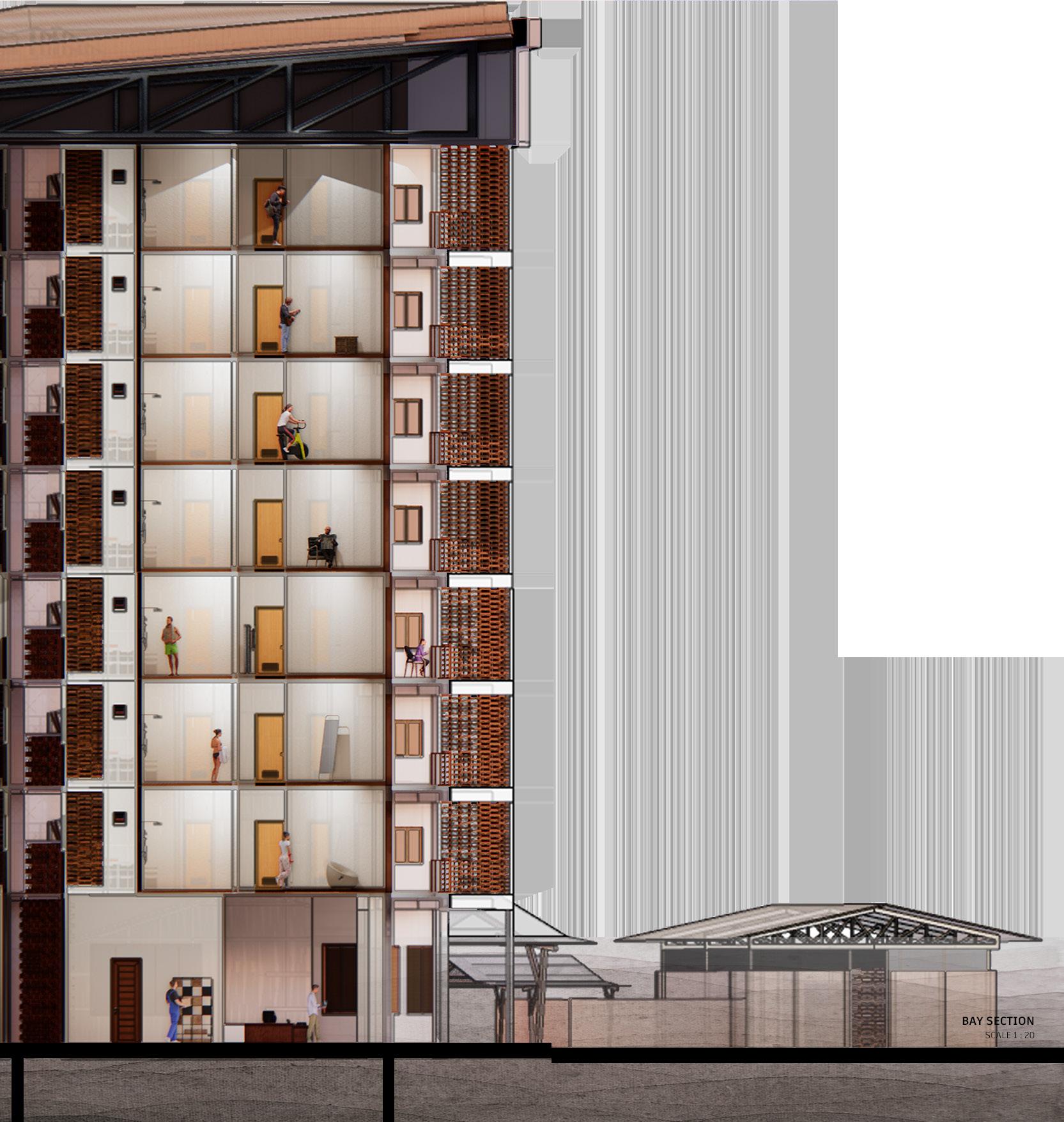

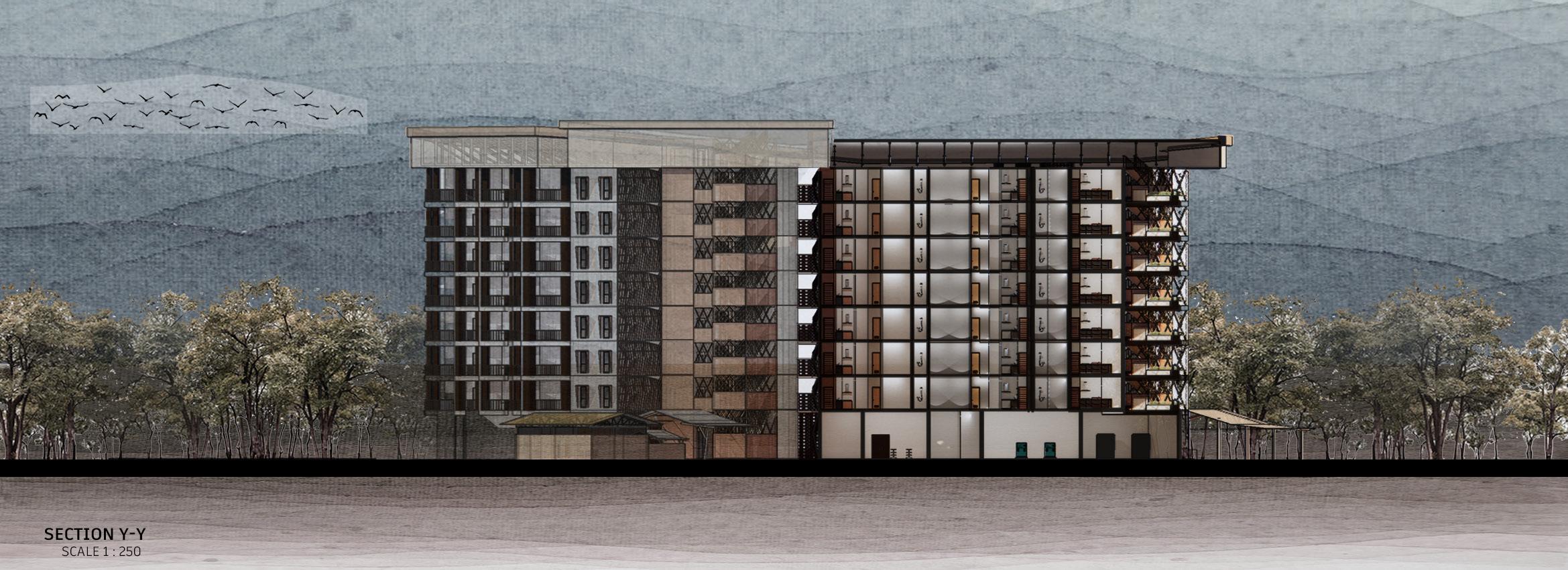

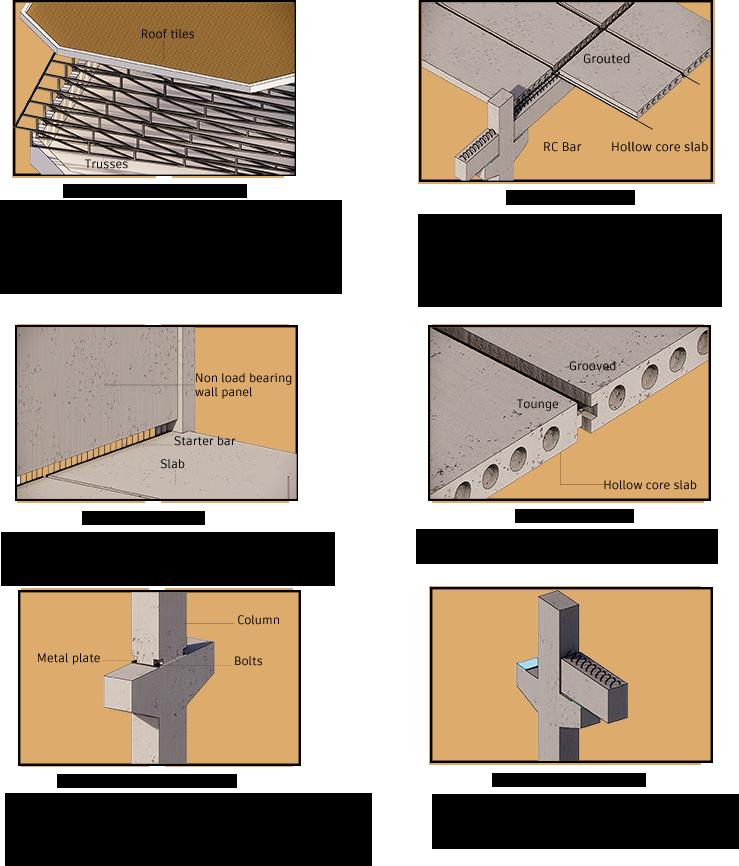

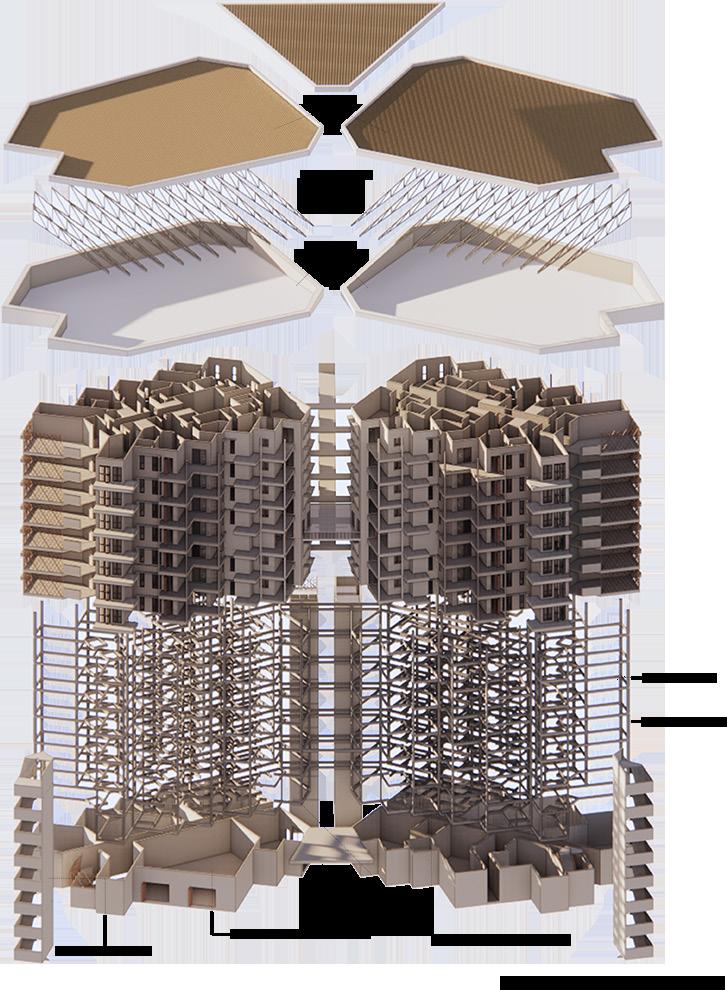

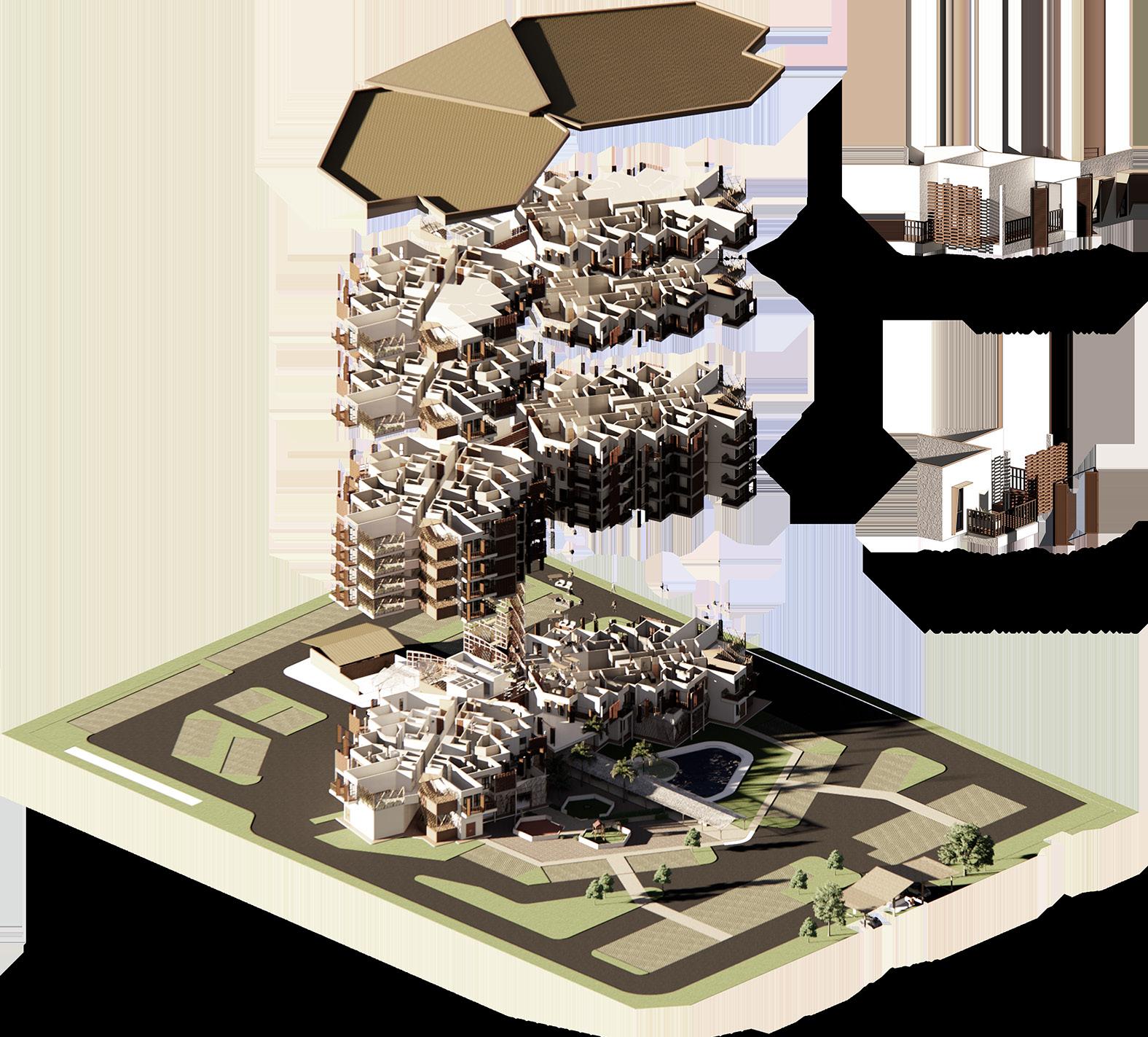

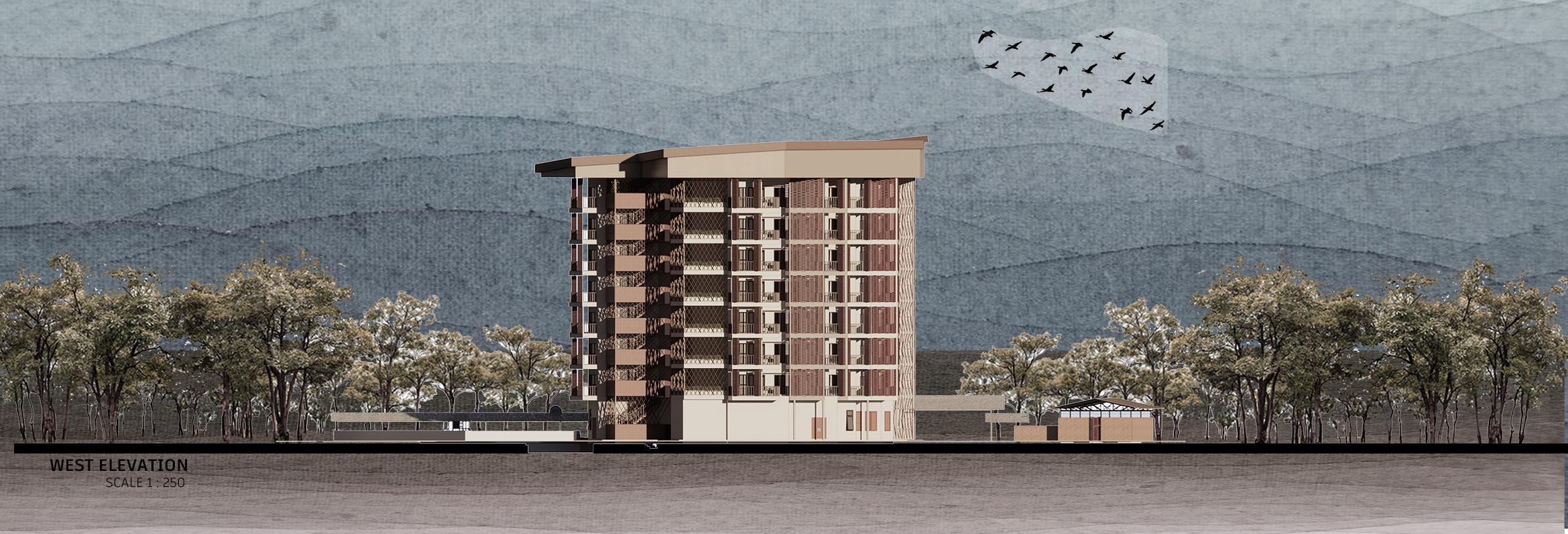

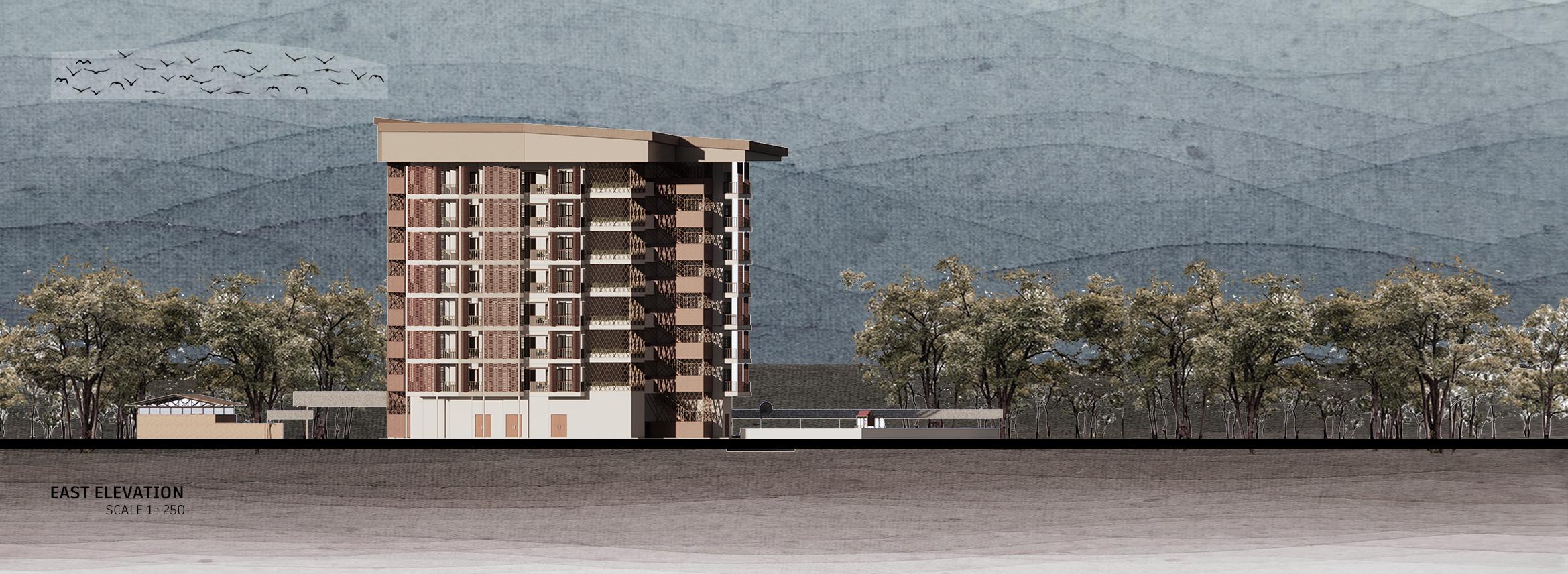

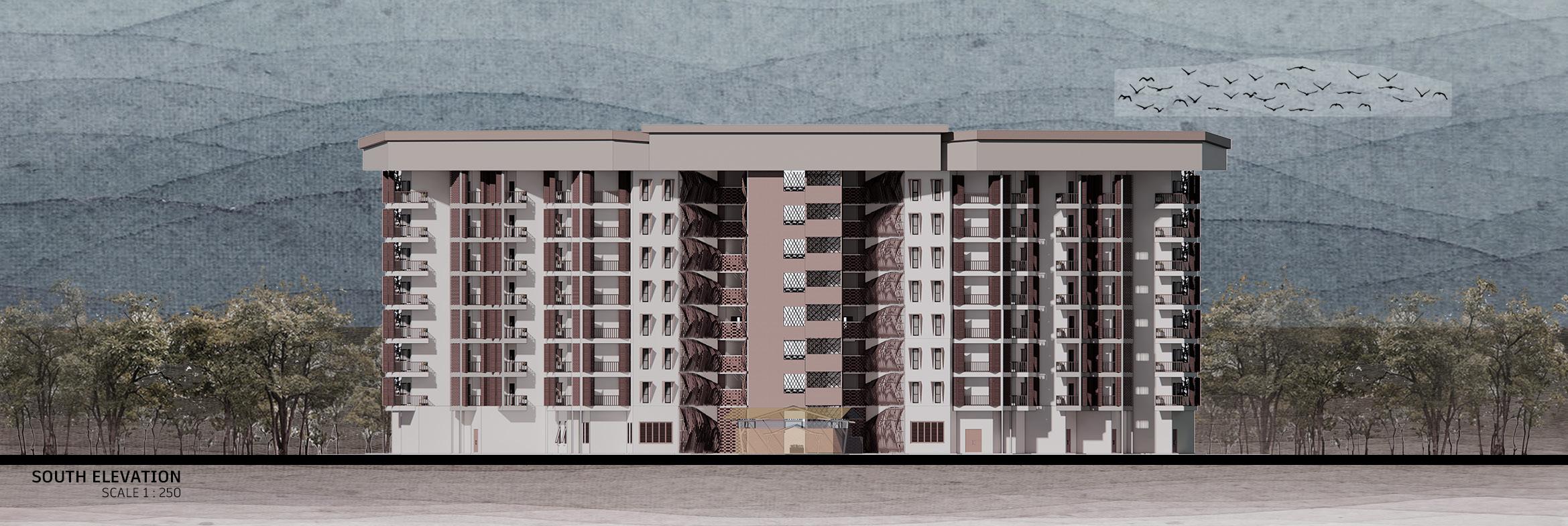

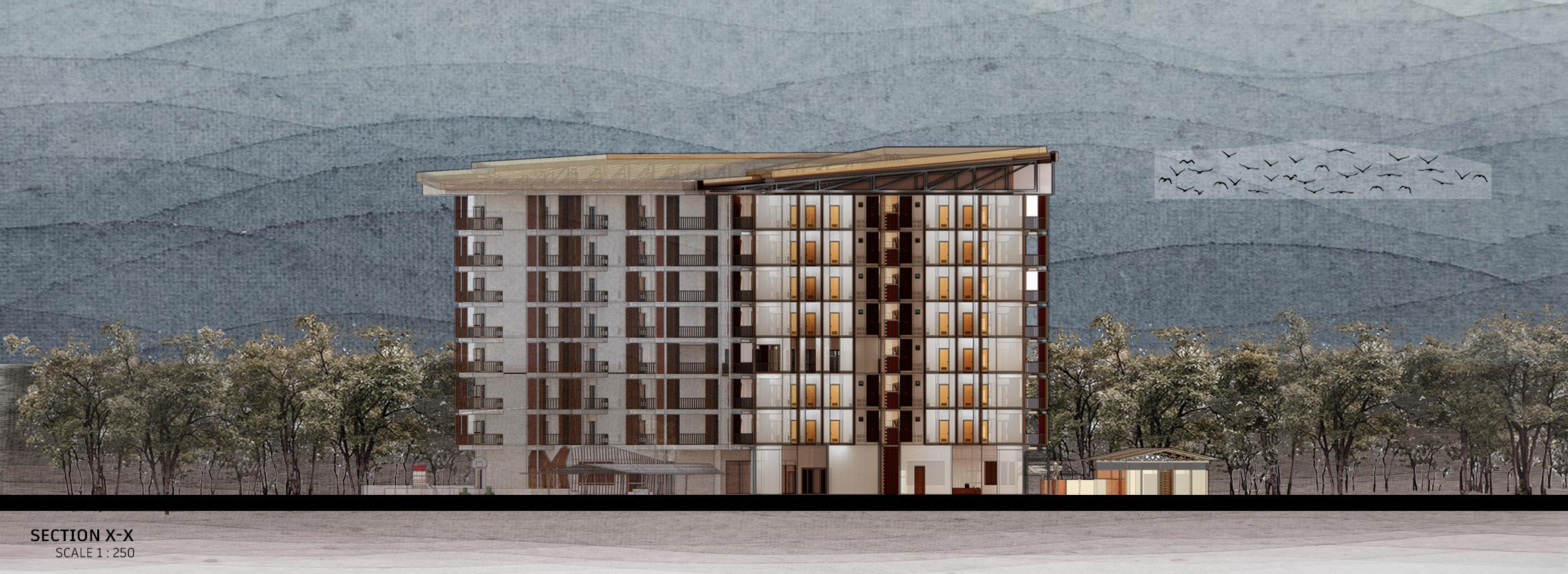

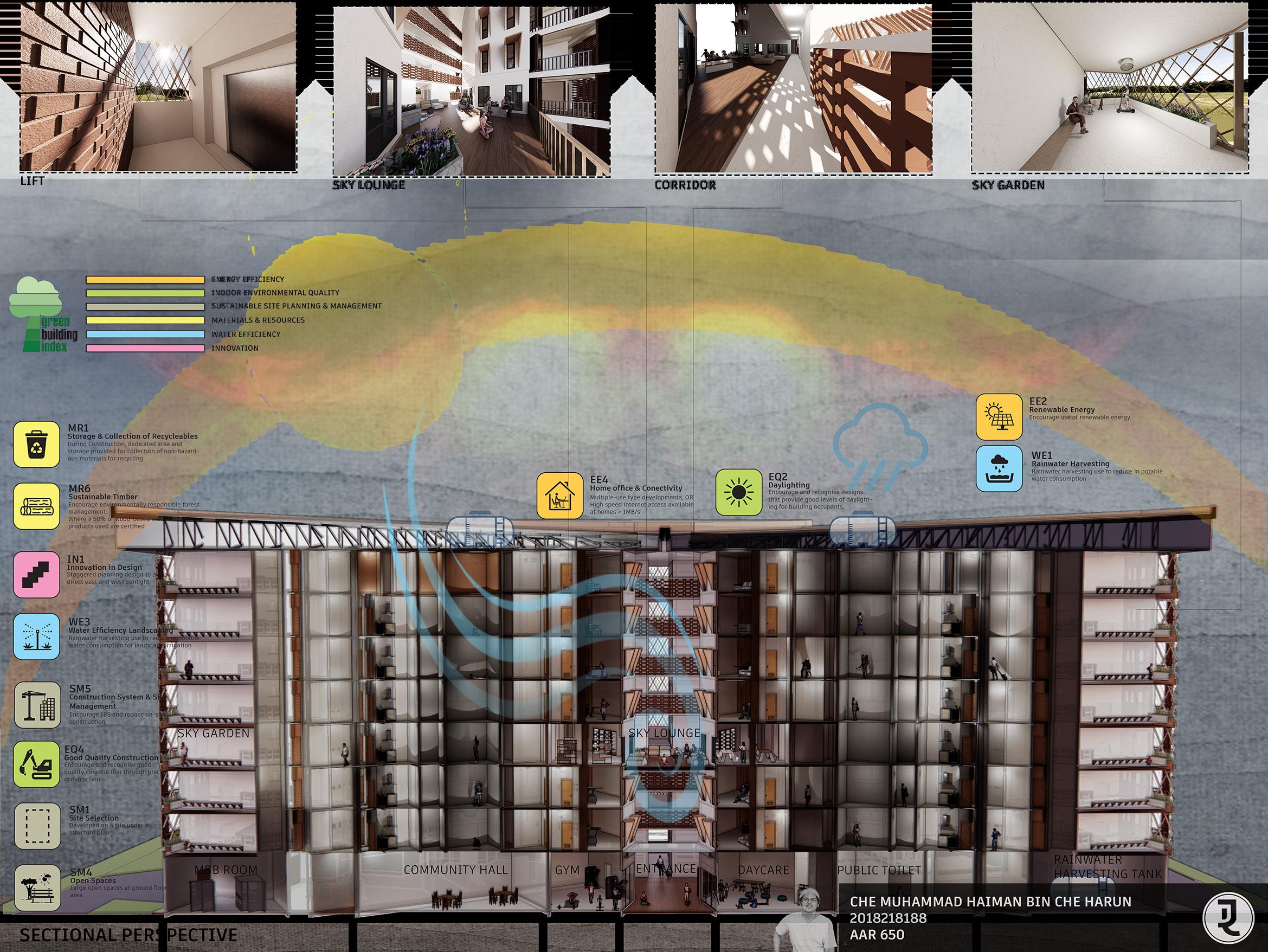

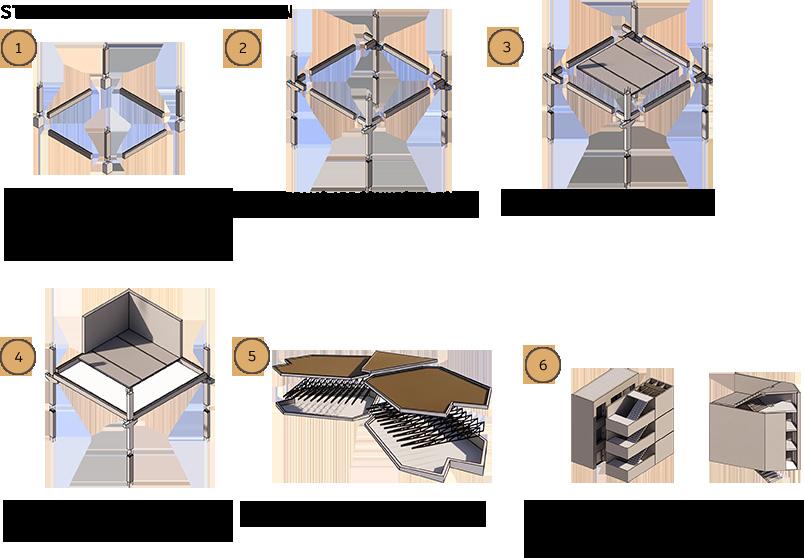

DESIGN DEVELOPMENT
THE BLOCK ORIENTATION TOWARDS EAST AND WEST. DIRECT SUNLIGHT.

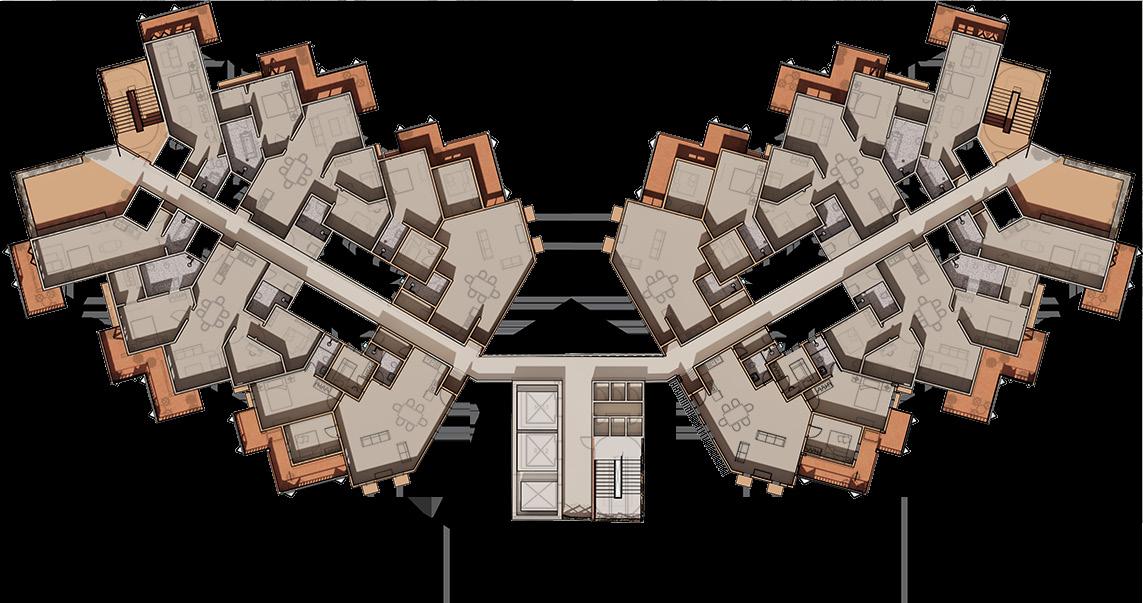

THE VOLUME IS DIVIDED TO NUMBERS OF UNIT.

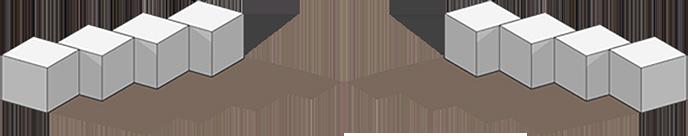

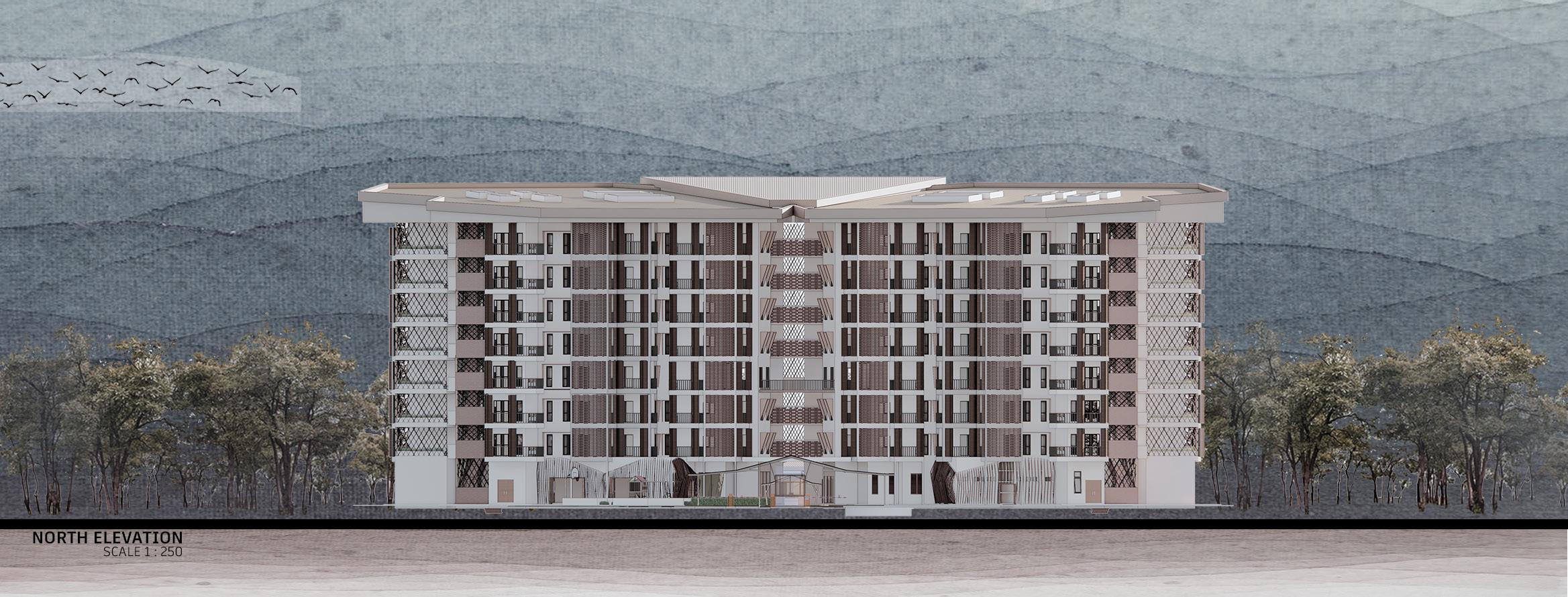

THE SQUARES ARE ROTATED IN ORDER TO IMPROVE THE ORIENTATION AND CREATE FACADE
THE UNITS ARE STAGGERED TO REDUCE SUIN HEAT.
THE WALL THAT ARE EXPOSED TO DIRECT SUNLIGHT TAT ARE INDICATED AS COLORED WALL WILL BE SOLID.
THE BALCONY FACING TOWARDS SOUTH AND NORTH. THE PLANTATIONS ARE ACT AS BUFFER.

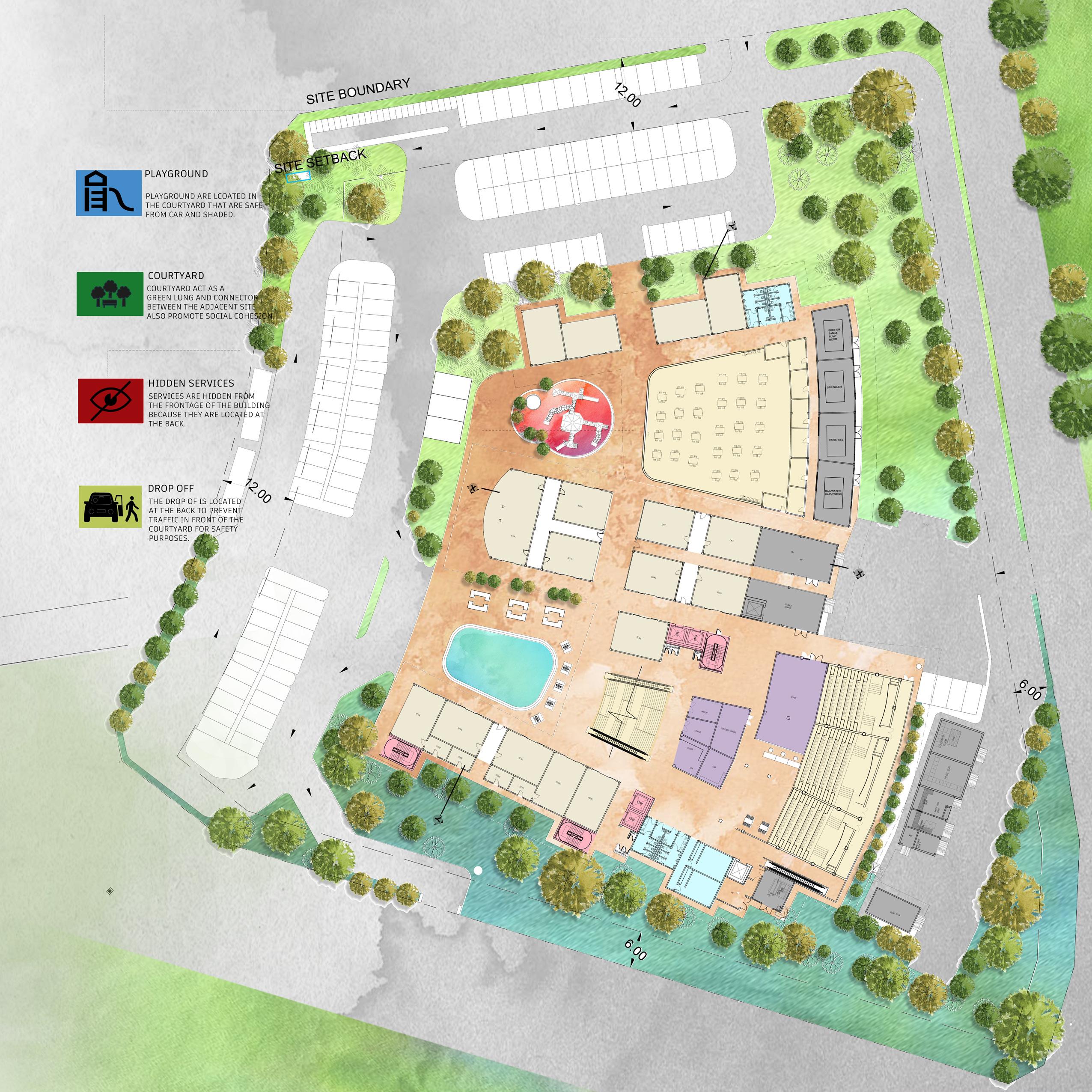

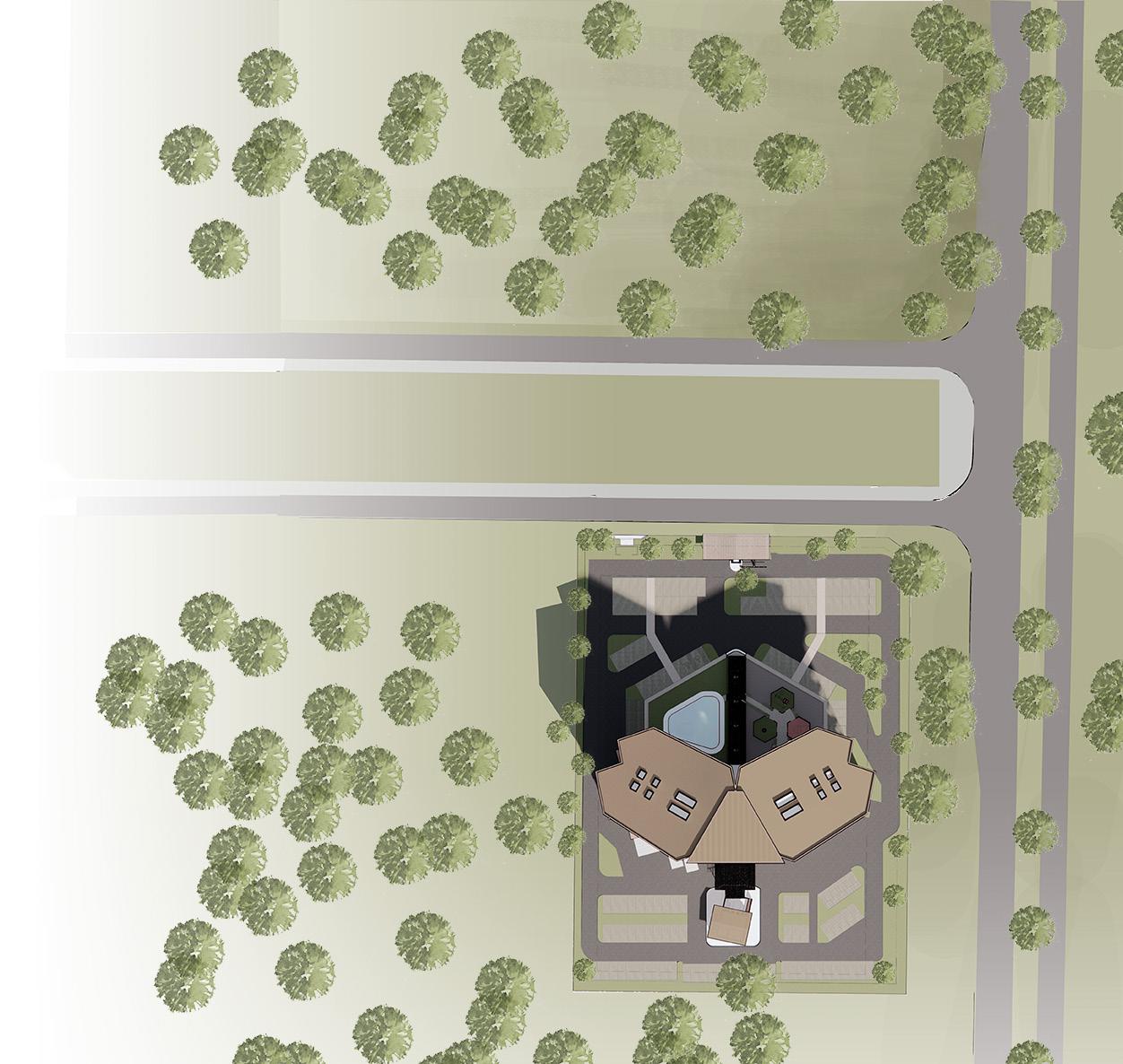

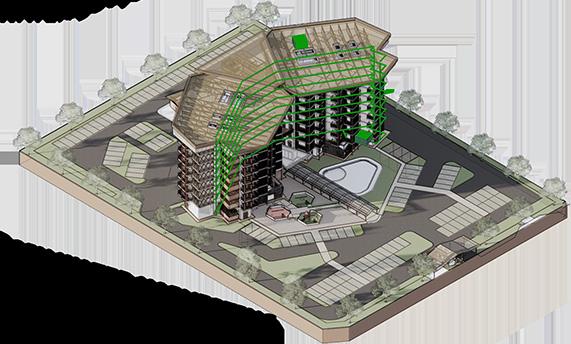

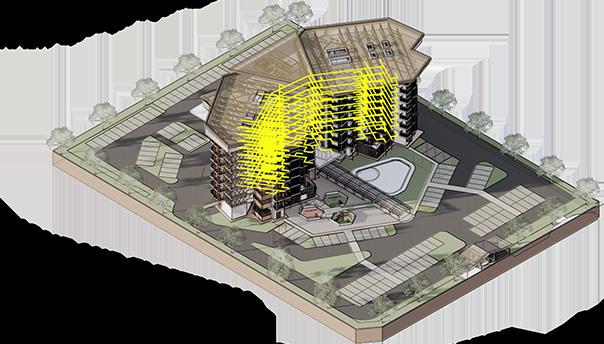

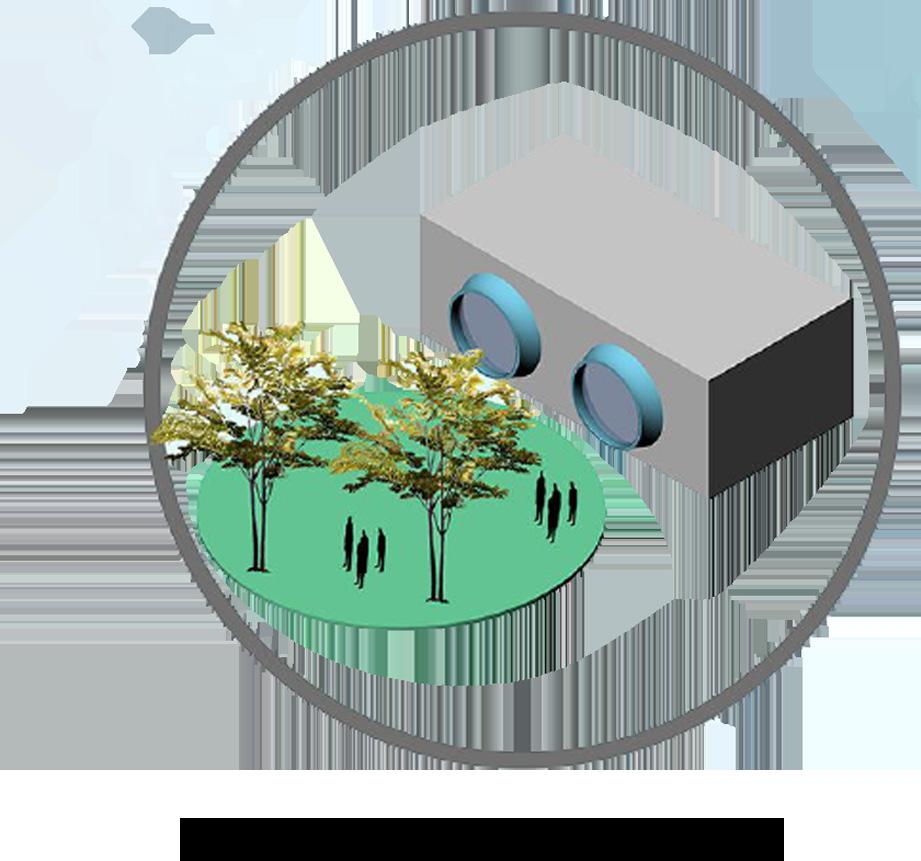

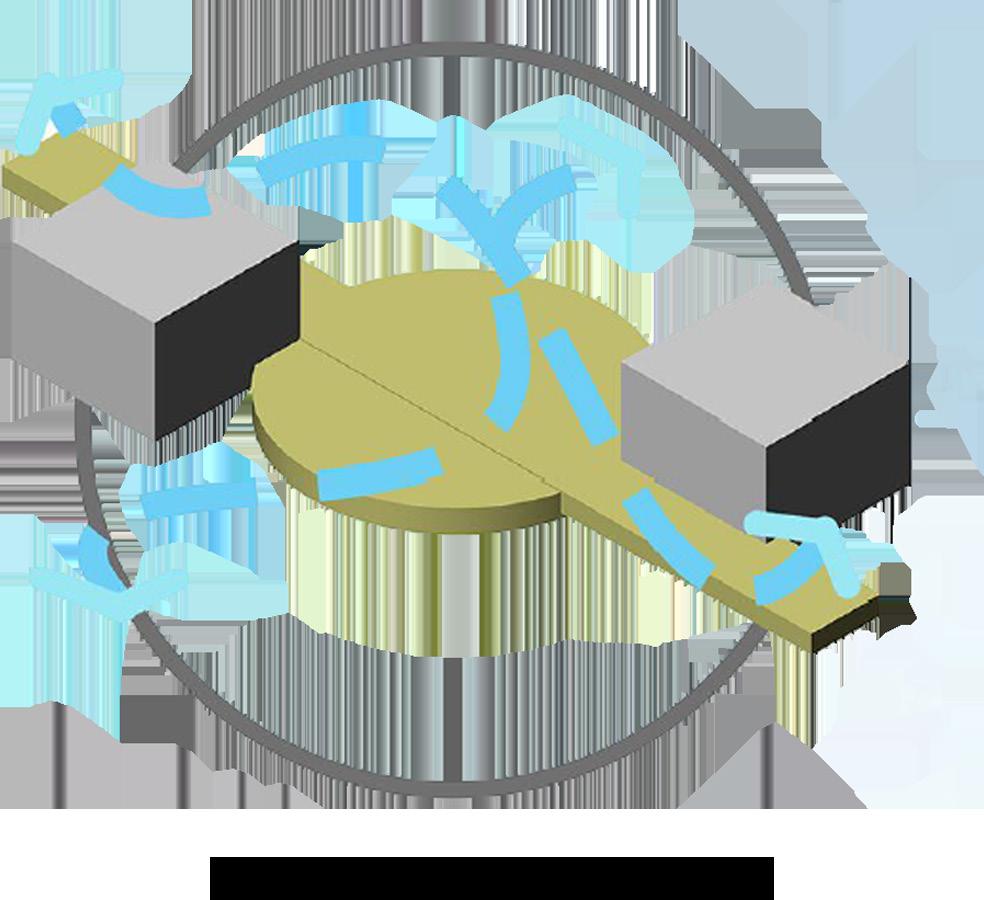

sun orientation site boundary the site boundary is elongated towards east and west. the building is tilted to face more towards south and north to reduce heat gain. wind direction the core at the centre is open to let the wind flow towards courtyard. zoning the frontage of the building is more focusing on public spaces and hidden services at the back.
SYNTHESIS
SITE

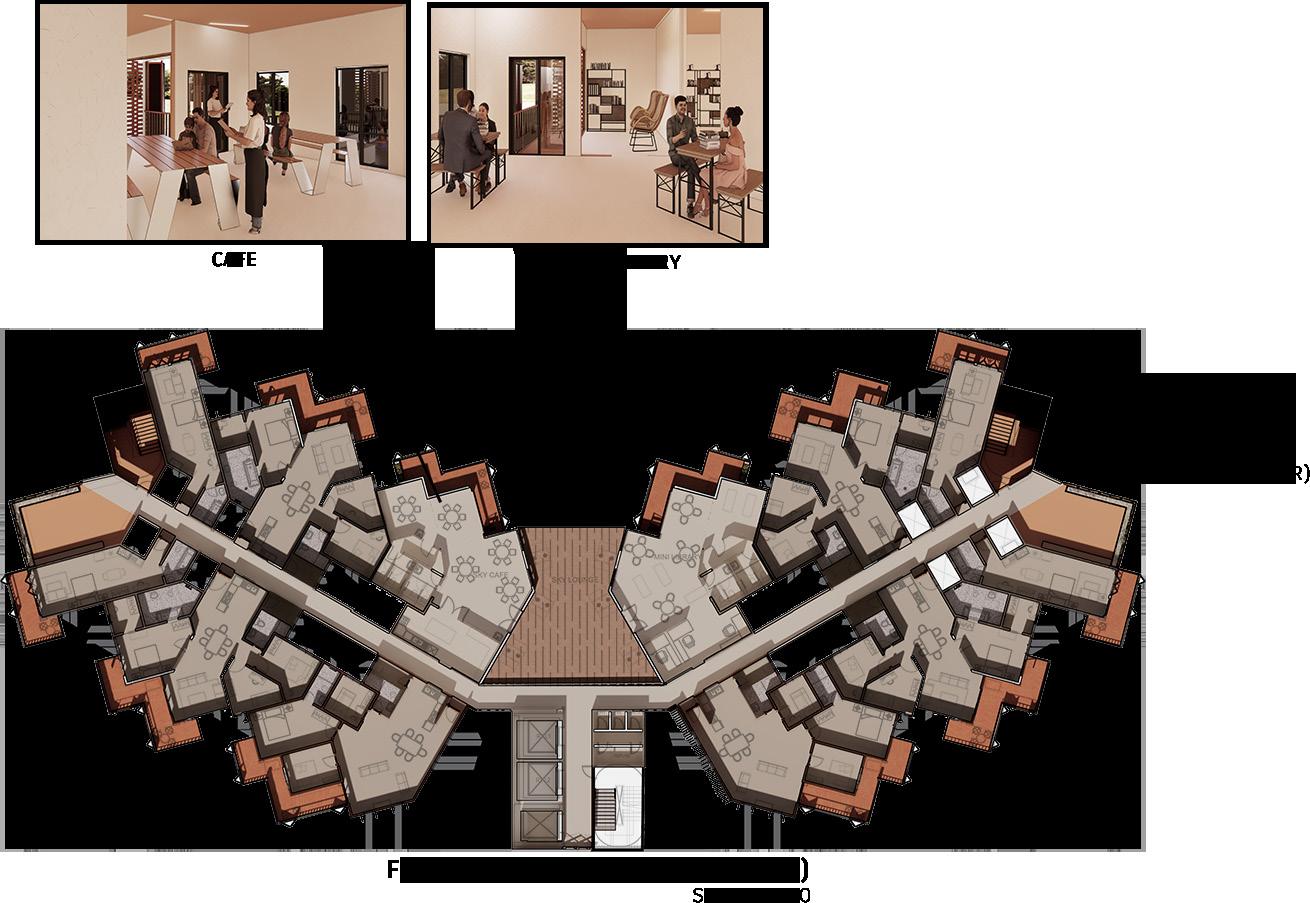

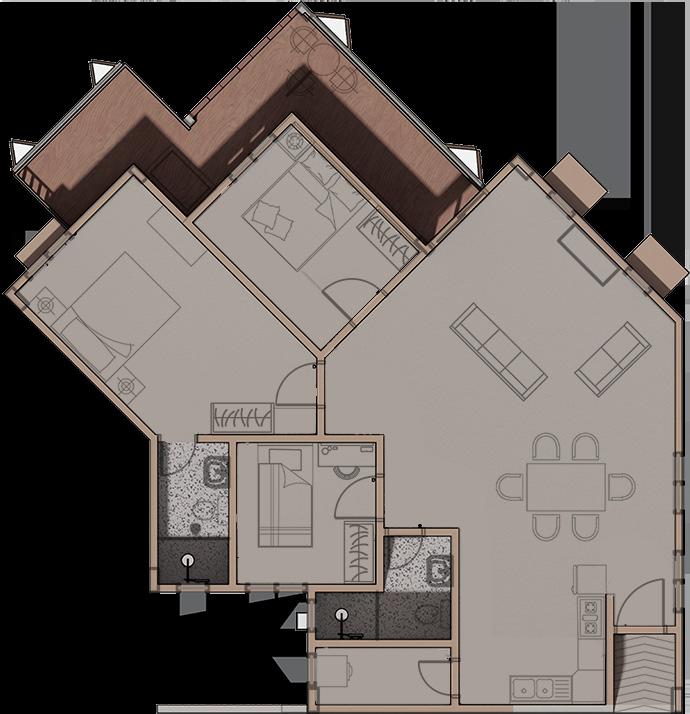

TYPE A

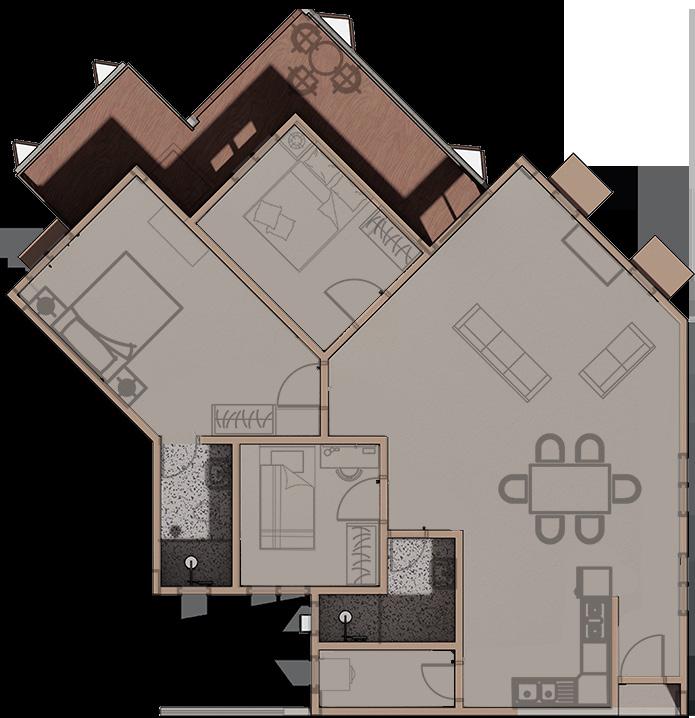

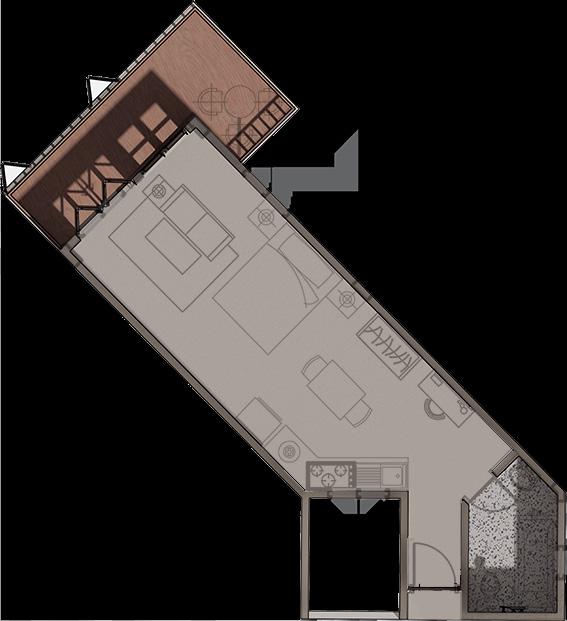

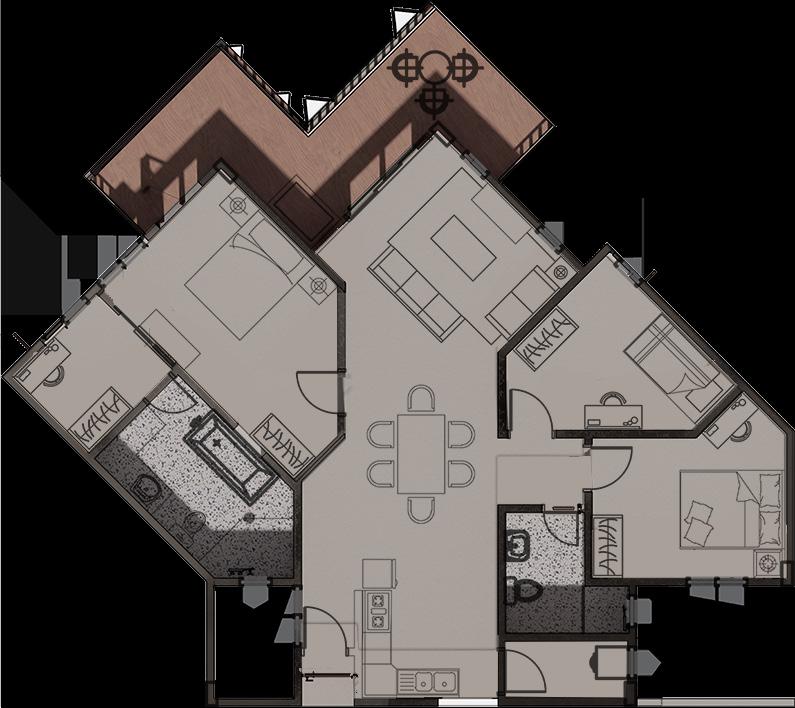

TYPE B STUDIO
TYPE B (OKU)

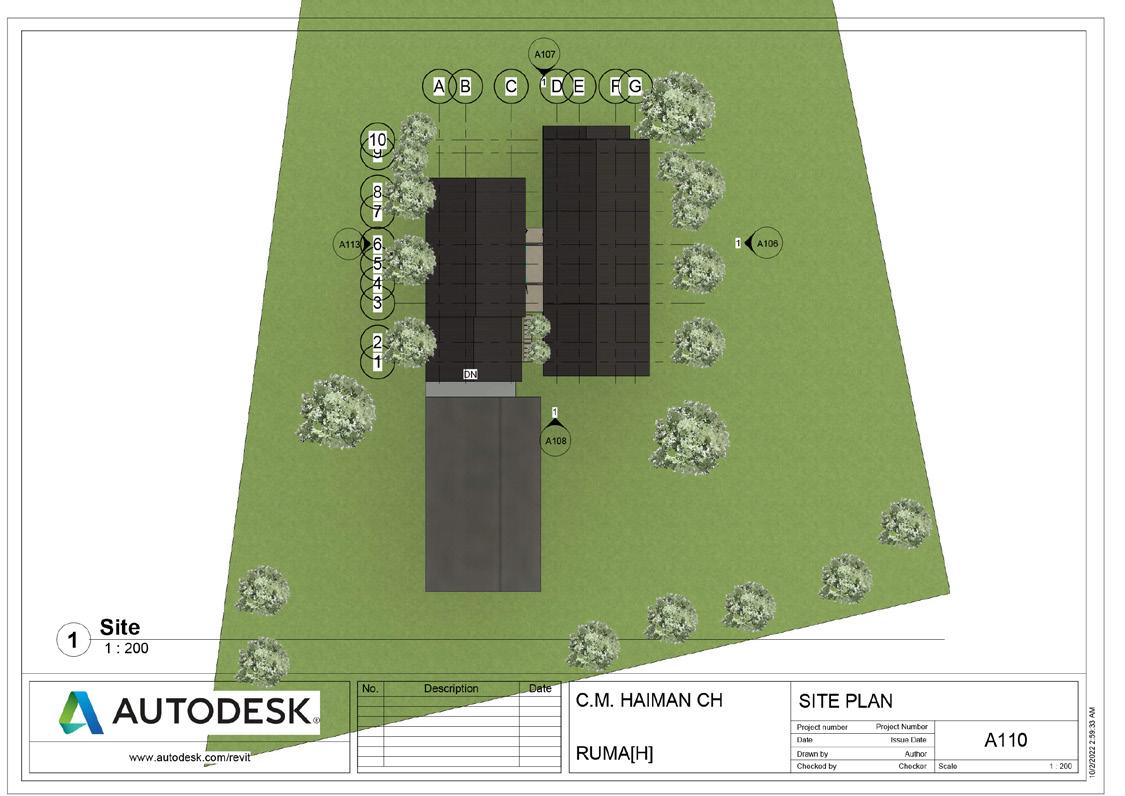

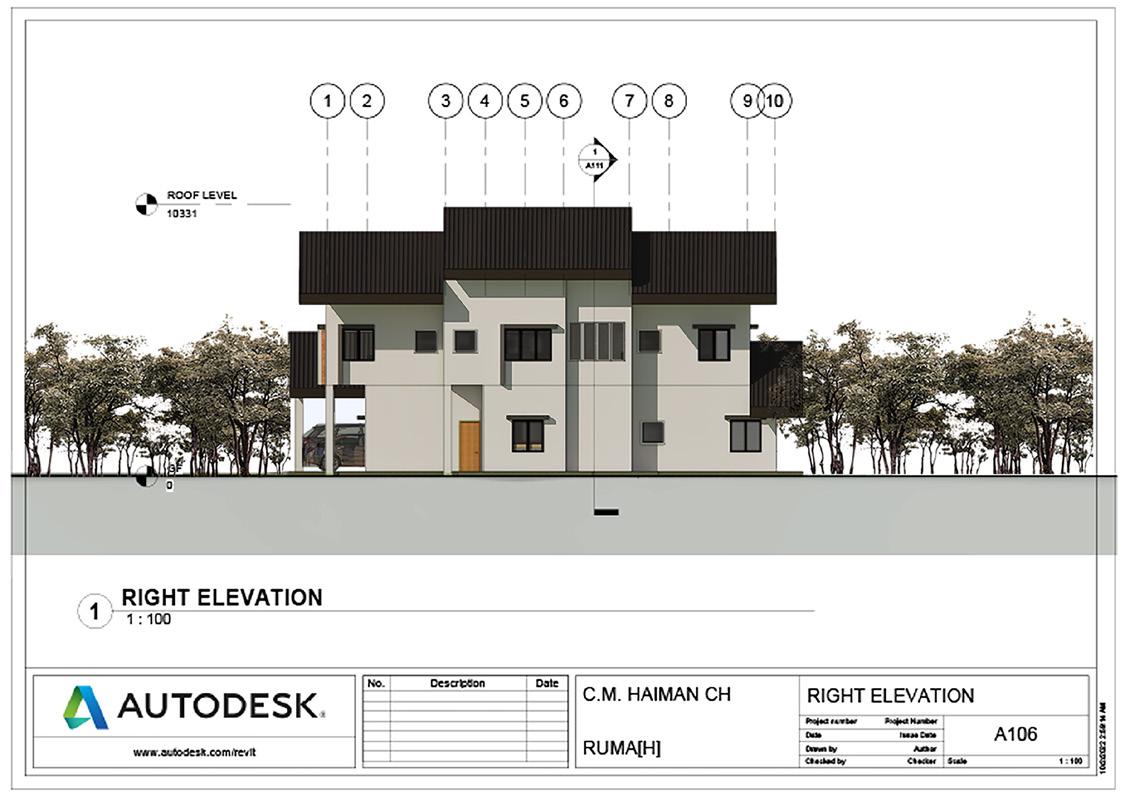

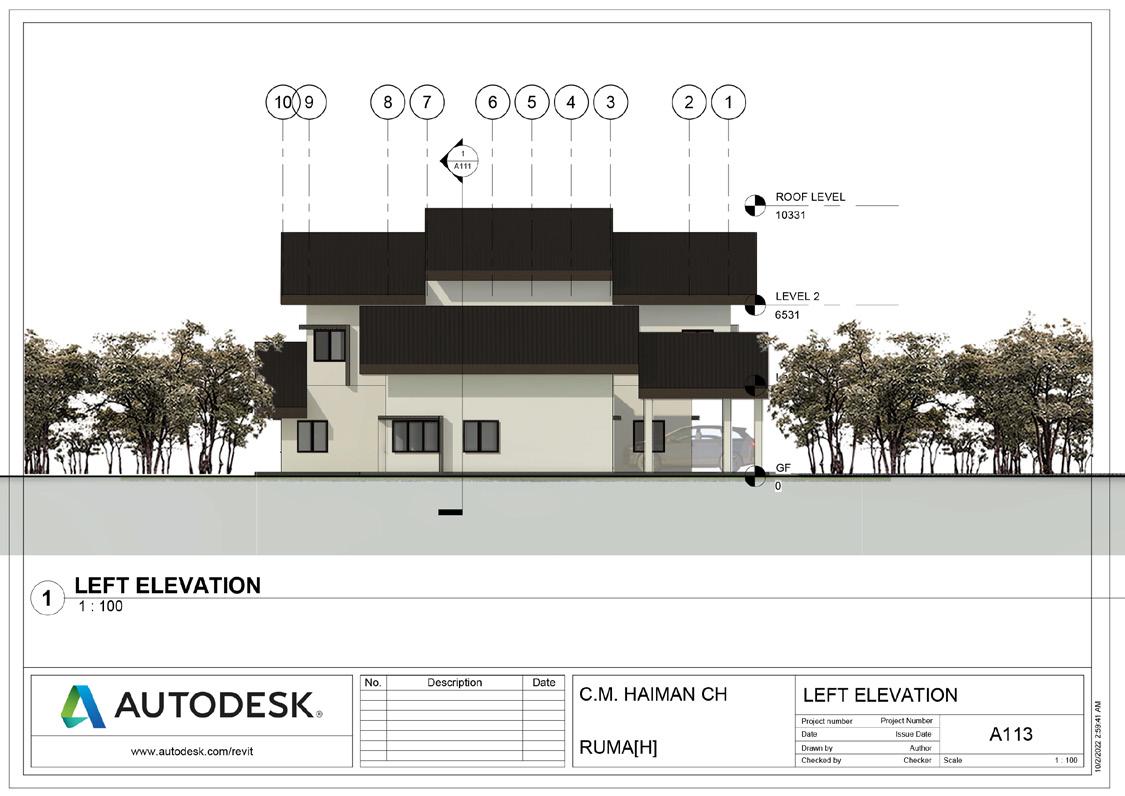

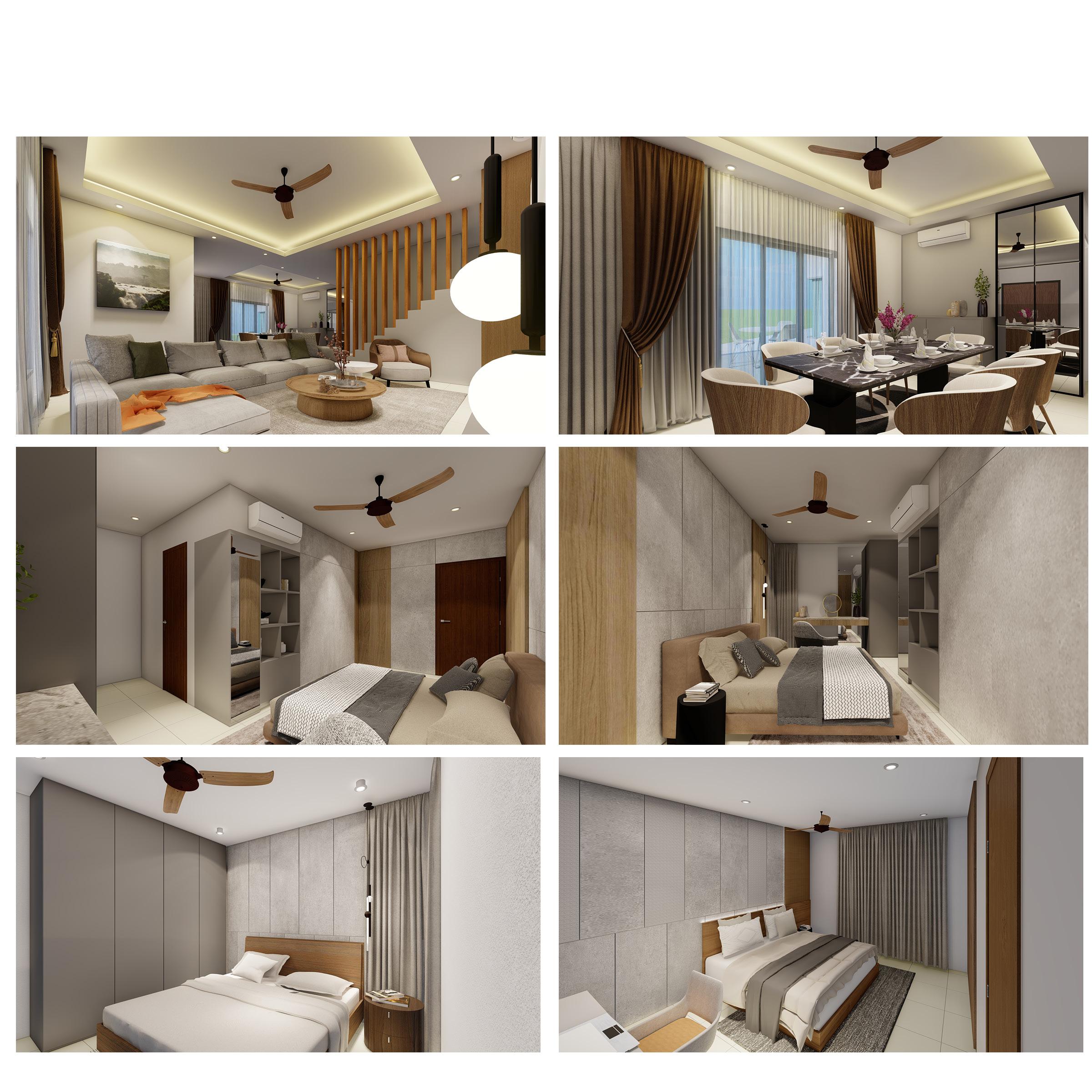

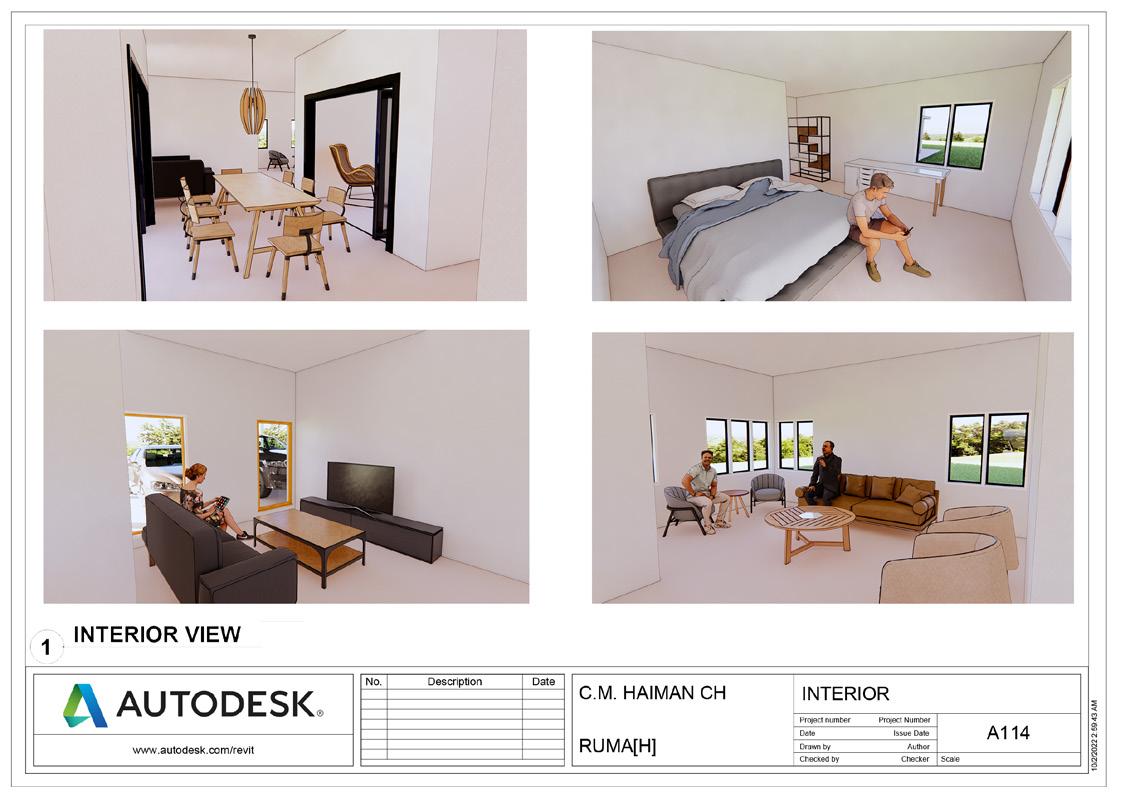

REVIT
Scale Checked by Drawn by Date Project number www.autodesk.com/revit 10/2/2022 2:58:50 AM 3D Project Number RUMA[H] C.M. HAIMAN CH Issue Date Author Checker A102 No.DescriptionDate 1 1 3D 2022-02-10-00-09-19 (Enscape) 1
GRAPHIC DESIGN FOR MALAYSIA FIFA ESPORT TEAM.

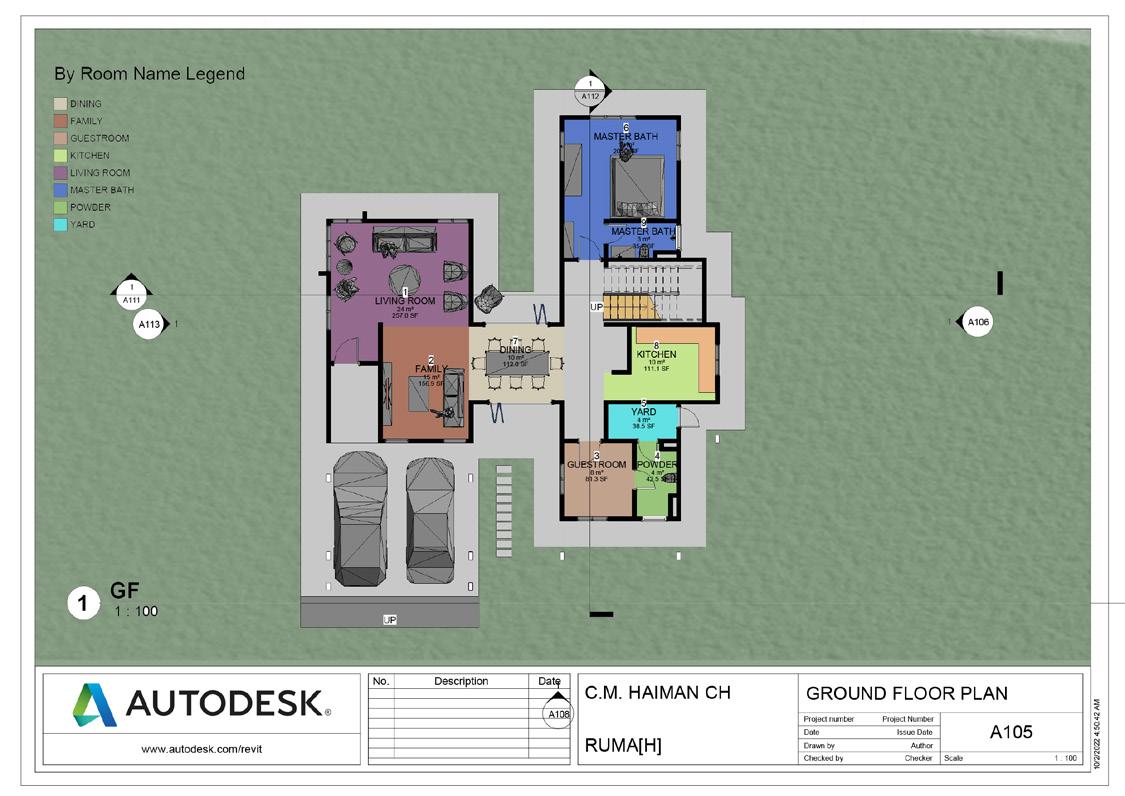

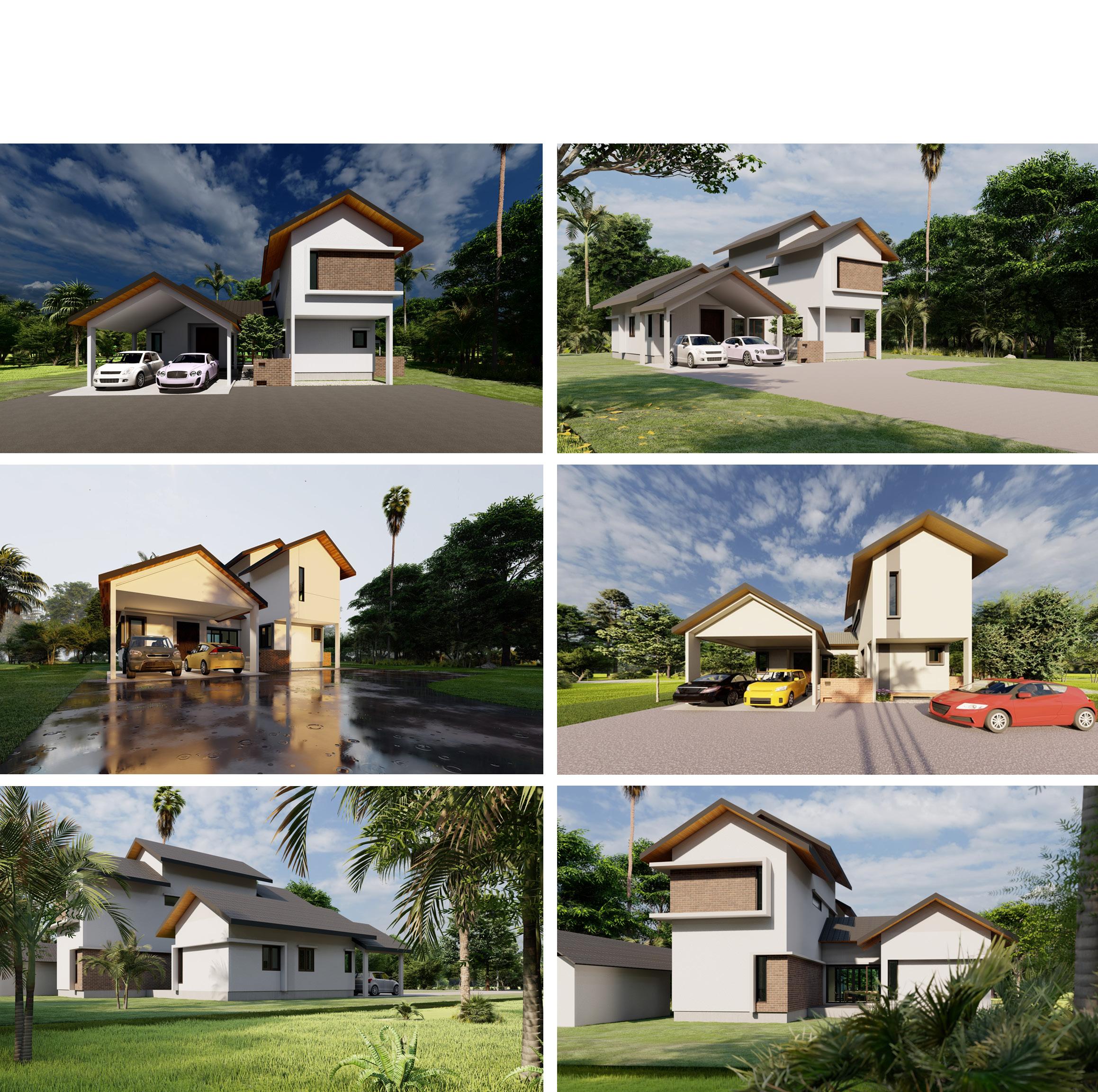

INITIAL IDEAS OF RUMA[H]
E D C B A 5 6 7 9 F 4 1 2 3 G 8 10 E D C B A 5 6 7 9 F 4 1 2 3 G 8 10
RUMAH BANGLO 2 TINGKAT - PELAN TINGKAT BAWAH
E D C B A F G E D C F G
RUMAH BANGLO 2 TINGKAT - PELAN TINGKAT SATU

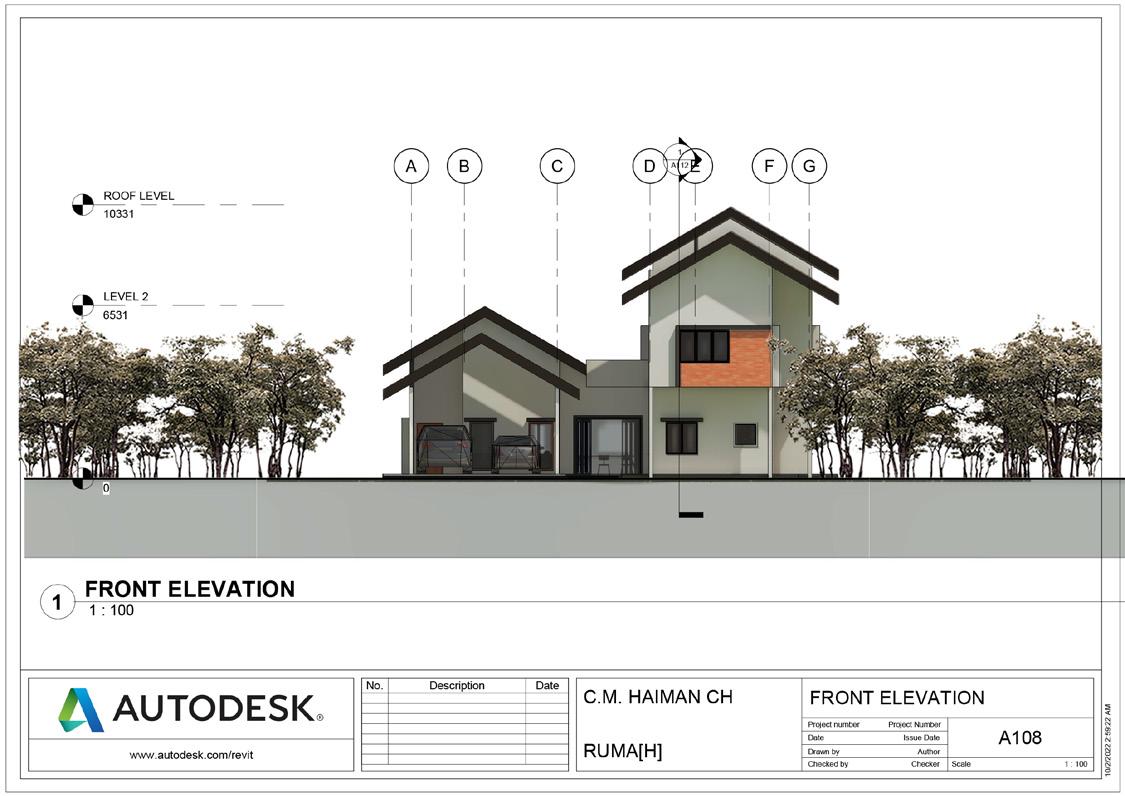

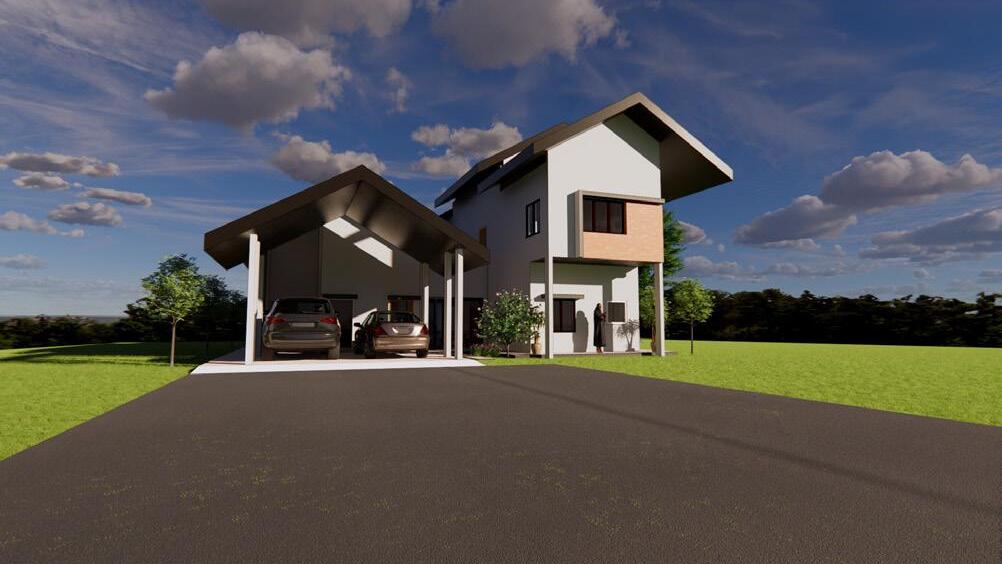

RUMAH BANGLO 2 TINGKAT - PANDANGAN HADAPAN
B A SCALE DATE CAD XREF PROJECT NO. CADANGAN RUMAH CONSTRUCTION DRAWING PELAN .PELAN PANDANGAN PANDANGAN

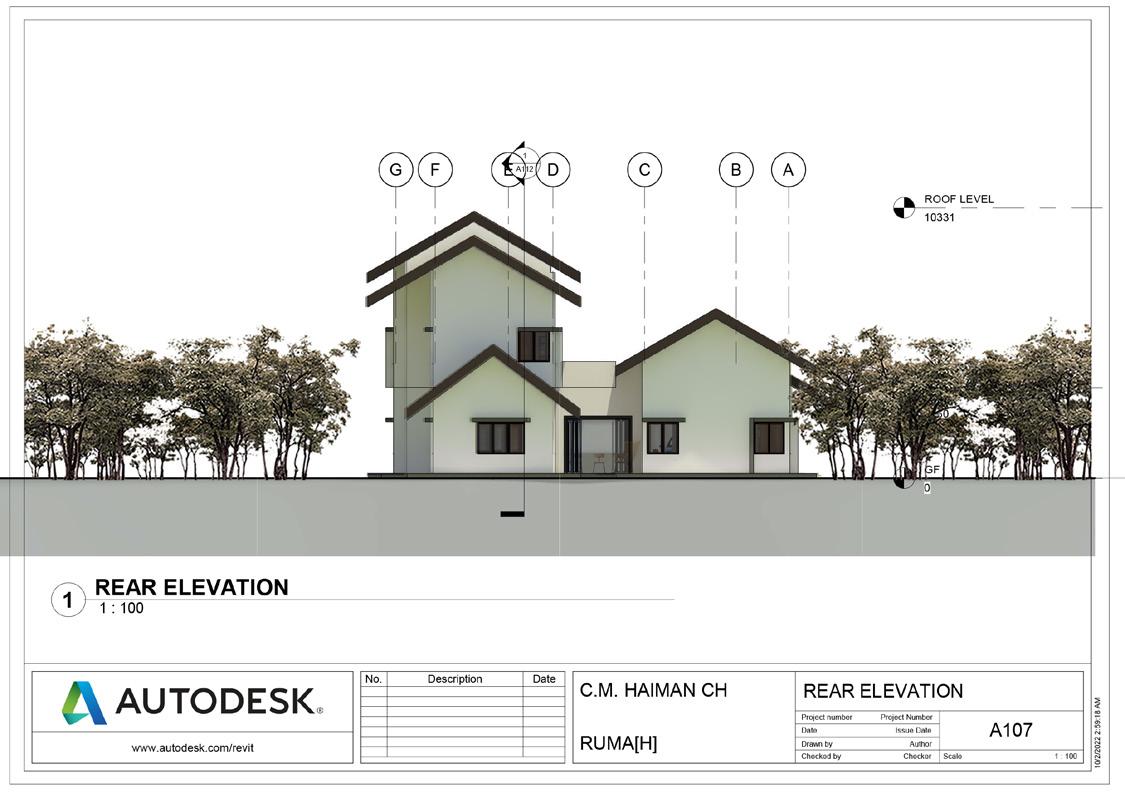

RUMAH BANGLO 2 TINGKAT - PANDANGAN BELAKANG
