Clark Rubber Commercial Guide June 2023

Commercial Product Guide

Safety, Protection and Accessories for your business

We will endeavour to have products featured in this catalogue available for purchase. Where this is not possible, in most cases we will be ale to offer alternative options. Clark Rubber are also able to supply made to order custom products when required. If you require a variation to a product featured in this catalogue please contact Clark Rubber for assistance.

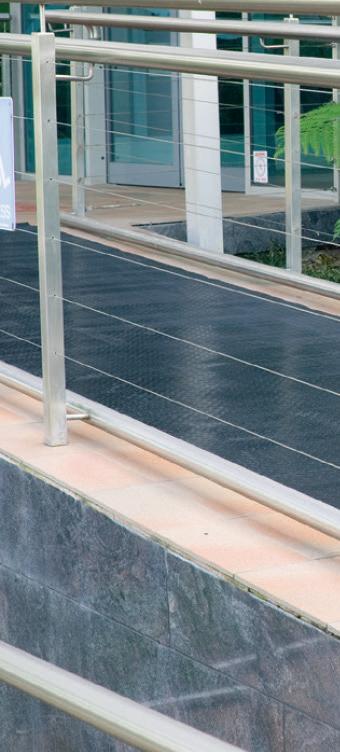

SAFETY MATTING

Floor coverings in commercial premises are of vital importance, as they need to provide staff, workers, clients and members of the public with clean, secure and safe areas in which to work and walk. This section contains high-quality, anti-fatigue, non-slip and chemical-resistant flooring solutions with safety in mind

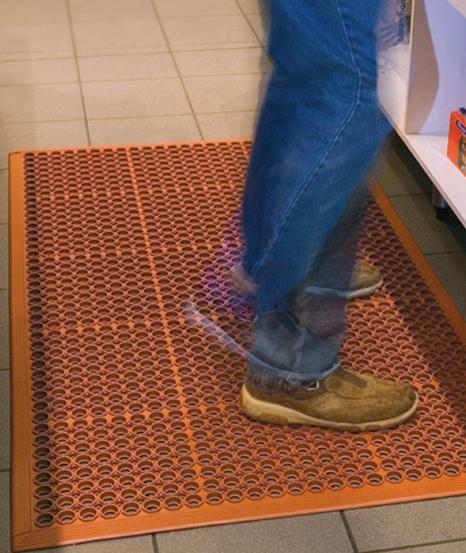

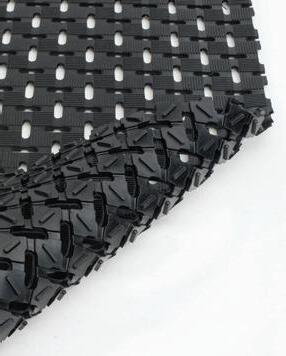

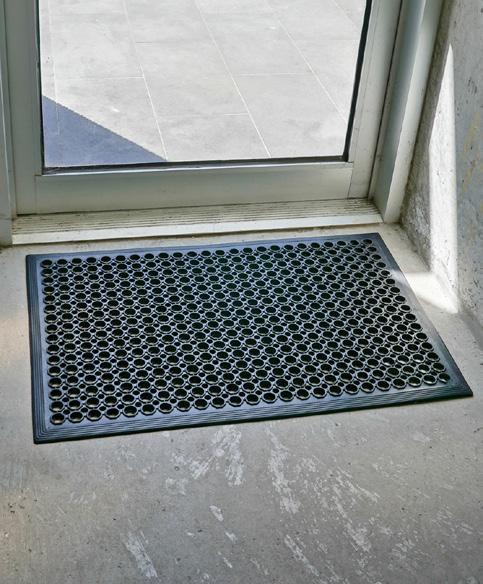

RUBBER SAFETY MATS

Thick and heavy duty, this rubber matting contains holes that allow fluids to drain. A bevelled edge reduces the risk of tripping and the large size is suitable for a work station or warehouse entry.

Sizes include: Available in various sizes and also available cut to length.

CHEMICAL-RESISTANT MATS

Being made from nitrile rubber makes this matting resistant to petrol and oil. It’s well suited to workshops and commercial kitchens where liquids are for fluid dispersion, reducing micro organism growth. Available in terracotta.

• 1520 x 910mm x 13mm

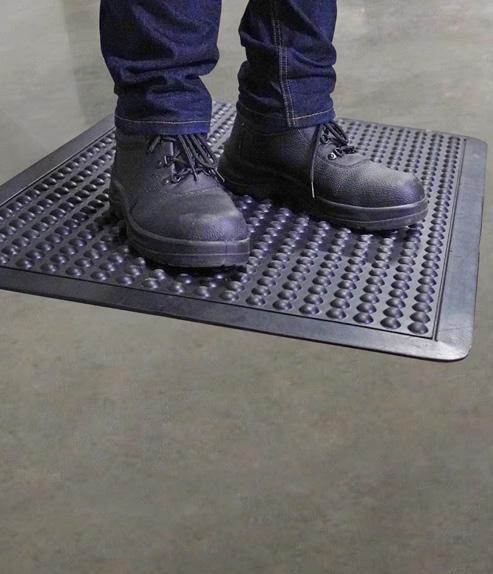

ANTI-FATIGUE MATS

Anti-fatigue mats are manufactured to absorb impact and rebound,reducing leg pressures and strains. They also provide a non-slip surface and ramp edging for added safety and reducing tripping. Available in a range of interlocking mats with ends and centre pieces plus standard mats with bevelled edges.

Sizes include:

• 900 x 600mm

(not available in interlocking)

• 1200 x 900mm

VYNALITE & HERONAIR MATTING

Australian made chemical resistant PVC matting and has excellent cushioning properties. Available in two options: Vynalite is a lightweight multi purpose matting that provides relief from standing on cold floor. Heronair is manufactured from extremely strong and durable, hard wearing PVC. For both models minimum quantities may apply.

Available widths:

• 600mm • 750mm

• 910mm • 1220mm

• 500mm

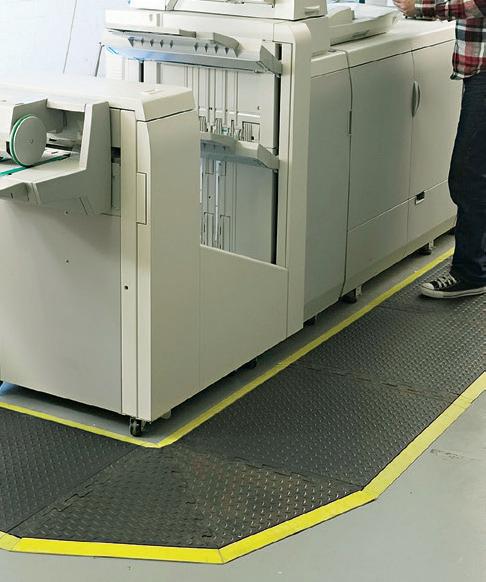

SAFETY BORDER MATS

MATTING & FLOORING

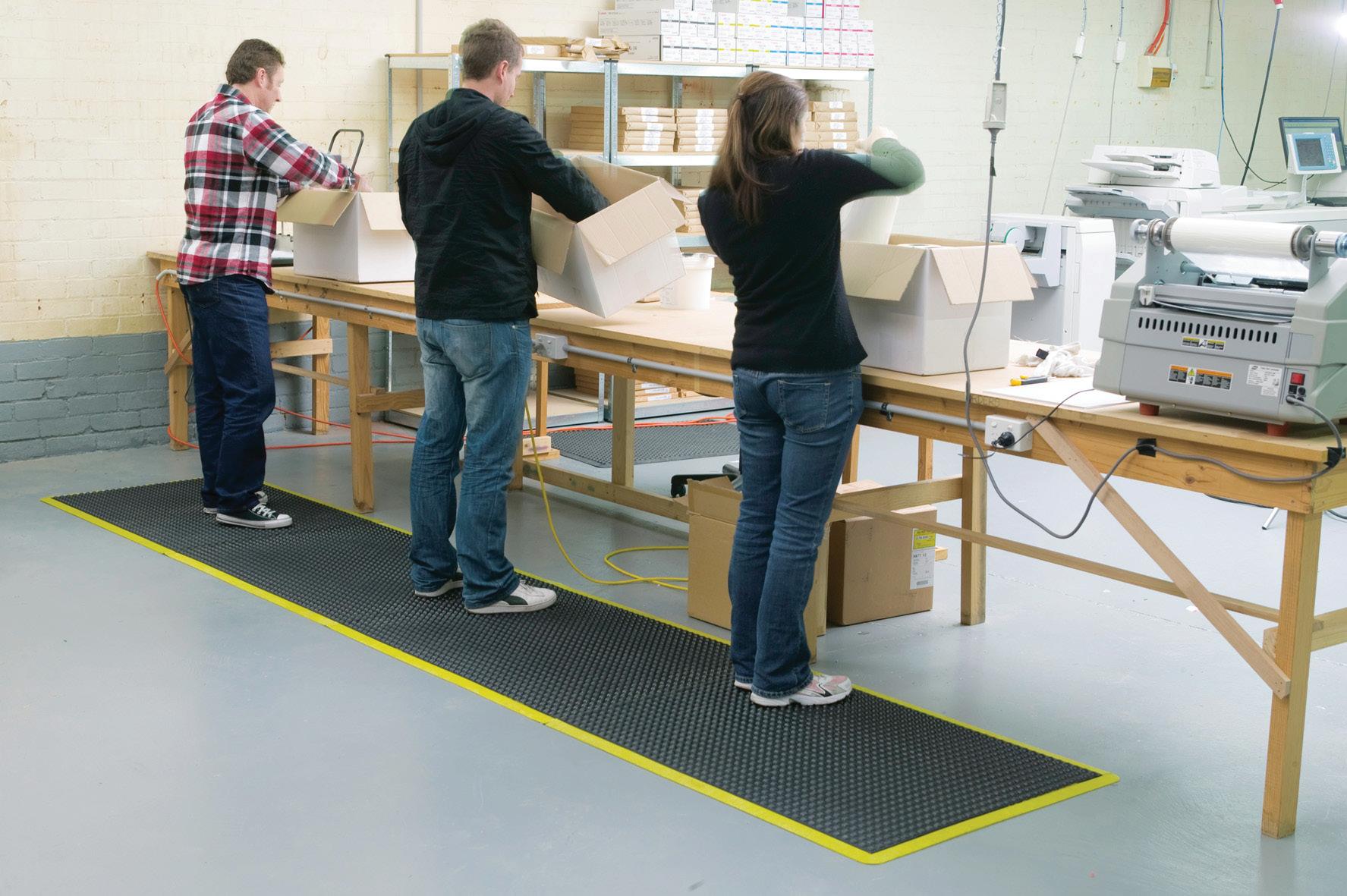

These safety mats are available as interlocking pieces in either black or black with a yellow bevelled edge. The interlocking nature assists in providing a firm fit for any workplace, while still providing high visibility for enhanced safety. Pieces available in the below sizing:

• 790 x 710mm (end / centre / single)

• 710 x 540mm (corner

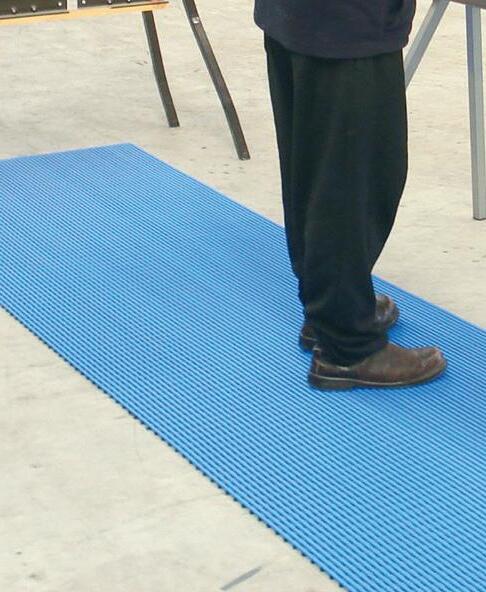

WET AREA MATTING

This soft foam touch material provides a nonslip solution for wet areas such as pools, kitchens, laundries and bathrooms. Itprevents bacterial and fungal growth, and is available in several patterns and colour combinations.

Available by the linear metre:

• 650mm width

ENTRANCE MATTING

Ensure that the entrance of your business or office presents well and provides a clean and neat look. This range will help you deliver a modern and professional look both outside and inside of your premises.

RUBBER BACKED CARPET ENTRY MATS RUBBER ENTRY MATS

Stylish polypropylene surface that is designed to absorb water and scrape the dirt away from your shoes. It has a beveled edge to reduce tripping with a long lasting heavy duty rubber backing. Sizes include:

• 400 x 600mm

• 450 x 750mm

• 600 x 900mm

• 800 x 1200mm

CUSTOM MADE LOGO MATS

Our custom made logo mats service can place most logos, patterns and designs on virtually any size or shape mat. The mats are great for use as a commercial entry mat to effectively remove dust, dirt, moisture and mud and can be manufactured to your specific size requirements. These mats are available in both PVC cushion material for both indoor and outdoor use or tough carpeted indoor areas. The unique inlay technique ensures your logo lasts the life of the mat (no inks or stenciling used).

Long lasting and practical these mats offer both safety and comfort in wet and dry areas. Made from tough and durable natural rubber they are available in a variety of sizes and patterns.

PREMIUM SCRAPER ENTRANCE MAT

Commercial rubber mat suitable for offices and factories. Tapered edges on all sides with raises anti slip ridges, help prevent trips and falls whilst removing dirt from shoes. Ideal for large entrances and areas that connect between offices and warehouses.

Size:

• 1500 x 900mm

TILES

Tiles are versatile temporary flooring that provide flexibility when used in difficult or confined spaces. Because of their size, they’re convenient to transport and install.

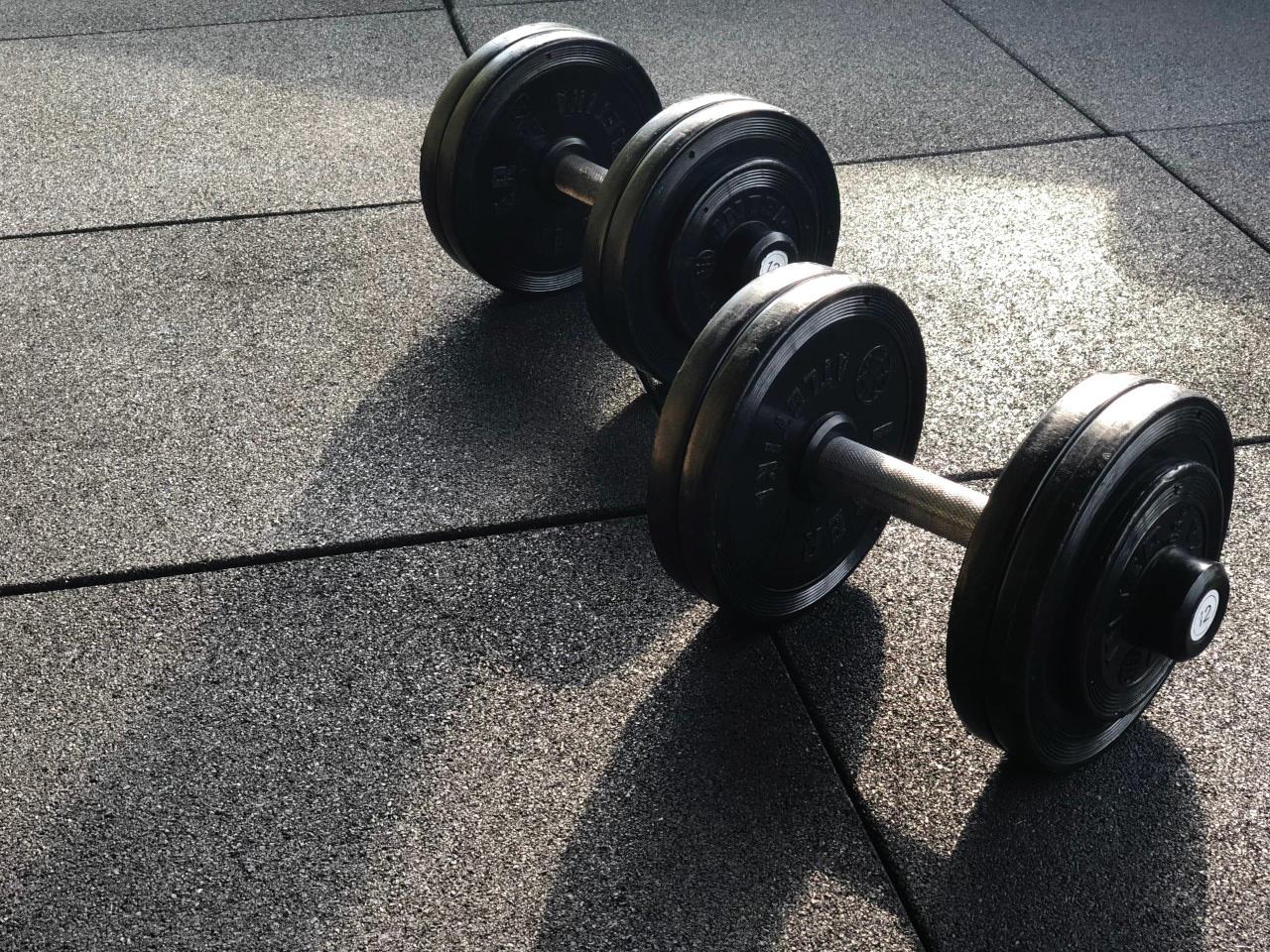

RUBBER TILES INTERLOCKING EVA TILES

Thick and heavy duty, we have different size and thickness rubber tiles for a range of uses. They can be laid over a variety of prepared surfaces including concrete, tar or crushed rock. Available in a range of colours.

Sizes include:

• 500 x 500 x 15mm

• 1000 x 1000 x 15mm

Versatile, heavy duty closed cell foam interlocking tiles are light-weight and flexible. Available in soft, medium and hard. Suitable for a wide range of applications, and impervious to moisture, these tiles are available in a range of colours, are inter-locking and have edges and corners available.

Sizes include:

• 500 x 500 x 10mm

• 600 x 600 x 12mm

• 1000 x 1000 x 20mm

• 1000 x 1000 x 36mm

AUTOMOTIVE MATTING & FLOORING

Maintenance of company fleet vehicles can become time consuming and expensive. With our range of matting options, businesses can protect the interior and exterior of vehicles from dents, scratches, rips, spills and stop loads from sliding around.

ULTIMATE MATTING

Suitable for utes, trailers and trucks and with added anti-fatigue features. It can also be used to assist in manufacturing, warehousing and production environments. The unique design is 20% thicker than standard ute matting, provides improved grip and flexibility and is reversible to suit different environments. It is exclusive to Clark Rubber and backed by a 24 month warranty. Available in linear metre:

• 1810 width x 12mm thick

COMMERCIAL VEHICLE MATTING

Designed to protect the metal floor of vehicles, trailers or horse floats, our commercial vehicle matting is available in linear metre. Includes a variety of finishes including chequer plate, studded, big or fine rib, combination rib, and pyramid. Rolls are available in a wide variety of widths and thicknesses

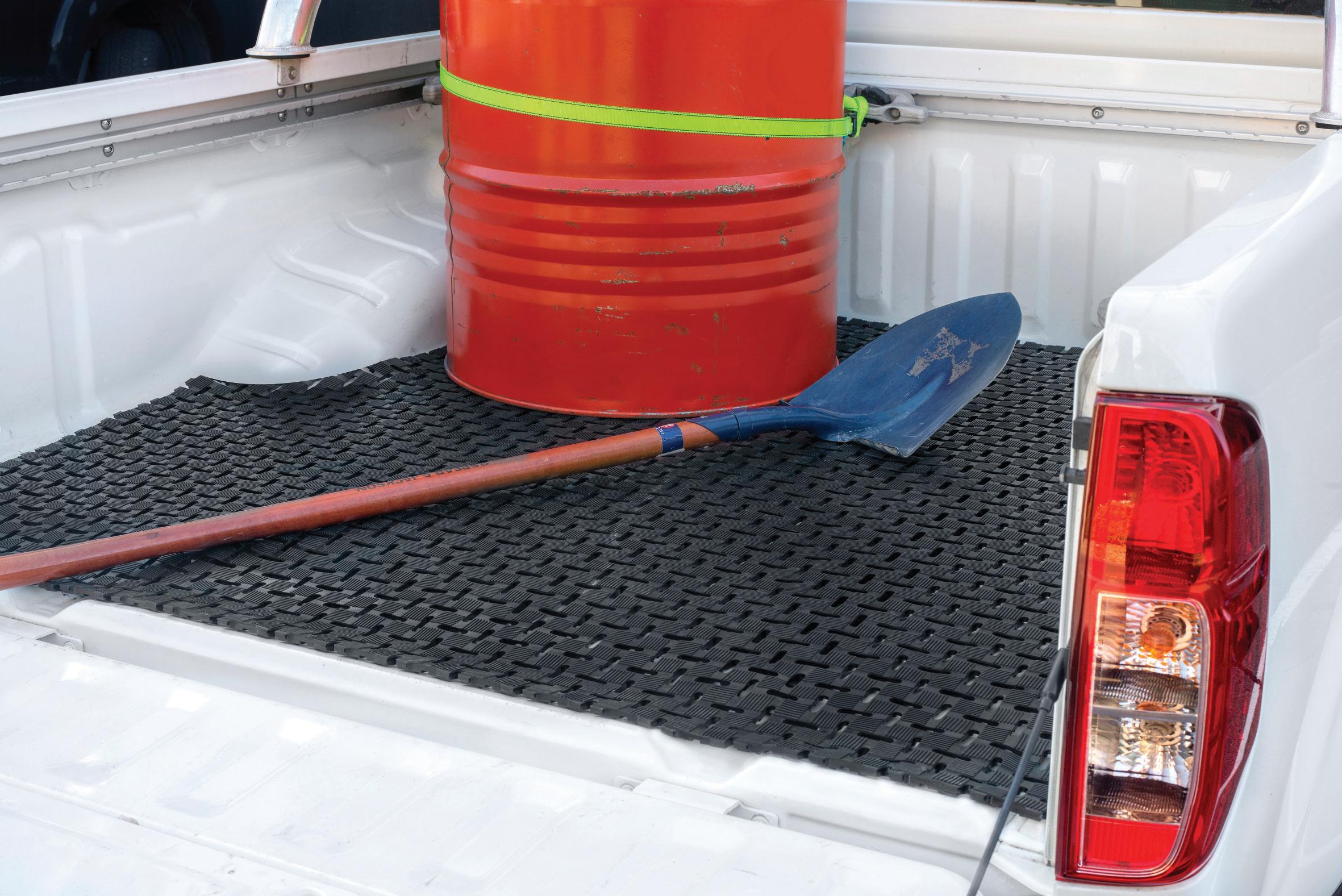

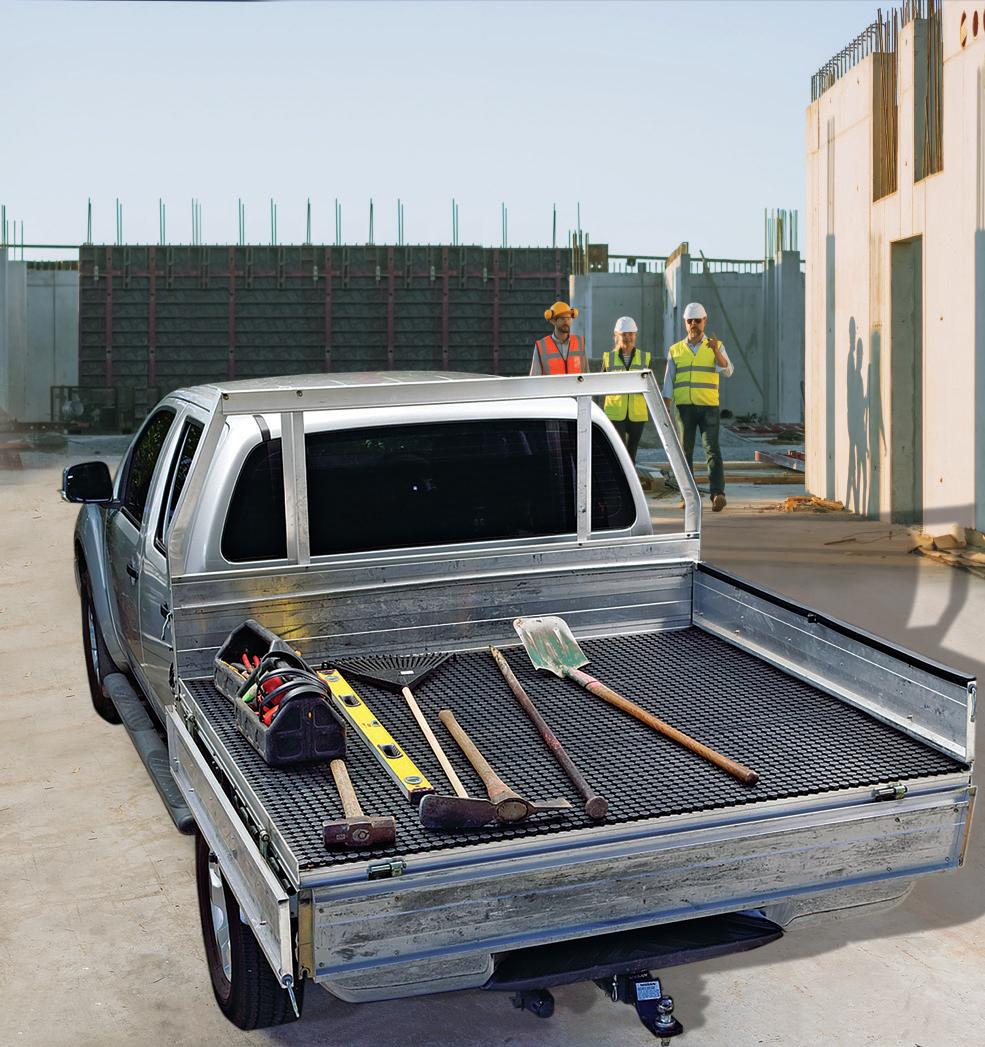

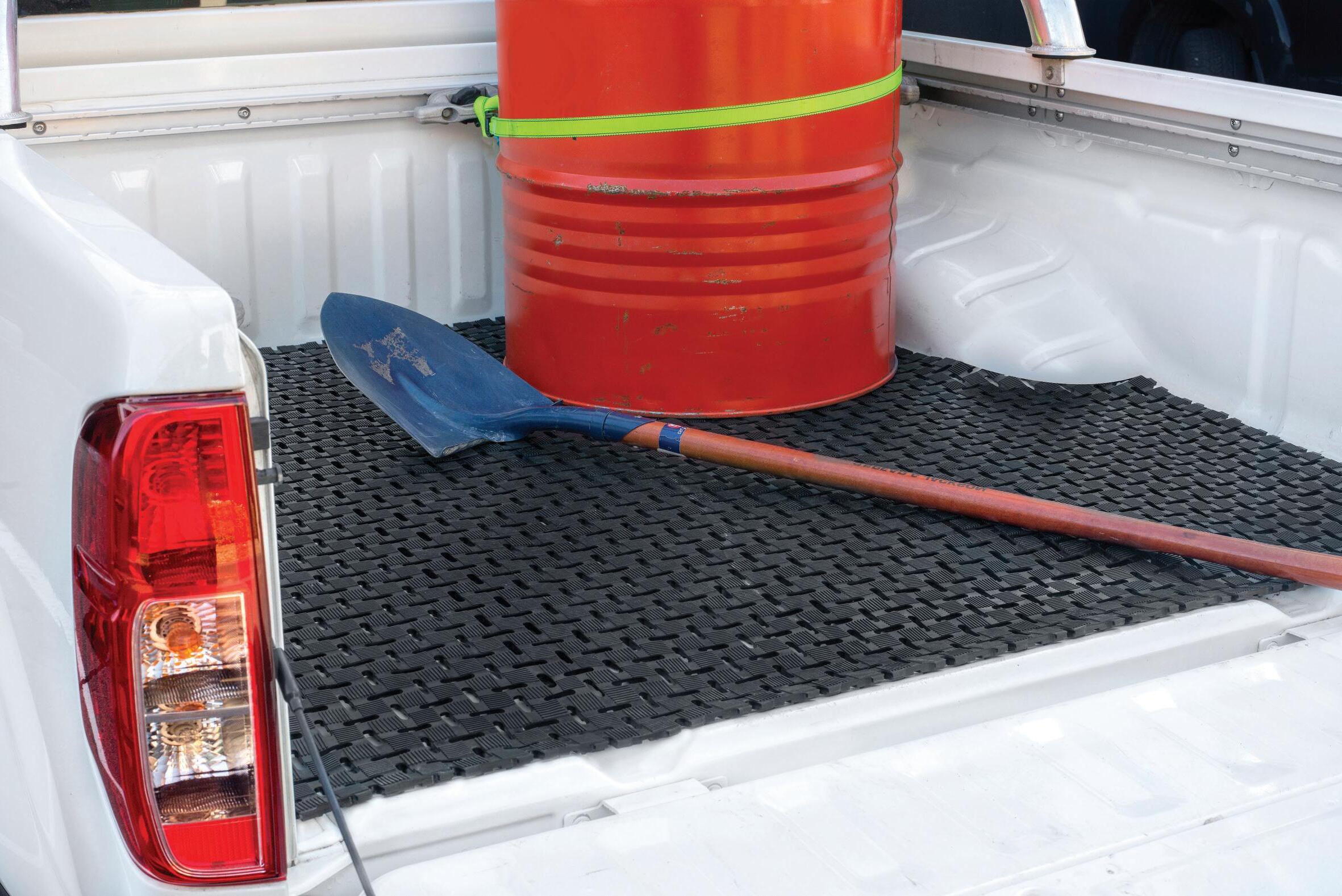

UTE MATTING

Superior in quality and durability, the ute matting has a raised dimple backing for a non-slip surface and is ideal for utes, trays and vans. Available in linear metre, with widths:

• 1830mm width x 10mm thick

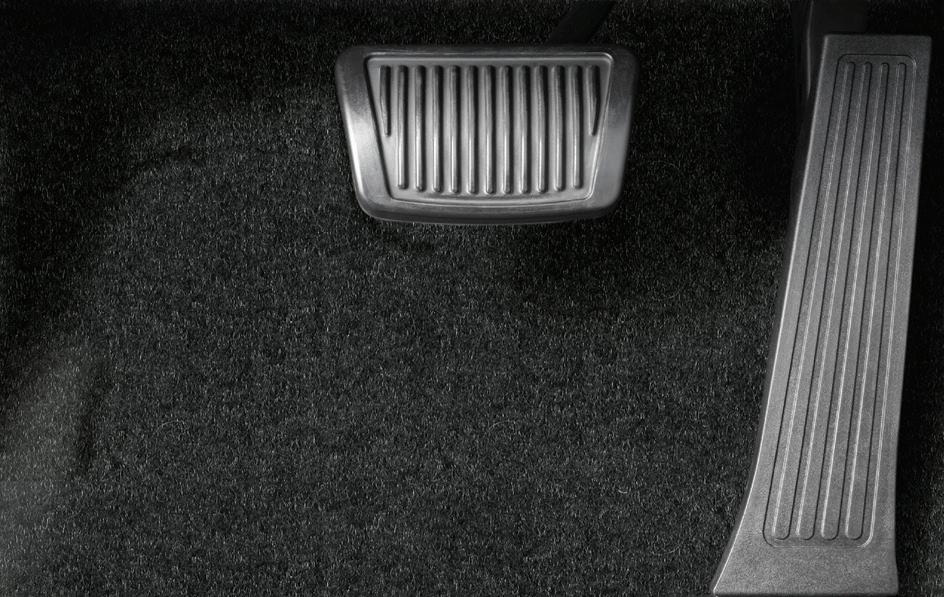

RUBBER BOOT MATS AND CAR MATS

Boot and car mats are useful for protecting carpet and flooring in any vehicle including 4WDs and trucks. The light-weight universal boot mat is easily cut to shape to accommodate curves and contains a stippled back for added grip. Car mats are available in a range of sizes, including mats suitable for the rear seat.

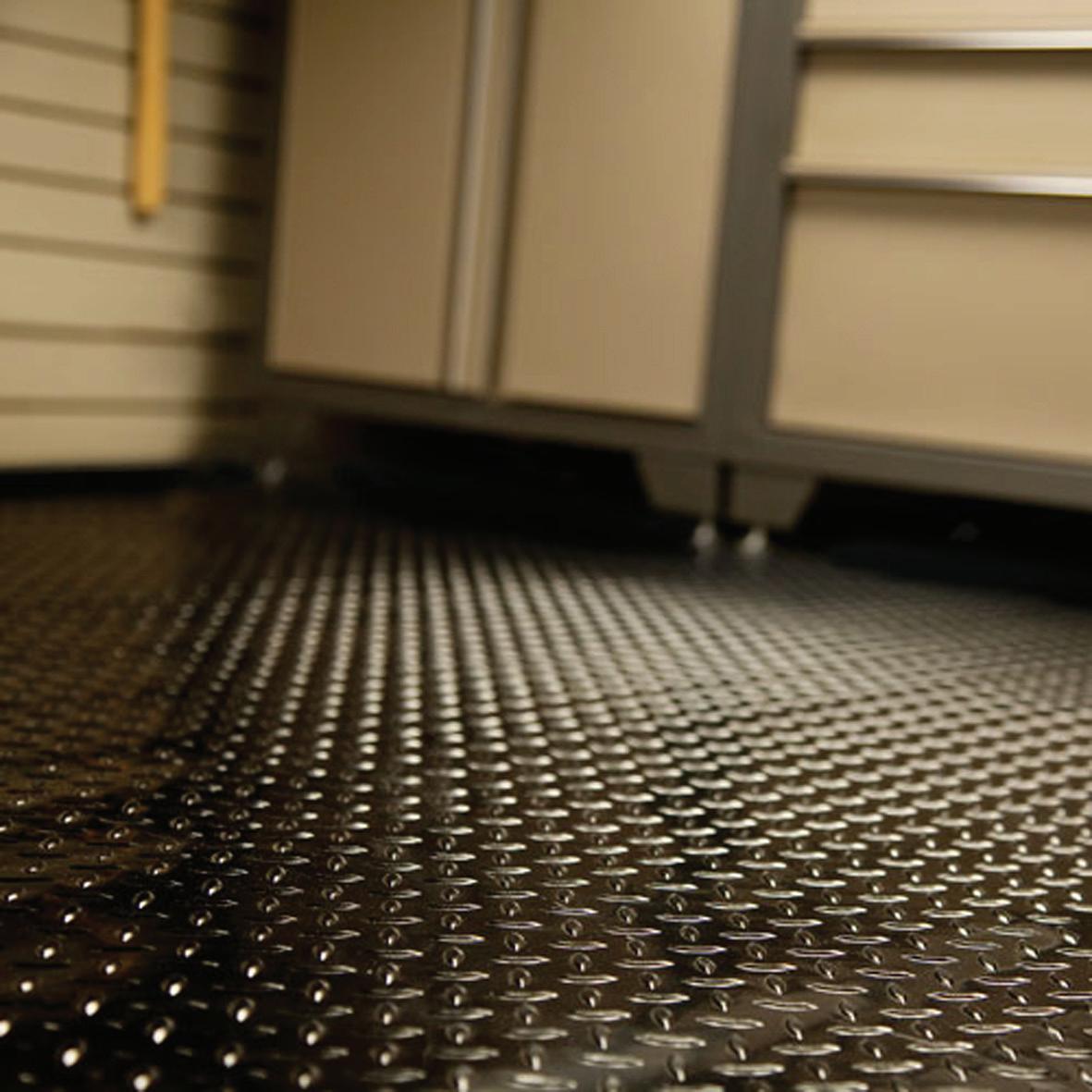

GARAGE FLOORING

This product is ideal to use as garage and workshop flooring as it will cover all imperfections such as cracks, breaks and stains. The 2000mm wide PVC roll is installed by simply rolling it out and allowing it to conform to your floor without the use of adhesives or glues. It helps prevent concrete damage, is easy to install while reducing noise and cushioning the floor

MATTING & FLOORING

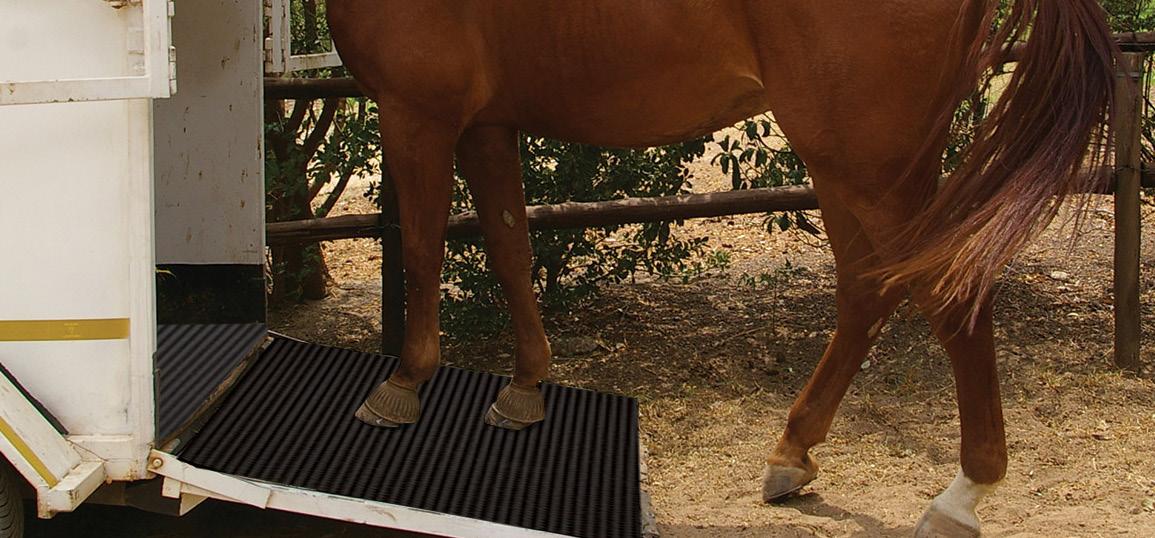

AGRICULTURAL RUBBER MATTING

Durable and impact resistant, this non-slip rubber floor matting is designed for horse floats, transport trucks and stables. The thick rubber mass provides comfort and fatigue-relief for animals either in transport or in stalls.

A range of equine and livestock matting is available in a variety of sizes, including cut to length, thicknesses and designs.

& FLOORING

RUBBER MATTING

Ensure that the entrance of your business or office presents well and provides a clean and neat look. This range will help you deliver a modern and professional look both outside and inside of your premises.

FINISHES AVAILABLE:

FINISHES AVAILABLE:

COMMERCIAL VEHICLES FLOORING COMFORT

DIY WET POUR RECYCLED RUBBER

All of the products on this page are manufactured in Australia from Recycled Australian Tyres. The exporting of used tyres has been banned since December 2021 which means that all used Australian tyres need to be either Re-used, Recycled, Burnt or Disposed of in Landfill. Clark Rubber are committed to increasing the proportion of tyres that are recycled and reducing the proportion that end up in landfill

Recycled Australian Tyre Rubber

19 Colours Available 19 Colours Available*

RUBBER SPECIFICATIONS CHART

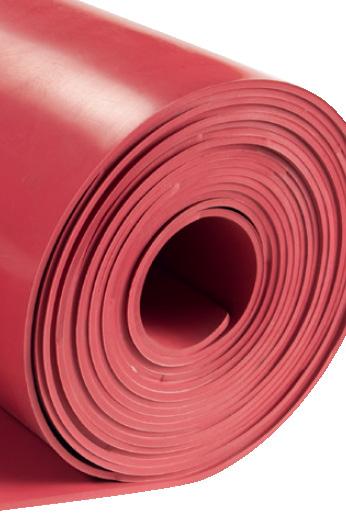

RUBBER STRIPS & SHEETING

RESISTANCE LEGEND

Clarification of acid % and operating temperature required for accurate compound recommendations. Natural Rubber and Neoprene recommendations relate to ‘A’ Grade compounds.

STANDARD RUBBER

Natural rubber, natural insertion rubber and neoprene rubber are all standard types for Clark Rubber, with most sizes featured below available in our stores.

NATURAL RUBBER

Contains good physical properties, some abrasion resistance and low temperature flexibility. Poor resistance to petroleum based fluids.

Available for purchase by the metre or 10m roll, sizes include:

NATURAL INSERTION RUBBER

Contains good physical properties, some abrasion resistance and low temperature flexibility. Poor resistance to petroleum based fluids. Manufactured with cotton or nylon reinforcement, to improve tear resistance and tensile strength. These can be 1ply or 2ply.

Available for purchase by the metre or 10m roll, sizes include:

NEOPRENE RUBBER

Neoprene or polychloroprene is a synthetic rubber that contains physical properties closely resembling those of Natural Rubber. Has better weathering resistance than Natural Rubber and moderate resistance to petroleum based fluids.

Available for purchase by the metre or 10m roll, sizes include:

SPECIALISED RUBBER

Available in store or made to order, Clark Rubber have an extensive range of specialised rubber including nitrile rubber, EPDM, Chutex and more. Available in a variety of thicknesses.

NITRILE RUBBER

Nitrile rubber or Buna N is a synthetic rubber that has excellent resistance to petroleum based fluids. Nitrile can handle higher temperatures than Natural Rubbers but has poor resistance to ozone.

WHITE HYGIENIC RUBBER

Manufactured from Nitrile, White Hygienic Rubber is designed for use in the food industry and is ideal for applications where animal fat is present. Meets the requirements of FDA Regulation Part 177. Also a good alternative where a non-marking rubber is required.

EPDM

Ethylene Propylene Diene M-Class has excellent ozone, weathering and heat resistance. Ideal in acidic environments, EPDM is able to carry heavy loads and absorbs vibrations. EPDM is flexible and water resistant making it a common material for pond liners. Poor resistance to petroleum based fluids.

CHUTEX

Traditionally used in mining and machinery applications where small particle and slurry abrasion may occur.

PURE GUM RUBBER

A high grade natural rubber, Pure Gum is a soft compound for improved cushioning and stretch. It has excellent tear resistance.

VITON® SILICONE

Viton® provides excellent resistance to a broad range of oils, fuels, lubricants and mineral acids. Excellent temperature resistance up to 200 °C.

Silicone is totally synthetic and provides excellent high temperature and chemical resistance, ozone and weathering resistance and is impervious to UV light. It’s non-toxic,chemically inert and retains it’s flexibility over a wide temperature range. Silicone sheeting is available by order only. Temperature resistant to 200 °C and also meets the requirements of FDA Regulation Part 177.

HYPALON®

Hypalon® is a black fully synthetic polymer and is an excellent ozone, weathering and acid resistant compound. Also has good abrasion resistance and heat resistant qualities.

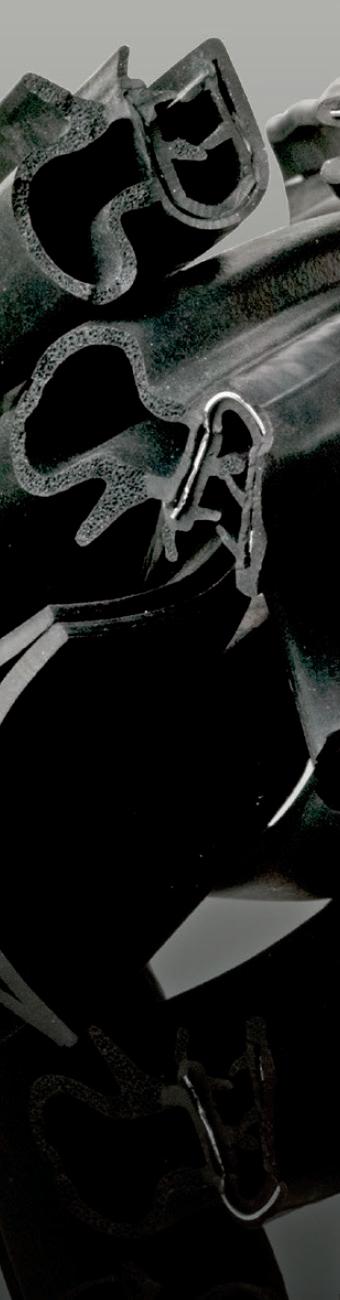

SEALS & MOULDINGS

Our extensive range of seals includes products available for doors, windows, car doors, car boots and hatch doors. We can also supply a wide range of specific or custom made unique profile seals based on customer requirements. Minimum order quantities apply.

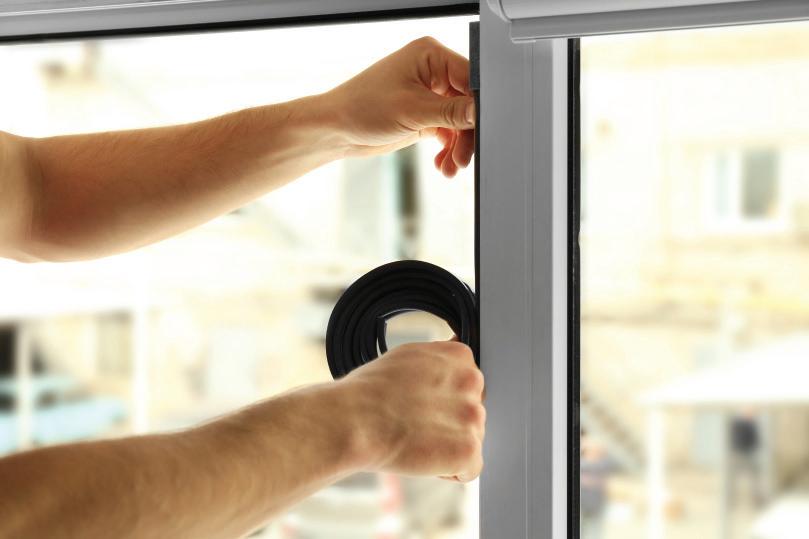

WEATHER STRIPS

Seal and protect using weather strips. Our extensive range includes ‘t’ profiles, ‘p’ profiles and ‘u’ profiles. The examples below provide a selection of available profiles. Additional customer specific profiles can be manufactured based on special orders.

‘U’ SECTION RUBBERS

Made from EPDM rubber to provide excellent heat and shock absorption properties as well as resistance to harsh weather. Available in a variety of sizes, round, square and rectangle profiles; black in colour. Additional customer specific sizes can be manufactured based on special orders. Minimum order quantities apply.

SEALS

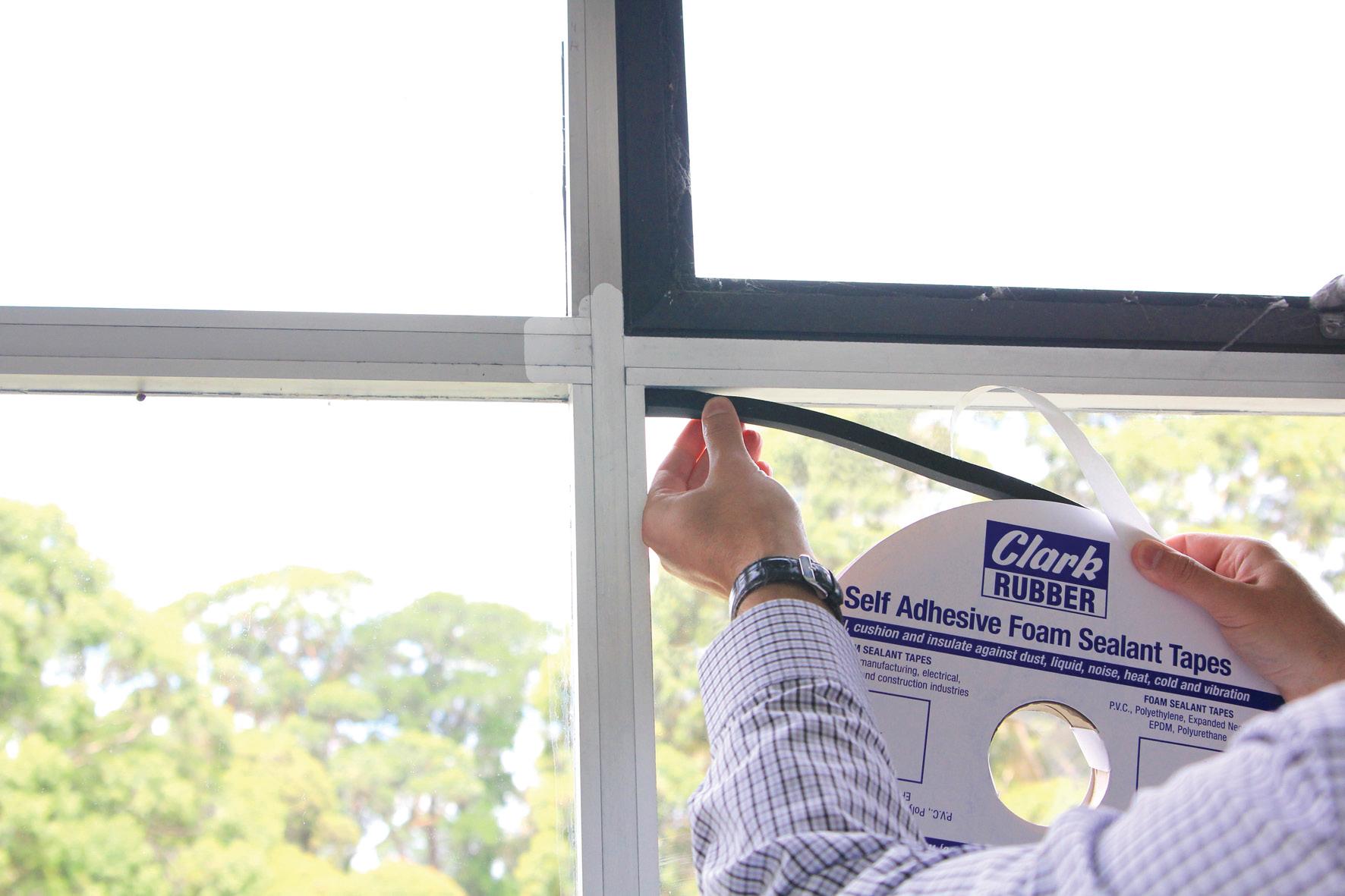

FOAM TAPES

Single sided adhesive foam sealing tape is suited for weather seals on doors, windows, cars or boats. It is an effective barrier for sound, rain, dust, odours, insects and light, in addition to preventing warm / cool air loss. Material types include:

POLYETHYLENE (PE)

General purpose foam tape for sealing, vibration and closure applications. Contains water resistant properties but has poor resistance to ozone.

EPDM SPONGE (414)

Black closed cell foam/rubber tape, with good general purpose weather, dust and light sealing properties. Requiring only a light compression to seal, EPDM has excellent resistance to ozone.

NEOPRENE SPONGE (242)

Black closed cell foam/rubber tape for higher demand applications. Much firmer than EPDM, it has very good pressure, vacuum and watertight sealing properties and very good ozone resistance.

POLYURETHANE (PU)

Open cell, low compression, light and dust sealant typically used for draught exclusion. Absorbs water and has poor ozone resistance.

PINCHWELDS

Round Sponge Profiles

Thickness

A (mm) 3, 4.5, 6, 9.5, 12, 15*, 18*

Widths

B (mm) 12, 15, 18, 24, 36, 48

*Minimum order quantities may apply

The extrusion rubber in pinchwelds has specialised materials inserted to grip onto various sheet products.

PINCHWELDS

Pinchwelds provide an easy, clean and neat finish to exposed metal, fiberglass, glass, plastic and plywood edges without the use of staples or glue. They help in replacing worn, damaged or faded trim on door openings as well as panel edges on cars, tractors and boats. The examples below provide a selection of available profiles. We can supply a wide range of specific or custom made unique profiles based customer requirements. Minimum order quantities apply.

PINCHWELD PLAIN

PINCHWELD WITH SIDE BLISTER

PINCHWELD WITH TOP BLISTER

BAILEY CHANNELS & SEALS

SEALS & MOULDINGS

BAILEY CHANNELS

Bailey channels are designed to prevent car, truck and van windows from rattling or letting in wind noise. They’re made of flocked rubber to ease the ‘up and down’ gliding of windows and can be purchased by the metre.

BAILEY CHANNEL SEALS

GLAZING CHANNEL SEALS

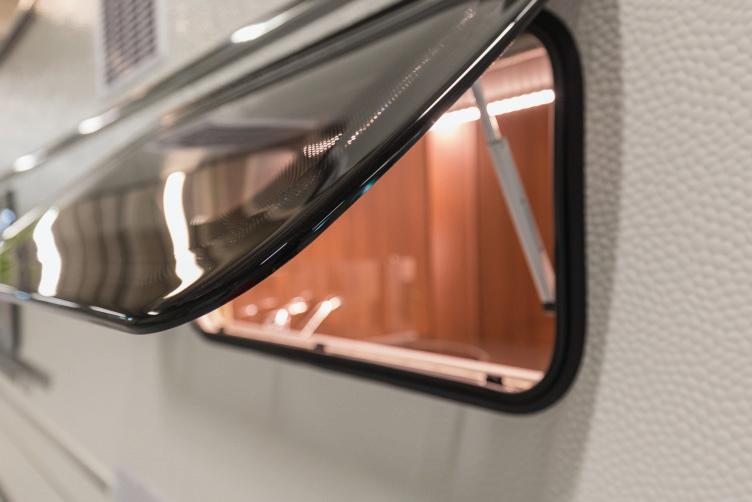

CARAVAN SEALS

AUTOMOTIVE MOULDINGS

Using the most up-to-date technology and materials, Clark Rubber can provide a wide range of quality automotive moulding solutions with sizes and options to suit your vehicles needs, including roof rack protection, roll bar protection, mud flaps, wheel flares and door edge guard protectors

DOCKING RUBBER

Our docking rubber is heavy duty, hard-wearing and longlasting. Small and large sizes are available to protect the rear of trucks when reversing in loading docks.

WHEEL CHOCKS

Heavy duty durable rubber is used in the manufacture of our wheel chocks. Small and large sizes are available to prevent vehicles and caravans from moving while parked.

Heavy duty portable moulded rubber ramp suitable for trucks, cars or hand trolleys. The unit has two recessed mounting holes to help secure the ramp in place.The kerb ramp can provide an easy ride over gutters and other uneven surfaces.

KERB RAMP

FLOOR PROTECTION

Prevent scratches and scrapes on vinyl, wood and tiled floors with simple solutions from our range of chair tips, castor cups, crutch tips and walking stick tips.

CHAIR TIPS

Chair tips can help prevent scratches on floor surfaces as well as reduce noise from scraping chairs.

CAPS

Caps are used to close off metal or plastic pipes and hoses. Each cap has several threads to help grip into the space. Rectangle and oval caps are available in a wide range of sizes; in black or white.

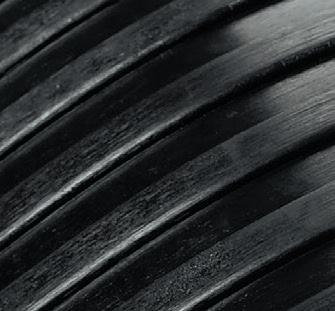

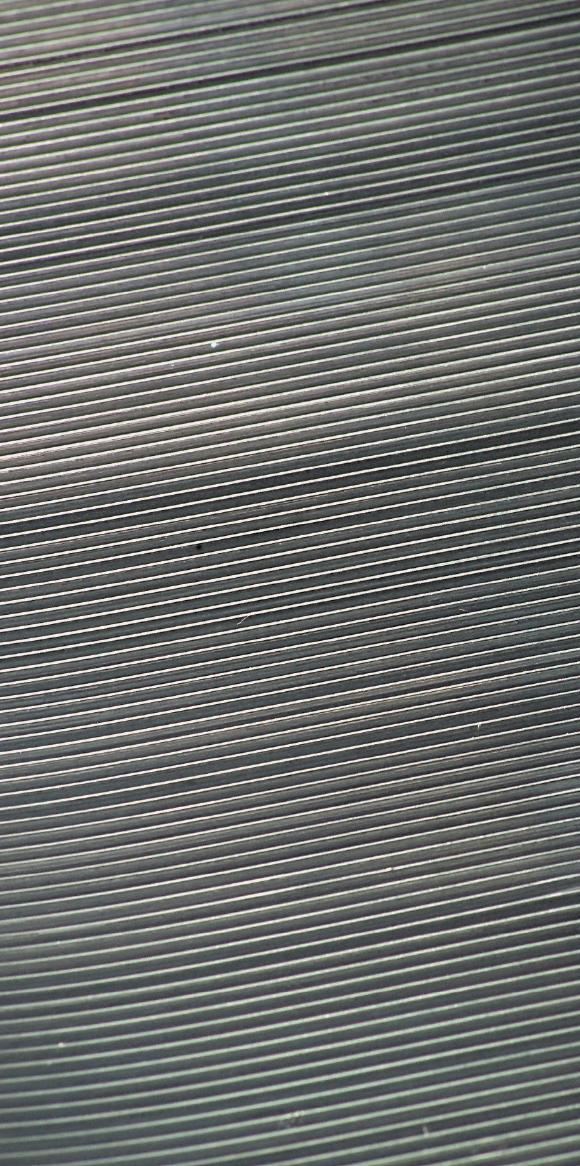

Fine Rib Matting

Sizes (mm) *Black only

Sizes (mm)

6,

Square Rubber - Internal Colour Black or White

Sizes (mm) 13, 16, 19, 22, 25, 32, 38, 50

Note: Measurements for chair tips and end caps are external dimensions of tubing and are made to fit 1.6mm wall thickness (16gauge)

Rectangle Plastic - Internal Colour Black Only

Sizes (mm) 20 x 35, 40, 50

25 x 13, 38, 50, 75, 50 x 20, 25, 30, 32, 75, 100, 150

Other sizes (mm) 35 x 57 65 x 35 60 x 40 80 x 40 64 x 38

Oval sizes (mm) 50 x 16 32 x 18

Square Plastic - Internal Colour Black or White

Sizes (mm)

*Black only

Limit the wheel movement of furniture items on hard floor surfaces or carpet. Castor cups are available in brown, white or black to fit a single castor or double castor.

Fine Rib Matting

Colour Black, White or Brown Sizes (mm) 60, 74

Please call on 13 80 90 or visit clarkrubber.com.au

13, 16, 19, 20, 22, 25, 30, 32, 35, 38, 40, 41*, 44*, 50

60* (3.2 - 5.0mm wall)

65* (2.0 - 4.5mm wall)

70* (3.6 - 5.0mm wall)

90* (2.0 - 5.0mm wall)

100* (1.0 - 4.0mm wall)

SEALS & MOULDINGS

CRUTCH AND WALKING STICK TIPS

Our range of crutch and walking stick tips are available in various sizes and colours:

Crutch Tips

Colour Sizes (mm)

Short Grey 18, 22, 25

Long Grey 20, 22

Black 19, 22, 25, 29

Black Flared 22, 25, 29, 32

Walking Stick Tips - Rubber

Colour Sizes (mm)

Black 10, 13, 16

BUFFERS

Providing a barrier to protect two touching surfaces as well as prevention of shifting or sliding, our buffer range is ideal for equipment and vehicle applications. Included in the range - mushroom shaped buffers, buffers with pins, round buffers and oblong buffers.

HANDLE GRIP

This Handle grip provides a comfortable and durable grip for a variety of exercise equipment, walking aids and other industrial applications.

It is made of high-quality and non-toxic PVC that reduced impact from vibration and covered with foam for a soft touch and added comfort. Measuring 128m in length and designed to fit most handle with an internal diameter of 22mm.

This Handle grip provides a comfortable and durable grip for a variety of exercise equipment, walking aids and other industrial applications.

It is made of high-quality and non-toxic PVC that reduced impact from vibration. Measuring 122m in length and designed to fit most handle with an internal diameter of 32mm.

PVC Handle Grip

Colour Black

Sizes (mm) 19, 32, 22, 25

PVC WITH FOAM INSERT PVC

GROMMETS

Rubber grommets are used to either protect items passing through a hole that may have sharp edges (Wiring Grommet) or to simply seal a hole (Blind or Pull Through Grommet). There’s a wide variety of diameters available to suit various material thicknesses

Blind Grommets Hole

Available in metric and imperial sizes

Hint:

• For existing holes specify E, C and then A dimensions

• For holes not yet drilled specify C and then A dimensions

Pull Through Grommets Hole

SUCTION CUPS

Our suction cups are available in a range of sizes with different additions to make them more suited to your specific needs. They are available with or without hooks or holes and some are threaded for more permanent applications

Available in various head sizes Clear

SEALS & MOULDINGS

STOPPERS

There’s a great variety of stoppers available from Clark Rubber including plugs, cork and rubber stoppers for test tubes and bottles as well as door stoppers and wedges for windows, doors and office furniture

RUBBER STOPPERS DOOR STOPS

Clark Rubber stoppers are slightly tapered are available in rubber, plastic or cork to stop liquid seepage in sinks and other vessels.

To help prevent door handles hitting plaster board walls, our door stoppers are available in a range of sizes and can be screwed into various surfaces. Door stops are available in black or white; large and small.

RUBBER WEDGES

To ensure a hinged door or window is kept open, our rubber wedges will not slip on most floor/bench surfaces. Rubber wedges are available in black or white; large and small.

RUBBER PLUGS

Suitable for bath, sink, basin or caravans these plugs are available as single size pinned plugs or as multi fit plugs.

FOOD GRADE PVC

CLEAR VINYL TUBING

Suitable for transfer of non-pressure related liquids, the hose’s clear appearance provides a visual reference for easy identification of blockages or foreign objects. It is suitable for food and drinking water transfer as well as petroleum products. Available for purchase by the metre.

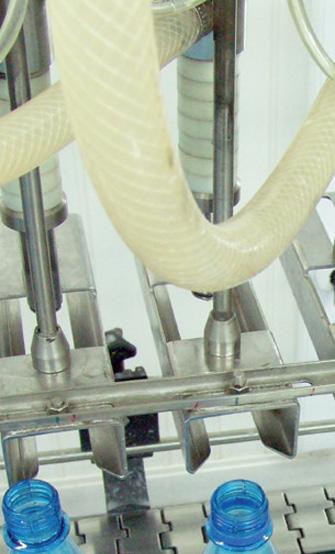

CLEAR REINFORCED HOSE

This hose is suitable for pressure applications up to 250psi. It’s rated up to 60 degrees and is suitable for food and drinking water transfer as well as being petrol and oil resistant. Available for purchase by the metre, it’s clear appearance allows for viewing of blockages and / or foreign objects.

FUEL, HEATER AND VACUUM HOSES

Clark Rubber has a wide range of automotive hoses available for most makes and models. Our range includes hoses for vehicles, heaters, vacuums, washers and fuel applications.

OTHER HOSES

Pool hose is available for filter replacement and vacuuming with hose cuffs and joints to match. Available in 32mm and 38mm diameters

Lay flat hose is available in light and heavy duty and rolls up easily for storage. Available in 38, 50 and 75mm diameters

Non-tainting EVA drinking water hose ideal for tap lines on caravans. Supplied with hose connections for easy installation.

HOSE ACCESSORIES

Hose clamps and clips are available in zinc and stainless steel, to suit the Clark Rubber range of hoses.

ADHESIVES

KWIK GRIP VERTICAL GEL

This solvent-based polychloroprene contact adhesive is suitable for bonding both absorbent and non-absorbent surfaces. It forms an instant bond on contact of two treated surfaces placed under pressure.

KWIK

GRIP HORIZONTAL

A heat resistant, solvent-based, flexible contact adhesive suitable for bonding both absorbent and non-absorbent surfaces. It forms an instant bond on contact of two surfaces.

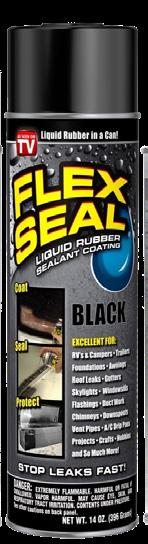

SPRAY ON ADHESIVE FLEX SEAL

The latest addition to the Clark Rubber Range. The Flex family of products includes Flex Seal, Flex Paste, Flex Glue and Flex Tape. No matter what the job these flexible products provide a waterproof rubber like solution for many applications. Flex Seal provides a spray on rubber like substance whilst Flex Paste is a rubber putty like substance than can be formed into virtually any shape prior to curing.

INSULATION

PIPE INSULATION

K-flex is suitable for various practical uses including domestic and industrial applications which require use of high grade, fire rated superior quality insulation material. It is available in 1 metre length in wall thickness of 9mm or 13mm. Pipe ID dimensions: 13mm, 19mm, 25mm, 32mm, 51mm

FORMSHIELD

Features an easy spray application for a permanent, strong and durable result. A range of spray on adhesives are available for a variety of materials.

Foam spray developed specifically for Clark Rubber. It bonds to foam, fabric, acoustic panel, MDF, carpet and plastics.

For large commercial requirements this is also available in 17kg keg.

Formshield is cross-linked closed cell polyethylene foam heat laminated to aluminium foil that provides an effective insulation against heat transfer and meets fire hazard rating AS1530.3. It reduces and absorbs the transmission of noise and vibration, and also acts as a moisture barrier. It has no known health hazards, easy to install while providing energy efficiencies and reduces noise. It does not store or emit dust or fibre particles and provides excellent impact resistance. It is available both with or without adhesive backing on the following thicknesses: 5mm, 10mm, 15mm, 20mm, 25mm.

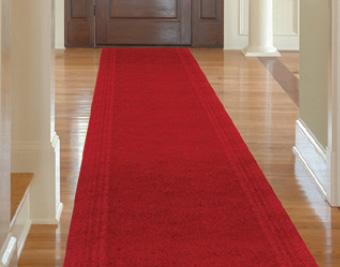

INDOOR CARPET

As well as being soft underfoot, indoor carpet options can also compliment your furniture and décor. Choose from a range of colours and textures to set the look you want in your living area or bedroom. We also offer indoor runners with non-slip foam backing to help prevent movement.

OUTDOOR CARPET

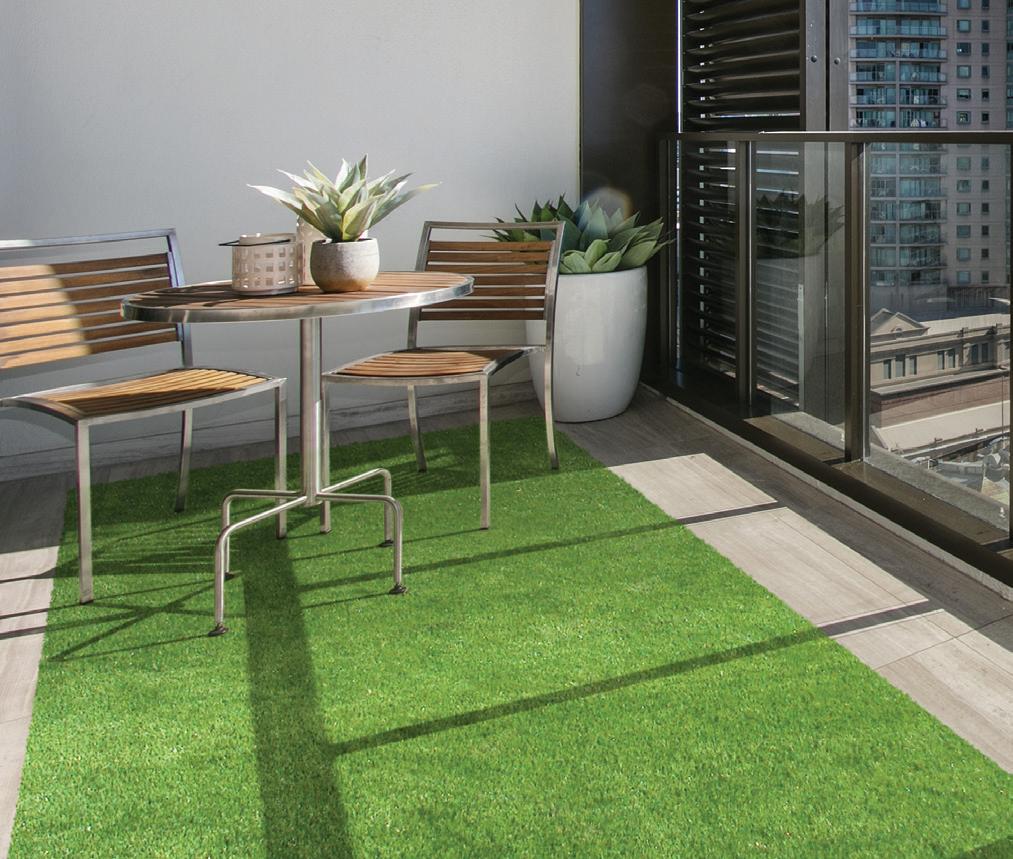

ARTIFICIAL GRASS

Outdoor carpet products are a comfortable and attractive option for entertaining areas and marine applications. Raider is a specialised outdoor/marine carpet that has a soft velour finish. This solution dyed fibre and the unique non-woven manufacturing process ensures this carpet is stain resistant, will not zip or fray, and can withstand harsh Australian elements. Reef is a broad-ribbed solution dyed outdoor/marine carpet. It has the same colour options as Raider.

ARTIFICIAL GRASS, PRE-PACKED ROLLED GRASS & ARTIFICIAL GRASS TILES

Artificial Grass gives the natural look and feel of grass in your garden without the hard work. With no watering, mowing or fertilising needed, an artificial lawn saves water, money, time and also reduces allergens in your garden.

Clark Rubber supplies a wide selection of both Australian and overseas made artificial grass options, suitable for front and back yards, and commercial sites. Choose the look and feel of grass that best suits your location. Even a smaller space such as a patio or balcony can be enhanced with artificial grass tiles, pre-packed rolled grass or small pile turf. Whichever type of turf you prefer for your garden, this UV-stabilised artificial grass is resistant to fading and safe for kids and pets to play on.

We also offer 1x1m grass tiles and small rolls of prepacked grass.

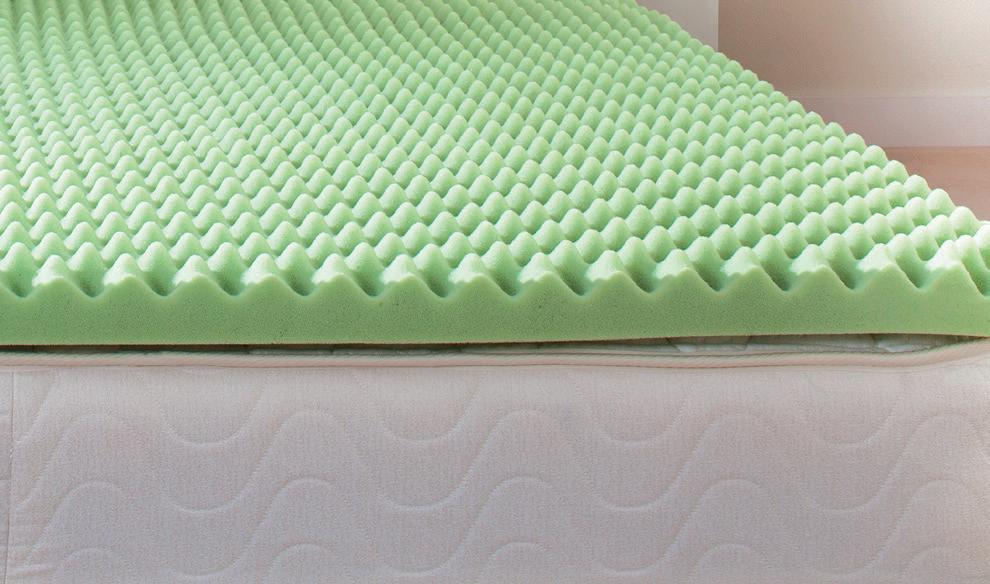

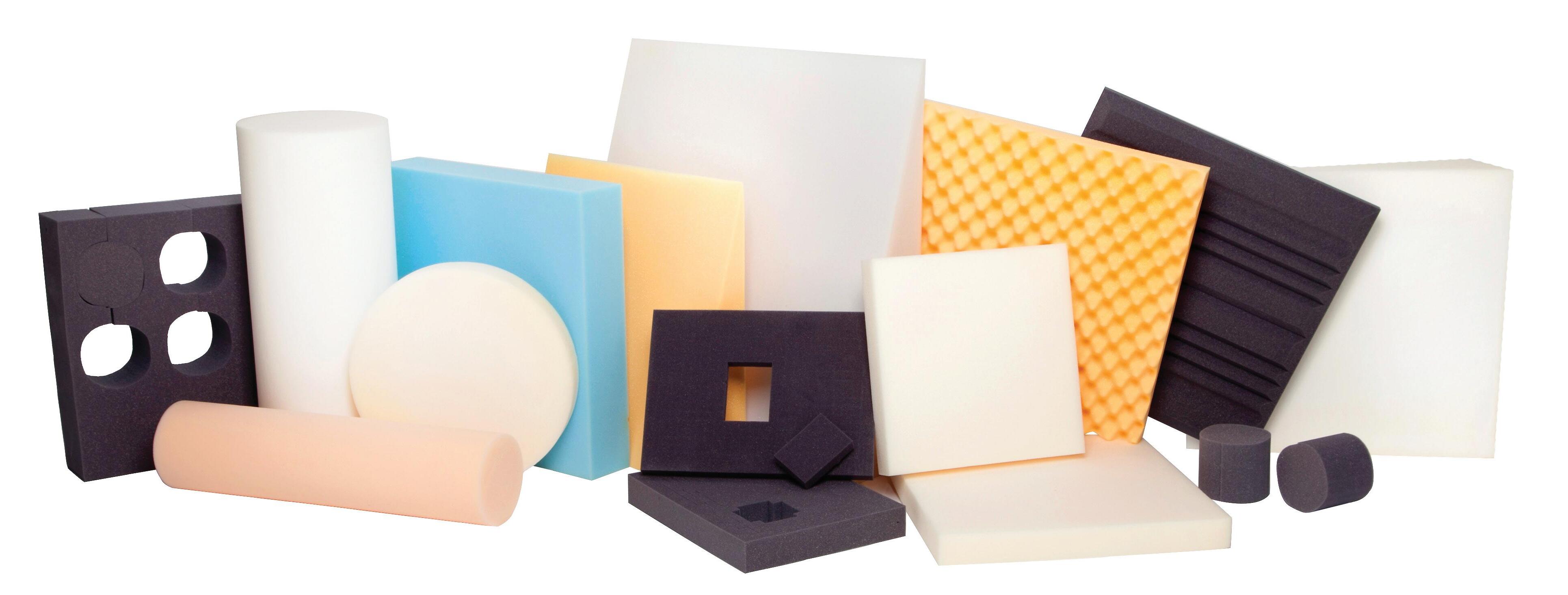

GREAT RANGE OF QUALITY FOAM GRADE PRODUCTS FOR:

• Specialty and Commercial

• Packaging

• General Purpose/Upholstery

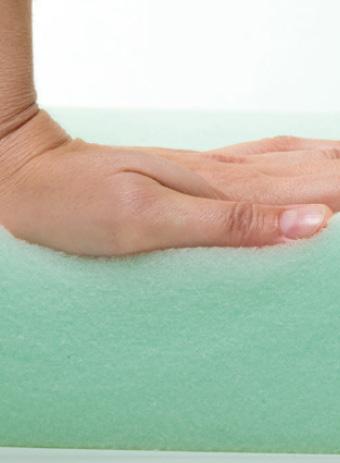

WHAT IS FOAM...?

• Filter Foam

• Foam Adhesives

• Sound Proofing and Acoustics

• EVA and PE Foam

• Closed and Open Cell Foam

• Webbing

The manufacturing process involves the mixing of a number of chemicals which are continually pumped into a mixing head in precise metered quantities then poured onto a paper covered conveyor. As a result of the mixing, a chemical reaction takes place, producing gasses for expansion and foaming. As the foam expands it takes up the shape of the conveyor and moves continuously towards a cutting machine, which cuts the blocks into the required length.

By varying the type and amount of ingredients, foams can be produced with varying densities and hardness. Blocks are then weighed and checked for the correct density and other specifications before being stored on a flat floor in the curing area. Blocks cure overnight before being delivered to the customer or cut and fabricated in the foam conversion plant.

Foam is described by density, which is how we simplify the classification of foam quality. The greater the foam density, the higher the quality. Softness and elasticity, are also measured. After manufacture, foam is tested for density, resilience and hardness.

• Density is a measure of the weight of foam per cubic metre.

• Resilience measures overall endurance, in addition to elasticity and bounce back qualities.

• Hardness is measured by applying pressure to 40% of the foam’s thickness.

Based on these measurements, different foams are suitable for various applications. Your Clark Rubber expert will ask you two key questions;

• What is the application?

• What is the frequency of use?

Has a lower density and less resilience to repeated use. It’s ideal for light traffic applications such as protection of sharp objects, packaging of precious belongings, exercise mats, infant bedding and chair backs.

Also useful for high-traffic applications and heavy use items, this high density foam can also be used for various seating applications, however, its longevity is not as certain when compared to our premium high density foam.

This foam has a higher density, making it useful for high-traffic applications and heavy use items such as cushions, chairs, caravan and boat seats and mattresses. Some premium high density foam is guaranteed for 10 years.

MEMORY FOAM

Memory foam’s ‘slow recovery’ allows it to conform to the exact shape of an indentation. The elastic properties are able to relieve pressure on joints and muscles, making it perfect for support cushions and bedding. Extensively used in the health care sector, memory foam also helps to reduce the risk of bed pressure sores and back pain relief.

Our premium range of Clark Care chiropractic cushions contain memory foam with a flexible velour cover, which provides the perfect support and comfort for injuries and / or chronic pain related conditions.

Memory foam has a lifetime guarantee, is hypoallergenic with antibacterial treatments and is dust mite resistant.

Dunlop Foams manufactures a wide range of foams for many applications.

Learn about a few of them below.

ENDURO

High density foam that provides unparalleled support and Superior resilience for exceptional recovery.

EN36-90 Light green

Seat and back cushioning, mattress support layer, mattress topper.

EN36-130 Yellow Seat and back cushioning, mattress support layer, mattress topper.

EN36-230 Orange Seat and back cushioning, mattress support layer, mattress topper.

Dunlop Select

Dunlop foam select offers a large range of foams in varying density that deliver improved value for money and can be used in a variety of applications.

AA16-110 White / Vanilla Chair backs/general purpose upholstery/quilting mattresses

AA19-130 Vanilla General purpose upholstery/mattresses

AA23-130 Light grey General purpose upholstery/seat backs/cushions/mattresses

MA26-160 White Firm seat cushions/mattresses/automotive

MA29-200 Green Office chairs/packaging/gym mats/arm rests

Packaging and Acoustic Foam

Dunlop foams have a range of different firmness’s to cater of packaging of any product. These foam grades are also suitable for sound acoustic absorption for the home theatre or music studio.

AA29-400 Charcoal High load packaging/acoustic noise absorption/firm upholstery

MA35-600 Pink High load packaging/acoustic noise absorption

Dry Flow:

Dry Flow Foam has the unique ability to either reticulate or drain away water.

Dry flow - soft Cream Seat & back cushions/mattress/bedding applications

Dry flow - medium Cream Seat & back cushions/mattress/bedding applications

Dry flow - firm Cream Seat & back cushions/mattress/bedding applications

SPECIALTY FOAM

ACOUSTIC FOAM

Convoluted acoustic foam has been created to provide more surface area for the absorption of sound waves and vibration. It’s able to reduce noise reflection in studios, music rooms and workshops.

ACOUSTIC PYRAMID FOAM

This sound absorbing Polyurethane foam panel is designed to reduce echo within an environment and enhances the sound quality and aesthetics of any recording or listening environment.

Perfect for individuals to reduce and absorb unwanted echoes, waves, reverb and flutter echoes. It is great for recording studios or gaming rooms, music, video production, gyms, conference rooms, rifle ranges, radio/television studios, engine rooms etc.

CLOSED CELL FOAM

Closed cell foams are waterproof and buoyant which make them ideal for use in water applications. With excellent shock absorbing capabilities and resistance to most common chemicals, closed cell foam is used for instrument cases, gaskets and seals, boat seats and other marine applications including flooring.

CLOSED CELL EVA AND POLYETHYLENE FOAM

Closed Cell EVA foam are extremely versatile and can be used in a variety of applications including packaging and health care, sports, automotive, sealing/gaskets, thermal insulation, marine and toys. They are resistant to most chemicals and can also be used over a wide range of temperatures.

PEELED FOAM

Peeled foam is a continual sheeted foam that’s ideal for packaging and protection. It is available for purchase by the metre in both 6mm and 12mm thicknesses.

CRUMBED FOAM

One of the most economical stuffing foams, crumbed foam is a mixture of foam qualities chopped into small chunks. Available in 375gm, 750gm, 2.5kg or 5 kg bags.

Eva30

Pe30

BEDDING

MATTRESSES

FOAM MATTRESSES

With different foam qualities, thicknesses and sizes to suit almost any sleeping arrangement, our mattresses contain zip off covers, and a warranty for each density type.

Ideal for beds, trundle beds, folding beds, camping, RVs and vans. Plus sizes to suit bassinets, cots, camper-vans, caravans and boats.

If we don’t have the exact shape and size you need, foam can be readily cut to size, to allow for wheel arches, door latches and other objects.

We also have a great range of folding mattresses. They easily fold for packing, storage and transport and fold out as a comfortable foam mattress.

With over 70 different options available, we have the perfect foam mattress for your home, caravan, camper trailer or tent!

CUSTOM MADE MATTRESSES FOLDING MATTRESSES

Map out your own design and your unique mattress is made just for you!

With their lightweight aluminium or steel frames, folding beds are also a great choice for camping. Most folding beds come with a foam mattress attached that folds up neatly along with the bed. You can also choose a metal frame only and add your own mattress or custom cut foam. Look for a fold-up bed with a trampoline style base if you want added comfort or a frame with wheels to make it even easier to move around the house

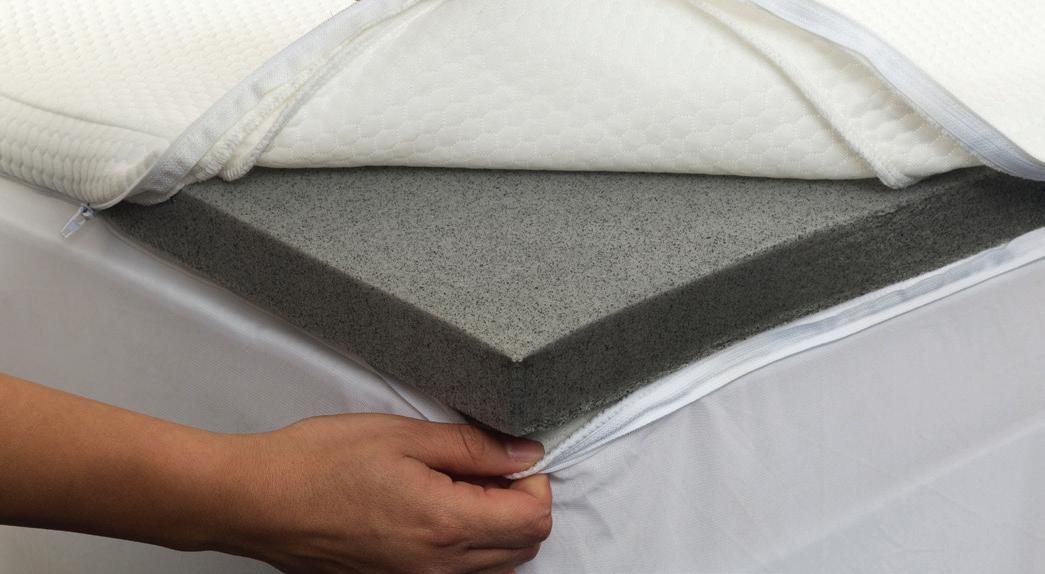

TOPPERS, OVERLAYS, PILLOWS & PLAY

COMFORT SUPPORT & PRESSURE RELIEF

Whether you need added comfort, support, pressure relief, temperature control or simply more airflow, we will have an option available to compliment your current mattress.

Whether you need added comfort, support, pressure relief, temperature control or simply more airflow, we will have an option available to compliment your current mattress.

TEMPERATURE CONTROL

Memory foam enriched with graphene assists with temperature regulation by redistributing heat to cooler regions. Designed to contour to the body, helping to reduce pressure and minimising tossing and turning.

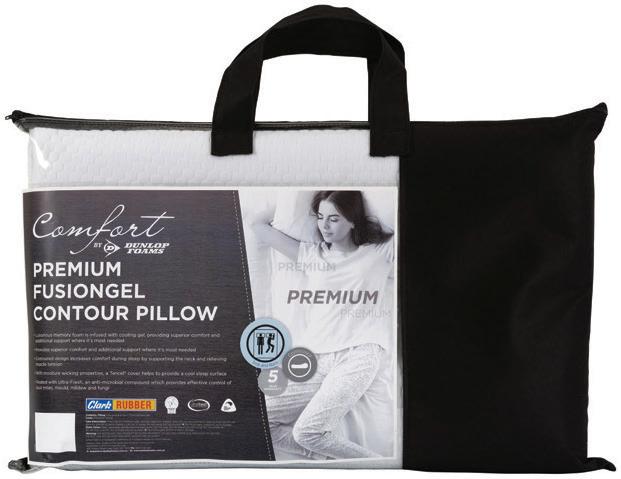

MEMORY FOAM & TEMPERATURE CONTROL PILLOW RANGES

Perfect for everyday use, the memory foam pillow range includes a quality knit cover and contains Utlra-Fresh for premium antimicrobial protection. The comfort deluxe range will provide years of quality comfortable sleep. Adjustable memory foam clusters allows you to choose your ultimate comfort.

KIDS COMMERCIAL

Made using water resistant easy care covers in vibrant primary colours and treated with Ultra-Fresh, these fun foam shapes provide great indoor play fun while developing co-ordination. Perfect for kids play areas in any family friendly environment

CLARK CARE THERAPEUTIC

Supports & cushions designed for a host of individual purposes including medical, office, travel and maternity. Treated with Ultra-Fresh, an antimicrobial compound which provides effective control of dust mites, mould, mildew and fungi. Made in Australia from local and imported components.

CLARK

&COVERINGS

UPHOLSTERY VINYL

TABLE COVERINGS UPHOLSTERY

CLEAR PVC

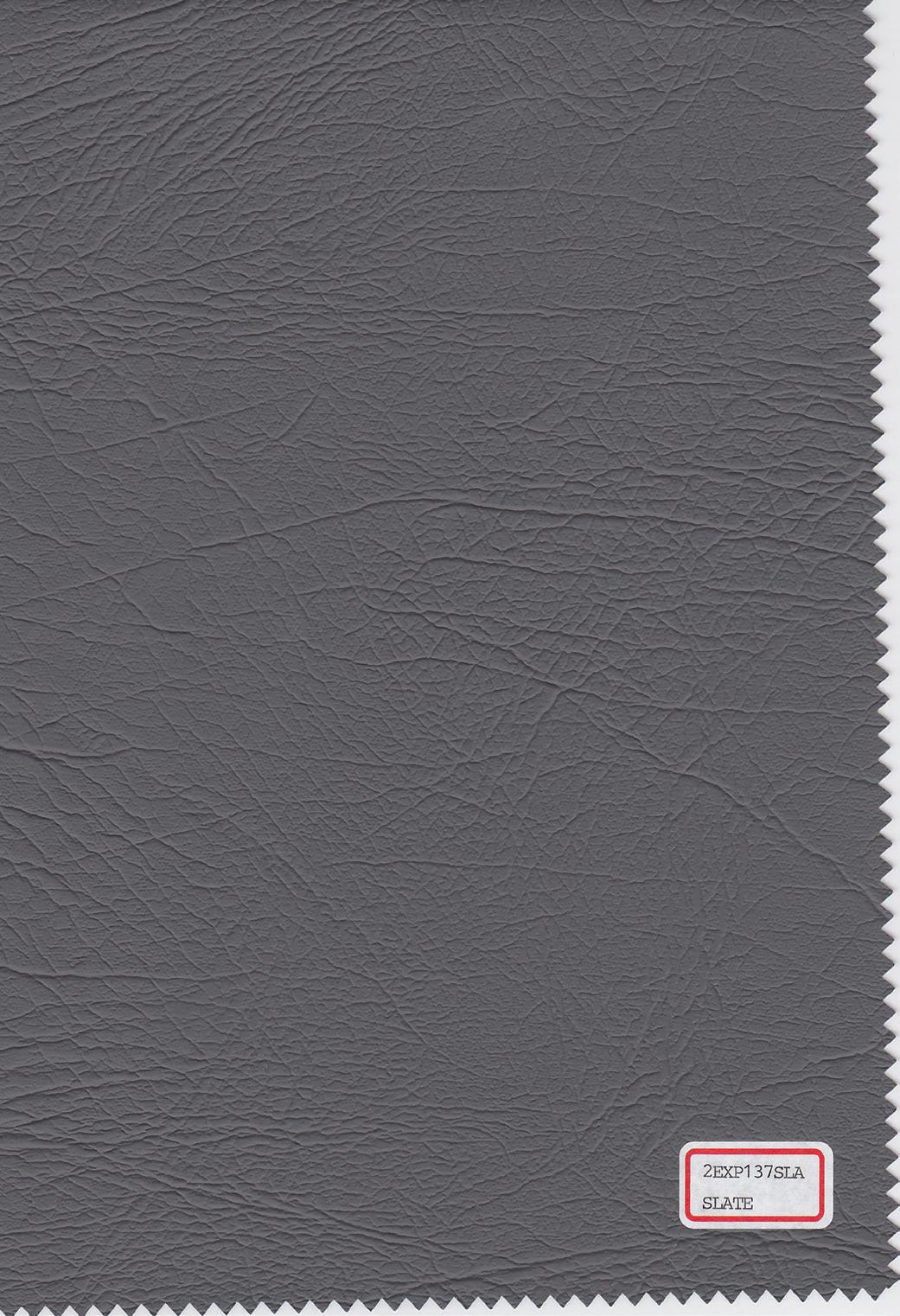

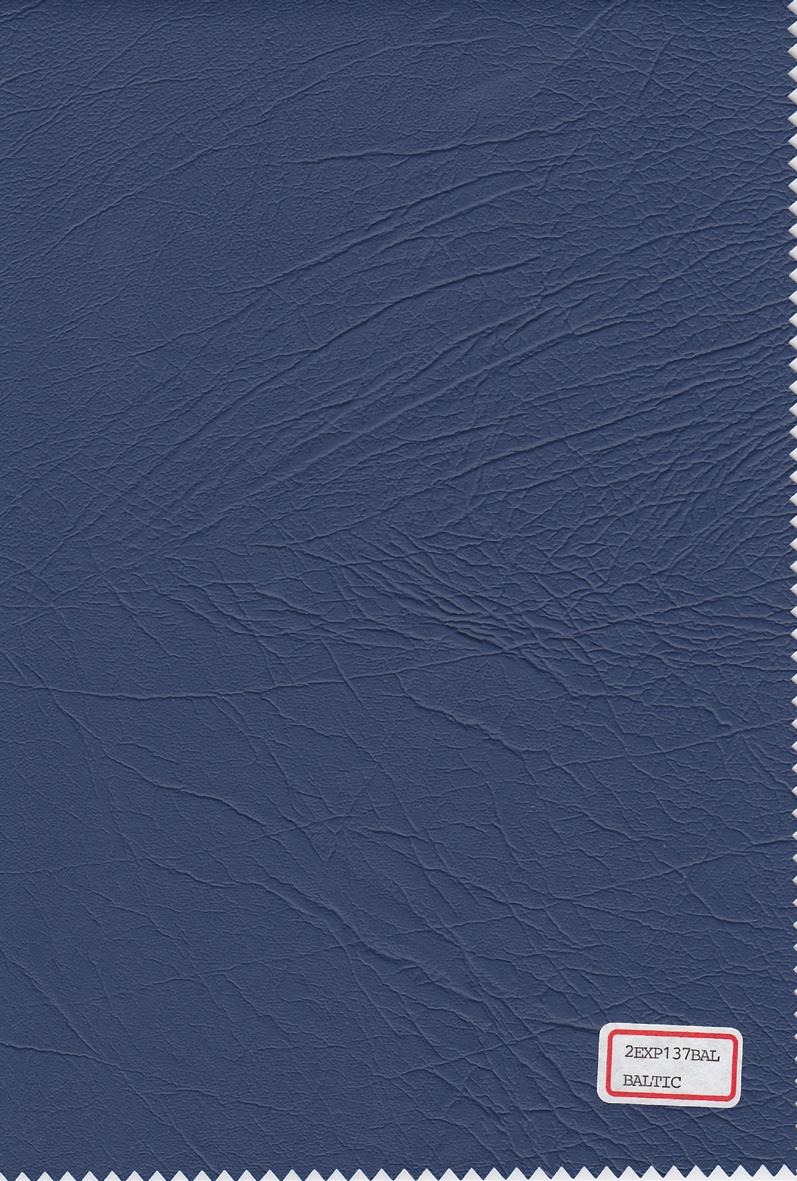

This vinyl is perfect for indoor upholstery, including restaurants, waiting rooms,buses, gymnasium equipment, chairs, stools, caravans and car interiors. Available in a range of colours, and is available for purchase by linear metre on a 1370mm wide roll.

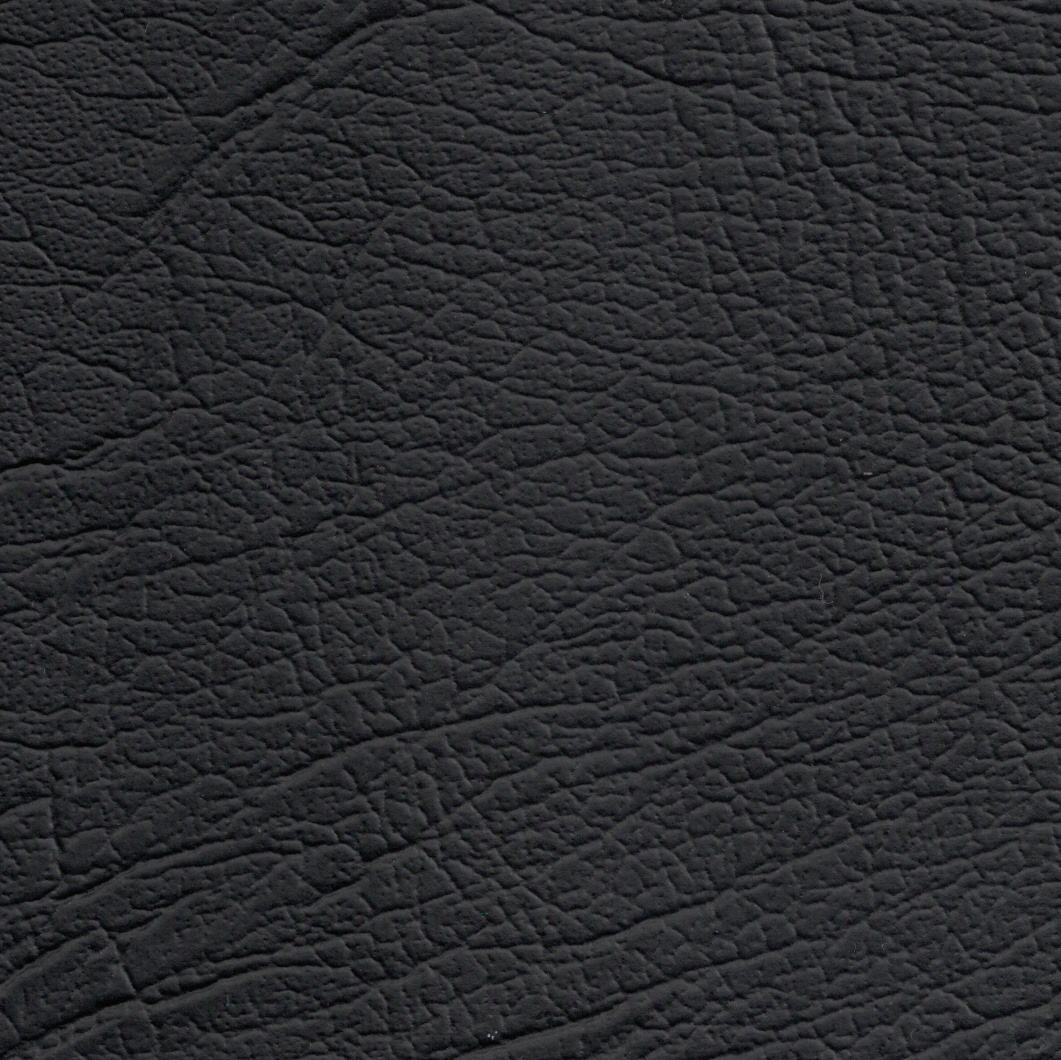

Marine vinyl is heavy duty, UV resistant and waterproof. Ideal for outdoor stools and chairs, horse floats, boats and trailers. Available in a range of colours, and is available for purchase by the metre on a 1370mm wide roll.

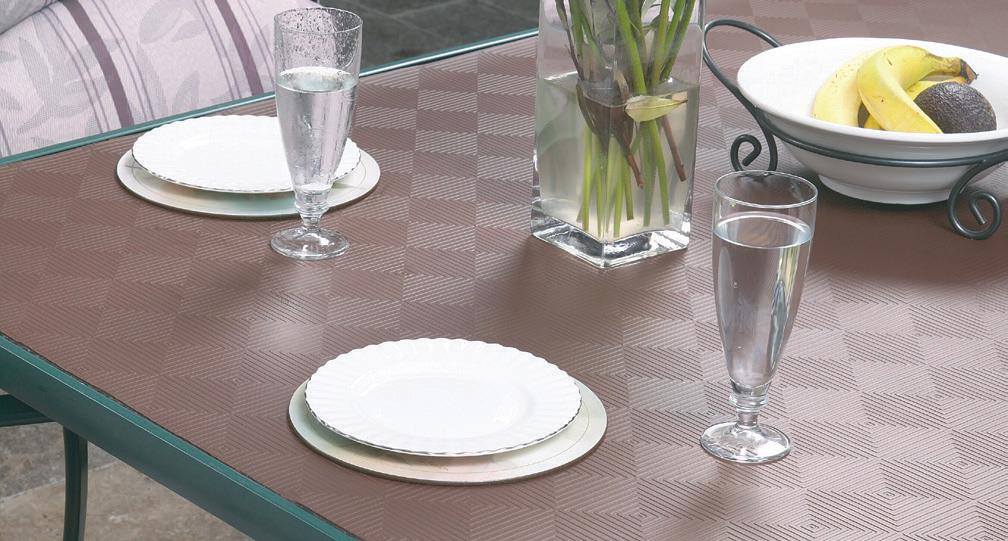

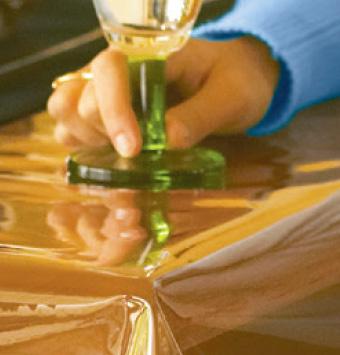

Suitable for use both indoors or outdoors, this versatile PVC product will protect glass and wooden finishes from damage, while also making tables easier to clean.

Our range provides table covers for child care as well as health and aged care facilities.

All table covers are available for purchase by the metre on 1370mm, 1500mm or 1830mm wide rolls in a variety of thicknesses.

PVC table protectors are available with a flocked backing, providing heat barrier protection for table tops, while the non-slip surface helps avoid spills. Available in a variety of printed styles by the metre on a 1370mm or 1400mm wide roll.

WEBBING

AND LOOP

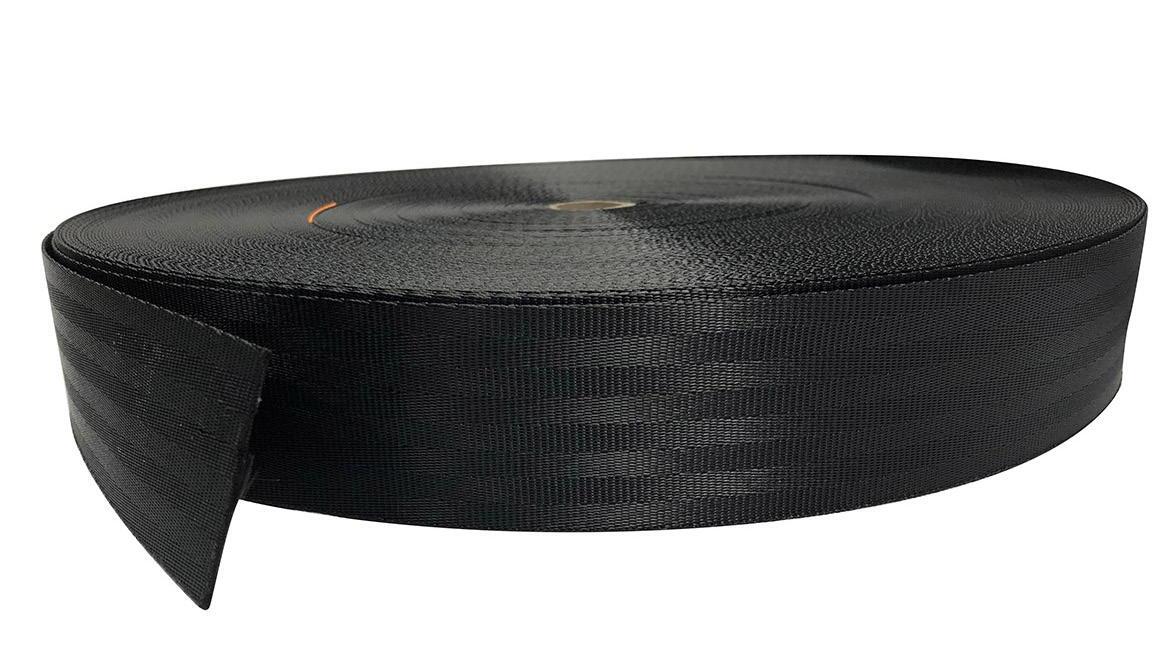

This Black Webbing is extremely heavy duty and it is suitable for weight belts, binding, home furnishing, harnesses & more! It is made of durable polyester with good impact resistance and not easy to fracture. Designed to use with 50mm buckles and fixings, with a measurement of 50mm wide and sold per linear metre to accommodate different sizes.

SHOCK CORD

Versatile hook & loop is an excellent permanent or temporary fixture that can be used indoors or outdoors, providing selfadhesion for hard surfaces and sew-on fabrics. It comes double-sided which allows for self adherence for strapping up tent poles and other items. Available in black or white, in 25mm or 50mm widths. Also available in a ‘one wrap’ system.

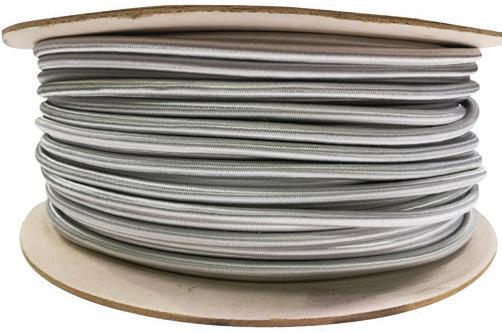

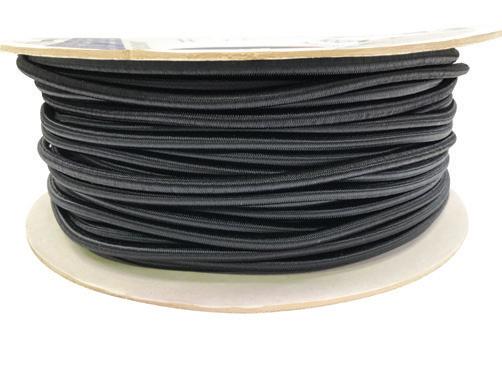

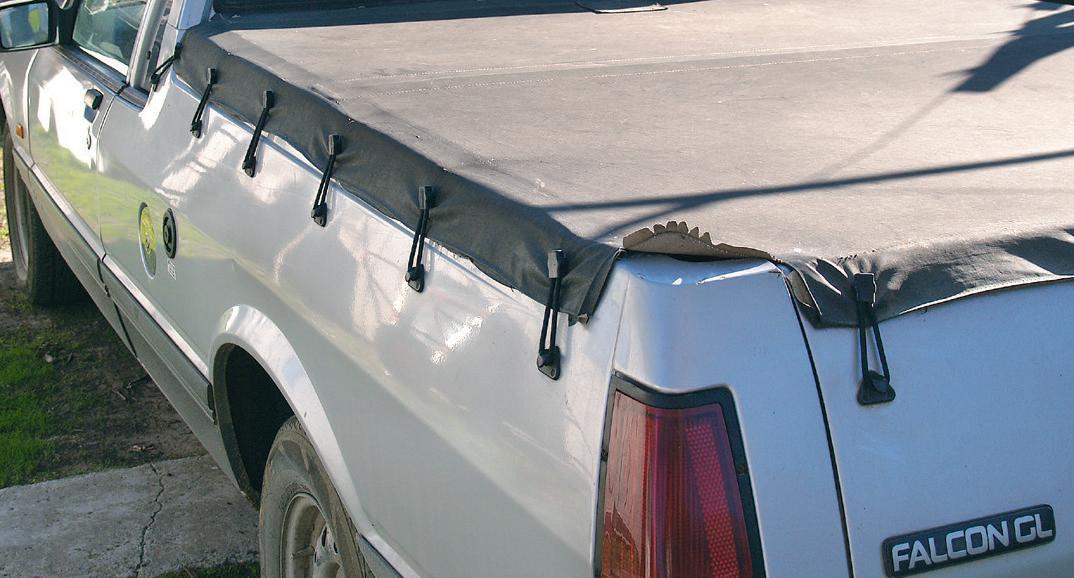

An elastic cord with a material cover, our shock cord is suitable for many applications but is commonly used to hold canvas ute covers in place. Available in 3mm, 4mm, 6mm, 8mm and 10mm thicknesses. A shock cord can be used in a range of different applications such as camping, caravaning, automotive and a variety of light commercial or household applications.

AUTOMOTIVE CARPET

AUTO UNDERLAY

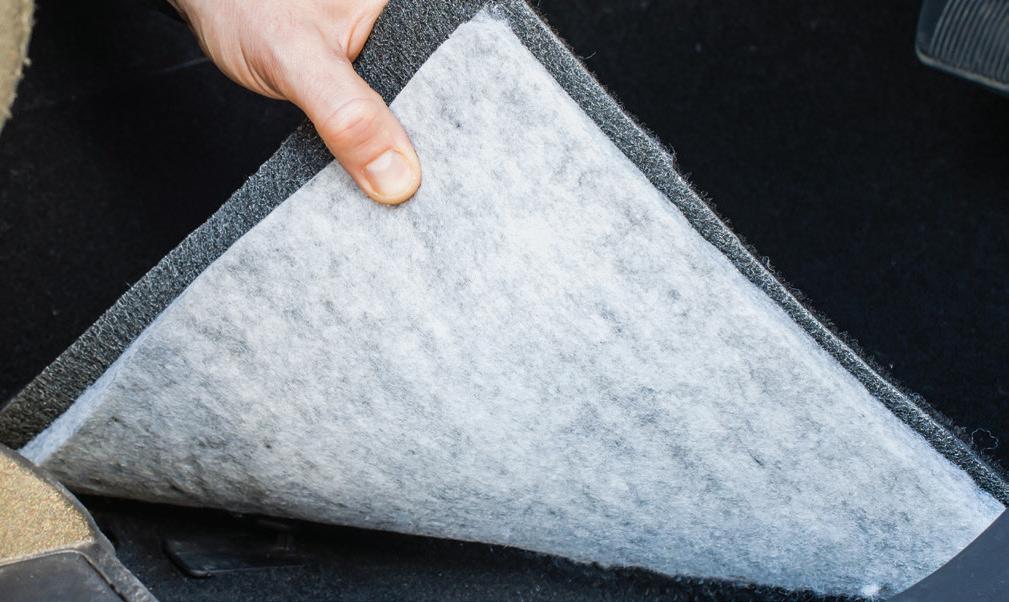

Premium 900 GSM polyester underlay that will not absorb moisture, will not rot or smell ‘damp’ and it is easy to cut and mould to your needs. Can be purchased by linear metre on a 1830mm wide role.

AUTOMOTIVE CARPET

Hard wearing, stain resistant automotive carpet with a soft velour finish. The UV stabilised solution dyed polyester fiber is designed to be used in both indoor and limited outdoor applications. Manufactured through a non-woven process this carpet will not ‘zipper’ or ‘fray’.
