CONCEPTUAL MODELLING
T H E B R O O K E S FRAGMENTED PUBLIC REALM INACTIVE STREET EDGES LACK OF COMMUNITY FACILITIES CURRENT/ONGOING ISSUES WITHIN BOWEN HILLS NARROW, INDIRECT & INACCESSIBLE PATHS OF TRAVEL LACK OF ACTIVITY ON STREET EDGES AS THEY OCCUPY DRIVEWAYS & PATHS LITTLE DIVERSITY REGARDING LAND USE AND COMMUNITY FACILITIES

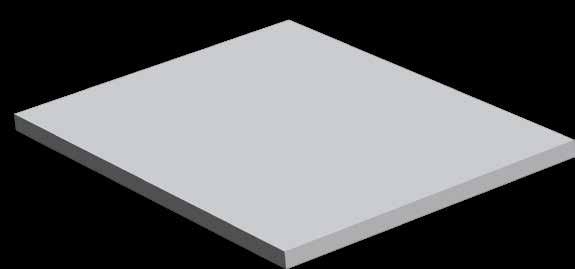

ALLOWING NATURAL ELEMENTS TO FREELY FLOW UP & THROUGH THE BUILDING OFFERING A OPEN GREEN ASPECT FOR RESIDENTS AND BUILDING OCCUPANTS
T H E B R O O K E S

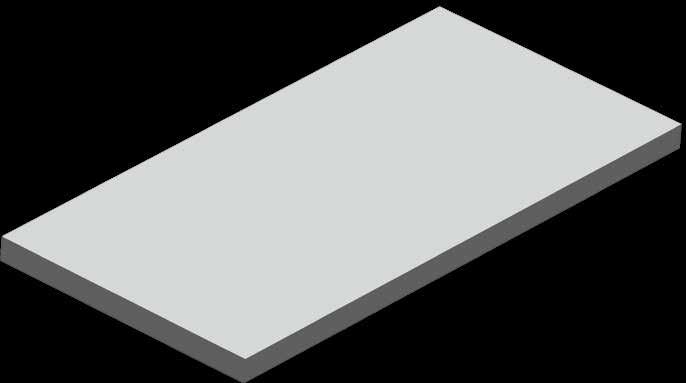

IN ORDER TO FURTHER ENGAGE THE PUBLIC WITH THE SITE, THE ADDITION OF A URBAN RETAIL PROMENADE IS INTRODUCED
CONNECTING BOTH JEAYS & BROOKES ST VIA A PATH
PUBLIC PROMENADE
T H E B R O O K E S

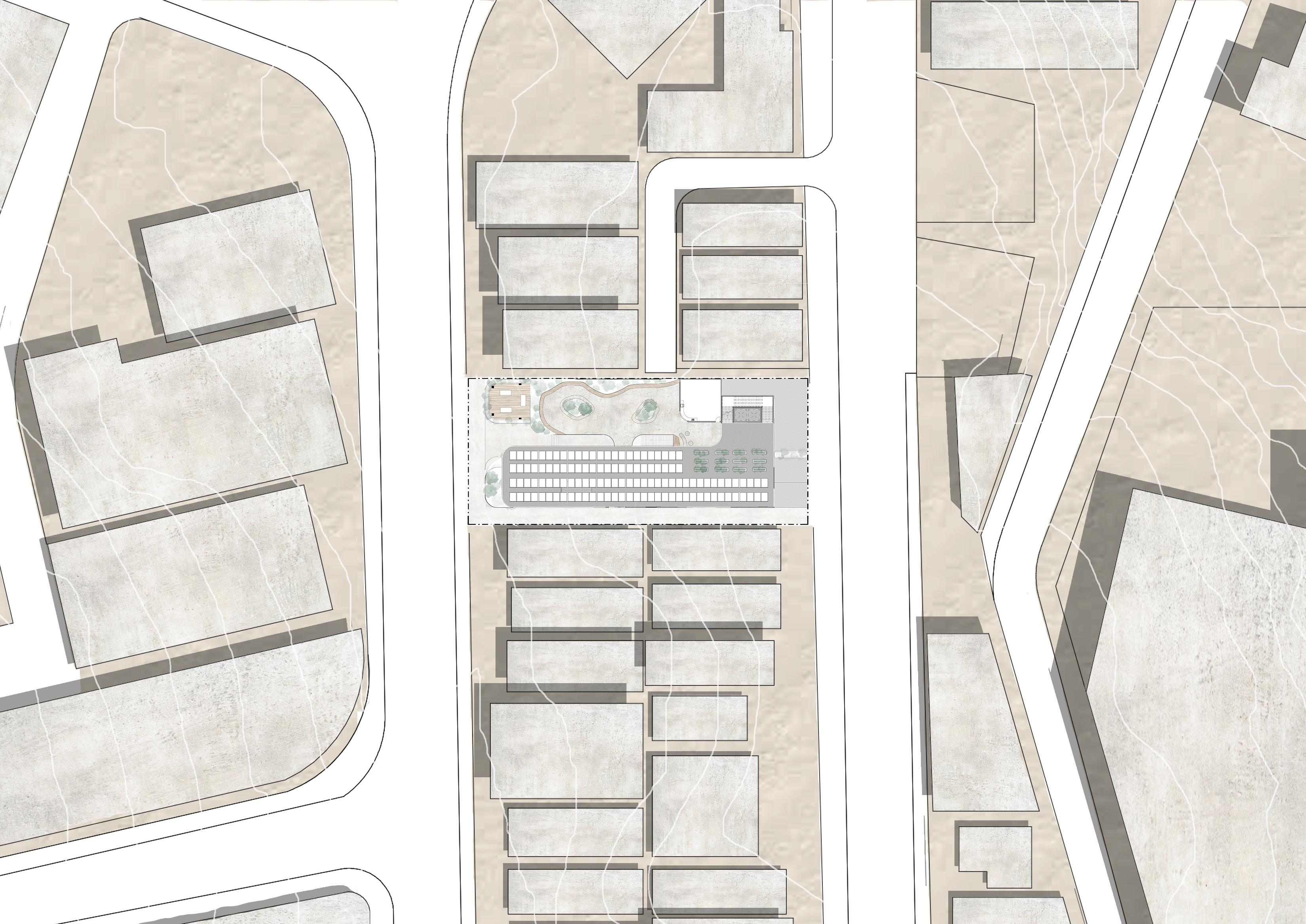

1:500 SITE PLAN
B R O O K E S S T J E A Y S S T
1:200 BASEMENT 2 PLAN 2 3 4 1 EV CHARGING 2 ELECTRIC BIKE/SCOOTER PARKING/CHARGING 3 ELEVATOR STORE 4 REGULAR CAR PARKING
1:200 BASEMENT 1 PLAN 1 MATERIAL DONATIONS SERVICE ELEVATOR 2 MATERIAL DONATIONS DROP-OFF 2
ONE OF THE GREATEST THINGS ABOUT THE BROOKES IS THAT IS IT HOME TO COUNTLESS UP AND COMING ARTISTS & ENTREPRENEURS WHO UTILISE BOTH THE WORKSHOP AND CO-WORKING SPACES TO REDUCE MATERIAL WASTE THROUGH THEIR ARTWORKS AND PROJECTS

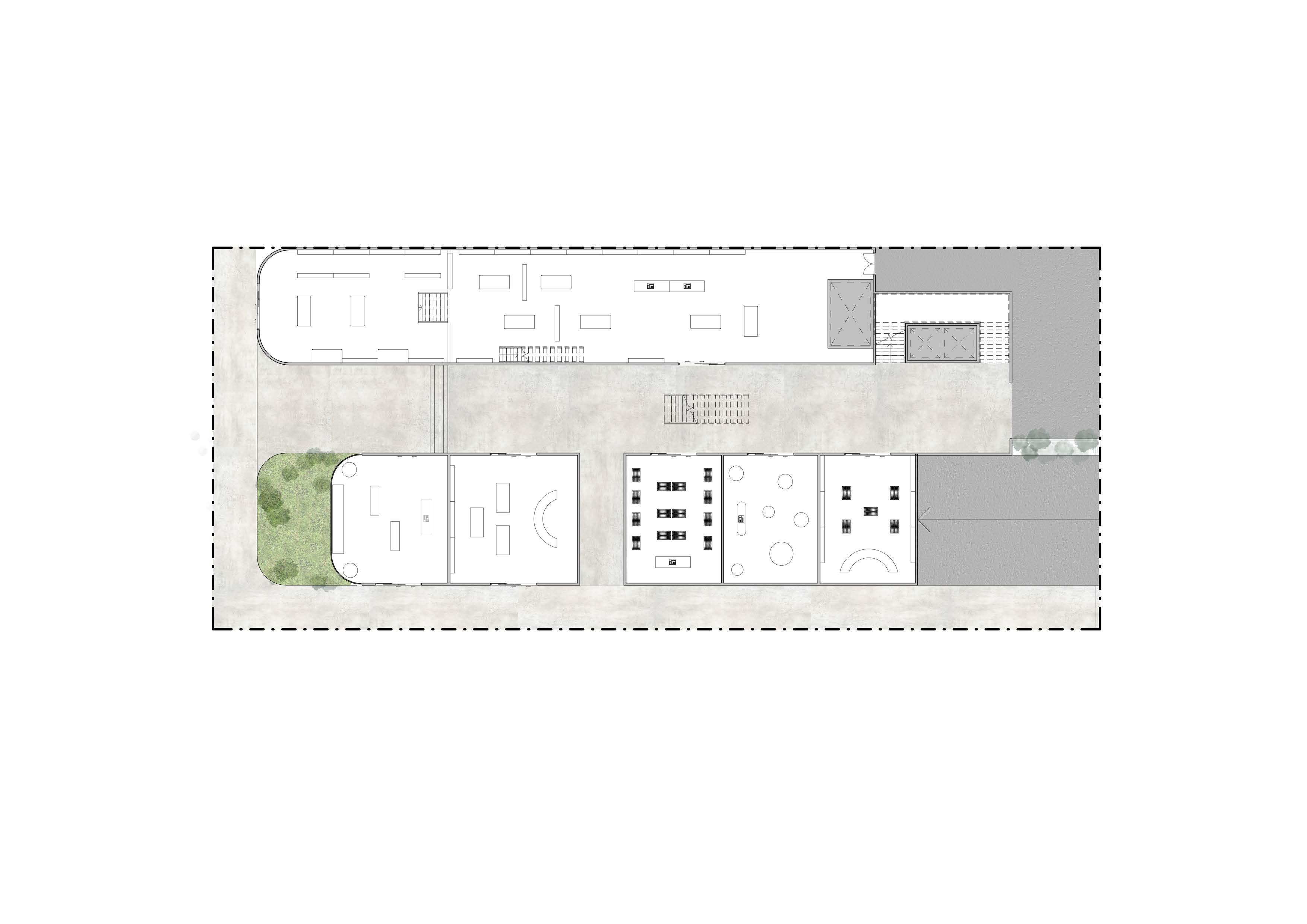

1:200 GROUND FLOOR PLAN MATERIAL
CENTER 1 1 2 3 4 5 6 7 8 9 RETAIL
RETAIL
RETAIL
BASEMENT DRIVEWAY
DELIVERIES
SERVICE ELEVATOR
RE-USE
- SCULPTURES 2 RETAIL - ART 3
- CLOTHING 4 RETAIL - ART 5
- FASHION 6
7
8
9
6 7
1 2 3 4
5
WORKSHOP/STUDIO 1
WORKSHOP/STUDIO 2 WORKSHOP/STUDIO 3

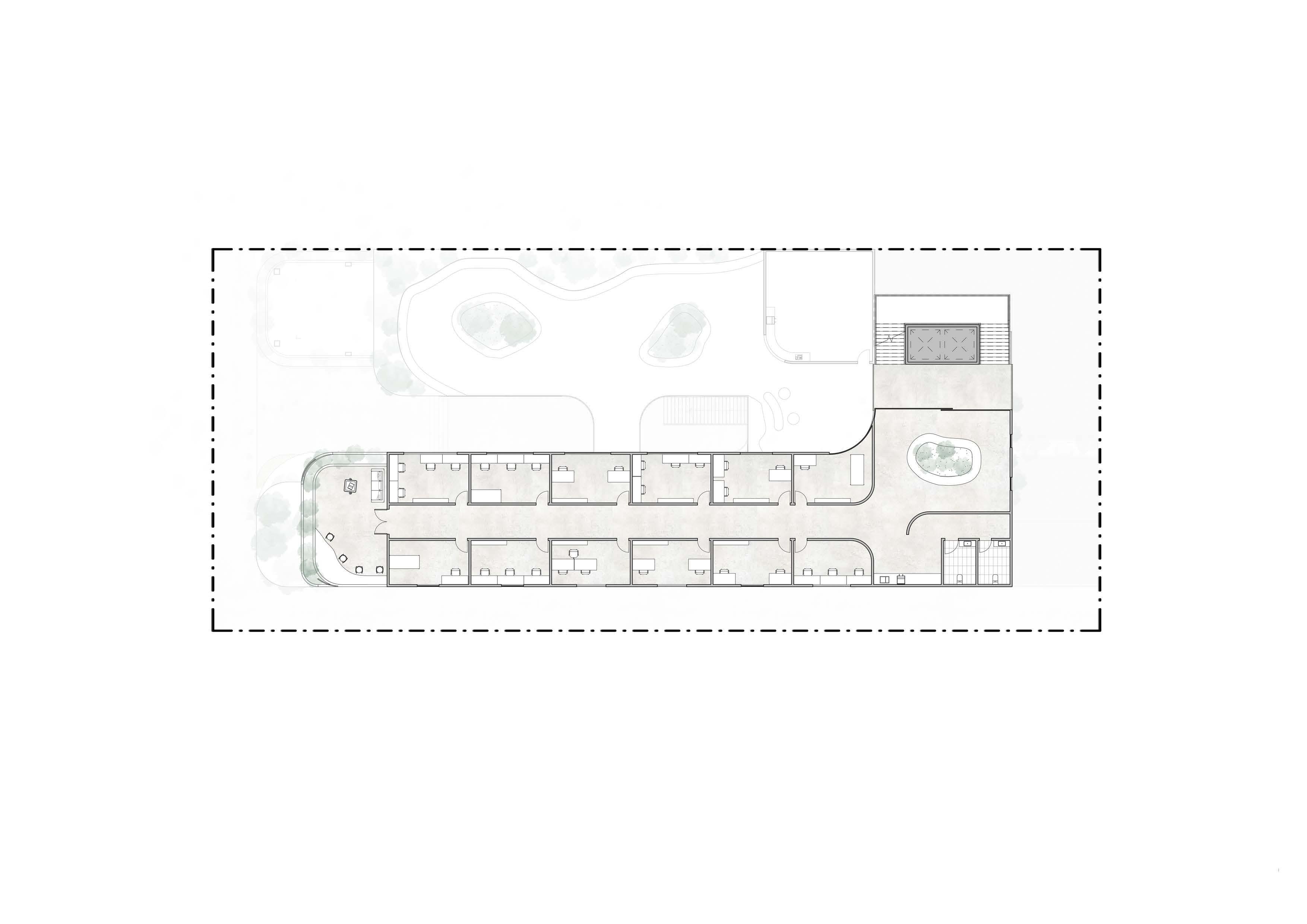

1:200 LEVEL 1 PLAN
MEZZANINE STUDIO 6 OUTDOOR WORKSHOP 7
STORE 4
BATHROOMS 5
1 2 3 4
WORKSHOPS RUN BY THE MAIN DISTRIBUTION CENTER AND LOCAL ARTIST/MAKERS ARE AVAILABLE TO THE PUBLIC AND ARE RUN OUT OF THE MANY MAKING SPACES IN THE BROOKES
5 6 STORE 2 WORKSHOP/STUDIO 3
WORKSHOP/STUDIO 1
WORKSHOP/STUDIO 4
WORKSHOP/STUDIO 5
SEMI-OUTDOOR WORKSHOP 6

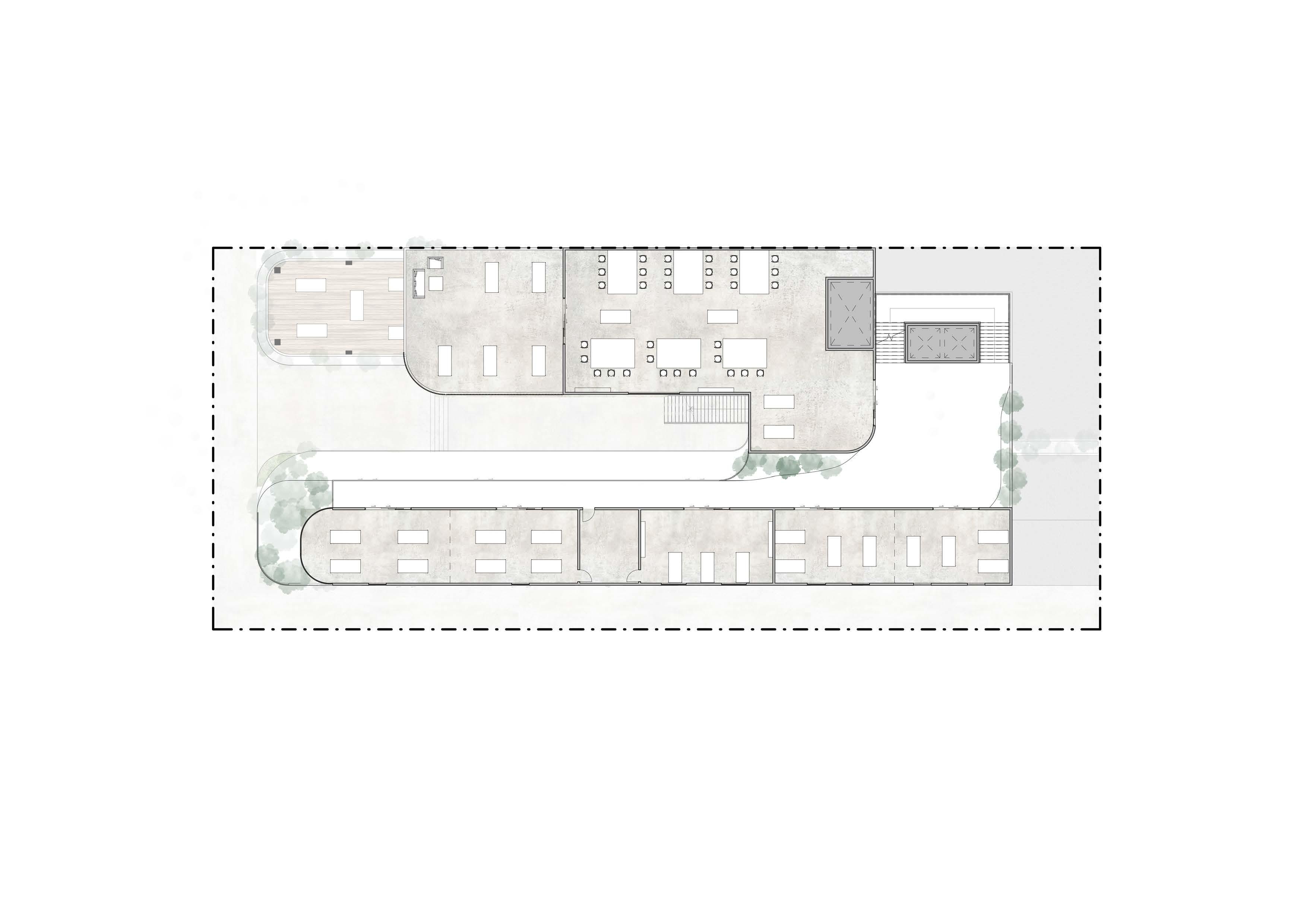

1:200 LEVEL 2 PLAN
REGULAR EXHIBITIONS ARE HELD TO SHOWCASE THE CREATIVE PROJECTS THAT COME TO LIFE IN THE BROOKES

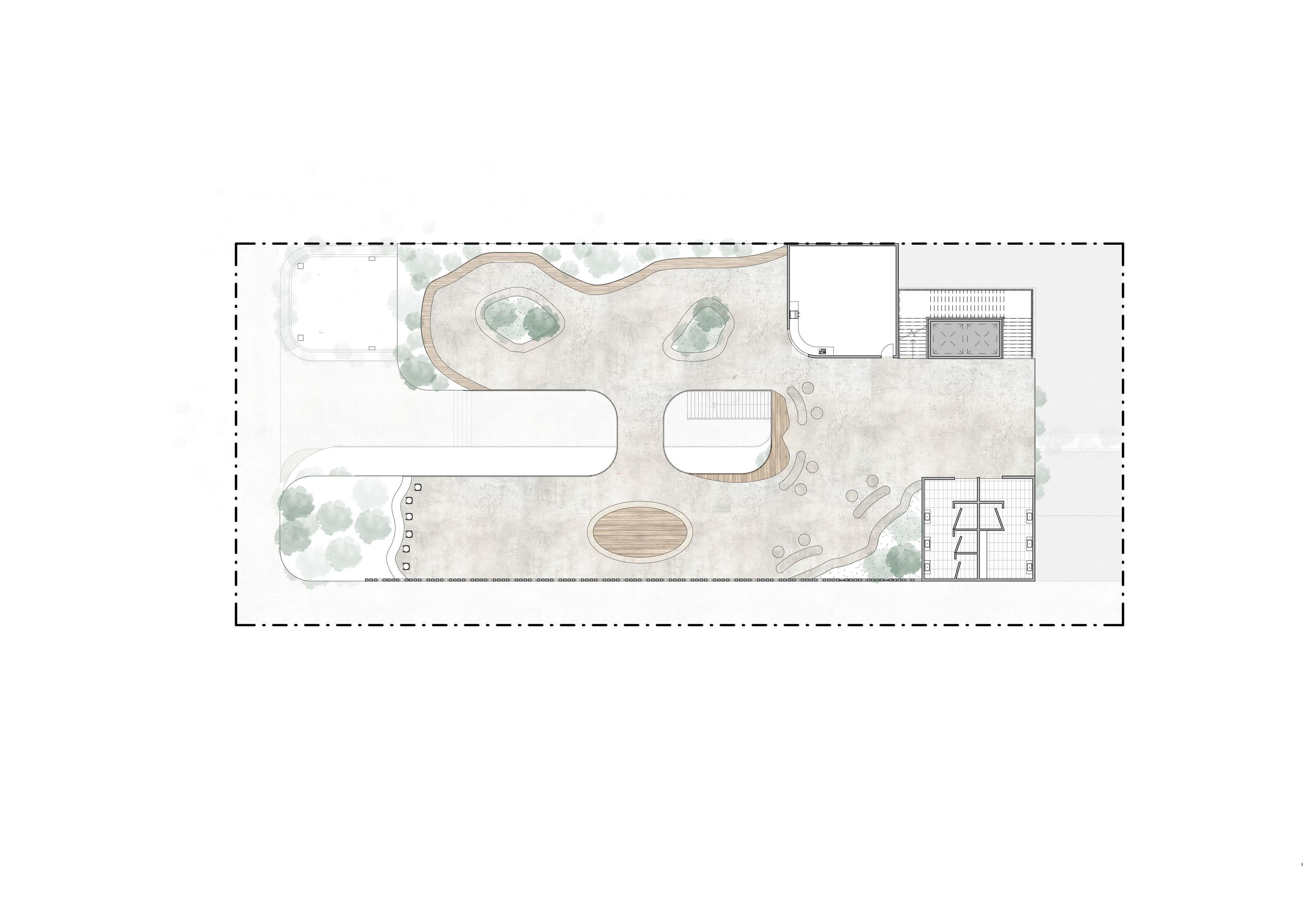

1:200 LEVEL 3 PLAN OUTDOOR SEATING/EXHIBITION SPACE 1
CAFE 2 BATHROOMS 3
1 2 3

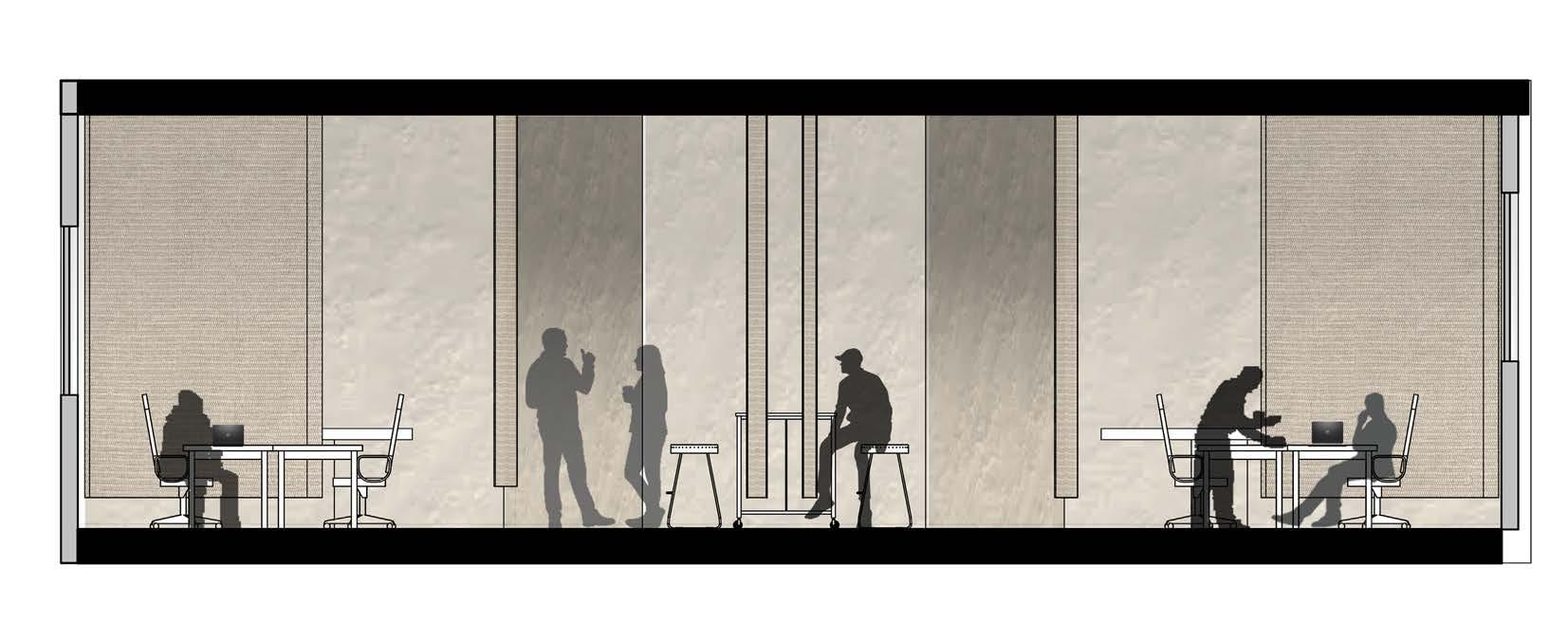

EACH SPACE IN THE BUILDING IS COMPLETELY ADAPTABLE AND CAN BE MANIPULATED TO ANY FUNCTION OR USE. EACH OF THE CO WORKING LEVELS CONTAIN AREAS THAT CAN BE CLOSED OFF WITH CURTAINS TO ENSURE PRIVACY IN MEETINGS ETC

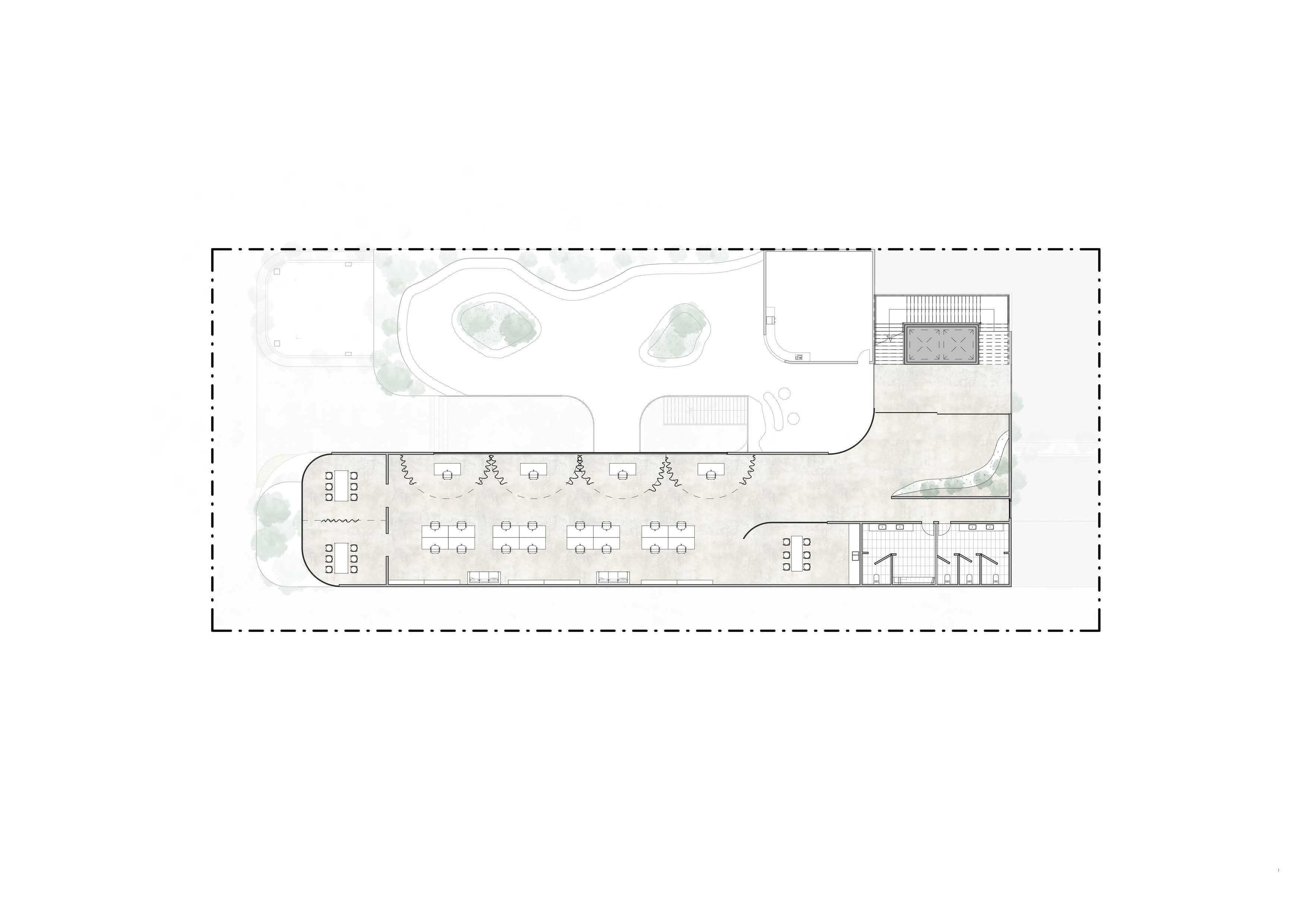

5 OPEN PLAN CO-WORKING 2 KITCHENETTE 3
4 SEATING AREA 5
4
1:200 LEVEL 4 PLAN
MEETING SPACE 1
2 3 BATHROOMS
THE BROOKES CO WORKING SPACES ARE RESERVED FOR ARTISTS AND CREATIVE AS THEY WILL BE DI RECTLY RE-PURPOSING THE DONATED MATERIALS THAT ENTER THE MAIN RE-DISTRIBUTION CENTER. THE PUBLIC ARE WELCOME TO UTILISE BOTH THE STUDIO AND WORKSHOP SPACES

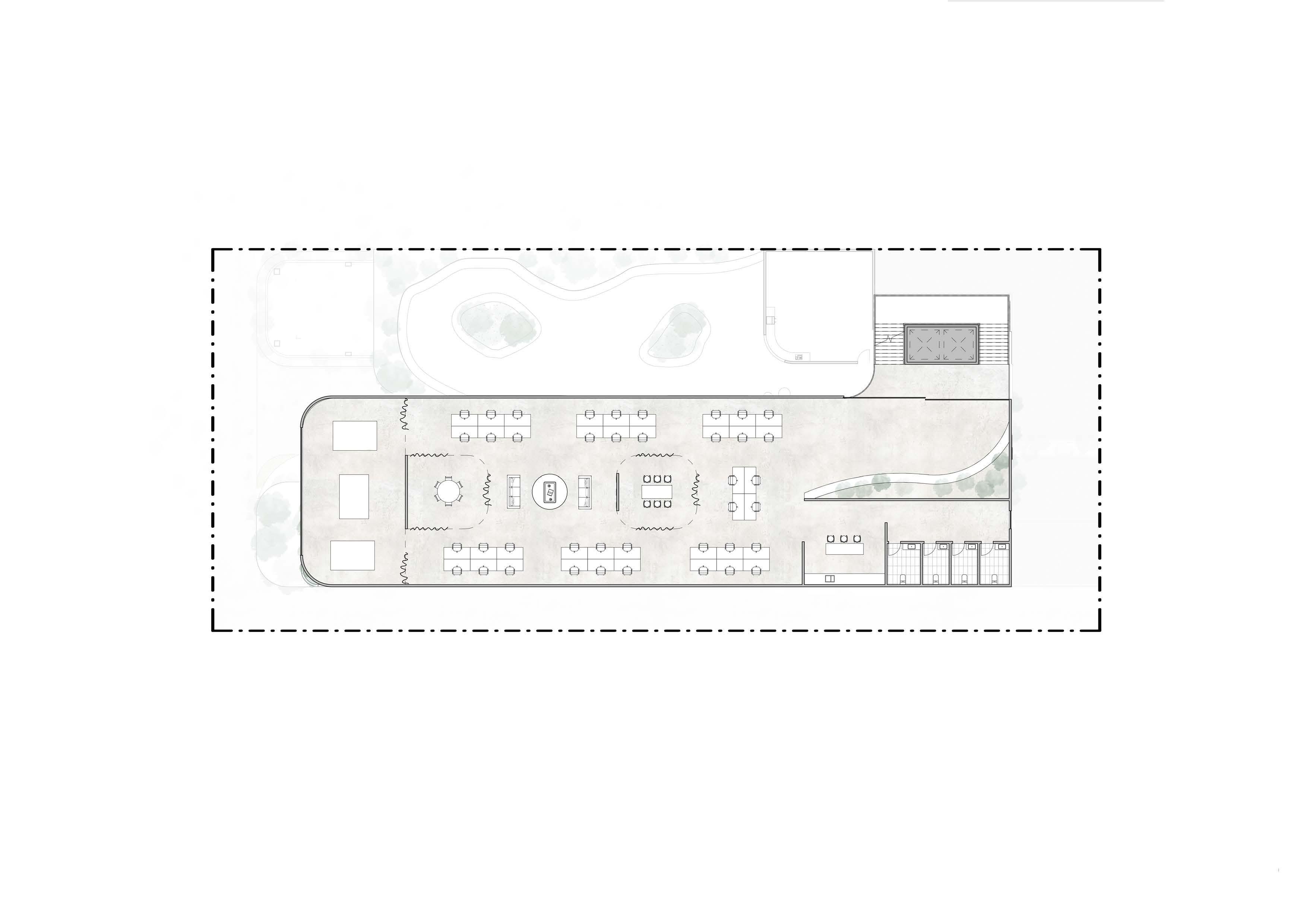

1:200 LEVEL 5 PLAN
BATHROOMS
MEETING SPACE 1 2 3 4 5 5 6 7 8 9 10 11 12 13 14 PRIVATE RENTABLE OFFICES 2-12 KITCHENETTE 13
14
1 2 4
3 5 6
PRESENTATION ROOM 1
7
CURTAIN-CLOSABLE MEETING POD 2
OPEN-PLAN CO-WORKING 3
CURTAIN-CLOSABLE MEETING POD 4 KITCHENETTE 5 BATHROOMS 6
1:200 LEVEL 6 PLAN
SEATING
AREA 7
SPACES EXCLUSIVE FOR THOSE WHO UTILISE THE CO-WORKING SPACES ARE AVAILABLE FOR SOCIALISATION, NETWORKING AND GENERAL LEISURE

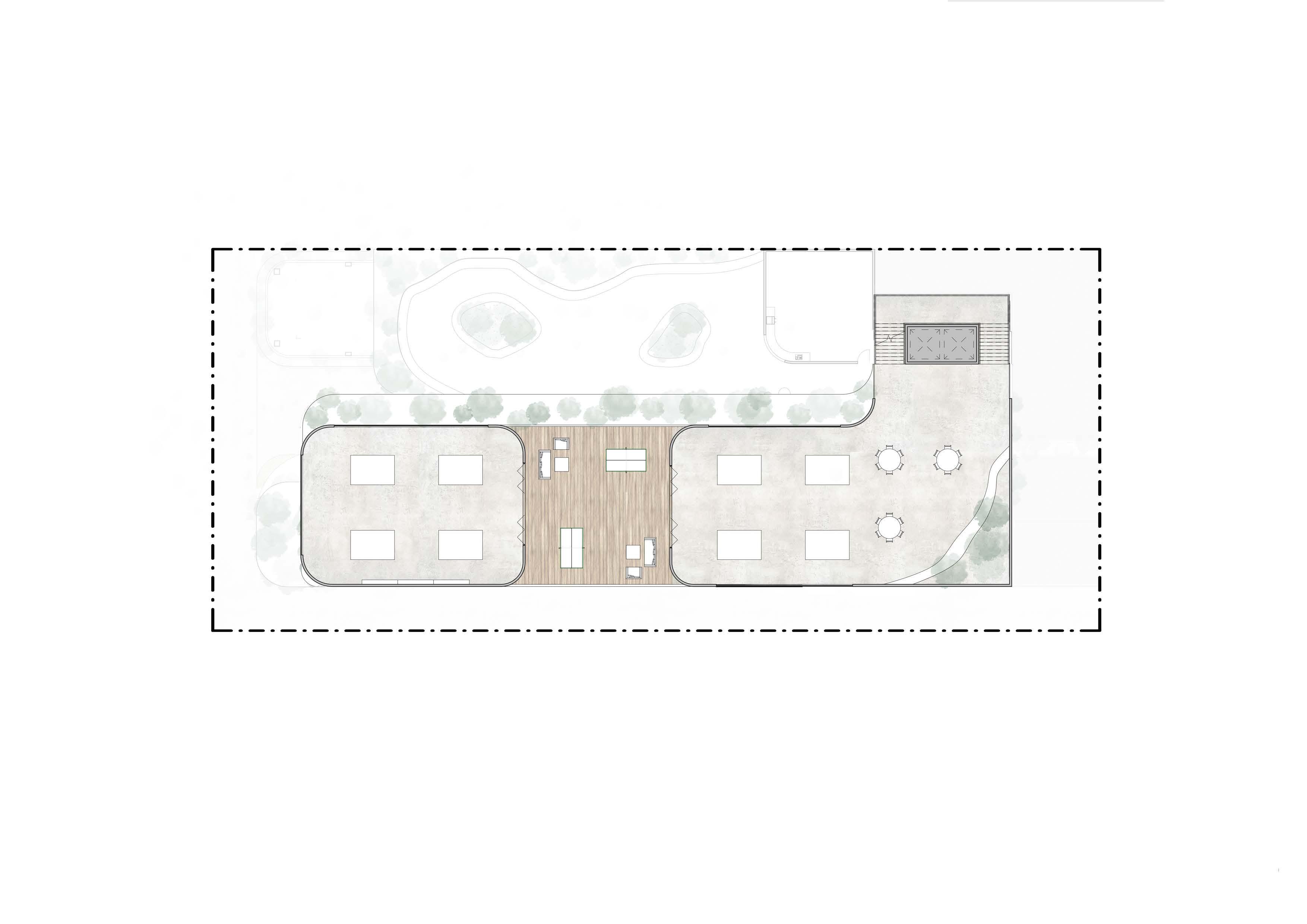

1:200 LEVEL 7 PLAN
CASUAL MAKERS SPACE 1 2 3 4 BREAK-OUT SPACE 2 CASUAL MAKERS SPACE 3 SEATING SPACE 4

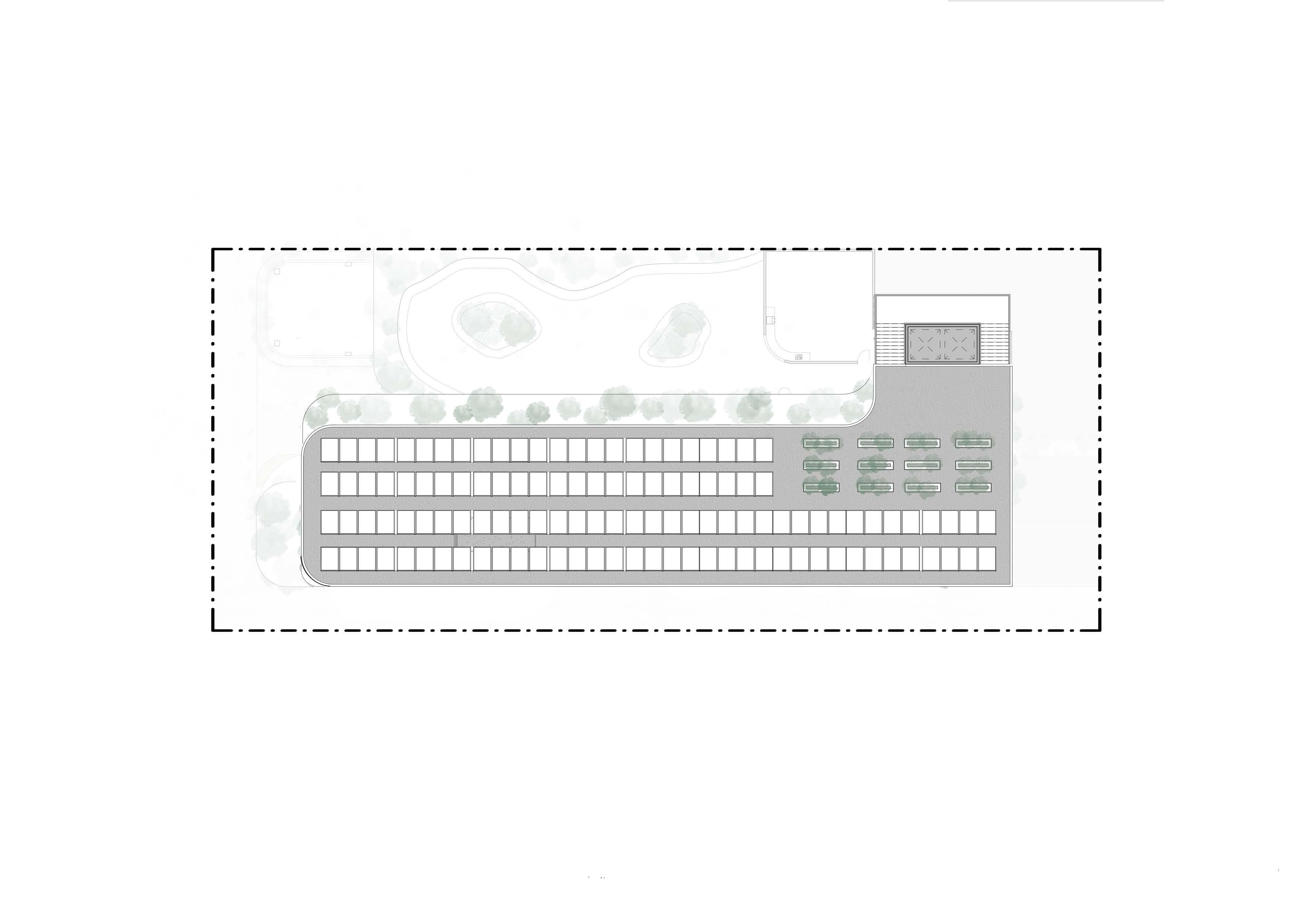

THE ROOFTOP IS RESERVED FOR SOLAR PANELS TO EFFICIENTLY AND SUSTAINA BLY PROVIDE THE BROOKES WITH POWER. ALONG WITH THIS ARE PLANTERS THAT PROVIDE NECESSARY NEEDS FOR LOCAL SPECIES TO SUPPORT THEIR ECOSYSTEM
1:200 ROOFTOP PLAN ROOF
PLANTERS 2 SOLAR PANELS 3
1 2 3
1:200 NORTH ELEVATION
1:200 SOUTH ELEVATION

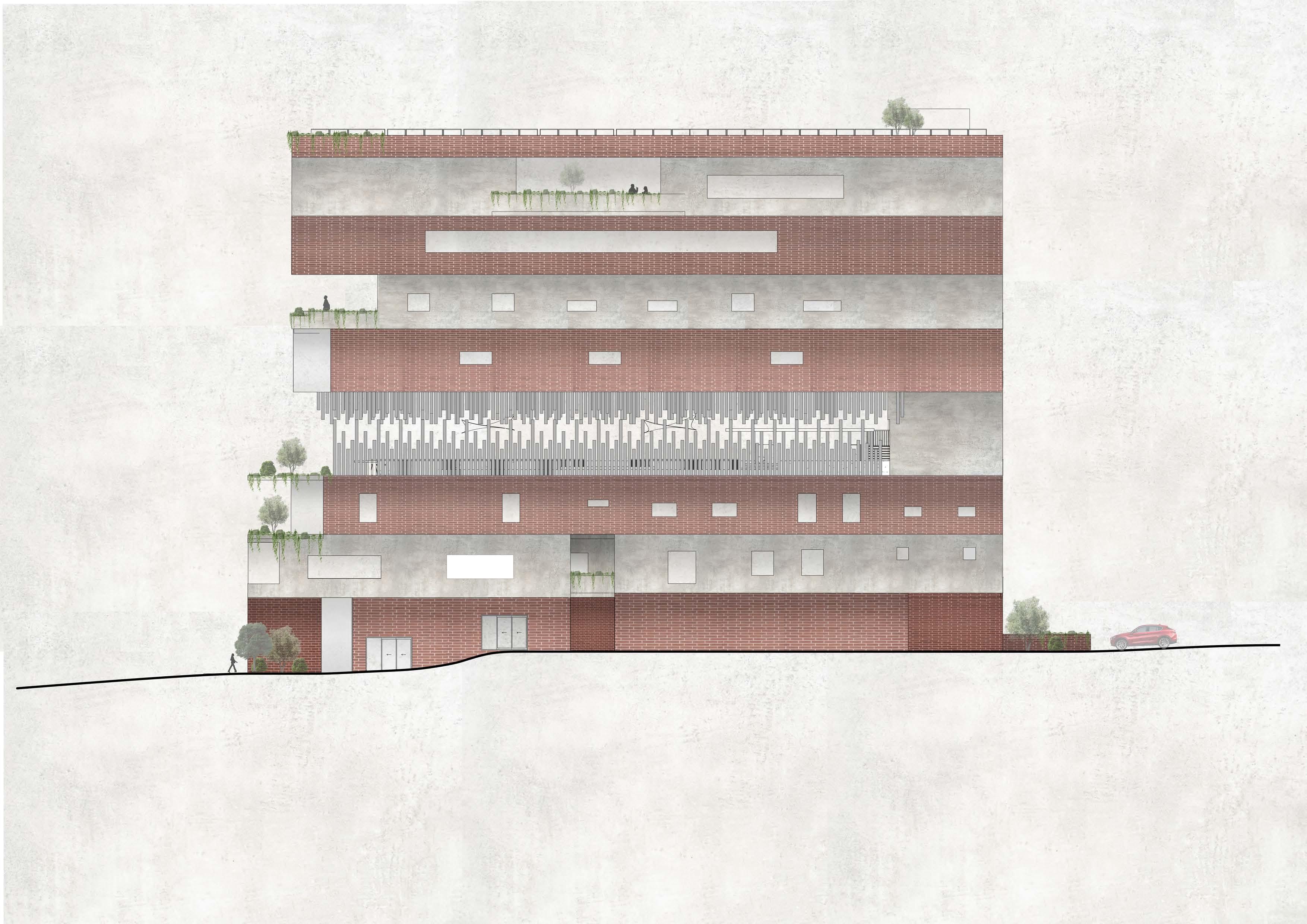

1:200 EAST ELEVATION
1:200 WEST ELEVATION

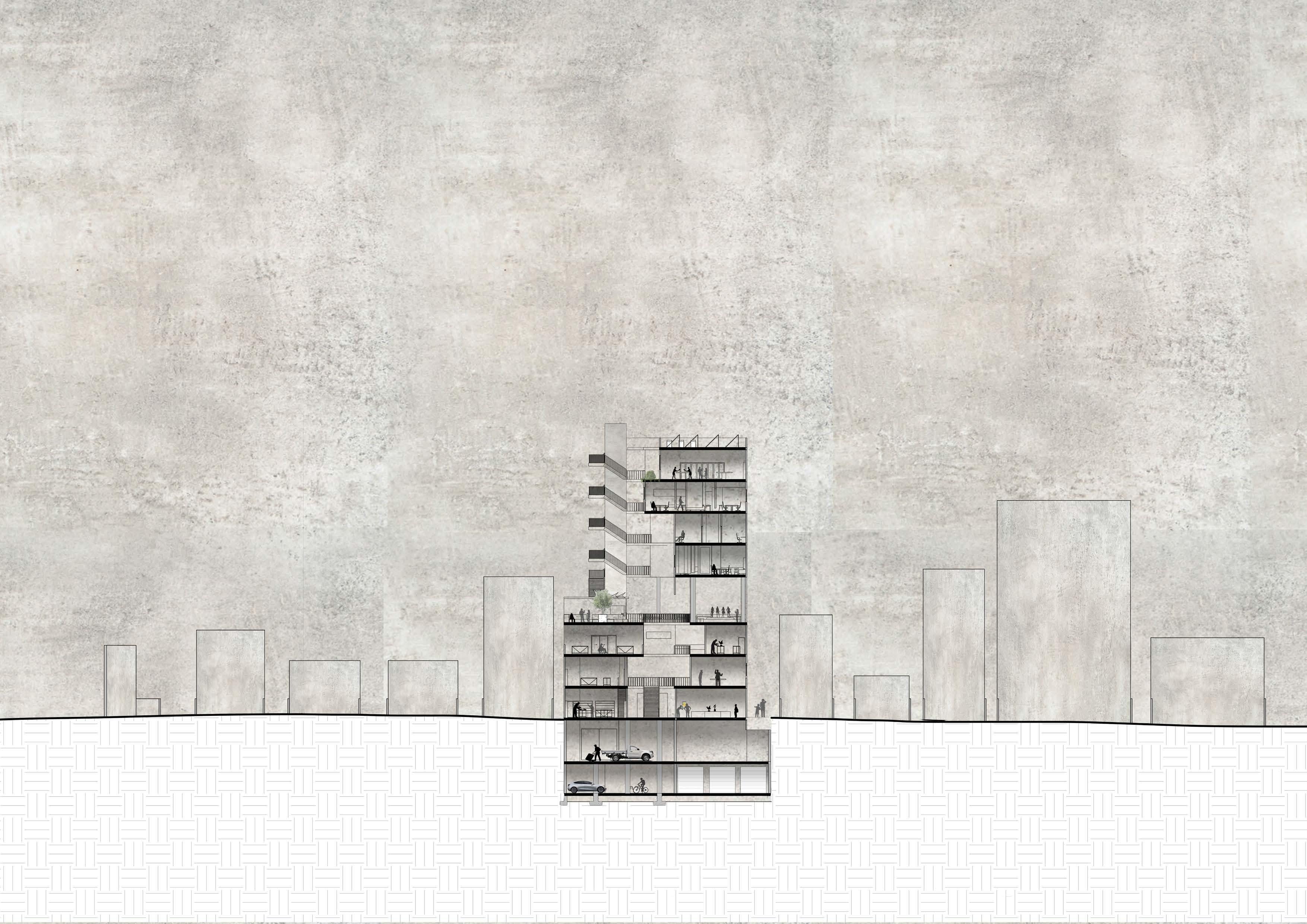

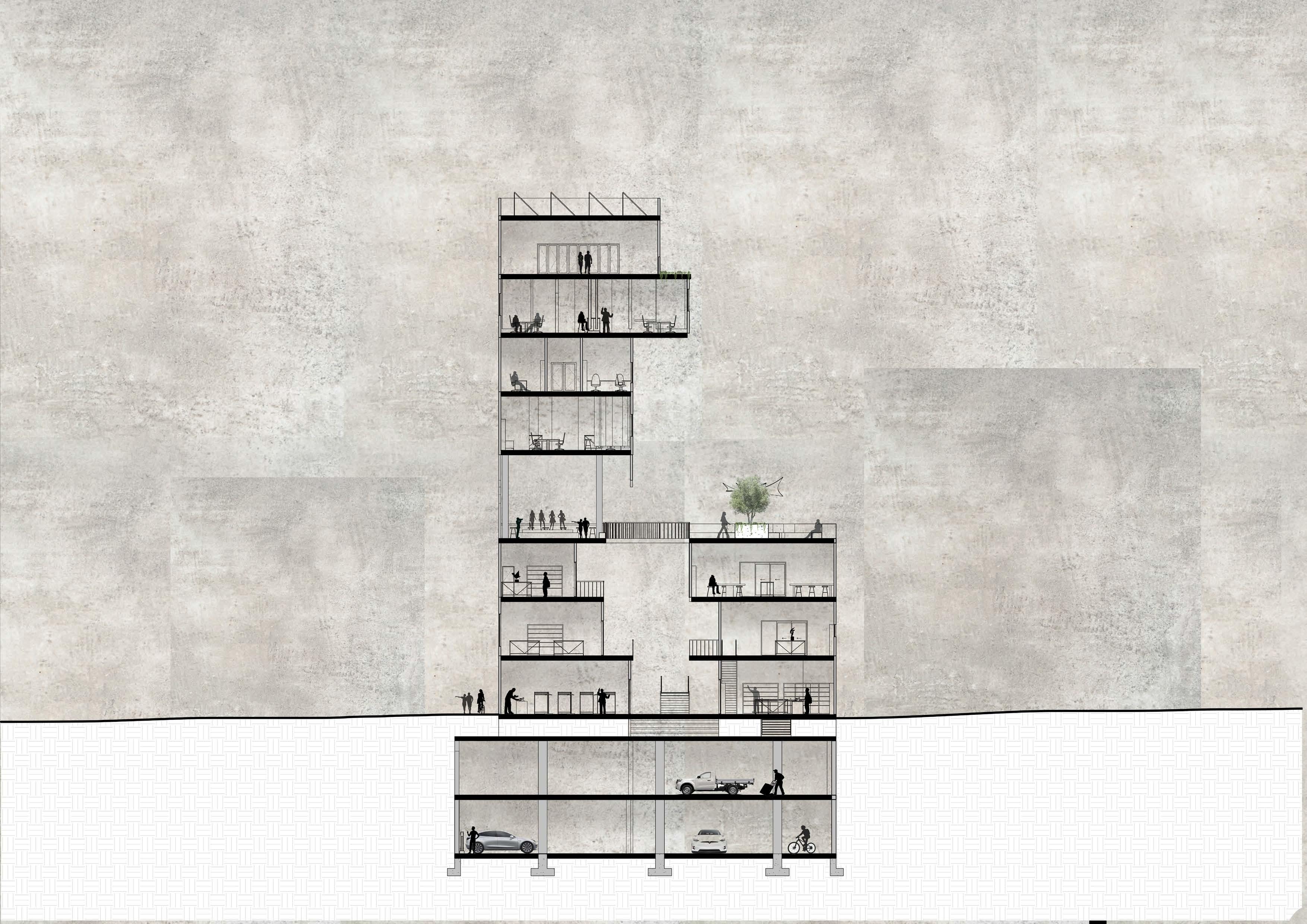

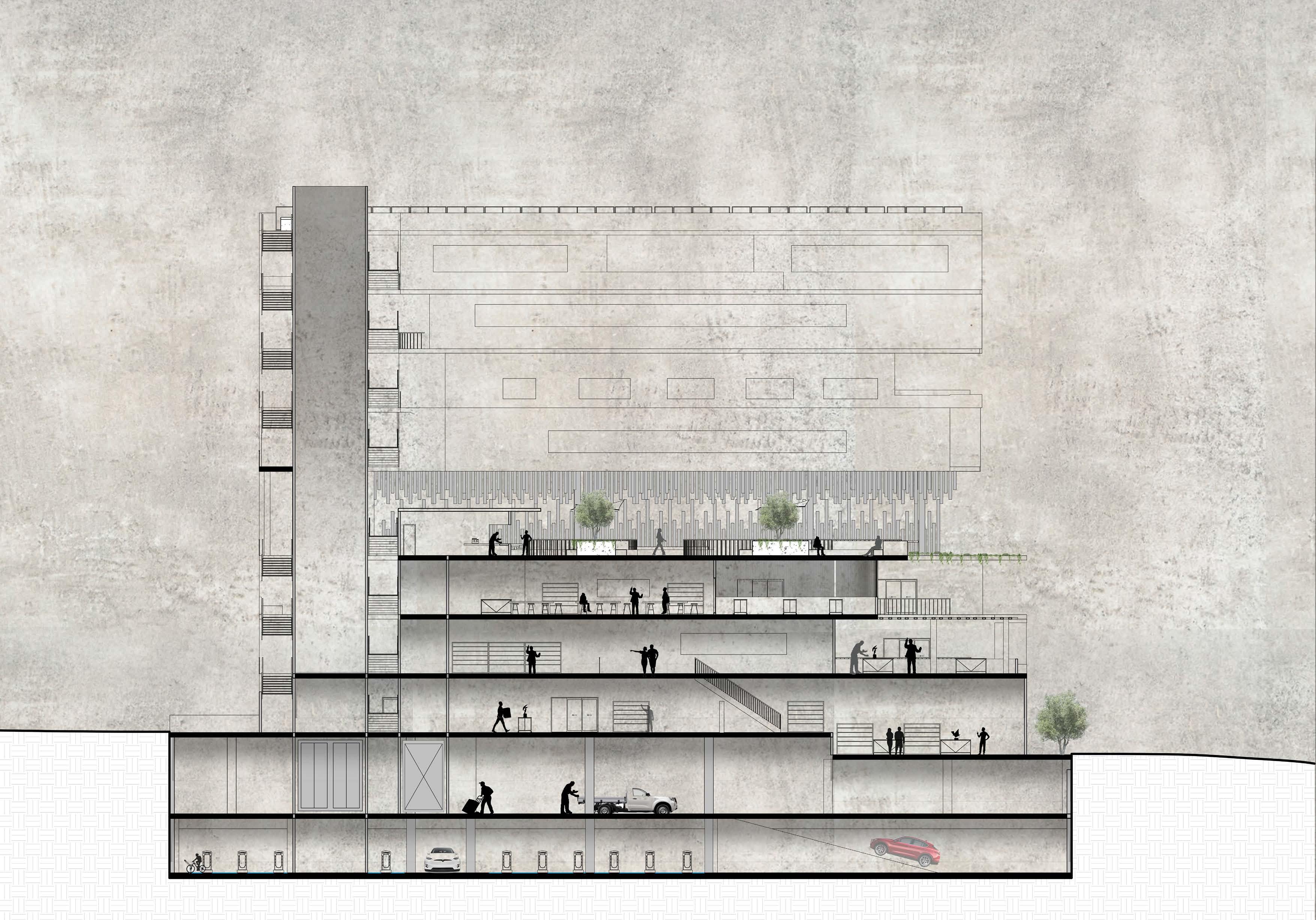

1:200 NORTH SECTION CASUAL MAKERS SPACE 1 B2 B1 GF 1 2 3 4 5 6 7 8
1:200 SOUTH SECTION

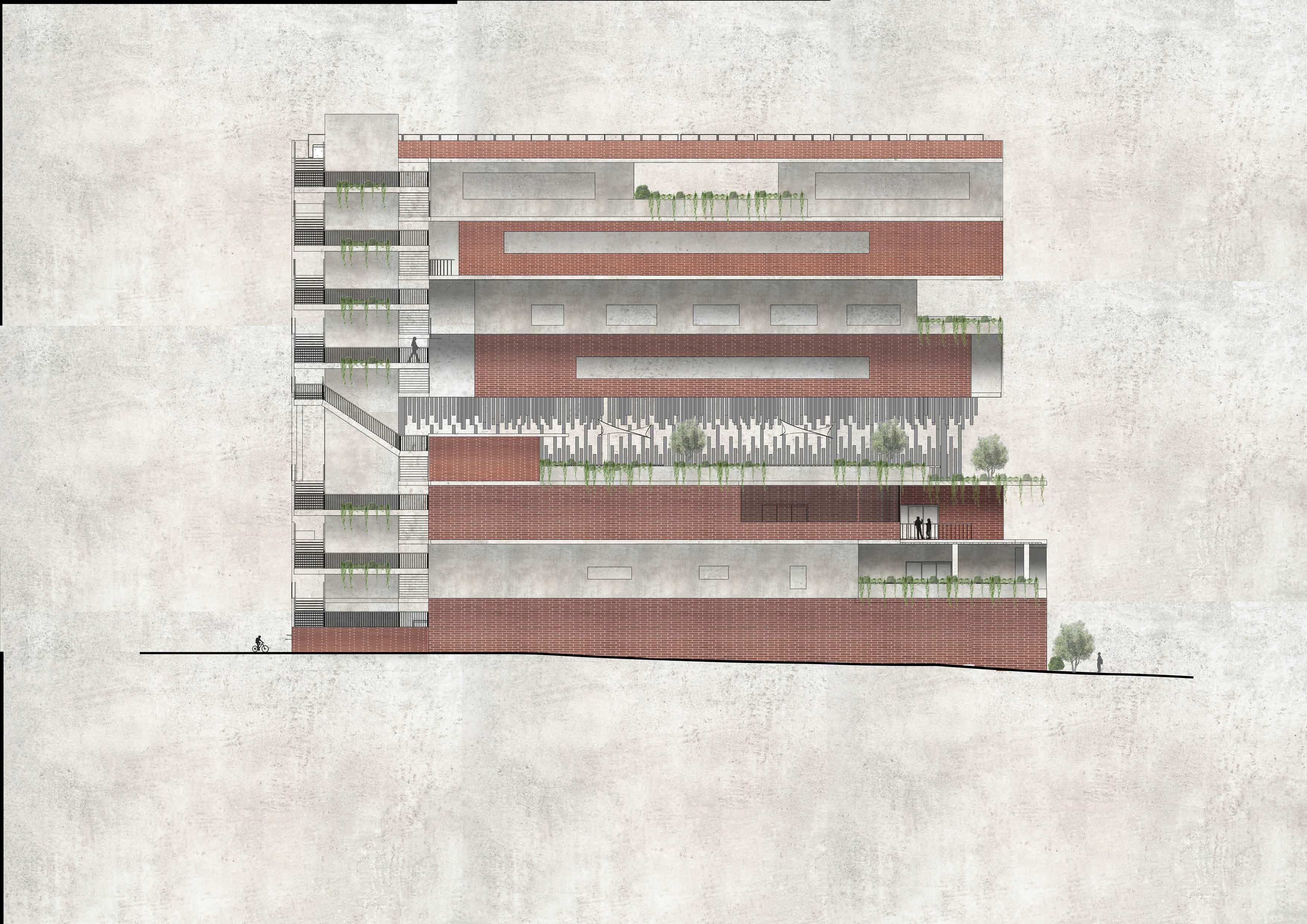

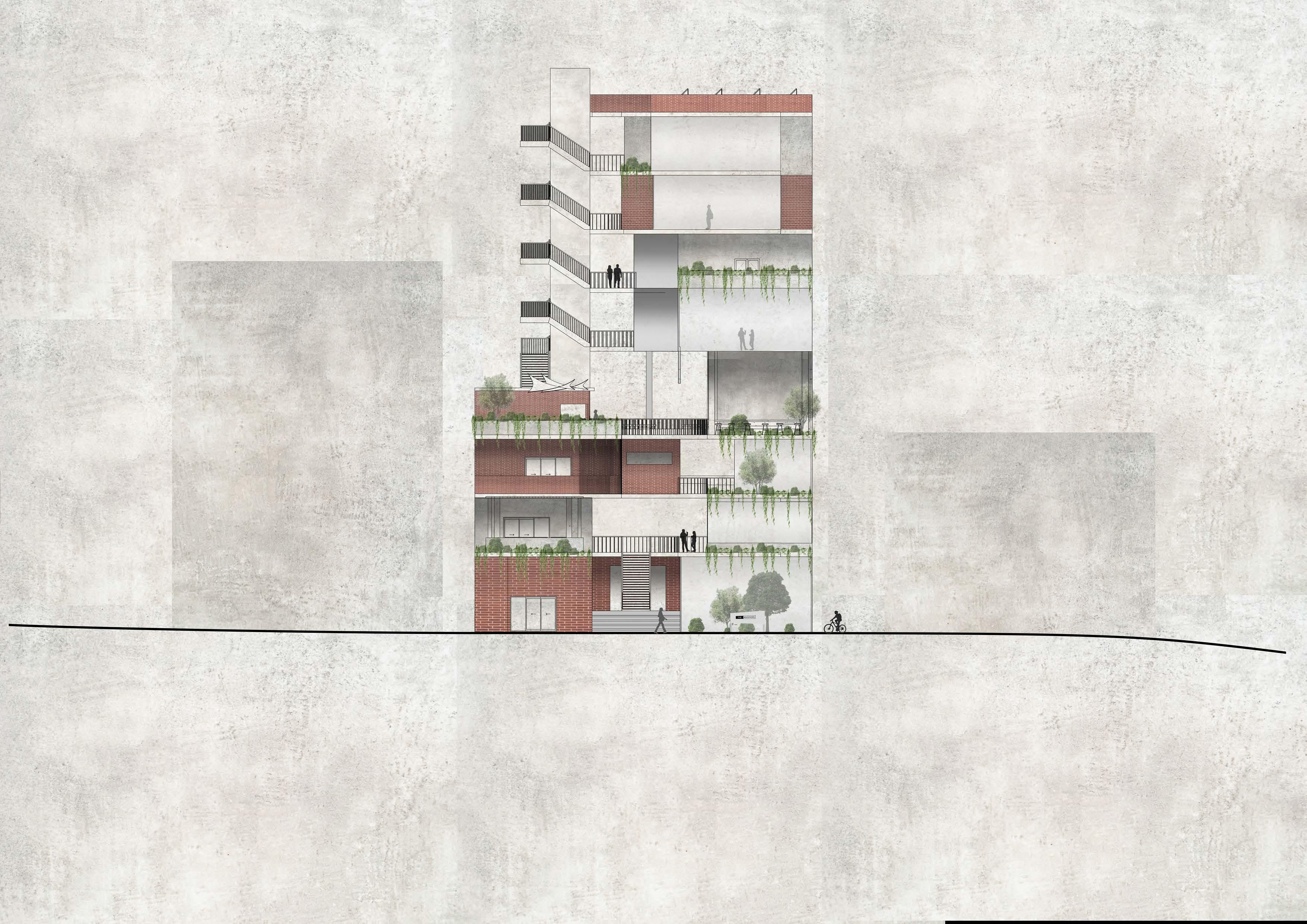

1:200 EAST SECTION
1:200 WEST SECTION

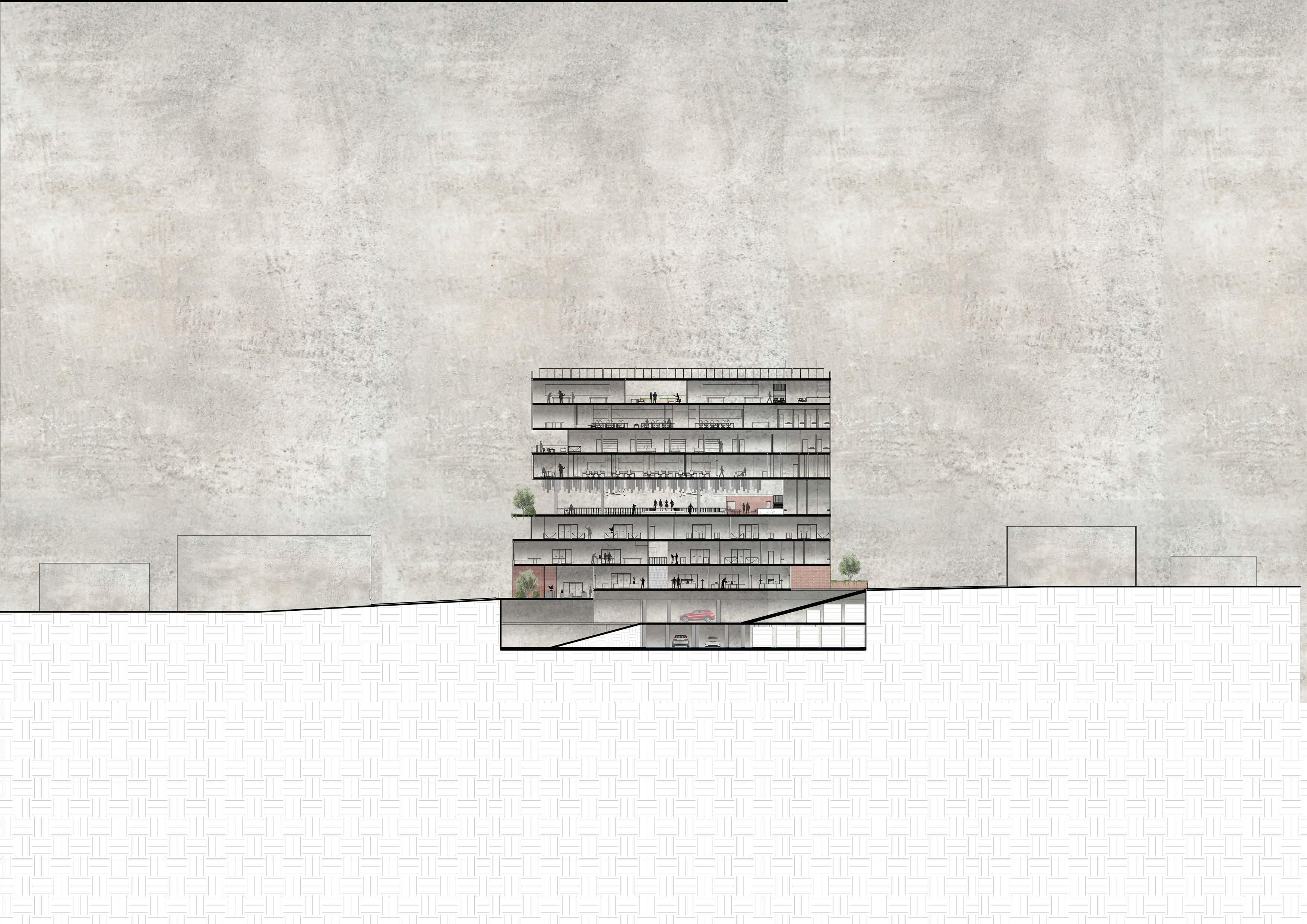

1:500 NORTH SITE SECTION
1:500 WEST SITE SECTION
1:100 LEVEL 3 FLOOR SECTION
LEVEL 3
LEVEL 3
MATERIAL DISTRIBUTION CENTER
1:100 LEVEL 5 FLOOR SECTION
LEVEL 5 CO WORKING
BROOKES ST ENTRY
RETAIL (CREATIVE)
