CHUN-LI CHEN (JULIE) SELECTED WORKS 2016 - 2024

PROFESSIONAL EXPERIENCE ENGINEERING DISCOVERY BUILDING (EDB) Project Type / Science & Technology, Higher Education Project Year / 2021-2026 (Exp. Complete) Location / Austin, TX (USA) Size / 207,336 GSF Client / University of Texas Austin Project Team / University of Texas Austin AEC, CO Architects, BGK Architects, Vaughn Construction, Shah Smith Associate (MEP), Datum Rios (Structure), Burro Happold (Sustainable), Garza (Civil), Datacom (AV/Security), Allegion (hardware) Project Role / Junior designer Participated Phases / Schematic Design Development, Construction Documentation, Construction Administration (2022 - Present)

Located at the intersection of the main campus and the engineering precinct, the EDB will house impaction research in novel bio materials, chemical synthesis, geo-mechanics and production, and computation engineering for the Cockrell School of Engineering.

Designed to foster collaboration and forge industry partnerships, the EDB has informal meeting spaces, lounges and expansive outdoor amenity spaces.

My role has gradually migrated in the duration of the project. In design phases (late SD and DD phase), I develop design studies for Value Engineering, and coordinate core and shell design under supervision of project manager in supporting code studies, life safety studies, and area calculations to achieved multiple stakeholder’s expectations at the university.

In CD phase, I focused on detailing for core and shells . In CA phase, I am in charge of documentations, LEED tracking, submittal review, answering RFIs, as well as communicate our design intension with consultants, contractors, and owners.

Professional Rendering by others

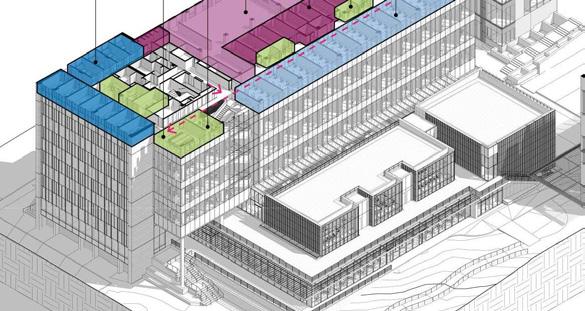

Create diagrams for executive meetings explaining site constrains / Illustrator, InDesign

Create diagrams for executive meetings / Revit, Illustrator, InDesign

DD & CD Phases - Stair 4 Design and Detailing / Rhino, Microsoft Excel, Blue beam

SD Phases study - Delivered duct bank and utilities coordination and pricing reports for client considerations / Illustrator, Microsoft Word

Establish and operate project documents changes tracking. / Excel, Microsoft Words, Blue Beam

Other examples of Construction Documentation Drawings - Dual Egress Door Detail, Movable fire wall sections, Egress, and Elevators/ Revit

Design Development & Construction Documentations - Stair 4 Design and Detailing Realization/ Revit

End result of the FDC coordination (South East)

Coordination of FDC plate and board form concrete with plumbing engineers / Revit

FDC Coordination with trade partners on a DIV 21 submittal review (Second revision)/ Blue Beam

Underground Plan at Loading dock - Coordinated PIV locations with plumbing engineers and landscape designers (South West)/ Revit, Hand sketch

PROFESSIONAL EXPERIENCE AMBIGUITY INSIDE-OUT Project Type / Material Study & Installation Project Year / 2023 Location / Buffalo, NY (USA) Size /1’ x 3’ x 4” modules on a 60” x 70” frame Client / Boston Valley Terracotta Project Team / CO Architects, Boston Valley Terracotta, TRIPyramid Project Role / Junior designer Participated Phases / Schematic Design Development, Construction Document and Installation My role and responsibility was to deliver a series of module proposals and communicate design concept with cross disciplinary trade partners involves in the glazing, firing, and hardware designs. On the days of construction and installations, I was responsible to provide guidance and solutions for unforeseen conditions.

Module and final results/ Rhino

Surface Design to communicate with trade partner/ Rhino, Photoshope, illustrator

Module and fittings mock up/ 3D printing

PROFESSIONAL EXPERIENCE CND LAB FIT-OUT Project Type / Commercial Lab and offices Project Year / 2021 Location / Scottsdale, AZ (USA) Size / 9,246 NSF Client / CND Life Sciences Project Team / CO Architects Project Role / Intern as a junior designer Participated Phases / Schematic Design (2021)

No Ceiling Ceiling

CND LAB Sciences was looking for a new office layout that can facilitate their test kits and lab work flow in support of the scientists in the facility. Designed to foster collaboration, the users was looking for solutions to foster collaboration research, and requested informal and formal meeting spaces, open offices, receiving and delivering, and expansive outdoor amenity spaces. The client was also hopping to expand the lab to the other tenant area in the future.

NORTH

My role and responsibility was to develop a series of space adjacency studies for the clients to maximize flexibility for their new offices and lab process. A series of design studies were made and presented to the client, and comments were incorporated in the final proposal.

Final selected proposal / Revit, Adobe Photoshop & Illustrator

Reflected ceiling plan. / Revit

Usable Area

Original Site plan PROGRAM

NSF

Office & Administration Commons Receiving & Shipping Analytical Lab Analysis Area Research & Development Lab Test Kit Productions Circulation (15%)

1,535 830 665 3,100 820 620 430 1,205

TOTAL

9,246

Option 1 Fume hoods are placed between analytical lab and research lab

Option 2 Fume hoods are placed at the west side of lab

Multiple proposals developed for client selection and feedback / Miro

Option 3 Corridors move to the east side

PROFESSIONAL EXPERIENCE MAYO INTEGRATED EDUCATION & RESEARCH BUILDING

CA MANUAL Project Type / Project and Practice Management Project Year / 2023 Project Team / CO Architects Project Role / Junior Designer, graphic and texts Participated Phases / Visualized construction administration relationship for office wide utilization.

Project Type / Medical Health Science Education Project Year / 2021- 2024 Location / Phoenix, AZ (USA) Size /150,000 GSF Client / Mayo Clinic Project Team / DFDG Architects, CO Architects Project Role / Intern as a junior designer Participated Phases / Design Development (2021) My role and responsibility was to develop the design and drafted a series of drawing for the maker space in the building, coordinated and developed a log for tracking furniture and equipments used in the space.

Sketches during design process of the design / Revit & hand Sketch

Extracted from construction submittal. Explains how to track submittal with Newforma / Adobe Illustrator

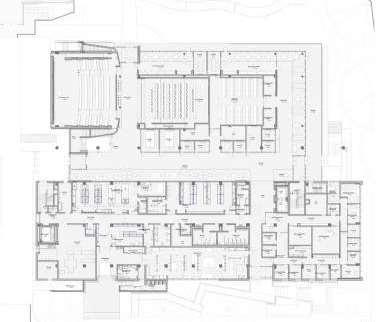

Final design Maker Space floor plan, axon, and elevation view. / Revit

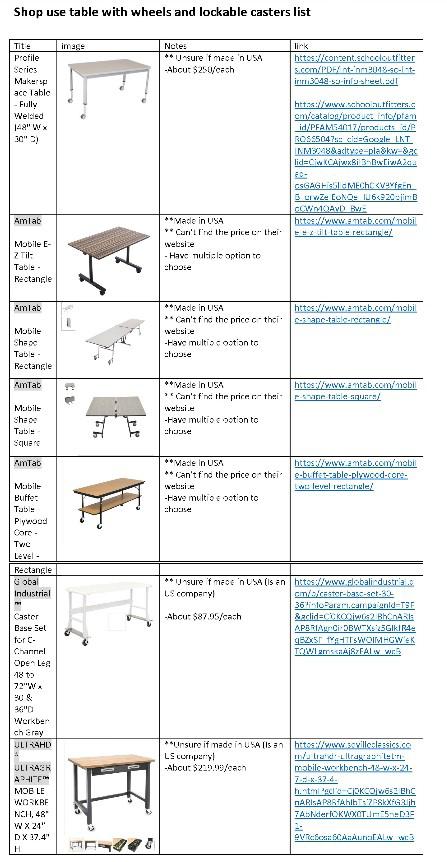

Furniture & equipment log / Excel

Extracted from construction submittal. Explains procedures for document organizations/ Adobe Illustrator

Extracted from BIM coordination. Explains how the process operated and the rule for AE team / Adobe Illustrator

Explains procedures and responsibilities between OAC in a deign bid-build contract relationship/ Adobe Illustrator

PROFESSIONAL EXPERIENCE ECO SUSTAINABLE TEMPLATE

UNIVERSIT Y OF TEX AS AT AUSTIN

Engineering Discovery Building

Project Type / Project management Project Year / 2024 Project Team / CO Architects eCO Team Project Role / Junior Designer, graphic and texts Participated Phases / Edited and visualized items for design team to track products, carbon foot print, EUI across multiple credentials for sustainable practices.

CLIMATE BACKGROUND • At Climate Zone 2A • The lowest Dry Bulb Temperature of 25°F on DEC. and the highest of 102°F on July.

• The month with the lowest average Global Horizontal Radiation is JAN., with an average value of 104.4Wh/m², and highest in July, with an average value of 291.1Wh/m².

PROJECT GOALS • Contractual UT requirement minimum LEED Silver, goal for project is Gold.

• Exceed the University’s Energy Use Intensity (EUI) targets for the laboratory building type.

SUSTAINABILITY METRICS PROJECT NAME Location Project Area Occupancy Type Number of Occupants

ABC Building Los Angeles, CA # SF Office #

CERTIFICATION PROGRAMS

LEED (Leadership in Energy and Environmental Design) LEED VERSION:

v4.1 LEED BD+C NEW CONSTRUCTION

PROJECT GOAL:

Gold

80

TOTAL CURRENT LEED POINTS (Total 110 PTS) INTEGRATIVE PROCESS

1

LOCATION & TRANSPORTATION

14

SUSTAINBLE SITES

4

WATER EFFICIENCY

9

ENERGY & ATMOSPHERE

27

MATERIAL & RESOURCES

6

INDOOR ENVIRONMENTAL QUALITY

6

INNOVATION & DESIGN PROCESS

10

REGINAL PRIORITY (ZIPCODE 02143)

3

WELL Building Standard WELL VERSION:

V2

PROJECT TYPE:

OWNER-OCCUPIED

PROJECT GOAL:

PLATIUM 0

TOTAL CURRENT WELL POINTS (Total 100 PTS) AIR

#

WATER

#

NOURISHMENT

#

LIGHT

#

MOVEMENT

#

THERMAL COMFORT

#

SOUND

#

MATERIALS

#

MIND

#

COMMUNITY

#

INNOVATION

#

BREEAM (Building Research Establishment Not Persue Environmental Assessment Method) VERSION:

V7

PROJECT TYPE:

New Construction

TOTAL CURRENT PERCENTAGE (Total 100%) Final BREEAM score

0

BREEAM rating

0

BREEAM category

ENERGY ANALYSIS

NOTE: AIA 2030 GOAL : 80% Reduction from baseline EUI. Data shown does not include UT central plant data.

SUSTAINABLE DESIGN STRATEGIES SOL AR RADIATION ANALISYS

South West Corner

Credits achieved

Health and wellbeing

0

Hazards

0

Energy

0

Transport

0

Water

0

Materials

0

Waste

0

Land use and ecology

0

Innovation

0

ENERGY EFFICIENCY (kBtu/sf/yr) CRITERIA North East Corner

0

Pollution

EUI (kBtu/st/y NOTES

BASELINE BY PROJECT TYPE

383

LABS 21/CBECS

383

PROJECT TARGET

275

UT SYSTEM TARGET

275

CURRENT PREDICTED

180

4/24 ENERGY MODEL

180

2030 COMMITMENT*

79

80% REDUCTION

79

28% 53% 79%

*For 2024, the AIA 2030 Commitment goal is an 80% reduction from the baseline EUI

EMBODIED CARBON GWP (kg CO2e) SCOPE INTERIOR

EMBODIED ENERGY - LOW CARBON CONCRETE STRUCTURE (GC TO DETERMINE EPDs) % REDUCTION from NRMCA 2022 SOUTH CENTRAL BENCHMARK

Focused Reduction Items

-10%

CONCRETE ELEMENTS

% OF CONCRETE VOLUME

Shear Walls

3.3%

Beams/Joists

34.2%

SHADING East Facade Angled Fins

-10%

Columns

9.8%

82273

PER. IMPROVE -

100000

0

18%

ENCLOSURE

216663

300000

0

28%

SUPERSTRUCTURE

293028

300000

0

2%

SUBSTRUCTURE

60033

50000

0

-20%

0

20000

0

100%

EXCAVATION + GRADING

50,000

100,000

150,000

200,000

250,000

300,000

350,000

18% Imp. 28% Imp. 2% Imp. -20% Imp.

AMOUNT (kg CO2e) BENCHMARK (kg CO2e)

100% Imp.

Detailed calculations broken out by material type and code compliance can be integrated on the sheet to refine the data or provide code compliance

OPERATIONAL CARBON*

-10%

AMOUNT BENCHM CAL (kg CO2e) ARK (kg GREEN

Source On Site Fossil Fuel Consumption

Project Benchma 0 emission rk 30000

100000

Electricity Consumption from non renewable production 40000

200000

Greenhouse Gas Emissions from other sources

50000

20000

50000

100000

150000

BENCHMARK 60% Imp. Oper Imp. 70% Imp.

200000

250000

BENCHMARK BENCHMARK

Standards to use: Greenhouse Gas Protocol (GHG Protocol) LEED (Leadership in Energy and Environmental Design) BREEAM (Building Research Establishment Environmental Assessment Method)

-10%

Elevated Slabs

Energy Performance Certificate (EPC)

34.3%

ASHRAE 90.1

ENERGY/CARBON OFFSETS

Drilled Piers + GB + Footing Retaining Walls

-15% -5%

-10%

SOG

4000 PSI BENCHMARK PROJECT MIX AVERAGE 40% FLY ASH % REDUCTION COMPARE TO 4000 PSI STRENGTH BENCHMARK

AVERAGE

-10%

Amount Amount 2000 Purchase needed Balance 1500 MWh=REC MWh=REC MWh=REC 1000

8.5%

Types of Energy Offsets

4.1% 5.8%

Renewable Energy Certificates

1200

1500

-300

Green Power Purchasing

800

800

0

tCO₂₂e *

tCO₂₂e *

tCO₂₂e *

1000

900

100

Landfill Gas Capture

600

700

-100

Agricultural Methane Capture

400

450

-50

Climate Change

-29%

Ozene Depletion

+4%

Acidification

-1%

Eutrophication

-20%

POCP (Smog)

-2%

Depletion of non-renewable energy resources

-13%

Types of Carbon Offsets Afforestation and Reforestation Forest Conservation (REDD+) Agroforestry

2000

1500

2500

1500

-500 0

0

500

0 3000 2500 2000 1500 1000 500 0

-100

Amount Purchased

-200

Amount needed

-300 Renewable Energy Certificates

Green Power Purchasing

-400

Balance

200 0 -200

Afforestation and Reforestation

Forest Conservation (REDD+)

Agroforestry

Landfill Gas Capture

Agricultural Methane Capture

Amount Purchased

-400

Amount needed

-600

Balance

*metric tons of CO₂e

Standards to reference Verified Carbon Standard (VCS) Gold Standard Climate Action Reserve (CAR) Clean Development Mechanism (CDM)

Created a project sustainable summary cheat-sheet for the UT EDB team to understand and tracking structural embodied carbon, daylighting, and project EUI / Adobe InDesign, PowerPoint, Excel

Developed content and collaborated with digital technical team at CO to create an office wide template for every project to use and track sustainable performance. / Excel

OTHER PROFESSIONAL EXPERIENCE HAMMING CHRISTIAN HOSPITAL Layer

Project Type / Hospital Project Year / 1986. 2017 reorganized drawings Location / Taiwan Size /752,752 GSF (9 Levels) Client / Changhua Christian Hospital (CCH) Project Team / AMBi Studio Project Role / Intern Participated Phases / Post Construction My role and responsibility was to deliver master drawings in AutoCAD format for future maintenance. I established a system of layers for the drawings as the drawings were not organized in layers.

LineWeight

Layer 1

Layer

Floor plans was not organized in layers in the original CAD files. (Level 6 as an example)

.35

LineWeight

Walls Columns Slab Stairs Windows Furnitures Electrical wires Hatch

.35 .45 .25 .2 .2 .1 .1 .05

KINCHENG JUNIOR HIGH SCHOOL RESTROOM RENOVATION Project Type / Renovation Project Year / 2016 Location / Taiwan Size /461 ASF Client / Kinmen Kincheng Junior High School Project Team / Atelier Buffalo Project Role / Intern Participated Phases / Developed elevations for tiles organization and provide color selection for client.

Floor plans organized in colored layers and embed line Weight. / AutoCAD

Floor plans and Elevation of the area of renovation. / AutoCAD, Adobe Photoshop

TAINAN CITY ZUOJHEN FOSSIL PARK

BUFFALO TREE HOUSE #4

Project Type / Museum Project Year / 2017 Location / Tainan, Taiwan Size /64,050 GSF Client / Tainan City Government Project Team / AMBi Studio Project Role / Intern Participated Phases / Design Development

Project Type / Self-Build, Wood Project Year / 2016 Location / Taiwan Client / Yung Ann Elementary School Project Team / Atelier Buffalo Project Role / Intern Participated Phases / Design develop and construction. Assisted in structural and on-site construction.

My role and responsibility was to deliver area take-offs in AutoCAD for the design team internally checking the budget.

Items # CAD(cm)

Parameter Area Ceiling B_1-C03-1 65.02804 255.0042 B_1-C03-2 0 0

B_1-C03-3 0

B_1-C03-4 83.00326 427.5 B_1-C05-1 691.0163 3154.064869 B_1-C08-1 435.71345 4645.99038 B_1-C11-1 126 720 1

Ceilings area take off/ AutoCAD, Excel

Construction discussion. / Model, Hand sketch

2

1 Internship at Ateiler BuffaloWooden Pavilion IV structure design 2016 2 Taiwan Lantern Festival construction 2015

ACADEMIC WORKS PIXATED PARCELS - DETROIT SUGAR HILL DISTRICT MIXED-USE HOUSING DESIGN

Enlarged Facade, Wall, and Floor Section at Window Opening

3-Ply CLT Panels Built-in shelving

Selected 2022 Taubman Student Project Show Project Type / Housing, A662 System Studio, Team Work Project Year / 2021 Location / Detroit, MI (USA) Instructor/ Claudia Wigger, Craig Borum Project Role / Graphics production, Building Integrative system design, Environmental system design, Landscape design, Unit type and floor plan development

Thin Bricks CLT Wall Panel screwed through decking into blocking

5-Ply CLT Panels 11’-0”x7’-6” CLT panels

5-Ply CLT Panels 15’-0”x7’-6” and 7’-6”x7’6” CLT panels

Thin Bricks

Angle Bracket

Typical internal wall structure floor junction

Typical Isometric cut away structure detail

This project focuses on building tectonics and environmental systems with a series of confetti structures. The massing blocks lie at random, as if confetti was thrown, on the site. Everyone has their own entrance and semiprivate outdoor space, and each unit is strategically placed to receive an ample amount of sunlight. The complex contains commercial, 3- 2and 1-bedrooms, and studio apartments. The units are configured according to the user. Each resident upon move in will be given a blank slate apartment with one to two plumbing cores, windows, and doors. It will be up to the resident to design the interior layout of their apartment. Circulation to each unit is unique, as there is no circulation core or hallway, with cuts through outdoor spaces and courtyards, inevitably minimizing building costs.

1 Bed Room Interior

Axon view shows how material overlap, between the sandblasted metal facade panels, brick paneling system, and colored corrugated metal. There is a negotiation between unit 15’x 15’ blocks as in our overall massing plan.

5-Ply CLT Panels 15’-0”x7’-6” and 7’-6”x7’-6” CLT panels

5-Ply CLT Panels 15’-0”x7’-6” and 7’-6”x7’-6” CLT panels

Corrugated aluminum paneling

Fiber Cement Thin Bricks

Axon of Three Units

ACADEMIC WORKS ILLUMINATION - HOLLISTER COMMUNITY LIBRARY Student Citation Award- 2020 Architecture at Zero Competition, AIACA Project Type / Civic, Competition Project Year / 2020 Location / Hollister, CA, (USA) Advisors & Consultants / Yuan-Yuan Chuang, Michael Sammet, Stephanie Haenel, YuLiang Wang, Yang-Ting Shen Project Role / Project Associate Leader My contribution / Project Management, Sustainable Strategies Analysis, Design Development, Energy Analysis, EUI Calculation, Supplemental Document Finalization

The project explored how natural and artificial lighting affected sustainable design decisions to achieve net-zero energy building goals and create a better indoor lighting environment for the library. Combined with a variety of passive and active designs, the new library building pursued the concept of a renewable energy community grid to provide additional energy for the neighborhoods, which could avoid high electricity demand in summer and winter. The project strongly influenced my understanding of the environmental systems and has contributed to my career goal for addressing sustainable design issues with a more comprehensive vision, by established a collaborative platform through BIM working habits and leading evident-based approaches.

Arc-wall Atrium

Geothermal Heat Pump

Introduce sunlight and reflect direct lights to indoor

Use ground heat as heating and cooling resources

Ventilation Chimneys

Radiant Panel

Sun heats air inside chimneys, and create stack ventilation

Use radiant panel to atrium space

Cross Ventilation

Chilled Beams

Open operable windows to cause cross ventilation

Use chilled beams to most of user spaces

Horizontal Shading

DOAS

Place horizontal shading to south and north facade

Bring fresh outdoor air to indoor

Light shelves

PV panels

Reflect sunlight into indoor space

Renewable energy

Evaporative Cooling

Sustainable Design Strategies The section drawing shows where the applied strategies locate. By creating the CP graph, we apply strategies based on the season of the year.

Active Building Design

Active Strategies

Seasons

Thermal Labyrinth Geothermal Heat Pump VAV DOAS Active Chilled Beam Passive Chilled Beam

HVAC System Selection

Winter

Heating and Cooling Zone Control Fan-forced Ventilation

Interior Shading Devices Control Ceiling Fans Raise the Thermostat Setting Radiant Flooring Sensor Placement LED Light Bulbs Stand-alone Dimming Control Automatic Dimming Control

Sustainable strategies / Illustrator, Revit

Interior Lighting Fixture Layout Interior Lighting Fixture Selection Interior Dimming Control System Energy Monitor (AMI) & Intelligent Control System

Passive Strategies

Passive Building Design

Solar Heating

Elongated In the East-West Direction Greatly Open Glazing to South Narrow Building Floor Plate Atrium Operable Windows High Mass Interior Surface (Tile, Slate, Brick or Adobe) High Mass Walls Keep Building Tight and Well-Insulated Structural Insulated Panels Recycled Steel Insulating Concrete Forms Low-E Coating Glazing Horizontal Shadings on N-S Facade Vertical Shadings on E-W Facade Sizes and Arrangements of the Openings Interior Partitions Double Skin Facade

Internal Heating Gain Night Flushing Summer

Stack Ventilation Cross Ventilation Daylighting

Spring/Fall

Evaporative Cooling

Lower Window to Wall Ratio Shading Depth and Angle

Winter Summer Spring/Fall

Thermal Insulation

2

2

1

3

Passive Strategy : Envelope Design

Active Strategy 1: Apply Heating & Cooling Zone Control and Split System

Renewable Energy Strategy 1

Roof Dye-sensitized solar cells: 488.4 m2

2

Silicon-based PV panels Roof: 770.944 m2

3

Dye-sensitized solar cells East & West Shading: 224 m2 (2411.116 sq ft)

72 % Reduction 100 Zero Score

Target 27 EUI 29 Zero Score

BASELINE BUILDING

ORIGINAL DESIGN

Active Strategy 2: Apply Artificial Lighting & Dimming Control

33.5 24.3 22.6 ＋

56 48.7

95

ZERO = NET ENERGY

BUILDING EUI (ENERGY CONSUMPTION kBtu/sqft/yr)

MASSING & ORIENTATION

DAYLIGHTING/ ARTIFICIAL LIGHTING

HEATING /COOLING APPLIANCE ENERGY EFFICIENCY

USER & FACILITY MANAGEMENT

ENERGY MONITOR

RENEABLE ENERGY

elongated east-west direction

41% window to wall ratio

atrium

silicon-based PV panel

horizontal & vertical shadings

personal & automatic control interior shadings

energy monitor(AMI)

below grade portion on north side

operable windows

intelligent control system

dye-sensitized solar cells

narrow floor plate

atrium

atrium

LED lighting fixture

arrangements of openings double skin façade

stand-alone dimming control system

green roof

+ -

layered façade materials triple panel low-E coating glazing highly insulated concrete slabs walls with lower U-value and higher R-value central VAV system with part of heating cooling sources from geothermal heat pump active chilled beams as service type split system with mechanical or natural ventilation hot water

Annual Energy

ACADEMIC WORKS THE GREAT STINK 2022 University of Michigan Aiir Grant Awarded Project Type / Individual Thesis, in collaboration with Adam Chase from Music school Project Year / 2022 Instructor/ Anay Sirota

THE GREAT STINK, an experimental mini-operetta in three acts, seeks to explore how collaboration between architecture, performance, and engineering can stimulate an understanding of systems in the built environment typically left unseen. To tell the story of hidden hygienic systems and their environmental impact, the project repositioned the residential bathrooms as a scenographic. In this scenario, plumbing pipes are re-imagined as instruments, hardware as props, and wet walls are refashioned into sets. Using standard elements in surprising ways and through calibrated juxtaposition, The Great Stink, namely plumbing and the human activities that require it, casts a new light on what we culturally prefer to ignore, The Libretto, in this approach, serves as a narrative trope that questions Eurocentric ideals around physical transcendence, perfectionist fantasy, and the environmental impacts these cultural constructs create.
