What is urbancore?

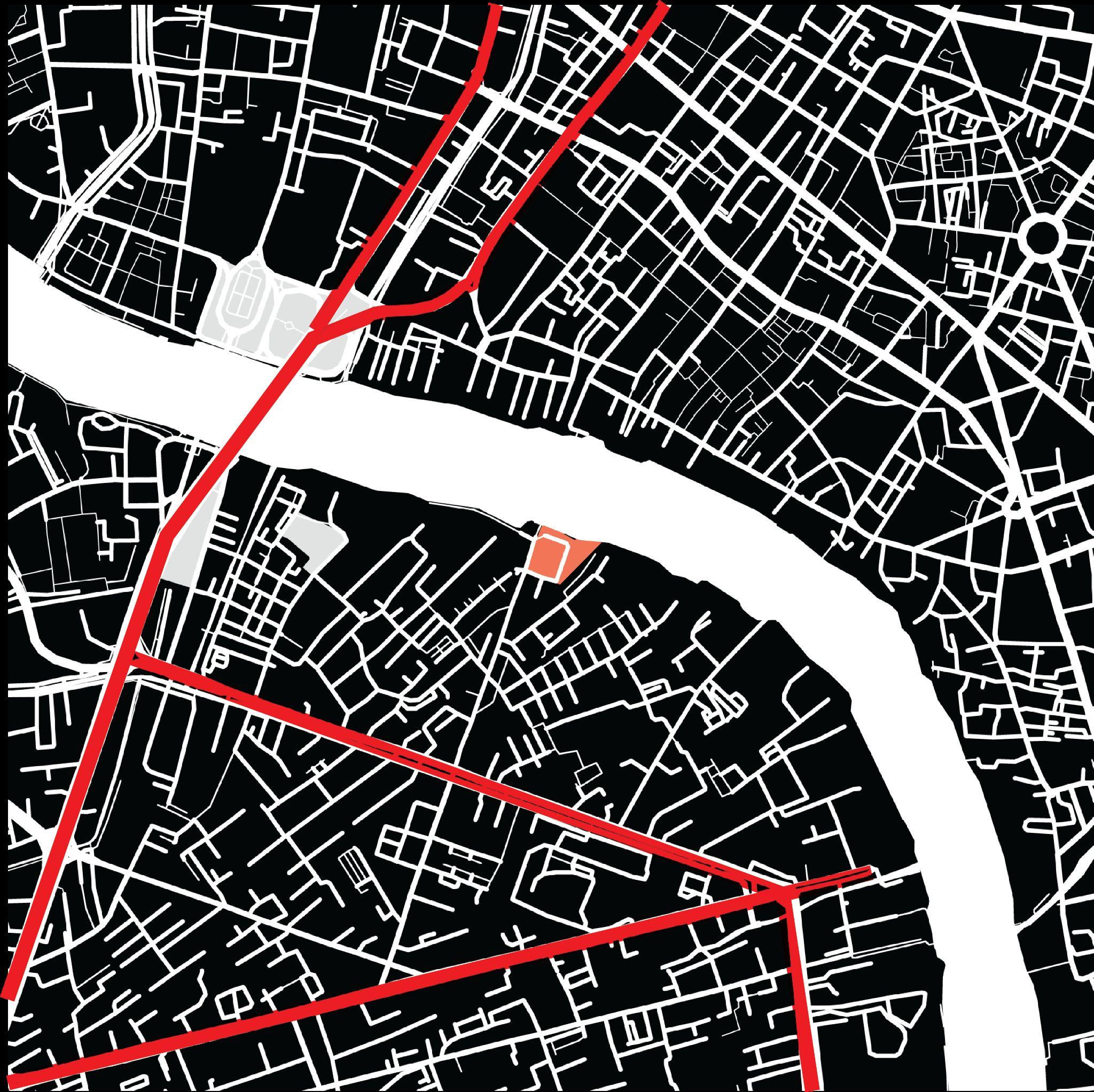

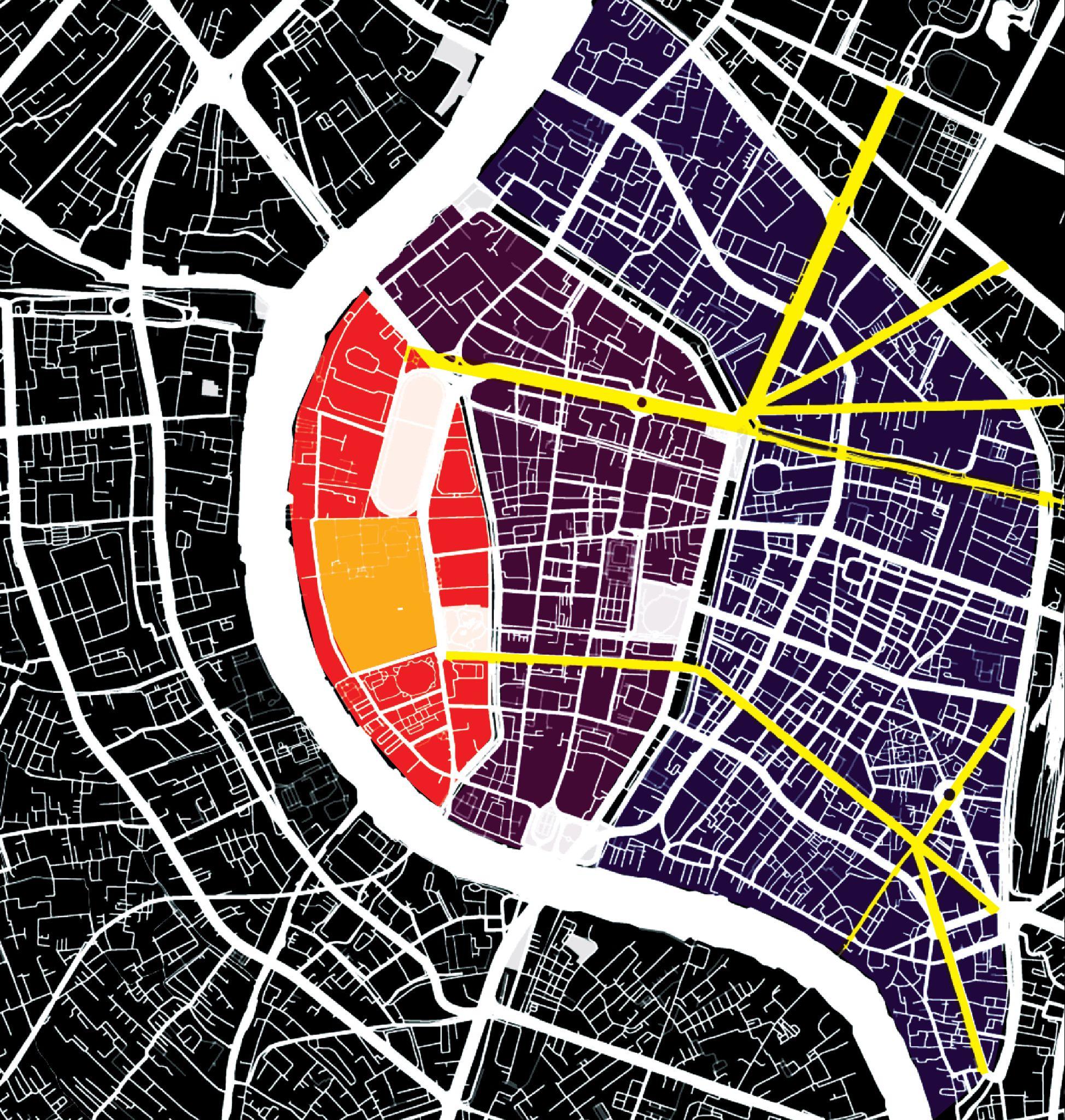

rattanakosin 1780s urbanfabric oldcitylayout
urbancore concept
projectaim
This project, situated along the banks of the Chao Phraya River, embodyingthevisionof integratingthenotionof layered living into the design fabric and programming. Recreating the new urbancoretothecity.

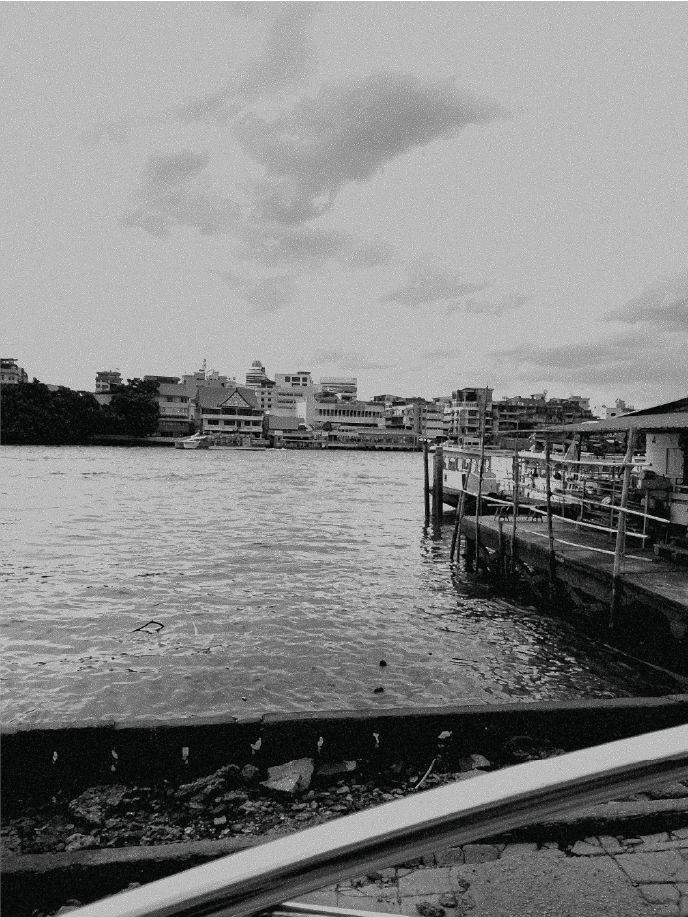

● KlongsanArea ● Innovation District sitelocation 13.736309883971217,100.50406994236279 ● 23thadindaengroad

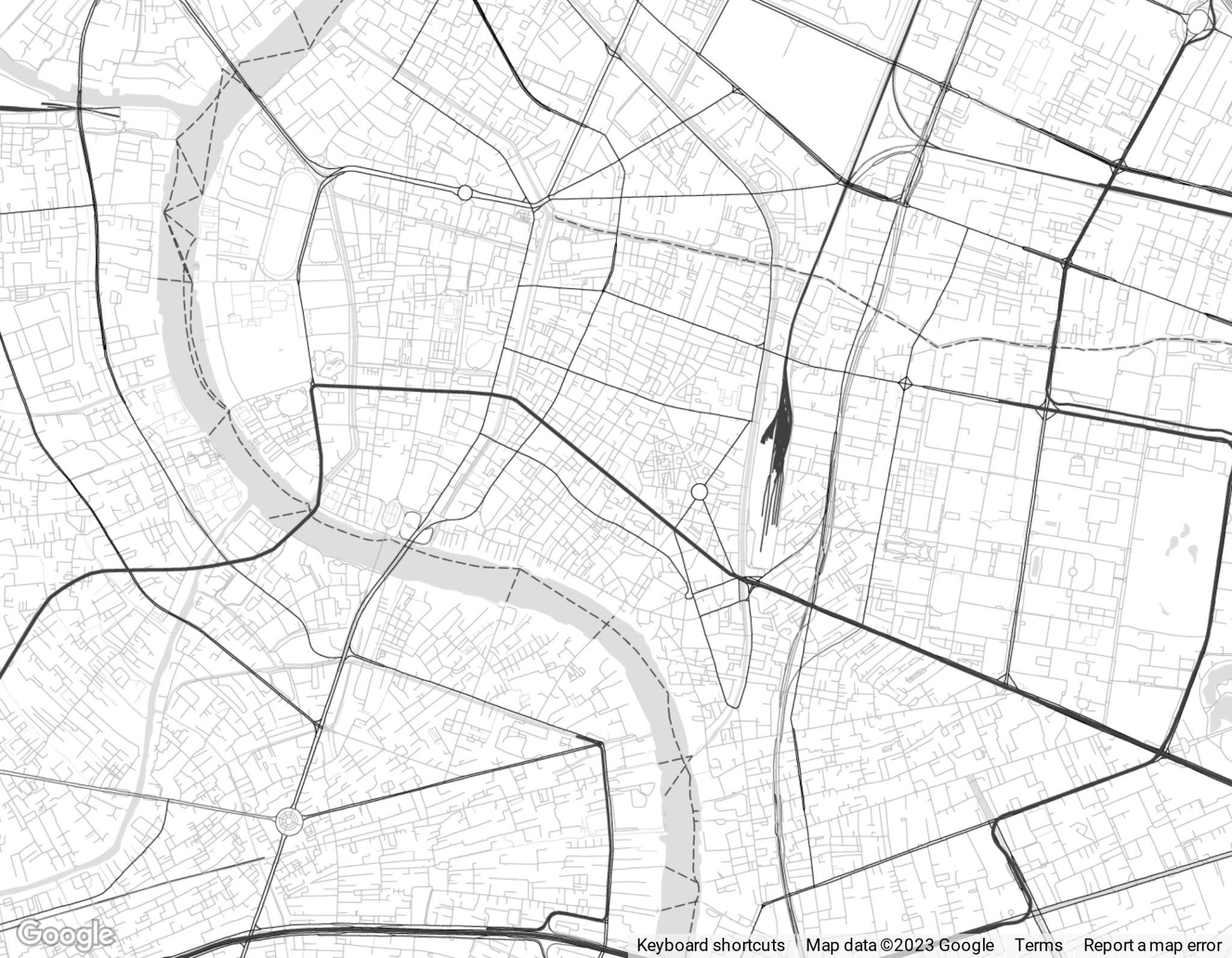

Whatis around the urban core?
river creativeindustries
culture commercialarea
Artgallery
masaajid
ferrypier
oldshophouse market
architectfirm
designstudio temple shrine
targeting user
GenXandGenYPeople
whoworkinthecreative industries e.g. startups, designers, architects, software programmers, writers,musician,...etc.
age:25-56 artist old

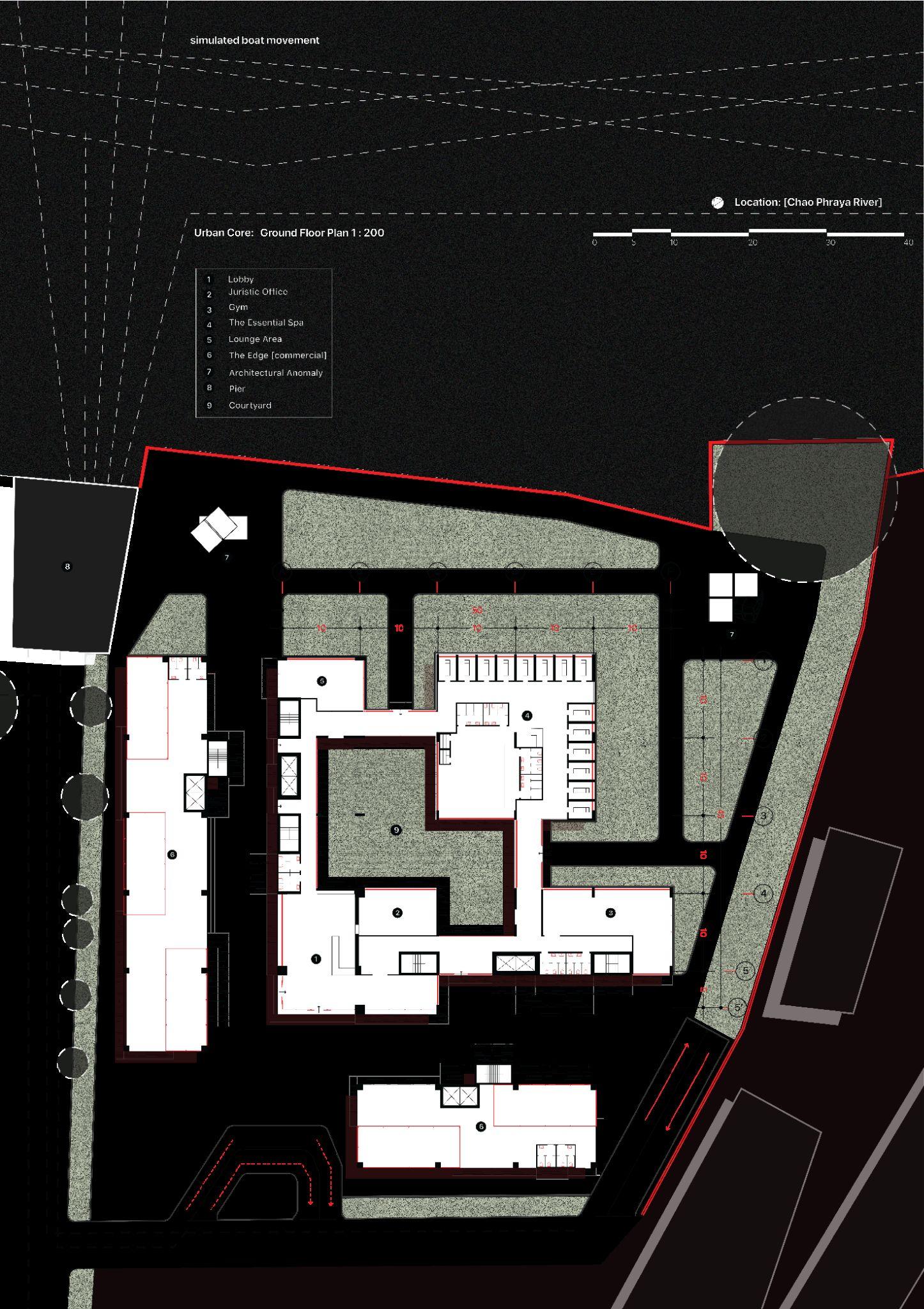

groundplan close-upplan
residentialfloorplans
6TH-7THFLOORPLAN

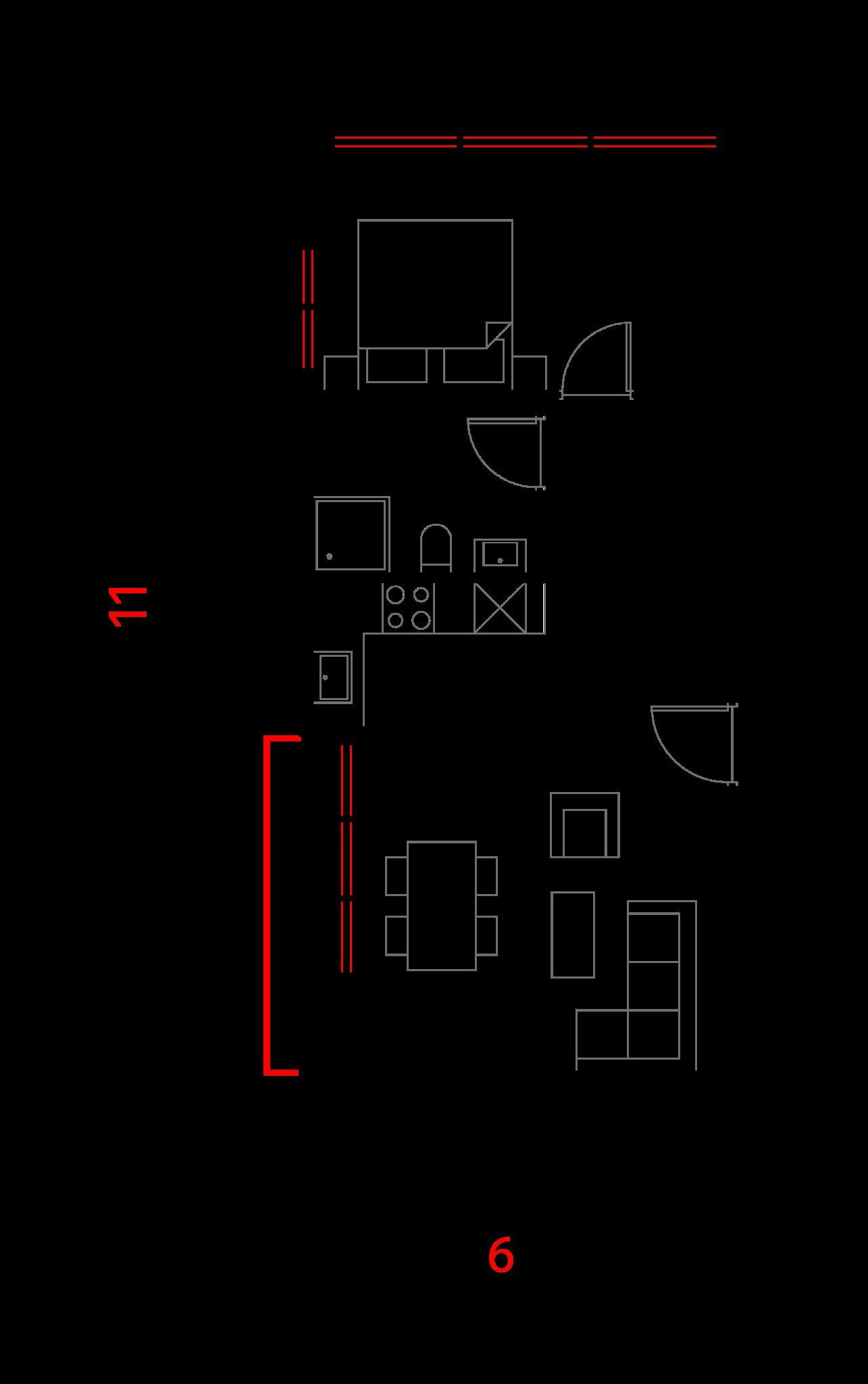

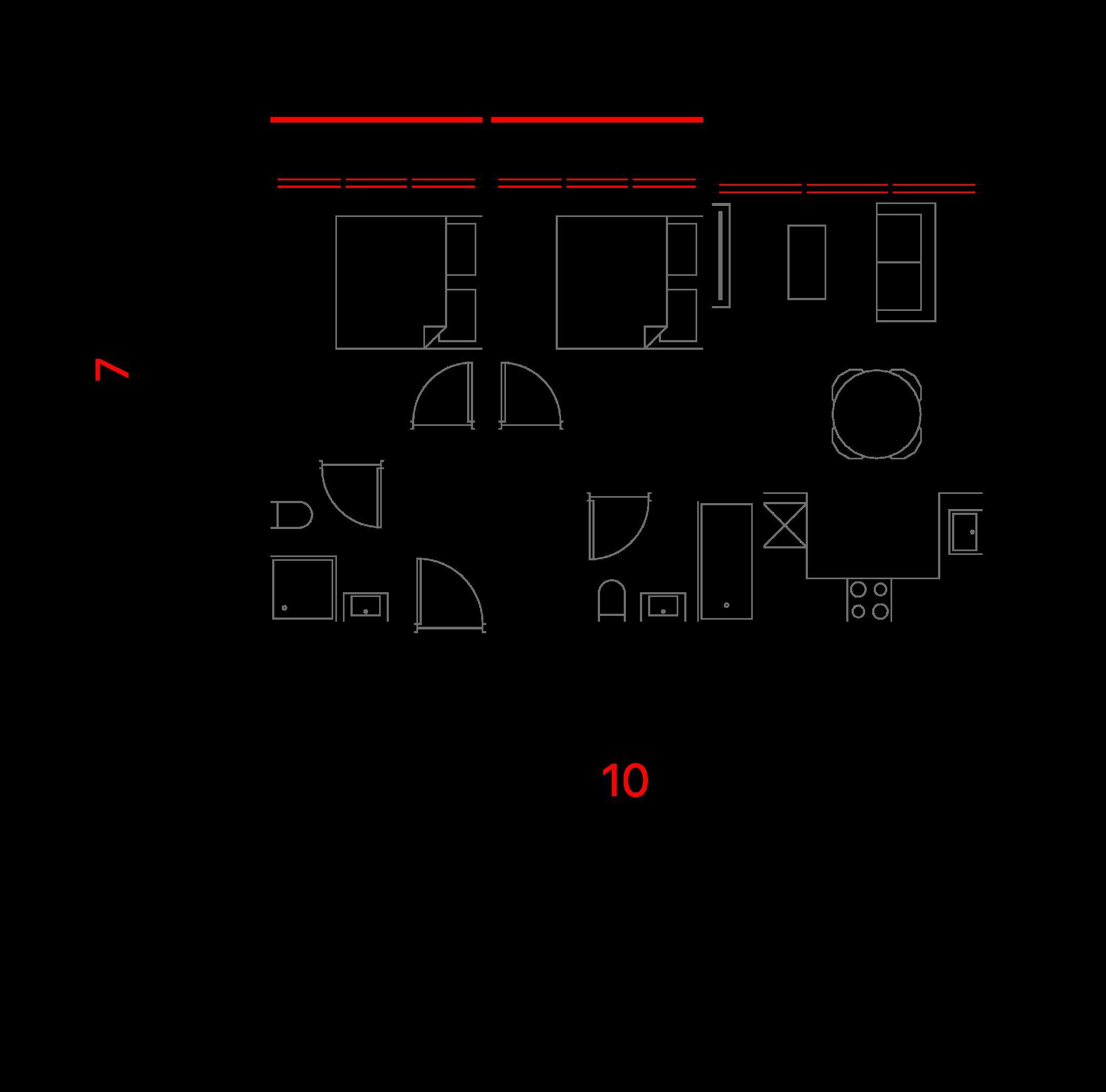

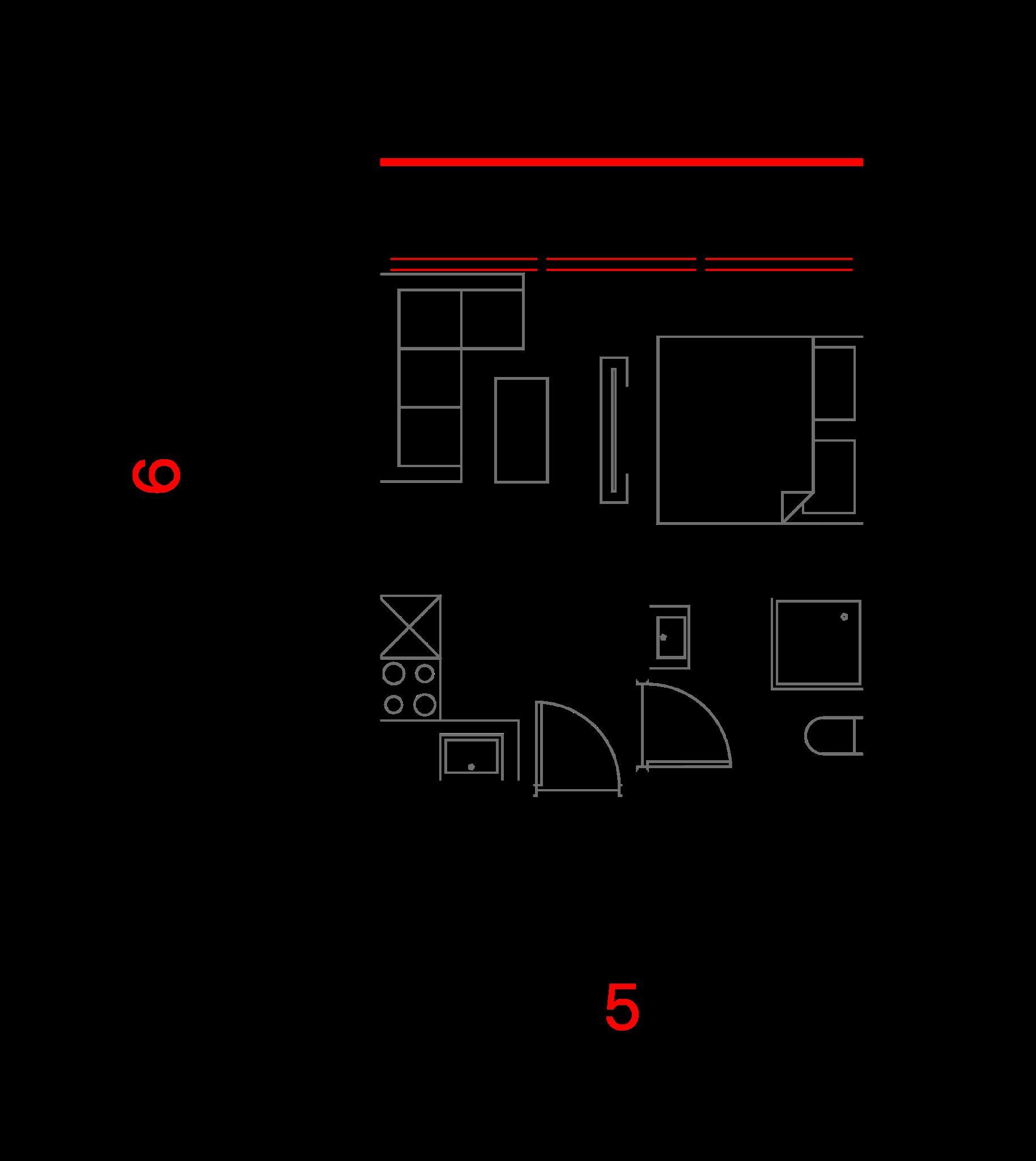

unitplan:STUDIO
● STUDIOROOM:31sqm.
● Units:20rooms
● TotalUnitArea:620sqm.
unitplan:ONEBEDROOM
● ONEBEDROOM:59sqm.
● Units:20rooms
● TotalUnitArea:1,185sqm
unitplan:TWOBEDROOM
● TWOBEDROOM:67.5sqm.
● Units:16rooms
● TotalUnitArea:1080sqm
COMMERCIAL2NDFLOORPLAN
COMMERCIAL3RDFLOORPLAN

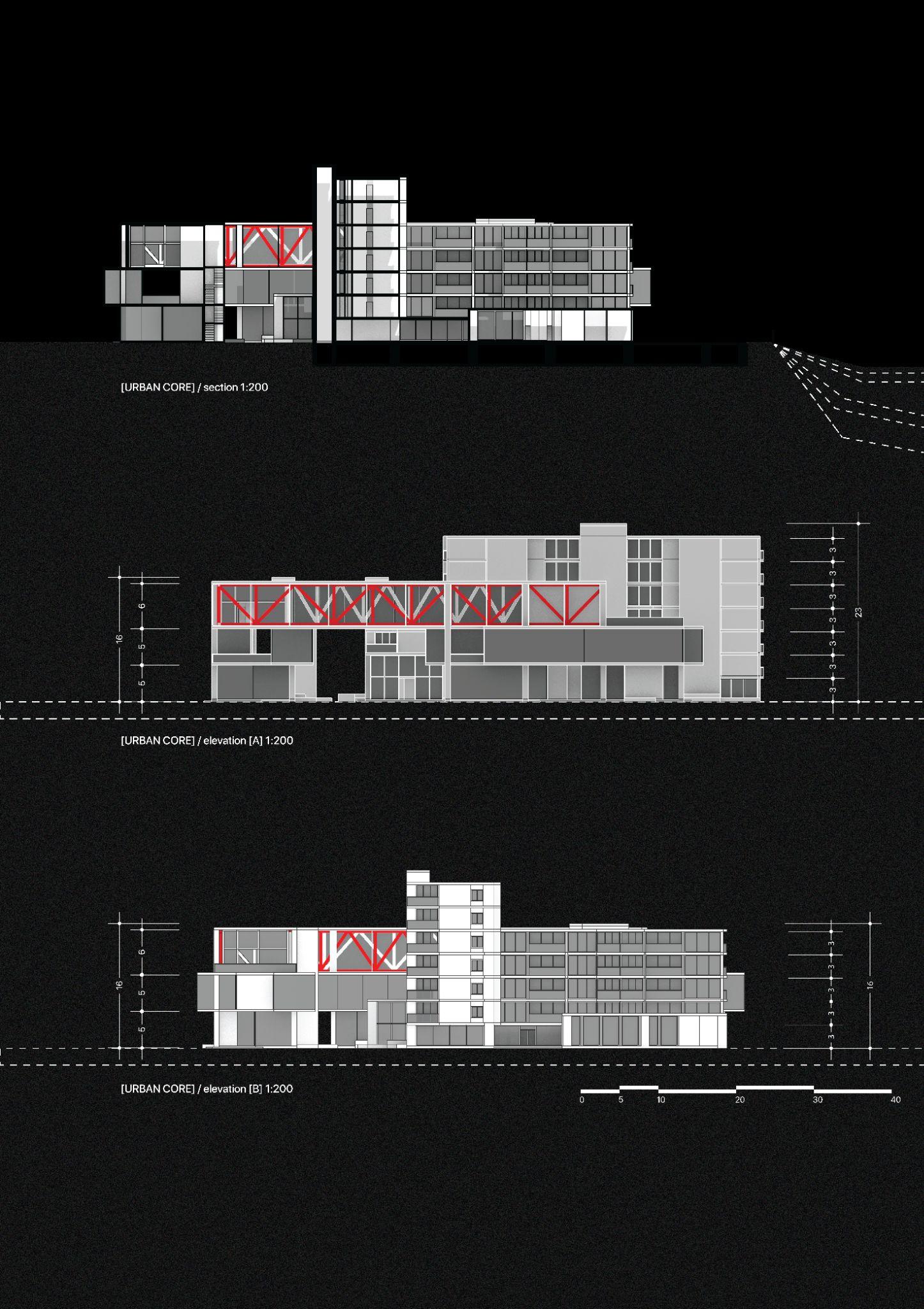

section
parkingplan
● Parkingsqm:2750
● Parkinglot:64
● Residence:56units
Presentationoutline
I.Introduction
- IntroducetheProject
- IntroduceProjectName
- KeywordstoDefinetheProject'sScope
II.UnderstandingtheUrbanCore
- Define"UrbanCore"
- TransitiontoConceptExplanation
III.ConceptDevelopment
- ExplainConceptHistoryandFoundation
- DelveDeeperintoConceptIdeology
- ElementsoftheConcept:ThinkingandDoing
- ConceptMapLinkingOldCitytoCurrentSite
IV.SiteContext
- PresentMapoftheChaoPhrayaRiverArea
- RelateConceptIdeastoSiteContextandUrbanFabric
- ExploreSurroundingsoftheUrbanCore
- DescribeSiteSurroundings(Shops,ChaoPhrayaRiver,CommercialAreas,OldTemples,ShopHouses,Restaurants)
V.TargetUserAnalysis
-
DefineTargetUserProfiles
- ExploreGenerationalandOccupationalDemographics(Age25-56)
- FocusonCreativeIndustries,ParticularlyArtistsandGalleries
VI.Programming
- PresentAxonometricDiagramofResidentialandCommercialBuildingProgramming
- ExplainGroundPlan
- DiscussAccessibility,Landscaping,Parking,andBasicFacilities
VII.FloorPlans
-
DetailUnitTypesandArrangement
- IncludeDrawingsandLayouts
VIII.StructuralDesign
- DescribetheStructuralSystem
- PresentRenderedImagesandMaterials
IX.Conclusion
- RecapKeyPoints
- OpenforQuestionsandDiscussion
