CHLOE XU Selected Work 2019 - 2024 (346) 227 - 4143 gx7@rice.edu

Woodchuck Carbon Tool

03

Embodied Carbon Plugin for Rhinoceros 3D

Pretty Trees

05

Urban Farming and Rain Water Collection

House of A Hundred Columns

11

Climate-Adaptive Single-Family House

Ruins Machine

17

Adaptive Reuse Proposal for Site in Mexico City

Bird-Safe Glass Testing Device Angled Bird-Safe Glass Testing Device

22

03

Woodchuck Carbon Tool Self-Directed Project Initiated at Ennead Architects Under Contiual Development

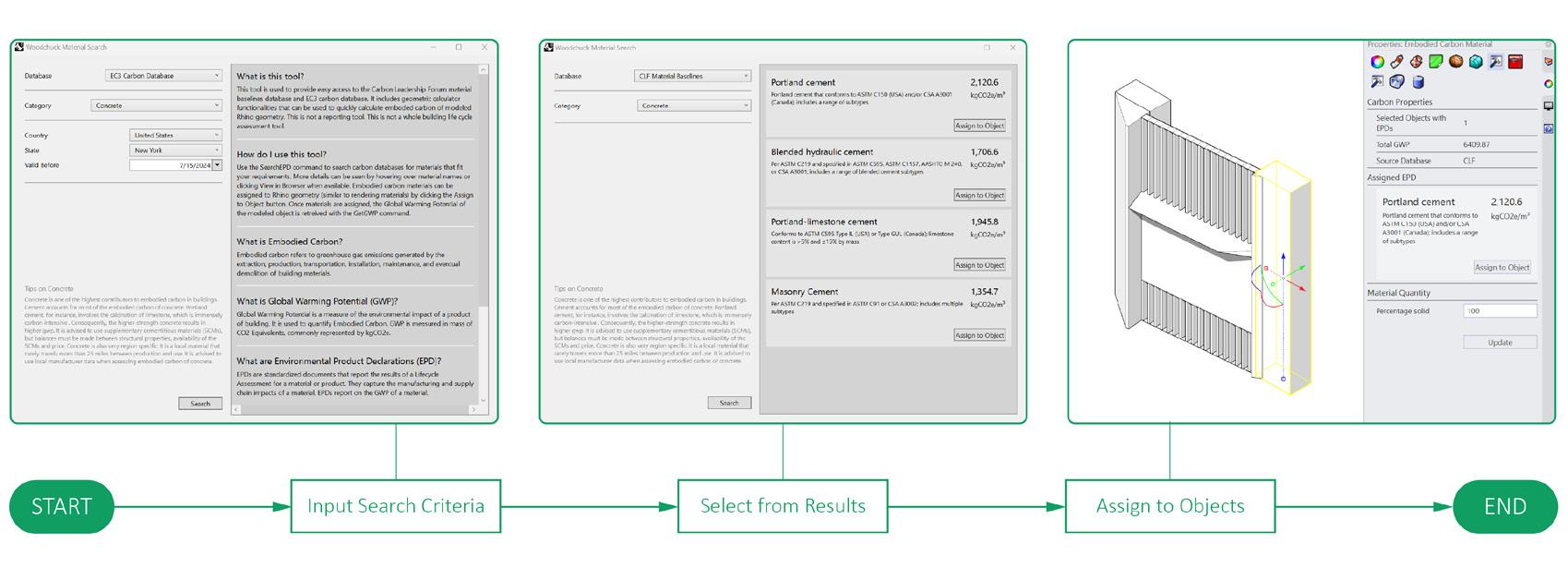

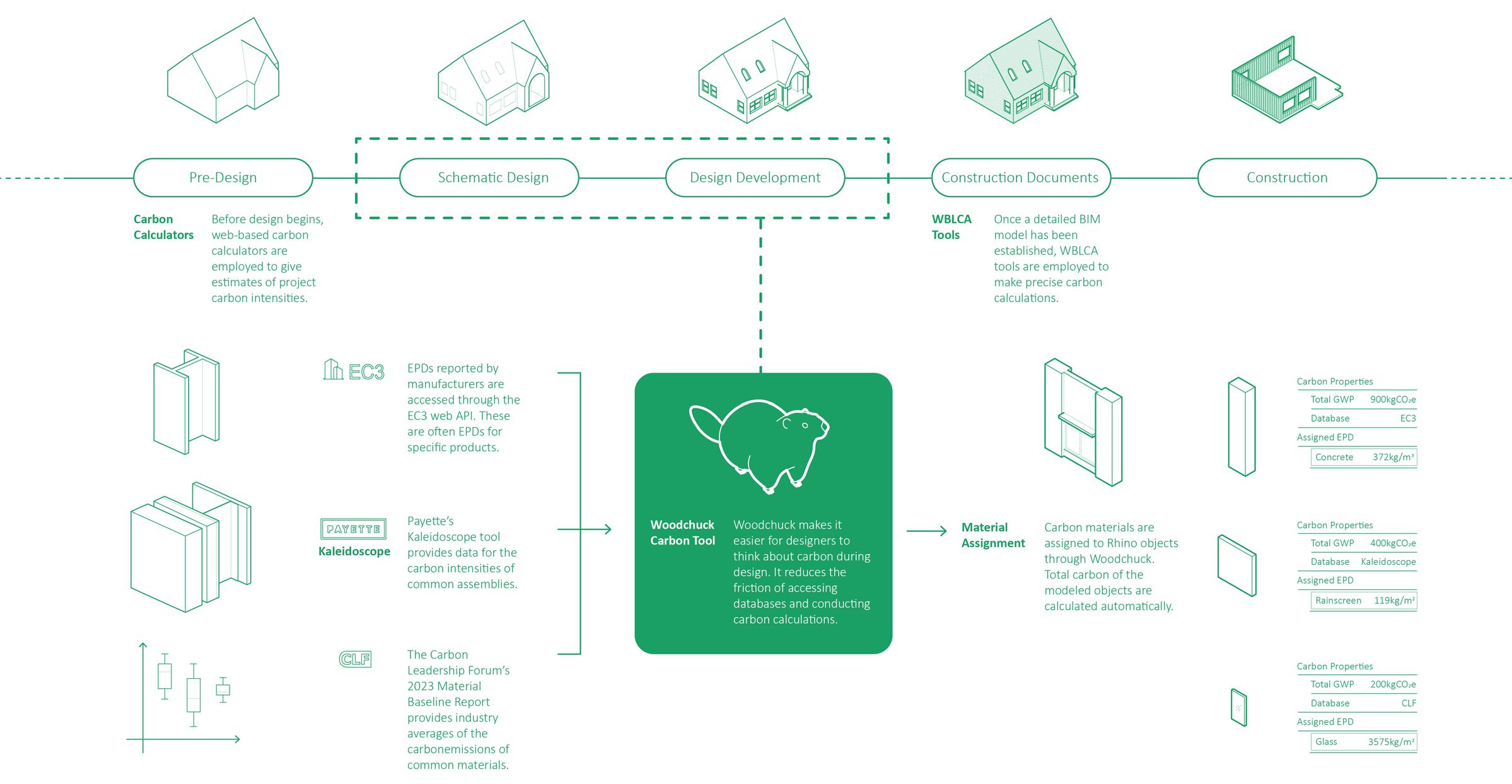

Woodchuck is an embodied carbon plugin for Rhinoceros 3D. Woodchuck is being built to effectively reduce embodied carbon early in the design process.

Woodchuck provides easy access to various embodied carbon databases for building materials from within Rhino. It includes calculator functionality that can be used to quickly calculate embodied carbon of modeled geometry.

Woodchuck is under continual development and research. It is being deployed in projects at Ennead Architects and in research conducted at Rice University. * The interface represented on this page is traced over for graphic consistency and readability. For a full demo, please reach out to gx7@rice.edu.

Terminology

Databases

GWP - Global Warming Potential (GWP) is a measure of the environmental impact of a product of building. It is used to quantify Embodied Carbon. GWP is measured in mass of CO2 Equivalents, commonly represented by kgCO2e.

EC3 - EC3 is a carbon tool by Building Transparency. It has a robust database of digital, third-party verified EPDs. This plugin uses EC3’s database to access real-time EPDs.

EPD - Environmental Product Declarations (EPDs) are standardized documents that report the results of a Lifecycle Assessment for a material or product. They capture the manufacturing and supply chain impacts of a material. EPDs can be for a specific material or averages for a category EPDs report on the GWP of a material.

CLF- The Carbon Leadership Forum is an independend nonprofit organization with the goal of reducing embodied carbon in buildings and infrastructure. This tool uses the CLF’s Material Baseline Report from 2023.

Kaleidoscope - Kaleidoscope is a carbon tool by Payette Architects. It contains carbon information for common assemblies.

Project 01 - Woodchuck Carbon Tool

04

05

Pretty Trees Studio Project ARCH302 Comprehension I - Structure In Collaboration with Jefferson Xia

Pretty Trees is a proposal for an intervention on the South Servery terrace at Rice University. It combines urban farming with water collection.

It is a rooftop structure that makes use of wooden bending active members activated by a membrane.

The project provides shading and social spaces for the South Servery terrace and also activates the unused social staircase looking towards Tudor Fieldhouse.

Pretty Trees embraces the rain stroms of Houston both functionally and atmospherically.

The cloud-like dips and rises to create spaces for both solitary reflection and communal enjoyment.

Project 02 - Pretty Trees

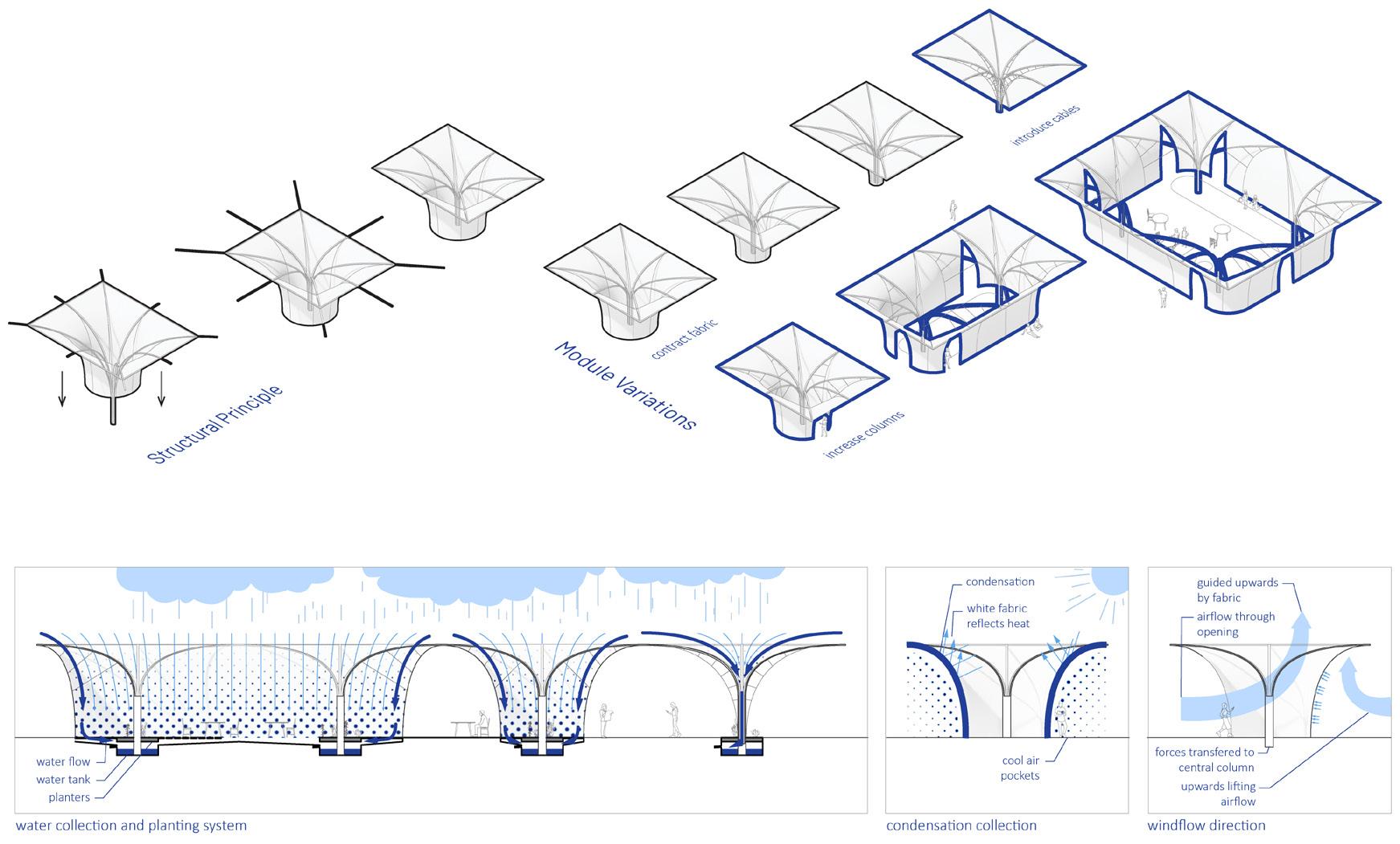

Unit Variation Sequence (top) Unit Climate Performance (bottom)

Pretty Trees consists of structurally independent units composed by a bending active structural system. Eight laminated pine branches are bent down by a tensile membrane to create an equilibrium. Kangaroo was used as a digital form-finding tool to generate the shapes of the components (and later verified with physical models).

Variations are generated by expanding the memberane to include more columns, and contracting it to create more space underneath.

This system allows for rainwater collection by guiding flow along the membrane into planters and collection tanks, and for condensation collection through the reflection of heat and sunlight.

06

07

Project 02 - Pretty Trees

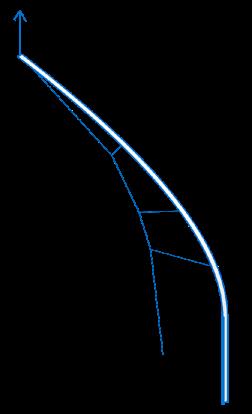

upwards bending force form branch

analysis area: branch

Construction with Membrane

pre-stressed cables

Abstracted Simulation Model anchored trunk

5000 psi

7750 psi

2500 psi

1250 psi

0 psi Legend

Original

Reinforced

Lifted

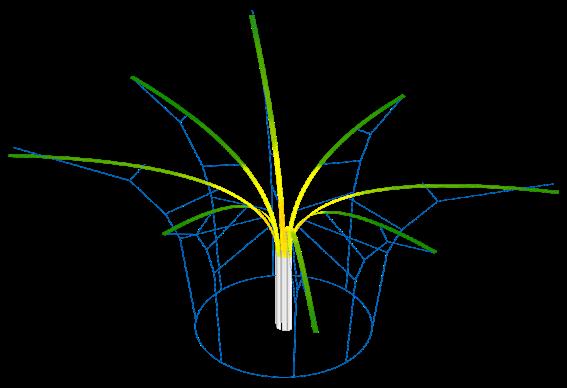

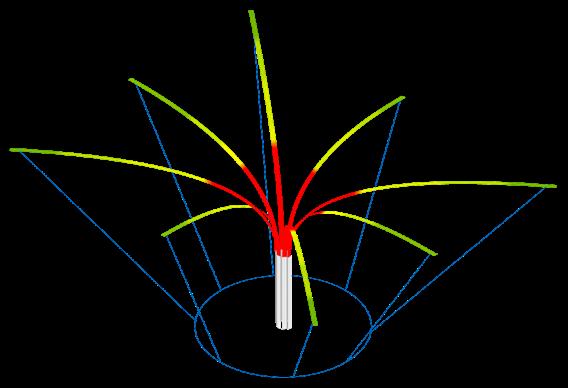

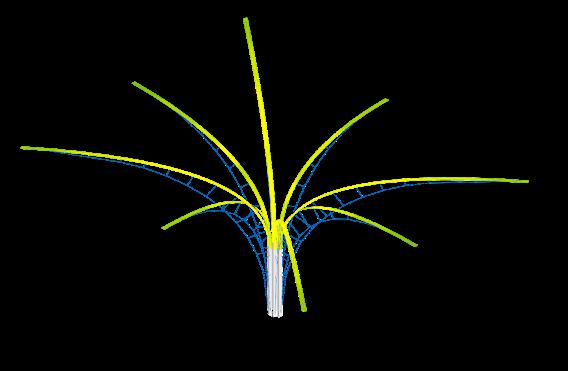

FEM Analysis on a Single Branch (left) FEM Analysis on Structure (right)

After conducting generative form-finding in Kangaroo, finite element analysis in Grasshopper was employed to verify the structural integrity of the unit. Through our initial exploration, we discovered that simply using membrane in the bending active system would result in a moment of potential structural failure near the base of the branch. In response, cable supports were added to distribute tensile forces along the branch.

Stress Analysis

Original Membrane

Reinforced Membrane

Lifted Membrane

The membrane and timber branches are the only participants of the original bending-active system. The membrane is simulated as elastic cables when analyzing the model’s stress properties. The result reveals high stress at the base of the timber branches.

Structural cables are embeded into the membrane to help it keep its form and to allow for distribution of forces along the base of the branch.

In units where the membrane is above the structure, it does not participate in the bending active system. To leverage the space underneath the branches, cables extend from the tips of the branches to the base of the trunk.

Project 02 - Pretty Trees

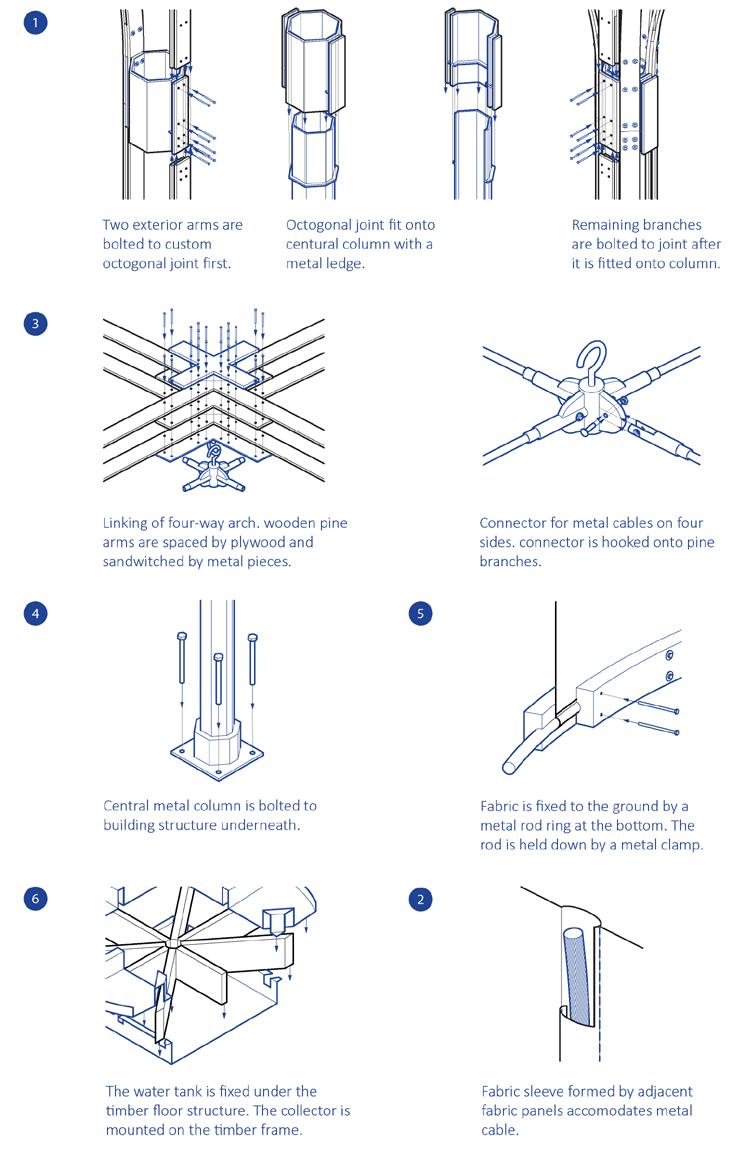

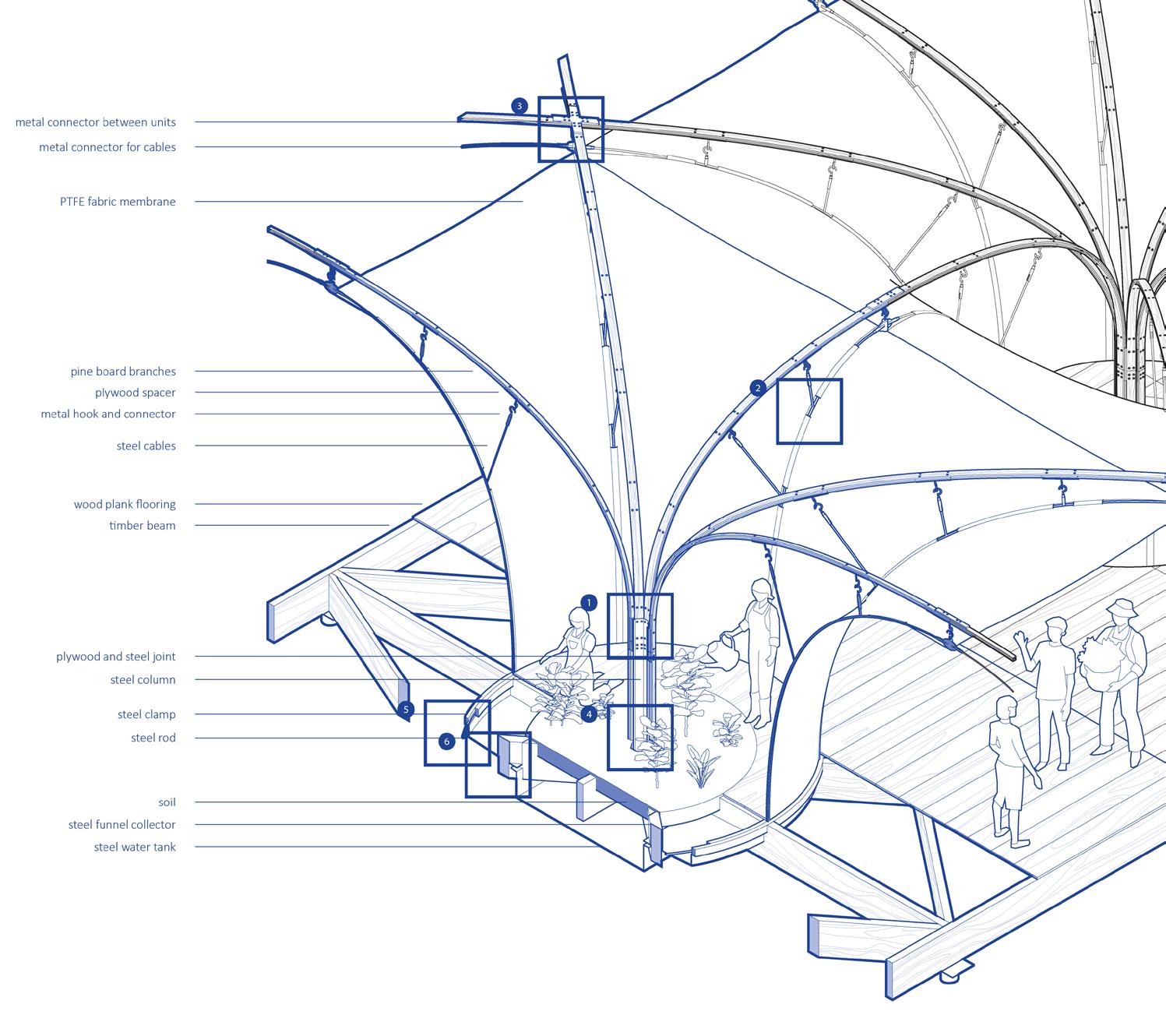

Construction Details (left) Sectional Axonometric (right)

08

09

Project 02 - Pretty Trees

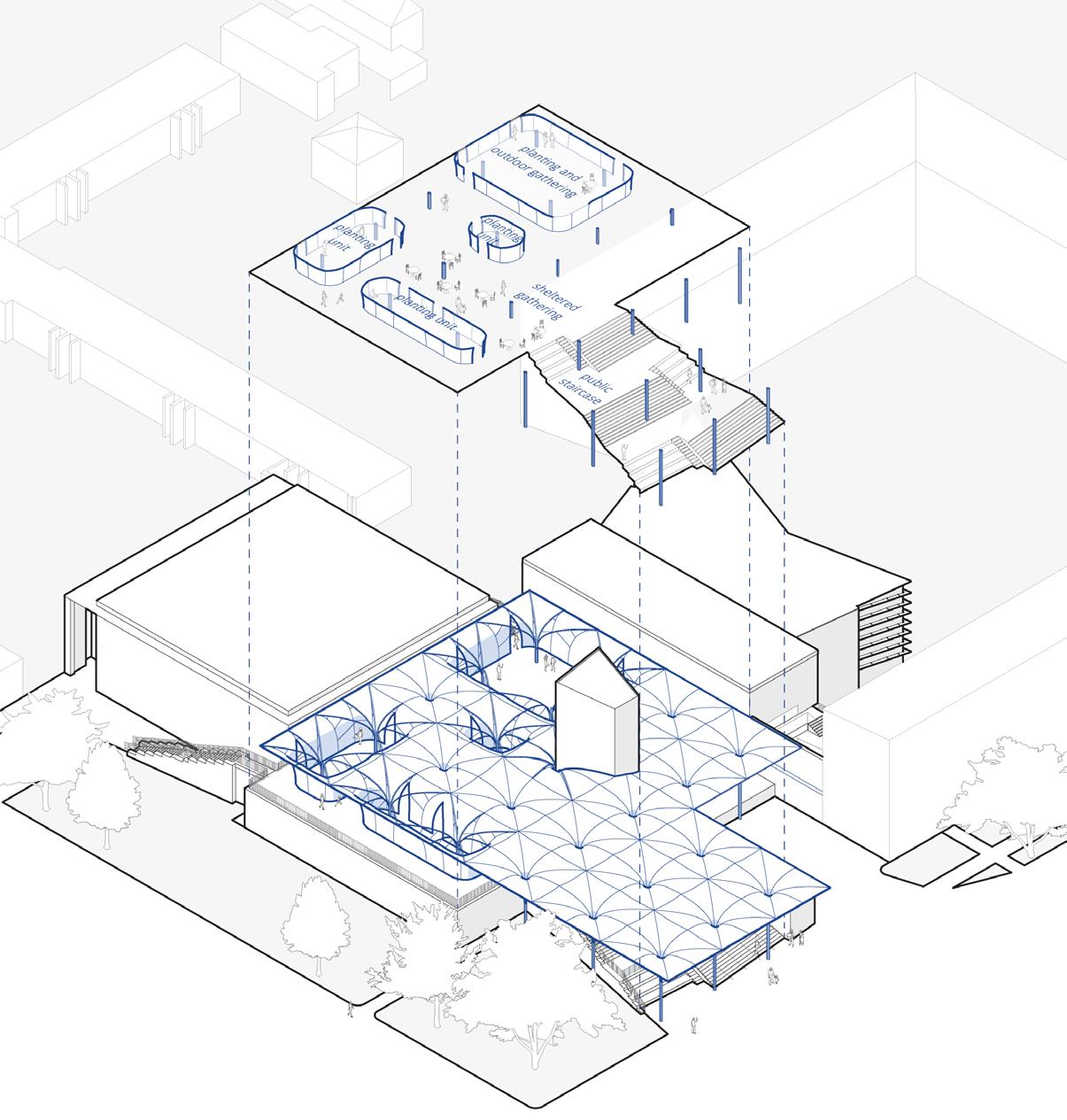

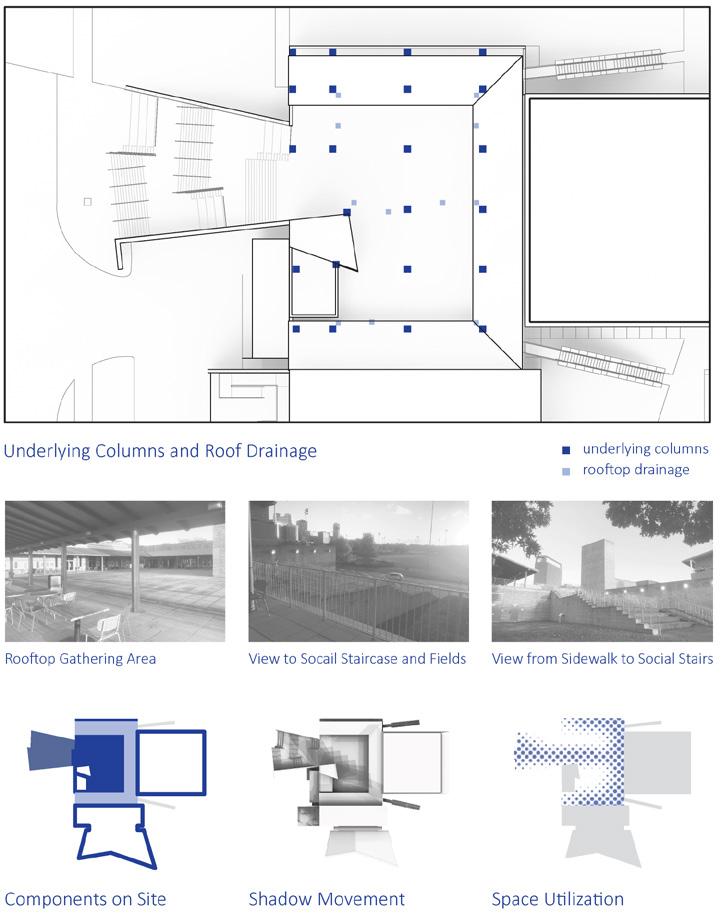

Site Analysis (left) Axonometric on SIte (right)

The intervention is located on the rooftop of a servery on campus at Rice University. The space is currently covered around the perimeter, but rarely used excpet for circulaation. A social staircase leading from the roof stands empty most of the time. The intervention is located

on the rooftop of a servery on campus at Rice University.

The space is currently covered around the perimeter, but rarely used excpet for circulaation. A social staircase leading from the roof stands empty most of the time.

10

Project 02 - Pretty Trees Pretty Trees forms a porous cloud with moments of shadow and light. The installation activates existing underused public spaces, and provides new exciting growth.

Rendering from social stiarcase

11

House of a Hundred Columns Studio Project ARCH601 - Research Platforms In collaboration with Yao Xiao

The House of a Hundred Columns approaches a common residential site in Houston with a vernacular approach, shedding the inhabitants with a series of sloped roof pieces. The house responds to the sun and rain of the Houston climate through its structure, and proposes a style of living that embraces the passive house.

A series of rooms are centered around a central courtyard that acts as a climate mediator.

Blending between the indoor and outdoor, the central courtyard opens up to allow for ventilation during the summertime and insulates itself to provide a sunroom when the weather gets cold.

By integrating these adaptive features, the house not only responds to climatic conditions but also offers an alternative living experience rooted in local construction traditions.

12

Project 03 - House of a Hundred Columns

W

N

S

E

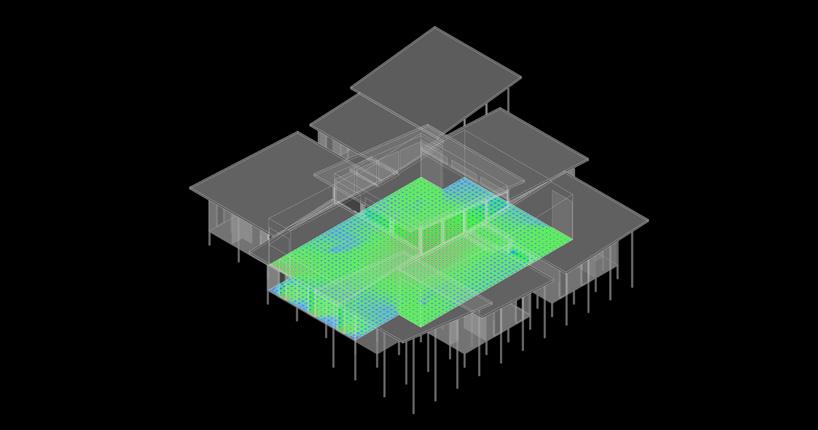

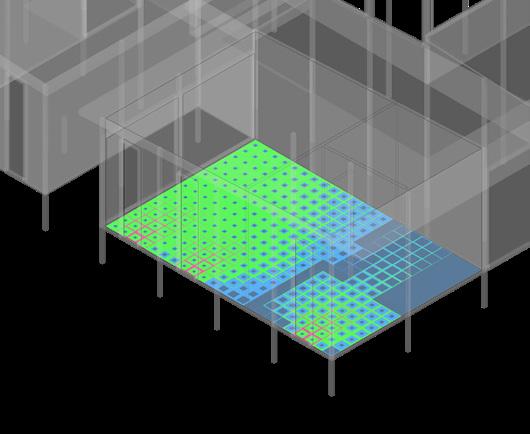

Living Area Daylight Analysis

Master Bedroom Daylight Analysis

Temperature in °F

per month

Annual Average Temperature

per day

AVERAGE TEMP

38 4 50 57 63 69 75 81 8 94 10

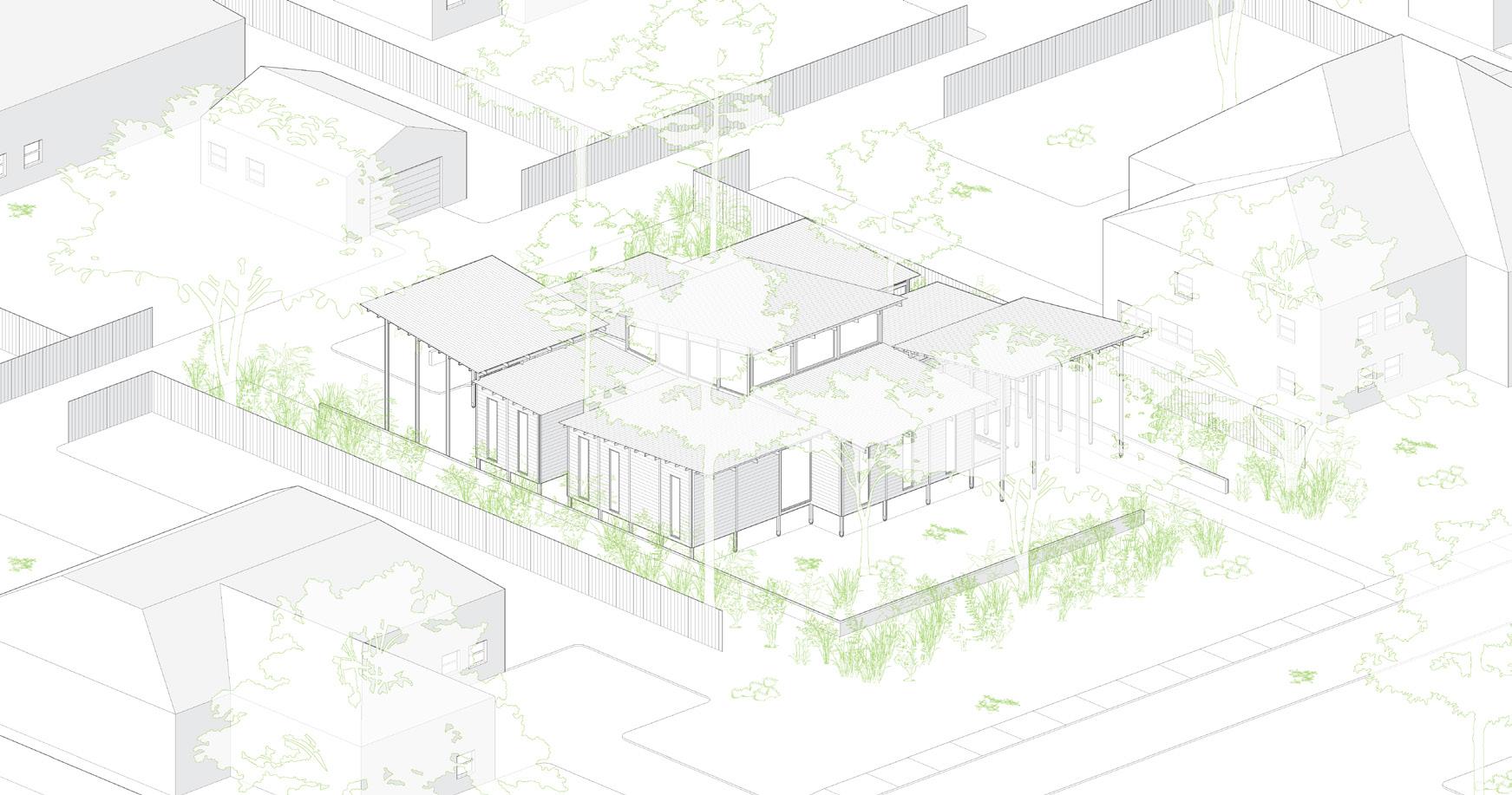

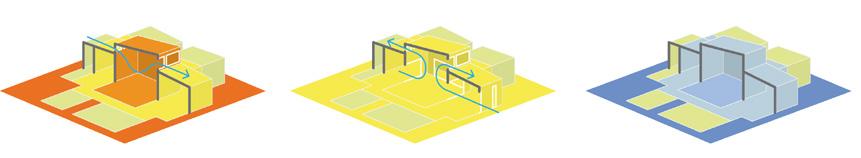

Axonometric on Site (top left) Daylight Study Diagrams (top right) Climate Condition Diagrams (bottom left)

WARM DAYS May - Sept Exterior Temperature > 86 °F

MILD DAYS Mar - Apr Oct - Nov 82 °F > Exterior Temperature > 65 °F

COLD DAYS Dec - Feb Exterior Temperature < 50 °F

The covered courtyard is at the center of the house, surrounded by glass doors to the inside and pivot windows to the outside. Spaces in the house are shaded from radiation but illuminated with indirect sunlight from the courtyard. The courtyard can be separated from the house in the summer, connect interior and exterior in mild weather, and serve as a sunroom in the winter.

13

Project 03 - House of a Hundred Columns

Flashing

J-1

J-2

Corrugated Metal Roof Pivot Window

Rigid Insulation 1/2” Plywood Sheathing 2x4 Joist

Flashing

House Wrap Rainscreen Furring Wood Rainscreen 1/2” Plywood Sheathing Hempwool Insulation Gypsum Interior

2x6 Beam

J-3

J-4

J-6

J-5

Sliding Glass Door Hardwood Floor Plywood Subflooring Hempwool Insulation 2x6 Beam Gravel

Steel Rebar Concrete Infill

Sand

House Plan

J-7

CMU Ring Beam

J-8

4x4 Column

J-9

J-10

CMU Retaining Wall Connection to Foundation Weep Hole Earth

Ground Screw Gravel Earth

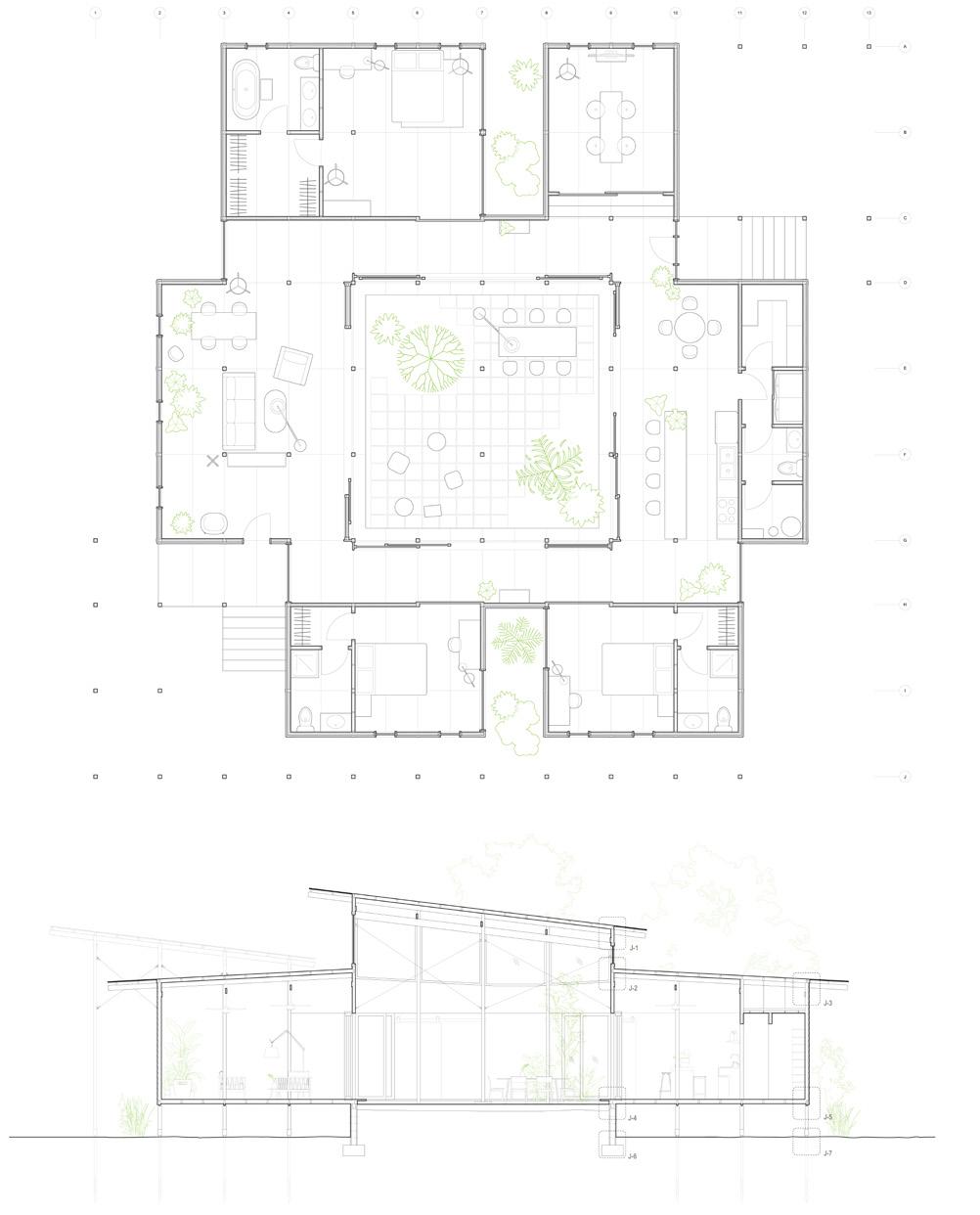

Plan (top left) Section Through Courtyard (bottom left) Details in Section (right) Perspective Section (next page)

Concrete Footing

J-11

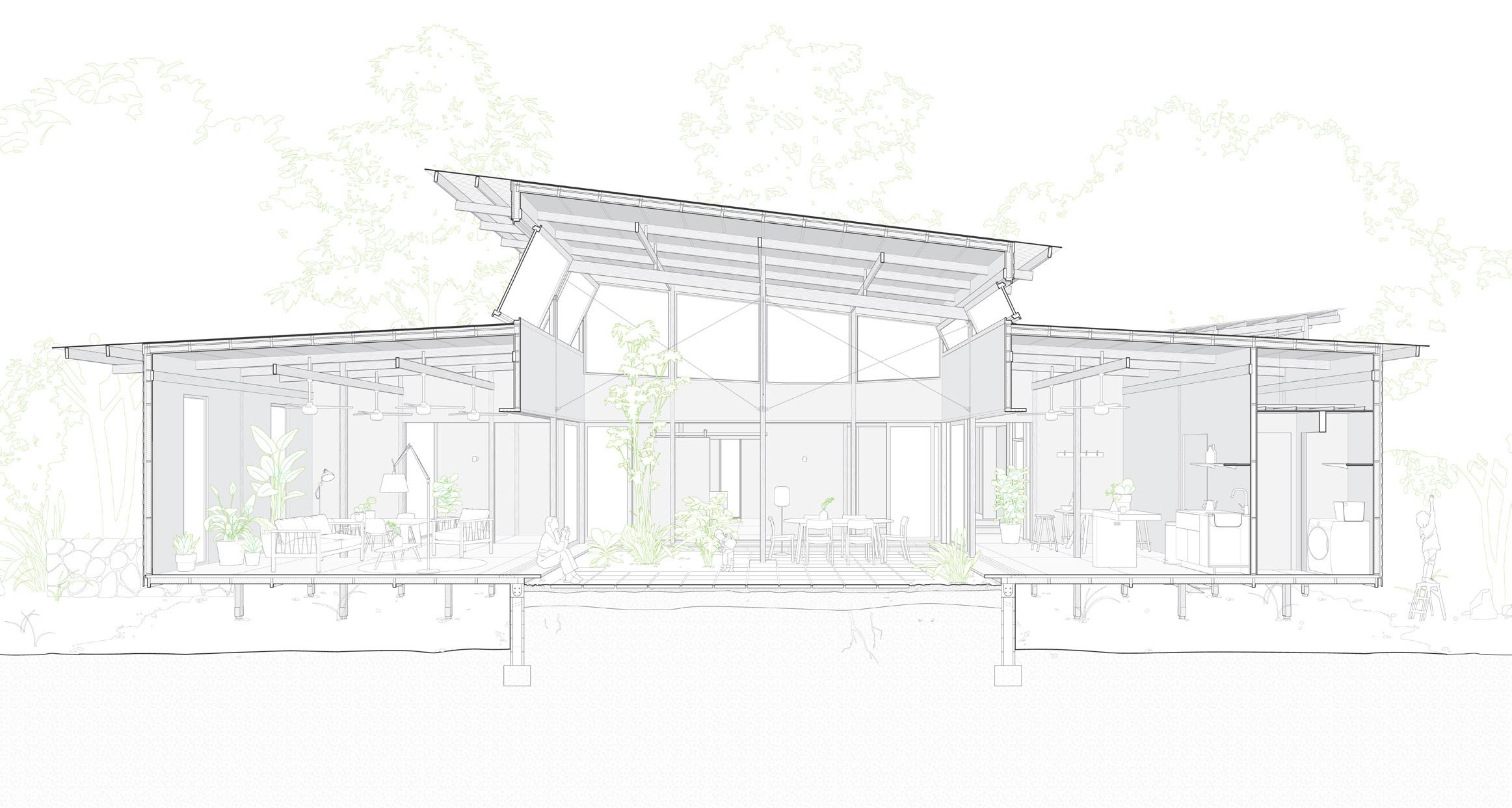

Section Through Courtyard

J-12

J-13

Sectional Details

J-14

The primary structure of the house consists of 104 4x4” columns, supporting a timber roof and floor system.

Materials are selected to prioritize biogenic carbon so as to reduce the building’s footprint.

Project 03 - House of a Hundred Columns

14

Project 03 - House of a Hundred Columns

15

Project 03 - House of a Hundred Columns

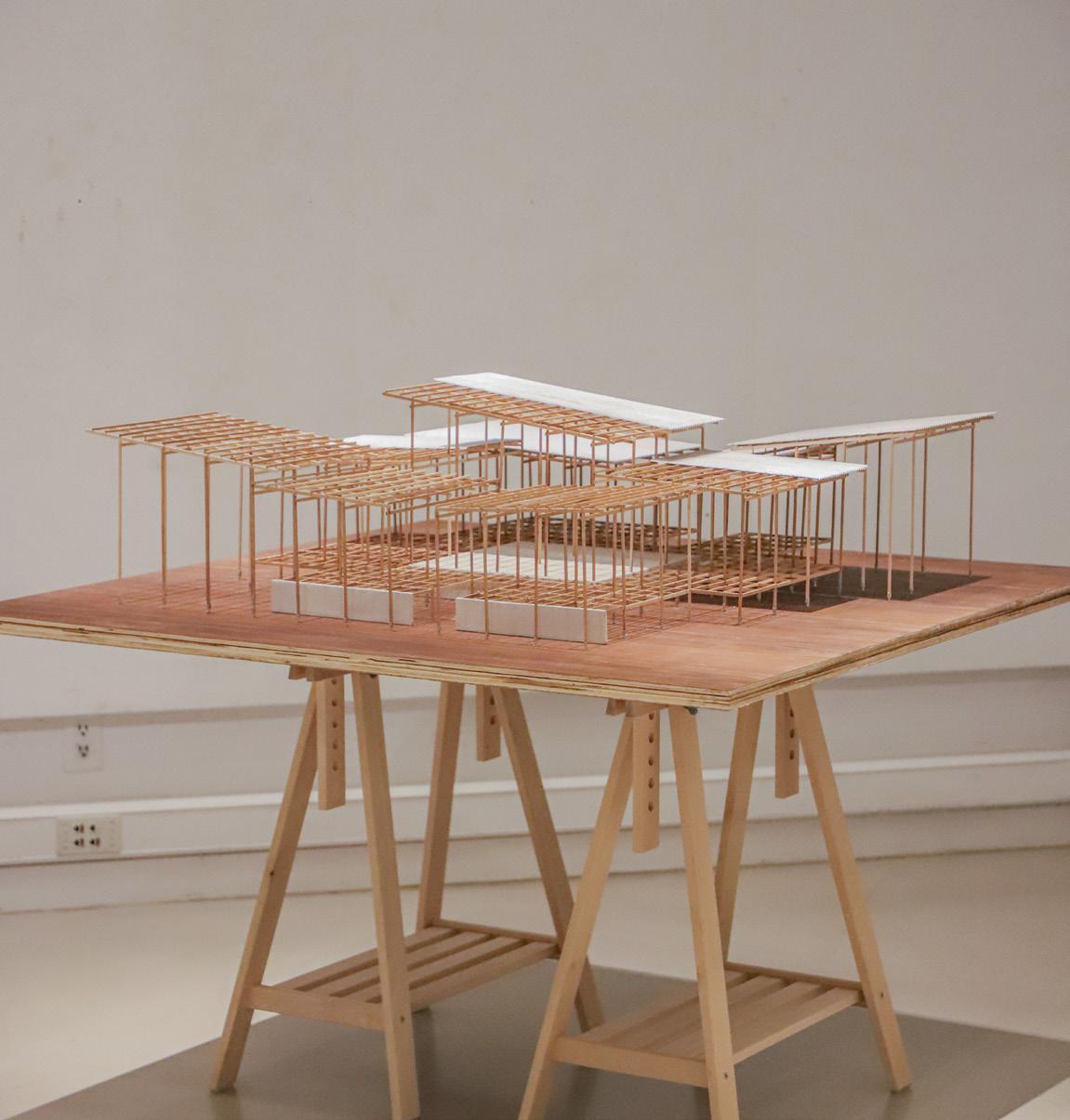

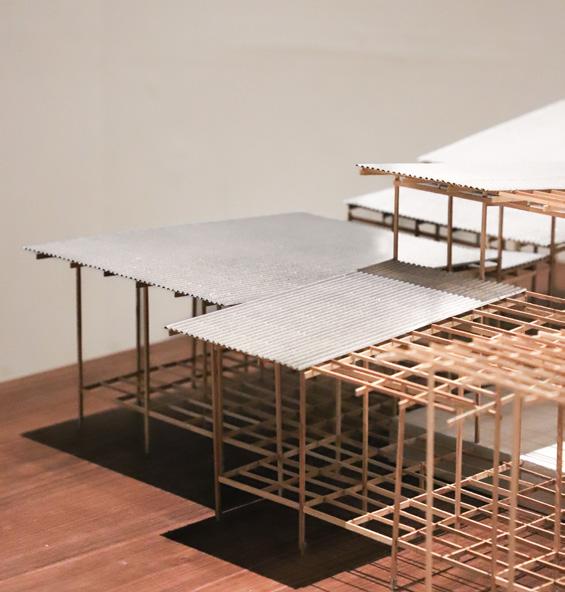

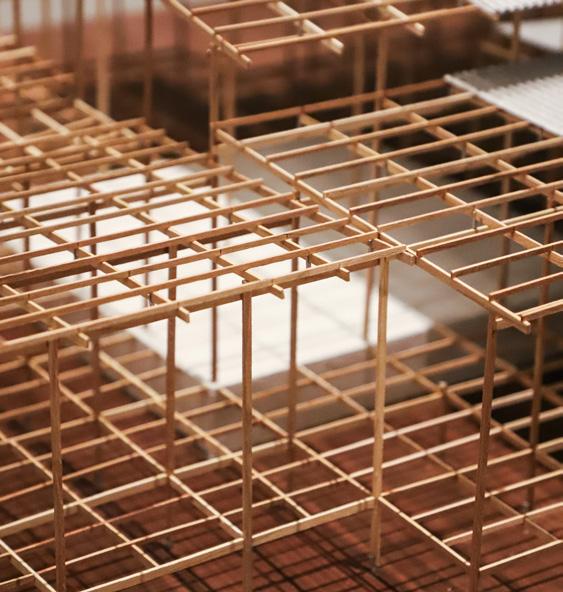

Spatial Renderings (previous page) 1/2” Structural Model (right) 1/2” Model Details (left)

16

17

Ruins Machine Studio Project ARCH402 - Advanced Topics in Architecture

Ruins are remains of buildings rendered unable to accomodate architectural program due to physical distruction from natural or manmade forces. Preservation of the structures on site as ruins counteracts their oppressive nature as monuments of colonization.

Ruins Machine allows the natural and active ruination of colonial eara structures by constructing a time machine to manipulate the pace of ruination. It proposes a vertical link between ruins of the past, present, and future.

18

Project 04 - Ruins Machine

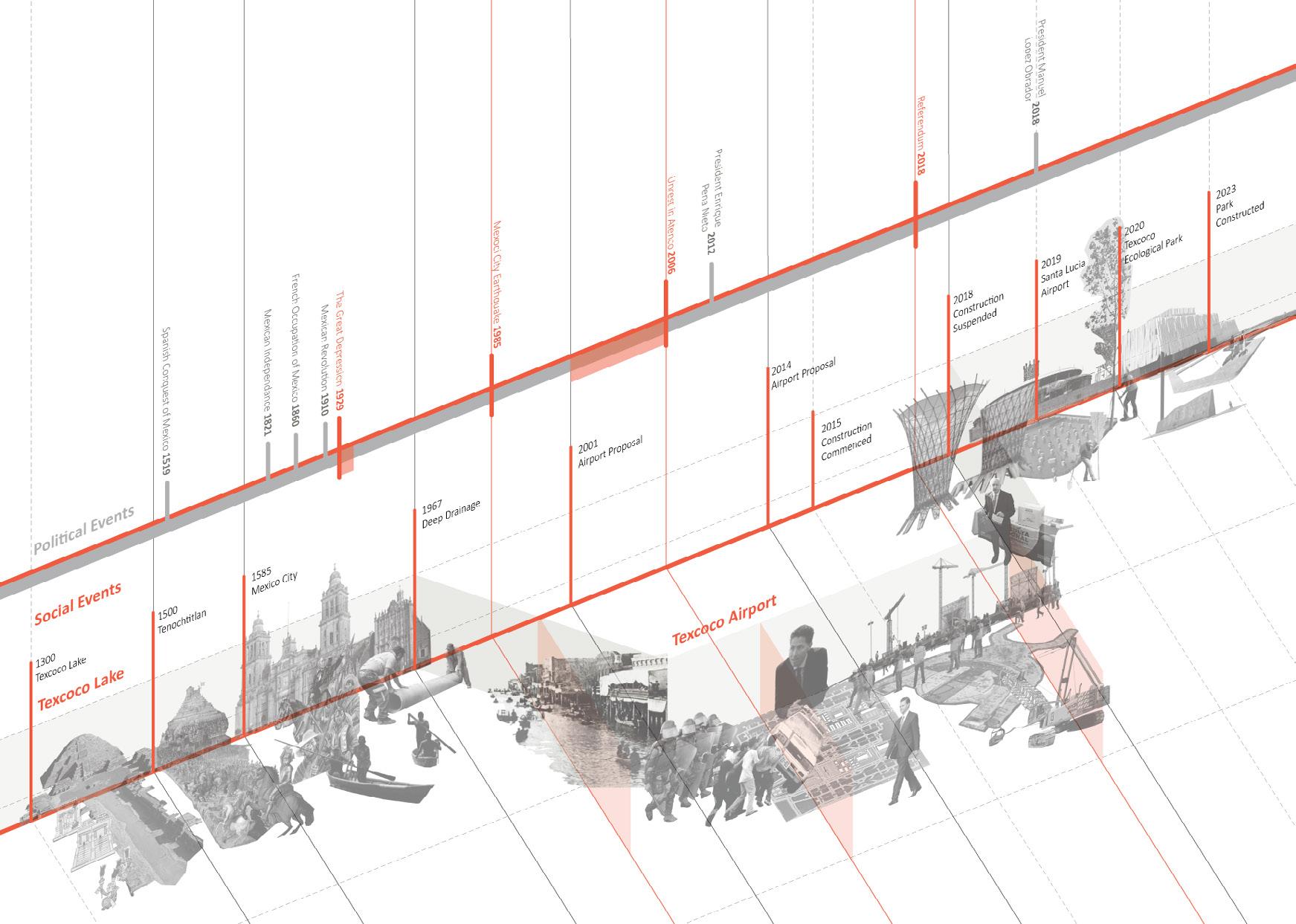

Lake Texcoco Ecological Development Timeline (left)

One of the preliminary studies performed for the Ruins Machines was on Lake Texcoco. Before the arival of the Aztecs, Lake Texcoco covered Mexico City and its surrounding area. The modern Mexico City is constructed upon the lakebed of Lake Texcoco, while the lake has been reduced to a fraction of its original size due to urbanization.

Various architectural projects have been proposed for the current Lake Texcoco, culminating in the construction of Lake Texcoco Ecological Park. The political events surrounding these projects provide a base understanding of the political complexities of Mexico City.

Further research coonducted involved an in-depth analysis of local preservation agencies and stakeholders.

19

Ruins of the Future...

Present...

and Past.

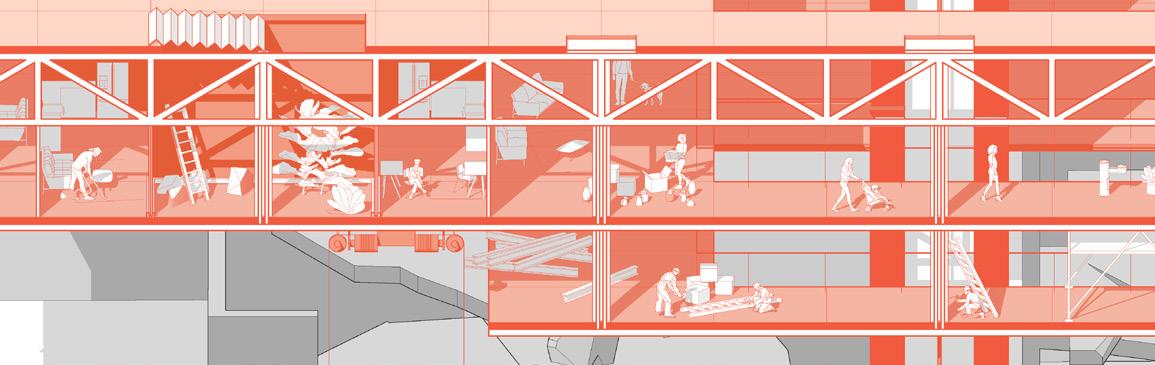

Project Axonometric (left) Axonometric Details (right)

Each Ruins Machine is vertically spanned by a large vertical column. Platforms for living spaces and future constructions float suspended at the top of the column.

At ground level, colonial ruins slowly fade, giving away to nature, merging with foliage. The column is embedded deep into the ground, reaching through the lakebed of Lake Texcoco, through burried ruins of Aztec civilization,

into an underground excavation site. The end of the column sits upon the bedrock underneath the lakebed, transfering its stability throughout the structure.

The column traverses through the history of the site both physically and temporally. It links ruins of together ruins of the present, the future, and the past.

20

Project 04 - Ruins Machine

0m 5

10

25

50 m

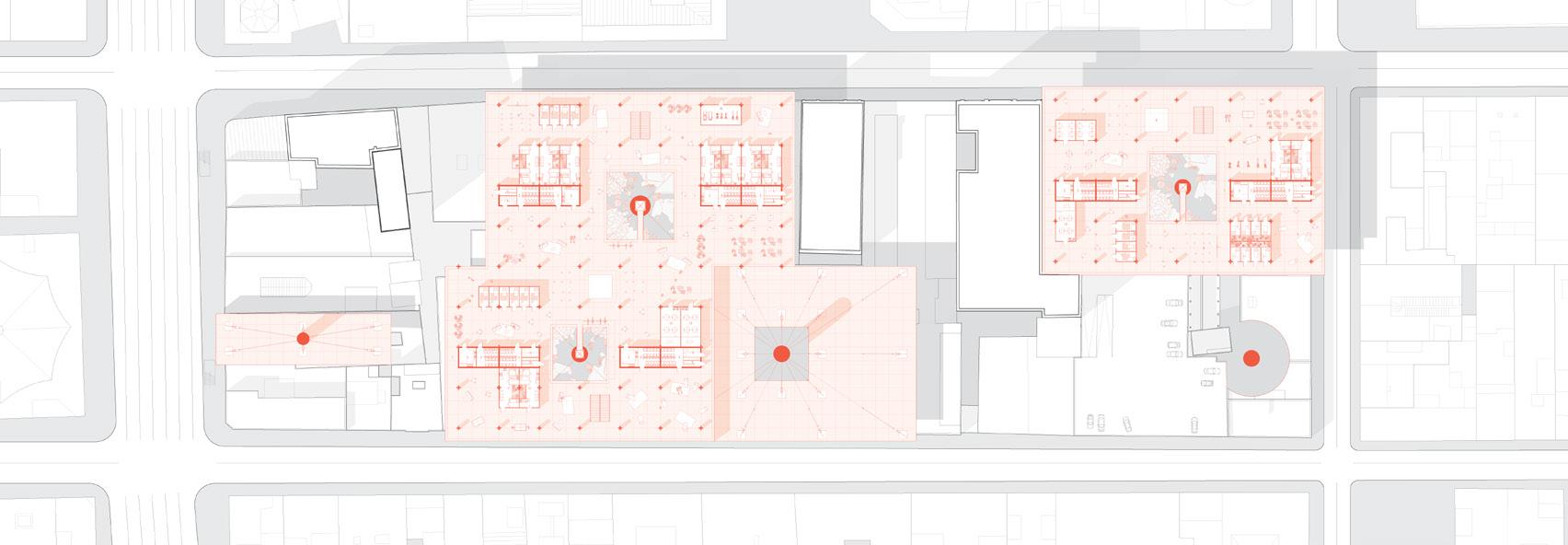

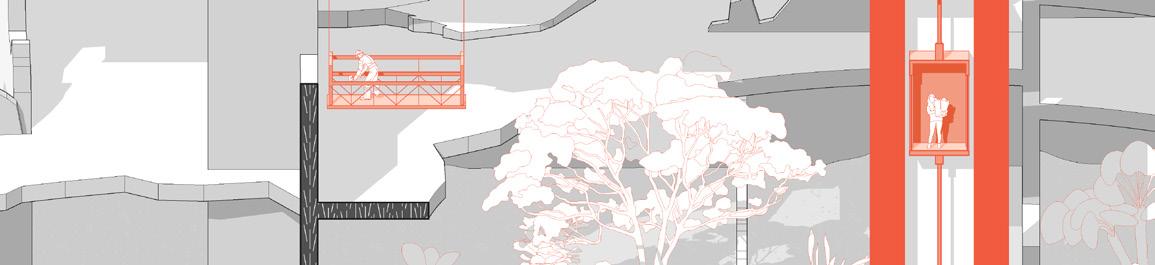

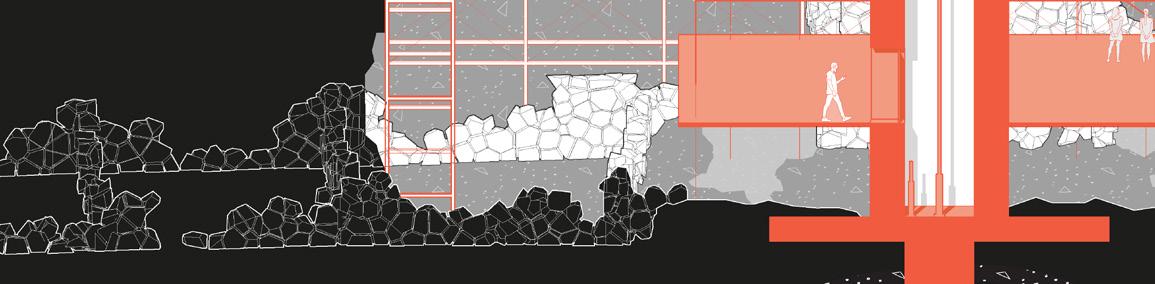

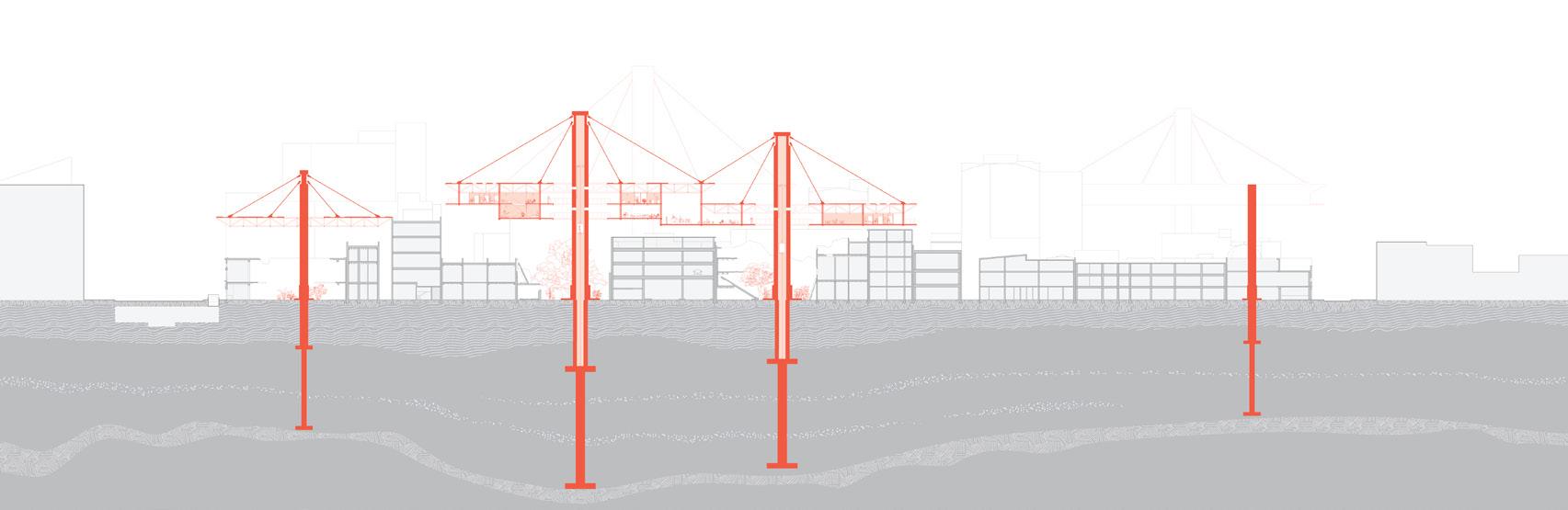

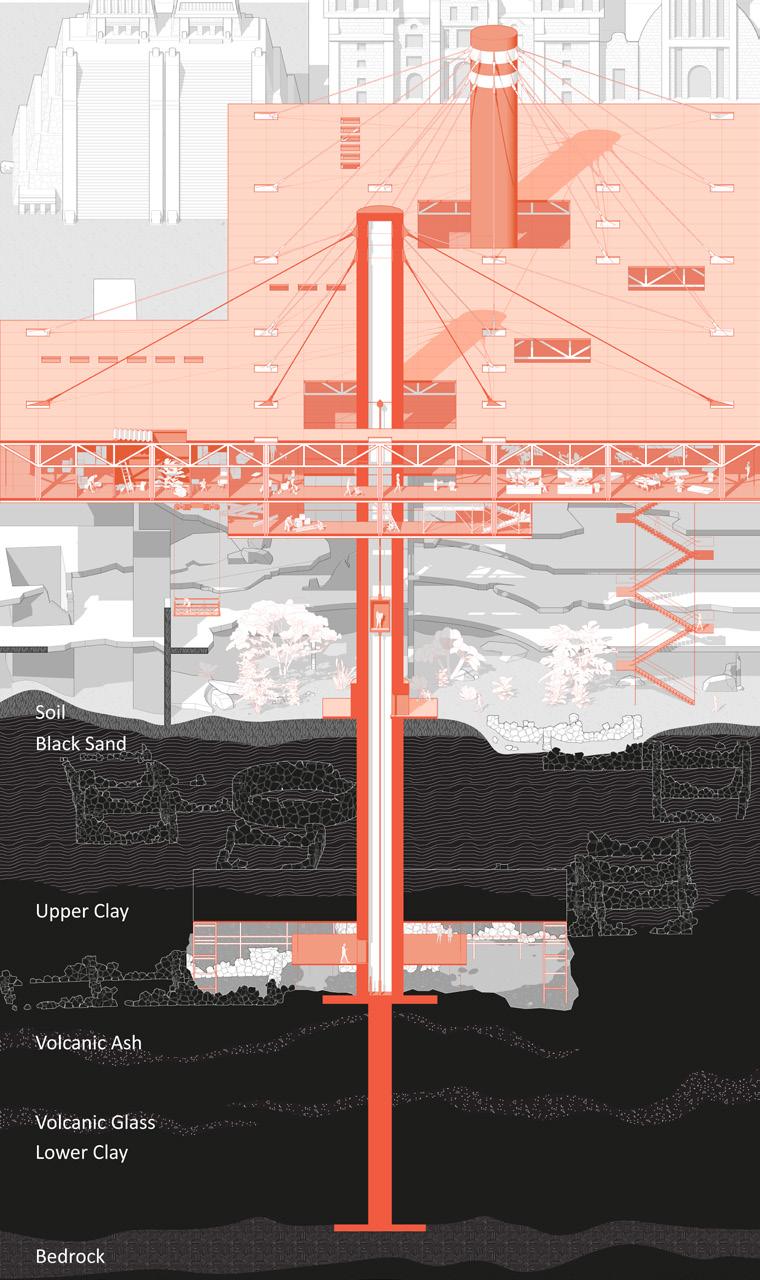

Project Section (top) Project Plan (bottom)

The project is located on a site in the Historic District of Mexico City. The site houses Spanish colonial architecture that has been repurposed mostly as stores for electronics and sports equipment.

With the stagnation of historic preeservation and reuse, it is a foreseeable future that these buildings will eventually fall into decay.

0m 5

10

25

50 m

With such a future in mind, the project proposes the installation of six Machines on site with minimal intervention to the ruins below. Living spaces lofted above the existing city fabric are populated with an everchanging soup of activity. The structural composition allows for free manipulation of not only walls but also upwards and downwards expansion of the structure.

Project 04 - Ruins Machine

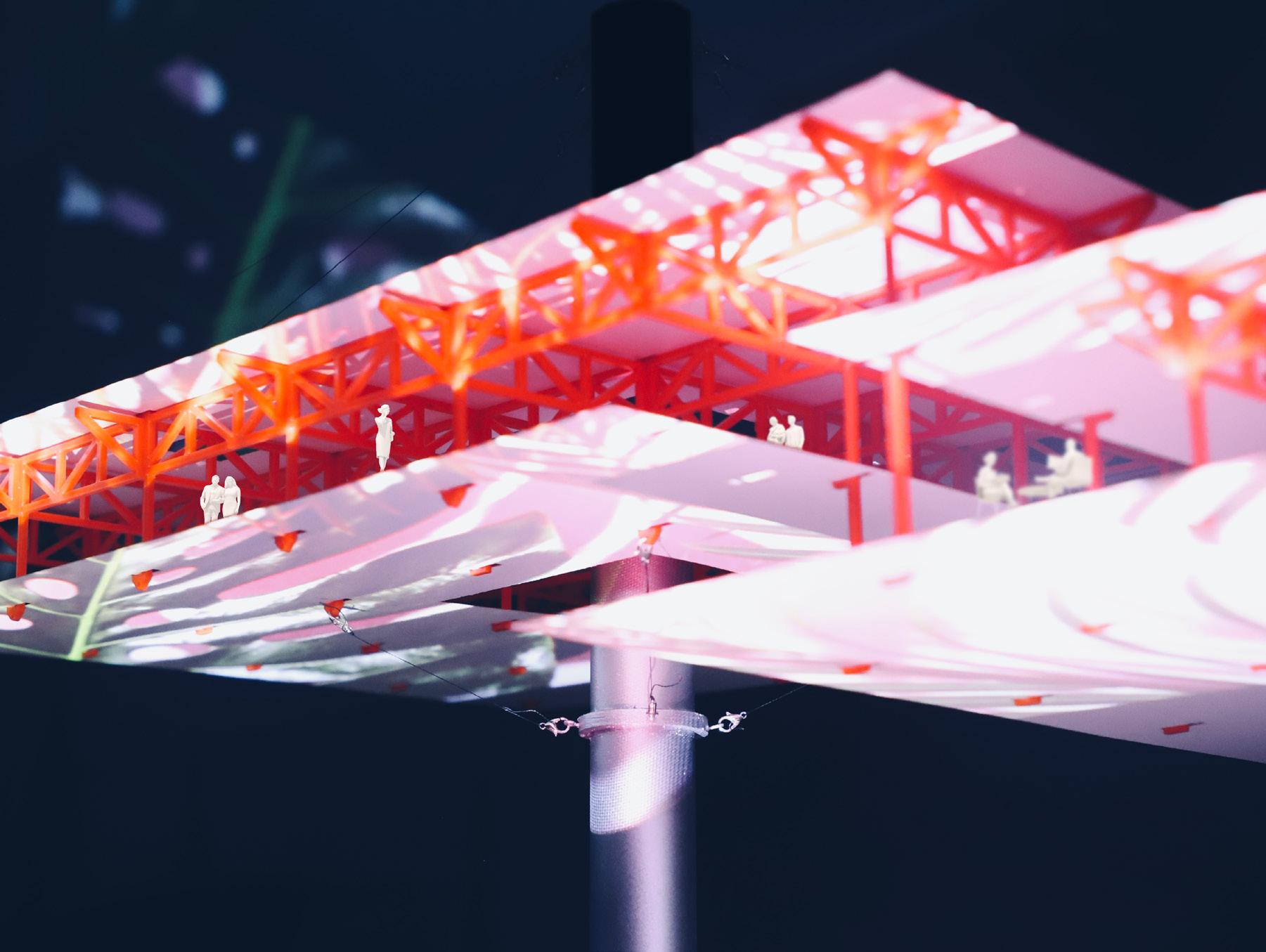

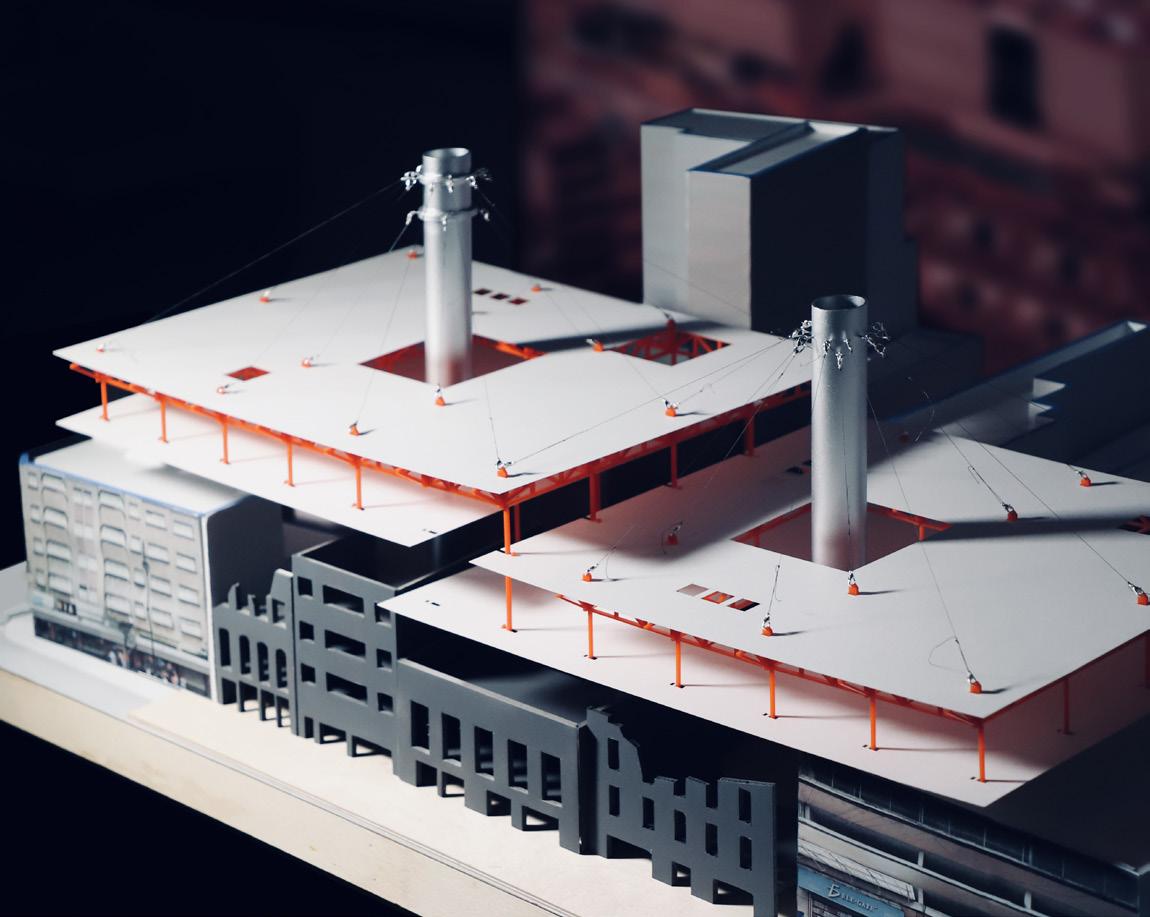

Model Photos: physical modesl were constructed with the method perscribed to verify structural integrity.

21

Project 05 - Bird-Safe Glass Testing

Bird-Safe Glass Testing Device Completed at Ennead Architects In collaboration with the American Bird Conservancy

This project is a proposed redesign of a testing device for bird-safe glass. The device being redesigned is situated in the Foreman’s Branch Bird Observatory and operated by ornithologists led by Dr. Christine Sheppard at the American Bird Conservancy.

The device consists of a flight tunnel through which a bird flies towards one of two glass specimens. The existing version of the device considers only flight paths that are perpendicular to the glass specimens. This project proposes a version of the specimen end of the tunnel that can be mounted on the same tunnel and has two flexible conditions: one for testing paths angled to the specimens, one for paths perpendicular to the speciment.

22

23

Project 05 - Bird-Safe Glass Testing

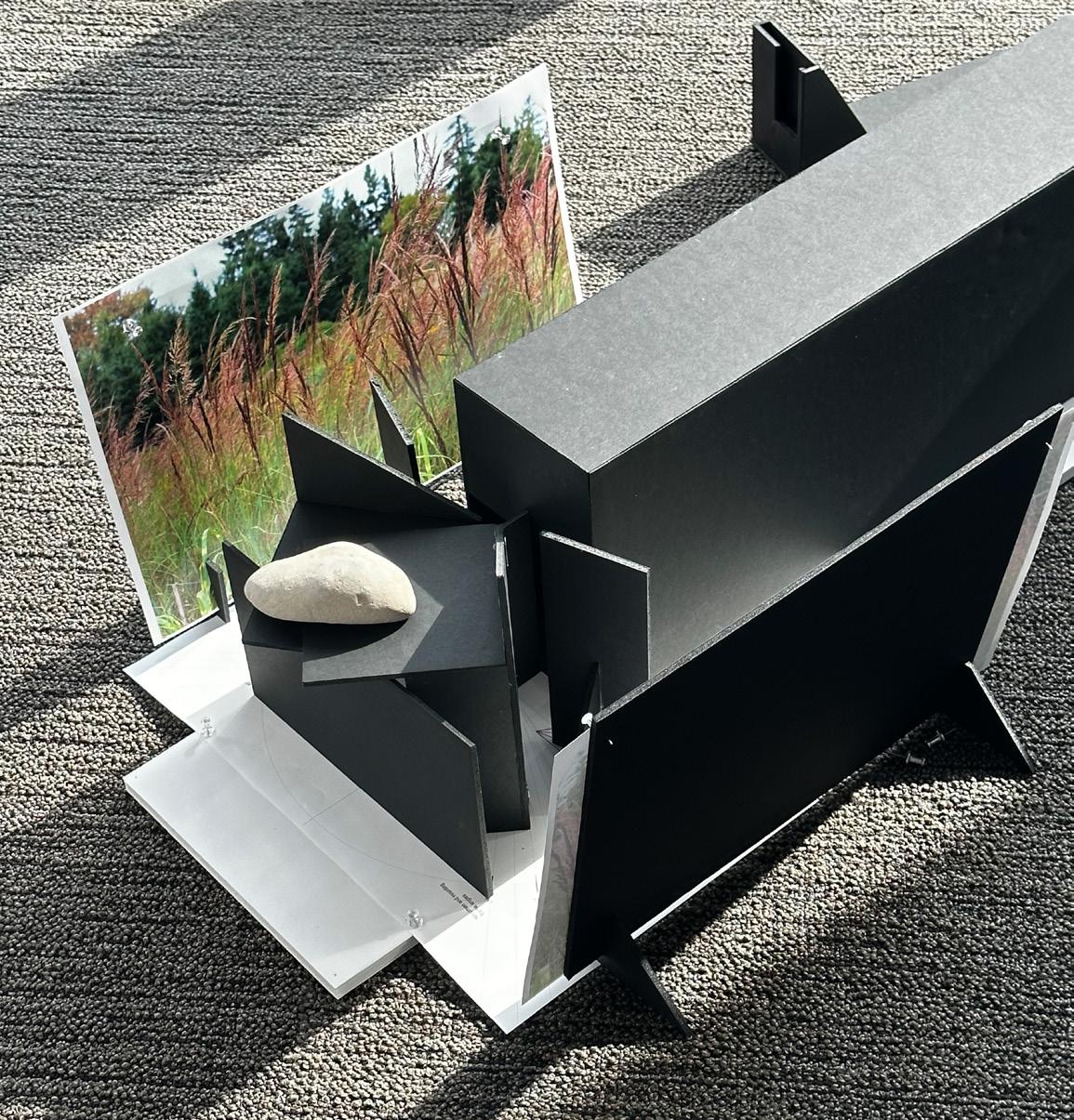

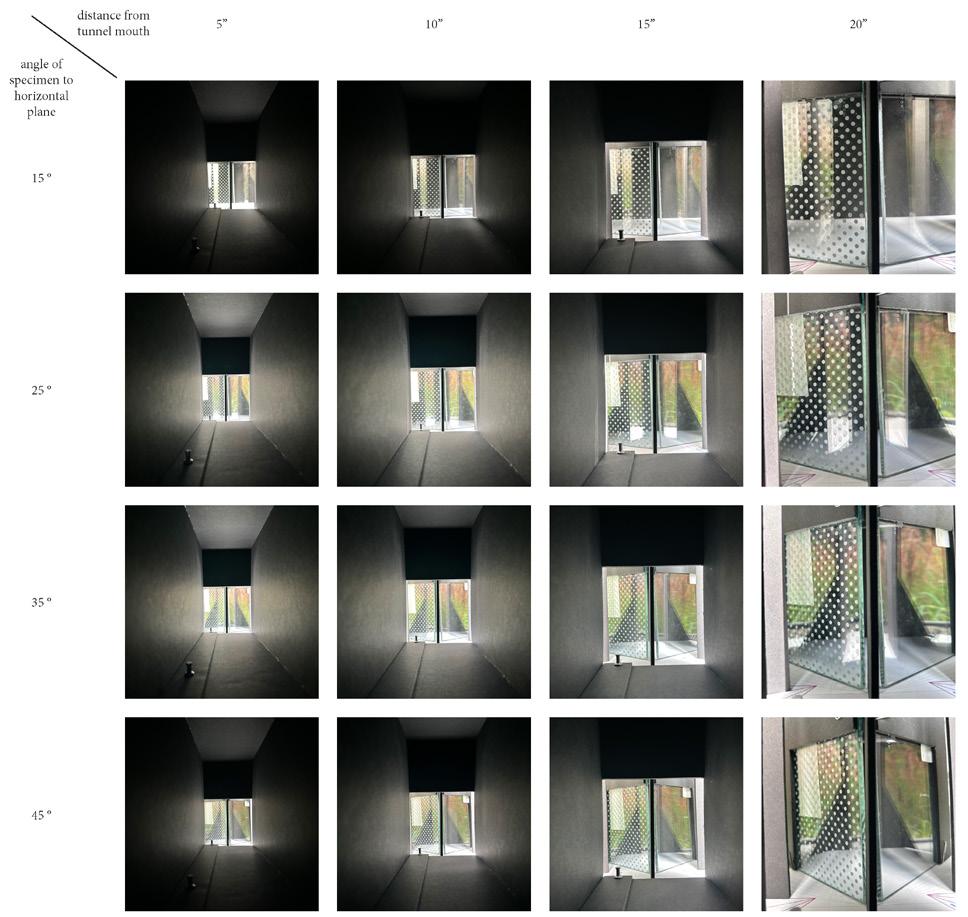

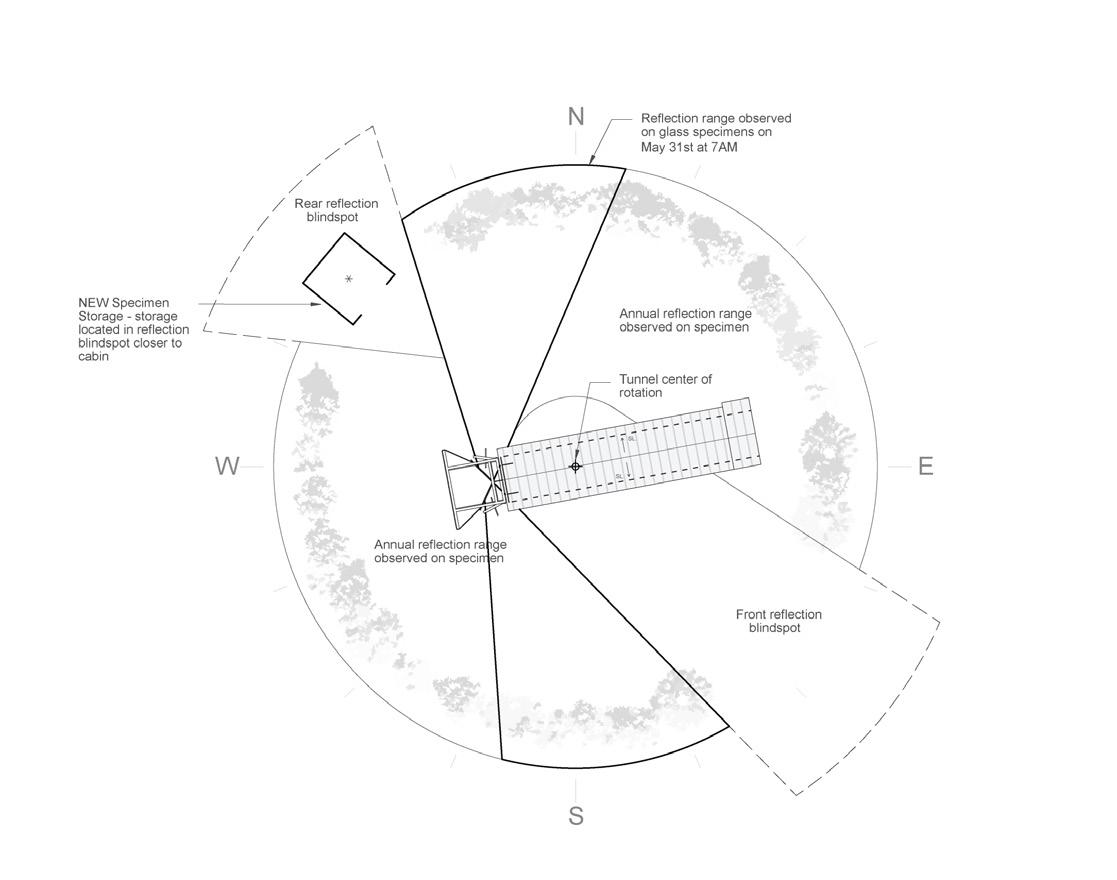

Reflection Study Along Flight Path (left) Study Model (right)

The angled version of the specimen end of the tunnel (the aperture) takes its measurements from a previous device designed at Hohenau-Ringelsdorf Biological Station in Austria. To understand the impact of angle on the clarity of the reflected image on the specimens, a physical test model was constructed. he model helped understand a

range of angles that are suitable for use in the aperture.

35 degrees, the angle employed at Hohenau, was decided to be the angle for the new aperture. It struck a balance between having a large enough perceived reflected area and avoiding reflecting the image of the tunnel mouth.

24

Project 05 - Bird-Safe Glass Testing

Maryland

10

10

Maryland Washington DC

Foreman’s Branch Bird Observatory (FBBO)

Washington DC

Foreman’s Branch Bird Observatory (FBBO)

Regional Plan 1:175000

Regional Plan

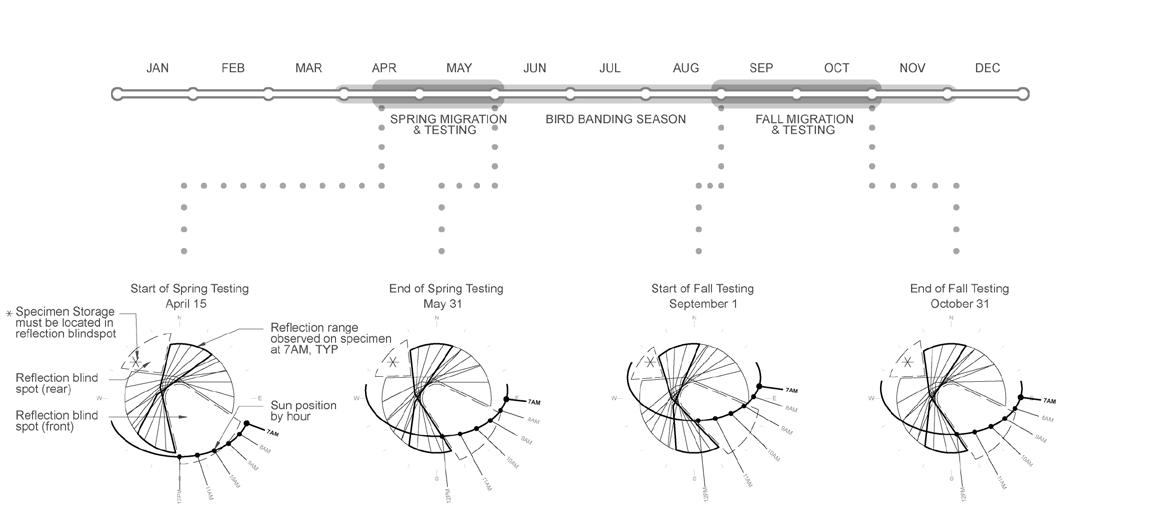

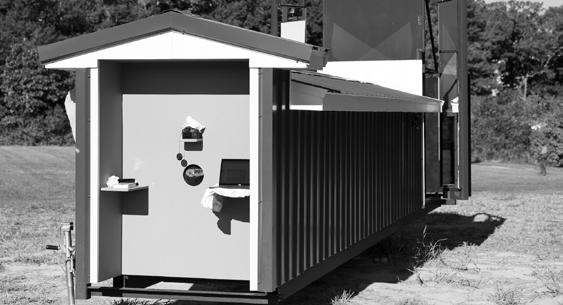

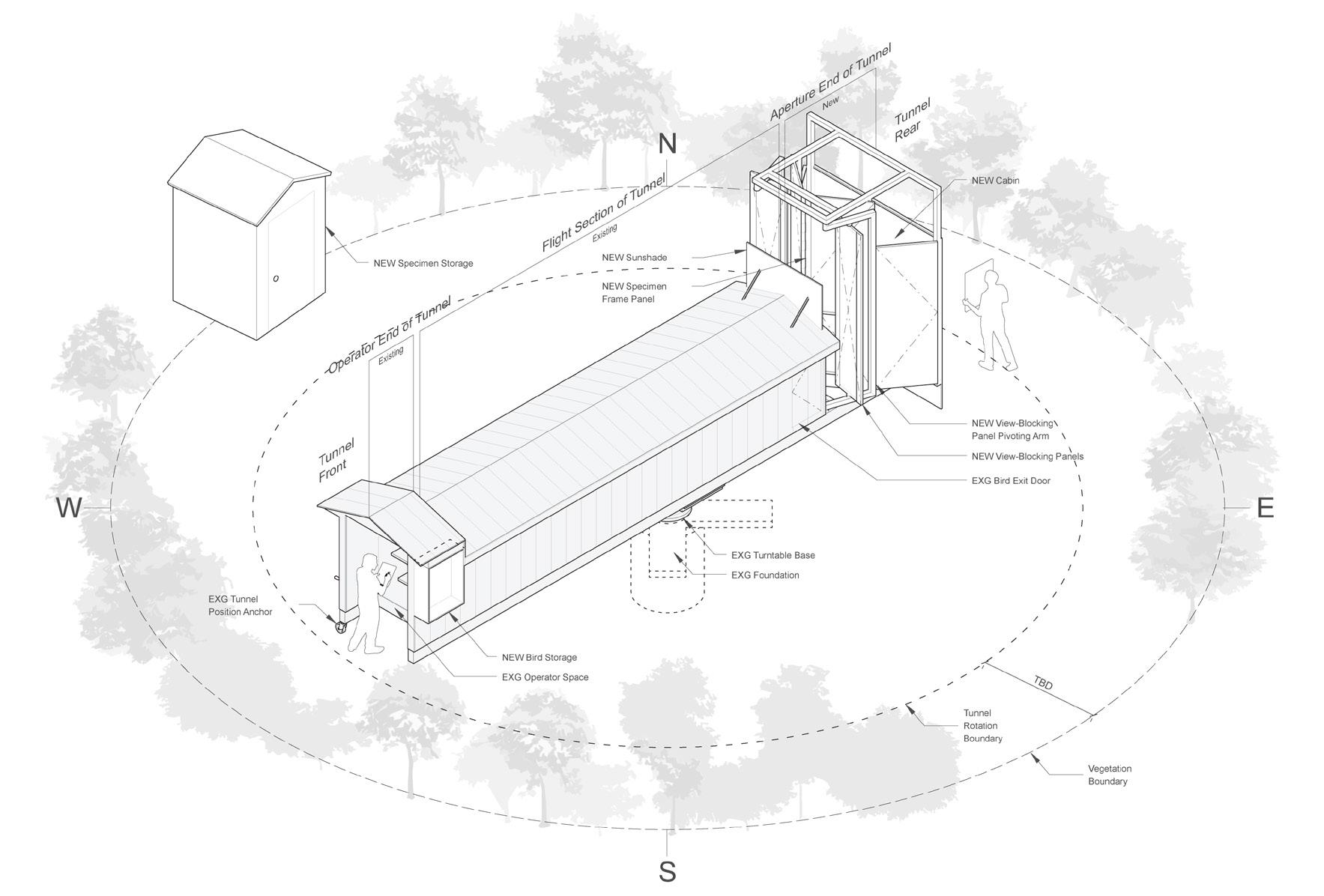

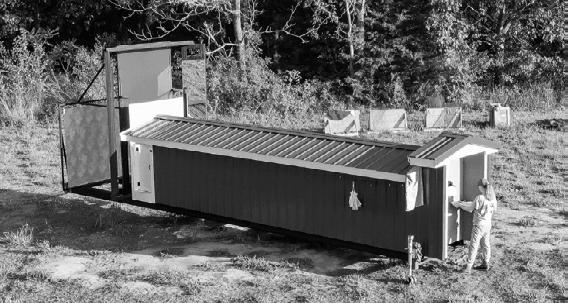

Reflection Range Based on Migration Pattern (top left) Site Plan and Existing Tunnel Photos (bottom left) Tunnel Rotation Range (right)

Chester River

A site analysis and discussions with the operators of the device revealed the necessity of installing a cabin for storing specimens and planting a ring of trees around the device to prevent the reflected image of nearby buildings from influencing the birds. A study of the site and the range of the reflected image upon the specimens followed. This study helped locate the storage cabin in a blindspot of the device and identify the location of the ring of trees.

1:175000

Kennel Ln Tunnel Location Kennel Ln Kennel Ln

Chester River

Tunnel Location Kennel Ln

25

Project 05 - Bird-Safe Glass Testing

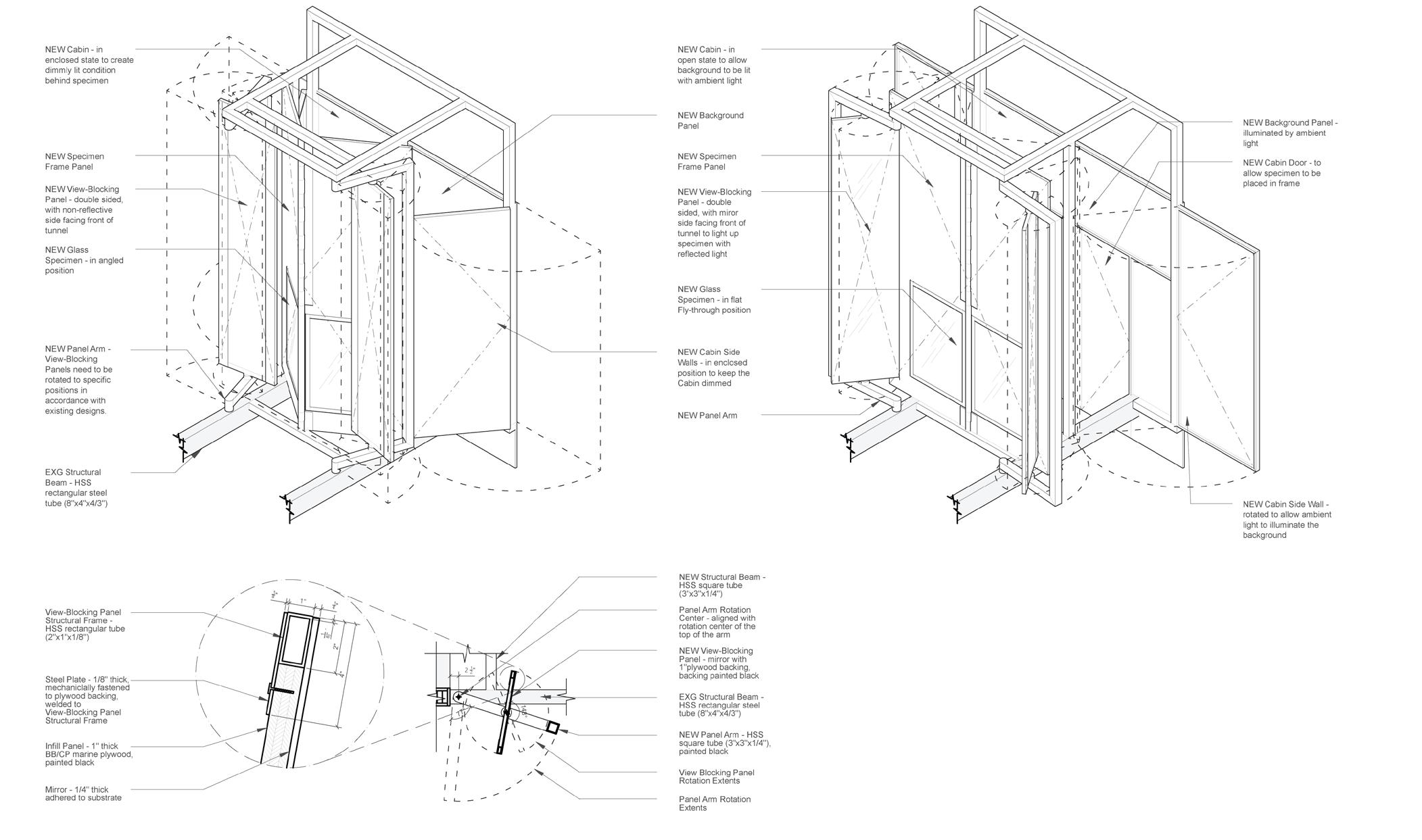

Angled Configuration Aperture (top left) Perpendicular Configuration Aperture (top right) Mirror Construction Detail (bottom left)

The project culminated in a construction set for the new aperture. The necessary angles and lengths of components were detailed in order to allow for both angled and perpendicular configurations of the glass specimens.
