| Design Portfolio 2024
Richard Chipperfield
Horticulture Experience
After leaving school I began working in the horticulture industry as a gardener. I was drawn to the idea of working outdoors and having the opportunity to learn about plants, gardens, and landscapes. I have worked in a diverse range of settings, each with its unique service needs that required specific approaches to the way they were managed and cared for.

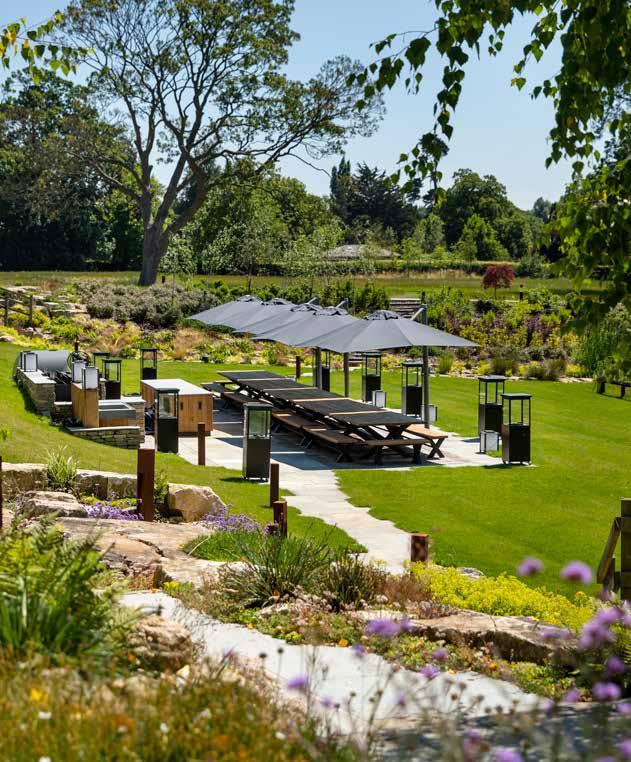

Tottenham Hotspur Football Club’s Training Center consists of 15 pitches and state of the art facilities supporting men, women, and academy teams. The site was developed in 2012 and extends across 77 acres of land in Enfield, Hertfordshire. The landscape is made up of extensive planting areas, sports and ornamental lawns, bioretention ponds, wildflower meadows, native hedgerows, woodland, and an organic kitchen garden. I was responsible for the upkeep of The Lodge Facilities including diverse planting, ornamental lawns, wildflower meadows, and green roofs. In addition to my main responsibilities I supported work in other areas of the site, and worked with the grounds team maintaining pitches.

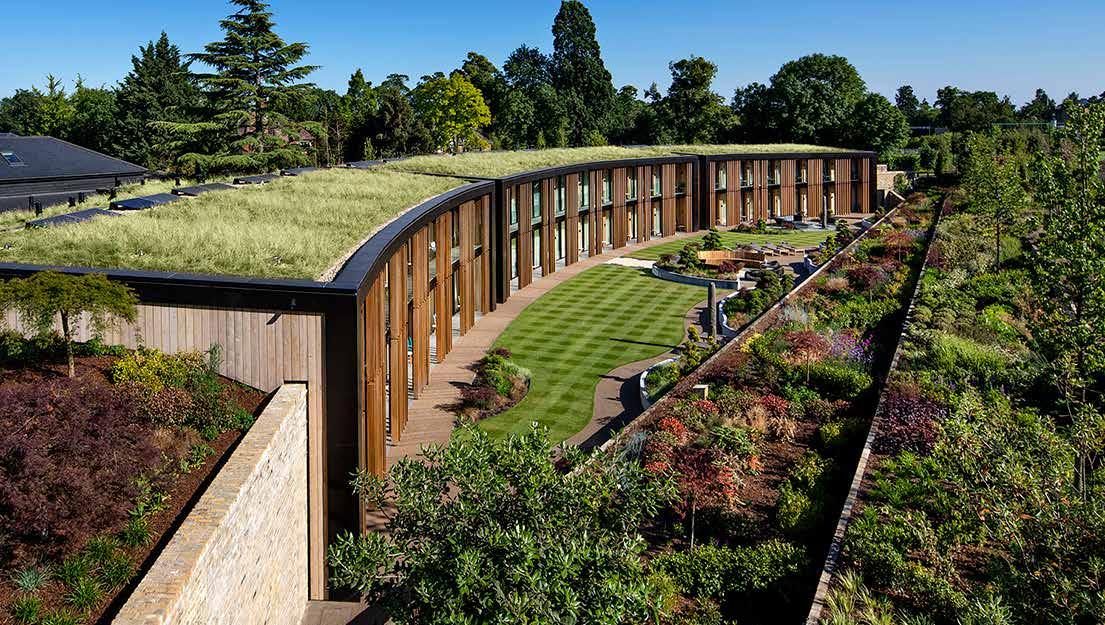

THFC Training Ground
The Lodge | THFC Training Ground
Broadmoor Hospital is a 350 acre high security mental health hospital in Crowthorne, Berkshire. Throughout this role I worked alongside a team of 7 gardeners responsible for maintaining the estate. The position had a strong focus on security, part of my role was following security procedures and keeping up to date with policies. The estate consisted of a range of areas including intimate patient gardens, open access gardens, public realm, public highways, and woodlands. Throughout this role I learned many skills and completed an NVQ Level 2 in Amenity Horticulture. The duties included plant care, lawn care, maintaining hard landscaping, and woodland management. During this period the hospital was going through a £250 million redevelopment, building a new state of the art facility. I was able to support the estates and facilities department by attending discussions and meetings regarding aspects of the design of the hospital and the implications on future maintenance and operations planning.

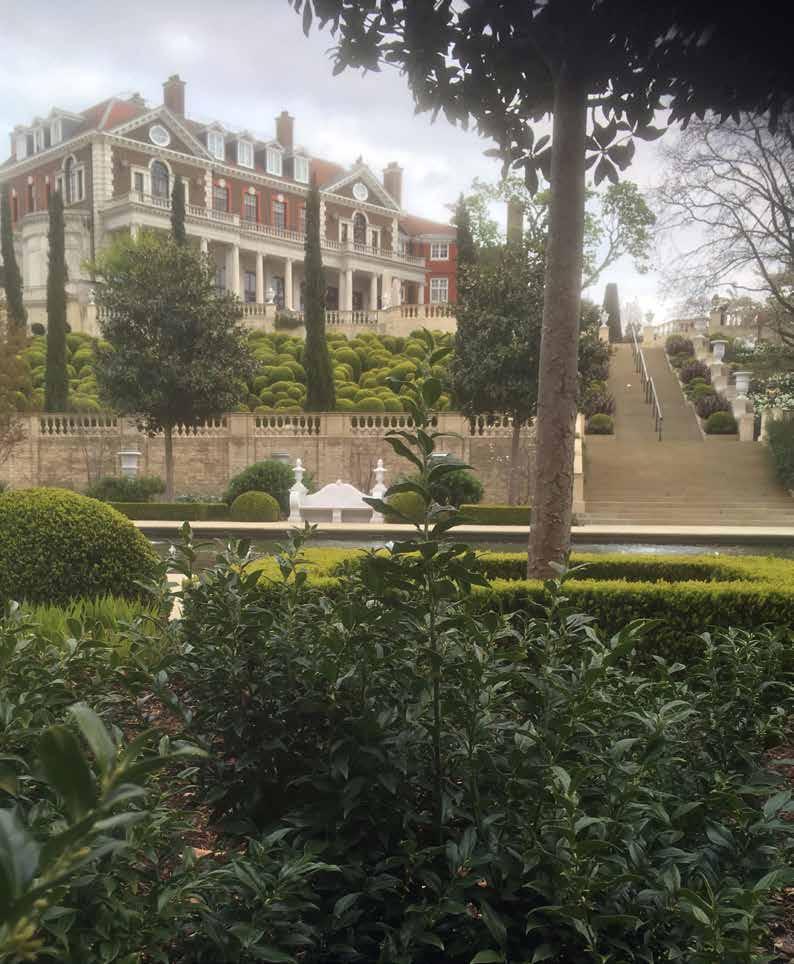

Witanhurst House is a 5 acre private estate in North London. The garden was in the late stages of establishment, 3 years post-development. The grounds included historic Grade II listed gardens designed by Harold Peto that were restored. My role was senior gardener, I supervised a team of 6 gardeners, while reporting to the head gardener. Key responsibilities included maintaining the gardens to a high standard, and ensuring the smooth operation of private events. The horticultural duties included caring for herbaceous borders, topiary, shrubs, ornamental lawns, and maintaining hard landscaping. There were opportunities to contribute to projects, developing planting schemes, including a rockery, new hedge plantings, seasonal displays, and growing produce in the kitchen garden.
In 2020 I decided that I wanted to change course in my career and started a BA in Landscape Architecture and Design at Leeds Beckett University in the United Kingdom. I am looking to take my previous experience forward to a new position working in landscape design.
Witanhurst House

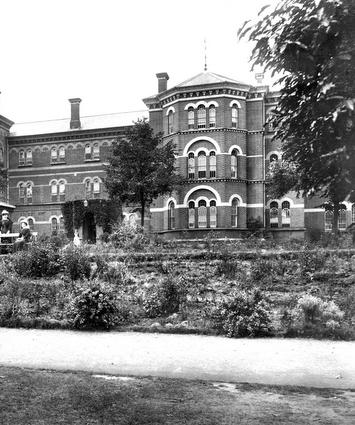

Historic Photo | Broadmoor Hospital
South Leeds Greenway
BA Landscape Architecture & Design 2023

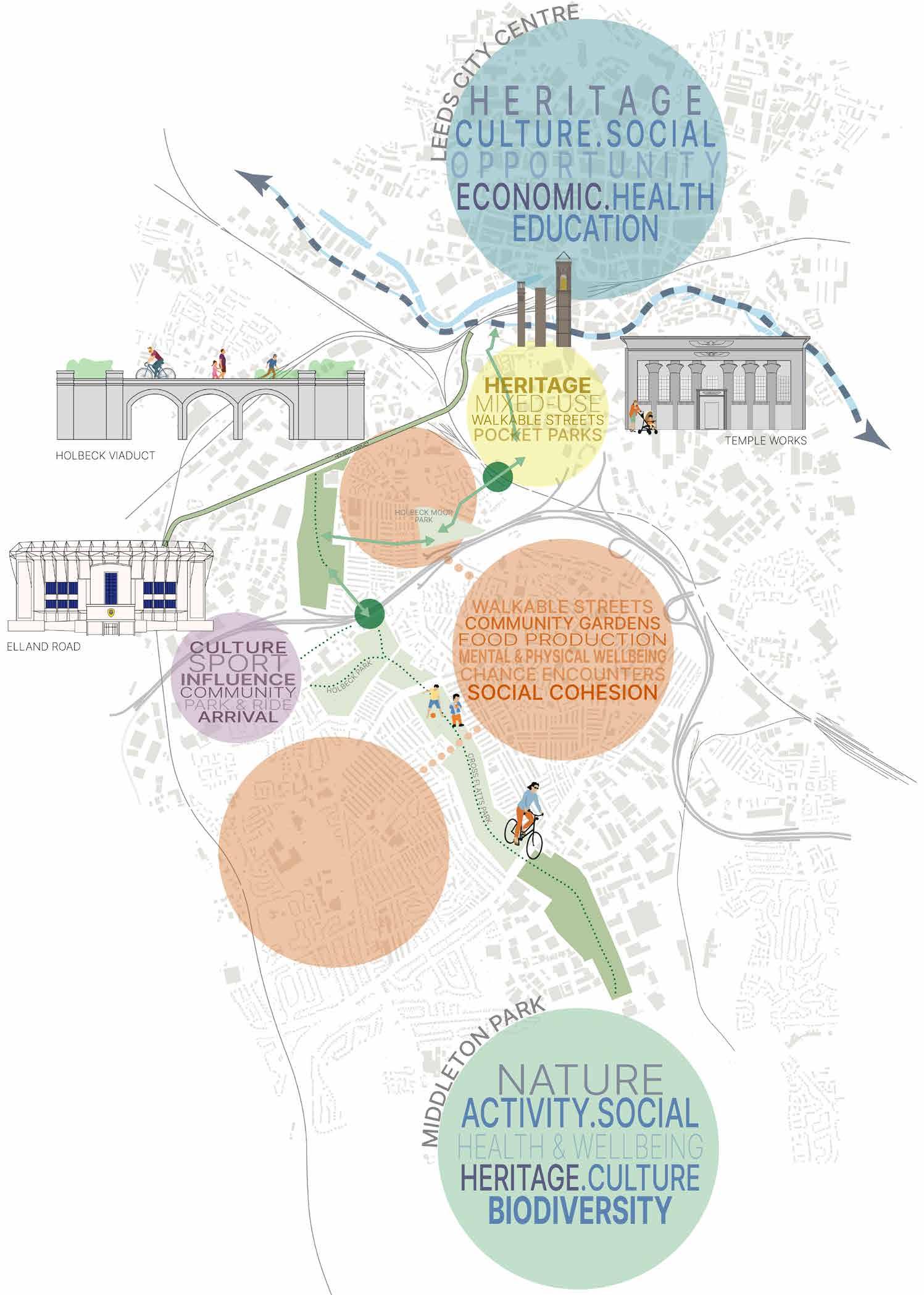

Strategic Masterplan
Created using Rhino 7 | Illustrator
Key
Existing greenspaces
Proposed greenspaces
Green bridge
Temple District
Neighbourhood Districts
Elland Road Cultural District

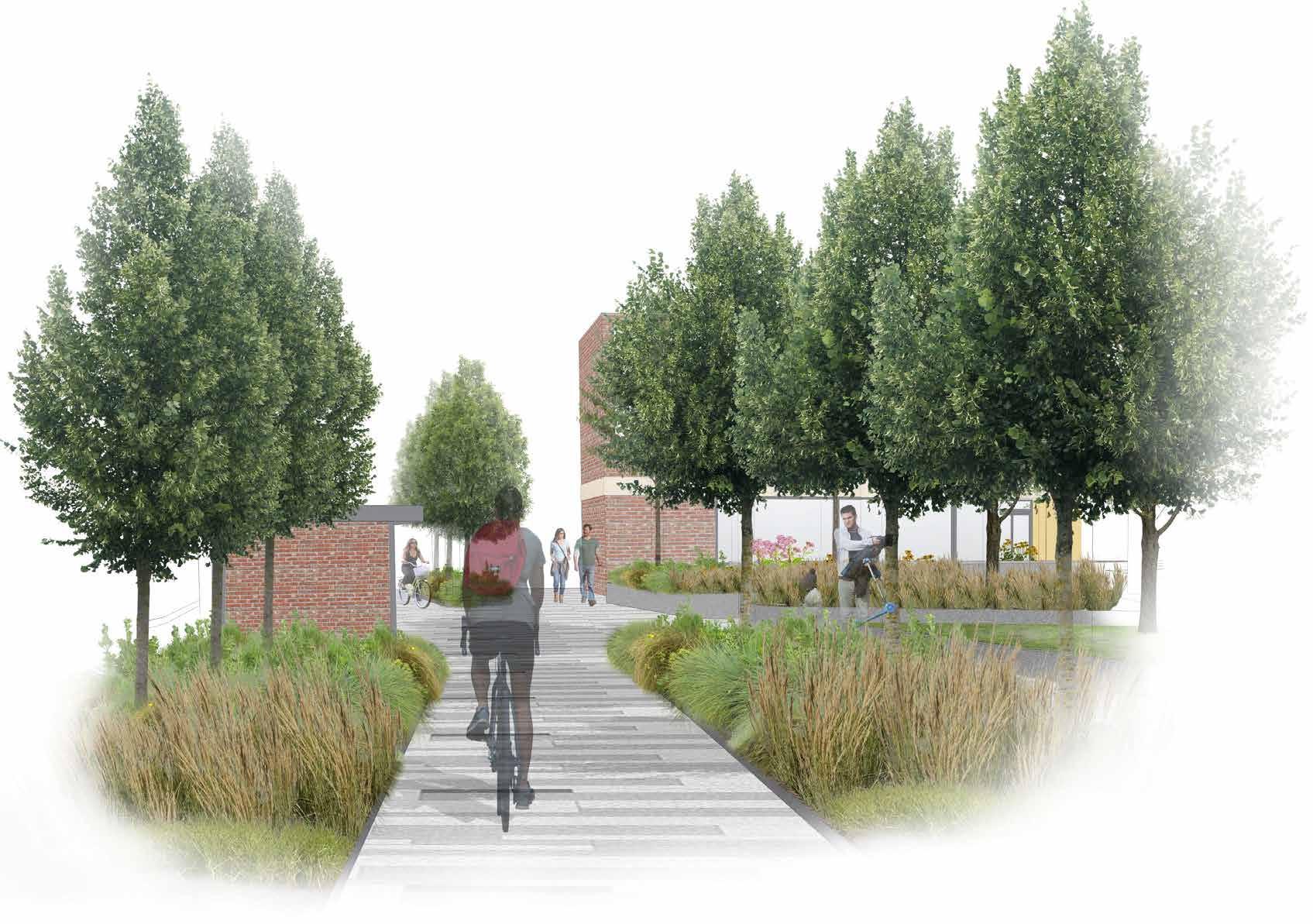

Active Streets
Cycle Corridors
Enhance Connectivity
Created using Rhino 7 | Photoshop | Illustrator
The strategy promotes inner-city living and sustainable urban development. It increases the provision of multi-use development, supporting walkable neighborhoods where communities have access to key local services. It goes further than existing patterns of development by providing a vision for connections between communities. Streetscapes will prioritize resident safety and active transport users. These spaces incorporate quality green infrastructure providing connections to nature and key ecosystem services. A framework supports the vision by providing a set of prerequisites to ensure
the successful development of quality housing and an environment that is conducive to human health. A sweeping greenway establishes meaningful connections from Leeds City Centre through to Middleton Park. Existing parks form the foundation of the greenway, these spaces will be regenerated to provide residents with positive experiences set within nature. Benefits will be seen in inner-city communities where residents have increased access to quality greenspace for exercise, recreation and engagement within their community.
Elland Road Cultural Hub
BA Landscape Architecture & Design 2023
Masterplan
Created using Photoshop | Illustrator | Rhino 7
Elland Road Stadium

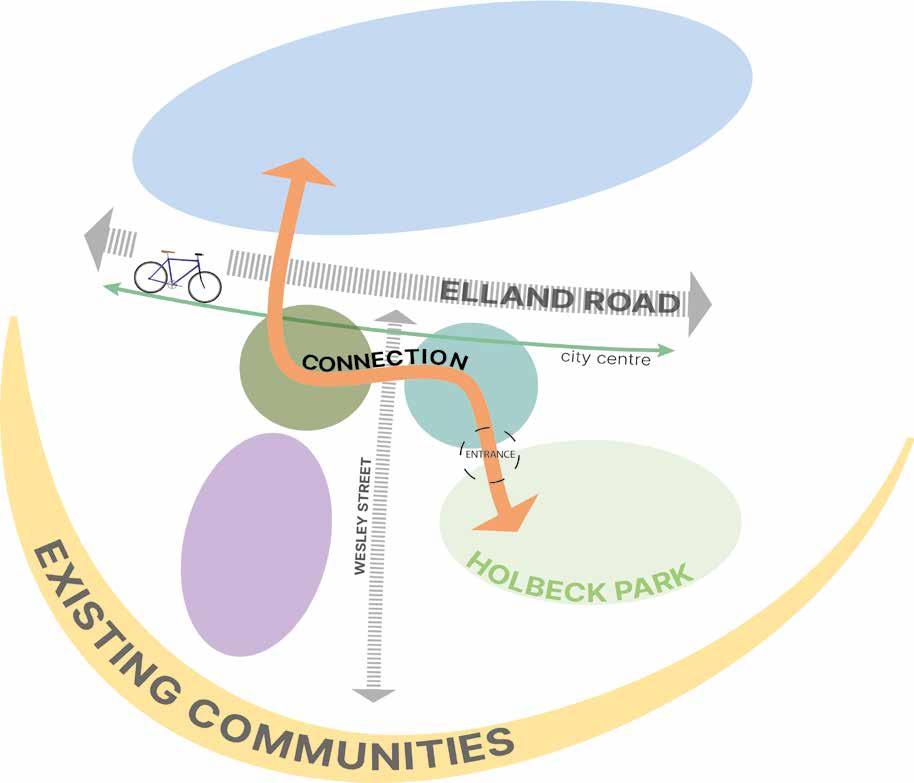

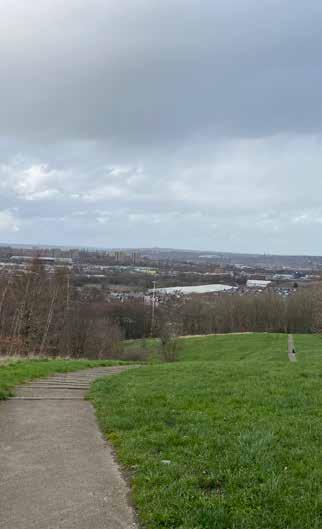

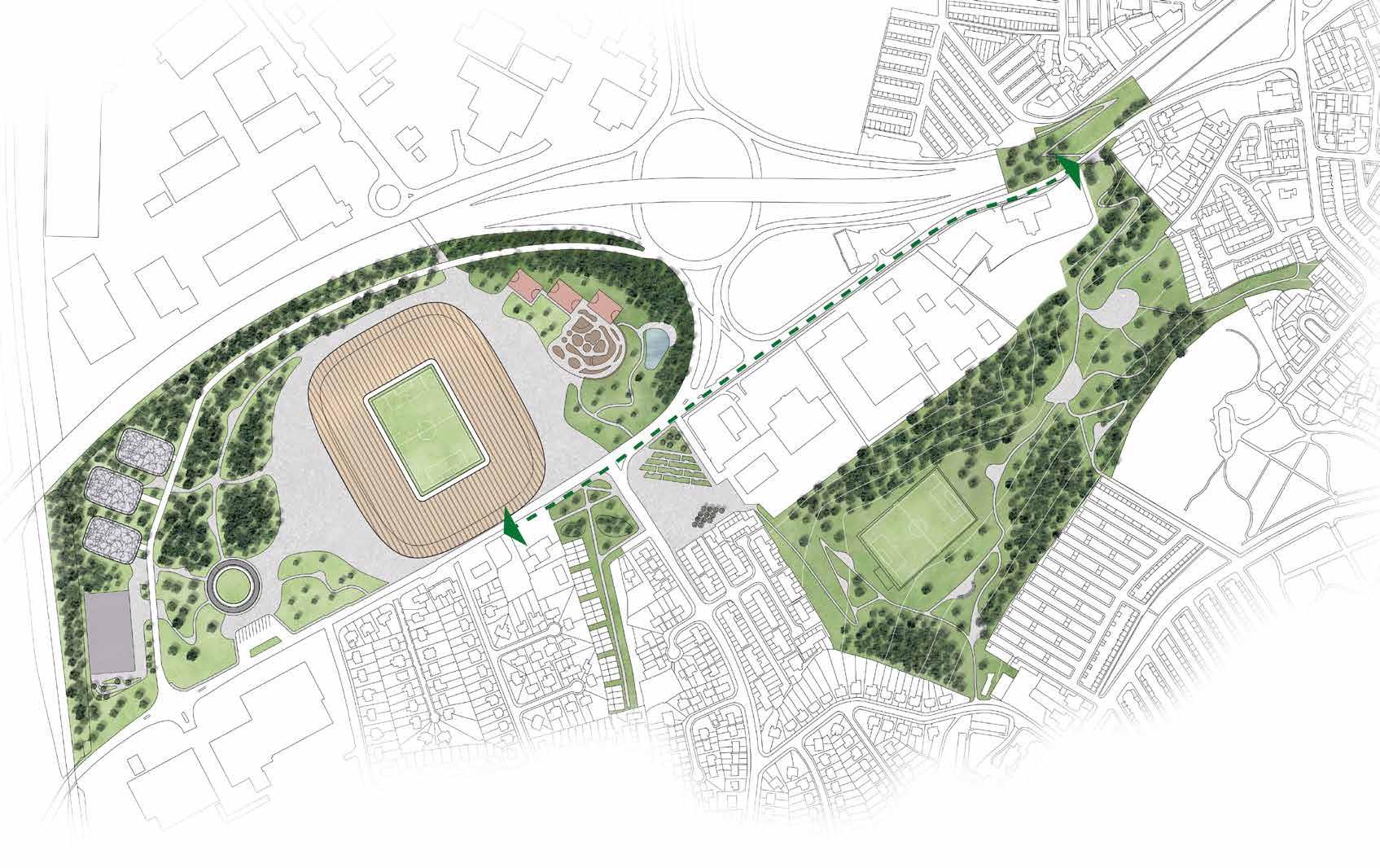

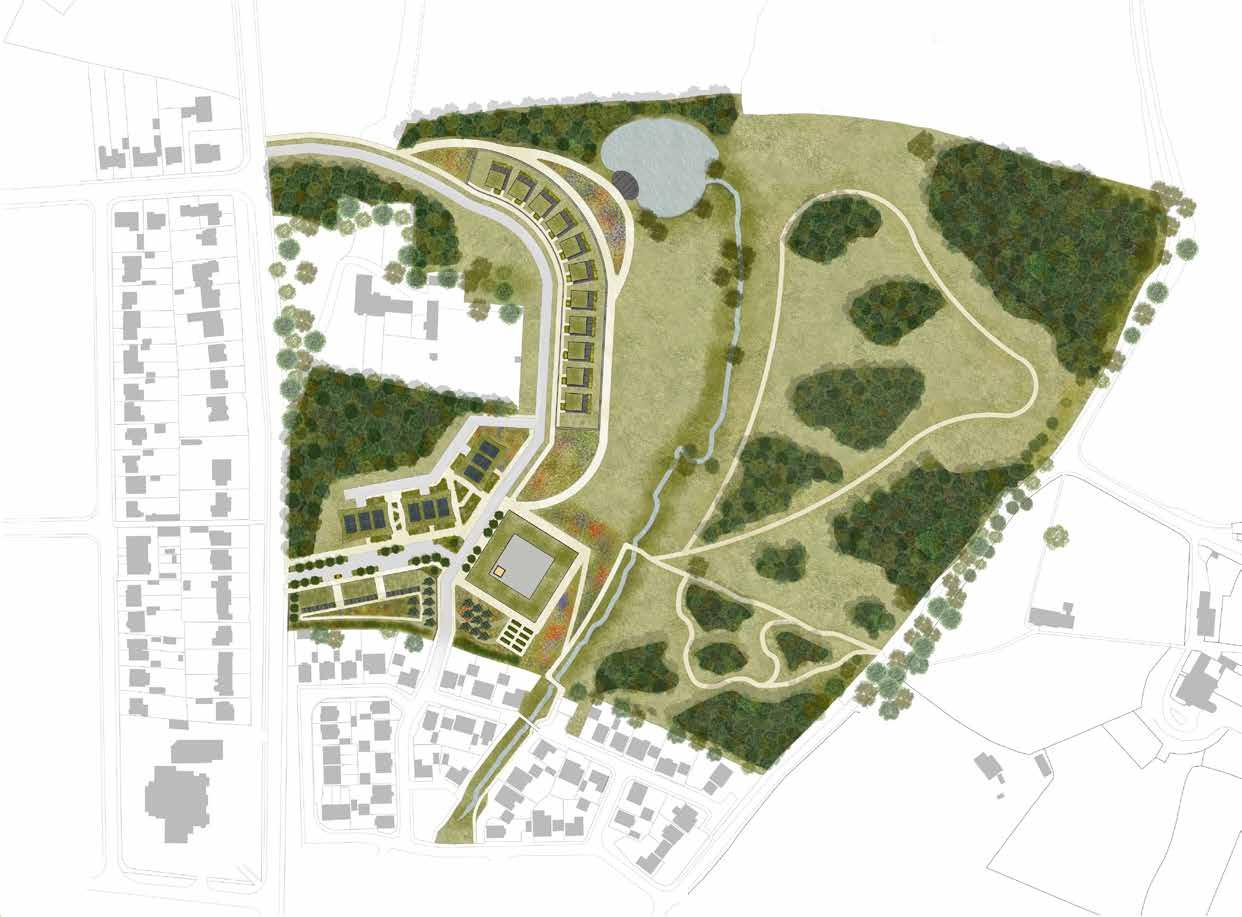

The regeneration of Holbeck Park enhances connections for the community and promotes inclusivity in what is currently a poorly accessible site. Key connections will include a new green bridge across the M621 Motorway and a multi-use
development forms a connection to Elland Road Stadium. A network of intimate spaces are introduced along the ridgeline through the centre of the existing park including workout spaces, spectator platforms and meeting locations.

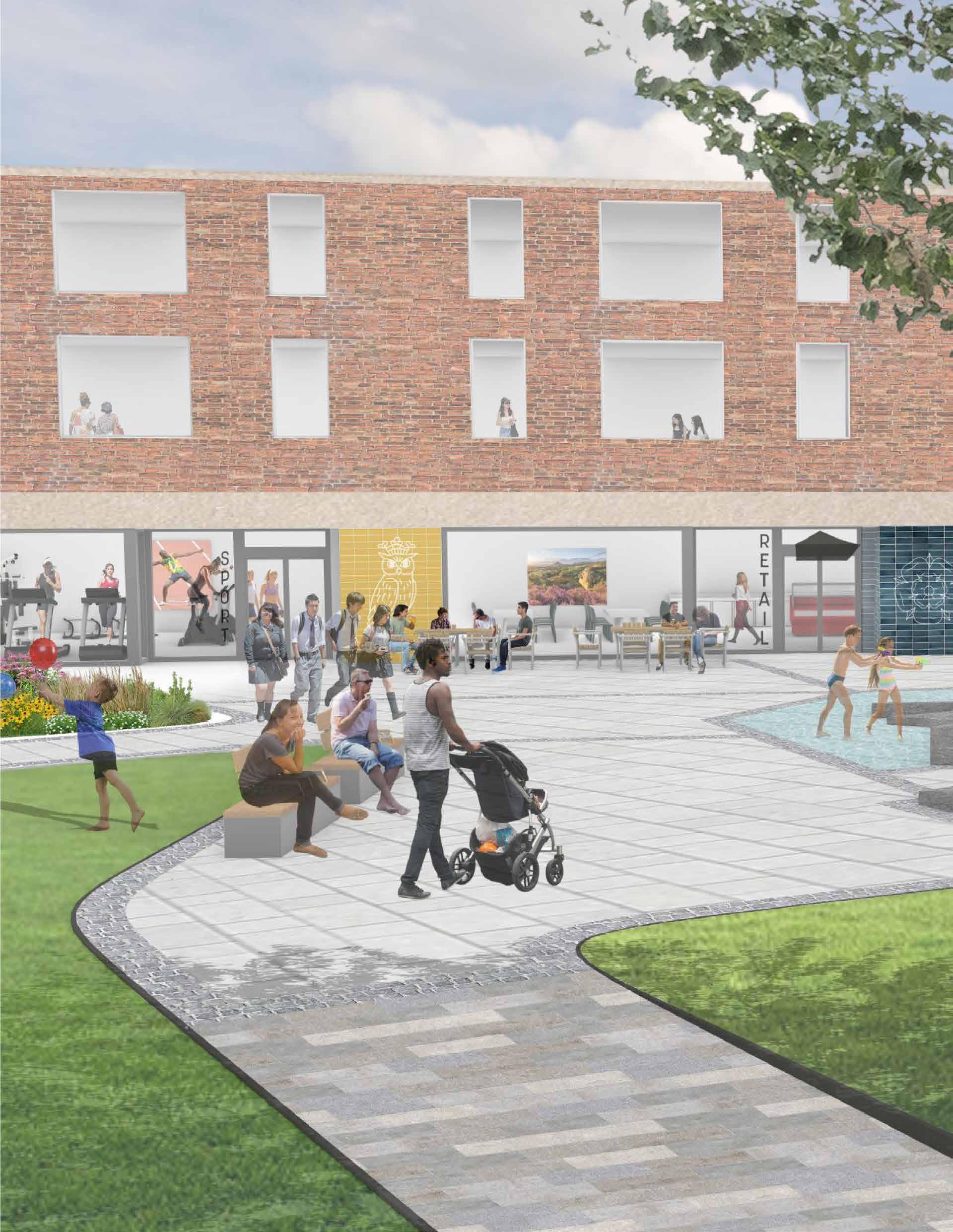

A new state of the art stadium takes centre stage at the Elland Road site. It will host sporting and cultural events, and provide units for community services and commercial businesses. A plaza surrounds the stadium allowing services to spill outdoors.

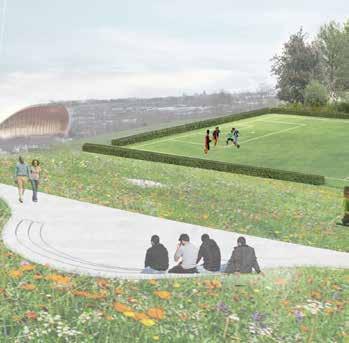

Sports and recreation facilities radiate from the plaza and nestle into greenspace. A crescent of grassland
and woodland form shelter from the busy motorway and increases the % of tree cover in this inner-city community.

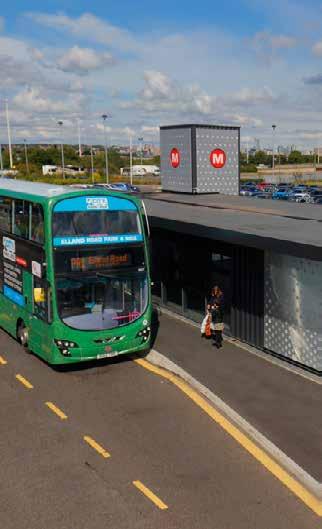

As part of this development the park and ride services will be condensed reducing the exposed and uncomfortable nature of the existing facilities.
Elland Road Culture Hub
BA Landscape Architecture & Design 2023
Elland Road Cultural Hub
BA Landscape Architecture & Design 2023

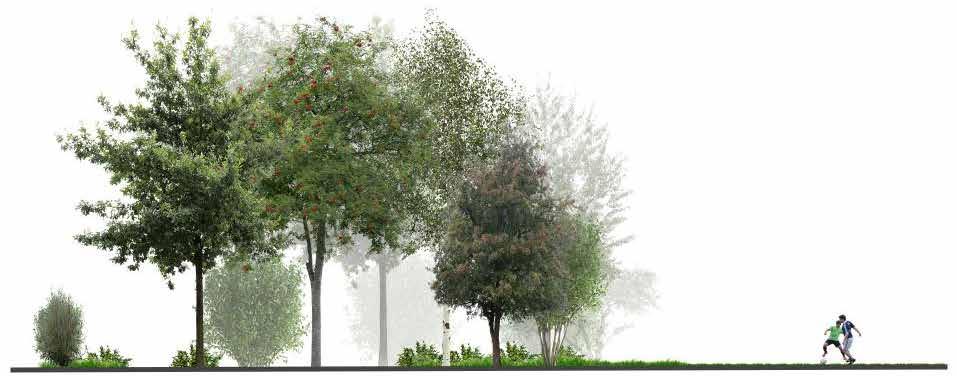

Planting Design

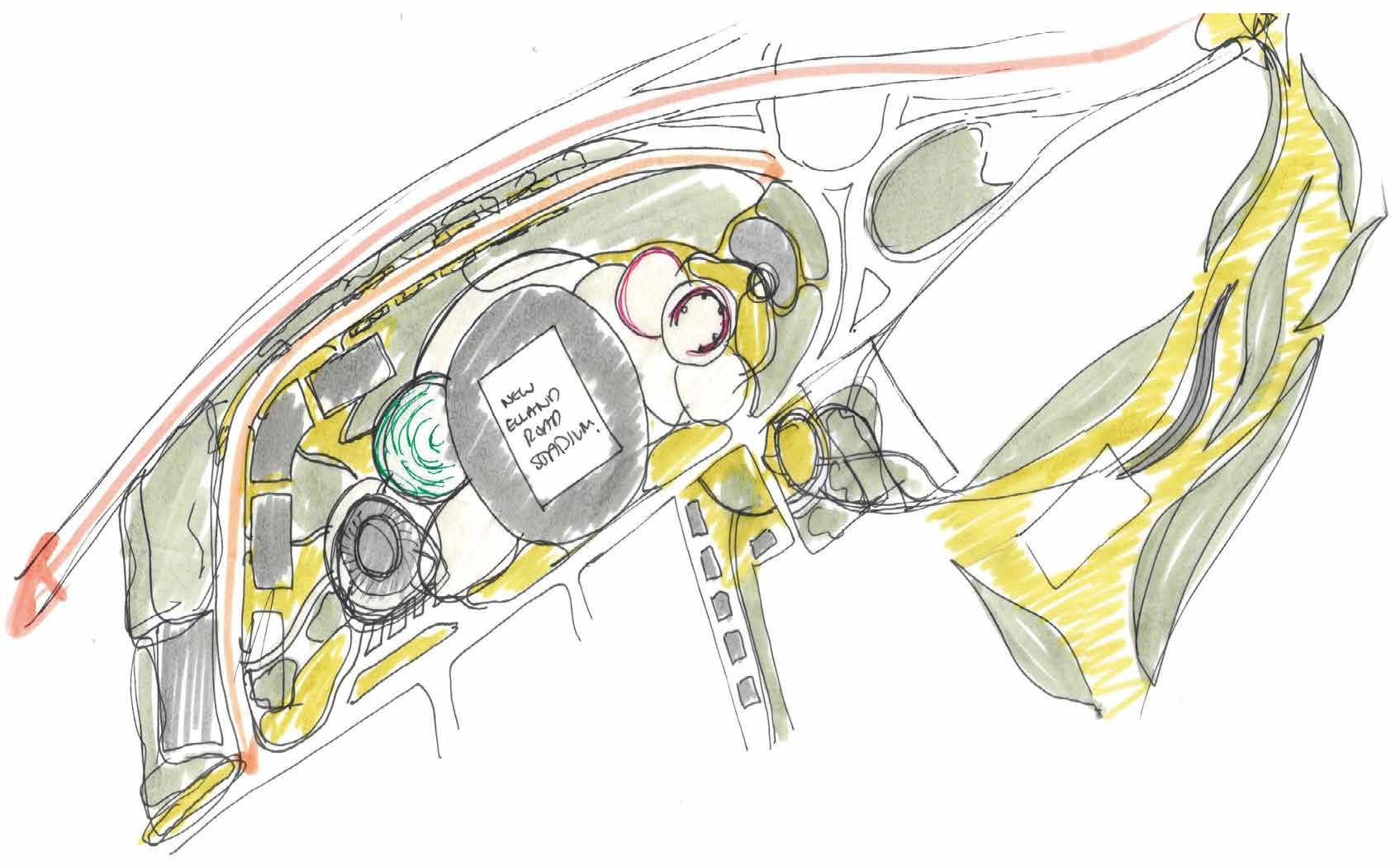

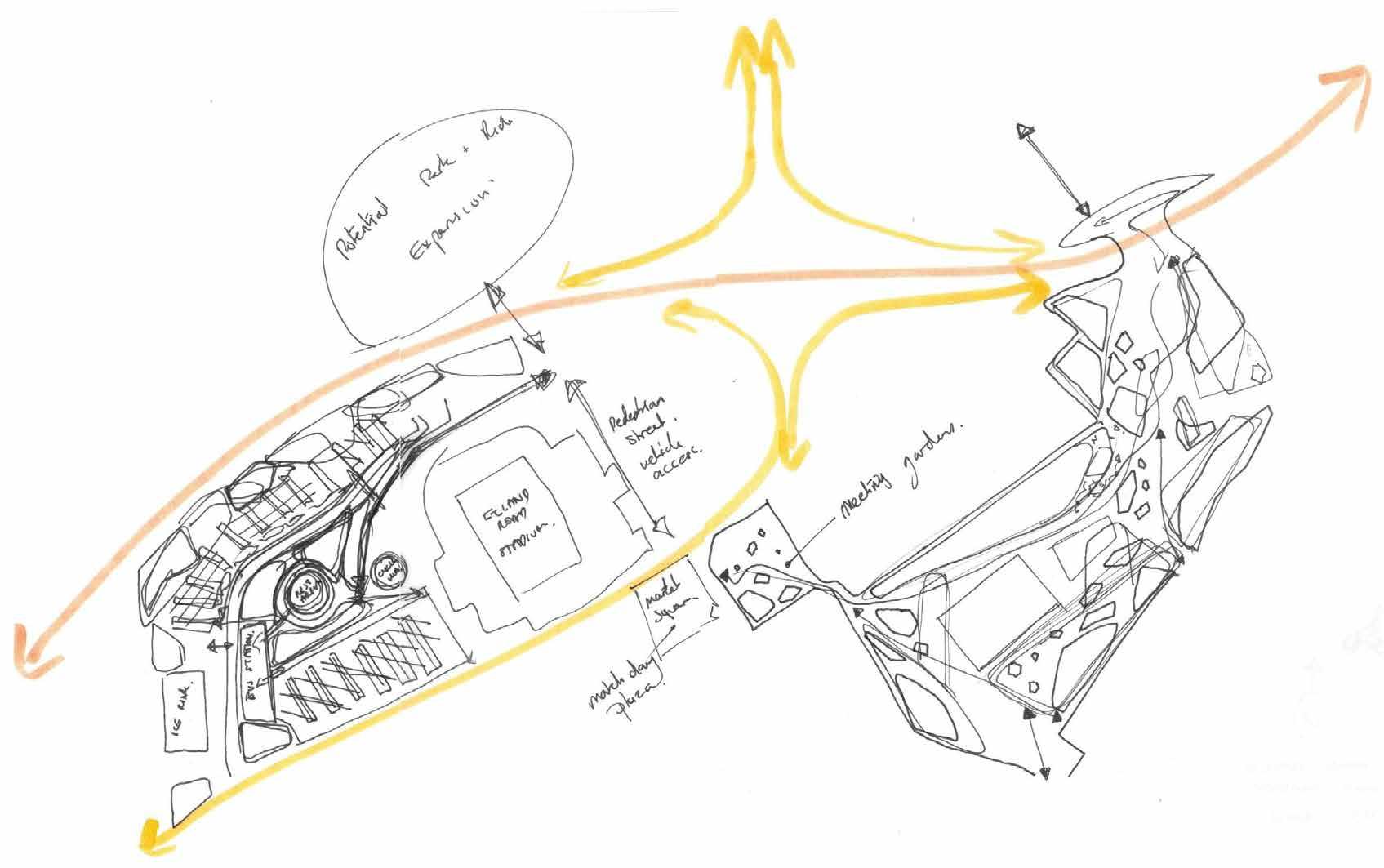

Created using hand sketching | Illustrator | Rhino 7 | Midjourney AI

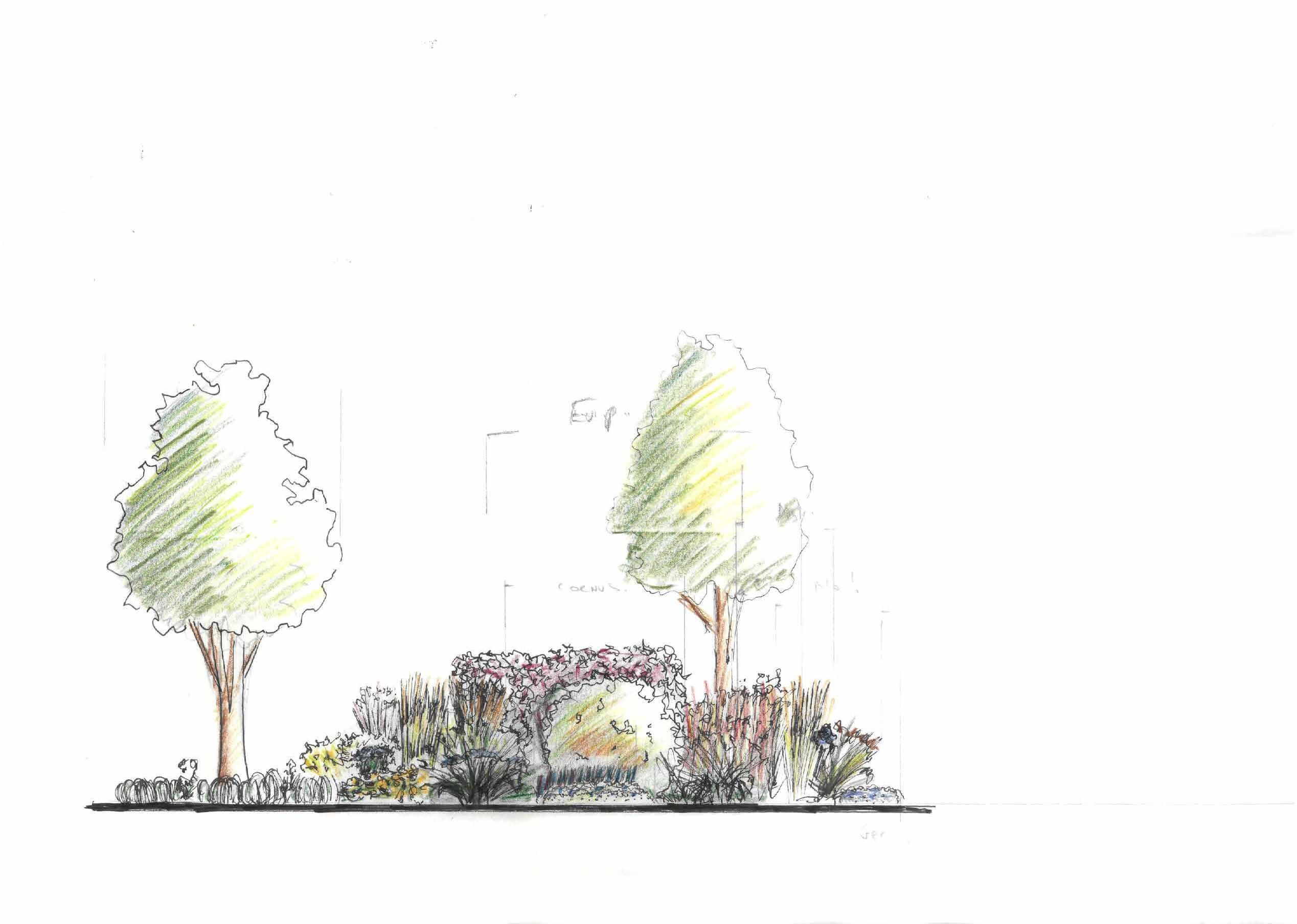

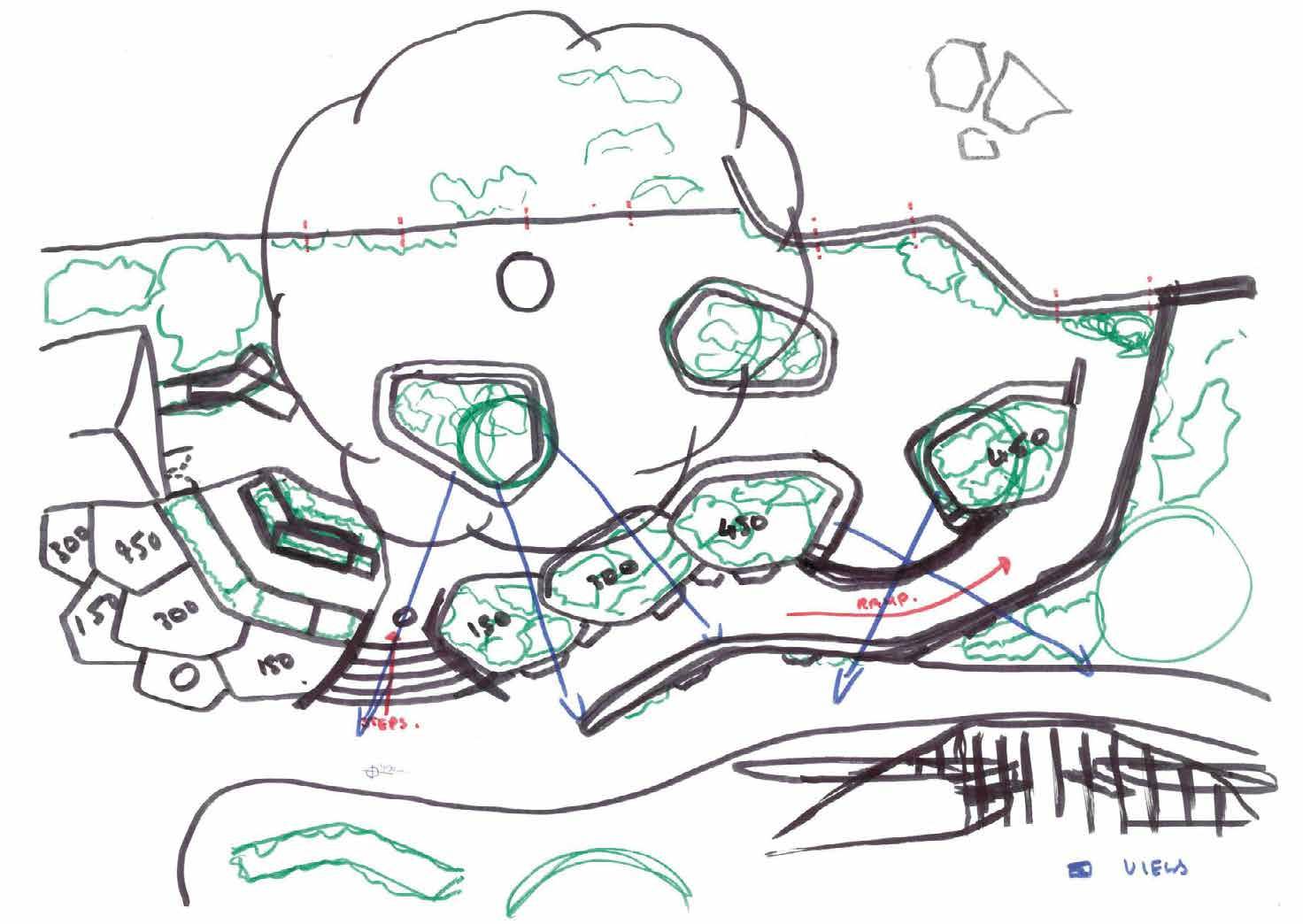

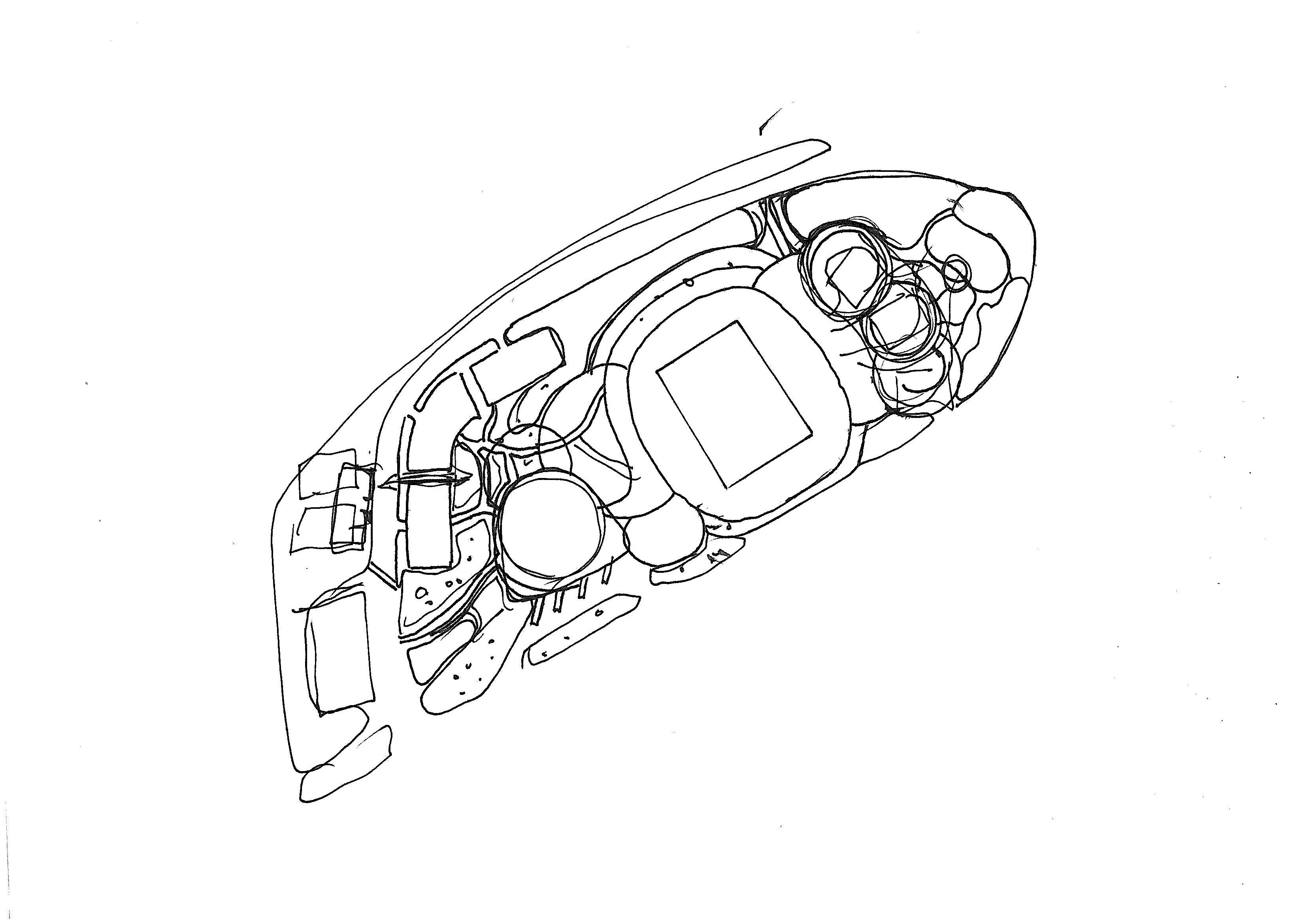

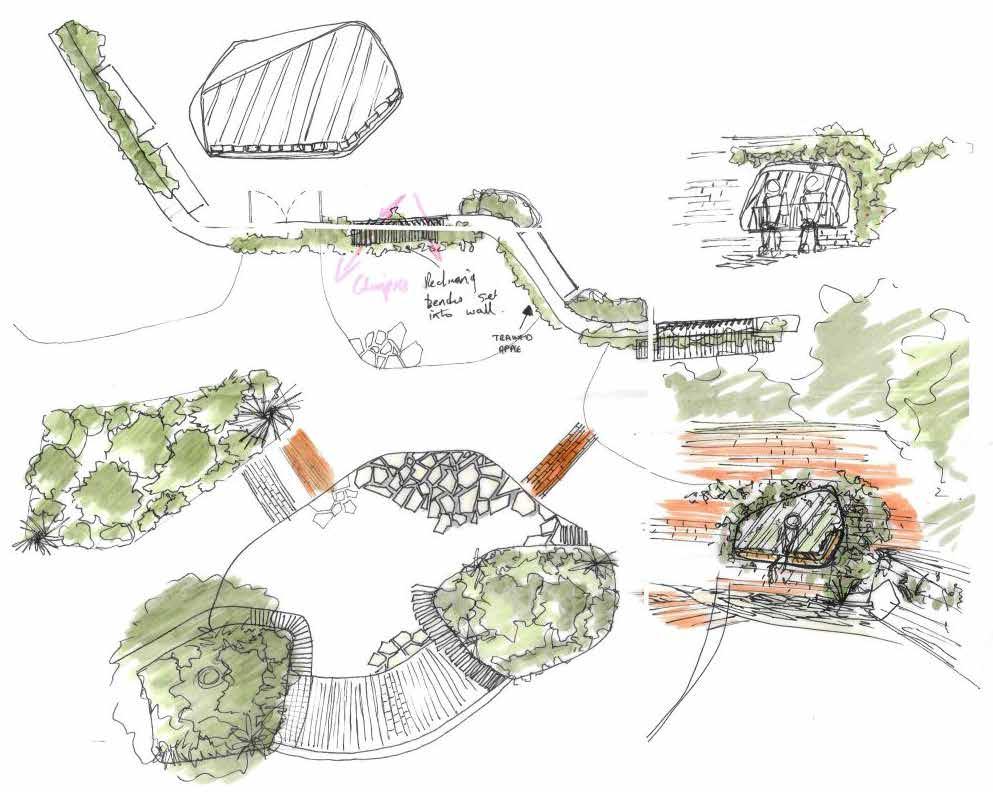

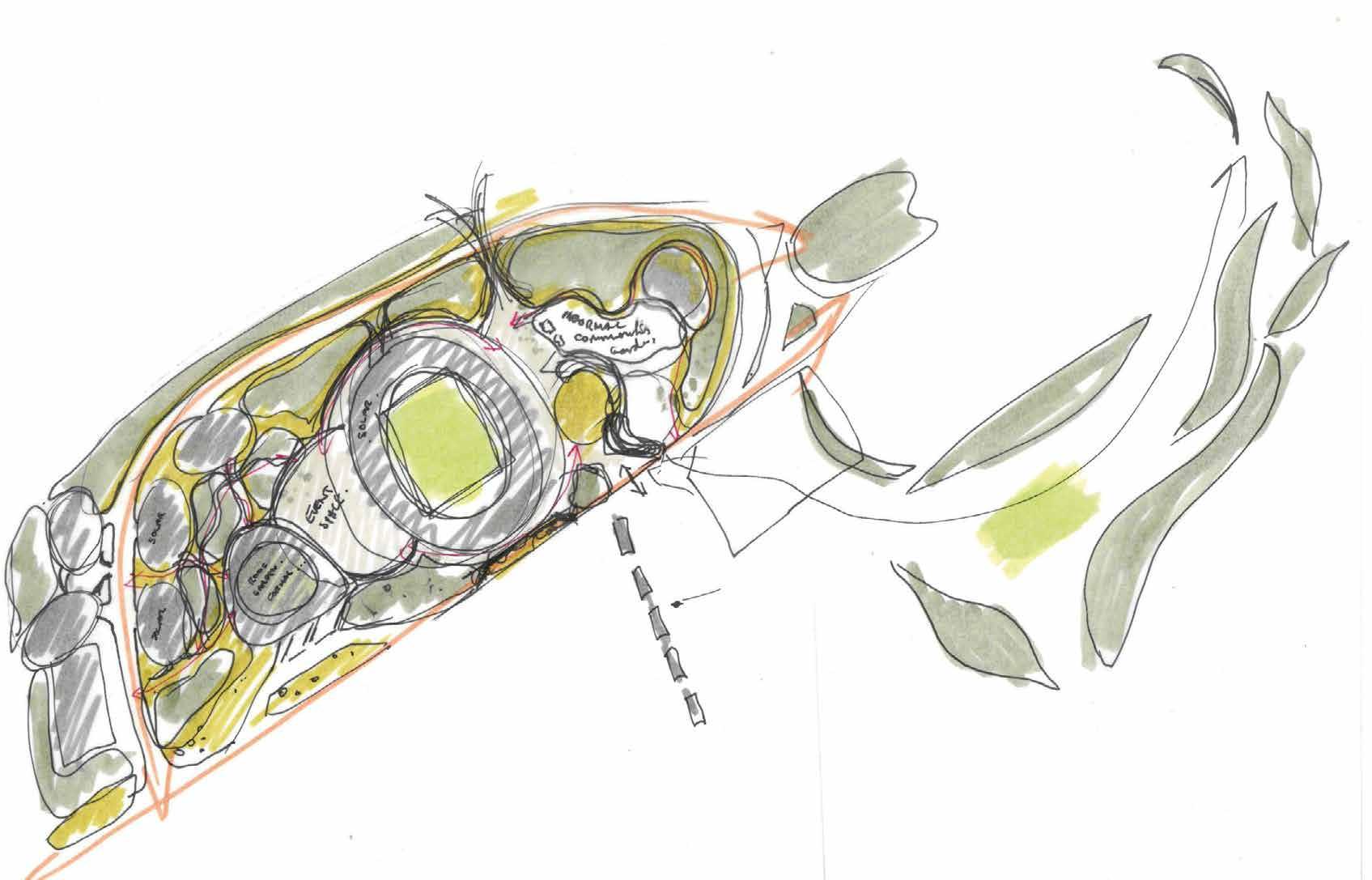

Exploring form during the design process
Prunus padus ‘Albertii’ Calamagrostis x acutifolia ‘Karl Foerster’
Molinia caerulea subsp. arundinacea ‘Transparent’
Eupatorium maculatum ‘Riesenschirm’
Cornus sanguinea ‘Midwinter Fire’
Hakonechloa macra
Aster frikartii ‘Mӧnch’
Geranium ‘Rozanne’
Salvia nemorosa ‘Caradonna’ Rudbeckia fulgida ‘Goldsturm’

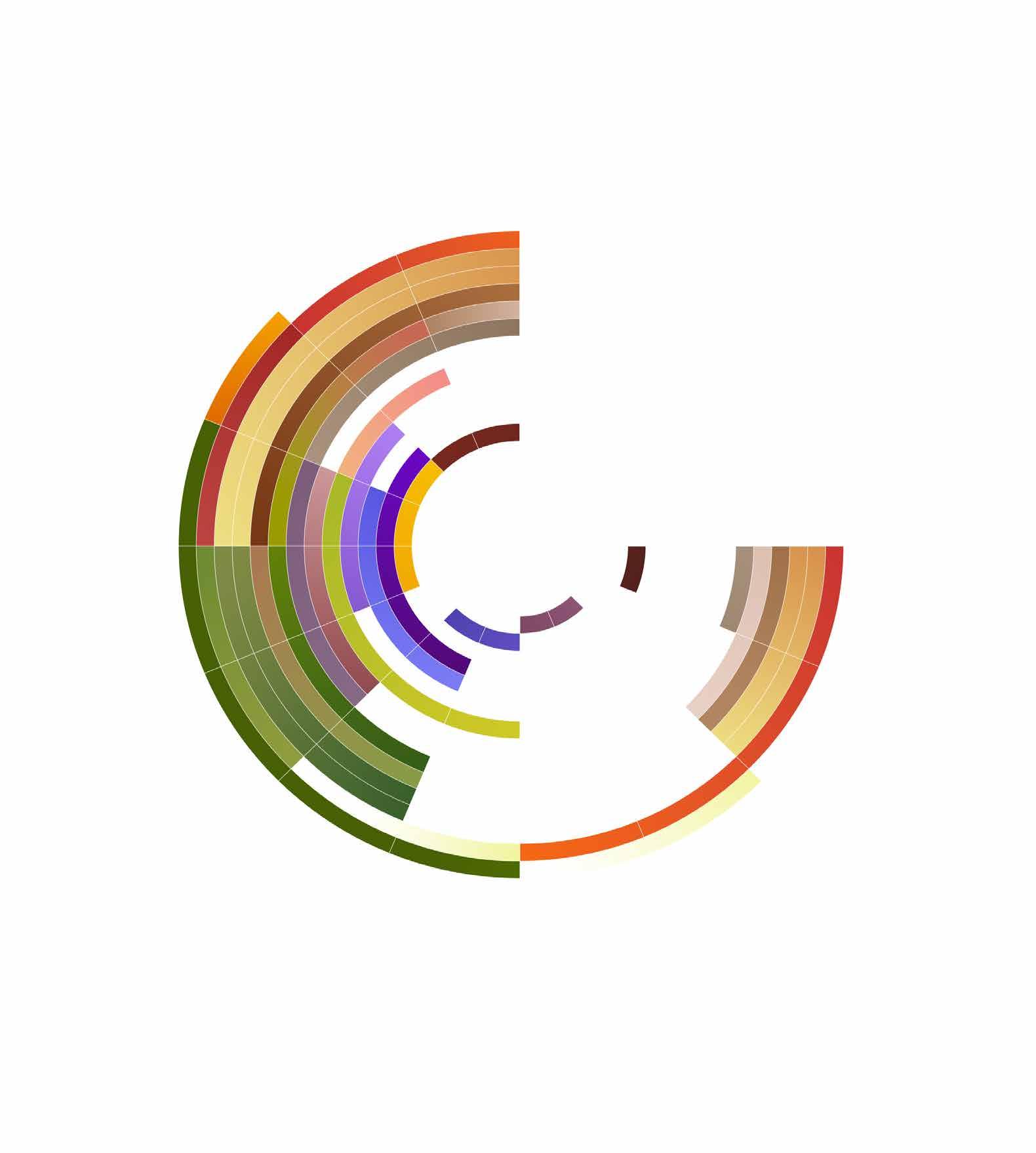

DECEMBER
Prunus padus ‘Albertii’
Cornus sanguinea ‘Midwinter Fire’
Molinia caerulea subsp. arundinacea ‘Transparent’
Calamagrostis x acutifolia ‘Karl Foerster’
Panicum virgatum ‘Rehbraun’
Hakonechloa macra
Eupatorium cannabinum
Persicaria amplexicaulis ‘Rosea’
Euphorbia palustris
Aster frikartii ‘Mönch’
Geranium ‘Rozanne’
Salvia nemorosa ‘Caradonna’
Rudbeckia fulgida ‘Goldsturm’
Camassia leichtinii
Fritillaria meleagris
Elland Road Cultural Hub
BA Landscape Architecture & Design 2023
Planting Design
Created using Rhino 7 | MS Excel
Cor_s (3)
Cor_s (3)
TREES
padus ‘Albertii’
SHRUBS
sanguinea ‘Midwinter
PERENNIAL GRASSES
BULBUOUS PERENNIALS
Planted randomly in groups of 5-7 at the specified density p/m2 aiming to achieve a naturalistc appearance.
Queen’s Wood Community Garden
BA Landscape Architecture & Design 2023
This group project involved an engagement with stakeholders, users, and the local community. A series of events were organised to bring different parties into the design process. This provided opportunities to present information about the garden and the surrounding context. Events included garden walks,
Site Context
Created using Illustrator
surveys, design presentations, and Q&A sessions. The team was allocated tasks for site analysis and key responsibiites for the events. I was responsible for collating information on the existing topography, creating a section of the site to illustrate the landform, and conducting garden walks.

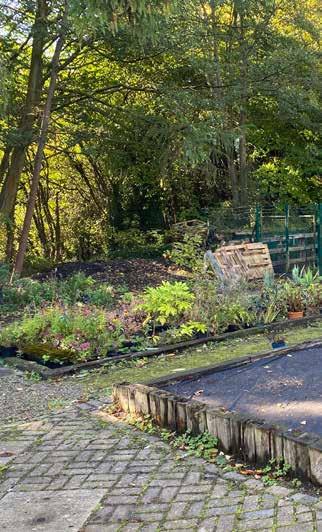

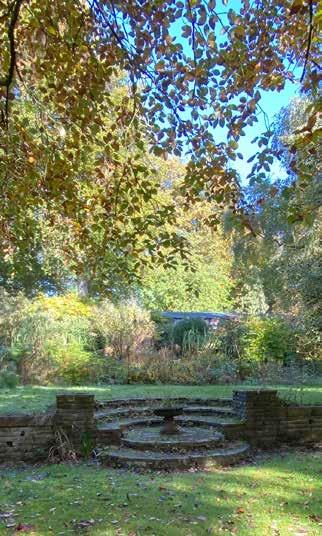

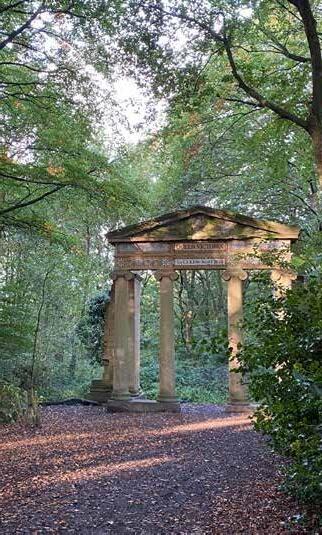

Character features Queen Victoria Arch Disused grow spaces Terraced site

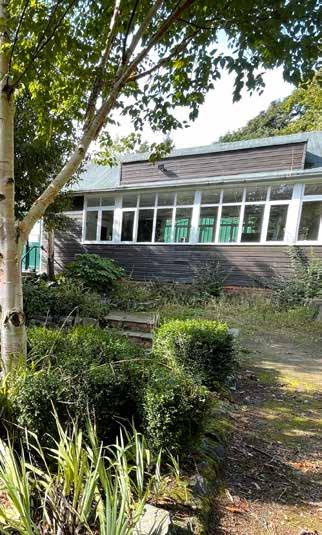

Existing classroom
BECKETT
Masterplan
Created using AutoCAD | Photoshop | Illustrator

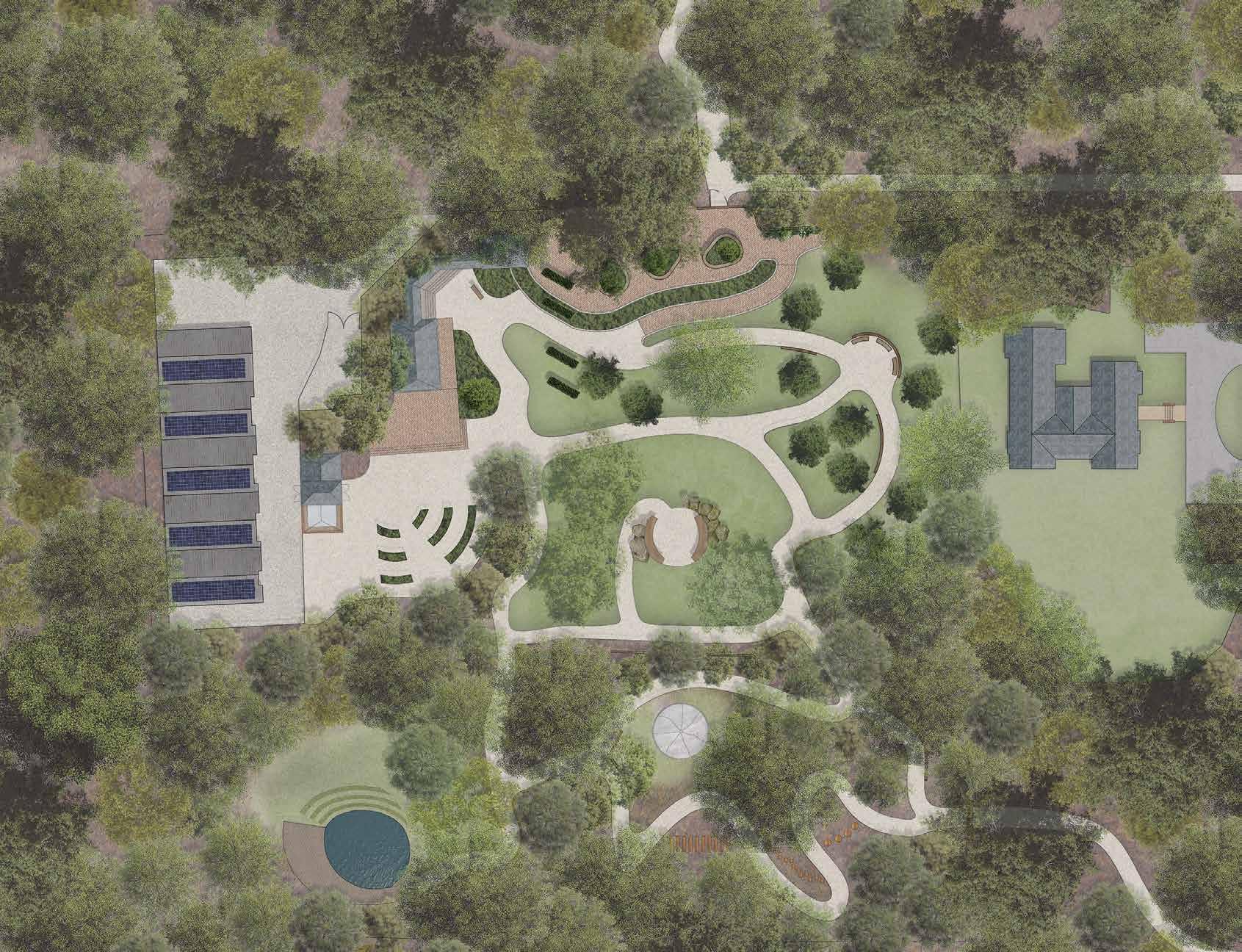

The existing Landscape Resource Centre showed signs of wear and tear, and over time key uses have changed. This was the ideal oportunity to consider the future of the site. The garden presents an opportunity to enhance relationships between the university and the local community. There are a number of groups and individuals who use the site including students, and staff, as well as a keen interest from the local community. Many local residents have memories from their time attending the university or college.
The framework consists of a network of learning & social hubs providing formal and wild experiences.
1. Main Entrance

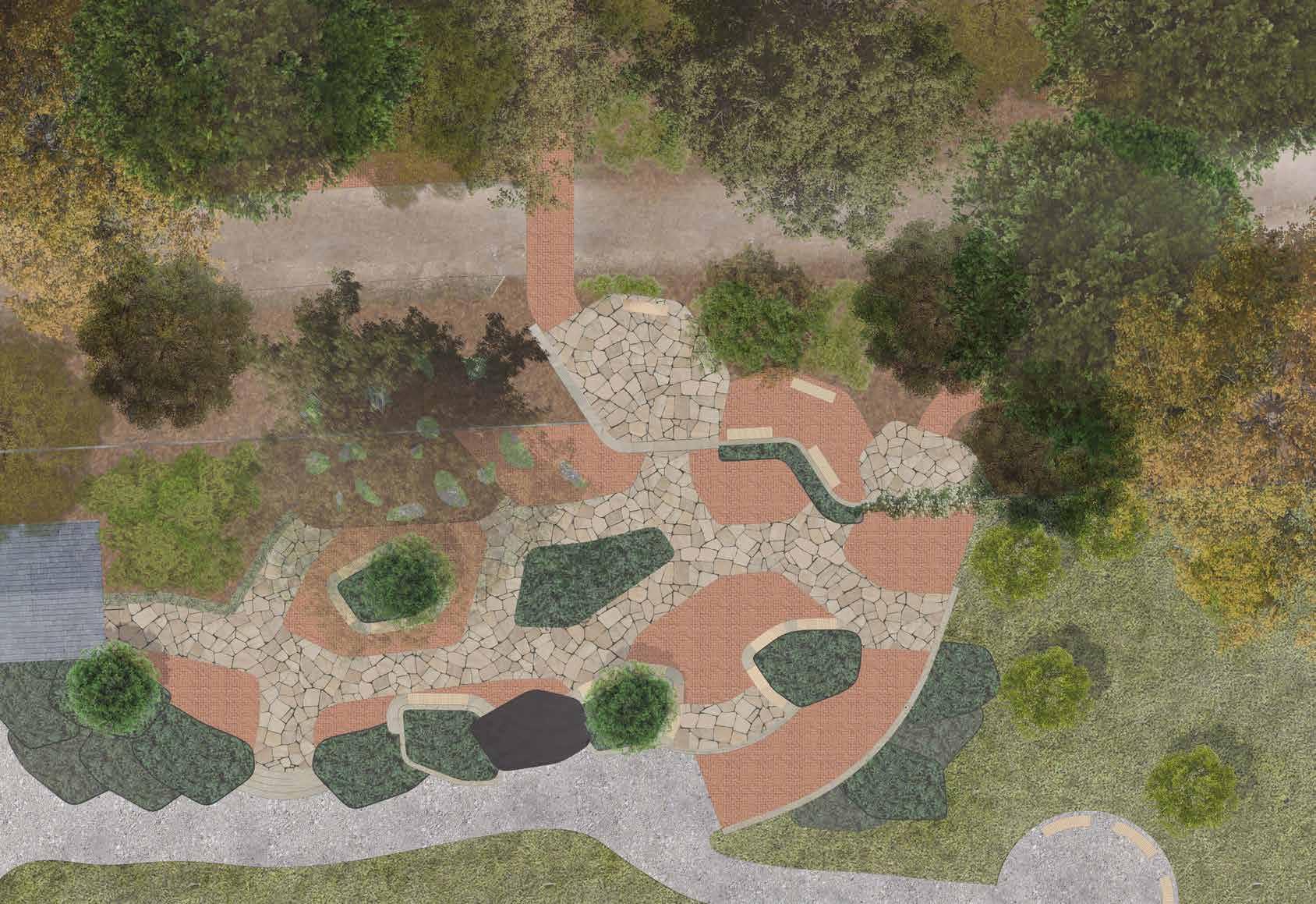

Sensory Garden
Community Hall
Foragers Walk
The Ampitheatre
The Grow Lab
Woodlands 8. Wetlands
Grounds Maintenance
Queen’s Wood Community Garden
BA Landscape Architecture & Design 2023

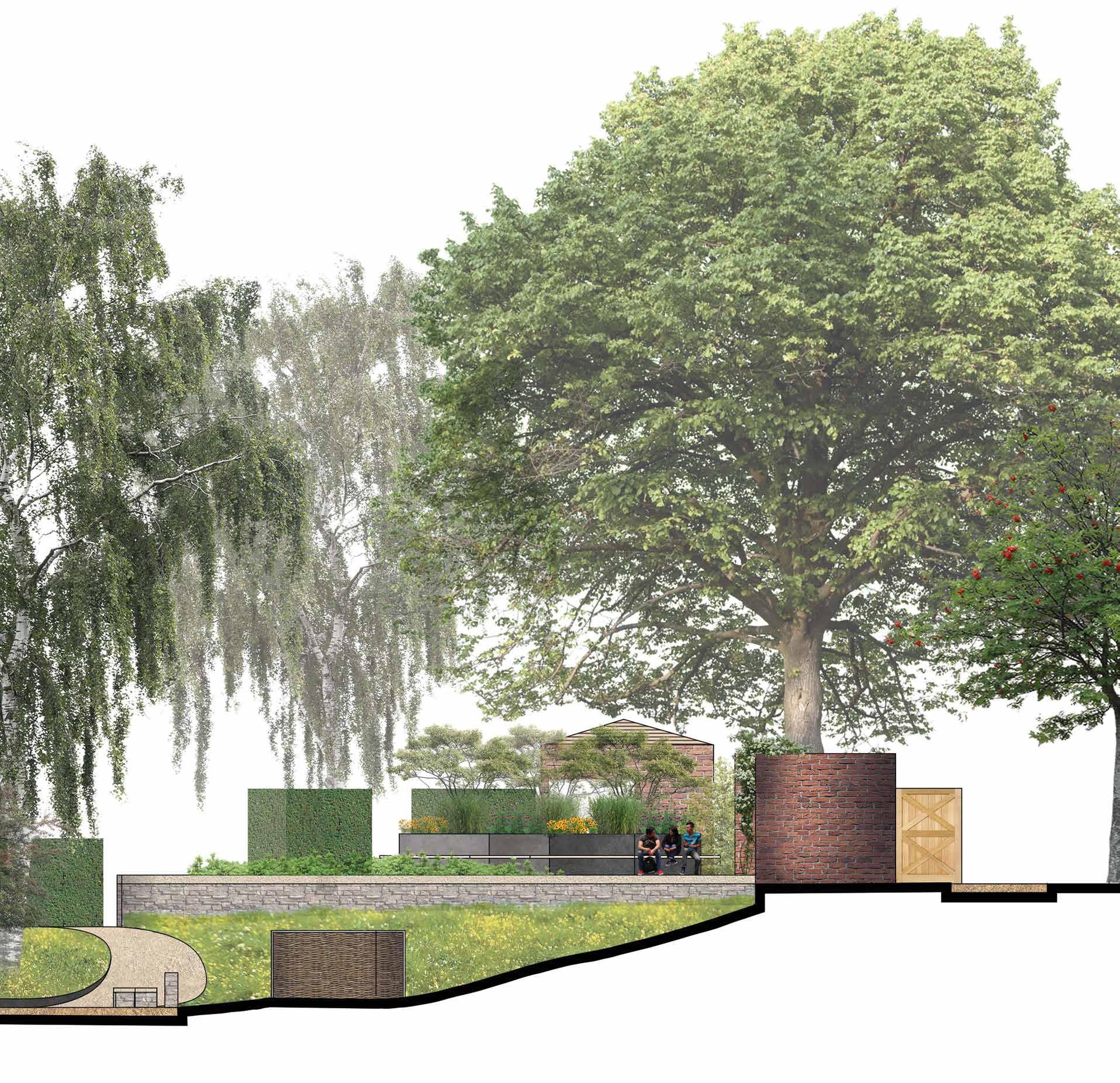

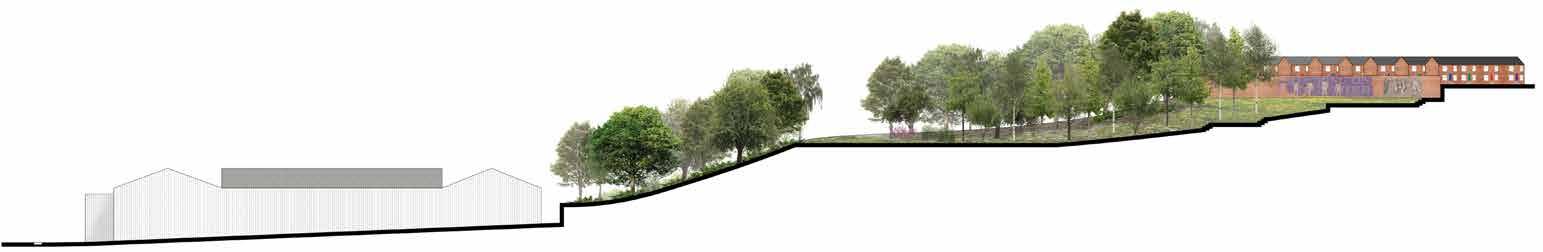

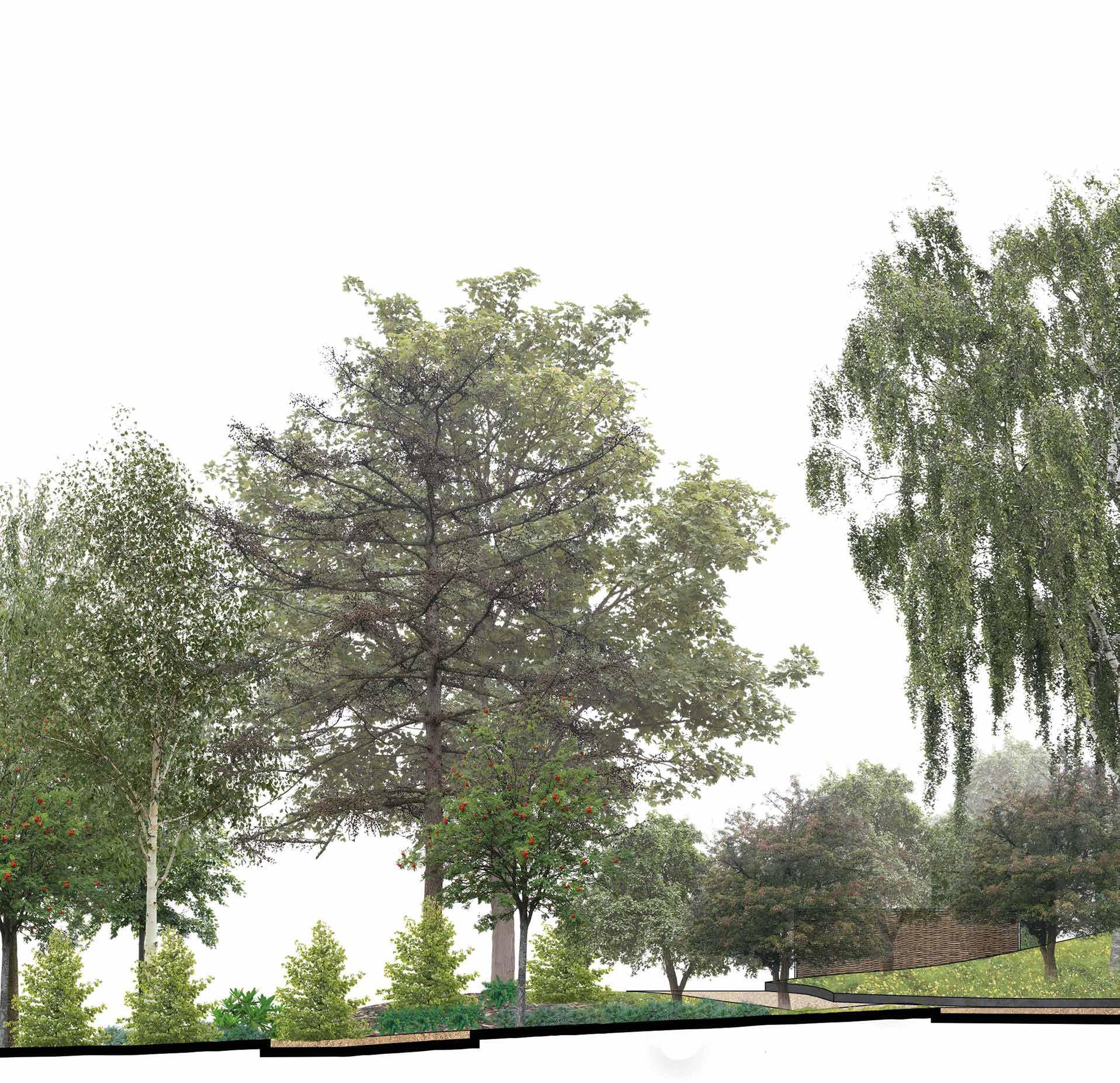

As part of my contribution to the masterplan presentation I chose to produce a sectional elevation (A1-A2 on the previous page) as it clearly illustrates the topography of the site . This has informed a number of design decisions including how the terrace looks out over the landscape. (See plan on previous page)
This area of existing woodland in the garden will be renovated with the aim to improve the structure and health of this habitat. A part of this process will involve planting edge species to produce fruits for foraging, and timber for use in woodland crafts.

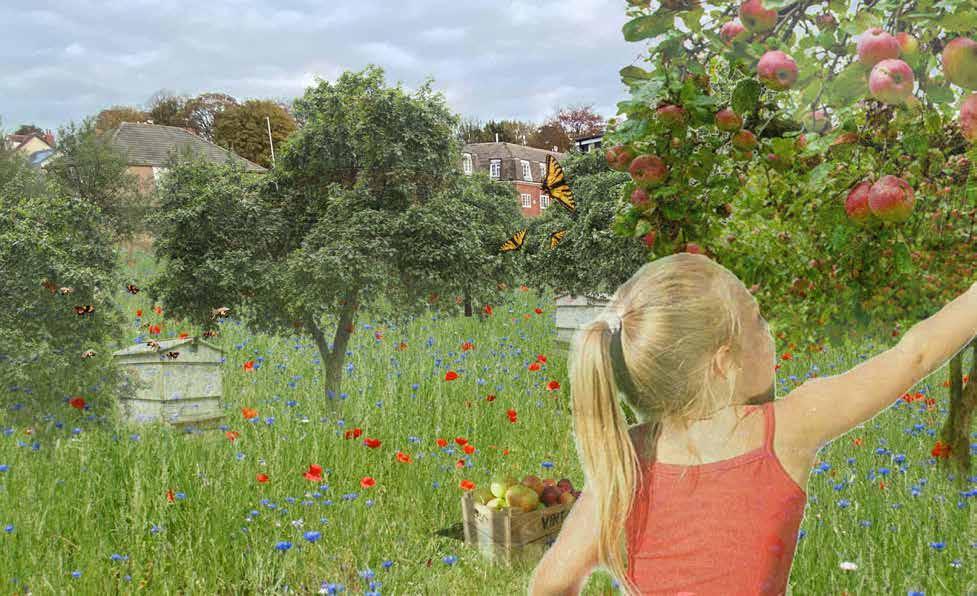

Meandering routes pass through an orchard providing opportunity for events centered around harvesting and sharing produce at the start of the academic year. Adjacent to the pathways, the orchard will allow access for people of all abilities.
A key aim is the improvement of accessibility throughout the different garden zones. Long sweeping pathways move users along gentle inclines across the landscape.

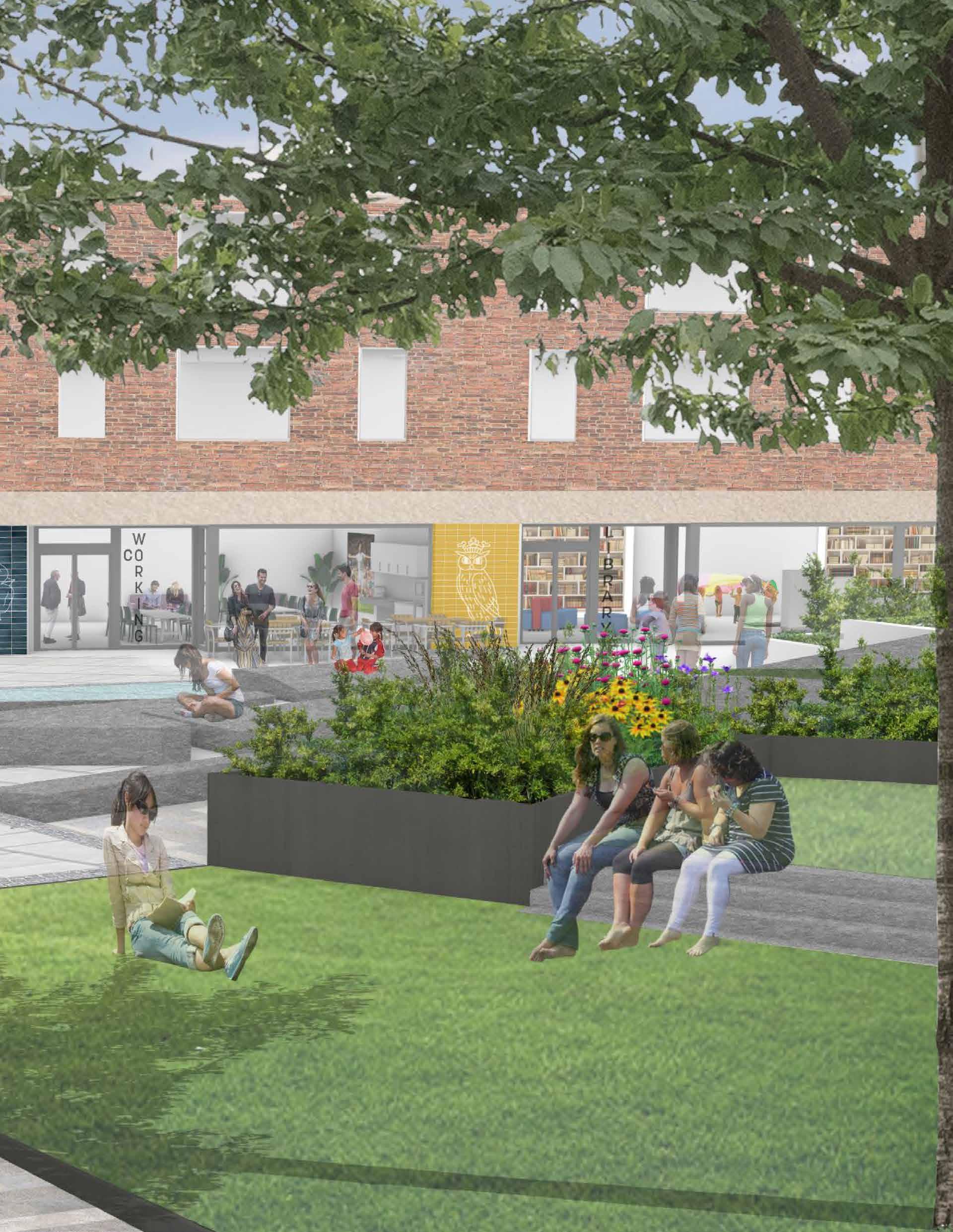

From Queen’s Wood users will find themselves within the sensory garden. Located in close proximity to the entrance people can get respite while spending time at the university. A series of seating areas provide space for meeting.

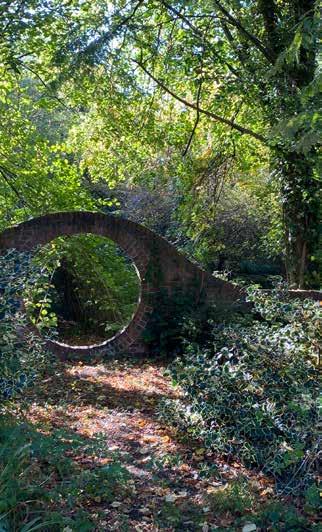

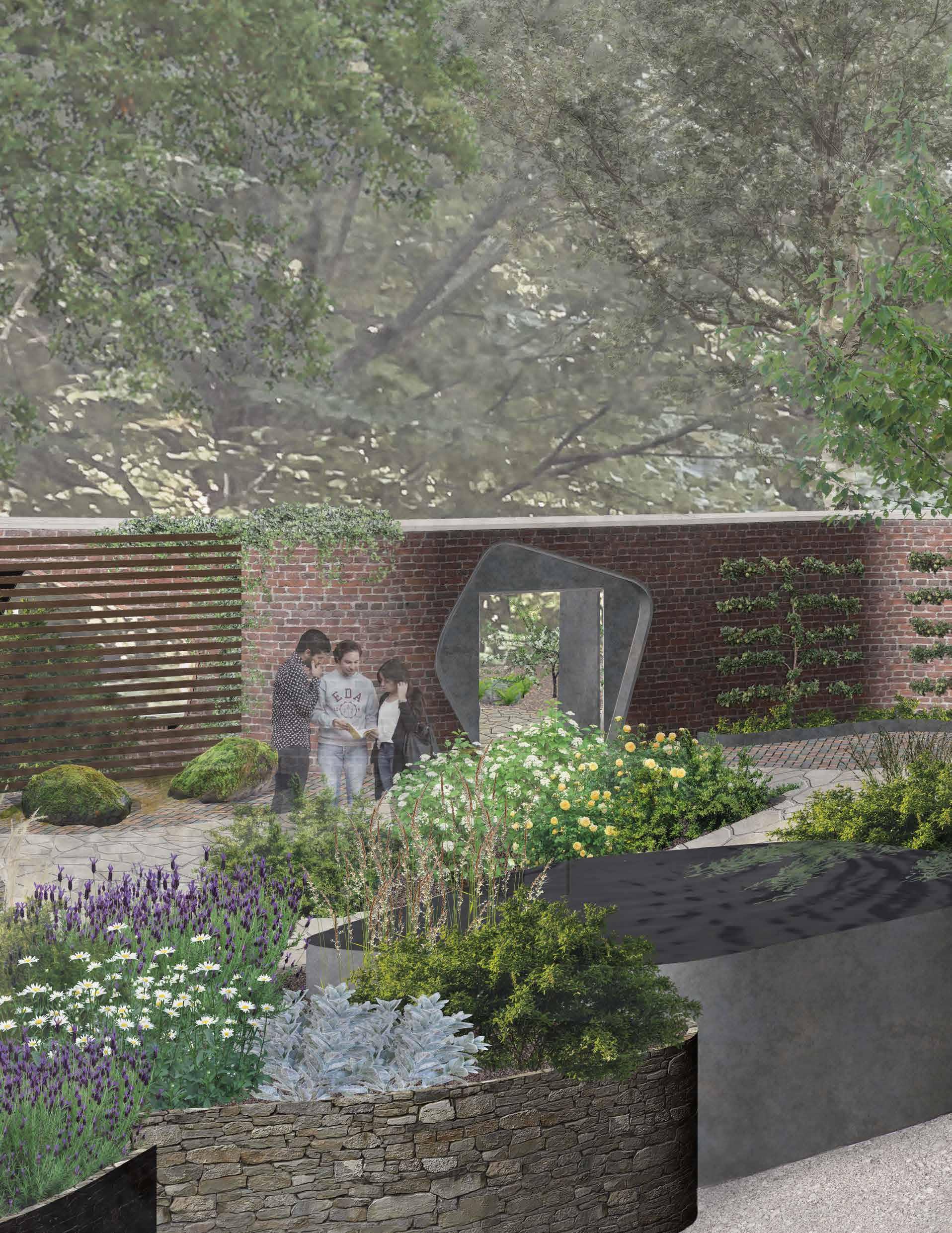

The main entrance acts as an interactive threshold that reflects the form of features that are to be preserved throughout the landscape.
Queen’s Wood Community Garden
BA Landscape Architecture & Design 2023

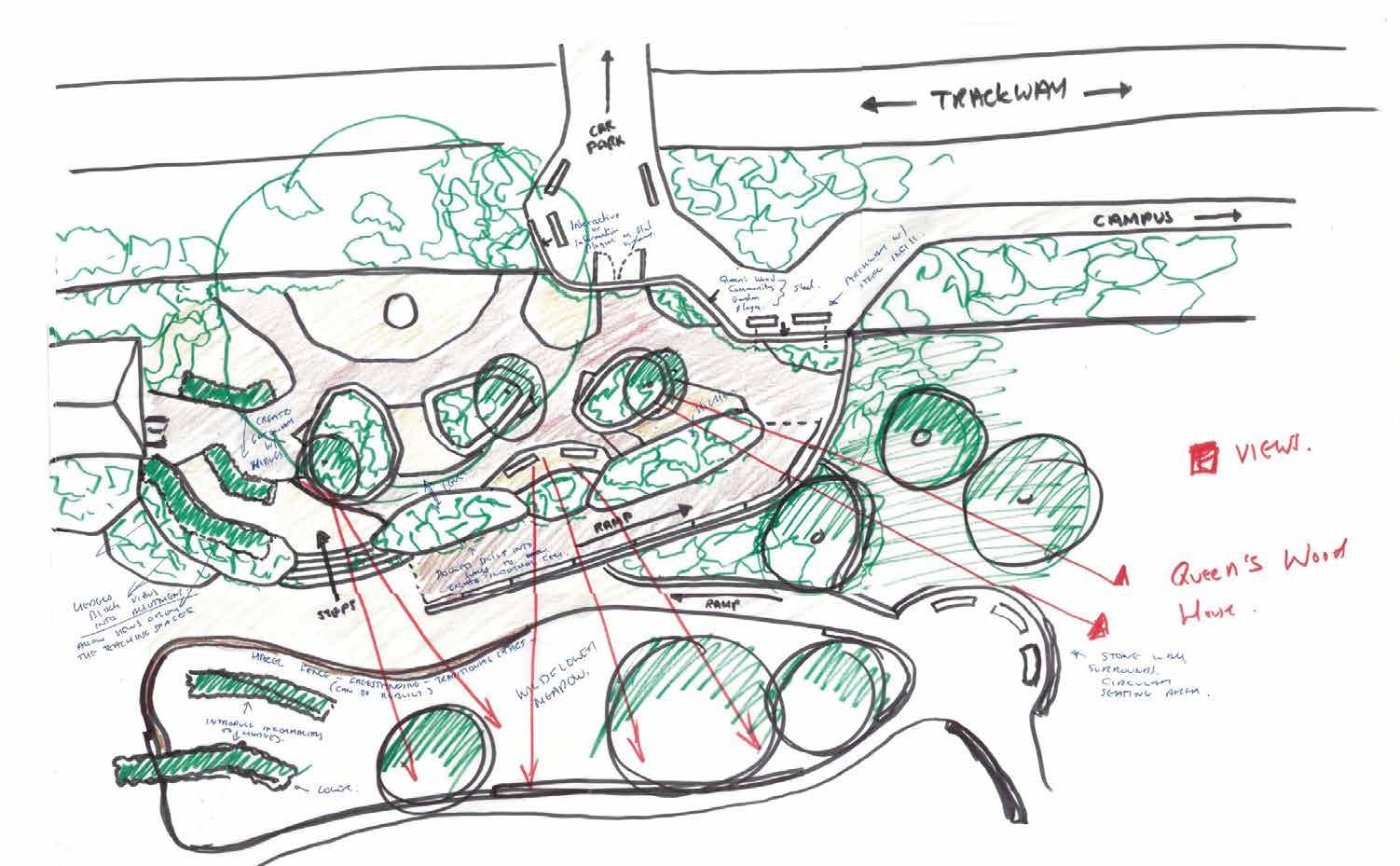

Design Development
Queen’s Wood Community Garden
BA Landscape Architecture & Design 2023

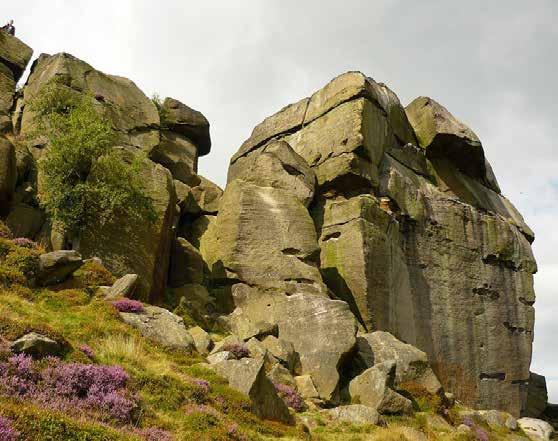

Site Design | In Response to Yorkshire
The form and function of the community garden is influenced by rock formations scattered throughout the Yorkshire landscape. The strong lines of the terrace faces hint at the moorland crags, while strong shapes with softened edges represent the weathering
Spatial Design

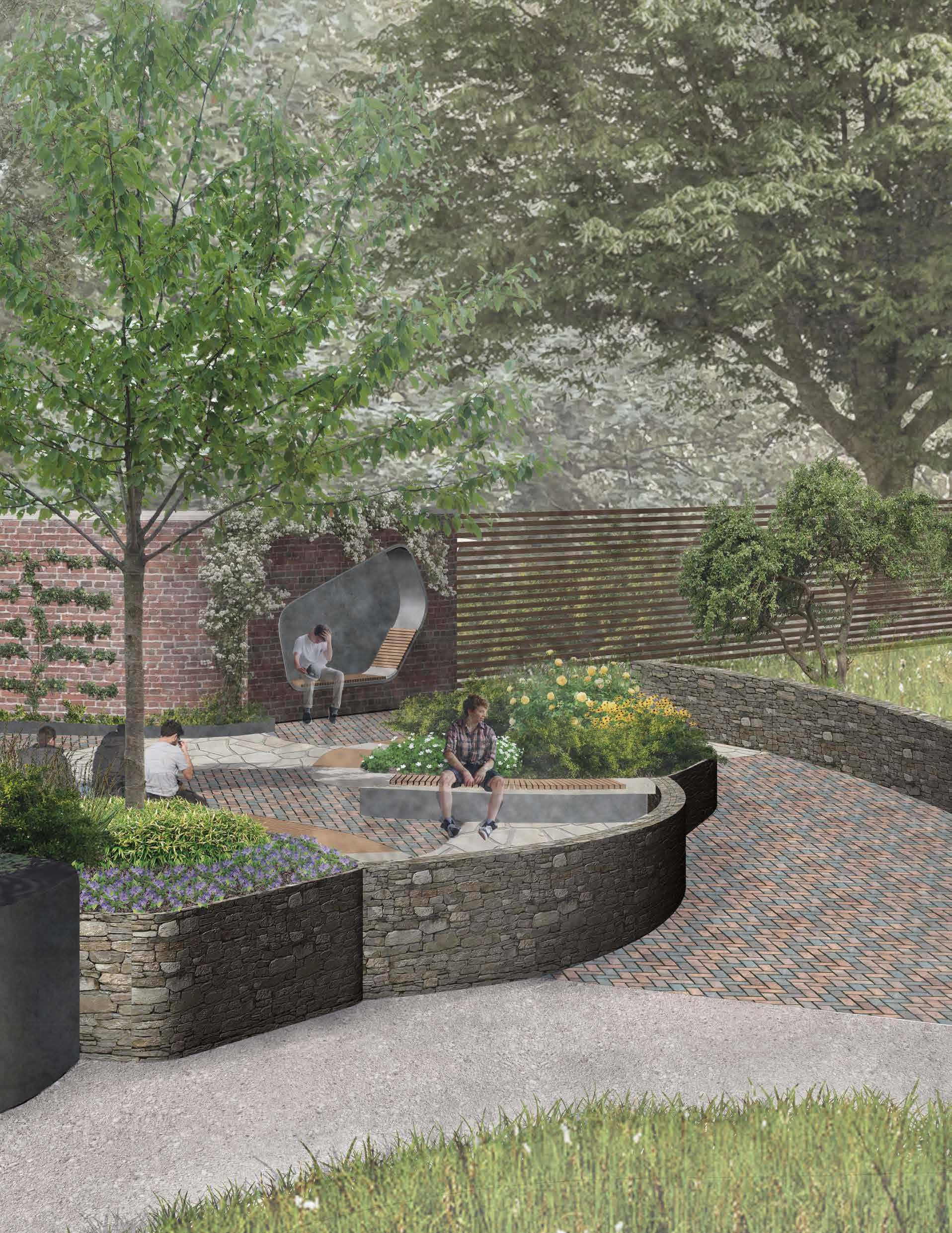

that has shaped the boulders. The entrance creates a place to pause, with plants introduced to heighten the woodland feel. The entrance wall provides an interactive feature in the garden with opportunity to seek refuge in cave like pockets.

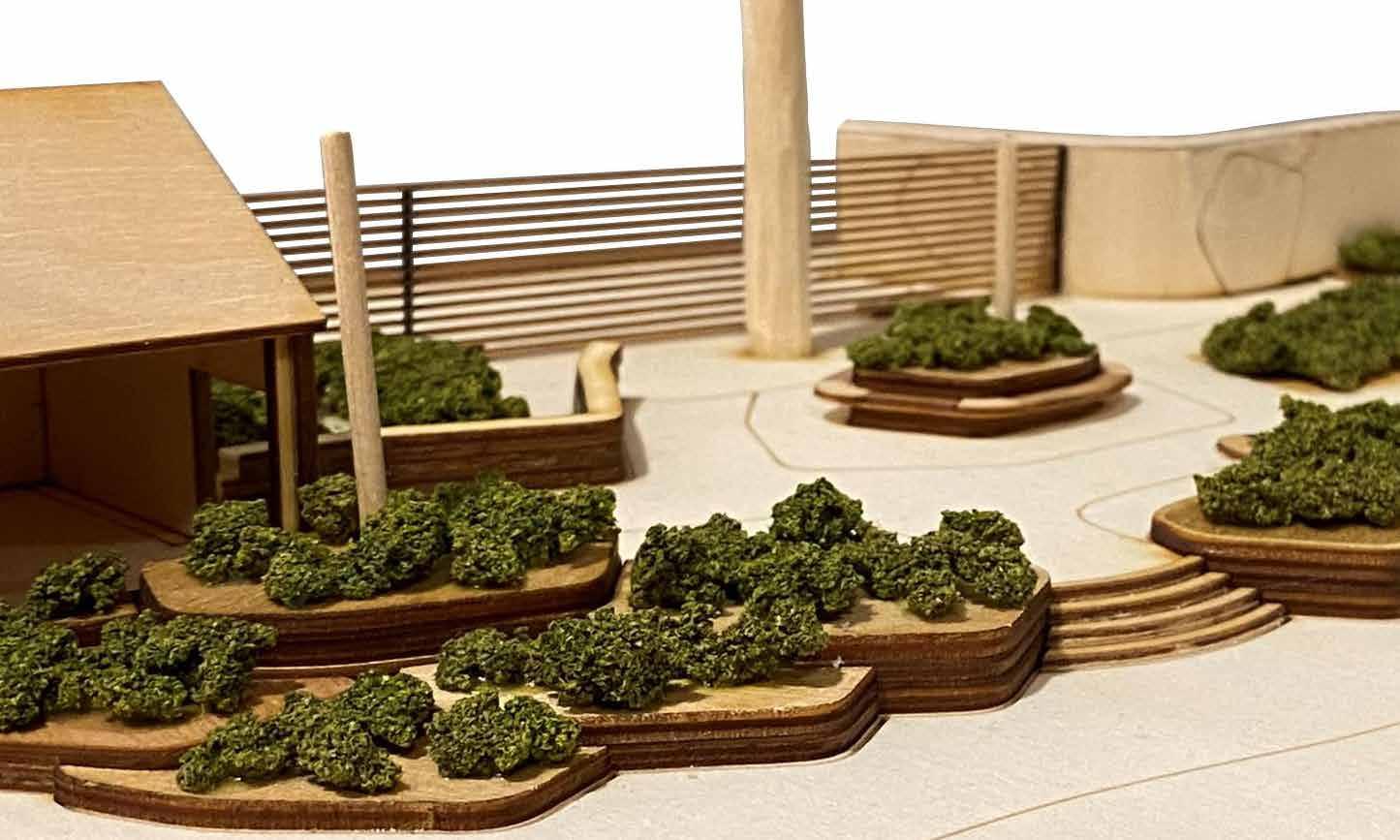

Created using Rhino 7 | Laser Cutting | 3D Printing
Sensory Garden
The sensory garden lies at the forefront of the landscape allowing users to have a rich experience when limted for time. Plants provoke the senses
through taste, scent, sounds, movement and aesthetic qualities. A range of food sources are provided for both people and nature, enhancing interest for users.
1. Queen’s Wood
2. Entrance Garden
Interactive Wall
Sensory Garden 5. Lecture Theatre Entrance
The Orchard
BA Landscape Architecture & Design 2023

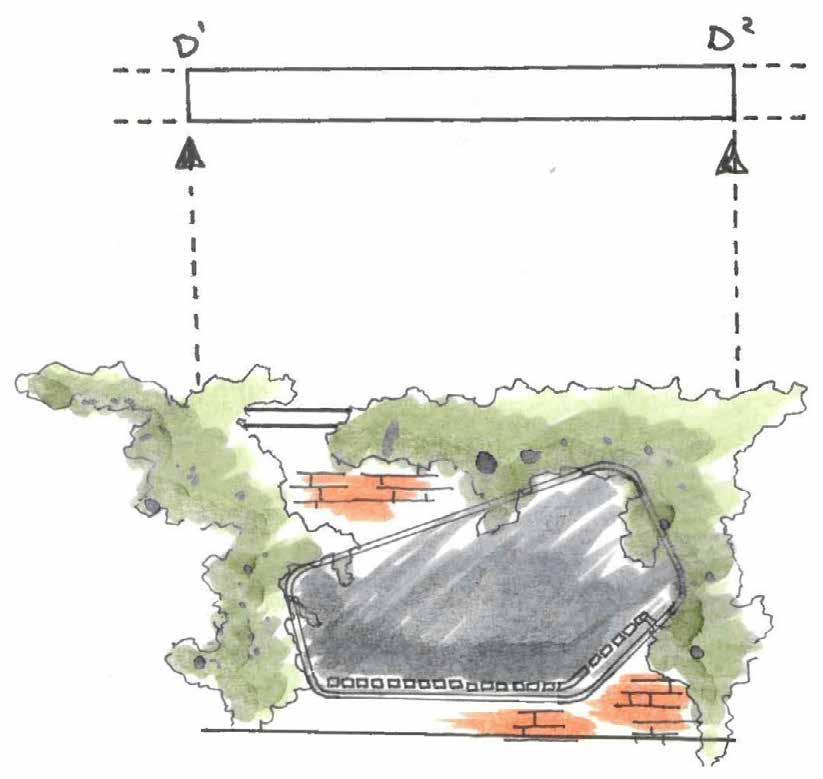

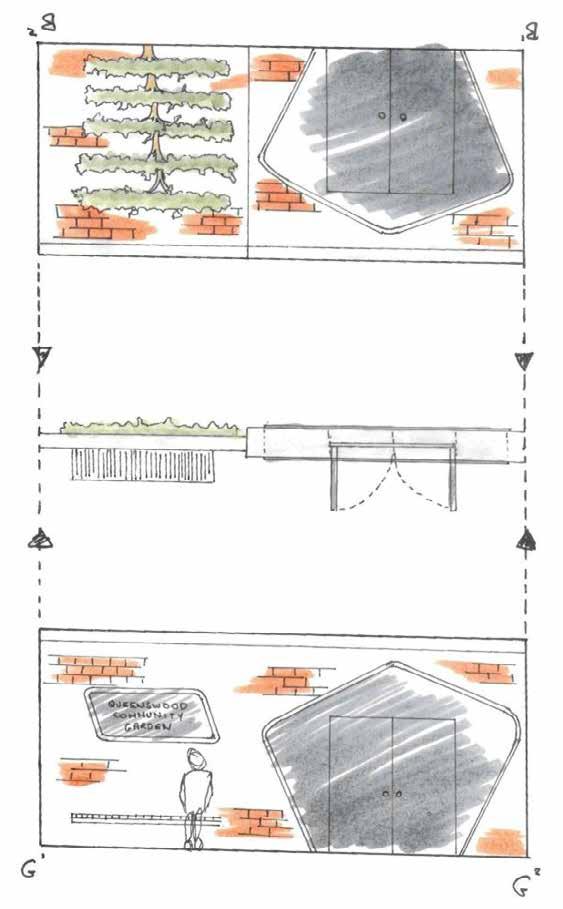

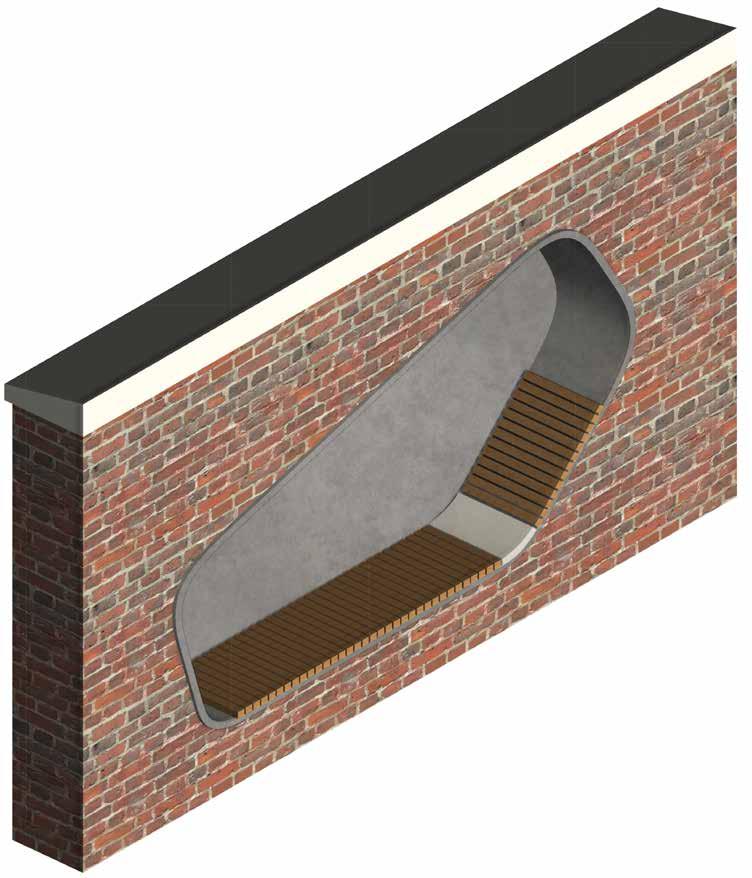

Construction Details | Interactive Wall Seating
Axonometric (NTS)
Created using Rhino 7 Section
Elevation (NTS)
Elevation A1 - A2 (NTS)
Adel Landscape Assessment
BA Landscape Architecture & Design 2023
Created using Photoshop | iPad sketch | ArcGIS
Adel is located at the north-west edge of Leeds, UK. Defined by distinct character types it is predominantly suburban but transitions into a rural landscape. This poses challenges for development with the potential to change the character of the area, exacerbating urban sprawl, and damaging important ecosystems.
This module involved extensive research and analysis, developing a new low impact development on the edge of the rural landscape. Post design a landscape visual impact document (LVIA) was produced to assess the effects the new design could pose to the character of the local area.
Ilkley Moor
Melissa Morton Garden Design 2022/23
Created using Rhino 7 | Photoshop

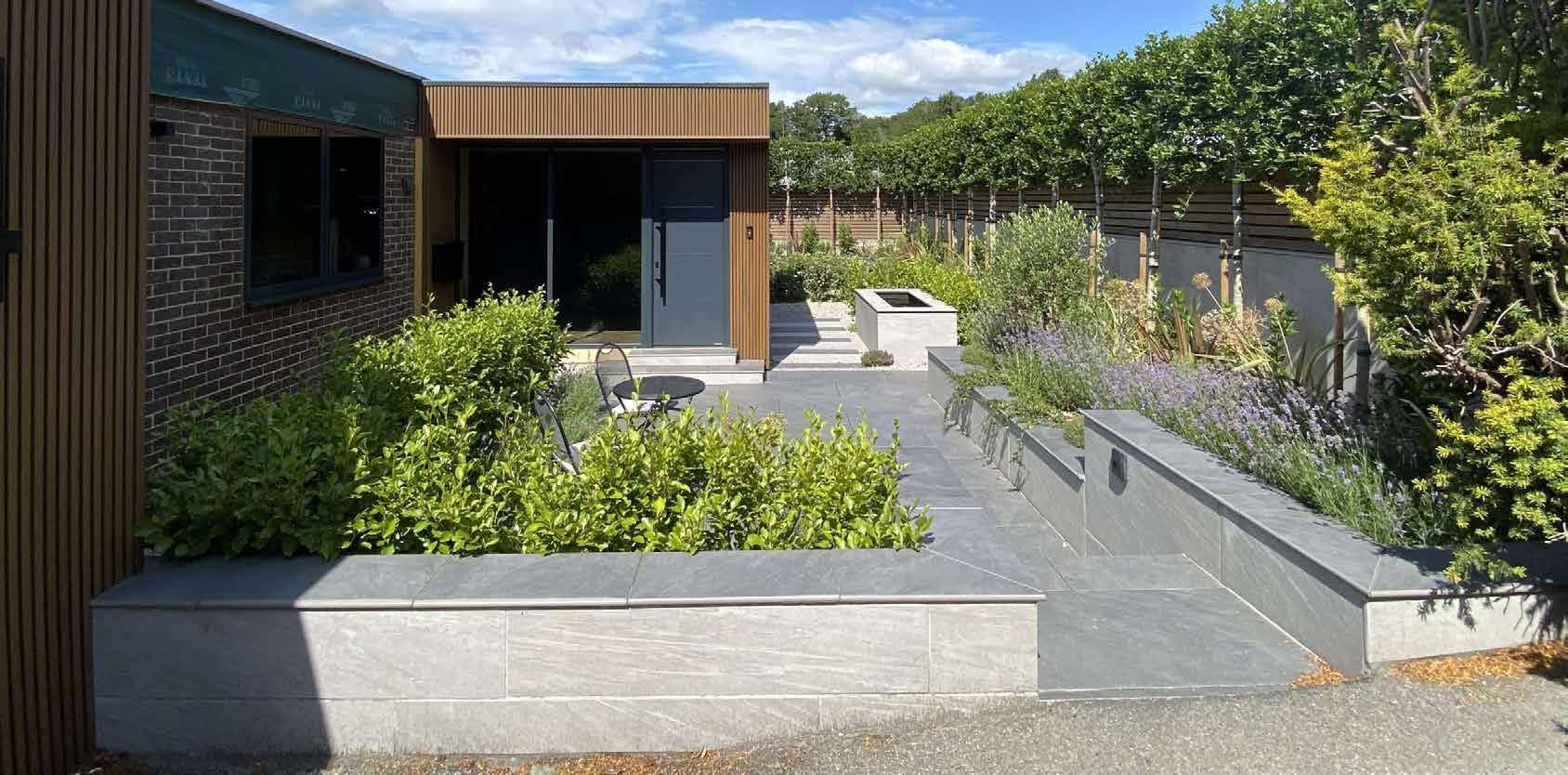

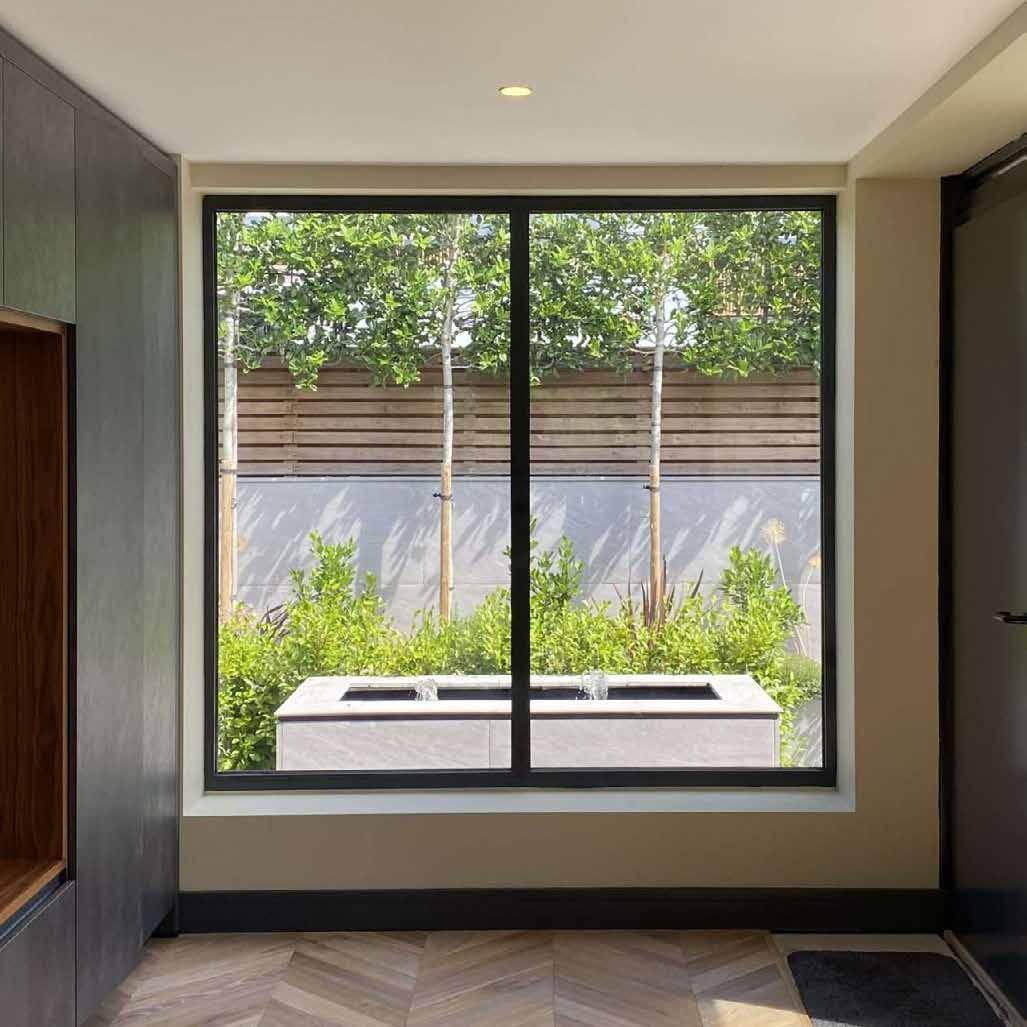

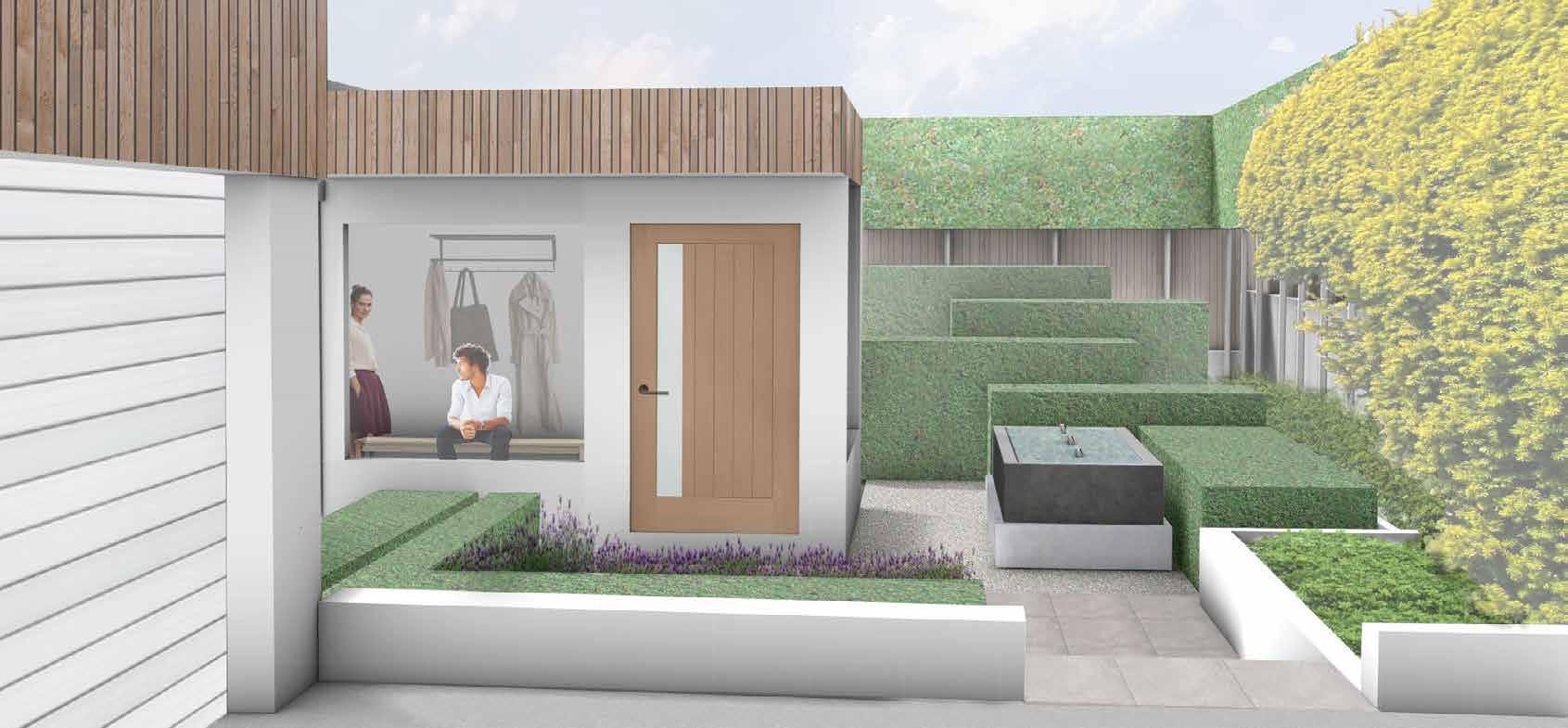

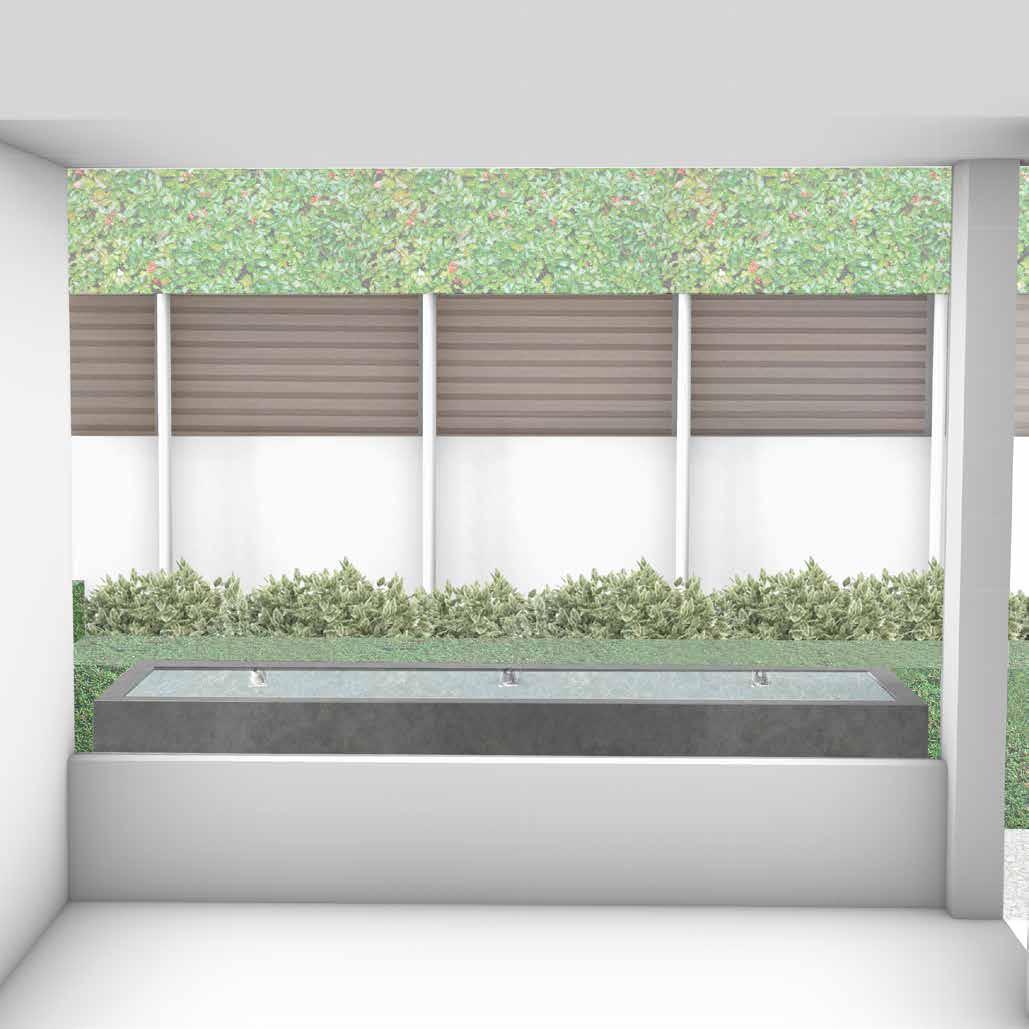

On this garden design project I worked alongside Melissa Morton to produce a concept for a small residential property in West Yorkshire. A new entrance hall was being constructed at the front of the house and the client wanted to create a sense of arrival at the property. Bold forms were introduced creating
drama in the landscape. Strong horizontal lines reduce the narrow feeling that previously existed in the garden and establish layers of interest. Key views were considered from inside the property, water was framed within the entrance window.
Community Woodland Design
Chapel Allerton School & St Matthew’s Primary School, Leeds, UK
Created using AutoCAD | Photoshop

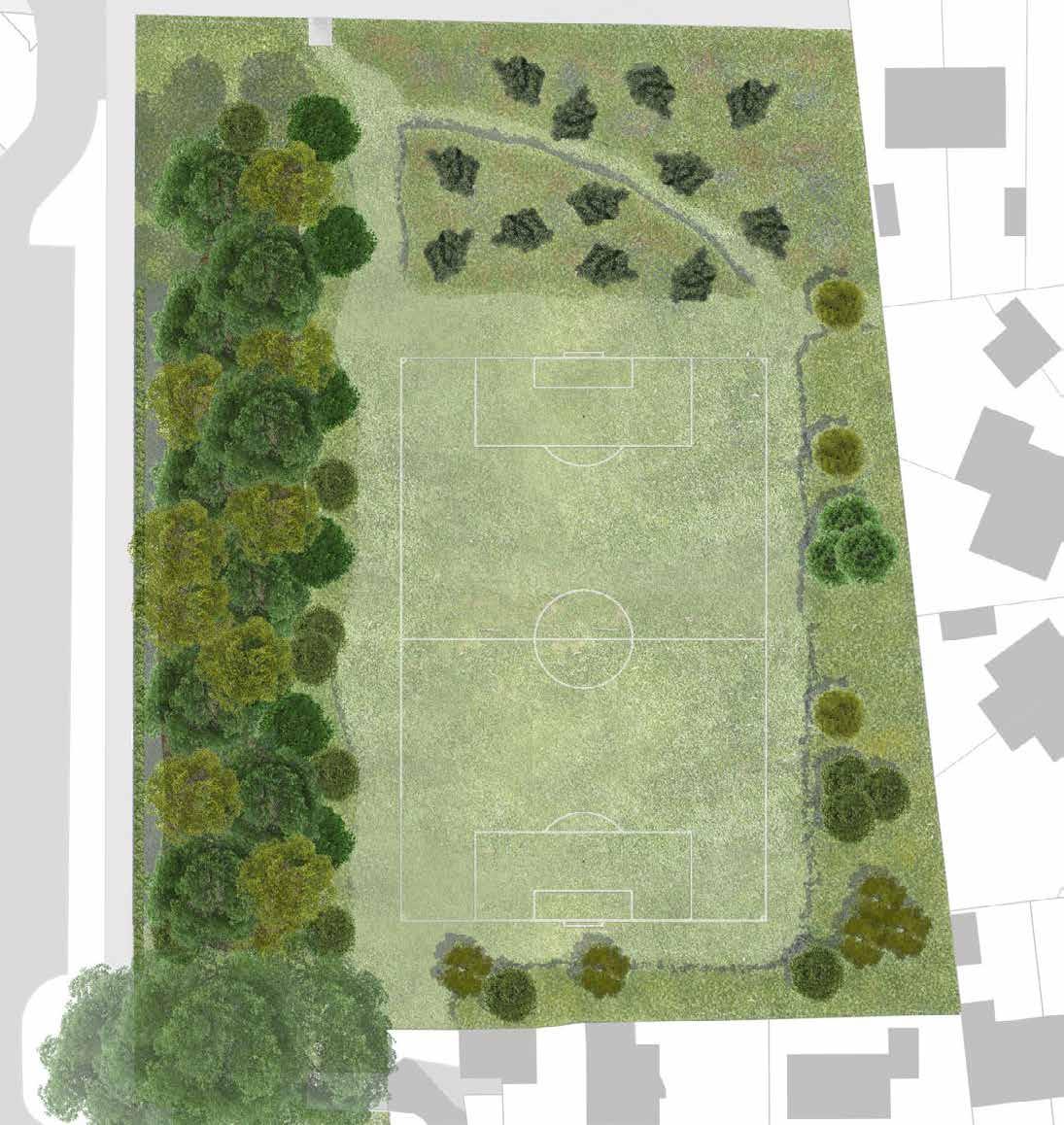

900 trees was a live tree planting project involving two primary schools in the Chapel Allerton area of Leeds. The project aimed for each child to be able to plant a tree to help in the fight against climate change. The existing site is a secure area of recreation space surrounded by residential and commercial properties.
4.
1. Jam hedge
2. Mixed broadleaved woodland
3. Orchard with wild flower meadow
Meadow with interspersed scrub planting
location of trees
No. 12 Mixed orchard planting.
Wild flower mix.
�orbus aucuparia
Jam hedge planting mix
Woodland planting mix
Woodland mix, shrub trees to the eastern edge. Transition edge.
�lnus glutinosa
No. 3 �alix caprea
�alix caprea
�alix caprea
�lnus glutinosa
�orbus aucuparia
No. 3 �lnus glutinosa
�orbus aucuparia
No.3 Malus s�l�estris
Unmown grass edge
Football pitch 63 x 40m
No. 3 existing lime trees. Condition to be assessed. (Exact
to be checked).
Window Display
WorkWith Studios | Adidas TERREX | Munich, Germany
Created using SketchUp | AutoCAD
| Photoshop

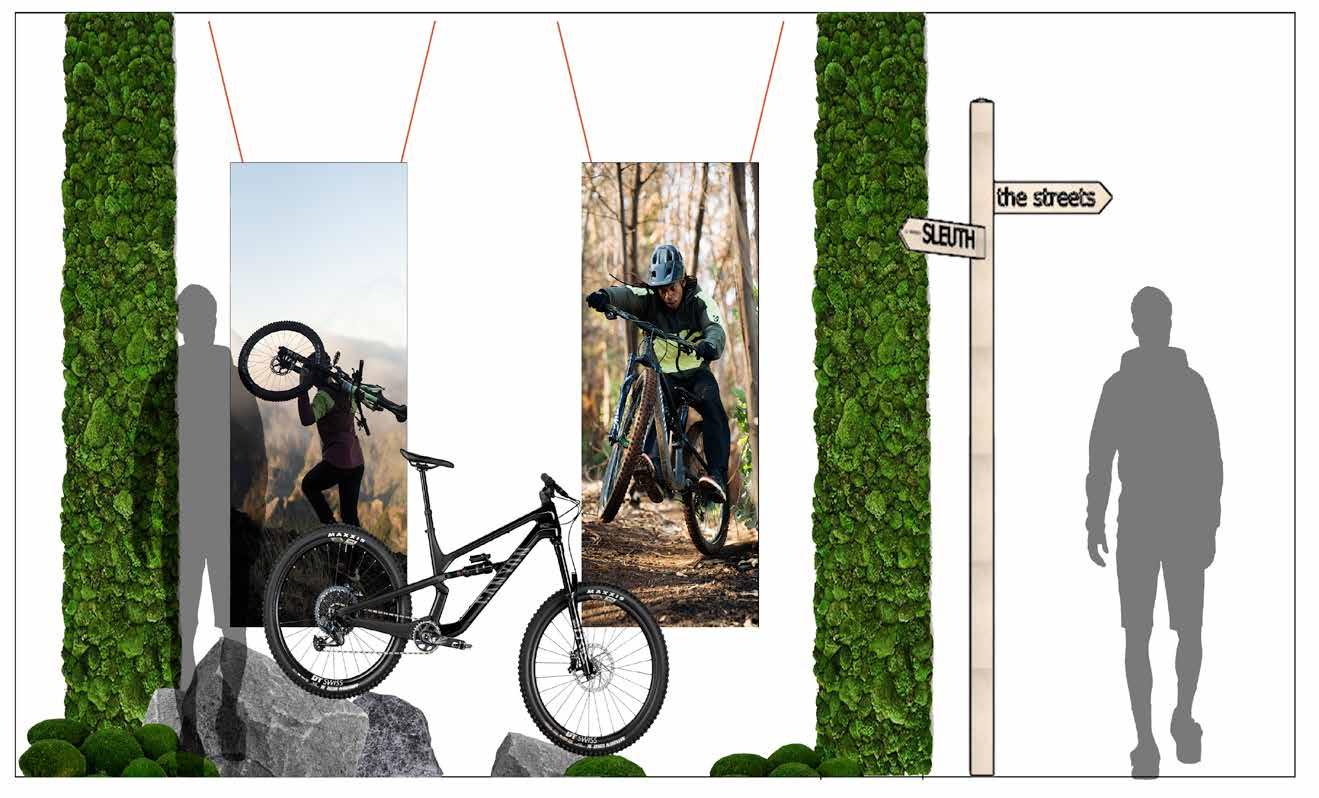

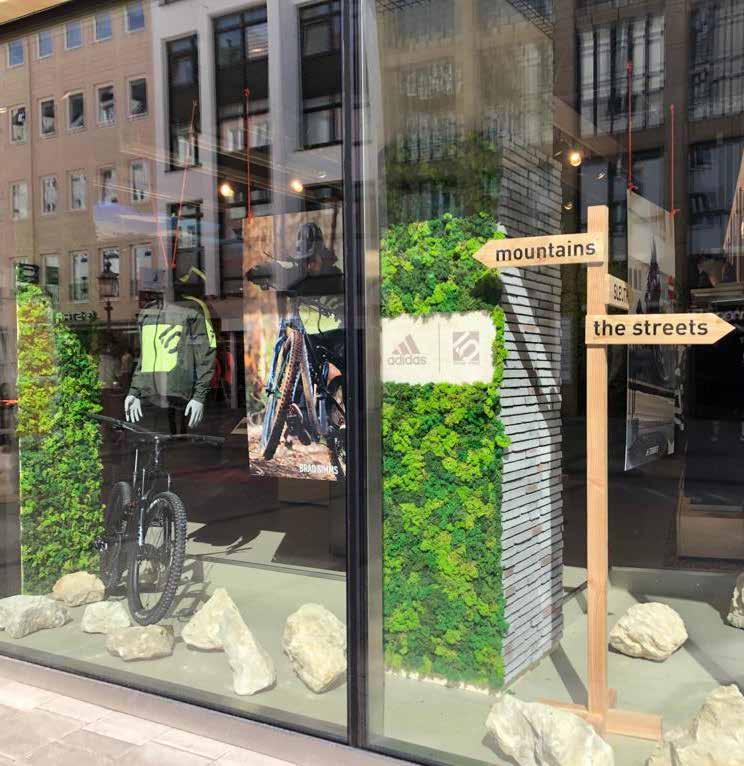

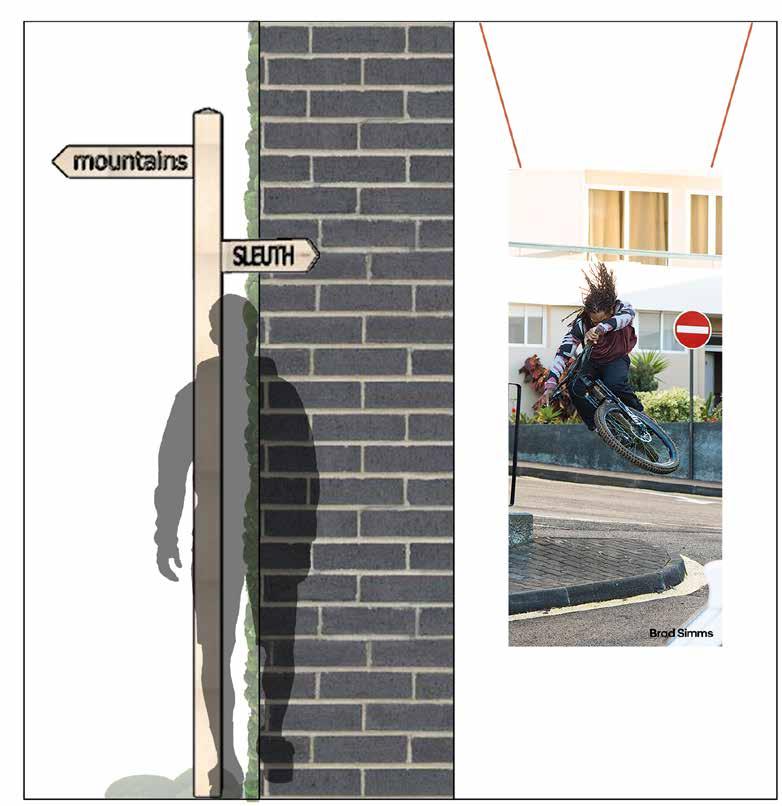

This concept showcases one of the brands mountain bike athletes performing in a range of environments, from the mountains to an urban environment. Divided into two halves with one side dedicated to the mountains, the other the urban landscape. A signpost creates a link between the two environments.
The floor is created using granite, and a transition is achieved by altering the form. Paving units hint at the man made urban environment then gradually
becoming a looser gravel mixed with boulders in the mountain end of the display.
A high-end mountain bike takes centre stage in the mountain section supported by large scale visuals, while a mannequin stands alone in the urban landscape, again supported by a large scale visual. The display is visually permeable for customers being able to see in-store products from the outside.
3D Render
