1.EARTHEN EXPRESION-POTTERY TOWN

A SPECTACLE OF POTTERY ART

2.CELESTIAL CLIMB-BIC,INDIRANAGAR THE OPEN AIR STAIRWAY

TABLE OF CONTENTS

3.SACRED SLOPES-TIRUVANNAMALAI A FAMILY HOME WITH MAJESTIC VIEWS

4.WORKING DRAWINGS

5.WORKSHOPS AND MISCELLANEOUS

My interpretation of what Pottery town was ,that it had narrow spaces which then led to Different spaces for pottery making.

EARTHEN EXPRESSION

A SPECTACLE OF POTTERY ART

Pottery Town is a vibrant and historically rich neighborhood known for its deep-rooted connection to the art of pottery. Located in Williams Town,Bengaluru, it has been a hub for ceramic artisans and craftsmen for decades. The area is characterized by its narrow, winding streets, traditional red brick kilns, and an abundance of pottery studios and workshops.

PROJECT TYPE - LEARNING SPACE

LOCATION - WILLIAMS TOWN,BENGALURU

BUILT UP - 5700Sqft

Initial concept began with the idea of the design having narrow spaces which then resonated the effect that pottery town had on the public.

Narrow spaces visually and physically connecting work spaces.

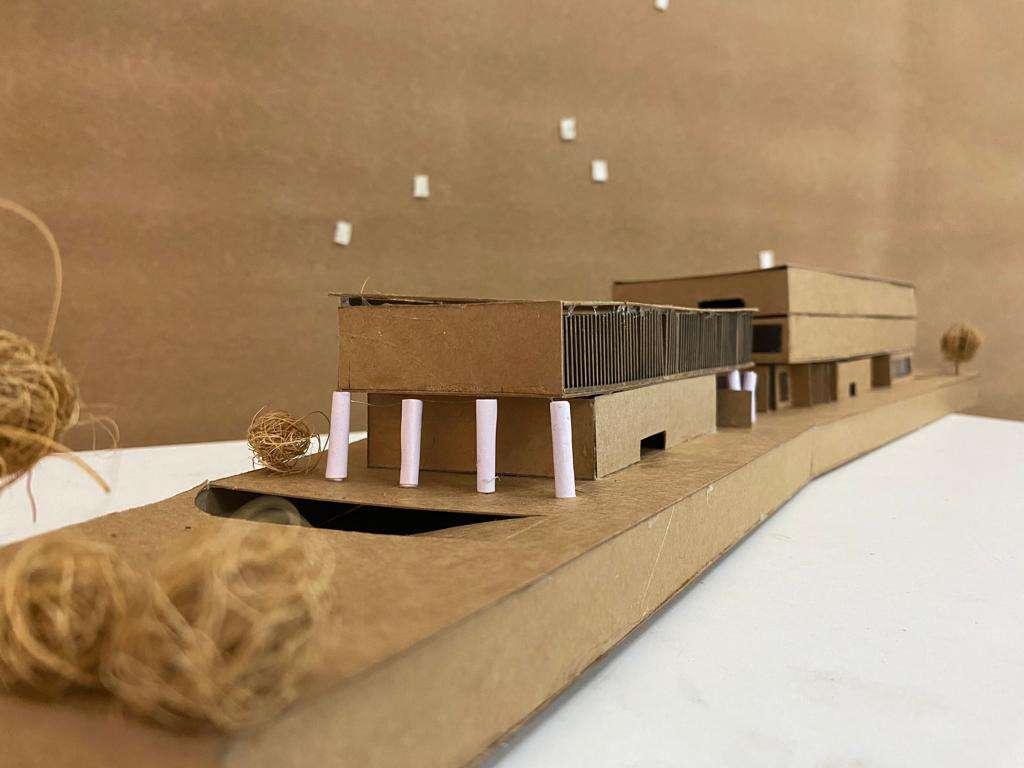

CONCEPT MODEL 1

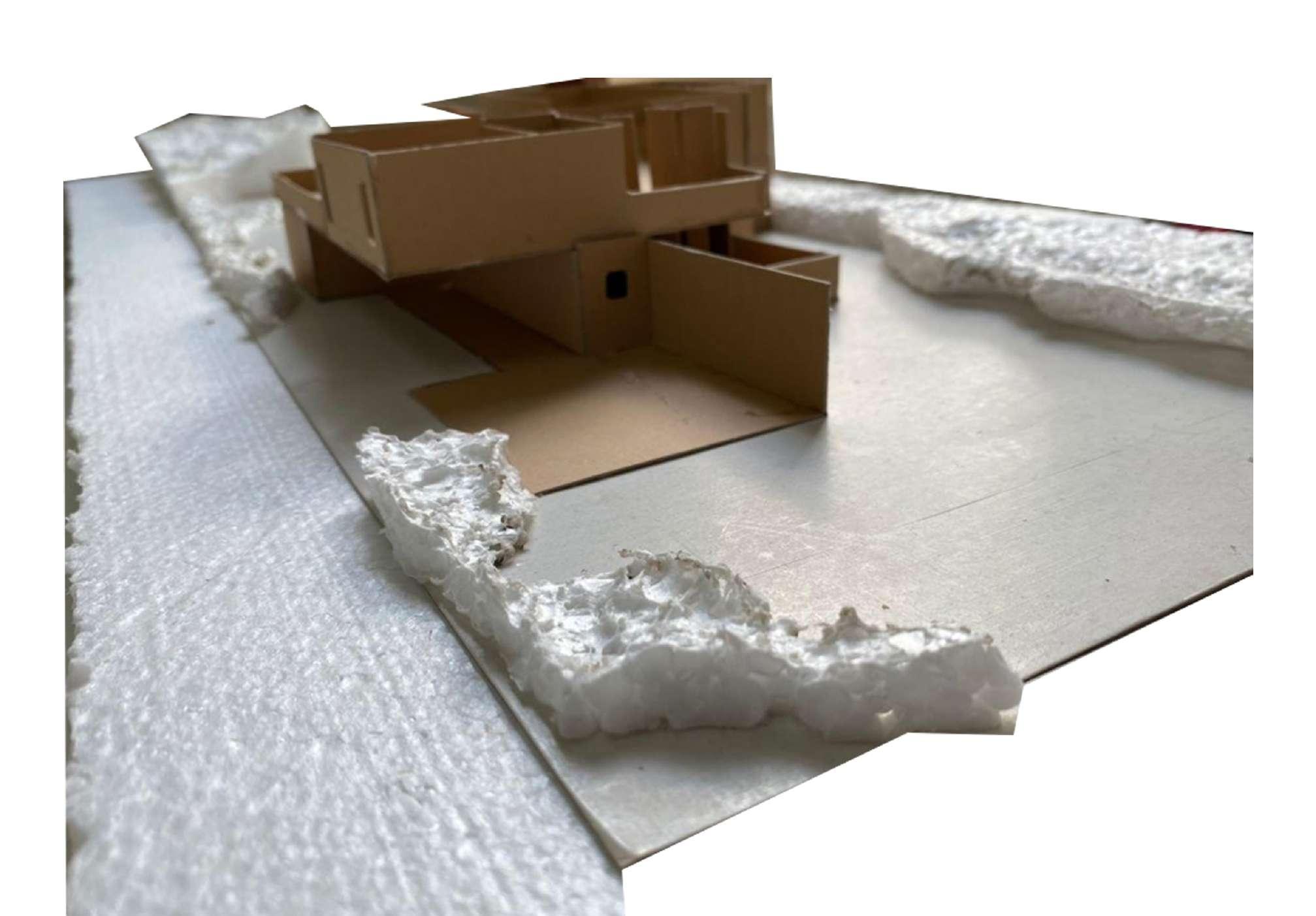

CONCEPT MODEL 2

POTTERY TOWN IN MY VISION

The houses and community in Pottery Town create a unique and vibrant atmosphere. The blend of artistic architecture, intertwined streets, communal spaces, and a supportive network of residents fosters a strong sense of community pride and engagement. It is a place where residents not only live but also contribute actively to the cultural fabric of the neighborhood.

One of the key features of my design is a central square that serves as a focal point for community gatherings, exhibitions, and interactive workshops. The square incorporates traditional clay pathways and seating areas, providing a tactile and immersive experience for visitors. Surrounding the square are modern pottery studios and galleries that showcase the works of local artisans, fostering a sense of creativity and collaboration.

GROUND FLOOR PLAN

ELEVATION 1

It was during one particular visit to Pottery Town that I noticed a recurring pattern in the roofs of the houses. The sight of these remarkable roofs sparked a seed of an idea within me. I envisioned a design concept that would pay homage to the rich artistic heritage of Pottery Town while incorporating the unique roof elements that caught my attention. I realized that the roof of a building could serve as an opportunity for creative expression, just like the pottery created within the neighborhood. The idea of incorporating the captivating roofs of Pottery Town into my architectural design became a driving force behind my project. By translating the artistic essence of the neighborhood’s rooftops into my designs, I aimed to create a unique and harmonious integration between the built environment and the cultural heritage that defines Pottery Town.

ELEVATION 2

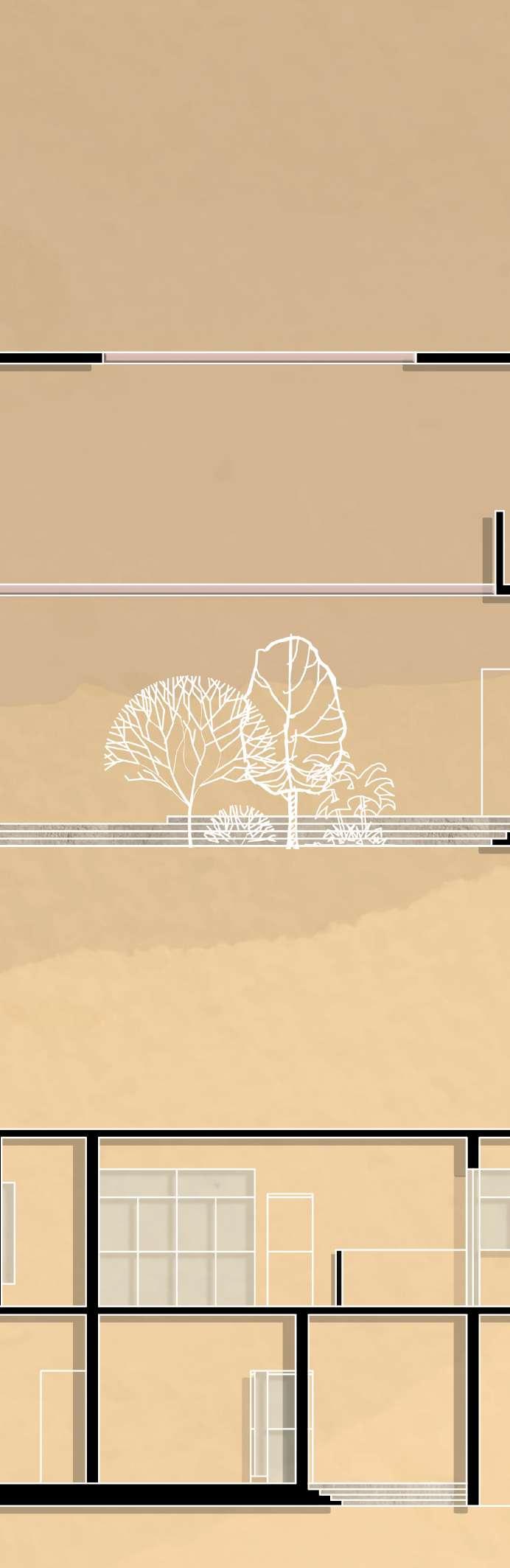

These sections show the way the design wraps around the context and allows people to really blend in the art of pottery making.

CELESTIAL CLIMB

THE OPEN AIR STAIRWAY

The architectural design I developed for the BIC Site in Indiranagar, Bangalore seamlessly combines functionality, aesthetics, and connectivity. The open-air stairway serves as a striking centerpiece that visually and physically connects the public to the civic center, while facilitating movement and interaction between different services. This design creates a dynamic and engaging space that enhances the overall experience of visitors, leaving a lasting impression and contributing to the vitality of the surrounding urban environment.

PROJECT TYPE - CIVIC CENTRE LOCATION - BIC,INDIRANAGAR,BANGLORE BUILT UP - 1 ACRE

DESIGN FOR FUNCIONALITY

-The design must work to help the users feel at ease and to meet their goals and needs.

-A functional design is both an outcome and a process.

VISITOR EXPERIENCE

-In the design of the civic center lies a strong focus on enhancing the visitor experience. Every aspect of the design has been meticulously crafted to ensure that visitors feel welcomed, engaged, and inspired throughout their time at the center.

CONCEPT

-I have chosen the concept as openess and transparent Because according to me a civic building is a space which should reflect the Government’s work to the Public and must be open and transparent.

-Hence i have introduced a set of staircase which are open to the public which then leads to several spaces Inside the building.

SITE ANALYSIS OF THE EXISTING BIC BUILDING AND THE SURROUNDINGS OF THE SITE

PROGARM LIST

1 Govt. PHC 500 Sqm

2 R.T.O 450Sqm

3 G.A.I.L 450Sqm

4 Gallery 280Sqm

5 Seminar Hall 325Sqm

6 Cafeteria 120Sqm

7 Convience Store 300Sqm

8 Washroom 30Sqm

9 Circulation 20-30%

10 Stationary Shop 50Sqm

Parking

580 Sqm (42 car parks, one car park being 2.5m*5.5m)

Total 3836.5 Sqm

The civic building in Indiranagar showcases a design that responds to the surroundings and the Rajakaluve, blending harmoniously with the neighborhood's character. The opening feel, visual connection through the open-air stairway, and integration with the natural environment make the building approachable and inviting to the public. By considering the local architectural vernacular and embracing the neighborhood's ambiance, my design creates a distinctive and engaging civic space that enhances the overall urban fabric of indiranagar.

GROUND FLOOR PLAN

FIRST FLOOR PLAN SECOND

ELEVATION

This grand open-air stairway serves as both a functional element and a design feature, acting as a welcoming gateway to the civic center. Its strategic placement allows visitors to effortlessly traverse between different levels while experiencing a sense of openness and connectivity. As individuals ascend or descend the staircase, they are treated to panoramic views of the surrounding area, enhancing their overall experience and fostering a connection to the vibrant cityscape. Beyond its aesthetic appeal, the open-air stairway acts as a central hub that physically connects various services within the civic center. Its design considers accessibility and convenience, enabling visitors to easily access different facilities and amenities located on different levels. This spatial arrangement encourages exploration and interaction, creating a dynamic environment that facilitates the efficient flow of people and resources.

The materials chosen for the construction of the open-air stairway and surrounding areas reflect a harmonious blend of modernity and context. Sleek and durable materials, such as steel and glass, are employed to create a contemporary aesthetic, while elements inspired by the local architectural vernacular pay homage to the cultural and historical context of Indiranagar. This thoughtful integration ensures that the design remains timeless, while being a distinctive feature that stands out in the urban fabric.

SACRED SLOPES

A FAMILY HOME WITH MAJESTIC VIEWS

The residence design for the family of four in Tiruvannamalai will prioritize privacy, views, natural light, cooling strategies, and a connection to the sacred mount. By integrating these elements, the design will create a harmonious and comfortable living environment that embraces the unique characteristics of the site and enhances the family's daily life experience.

PROJECT TYPE - RESIDENCE

LOCATION - TIRUVANNAMALAI

BUILT UP - 1000 Sqm

The inclusion of a central courtyard, open to the sky, in a house design in Tiruvannamalai offers benefits such as natural ventilation, daylighting, privacy, a connection with nature, outdoor living spaces, and thermal comfort. It creates a harmonious blend of indoor and outdoor living, enhancing the overall livability and well-being of the residents in this beautiful region.

An open-to-sky central courtyard allows ample natural light to penetrate deep into the interior spaces. This brings a sense of brightness, warmth, and connection with the outdoors, reducing reliance on artificial lighting during the day. The play of light and shadow within the courtyard creates a visually pleasing and dynamic environment.

SECTIONS

By placing the pooja room in close proximity to the cow shed and ensuring a direct line of sight, the design honors the family's farming lifestyle, their reverence for cows, and their connection to nature. This arrangement allows them to seamlessly integrate their spiritual practices with their everyday activities, fostering a deep sense of harmony and devotion within their home.

GROUND FLOOR PLAN

WORKING DRAWINGS

FOR THE CIVIC CENTRE

HVAC SYSTEM DRAWING

GROUND FLOOR SPRINKLER DRAWING

BASEMENT SPRINKLER DRAWING

HVAC DRAWING

DESIGNED A BOOK SHELF WITH SEATING AREA FOR THE PUBLIC.

WORKSHOPS AND MISCELLANEOUS

EASY ,PUBLIC FRIENDLY, FOOD KIOSK

DESIGN-FULLSCALE 109

MODEL OF A GEODESIC DOME AS A PART OF FOUNDATION WORKSHOP

DESIGN OF A STOOL

POSTER OF SHRI CHANNAKESHAVA TEMPLE,BELUR,HASSAN

POSTCARD MAKING-POSTCARD OF THE CITY OF SIMHASANA
