Air Tools/Pneumatic Tools

Pneumatic tools

Air Impact Wrench

CH051325 1/4”Dr. Air Impact Driver

Specification:

* Square drive(inch): 1/4”

* Capacity: 10-12mm

* Working torque: 136-407Nm(100-300ft.lb)

* Max. torque: 474Nm(350Ft-Lb)

* Free speed: 11000rpm

* Net weight: 1.6kg

* Length: 147mm

* Air cons.:0.23 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:87 dBA

* Vibration: 2.5 m/s2

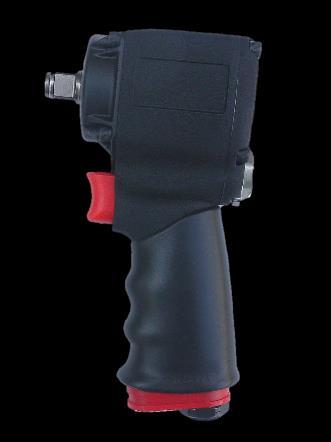

CH051306-3 3/8”Dr. Mini Impact Wrench (Twin hammer)

Specification:

* Square drive(inch): 3/8”

* Bolt capacity: 14mm

* Working torque: 136-407Nm(100-300ft.lb)

* Max. torque: 474Nm(350Ft-Lb)

* Free speed: 11000rpm

* Net weight: 1.5kg

* Length: 142mm

* Air cons.:0.2 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:87 dBA

* Vibration: 3.1 m/s2

CH051311 3/8"Mini Light Weight Air Impact Wrench(Twin Hammer)

Specification:

* Square drive: 3/8”

* Blot capacity: 16mm

* Max torque: 400 ft.Ib (542Nm)

* Net weight: 1.37kg(3 LB)

* Length: 103mm

* Air cons: 0.2 m³/min

* Air inlet:1/4”

* Hose size: 10mm

* Sound pressure: 94 dBA

* Vibration: 3.1 m/s²

* Speed: 11000 RPM

CH051312

3/8"Mini Light Weight Air Impact Wrench

Specification:

* Square drive: 3/8”

* Blot capacity: 16mm

* Max torque: 450 ft.Ib (610Nm)

* Net weight: 1.42kg(3.12 LB)

* Length: 108mm

* Air cons: 0.2 m³/min

* Air inlet:1/4”

* Hose size: 10mm

* Sound pressure: 94 dBA

* Vibration: 3.1 m/s²

* Speed: 11000 RPM

CH051313

3/8”Dr. Mini Light Weight Air Impact Wrench

Specification:

* Square Drive(inch)：3/8"

* Bolt Capacity(mm)：16

* Working Torque ft.lb(Nm)：140-330(190-447)

* Max. Torque ft.lb(Nm)：450(610)

* Speed (RPM)：10000

* Net Weight (Kg/Lb)：1.36/3.0

* Length(mm)：99

* Air Cons(m³/min)：0.2

* Air InIet(inch)：1/4"

* Hose Size(mm)：10

* Sound Pressure(dBA)：94

* Vibration(m/S²)：3.1

* Mechanism：Jumbo Hammer

CH051313-4 1/2”Dr. Mini Light Weight Air Impact Wrench

Specification:

* Square Drive(inch)：1/2"

* Bolt Capacity(mm)：16

* Working Torque ft.lb(Nm)：160-380(217-515)

* Max. Torque ft.lb(Nm)：500(678)

* Speed (RPM)：10000

* Net Weight (Kg/Lb)：1.36/3.0

* Length(mm)：99

* Air Cons(m³/min)：0.2

* Air InIet(inch)：1/4"

* Hose Size(mm)：10

* Sound Pressure(dBA)：94

* Vibration(m/S²)：2.8

* Mechanism：Jumbo Hammer

CH051311-4 1/2"Mini Light Weight Air Impact Wrench(Twin Hammer)

Specification:

* Square drive: 1/2”

* Blot capacity: 16mm

* Max torque: 450 ft.Ib (610Nm)

* Net weight: 1.37kg(3 LB)

* Length: 103mm

* Air cons: 0.2 m³/min

* Air inlet:1/4”

* Hose size: 10mm

* Sound pressure: 94 dBA

* Vibration: 2.8 m/s²

* Speed: 11000 RPM

CH051312-4 1/2"Mini Light Weight Air Impact Wrench(Twin Hammer)

Specification:

* Square drive: 1/2”

* Blot capacity: 16mm

* Max torque: 500 ft.Ib (678Nm)

* Net weight: 1.42kg(3.12 LB)

* Length: 108mm

* Air cons: 0.2 m³/min

* Air inlet:1/4”

* Hose size: 10mm

* Sound pressure: 94 dBA

* Vibration: 2.8 m/s²

* Speed: 11000 RPM

CH051319-J 1/2”Dr. Super Duty Mini Air Impact Wrench

Specification:

* Square Drive(inch)：1/2"

* Bolt Capacity(mm)：16

* Working Torque ft.lb(Nm)：180-400(244-542)

* Max. Torque ft.lb(Nm)：700(949)

* Speed (RPM)：9500

* Net Weight (Kg/Lb)：1.45/3.19

* Length(mm)：104

* Air Cons(m³/min)： 0.21

* Air InIet(inch) ：1/4"

* Hose Size(mm) ：10

* Sound Pressure(dBA)： 94

* Vibration(m/S²) ：2.8

* Mechanism：Jumbo Hammer

* Other option: CH051319-JQ (with muffler)

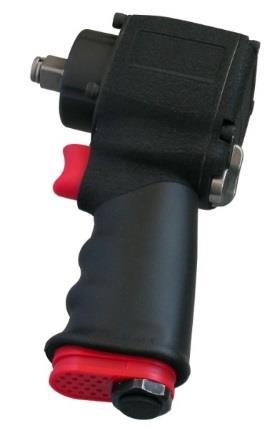

CH0409114-XT

1/2”Dr. Micro Mini Light Weight Impact Wrench

Feature:

* Easy to use at different degrees, with no blind spot.

* Application: Small engine repair, transmission, body shop, farm, light truck, overall automotive service.

CH051320-T

Specification:

* Square Drive(inch)：1/2" (or 3/8” available)

* Bolt Capacity(mm)：12

* Working Torque ft.lb(Nm)：260-350

* Max. Torque ft.lb(Nm)：400

* Speed (RPM)：8500

* Net Weight (Kg)：1.15

* Length(mm)：88

* Air Cons(CFM)：5.6

* Air InIet(inch)：1/4"NPT-18; 1/4”PT-19

* Hose Size(mm)：3/8”

* Sound Pressure(dBA)：90

* Vibration(m/S²)：3.5

* Mechanism：Jumbo Hammer

* Air exhaust: handle exhaust

1/2”Dr. Super Duty Air Impact Wrench

Specification:

* Square Drive(inch)：1/2"

* Bolt Capacity(mm)：16

* Working Torque ft.lb(Nm)：180-450(244-610)

* Max. Torque ft.lb(Nm)：750(1017)

* Speed (RPM)：10000

* Net Weight (Kg/Lb)：1.5/3.3

* Length(mm)：113

* Air Cons(m³/min)：0.21

* Air InIet(inch)：1/4"

* Hose Size(mm)：10

* Sound Pressure(dBA)：94

* Vibration(m/S²)：2.8

* Mechanism：Twin Hammer

* Other option: CH051320-TQ (with muffler)

CH051321-JG 1/2"Super Light Mini Air Impact Wrench

Specification:

* Square Drive(inch)：1/2"

* Bolt Capacity(mm)：16

* Working Torque ft.lb(Nm)：180-400(244-542)

* Max. Torque ft.lb(Nm)：700(949)

* Speed (RPM)：10000

* Net Weight (Kg/Lb)：1.37/3.0

* Length(mm)：104

* Air Cons(m³/min)：0.21

* Air InIet(inch)：1/4"

* Hose Size(mm)：10

* Sound Pressure(dBA)：94

* Vibration(m/S²)：2.8

* Mechanism：Jumbo Hammer

* Other option: CH051321-JGQ (with muffler)

CH051322-T 1/2"Super Light Mini Air Impact Wrench

Specification:

* Square Drive(inch)：1/2"

* Bolt Capacity(mm)：16

* Working Torque ft.lb(Nm)：180-420(244-569)

* Max. Torque ft.lb(Nm)：650(881)

* Speed (RPM)：12000

* Net Weight (Kg/Lb)：1.4/3.1

* Length(mm)：99

* Air Cons(m³/min)：0.21

* Air InIet(inch)：1/4"

* Hose Size(mm)：10

* Sound Pressure(dBA)：94

* Vibration(m/S²) 2.8

* Mechanism：Twin Hammer

* Other option: CH051322-TQ (with muffler)

CH051322-TG 1/2"Super Duty Mini Air Impact Wrench/Handle Exhaust

Feature:

* With handle cover

* With injection hole design patent! Repair air tools easily.

Specification:

* Square drive: 1/2”dr.

* Bolt capacity: 16mm

* Max. torque: 650ft.lb(881Nm)

* Net weight: 1.4kg(3.08LB)

* Length: 99mm

* Air consumption: 0.21 m³/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 2.8m/s²

* Speed: 12,000rpm

* Mechanism: Twin Hammer

CH051309-L 1/2”Heavy Duty Impact Wrench (2”Anvil Extended)

Specification:

* Square Drive(inch): 1/2”

* Bolt capacity: 29mm

* Working torque: 200-700ft.lb(271-949Nm)

* Max. torque: 1000 ft-lb (1356 Nm)

* Speed: 7200RPM

* Net weight: 2.7kg

* Length: 222mm

* Air Cons: 0.23 m³/min

* Air inlet: 1/4”

* hose size: 10mm

* Sound Pressure: 87 dBA

* Vibration: 4.5m/s²

CH051306-4 1/2”Dr. Mini Impact Wrench (Twin hammer)

Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 16mm

* Working torque: 203-475Nm(150-350ft.lb)

* Max. torque: 542Nm(400Ft-Lb)

* Free speed: 11000rpm

* Net weight: 1.5kg

* Length: 142mm

* Air cons: 0.2 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:87 dBA

* Vibration: 3.1 m/s2

CH051306-4L 1/2"Dr. Mini Light Impact Wrench (2” Anvil Extended)

Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 16mm

* Working torque: 203-475Nm(150-350ft.lb)

* Max. torque: 542Nm(400Ft-Lb)

* Free speed: 11000rpm

* Net weight: 1.69kg

* Length: 193mm

* Air cons.:0.2 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:87 dBA

* Vibration: 3.1 m/s2

CH051323 1/2"Ultra&Compact Air Impact Wrench

Specification:

* Square Drive(inch) : 1/2"

* Bolt Capacity(mm) : 23

* Working Torque ft.lb(Nm) : 200-800(271-1085)

* Max. Torque ft.lb(Nm) : 1000(1356)

* Speed (RPM) : 9000

* Net Weight (Kg/Lb) : 1.8/3.96

* Length(mm) : 141

* Air Cons(m³/min) : 0.2

* Air InIet(inch)：1/4"

* Hose Size(mm) : 10

* Sound Pressure(dBA) : 94

* Vibration(m/S²): 2.8

* Mechanism: Twin Hammer

* Other option: CH051323-Q (with muffler)

CH051323-L 1/2"Ultra&Compact Air Impact Wrench (2”Anvil Extened)

Specification:

* Square Drive(inch) : 1/2"

* Bolt Capacity(mm) : 23

* Working Torque ft.lb(Nm) : 200-800(271-1085)

* Max. Torque ft.lb(Nm) : 1000(1356)

* Speed (RPM) : 9000

* Net Weight (Kg/Lb) : 1.86/4.09

* Length(mm) : 192

* Air Cons(m³/min) : 0.2

* Air InIet(inch)：1/4"

* Hose Size(mm) : 10

* Sound Pressure(dBA) : 94

* Vibration(m/S²): 2.8

* Mechanism: Twin Hammer

* Other option: CH051323-LQ (with muffler)

CH051323-G 1/2"Ultra&Compact Air Impact Wrench/Handle Exhaust

Feature:

* With handle cover

* With injection hole design patent! Repair air tools easily.

Specification:

* Square drive: 1/2”dr.

* Bolt capacity: 23mm

* Max. torque: 1000ft.lb(1356Nm)

* Net weight: 1.8kg(3.96LB)

* Length: 141mm

* Air consumption: 0.2 m³/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 2.8m/s²

* Speed: 9,000rpm

* Mechanism: Twin Hammer

CH051309-G 1/2"Heavy Duty Air Impact Wrench /Handle Exhaust

Feature:

* With handle cover

* With injection hole design patent! Repair air tools easily.

Specification:

* Square drive: 1/2”dr.

* Bolt capacity: 29mm

* Max. torque: 1000ft.lb(1356Nm)

* Net weight: 2.6kg(5.7LB)

* Length: 171mm

* Air consumption: 0.23 m³/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure: 87dBA

* Vibration: 4.5m/s²

* Speed: 7,200rpm

* Mechanism: Twin Hammer

CH131202 1/2"dr. Impact Wrench (Twin Hammer)

Specification:

* Max. torque: 400Ft-Lbs

* Free speed: 10000rpm

* Bolt capability: 14mm

* Length: 122mm

* Weight: 1.56kg

* Air inlet: 1/4"

CH051302 1/2” Dr. Air Impact Wrench

Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 18mm

* Working torque: 203-515Nm(150-380ft.lb)

* Max. torque: 678Nm(500Ft-Lb)

* Free speed: 8000rpm

* Net weight: 2.6kg

* Length: 185mm

* Air cons.:0.2 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:98 dBA

* Vibration: 4.6 m/s2

CH051302-L

(2” Anvil Extended)

Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 18mm

* Working torque: 203-515Nm(150-380ft.lb)

* Max. torque: 678Nm(500Ft-Lb)

* Free speed: 8000rpm

* Net weight: 2.78kg

* Length: 235mm

* Air cons.:0.2 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:98 dBA

* Vibration: 4.6 m/s2

CH051302-S

Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 18mm

* Working torque: 203-515Nm(150-380ft.lb)

* Max. torque: 610Nm(450Ft-Lb)

* Free speed: 7000rpm

* Net weight: 2.6kg

* Length: 185mm

* Air cons.:0.2 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:88 dBA

* Vibration: 4.5 m/s2

CH051302-SL

Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 18mm

* Working torque: 203-515Nm(150-380ft.lb)

* Max. torque: 610Nm(450Ft-Lb)

* Free speed: 7000rpm

* Net weight: 2.78kg

* Length: 235mm

* Air cons.:0.2 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:88 dBA

* Vibration: 4.5 m/s2

1/2” Dr. Air Impact Wrench

1/2” Dr. Air Impact Wrench

1/2” Dr. Air Impact Wrench (2” Anvil Extended)

CH051309 1/2”Heavy Duty Impact Wrench (Twin hammer)

Description:

* Square Drive(inch): 1/2”

* Bolt capacity: 29mm

* Working torque: 200-700ft.lb(271-949Nm)

* Max. torque: 1000 ft-lb (1356 Nm)

* Speed: 7200RPM

* Net weight: 2.6kg

* Length: 171mm

* Air Cons: 0.23 m³/min

* Air inlet: 1/4”

* hose size: 10mm

* Sound Pressure: 87 dBA

* Vibration: 4.5m/s²

CH051307 1/2” Dr. Heavy Duty Air Impact Wrench

Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 27mm

* Working torque: 244-746Nm(180-550ft.lb)

* Max. torque: 1085Nm(800Ft-Lb)

* Free speed: 7500rpm

* Net weight: 2.48kg

* Length: 164mm

* Air cons.:0.23 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:87 dBA

* Vibration: 4.5 m/s2

CH051307-L 1/2” Dr. Heavy Duty Air Impact Wrench (2” Anvil Extended)

Specification:

* Square drive(inch): 1/2”

* Bolt capacity: 27mm

* Working torque: 244-746Nm(180-550ft.lb)

* Max. torque: 1085Nm(800Ft-Lb)

* Free speed: 7500rpm

* Net weight: 2.59kg

* Length: 215mm

* Air cons.:0.23 m3/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure:87 dBA

* Vibration: 4.5 m/s2

CH121112-T 1/2”Dr. Composite Impact Wrench (Twin hammer)

Specification:

* Max. torque: 1350Nm(1000Ft-Lb)

* Working torque: 950-1020Nm(700-750Ft-Lb)

* Net weight: 2.02kg

* Free speed: 10000rpm

* Air pressure: 90psi

* Air consumption: 5.4cfm

CH121113-T 1/2”Dr. Mini Impact Wrench (Twin hammer)

Specification:

* Max. torque: 434Nm(320Ft-Lb)

* Net weight: 1.2kg

* Free speed: 10000rpm

* Air pressure: 90psi

* Air consumption: 3.7cfm

CH021125 1/2"Dr. Digital Torque Limited Impact Wrench Pat.

Feature:

* Torque value does not affected by air pressure.

* Forward: adjustable torque; Reverse: full torque output.

* Double bearing hydraulic torque limited with twin hammer mechanism to prevent overheat while long time using.

* Continuous variable speed for forward torque.

* Lightweight, small size, high torque, high stability.

* Quick detection and torque output adjustment with the digital display screen.

* Countdown feature as a reminder for the user to control operating time.

Description:

* Square drive: 1/2”

* Bolt capacity: 5/8” (16mm)

* Max. torque: 570Nm(420Ft-Lb)

* Free speed: 7500rpm

* Air pressure: 90psi

* Air consumption: 3.7cfm

* Net weight: 1.85kg

* Mechanism: Twin Hammer

CH121111-T

Specification:

* Twin hammer max.: 600Ft-lb.

* Max. torque: 813Nm(600Ft-Lb)

* Free speed: 7000rpm

* Air pressure: 90psi

* Air consumption: 4.2cfm

* Net weight: 2.8kg

CH051326

Specification:

* Square Drive(inch): 3/4”

* Bolt capacity: 32mm

* Working torque: 200-800ft.lb(271-1085Nm)

* Max. torque: 1100 ft-lb (1491Nm)

* Speed: 7200RPM

* Net weight: 2.64kg

* Length: 177mm

* Air Cons: 0.23 m³/min

* Air inlet: 1/4”

* hose size: 10mm

* Sound Pressure: 87 dBA

* Vibration: 4.5m/s²

CH051326-L

Specification:

* Square Drive(inch): 3/4”

* Bolt capacity: 32mm

* Working torque: 200-800ft.lb(271-1085Nm)

* Max. torque: 1100 ft-lb (1491Nm)

* Speed: 7200RPM

* Net weight: 3.2kg

* Length: 330mm

* Air Cons: 0.23 m³/min

* Air inlet: 1/4”

* hose size: 10mm

* Sound Pressure: 87 dBA

* Vibration: 4.5m/s²

1/2”Dr. Impact Wrench (Twin hammer)

3/4”Dr. Light Weight Air Impact Wrench

3/4”Dr. Light Weight Air Impact Wrench (6” Anvil Extended)

CH051314 3/4"Dr. Heavy Duty Air Impact Wrench

Specification:

* Square Drive(inch): 3/4”

* Bolt capacity: 38mm

* Working torque: 200-1250ft.lb(271-1695Nm)

* Max. torque: 1400 ft-lb (1898Nm)

* Speed: 4500RPM

* Net weight: 5.0kg

* Length: 215mm

* Air Cons: 0.32 m³/min

* Air inlet: 3/8”

* hose size: 10mm

* Sound Pressure: 97 dBA

* Vibration: 6.1m/s²

CH051314-L 3/4"Dr. Heavy Duty Air Impact Wrench

Specification:

* Square Drive(inch): 3/4”

* Bolt capacity: 38mm

* Working torque: 200-1250ft.lb(271-1695Nm)

* Max. torque: 1400 ft-lb (1898Nm)

* Speed: 4500RPM

* Net weight: 5.87kg

* Length: 375mm

* Air Cons: 0.32 m³/min

* Air inlet: 3/8”

* hose size: 10mm

* Sound Pressure: 97 dBA

* Vibration: 6.1m/s²

CH051310 3/4"Dr. Heavy Duty Impact Wrench

Specification:

* Square drive(inch): 3/4”

* Bolt capacity: 36mm

* Working torque: 200-900 ft.lb.(271-1220Nm)

* Max. torque: 1100ft.lb(1491 Nm)

*Speed: 6500rpm

* Net weight: 4.15kg

* Length: 207mm

* Air consumption: 0.3(m3/min)

* Air inlet: 1/4", hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 5.3(m/s2)

CH051310-M 3/4"Dr. Heavy Duty Impact Wrench (3” Anvil Extended)

Specification:

* Square drive(inch): 3/4”

* Bolt capacity: 36mm

* Working torque: 200-900 ft.lb.(271-1220Nm)

* Max. torque: 1100ft.lb(1491 Nm)

*Speed: 6500rpm

* Net weight: 4.47kg

* Length: 284mm

* Air consumption: 0.3(m3/min)

* Air inlet: 1/4", hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 5.3(m/s2)

CH051310-L 3/4"Dr. Heavy Duty Impact Wrench (6” Anvil Extended)

Specification:

* Square drive(inch): 3/4”

* Bolt capacity: 36mm

* Working torque: 200-900 ft.lb.(271-1220Nm)

* Max. torque: 1100ft.lb(1491 Nm)

*Speed: 6500rpm

* Net weight: 4.75kg

* Length: 360mm

* Air consumption: 0.3(m3/min)

* Air inlet: 1/4", hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 5.3(m/s2)

CH051324-R 3/4"Ultra&Compact Air Impact Wrench

Specification:

* Square Drive(inch)：3/4"

* Bolt Capacity(mm)：23

* Working Torque ft.lb(Nm)：200-900(271-1220)

* Max. Torque ft.lb(Nm)：1100(1491)

* Speed (RPM)：9000

* Net Weight (Kg/Lb)：1.9/4.18

* Length(mm)：146

* Air Cons(m³/min)：0.2

* Air InIet(inch)：1/4"

* Hose Size(mm)：10

* Sound Pressure(dBA)：94

* Vibration(m/S²)：2.8

* Mechanism: Twin Hammer

* Other option: CH051324-RQ (with muffler)

CH051324-RG 3/4"Ultra&Compact Air Impact Wrench/Handle Exhaust

Feature:

* With handle cover

* With injection hole design patent! Repair air tools easily.

Specification:

* Square drive: 3/4”dr.

* Bolt capacity: 23mm

* Max. torque: 1100ft.lb(1491Nm)

* Net weight: 1.9kg(4.18LB)

* Length: 146mm

* Air consumption: 0.2 m³/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 2.8m/s²

* Speed: 9,000rpm

* Mechanism: Twin Hammer

CH051326-G 3/4"Heavy Duty Air Impact Wrench Handle Exhaust

Feature:

* With handle cover

* With injection hole design patent! Repair air tools easily.

Specification:

* Square drive: 3/4”dr.

* Bolt capacity: 32mm

* Working torque: 200-800ft.lb(271-1085Nm)

* Max. torque: 1100ft.lb(1491Nm)

* Net weight: 2.64kg(5.80LB)

* Length: 177mm

* Air consumption: 0.23 m³/min

* Air inlet: 1/4”

* Hose size: 10mm

* Sound pressure: 87dBA

* Vibration: 4.5m/s²

* Speed: 7,200rpm

* Mechanism: Twin Hammer

CH051308 3/4"Dr. Heavy Duty Impact Wrench

Specification:

* Bolt capacity: 29mm

* Working Torque: 244-814Nm (180-600ft.lb)

* Max. torque:1153Nm (850ft.lb)

* Speed: 7500rpm

* Net weight: 2.55kg

* Length: 170mm

* Air consumption: 0.23 m3/min

* Air inlet: 1/4", hose size: 10mm

* Sound pressure: 87dBA,

* Vibration: 4.5(m/s2)

CH051308-L 3/4"Dr. Heavy Duty Impact Wrench(6” Anvil Extended)

Specification:

* Bolt capacity: 29mm

* Working Torque: 244-814Nm (180-600ft.lb)

* Max. torque:1153Nm (850ft.lb)

* Speed: 7500rpm

* Net weight: 3.08kg

* Length: 323mm

* Air consumption: 0.23 m3/min

* Air inlet: 1/4", hose size: 10mm

* Sound pressure: 87dBA,

* Vibration: 4.5(m/s2)

CH121114-T 3/4"Dr. Composite Impact Wrench (Twin hammer)

Specification:

* Max. torque: 1630Nm(1200Ft-Lb)

* Net weight: 3.6kg

* Free speed: 5500rpm

* Air pressure: 90psi

* Air consumption: 6.9cfm

CH051310-1 1"Dr. Heavy Duty Impact Wrench

Specification:

* Square drive(inch): 1”

* Bolt capacity: 38mm

* Working torque: 250-1000 ft.lb.(339-1356Nm)

* Max. torque: 1200ft.lb(1627 Nm)

*Speed: 6500rpm

* Net weight: 4.25kg

* Length: 215mm

* Air consumption: 0.3(m3/min)

* Air inlet: 1/4", hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 5.3(m/s2)

CH051310-1L 1"Dr. Heavy Duty Impact Wrench

Specification:

* Square drive(inch): 1”

* Bolt capacity: 38mm

* Working torque: 250-1000 ft.lb.(339-1356Nm)

* Max. torque: 1200ft.lb(1627 Nm)

*Speed: 6500rpm

* Net weight: 5.13kg

* Length: 368mm

* Air consumption: 0.3(m3/min)

* Air inlet: 1/4", hose size: 10mm

* Sound pressure: 94dBA

* Vibration: 5.3(m/s2)

CH051314-1 1"Dr. Heavy Duty Air Impact Wrench

Specification:

* Square drive(inch): 1”

* Bolt capacity: 38mm

* Working torque: 200-1300 ft.lb.(271-1762Nm)

* Max. torque: 1500ft.lb(2033 Nm)

*Speed: 4500rpm

* Net weight: 5.1kg

* Length: 222mm

* Air consumption: 0.32(m3/min)

* Air inlet: 3/8", hose size: 10mm

* Sound pressure: 97dBA

* Vibration: 6.1(m/s2)

CH051314-1L 1"Dr. Heavy Duty Air Impact Wrench (6” Anvil Extended)

Specification:

* Square drive(inch): 1”

* Bolt capacity: 38mm

* Working torque: 200-1300 ft.lb.(271-1762Nm)

* Max. torque: 1500ft.lb(2033 Nm)

*Speed: 4500rpm

* Net weight: 5.9kg

* Length: 375mm

* Air consumption: 0.32(m3/min)

* Air inlet: 3/8", hose size: 10mm

* Sound pressure: 97dBA

* Vibration: 6.1(m/s2)

CH051316 1”Dr. heavy Duty Air Impact Wrench

Specification:

* Square drive(inch): 1”

* Bolt capacity: 38mm

* Working torque: 250-1600 ft.lb.(339-2170Nm)

* Max. torque: 1800ft.lb(2441 Nm)

*Speed: 4500rpm

* Net weight: 5.7kg

* Length: 240mm

* Air consumption: 0.32(m3/min)

* Air inlet: 3/8", hose size: 10mm

* Sound pressure: 97dBA

* Vibration: 6.1(m/s2)

CH051316-L 1”Dr. heavy Duty Air Impact Wrench (6” Anvil Extended)

Specification:

* Square drive(inch): 1”

* Bolt capacity: 38mm

* Working torque: 250-1600 ft.lb.(339-2170Nm)

* Max. torque: 1800ft.lb(2441 Nm)

*Speed: 4500rpm

* Net weight: 6.5kg

* Length: 392mm

* Air consumption: 0.32(m3/min)

* Air inlet: 3/8", hose size: 10mm

* Sound pressure: 97dBA

* Vibration: 6.1(m/s2)

Specification:

* Twin hammer Max. 2500FT-lb

* Max. torque: 2500Ft-Lb(3390Nm)

* Free speed: 3400rpm

* Air pressure: 90psi

* Air consumption: 6.8cfm

* Net weight: 11.8kg

* Option: inside trigger or outside trigger

Specification:

* Twin hammer max.: 2000Ft-lb.

* Max. torque: 2712Nm(2000Ft-Lb)

* Option: inside trigger or outside trigger

* Free speed: 3400rpm

* Air pressure: 90psi

* Air consumption: 8.5cfm

* Net weight: 13.5kg

Specification:

* Twin hammer max.: 2000Ft-lb.

* Max. torque: 2800Nm(2000Ft-Lb)

* Working torque: 2400Nm(1800Ft-Lb)

* Free speed: 4800rpm

* Air pressure: 90psi

* Air consumption: 9.0cfm

* Overall length: 550mm

* Net weight: 8.30kg

Specification:

* FREE SPEED(RPM): 3000

* MAX. TORQUE: 3390Nm(2500 ft-lb)

* OVERALL LENGTH: 631mm(24.8")

* Air inlet: 1/4"

* AIR HOSE I.D.: 3/4"

* AVERAGE. AIR CONSUMPTION: 14.5CFM

* 411L/min

* NET WEIGHT: 16.8kg

CH121117-T 1"Dr. Impact Wrench (Twin hammer)

CH121115-T8 1"Dr. Impact Wrench w/8" Anvil (Twin hammer)

CH121116-T6 1"Dr. Composite Impact Wrench W/6" Anvil (Twin hammer)

CH0915167-8 1" DR. Super Duty Impact Wrench W/8" Anvil

Air Ratchet Wrench

CH150201-P 1/4"Dr. Super Mini Air Ratchet Wrench w/Grip (Rear exhaust)

Description:

* Torque: 20ft-lbs

* Free speed: 350rpm

* Air consumption: 2.24cfm (16scfm)

* Air pressure: 90PSI (6.2bar)

* Air inlet: 1/4”

* Air hose size: 5/16”

* Rear exhaust, with comfort grip

* Weight: 0.99lbs (0.45kgs)

* Length: 130mm(5.12”)

CH140928-A 1/4"Dr. Stubby Ratchet Wrench

Description:

* Torque:40Nm

* Free speed:350 rpm

* Air consumption:13scfm

* Noise: 83dB

* Weight:0.5kg

* Length:165mm

CH131203 1/4" Mini Stubby Air Ratchet Wrench

Description:

* Max. torque: 25ft-lbs

* Free speed: 250rpm

* Weight: 0.62kg

* Length: 160mm

CH131205-A

Description:

* Max. torque: 60FT-LBS

* Free speed: 200rpm

* Air consumption: 4cfm (body: aluminum + plastic grip)

* Weight: 1.4kg

* Length:265mm

CH0915168

Description:

* Free Speed: 240rpm

* Max torque: 27Nm (20 ft-lb)

* Average air consumption: 3.7cfm (103L/min)

* Air hose I.D.: 1/4”

* Weight: 0.5kg

* Length: 135mm(5.3”)

CH0915169

Description:

* Free speed: 240rpm

* Max. torque: 54Nm (40 ft-lb)

* Air consumption: 3.7cfm,103L/min

* Air inlet:1/4”

* Air hose size: 1/4”

* Weight: 0.5kgs

* Length: 135mm(5.3”)

1/2" Air Ratchet Wrench

1/4” Duty Mini Air Ratchet Wrench

3/8” Dr. Duty Mini Air Ratchet Wrench

CH0915170

Description:

* Free speed: 270rpm

* Max. torque: 54Nm (40 ft-lb)

* Air consumption: 2.8cfm,79L/min

* Air inlet:1/4”

* Air hose size: 3/8”

* Weight: 0.66kgs

* Length: 205mm(8.1”)

CH0915171

Description:

* Free Speed: 280rpm

* Max torque: 108Nm (80ft-lb)

* Air consumption: 4.0cfm, 113L/min

* Air inlet:1/4”

*Air hose size: 3/8”

* Weight: 1.24kg

* Length: 260mm (10.2”)

CH0915172

Description:

* Free Speed: 225rpm

* Max torque: 136Nm (100ft-lb)

* Air consumption: 4.0cfm, 113L/min

* Air inlet:1/4”

*Air hose size: 3/8”

* Weight: 1.52kg(3.35lb)

* Length: 307mm (12.1”)

CH030701

Description:

* Spindle thread: 50/6.9

* Free speed: 175rpm

* Air consumption: 3.5cfm

* Air inlet: 1/4”

* Air hose size: 3/8”

* Weight: 1.8kg

* Length: 265mm (10.4”)

3/8” Dr. Duty Mini Air Ratchet Wrench

1/2” Dr. Duty Air Ratchet Wrench

1/2” Dr. Duty Air Ratchet Wrench

3/8" Air Ratchet Wrench

CH030702 1/2” Air Ratchet Wrench

Description:

* Air consumption: 3cfm(22scfm)

* Air pressure: 90psi (620kpa)

* Free Speed: 175rpm

* Torque range: 5-60ft-lb (7-68nm)

* Air inlet Thread size: 1/4”-18NPT (PT)

* Air hose size: 3/8” (9.5mm)

* Length: 7.6”(193mm)

* Horsepower: 0.45HP

Air Drill

CH131254 & CH131254-1 1/4” Mini Air Drill

Features:

* Reversible bar on both sides – One hand operation.

* Composite housing – Light Weight/Prevent freezing.

* Improved muffler design

Specification:

* Motor HP: 0.25

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 2600rpm / 4500rpm

* Drilling cap.: 1/4”

* Air consumption: 3.2cfm

* Overall length: 155mm

* Weight: 0.54kg

* Air inlet: 1/4”

* Air hose: 3/8”

* Air pressure: 90 psi

Other available drill cap size: 3/8” (CH131249, 2600rpm/ CH131249-1, 4500rpm)

CH131254-R & CH131254-R1 1/4” Mini Air Reversible Drill

Features:

* Reversible bar on both sides – One hand operation.

* Composite housing – Light Weight/Prevent freezing.

* Improved muffler design

Specification:

* Motor HP: 0.25

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 2600rpm / 4500rpm

* Drilling cap.: 1/4”

* Air consumption: 3.2cfm

* Overall length: 155mm

* Weight: 0.54kg

* Air inlet: 1/4”

* Air hose: 3/8”

* Air pressure: 90 psi

Other available drill cap size: 3/8” (CH131249-R, 2600rpm/ CH131249-R1, 4500rpm)

CH131235

&CH131236 3/8" Air Reversible Drill

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free Speed: CH131235, 2000RPM/CH131236, 4000RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.15kg

* Overall length: 185mm

CH131238 & CH131239

3/8" Air Drill

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free Speed: CH131238, 2800RPM/CH131239, 4000RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 185mm

CH131240 & CH131240-1

1/2” Air Drill

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free Speed: CH131240, 1000RPM/CH131240-1, 600RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.44kg

* Overall length: 210mm

CH131237

1/2" Air Reversible Drill

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free Speed: 800RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.44kg

* Overall length: 210mm

CH131241 1/2” Air Reversible Drill (550RPM)

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free Speed: 550RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.44kg

* Overall length: 210mm

CH131219 3/8" Air Reversible Drill with keyless chuck

Specification:

* Free speed: 1800RPM

* Air Consumption: 4CFM

* Drilling capacity: 3/8”

* Air inlet: 1/4”

* Weight: 1.15kg

* Overall length: 185mm

CH131219-1 & CH131219-1A 3/8” Air Reversible Drill (2000 & 3500RPM)

Description:

* Motor HP: 0.45

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: CH131219-1, 2000RPM/ CH131219-1A, 3500RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.15kg

* Overall length: 185mm

CH131213-38 3/8” Air Drill (2500RPM)

CH131227 3/8” Air Drill (4000RPM)

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: CH131213-38, 2500RPM / CH131227, 4000RPM

* drilling cap.: 3/8”

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 185mm

CH131219-2 1/2” Air Reversible Drill

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 800RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.44kg

* Overall length: 210mm

CH131213-12 &CH131213-500

1/2” Air Drill (1000 &650rpm)

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: CH131213-12, 1000RPM / CH131213-500, 650RPM

* drilling cap.: 1/2”

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 185mm

CH131219-500

1/2” Air Reversible Drill (550RPM)

Description:

* Motor HP: 0.45

* Air inlet: 1/4”

* Air hose: 3/8”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 550RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.57kg

* Overall length: 230mm

CH030704

1/2” Air Reversible Drill

Description:

* Spindle thread: 3/8”-24

* Air consumption: 4cfm

* Free speed: 1800rpm

* Air inlet: 1/4”

* Air hose size: 3/8”(10mm)

* Weight: 2kgs

* Length: 195mm(7.6”)

CHIH

CH131228 3/8” Air Reversible Drill (4500rpm)

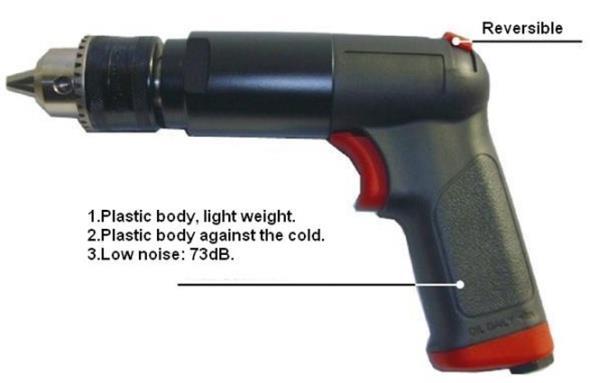

CH131206-R12#B & CH131206-R500#B 1/2” Air Composite Reversible Drill (800 &550rpm)

Description:

* Drilling cap.: 1/2"

* Free speed: 800rpm / 550rpm

* Weight: 1.4kg

* Length: 245mmL

(plastic body: Composite, against the cold, low nose: 73dB)

CH131206-R#B 3/8” Air Composite Reversible Drill (2200rpm)

Description:

* Drilling cap.: 3/8"

* Free speed: 2200rpm

* Weight: 1.4kg

* Length: 245mmL

Other available type: CH131206#B, 3/8” Air Drill (2200rpm)

CH131280 3/8” Air Drill (3000rpm)

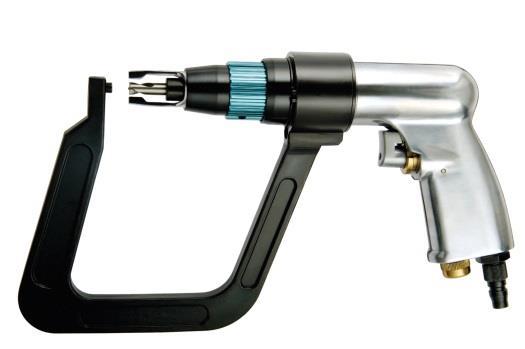

CH191601 Power Spot Drill with 3-Inch Hook

Description:

* Free speed: 1600rpm

* Bit size: 6.5 or 8mm

* Air inlet: 1/4"

* Air pressure bar: 6.2

* Air consumption: 15scfm/90PSI

* Weight: 2.2kgs

* Length: 235mm

CH191601-1 Power Spot Drill with 5.5 Inch Hook

Description:

* Free speed: 1600rpm

* Bit size: 6.5 or 8mm

* Air inlet: 1/4"

* Air pressure bar: 6.2

* Air consumption: 15scfm/90PSI

* Weight: 2.4kgs

* Length: 235mm

CH191601-N Spot Drill & Hook Kit

Specification:

* 1pc: 2” Hook

* 1pc: Mini oiler

* 1pc: swivel connector

* 1pc: wrench(2.5mm)

* Drill bit(HSS+CO): 8mm drill bit x2pcs, 6.5mm drill bit x 2pcs

CH191601-F Power Spot Drill with 5.5 Inch Hook

Specification:

* 1pc: 5.5” Hook

* 1pc: Mini oiler

* 1pc: swivel connector

* 1pc: wrench(2.5mm)

* Drill bit(HSS+CO): 8mm drill bit x2pcs, 6.5mm drill bit x 2pcs

CH191601-2 Power Spot Drill with 2 and 5.5 Inch Hook

Description:

* Free speed: 1600rpm

* Bit size: 6.5 or 8mm

* Air inlet: 1/4"

* Air pressure bar: 6.2

* Air consumption: 6cfm

* Weight: 2kgs

* Length: 235mm

Content:

* 1PC- Spot Weld Drill W/5.5”Hook

* 1PC-2” Hook

* 2PC-8mm Drill Bit

* 2PC-6.5mm Drill Bit

* 1PC-Mini Oiler

* 1PC-Swivel Connector

* 1PC-2.5mm Wrench

CH131224-1

1/4”H.D. Air Drill(4000RPM)

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 4000RPM

* drilling cap.: 1/4”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1kg

* Overall length: 185mm

CH131224-5

1/4”H.D. Air Drill(6000RPM)

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 6000RPM

* drilling cap.: 1/4”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 0.95kg

* Overall length: 185mm

CH131226-2

1/4”H.D. Air Drill(4000RPM)

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 4000RPM

* drilling cap.: 1/4”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.05kg

* Overall length: 204mm

CH131224-2

3/8”H.D. Air Drill(4000RPM)

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 4000RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1kg

* Overall length: 200mm

CH131224-4 0.6HP

3/8”H.D. Air Drill(2800RPM)

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 2800RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1kg

* Overall length: 200mm

CH131224-6

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 6000RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 0.95kg

* Overall length: 185mm

CH131226-1

Description:

.* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 3800RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 218mm

CH131226-3

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 2600RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 180mm

CH131224-3

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 500RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.4kg

* Overall length: 240mm

3/8”H.D. Air Drill

3/8”H.D. Air Drill (3800RPM)

1HP 3/8”H.D. Air Drill(2600RPM)

0.6HP 1/2”H.D. Air Drill(500RPM)

CH131224-7 0.6HP 1/2”H.D. Air Drill(700RPM)

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 700RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.4kg

* Overall length: 240mm

CH131226-4

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 1000RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.5kg

* Overall length: 215mm

CH131226-6

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 600RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.5kg

* Overall length: 258mm

CH131226-7

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 3300RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 232mm

1/2”H.D. Air Drill(1000RPM)

1/2”H.D. Air Drill(600RPM)

1/2”H.D. Air Drill(3300RPM)

CH131226-8 1/2”H.D. Air Drill(2600RPM)

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 2600RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 232mm

CH131223-1 3/8” H.D. Air Reversible Drill

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 2100RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.04kg

* Overall length: 215mm

CH131225-1 3/8” H.D. Air Reversible Drill(2000RPM)

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 2000RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 195mm

CH131225-2 3/8” H.D. Air Reversible Drill(3000RPM)

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 3000RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.1kg

* Overall length: 195mm

CH131223-2 1/2” H.D. Air Reversible Drill

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 350RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.4kg

* Overall length: 252mm

CH131223-3 1/2” H.D. Air Reversible Drill

Description:

* Motor HP: 0.6

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 700RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.4kg

* Overall length: 252mm

CH131225-3 1/2” H.D. Air Reversible Drill(1000RPM)

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 1000RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.6kg

* Overall length: 230mm

CH131225-4 1/2” H.D. Air Reversible Drill(300RPM)

Description:

* Motor HP: 1

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 83dB

* Free Speed: 300RPM

* drilling cap.: 1/2”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.5kg

* Overall length: 230mm

CH131213-500 1/2” Air Drill(500RPM)

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 500RPM

* drilling cap.: 1/2”

* Air consumption: 4CFM

* Net weight: 1.4kg

* Overall length: 210mm

CH131219-1 3/8” Air Reversible Drill (2000RPM)

CH131228 3/8” Air Reversible Drill (3800RPM)

Description:

* Motor HP: 0.45

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: CH131219-1, 2000RPM/ CH131228, 3800RPM

* drilling cap.: 3/8”

* Air pressure: 90psi

* Air consumption: 4CFM

* Net weight: 1.15kg

* Overall length: 185mm

CH140930 3/8" Air Reversible Drill Description:

* Free speed: 1600RPM

* Air consumption: 17scfm

* Noise: 82dB

* Exhaust: side

* Weight: 1.15kg

* Length: 20cmL

CH131206-12 1/2" Air Reversible Drill Description:

* Drilling cap.: 1/2"

* Free speed: 800rpm

* Weight: 1.4kg

* Length: 245mmL

(plastic body: Composite, against the cold, low nose: 73dB)

CH131206 3/8" Air Reversible Drill

Description:

* Drilling cap.: 3/8"

* Free speed: 1800rpm

* Air inlet: 1/4”

* Weight: 1.1kg

* Length: 210mmL (plastic body: light weight, against the cold)

CH140931-A 1/2” Air Reversible Drill Description:

* Free speed: 450rpm

* Air consumption: 18scfm

* Noise: 83dB

* Exhaust: rear

* Weight: 0.95kg

* Length: 210mmL (body: polish finish)

CH150202-A 1/2” air Reversible Drill (Full Cage Gear System)

Description:

* Speed thread: 1/2”-20 thread

* Free speed: 450rpm

* Air consumption: 4.1cfm (29.3scfm)

* Hose power: 0.3HP

* Torque level: 15ft-lbs

* Weight: 3.78lbs (1.72kgs)

* Length: 247mm(9.75”)

CH030703 3/8” Air Reversible Drill Description:

* Spindle thread: 3/8”-24

* Free speed: 1800rpm

* Air consumption: 4cfm

* Air inlet: 1/4”

* Mini hose size: 10mm (3/8”)

* Weight: 2kgs

* Length: 195mm(7.6”)

CH131221-D Air Straight Drill

Description:

* Free speed: 4,500RPM

* Air Consumption: 4CFM

* Drilling Cap.: 3/8”

* Air inlet: 1/4”

* Weight: 1.04kg

* Length: 215mmL

CH140922-A

3/8" Air Reversible Angle Drill

Description:

* Free speed: 1700rpm

* Air consumption:18scfm

* Noise: 81dB

* Exhaust: rear

* Weight: 0.9kg

* Length: 216mmL

CH150203 3/8” Reversible Air Angle Drill (Planetary cage gear system)

Description:

* With 3/8”-24T keyed drill chuck

* Spindle thread: 3/8”-24thread

* Free Speed: 12000rpm, recommended air pressure: 90PSI (6.2Bar)

* Air consumption:3.36cfm (24scfm)

* Air hose size: 3/8”

* Max. capacity: 3/8”

* Weight: 1.10kg

* Length: 212mmL

CH131254-R

1/4” Mini Air Reversible Drill

Features:

* Reversible bar on both sides – One hand operation.

* Composite housing – Light Weight/Prevent freezing.

* Improved muffler design

Specification:

* Motor HP: 0.25

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 2600rpm / 4500rpm

* Drilling cap.: 1/4”

* Air consumption: 3.2cfm

* Overall length: 155mm

* Weight: 0.54kg

* Air inlet: 1/4”

* Air hose: 3/8”

* Air pressure: 90 psi

Air Sander

Mini Sanders

CH131266-DS2 2” Mini Disc Sander

Description:

* Pad size: 2”

* Size: 120mmL x 66mm Height

* Free speed: 10,000rpm

* Spindle size: 1/4”-20T / M6x1.0P

* Air consumption: 2.3cfm

* Overall length: 120mm

* Weight: 0.42kg

* Air inlet: 1/4”

* Air hose: 3/8”

* Air pressure: 90psi

CH131266-O1, CH131266-O114, CH131266-O2 1” or 1-1/2” or 2” Orbital Sander

Specification:

* Pad size: 1” / 1-1/2” / 2”

* Size: 120mmL x 97mm Height

* Free speed: 10,000rpm

* Orbit Dia.: 2.5mm

* Spindle size: 1/4”-20T / M6x1.0P

* Air consumption: 2.3cfm

* Overall length: 120mm

* Weight: 0.48kg

* Air inlet: 1/4”

* Air hose: 3/8”

* Air pressure: 90psi

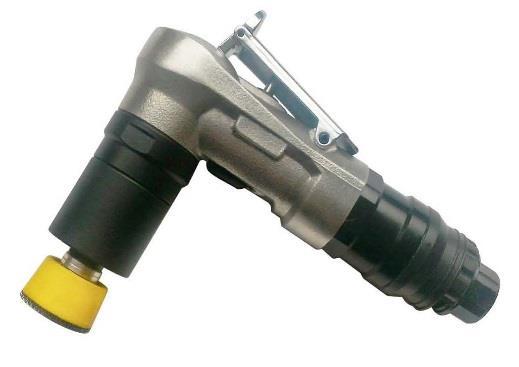

CH030734-2 Mini. Angle Random Orbital Sander

CH030734-3.5 Mini. Angle Random Orbital Sander

CH130749A Dual Action Sander

Description:

* Pad size: 2” or 3”

* Net weight: 0.74kg(1.63lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4"

* Free speed: 15,000rpm,

* Air pressure: 6kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 73dBA

* Measurement: L 178*H 95mm

CH130750A Dual Action Sander

Description:

* Pad size: 2” or 3”

* Net weight: 0.71kg(1.56lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4"

* Free speed: 15,000rpm,

* Air pressure: 6kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 73dBA

* Measurement: L 188*H 95mm

CH131255-D, CH131255-D1 2” or 3” Mini Disc Sander

Features:

* Two speed trigger: first section speed 12000rpm / second section speed 24000rpm.

* Composite housing light weight / prevent freezing.

* Improved muffler design / Low noise sound.

Specification:

* Pad size: 3” or 2”

* Motor HP: 0.25

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 24,000rpm

* Sanding pad capacity: 2” / 3”

* Spindle size: 1/4” – 20T

* Air consumption: 3.2cfm

* Overall length: 100mm

* Weight: 0.45kg

* Air inlet: 1/4”

* Air hose: 3/8”

CH131255, CH131255-1 3” Mini Air Sander

Features:

* Composite housing – Light Weight/Prevent freezing.

* Improved muffler design

Specification:

* Motor HP: 0.25

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 2600rpm / 4500rpm

* Sanding pad capacity: 3”

* Spindle size: 5/16” – 24T

* Air consumption: 3.2cfm

* Overall length: 100mm

* Weight: 0.47kg

* Air inlet: 1/4”

* Air hose: 3/8”

* Air pressure: 90 psi

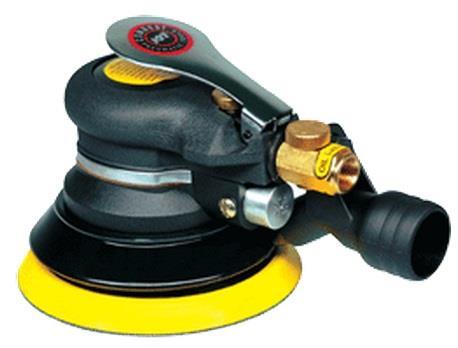

Random Orbital Sanders

CH030727-C5 5mm Random Orbital Sanders (Central-Vacuum type)

Feature:

Specification:

* Pad size: 5” (125mm)

* Dia. orbit: 5mm

* Noise Level: 80 dBA

* Weight: 0.9kgs(2Lbs)

* Rotation speed: 11,000RPM

* Air inlet: 1/4”

* Hose size: 10mm(3/8”)

* Air consumption: 1.6CFM

CH030727-N6 5mm Random Orbital Sanders (Non-Vacuum type)

Feature:

Specification:

* Pad size: 6” (150mm)

* Dia. orbit: 5mm

* Noise Level: 80 dBA

* Weight: 0.9kgs(2Lbs)

* Rotation speed: 11,000RPM

* Air inlet: 1/4”

* Hose size: 10mm(3/8”)

* Air consumption: 1.6CFM

CH030727-S6 5mm Random Orbital Sanders (Self-Generated Vacuum type)

Feature:

Specification:

* Pad size: 6” (150mm)

* Dia. orbit: 5mm

* Noise Level: 80 dBA

* Weight: 0.9kgs(2Lbs)

* Rotation speed: 11,000RPM

* Air inlet: 1/4”

* Hose size: 10mm(3/8”)

* Air consumption: 1.6CFM

CH130741D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or 6”)

* Net weight: 0.78kg(1.72lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Pad weight: 5”.100g/ 6”.120g

* Measurement: L 235*H 86mm

CH130741N Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or 6”)

* Net weight: 0.73kg(1.61lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 80dBA

* Pad weight: 5”.100g/ 6”.120g

* Measurement: L 155*H 86mm

CH130741V Central Vacuum D/A Sander

Description:

* Pad size: 123 or 148mm(5"or 6”)

* Net weight: 0.77kg(1.69lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 81dBA

* Pad weight: 5”.100g/ 6”.120g

* Measurement: L 197*H 86mm

CH130731D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.9 kg(1.98lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 84dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 165*H 90mm

CH130731N Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.9 kg(1.98lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 81dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 163*H 90mm

CH130731V Central Vacuum D/A Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.9 kg(1.98lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 82dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 194*H 90mm

CH130730D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.9 kg(1.98lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 84dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 163*H 90mm

CH130730N Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.9 kg(1.98lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 81dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 163*H 90mm

CH130730V Central Vacuum D/A Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.9 kg(1.98lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 82dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 194*H 90mm

CH130738D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.9 kg(1.98lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 84dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 162*H 90mm

CH130738N Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.9 kg(1.98lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 81dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 162*H 90mm

CH130732D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 1.0kg(2.20lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 84dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 231*H 89mm

CH130732N Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 1.0 kg(2.20lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 80dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 157*H 89mm

CH130732V Central Vacuum D/A Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 1.0 kg(2.20lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 81dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 195*H 89mm

CH130733D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.96kg(2.11lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 234*H 89mm

CH130733N Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.96 kg(2.11lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 152*H 89mm

CH130733V Central Vacuum D/A Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.94 kg(2.07lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 193*H 89mm

CH130739D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.96kg(2.11lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 232*H 86mm

CH130739N

Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.91kg(2.01lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 80dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 233*H 86mm

CH130739V

Central Vacuum D/A Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.95 kg(2.09lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 81dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 198*H 86mm

CH130739V1 Central Vacuum D/A Sander

Description:

* Pad size: 148mm(6")

* Net weight: 0.95 kg(2.09lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 81dBA

* Pad weight: 6":120g

* Measurement: L 198*H 86mm

CH130734V1 Central Vacuum D/A Sander

Description:

* Pad size: 148mm(6")

* Net weight: 0.77 kg(1.69lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 80dBA

* Pad weight: 6":120g

* Measurement: L 246*H 86mm

CH130734D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.78kg(1.72lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 85dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 246*H 86mm

CH130734N

Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.78kg(1.72lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 79dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 153*H 86mm

CH130734V

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 0.77 kg(1.69lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 80dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 246*H 86mm

Central Vacuum D/A Sander

CH130728D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 1.2 kg(2.64lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 162*H 100mm

CH130728N Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 1.2 kg(2.64lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 80dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 152*H 100mm

CH130736D Dust Free Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 1.2 kg(2.64lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 162*H 100mm

CH130736N Dual Action Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 1.2 kg(2.64lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 80dBA

* Pad weight: 5":100g/6":110g

* Measurement: L 152*H 100mm

CH130740D3

Description:

* Pad size: 73mm(3")

* Net weight: 0.92kg(2.02lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 80dBA

* Pad weight: 80g

* Measurement: L 215*H 96mm

CH130740N3

Description:

* Pad size: 73mm(3")

* Net weight: 0.86kg(1.89lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 83dBA

* Pad weight: 80g

* Measurement: L 130*H 93mm

Description:

* Pad size: 73mm(3")

* Net weight: 0.96kg(2.11lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 81dBA

* Pad weight: 80g

* Measurement: L 180*H 96mm

CH130735D3

Description:

* Pad size: 73mm(3")

* Net weight: 0.72kg(1.58lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 85dBA

* Pad weight: 80g

* Measurement: L 210*H 93mm

Dust Free Dual Action Sander

Dual Action Sander

CH130740V3 Central Vacuum D/A Sander

Dust Free Dual Action Sander

CH130735N3 Dual Action Sander

Description:

* Pad size: 73mm(3")

* Net weight: 0.67kg(1.47lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 79dBA

* Pad weight: 80g

* Measurement: L 153*H 89mm

CH130735V3 Central Vacuum D/A Sander

Description:

* Pad size: 73mm(3")

* Net weight: 0.71kg(1.56lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 12,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 80dBA

* Pad weight: 80g

* Measurement: L 182*H 96mm

CH130745D Dust Free Palm Orbital Sander

Description:

* Pad size: 123 mm(5")

* Net weight: 0.9kg(1.98lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 9,000rpm,

* Air pressure: 4-5kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 83dBA

* Measurement: L 164*H 70mm

CH130745N Palm Orbital Sander

Description:

* Pad size: 123 mm(5")

* Net weight: 0.9kg(1.98lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 9,000rpm,

* Air pressure: 4-5kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 165*H 70mm

Description:

* Pad size: 148mm (6”)

* Net weight: 2.3g(5.06lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 7,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 84dBA

Description:

* Pad size: 123 or 148mm (5” or 6”)

* Net weight: 1.4g(3.08lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 82dBA

* Pad weight: 5”.100g/ 6”. 120g

* Measurement: L 185*H 105mm

Description:

* Pad size: 123 or 148mm (5” or 6”)

* Net weight: 1.6g(3.52lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 10mm (3/8”)

* Noise level: 83dBA

* Pad weight: 5”.100g/ 6”. 120g

* Measurement: L 241*H 115mm

Description:

* Pad size: 123 or 148mm (5” or 6”)

* Net weight: 1.9g(4.18lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 10mm (3/8”)

* Noise level: 83dBA

* Pad weight: 5”.100g/ 6”. 120g

* Measurement: L 284*H 115mm

CH130702D Dust Free Dual Action Sander

CH130703N Dual Action Sander

CH130704N Dual Action Sander

CH130705D Dust Free Dual Action Sander

CH130705V

Vacuum D/A Sander

Description:

* Pad size: 123 or 148mm(5"or6")

* Net weight: 1.96 kg(4.31lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8"

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 10mm (3/8”)

* Noise level: 81dBA

* Pad weight: 5":100g/6":120g

* Measurement: L 284*H 115mm

CH130715N

Description:

* Pad size: 123 or 148mm (5” or 6”)

* Net weight: 1.4g(3.08lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 82dBA

* Pad weight: 5”.100g/ 6”. 120g

* Measurement: L 185*H 105mm

CH130716N

Description:

* Pad size: 123 or 148mm (5” or 6”)

* Net weight: 1.69g(3.72lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 10,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Pad weight: 5”.100g/ 6”. 120g

* Measurement: L 241*H 115mm

Central

Dual Action Sander

Dual Action Sander

Mini Jitterbug Sanders

CH130729D

Description:

* Pad size: 74x 145mm (3” x 6”)

* Net weight: 1.2g(2.64lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 8,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 85dBA

* Measurement: L 168*H 90mm

Description:

* Pad size: 74x 145mm (3” x 6”)

* Net weight: 1.2g(2.64lbs)

* Avg. air cons.: 0.34m³/min(12CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 8,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 85dBA

* Measurement: L 168*H 90mm

Description:

* Pad size: 73x 98mm (3” x 4”)

* Net weight: 0.85g(1.87lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9,000rpm,

* Air pressure: 4-5kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 150*H 70mm

Description:

* Pad size: 73x 98mm (3” x 4”)

* Net weight: 0.76g(1.67lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9,000rpm,

* Air pressure: 4-5kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 150*H 75mm

Dust Free Mini Orbital Sander

CH130737D Dust Free Mini Orbital Sander

CH130746N Palm Orbital Sander

CH130748NM34 Mini Orbital Sander

Heavy Duty Jitterbug Sanders

CH191620-B4D Large Orbital Sander (Self-Vac)

Specification:

* Pad size: 95x 300mm

* Net weight: 2.5g(5.51lbs)

* Avg. air cons.: 3.5CFM

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 6,000rpm

* Orbit diameter: 5mm (3/16”)

* Overall length: 300mm

* Vac Type: self-vac

CH191621-A4 Large Orbital Sander (Self-Vac)

Specification:

* Pad size: 98x 400mm

* Net weight: 2.8g(6.17lbs)

* Avg. air cons.: 3.5CFM

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 8,000rpm

* Orbit diameter: 5mm (3/16”)

* Overall length: 400mm

* Vac Type: self-vac

CH130707D Dust Free Orbital Sander

Description:

* Pad size: 112x 220mm (4-1/2” x 8-1/2”)

* Net weight: 2.2g(4.84lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 8,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 5mm (3/16”)

* Noise level: 85dBA

* Measurement: L 300*H 120mm

CH130712V

Description:

* Pad size: 93x 176mm (3-1/2” x 7”)

* Net weight: 1.1g(2.42lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 80dBA

* Measurement: L 222*H 100mm

Central Vacuum Orbital Sander

CH130713N

Description:

* Pad size: 93x 176mm (3-1/2” x 7”)

* Net weight: 1.2g(2.64lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 79dBA

* Measurement: L 183*H 100mm

CH130714N

Description:

* Pad size: 93x 176mm (3-1/2” x 7”)

* Net weight: 1.2g(2.64lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 79dBA

* Measurement: L 183*H 100mm

CH130789D

Description:

* Pad size: 93x 176mm (3-1/2” x 7”)

* Net weight: 1.1g(2.42lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 83dBA

* Measurement: L 257*H 100mm

CH130711N Orbital Sander

Description:

* Pad size: 93x 176mm (3-1/2” x 7”)

* Net weight: 1.1g(2.42lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9,000rpm,

* Air pressure: 6.3kg/cm2 (90psi)

* Orbit diameter: 2.5mm (3/32”)

* Noise level: 83dBA

* Measurement: L 181*H 100mm

Orbital Sander

Orbital Sander

Dust Free Orbital Sander

Finger Sanders

Description:

* Pad size: 1. 22x 50mm

2. 17x 65mm

3. 17x 65mm

* Net weight: 0.82g(1.8lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4"

* Free speed: 13,000rpm,

* Air pressure: 6kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 200*H 100mm

Description:

* Pad size: 1. 22x 50mm

2. 17x 65mm

3. 17x 65mm

* Net weight: 0.82g(1.8lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4"

* Free speed: 13,000rpm,

* Air pressure: 6kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 200*H 100mm

Description:

* Pad size: 1. 22x 50mm

2. 17x 65mm

3. 17x 65mm

* Net weight: 0.82g(1.8lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4"

* Free speed: 13,000rpm,

* Air pressure: 6kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 200*H 100mm

CH130720A Finger Sander

CH130721A Finger Sander

CH130721B Finger Sander

CH130753A Detail Sander

Description:

* Pad size: 30mm

* Net weight: 0.58g(1.28lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4"

* Free speed: 7500rpm,

* Air pressure: 6.3kg/cm2

* Orbit diameter: 1.5mm (1/16”)

* Noise level: 82dBA

* Measurement: L 200*H 75mm

CH1307424N Long Finger Sander

Description:

* Pad size: 30 x 60mm

* Net weight: 0.9g(1.98lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9000rpm,

* Air pressure: 4-5kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 289*H 70mm

Line Sanders

CH130717

Description:

* Pad size: 57x 100mm

* Net weight: 0.7g(1.54lbs)

* Avg. air cons.: 0.11m³/min(3.9CFM)

* Stroke speed: 4000 min-¹

* Stroke: 4mm

* Air inlet: 1/4"

* Air pressure: 6kg/cm2

* Noise level: 81dBA

* Measurement: L 157*H 75mm

Line Sander

Belt Sanders

CH191627 Belt Sander (10x330mm)

Specification:

* Wheel type: Steel

* Belt size: 10 x330mm (with 3pcs belts: #80, #100, #120)

* Free Speed: 16000rpm

* Overall length: 295mmL

* Air consumption: 4CFM

* Air Inlet(PT/NPT): 1/4”

* Air Hose (ID): 3/8”

* Weight: 0.95kgs

Optional belt arms:

CH191627-AA

CH191627-AD

CH191627-BB

CH191627-BF

CH191627-BG

Contact arm assy for belt wide 8& 10

Contact arm assy for belt wide 10& 12

Contact arm assy for belt wide 3

Contact arm assy for belt wide 8& 10

Contact arm assy for belt wide 3 & 5

CH191627-BH

Contact arm assy for belt wide 5 & 6

CH191627-CC

CH191627-DE

Contact arm assy for belt wide 10 & 12

Contact arm assy for belt wide 8 & 10

* * Also have a whole set-CH191627-K, included 7pcs belt arm and 3pcs belts( #80, #100, #120).

CH191623-A、CH191623-B、CH191623-C Belt Sander

* With 3pcs belts: #80, #100, #120

CH191604、CH191604-A1、CH191604-N Belt Sander

* With 3pcs belts: #80, #100, #120

CH191604-A、

Belt Sander

*

belts: #80,

CH191604-B、CH191604-C Belt Sander

Specification:

* With 3pcs belts: #80, #100, #120

CH191624-A、CH191624-N Belt Sander

Specification:

* With 3pcs belts: #80, #100, #120

CH191624-N1, CH191624-N2 Belt Sander Specification:

* With 3pcs belts: #80, #100, #120

CH191624-N3, CH191624-N4, CH191624-N5 Belt Sander

CH191624-N6,CH191624-N7 Belt Sander

CH191625-2A,CH191625-2N Belt Sander

Specification:

* With 3pcs belts: #80, #100, #120

CH191625-3A,CH191625-3N Belt Sander

Specification:

* With 3pcs belts: #80, #100, #120

CH191628 Belt Sander(20 x 520mm)

Specification:

* Wheel type: Rubber

* Belt size: 20 x 520mm (with 3pcs belts :#80, #100, #120)

* Free Speed: 17000rpm

* Overall length: 407mmL

* Air consumption: 4CFM

* Air Inlet(PT/NPT): 1/4”

* Air Hose (ID): 3/8”

* Weight: 1.33kgs

CH191628-A, CH191628-N Belt Sander(20 x 520mm)

Specification: Item No.

* With 3pcs belts: #80, #100, #120

CH191628-A1 Belt Sander(20 x 520mm)

Specification:

* Wheel type: Rubber

* Belt size: 20 x 520mm (With 3pcs belts: #80, #100, #120)

* Free Speed: 17000rpm

* Overall length: 407mmL

* Air consumption: 4CFM

* Air Inlet(PT/NPT): 1/4”

* Air Hose (ID): 3/8”

* Weight: 1.33kgs

CH191628-A2 Belt Sander(20 x 520mm)

Specification:

* Wheel type: Rubber

* Belt size: 20 x 520mm (With 3pcs belts: #80, #100, #120)

* Free Speed: 17000rpm

* Overall length: 407mmL

* Air consumption: 4CFM

* Air Inlet(PT/NPT): 1/4”

* Air Hose (ID): 3/8”

* Weight: 1.33kgs

CH191628-N1 Belt Sander(20 x 330mm)

Specification:

* Wheel type: Steel

* Belt size: 20 x 330mm (With 3pcs belts: #80, #100, #120)

* Free Speed: 17000rpm

* Overall length: 325mmL

* Air consumption: 4CFM

* Air Inlet(PT/NPT): 1/4”

* Air Hose (ID): 3/8”

* Weight: 0.9kgs

CH191628-N2 Belt Sander(20 x 520mm)

Specification:

* Wheel type: Steel

* Belt size: 20 x 520mm (With 3pcs belts: #80, #100, #120)

* Free Speed: 17000rpm

* Overall length: 407mmL

* Air consumption: 4CFM

* Air Inlet(PT/NPT): 1/4”

* Air Hose (ID): 3/8”

* Weight: 0.99kgs

CH131211 Air belt sander (10x330mm) w/3pcs belts(#80,100 & 120)

Description:

* Free speed: 16000rpm

* air consumption: 4cfm

* overall length: 320mm

* net weight: 0.95kg

* air inlet: 1/4"

* body: aluminum

CH131211-2 Air belt sander (20x520mm) w/2pcs belts(#80 &100)

Description:

* Free speed: 16000rpm

* air consumption: 4cfm

* overall length: 430mm

* net weight: 1.4kg

* air inlet: 1/4"

* body: aluminum

CH191626, CH191626-3A, CH191626-3G Belt Sander

CH191626-4A, CH191626-4G Belt Sander

CH030726-E

Feature:

* With special designed arm, ideal for processing on arc surfaces.

* Quick belt release button and adjustable arm.

* Two color composite housing

* Open piece arm design. Specification:

Belt Sander

CH030726-B Belt Sander

Feature:

* Quick belt release button and adjustable arm.

* Two color composite housing

* Open piece arm design.

CH130783 Mini Belt Sander

Specification:

Description:

* Belt speed: 800m/min

* Belt size: 60 x 260mm

* Net weight: 1.1g(2.42lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Air inlet: 1/4"

* Free speed: 7000rpm

* Air pressure: 6.3kg/cm2

* Roller size: 60mm x 50Ø

* Noise level: 89dBA

* Measurement: L 170*H 115mmx W100mm

Tri Sanders

Description:

* Pad size: 70x 77mm

* Net weight: 0.83g(1.83lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4"

* Free speed: 13000rpm

* Air pressure: 6kg/cm2

* Orbital diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 218*H 95mm

Description:

* Net weight: 0.75g(1.65lbs)

* Avg. air cons.: 0.35m³/min(12.4CFM)

* Air inlet: 1/4"

* Free speed: 16000rpm

* Air pressure: 6kg/cm2

* Orbital diameter: 3mm (3/32”)

* Noise level: 83dBA

* Measurement: L 235*H 92mm

Description:

* Pad size: 70x 77mm

* Net weight: 0.83g(1.83lbs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4"

* Free speed: 13000rpm

* Air pressure: 6kg/cm2

* Orbital diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 218*H 95mm

Description:

* Pad size: 70x 100mm

* Net weight: 0.7g(1.54lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9000rpm

* Air pressure: 4-5kg/cm2

* Orbital diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 163*H 73mm

CH130723B Tri Sander

CH130751 Tri Sander

CH130725A Tri Sander

CH130748T34 Tri Sander

CH130748T45 Tri Sander

Description:

* Pad size: 90x 130mm

* Net weight: 0.7g(1.54lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4", Hose size: 3/8”

* Free speed: 9000rpm

* Air pressure: 4-5kg/cm2

* Orbital diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 163*H 73mm

Polisher Sanders

CH030731-3 0.5HP Angle Sander

Feature:

* Complete range of optional adaptors

* Long-lasting needle pinion bearing

* Thrust bearing for high loading

Specification:

CH030732-35 0.35HP Angle Sander

Feature:

* Ergonomic grip

* Low noise design

* Low profile enable operation in tight areas. Ex. Bumper of supercars.

Other available length: 10.27 In.(261mm)

CH030732

Feature:

* Ergonomic grip

* Low noise design

* Low profile enable operation in tight areas. Ex. Bumper of supercars.

Specification:

* Pad size: 2”or 3”

* Weight: 1.52Lbs.(0.7kg)

* Length:7.7in.(195mm)

* Noise level: 84dBA

* Rotation speed: 14,000rpm

* Air inlet: 1/4”

* Hose size: 3/8” (10mm)

* Avg. air cons.: 3.3CFM

CH130784

Description:

* Net weight: 1.05g(2.31lbs)

* Avg. air cons.: 0.3m³/min(10.6CFM)

* Free speed: 15000rpm

* Air pressure: 6.3kg/cm2 (90psi)

* Noise level: 89dBA

* Measurement: L 180*H 142mm

0.5HP Angle Sander

Roll Polisher

Gear Driven Sanders

CH130708DGS Central Vacuum Gear Action Sander

Description:

* Pad size: 148mm (6”)

* Net weight: 1.88kgs (4.1Ibs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4”, Hose size: 3/8”

* Free speed: 900rpm

* Air pressure: 6.3kg/cm2

* Orbit diameter: 5mm (3/16”)

* Noise level: 86dBA

* Measurement: L 266*H 120mm

CH130708VGS Central Vacuum Gear Action Sander

Description:

* Pad size: 148mm (6”)

* Net weight: 1.94kgs (4.27Ibs)

* Avg. air cons.: 0.4m³/min(14.1CFM)

* Air inlet: 1/4”, Hose size: 3/8”

* Free speed: 900rpm

* Air pressure: 6.3kg/cm2

* Orbit diameter: 5mm (3/16”)

* Noise level: 83dBA

* Measurement: L 285*H 120mm

Wet Sanders

CH130745W Wet Palm Orbital Sander

Description:

* Pad size: 123mm (5”)

* Net weight: 0.92kgs (2.02Ibs)

* Avg. air cons.: 0.2m³/min(7.1CFM)

* Air inlet: 1/4”, Hose size: 3/8”

* Free speed: 8000rpm

* Air pressure: 4-5kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 165*H 70mm

CH130746W Wet Palm Orbital Sander

Description:

* Pad size: 73 x 98 mm (3”x 4”)

* Net weight: 0.92kgs (2.02Ibs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4”, Hose size: 3/8”

* Free speed: 8000rpm

* Air pressure: 4-5kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 150*H 70mm

CH130747W Wet Palm Orbital Sander

Description:

* Pad size: 73 x 140 mm (3”x 6”)

* Net weight: 0.93kgs (2.05lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4”, Hose size: 3/8”

* Free speed: 8000rpm

* Air pressure: 4-5kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 174*H 70mm

CH130748W Wet Palm Orbital Sander

Description:

* Pad size: 73 x 98 mm (3”x 4”)

* Net weight: 0.73kgs (1.61lbs)

* Avg. air cons.: 0.26m³/min(9.2CFM)

* Air inlet: 1/4”, Hose size: 3/8”

* Free speed: 7000rpm

* Air pressure: 5-7kg/cm2

* Orbit diameter: 3mm (3/32”)

* Noise level: 81dBA

* Measurement: L 150*H 75mm

CH130752A1

Description:

* Net weight: 1.36kgs (2.99lbs)

* Avg. air cons.: 0.22m³/min(7.8CFM)

* Air inlet: 1/4”, Hose size: 6.5mm

* Water pipe: 4mm

* Max. speed: 4500rpm

* Air pressure: 6.3kg/cm2

* Spindle thread: 5/8-11”, M4, M16mm

* Noise level: 86dBA

* Vibration: <2.5m/sec2

* Length: 230mm

CH130752A2 Wet Sander

Description:

* Net weight: 1.74kgs (3.83lbs)

* Avg. air cons.: 0.23m³/min(8.15CFM)

* Air inlet: 1/4”, Hose size: 6.5mm

* Water pipe: 4mm

* Max. speed: 5000rpm

* Air pressure: 6.3kg/cm2

* Spindle thread: 5/8-11”, M4, M16mm

* Noise level: 84dBA

* Vibration: <2.5m/sec2

* Length: 265mm

Free Sanders

CH130743 Palm Sander

Description:

* Pad size: 75 x 82mm (3” x 3-1/8”)

* Net weight: 0.5kgs (1.1lbs)

* Avg. air cons.: 0.02m³/min(0.8CFM)

* Free. speed: 15000rpm

* Air pressure: 6kg/cm2

* Orbit diameter: max. 1.2mm

* Noise level: 77dBA

* Measurement: L148 x H75mm

CH130744 Palm Sander

Description:

* Pad size: 100 x 110mm (4” x 4-3/8”)

* Net weight: 0.5kgs (1.1lbs)

* Avg. air cons.: 0.03m³/min(1.0CFM)

* Free. speed: 20000rpm

* Air pressure: 6kg/cm2

* Orbit diameter: max. 1.5mm

* Noise level: 84dBA

* Measurement: L130 x H80mm

Wet Sander

Accessories for Sanders

CH130759661 New Style Patented Sanding Pad

Description:

* Six-honeycomb style on the side can raise vacuming purpose. * Both six-hole and eight-hole sandpaper are available (Two functions in one).

* Specification, Accessories and Color will be as standard as real substance.

Aluminum Plate

Description:

* No.10

。

CH1307613A51

Size: 3-1/2” , back of pad: FRP, thread size: 5/16”-24 ,face of pad: Vinyl face, thickness:16mm, weight: 80g

。

CH1307613A52

Size: 3-1/2” , back of pad: FRP, thread size: 5/16”-24 ,face of pad: hook face, thickness:16mm, weight: 80g

* No.11

。

CH1307614051

Size:4”(100mm) , back of pad: FRP, thread size: 5/16”24 ,face of pad: Vinyl face, thickness:15mm, weight: 90g

。

CH1307614052

Size:4”(100mm) , back of pad: FRP, thread size: 5/16”24 ,face of pad: hook face, thickness:15mm, weight: 90g

* No.12

。

CH130761A01

back of pad: FRP, face of pad: Vinyl face, thickness:10mm, weight: 20g

。

CH130761A02

back of pad: FRP, face of pad: Hook face, thickness:10mm, weight: 20g

* No.13

。

CH130761A11

back of pad: FRP, face of pad: Vinyl face, thickness:10mm, weight: 20g

。

CH130761A12

back of pad: FRP, face of pad: Hook face, thickness:10mm, weight: 20g

* No.14

。

CH130761B01

back of pad: FRP, face of pad: Vinyl face, thickness: 9mm, weight: 20g

。

CH130761B02

back of pad: FRP, face of pad: Hook face, thickness: 9mm, weight: 20g

* No.15

。

CH130761B11

back of pad: FRP, face of pad: Vinyl face, thickness: 9mm, weight: 20g

。

CH130761B12

back of pad: FRP, face of pad: Hook face, thickness: 9mm, weight: 20g

Fiber Reinforced Plastics (F.R.P.)

Description:

* No.1

。

CH1307601061

Size:1”(25mm) , back of pad: Aluminum, thread size: M6 x P1.0 ,face of pad: Vinyl face, thickness:10mm, weight: 8g

。

CH1307601062

Size:1”(25mm) , back of pad: Aluminum, thread size: M6 x P1.0 ,face of pad: Hook face, thickness:10mm, weight: 8g

。

CH1307601041

Size:1”(25mm) , back of pad: Aluminum, thread size: 1/4”20 ,face of pad: Vinyl face, thickness:10mm, weight: 9g

。

CH1307601042

Size:1”(25mm) , back of pad: Aluminum, thread size: 1/4”20 ,face of pad: Hook face, thickness:10mm, weight: 9g

* No.2

。

CH1307601A61

Size: 30mm, back of pad: Aluminum, thread size: M6 x P1.0 ,face of pad: Vinyl face, thickness:10mm, weight: 10g

。

CH1307601A62

Size: 30mm, back of pad: Aluminum, thread size: M6 x P1.0 ,face of pad: Hook face, thickness:10mm, weight: 10g

。

CH1307601A41

Size: 30mm, back of pad: Aluminum, thread size: 1/4”20 ,face of pad: Vinyl face, thickness:10mm, weight: 11g

。

CH1307601A42

Size: 30mm, back of pad: Aluminum, thread size: 1/4”20 ,face of pad: Hook face, thickness:10mm, weight: 11g

* No.3

。

CH1307602061

Size: 2”(50mm), back of pad: Aluminum, thread size: M6 x P1.0 ,face of pad: Vinyl face, thickness:10mm, weight: 20g

。

CH1307602062

Size: 2”(50mm), back of pad: Aluminum, thread size: M6 x P1.0 ,face of pad: Hook face, thickness:10mm, weight: 20g

。

CH1307602051

Size: 2”(50mm), back of pad: Aluminum, thread size: 5/16”24 ,face of pad: Vinyl face, thickness:10mm, weight: 20g

。

CH1307602052

Size: 2”(50mm), back of pad: Aluminum, thread size: 5/16”24 ,face of pad: Hook face, thickness:10mm, weight: 20g

。

CH1307602041

Size: 2”(50mm), back of pad: Aluminum, thread size: 1/4”20 ,face of pad: Vinyl face, thickness:10mm, weight: 20g

。

CH1307602042

Size: 2”(50mm), back of pad: Aluminum, thread size: 1/4”20 ,face of pad: Hook face, thickness:10mm, weight: 20g

。

CH1307602001

。

。

。

Size: 2”(50mm), back of pad: Aluminum, thread size: M6 ,face of pad: Vinyl face, thickness:10mm, weight: 20g

CH1307602002

Size: 2”(50mm), back of pad: Aluminum, thread size: M6 ,face of pad: Hook face, thickness:10mm, weight: 20g

CH1307602011

Size: 2”(50mm), back of pad: Aluminum, thread size: 1/4” ,face of pad: Vinyl face, thickness:10mm, weight: 20g

CH1307602012

Size: 2”(50mm), back of pad: Aluminum, thread size: 1/4” ,face of pad: Hook face, thickness:10mm, weight: 20g

* No.4

。

CH1307602151

Size: 2”(50mm), back of pad: Aluminum, thread size: 5/16”24 ,face of pad: Vinyl face, thickness:10mm, weight: 17g

。

CH1307602152

Size: 2”(50mm), back of pad: Aluminum, thread size: 5/16”24 ,face of pad: Hook face, thickness:10mm, weight: 17g

* No.5

。

CH1307603161

Size: 3”(75mm), back of pad: Aluminum, thread size: M6 x P1.0 ,face of pad: Vinyl face, thickness:11mm, weight: 25g

。

CH1307603162

Size: 3”(75mm), back of pad: Aluminum, thread size: M6 x P1.0 ,face of pad: Hook face, thickness:11mm, weight: 25g

。

CH1307603151

Size: 3”(75mm), back of pad: Aluminum, thread size: 5/16”24 ,face of pad: Vinyl face, thickness:11mm, weight: 25g

。

CH1307603152

Size: 3”(75mm), back of pad: Aluminum, thread size: 5/16”24 ,face of pad: Hook face, thickness:11mm, weight: 25g

。

CH1307603141

Size: 3”(75mm), back of pad: Aluminum, thread size: 1/4”20 ,face of pad: Vinyl face, thickness:11mm, weight: 25g

。

CH1307603142

Size: 3”(75mm), back of pad: Aluminum, thread size: 1/4”20 ,face of pad: Hook face, thickness:11mm, weight: 25g

。

CH1307603101

Size: 3”(75mm), back of pad: Aluminum, thread size: M6,face of pad: Vinyl face, thickness:11mm, weight: 25g

。

CH1307603102

Size: 3”(75mm), back of pad: Aluminum, thread size: M6 ,face of pad: Hook face, thickness:11mm, weight: 25g

。

CH1307603111

Size: 3”(75mm), back of pad: Aluminum, thread size: 1/4”,face of pad: Vinyl face, thickness:11mm, weight: 25g

。

CH1307603112

Size: 3”(75mm), back of pad: Aluminum, thread size: 1/4”,face of pad: Hook face, thickness:11mm, weight: 25g

* No.6

。

CH1307603251

Size: 3”(75mm), back of pad: Aluminum, thread size: 5/16”24,face of pad: Vinyl face, thickness:11mm, weight: 23g

。

CH1307603252

Size: 3”(75mm), back of pad: Aluminum, thread size: 5/16”24,face of pad: Hook face, thickness:11mm, weight: 23g

* No.7

。

CH1307612061

Size: 2”(50mm), back of pad: FRP, thread size:M6 x P1.0 ,face of pad: Vinyl face, thickness:10mm, weight: 22g

。

CH1307612062

Size: 2”(50mm), back of pad: FRP, thread size:M6 x P1.0 ,face of pad: Hook face, thickness:10mm, weight: 22g

。

CH1307612051

Size: 2”(50mm), back of pad: FRP, thread size: 5/16”-24 ,face of pad: Vinyl face, thickness:10mm, weight: 22g

。

CH1307612052

Size: 2”(50mm), back of pad: FRP, thread size: 5/16”-24 ,face of pad: Hook face, thickness:10mm, weight: 22g

。

CH1307612041

Size: 2”(50mm), back of pad: FRP, thread size: 1/4”-20, face of pad: Vinyl face, thickness:10mm, weight: 22g

。

CH1307612042

Size: 2”(50mm), back of pad: FRP, thread size: 1/4”-20, face of pad: Hook face, thickness:10mm, weight: 22g

* No.8

。

CH1307613161

Size: 3”(75mm), back of pad: FRP, thread size: M6 x P1.0, face of pad: Vinyl face, thickness:11mm, weight: 28g

。

CH1307613162

Size: 3”(75mm), back of pad: FRP, thread size: M6 x P1.0, face of pad: Hook face, thickness:11mm, weight: 28g

。

CH1307613151

Size: 3”(75mm), back of pad: FRP, thread size: 5/16”-24, face of pad: Vinyl face, thickness:11mm, weight: 28g

。

CH1307613152

Size: 3”(75mm), back of pad: FRP, thread size: 5/16”-24, face of pad: Hook face, thickness:11mm, weight: 28g

。

CH1307613141

Size: 3”(75mm), back of pad: FRP, thread size: 1/4”-20, face of pad: Vinyl face, thickness:11mm, weight: 28g

。

CH1307613142

Size: 3”(75mm), back of pad: FRP, thread size: 1/4”-20, face of pad: Hook face, thickness:11mm, weight: 28g

* No.9 。

CH1307613051

Size: 3”(75mm), back of pad: FRP, thread size: 5/16”-24, face of pad: Vinyl face, thickness:13mm, weight: 80g

。

CH1307613052

Size: 3”(75mm), back of pad: FRP, thread size: 5/16”-24, face of pad: Hook face, thickness:13mm, weight: 80g

Air Grease Gun

CH141603 Transparent Air Grease Gun

Description:

* Capacity: 400 c.c. bulk/ 14oz. cartridge.

* Continuous flow

* 360 ﾟ rotating handle

* A transparent window on the grease gun tube

* A press button with a smart air pocket releasing valve

Specification:

* Air Source Range

-Input pressure: 60 psi ~ 150 psi

-Output pressure: 2400 psi ~ 6000 psi

* Recommended Air Source

-Input pressure: 90 psi

-Output pressure: 3600 psi

* Other available size, item CH141603-L, capacity: 500 c.c. bulk/ 16oz. cartridge.

CH141603-CS 360° Rotating & Continuous Flow Gun

Description:

* Capacity: 400 c.c. bulk/ 14oz. cartridge.

* Continuous flow

* 360 ﾟ rotating handle

* A transparent window on the grease gun tube

* A press button with a smart air pocket releasing valve

Specification:

* Air Source Range

-Input pressure: 60 psi ~ 150 psi

-Output pressure: 2400 psi ~ 6000 psi

* Recommended Air Source

-Input pressure: 90 psi

-Output pressure: 3600 psi

* Other available size, item CH141603-CLS, capacity: 500 c.c. bulk/ 16oz. cartridge.

CH141603-K Transparent Air-operated Grease Gun Combination Kit

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

* Without a gun head adapter

Contents

* Transparent air-operated grease gun with a smart valve

* Manual grease gun head with a built-in air pocket releasing valve

* AW-401-18” Nylon hose with spring guard

Air Grease Range

* Continuous flow

* 360° rotating handle

* A press button with a smart air pocket releasing valve

Air Source Range

* Input pressure: 60 psi ~ 150 psi

* Output pressure: 2400 psi ~ 6000 psi

Recommended Air Source

* Input pressure: 90 psi

* Output pressure: 3600 psi

Manual Grease Gun

* A press button with a built-in air pocket releasing valve

* Long handle design for better leverage

CH141603-KBM Transparent Jiabara Type Air-Operated Grease Gun Combination Kit

Description:

* Capacity: 600c.c. bulk/ 400 c.c. Jiabara Cartridge

* Tube with a window

* A gun head adapter

Content:

* 1pc Transparent air-operated grease gun with a smart valve

* 1pc Manual grease gun head with a built-in air releasing valve

* 1pc 8" Nylon hose with spring guard

* 1pc Metallic Bent Spout

Air Grease Range:

* Continuous flow

* 360° rotating handle

* A Press button for smart air pocket releasing

Air Source Range

* Input pressure: 60 psi ~ 150 psi

* Output pressure: 2400 psi ~ 6000 psi

Recommended Air Source

* Input pressure: 90 psi

* Output pressure: 3600 psi

Manual Grease Gun

* Built-in air pocket releasing valve

* Long handle design for better leverage

CH141603-BM Transparent Air-Operated Grease Gun

Description:

* Capacity: 500c.c. bulk/ 400 c.c. Jiabara Cartridge

* Continuous flow

* 360° rotating handle

* Tube with a window

* A gun head adapter

* With an air pocket releasing valve

Air Source Range

* Input pressure: 60 psi ~ 150 psi

* Output pressure: 2400 psi ~ 6000 psi

Recommended Air Source

* Input pressure: 90 psi

* Output pressure: 3600 psi

CH141603-BMS 360° Rotating & Continuous Flow Grease Gun

Description:

* Capacity: 500c.c. bulk/ 400 c.c. Jiabara Cartridge

* Continuous flow

* 360° rotating handle

Air Source Range

* Input pressure: 60 psi ~ 150 psi

* Output pressure: 2400 psi ~ 6000 psi

Recommended Air Source

* Input pressure: 90 psi

* Output pressure: 3600 psi

CH141607 Continuous Flow

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

Specification:

* Air Source Range

-Input pressure: 60 psi ~ 150 psi

-Output pressure: 2400 psi ~ 6000 psi

* Recommended Air Source

-Input pressure: 90 psi

-Output pressure: 3600 psi

* Other available size, item CH141607-L, capacity: 500 c.c. bulk/ 16oz. cartridge.

CH141607-S Single Shot Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

Specification:

* Air Source Range

-Input pressure: 60 psi ~ 150 psi

-Output pressure: 2400 psi ~ 6000 psi

* Recommended Air Source

-Input pressure: 90 psi

-Output pressure: 3600 psi

* Other available size, item CH141607-SL, capacity: 500 c.c. bulk/ 16oz. cartridge.

CH141607-CBMS Continuous Flow Jiabara Type Grease Gun

Description:

* Capacity: 500c.c. bulk/ 400 c.c. Jiabara Cartridge

* Continuous flow

Air Source Range

* Input pressure: 60 psi ~ 150 psi

* Output pressure: 2400 psi ~ 6000 psi

Recommended Air Source

* Input pressure: 90 psi

* Output pressure: 3600 psi

Feature:

CH141607-BMS Single Shot Jiabara Type Grease Gun

Description:

* Capacity: 500c.c. bulk/ 400 c.c. Jiabara Cartridge

Air Source Range

* Input pressure: 60 psi ~ 150 psi

* Output pressure: 2400 psi ~ 6000 psi

Recommended Air Source

* Input pressure: 90 psi

* Output pressure: 3600 psi

Feature:

CH141608-V Transparent Lever Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

* A tube with a window

* A built-in air pocket releasing valve

* A long handle for better leverage

CH141608-N

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

* A built-in air pocket releasing valve

* A long handle for better leverage

CH141608-BM

Description:

* Capacity: 600c.c. bulk/ 400 c.c. Jiabara Cartridge

* Built in air pocket releasing valve

* Long handle for better leverage

Feature:

Professional Lever Grease Gun with Valve

Heavy-Duty Jiabara Type Grease Gun

CH141608-L

Description:

* Capacity: 500 c.c. Bulk / 16 oz. Cartridge

* A built-in air pocket releasing valve

* A long handle for better leverage

CH141608-BMV

Description:

* Capacity: 600c.c. bulk/ 400 c.c. Jiabara Cartridge

* Tube with a window

* Built in air pocket releasing valve

* Long handle for better leverage

Feature:

Professional Lever Grease Gun with Valve

Transparent Jiabara Type Grease Gun

CH141609-N Two-Piston Lever Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

CH141609-NL Two-Piston Lever Grease Gun

Description:

* Capacity: 500 c.c. Bulk / 16 oz. Cartridge

CH141610 Standard Lever Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

Feature:

CH141611

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

Feature:

CH141612

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

Feature:

Standard Lever Grease Gun

Standard Lever Grease Gun

CH141613 Heavy Duty Lever Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

* A long handle for better leverage

Feature:

CH141613-BM Heavy-Duty Jiabara Type Grease Gun

Description:

* Capacity: 600c.c. bulk/ 400 c.c. Jiabara Cartridge

* Different accessories have different working and Max. pressure.

Feature:

CH141614 Heavy Duty Lever Grease Gun

Description:

* Capacity: 150 c.c. Bulk

Feature:

CH141615-NS Heavy Duty Lever Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

* With a heavy duty follower rod handle

Feature:

CH141616-NS Extra Heavy Duty Lever Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

* With a heavy duty follower rod handle

Feature:

CH141617-NS Heavy Duty Lever Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

Feature:

CH141617-S Heavy Duty Lever Grease Gun

Description:

* Capacity: 400 c.c. Bulk / 14 oz. Cartridge

Feature:

CH141618 Mini. Lever Grease Gun

Description:

* Capacity: 200 c.c. Bulk

Feature:

CH141619 Mini. Lever Grease Gun

Description:

* Capacity: 80 c.c. Bulk

Feature:

CH141620 Lever Grease Gun

Description:

* Capacity: 300 c.c. Bulk

Feature:

CH141621 Lever Grease Gun

Description:

* Capacity: 120 c.c. Bulk

Feature:

CH141621-B Mini Jiabara Type Grease Gun

Description:

* Capacity: 120 c.c. Bulk / 80 c.c. Jiabara Cartridge

Feature:

CH141622-B Mini Jiabara Type Grease Gun

Description:

* Capacity: 120 c.c. Bulk / 80 c.c. Jiabara Cartridge

Feature:

CH141622-B4 Mini Jiabara Type Grease Gun

Description:

* Capacity: 120 c.c. Bulk / 80 c.c. Jiabara Cartridge

Feature:

CH141622 Mini Pistol-Grip Grease Gun

Description:

* Capacity: 120c.c. bulk/ 3 oz. Cartridge

* Two direction outlets

Feature:

CH141622-4 Mini Pistol-Grip Grease Gun

Description:

* Capacity: 120c.c. bulk/ 3 oz. Cartridge

* Two direction outlets

Feature:

Contents:

* 1pc 9" High Pressure Nylon Hose

* 1pc Metallic Straight Spout

* 1pc Extension for Nylon Hose

* 1pc Grease Gun

CH141623-BM Jumbo Jiabara Type Grease Gun

Description:

* Capacity: 800 c.c. Bulk / 400 c.c. Jiabara Cartridge

Feature:

CH141624

Description:

* Capacity: 400 c.c. Jiabara Cartridge

* Different accessories have different working and Max. pressure.

Feature:

Standard JiabaraType Grease Gun

CH141624-M Standard JiabaraType Grease Gun

Description:

* Capacity: 600c.c. bulk/ 400 c.c. Jiabara Cartridge

* Different accessories have different working and Max. pressure.

Feature:

CH141624-ML Heavy Duty JiabaraType Grease Gun

Description:

* Capacity: 600 c.c. bulk/ 400 c.c. Jiabara Cartridge

Feature:

CH141624-V Vacuum Jiabara Type Grease Gun

Description:

* Capacity: 400 c.c. Jiabara Cartridge

* Vacuum grease gun tube with window

Feature:

CH141625-BM Heavy-Duty Jiabara Type Grease Gun

Description:

* Capacity: 400c.c. bulk/ 210 c.c. Jiabara Cartridge

* Different accessories have different working and Max. pressure.

Feature:

CH141626 Mini Pistol-Grip Grease Gun

Description:

* Capacity: 120c.c. bulk/ 3 oz. Cartridge

Feature:

CH141627-S & CH141627-LS Standard Pistol-Grip Grease Gun

Description:

* Capacity: 400c.c. bulk/ 14 oz. Cartridge

* Two direction outlets

Feature:

* Other available size, Item No.: CH141627-LS, Capacity: 500c.c. bulk/ 16 oz. Cartridge

CH141628-S & CH141628-LS Standard Pistol-Grip Grease Gun

Description:

* Capacity: 400c.c. bulk/ 14 oz. Cartridge

Feature:

* Other available size, Item No.: CH141628-LS, Capacity: 500c.c. bulk/ 16 oz. Cartridge

CH141628-SC & CH141628-LSC Standard Pistol-Grip Grease Gun

Description:

* Capacity: 400c.c. bulk/ 14 oz. Cartridge

Feature:

* Other available size, Item No.: CH141628-LSC, Capacity: 500c.c. bulk/ 16 oz. Cartridge

CH141629-NLSC Professional Pistol-Grip Grease Gun

Description:

* Capacity: 500c.c. bulk/ 16 oz. Cartridge

* The pistol grip lever make comfort and pumping efficient

Feature:

* Other available size, Item No.: CH141629-NSC, Capacity: 400c.c. bulk/ 14 oz. Cartridge

CH141630-NSC Two-way Operation Pistol-Grip Grease Gun

Description:

* Combining one-hand and two-hand operations in one gun, this pistol-grip grease gun gives users more options in application.

* Capacity: 400c.c. bulk/ 14 oz. Cartridge

* Standard accessory: AW-401-18"

* A black lever tip enhancing the grip

* Working pressure for one-hand operation: 3600 psi / Max.

pressure 8000 psi

* Working pressure for two-hand operation: 4500 psi / Max.

Pressure 10000 psi

Feature:

* Other available size, Item No.: CH141630-NLSC, Capacity: 400c.c. bulk/ 16 oz. Cartridge

Air Screwdriver

CH141201

Description:

* 2 steps throttle trigger of patent, it is accurate and convenient to control.

* Ergonomic designed for long time work without weary.

* Two hammer mechanism, vibration is small, suitable for Phillips screw works.

* Std. bolt capacity: M6~M8

* Torque: 45Nm/0.5sec.

* Impact mechanism : two hammer

* Free speed: 8000rpm

* Air consumption: 5.6 cfm (160 L/min)

* Air pressure: 91.1psi (6.2bar)

* Air inlet: 1/4”

* Air hose size: 1/4" (6.35 mm)

* Weight: 1kg

* Length: 198mm

CH141202

Description:

* Patent pented 2 steps throttle trigger for precise control

* Ergonomic designed for long time work without weary.

* Two hammer mechanism, vibration is small, suitable for Phillips screw works.

* Handle exhaust, 360° free rotating.

* Std. bolt capacity: M6~M8

* Impact mechanism : two hammer

* Free speed: 8500rpm

* Air consumption: 5.6 cfm (160 L/min)

* Air pressure: 90psi (6.2bar)

* Air inlet: 1/4”

* Air hose size: 1/4" (6.35 mm)

* Weight: 1.05kg

* Length: 172mm

1/4" Dr. Air Screwdriver

1/4" Dr. Air Screwdriver

CH140932-A 1/4" Air Screwdriver

Description:

* Max. torque: 5.65-15.25Nm

* Air consumption: 17scfm

* Free speed: 800rpm

* Noise: 82dB

* Exhaust: side (body: polish finish)

* Weight: 1.3kg

* Length: 241mm

CH131207 Adjustable Clutch Screwdriver (1800rpm)

Description:

* Free speed: 1800Rpm

* Hex shank size: 1/4"

* Air consumption: 4cfm

* Max. torque: 45-125 in-lbs

* Bolt capacity: 1/4"

* Weight: 1.2kg

* Length: 195mm (body: aluminum+plastic grip)

CH131242 External Adjust Clutch Plstol Screwdriver

Description:

* Motor HP: 0.4

* Capacity (blot size): 1/4”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 2100RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Max. Torque:45-125 In-Lb

* Overall length: 230mm

* Weight:1.39kgs

CH131243 Adjustable Clutch Screwdriver (2100RPM)

Description:

* Motor HP: 0.45

* Capacity (blot size): 1/4”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 2100RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Max. Torque:45-125 In-Lb

* Overall length: 195mm

* Weight:1.2kgs

CH131244

Description:

* Motor HP: 0.45

* Capacity (blot size): 1/4”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 800RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Max. Torque:45-160 In-Lb

* Overall length: 210mm

* Weight:1.3kgs

CH131245

Description:

* Motor HP: 0.45

* Capacity (blot size): 1/4”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 2100RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Max. Torque:45-125 In-Lb

* Overall length: 195mm

* Weight:1.2kgs

CH131246

Description:

* Motor HP: 0.45

* Capacity (blot size): 1/4”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 800RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Max. Torque:45-160 In-Lb

* Overall length: 210mm

* Weight:1.3kgs

CH131247

Description:

* Motor HP: 0.45

* Capacity (blot size): 1/4”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 2100RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Max. Torque:45-125 In-Lb

* Overall length: 195mm

* Weight:1.2kgs

Adjustable Clutch Screwdriver (800RPM)

External Adjustable Clutch Screwdriver (2100RPM)

External Adjustable Clutch Screwdriver (800RPM)

Positive Adjustable Clutch Screwdriver (2100RPM)

CH131248 Positive Adjustable Clutch Screwdriver (800RPM)

Description:

* Motor HP: 0.45

* Capacity (blot size): 1/4”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free speed: 800RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Max. Torque:45-160 In-Lb

* Overall length: 210mm

* Weight:1.3kgs

CH131207 & CH131207-L 1/4” Adjustable Clutch Screwdriver (2000RPM)

Description:

* Motor HP: 0.45

* Capacity(Blot size): CH131207,1/4”

CH131207-L, 1/4” long bit type

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 2000RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Air inlet: 1/4”

* Max torque: 45-125 In-Lb

* Net weight: 1.2kg

* Overall length: 195mm

CH131207-1 & CH131207-1L 1/4” Adjustable Clutch Screwdriver (800RPM)

Description:

* Motor HP: 0.45

* Capacity(Blot size): CH131207-1,1/4”

CH131207-1L, 1/4” long bit type

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 800RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Air inlet: 1/4”

* Max torque: 45-160 In-Lb

* Net weight: 1.25kg

* Overall length: 210mm

CH131231 External Adjustable Screwdriver (2000RPM)

Description:

* Motor HP: 0.45

* Capacity (Blot size): 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 2000RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Air inlet: 1/4”

* Max torque: 45-125 In-Lb

* Net weight: 1.2kg

* Overall length: 195mm

CH131232

External Adjustable Screwdriver (800RPM)

Description:

* Motor HP: 0.45

* Capacity (Blot size): 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 800RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Air inlet: 1/4”

* Max torque: 45-160 In-Lb

* Net weight: 1.25kg

* Overall length: 210mm

CH131233

Positive Adjustable Clutch Screwdriver (800RPM)

Description:

* Motor HP: 0.45

* Capacity (Blot size): 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 800RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Air inlet: 1/4”

* Max torque: 45-160 In-Lb

* Net weight: 1.25kg

* Overall length: 210mm

CH131234

Positive Clutch Screwdriver

Description:

* Motor HP: 0.45

* Capacity (Blot size): 1/4”

* Air exhaust: handle

* Sound level: 88dB

* Free Speed: 2100RPM

* Hex shank size: 1/4”

* Air consumption: 4CFM

* Air inlet: 1/4”

* Max torque: 115 In-Lb

* Net weight: 1.2kg

* Overall length: 210mm

CH131253

External Adjustable Clutch Screwdriver(2100rpm)

Feature:

* Capacity(bolt size): 1/4”

* Motor HP: 0.45

* Air exhaust: handle

* Sound level: 84 dB

* Free speed: 2100 rpm

* Hex shank: 1/4”

* Air consumption: 3.5CFM

* Max. torque: 45-140 in-Lb

* Overall length: 195mm

* Weight: 1.05kgs

* Air inlet: 1/4”

CH131264 1/4” Air Screwdriver (Pinless hammer type)

Features:

* Adjustable speed: 4300rpm / 5000rpm / 6800rpm / 8200rpm.

* 360 degree swivel rear exhaust silencer.

* Easily inserted in the pocket.

* Built-in comfort and non-slip handle grip.

Specification:

* Hex shank size: 1/4”

* Working torque: 7.5-70 ft/lbs (10-95Nm)

* Sound level: 87dB

* Free speed: 9500rpm

* Air consumption: 3.3cfm

* Overall length: 165mm

* Weight: 1kg

* Air inlet: 1/4”

* Air hose: 3/8”

* Air pressure: 90 psi

CH131262-I 3/8” Air Impact Wrench (Pinless hammer type)

Features:

Adjustable speed: 4300rpm / 5000rpm / 6800rpm / 8200rpm. 360 degree swivel rear exhaust silencer. Easily inserted in the pocket. Built-in comfort and non-slip handle grip.

Specification:

Square drive: 3/8”

Working torque: 15-75 ft/lbs (20-100Nm)

Max. torque: 81 ft/lbs (110Nm)

Sound level: 87dB

Capacity (bolt size): 14mm

Free speed: 9,500rpm

Air consumption: 3.3cfm

Overall length: 165mm

Weight: 1kg

Air inlet: 1/4”

Air hose: 3/8”

Air pressure: 90 psi

Air Die Grinder

Air Die Grinder

CH131209 1/4" or 6mm Mini Die Grinder

Description:

* Free Speed: 25000 RPM

* Collect : 1/4" or 6mm

* Air Consumption : 2.7CFM

* Air inlet: 1/4"

* Weight: 0.36kg

* Overall length: 150mm

* Appearance Treatment: alum. body+ plastic grip

CH131210-A 1/4" or 6mm Extend Die Grinder

Description:

* Free Speed: 22000rpm

* Collect : 1/4" or 6mm

* Air Consumption : 4CFM

* Air inlet: 1/4"

* Weight: 0.7kg

* Overall Length: 260mm

* Appearance Treatment: alum. body+ plastic grip

CH131220-A Air Die Grinder w/ 3mm Collet

Description:

* Collet size: 3mm

* Free speed: 22,000RPM

* Air consumption: 4cfm

* Air inlet: 1/4”

* Length: 170mmL

* Weight: 0.7kg

* Collet size 6mm(CH131220-AP6) is also available

CH191640 & CH191640-A Air Extend Die Grinder

Specification:

Item No. CH191640 CH191640-A

* Collect size: 1/4” 6mm

* Free speed: 20000r.p.m. 20000r.p.m.

* Overall length: 6.85”(174mm) 6.85”(174mm)

* Air consumption: 4CFM 4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Weight: 0.8kg 0.8kg

CH191609 & CH191609-A Air Die Grinder

Specification:

CH191609-F Air Die Grinder(Front Exhaust)

Specification:

CH191646-TD

Specification:

* Collet size: 6mm

* Free speed: 2500rpm

* Air inlet: 1/4”

* Air hose size: 3/8”

* Air Consumption : 4cfm

* Overall length: 9.06”(230mm)

* Net weight: 1.0kg(2.2Lbs)

Air Die Grinder

CH191648 & CH191648-A Mini Die Grinder

Specification:

Item No. CH191648 CH191648-A

* Collect size: 1/4” 6mm

* Free speed: 18000r.p.m. 18000r.p.m.

* Overall length: 4.92”(125mm) 4.92”(125mm)

* Air consumption: 4CFM 4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Weight: 0.5kg 0.5kg

CH030706 Mini Air Die Grinder

Description:

* Collet size: 1/4” (6mm)

* Free speed: 25000rpm

* Air inlet: 1/4”

* Air hose size: 3/8” (10mm)

* Air Consumption : 3cfm

* Weight: 0.4kgs(0.9lbs)

* Length: 155mm(6.1”)

CH030707

Description:

* Collet size: 1/4” (6mm)

* Free speed: 22000rpm

* Air inlet: 1/4”

* Air hose size: 3/8” (10mm)

* Air Consumption : 3.7cfm

* Weight: 0.6kgs(1.3lbs)

* Length: 178mm(7”)

CH150209-P

Description:

* Collet size: 1/4”(6mm)

* Air inlet: 1/4”

* Free speed: 26000rpm

* Air pressure: 90psi (6.2bar)

* Air hose size: 5/16”

* Engine power: 0.3HP

* Weight:0.36kg (0.79lbs)

* Length:134mm (5.28”)

Mini Air Die Grinder(0.45HP)

1/4” Mini Die Grinder w/comfort Grip (0.3HP)

Specification:

* Collet size: 1/4”

* Free speed: 24000rpm

* Air inlet(PT/NPT): 1/4”

* Air hose size(ID): 3/8”

* Air Consumption : 4cfm

* Overall length: 5.87”(149mm)

* Net weight: 0.75kg(1.65Lbs)

Specification:

Item No. CH191645 CH191645-A

* Collect size: 1/4” 6mm

* Free speed: 22000r.p.m. 22000r.p.m.

* Overall length: 6.3”(160mm) 19.8”(503mm)

* Air consumption: 4CFM 4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Weight: 0.75kg 0.75kg

Specification:

* Collet size: 1/4” (6mm)

* Free speed: 22000rpm

* Air inlet: 1/4”

* Air hose size: 3/8” (10mm)

* Air Consumption : 4cfm

* Overall length: 190mm

CH191647-A Air Die Grinder

CH191645 Air Die Grinder

CH191643 Air Extension Die Grinder

CH191644-6S &CH191644-6L Air Extension Die Grinder

Specification: Item No. CH191644-6S

* Collect size: 1/4” 1/4”

* Free speed: 28000r.p.m. 28000r.p.m.

* Overall length: 6.3”(160mm) 19.8”(503mm)

* Air consumption: 4CFM 4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Weight: 0.7kg 1kg

CH030707-L 5” Air Extension Die Grinder

Description:

* Collet size: 1/4” (6mm)

* Free speed: 22000rpm

* Air inlet: 1/4”

* Air hose size: 3/8” (10mm)

* Air Consumption : 3.7cfm

* Weight: 0.8kgs (1.8lbs)

* Length: 280mm (11”)

CH140935-A

Description:

* Free speed: 30000rpm

* Air consumption: 13scfm

* Noise: 84dB

* Exhaust: rear exhaust (body: mirror polish)

* Weight: 0.51kg

* Length: 6"(152mm)

CH191644-6L

1/4"Dr. Air Grinder (1" long, high torque)

CH140937-A 1/4"Dr. Air Grinder (3" long, high torque)

Description:

* Free speed: 25000rpm

* Air consumption: 13scfm

* Noise: 84dB

Exhaust: rear exhaust (body: mirror polish)

* Weight: 0.62kg

* Length: 8"(203mm)

CH140936-A 1/4"Dr. Air Grinder (5" long, high torque)

Description:

* Free speed: 28000rpm

* Air consumption: 13scfm

* Noise: 84dB

Exhaust: rear exhaust (body: mirror polish)

* Weight: 0.74kg

* Length: 10"(254mm)

CH191642 Air Extend Angle Die Grinder

Specification:

* Collect size: 1/4”

* Free speed: 22000 r.p.m.

* Overall length: 8.78”(323mm)

* Air consumption: 4 CFM

* Air inlet: 1/4” (PT/NPT)

* Air hose: 3/8” ID

* Net weight: 1.2kg

Air Angle Die Grinder

CH030708 Air Angle Die Grinder

Description:

* Collet size:1/4”(6mm)

* Air consumption: 3.7cfm

* Free speed: 18000rpm

* Air inlet: 1/4”

* Air hose size: 3/8” (10mm)

* Weight: 0.7kg(1.5lbs)

* Length: 178mm(7”)

CH150210-P 1/4” Mini Right Angle Die Grinder w/comfort grip

Description:

* Collet size:1/4” (6mm)

* Free speed: 20000rpm

* Air pressure: 90psi (6.2bar)

* Air inlet: 1/4”

* Air hose size: 5/16”

* Air consumption: 3.cfm (22scfm)

* Weight: 0.5kg (1.1lbs)

* Length: 140mm(5.51”)

CH191649 & CH191649-A Mini. Angle Die Grinder

CH140934-A 1/4"Dr. Angle (120 degree) Air Grinder

Description:

* Free speed: 25000RPM

* Air consumption: 13scfm

* Noise: 84dB

* Exhaust: side exhaust, plastic handle (body: mirror polish)

* Weight: 0.51kg

* Length: 6-15/16"(176mm)

CH191637 & CH191637-A Air Angle Die Grinder

Specification:

Item No. CH191637 CH191637-A

* Collect size: 1/4” 6mm

* Free speed: 18000r.p.m. 18000r.p.m.

* Overall length: 7.05”(179mm) 7.05”(179mm)

* Air consumption: 4CFM 4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Weight: 0.7kg 0.7kg

CH191638-D &CH191638-DA Air Angle Die Grinder

Specification:

Item No. CH191638-D CH191638-DA

* Collect size: 1/4” 6mm

* Free speed: 22000r.p.m. 22000r.p.m.

* Overall length: 6.73”(171mm) 6.73”(171mm)

* Air consumption: 4CFM 4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Weight: 0.7kg 0.7kg

CH191639 Air Angle Die Grinder

Specification:

* Collect size: 1/4”

* Gear: 2

* Free speed: 3500r.p.m.

* Overall length: 5.91”(150mm)

* Air consumption: 4 CFM

* Air inlet: 1/4” (PT/NPT)

* Air hose: 3/8” ID

* Net weight: 0.87kg

CH191622 Air Angle Grinder

Specification:

* Free speed: 20,000RPM

* Grinding wheel: 3”

* Thread: 3/8” x 24mm

* Air consumption: 3.5CFM

* Air inlet: 1/4” (PT/NPT)

* Air hose: 3/8” (ID)

* Weight: 0.9kg

* Length: 7.48”(190mm)

CH131212 1/4" Mini Angle die Grinder

Description:

* Free speed: 22,000rpm

* Collet size: 1/4" (6mm)

* Air consumption: 2.7cfm

* Air inlet: 1/4”

* Weight: 0.54kg

* Length: 158mmL

* Appearance treatment: alum. body+plastic coating

CH131213-A 1/4" or 6mm Mini Angle Die Grinder

Description:

* Collet size: 1/4” (6mm)

* Free speed: 18000RPM

* Air consumption: 4cfm

* Air inlet:1/4”

* Weight: 0.8kg

* Length: 170mm

* Appearance treatment: alum. body+plastic coating

CH131266-AL Hand Chamfering Tools

Features:

* Adjustable wind knob

* Swivel Rear exhaust

* Lightweight / Mini type, easy to operate

* Safety trigger

Specification:

* Chamfering capacity: C0.1 – C2mm.

* Size: 120mmL x 65mm Height

* Air exhaust: Rear

* Sound level: 85dB

* Free speed: 30,000rpm

* Air consumption: 2.3cfm

* Overall length: 120mm

* Weight: 0.42kg

* Air inlet: 1/4”

* Air hose: 3/8”

Hand Chamfering Tool - How to use:

a) Hold the tool firmly, release the lock lever, and depress the throttle lever to start the tool.

b) Place the Guide Plate on the workpiece, and slowly pull the tool towards you or push it forward to introduce the index-able inserts to the material.

c) While chamfering the inner hole holding the Guide Bearing against the workpiece, move the tool in a clockwise motion. (Fig.1)

d) While chamfering the outer diameter holding the Guide Bearing against the workpiece, move the tool in a counterclockwise motion. (Fig.2)

How

to replace indexable inserts:

1) Loosen two Hex Socket Set Screws on the Guide Plate with the Hex Socket Screw Key. (Fig.3)

2) Unscrew the Guide Plate and loosen the Indexable Insert Set Screw with the Spanner T-6. (Fig.4)

3) Install the new Indexable Insert (or the Indexable Insert rotated to a fresh edge) making sure it is in the correct direction and tighten it with the Indexable Insert Set Screw.

4) Also replace the other Indexable Insert in order of the above (2) and (3).

5) Install the Guide Plate, adjust the Indexable Insert for the desired chamfering amount, and tighten the two Hex Socket Set Screws.

CH131266-G30 1/4” (6mm) Die Grinder

Specification:

* Collet size: 1/4” or 6mm

* Size: 120mmL x 83mm Height

* Free speed: 30,000rpm

* Spindle size: 1/4”-20T / M6x1.0P

* Air consumption: 2.3cfm

* Overall length: 120mm

* Weight: 0.4kg

* Air inlet: 1/4”

* Air hose: 3/8”

* Air pressure: 90psi

CH140941-A 3" Industrial Angle Grinder

Description:

* Free speed: 15000RPM

* Air consumption: 15scfm

* Noise: 89dB

* Weight: 0.51kg

* Length: 7-3/4"(197mm)

Exhaust: rear exhaust (body: mirror polish)

CH191617 & CH191617-A Air Angle Grinder (4”)

*

CH191617-3 &CH191617-3A Air Angle Grinder (3”)

Specification:

CH191617-5

* Weight: 1.2kg

* Length: 9.87”(250mm)

CH191617-5A Air Angle Grinder (5”)

Specification:

* Free speed: 11,000RPM

* Grinding wheel:

*

* Air consumption: 5CFM

*

* Weight:

* Length: 10.24”(260mm) 10.24”(260mm)

&

CH030710 4-1/2” Heavy Duty Grinder (5/8” x 11UNC Spindle)

Specification:

* Collet size: 4-1/2”

* Free speed: 10000rpm

* Air Consumption : 3.5cfm

* Air inlet: 1/4”

* Air hose size: 3/8” (10mm)

* Weight: 1.4kg (3.1lbs)

* Length: 210mm (8.2”)

Air Micro Die Grinder

CH121149-M Air Micro Die Grinder

Specification:

* Collet size: 3/32”,1/8” or 3mm

* Free speed: 56,000rpm

* Air consumption: 7cfm

* Overall length: 156mm

* Weight: 0.21kg

* Air inlet: 1/4”

* Air hose: 5mm

* Air pressure: 90psi

CH121149-70M Air Micro Die Grinder

Specification:

* Collet size: 3/32”,1/8” or 3mm

* Free speed: 70,000rpm

* Air consumption: 7cfm

* Overall length: 156mm

* Weight: 0.21kg

* Air inlet: 1/4”

* Air hose: 5mm

* Air pressure: 90psi

CH121149-K Air Micro Die Grinder Kit

Specification of Micro Die Grinder:

* Collet size: 3/32”,1/8” or 3mm

* Free speed: 56,000rpm

* Air consumption: 7cfm

* Overall length: 156mm

* Weight: 0.21kg

* Air inlet: 1/4”

* Air hose: 5mm

* Air pressure: 90psi

Content:

* 1pc micro die grinder

* 10pcs grinding stones : 3,4,5,6,7,8 mm, 3*3,3*6,13*4T,16*4T

* 1pc oil pot

* 2pcs 9mm Spanner

*1pc Nipple

* 1pc Mini Oilier

Air Riveter

CH121118 Air Hydraulic Riveter (Vacuum)

Feature:

* With Suction control switch

* Long Stroke (15mm)

* Set 3/16”(4.8mm) and 3/32”(2.4mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

Specification:

* Riveting capacity: 3/16”, 5/32”, 1/8”,3/32 “ (4.8, 4.0, 3.2, 2.4 mm)

* Stroke: 15 mm (0.59“)

* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)

* Traction Power: 2000 lbs (908kg)

* Weight: 1.45kg

* Height: 250 mm

* Length of Placing Head: 290 mm

* Base Diameter: 96.5 mm

* Other available type:

-CH121118-I, which suction can’t be tuned. To avoid artificial nails improper operation.

-CH121118-N, no vacuum type

CH121119 Air Hydraulic Riveter (Vacuum)

Feature:

* With Suction control switch

* Long Stroke (23.5mm)

* Set 3/16”(4.8mm) and 3/32”(2.4mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

Specification:

* Riveting capacity: 3/16”, 5/32”, 1/8”,3/32 “ (4.8, 4.0, 3.2, 2.4 mm)

* Stroke: 23.5 mm (0.925“)

* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)

* Traction Power: 2000 lbs (908kg)

* Weight: 1.54kg

* Height: 270 mm

* Length of Placing Head: 290 mm

* Base Diameter: 96.5 mm

* Other available type:

-CH121119-I, which suction can’t be tuned. To avoid artificial nails improper operation.

-CH121119-N, no vacuum type

CH121120 Air Hydraulic Riveter(vacuum)

Feature:

* With Suction control switch

* Long Stroke (22.5/26mm)

* Set 1/4”(6.4mm) and 3/16”(4.8mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

Specification:

* Riveting capacity: 3/16”, 7/32”, 1/4”, 5/16 “ (4.8, 5.6, 6.4, 7.8 mm)

* Stroke: 22.5 mm (0.88 “)

* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)

* Traction Power: 3800 lbs (1723kg)

* Weight: 1.8kg

* Height: 310 mm

* Length of Placing Head: 305 mm

* Base Diameter: 109 mm

* Other available type:

-CH121120-I, which suction can’t be tuned. To avoid artificial nails improper operation.

-CH121120-N, no vacuum type

CH121120-L Air Hydraulic Riveter (Vacuum)

Feature:

* With Suction control switch

* Long Stroke (22.5/26mm)

* Set 1/4”(6.4mm) and 3/16”(4.8mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

Specification:

* Riveting capacity: 1/4”, 7/32”, 3/16 “ (6.4,5.6, 4.8 mm)

* Stroke: 26 mm (1.02 “)

* Working Air Pressure: 95 ~ 100 PSI (6.67 ~ 7.02 kg/cm2)

* Traction Power: 3100 lbs (1407kg)

* Weight: 1.88kg

* Height: 310 mm

* Length of Placing Head: 305 mm

* Base Diameter: 109 mm

* Other available type:

-CH121120-LI, which suction can’t be tuned. To avoid artificial nails improper operation.

-CH121120-NL, no vacuum type

CH121120-R Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (22.5mm)

* Set 1/4” (6.4mm) and 3/16”(4.8mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 5/16”, 1/4”, 7/32”,3/16 “ (7.8, 6.4, 5.6, 4.8 mm)

* Stroke: 22.5 mm (0.88”)

* Working Air Pressure: 75 ~ 95 PSI (5.2 ~ 6.7 kg/cm2)

* Traction Power: 3800 lbs (1723kg)

* Weight: 1.88kg

* Height: 310 mm

* Length of Placing Head: 305 mm

* Base Diameter: 109 mm

* Other available type:

- CH121120-RI, which suction can’t be tuned. To avoid artificial nails improper operation.

CH121120-LR Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (26mm)

* Set 1/4” (6.4mm) and 3/16”(4.8mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 1/4”, 7/32”,3/16 “ (6.4, 5.6, 4.8 mm)

* Stroke: 22.5 mm (0.88”)

* Working Air Pressure: 75 ~ 95 PSI (5.2 ~ 6.7 kg/cm2)

* Traction Power: 3100 lbs (1407kg)

* Weight: 1.88kg

* Height: 310 mm

* Length of Placing Head: 305 mm

* Base Diameter: 109 mm

* Other available type:

- CH121120-LRI, which suction can’t be tuned. To avoid artificial nails improper operation.

CH121119-R

Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (23.5mm)

* Set 3/16” (4.8mm) and 3/32”(2.4mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 3/16”, 5/32”, 1/8”,3/32” (4.8, 4.0, 3.2, 2.4 mm)

* Stroke: 23.5 mm (0.925”)

* Working Air Pressure: 75 ~ 95 PSI (5.2 ~ 6.7 kg/cm2)

* Traction Power: 2100 lbs (953.4kg)

* Weight: 1.54kg

* Height: 270 mm

* Length of Placing Head: 290 mm

* Base Diameter: 96.5 mm

* Other available type:

- CH121119-RI, which suction can’t be tuned. To avoid artificial nails improper operation.

CH121118-R Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (15mm)

* Set 3/16” (4.8mm) and 3/32”(2.4mm) structural Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 3/16”, 5/32”, 1/8”,3/32” (4.8, 4.0, 3.2, 2.4 mm)

* Stroke: 15 mm (0.59”)

* Working Air Pressure: 75 ~ 95 PSI (5.2 ~ 6.7 kg/cm2)

* Traction Power: 2100 lbs (953.4kg)

* Weight: 1.45kg

* Height: 250 mm

* Length of Placing Head: 290 mm

* Base Diameter: 96.5 mm

* Other available type:

- CH121118-RI, which suction can’t be tuned. To avoid artificial nails improper operation.

CH1211340-I Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (18mm)

* Set 5/32” (4.0mm) and 5/64”(2.0mm) standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Durable, lightweight only 1.2kg

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 5/32”, 1/8”,3/32”, 5/64” (4.0, 3.2, 2.4,2.0 mm)

* Stroke: 17.8 m

* Working Air Pressure: 75 ~ 100 PSI (5.2 ~ 7 kg/cm2)

* Traction Power: 1300 lbs (590kg)

* Weight: 1.2kg

* Height: 245 mm

* Length of Placing Head: 280 mm

* Base Diameter: 96.5 mm

CH1211337-HLR Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (29.2mm)

* Set 1/4” (6.4mm) and 3/16”(4.8mm) Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 1/4”, 7/32”, 3/16” (6.4, 5.6, 4.8 mm)

* Stroke: 29.2 mm (1.14”)

* Working Air Pressure: 70 ~ 95 PSI (4.9 ~ 6.7 kg/cm2)

* Traction Power: 3550 lbs (1611kg)

* Weight: 1.91kg

* Height: 325 mm

* Length of Placing Head: 305 mm

* Base Diameter: 113.5 mm

CH1211338-R Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (26mm)

* Set 1/4” (6.4mm) and 3/16”(4.8mm) Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 1/4”, 7/32”, 3/16” (6.4, 5.6, 4.8 mm)

* Stroke: 26 mm (1.023”)

* Working Air Pressure: 70 ~ 95 PSI (4.9 ~ 6.7 kg/cm2)

* Traction Power: 4000 lbs (1816kg)

* Weight: 1.94kg

* Height: 325 mm

* Length of Placing Head: 305 mm

* Base Diameter: 113.5 mm

CH1211339-R Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (26/30mm)

* Set 5/16” (7.8mm) and 3/16”(4.8mm) Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

CH1211356 Air Hydraulic Riveter(Vacuum)

Feature:

* Patented design switch 2 stages function:

-first stage: suck the rivets

-second stage: pull in

* Long Stroke (28mm)

* Set 1/4” (6.4mm) and 3/16”(4.8mm) Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 1/4”, 7/32”, 3/16” ,5/32”,1/8” (6.4, 5.6, 4.8,4.0, 3.2 mm)

* Stroke: 28 mm (1.10”)

* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)

* Traction Power: 3800 lbs (1725kg)

* Weight: 1.78kg

* Height: 325 mm

* Length of Placing Head: 320 mm

* Base Diameter: 110 mm

CH1211357 Air Hydraulic Riveter(Vacuum)

Feature:

* Patented design switch 2 stages function:

-first stage: suck the rivets

-second stage: pull in

* Long Stroke (24mm)

* Set 3/16” (4.8mm) and 3/32”(2.4mm) Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 3/16” ,5/32”,1/8”, 3/32” (4.8,4.0, 3.2, 2.4 mm)

* Stroke: 24 mm (0.94”)

* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)

* Traction Power: 2100 lbs (953.4kg)

* Weight: 1.56kg

* Height: 295 mm

* Length of Placing Head: 320 mm

* Base Diameter: 90 mm

CH1211357-M Air Hydraulic Riveter(Vacuum)

Feature:

* Patented design switch 2 stages function:

-first stage: suck the rivets

-second stage: pull in

* Long Stroke (19mm)

* Set 3/16” (4.8mm) and 3/32”(2.4mm) Monobolt rivets, “T” rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Nail back twice as fast, the low pressure operating

Specification:

* Riveting capacity: 3/16” ,5/32”,1/8”, 3/32” (4.8,4.0, 3.2, 2.4 mm)

* Stroke: 19 mm (0.74”)

* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)

* Traction Power: 2100 lbs (953.4kg)

* Weight: 1.5kg

* Height: 270 mm

* Length of Placing Head: 320 mm

* Base Diameter: 90 mm

CH1211364 Air Hydraulic Riveter (no vacuum)

Description:

* Most versatile blind rivet tool line-sizes to satisfy and production need.

* Excellent value-dependable and cost effective

* Durable, light weight and portable

* Adjustable spent mandrel deflectors

* 1/4”(6.4mm) rivet capacity in steel materials

* 3/16”(4.8mm) rivet capacity in all materials

Specification:

* Traction power: 2100lbs (953kg)

* Stroke: 14mm (0.55”)

* Working air pressure: 85-100psi (6-7kg/cm2)

* Tool dimensions: high-273mm(10.7”), length-230mm(9.05”), depth: 80mm(3.14”), weight: 1.49kg

* Riveting capacity: 1/4”(6.4mm) steel rivet, 3/16”(4.8mm), 5/32”(4.0mm), 1/8”(3.2mm), 3/32”(2.4mm) all materials

CH100706 3/16”(4.8mm) Air Riveter

Description:

* Pulling force 1045kg.F(2304 Lb.f)

* Weight: 1.5kg, stroke: 16m/m

*Rivet capacity: 4.8mm(stainless, steel, aluminum) (body: blue painting color)

CH100706-V 3/16”(4.8mm) Air Riveter (Automatic withdrawal rivet)

Description:

* Pulling force 1045kg.F(2304 Lb.F)

* Weight: 1.5kg

* Stroke: 16m/m

* Rivet capacity: 4.8mm(stainless, steel, aluminum) (body: blue painting color)

CH100707 1/4”(6.4) Air Riveter

Description:

* Pulling force: 1603kg.F(3528 Lb.F)

* Weight: 1.78kg

* Stroke: 13m/m

*Rivet capacity: 4.8mm (body: blue painting)

CH100707-V 1/4”(6.4) Air Riveter (Automatic withdrawal rivet)

Description:

* Pulling force: 1603kg.F(3528 Lb.F)

* Weight: 1.78kg

* Stroke: 13m/m

*Rivet capacity: 4.8mm(stainless, steel, aluminum) (body: blue painting color)

CH100707-H 1/4”(6.4) Air Riveter

Description:

* Pulling force: 1700kg.F(3740 Lb.F)

* Weight: 1.72kg

* Stroke: 18m/m

* Rivet capacity: 6.4mm(stainless, steel, aluminum) (body: blue painting color)

CH100707-HV 1/4”(6.4) Air Riveter

Description:

*Pulling force: 1700kg.F(3740 Lb.F)

*Weight: 1.87kg

*Stroke: 18m/m

*Rivet capacity: 6.4mm(stainless, steel, aluminum) (body: blue painting color)

CH100707-HU 1/4”(6.4) Air Riveter (including head tips set 3/16" or 1/4")

Description:

* Pulling force: 1860 kg.F(4100 Lb.F)

* Weight: 2.9kg, stroke: 23m/m

* Rivet capacity: 6.4mm(stainless, steel) (body: blue painting color)

CH100707-EX 1/4”(6.4) Air Riveter

Description:

* Pulling force: 1860 kg.F (4100 Lb.F)

* Weight: 2.95kg

* Stroke: 23m/m

* Rivet capacity: 6.4mm(stainless, steel) 8.0mm(aluminum) (body: blue painting color)

CH100707-TM 1/4”(6.4) Air Riveter

Description:

* Pulling force: 1860 kg.F (4100 Lb.F)

* Weight: 2.95kg

* Stroke: 23m/m

* Rivet capacity: 6.4mm(stainless, steel, aluminum) (body: blue painting color)

CH121173 & CH121173-M Air Riveter (no vacuum)

Feature:

* Most versatile blind rivet tool line-sizes to satisfy any production need.

* Excellent value-dependable and cost effective

* Durable, lightweight and portable

* Adjustable spent mandrel deflectors

* 1/4”(6.4mm) rivet capacity in all materials

Tracking power: 3500lbs (1589kgs) 3500lbs (1589kgs) Riveting capacity: 1/4”(6.4mm), 7/32”(5.6mm), 3/16”(4.8mm), 5/32”(4.0mm), 1/8”(3.2mm), 3/32”(2.4mm)

1/4”(6.4mm), 7/32”(5.6mm), 3/16”(4.8mm), 5/32”(4.0mm), 1/8”(3.2mm), 3/32”(2.4mm)

Stroke: 19mm (0.75”) 14mm (0.51”)

Working air pressure: 85-100psi (67kgs/cm2) 85-100psi (67kgs/cm2)

CH1211365 Air Hydraulic Riveter (no vacuum)

Feature:

* Most versatile blind rivet tool line-sizes to satisfy and production need.

* Excellent value-dependable and cost effective

* Durable, light weight and portable

* Adjustable spent mandrel deflectors

* 3/16”(4.8mm) rivet capacity in all materials

Specification:

* Traction power: 1940lbs (880kg)

* Stroke: 14mm (0.55”)

* Working air pressure: 85-100psi (6-7kg/cm2)

* Tool dimensions: high-273mm(10.7”), length-230mm(9.05”), depth: 80mm(3.14”), weight: 1.49kg

* Riveting capacity: 3/16”(4.8mm), 5/32”(4.0mm), 1/8”(3.2mm), 3/32”(2.4mm) all materials

Item No.: CH121173 CH121173-M

CH1211366-A

Feature:

* Most versatile blind rivet tool line-sizes to satisfy and production need.

* Excellent value-dependable and cost effective

* Durable, light weight and portable

* Adjustable spent mandrel deflectors

* 3/16”(4.8mm) rivet capacity in all materials

Specification:

* Traction power: 1983lbs (900kg)

* Stroke: 16mm (0.63”)

* Working air pressure: 85-100psi (6-7kg/cm2)

* Tool dimensions: high-298mm, length-225mm, depth: 74mm, weight: 1.46kg

* Riveting capacity: 3/16”(4.8mm), 5/32”(4.0mm), 1/8”(3.2mm)

CH1211337-A

Feature:

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Sets 3/16”(4.8mm) and 1/4”(6.4mm) structural Monobolt rivets, “T” rivets and standard rivets- in all materials

* Heavy duty construction for rugged applications

* Soft-set shockless tools

Specification:

* Riveting capacity: 3/16”~1/4”(4.8mm~6.4mm)

* Nosepiece: 3/16”(4.8mm), 7/32”(5.6mm), 1/4”(6.4mm)

* Traction power: 3700lbs (16458n)

* Stroke: 15mm (0.59”)

* Working air pressure: 85-95psi (6-6.7kg/cm2)

* Tool dimensions: high-300mm, length-290mm, depth: 91.6mm, weight: 1.83kg

CH1211367-A Air Hydraulic Riveter

Feature:

* Soft-set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Sets 3/32”(2.4mm) and 3/16”(4.8mm) structural Monobolt rivets, “T” rivets and standard rivets- in all materials

* Heavy duty construction for rugged applications

Specification:

* Riveting capacity: 3/32”~3/16”(2.4mm~4.8mm)

* Nosepiece: 3/32”(2.4mm), 1/8”(3.2mm), 5/32”(4.0mm), 3/16”(4.8mm)

* Traction power: 2400lbs (10675n)

* Stroke: 19.5mm (0.768”)

* Working air pressure: 85-95psi (6-6.7kg/cm2)

* Tool dimensions: high-295mm, length-290mm, depth: 91.6mm, weight: 1.73kg

Air Hydraulic Riveter (no vacuum)

Air Hydraulic Riveter

CH201301 Professional Medium Duty Air Hydraulic Rivet Tool

Description:

* High strength aluminum body, steel alloy key parts, all metal construction, black sand painting, spend mandrel container.

* Tracking power: 9000N/2000 lbf

* Stroke: 16mm (0.63")

* Air pressure: 5.5-6.5 bar (80-95 psi)

* Air consumption: 2.1L or 0.07 Cuft Per Rivet

* Air inlet: 1/4" (dia. 6mm)

* Air hose I.D.: 5/16” or 3/8” (dia. 8 or 10mm)

* Riveting capacity: 2.4, 3.0/3.2,4.0mm, 4.8/5.0mm-aluminum, steel, stainless steel (Inox) blind rivets.

* Vibration: less than 2.5m/s2

* With 4pcs nose pieces

Description:

* High strength aluminum body steel alloy key parts, all metal construction black sand painting spend mandrel container.

* Tracking power: 1250kg/2750 lbs

* Stroke: 16mm (0.63")

* Working pressure: 6.0-6.5kgs-cm2(85-92psi)

* Air consumption per 3.0Liters (0.106 cuft)

* Air inlet: 1/4”

* Weight: 2.1kgs (3.3Lbs)

* 5pcs nosepieces

* Riveting capacity: 3.0/3.2mm, 4.0mm, 4.8/5.0mm, 6.0mmaluminum, steel, stainless steel (Inox) blind rivets, 6.4mmaluminum , steel blind rivets.

Feature:

* This tool is high performance, ergonomic tool designed for use with diameter two-piece Huck bolts.

* Made both high speed production & repair applications.

* Lightweight, reliable & easy to use, these tools deliver a level of performance never before possible in a low cost pneumatic tool.

Specification:

* Sets: 3/16” & 1/4” magna-lok, manga-bulb, auto-bulb, magna-grip & C6L

* Fluid: DEXTRON III or equivalent

* Req. air pressure: 85-95psi

* Weight: 1.74kg(3.83lbs)

* Working stroke: 24mm (0.944”)

* Capacity: 4480lbs (2033kg)

CH201302 Professional Medium Duty Air Hydraulic Rivet Tool

CH121120-HKR Air Hydraulic Lock Bolt Tool

CH1211358-HKR Air Hydraulic Lock Bolt Tool

Feature:

* This tool is high performance, ergonomic tool designed for use with diameter two-piece Huck bolts.

* Made both high speed production & repair applications.

* Lightweight, reliable & easy to use, these tools deliver a level of performance never before possible in a low cost pneumatic tool.

Specification:

* Sets: 3/16”Bom, -12Hucktaine, 3/16” & 1/4” magna-lok, mangabulb, auto-bulb, magna-grip & C6L/120L

* Fluid: DEXTRON III or equivalent

* Req. air pressure: 85-95psi

* Weight: 1.81kg(3.99lbs)

* Working stroke: 19.5mm (0.776”)

* Capacity: 5600lbs (2539kg)

CH1211359-M & CH1211359-U Air Hydraulic Threaded Insert Tool

Feature:

* Over 6000lbs traction power

* Light weight spin-pull rivet nut setter

* Quick change connector for tie rod

* Set up to 1/2”(M12) stainless steel rivet nuts

* Wear-resistant surface extend tool life

* Rubber grip with soft touch for easy operation

* Stroke 2-7mm

Specification:

* Traction power: 6000lbs (2724kg)

* Stroke: 7mm

* Riveting capacity:

-CH1211359-M: M4, M5, M6, M8, M10, M12

-CH1211359-U: #8, #10-24, #10-32, 1/4”-20, 5/16”-18, 3/8”-16, 1/2”-13

* Working air pressure: 85-95psi (6~6.7kg/cm2)

* Tool dimension: hight-305mm, length:278.1mm, depth: 92.5mm, weight:2.3kgs

CH1211360-M & CH1211360-U

Air Hydraulic Threaded Insert Tool

Feature:

* Over 6000lbs traction power

* Light weight spin-pull rivet nut setter

* Quick change connector for tie rod

* Set up to 1/2”(M12) stainless steel rivet nuts

* Wear-resistant surface extend tool life

* Rubber grip with soft touch for easy operation

* Long stroke: 16.5mm

Specification:

* Traction power: 6000lbs (2724kg)

* Stroke: 16.5mm

* Riveting capacity:

-CH1211360-M: M4, M5, M6, M8, M10, M12

-CH1211360-U: #8, #10-24, #10-32, 1/4”-20, 5/16”-18, 3/8”-16, 1/2”-13

* Working air pressure: 95-100psi (6.7~7kg/cm2)

* Tool dimension: hight-335mm, length:406mm, depth: 154mm, weight:3.77kgs

CH1211361-M & CH1211361-U Air Hydraulic Threaded Insert Tool

Feature:

* Over 3200lbs traction power

* Light weight spin-pull rivet nut setter

* Quick change connector for tie rod

* Set up to 5/16”(M8) stainless steel rivet nuts

* Wear-resistant surface extend tool life

* Rubber grip with soft touch for easy operation

* Stroke: 2~7mm

Specification:

* Traction power: 3200lbs (1452kg)

* Stroke: 7mm

* Riveting capacity:

-CH1211361-M: M3, M4, M5, M6, M8

-CH1211361-U: #6, #8, #10-24, #10-32, 1/4”-20, 5/16”-18

* Working air pressure: 85-95psi (6~6.7kg/cm2)

* Tool dimension: hight-226.5mm, length:278.1mm, depth: 92.5mm, weight:2.1kgs

CH1211362-AM & CH1211362-AU Air Hydraulic Threaded Insert Tool

Feature:

* Over 4800lbs traction power

* Light weight spin-pull rivet nut setter

* Quick change connector for tie rod

* Set up to 1/2”(M12) stainless steel rivet nuts

* Wear-resistant surface extend tool life

* Rubber grip with soft touch for easy operation

* Stroke: 2~7mm

Specification:

* Traction power: 4800lbs (2179kg)

* Stroke: 7mm

* Riveting capacity:

-CH1211362-AM: M3, M4, M5, M6, M8,M10, M12

-CH1211362-AU: #6, #8, #10-24, #10-32, 1/4”-20, 5/16”-18,3/8”16, 1/2”-13

* Working air pressure: 85-95psi (6~6.7kg/cm2)

* Tool dimension: hight-317mm, length:278.1mm, depth: 88.5mm, weight:2.4kgs

CH100708 Automatic Withdrawal Rivet Cup

Description:

* Size:57dia.x 95mmL

* color: transparent/black

Air Spray Gun

Air Spray Gun-Suction Type

CH181101-S Spray Gun-Suction Type

Feature:

* Improved maneuverability with light weight and well-balanced gun body.

* Stable atomizing performance with less paint adhesion to the air cap.

* Steady spray pattern and uniform coating.

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 2.0-2.5bar (28-36psi)

* Air inlet: 1/4 NPS

* Fluid inlet: 1/4 NPS

* Fluid output: 140-145ml/min

* Air consumption: 210-250L/min (7.4-8.8CFM)

* Spray pattern: 180-200mm

* Weight: 569g

* Capacity Of cup: 0.6L

* Optional nozzle size: 1.0, 1.5, 1.8mm

CH181112-S Spray Gun-Suction Type

Feature:

* Used for industrial applications by auto painter, sign painter, furniture refinishers and so on.

* Designed for applying base coats and primers.

* Pattern around 11" (28cm) for 2.0mm nozzle size.

* This spray gun can spray high-viscosity paints include metallics.

* This spray gun is for everything from detail touch-up to largescale production spraying.

* Nozzle and Needle made by stainless steel.

Specification:

* Fluid tip size: 2.0mm

* Air pressure: 4.3 bar (62.3psi)

* Air inlet: 1/4”

* Fluid inlet: 3/8”

* Air consumption: 360 L/min(12.7CFM)

* Weight: 780g

* Capacity Of cup: 0.6L

* Available nozzle size: 1.2mm, 1.4mm, 1.5mm, 1.6mm, 1.8mm and 2.5mm

CH181109

Feature:

* Optional Nozzle Size : 1.0mm , 1.5mm , 1.8mm , 2.0mm

* Medium to large paint jobs.

* Excellent atomization.

Specification:

* Fluid tip size: 1.6mm

* Air pressure: 3.5-5 kg/cm2 (50-70psi)

* Air inlet: 1/4”

* Fluid inlet: 3/8”

* Air consumption: 280-360 L/min(10-12.7CFM)

* Weight: 1100g

* Capacity Of cup: 1.0L

CH181117

Feature:

* Internal mix air cap.

* A bleeder type for use with a constantly running compressor.

Specification:

* Fluid tip size: 1.2mm

* Air pressure: 2.1-3.5kg/cm2 (30-50psi)

* Air inlet: 1/4”

* Air consumption: 70-240 L/min(2.5-8.5CFM)

* Weight: 500g

* Capacity Of cup: 0.6L

CH181119-S

Feature:

* Optional Nozzle Size : 1.8mm

* Stainless steel nozzle and needle.

Specification:

* Fluid tip size: 1.5mm

* Air pressure: 3.5-5kg/cm2 (50-70psi)

* Air inlet: 1/4”

* Fluid inlet:1/4

* Air consumption: 180-320 L/min(6.3-11.3CFM)

* Weight: 750g

* Capacity Of cup: 0.7L

Spray Gun

Low Pressure Spray Gun

Spray Gun

CH181103-MPPS Middle Pressure Spray Gun

Feature:

* Stainless steel paint nozzle, needle and other parts that fluid pass through.

* Suitable for the application of both waterborne and solvent materials.

* High speed application and fine atomization.

* Optimum finish results in all field of application.

* Available nozzle size: 1.0mm, 1.3mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm and 2.5mm

Specification:

* Fluid tip size: 1.6mm

* Air pressure: 2.5kg/cm2

* Air inlet: 1/4”

* Fluid inlet:3/8”

* Air consumption: 280 L/min

* Weight: 820g

* Capacity Of cup: 1.0L

Air Spray Gun-Gravity Type

CH181101-G Spray Gun

Feature:

* Improved maneuverability with light weight and well-balanced gun body.

* Stable atomizing performance with less paint adhesion to the air cap.

* Steady spray pattern and uniform coating.

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 2.0-2.5bar (28-36psi)

* Air inlet: 1/4 NPS

* Fluid inlet: 1/4 NPS

* Fluid output: 155/170ml/min

* Air consumption: 210-250L/min (7.4-8.8CFM)

* Spray pattern: 205-220mm

* Weight: 463g

* Capacity Of cup: 0.4L

* Optional nozzle size: 1.0, 1.5, 1.8mm

CH181112-G Spray Gun-Gravity Type

Feature:

* Used for industrial applications by auto painter, sign painter, furniture refinishers and so on.

* Designed for applying base coats and primers.

* Pattern around 11" (28cm) for 2.0mm nozzle size.

* This spray gun can spray high-viscosity paints include metallics.

* This spray gun is for everything from detail touch-up to largescale production spraying.

* Nozzle and Needle made by stainless steel.

Specification:

* Fluid tip size: 2.0mm

* Air pressure: 4.3 bar (62.3psi)

* Air inlet: 1/4”

* Fluid inlet: 3/8”

* Air consumption: 360 L/min(12.7CFM)

* Weight: 620g

* Capacity Of cup: 0.4L

* Available nozzle size: 1.2mm, 1.4mm, 1.5mm, 1.6mm, 1.8mm and 2.5mm

CH181111-G Spray Gun

Feature:

* Optional Nozzle Size : 1.0mm, 1.3mm, 1.8mm and 2.0mm

* Stainless steel nozzle and needle.

* Gravity feed action for better control over fluid output

Specification:

* Fluid tip size: 1.5mm

* Air pressure: 3.0-3.5kg/cm2 (43-50psi)

* Air inlet: 1/4”

* Fluid inlet: 1/4”

* Air consumption: 180-230 L/min(6.3-8.1CFM)

* Weight: 600g

* Capacity Of cup: 0.25L

CH181110-G Spray Gun

Feature:

* Optional Nozzle Size : 1.5mm and 2.5mm

* Fully adjustable wide fan pattern control.

* Stainless steel nozzle and needle.

Specification:

* Fluid tip size: 2.0mm

* Air pressure: 3.5kg/cm2 (50psi)

* Air inlet: 1/4”

* Fluid inlet: 1/4”

* Air consumption: 250 L/min(8.8CFM)

* Weight: 700g

* Capacity Of cup: 0.4L

CH181118 Spray Gun

Feature:

* Optional Nozzle Size : 1.2mm

* Stainless steel nozzle and needle.

Specification:

* Fluid tip size: 1.5mm

* Air pressure: 3kg/cm2 (43psi)

* Air inlet: 1/4”

* Fluid inlet: 1/4”

* Air consumption: 105 L/min(4.5CFM)

* Weight: 600g

* Capacity Of cup: 0.35L

CH181118-2

Feature:

* Optional Nozzle Size : 1.2mm

* Stainless steel nozzle and needle.

Specification:

* Fluid tip size: 1.5mm

* Air pressure: 3kg/cm2 (43psi)

* Air inlet: 1/4”

* Fluid inlet: 1/4”

* Air consumption: 135 L/min(5CFM)

* Weight: 650g

* Capacity Of cup: 0.35L

CH181119-G

Feature:

* Optional Nozzle Size : 1.8mm

* Stainless steel nozzle and needle.

Specification:

* Fluid tip size: 1.5mm

* Air pressure: 3.5-5kg/cm2 (50-70psi)

* Air inlet: 1/4”

* Fluid inlet: 1/4”

* Air consumption: 180-320 L/min(6.3-11.3CFM)

* Weight: 700g

* Capacity Of cup: 0.25L

CH181120-A

Feature:

* Stainless steel nozzle and needle.

* Used for spot repair to medium paint job.

Specification:

* Fluid tip size: 1.0mm

* Air pressure: 2.0kg/cm2 (30psi)

* Air inlet: 1/4”

* Air consumption: 25 L/min(0.9CFM)

* Weight: 320g

* Capacity Of cup: 0.145L

Spray Gun

Spray Gun

Spray Gun

CH181120-B

Feature:

* Stainless steel nozzle and needle.

* Used for spot repair to medium paint job.

Specification:

* Fluid tip size: 0.5mm

* Air pressure: 2.0kg/cm2 (30psi)

* Air inlet: 1/4”

* Air consumption: 25 L/min(0.9CFM)

* Weight: 320g

* Capacity Of cup: 0.145L

CH181120-R

Feature:

* Stainless steel nozzle and needle.

* Used for spot repair to medium paint job.

Specification:

* Fluid tip size: 0.5mm

* Air pressure: 2.0kg/cm2 (30psi)

* Air inlet: 1/4”

* Air consumption: 25 L/min(0.9CFM)

* Weight: 320g

* Capacity Of cup: 0.145L

CH121316-W

Description:

* Nozzle 1.4mm

* Air consumption: 14cfm/396L/min

* Cup capacity: 600c.c.

* Air inlet: 1/4"

* Fluid inlet: M16x1.5P

* Weight: 600g(1.3Lbs)

* Air pressure: 3.5-5bar/50-70psi

Spray Gun

Spray Gun

Deluxe Gravity Feed Spray Gun

CH121317-W Deluxe Gravity Feed Spray Gun

Description:

* Nozzle 1.4mm

* Air consumption: 14cfm/392L/min

* Cup capacity: 600c.c.

* Air inlet: 1/4"

* Fluid inlet: 3/8”

* Weight: 500g(1.1Lbs)

* Air pressure: 3.5-5bar/50-70psi

* Type of cup: Nylon

CH181103-MPSC Middle Pressure Spray Gun

Feature:

* Stainless steel paint nozzle, needle and other parts that fluid pass through.

* Suitable for the application of both waterborne and solvent materials.

* High speed application and fine atomization.

* Optimum finish results in all field of application.

* Available nozzle size: 1.0mm, 1.3mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm and 2.5mm

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 2 bar

* Air inlet: 1/4”

* Fluid inlet: 1/4”

* Air consumption: 280 L/min

* Weight: 640g

* Capacity Of cup: 0.4L

CH181113-MP Middle Pressure Gravity Type Spray Gun

Feature:

* Stainless steel paint nozzle and needle.

* Chrome-plate gun body.

* High speed application and fine atomization.

* Optimum finish results in all field of application.

* Available nozzle size: 1.0mm, 1.3mm, 1.4mm, 1.6mm, 1.8mm and 2.0mm.

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 2.04kg/cm2 290psi/ 2.0bar)

* Air inlet: 1/4”

* Fluid Inlet: M16 1.5

* Air consumption: 280 L/min

* Weight: 660g

* Capacity Of cup: 0.6L

CH181108-MP Middle Pressure Gravity Type Spray Gun

Feature:

* Perfect finishes even with the low pressure.

* Well balance gun with perfect atomization.

* Soft spray pattern and even material flow

* Fasten spray speed.

* Available nozzle size: 1.0mm, 1.3mm, 1.4mm, 1.6mm, 1.8mm and 2.0mm.

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 2.04-2.24kg/cm2 (29-31.9psi / 2-2.2 bar)

* Air inlet: 1/4”

* Fluid inlet: M16 x 1.5

* Air consumption: 285 L/min

* Weight: 640g

* Capacity Of cup: 0.6L

CH181116

Spray Gun

Feature:

* Optional Nozzle Size : 1.2mm , 1.6mm , 1.8mm

* Lightweight

* High transfer efficiency when air pressure at 29 psi.

* Stainless steel nozzle and needle.

Specification:

* Fluid tip size: 1.4mm

* Air pressure: 2.0-3.0kg/cm2 (29-43psi)

* Air inlet: 1/4”

* Fluid inlet: M16x1.5

* Air consumption: 280-370 L/min(9.9-13.1CFM)

* Weight: 630g

* Capacity Of cup: 0.6L

CH181103-MP-S

Middle Pressure Spray Gun

Feature:

* Forged gun body

* This Spray Gun combines the advantages of HLVP and conventional spray gun: lower inlet pressure but high work rate.

* This Spray Gun provides the finest result and still saves material at the same time.

* Spray pattern: 25 cm

* Available size: 1.0mm, 1.3mm, 1.6mm, 1.8mm and 2.0mm

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 1.5-2 bar(21.75-29psi)

* Air inlet: 1/4”

* Fluid inlet: M16x1.5

* Air consumption: 280 L/min

* Weight: 425g(with cap:600g)

* Capacity Of cup: 0.6L

CH181103-BP Spray Gun

Feature:

* Forged gun body and new air cap design for finest atomization.

* Suitable for polyester, filler or other high viscosity materials.

* This spray gun can spray from small spot repairs to large surfaces.

* Spray pattern: about 19 cm

Specification:

* Fluid tip size: 2.5mm

* Air pressure: 1.5-2 bar(21.75-29psi)

* Air inlet: 1/4”

* Fluid inlet: M16x1.5

* Air consumption: 250 L/min

* Weight: 425g(with cap:600g)

* Capacity Of cup: 0.6L

Description:

* Nozzle 0.8mm

* Fluid output/min: 80

* Pattern width: 140mm

* Air consumption/min: 90

* Cup capacity: 125c.c.

* Air inlet: 1/4"NPS

* Fluid inlet: M14x1.0P

* Working Pressure: 30-45psi

* Cup weight: 280g

CH140602-G Mini Air Spray

HVLP Air Spray Gun

CH181121 HVLP Spray Gun

Feature:

* Optional nozzle size: 1.2mm and 1.4mm

* A new lightweight spray gun developed for busy professional paints needing the ultimate in quality finishes.

* The spray gun is suitable for use with both water based and solvent based coating materials.

* The new caps provide superb atomization from the finest metallic and pearlescent basecoats to the latest high density clears.

* Simplified, user friendly components provide faster, easier cleaning and maintenance.

* Forged gun body and anodized finish surface.

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 1.78kg/cm2 (25psi / 1.75bar)

* Air inlet: 1/4”

* Fluid inlet: 3/8”

* Air consumption: 465 L/min(16.27CFM)

* Weight: 650g

* Capacity Of cup: 0.6L

CH181121-HE High Efficiency Spray Gun

Feature:

* Optional nozzle size: 1.2mm and 1.4mm

* A new lightweight spray gun developed for busy professional paints needing the ultimate in quality finishes.

* The spray gun is suitable for use with both water based and solvent based coating materials.

* The new caps provide superb atomization from the finest metallic and pearlescent basecoats to the latest high density clears.

* Simplified, user friendly components provide faster, easier cleaning and maintenance.

* Forged gun body and anodized finish surface.

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 2.04kg/cm2 (29psi / 2bar)

* Air inlet: 1/4”

* Fluid inlet: 3/8”

* Air consumption: 275 L/min

* Weight: 650g

* Capacity Of cup: 0.6L

CH181108-HVLP HVLP-Gravity Cup Spray Gun

Feature:

* Perfect finishes even with the low pressure.

* Well balance gun with perfect atomization.

* High transfer efficiency.

* Available nozzle size: 1.0mm, 1.3mm, 1.4mm, 1.6mm, 1.8mm and 2.0mm.

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 2.04kg/cm2 (29psi / 2bar)

* Air inlet: 1/4”

* Fluid inlet: M16 x 1.5

* Air consumption: 430 L/min

* Weight: 640g

* Capacity Of cup: 0.6L

CH181102-E H.V.L.P. Spray Gun

Description:

* All wet parts are made by stainless steel

* Excellent atomization of both solvent and waterbased materials

* Used for spot repair to medium paint job

* Less pollution to environment, high transfer efficiency and save cost

* Small/lightweight and can reach hard accessible area.

* Optional Nozzle Size : 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.4mm

Specification:

* Fluid tip size: 1.0mm

* Air pressure: 2.04kg/cm2 (29psi / 2bar)

* Air inlet: 1/4”

* Fluid inlet: M10x1.0

* Air consumption: 115 L/min (4.1CFM)

* Weight:320g

* Capacity Of cup: 0.125L

CH121318-W HVLP Gravity Feed Detail Spray Gun

Description:

* Nozzle 0.8mm

* Air consumption: 4cfm/112L/min

* Cup capacity: 125c.c.

* Air inlet: 1/4"

* Fluid inlet: M14x1.0P

* Weight: 300g(0.66Lbs)

* Air pressure: 3bar/43psi

* Type of cup: Nylon

CH181103-HVLP HVLP Spray Gun

Description:

* Forged gun body.

* High transfer efficiency: Reduce overspray and save painting cost.

* Top quality spraying result makes this spray gun the ideal for manufacturing, building sector,and automotive industry.

* Spray pattern: 30cm

* Available size: 1.0mm, 1.3mm, 1.6mm, 1.8mm and 2.0mm

Specification:

* Fluid tip size: 1.3mm

* Air pressure: 1.5-2.0bar (21.75-29psi)

* Air inlet: 1/4”

* Fluid inlet: M16x1.5

* Air consumption: 350 L/min

* Weight:425g(with cup:600g)

* Capacity Of cup: 0.6L

CH181103 H.V.L.P. Gravity Cup

Description:

* Body: die-casting

* Fluid tip: 1.3mm

* Air pressure: 21.75-29psi(1.5-2.0 bar)

* Air inlet: 1/4"

* Fluid inlet: M16x1.5

* Air consumption: 350L/min

* Weight: 425g (w/cup 600g)

* Capacity Of cup: 0.6L

* HVLP-Gravity cup type

CH140601-M H.V.L.P Gravity Air Spray Gun

Description:

* Nozzle 1.4mm

* Fluid output: 140 cc/min

* Pattern width: 330mm

* Air consumption: 300 L/min

* Operating distance: 17-21mm

* Cup capacity: 600c.c.

* Air inlet: 1/4"PS

* Fluid inlet: M16x1.5P

* Working Pressure: 15-28psi

* Cup weight: 450g

CH140603-G H.V.L.P. Air Spray Gun

Description:

* Nozzle 1.3mm

* Fluid output: 135 cc/min

*Pattern width: 300mm

* Air consumption: 250 L/min

* Cup capacity: 600c.c.

* Air inlet: 1/4"PS

* Fluid inlet: M16x1.5P

* Working Pressure: 15-28psi

* Cup weight: 620g

CH121319

Description:

* Nozzle 1.3mm

* Air consumption: 10cfm/283L/min

* Cup capacity: 600c.c.

* Air inlet: 1/4"

* Fluid inlet: M16x1.5P

* Weight: 450g(0.99Lbs)

* Air pressure: 2bar/29psi

* Optional nozzle size:

CH181102

Description:

* Body: die-casting

* Fluid tip: 0.8mm

* Air pressure: 30psi

* Air inlet: 1/4"

* Fluid inlet: M11x1.0

* Air consumption: 114L/min, 4cfm

* Weight: 400g

* Capacity Of cup: 0.125L

H.V.L.P. Gravity Feed Spray Gun

H.V.L.P. Spray Gun

CH181102-ESC HVLP Touch Up Spray Gun

Description:

* All wet parts are made by stainless steel

* Excellent atomization of both solvent and waterbased materials

* Used for spot repair to medium paint job

* Less pollution to environment, high transfer efficiency and save cost

* Small/lightweight and can reach hard accessible area.

* Optional Nozzle Size : 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.4mm

Specification:

* Fluid tip size: 1.0mm

* Air pressure: 2.04kg/cm2 (29psi / 2bar)

* Air inlet: 1/4”

* Fluid inlet: M10x1.0

* Air consumption: 115 L/min (4.1CFM)

* Weight:450g

* Capacity Of cup: 0.4L

CH121320 Gravity Feed Low Pressure High Transfer Efficiency Spray Gun

Description:

* Nozzle 1.3mm

* Air consumption: 10cfm/283L/min

* Cup capacity: 400c.c.

* Air inlet: 1/4"

* Fluid inlet: 1/4"

* Weight: 580g(1.28Lbs)

* Air pressure: 2bar/29psi

* Type of cup: Aluminum

CH181122-SC

Feature:

* Designed for superior finish performance and reduce overspray.

* Forged gun body and easy to clean surface.

* Built for ergonomic comfort, maximum efficiency, regulatory compliance and environmental responsibility.

* Stainless steel nozzle, needle and the parts that fluid pass through. It can handle all types of solvent based coating and water based materials.

* High performance is coupled with a gun body light in weight and designed for operator comfort to increase productivity.

* Optional Nozzle Size : 1.0mm, 1.2mm, 1.6mm, 1.8mm and 2.0mm

Specification:

* Fluid tip size: 1.4mm

* Air pressure: 2.04kg/cm2 (29psi / 2bar)

* Air inlet: 1/4”

* Fluid inlet: 1/4”

* Air consumption: 283 L/min

* Weight: 630g

* Capacity Of cup: 0.4L

HVLP-Side Cup Spray Gun

CH181122-S HVLP-Gravity Cup Spray Gun

Feature:

* Designed for superior finish performance and reduce overspray.

* Forged gun body and easy to clean surface

* Built for ergonomic comfort, maximum efficiency, regulatory compliance and environmental responsibility.

* Stainless steel nozzle, needle and the parts that fluid pass through. It can handle all types of solvent based coating and water based materials.

* High performance is coupled with a gun body light in weight and designed for operator comfort increase productivity.

* Optional Nozzle Size : 1.0mm, 1.2mm, 1.6mm, 1.8mm and 2.0mm

Specification:

* Fluid tip size: 1.4mm

* Air pressure: 2.04kg/cm2 (29psi / 2bar)

* Air inlet: 1/4”

* Fluid inlet: 3/8”

* Air consumption: 283 L/min

* Weight: 810g

* Capacity Of cup: 1.0L

Other Air Spray Gun

CH181103-MP-P Pressure Type Spray Gun

Feature:

* Pressure type spray gun for large painting area and high viscosity material.

* Stainless steel paint nozzle, needle and other parts that fluid pass through.

* Suitable for the application of both waterborne and solvent materials.

* Wide fan, high material flow rate and fine atomization.

* Available nozzle size: 1.0mm, 1.3mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm and 2.5mm

Specification:

* Fluid tip size: 1.0mm

* Air pressure: 2.5 kg/cm2

* Air inlet: 1/4”

* Fluid inlet: 3/8”

* Air consumption: 420 L/min

* Weight: 500g

CH181114 Spray Gun- Pressure Type

Feature:

* Optional Nozzle Size : 1.5mm , 1.8mm

* Excellent for large area as buses , truck and vans.

* Allows users to mix and paint 2 quarts at a time

Specification:

* Fluid tip size: 1.5mm

* Air pressure: 3.5-5 kg/cm2 (50-70psi)

* Air inlet: 1/4”

* Fluid inlet: 3/8”

* Air consumption: 280-360 L/min(10-12.7CFM)

* Weight: 2400g

* Capacity Of cup: 2.0L

CH181115 Refillable Aerosol Spray Gun

Feature:

* Rechargeable and non-polluting aerosol can.

* Fill with most liquids you wish to spray.

Specification:

*Air pressure: up to 200psi

* Weight: 150g

* Capacity: 0.6L

Air Brush

CH111008 Fine Air Brush Kit

Feature:

* Double-action trigger air paint control.

* Adaptor permits for using with propel can or air compressor.

* Excellent for fine art work and hobby craft, etc.

Specification:

* Fluid nozzle: 0.3mm

* Working pressure: 15-30PSI

* Air consumption: 0.4-0.8 CFM

* Cup capacity: 22c.c.

* Cup fix: side screw fix

Content:

* 1pc air brush

* 1pc adaptor

* 1pc 22cc cup

* 1pc regulator

* 1pc 5” air hose set

* 1pc wrench

* 1pc manual

CH111010 Air Brush Kit

Feature:

* Double-action trigger air paint control.

* Precisely machined nozzle, air and paint regulator assure fine spray pattern, suitable for all brush work, graphic arts, etc.

Specification:

* Fluid nozzle: 0.3mm

* Working pressure: 15-30PSI

* Air consumption: 0.4-0.8 CFM

* Cup capacity: 22c.c.

* Cup fix: side screw fix

Content:

* 1pc air brush

* 1pc adaptor

* 1pc 22cc cup

* 1pc regulator

* 1pc 5” air hose set

* 1pc wrench

* 1pc manual

CH111011 Air Brush Kit

Feature:

* Double-action trigger air paint control.

* Special gun with fine round spray pattern, for art work, design & mural painting, fine regulation of material flow.

Specification:

* Fluid nozzle: 0.2mm

* Working pressure: 15-30PSI

* Air consumption: 0.4-0.8 CFM

* Cup capacity: 10c.c. & 5c.c.

* Cup fix: side screw fix

Content:

* 1pc air brush

* 2pcs adaptors

* 1pc 10cc cup & 1pc 5cc cup

* 1pc wrench

CH111014 Air Brush Kit

Feature:

* Double-action trigger air paint control.

* Precisely machined fine nozzle, suitable for art work, design painting.

Specification:

* Fluid nozzle: 0.3mm

* Working pressure: 15-30PSI

* Cup capacity: 22c.c. & 50c.c.

* Cup fix: detachable

Content:

* 1pc air brush

* 1pc adaptor

* 1pc 22cc & 1pc 50cc glass jar

* 1pc 5” air hose

* 1pc holder

CH111025-A

Feature:

* Double-action trigger air paint control.

* Precisely machined fine nozzle, suitable for art work, design painting.

Specification:

* Fluid nozzle: 0.3mm

* Working pressure: 15-30PSI

* Cup capacity: 22c.c.

&CH111025-B Air Brush

CH111015

Air Brush Kit

Feature:

* Double-action trigger air paint control.

* Precisely machined fine nozzle, suitable for art work, design painting.

Specification:

* Fluid nozzle: 0.3mm

* Working pressure: 15-30PSI

* Cup capacity: 3c.c.

* Cup fix: detachable

Content:

* 1pc air brush

* 1pc adaptor

* 2pc 22cc & 50cc glass jar

* 1pc 5” air hose

* 1pc holder

CH111017-A

Feature:

* Double-action trigger air paint control.

* Precisely machined fine nozzle, suitable for art work, design painting.

Specification:

* Fluid nozzle: 0.2mm

* Working pressure: 15-30PSI

* Cup capacity: 1.5c.c.

CH111024-A

Feature:

* Double-action trigger air paint control.

* Precisely machined fine nozzle, suitable for art work, design painting.

Specification:

* Fluid nozzle: 0.2mm

* Working pressure: 15-30PSI

* Cup capacity: 0.4c.c.

* Spray control: back stop screw

& CH111017-B Air Brush

Air Brush

Air Hose Reel

CH090856-C Automatic Reel

Description:

* With polyurethane braid tube

* Steel casing

* Size: 5mm (ID) x 8mm(OD) x 10 +0.5M

CH090864-A Automatic Reel

Description:

* With polyurethane braid tube

* PE impact resistant casing

* Size:

-Item No.: CH090864-A, 9.5mm (ID) x 13.5mm(OD) x 12 +1M

-Item No.: CH090864-B, 8mm (ID) x 12mm(OD) x 15 +1M

-Item No.: CH090864-C, 6.5mm (ID) x 10mm(OD) x 15 +1M

-Item No.: CH090864-D, 5mm (ID) x 8mm(OD) x 15 +1M

CH120401 Handy Air Hose Reel

Description:

* Tube material: polyurethane braid hose

* Case size: 290mm(L)x285mm(W)x150mm(H)

* Hose size: 6.5x10x10(M)

* Working pressure: 15kg/cm2

* Break pressure: 50kg/cm2

* Hose colors: orange, blue

* Coupler style: 1/4"male

* N.W.: 2.5kg

CH120410 Air Hose Reel w/male Fitting

Description:

* Working pressure: 200psi

* Bursting pressure: 800psi

* Size: 9.5I.D. x 14.5O.D. x 12M

* w/3/8" thread

CH090854 Air Hose Reel

Description:

* Steel housing

* 3/8” x 18M or 5/16” x 20M, or 1/4” x 20M

* PU braid

CH090806 Air Hose Reel

Description:

* Steel housing

* 3/8” x 12M or 5/16” x 15M, or 1/4” x 15M

* PU braid

CH090855 Air Hose Reel

Description:

* Steel housing

* 5/16” x 9M, or 1/4” x 10M

* PU braid

CH090804 Air Hose Reel

Description:

* Steel housing

* 3/8” x 12M or 5/16” x 15M, or 1/4” x 15M

* PU braid

CH090856 Air Hose Reel

Description:

* Steel housing

* 5/16” x 9M, or 1/4” x 10M

* PU braid

CH090857 Air Hose Reel

Description:

* Steel housing

* 3/8” x 12M or 5/16” x 15M, or 1/4” x 15M

* PU braid

CH090858 Air Hose Reel

Description:

* Plastic housing

* 5 x 8mm(8M)

* PU

CH090858-A & CH090858-B Air Hose Reel

Description:

* Plastic housing

* CH090858-A: 8 x 12mm (7.5M)

* CH090858-B: 6.5x 10mm (8.0M)

* PU

CH090859 Air Hose Reel

Description:

* Steel housing

* CH090859-A: 3/8” x 50ft (15M)

* CH090859-B: 1/2” x 40ft (12M)

* PVC Braid

Air Silicone Gun

CH080603 Air Caulking Gun (non-Dropping)

Description:

* Cartridge:310ml

* Standard Tube Size: I.D.50mm x L210mm

* Opt. Air Pressure: Max.150psi

* New Weight: 1.1kgs

CH080603-A9 Air Caulking Gun(non-Dropping w/Regulator)

Description:

* Cartridge:310ml

* Standard Tube Size: I.D.50mm x L210mm

* Opt. Air Pressure:Max.150psi

* New Weight: 0.8kgs

CH080603-29 2 in 1 Air Caulking Gun (non-Dropping w/Regulator )

Description:

* Cartridge: 310ml

* Sachet : 310ml~400ml

* Standard Tube Size: I.D.50mm x L235mm

* Opt. Air Pressure:Max.150psi

* New Weight: 1.2kgs

CH080603MA9 Air Caulking Gun (non-Dropping w/ Regulator)

Description:

* Cartridge:310ml

* Standard Tube Size: I.D.50mm x L210mm

* Opt. Air Pressure:Max.150psi

* New Weight: 0.6kgs

CH080603-2M9 2 in 1 Air Caulking Gun (non-Dropping w/Regulator)

Description:

* Cartridge:310ml

* Sachet : 310ml~400ml

* Standard Tube Size: I.D.50mm x L235mm

* Opt. Air Pressure:Max.150psi

* New Weight: 0.9kgs

CH080603-MC9 2 in 1 Air Caulking Gun (non-Dropping w/Regulator, Quick Exhaust Valve , Handle Grip)

Description:

* Cartridge:310ml

* Sachet : 310ml~400ml

* Standard Tube Size: I.D.50mm x L235mm

* Opt. Air Pressure:Max.150psi

* New Weight: 0.9kgs

Air Cutting Tool

CH030724 Flex Head Reversible Cut-Off Tool

Feature:

* With patented reversible switch: US 6,932,165 ；I 262840

* Patent low noise design. The flex head with 3 position directs sparks away from operator.

* Built-in speed regulator

* The locking clamp keeps the flex head in fixed position for safety.

Specification:

* Cutting wheel: 3”

* Weight: 1.1kgs (2.42Lbs)

* Length: 249mmL(9.8”)

* Rotation speed: 16,000 RPM

* Horsepower: 0.7HP

* Air Inlet: 1/4”

* Hose size: 10mm (3/8”)

* Air consumption: 3.6 CFM

CH030725 ReciPro Air Saw

Feature:

* Built in dual-speed design: the low-speed mode lengthens blade lifespan；the high speed mode allows the tool to cut faster.

* Gears driven with reciprocating crank mechanism (Patent No.: US10,189,173 B1)

* Rubberized low vibration front housing.

* Safety throttle prevents accident start up.

Specification:

* Stroke length: 10mm

* Weight: 0.98kg (2.45Lbs)

* Length: 270mm (10.6”)

* Stroke speed: 5,000 SPM

* Air inlet: 1/4”

* Hose size: 10mm (3/8”)

* Air consumption: 3.5 CFM

CH191629 Air Body Saw --New!

Specification:

* Free speed: 10,000r.p.m.

* File shank opening: 5mm

* Cutting cap: 3mm

* Stroke length: 10mm

* Air pressure: 6.2bar

* Air consumption: 1.0CFM

* Net weight: 0.8kg

* Air inlet: 1/4” (PT/NPT)

* Overall length: 220mm

CHIH

CH191603 & CH191603-D Air Saw Triangle Housing

Specification: Item No. CH191603 CH191603-D

* Cutting capacity: Steel: 2 Alum.: 3 Steel: 2 Alum.: 3

* Stroke length: 10mm 10mm

* Stroke per minutes: 5000s.p.m. 5000s.p.m.

* Overall length: 9.84”(250mm) 9.84”(250mm)

* Air consumption: 1.4CFM 1.4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Saw blade: 32T/24T 32T/24T

* File: 5mm x 4pcs or 4mm x 5pcs 5mm x 4pcs or 4mm x 5pcs

* Weight: 0.7kg 0.7kg

* CH191603 is type with hose

CH191602 & CH191602-A Air Body Saw

Specification: Item No. CH191602 CH191602-A

* Cutting capacity: Steel: 2 Alum.: 3 Steel: 2 Alum.: 3

* Stroke length: 10mm 10mm

* Stroke per minutes: 9500s.p.m. 9000s.p.m.

* Overall length: 9.25”(235mm) 11”(280mm)

* Air consumption: 1.4CFM 1.4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Saw blade: 32T/24T 32T/24T

* Weight: 0.7kg 0.8kg

* CH191602-A is air body saw type with hose

167

CH191603-A & CH191603-PC Air Saw Square Housing with Hose

Specification: Item No. CH191603-A CH191603-PC

CH191630-A Mini Air Saw

* Cutting capacity: Steel: 2 Alum.: 3 Steel: 2 Alum.: 3

* Stroke length: 10mm 10mm

* Stroke per minutes: 5000s.p.m. 5000s.p.m.

* Overall length: 9.84”(250mm) 9.84”(250mm)

* Air consumption: 1.4CFM 1.4CFM

* Air inlet: (PT/NPT) 1/4” 1/4”

* Air hose: 3/8” (ID) 3/8” (ID)

* Saw blade: 32T/24T 32T/24T

* Files: 5mm x 4pcs or 4mm x 5pcs 5mm x 4pcs or 4mm x 5pcs

* Weight: 1kg 0.7kg

Specification:

* Cutting capacity: Steel- 1.2mm, Aluminum-2.0mm

* Stroke length: 5mm

* Stroke per minutes: 7500s.p.m

* Overall length: 7.85”(200mm)

* Air consumption: 1CFM

* Air inlet: 1/4" (PT/NPT)

* Air hose: 3/8” (ID)

* Saw blade: 32T/24T

* Files: 5mm x 4pcs

* Net weight: 0.6kg

CH191631 Air File

Specification:

* Stroke length: 10mm

* Stroke per minutes: 3700s.p.m

* Overall length: 9.21”(234mm)

* Air consumption: 1.7CFM

* Air inlet: 1/4" (PT/NPT)

* Air hose: 3/8” (ID)

* Files: 6mm x 4pcs

* Net weight: 1.1kg

CH191632 Mini Air Saw

Specification:

* Free speed: 10,000r.p.m.

* Stroke length: 6mm

* Noise: 85dB

* Air inlet: (PT/NPT) 1/4”

* Air pressure: 6.3kg/cm2

* Air consumption: 3.5CFM

* Weight: 0.56kg

* Overall length: 195mm

* with Files: 5mm x 4pcs

CH091633 &CH091633-H Air Saw rotary Motor type

Specification: Item No. CH191633 CH191633-H

* Cutting capacity: Steel: 2 Alum.: 3 Steel: 2

* Item No.: CH091633-H is Air Saw rotary Motor type with hose

CH091634 Air Saw Rotary Motor Type

Specification:

* Free speed: 6000r.p.m.

* Stroke length: 10mm

* Noise: 85dB

* Air inlet: (PT/NPT) 1/4”

* Air pressure: 6.3kg/cm2

* Air consumption: 4CFM

* Weight: 0.8kg

* Overall length: 9.05”(230mm)

Specification:

* Stroke per minutes: 6000s.p.m

* Overall length: 7.66”(195mm)

* Air consumption: 4.5CFM

* Air inlet: 1/4" (PT/NPT)

* Air hose: 3/8” (ID)

* Net weight: 0.9kg

Specification:

* Cutting capacity: steel-3, Alum.-5

* Stroke length: 11mm

* Stroke per minutes: 5000s.p.m

* Overall length: 9.05”(230mm)

* Air consumption: 4CFM

* Air inlet: 1/4" (PT/NPT)

* Air hose: 3/8” (ID)

* Saw blade: 12T

* Net weight: 1.42kg

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free Speed: 2800RPM

* Cutting capacity: Alum.1.6mm /steel 1.2mm

* Air consumption: 4CFM

* Width of cut: 5.5mm

* Air pressure: 90psi

* Overall length: 215mm

Description:

* Motor HP: 0.45

* Air hose: 3/8”

* Air inlet: 1/4”

* Air exhaust: handle

* Sound level: 90dB

* Free Speed: 2800RPM

* Cutting capacity: Alum.1.6mm /steel 1.2mm

* Air consumption: 4CFM

* Width of cut: 5.5mm

* Air pressure: 90psi

* Overall length: 220mm

CH191635 Mini. Circular Saw

CH191636-HS Air Handy Jig Saw

CH131229 Air Metal Shear

CH131230 Air Scissor

CH030705 Air Nibbler

Description:

* Cutting capacity: Steel- 1.2mm, Aluminum-1.6mm

* Free speed: 2600rpm

* Air consumption: 3.7cfm

* Air inlet: 1/4”

* Hose size: 3/8” (10mm)

* Weight: 1kg (2.2lbs)

* Length: 193mm (7.6”)

CH191616 Air Knife

Specification:

* Free speed: 20,000rpm

* Overall length: 9.25”(235mm)

* Air consumption: 4CFM

* Air inlet(PT/NPT): 1/4”

* Air hose: 3/8”

* Weight: 1.1kgs(2.42Lbs)

CH191655 Air Oscillation Knife

Specification:

* Free speed: 20,000rpm

* Overall length: 7.9”(201mm)

* Air consumption: 4CFM

* Air inlet(PT/NPT): 1/4”

* Air hose: 3/8”

* Weight: 0.7kgs(1.54Lbs)

CH191655-HBC Air Oscillation Knife w/Hose

Specification:

* Free speed: 20,000rpm

* Overall length: 8.66”(220mm)

* Air consumption: 4CFM

* Air inlet(PT/NPT): 1/4”

* Air hose: 3/8”

* Weight: 0.7kgs(1.54Lbs)

CH030709 Air Cutter

Description:

* Cutting Wheel: 3”

* Free speed: 21,000 rpm

* Avg. Air Consumption: 3.5scfm

* Air inlet: 1/4”

* Air hose size: 3/8” (10mm)

* Weight: 0.8kgs (1.8lbs)

* Length: 195mm (7.6”)

Air Hammer and Needle Scaler

Chipping Hammer

CH041339-R & CH041339-H Mini Chipping Hammer

Feature:

* Choice of bushing: 0.464" Hex, prevents chisel rotation; 0.5" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Pistol grip handle with self-closing outside trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041339-K Mini Chipping Hammer Kit

Feature:

* Choice of bushing: 0.464" Hex, prevents chisel rotation; 0.5" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Pistol grip handle with self-closing outside trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Content:

* Chipping hammer x 1pc

* Air nipple (1/4") x 1pc

* Retainer spring quick change type x 1pc

* Retainer spring beehive type x 1pc

* Quick change retainer x 1pc

* Chisel (10") x 3pcs

CH041340-R

&

CH041340-H

1” Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Spline locking to prevent loosening of handle or cylinder.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 1", 2", 3" or 4" stroke cylinder versions.

* Pistol grip handle with self-closing outside trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041340-2R & CH041340-2H

2” Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Spline locking to prevent loosening of handle or cylinder.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 1", 2", 3" or 4" stroke cylinder versions.

* Pistol grip handle with self-closing outside trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041340-3R & CH041340-3H

3” Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Spline locking to prevent loosening of handle or cylinder.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 1", 2", 3" or 4" stroke cylinder versions.

* Pistol grip handle with self-closing outside trigger.

* Chrome plated cylinder for extra durability

* Teasing throttle for precise control.

Specification:

CH041340-4R & CH041340-4H

4” Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Spline locking to prevent loosening of handle or cylinder.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 1", 2", 3" or 4" stroke cylinder versions.

* Pistol grip handle with self-closing outside trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041341-R & CH041341-H Mini Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041341-2R & CH041341-2H

2” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041341-3R & CH041341-3H

3” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041341-4R & CH041341-4H

4” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041341-XR

& CH041341-XH Mini Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041341-2XR

& CH041341-2XH 2” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041341-3XR CH041341-3XH

3” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041341-4XR & CH041341-4XH 4” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041342-2R & CH041342-2H

2” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041342-3R

& CH041342-3H 3” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

CH041342-4R

& CH041342-4H 4” Four Bolt Chipping Hammer

Feature:

* Choice of bushing: 0.580" Hex, prevents chisel rotation; 0.680" Round, chisel rotates freely.

* Unique ring valve as standard for harder blow in tough applications.

* Rugged construction, heat treated cylinder and forged handle.

* Available in 2", 3" or 4" stroke cylinder versions.

* D-type handle with inner trigger.

* Chrome plated cylinder for extra durability.

* Teasing throttle for precise control.

Specification:

Vibro-Reduced Air Hammer

CH041343-RQC & CH041343-HQC Vibro-Reduced Short Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041344-R, CH041344-H & CH041344-LH Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041344-RQC, CH041344-HQC, CH041344-LHQC Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041345-R, CH041345-H, CH041345-LH Composite Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041345-RQC, CH041345-HQC, CH041345-LHQC Composite Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041346-R, CH041346-H, CH041346-LH Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041346-RQC, CH041346-HQC, CH041346-LHQC Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 3000 BPM

* Air consumption: 7.8CFM (221LPM)

* Piston diameter: dia. 19 x 48mm

* Piston stroke: 65.5mm (2.6 inch)

* Chisel shank: 10.2mm (0.401 inch) round

* Overall length: 291mm (11.5 inch)

* Weight: 2.4kg (5.3lb)

* Air pressure: ≦90 PSI (6.2bar)

CH041346-PH Vibro-Reduced Med Barrel Air Pittsburgh Lock Seam Hammer

CH041347-R, CH041347-H, CH041347-LH Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041348-R, CH041348-H, CH041348-LH Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041348-RQC, CH041348-HQC, CH041348-LHQC Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041349-R, CH041349-H, CH041349-LH Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041349-RQC, CH041349-HQC, CH041349-LHQC Vibro-Reduced Med. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041350-R, CH041350-H, CH041350-LH Vibro-Reduced Long. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041350-K Vibro-Reduced Long. Barrel Air Hammer Set

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Contents

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Chisel(7") x 5pcs

CH041350-K8 Vibro-Reduced Long. Barrel Air Hammer Set

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Contents

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Impact chisel x 5pcs

CH041350-RQC, CH041350-HQC, CH041350-LHQC Vibro-Reduced Long. Barrel Air Hammer

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041351-R, CH041351-H, CH041351-LH Composite Vibro-Reduced Long. Barrel Air

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

Hammer

CH041351-K Composite Vibro-Reduced Long. Barrel Air Hammer Set

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Content

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Chisel(7") x 5pcs

CH041351-K8 Composite Vibro-Reduced Long. Barrel Air Hammer Set

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Content

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Chisel(7") x 5pcs

CH041351-RQC, CH041351-HQC, CH041351-HLQC Composite Vibro-Reduced Long. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041352-R, CH041352-H, CH041352-LH Vibro-Reduced Long. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041352-RQC, CH041352-HQC, CH041352-LHQC Vibro-Reduced Long. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041353-R, CH041353-H, CH041353-LH Vibro-Reduced Long. Barrel Air Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041353-K Vibro-Reduced Long. Barrel Air Hammer Set

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Contents

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Chisel(7") x 5pcs

CH041353-RQC,

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041354-HQC, CH041354-LHQC Vibro-Reduced Long. Barrel Air Hammer

CH041354-R, CH041354-H, CH041354-LH Vibro-Reduced Long. Barrel Air Hammer

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041354-RQC, CH041354-HQC, CH041354-LHQC Vibro-Reduced Long. Barrel Air Hammer

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041355-R, CH041355-H, CH041355-LH Vibro-Reduced Long. Barrel Air Hammer

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

CH041355-K Vibro-Reduced Long. Barrel Air Hammer Set

Feature

* Front exhaust designed avoid cutting injury from chips and debris.

* Integrated retainer chuck allows user to change chisels quickly.

* 3 types cylinder shank size: Round10.2mm/Hex10.2mm/Hex11mm.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Content

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Chisel(7") x 5pcs

CH041356-PH Vibro-Reduced Short Barrel Air Pittsburgh Lock Seam Hammer

Feature:

* Front exhaust designed avoid cutting injury from chips and debris.

* 70 degrees handle grip designed for user's comfort.

* Lightweight robust aluminium alloy casing.

* Patented design vibration damping valve.

* Simplified and high efficiency work.

* Dependable and robust design.

* High power to weight ratio.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 4200 BPM

* Air consumption: 6.2CFM (176LPM)

* Piston diameter: dia. 19 x 42mm

* Piston stroke: 40.5mm (1.6 inch)

* Chisel shank: 10.2mm (0.401 inch) round

* Overall length: 260mm (10.2 inch)

* Weight: 2.2kg (4.9lb)

* Air pressure: ≦90 PSI (6.2bar)

Standard Air Hammer

CH041358-R, CH041358-H Short Barrel Air Hammer

CH041310-R, CH041310-H Short Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041359-R, CH041359-H, CH041359-LH Med. Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041360-R, CH041360-H, CH041360-LH Med. Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 3000 BPM

* Air consumption: 6.2CFM (176LPM)

* Piston diameter: dia. 19 x 46mm

* Piston stroke: 56mm (2.2 inch)

* Chisel shank: 10.2mm (0.401 inch) round

* Overall length: 220mm (8.7 inch)

* Weight: 1.8kg (4lb)

* Air pressure: ≦90 PSI (6.2bar)

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041360-QC Med. Barrel Air Hammer

CH041361-R, CH041361-H, CH041361-LH Med. Barrel Air Hammer

CH041362-R, CH041362-H, CH041362-LH Super Duty Med. Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041301-R, CH041301-H, CH041301-LH Heavy Duty Med. Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 3000 BPM

* Air consumption: 6.2CFM (176LPM)

* Piston diameter: dia. 19 x 46mm

* Piston stroke: 56mm (2.2 inch)

* Chisel shank: 10.2mm (0.401 inch) round

* Overall length: 215mm (8.5 inch)

* Weight: 1.8kg (4lb)

* Air pressure: ≦90 PSI (6.2bar)

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041301-QC Med. Barrel Air Hammer

CH041363-R, CH041363-H, CH041363-LH Heavy Duty Med. Barrel Air Hammer

CH041364-R, CH041364-H, CH041364-LH Heavy Duty Med. Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041365-R, CH041365-H, CH041365-LH Heavy Duty Med. Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041366-R, CH041366-H, CH041366-LH Heavy Duty Med. Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041367-R, CH041367-H, CH041367-LH Super Duty Med. Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041368-R, CH041368-H, CH041368-LH Long Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041369-R, CH041369-H, CH041369-LH Long Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041304-R, CH041304-H, CH041304-LH Heavy Duty Long Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041371-R, CH041371-H, CH041371-LH Heavy Duty Long Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041372-R, CH041372-H, CH041372-LH Heavy Duty Long Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041373-R, CH041373-H, CH041373-LH Heavy Duty Long Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH041374-R, CH041374-H, CH041374-LH Heavy Duty Long Barrel Air Hammer

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Specification:

CH191650 & CH191650-L Air Hammer

Specification:

CH131208 190mmL Air Hammer W/ 4pcs Chisels

Description:

* Free Speed bpm: 3000

* Chisel Shank Opening: 0.401"

* Air Consumption : 3cfm

* Overall Length mm: 206

* Air Inlet : 1/4"

* Weight (kg):1.9

* Appearance Treatment: Mirror Polish, With Black Plastic Grip

* Bore Diameter in (mm): 3/4"(19mm)

* Hose Size: 3/8"

* Stroke Length in (mm): 2-5/16"(58mm)

CH131208-2 250mmL Air Hammer W/ 4pcs Chisels

Description:

* Free Speed BPM: 2100

* Chisel Shank Opening: 0.401"

* Air Consumption : 3CFM

* Overall Length mm: 235

* Air Inlet : 1/4"

* Weight (kg):2.3

* Appearance Treatment: mirror polish, with black plastic grip

* Bore Diameter IN(MM): 3/4"(19mm)

* Hose size: 3/8"

* Stroke Length IN (MM): 3"(76mm)

CH150204-A 190mm Med. Duty Air Hammer(w/variable Speed Trigger)

Description:

* Air Inlet:1/4"

* Shank Opening:0.401"(10.3mm),stroke:2-5/8"(66mm)

* Built-in Power Regulator, Variable Speed Trigger W/quick Change Chuck W/o Chisel Cp Type

* Bore Diameter:3/4"(19mm)

* Chisel Shank Diameter:0.401"(10mm)

* Free Speed:3,200bpm

* Air Pressure:90psi(6.2bar)

* Air Hose Size:3/8"id

* Air Consumption:4cfm(28scfm)

* Weight: w/quick Change Chuck:4.40lbs(2.0kgs)

* Length: w/quick Change Chuck:9.09"(231mm)

CH150205-A 250mm Heavy Duty Air Hammer(w/variable Speed Trigger)

Description:

* Free Speed:2,200bpm

* Shank Opening:0.401",stroke:3-7/8"(98mm)

* Air Consumption:4cfm(28scfm)

* Air Pressure:90psi(6.2bar)

* Air Hose Size:3/8"id

* Air Inlet:1/4"

* Built-in Power Regulator, Variable Speed Trigger with Quick Change Chuck

* Weight: w/quick Change Chuck:5.15lbs(2.34kgs)

* Length: w/quick Change Chuck:10.83"(275mm)

Specification:

Specification:

* Length: 150mm

* Stoke speed: 800 B.P.M.

* Overall length: 6.89”(175mm)

* Air consumption: 4CFM

* Air inlet(PT/NPT): 1/4”

* Air hose: 3/8”

* Weight: 1.3kgs(2.86Lbs)

Specification:

* Length: 135mm

* Stoke speed: 4500 B.P.M.

* Overall length: 5.31”(135mm)

* Air consumption: 4CFM

* Air inlet(PT/NPT): 1/4”

* Air hose: 3/8”

* Weight: 1.1kgs(2.42Lbs)

CH191652 & CH191652-L Air Hammer

CH191653-PC Air Hammer

CH191654 Shark Air Hammer

CH041360-K

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Content:

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Chisel(7") x 5pcs

CH041301-K

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Content:

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Chisel(7") x 5pcs

CH041370-K

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Content:

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Chisel(10") x 4pcs

Med. Barrel Air Hammer Set

Heavy Duty Med. Barrel Air Hammer Set

Heavy Duty Long Barrel Air Hammer Set

CH041372-K Heavy Duty Long Barrel Air Hammer Set

Feature:

* Superior design with internal spring components provides greater durability.

* Alloy steel cylinder and heat treated piston for longer life.

* Easy to maintain, with an easy out throttle valve assembly.

* The economical air hammer for fast cutting action.

* Sturdy and simple design for wide application.

* Professional touch trigger for total control.

Content:

* Air hammer x 1pc

* Air nipple(1/4") x 1pc

* Retainer spring x 1pc

* Quick change retainer x 1pc

* Chisel(10") x 4pcs

Riveting Hammer/ Pittsburgh Hammer/ Scaling Hammer

CH041315-5X Riveting Hammer

Feature:

* Convertible to chipping, caulking and ripping hammers with suitable chisels.

* Heat treated piston and cylinder for longer life.

* Aluminum alloy and forged steel handle.

* Replaceable for easy repair.

* Compact and lightweight.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 2200 BPM

* Air consumption: 8.6 CFM (243LPM)

* Piston diameter: dia. 19 x 60.3mm

* Piston stroke: 80.5mm (3.2 inch)

* Chisel shank: 12.6mm (0.496 inch) round

* Overall length: 210mm (8.3 inch)

* Weight: 2.1kg (4.6lb)

* Air pressure: ≦90 PSI (6.2bar)

* Sound pressure level: 104dB

* Sound power level:115dB

* Vibration level: 14.31 M/sec2

CH041316-5X Riveting Hammer

Feature:

* Convertible to chipping, caulking and ripping hammers with suitable chisels.

* Heat treated piston and cylinder for longer life.

* Aluminum alloy and forged steel handle.

* Replaceable for easy repair.

* Compact and lightweight.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 2200 BPM

* Air consumption: 8.6 CFM (243LPM)

* Piston diameter: dia. 19 x 60.3mm

* Piston stroke: 80.5mm (3.2 inch)

* Chisel shank: 12.6mm (0.496 inch) round

* Overall length: 287mm (11.3 inch)

* Weight: 3.1kg (6.8lb)

* Air pressure: ≦90 PSI (6.2bar)

* Sound pressure level: 108dB

* Sound power level:119dB

* Vibration level: 13.13 M/sec2

CH041317 Riveting Hammer

Feature:

* Convertible to chipping, caulking and ripping hammers with suitable chisels.

* Heat treated piston and cylinder for longer life.

* Aluminum alloy and forged steel handle.

* Replaceable for easy repair.

* Compact and lightweight.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 5400 BPM

* Air consumption: 3 CFM (85LPM)

* Piston diameter: dia. 10 x 37mm

* Piston stroke: 18.5mm (0.7 inch)

* Chisel shank: 8 mm (0.314 inch) round

* Overall length: 188mm (7.4 inch)

* Weight: 0.4kg (0.9lb)

* Air pressure: ≦90 PSI (6.2bar)

* Sound pressure level: 95dB

* Sound power level:106dB

* Vibration level: 2.42 M/sec2

CH041357-PH Air Pittsburgh Lock Seam Hammer

Feature:

* Designed to close the pittsburgh lock seam.

* Efficient tool for sheet metal work.

* Used to fold over or seam metal to 16 gauges.

* Reduce the working time up to 80%.

* Heat treated parts for longer life.

* Lighter and neater, more uniform than seamed by hand.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 4200 BPM

* Air consumption: 4.8CFM (136LPM)

* Piston diameter: dia. 19 x 31.5mm

* Piston stroke: 53.5mm (2.1 inch)

* Chisel shank: 10.2mm (0.401 inch) round

* Overall length: 272mm (10.7 inch)

* Weight: 2.3kg (5.1lb)

* Air pressure: ≦90 PSI (6.2bar)

CH041305-PH Air Pittsburgh Lock Seam Hammer

Feature:

* Designed to close the pittsburgh lock seam.

* Efficient tool for sheet metal work.

* Used to fold over or seam metal to 16 gauges.

* Reduce the working time up to 80%.

* Heat treated parts for longer life.

* Lighter and neater, more uniform than seamed by hand.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 4600 BPM

* Air consumption: 6CFM (170LPM)

* Piston diameter: dia. 25.4 x 44mm

* Piston stroke:38.5mm (1.5 inch)

* Chisel shank: 12.7mm (0.5 inch) square

* Overall length: 301mm (11.9 inch)

* Weight: 2.5kg (5.3lb)

* Air pressure: ≦90 PSI (6.2bar)

CH041313 Triple Head Scaling Hammer

Feature:

* Detachable taper fit cutter head reduces cost of replacement and extends piston life.

* Removal of rust, coatings, scale from steel structures and surfaces.

* Cleaning of cast iron, steel pipe and bell joints of gas lines.

* Removal of stubborn coatings and mastic residue from floor.

* Alternative tungsten carbide tipped bush hammer piston.

* Reduce vibration improves operator comfort.

* Tungsten carbide tipped cruciform piston.

* Lightweight, easy to handle.

Specification:

* Air inlet: 3/8” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 2400 BPM

* Air consumption: 7.8 CFM (221LPM)

* Piston diameter: dia. 27 x 69mm

* Piston stroke: 26 mm (1 inch)

* Overall length: 541mm (21.3 inch)

* Weight: 4kg (8.8lb)

* Air pressure: ≦90 PSI (6.2bar)

* Sound pressure level: 91.9dB

* Sound power level:104.1dB

* Vibration level: 13.3 M/sec2

CH041313-L Triple Head Scaling Hammer

Feature:

* Detachable taper fit cutter head reduces cost of replacement and extends piston life.

* Removal of rust, coatings, scale from steel structures and surfaces.

* Cleaning of cast iron, steel pipe and bell joints of gas lines.

* Removal of stubborn coatings and mastic residue from floor.

* Alternative tungsten carbide tipped bush hammer piston.

* Reduce vibration improves operator comfort.

* Tungsten carbide tipped cruciform piston.

* Lightweight, easy to handle.

Specification:

* Air inlet: 3/8” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 2400 BPM

* Air consumption: 7.8 CFM (221LPM)

* Piston diameter: dia. 27 x 69mm

* Piston stroke: 26 mm (1 inch)

* Overall length: 497mm (19.6 inch)

* Weight: 4kg (8.8lb)

* Air pressure: ≦90 PSI (6.2bar)

CH041312 Single Head Scaling Hammer

Feature:

* Detachable taper fit cutter head reduces cost of replacement and extends piston life.

* Removal of rust, coatings, scale from steel structures and surfaces.

* Cleaning of cast iron, steel pipe and bell joints of gas lines.

* Removal of stubborn coatings and mastic residue from floor.

* Alternative tungsten carbide tipped bush hammer piston.

* Reduce vibration improves operator comfort.

* Tungsten carbide tipped cruciform piston.

* Lightweight, easy to handle.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 7000 BPM

* Air consumption: 3.3 CFM (93LPM)

* Piston diameter: dia. 30 x 80mm

* Piston stroke: 34.7 mm (1.4 inch)

* Overall length: 561mm (22.1 inch)

* Weight: 2.3kg (5.1lb)

* Air pressure: ≦90 PSI (6.2bar)

* Sound pressure level: 89.1dB

* Sound power level:101.3dB

* Vibration level: 35.1 M/sec2

CH041312-T Single Head Scaling Hammer

Feature:

* Detachable taper fit cutter head reduces cost of replacement and extends piston life.

* Removal of rust, coatings, scale from steel structures and surfaces.

* Cleaning of cast iron, steel pipe and bell joints of gas lines.

* Removal of stubborn coatings and mastic residue from floor.

* Alternative tungsten carbide tipped bush hammer piston.

* Reduce vibration improves operator comfort.

* Tungsten carbide tipped cruciform piston.

* Lightweight, easy to handle.

Specification:

* Air inlet: 3/8” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 7000 BPM

* Air consumption: 3.3 CFM (93LPM)

* Piston diameter: dia. 30 x 80mm

* Piston stroke: 34.7 mm (1.4 inch)

* Overall length: 531mm (20.9 inch)

* Weight: 2.4kg (5.3lb)

* Air pressure: ≦90 PSI (6.2bar)

* Sound pressure level: 89.1dB

* Sound power level:101.3dB

* Vibration level: 35.1 M/sec2

Air Blow Gun

CH140957-1 Air Blow Gun (protect nozzle)

Feature:

* With hook down for hanging on objects, production line

* Lightweight made by composite material

* Streamlined design complying with ergonomics

* New housing design for mass flow

Specification:

* Max. pressure: 200 psi (14 kg/cm2)

* Air inlet: 1/4” NPT

* Temperature range: -40 to 60 ℃

CH140957-2 Air Blow Gun (wide range blow)

Feature:

* With hook down for hanging on objects, production line

* Lightweight made by composite material

* Streamlined design complying with ergonomics

* New housing design for mass flow

Specification:

* Max. pressure: 200 psi (14 kg/cm2)

* Air inlet: 1/4” NPT

* Temperature range: -40 to 60 ℃

CH140957-3 Air Blow Gun (adjustable blow)

Feature:

* With hook down for hanging on objects, production line

* Lightweight made by composite material

* Streamlined design complying with ergonomics

* New housing design for mass flow

Specification:

* Max. pressure: 200 psi (14 kg/cm2)

* Air inlet: 1/4” NPT

* Temperature range: -40 to 60 ℃

CH140957-4 Air Blow Gun (silence noise)

Feature:

* With hook down for hanging on objects, production line

* Lightweight made by composite material

* Streamlined design complying with ergonomics

* New housing design for mass flow

Specification:

* Max. pressure: 200 psi (14 kg/cm2)

* Air inlet: 1/4” NPT

* Temperature range: -40 to 60 ℃

CH1520344 Air Blow Gun

Description:

* Light weight and easy operation.

* Body material: POM

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 175PSI(12Bar/1.2MPa)

Specification:

* Nozzle O.D.: 6mm

* Available Nozzle length:

-10cm (4”)

-27cm(10.6”)

CH1520345 Air Blow Gun

Description:

* Light weight and easy operation.

* Body material: POM

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 175PSI(12Bar/1.2MPa)

Specification:

* Nozzle O.D.: 8mm

* Available Nozzle length:

CH1520345-S

Description:

* Light weight and easy operation.

* Body material: POM

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 175PSI(12Bar/1.2MPa)

Specification:

* Nozzle O.D.: 8mm

* Available Nozzle length: -10cm (4”) -27cm(10.6”)

Description:

* Light weight and easy operation.

* Body material: POM

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 175PSI(12Bar/1.2MPa)

Specification:

* Nozzle O.D.: 8mm

* Available Nozzle length: -10cm (4”) -38cm(15”) -91cm(35.8”)

Description:

* Light weight and easy operation.

* Body material: POM

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 175PSI(12Bar/1.2MPa)

Specification:

* Nozzle O.D.: 8mm

* Available Nozzle length: -8cm (3.1”) -25cm(9.8”) -47cm(18.5”)

Safety Air Blow Gun

CH1520345-R Rubber Nozzle Air Blow Gun

CH1520345-B Inflating Blow Gun for Bicycle

CH1520345-LN Low Noise Air Blow Gun

Description:

* Two models with and without steel reinforced inlet.

* Light weight and easy operation

* Body material: POM

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 175PSI(12Bar/1.2MPa)

Specification:

* Nozzle O.D.: 8mm

* Available Nozzle length: -8cm (3.1”)

-25cm(9.8”)

-47cm(18.5”)

CH1520345-I Inflating Air Blow Gun

Description:

* Two models with and without steel reinforced inlet.

* Light weight and easy operation

* Body material: POM

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 175PSI(12Bar/1.2MPa)

Specification:

* Nozzle O.D.: 8mm

* Available Nozzle length: -8cm (3.1”)

-25cm(9.8”)

-47cm(18.5”)

CH1520345-A Adjustable Air Blow Gun

Feature:

* Extendible Tube: Simply twist the adjustable knob to extend the tube to desired position.

* Adjustable from 10.63"(270mm) to 15.35"(390mm)

* Revolvable Angle: Swivel 360 degrees by locking the adjusting knob at a desired direction for easy dusting / cleaning.

* Light Weight and Easy Operation.

* ˙Application For Cleaning Machinery and Equipment.

Specification:

* Body material: POM

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 175PSI(12Bar/1.2MPa)

CH1520346 High Flow Adjustable Air Blow Gun

Feature:

* Can adjust the air flow from the adjustable screw on the body.

* Meets or exceeds OSHA regulations.

* Nylon body for high impact, durability and weather resistance.

Specification:

* Body material: Nylon

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 230PSI(16Bar/1.6MPa)

CH1520346-A High Flow Adjustable Air Blow Gun with Standard Nozzle

Feature:

* Can adjust the air flow from the adjustable screw on the body.

* Meets or exceeds OSHA regulations.

* Nylon body for high impact, durability and weather resistance.

Specification:

* Body material: Nylon

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 230PSI(16Bar/1.6MPa)

CH1520346-B High Flow Adjustable Air Blow Gun with Safety Nozzle

Feature:

* Can adjust the air flow from the adjustable screw on the body.

* Meets or exceeds OSHA regulations.

* Nylon body for high impact, durability and weather resistance.

Specification:

* Body material: Nylon

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 230PSI(16Bar/1.6MPa)

CH1520346-C

High Flow Adjustable Air Blow Gun with High Flow Nozzle

Feature:

* Can adjust the air flow from the adjustable screw on the body. * Meets or exceeds OSHA regulations.

* Nylon body for high impact, durability and weather resistance.

Specification:

* Body material: Nylon

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 230PSI(16Bar/1.6MPa)

CH1520346-E

High Flow Adjustable Air Blow Gun with Rubber Tip

Feature:

* Can adjust the air flow from the adjustable screw on the body. * Nylon body for high impact, durability and weather resistance.

Specification:

* Body material: Nylon

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 230PSI(16Bar/1.6MPa)

CH1520347 High Flow Air Blow Gun

Feature:

* With metal reinforced inlet.

* Light weight and durable.

* High flow: The flow is higher than standard air blower ＞ 1200L/M@150PSI

* Long life time: It is up-down type valve structure design and it can reduce the wear of spring. The life time can be longer.

Specification:

* Port size: 1/4”(PT,NPT,G)

* Max. Pressure: 213PSI(15Bar/1.5MPa)

* Nozzle O.D.:8mm

* Available nozzle length:

-5cm (2”)

-25cm(9.8”)

-48cm(18.9”)

-12cm(4.7”)

CH1520312

Noise Reduction Air Blow Gun

Feature:

* Different length nozzles for different purpose.

* Aluminum body light weight and durable.

* Maximum flow for easy clean-up and blow off even the heaviest shavings and chips.

* Meets or exceeds OSHA regulations.

Specification:

* Port size: 3/8”(PT,NPT,G)

* Max. Pressure: 232PSI(16Bar/1.6MPa)

* Available steel tube length: -standard type

-14.5cm(5.7”)

-25cm (9.96”)

-29.7cm(11.7”)

-45cm(17.7”)

-60.2cm(23.7”)

-90.7cm(35.7”)

-121cm(47.7”)

*Option Nozzle:

CH1520348

High Pressure Air Blow Gun

Feature:

* Aluminum body for light weight and durable.

* Various nozzles are available

* 25 bar high pressure type for superior efficiency and lower air consumption.

*Upper or Lower Inlet port design

* Meets OSHA regulations.

Specification:

* Port size: 1/4”G

* Max. Pressure: 363PSI(25Bar/2.5MPa)

* Body material: aluminum

CH1520349

Cleaning Blow Gun

Feature:

* Light weight and easy to handle.

* Water saving. (Waterconsumption500cc/min)

* Can be used in two ways : with cock on the body, you can turn off the water and use it as air gun to dry the washing object.

Application:

* Washing Automobiles.

* Car detailing industry.

Specification:

* Max. working pressure: 232PSI/16Bar/1.6Mpa

* Body material: aluminum alloy

* Hose length: 5m (5x7mm PVC pipe)

* Port size: 1/4”

* Nozzle material: aluminum alloy

* Temperature range: 5-60degree

* Air consumption: in 8KG ≥ 300L/M

* Water consumption: in 8KG ≥ 0.49L/M

CH121701

Feature:

* RPM >5000

* Working pressure: 90 PSI (6.2bar)

* Air inlet: 1/4”

* Air consumption: ca 110NL/min.

CH121701-A

Feature:

* RPM >5000

* Working pressure: 90 PSI (6.2bar)

* Air inlet: 1/4”

* Air consumption: ca 110NL/min.

High Pressure

Tornado Blow Gun (standard nozzle)

Tornado Blow Gun (nozzle with stainless tube)

CH121701-B Tornado Blow Gun (nozzle with brush)

Feature:

* RPM >5000

* Working pressure: 90 PSI (6.2bar)

* Air inlet: 1/4”

* Air consumption: ca 110NL/min.

Air Punch/Flange Tool

CH191619 Series Air Punch/Flange Tool

Specification:

* Overall length: 9.76”(248mm)

* Air consumption: 0.5CFM

* Air inlet(PT/NPT): 1/4”

* Air hose: 3/8”

* Weight: 1.25kgs(2.75Lbs)

CH191656 Series Air Punch/Flange Tool

Specification:

* Overall length: 8.27”(210mm)

* Air consumption: 0.5CFM

* Air inlet(PT/NPT): 1/4”

* Air hose: 3/8”

* Weight: 1.25kgs(2.75Lbs)

CH191657 Series Air Oval Punch Tool

Specification:

* Overall length: 10.82”(275mm)

* Air consumption: 0.5CFM

* Air inlet(PT/NPT): 1/4”

* Air hose: 3/8”

* Weight: 1.7kgs(3.74Lbs)

Concrete Breaker

CH041338-S

Concrete Breaker

Feature:

* Long stroke cylinder provides maximum impact energy, giving a harder impact than similarly sized standard breakers.

* The best choice for applications in medium hard materials and where you need lower weight or low air consumption.

* Use for destroy the concretes, asphalt path, building and infrastructure.

* Medium sized service/general demolition breaker.

* Powerful hitting force and low reacting.

* Simple structure for less maintenance.

Specification:

* Hose inlet: 1/2”

* Blows per minute: 1300 BPM

* Air consumption: 35CFM (991LPM)

* Piston diameter: dia. 35 x 90mm

* Piston stroke: 125mm (4.9”)

* Chisel shank: 26mm (1.023”) round

* Overall length: 753mm (29.6”)

* Net weight: 14.1kg(31.1lb)

* Air pressure: ≦90 (6.2bar)

CH041338-3S Concrete Breaker

Feature:

* Long stroke cylinder provides maximum impact energy, giving a harder impact than similarly sized standard breakers.

* The best choice for applications in medium hard materials and where you need lower weight or low air consumption.

* Use for destroy the concretes, asphalt path, building and infrastructure.

* Medium sized service/general demolition breaker.

* Powerful hitting force and low reacting.

* Simple structure for less maintenance.

Specification:

* Hose inlet: 3/4”

* Blows per minute: 1000 BPM

* Air consumption: 42CFM (1189LPM)

* Piston diameter: dia. 40 x 130mm

* Piston stroke: 218mm (8.6”)

* Chisel shank: 30mm (1.181”) round

* Overall length: 880mm (34.6”)

* Net weight: 24.6kg(54.2lb)

* Air pressure: ≦90 (6.2bar)

Other Tool & Accessories

CH090910 Controller+20PM+20SM

CH152009 Multi Coupler for Air Tools

Easy installation and storage

CH090912 Rip Strip Disc Kits

Description:

* 4pcs Rip strip disc

* 2pcs Adapter

* 2pcs wrench

* 1pc Rubber adapter

CH090913

RDK 7 PCS Rubber Dolly

Description:

* Port size (NPT, PT): 3/8"

* Adj. pressure range (kgf/cm2): 0.5-9.9

* Proof pressure (kgf/cm2): 15

* Max flow (l/miu): 2500

* Ambient temp: 5-60˚C

* Gaugeport (PT, NPT): 1/8"

Description:

* Port size (NPT, PT): 3/8"

* Filter element: 20u

* Adj. pressure range (kgf/cm2): 0.5-9.9

* Max service pressure (kgf/cm2): 15

* Max flow (l/min): 2500

* Operating temp range: 5-60˚C

* Drain capacity: 80ml

* Oil capacity: 125ml

Description:

* Port size (NPT, PT): 3/8"

* Filter element: 20u

* Adj. pressure range (kgf/cm2): 0.5-9.9

* Max service pressure (kgf/cm2): 15

* Max flow (l/min): 2500

* Operating temp range: 5-60˚C

* Drain capacity: 80ml

* Oil capacity: 125ml

* Recommendable lubricants: ISO VG-32

CH152013-R Air Regulator

CH152013-FR Air Filter with Regulator

CH152013-FRL Air Filter with Regulator and Lubricator

CH100704 Pneumatic Swivel Quick Coupler

Description:

* Swivel coupler can keep the air hose tangle-free

CH020901 Engine Clean Gun

Description:

* Contents: Alum gun body

* 700c.c. alum. clup

* Working pressure: 6-8 bar

CH020902 Engine Clean Gun

Description:

* Contents: Alum gun body

* 4' pvc hose

* 2pcs adjust knob

* 1/4"inlet

* working pressure: 6-8bar
