CHARITH SHAGA JUNIOR

ABOUT ME

My name is Charith, and I am a recent architecture graduate with a strong foundation in design and drafting, proficient in AutoCAD, Photoshop, and SketchUp. My hands-on experience through academic projects and internship has refined my skills in creating innovative and functional designs. I am eager to gain further experience, improve my technical and design knowledge, and find a position where my skills can be fully utilized I am enthusiastic about contributing to innovative and impactful architectural projects

TECHNICAL SKILLS

D.O.B: 05-02-2001

ADDRESS:

#6-86/C, CHINNA PENDYAL, CHILPUR(MDL), JANGA0N.

+919059560573

PHOTOSHOP

EDUCATION

ST.GABRIEL’S HIGH SCHOOL

KAZIPET, WARANGAL ADIBATLA CAMPUS

NARAYANA JUNIOR COLLEGE SRI VENKETESWARA

COLLEGE OF ARCHITETURE

HYDERABAD

EXPERINCE

5 MONTHS INTERNSHIP AT 4DS ARCHITECTS.

TERMINAL

(6-SEM)

WINERY

(10-SEM)

INTERIOR DESIGN

(8-SEM)

NIFT

(5-SEM)

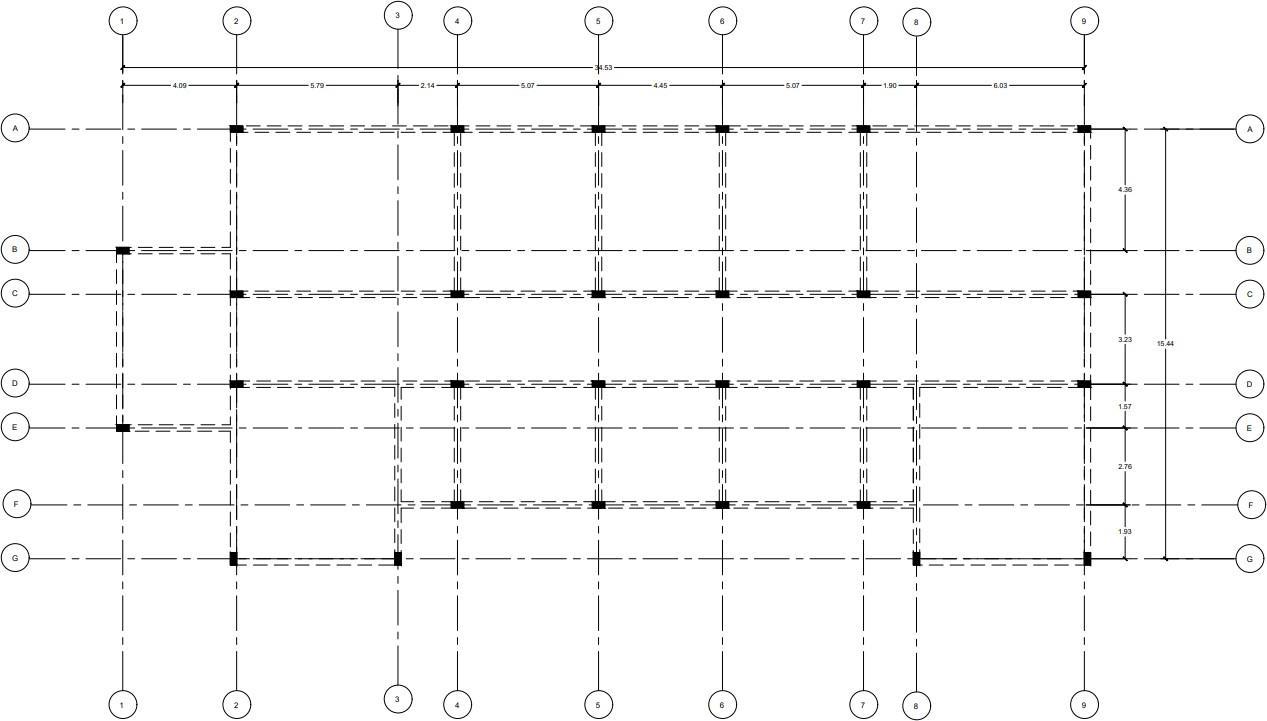

WORKING DRAWINGS

(6-SEM)

•

BUS TERMINAL 1

BRIEF

• A BUS TERMINAL OR A BUS INTERCHANGE IS A STRUCTURE WHERE CITY OR INTERCITY BUSES STOP TO PICK UP AND DROP OFF

• LOCATION: MANOHARABAD

• AREA:36 ACRES

• THE NEAREST RAILWAY SATION IS PALATA POTHARAM RAILWAY SATION (2 KM)

AREA STATEMENTS

BLOCK DEVELOPMENT

CREATING SIMPLE BLOCK (CUBIOD) FOR LARGE SPAN STRUCTURE

DIVIDINGTHE BLOCK INTO TWO PARTS FOR GOOD VENTILATION AND CIRCULATION, CONNECTION OF THE BLOCK IS IMPORTANT FOR PEDESTRIANS SO PROVIDING A BRIDGE

MASTER PLAN

CIRCULATION

PRIVATE VEHICLES CIRCULATION

BUS CIRCULATION

PEDESTRIAN PATHWAYS CIRCULATION

• Separate paths are provided for pedestrian and bus routes so that pathways don’t collide, which helps smooth traffic flow without any interruptions.

• A park and a water body have been provided at the entrance for recreational purposes.

PEDESTRIAN AND VEHICLE PATH

MAIN BLOCK ELEVATION ADMIN

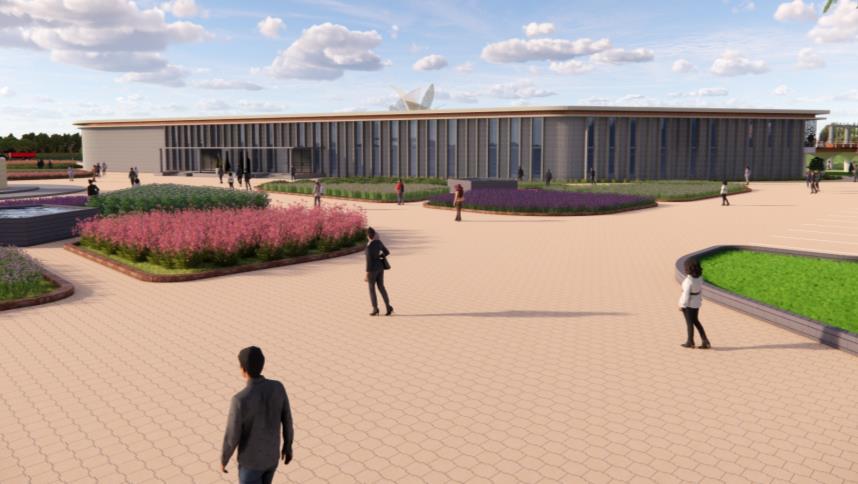

ENTANCE TO BUS TERMINAL

COMERCIAL BLOCK

GROUND FLOOR PLAN

FIRST FLOOR PLAN

• THE COMMERCIAL BLOCK'S FIRST FLOOR, DIRECTLY CONNECTED TO THE ADMIN BLOCK THROUGH THE BRIDGE, IS PROVIDED WITH WAITING LOUNGES AND A MEDICAL ROOM.

SECTION AA’

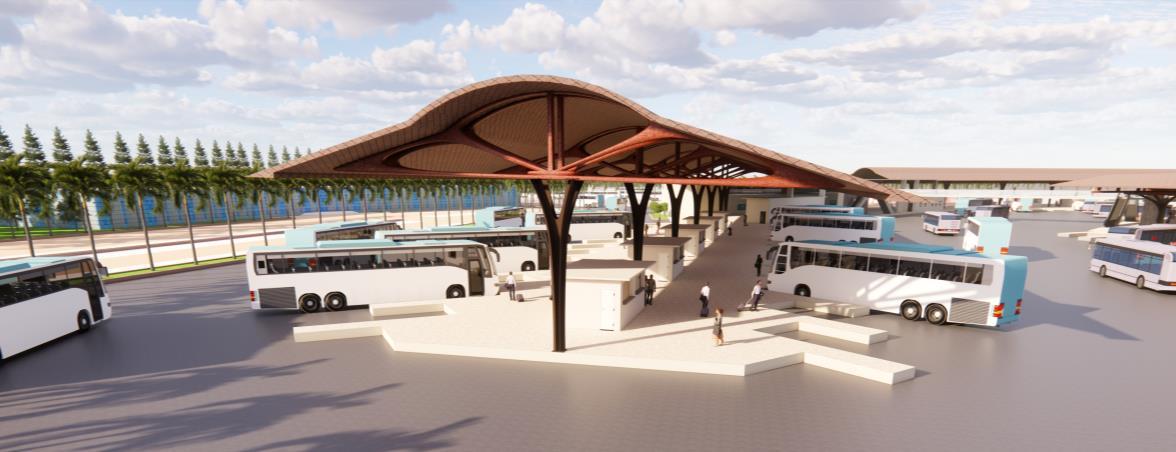

TRUSS AND ROOF FOR BUS BAY

FOOT OVER BRIDE CONNECTING TWO BLOCKS

SITE LOCATION:

• THE SITE IS LOCATED OPPOSITE OF GOA UNIVERSITY IN THE NORTH GOA DISTRICT WHICH IS 7KM FROM PANAJI CITY.

• THE NEAREST WATER BODY IS ARABIAN WHICH IS 0.5KM AWAY FROM THE SITE.

• VASCO DA GAMA CITY IS 26KM FROM THE SITE BY ROAD.

ACCESSIBILITY TO SITE

• THE NEAREST RAILWAY STATION IS KARMALI RAILWAY STATION,17.9KM

• NEAREST BUS STOP IS SESA GOA CIRCLE BUS STOP (300M)THE

• GOA AIRPORT (INTERNATIONAL) 26.6KM

SITE CONTOURS

MASTER PLAN

ROOFING STRUCTURE:

PITCHED ROOF AS GOA EXPERIENCES AN AVERAGE RAINFALL OF 300C.M ANNUALLY AND IT IS A COASTAL AREA IT IS PRONE TO CYCLONES SO PITCHED ROOFS ARE USED HERE. SO THAT PITCHED ROOF AS ADEQUATE SLOP TO LET RAIN WATER FLOW WAY.

ROOFING MATERIAL:

TERRACOTTA BENEFITS OF TERRA COTTA TILES

• DURABILITY

• FIRE-RESISTANT

• IMPACT-RESISTANT

• WIND-RESISTANT

• ECO-FRIENDLY

• ENERGY-EFFICIENT

DEPARTMENTS IN THE ACADEMIC BLOCK

• FASHION TECHNOLOGY

• FASHION COMMUNICATION

• TEXTILE DESIGN

• FASHION DESIGN

• TWO ENTRY AND EXIT POINTS

• SEGREGATED INTO THREE SEPARATE BLOCKS: ADMIN

ACADAMIC

RESOURE CENTRE

• ACCESSORY DESIGN

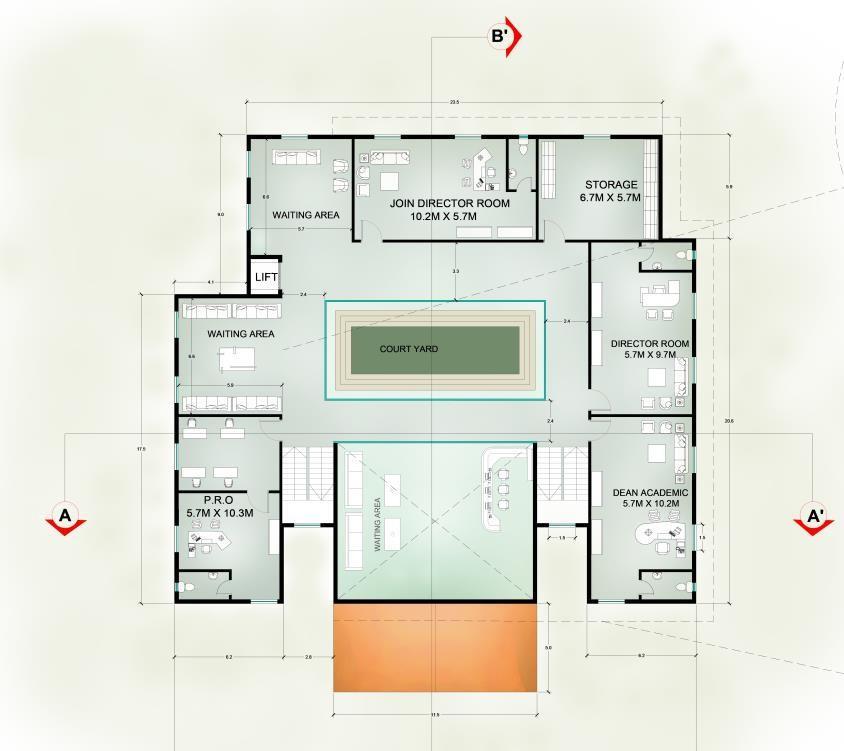

ADMIN BLOCK

GROUND FLOOR

RESOURCE CENTRE

FIRST FLOOR

GROUND FLOOR

FIRST FLOOR

ACADEMIC BLOCK

DESIGN BRIEF

WINERY- A HUB FOR WINE CULTURE- VIKARABAD

This project involves the conceptualization and design of a winery complex that integrates functional spaces for winemaking, wine tasting, and visitor experiences. The project aims to explore innovative design solutions that respond to the unique characteristics of the site and enhance the overall winery experience.

SITE SURROUNDING

• SITE AREA: 3,02,300.2SQ.M ( 74.7 ACRES)

CONCEPT: JOURNEY OF VINES TO GLASS THROUGH SENSES

VINEYARDS VISUAL EXPERIENCE (ACOUSTICS)
