Re-investigation lime in Hong Kong: Potentials for production and application

Lime-making is one of Hong Kong’s old dedining industries. The very term “lime kiln” is considered strange by young people today, but in fact lime making was one of Hong Kong’s older industries. After Hong Kong was established lime kilns were very significant and were most important in the establishment of a prosperous society in Hong Kong

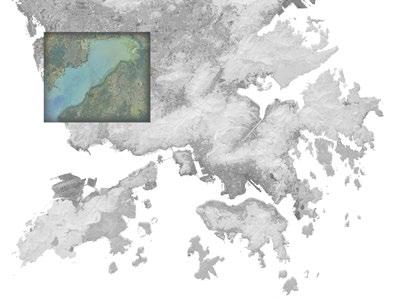

History of lime kiln production location in Hong Kong

Methodology of Experimental Paver Production

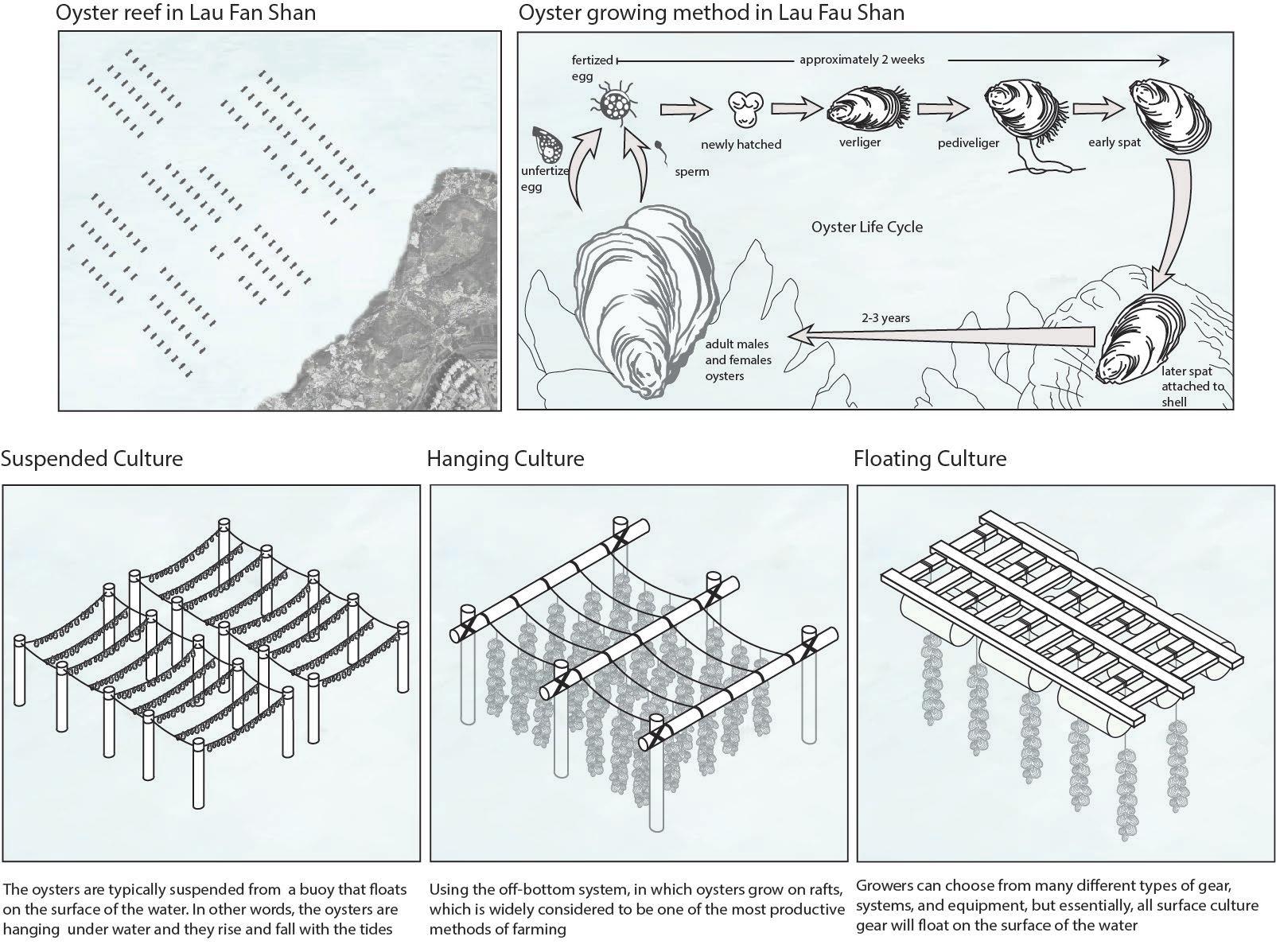

Sourcing / Processing Oysters

Raw Material Description:

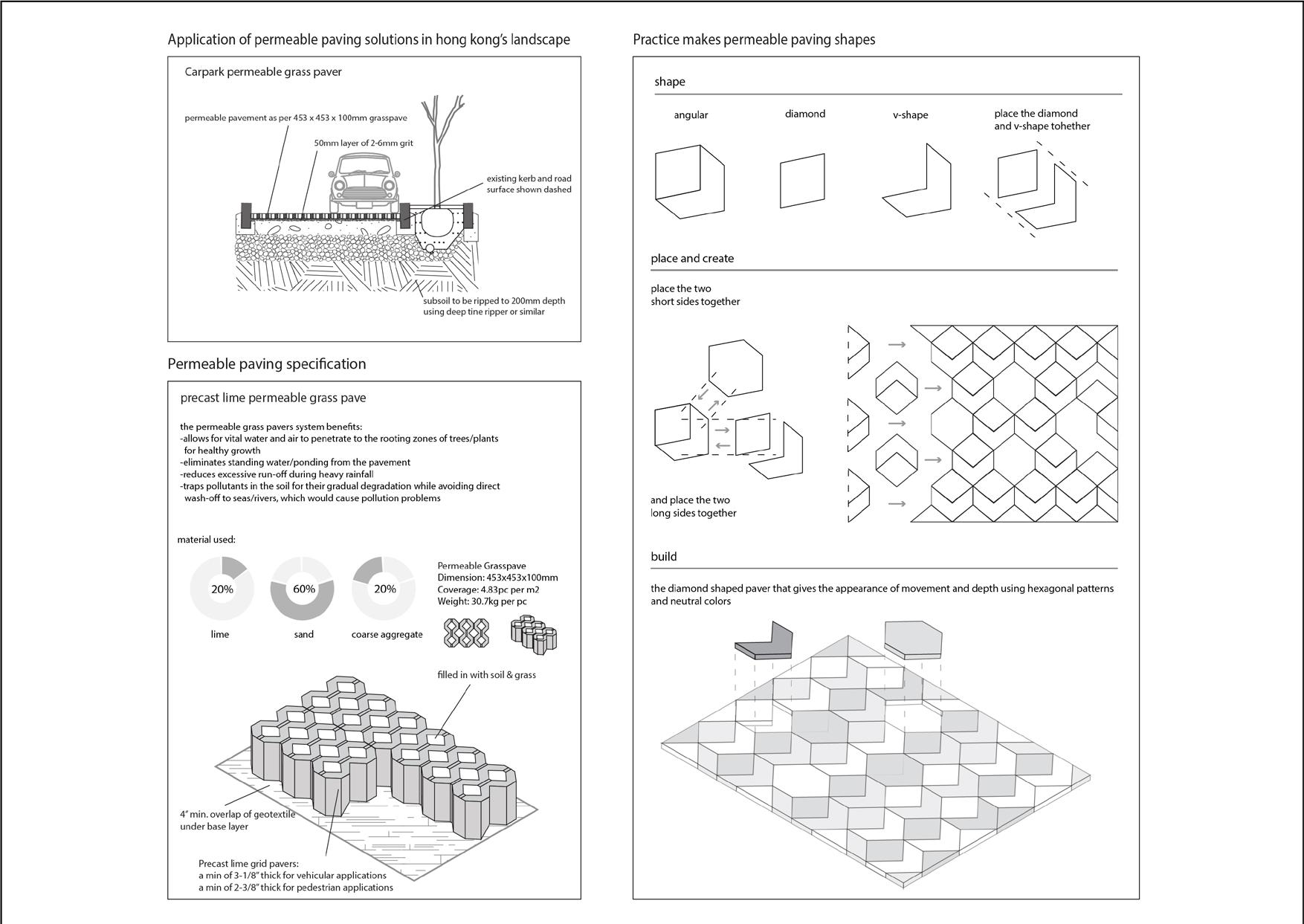

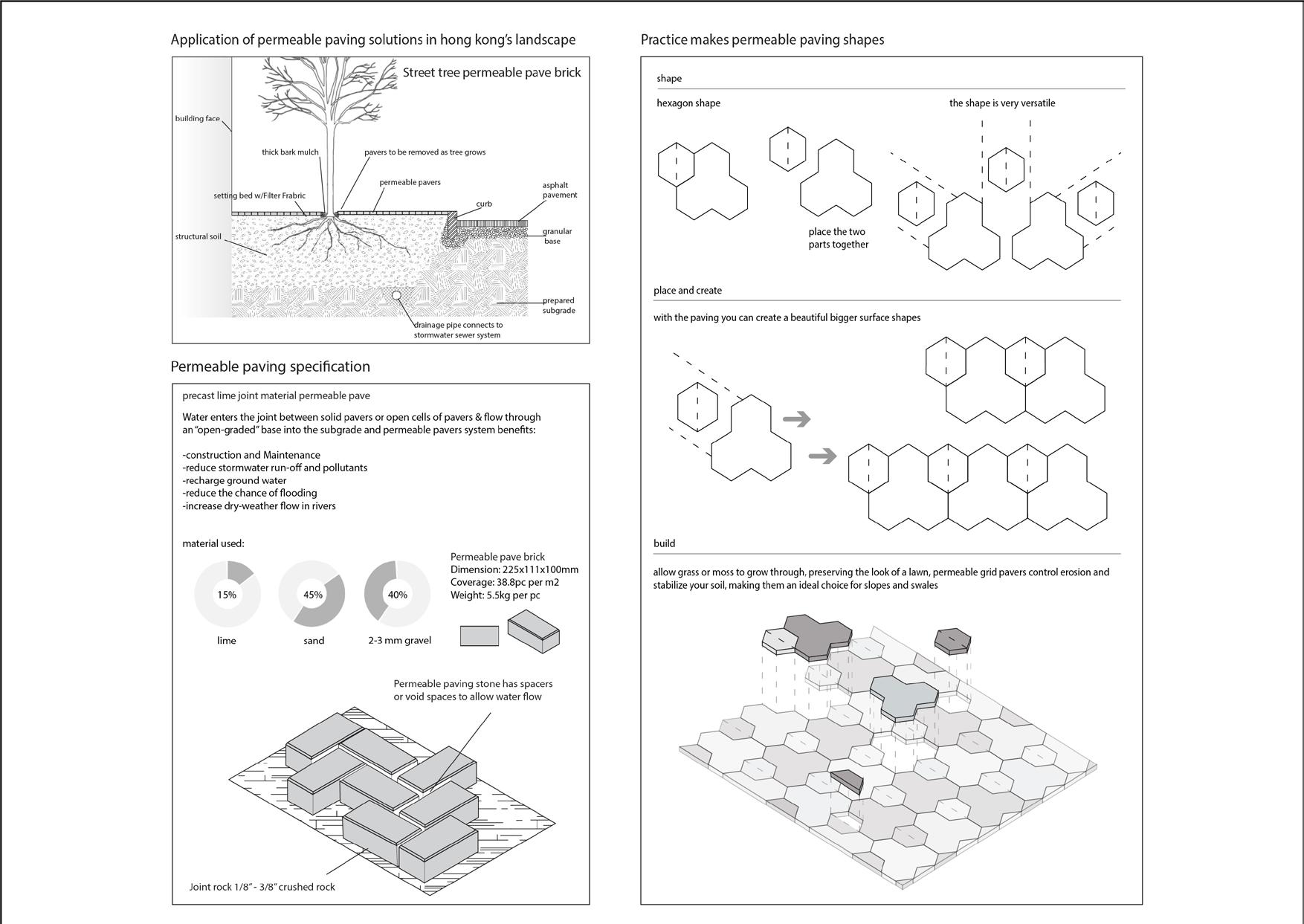

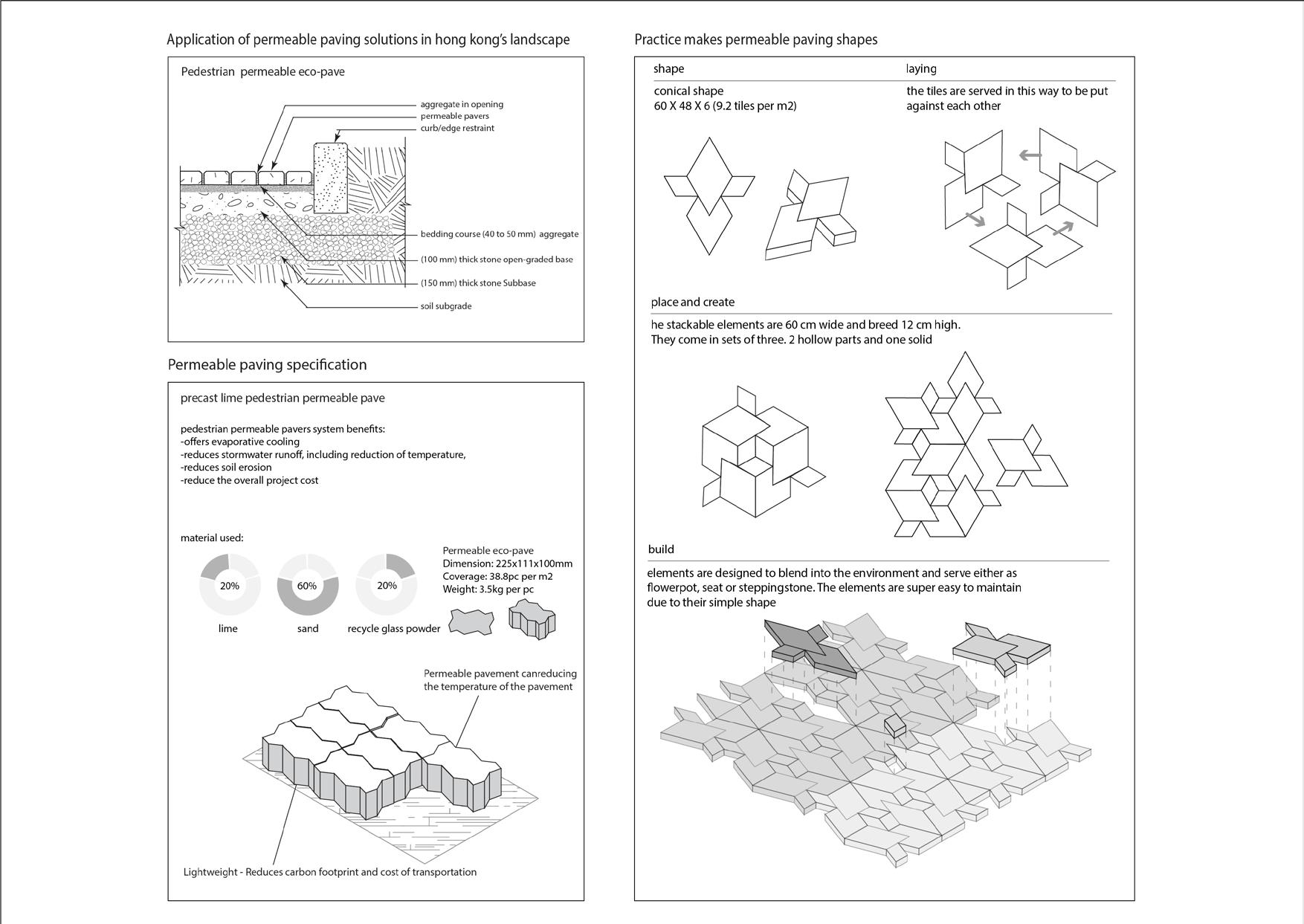

Lime - has been used as a primary ingredient in natural building material, usually made by burning oyster shells to create a dry white powder to mixing it with water, sand or aggregates to make a masonry mortar for rendering and plastering and production of other construction to use

Mold Fabrication

Collecting oyster shells in Lau Fau Shan

Resource: 150lbs of oyster shells

Preparation of oyster shells in electric kiln

Peak Temperature 1125 c Est. Burning Time 13:25hrs

Fired shells after 10hrs cooling time

Fired oyster shell

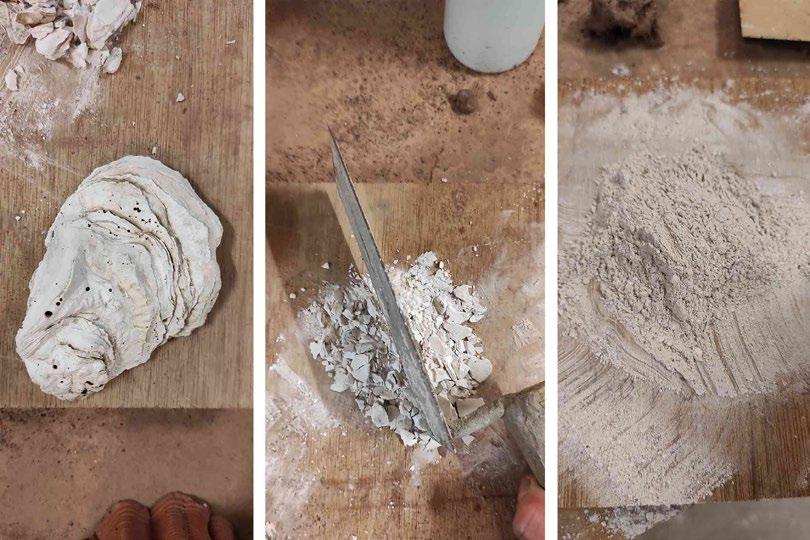

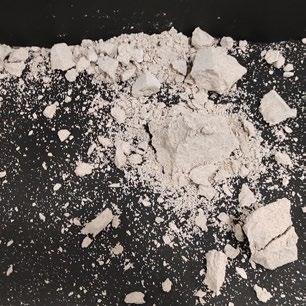

Crushing process of fired oyster shells Pulverized oyster shells

mold filled 90% with mortar cutting and connecting plywood pieces

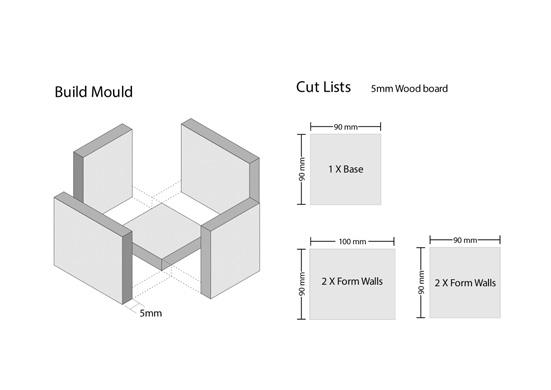

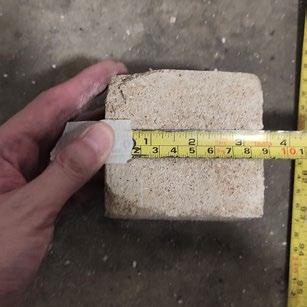

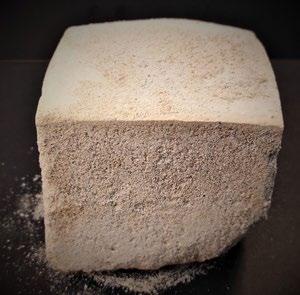

Completed wooden mold box, 90 x 90 x 90 mm

Preparation of material samples

Dried: 5 days

Dried: 6 days

Dried: 7 days

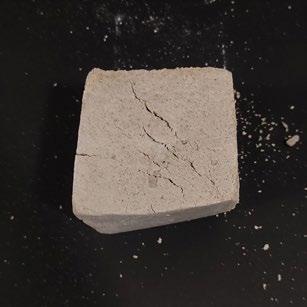

Brick test 1: Sand/lime mortar mix 1:3

Brick test 2: Sand/lime mortar mix 1:6

Brick test 3: Sand/lime mortar mix 1:8

Experimental drop test

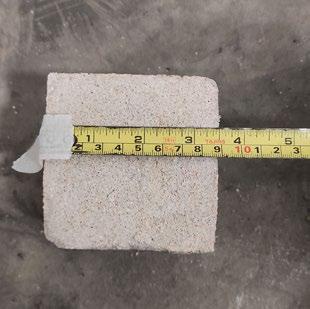

1:3 lime mortar brick 90mm x 90mm x 90mm

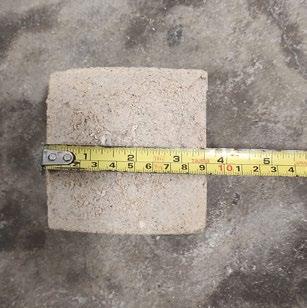

1:6 lime mortars brick 90mm x 90mm x 90mm

1:8 lime mortars brick 90mm x 90mm x 90mm

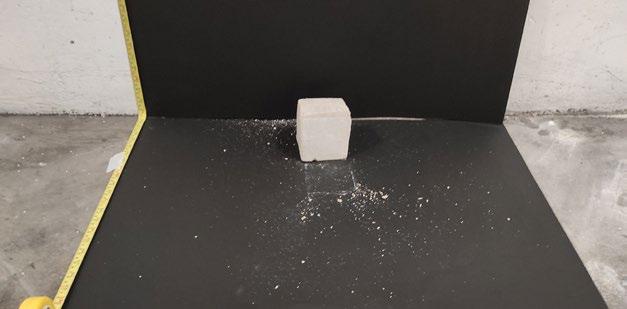

1:3 brick dropped from the height of 1 meter (front view)

1:6 brick dropped from the height of 1 meter (front view)

1:8 brick dropped from the height of 1 meter (front view)

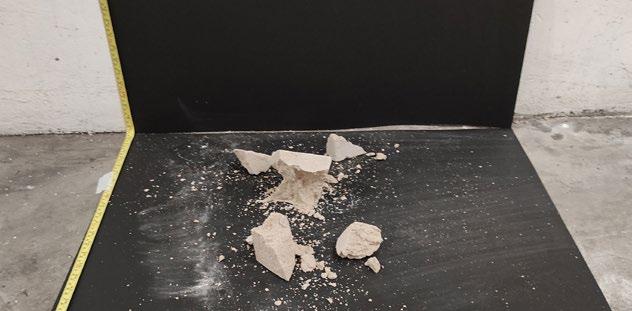

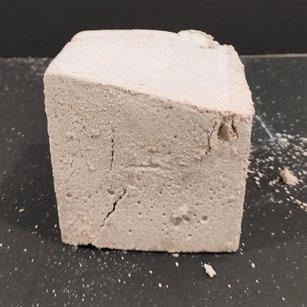

Drop test: lime brick under impact loading

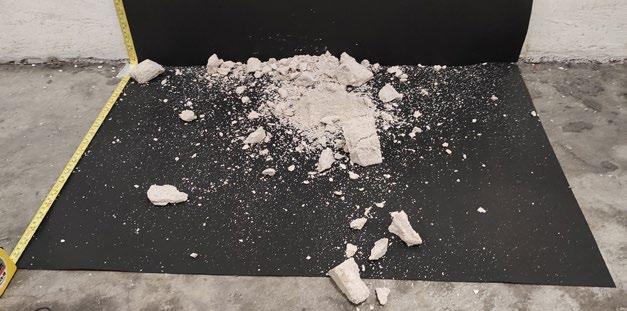

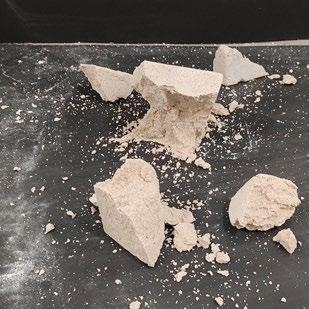

Drop test: conical shape failure, tension break failure

Drop test: crushing of fly ash brick units

Drop test side view: developed small cracks

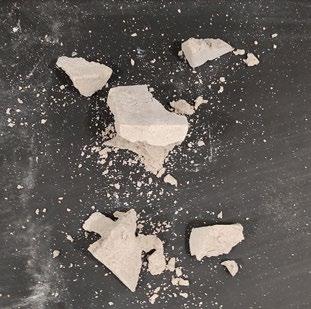

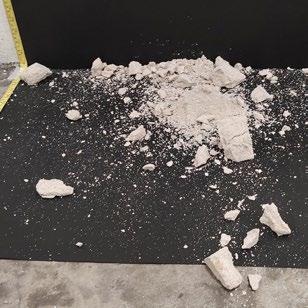

Drop test side view: crushing of few pieces

Drop test side view: splitting of fly ash shatter

Experimental permeability test

Mold Fabrication

Testing with Stone Aggregates

wooden mold for paver testing 200 x 200 x 40 mm

testing with stone aggregates

thick stone with lime (top view)

thick stone with lime (side view)

thick stone with lime (bottom view)

thick stone with lime (bottom view)

light

light

Paver 1: gravel stone (40 to 50 mm)

Paver 2: gravel stone (5 to 20mm)

gravel stone with lime (top view)

gravel stone with lime (side view)

gravel stone with lime (bottom view)

gravel stone with lime (bottom view)

Paver 3: gravel stone (5 to 20mm)

lime with gravel stone (side view)

lime with gravel stone (side view)

Testing with Recycled Glass Aggregates

Best outcome:

Findings:

After 15min the water infiltration slowly of the permeable brick increases gradually, slowly dripping from bottom until water drops. Lime mortar ratio (1:3) has a great effect on the infiltration strength and water permeability of fine aggregate grading water permeable brick

Paver 4: coarse crushed glass

lime with glass (top view)

lime with glass (bottom view)

Paver 5: Glass powder

lime with glass powder (side view)

lime with glass powder (top view)

lime with glass powder (side view)

sand/lime mortar mix 1:3 test setup water infiltration after 5min water infiltration

after 15min water infiltration water in one drop from bottom

Supported by HKU Division of Landscape Architecture, Taxon | Archive | Lab – Library (TAL-L)

Curators: Susanne Trumpf, Ivan Valin

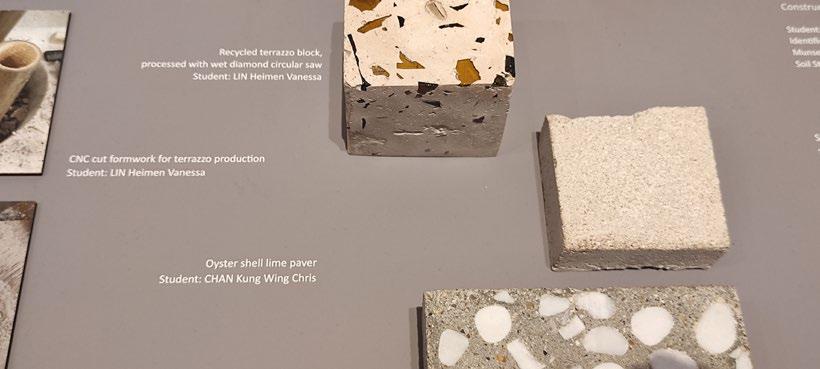

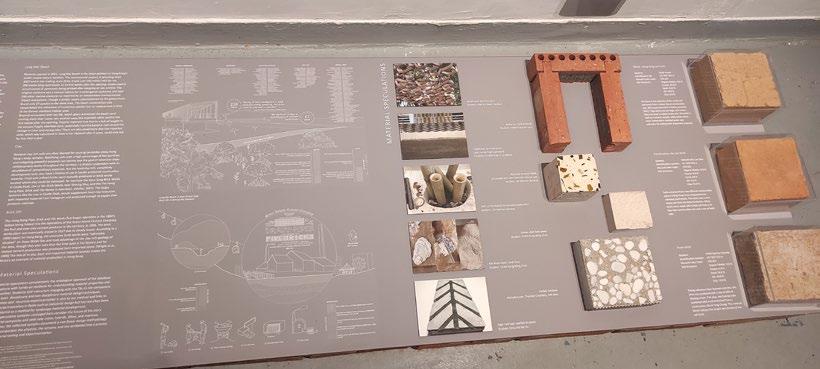

Oyster shell lime paver

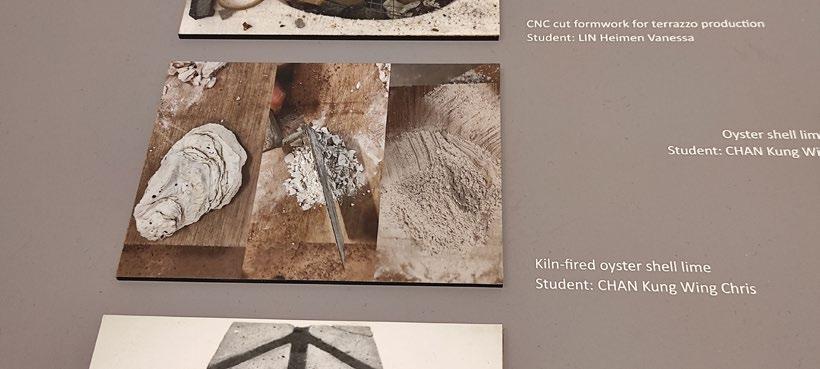

Kiln-fired oyster shell lime

Project 3

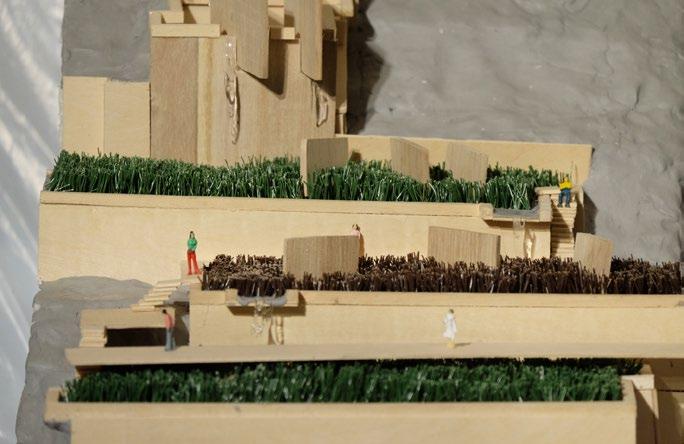

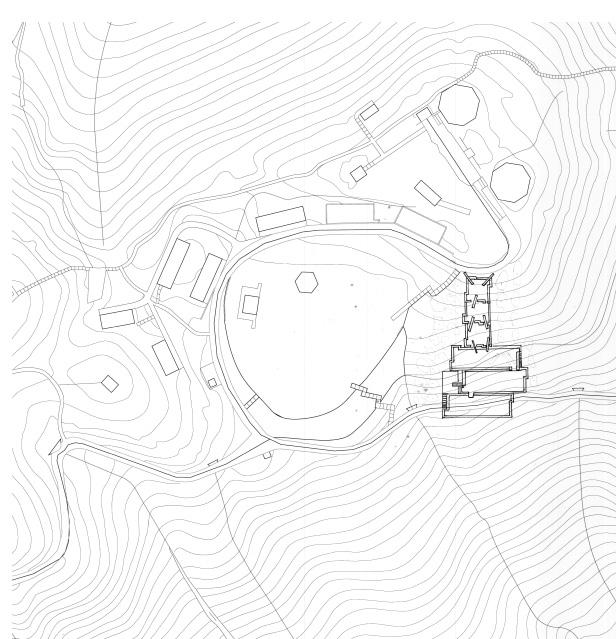

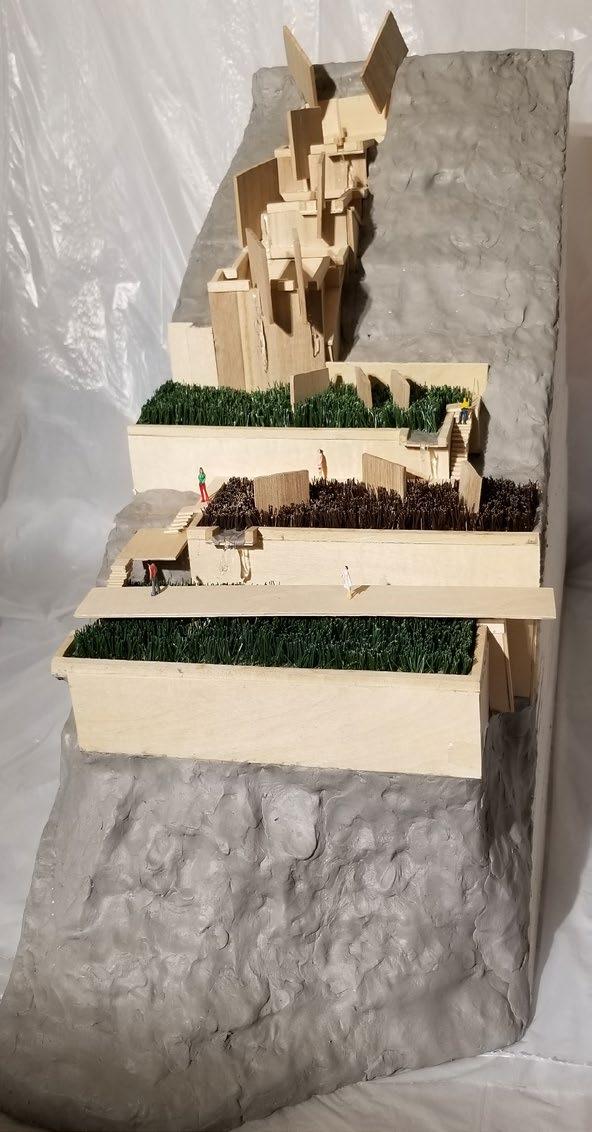

The Lung Fu Shan is an example of how the trail of Pinewood Battery can redesign landslide of slope to manage storm water effectively, stop sewer backups into basements and this project are important parts of the infrastructure and help protect and improve the efficiency of the city’s grey, or pipe, infrastructure. As a project to Lung Fu Shan, beside the downhill trail of Pinewood Battery to play round area, the landslide of slope was much tree collapse during typhoon and rainstorm runoff. According to mapping of ephemeral drainage channel the water flow to affect downhill path, we develop a water infrastructure to collect rain water and planting. They have two part of collect water, first part of water system was collect by two wall, they have three incorporates several small pools of storm water that flow downward through a series of filtering aquatic plants into a larger collecting pool, where it will eventually reintegrate into the storm water system, each layer have retaining wall to obstruct turbulent water and also tone walls, culverts and drainage channels can control flowing water speed, they are exquisitely constructed and in relatively good condition. In general, as water flows from one pool to another it will become cleaner, ending in a clear pool that the planting.

Re-investigation lime in Hong Kong: Potentials for production and application

Project 1 – The Many Types of Public Space

The Blue House Cluster consists of three interconnected buildings: Blue House, Yellow House and Orange House, which were used as academy and timber yard. The Lingnan architecture style of the cluster is preserved during its revitalisation

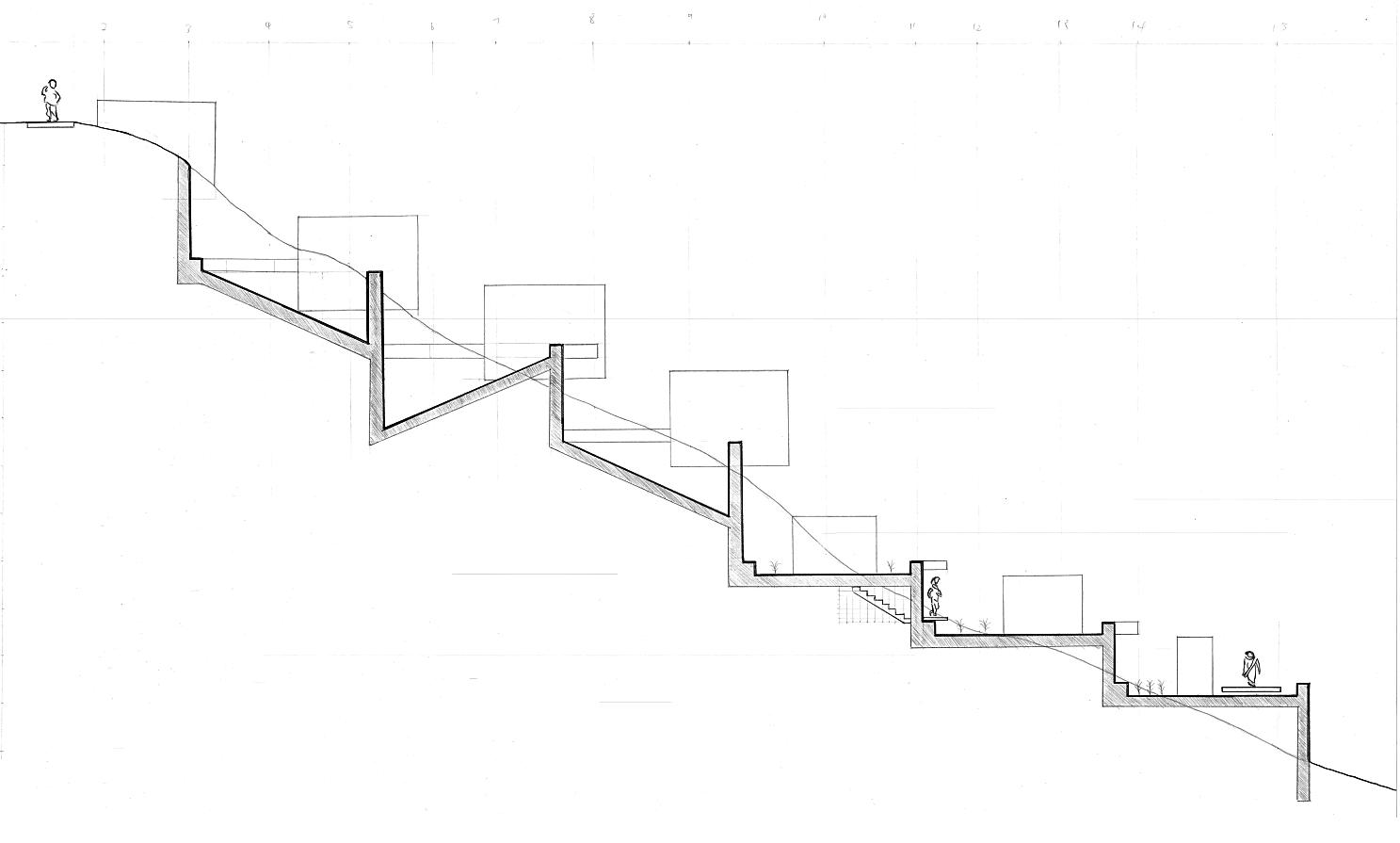

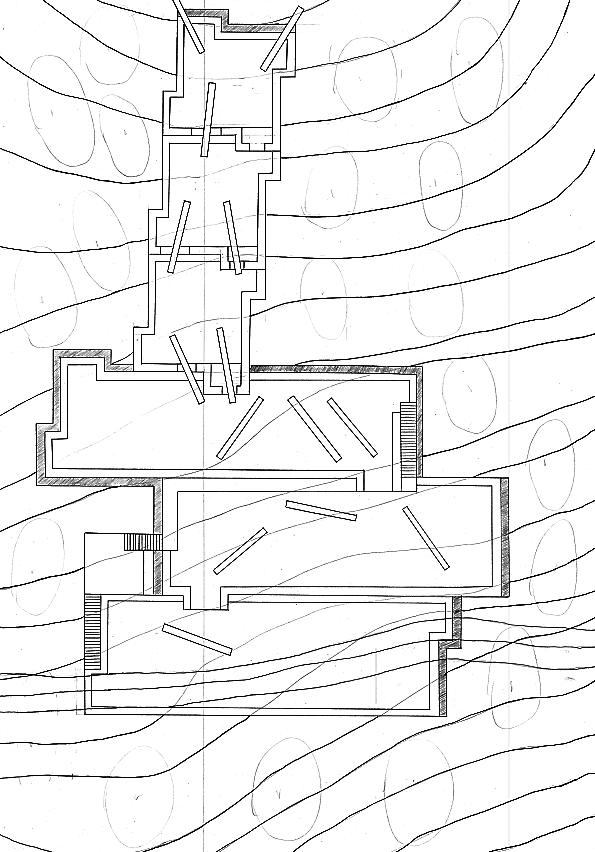

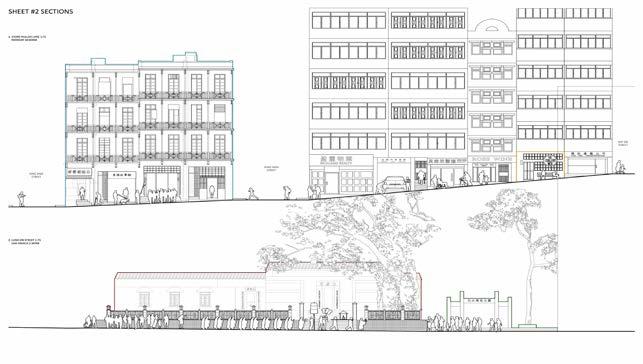

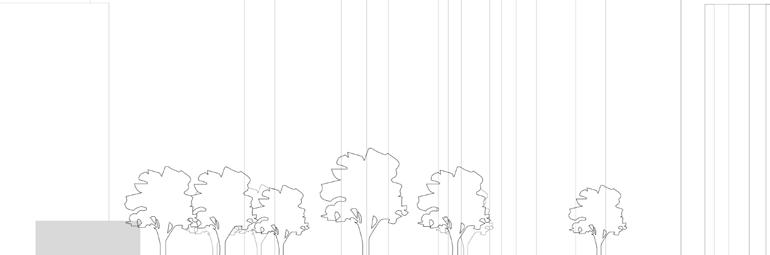

SECTIONS 1:75

Project of Blue House Objectives- is about the local resident activities which promote and sustain the local network and culture.

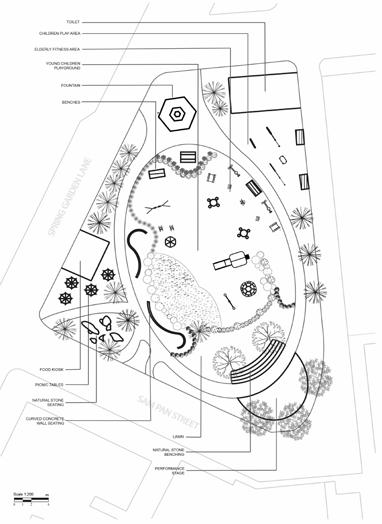

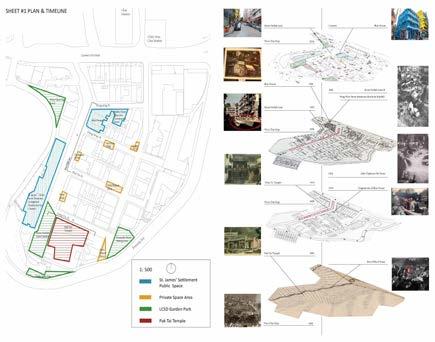

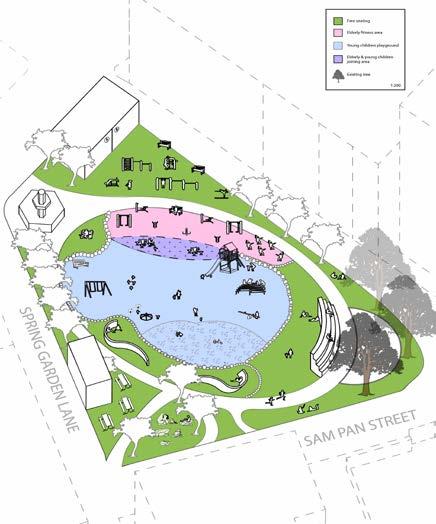

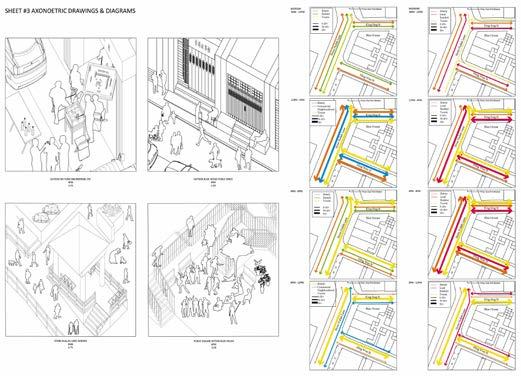

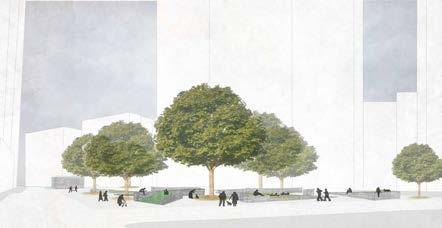

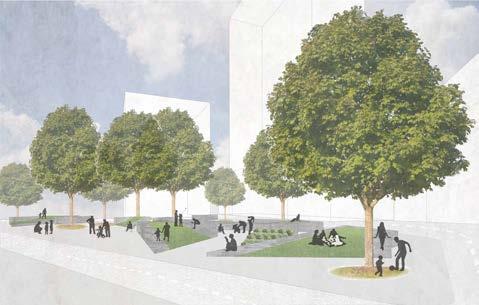

Public Space and Stakeholders in Wan Chai - Spring Garden Lane propose design concept

Project 3 – Public Space and Stakeholders (II)

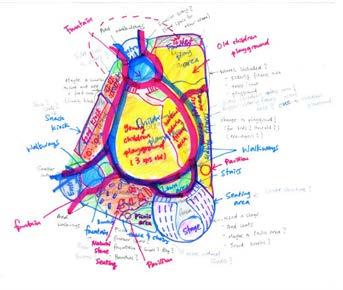

Bubble diagram - design for space planning the local resident want to do & what they want in the site

By entering the concept site plan stage to propose new spatial possibilities.

Project 4 – Site Design and Public Space Network Masterplanning

Local resident & Goverment expectation to the concept of project/derive/speculate a future Wanchai public space masterplan with considerations of development and redevelopment that may happen to the neighborhood in the near future.

3/$<*5281' 3XEOLF SDUN   SOD\JURXQG PDQDJHG E\ /HLVXUH DQG &XOWXUDO 6HUYLFHV 'HSDUWPHQW

Phasing 1-4 is propose design concept in the future years

%XLOGLQJ DJHG DERYH    \HDUV DQG QRQH )RUPDWLRQ RI 2ZQHU¶V &RUSRUDWLRQ %XLOGLQJ DJHG EHORZ    \HDUV DQG QRQH )RUPDWLRQ RI 2ZQHU¶V &RUSRUDWLRQ

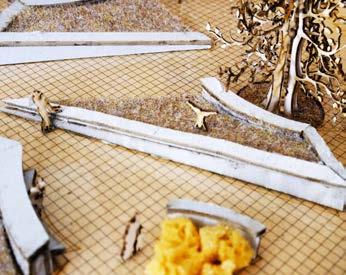

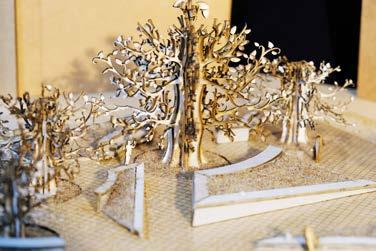

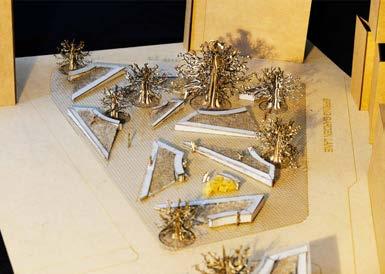

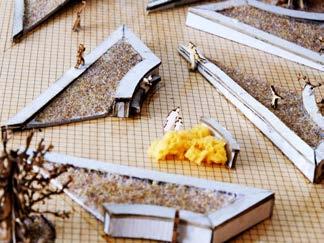

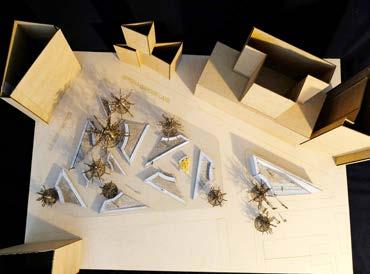

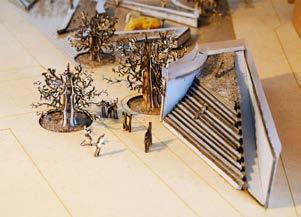

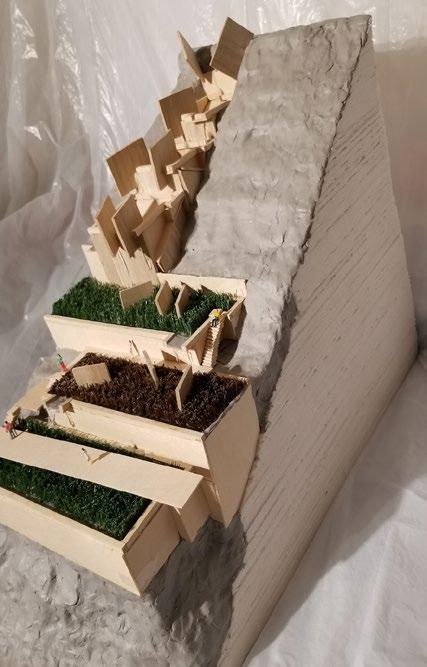

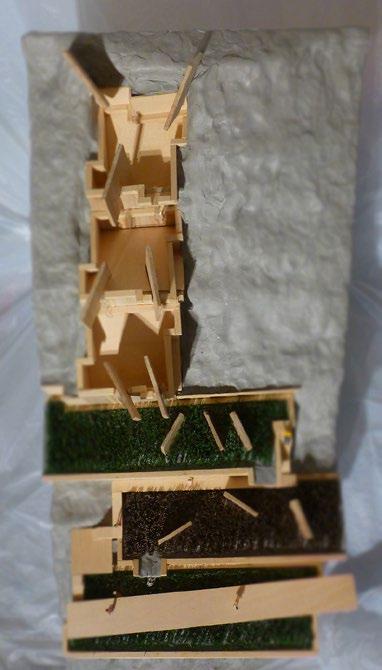

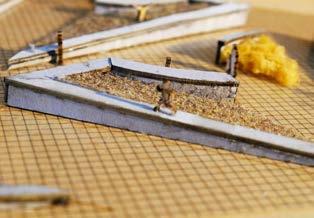

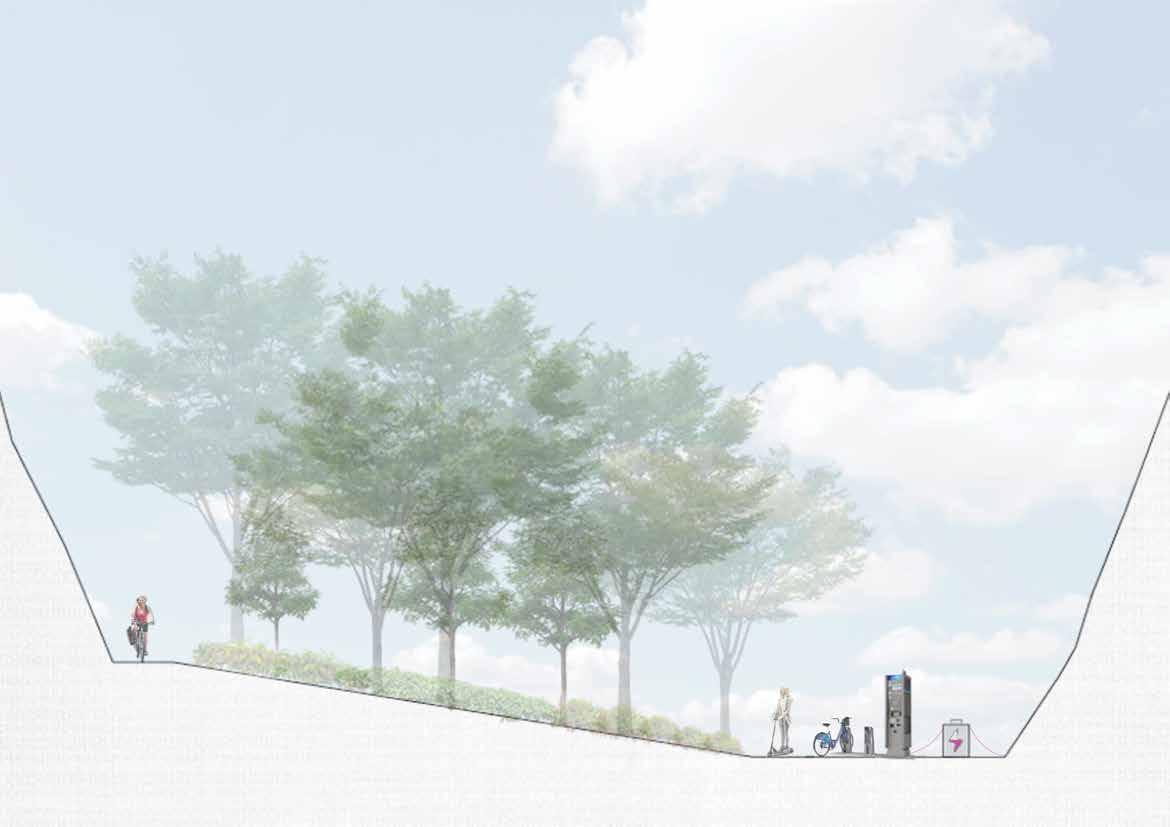

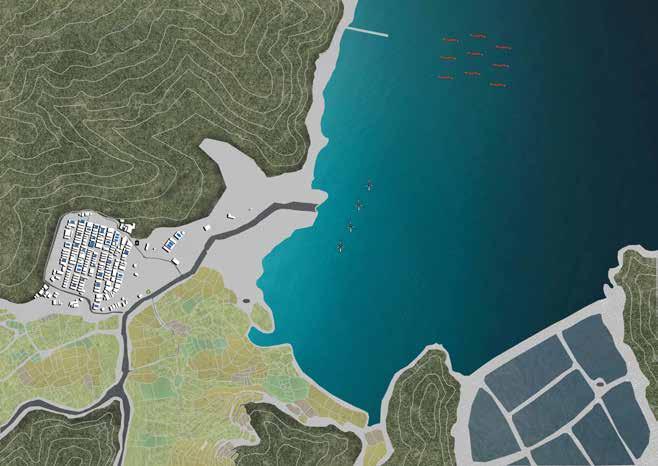

Site Model

Lai Chi Wo sustainability program extends this commitment to conservationProtection to environmental impact of our own operations

2004

Lai Chi Wo (Special Area) under the Plover Cove Country Parks Regulation by AFCD for proposed 14 homestay, Hakka Life Experience Village Geopark, 2015, it was renamed “Hong Kong UNESCO Global Geopark”

North new territories country park become national park National Park regulations provide, management, government, and protection of persons, property, and natural and cultural resources within areas under the jurisdiction

What We're Doing

Energy & Water Conservationcollect detailed data to help consumption. Focusing on installing e cient lighting, water xtures and able to reduce our water consumption

Sustainable CuisineGive guests a fresh taste of local avor, best to source ingredients from farms, ranches. We supporting local families for business

National Parks

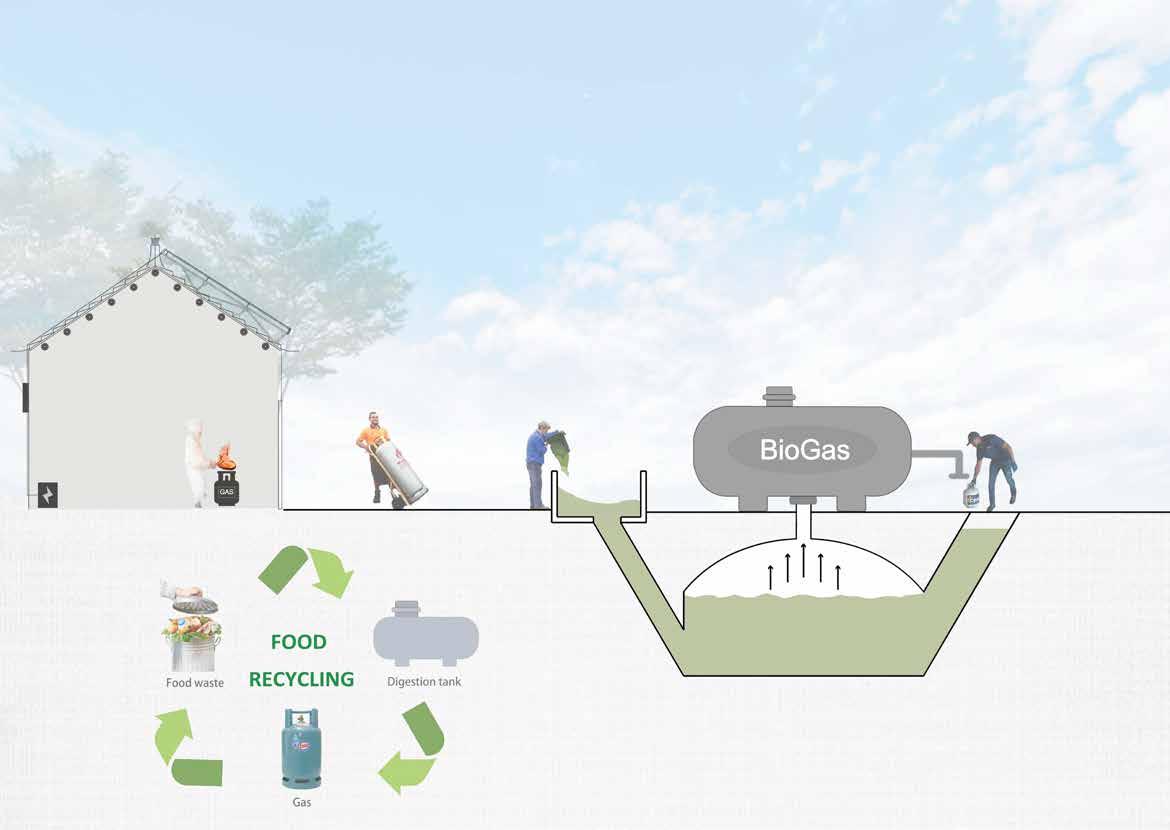

Waste Management & RecyclingWaste from land ll disposal. Through extensive composting and recycling programs, material from entering our local land lls

Transportation-

To reduce the impacts of in-park transportation, , purchasing hybrid vehicles, installing electric vehicle charging stations, and incorporating new technology to improve e ciency

Green Retail

Provide environmentally merchandise that are locally or regionally produced, sustainably harvested, made of re-purposed or post-consumer recycled content, and/or third party veri ed as having a reduced environmental impact

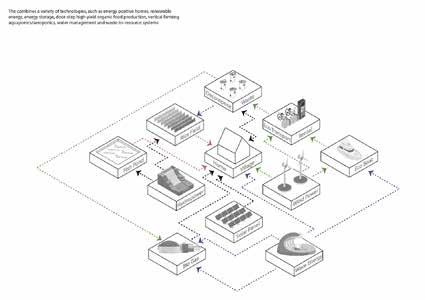

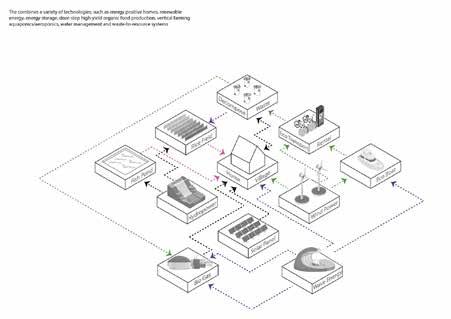

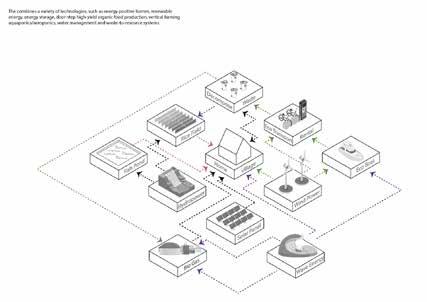

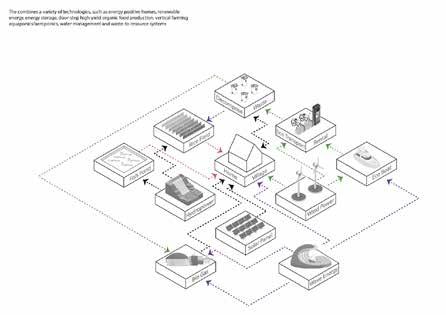

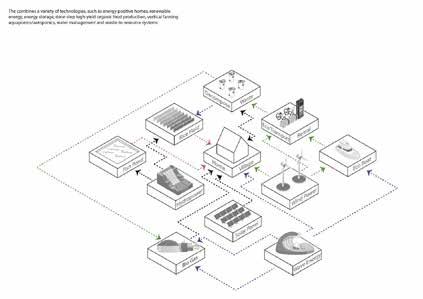

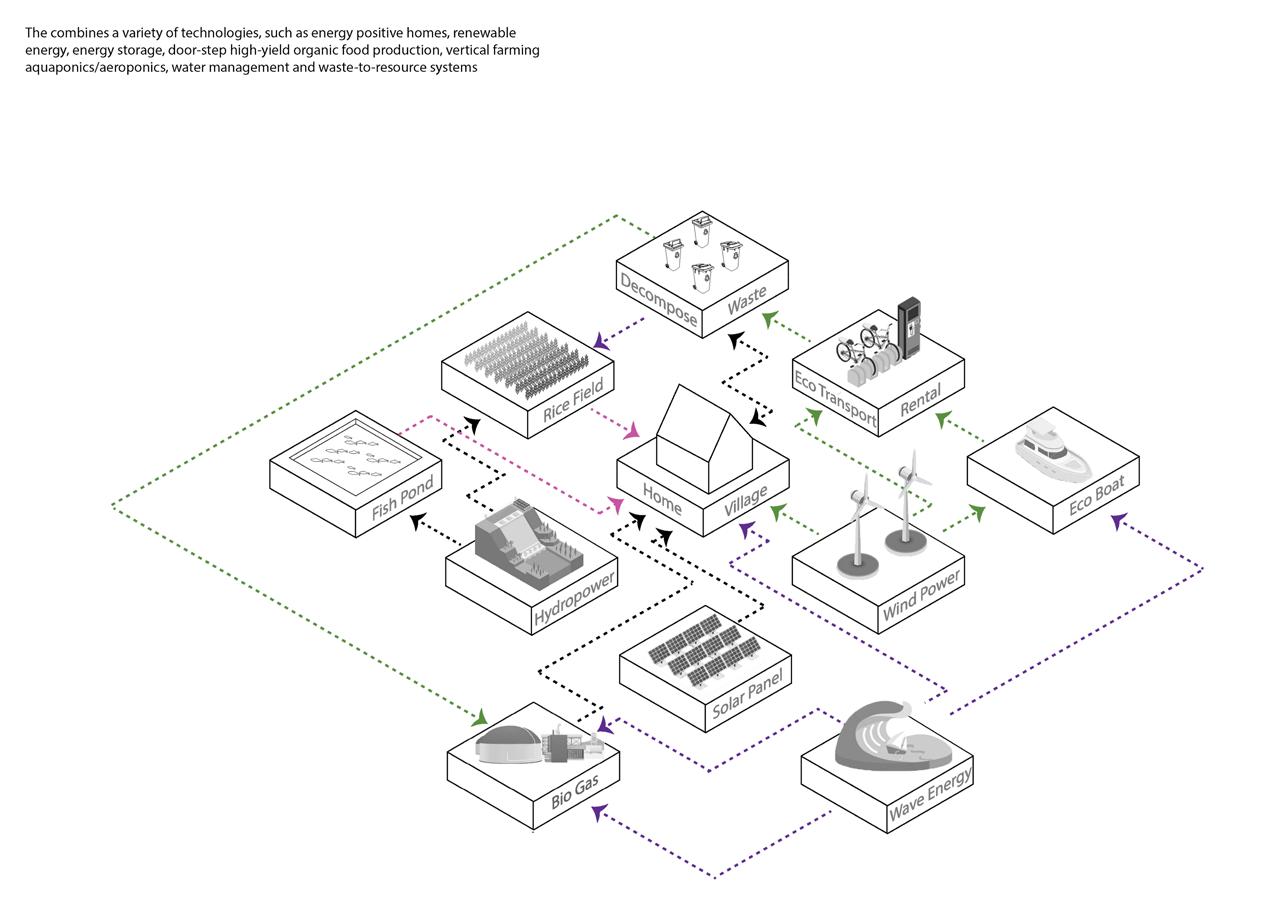

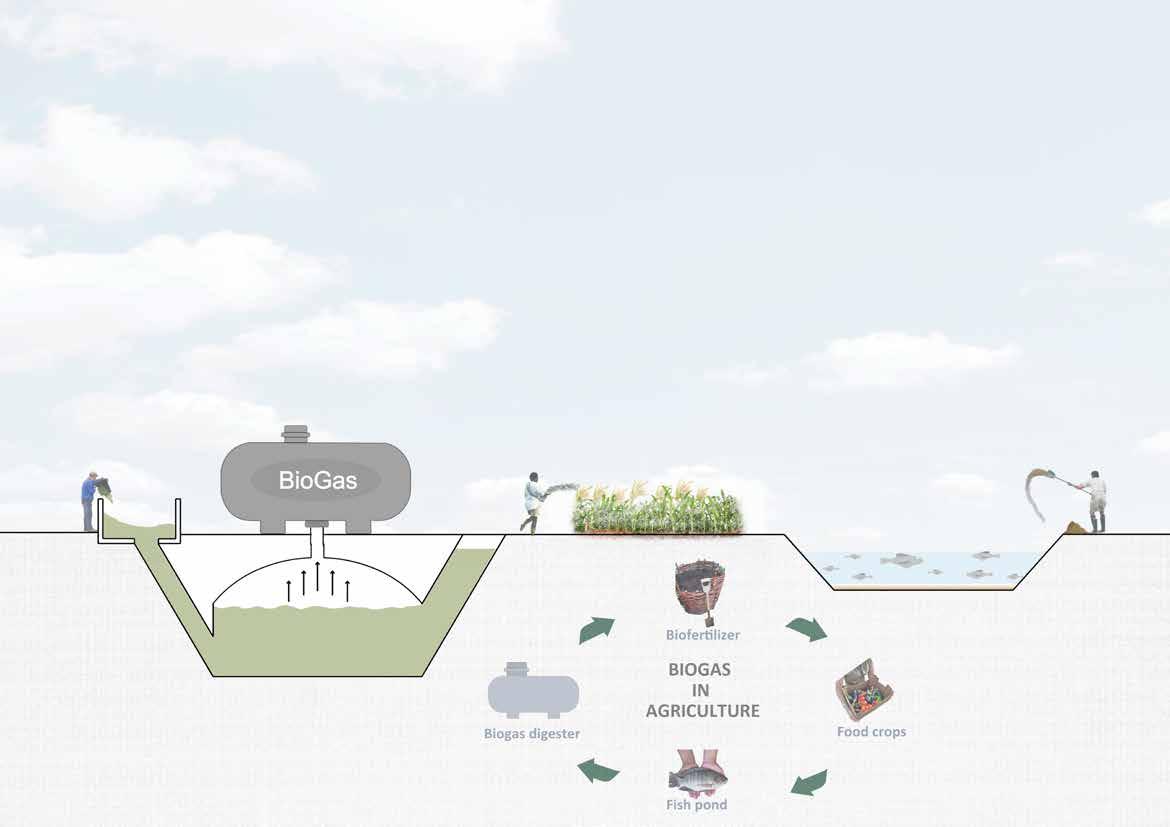

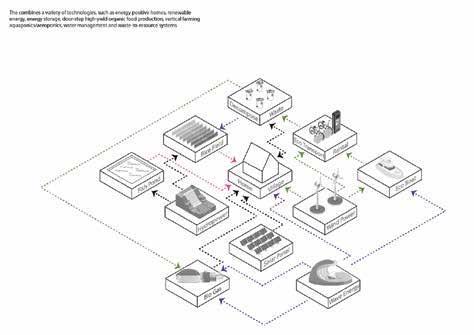

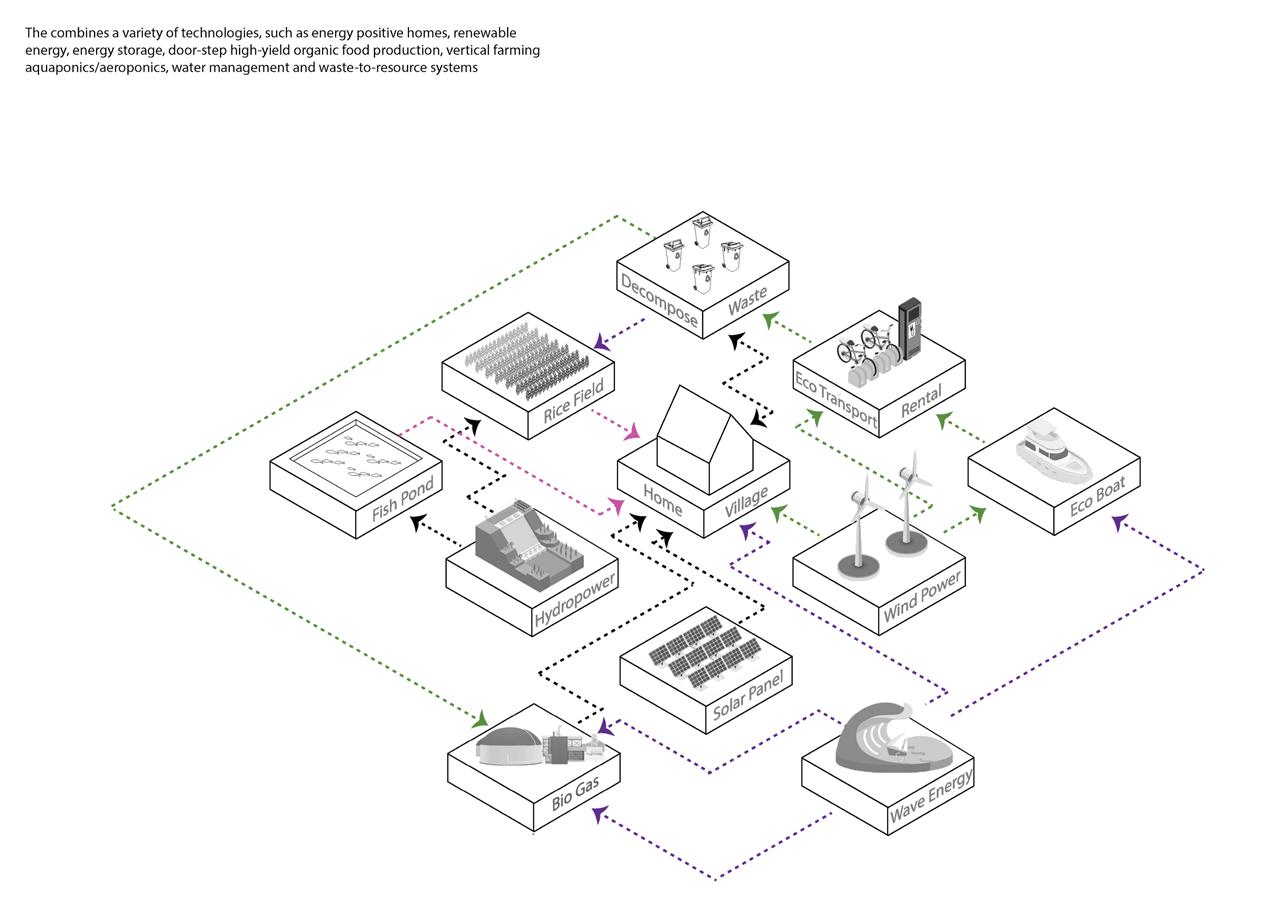

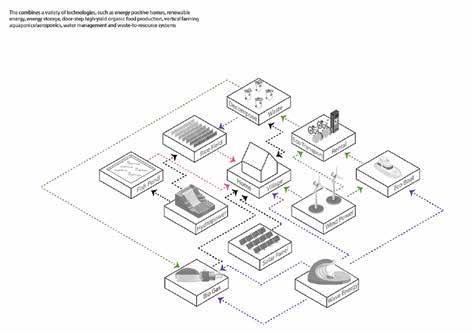

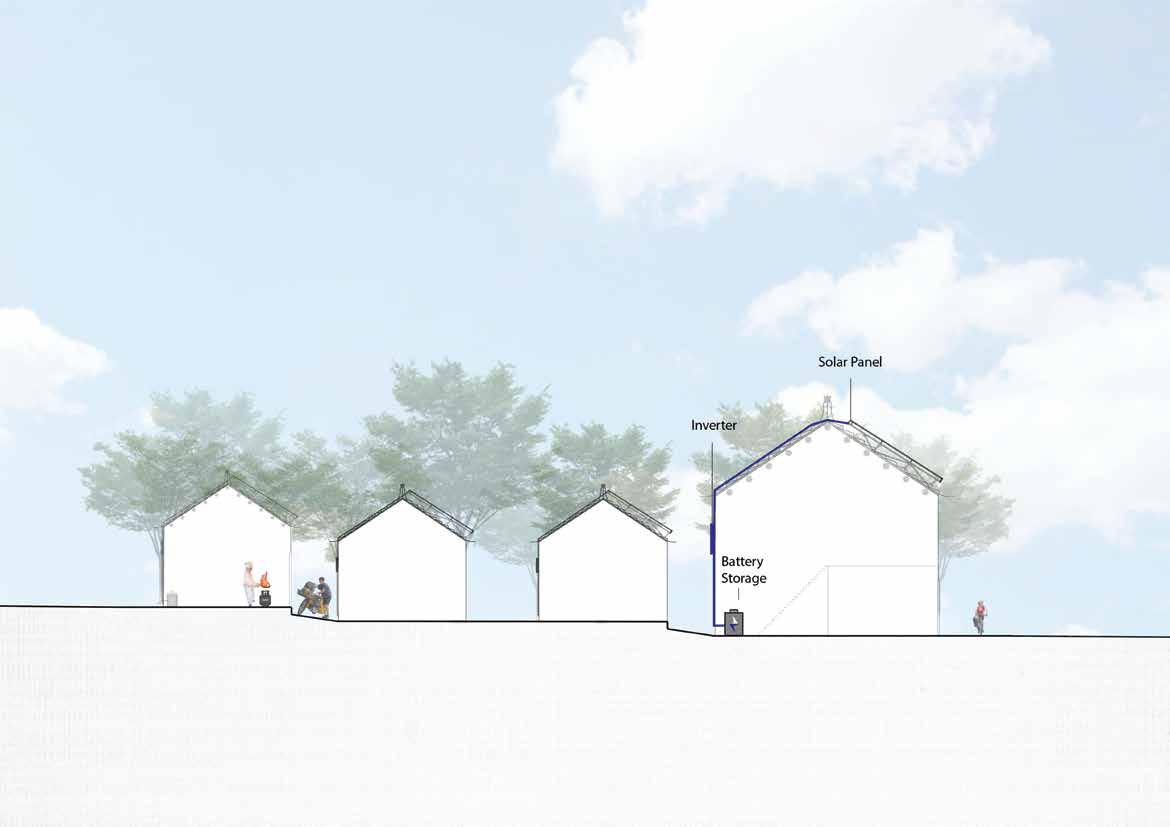

The world's most pressing environmental, social and economic issues: Smart Grid could self-sustaining communal neighborhoods that can be deployed across the globe

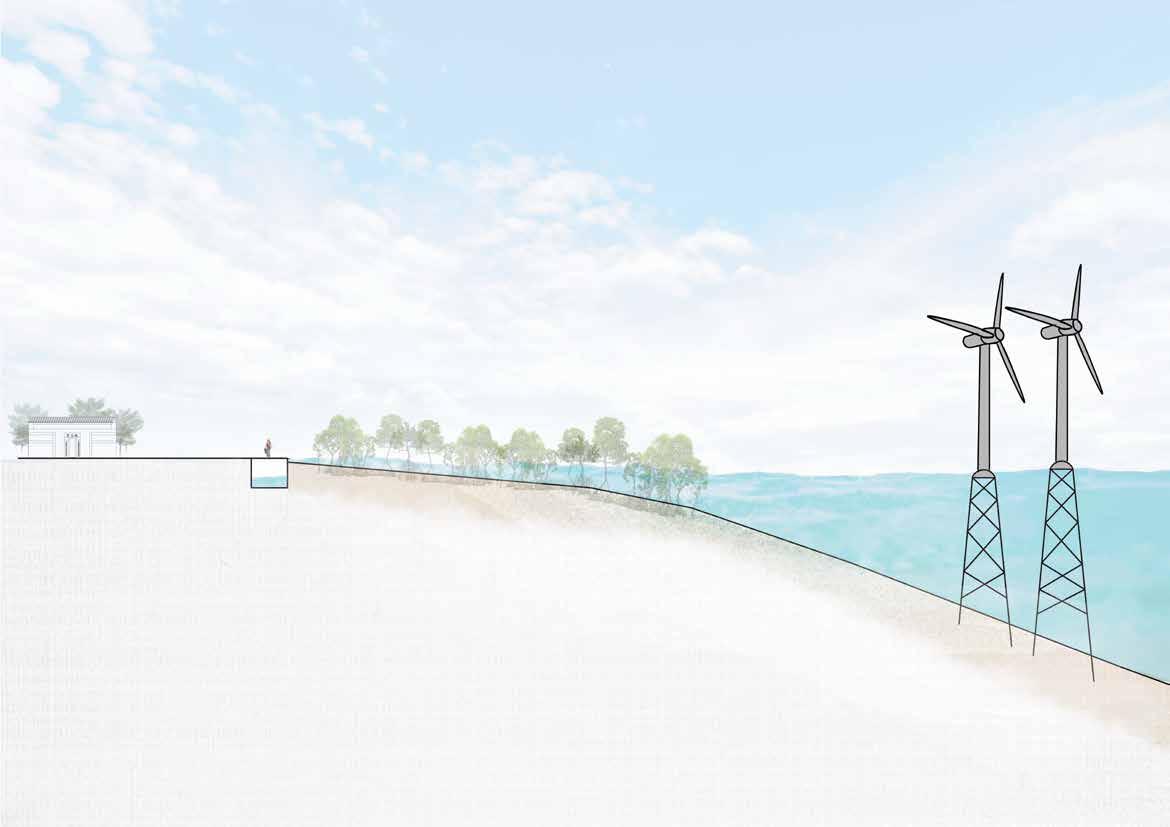

Wind Power

Temple

Mangroves

Lai Chi Wo River

Lai Chi Wo Trail

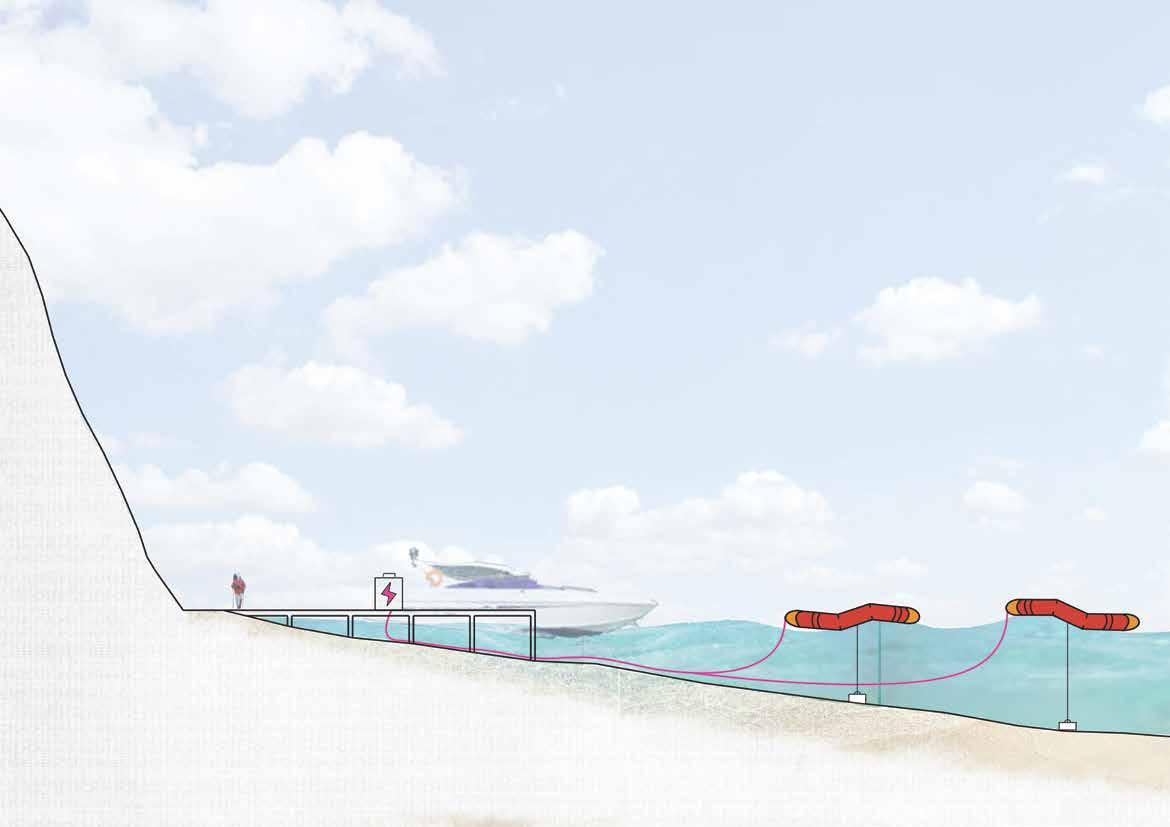

Wave Power

Sea Waves are powerful and per petually replenished. But unlike the wind and sun, waves remain a largely untapped source of renew able energy, despite their enor mous potential

Phases 3- Propose country park to be ECO park

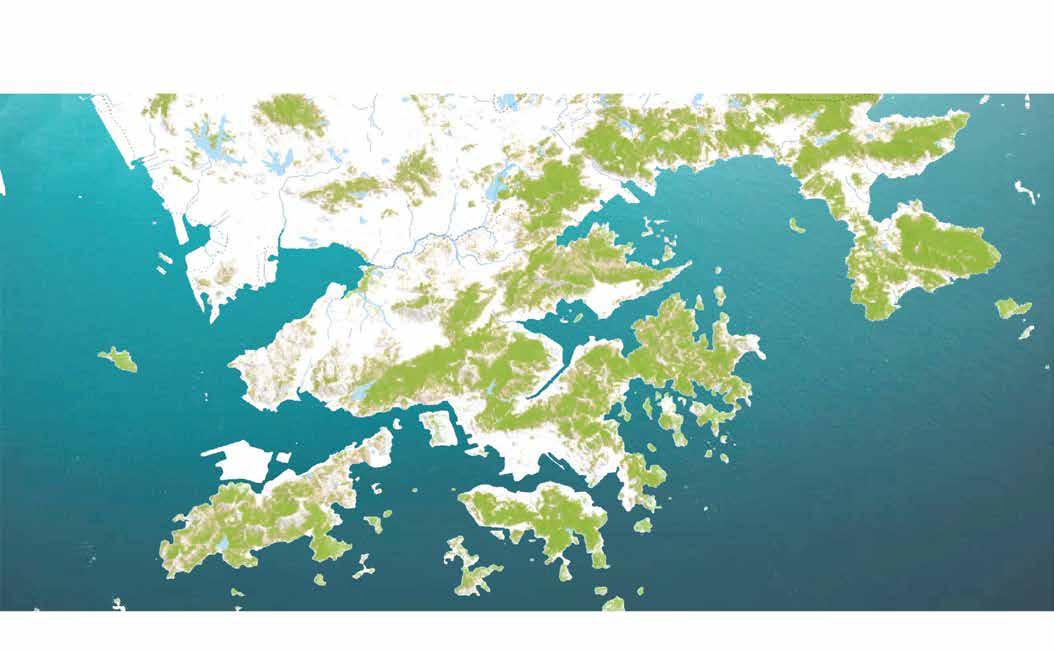

Before 2047’s Reglution of protected areas in Hong Kong. The rst is country parks and special areas designated under the Country Parks Ordinance (Cap.208) in 1976 Tree

Yan Chau Tong Marine Park - is most sensitive areas for further protection and the establishment of sustainable reserve

Hong Kong’s waters have been designated or planned to be build a network covering of safeguard valuable marine species and their habitats

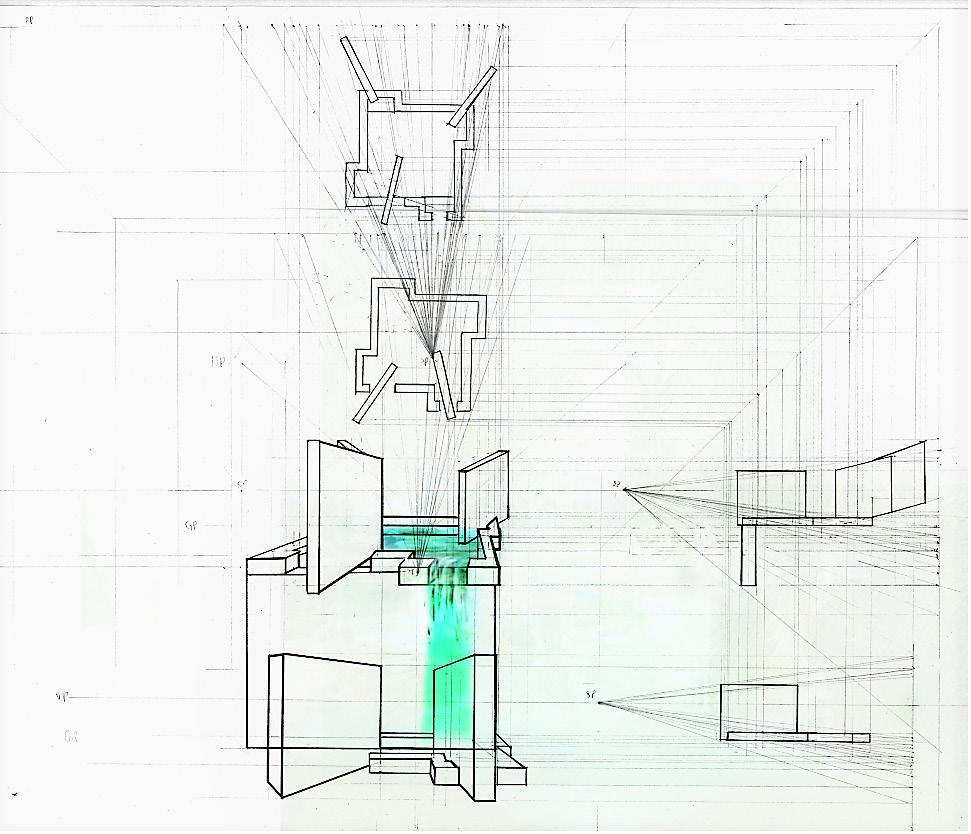

Otherwork- Material Assemblies & Performance

Polycarbonate

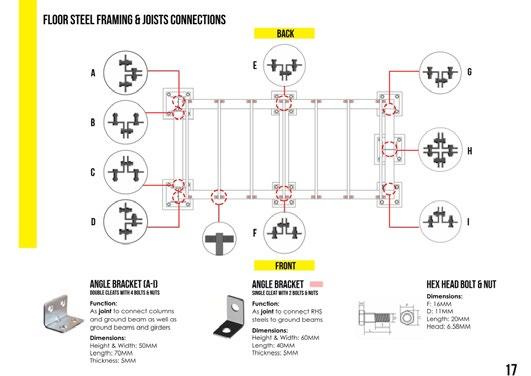

Another surface of steel single cleat is bolted onto the ground beam

One surface of steel single cleat is rigidly welded onto the steel

All components of steel base framing are assembled and welded to connect

Cu�ng 45 degree miter on steel square tube joining

5 tube Joining

Self Driving Screw

Single Cleat Angle Bracket Bolts and Nuts

Self Tapping Screw

Timber planks are laid above the floor joists to create a finished look for the �mber decking. Each �mber plank is secured to the floor joists underneath using self-tapping screw, providing a flat and safe syrface for pedestrian’s use as wekk as stabilizing the floor system

ANGLE BRACKET SINGLE CLEAT WITH 2 BOLTS & NUTS

COURSE

ARCH7254 LANDSCAPE TECHNOLOGY II

NAME

HKU-MLA2

CHAN KUNG WING

PROJECT

DETAILED ASSEMBLY

DATE 17/12/2020 SCALE

STUDENT ID 3035547277

Timber Plank

RHS Steel

Steel Plate

Steel Post

Anchor Belt

Concrete Pad foo�ng

Steel Railing go through Timber Plank and welded with Girder

POLYCARBONATE (PC) Black Square Steel Tube

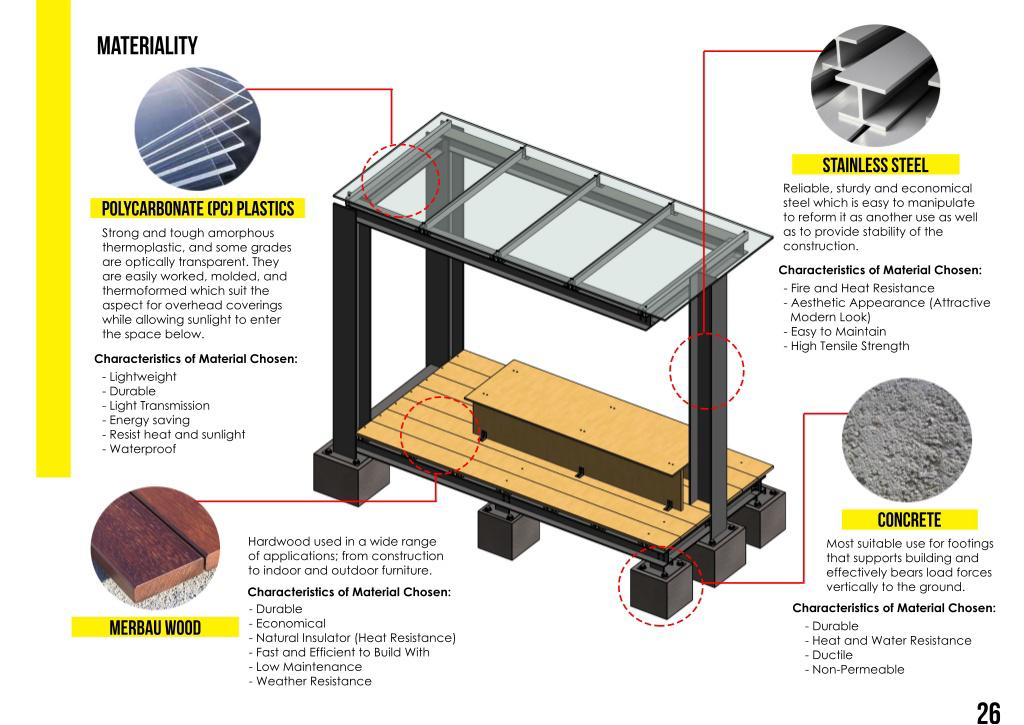

Strong and tough amorphous thermoplastic, and some grades are optically transparent. They are easily worked, molded, and thermoformed which suit the aspect for overhead coverings while allowing sunlight to enter the space below

Reliable, sturdy and economical steel which is easy to manipulate to reform it as another use as well as to provide stability of the construction

BLACK WILD STEEL RAILING

Attractive and durable powder coat nish, build your railing system for more private

Most suitable use for footings that supports building and e ectively bears load forces vertically to the ground

Hardwood used in a wide range of application; from construction to indoor and outdoor furniture

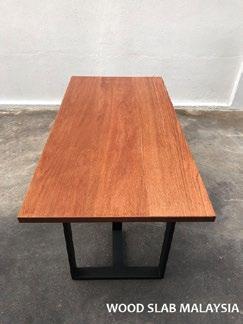

MERBAU WOOD PLANKS - SEATING
