J E N N I F E R L E E
CONTENTS
ACADEMIC WORKS
-STUDENT COMMUNAL
-THE OASIS
PROFESSIONAL WORKS
-BRIDGE CITY ISD
-LUMBERTON ISD
SAMPLE WORKS/PROTOTYPE
-PROTOTYPE
-SAMPLE WORK 1
-SAMPLE WORK 2

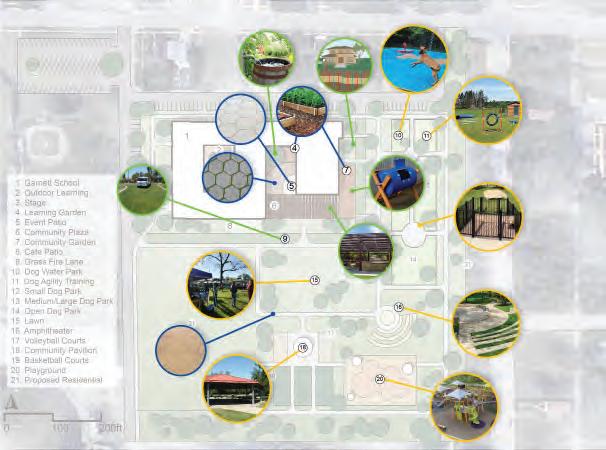

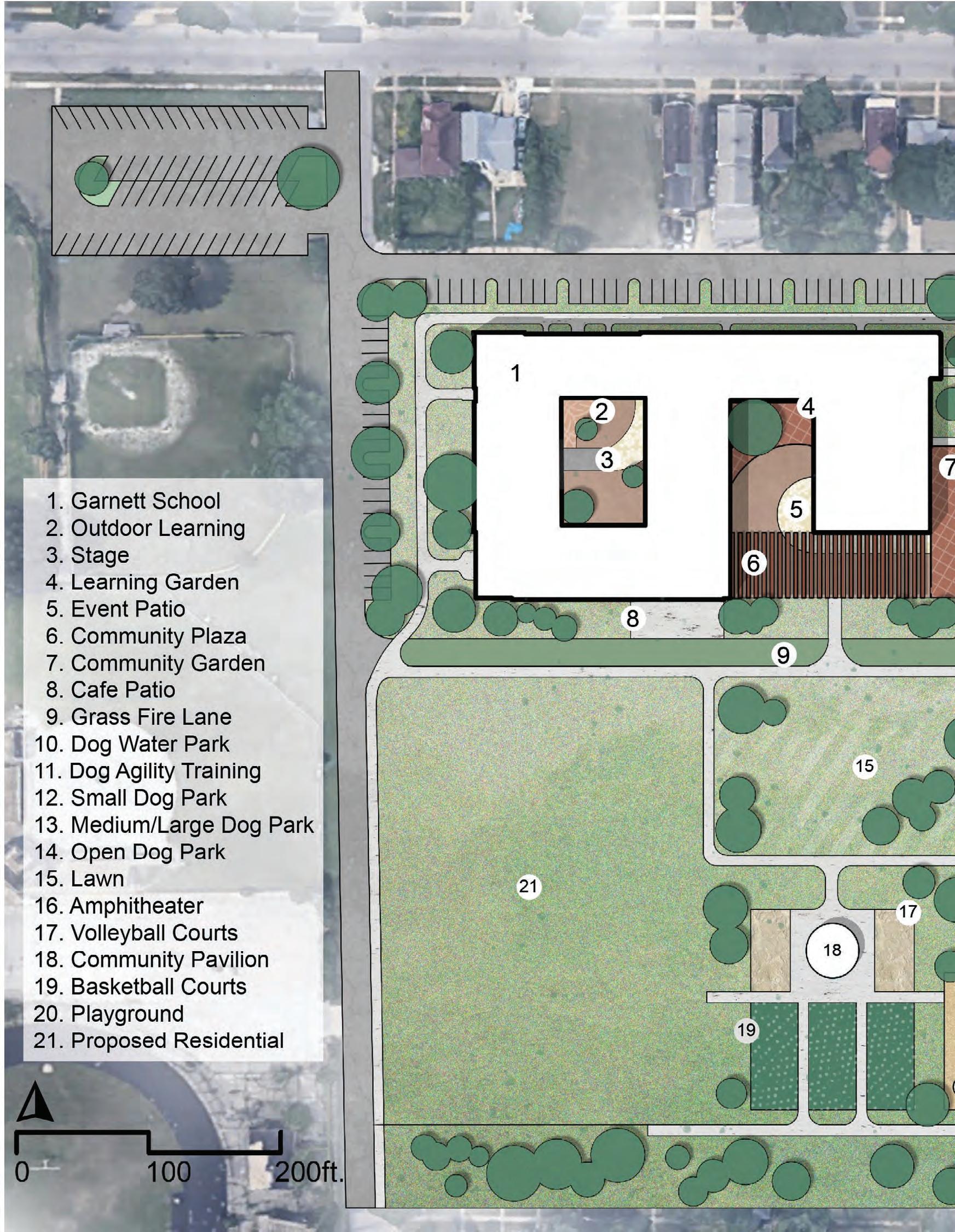

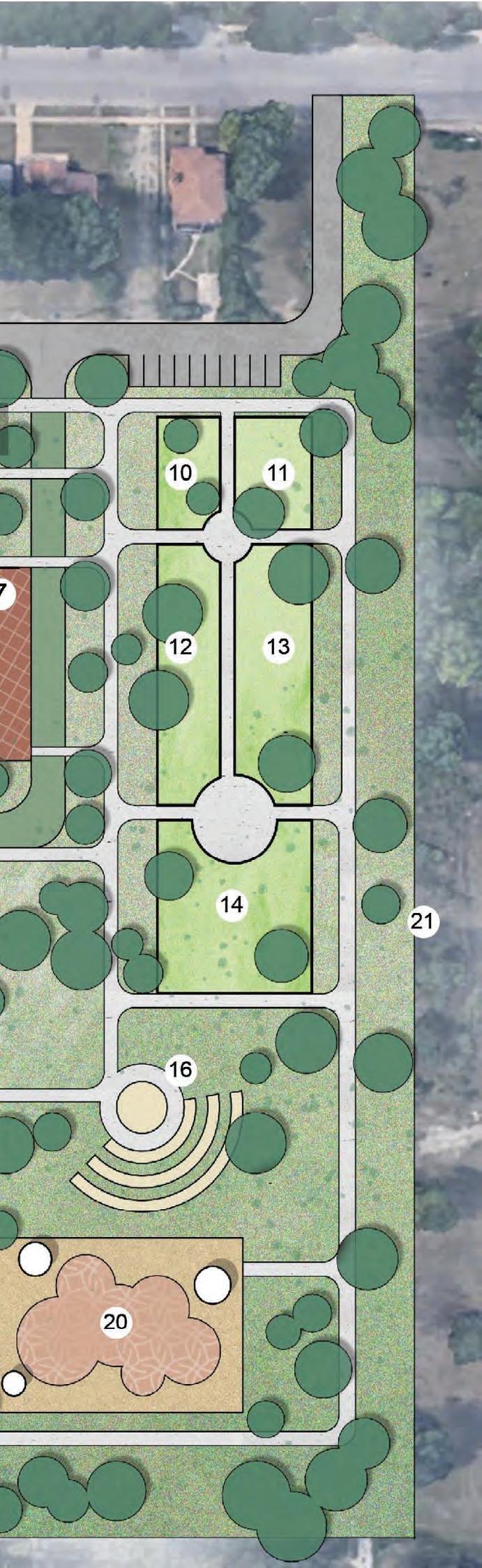

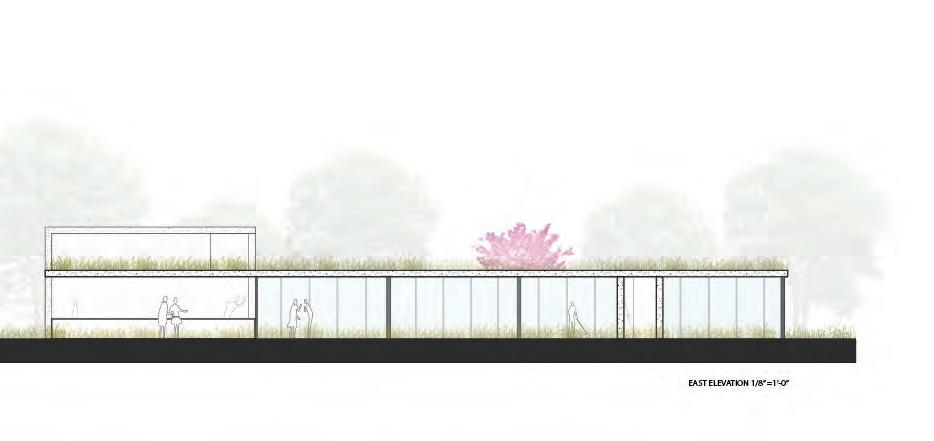

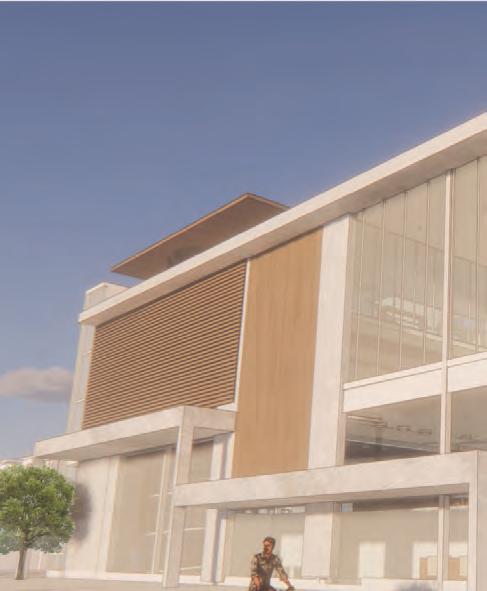

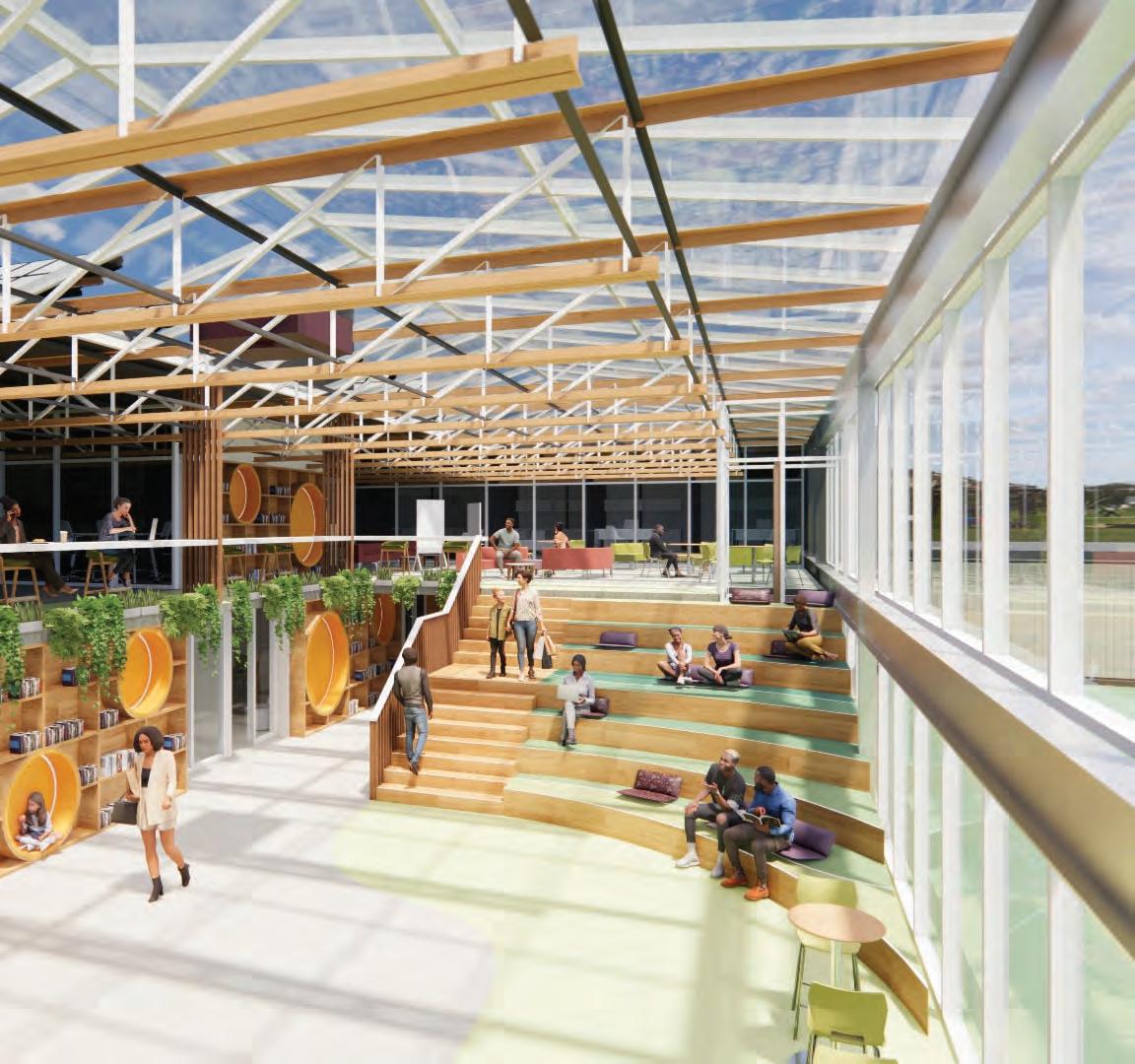

GARNETT COMMUNITY CE
INFORMATION
LOCATION: GARY, INDIANA
DESCRIPTION
THE INTENTION IS REDEVELOPING THE SITE AND REPURPOSING EXISTING SCHOOL BUILDING TO BE USED AS A COMMUNITY CENTER. SOME CHALLENGES THAT THE CLIENTS WERE FACING IN THE NEIGHBORHOOD WERE CRIME/NEGLECT, DEFERRED MAINTENANCE, AND WEAK NEIGHBORHOOD COMMUNITY. THERE WERE EXPLORATIONS IN INTEGRATING GARNETT SCHOOL SITE TO BROADER NEIGHBORHOOD REVITALIZATION. SOME WAYS WERE BY INTRODUCING BOTH MARKET AND AFFORDABLE RESIDENTIAL OPPORTUNITIES. THE CLIENT WANTED.
REVIT AND ENSCAPE
ENTER

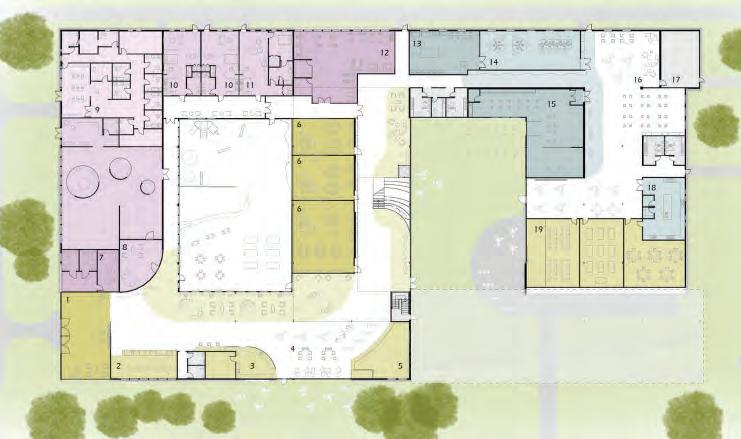

FIRST FLOOR
SECOND FLOOR

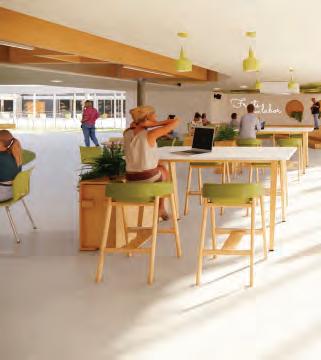

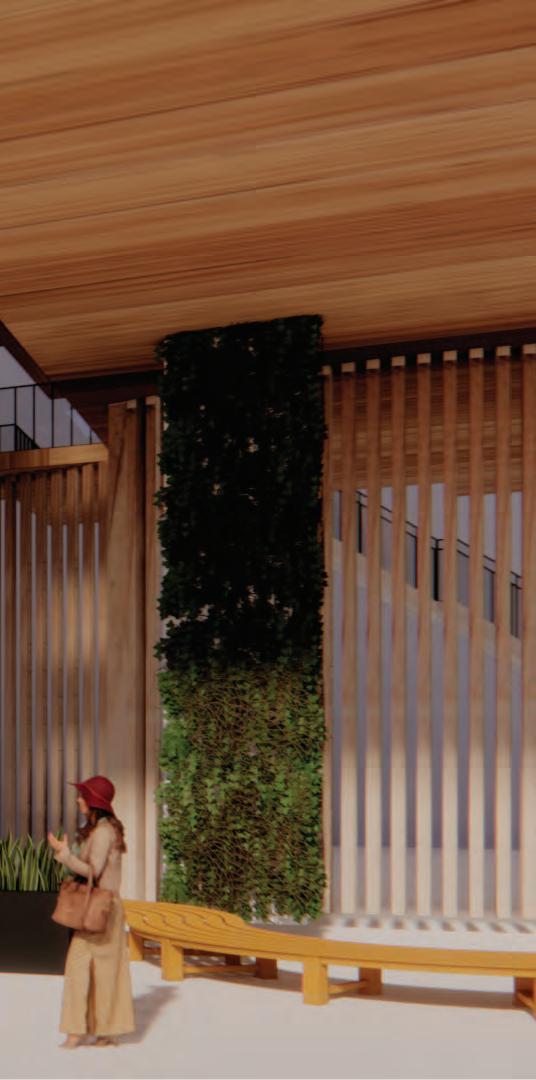

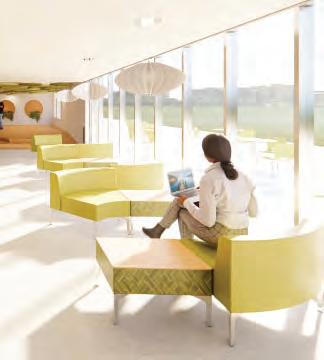

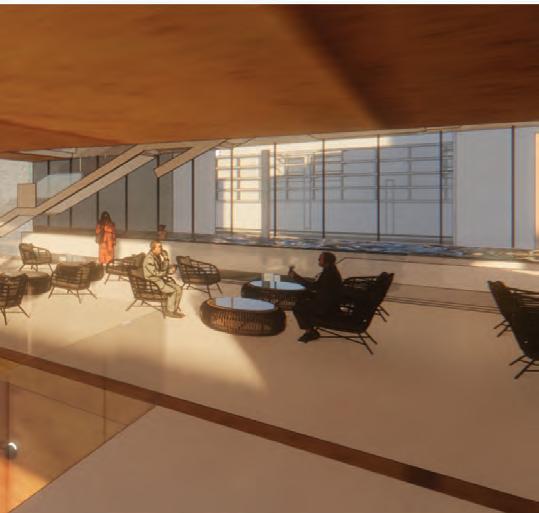

CAFE AND LOUNGE

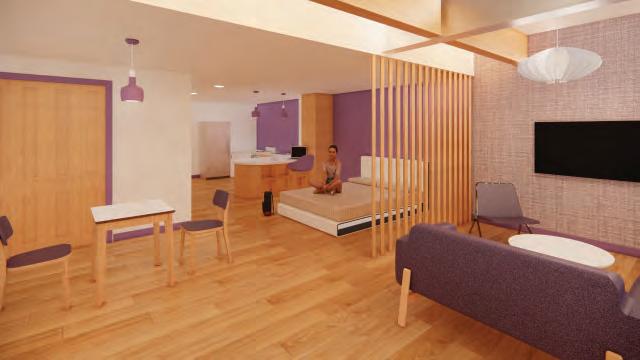

EFFICIENCY UNIT
MAKERSPACE
THE OASIS

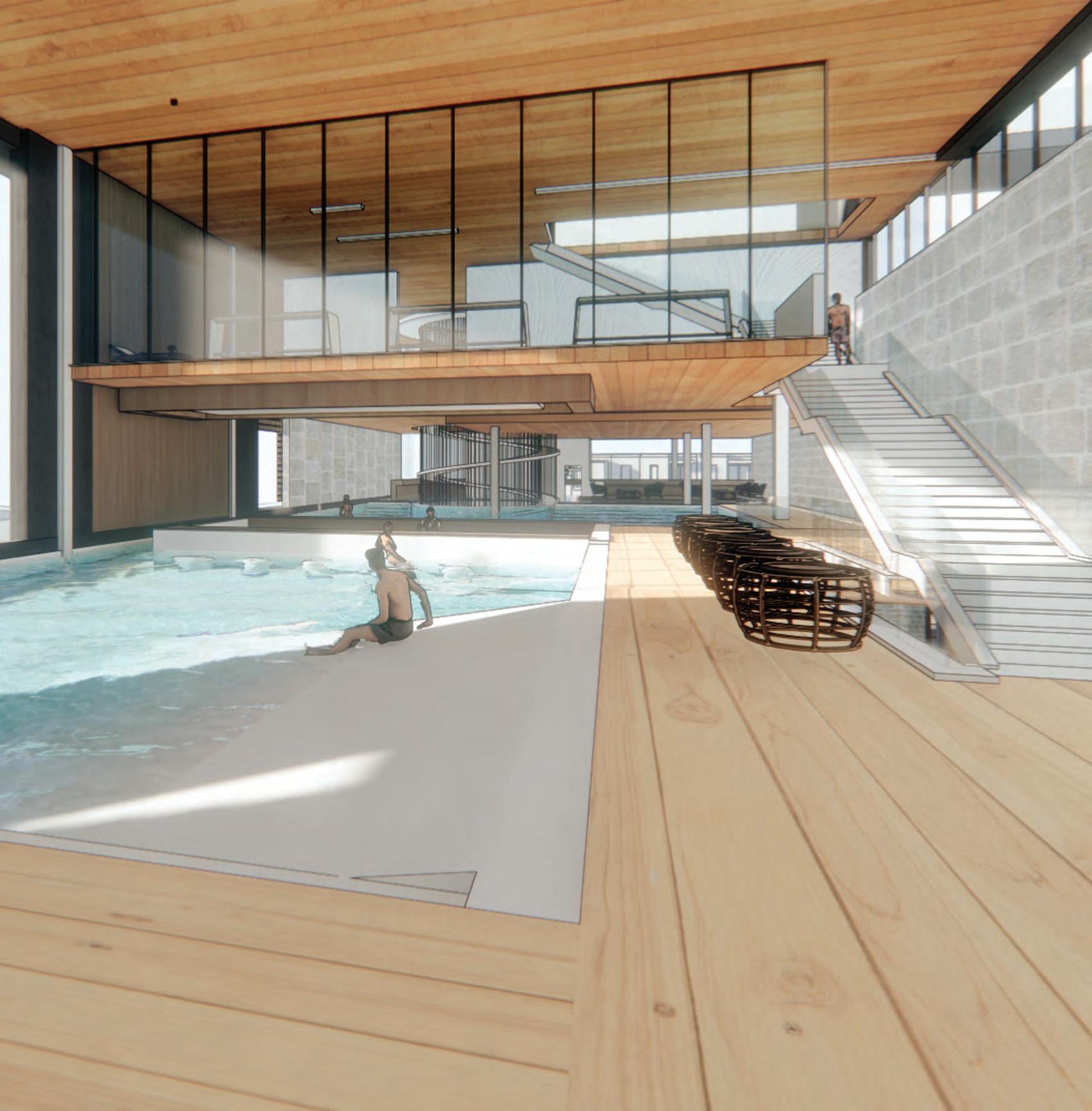

SWIM CENTER
INFORMATION
COMPREHENSIVE STUDIO
LOCATION: AUSTIN NEAR LADY BIRD LAKE
DESCRIPTION
THE OASIS WAS DESIGNED TO OFFER ENTREPRENEURS OF THE ADJACENT STATION F REFUGE FROM THEIR DAILY WORK ENVIRONMENT. THE COMPLEX OFFERS A DIVERSITY OF REJUVENATING EXPERIENCES , RANGING FROM PUBLIC LEISURE POOLS TO PRIVATE SAUNAS. THE DESIGN IMPLEMENTS STRATEGIES OF DAYLIGHTING AND CIRCULATION, WITH INTENTIONAL MATERIALITY AND STRUCTURAL SYSTEMS TO CREATE AN IMMERSIVE EXPERIENCE OF TOUCH, TASTE, SMELL, SIGHT, AND SOUND.
DESIGN EXCELLENCE NOMINATION
RHINO AND ENSCAPE
LADYBIRDLAKE
RHI RH R NO O AND AN N ND D ILLUUSTRA RAATOR TOR R
SITE RED RIVER ST I35 S RED RIVER ST I-35 CONNECTION CONCEPT DIAGRAMS I. ORIGINAL MASSING CHILL ZONE STATION F FLATS I. II. ZONE SEPARATION STATION F, CHILL ZONE + FLATS I. II. III SITE INTEGRATION INTERACTION WITH GROUND CONDITIONS III. IV. CIRCULATION INTERACTION WITH GROUND CONDITIONS PARKING STATION F PUBLIC PATIO CHILL ZONE PUBLIC PATIO CHILL ZONE CREEK ENTRANCE BIKE RACKS FLATS COURTYARD VEHICLE ENTRANCE FIRE LANE STOP FIRE LANE STOP METRO CROSSING WALKWAY THROUGH ACCESS DRIVER PROCESSION CHILL ZONE TO STATION F COURTYARD THROUGH ACCESS CYCLIST PROCESS ON VEHICLE CIRCULATION PEDESTRIAN/CYCLIST CIRCULATION CHILL ZONE EGRESS STATION F EGRESS FLATS EGRESS SUNRISE SUNSET I. I RED RIVER ST35 RED RIVER ST I3 5 CENTER POINT RED RIVER ST 3 5 S VEHICLE AND PEDESTRIAN CIRCULATION RED RIVER ST3 5 S SEPARATION AQUATIC PROGRAMS LEISUREPOOL LEISUREPOOL LITHIUMPOOL PROGRAM VOIDS JUICESUSHIBAR/ BAR CHILL/SOCIAL AREA LOCKERROOMS/ ENTRANCE SUSHIBAR/ JUICEBAR PROGRAMS SITE MASSING BUILDING MASSING
FLATS STATION F STATION F FLATS STATIONF STATIONF STATION F + FLATS ST T S WATER WALL, GYM, WET SAUNA, & TURKISH BATH THERMAL POOL, LEISURE POOL LEISURE POOL SUSHI BAR/ JUICE BAR SUSHI BAR/ JUICE BAR LEISURE POOLS CIRCULATION CHILL/SOCIAL AREA LEISUREPOOL THERMALPOOL TURKISHBATHWATERWALLWETSAUNA LOCKERROOM/ ENTRANCE JUICESUSHIBAR/ BAR CHILL/SOCIAL AREA SUSHIBAR/ JUICEBAR CIRCULATION LEISUREPOOL LEISUREPOOL ENTRANCE ENTRANCE PARKING PUBLIC PUBLIC GROUND FLOOR

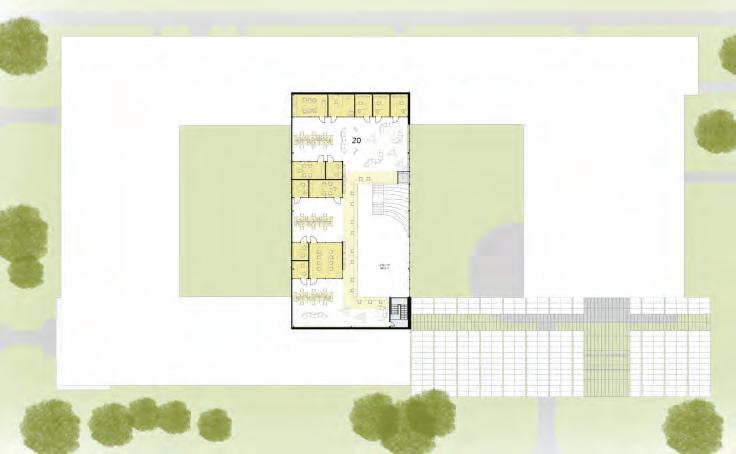

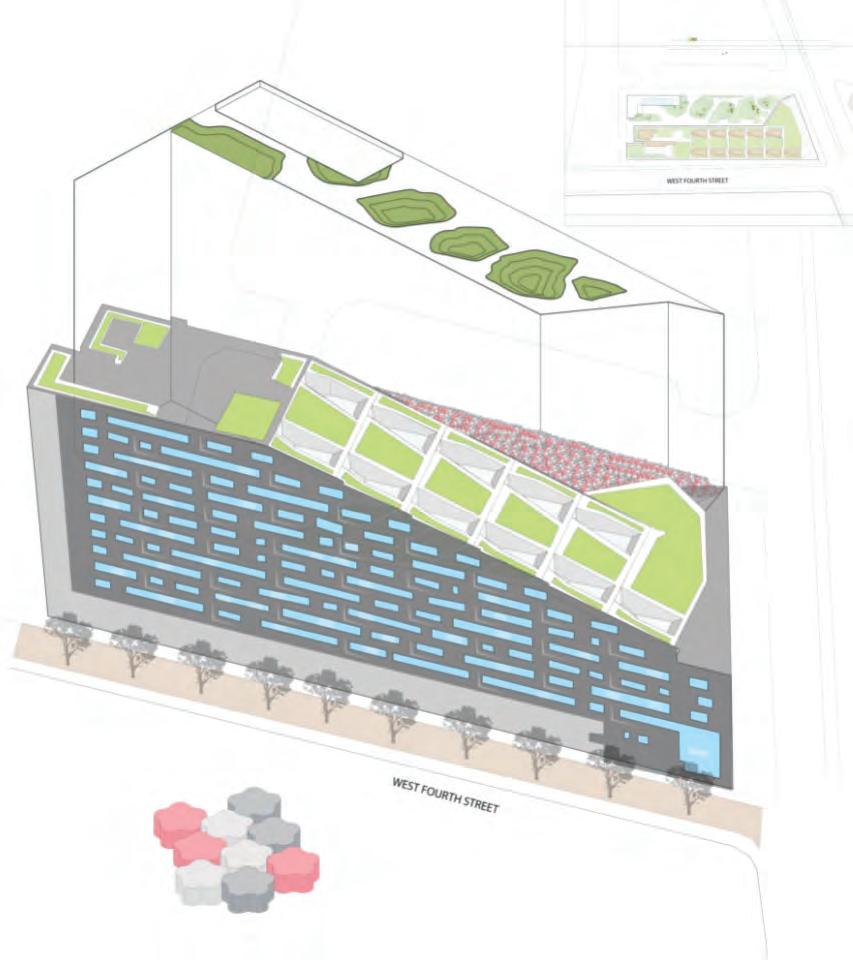

SITE PLAN WITH FLOOR PLANS
FLOOR 1 FLOOR 2 FLOOR 3 FLOOR 4 FLOOR 5 PHOTOSHOP, ILLUSTRATOR AND RHINO
THERE’S RELATION TO THE OASIS WITH THE SITE BY LIFTING THE FLAT UP FOR THE OASIS TO SEE THROUGH THE FLATS TOWARDS THE WALLER CREEK.

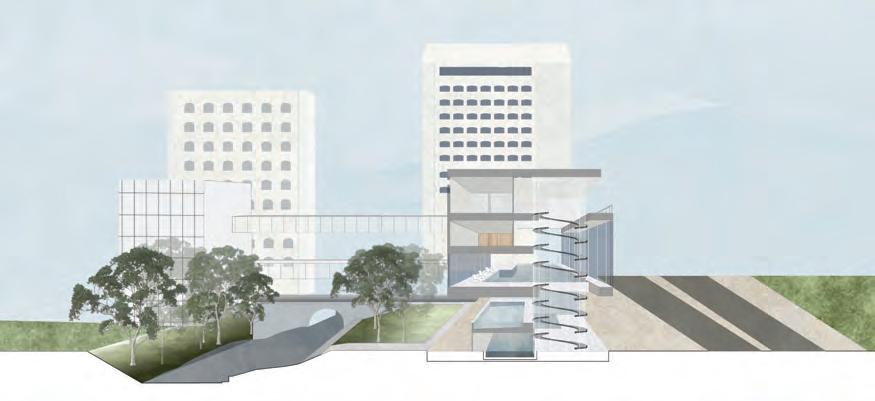

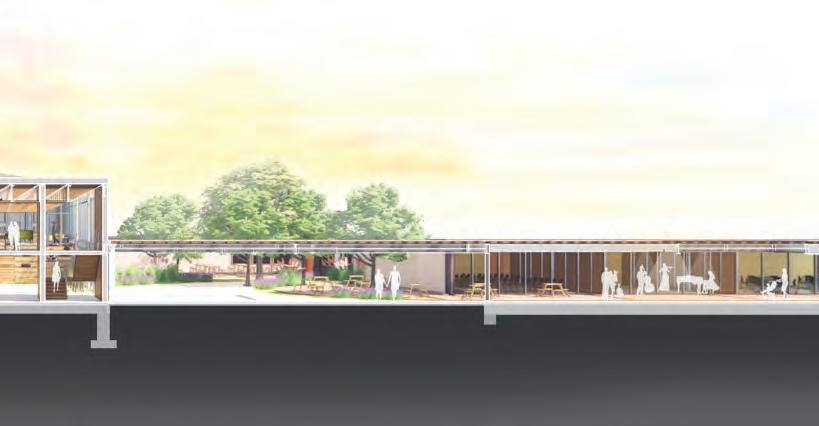

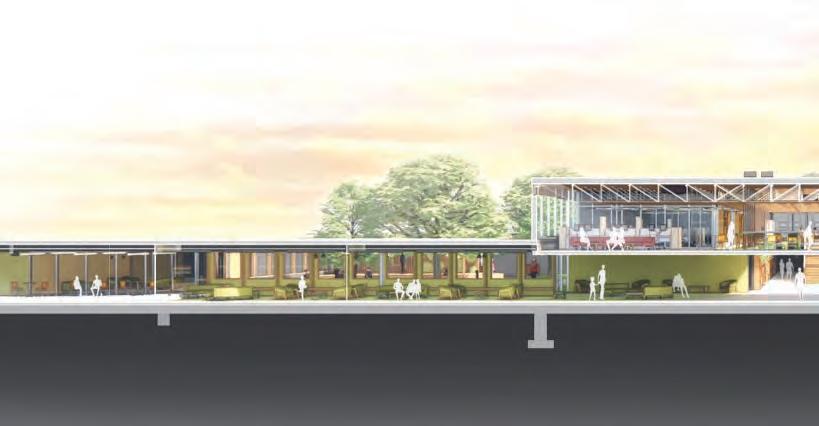

SECTIONAL PERSPECTIVE
I-35 IS CAPPED FOR FUTURE I-35 PROPOSAL FOR THE OASIS TO HAVE OUTDOOR EXPERIENCE FOR THE USERS, WHETHER IT IS LEISURE WALK TO WORKING ON PROJECTS OUTDOORS.
PHOTOSHOP, ILLUSTRATOR AND RHINO PHOTOSHOPILLUSTRATORAN

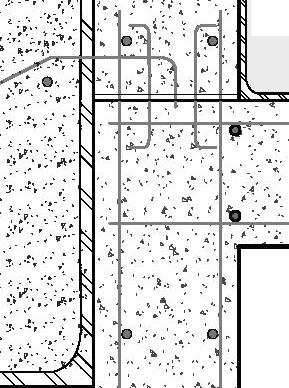

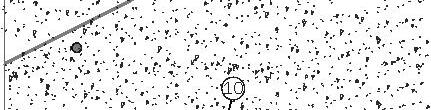

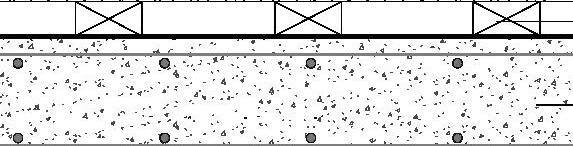

1 4 3 5 6 2 9 4 3 2 5 6 7 8 1 TRAVERTINE TILE FLOORING 1 5 6 6 11 WALL SECTION DETAILS
STEEL ANGLE
#3 REBAR 12” O.C.
CONCRETE
#3 STEEL STIRRUPS
PLASTER GROUT
EXPANSION JOINT
1x3 HARDWOOD FLOORING
2x4 SLEEPERS 12” O.C.
6” DEPTH SAND
GRAVEL
SILL SEALER
ANCHOR BOLTS
#5 REBARS CAPILLARY BREAK FRENCH DRAIN
CONCRETE FOOTING
1 4 3 5 6 2 7 10 11 12 15 16 17 9 13 18 19 20 21 22 14 23 25 26 27 28 30 31 32 33 37 39 36 8 COPING ROOFING MEMBRANE RIGID INSULATION PLANTER PLYWOOD WELDED PLATE CANT STRIP 6 MIL POLYETHELENE VAPOR BARRIER 1x3 IPEG WOOD FLOORING FINISH 2x4 SLEEPERS 12” O.C. TRAVERTINE TILE TRANSITION STRIP STUCCO BATTS INSULATION STEEL CONNECTION WELDED PLATE CASTELATED BEAM GYPSUM BOARD ACOUSTIC CEILING TILE HANGER EXPLOSIVE BOLT SLS PV PANEL 1 4 3 5 6 2 8 7 17 16 15 12 11 10 9 13 18 19 20 21 22 14
ANCHOR BOLTS
39 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 12 13 14 15 16 17 1 4 3 5 6 2 8 7 10 9
Level 02 Level 01 Level 03 Level 04 Level 05 Level 00 -10’0” 0’2” 10’8” 16’4” 28’4” 40’4” Level 02 Level 01 Level 03 Level 04 Level 05 Level 00 -10’0” 0’2” 10’8” 16’4” 28’4” 40’4” TRANSVERSE SECTION LONGITUDINAL SECTION
PLUMBING DIAGRAM
VENTILATION DIAGRAM
MECHANICAL SYSTEM
MEP SYSTEMS INTEGRATION
RAINWATER COLLECTION FILTRATION AND RECIRCULATION
HVAC + PLUMBING DISTRIBUTION RADIANT FLOOR RETURN RETURN/SUPPLY

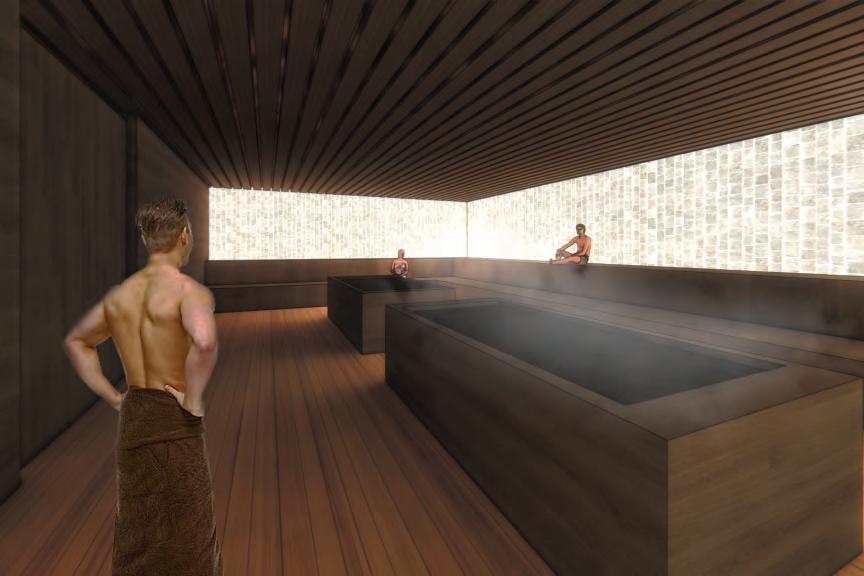

WET SAUNA (USE OF SALT WALL FOR TRANSLUCENT LIGHTING)
EXTERIOR VIEW OF GYM AND WATER WALL
INTERIOR VIEW SUSHI
EXTERIOR VIEW FROM I-35

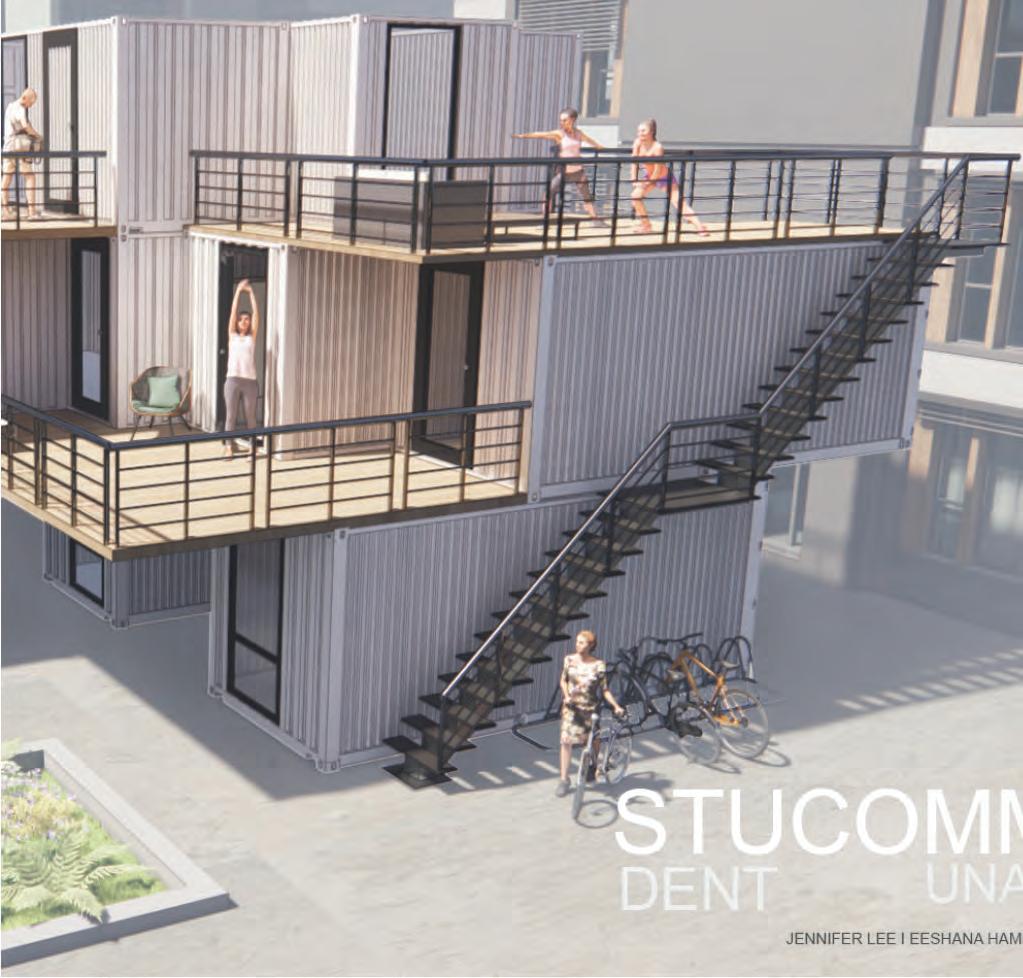

CAFE/JUICE BARSTUDENT COMMUNAL
INFORMATION
DESIGN III
LOCATION: URBAN SETTING
DESCRIPTION
IN THIS EXPLORATION, THE AIM WAS TO CREATE A STRUCTURE THAT WAS BOTH MODULAR, COST EFFECTIVE, AND REPLICABLE WITHOUT TAKING AWAY FROM THE QUALITY OF LIFE OF A SPACE. A LOT OF THE METHODS APPLIED WERE TO ADDRESS SOME OF THE MAIN CONCERNS SIGNIFICANTLY ENHANCED THE QUALITY OF LIFE WITHIN THOSE SPACES.
SEMI-FINALS IN GLOBAL COMPETITION
RHINO AND ENSCAPE
1025 50 NARROW LOT FLEXIBLE SITE PLANS AGGREGATION GROUP POSSIBILITIES FRONT FRONT FRONT LONG SERIES TIGHT CLUSTER LARGE COMMUNITY WIDE LOT CORNER LOT ASSEMBLY MODELS BEDROOM BATHROOM COMMON ROOM COMMUNAL5 BEDROOM 2 BATHROOM SEMI - PRIVATE 3 BEDROOM 2 BATHROOM 1 COMMON ROOM CARBON FOOTPRINT - 960 SF SQUARE FOOTAGE [CONTAINER] - 2,400 SF TOTAL SQUARE FOOTAGE - 3,358 SF PRIVATE 20’ x 8’ x 8.5’ unit 1 unit 2 unit 1 2 BEDROOM 2 BATHROOM 1 COMMON ROOM unit 2 1 BEDROOM 1 BATHROOM 1 COMMON ROOM
LEVEL 1 1/2” = 1’- 0” LEVEL 2 1/2” = 1’- 0” LEVEL 3 1/2” = 1’- 0” FLOOR PLANS ADOBE ILLUSTRATOR

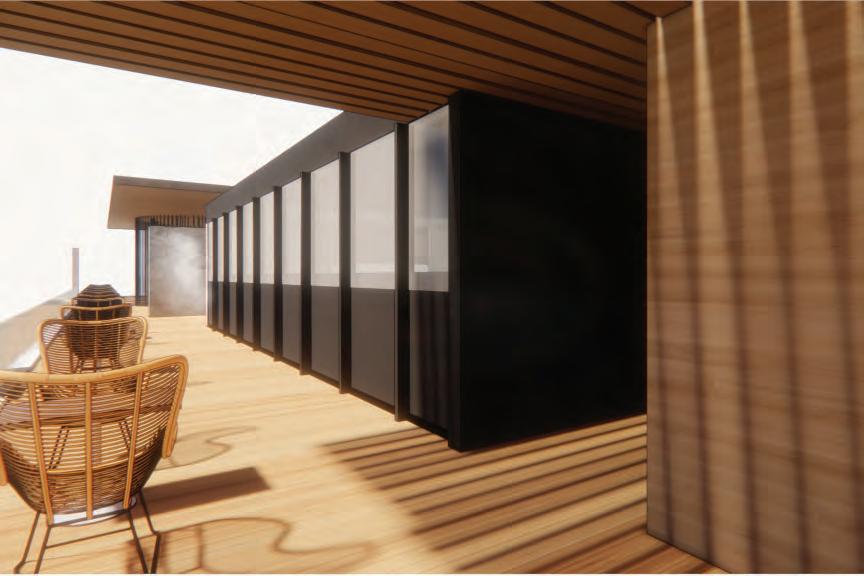

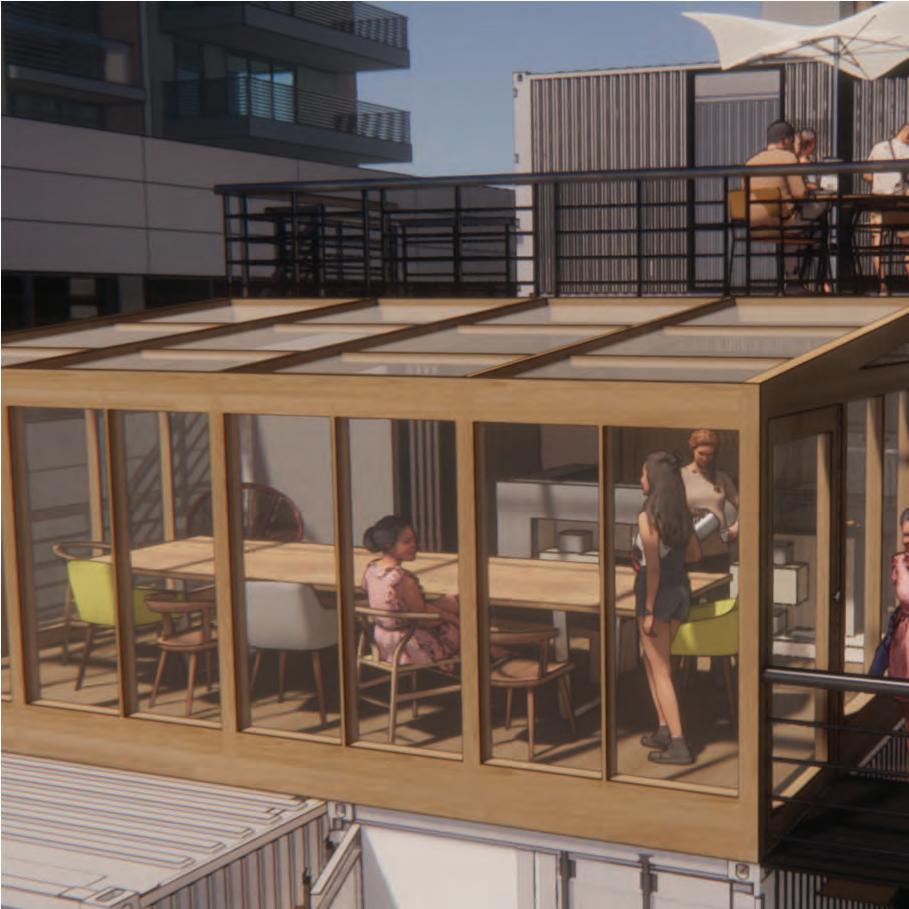

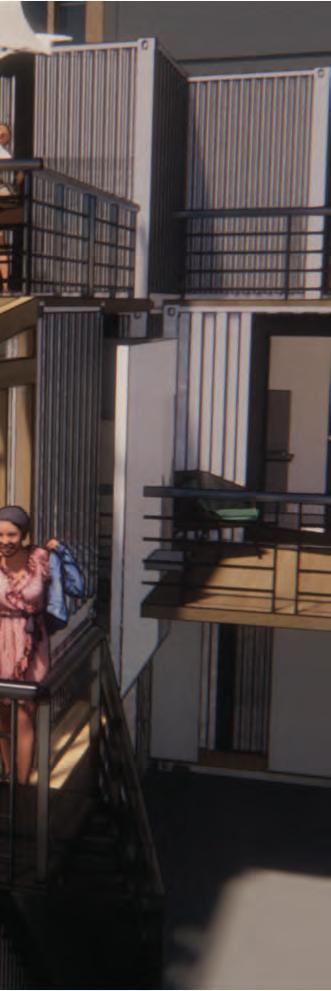

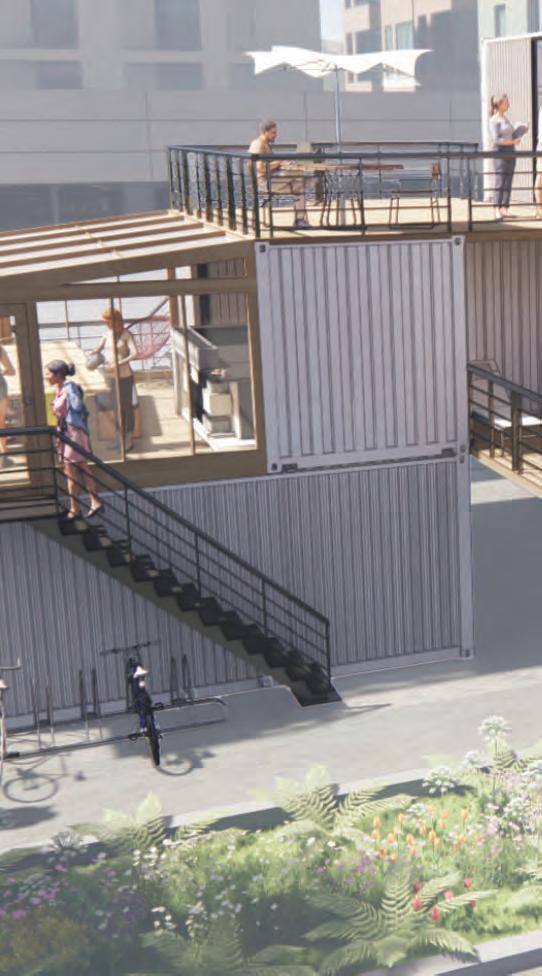

EXTERIOR SPACES

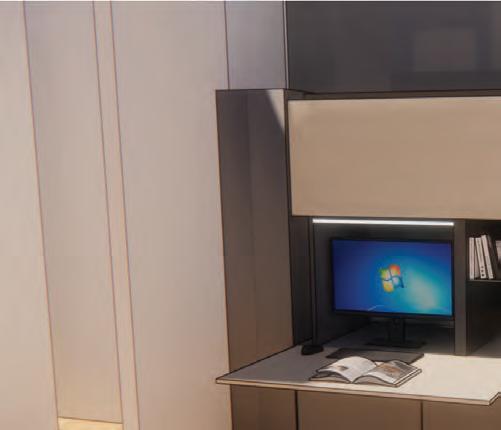

FOLDABLE DESK
BOOKSHELF THAT CAN BE PULLED OUT

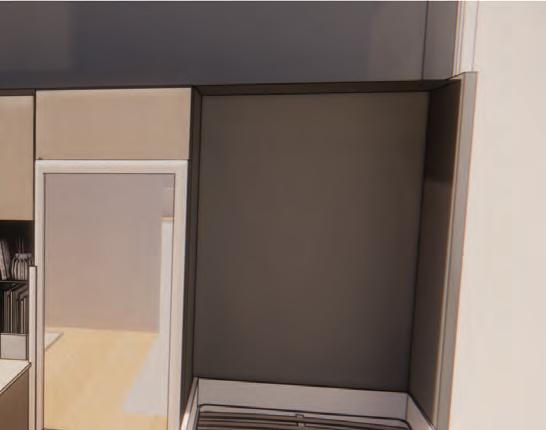

MULTI USE: MURPHY BED AND SHELF

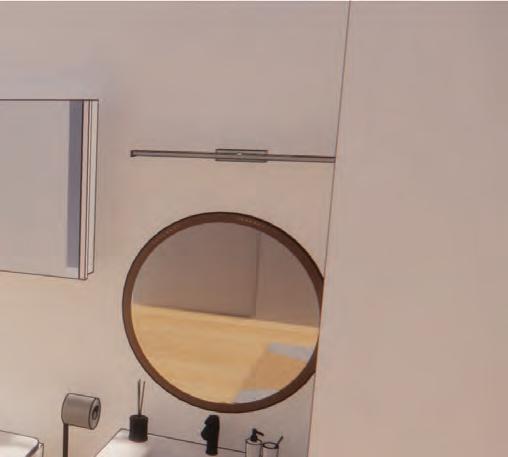

MULTI USE: MIRROR AND CABINET

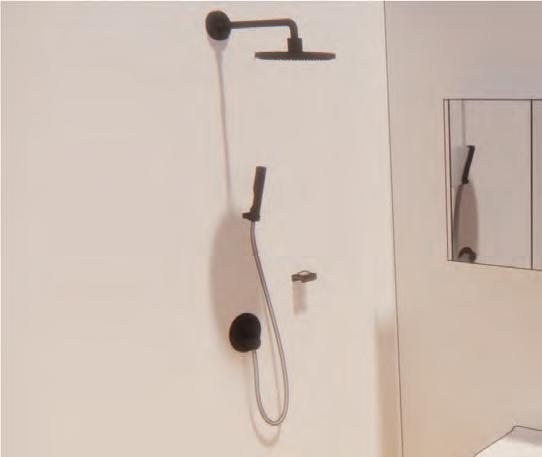

KOREAN STYLE SHOWER UNIT NO GLASS WALL OR TUB ARE PRESENT TO SAVE SPACE
ENSCAPE AND PHOTOSHOP

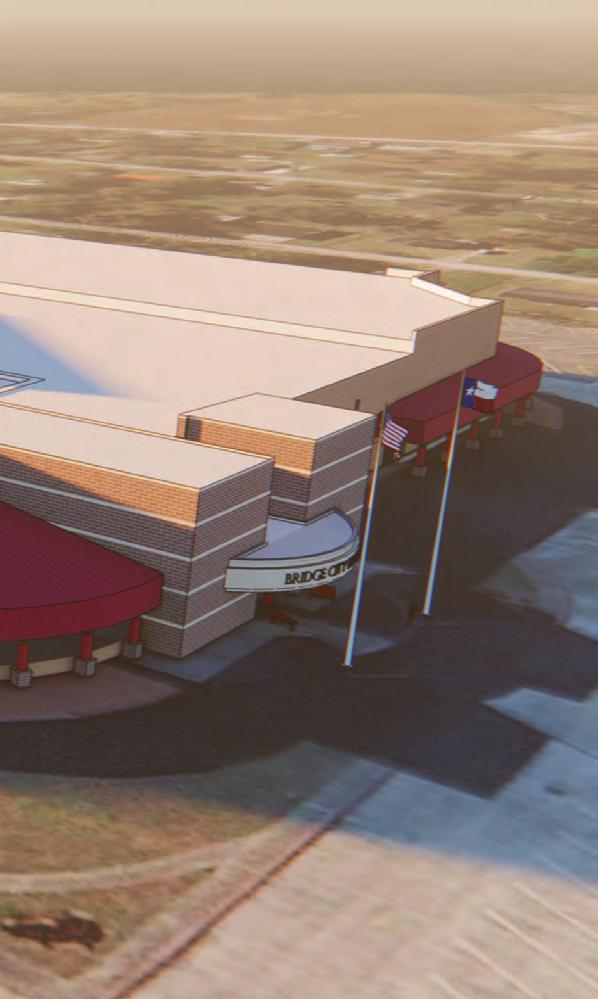

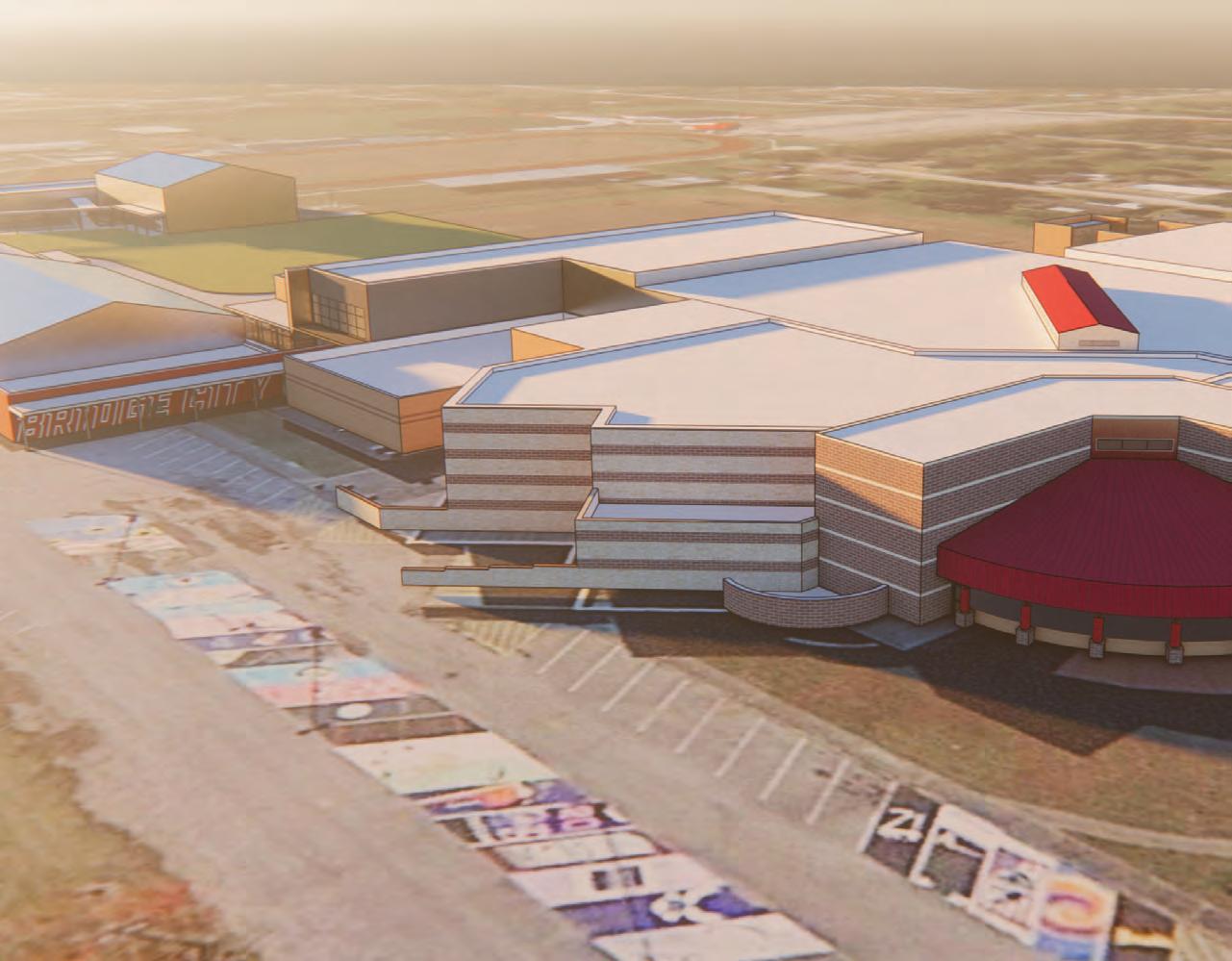

BRIDGE CITY ISD
INFORMATION
INTERNSHIP (CLAYCOMB ASSOCIATES, ARCHITECTS)
LOCATION: BRIDGE CITY, TX
DESCRIPTION
IN THIS PROJECT, THERE WERE ADDITIONS NEEDED ON THE EXISTING BUILDING, SO I DESIGNED ON SKETCHUP THE ENTIRE EXISTING BUILDING WITH BLUEPRINT DRAWINGS OF ELEVATIONS AND SECTIONS. THIS WAS SHOWN TO OWNERS/CLIENTS ON HOW THE ADDITION OF METAL/WELDING BUILDING LOOKS. ALSO WENT ON-SITE TO DO MEASUREMENTS AS WELL.

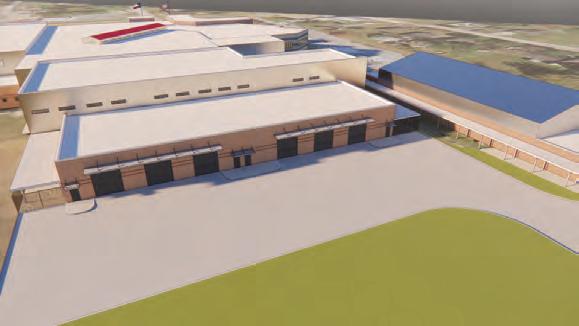

ADDITION: METAL AND WELDING ROOM
NOTE: THERE WERE MORE RENOVATIONS DONE WITHIN THE BUILDINGS
PROFESSIONAL WORK
LUMBERTON ISD
INFORMATION
INTERNSHIP (CLAYCOMB ASSOCIATES, ARCHITECTS)
LOCATION: BRIDGE CITY, TX
DESCRIPTION

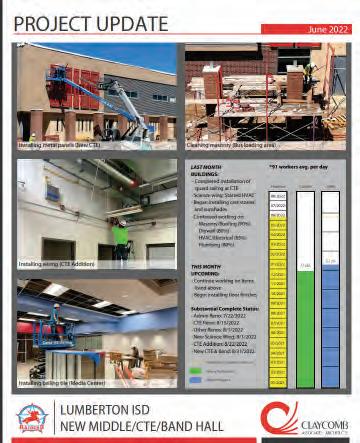

FOR THE LUMBERTON ISD, I PRESENTED IN FRONT OF THE BOARD MEMBERS REGARDING THE PROJECT UPDATES OF THREE SCHOOLS. I’VE ALSO WRITTEN OACM MEETING MINUTES ACROSS MULTIPLE DISTRICTS. NOT ONLY THAT, I’VE WRITTEN RFIs, REVIEWED PAY APPLICATIONS, ETC UNDER THE SUPERVISION OF PROJECT ARCHITECT/MANAGER.
WRITTEN MINUTES FOR BCISD, ACISD, LISD, BSISD DURING OACM MEETING
PROFESSIONAL WORK
WRITTEN RFI

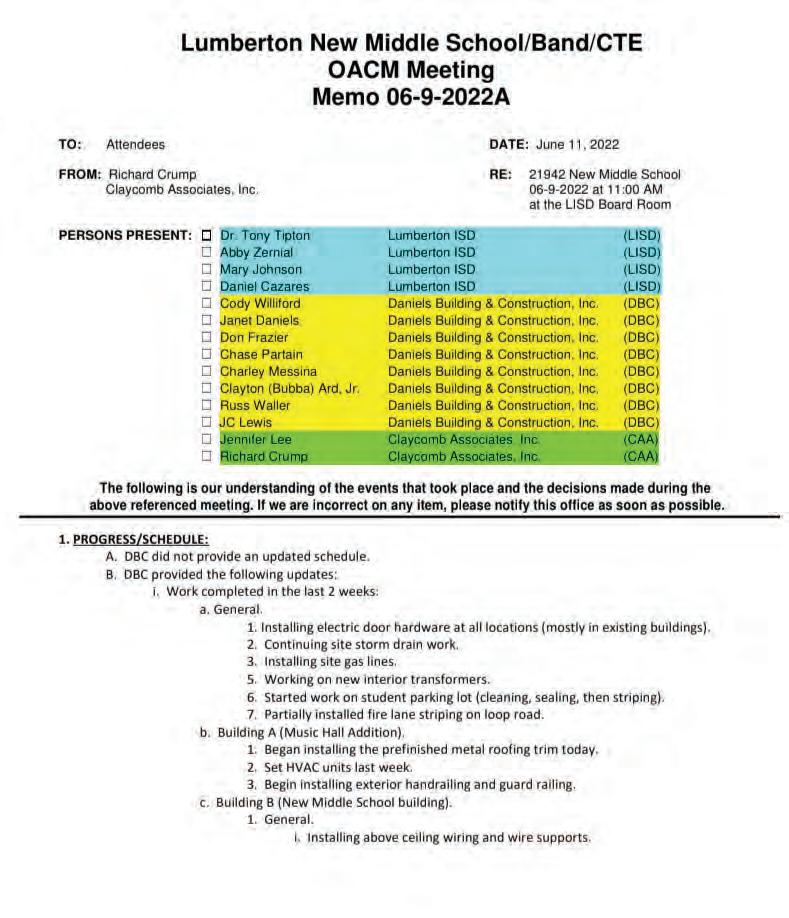

WRITTEN OACM MEETING MINUTES

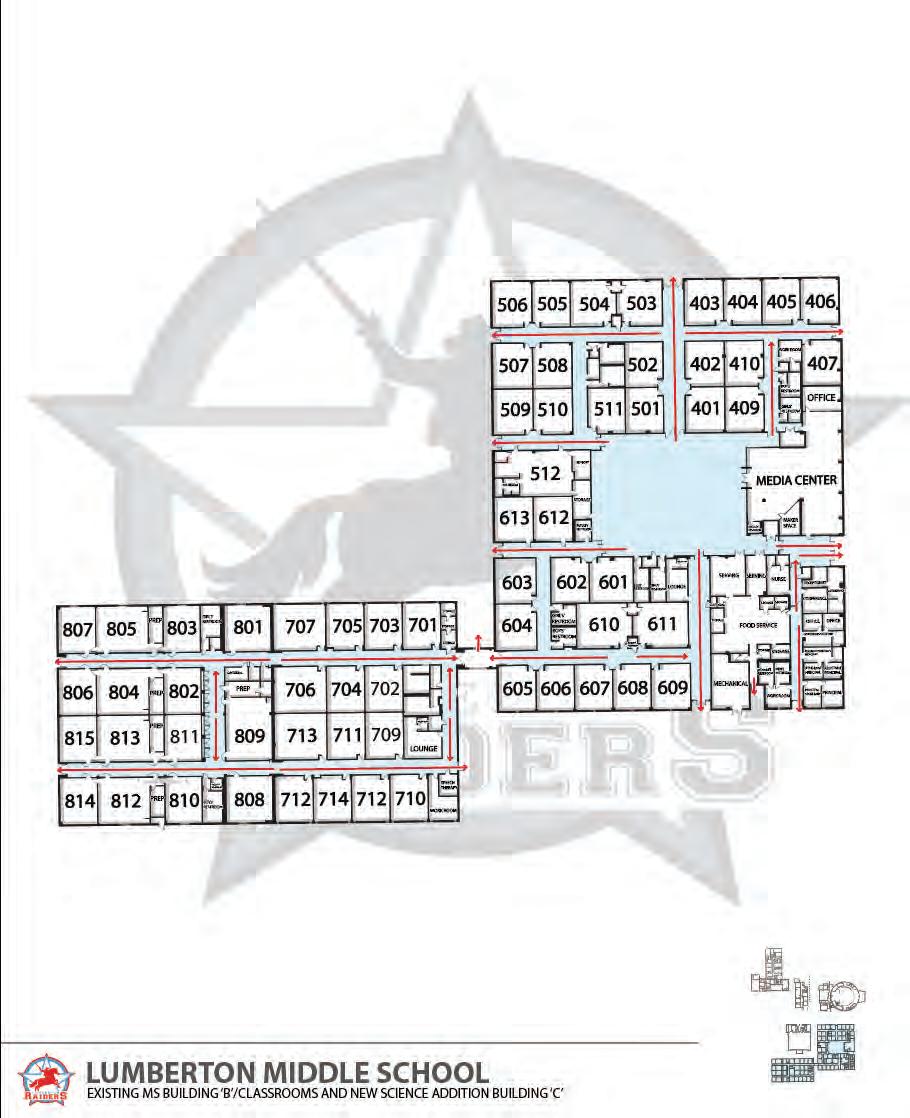

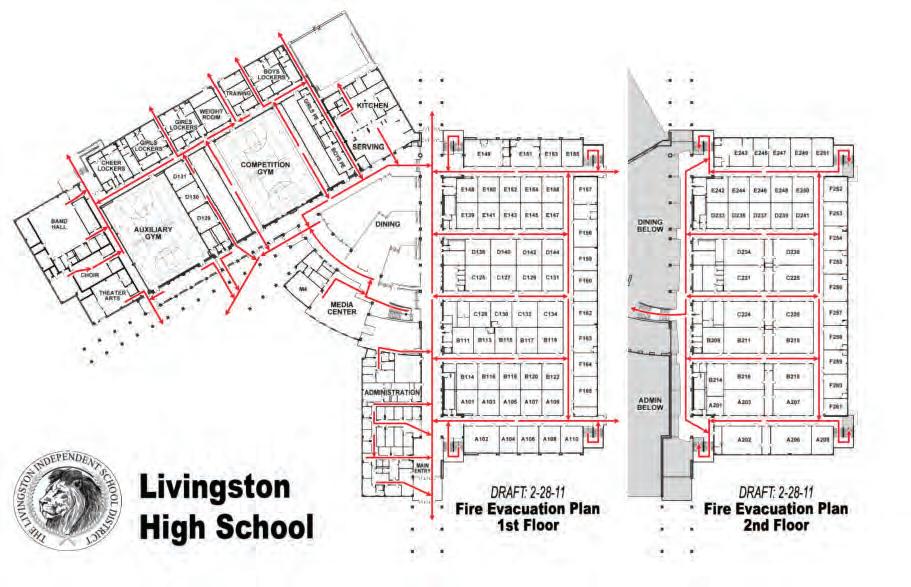

EGRESS PLANS
EGRESS PLANS THAT I’VE MADE FROM USING AUTOCAD FOR RENOVATED SCHOOL
AUTOCAD AND ILLUSTRATOR
UNDER SAMPLE PIECES OF WORKS/PROTOTYPES, I WILL BE SHOWING PARTS OF THE WORKS AND PROTOTYPES FOR EACH PROJECT THAT I WANTED TO BE SPECIFICALLY FOCUSED. SOME I WANTED TO HIGHLIGHT THE CONCEPT PROCESS, RENDERS, DESIGNS, ETC.

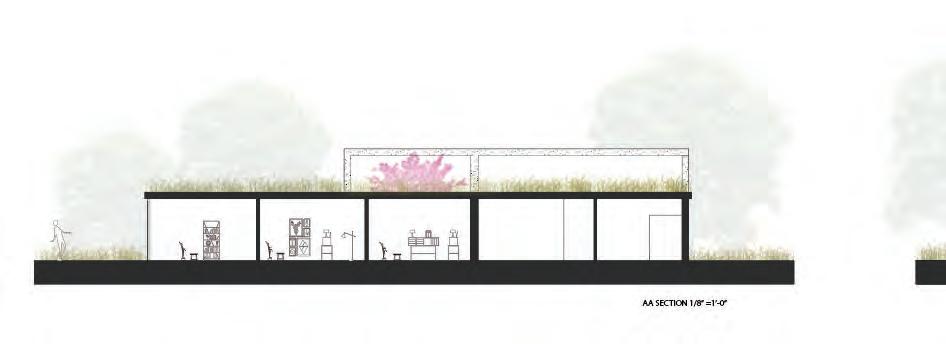

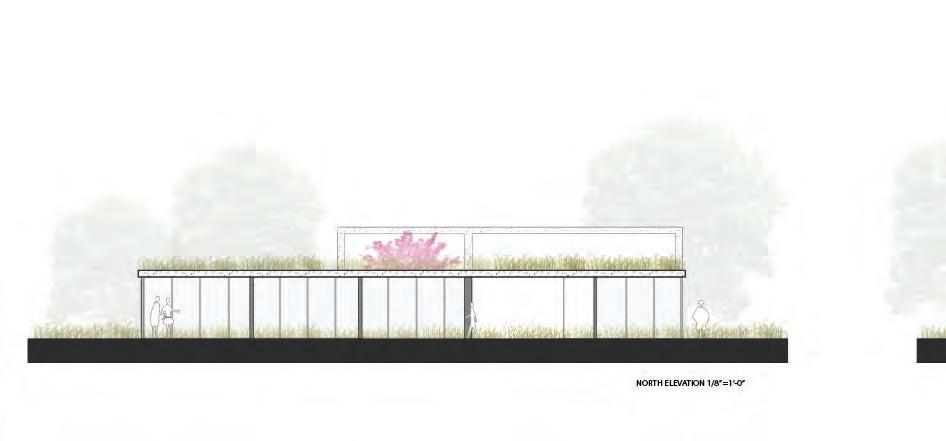

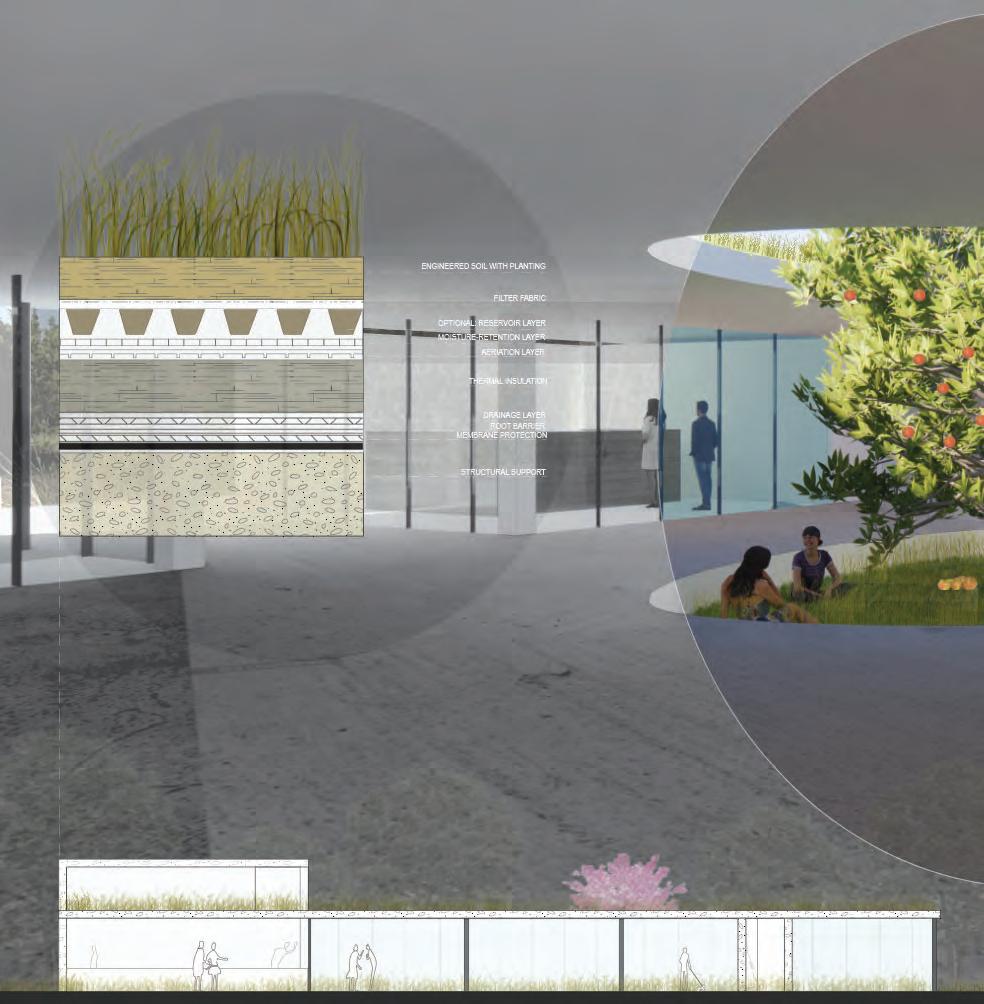

PROTOTYPE SAMPLE WORK/PROTOTYPE SKETCH UP AND VRAY
SAMPLE WORK/PROTOTYPE
SAMPLE WORK I
INFORMATION
DESIGN II
LOCATION: WEST CAMPUS (AUSTIN, TX)
DESCRIPTION

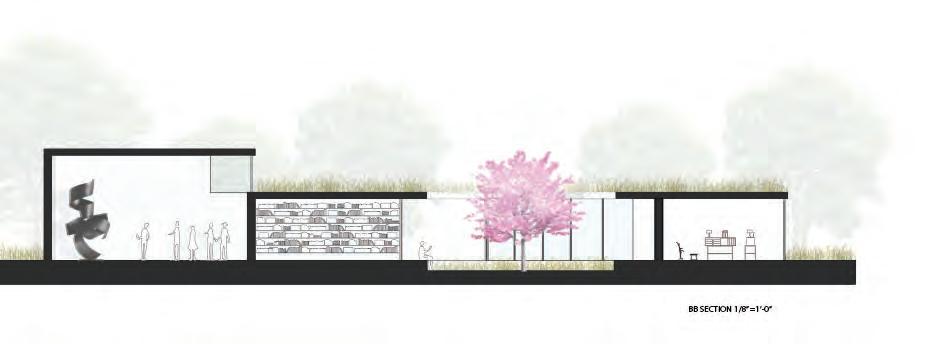

THE FOCUS IN THIS PROJECT IS TO DESIGN A STUDENT HOUSING THAT CAN ALSO BE HOUSING FAMILIES AS WELL. IT IS TO CREATE A PUBLIC INTERACTIVE SPACE FOR NOT ONLY THOSE WHO LIVE IN THE STUDENT HOUSING, BUT ALSO FOR THE COMMUNITY USERS AS WELL. THIS WAS DONE THROUGH PUBLIC GROCERY STORE BELOW AS INTERACTIVE WALLS AND BENCHES.
WORK 2 SAMPLE WORK/PROTOTYPE
SAMPLE
USING MACALLEN BUILDING TO REFER DESIGN CHOICES

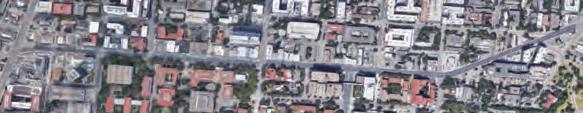

Guadalupe St 2 2n d 22n 24t 25th 26th San Antonio S San Antonio Nueces St 25t Dean Keaton S St 27t h MLK Boulevard ist UT Housing UT Spaces Shopping and Eating Housing Religious Instution Community Space Guadalupe St n 2n 24t 25t 26th San Antonio St Antonio Nueces St 25t h Dean Keaton 27t MLK Boulevard 2 is Guadalupe St 22n d 24t h 25th 26th San Antonio San Antonio S Nueces S 25t Dean Keaton S 27t h MLK Boulevard ist UT Housing UT Spaces Shopping and Eating Housing Religious Instution Community Space Guadalupe St 2 n d 24t 25t h 26th San Antonio St Antonio Nueces St 25t MLK Boulevard is Guadalupe St 2 d 24t h 25th 26th San Antonio S San tonio S Nueces St 25t h Dean Keaton S 27t h MLK Boulevard ist UT Housing UT Spaces Shopping and Eating Housing Religious Instution Community Space Guadalupe St 2 n d 24t h 25t h 26th San Antonio St S Antonio Nueces t 25t MLK Boulevard is Guadalupe St 2 2n d 24t 25th 26th San Antonio St Antonio Nueces St 25t Dean Keaton S 27t h MLK Boulevard ist UT Housing UT Spaces Shopping and Eating Housing Religious Instution Community Space Guadalupe St 2 n 24t h 25t 26th San Antonio St San Anto Nueces St 25t h MLK Boulevard 2 is Guadalupe St 22n d 24t h 25th 26th San Antonio St San nio S Nueces St 25t Dean Keaton S 27t h MLK Boulevard ist UT Housing UT Spaces Shopping and Eating Housing Religious Instution Community Space Guadalupe St 2 n d 24t 25t h 26th San Antonio St S Antonio Nueces St 25t MLK Boulevard is CITY ANALYSIS CONTEXT WEST FOURTH ST. WEST FOURTH ST. EXTROVERTED VS. INTROVERTED
ANALYSIS OF IRRIGATION
ANALYSIS OF WALL EXTRUSIONS

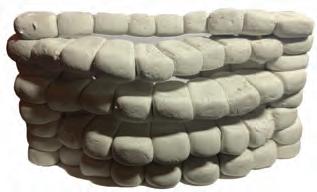

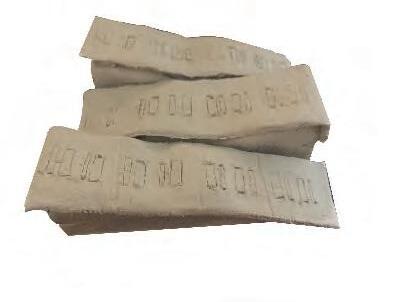

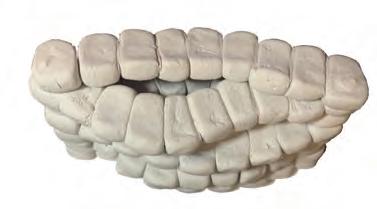

ANALYSIS: STUDY MODELS
ARRANGINGUNITS TOCREATETEXTURETO
ARRANGING UNITS TO CREATE TEXTURE TO WALLS

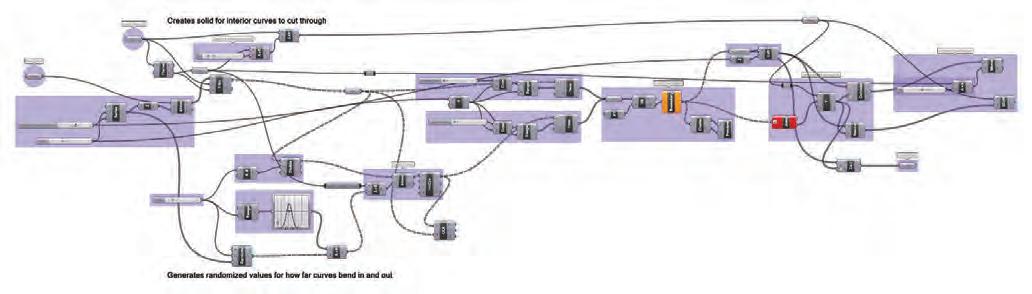

USING GRASSHOPPER TO PROGRAM THE CURVATURE AND TEXTURE OF THE WALLS

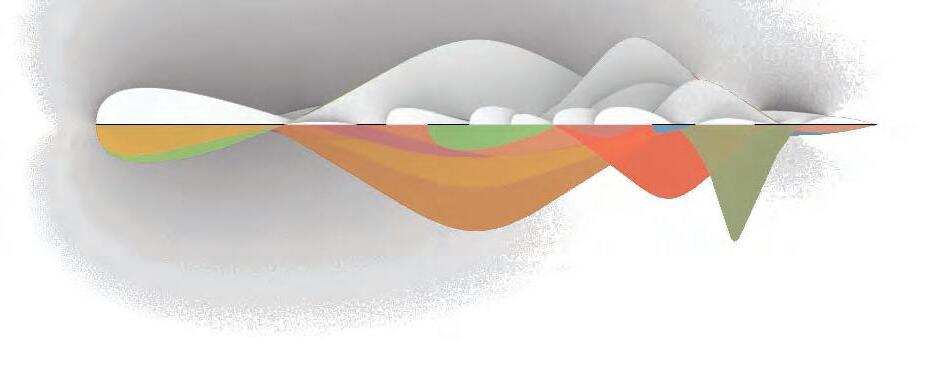

APPLICATION OF CURVATURE ON HORIZONTAL SURFACE RATHER THAN VERTICAL, LIKE PREVIOUS STUDY MODELS HOR RATHER THAN PREVIO
ARRANGING UNITS THROUGH CURVATURE
ge ge Ga den rig tion +
SYSTEM
