AVANTI AT FLOWERMOUND
ASSISTED + INDEPENDENT LIVING
PROPOSAL
AVANTI
SENIOR LIVING
Dallas, Texas
INTERN ARCHITECT: Construction Drawings + Coordination + Construction Administration.
Construction cost
$11.2 Million
Squared footage
77,000 SF
Number of Units
50 Assisted Living
40 Memory Support
Avanti Senior Living at Flower Mound is a boutique senior living community that brings an avant-garde vision to seniors in Dallas enabling them to flourish, follow their passions, explore new interests, and enjoy everyday living.
Avanti Senior Living offers diverse spaces throughout the community for a variety of interactions and uses. There are large, open areas for social interaction and cozy nooks for reading or quiet conversations, enclosed rooms that can accommodate an entire family, living room-style seating in hallways and corridors, theater areas for watching sports or movies and much more. The visually appealing furniture, art, light fixtures, and textiles vary from space to space, adding rich color, depth and texture, much like a modern hotel.
Avanti’s Flowermound site also features five courtyards, each with a different design theme, that offer additional spaces for dining, visiting and walking. Advanced technology is a key design component, including RFID keyless entries to residents’ suites.
Memory care residents’ experiences are enhanced by sensory components such as sound and lighting that reduce anxiety by queuing them through day phases and helping them sleep better at night. Sensory handrails with grooves help residents through hallways.

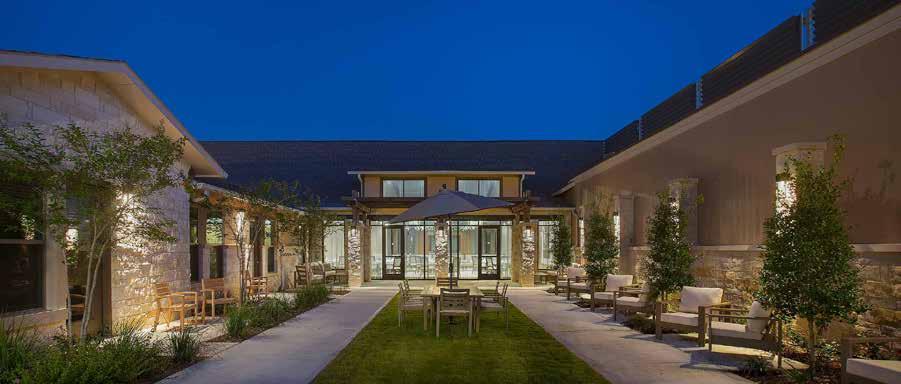

Fall 2016 Completion Site plan. Interior views: dining hall, lounge, art studio Enlarged elevation, entry Courtyard Interior views: hallway, residential unit. Unit plans. Front elevation. 01 01 02 02 03 05 06 07 04
F RST FLOOR 100 - 0" T.O PLATE - UNITS 109' - 1 1 8 T.O. PLATE - COMMONS 111 - 0 J J J 4 12 4 12 2 12 LV-1 LV-1 CC AA BB AA BB DD EE FF GG DD EE FF GG D1 6 EXPOSED LAP S DING PT-3 STOREFRONT W NDOW SYSTEM STONE VENEER 02 V NYL W NDOW SYSTEM STONE VENEER 01 STAND NG SEAM ROOFING SYSTEM 4 4 X 6 FASC A PT-2 MT GUTTER STAND NG SEAM ROOFING SYSTEM 6X6 T MBER COLUMN STA NED STEEL BEAM S-SHAPE STEEL LOOSE L NTEL PA NTED STOREFRONT W NDOW SYSTEM STEEL BEAM S-SHAPE STEEL LOOSE LINTEL PAINTED STOREFRONT W NDOW SYSTEM STEE BEAM S-SHAPE STEE LOOSE L NTEL PA NTED 2X6 FAUX RAFTERS RAFTER TA LS BEYOND 4X12 T MBER BEAM DOWNSPOUT R DGE VENT DOWNSPOUT STONE ROWLOCK STONE VENEER 01 V NYL W NDOW SYSTEM STONE VENEER 02 STAND NG SEAM ROOFING SYSTEM MTL GUTTER T ROOF 27' - 6 1 4" F RST FLOOR 100 - 0 T.O. PLATE - COMMONS 111 - 0 J J J CC AA BB AA BB 36" 16'6 98" 6" 32" 16" 90" 8 - 0" 2 - 6" 3 - 3" 1 - 6" 6 - 6" 1 - 6" 3 - 3" 2 - 6" 4" 12 4 12 2 12 4 4 X 6 FASC A PT-2 STAND NG SEAM ROOFING SYSTEM 6 EXPOSED LAP SID NG PT-3 STOREFRONT W NDOW SYSTEM STAND NG SEAM ROOFING SYSTEM STONE ROWLOCK STONE VENEER 02 V NYL W NDOW SYSTEM STONE ROWLOCK STEEL BEAM S-SHAPE STEEL LOOSE L NTEL PA NTED STOREFRONT W NDOW SYSTEM DOWNSPOUT SAWN 6 SIDES W SLOPED STONE SILL 6X6 T MBER COLUMN STA NED CAST CAP STONE VENEER 01 10 4 4 X 3 CORNER TR M PT-3 DOWNSPOUT 4" 10" 4" 76" 6" 10" 4" 21' - 0 4 4 X 3 MFC TRIM; PT-3 4 X 12 TIMBER BEAM 2X6 FAUX RAFTERS RAFTER TAILS BEYOND) 4 - 0" 4 - 0" T ROOF 127' - 0 3 8 4" CORNER STEEL ANGLE (BEYOND REF STRUCT STEEL L NTEL CONNECTION BOLTS PTD TO MATCH LINTEL EXTER OR SCONCE; REF. CEILING PLANS & ELEC B/ LIGHT FIX T URE 120 9 - 6" 9 - 6" 26" 03 05 04
CEF 275 1 2 16 - 10 BATHROOM BEDROOM CLOSET L V NG ROOM KITCHEN ENTRY AP-1 L N PAN R&S MECH VTAC AL-1 AL-3 AL-2 Q31 Q21 Q21 A41 A41 A41 A41 A31 A31 A31 A31 A31 A31 A31 A31 A31 A31 D31 Q21 A41 10" 2'9 1 / 2" 11'0 26" 3 - 2" 5' - 8 3/4" 5 - 6" 5 - 2" 2'9 1 / 2" 11'0 4 - 9" 3 - 5" 2 - 1" 5' - 11 3 4 2' - 5 1 2" 33" 16 - 10 36 A F F. COUNTER W TH 2 SHELVES ABOVE SH-2 TA-7N TA-7L TA-7M TA-7J TA-5 TA-9A TA-15 CF/O 6 - 2" 5 - 2" TA-8A MOUNT 5 -0 A F F @ NONACCESS BLE UN TS 6' - 4 1 8" 4' - 8 1 2" 5' - 9 3 8" TA-7K AL-4 23' - 3 CLOSET BEDROOM L V NG ROOM KITCHEN BATHROOM ENTRY R&S R&S AP-1 PAN L N MECH VTAC A31 A31 A41 A31 A31 A41 A81 A41 AL-7 AL-3 AL-1 AL-5 AL-4 A-521 A71 Q21 Q20 A31 A31 A71 A34 A34 A41 A41 251 1 / 2 56" 84" 5 - 2" 5' - 8 3/4" 6' - 0 1 2" 5' - 10 1/2" 23" 4 - 0" 2' - 3 1 4" 7 7 / 8 8'0 3 / 8" 5 - 0" 6' - 3 1/2" 30" 26" 3 - 2" 23' - 3 12 TA-7L TA-7M TA-5 SH-1 TA-9A TA-15 CF/O 11 - 6 1 8" 5 - 3" 6' - 5 7/8" TA-7S TA-7J TA-8A D31 11" 11" A31 D31 D31 1 - 0" D31 13" 57" 13" 5 - 6" 6' - 3 1 2" 12' - 0 11 - 9 1 4 L V NG ROOM KITCHEN ENTRY BEDROOM CLOSET BATHROOM TV AP-1 PAN L N R&S MECH VTAC R&S 18 1 A71 11" 11" AL-1 AL-5 AL-7 AL-3 AL-7 AL-8 AL-4 A31 D31 A31 A31 A31 A31 A31 A31 Q21 Q21 A41 A41 A81 A41 A41 A41 A31 D31 A31 A31 A71 A31 A31 A31 Q21 D31 D31 3'1 1 2" 20" 59" 84" 56" 5 - 2" 6' - 2 3 4" 5' - 10 1 2 23" 10' - 3" 72" 26" 3 - 4" 30" 189 1 / 2 44" 20" ART N CHE TA-7L TA-7M TA-5 SH-1 TA-9A TA-15 CF/O TA-8A 12 - 0 1 8" 5 - 1" 8' - 10 1 2 10 - 0 3 8 SH-3 FOR UN TS 145 & 147 REF A-201E BEDROOM 36' - 0 251 1 / 2 COUNTER W TH 2 SHELVES ABOVE TA-7S CLOSET R&S 20" 6' - 1 1/2" 6" 1 - 0" TA-7 ACC UN TS ONLY A34 A34 1'9 1 / 2" 60" 13" E Q E Q 06 07
EHRMAN CREST SCHOOL
MULTI SENSORY ELEMENTARY + MIDDLE SCHOOL
ABSTRACT
SENECA VALLEY SCHOOL DISTRICT
Pittsburgh, Pennsylvania
PROJECT DESIGNER: Concept + Schematic Design.
Construction cost
$70 Million
Squared footage
190,000 SF Fall 2022 Completion
What happens if we design learning environments like children’s museums? How do we create learning environments to be more compelling, engaging and successful for students?
Seneca Valley School District is exploring these questions with their dynamic new K-6 school. The project unites our team with the Children’s Museum of Pittsburgh to advance bold new opportunities for school design.
PROPOSAL
The new school’s site is nested in 27 acres of woods and hills. The design intends to relate with the dynamic topography and diverse landscape.
The public spaces like the cafeteria, gym, special learning rooms, maker space and administration are core of the building and connect the public entry with the natural backyard. The convenience of having these adjacencies allow the possibility of having community events without disrupting the school functions. An elliptical ramp in the atrium connects all of these spaces.
When it opens in Fall 2022, the Seneca Valley school will introduce students, staff and families to exciting new ideas around how corridors and walls are used, the building and surrounding natural environment can be teaching tools, adaptability allows for constant curation of physical learning spaces, and how space can take students on learning journeys. All of these new measures are introduced at no added project costs – proving any school can incorporate similar creative environments without budget challenges.

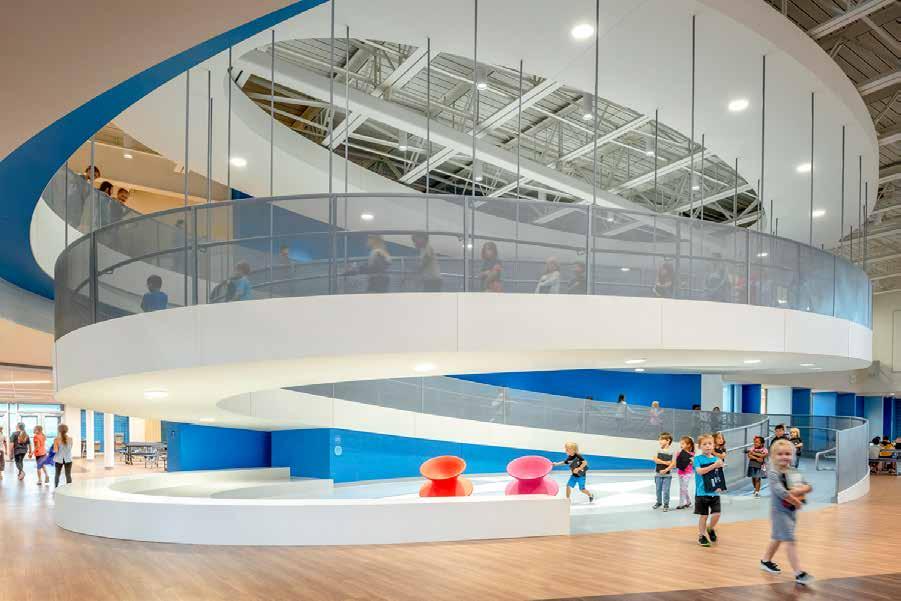

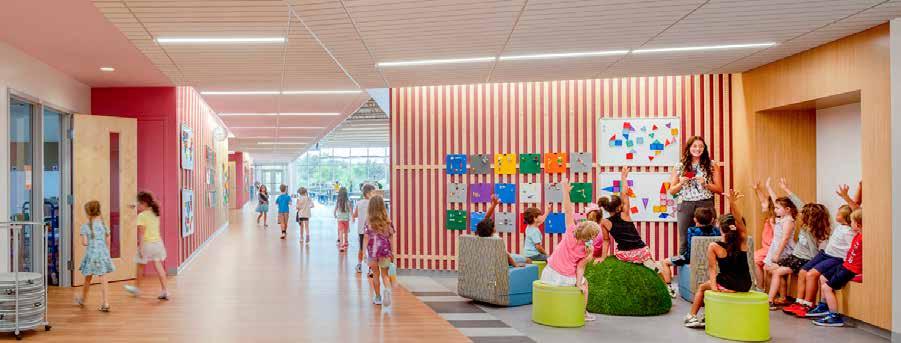

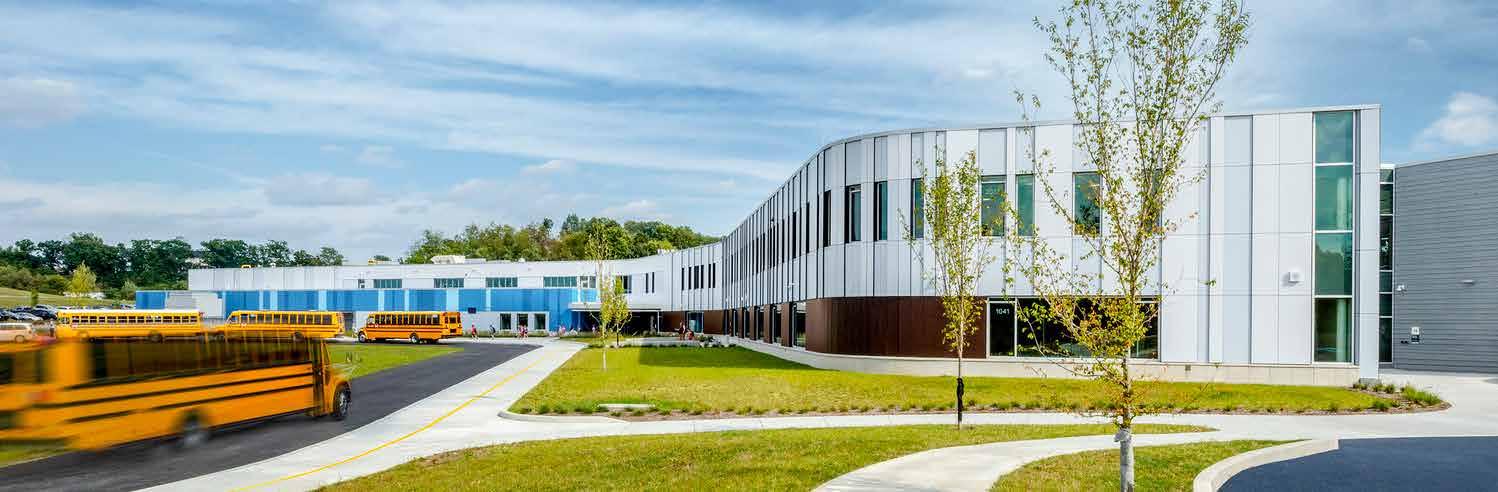

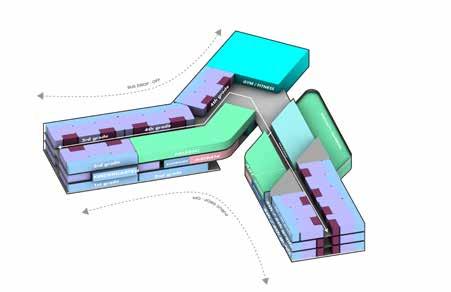

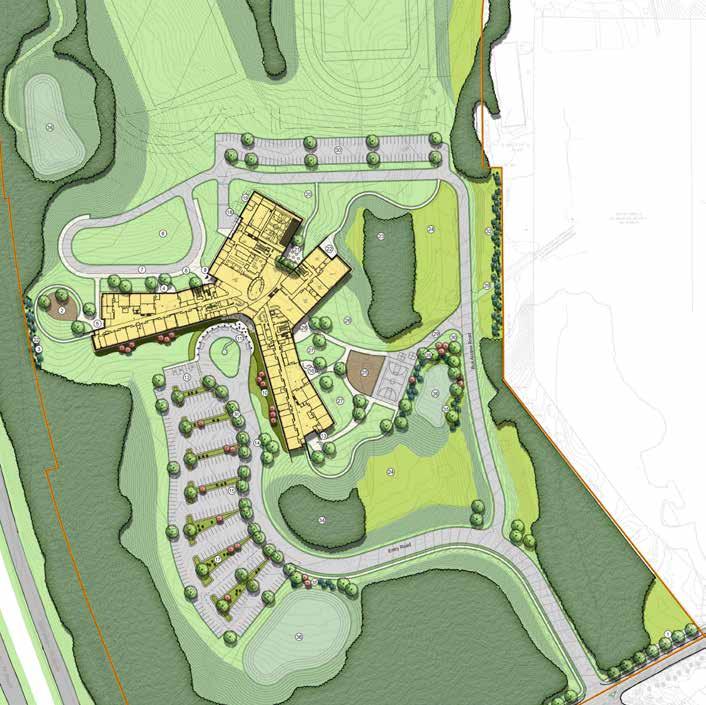

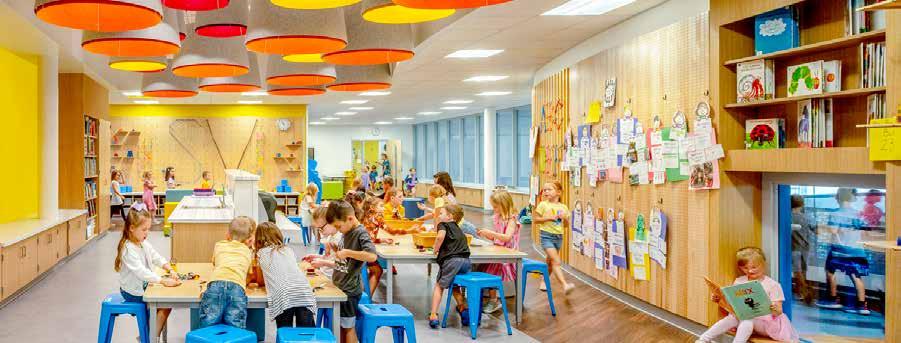

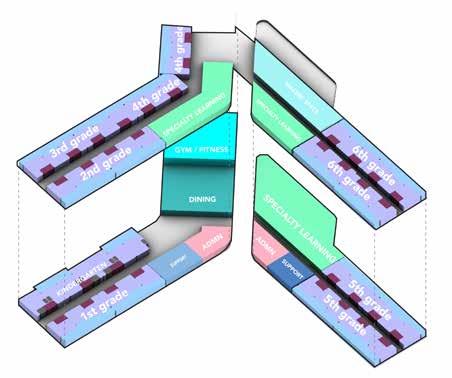

TIME MAGAZINE 2022 INVENTION OF THE YEAR. Program diagrams. Site plan. Back elevation. 3D public plan Kindergarten suite Cafeteria “Learning” hallways Circulation ramp 01 02 03 05 06 08 07 04 01
PHOTO CREDIT: LAURA PETERS
02
03
PHOTO CREDIT: LAURA PETERS
PHOTO CREDIT: LAURA PETERS
04
PHOTO CREDIT: LAURA PETERS
05
06 07
PHOTO CREDIT: LAURA PETERS
PHOTO CREDIT: LAURA PETERS
08
PHOTO CREDIT: LAURA PETERS
META DATA CENTER + WORKPLACE
ABSTRACT
PROJECT DESIGNER/ARCHITECT:
Conceptual Design + Contract Documents + Coordination + Construction Administration.
The project consist of developing a new master plan to accommodate (2) new data centers+workplace buildings, this campus master plan will be developed in multiple phases. Exterior concepts of the workplace buildings should maintain the same language to keep the consistency throughout the digital campus. Minimalist forms that framed the desert landscape with simple volumes is the main concept of the office buildings.
PROPOSAL
$1.8 Billion / 86 MW
Plains cover the largest percentage of the state’s topography. The great plains proper reach one-third of the way across New Mexico. Geographers distinguish 2 sections of the plains: the lava-capped uplands of the northeast corner and the Llano Estacado (“staked plains”). The chihuahua desert expands into New Mexico, which gives the state a diverse landscape.
Similar how Donald Judd framed the desert landscape with simple volumes in his work in Marfa, Texas; the idea is to develop a minimal scheme for the built environment that frames and reflects the landscape. A minimalist object seating on the vast desert landscape.
The
consists
that contrasts with a lower warm exterior material color to emphasize the earth tones of the region. The curtain wall is intended to be reflective in order to reflect the New Mexico skies.
exterior envelope of the office buildings
of dark metal plate volume

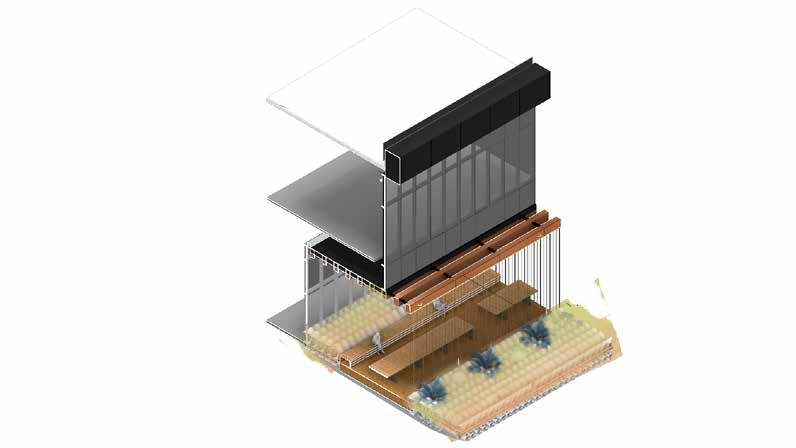

Building facade exploded axonometric Building facade axonometric Aerial views Wall section Facade sectional axonometric Exterior detail Exterior views Office building first floor plan Office building second floor plan Entry lobby perspective Central space perspective Feature wall interior elevation Kitchen interior elevation Multi-purpose room perspective Kitchen interior elevation Office building conceptual diagram 01 02 03 05 06 07 08 09 13 10 14 11 15 12 16 04 CAMPUS MASTER PLAN + PHASE 1 Albuquerque, New Mexico
CURTAIN WALL SURFACE PRIMARY TWO-STORY VOLUME SECONDARY VOLUME Construction
“MINIMALIST DESERT: SIMPLE VOLUMES FRAMING AND REFLECTING THE LANDSCAPE.”
cost
Squared footage Data Center 1: 900,000 SF Workplace Building 1: 57,000 SF [In Construction] 01 02
03
HIGH-REFLECTANCE CURTAINWALL METAL PLATE TRELLIS
BUILT-IN BENCH WITH INTEGRATED
CABLE SYSTEM TRELLIS SUPPORT, CONNECTION TO MAIN STRUCTURE
23’-8” 5’-8” 3’-4” 5’-2” 19’-4” 1’-10” 1’-0” 1’-10” 1’-8” 5’-0” GLAZING METAL PLATE COPING FALL PROTECTION PIPE RAILING SBS MODIFIED BITUMINOUS MEM. WOOD LINEAR CEILINGS 1 2 STRUCTURAL SEALANT CURTAINWALL STRUCTURAL SEALANT CURTAINWALL STRUCTURAL SEALANT CURTAINWALL HSS TUBE COLUMNS BEYOND TENSION CABLE SCREEN WALL STRUCTURAL STEEL OUTRIGGER METAL PLATE WALL PANEL CAST-IN-PLACE CONCRETE STRUCTURAL STEEL T/ PARAPET 48’ 6” ROOF 45’ 0” LEVEL 2 25’ 0” T/ TRELLIS 20’ 0” INSULATED ALUMINUM METAL PANEL GLAZING INSULATED ALUMINUM METAL PANEL MOTORIZED ROLLER SHADES MOTORIZED ROLLER SHADES AIR BARRIER SYSTEM METAL PLATE PANEL WALL ASSEMBLY 05 06
08
WALK-IN FRIDGE/FREEZER DRY STORAGE CULINARY OFFICE FIRE RISER DISH CLEAN SERVERY KITCHEN WOMEN'S MEN'S SECURITY STORAGE SECURITY A/V GS IDF HELP DESK STAIR 2 SECURITY MEDIUM CONFERENCE ENTRY VESTIBULE EVENT STORAGE LOBBY SOC CRISIS MANAGEMENT ROOM STAIR 1 MULTI-PURPOSE COMMONS SECURED COURTYARD 09 10 11 12 ELRELR SS A4 2G AC 2G AC 302 303 0A6BCH 42'-0" 3" 5'-7 1/8" 4'-4 1/2" 6'-4" 6'-4" 5'-6" 6'-4" 6'-4" 4'-4 1/2" PLAS-1 W 6 10 095113 ACOUSTICAL PANEL CEILINGS 095113 ACOUSTICAL PANEL CEILINGS 092523 LIME BASED PLASTERING ACP-7 C ACP-6 C 12'-6" EQ EQ 73 " 39 1 / 2 " 45° 45° 45° 45° 45° 90° 45° 45° 9 0 90° 135 ° 2TYP " TYP. 2" 45° 45° 45° 45° 45° 9 0 90° 45° 45° 135° TYP. 2" TYP2" 51 47 21 1 10 90° 51 94 94 " 47 " 13 A550.5 TYP 084113 INTERIOR STOREFRONT FRAMING SYSTEM 01 01 1. WHERE APPLICABLE, REFERENCE AV SHEETS FOR ALL AV INFRUSTRUCTURE. DEVICE LOCATIONS IN CONFLICT TO BE COORDINATED WITH GC, AV DESIGNER AND ARCHITECT. TY LIN INTERNATIONAL .. engineers planners scientists 500 4th Street NW Suite 403F Albuquerque, NM 87102 RAS Design Group LLC Foodservice and Laundry Consulting 630 Escobar Street Martinez, CA 94553 Phone: 925/372-0222 Email: ron@rasdes.com Website: www.rasdes.com ALLIANCE FIRE RISK & 1801 W. Warner Ave, Suite 301 Chicago, IL 60613 (312) 796-8200 www.fireriskalliance.com PEOPLES ASSOCIATES S T R U C T U R A L E N G I N E E R S OWNER ARCHITECT STRUCTURAL ENGINEER TECHNOLOGY & SECURITY ENGINEER MEP & AV ENGINEER BMS ENGINEER CIVIL ENGINEER LANDSCAPE ARCHITECT FIRE ALARM & FIRE PROTECTION ENGINEER SUBSTATION ENGINEER KITCHEN CONSULTANT IRRIGATION 1/4" = 1'-0" 2 MULTI-PUPOSE ROOM -NORTH GENERAL NOTES SHEET NOTES NOTE:NOT ALL SHEET NOTES BELOW MAY BE USED ON THIS SHEET #
HOLD 2'-10" 2" 2'-10" 6 EQUAL PARTS 2'-10" 2 EQ PARTS 2'-2 1/2" 2" PL-1 M WC-2 W CT-1 W EQ (10) FULL TILES + GROUT EQ WD-3 M PL-2 M 1 WD-3 M PLAS-1 W (2) FULL TILES + GROUT 20'-4" 123619 WOOD COUNTERTOP ASSEMBLY MOTHER'S ROOM COZY HUDDLEHUDDLE HUDDLE HUDDLE DAY OFFICE BREAK OUT DAY OFFICEDAY OFFICE DAY OFFICE CORRIDOR STAIR 1 QUIET ROOM SOFT COZY COZY CORRIDOR MEN'S ROOM WOMEN'S ROOM COZYCOZYCOZY BREAK OUT SMALL CONFERENCE DAY OFFICE DAY OFFICE OPEN OFFICE ELEVATOR 1 ELEVATOR 2 STORAGE ELEVATOR CTRL. ELECTRICAL ROOM HUDDLE GS IDF STAIR 2 SMALL CONFERENCE PRINT BREAK OUT MICRO KITCHEN BREAK OUT HALL JANITOR MECHANICAL INTAKE ROOM LARGE CONFERENCE 13 14 15 16
OXENFREE AT PRINCETON
ABSTRACT
URBAN DESIGNER / ARCHITECT: MASTER PLANNING, DESIGN STANDARDS
Construction cost $130M
Project Size
408 units with 10,000 sf clubhouse in 50 acres.
[In Construction]
For over a decade, the percentage of renters has been rising in the United States. The housing market crash of 2007 is still reverberating, and due to student loan debt and other financial struggles, many millennials do not feel financially ready for homeownership. In response to this trend, a new real estate market trend has emerged: build-to-rent homes. These are homes (or, more often, whole complexes of homes) built specifically for long-term renters.
PROPOSAL
A 50 acre site north of the Dallas-Ft. Worth metropolitan area was developed as a build-to-rent (BTR) community. The site has natural areas, including a creek, that will be preserved in order to serve as recreational amenities for future residents.
The 408-unit project will include three diferent typologies in order to serve a wide variety of prospective tenants: an alley-loaded product (urban typology), a street-loaded product (sub-urban typology), and a townhome product (multi-family typology).
“Oxenfree at Princeton” will be the first of many BTR sites that together consist of 6,500unit pipeline worth $2.5 Billion nationwide.

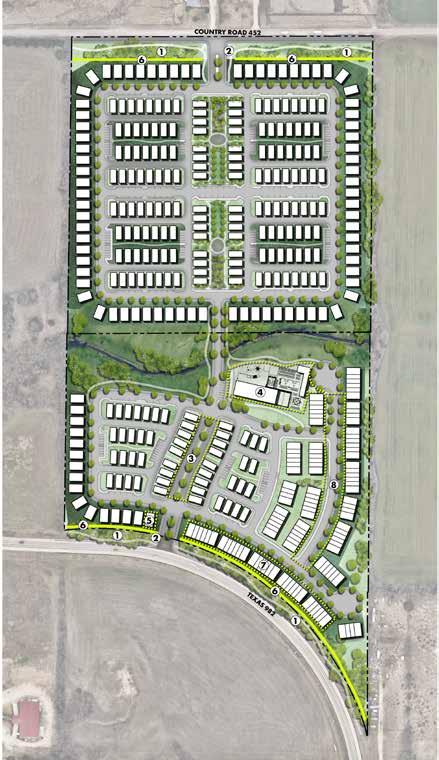

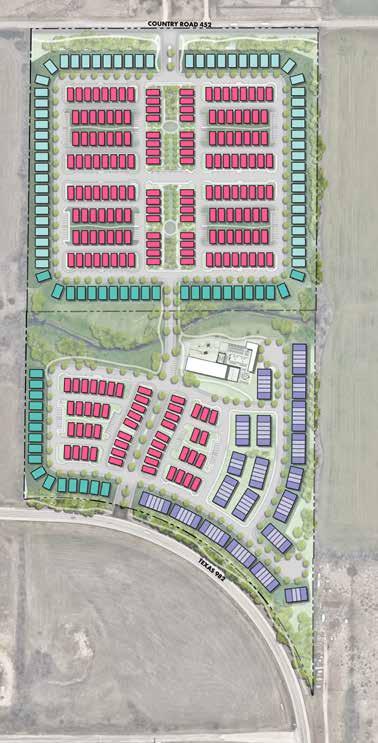

Illustrative Site Plan Unit mix strategy Open space framework Exterior views Interior views Residential greenway 01 02 03 05 06 04 NEIGHBORHOOD MASTER PLAN Dallas, Texas BUILT-TO-RENT RESIDENTIAL NEIGHBORHOOD
01
02
ALLEY LOADED GARAGE (URBAN TYPOLOGY)
STREET LOADED GARAGE (SUB-URBAN TYPOLOGY)
TOWNHOME (MULTI-FAMILY TYPOLOGY)
NATURAL AREA GREENWAY
SOCIAL NODE POCKET PARK ECO-NODE
03
CLUBHOUSE
04
05 06
