Drilling for Deep Hole Making: An In-Depth Guide by Halnn

Drilling for Deep Hole Making: An In-Depth Guide by Halnn Deep hole making is a specialized machining process used to create holes with high depth-to-diameter ratios, typically exceeding 10:1. It is critical for applications where precision, straightness, and hole integrity are vital, such as in the automotive, aerospace, oil and gas, and heavy machinery industries. In this article, we will focus on the essential aspects of drilling for deep hole making, the unique challenges it presents, and how Halnn's advanced tooling solutions can ensure success in these demanding operations.

Related post: https://www.halnncbn.com/News/Industry_News/625.html

What is Deep Hole Making?

Deep hole making involves drilling holes that are considerably deeper than they are wide, often requiring specialized machines, tooling, and techniques to manage factors like heat buildup, chip evacuation, and maintaining straightness and accuracy throughout the process. Typical applications include hydraulic cylinders, camshafts, oil drilling equipment, and gun barrels, among others.

The process can be carried out using various methods, such as BTA (Boring and Trepanning Association) drilling, gun drilling, and ejector drilling, depending on the hole's dimensions and the material being drilled.

Challenges in Deep Hole Drilling Deep hole drilling comes with a unique set of challenges:  Maintaining accuracy and straightness: Due to the length of the drill, even slight deviations can lead to inaccuracies over the course of the drilling operation.  Efficient chip removal: As the depth increases, ensuring efficient chip evacuation becomes critical to avoid clogging or damaging the workpiece.  Heat management: The depth and duration of drilling often lead to heat buildup, which, if not properly managed, can reduce tool life, affect the workpiece material, and compromise accuracy.  Tool wear and durability: The cutting tools need to withstand the high stresses involved in deep hole making and resist wear for extended periods.

Types of Deep Hole Drilling Methods There are several methods used for drilling deep holes, each suited for different applications:

1. BTA Drilling BTA drilling is commonly used for larger diameter holes and involves high-pressure coolant to assist in chip evacuation. This method provides excellent hole accuracy and surface finish.

2. Gun Drilling Ideal for smaller diameter holes, gun drilling uses a long, thin drill that maintains accuracy over extended depths. Coolant is delivered internally, aiding in chip evacuation and cooling.

3. Ejector Drilling Ejector drilling is similar to BTA drilling but with the advantage of external chip removal, making it suitable for more complex applications requiring greater control over chips and debris.

Halnn’s Solutions for Deep Hole Making At Halnn, we understand the intricacies involved in deep hole drilling and have developed specialized tools to tackle these challenges head-on. Our solid carbide deep hole drills, indexable deep hole drills, and BTA drilling heads are engineered to ensure precision, durability, and efficient performance even under the most demanding conditions.

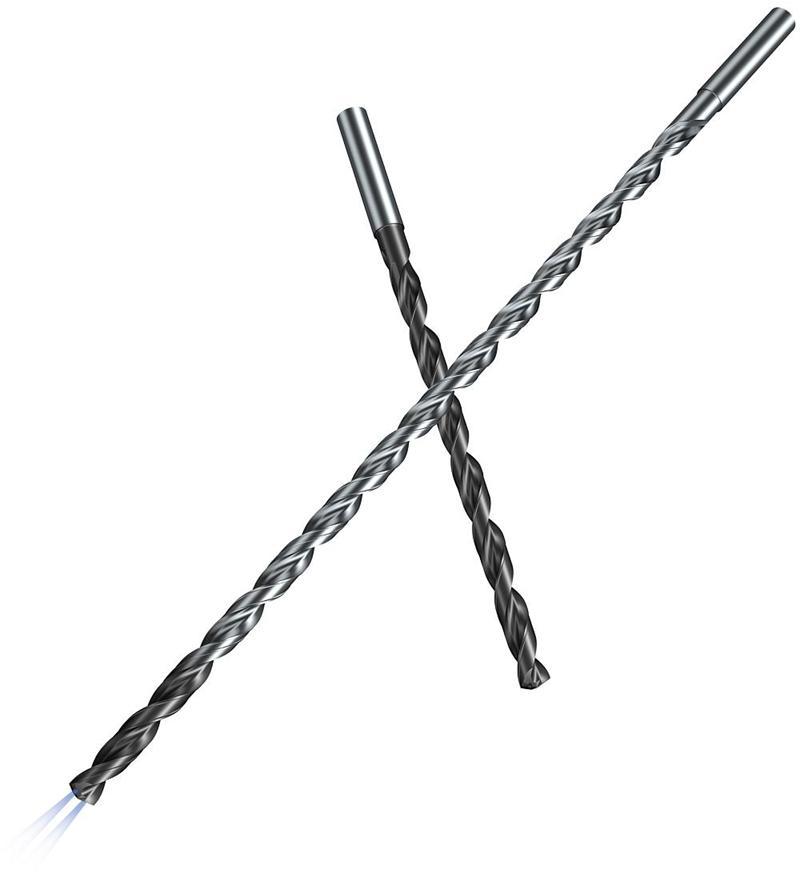

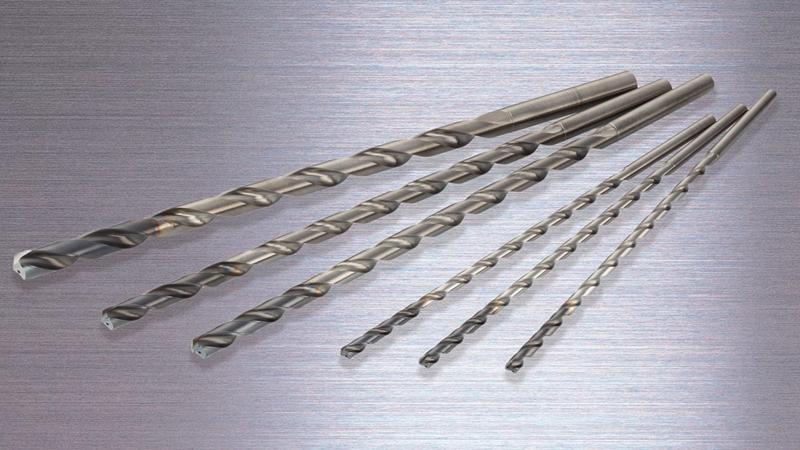

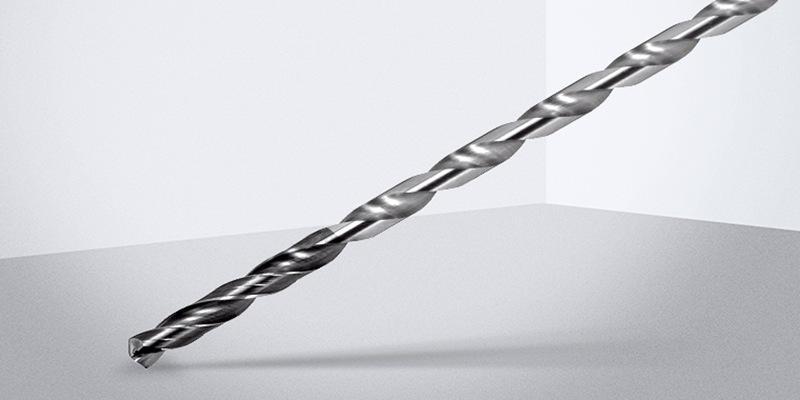

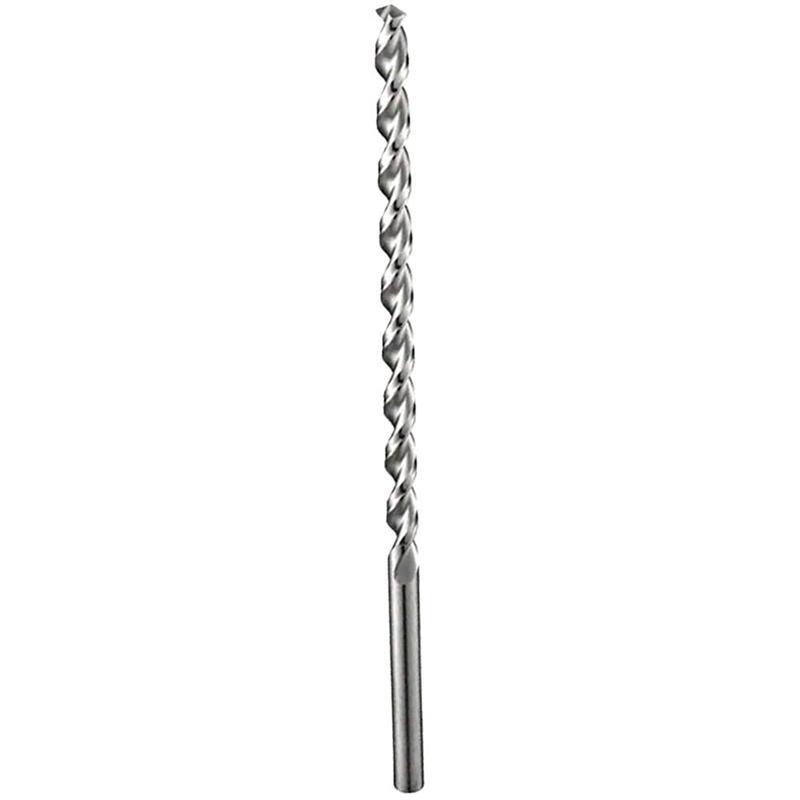

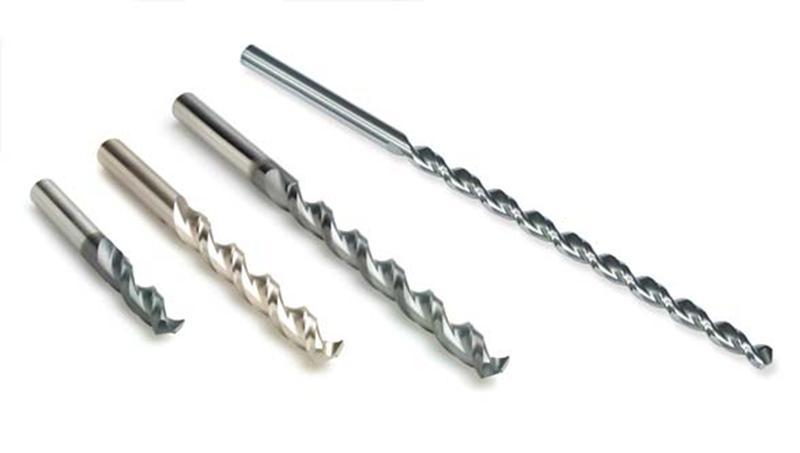

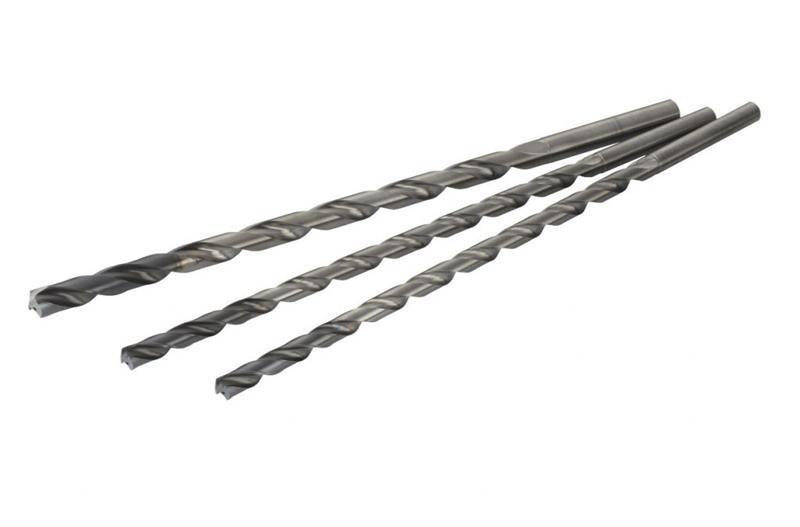

1. Solid Carbide Deep Hole Drills Halnn’s solid carbide deep hole drilling tools are designed for high-speed, high-precision applications. Solid carbide offers superior hardness and wear resistance, which ensures long tool life and consistent performance. These tools are particularly effective in machining tough

materials like steel alloys and cast iron, commonly used in aerospace and automotive components.

2. Indexable Deep Hole Drills Halnn's indexable deep hole drills combine the flexibility of replaceable inserts with the strength and rigidity needed for deep drilling. These drills are ideal for cost-effective deep hole making, as they allow for quick insert changes without needing to replace the entire tool.

3. BTA Drilling Heads For large-diameter deep hole drilling, Halnn's BTA drilling heads are the solution of choice. They are designed to deliver high levels of accuracy, smooth surface finishes, and efficient chip removal.

With Halnn's BTA heads, you can achieve deep, large-diameter holes without sacrificing quality or performance.

Benefits of Using Halnn’s Deep Hole Drilling Tools 1. Precision and Accuracy Our tools are designed to maintain strict tolerances, ensuring accuracy and straightness throughout the drilling process. Whether you're machining aerospace parts or automotive components, Halnn's deep hole drilling tools ensure that your holes meet the required specifications.

2. Long Tool Life Halnn's solid carbide and indexable tools are built to withstand the high pressures, temperatures,

and wear associated with deep hole making. This results in longer tool life, reducing the frequency of tool changes and improving operational efficiency.

3. Efficient Chip Removal Our tools are engineered to manage chip evacuation effectively, reducing the risk of clogging and ensuring smooth, uninterrupted drilling even at extended depths.

4. Cost-Effective Solutions Halnn offers a range of tools that not only provide superior performance but also optimize cost-effectiveness. Our indexable drills, for example, allow for easy insert changes, reducing downtime and material waste.

Why Choose Halnn for Deep Hole Drilling?

Halnn is committed to providing cutting-edge deep hole drilling tools designed to meet the highest standards of precision and performance. With our extensive expertise in solid carbide tools, indexable drills, and BTA drilling heads, we can help you overcome the challenges of deep hole making in various materials and industries.

Our engineering team works closely with clients to develop customized solutions tailored to their specific needs. Whether you're drilling deep holes in difficult-to-machine alloys or require specialized tooling for complex applications, Halnn has the expertise and products to help you achieve your production goals.

Conclusion When it comes to drilling for deep hole making, precision, efficiency, and durability are paramount. Halnn's advanced deep hole drilling tools deliver on all fronts, ensuring you can produce high-quality components with minimal downtime and maximum accuracy. By choosing Halnn, you're investing in reliable, high-performance tools designed to meet the demands of modern manufacturing.
