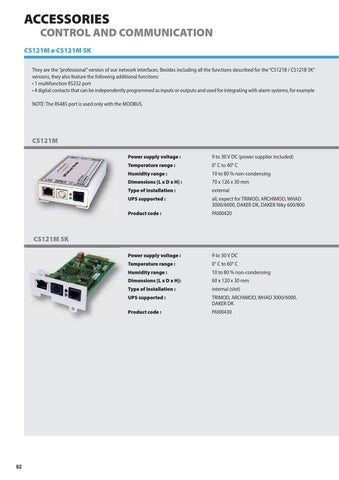

ACCESSORIES CONTROL AND COMMUNICATION CS121M e CS121M SK They are the “professional” version of our network interfaces. Besides including all the functions described for the “CS121B / CS121B SK” versions, they also feature the following additional functions: • 1 multifunction RS232 port • 4 digital contacts that can be independently programmed as inputs or outputs and used for integrating with alarm systems, for example NOTE: The RS485 port is used only with the MODBUS.
CS121M Power supply voltage :
9 to 30 V DC (power supplier included)
Temperature range :
0° C to 40° C
Humidity range :
10 to 80 % non-condensing
Dimensions [L x D x H] :
70 x 126 x 30 mm
Type of installation :
external
UPS supported :
all, expect for TRIMOD, ARCHIMOD, WHAD 3000/6000, DAKER DK, DAKER Niky 600/800
Product code :
PAI00420
Power supply voltage :
9 to 30 V DC
Temperature range :
0° C to 60° C
Humidity range :
10 to 80 % non-condensing
Dimensions [L x D x H]:
60 x 120 x 30 mm
Type of installation :
internal (slot)
UPS supported :
TRIMOD, ARCHIMOD, WHAD 3000/6000, DAKER DK
Product code :
PAI00430
CS121M SK
82
