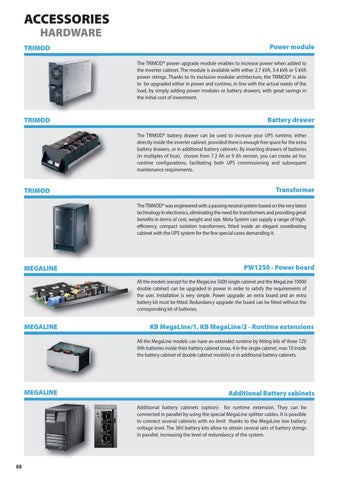

ACCESSORIES HARDWARE TRIMOD
Power module The TRIMOD速 power upgrade module enables to increase power when added to the inverter cabinet. The module is available with either 2.7 kVA, 3.4 kVA or 5 kVA power ratings. Thanks to its exclusive modular architecture, the TRIMOD速 is able to be upgraded either in power and runtime, in line with the actual needs of the load, by simply adding power modules or battery drawers, with great savings in the initial cost of investment.
TRIMOD
Battery drawer The TRIMOD速 battery drawer can be used to increase your UPS runtime, either directly inside the inverter cabinet, provided there is enough free space for the extra battery drawers, or in additional battery cabinets. By inserting drawers of batteries (in multiples of four), chosen from 7.2 Ah or 9 Ah version, you can create ad hoc runtime configurations, facilitating both UPS commissioning and subsequent maintenance requirements.
TRIMOD
Transformer The TRIMOD速 was engineered with a passing neutral system based on the very latest technology in electronics, eliminating the need for transformers and providing great benefits in terms of cost, weight and size. Meta System can supply a range of highefficiency, compact isolation transformers, fitted inside an elegant coordinating cabinet with the UPS system for the few special cases demanding it.
MEGALINE
PW1250 - Power board All the models (except for the MegaLine 5000 single cabinet and the MegaLine 10000 double cabinet) can be upgraded in power in order to satisfy the requirements of the user. Installation is very simple. Power upgrade: an extra board and an extra battery kit must be fitted. Redundancy upgrade: the board can be fitted without the corresponding kit of batteries.
MEGALINE
KB MegaLine/1, KB MegaLine/2 - Runtime extensions All the MegaLine models can have an extended runtime by fitting kits of three 12V 9Ah batteries inside their battery cabinet (max. 4 in the single cabinet, max 10 inside the battery cabinet of double cabinet models) or in additional battery cabinets.
MEGALINE
Additional Battery cabinets Additional battery cabinets (option) for runtime extension. They can be connected in parallel by using the special MegaLine splitter cables. It is possible to connect several cabinets with no limit thanks to the MegaLine low battery voltage level. The 36V battery kits allow to obtain several sets of battery strings in parallel, increasing the level of redundancy of the system.
68
