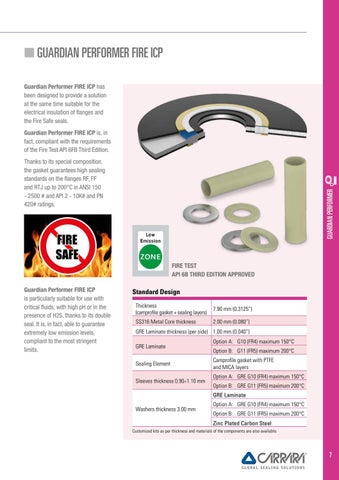

■ GUARDIAN PERFORMER FIRE ICP Guardian Performer FIRE ICP has been designed to provide a solution at the same time suitable for the electrical insulation of flanges and the Fire Safe seals. Guardian Performer FIRE ICP is, in fact, compliant with the requirements of the Fire Test API 6FB Third Edition.
GUARDIAN PERFORMER
Thanks to its special composition, the gasket guarantees high sealing standards on the flanges RF, FF and RTJ up to 200°C in ANSI 150 - 2500 # and API 2 - 10K# and PN 420# ratings.
FIRE SAFE Guardian Performer FIRE ICP is particularly suitable for use with critical fluids, with high pH or in the presence of H2S. thanks to its double seal. It is, in fact, able to guarantee extremely low emission levels, compliant to the most stringent limits.
FIRE TEST API 6B THIRD EDITION APPROVED
Standard Design Thickness (camprofile gasket + sealing layers)
7.90 mm (0.3125”)
SS316 Metal Core thickness
2.00 mm (0.080”)
GRE Laminate thickness (per side) 1.00 mm (0.040”) GRE Laminate Sealing Element Sleeves thickness 0.90÷1.10 mm
Option A: G10 (FR4) maximum 150°C Option B: G11 (FR5) maximum 200°C Camprofile gasket with PTFE and MICA layers Option A: GRE G10 (FR4) maximum 150°C Option B: GRE G11 (FR5) maximum 200°C GRE Laminate
Washers thickness 3.00 mm
Option A: GRE G10 (FR4) maximum 150°C Option B: GRE G11 (FR5) maximum 200°C Zinc Plated Carbon Steel
Customized kits as per thickness and materials of the components are also available.
