Engine - Engine and crankcase

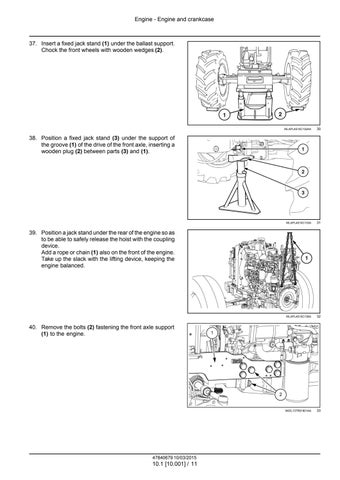

37. Insert a fixed jack stand (1) under the ballast support. Chock the front wheels with wooden wedges (2).
WLAPL4S10C132AA
30
WLAPL4S10C133A
31
WLAPL4S10C136A
32
MOIL13TR01801AA
33
38. Position a fixed jack stand (3) under the support of the groove (1) of the drive of the front axle, inserting a wooden plug (2) between parts (3) and (1).
39. Position a jack stand under the rear of the engine so as to be able to safely release the hoist with the coupling device. Add a rope or chain (1) also on the front of the engine. Take up the slack with the lifting device, keeping the engine balanced.
40. Remove the bolts (2) fastening the front axle support (1) to the engine.
47840679 10/03/2015
10.1 [10.001] / 11
