SERVICING
[2] DISASSEMBLING AND ASSEMBLING
• Before proceding this section, disassembling the loader assembling and backhoe . (Refer to section 8 and -›
(1) Separating Engine

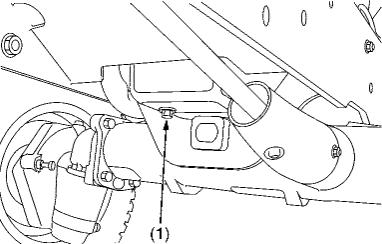

Draining Engine Oil
1. Start and warm up the engine for approx. 5 minutes.
2. Place an oil pan underneath the engine.
3. Remove the drain plug (1) to drain oil.
4. After draining, screw in the drain plug (1).
(When refilling)
• Fill the engine oil up to the upper line on the dipstick (3).
■ IMPORTANT
• Never mix two different type of oil.
• Use the proper SAE Engine Oil according to ambient temperature. Refer to “LUBRICANTS, FUEL AND COOLANT” (See page G-7). Engine oil
(1) Drain Plug (2) Oil Inlet (3) Dipstick
Battery Cables and Battery
CAUTION
(A) Oil level isacceptable wioiin this range
W1023464
• When disconnecting the battery cables, disconnect the negative cable from the battery first. When connecting, connect the positive cable to the battery first.
1. Remove the under panel.
2. Disconnect the negative cable (2) from the battery (1).
3. Disconnect the positive cable (3) from the battery (1) and remove the battery (1).
(1) Battery (2) Negative cable
(3) Positive Cable
W1045B93
Bonnet and Under Cover
1. Remove the front guard (1).
2. Open the bonnet (2), and then loosen the knob bolts and pull forward to remove the under cover (3).
3. Disconnect the connectors (4) for head light and remove the bonnet bracket (5) with bonnet.
(1) Front Guard (4) Connector (2) Bonnet (S) Bonnet Bracket (3) Under Cover
W1032046
3TAAAAGLP015B
3TAAAAG6P003A
3TAAAAG1 P.0”02A

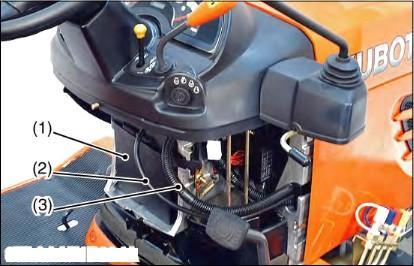

Accelerator Wire, Bonnet Post, Fuel Hoses, Wiring Harness and Others
1. Disconnect the wiring harness (3) from coolant temperature switch, stop solenoid, glow plug, starter motor, engine oil switch, alternator and ground cable.
2. Disconnect the accelerator wire (2).
3. Remove the bonnet post (1).
(1) Bonnet Post (2) Accelerator Wire (3) Wiring Harness
W1023496
