INTRODUCTION AND CUSTOMER INFORMATION

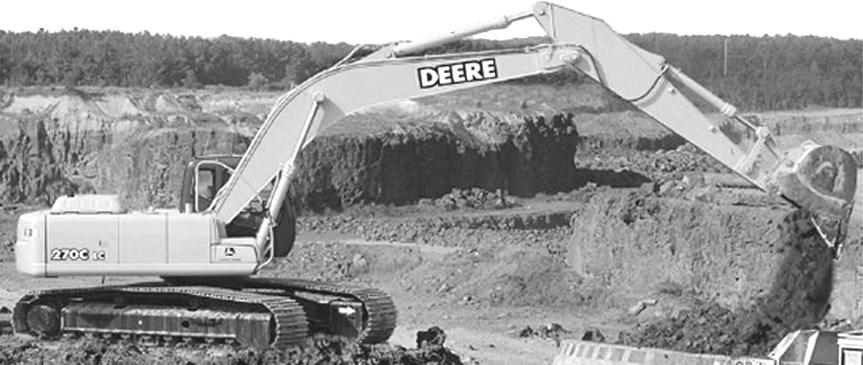

LEFT-HAND SIDE VIEW OF JOHN DEERE 270C LC EXCAVATOR (MANUFACTURED 2002- )
TO THE CUSTOMER
THE PART NUMBERS IN THIS PARTS CATALOG WERE CORRECT AT THE TIME YOUR CATALOG WAS PUBLISHED. IT IS OUR POLICY TO CONSTANTLY IMPROVE OUR MACHINES AND, THEREFORE, PART NUMBERS MAY CHANGE. WHEN ORDERING PARTS, VERIFY PART NUMBERS THROUGH YOUR DEALER.
SERIAL NUMBER LOCATIONS
EACH 270C LC EXCAVATOR HAS SEVEN SERIAL NUMBER PLATES: A PRODUCT IDENTIFICATION NUMBER PLATE, AN ENGINE SERIAL NUMBER PLATE, A HYDRAULIC PUMP
SERIAL NUMBER PLATE, A LEFT-HAND PROPEL MOTOR SERIAL NUMBER PLATE, A RIGHT-HAND PROPEL MOTOR SERIAL NUMBER PLATE, A SWING MOTOR SERIAL NUMBER PLATE AND A CONTROL VALVE SERIAL NUMBER PLATE. THE PRODUCT IDENTIFICATION PLATE IS LOCATED ON THE RIGHT-HAND SIDE FRAME NEAR THE FRONT SUPPORT.
THE ENGINE SERIAL NUMBER PLATE IS LOCATED ON THE RIGHT SIDE OF THE CYLINDER BLOCK NEAR THE FUEL PUMP.
THE HYDRAULIC PUMP SERIAL NUMBER PLATE IS LOCATED NEAR THE FRONT OF THE HYDRAULIC PUMP. THE SWING MOTOR SERIAL NUMBER PLATE IS LOCATED ON THE TOP OF THE SWING MOTOR. THE PROPEL MOTOR SERIAL NUMBER PLATE IS LOCATED ON THE REAR OF THE PROPEL MOTOR. THE CONTROL VALVE SERIAL NUMBER PLATE IS LOCATED ON THE UPPER LEFT-HAND SIDE OF THE CONTROL VALVE.
LEFT SIDE, RIGHT SIDE, FRONT AND REAR OF THE EXCAVATOR ARE VIEWED BY FACING IN THE DIRECTION OF THE EXCAVATOR FORWARD TRAVEL.
IF PRODUCT IDENTIFICATION NUMBERS OR SERIAL NUMBERS ARE REQUIRED FOR WARRANTY CLAIMS OR CORRESPONDENSE PERTAINING TO THIS PRODUCT. IT IS EXTREMELY IMPORTANT THAT ALL CHARACTERS BE FURNISHED. THIS POINT CANNOT BE OVEREMPHASIZED.
PRODUCT IDENTIFICATION NUMBER
TP16492 -UN-01JAN94 1. DESIGNATES EXCAVATOR MANUFACTURER
ENGINE SERIAL NUMBER
1. DESIGNATES ENGINE MANUFACTURER T-JOHN DEERE DUBUQUE WORKS
2. DESIGNATES NUMBER OF CYLINDERS AND CUBIC6068 (6.8 LITER) INCH DISPLACEMENT.
3. DESIGNATES FUEL TYPE OR SPECIAL CONDITIONT-TURBOCHARGED DIESEL
4. DESIGNATES ENGINE SERIAL NUMBER 123456
5. DESIGNATES THE ENGINE APPLICATION AND PE6068HT055 FACTORY USER.
SERIAL NUMBER LISTING INFORMATION
SERIAL NUMBER INFORMATION IS LISTED TO SHOW ON WHICH MACHINES EACH PART CAN BE USED; FOR EXAMPLE:
- THE PART CAN BE USED ON ALL MACHINES.
000000- THE PART CAN BE USED ON ALL MACHINES BEGINNING WITH THE SERIAL NUMBER LISTED. -000000 THE PART CAN BE USED ON ALL MACHINES UP TO AND INCLUDING THE SERIAL NUMBER LISTED.
000000-000000 THE PART CAN BE USED ON ALL MACHINES BETWEEN AND INCLUDING THE SERIAL NUMBERS LISTED.
WHEN XXXXXX’S ARE LISTED IN PLACE OF A SERIAL NUMBER, A SERIAL NUMBER CHANGE WAS MADE BUT THE EXACT SERIAL NUMBER WAS NOT AVAILABLE WHEN THE CATALOG WAS PRODUCED.
DIRECTION ARROW
ARROWS ARE USED WITH ILLUSTRATIONS TO INDICATE THE FRONT OF THE UNIT. "RIGHT-HAND" AND "LEFTHAND" SIDES ARE DETERMINED BY FACING IN THE DIRECTION OF MACHINE FORWARD TRAVEL.
BOX-ENCLOSED ILLUSTRATIONS
A KEY NUMBER, SHOWN IN THE PARTS LIST, IS ASSIGNED TO A BOX ENCLOSING ALL PARTS SOLD AS A SERVICE ASSEMBLY.
COMPLETE GOODS LISTINGS
COMPLETE GOODS ARE LISTED IN BOLD FACE TYPE. ORDER SEPARATELY. DO NOT INCLUDE ON REPLACEMENT PARTS ORDER.
SI UNITS OF MEASURE
METRIC DIMENSIONS ARE GIVEN, WHERE APPLICABLE, THROUGHOUT THIS PARTS CATALOG.
CHANGE INDICATOR LINE
CHANGES AFFECTING THE ORDERING OF PARTS ARE IDENTIFIED BY VERTICAL LINES MARKED IN THE LEFTHAND MARGIN OF REVISED PARTS LISTING IMAGES. A LINE IS ALSO AT THE LEFT-HAND EDGE OF THE SAME PART NUMBER IN THE NUMERICAL INDEX TO SHOW THE LOCATION OF REVISED INFORMATION.
2D3
2D5 AIR
2D3
2D3
AND HEATER SWITCH 1830 - 3C 3F13 AUXILIARY MAIN HYDRAULIC PLUMBING
2D9 2D1 AIR CONDITIONER CONDENSER
3E11
3C5
BUCKET TOOTH ASSEMBLY (24, 30 OR 36 INCH BUCKET) 3302 - 28
BUCKET TOOTH ASSEMBLY, SEVERE DUTY PLATE LIP BUCKET 3302 - 32
BUCKET TOOTH ASSEMBLY, SEVERE DUTY CAST LIP (36 OR 42 INCH BUCKET) 3302 - 30
BUCKET TOOTH ASSEMBLY, 400 SERIES, HEAVY DUTY HIGH CAPACITY BUCKET 3302 - 26
BUCKET-TO-ARM PIN BUSHING, ONE-INCH HEAD THICKNESS, LONG FRONT DITCHING 3302 - 14
ALPHABETICAL INDEX - CONTINUED
GRID
3D16
2D7
3D6
3G23
3E23
3I15
(SERIAL NUMBER -XXXXXX)
- 44
3K3 CONTROL VALVE LINES TO OIL TANK (SERIAL NUMBER XXXXXX- ) 3363 - 45A
3K7
3J13
3J15 CONTROL VALVE LINES TO PILOT SIGNAL MANIFOLD
3K1 CONTROL VALVE LINES TO SOLENOID VALVE (SERIAL NUMBER -XXXXXX)
3K3 CONTROL VALVE LINES TO SOLENOID VALVE (SERIAL NUMBER XXXXXX- ) 3363 - 45A
3I23
1H12
3D8
3B11 3B13 2B16
CAB REAR WINDOW
ALPHABETICAL INDEX - CONTINUED
ARM AUXILIARY
2B10 GLASS, CAB WINDOW 1810 - 8 (FACTORY INSTALLED)
3D6 GRIP, CONTROL LEVER 3315 - 2 3K11 HOSE, ARM CYLINDER TO BOOM OIL LINE,
3D12 GRIP, PILOT SYSTEM CONTROL LEVER 3315 - 6
3D14 GRIP, PROPEL PILOT CONTROL LEVER 3315 - 8 3K13 HOSE, ARM CYLINDER TO BOOM OIL LINE,
2C15 GUARD KIT, VANDAL 1810 - 36 SUPER LONG FRONT
2B16 GUARD, CAB REAR WINDOW GLASS
1A24 GUARD, TRACK
2C15 GUARDS, WINDOW 1810 - 36 3F15 HOSE, BOOM AUXILIARY
(FACTORY INSTALLED)
3F21 HOSE, BOOM AUXILIARY LINE TO RETURN LINE (AUXILIARY HYDRAULIC OPTIONAL RETURN)
- 30
- 85A
2B8 HAMMER, ESCAPE
2F8 HARNESS, WIRE, MOTION ALARM
2D3 HEATER AND AIR CONDITIONER BLOWER MOTOR..1830- 3A 3F7 HOSE, FLOW REGULATOR TO SIGNAL MANIFOLD
2D5 HEATER AND AIR CONDITIONER BLOWER MOTOR..1830- 3C (AUXILIARY SOLENOID/FLOW
2D5 HEATER AND AIR CONDITIONER ELECTRIC CYLINDER,SUPER LONG FRONT 3363 - 51A 3K13 HOSE, FROM BOOM OIL LINE TO ARM MOTOR 1830 - 3C CYLINDER,SUPER LONG FRONT 3363 - 51C
2D3 HEATER AND AIR CONDITIONER RELAY 1830 - 3A 3F13 HOSE, FROM CONTROL VALVE
2D5 HEATER AND AIR CONDITIONER RELAY 1830 - 3C (FACTORY INSTALLED AUXILIARY PLUMBING) 3360 - 26
2D3 HEATER AND AIR CONDITIONER SWITCH 1830 - 3A 3D18 HOSE, FROM CONTROL VALVE TO PILOT SIGNAL
2D5 HEATER AND AIR CONDITIONER SWITCH 1830 - 3C MANIFOLD (FOOT CONTROL, PILOT SYSTEM) 3315 - 12
2D3
2D11 HEATER
GRID
3E23 HOSE, FROM PILOT SHUT-OFF VALVE TO
ALPHABETICAL INDEX - CONTINUED
3F7 HOSE, SHUT-OFF VALVE TO SOLENOID VALVE SOLENOID (PILOT SYSTEM) 3360- 10 (AUXILIARY SOLENOID/FLOW CONTROL)
3D18 HOSE, FROM PILOT SHUTOFF VALVE TO FOOT
3F21 HOSE, SHUTOFF VALVE TO RETURN LINE PEDAL CONTROL (PILOT SYSTEM) 3315- 12 (AUXILIARY HYDRAULIC OPTIONAL RETURN)
3D18 HOSE, FROM PILOT SIGNAL MANIFOLD TO
3J11 HOSE, SHUTTLE VALVE TO SWING MOTOR
3360 - 20
3360 - 85A
3363 - 30 CONTROL VALVE (FOOT CONTROL, PILOTSYS) 3315- 12
3F7 HOSE, SIGNAL MANIFOLD TO FLOW REGULATOR
3D18 HOSE, FROM PILOT SIGNAL MANIFOLD TO (AUXILIARY SOLENOID/FLOW CONTROL) 3360 - 20 FOOT PEDAL CONTROL (PILOT SYSTEM).............. 3315- 12
3E23 HOSE, SOLENOID TO HYDRAULIC RESERVOIR
3F3 HOSE, FROM PILOT SIGNAL MANIFOLD TO (PILOT SYSTEM)
3360 - 10 SOLENOID VALVE 3360 - 14 3E23 HOSE, SOLENOID TO PILOT SIGNAL MANIFOLD
3E23 HOSE, FROM SOLENOID TO PILOT SHUT-OFF (PILOT SYSTEM) 3360 - 10 VALVE (PILOT SYSTEM) 3360- 10 3K1 HOSE, SOLENOID VALVE TO CONTROL VALVE
3F3 HOSE, FROM SOLENOID VALVE TO PILOT (SERIAL NUMBER -XXXXXX) 3363 - 44 SIGNAL MANIFOLD 3360- 14 3K3 HOSE, SOLENOID VALVE TO CONTROL VALVE
1G13 HOSE, FROM TRANSFER PUMP TO FILTER 0560- 6 (SERIAL NUMBER XXXXXX- ) 3363 - 45A
1G13 HOSE, FROM TRANSFER PUMP TO FUEL COOLER..0560- 6 3J3 HOSE, SOLENOID VALVE TO HYDRAULIC PUMP 3363 - 24
1G13 HOSE, FUEL 0560- 6 3J3 HOSE, SOLENOID VALVE TO OIL TANK 3363 - 24
3J3 HOSE, HYDRAULIC PUMP TO OIL FILTER 3363- 24
3F7 HOSE, SOLENOID VALVE TO RESERVOIR
3J3 HOSE, HYDRAULIC PUMP TO SOLENOID VALVE 3363- 24 (AUXILIARY SOLENOID/FLOW CONTROL) 3360 - 20
3E23 HOSE, HYDRAULIC RESERVOIR TO SOLENOID 3F7 HOSE, SOLENOID VALVE TO SHUT-OFF VALVE (PILOT SYSTEM).......................................................... 3360 - 10 (AUXILIARY SOLENOID/FLOW CONTROL) 3360 - 20
3I23 HOSE, MAIN TO CONTROL VALVE, SUPER 3F7 HOSE, SOLENOID VALVE TO SIGNAL MANIFOLD LONG FRONT (BOOM HOSES).................................. 3363- 21A (AUXILIARY SOLENOID/FLOW CONTROL) 3360 - 20
3K5 HOSE, OIL FILTER TO CONTROL VALVE 3363- 46 3J11 HOSE, SWING MOTOR TO SHUTTLE VALVE 3363 - 30
3J3 HOSE, OIL FILTER TO HYDRAULIC PUMP 3363-24 2B8 HOSE, WINDSHIELD WASHER
3J5 HOSE, OIL FILTER TO HYDRAULIC PUMP 3363-26 2D7 HOSES, AIR CONDITIONER
3K5 HOSE, OIL TANK TO CONTROL VALVE 3363- 46 2D11 HOSES, HEATER
3K1 HOSE, OIL TANK TO CONTROL VALVE
- 6
- 4
-
3F5 HOSES, MECHANICAL PATTERN CHANGER 3360 - 15A (SERIAL NUMBER -XXXXXX)................................ 3363 - 44 3J21 HOSES, PILOT CONTROL VALVE, L.H., TO
3K3 HOSE, OIL TANK TO CONTROL VALVE PILOT SIGNAL MANIFOLD 3363 - 40 (SERIAL NUMBER XXXXXX- )................................ 3363 - 45A 3J23 HOSES, PILOT CONTROL VALVE, R.H., TO
3J3 HOSE, OIL TANK TO SOLENOID VALVE 3363- 24 PILOT SIGNAL MANIFOLD 3363 - 42
3J19 HOSE, PILOT SHUTOFF VALVE TO PROPEL 3J21 HOSES, PILOT SIGNAL MANIFOLD TO PILOT PILOT CONTROLLER VALVE 3363- 38
3F7 HOSE, PILOT SIG. MAN. TO CONTROL VALVE
3J23 HOSES, PILOT SIGNAL MANIFOLD TO PILOT (AUXILIARY SOLENOID/FLOW CONTROL) 3360- 20
VALVE, R.H. 3363 - 42
3F7 HOSE, PILOT SIG. MAN. TO SOLENOID VALVE
3J7 HOSES, PILOT(CONTROL VALVE TO ROTARY AND (AUXILIARY SOLENOID/FLOW CONTROL) 3360 - 20 SIGNAL MANIFOLD (SERIAL NO. -071103) 3363-28
3J5 HOSE, PILOT SIGNAL MANIFOLD TO 3J9 HOSES, PILOT(CONTROL VALVE TO ROTARY AND HYDRAULIC PUMP 3363 - 26 SIGNAL MANIFOLD (SERIAL NO. 071104- )
3J13 HOSE, PILOT SIGNAL MANIFOLD TO CONTROL 3H13 HOUSING AND GASKETS, PILOT SIGNAL VALVE
- 32
3J15
